Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

15 part groups · 6 illustrations

Illustrations

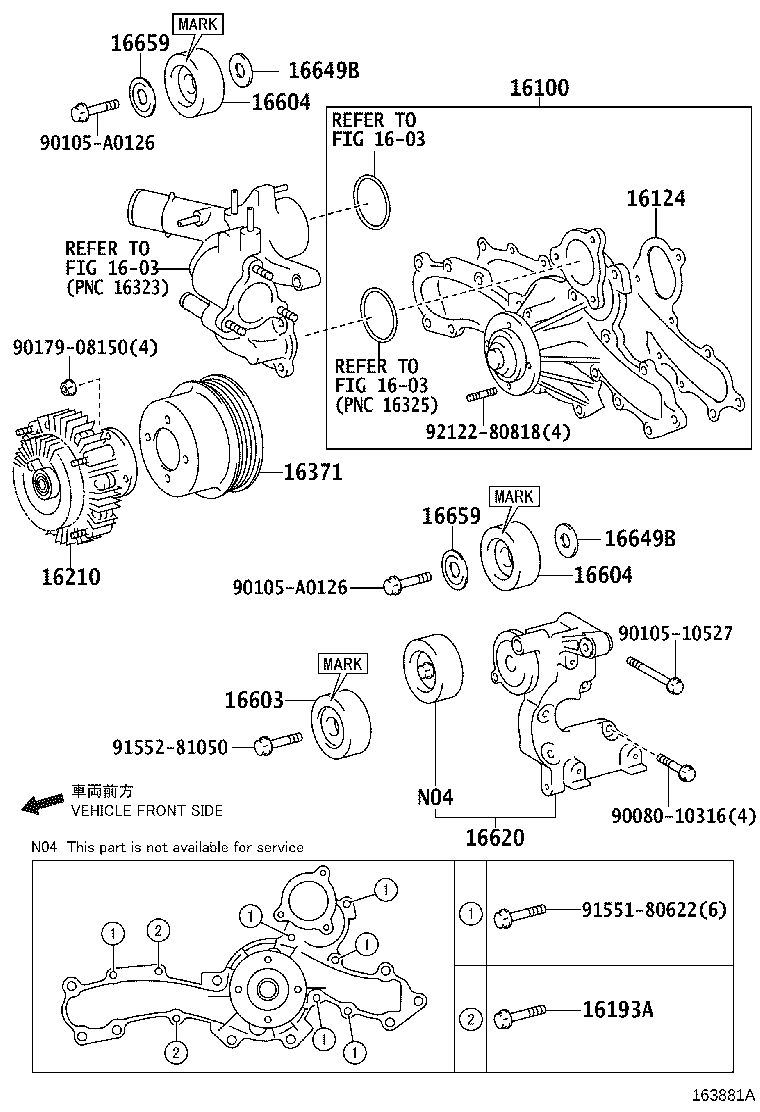

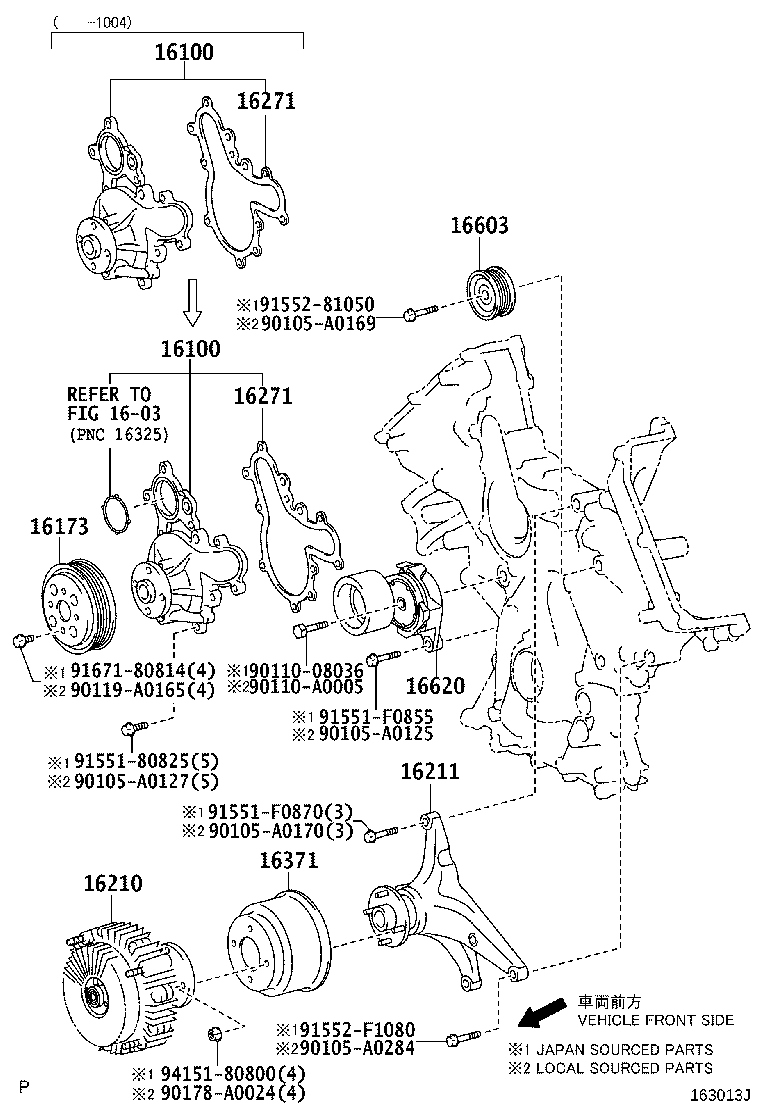

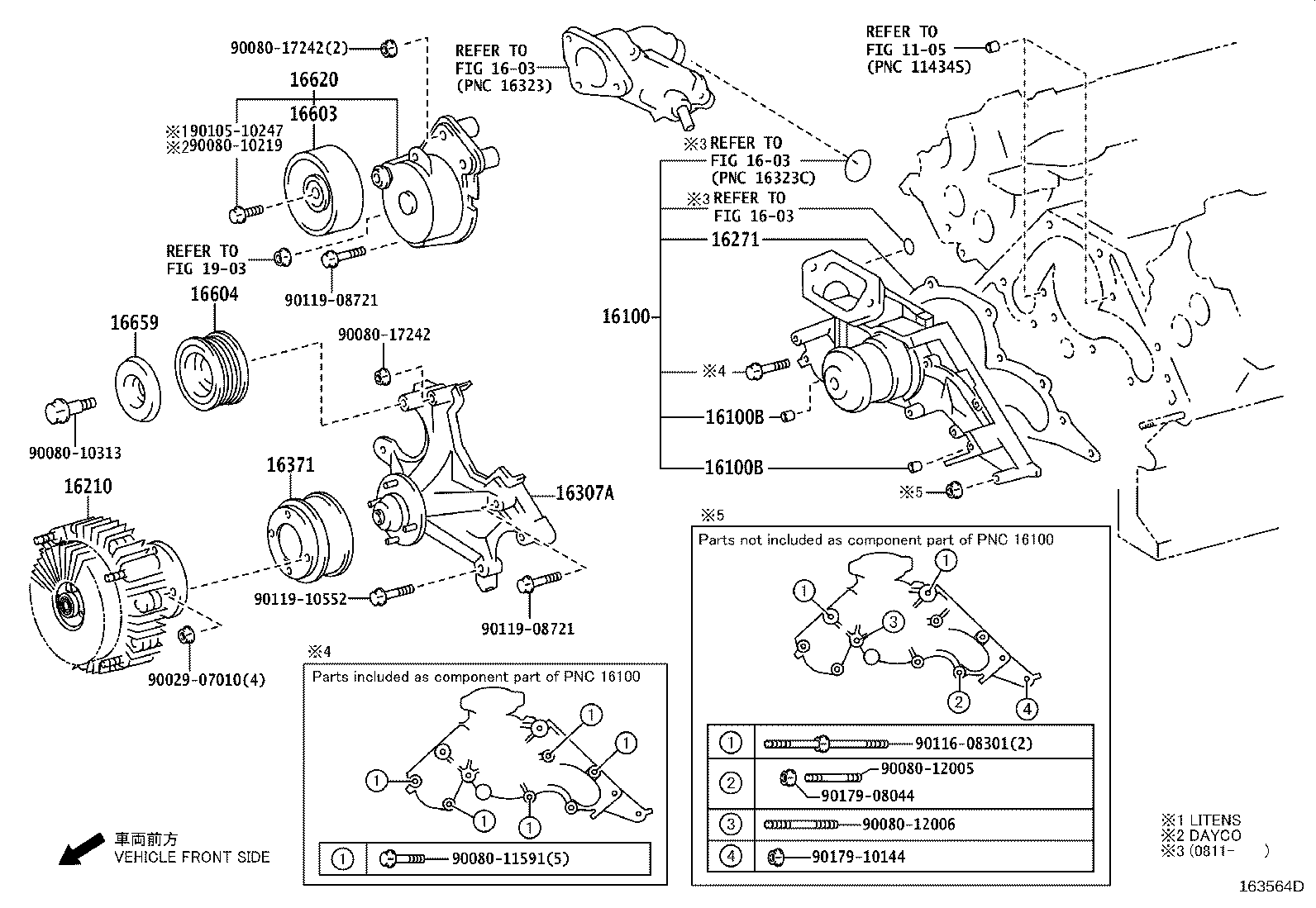

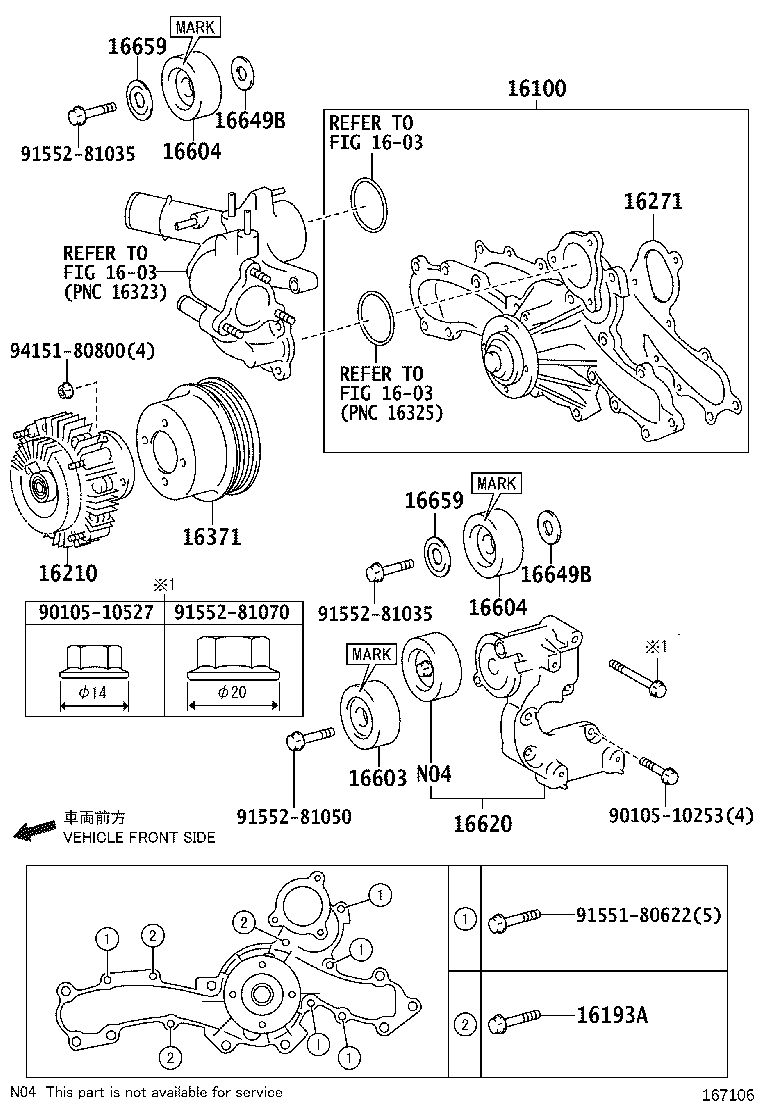

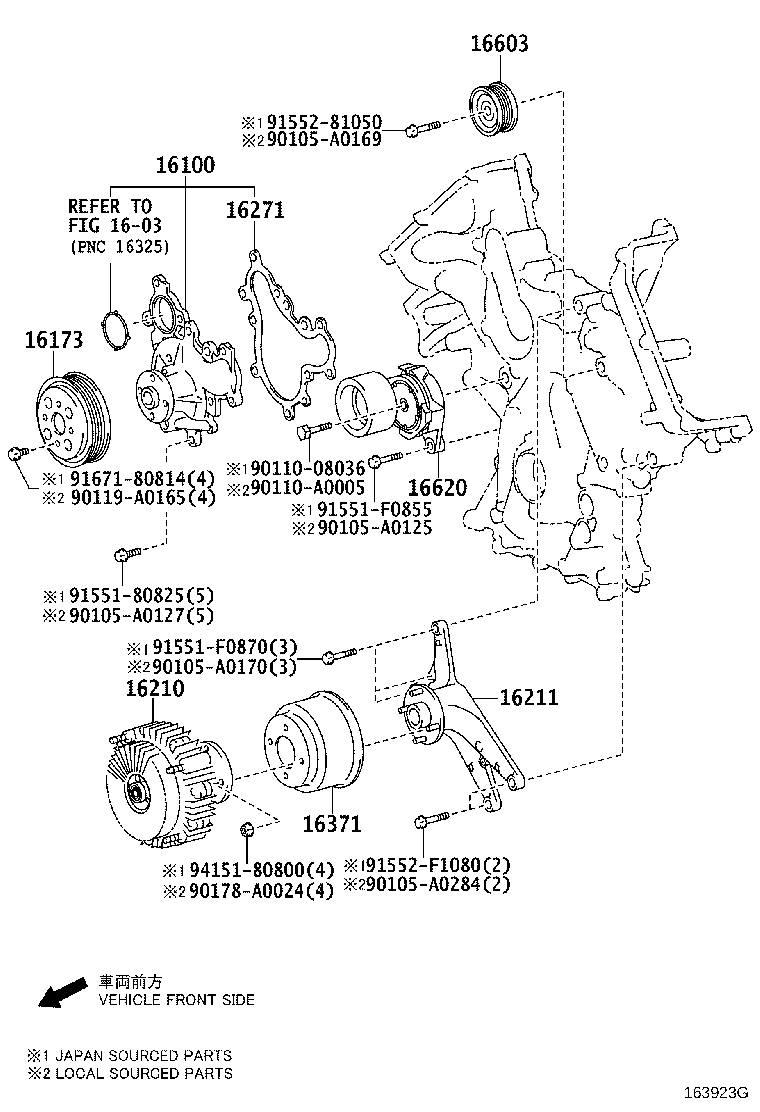

Figure 163882A 163882A 2006-11 → 2009-01 Figure 163881A 163881A 2009-01 → 2010-10 Figure 167106 167106 2010-10 → — Figure 163564D 163564D 2006-11 → 2009-04 Figure 163013J 163013J 2007-01 → — Figure 163923G 163923G 2009-04 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100B Pin, Ring(FOR WATER PUMP SET)
16124 Gasket, Water Pump Cover
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16210 Coupling Assy, Fluid
16211 Bracket, Fluid Coupling
16271 Gasket, Water Pump
16307A Bracket Sub-assy, Fan
16371 Pulley, Fan
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
