Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

84 part groups · 14 illustrations

Illustrations

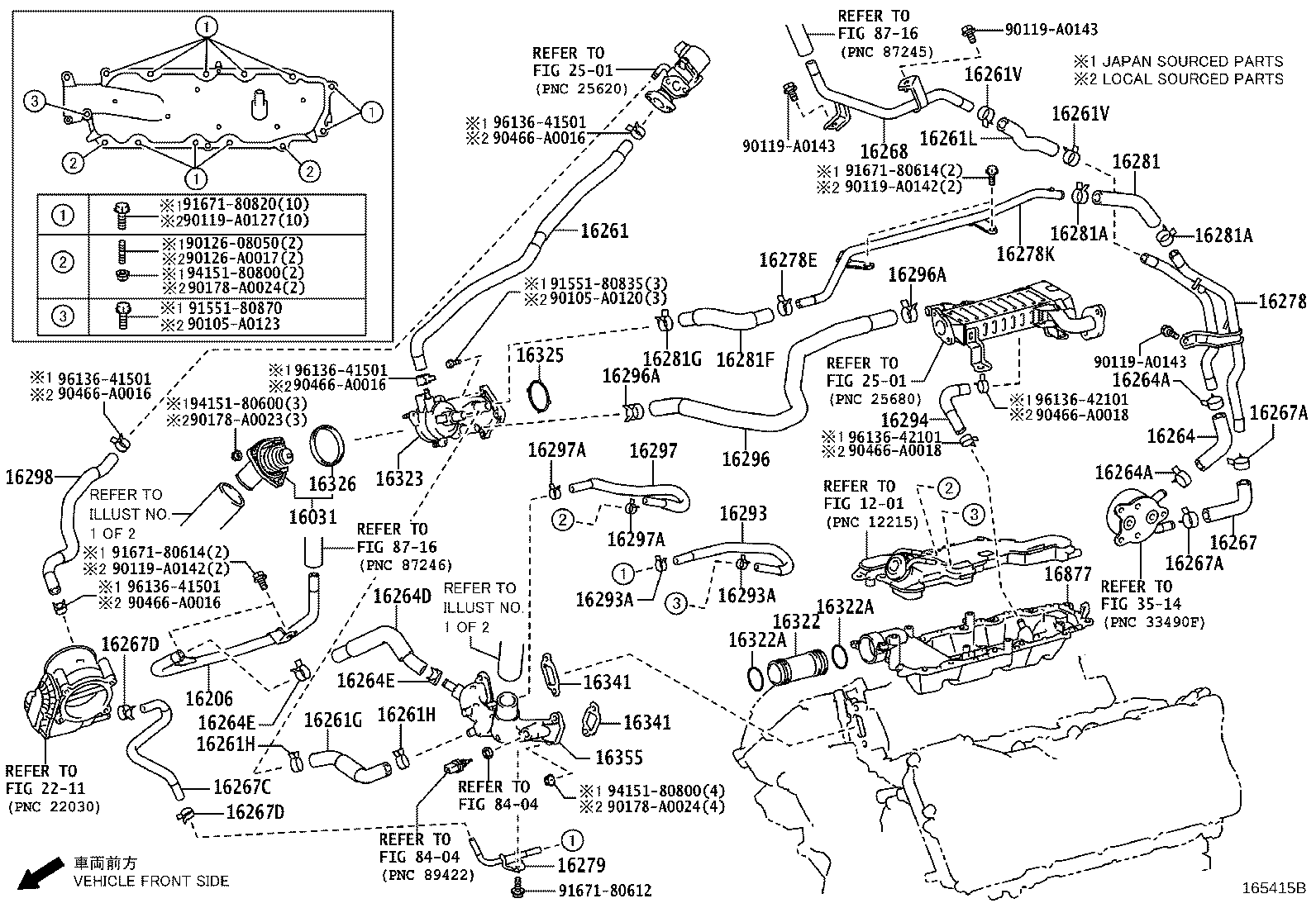

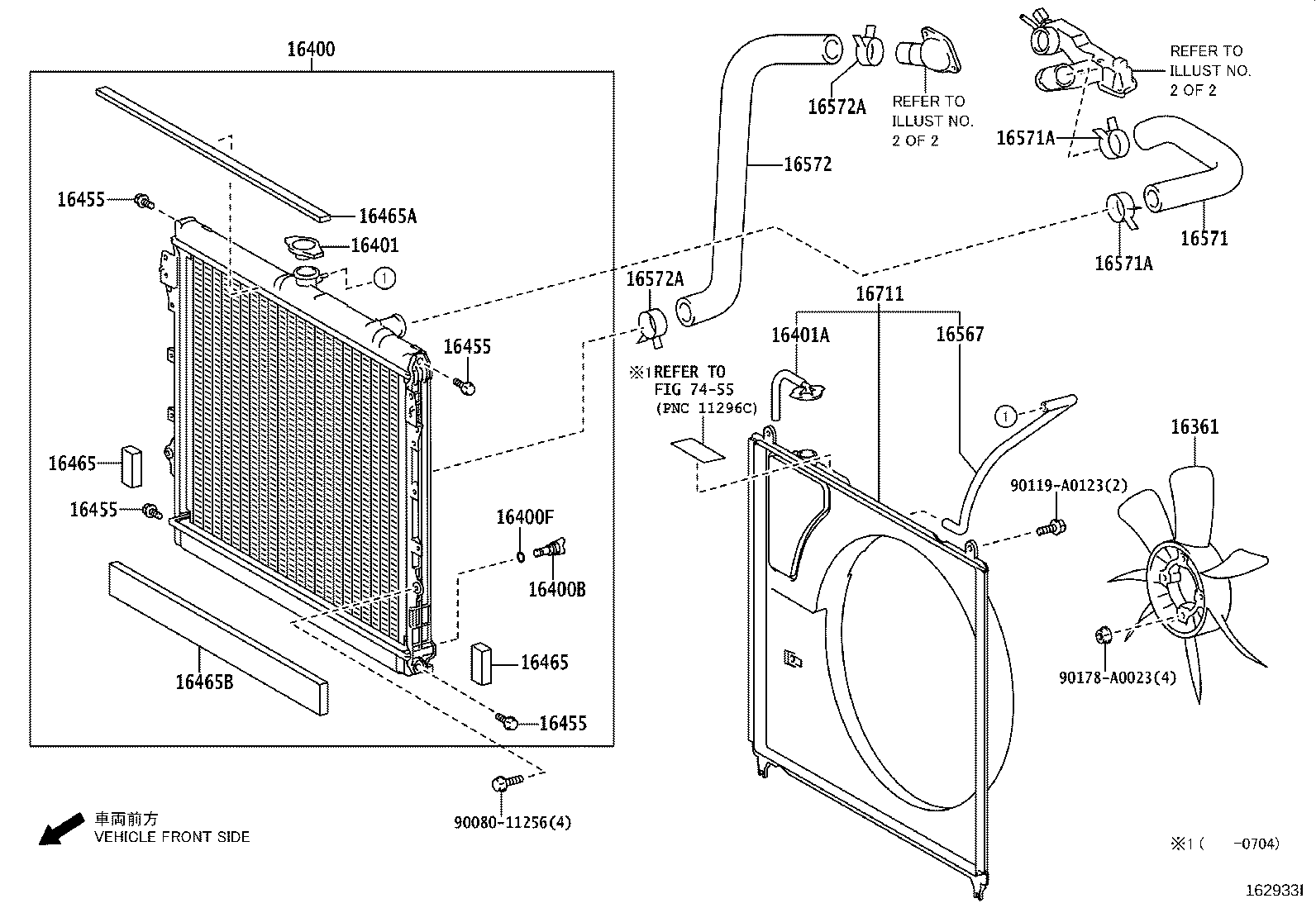

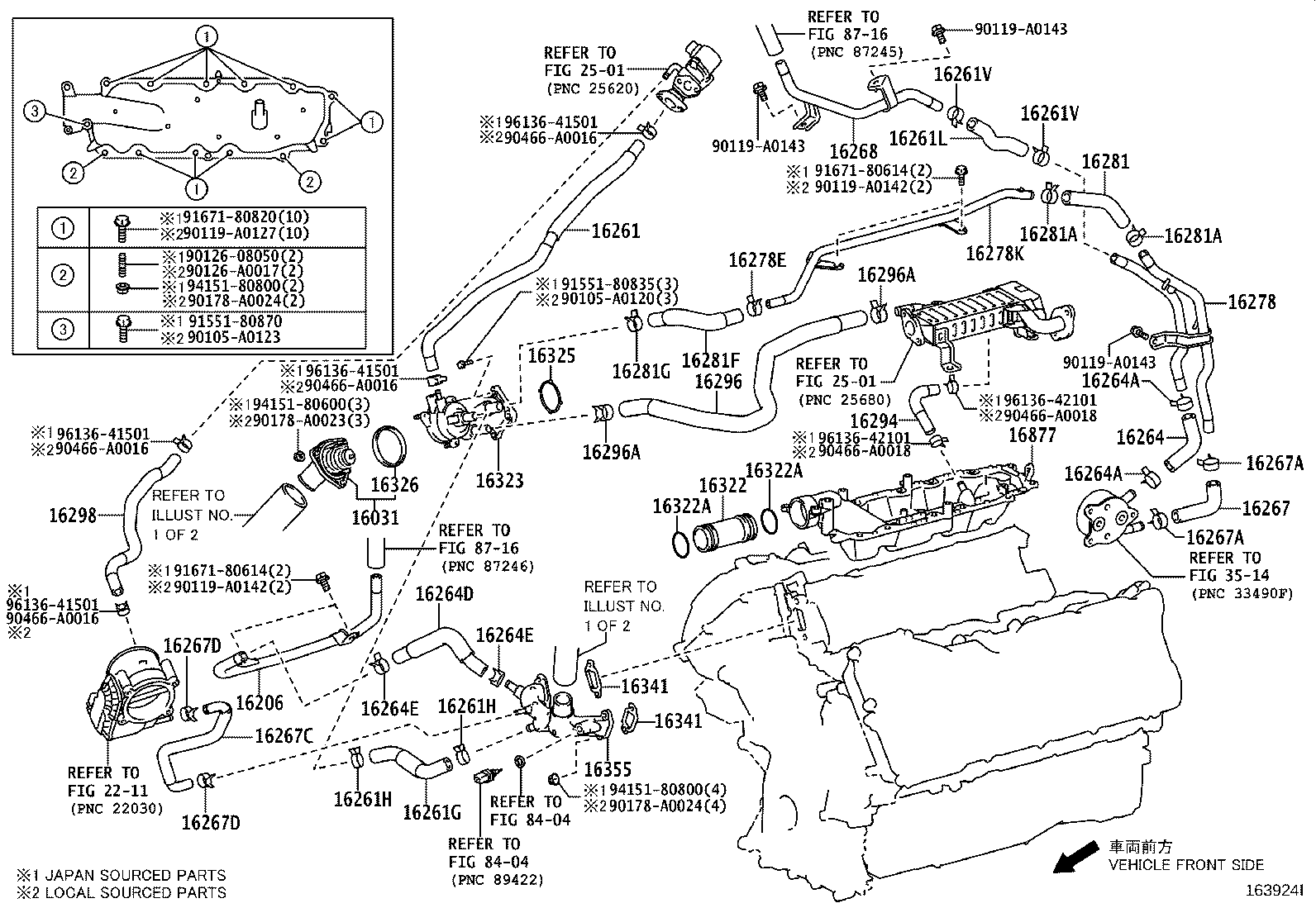

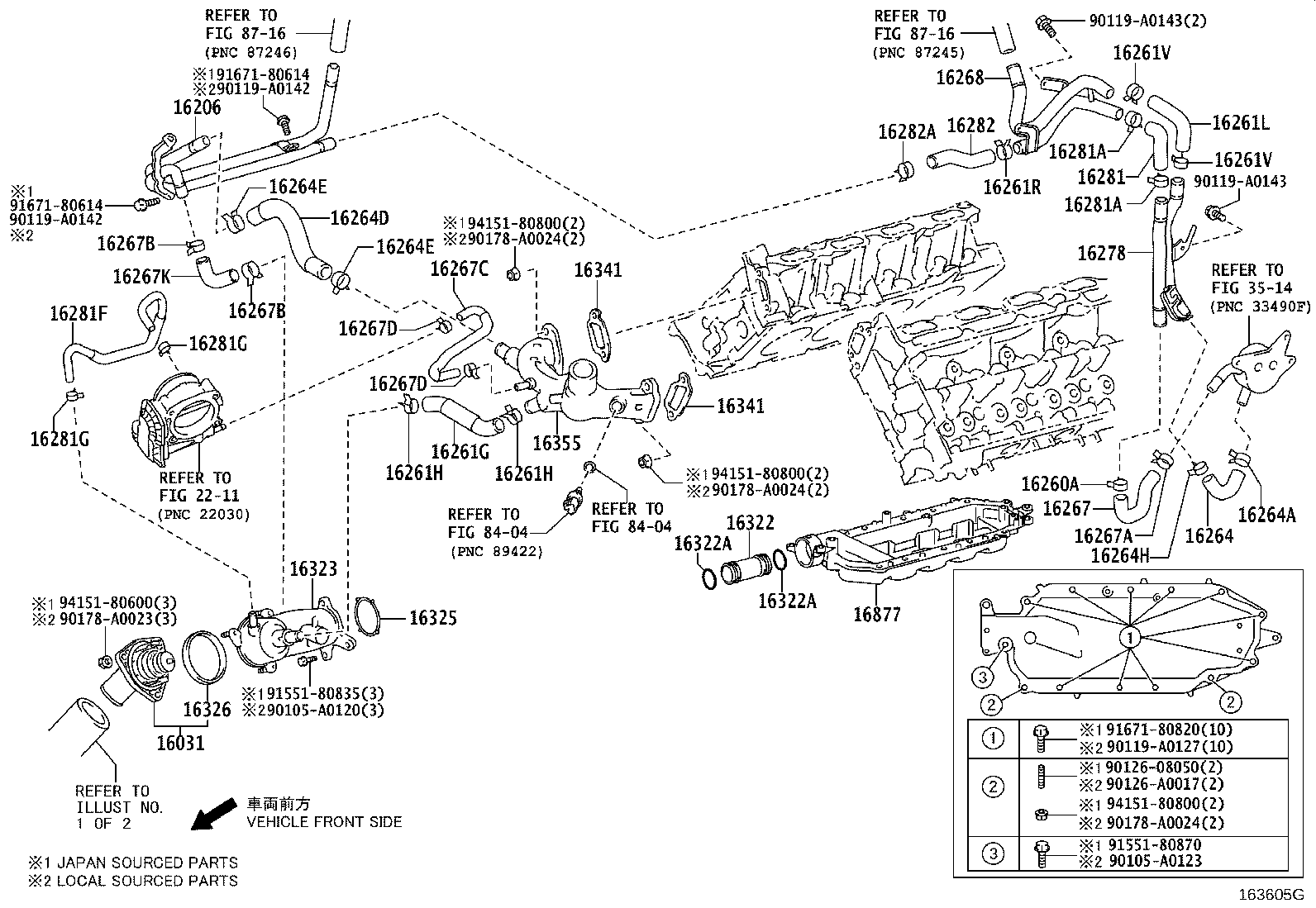

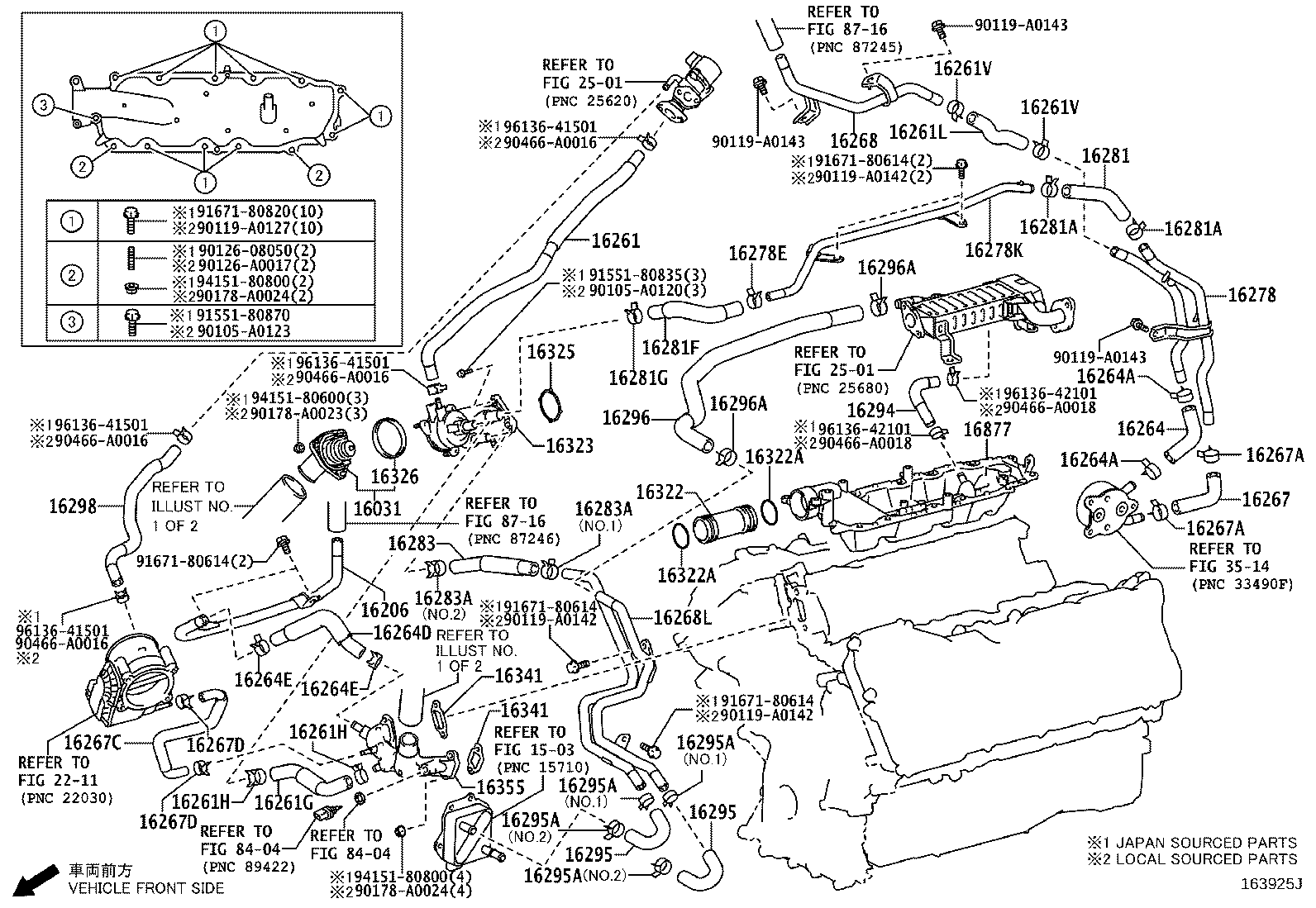

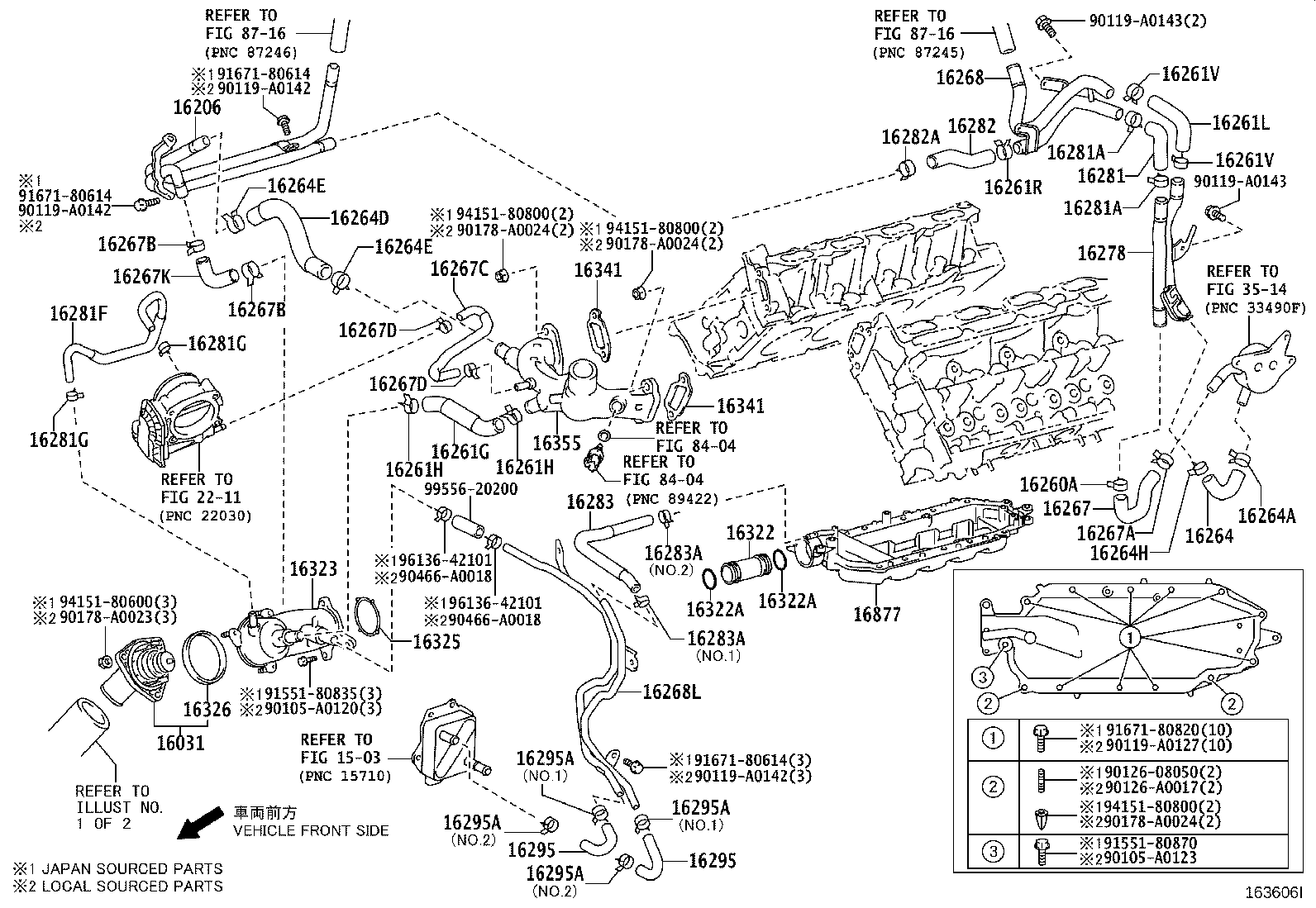

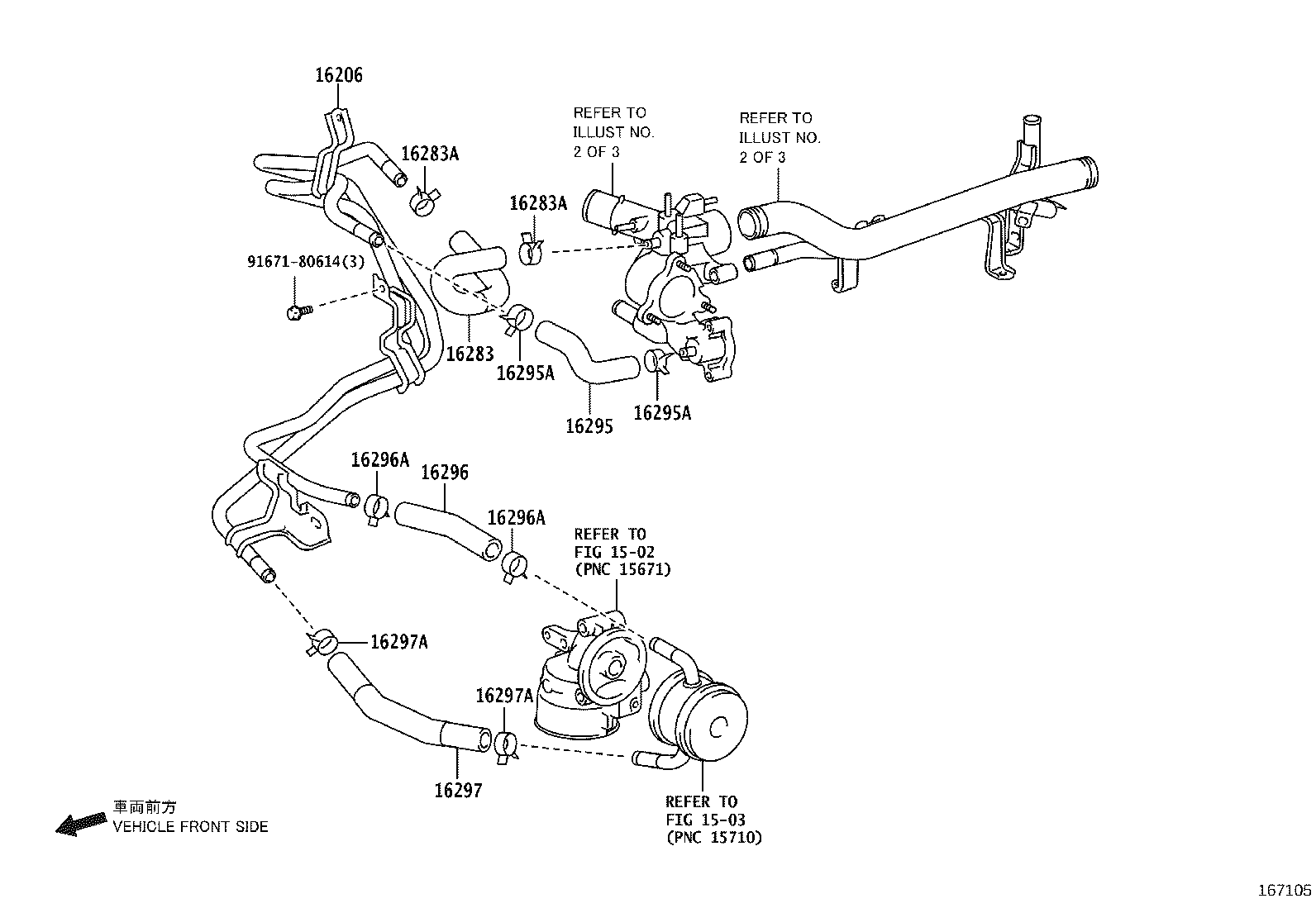

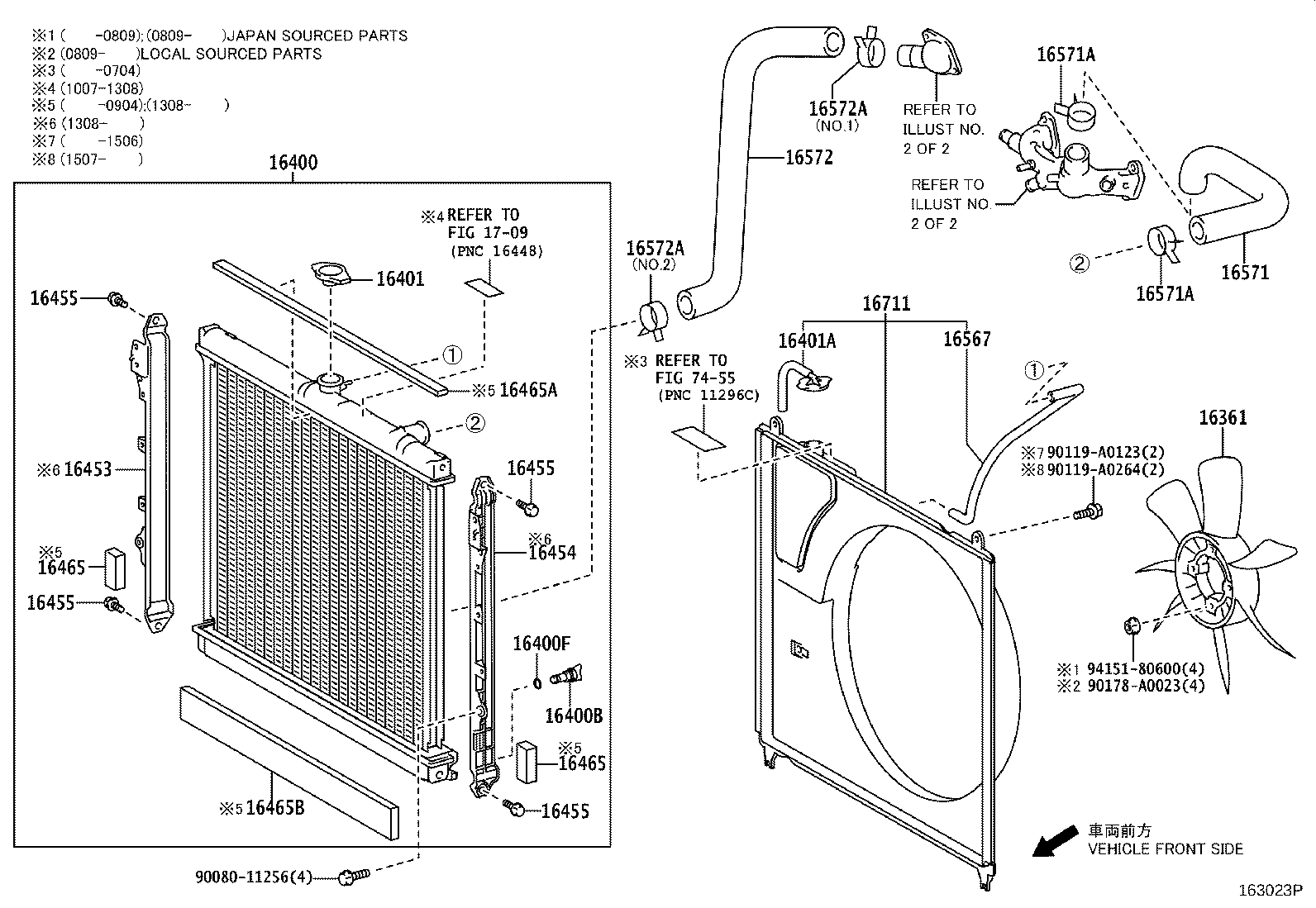

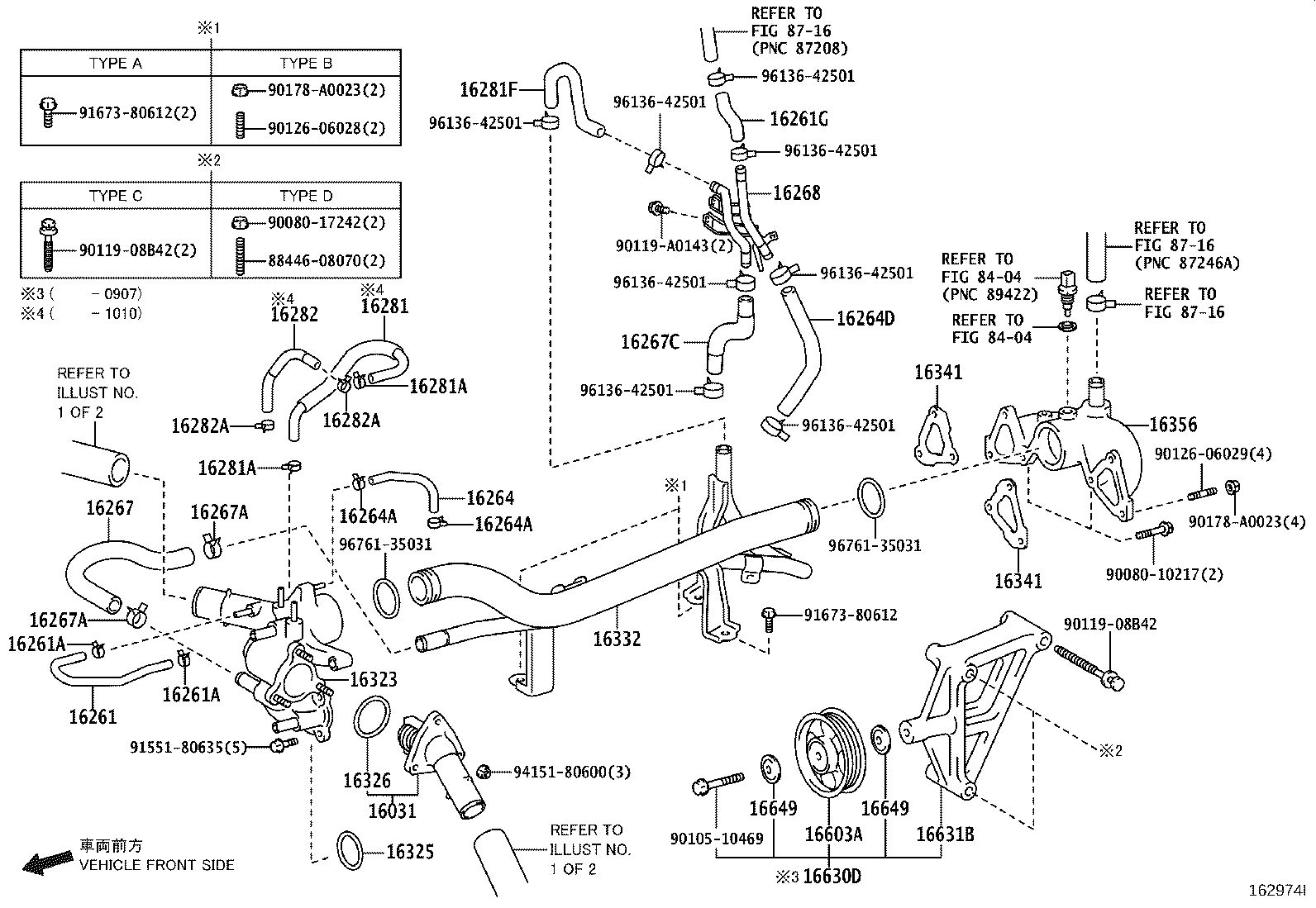

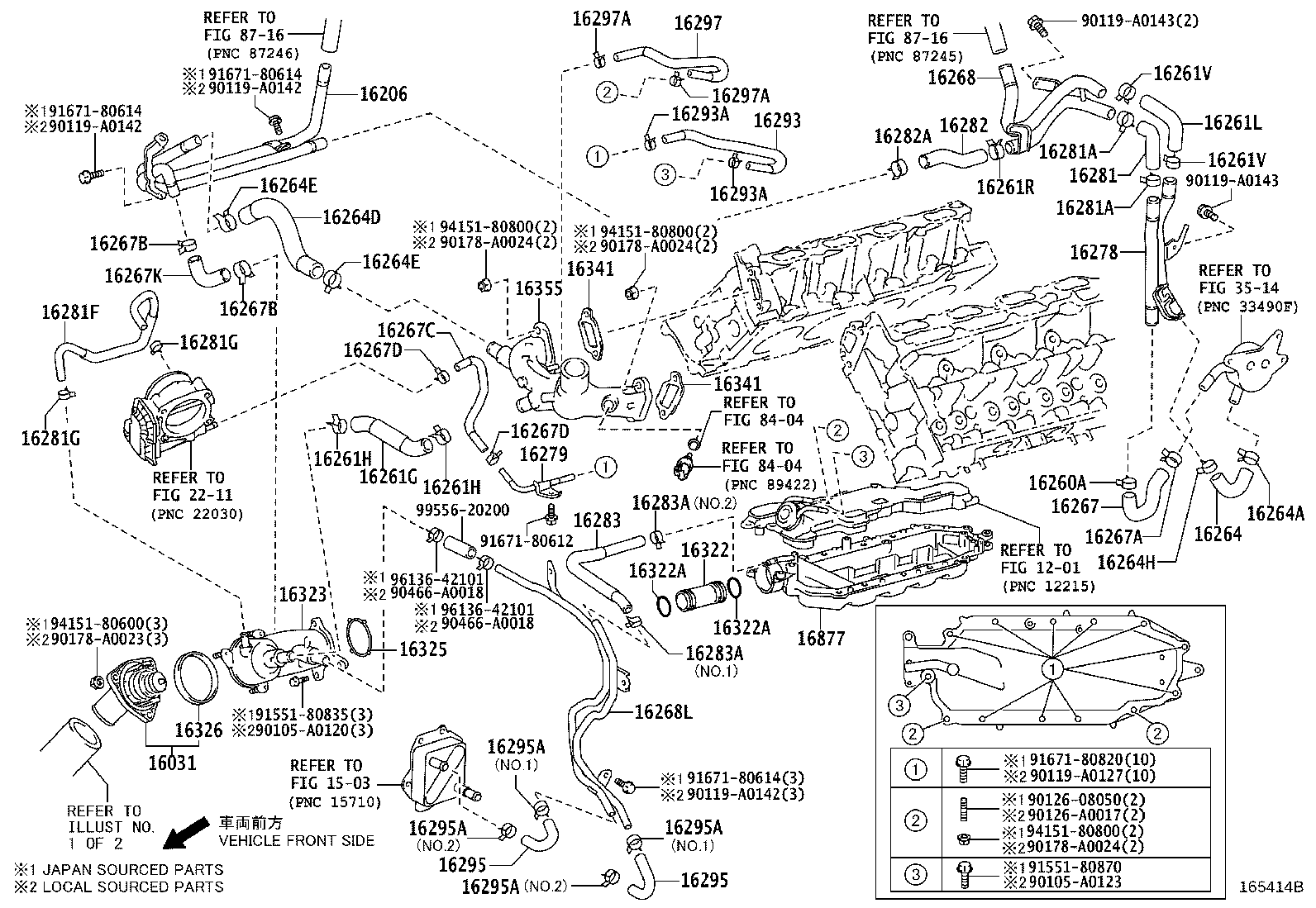

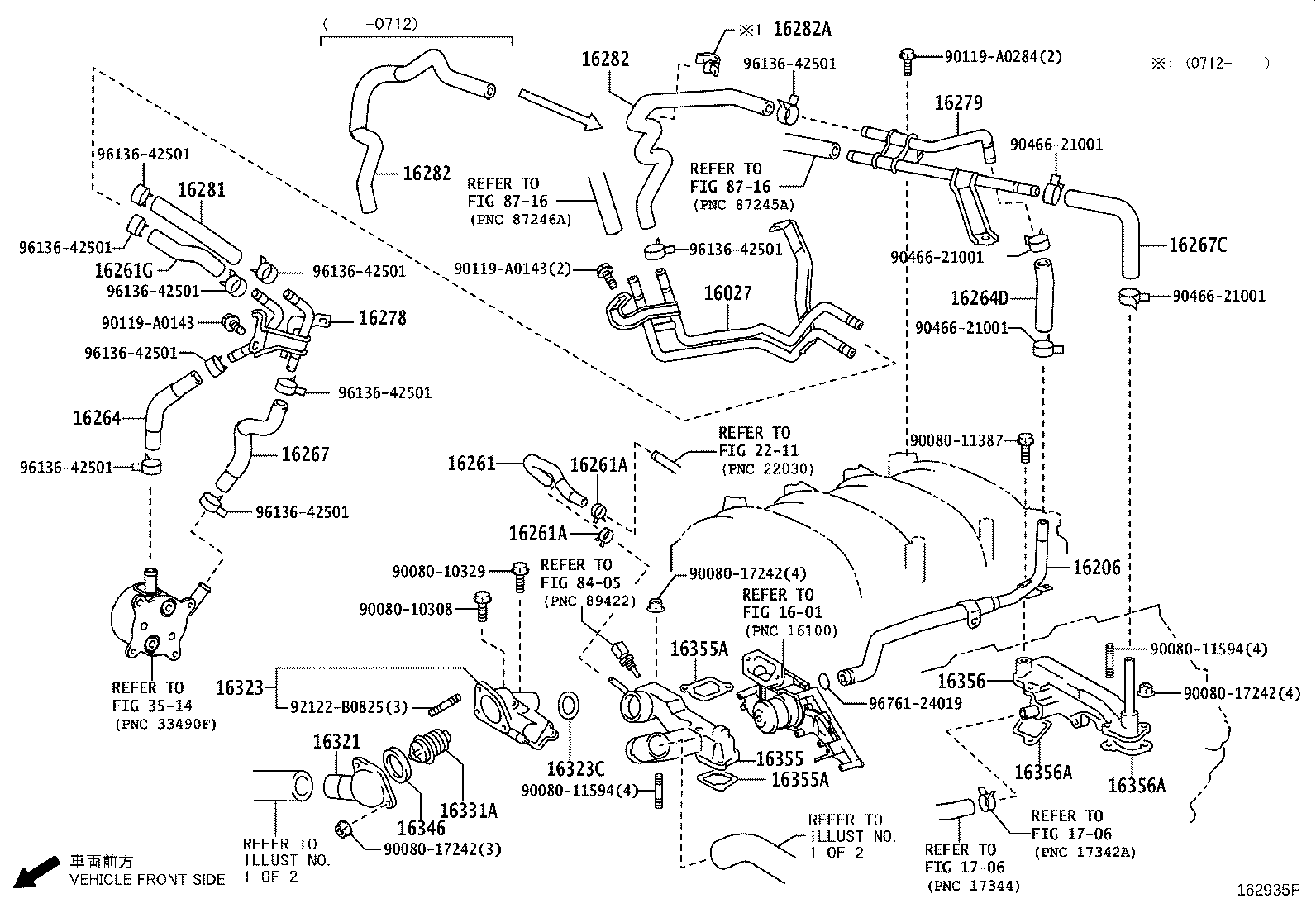

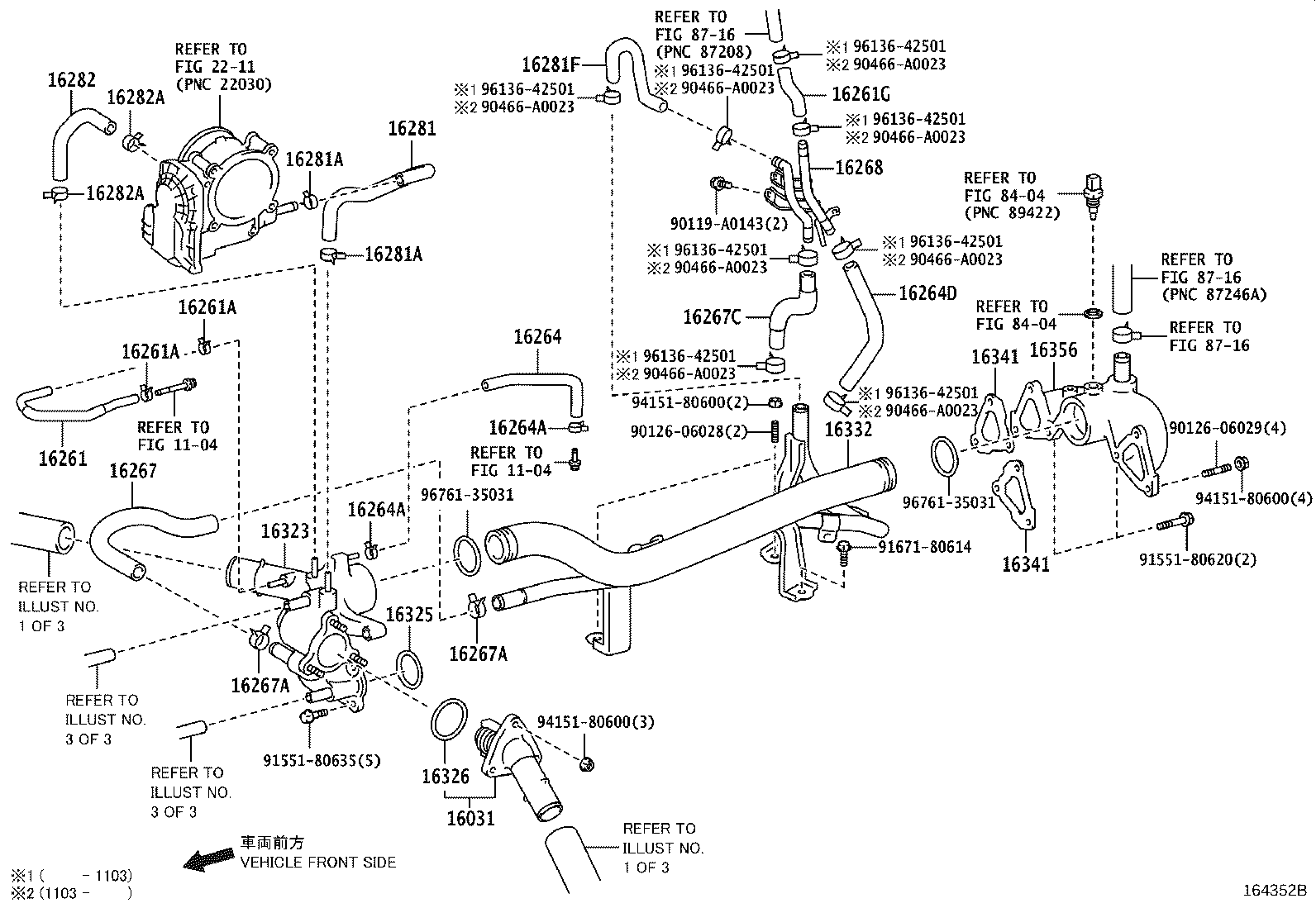

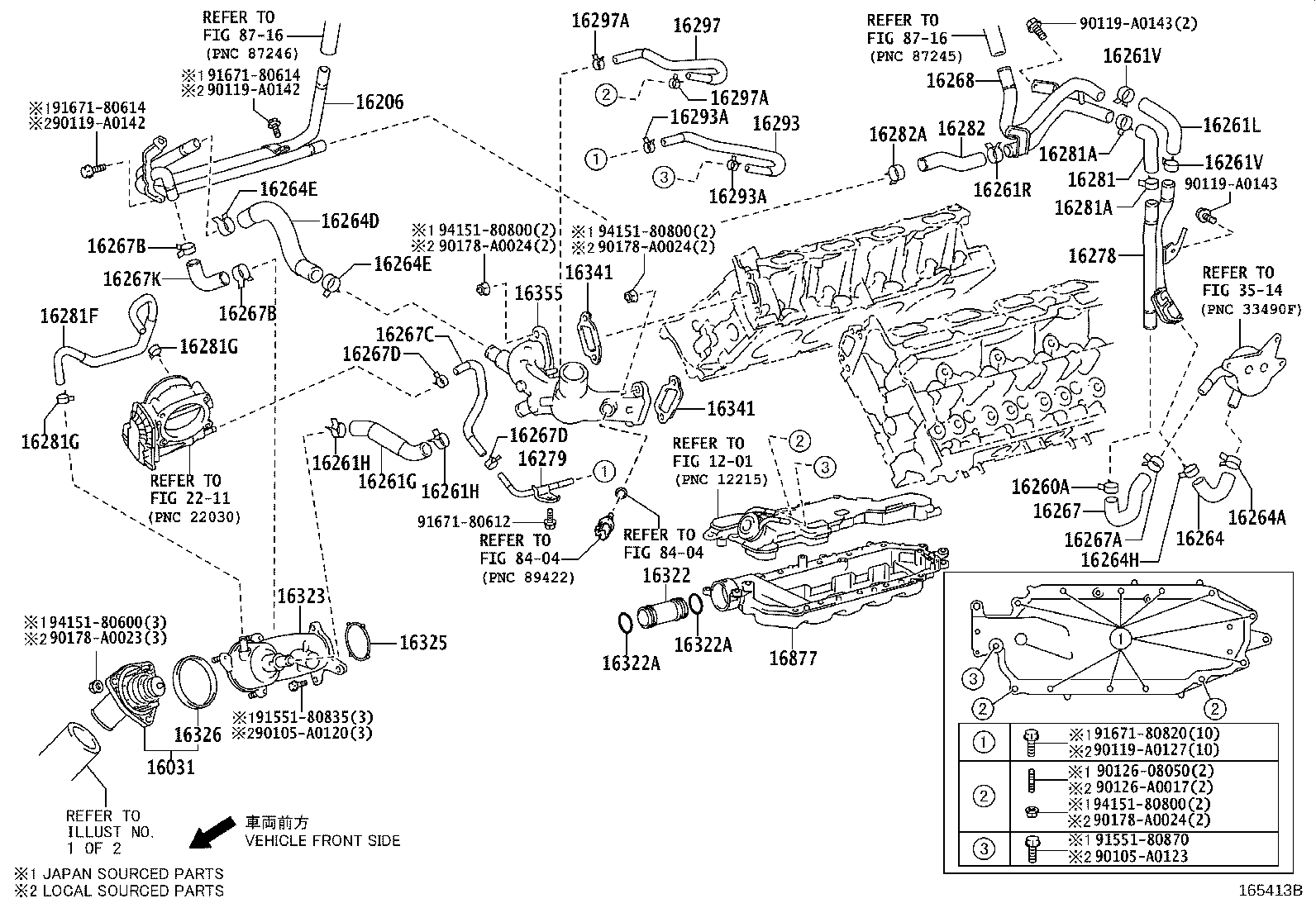

Figure 162971G 162971G 2006-11 → — Figure 162974I 162974I 2006-11 → 2010-10 Figure 164352B 164352B 2010-10 → — Figure 167105 167105 2010-10 → — Figure 162933I 162933I 2006-11 → 2009-04 Figure 162935F 162935F 2006-11 → 2009-04 Figure 163023P 163023P 2007-01 → — Figure 163605G 163605G 2007-01 → 2013-08 Figure 165413B 165413B 2013-08 → — Figure 163606I 163606I 2007-01 → 2013-08 Figure 165414B 165414B 2013-08 → — Figure 163924I 163924I 2009-04 → 2013-08 Figure 165415B 165415B 2013-08 → — Figure 163925J 163925J 2009-04 → 2013-08

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16031 Water Inlet Sub-assy, W/Thermostat
16206 Pipe Sub-assy, Water By-pass
16260A Clip(FOR WATER BY-PASS HOSE ASSY)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16261V Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16264H Clip(FOR WATER BY-PASS HOSE NO.3)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268L Pipe, Water By-pass
16278 Pipe, Water By-pass, NO.2
16278E Clip(FOR WATER BY-PASS HOSE)
16278K Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281F Hose, Water By-pass, NO.5
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
16321 Inlet, Water
16322 Pipe, Water Inlet
16322A Ring, O(FOR WATER INLET)
16323 Housing, Water Inlet
16323C Ring, O(FOR WATER INLET HOUSING)
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16341 Gasket, Water Outlet
16346 Gasket, Thermostat
16355 Joint, Water By-pass, Front
16355A Gasket(FOR WATER BY-PASS JOINT FRONT)
16356 Joint, Water By-pass, Rear
16356A Gasket(WATER BY-PASS JOINT, REAR)
16361 Fan
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16401A Cap Sub-assy, Radiator Reserve Tank
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16465 Packing, Radiator
16465A Packing, Radiator, NO.1
16465B Packing, Radiator, NO.2
16567 Hose(FOR RADIATOR RESERVE TANK)
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16603A Pulley Sub-assy, Idler, NO.1
16630D Pulley Assy, Idler
16631B Bracket, Idler Pulley
16649 Plate, Idler Pulley Cover
16711 Shroud, Fan
16877 Cover, Heat Exchanger, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
