Fuel Injection System

32 part groups · 10 illustrations

Illustrations

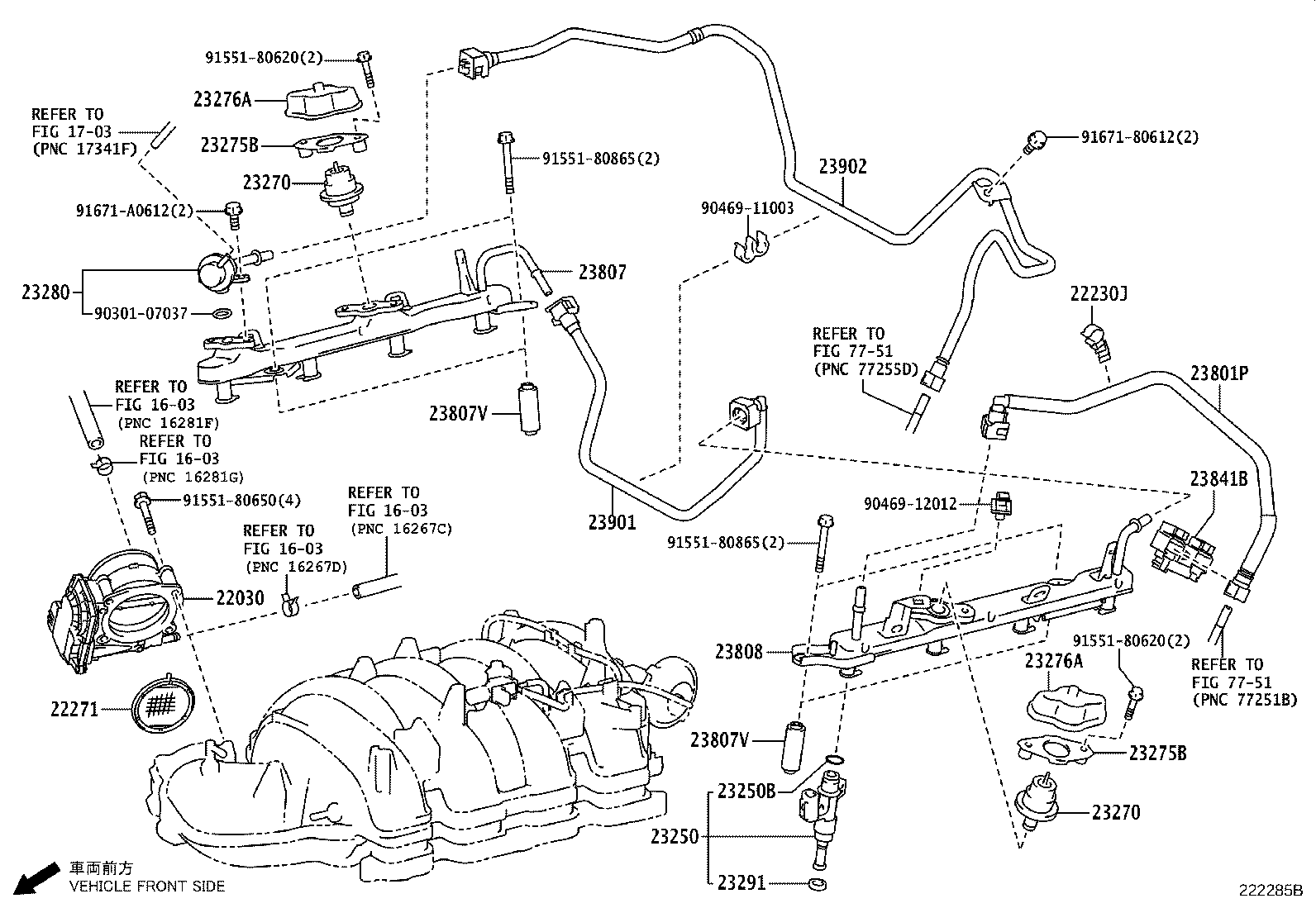

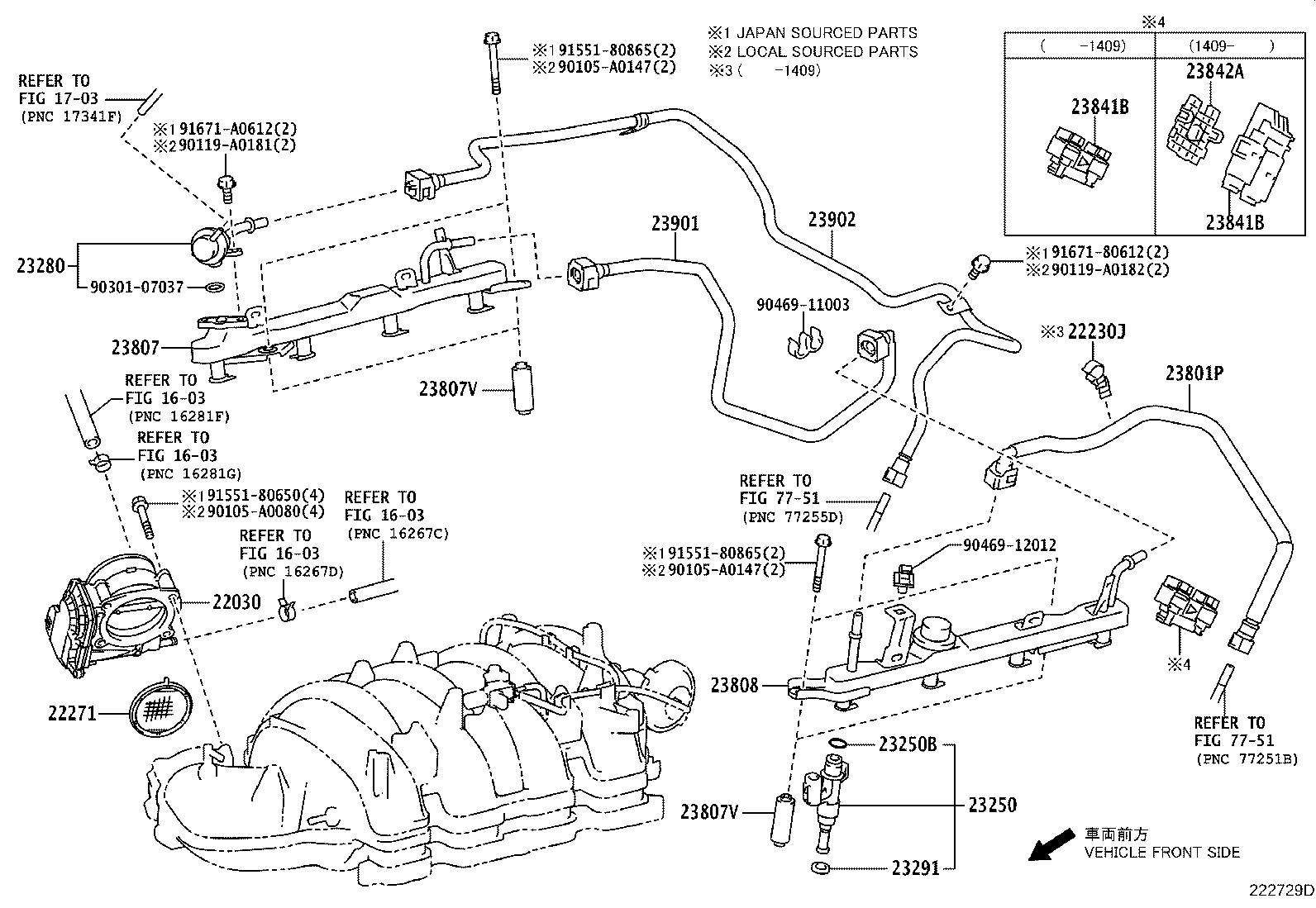

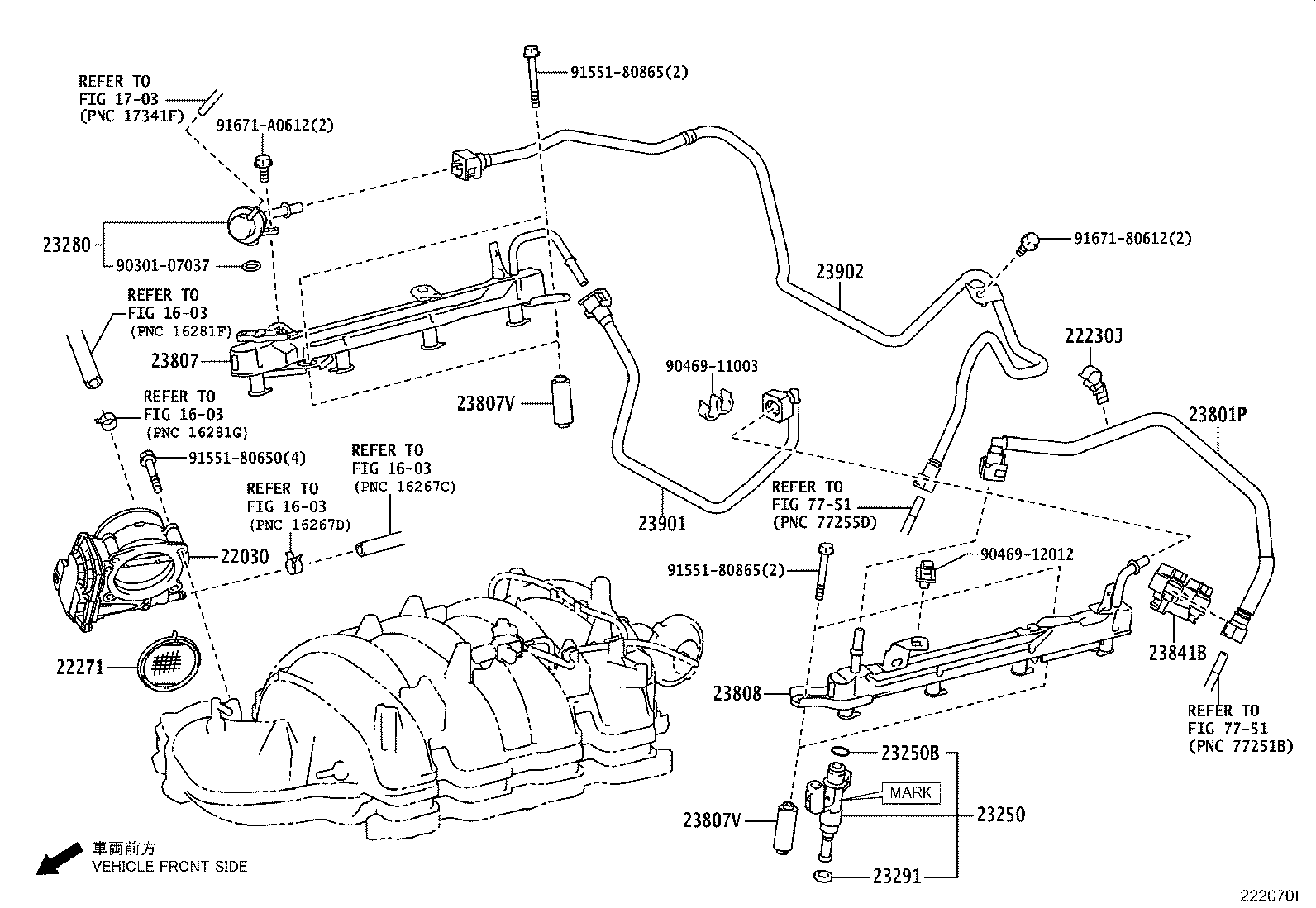

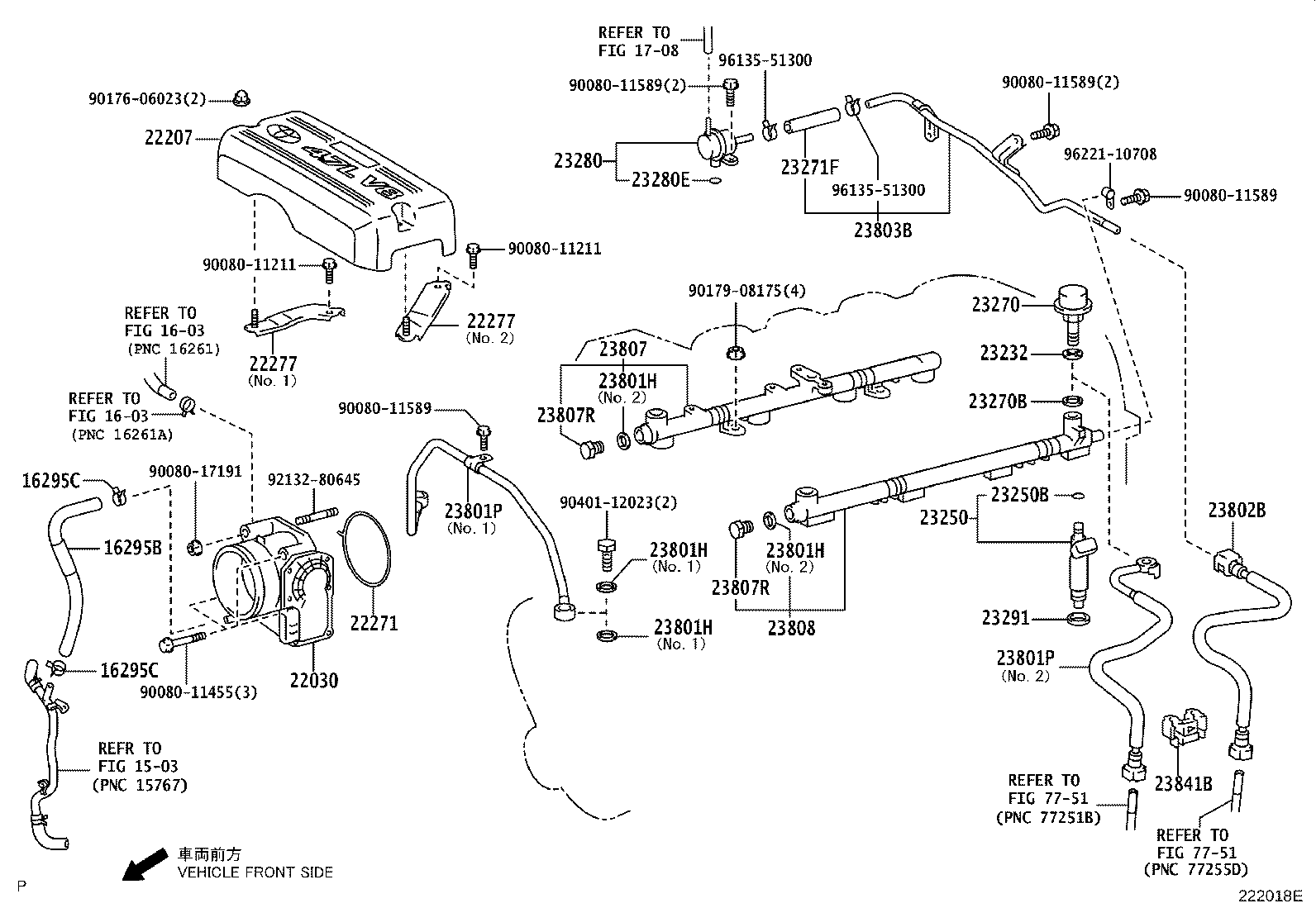

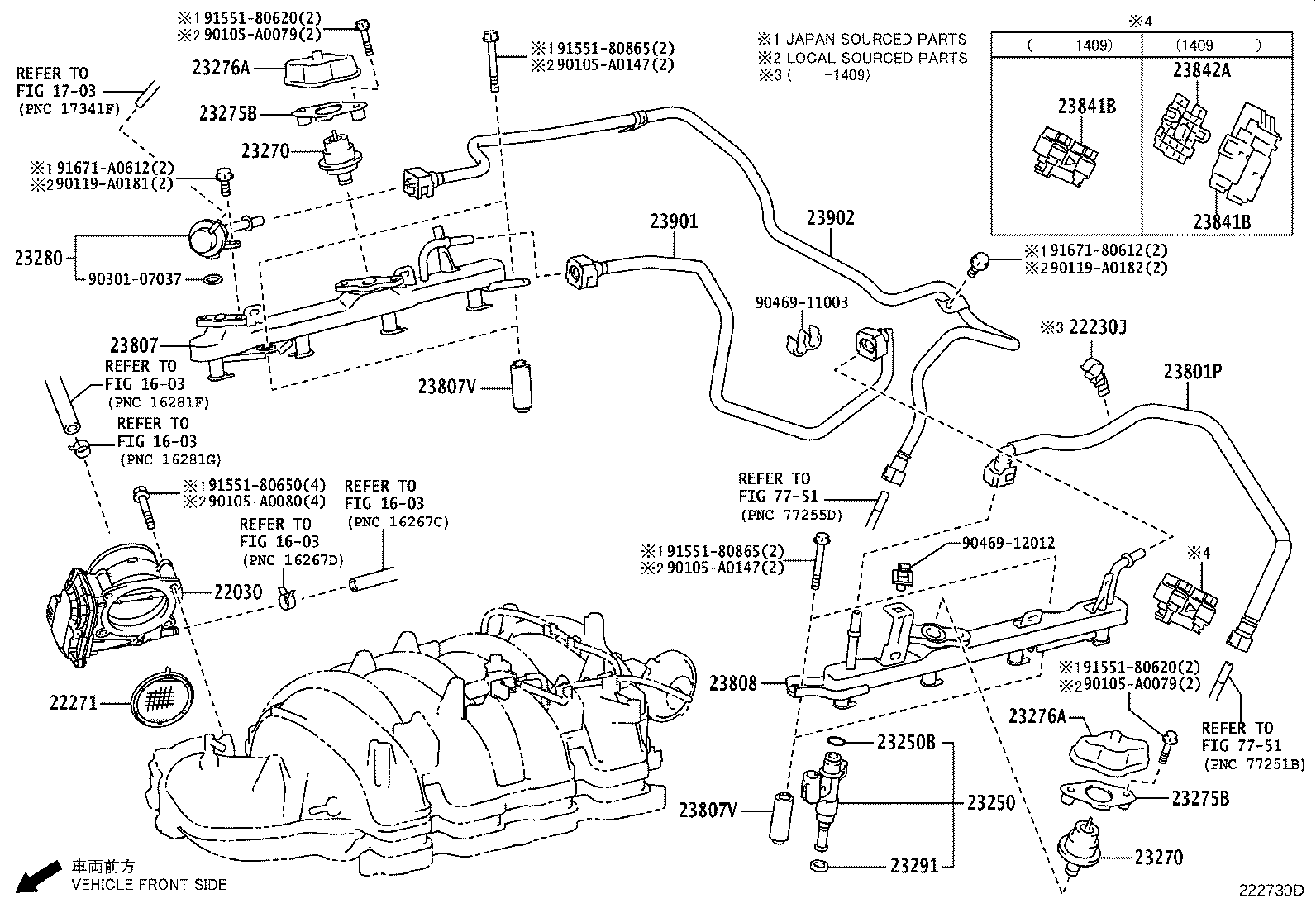

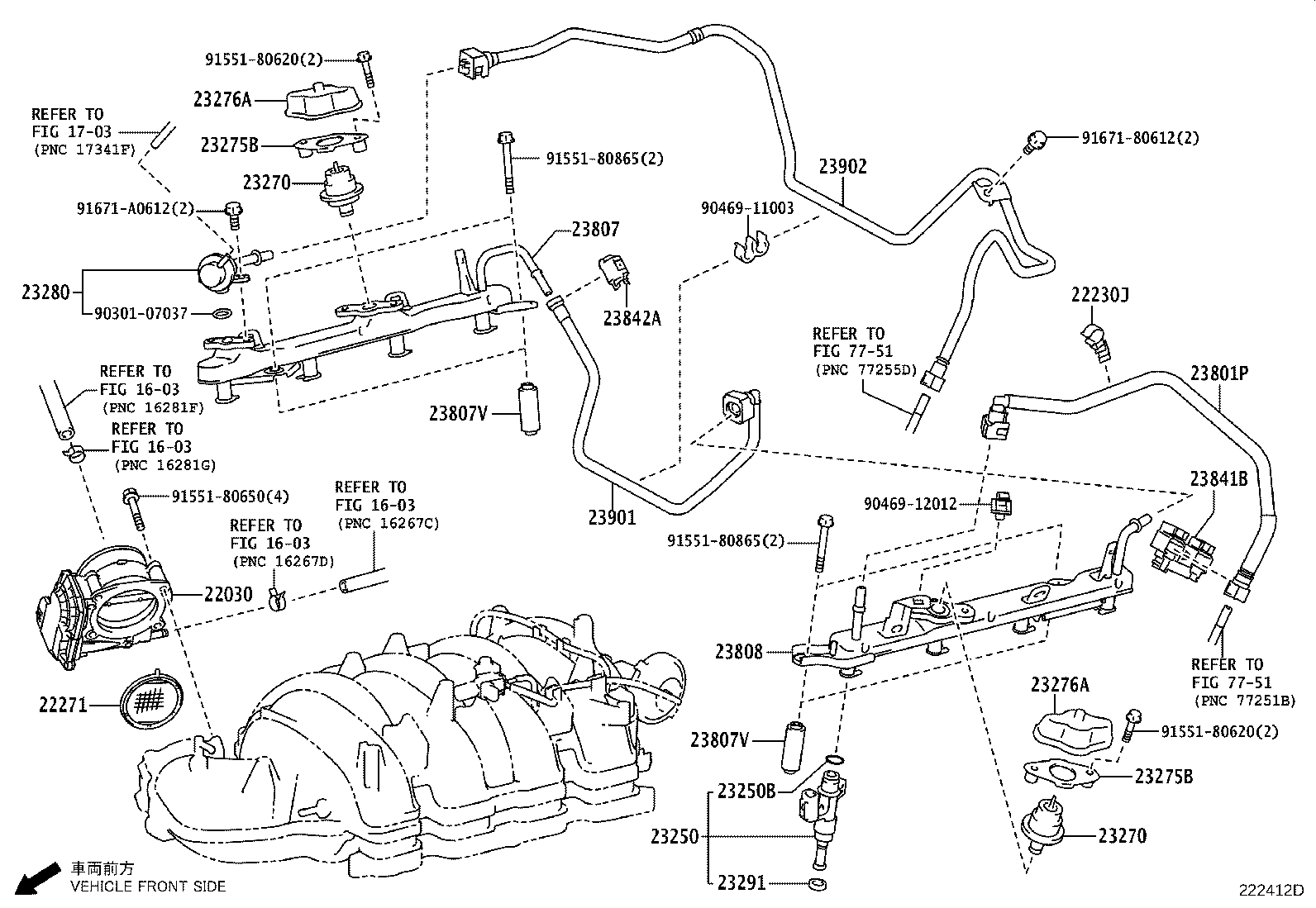

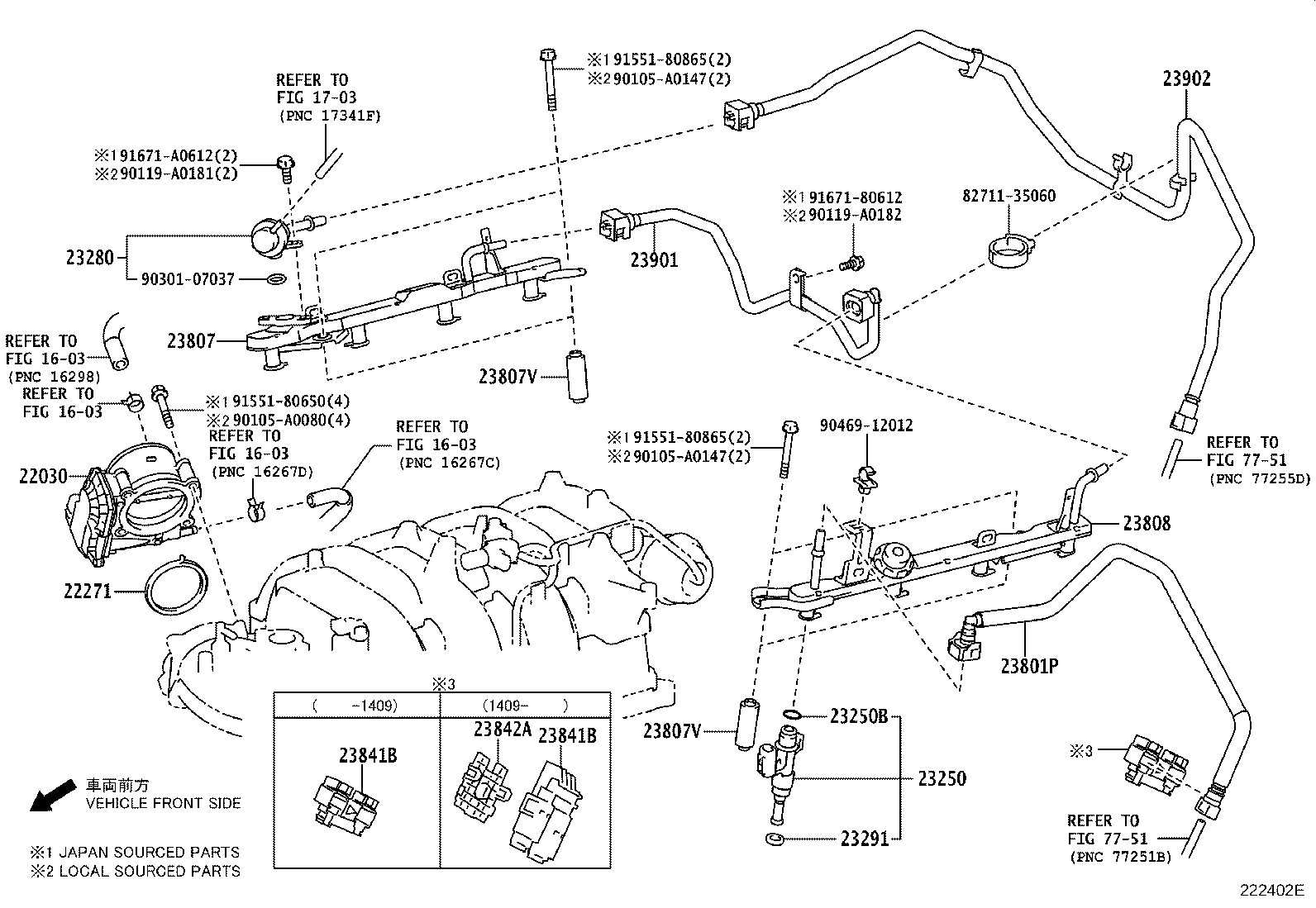

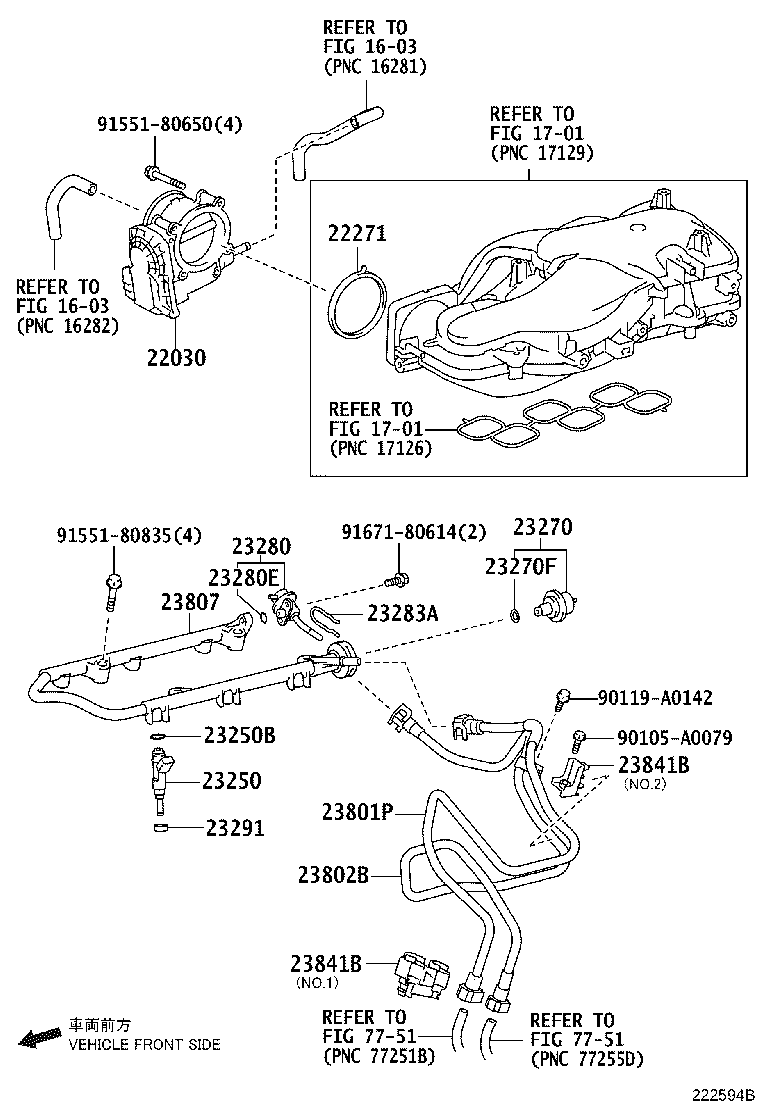

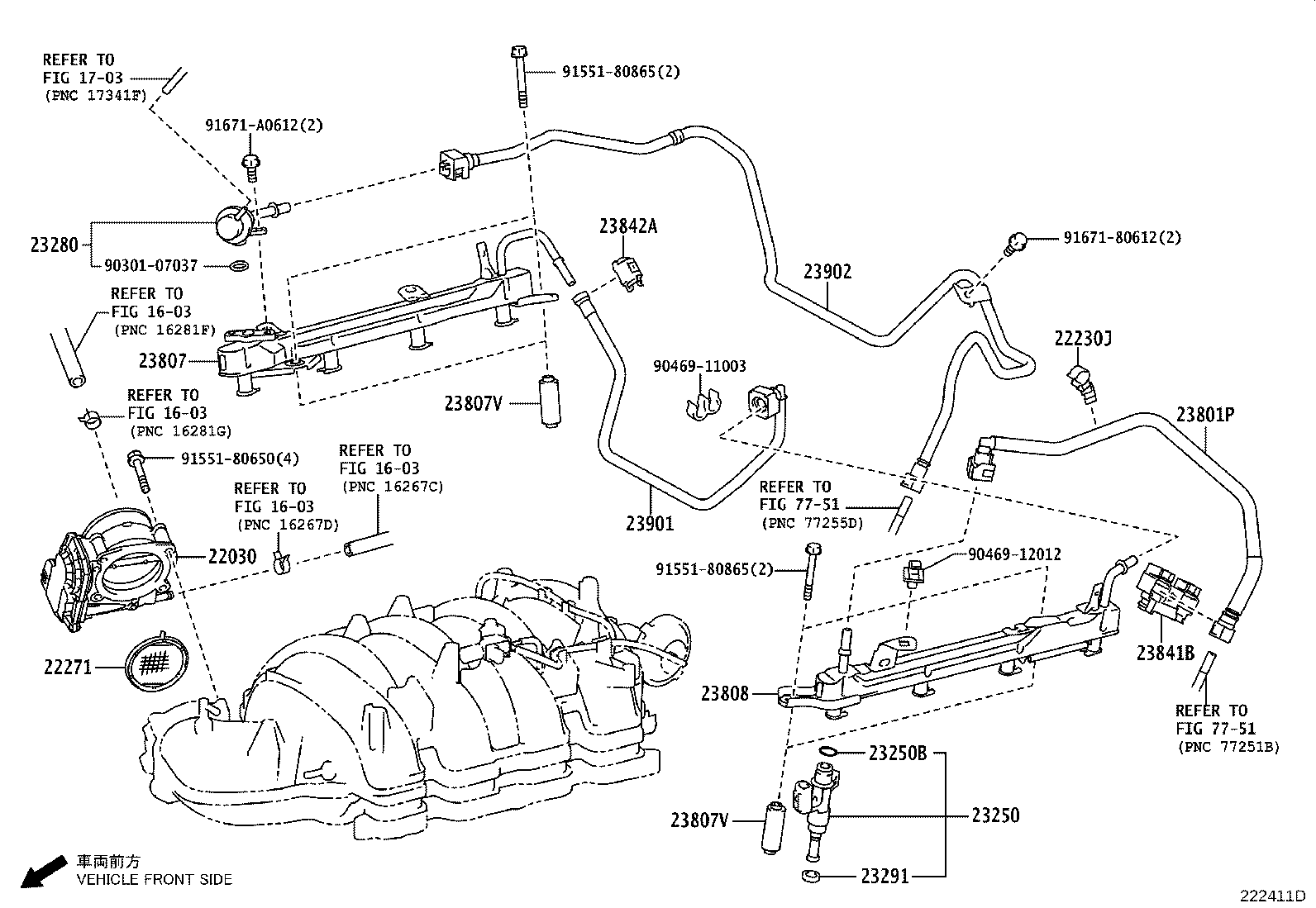

Figure 222400D 222400D 2006-11 → 2010-10 Figure 222594B 222594B 2010-10 → — Figure 222018E 222018E 2006-11 → 2009-04 Figure 222070I 222070I 2007-01 → 2009-03 Figure 222411D 222411D 2009-03 → 2011-09 Figure 222729D 222729D 2011-09 → — Figure 222285B 222285B 2008-08 → 2009-03 Figure 222412D 222412D 2009-03 → 2011-09 Figure 222730D 222730D 2011-09 → — Figure 222402E 222402E 2009-04 → —

Part groups

PNCDescription
16295B Hose, Water By-pass, NO.7
16295C Clip(FOR WATER BY-PASS HOSE NO.7)
22030 Body Assy, Throttle W/Throttle Position Sensor
22207 Cover Sub-assy, Throttle Body
22230J Clamp
22271 Gasket, Throttle Body
22277 Bracket, Throttle Body Cover
23232 Gasket(FOR FUEL PUMP HOSE)
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23270B Gasket(FOR PULSATION DAMPER HOSE)
23270F Ring, O(FOR PULSATION DAMPER)
23271F Hose, Fuel
23275B Cover, Fuel Pressure Pulsation Damper
23276A Cap, Fuel Pressure Pulsation Damper
23280 Regulator Assy, Fuel Pressure
23280E Ring, O(FOR FUEL PRESSURE REGULATOR)
23283A Holder, Fuel Pressure Regulator
23291 Insulator, Injector Vibration
23801H Gasket(FOR FUEL PIPE)
23801P Pipe Sub-assy, Fuel, NO.1
23802B Pipe Sub-assy, Fuel, NO.2
23803B Pipe Sub-assy, Fuel, NO.3
23807 Pipe Sub-assy, Fuel Delivery
23807R Plug, Fuel Delivary Pipe
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23808 Pipe Sub-assy, Fuel Delivery, NO.2
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23901 Tube Sub-assy, Fuel
23902 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
