Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

16 part groups · 4 illustrations

Illustrations

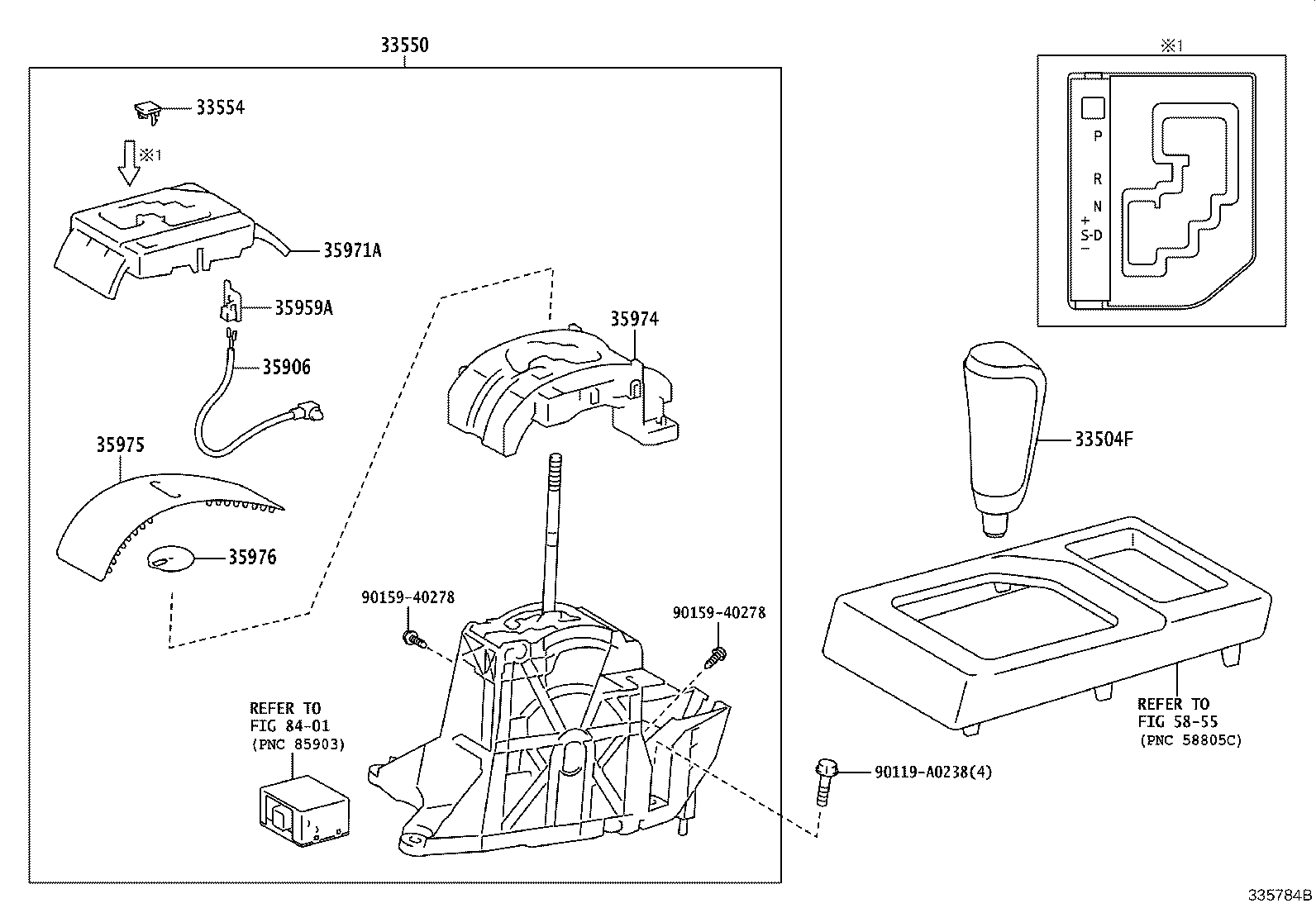

Figure 333151H 333151H 2006-11 → 2013-08 Figure 335784B 335784B 2013-08 → — Figure 333152B 333152B 2006-11 → — Figure 333152B 333152B 2006-11 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554 Cap, Shift Lever
33563 Button, Shift Lock Release
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33827 Bracket, Transmission Control Cable, NO.3
33829 Support, Transmission Control Cable
35906 Wire Sub-assy, Indicator Lamp
35959A Led, Position Indicator
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
