Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 4 illustrations

Illustrations

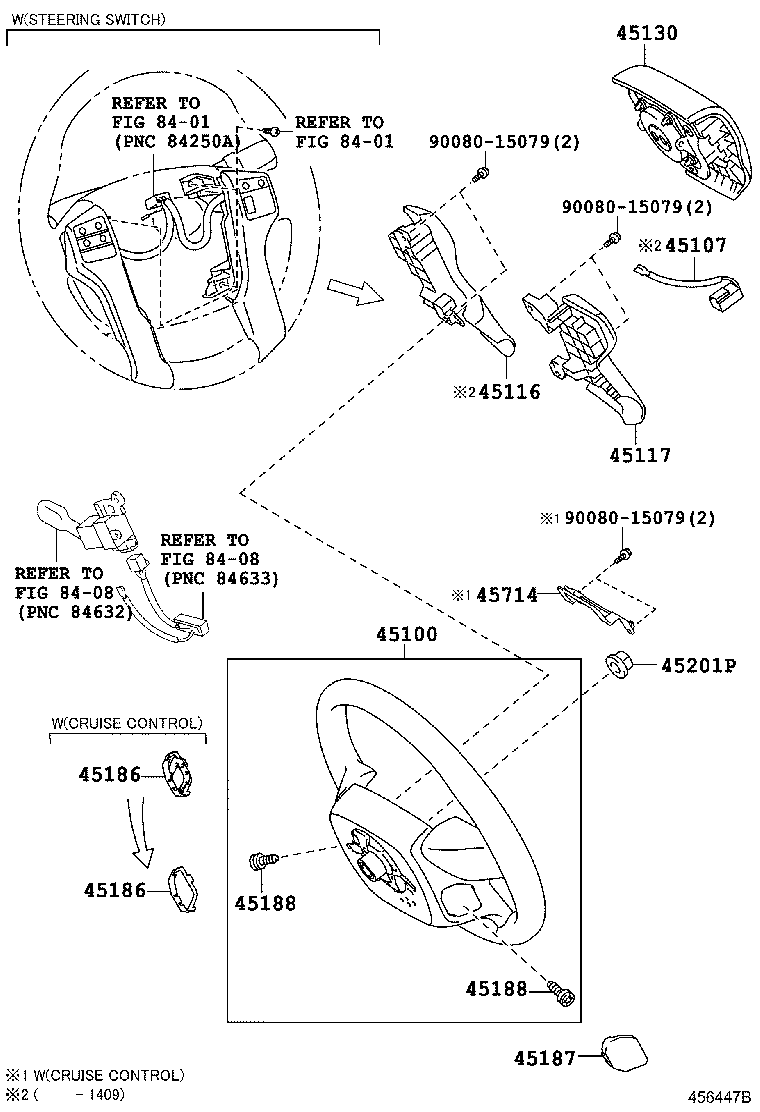

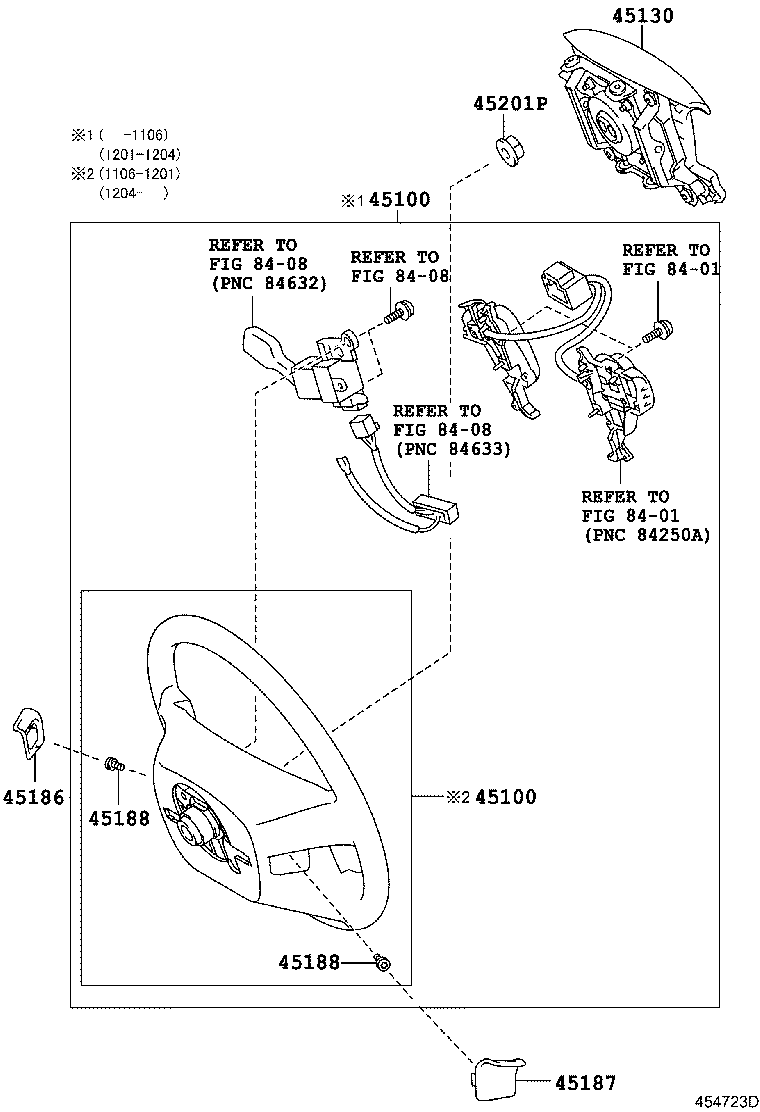

Figure 454722G 454722G 2006-11 → 2013-08 Figure 454723D 454723D 2006-11 → 2011-06 Figure 454723D 454723D 2011-06 → 2013-08 Figure 456447B 456447B 2013-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
45714 Bracket, Steering Shake Dumper
84258 Cover, Steering Pad, RH
84259 Cover, Steering Pad, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
