Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

51 part groups · 6 illustrations

Illustrations

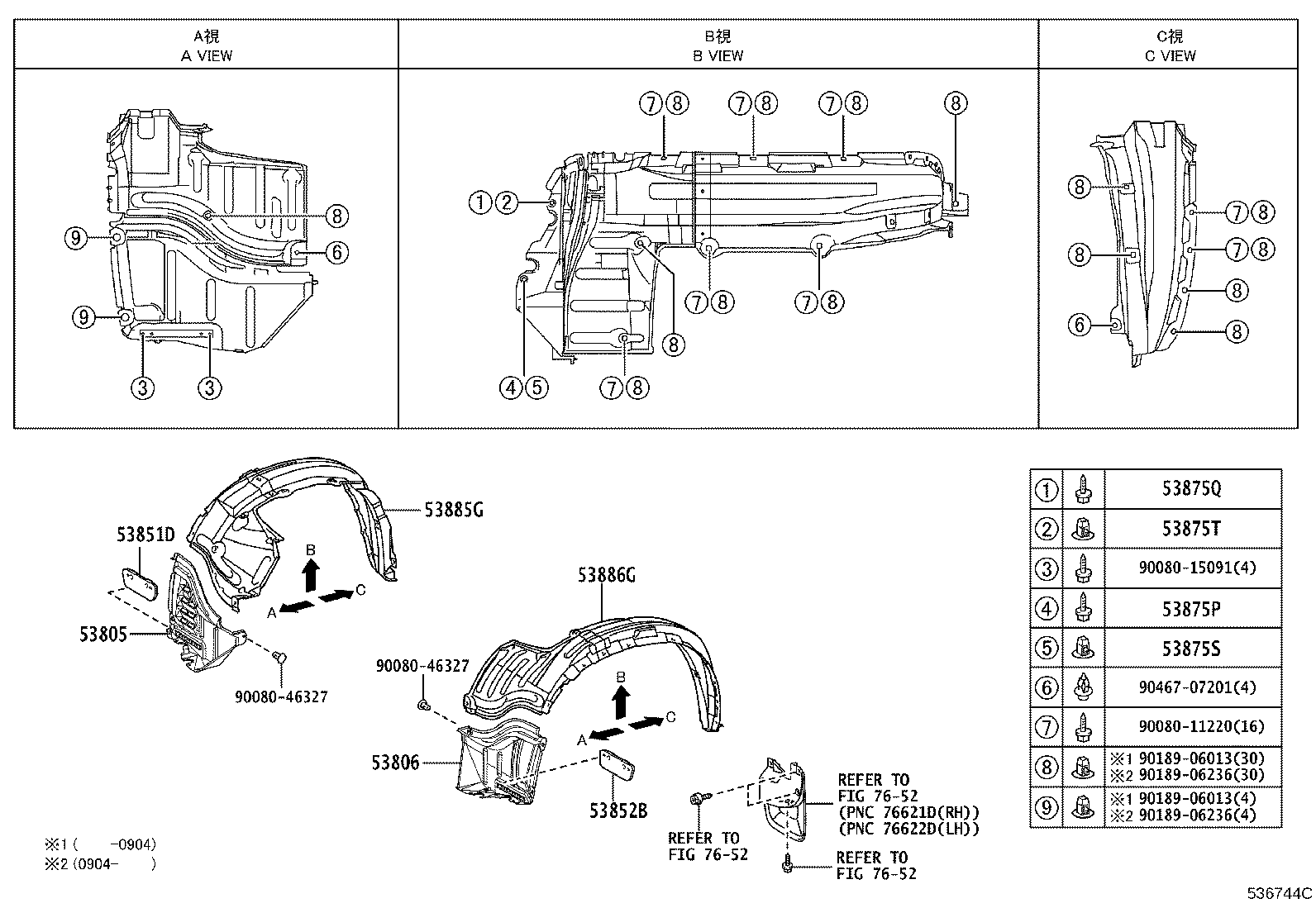

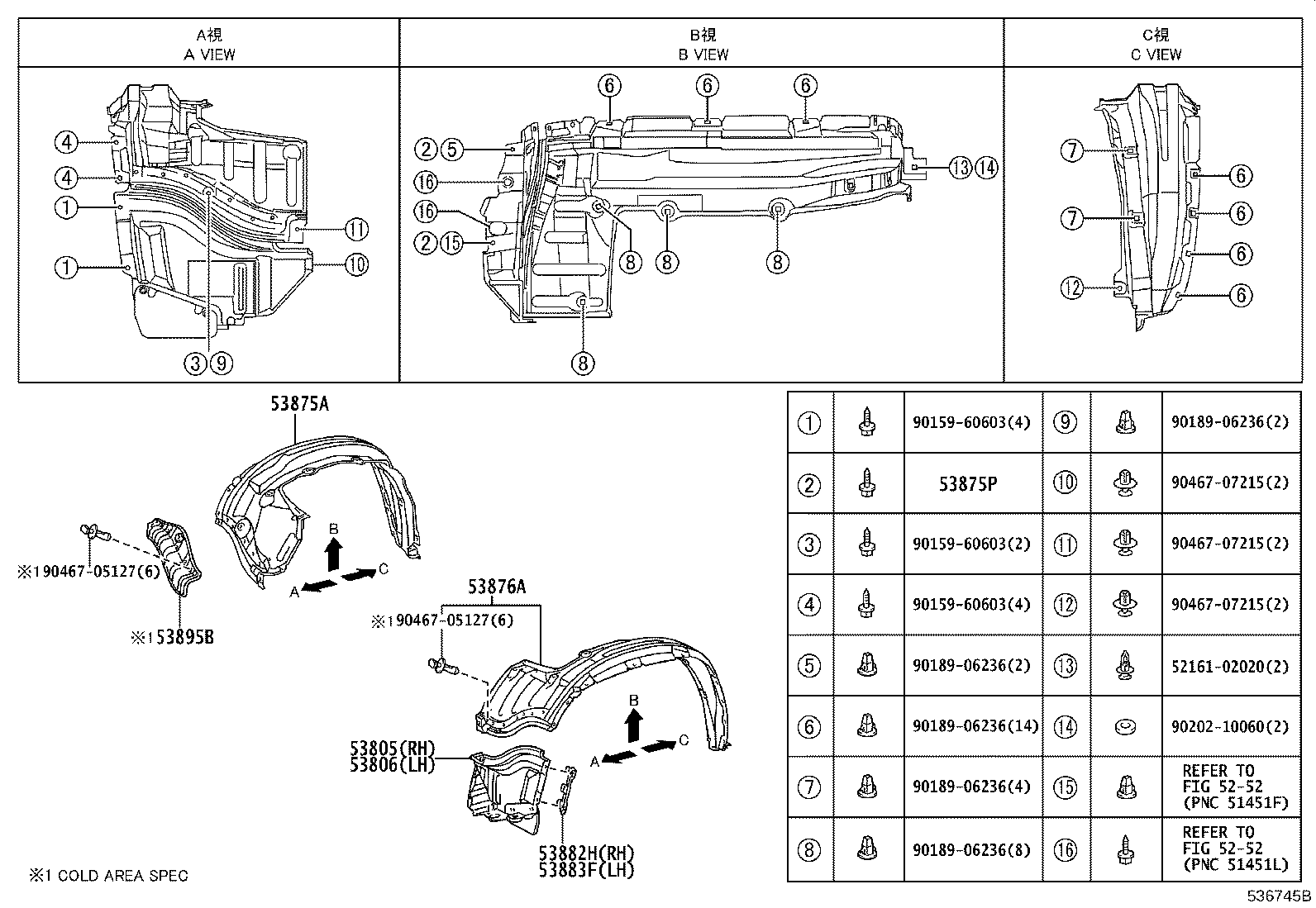

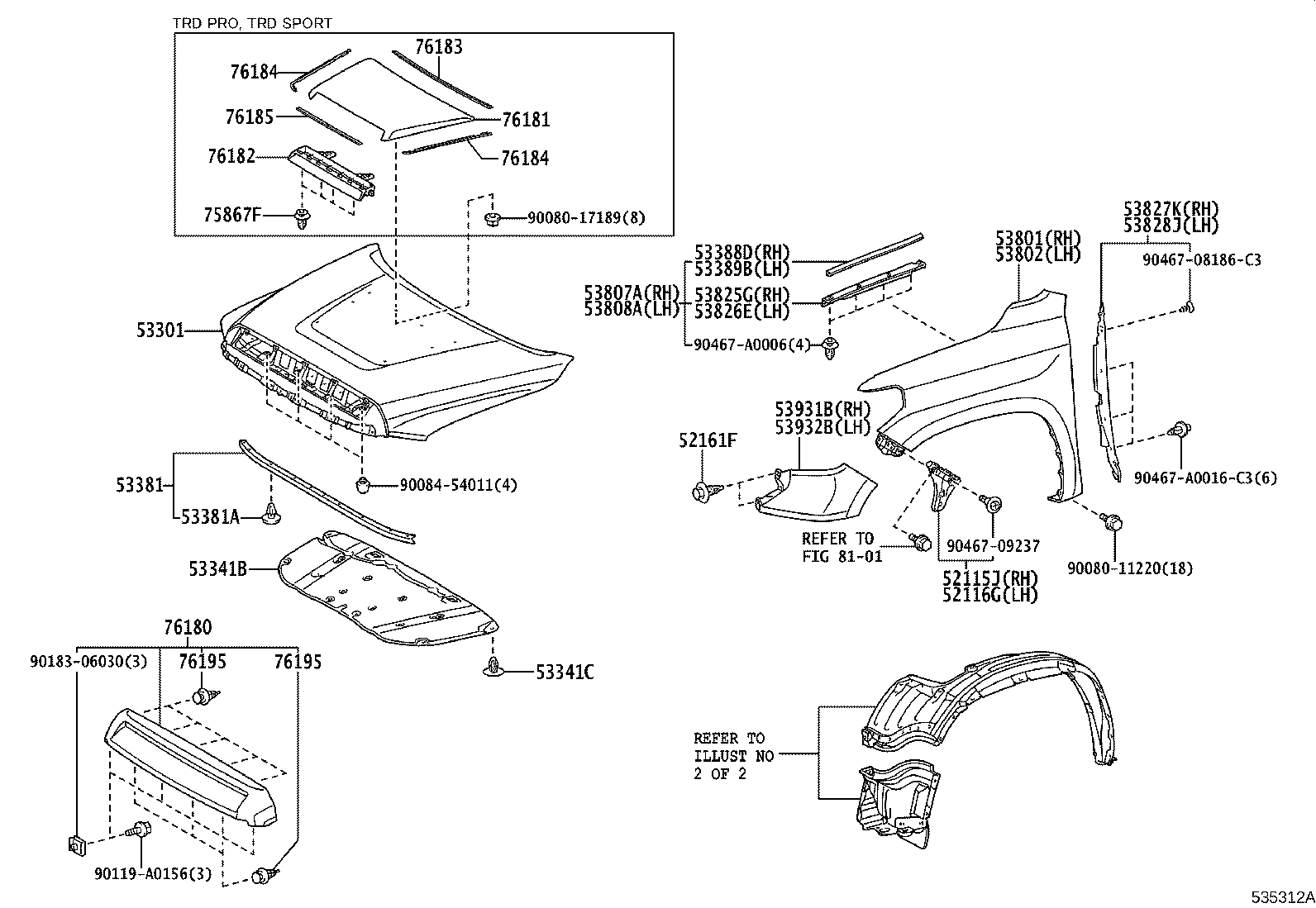

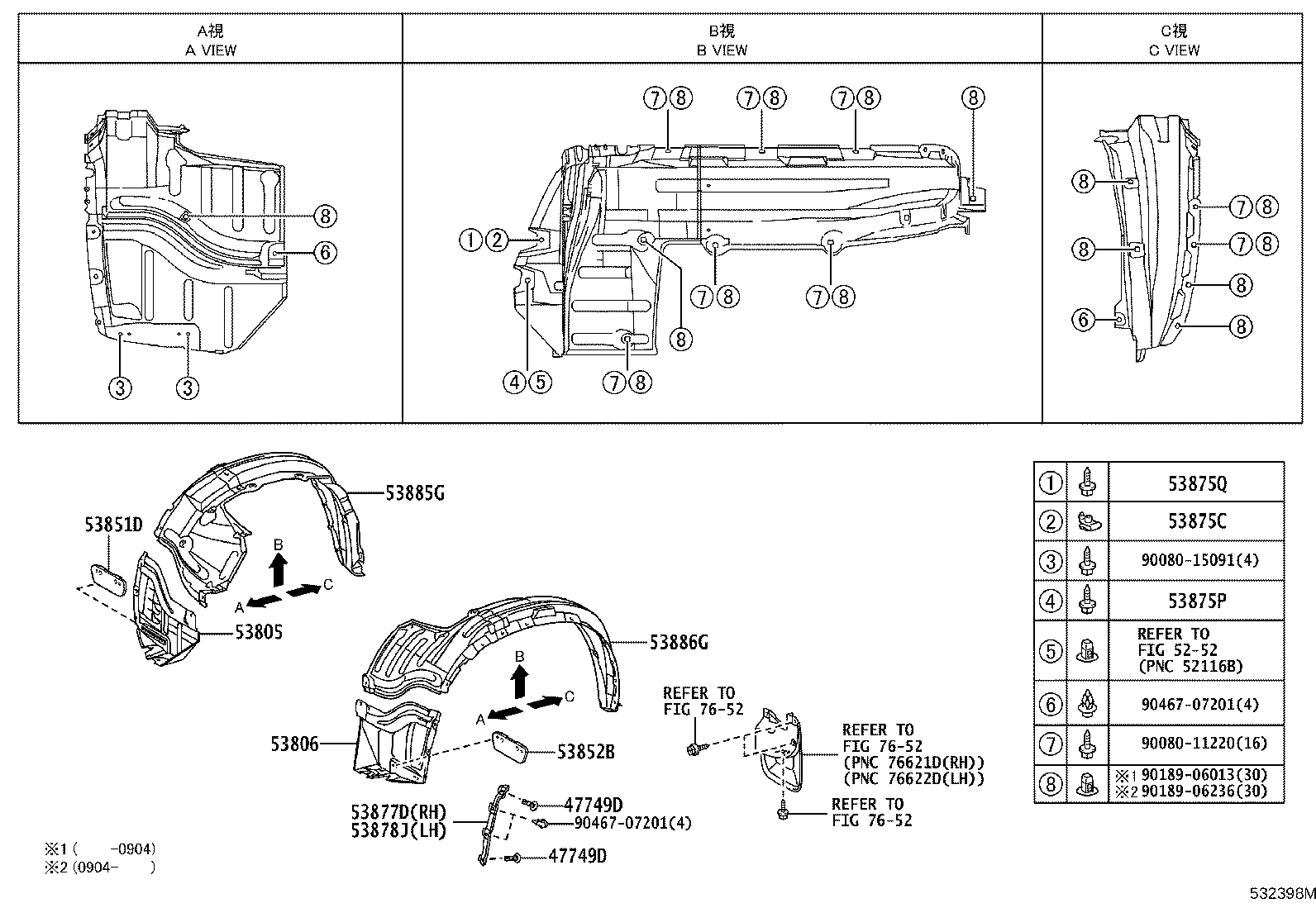

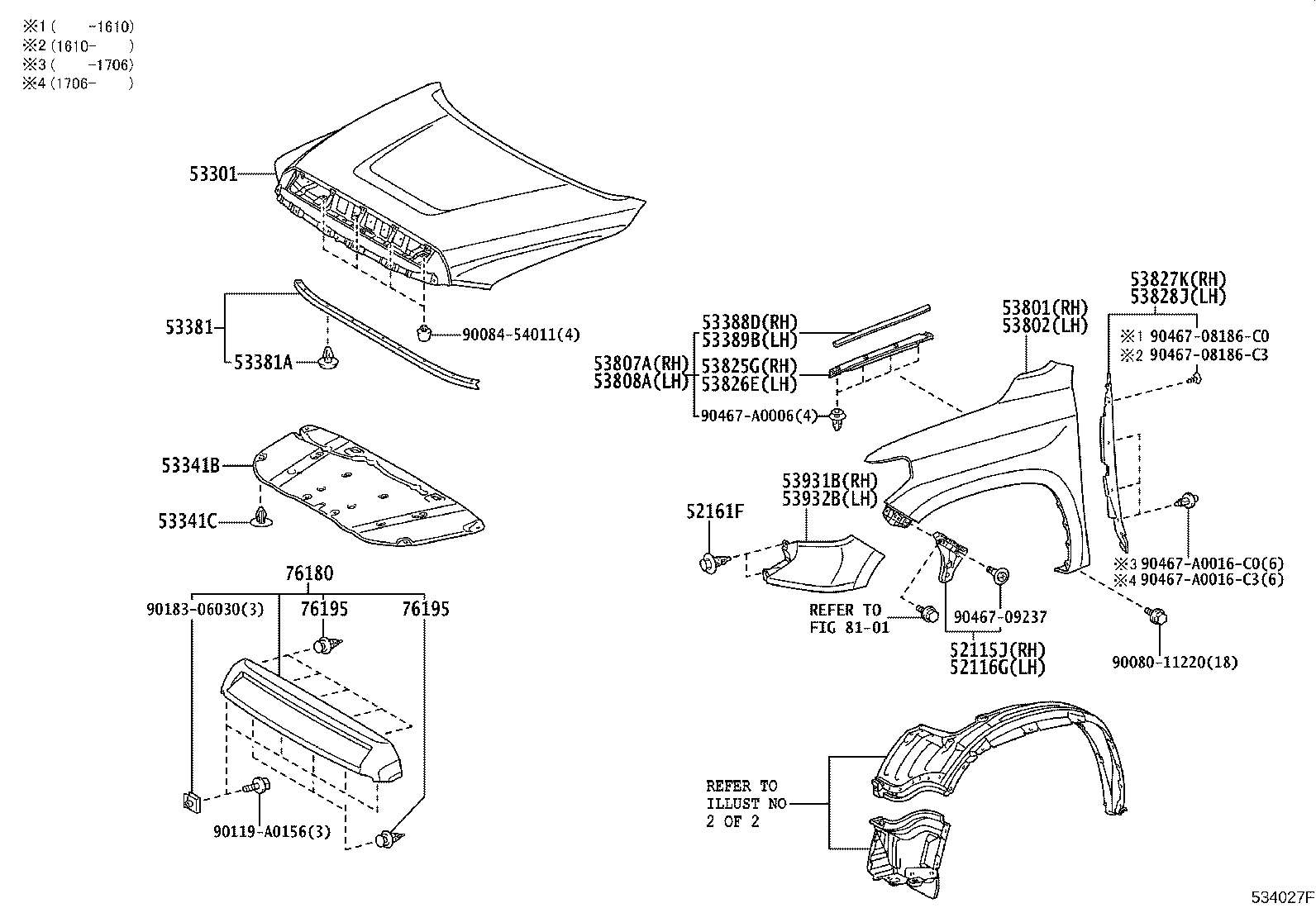

Figure 532397J 532397J 2006-11 → 2013-08 Figure 532398M 532398M 2006-11 → 2013-08 Figure 536744C 536744C 2006-11 → 2013-08 Figure 534027F 534027F 2013-08 → 2017-08 Figure 535312A 535312A 2017-08 → — Figure 536745B 536745B 2013-08 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
52115J Support, Front Bumper Side, RH
52116G Support, Front Bumper Side, LH
52161F Piece, Front Bumper
52535B Retainer, Front Bumper Side, RH
52536B Retainer, Front Bumper Side, LH
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53807A Shield Sub-assy, Fender Splash, Rear RH
53808A Shield Sub-assy, Fender Splash, Rear LH
53825G Protector, Front Fender, Upper RH
53826E Protector, Front Fender, Upper LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53875Q Screw, NO.2
53875R Screw, NO.3
53875S Grommet, NO.1
53875T Grommet, NO.2
53876A Liner, Front Fender, LH
53877D Bracket, Front Fender Liner, RH
53878J Bracket, Front Fender Liner, LH
53882H Seal, Front Fender Main, RH
53883F Seal, Front Fender Main, LH
53885G Seal Sub-assy, Fender Apron Mudguard, RH
53886G Seal, Fender Apron Mudguard, LH
53895B Shield, Front Fender Splash, Front RH
53931B Panel, Front End, RH
53932B Panel, Front End, LH
53935B Protector, Front End Panel
75867F Clip, Rocker Panel Moulding
76180 Bulge Assy, Hood
76181 Bulge, Hood
76182 Guide, Hood Air Intake
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
76185 Protector, Hood Bulge, NO.3
76195 Clip, Hood Bulge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
