Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

45 part groups · 11 illustrations

Illustrations

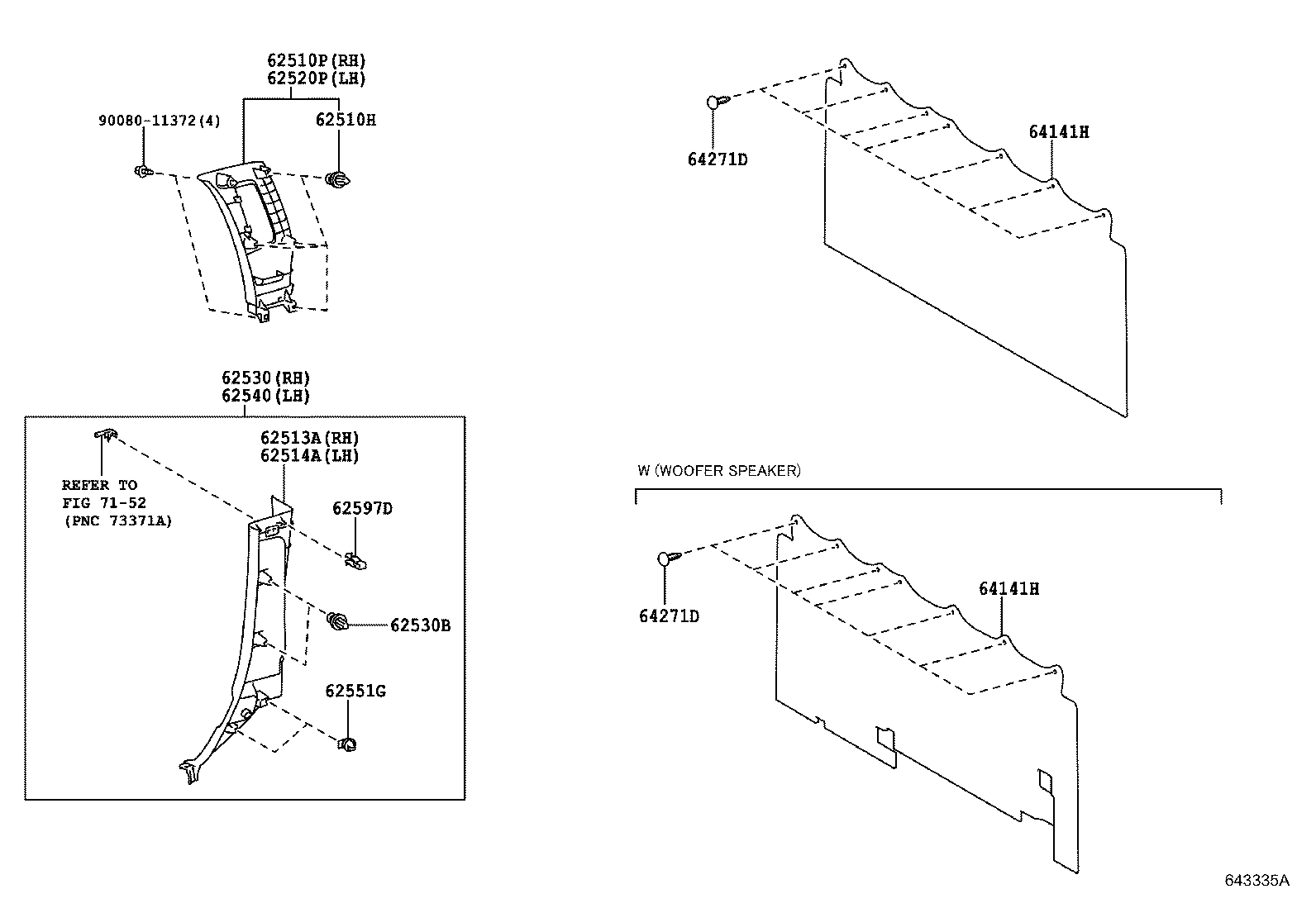

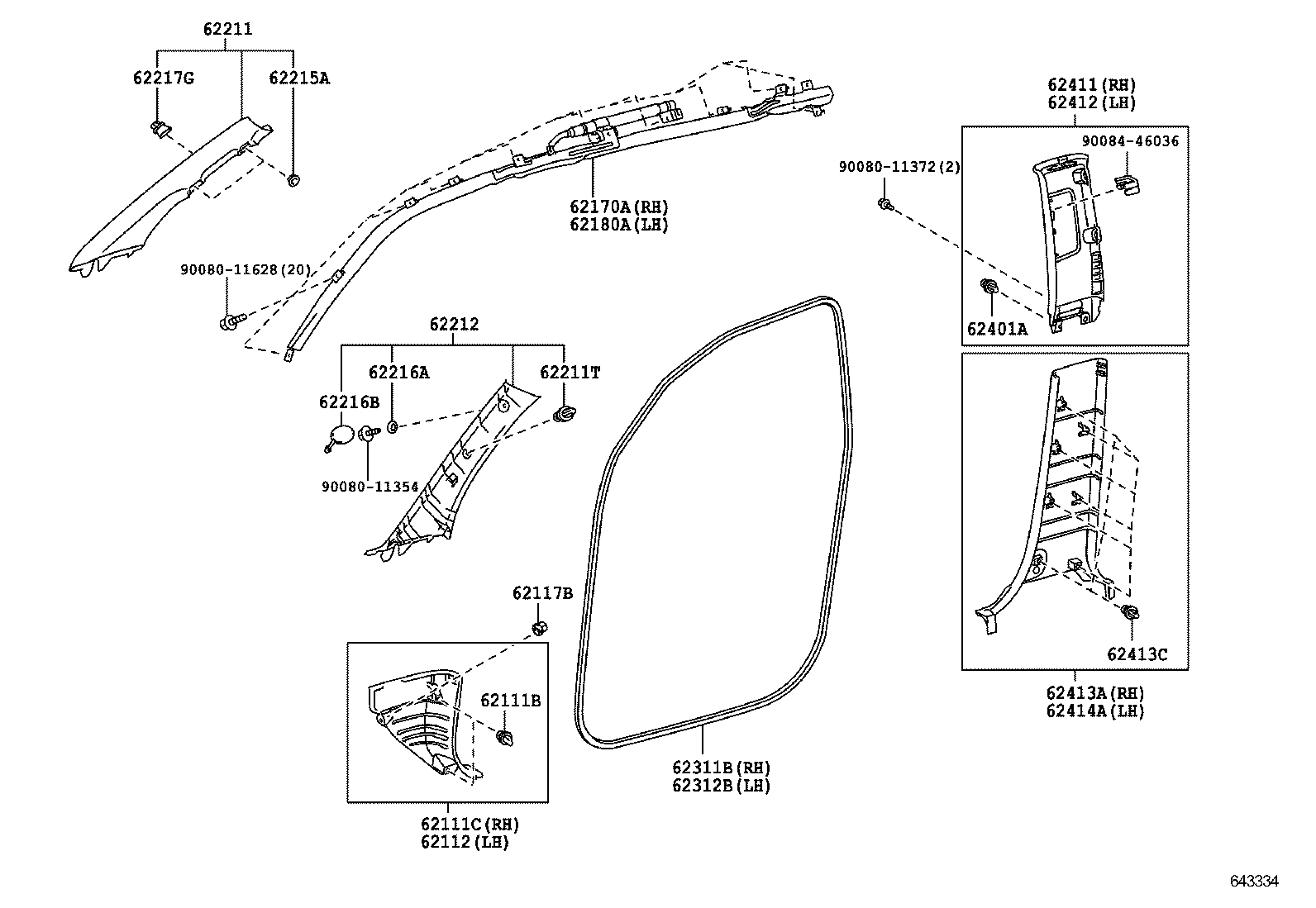

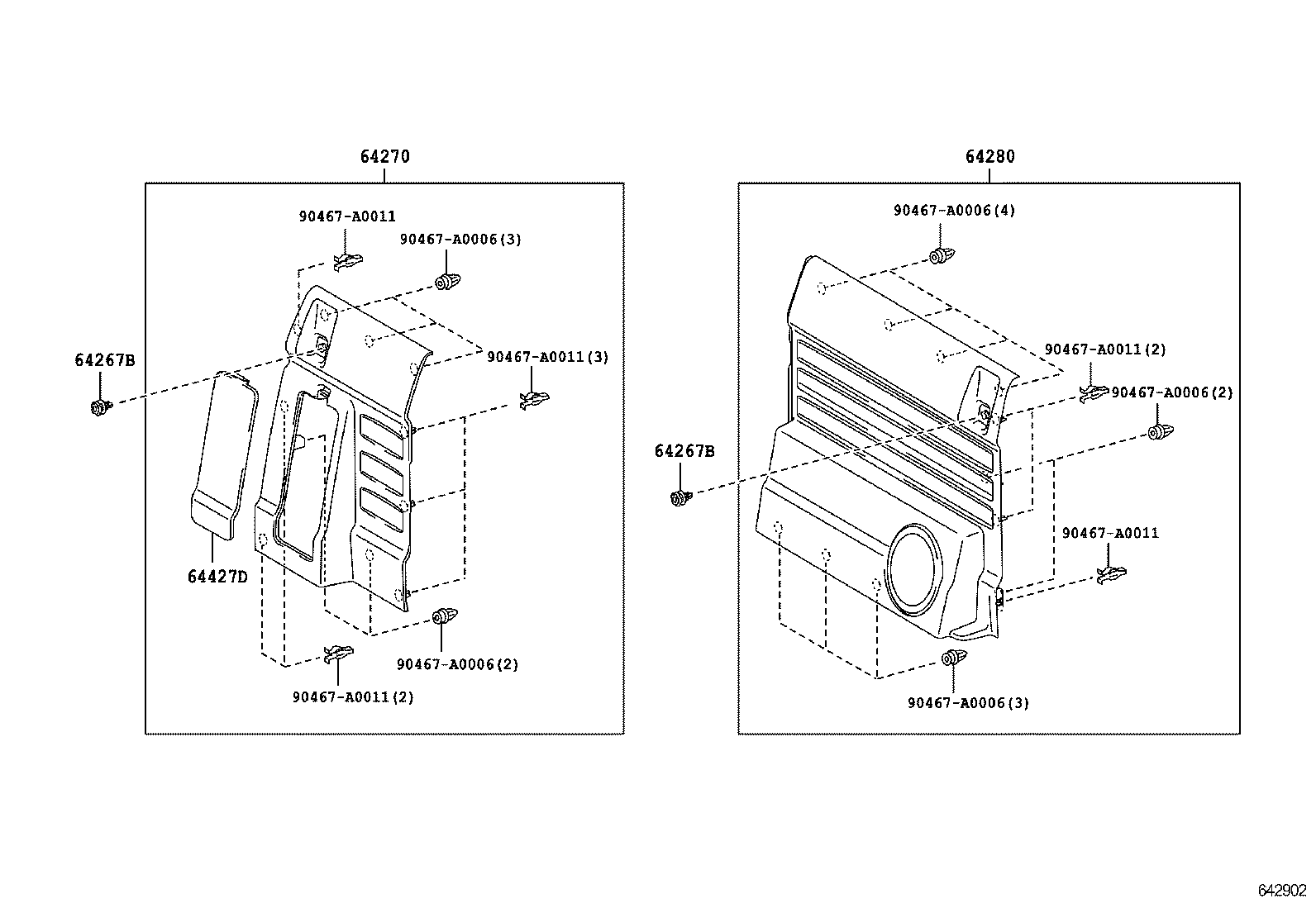

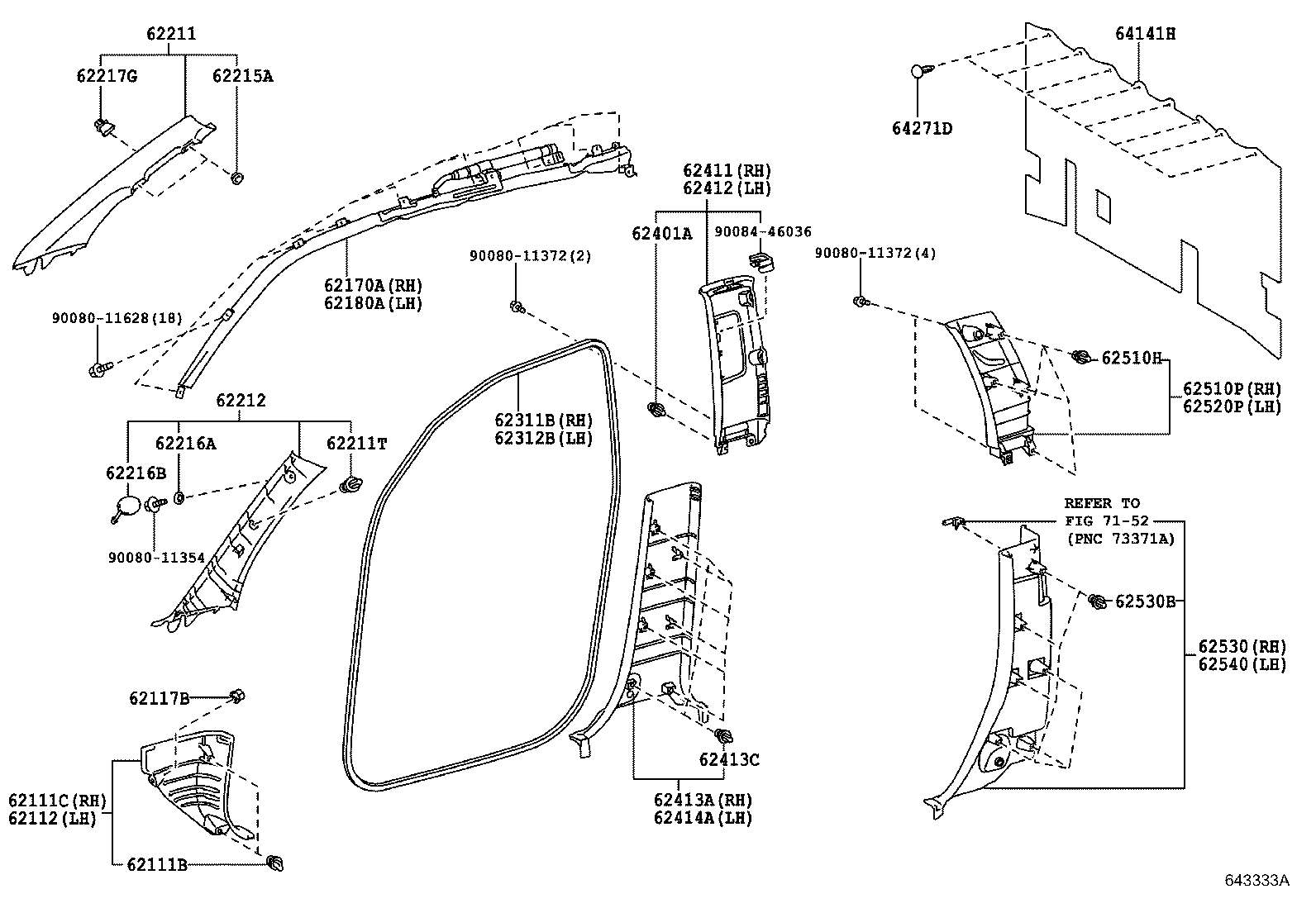

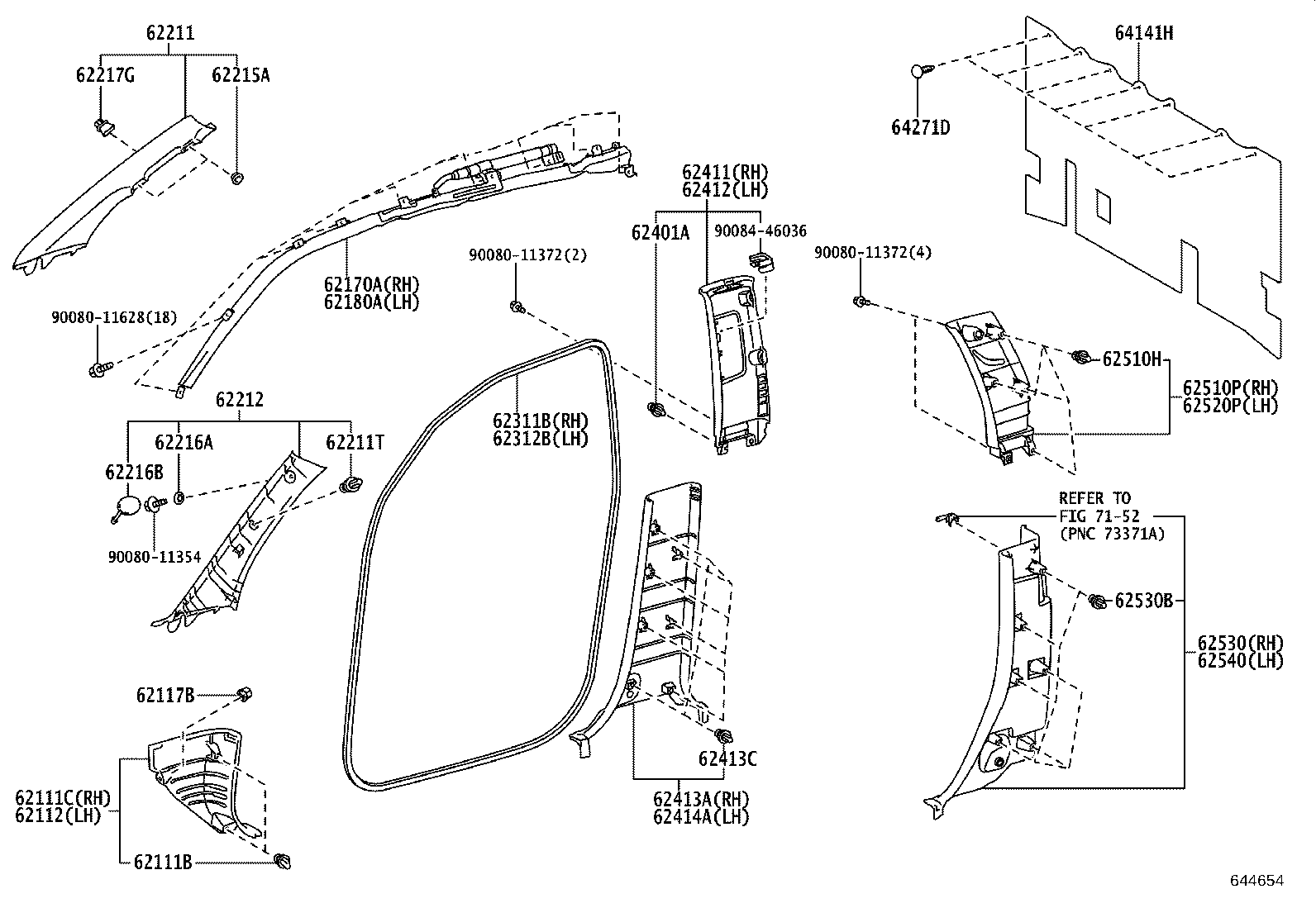

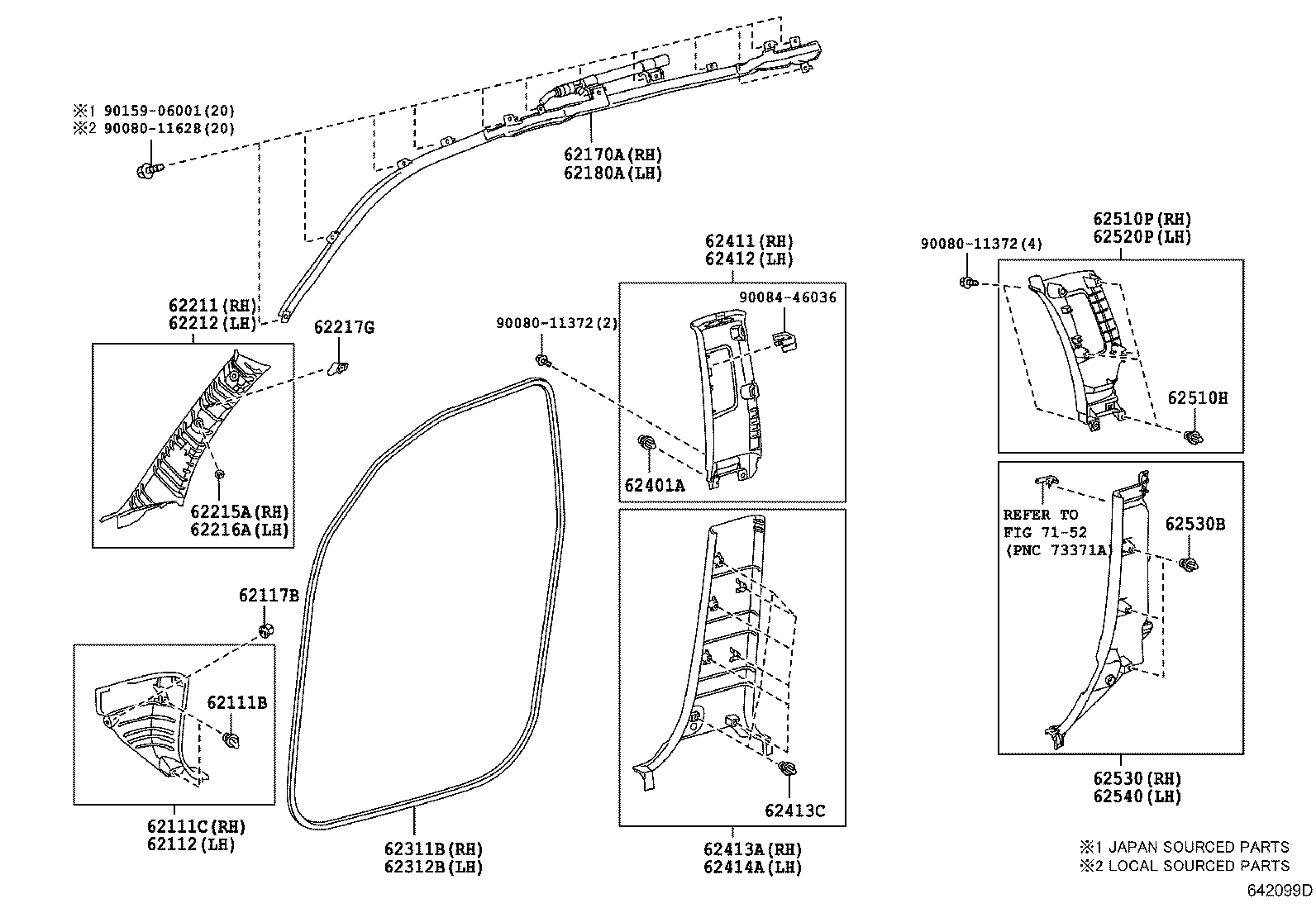

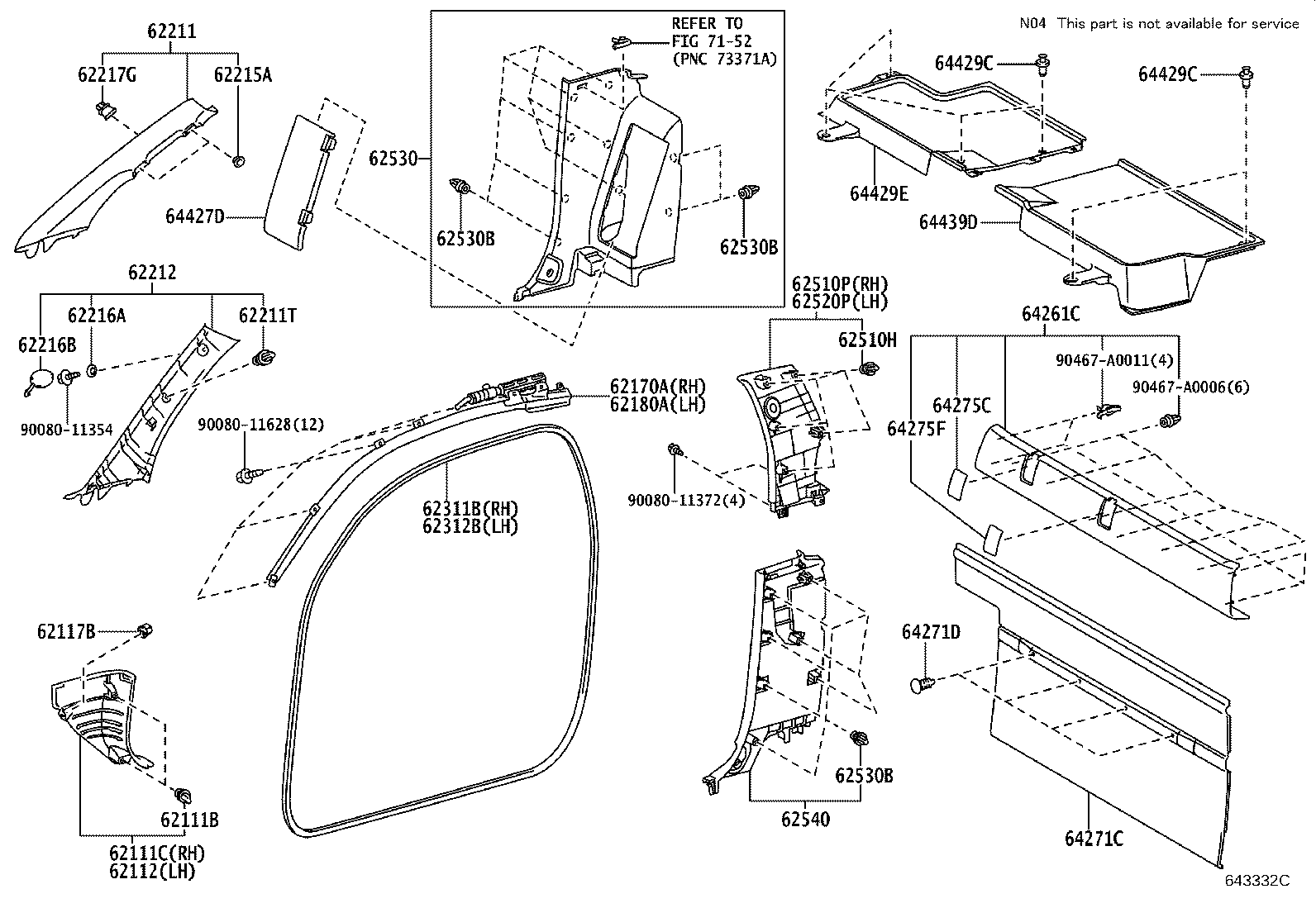

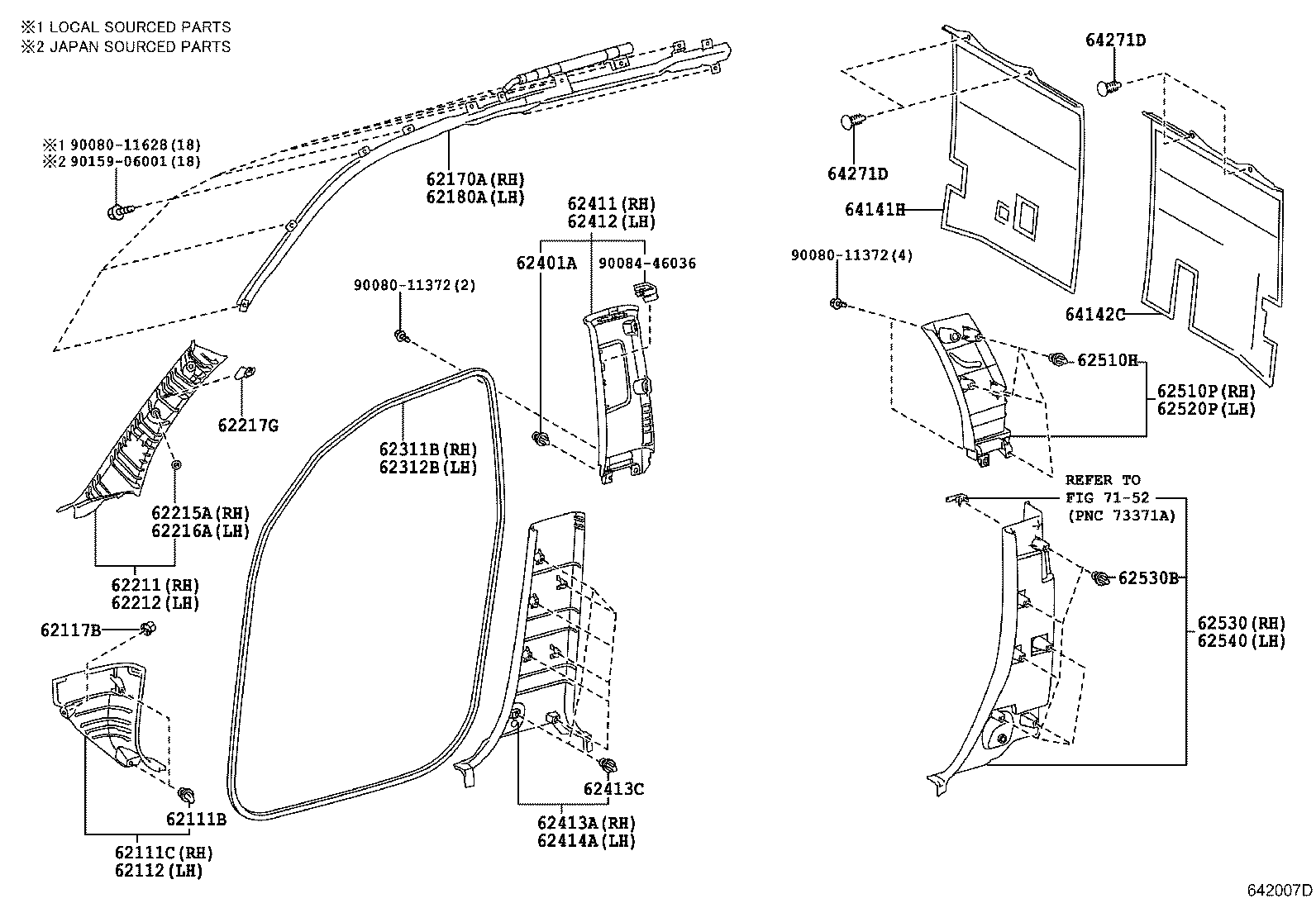

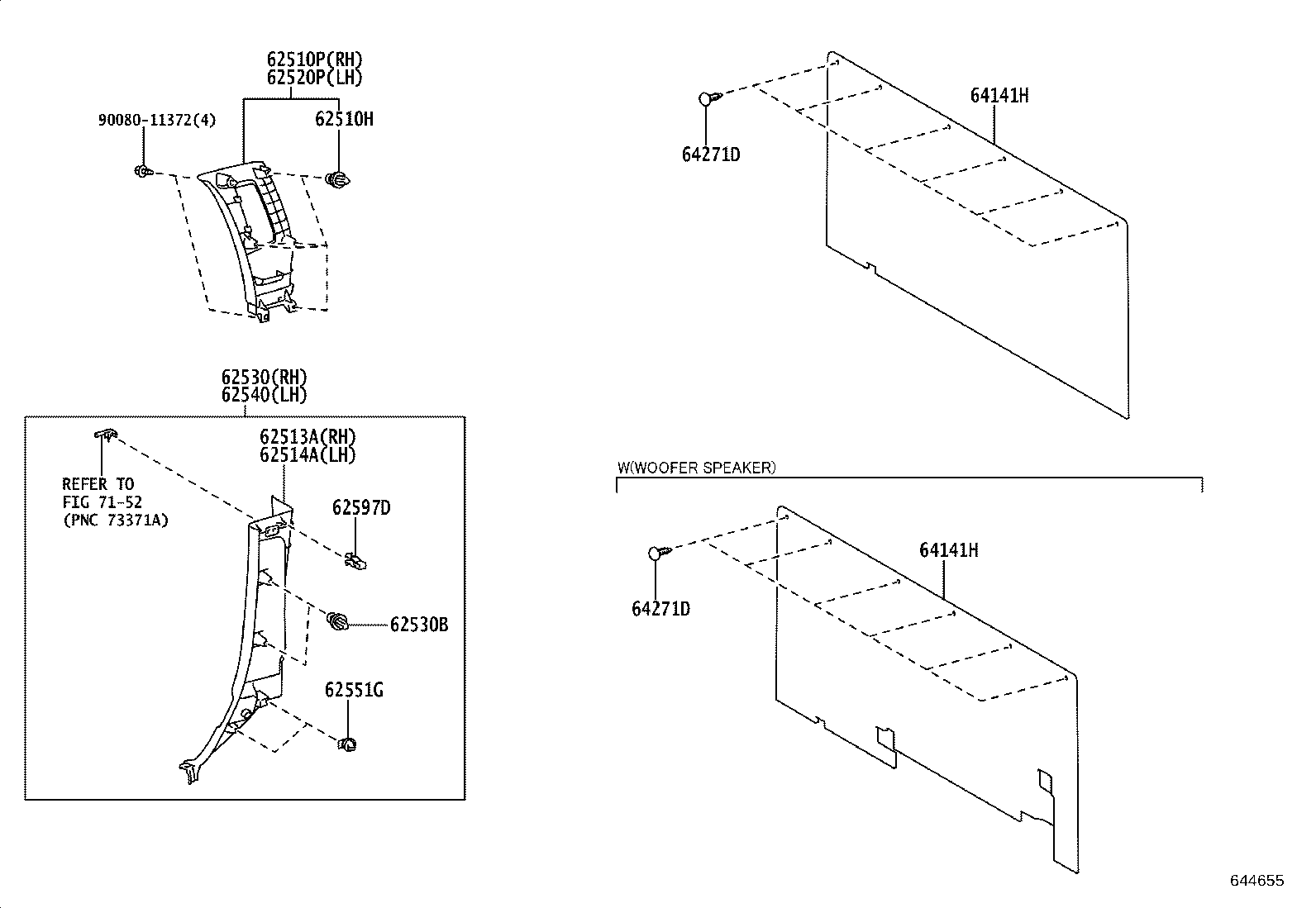

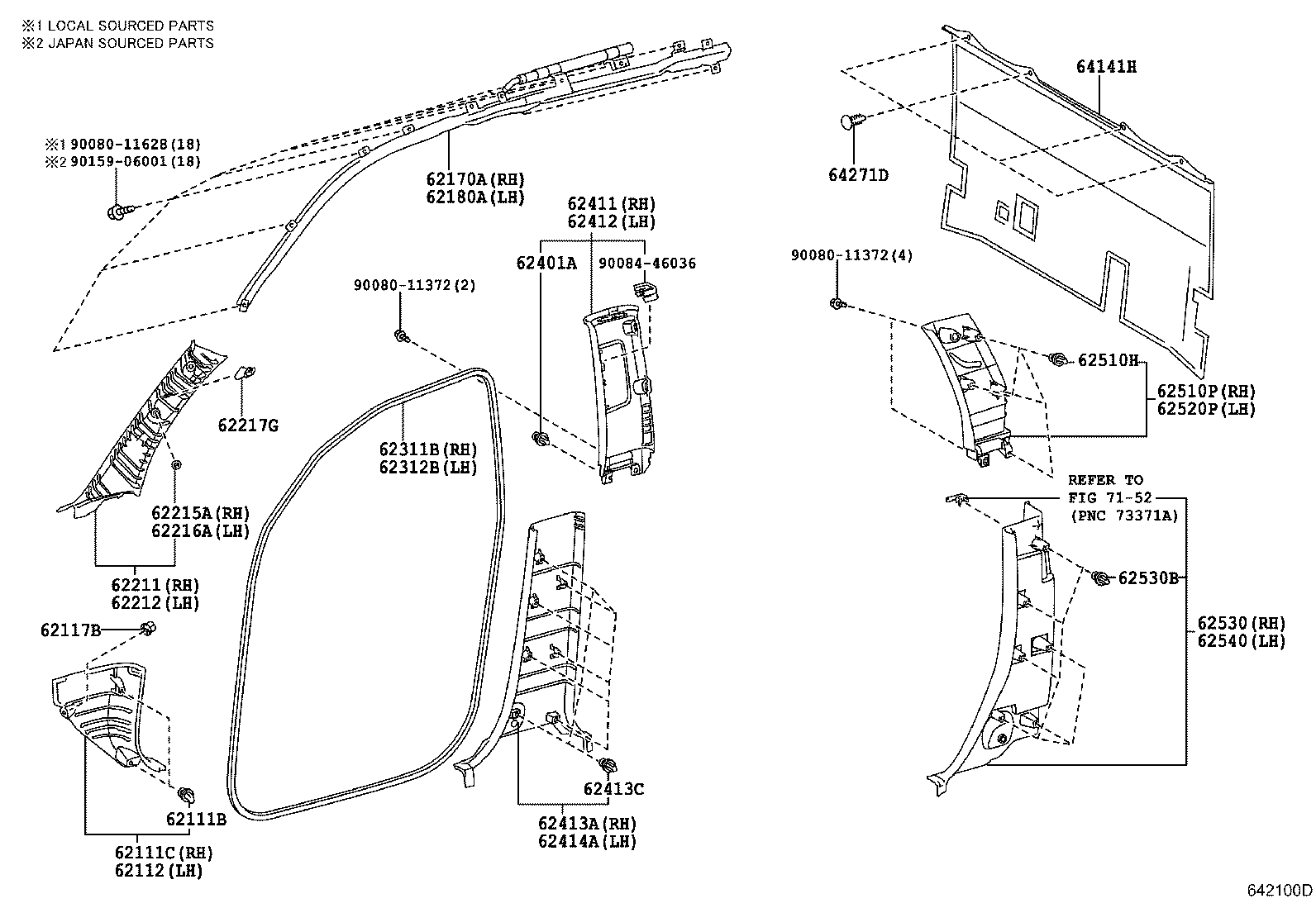

Figure 642006H 642006H 2006-11 → 2013-08 Figure 642007D 642007D 2006-11 → 2013-08 Figure 642100D 642100D 2006-11 → 2013-08 Figure 642099D 642099D 2007-03 → 2013-08 Figure 642902 642902 2007-03 → 2013-08 Figure 643332C 643332C 2013-08 → — Figure 643333A 643333A 2013-08 → 2019-08 Figure 644654 644654 2019-08 → — Figure 643334 643334 2013-08 → — Figure 644655 644655 2019-08 → — Figure 643335A 643335A 2013-08 → 2019-08

Part groups

PNCDescription
62111B Clip(FOR COWL SIDE TRIM)
62111C Board, Cowl Side Trim, RH
62112 Board, Cowl Side Trim, LH
62117B Clip, NO.1(FOR COWL SIDE TRIM)
62170A Airbag Assy, Curtain Shield, RH
62180A Airbag Assy, Curtain Shield, LH
62211 Garnish, Front Pillar, RH
62211T Clip(FOR FRONT PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62215A Insert, Front Pillar Garnish, RH
62216A Insert, Front Pillar Garnish, LH
62216B Cover, Front Pillar Garnish, NO.1 LH
62217G Clip, Front Pillar Garnish
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62401A Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62413A Garnish, Center Pillar, Lower RH
62413C Clip (FOR CENTER LOWER GARNISH)
62414A Garnish, Center Pillar, Lower LH
62510H Clip(FOR QUARTER TRIM FRONT PANEL)
62510P Panel Assy, Quarter Trim, Front RH
62513A Panel, Quarter Trim, Lower RH
62514A Panel, Quarter Trim, Lower LH
62520P Panel Assy, Quarter Trim, Front LH
62530 Panel Assy, Quarter Trim, Lower RH
62530B Clip, Quarter Trim NO.1
62540 Panel Assy, Quarter Trim, Lower LH
62551G Clip
62597D Clip
64141H Silencer, Back Panel, NO.1
64142C Silencer, Back Panel, NO.2
64261C Garnish, Back Panel, Upper
64267B Hook, Package Holder Net
64270 Board Assy, Room Partition, RH
64271C Trim, Back Panel
64271D Clip(FOR BACK PANEL TRIM)
64275C Cover, Back Panel Trim
64275F Cover, Back Panel Trim
64280 Board Assy, Room Partition, LH
64427D Cover, Luggage Compartment Trim Box
64429C Clip(FOR LUGGAGE COMPARTMENT SIDE TRAY)
64429E Box, Luggage Compartment, RH
64439D Box, Luggage Compartment, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
