Seat & Seat Track

205 part groups · 32 illustrations

Illustrations

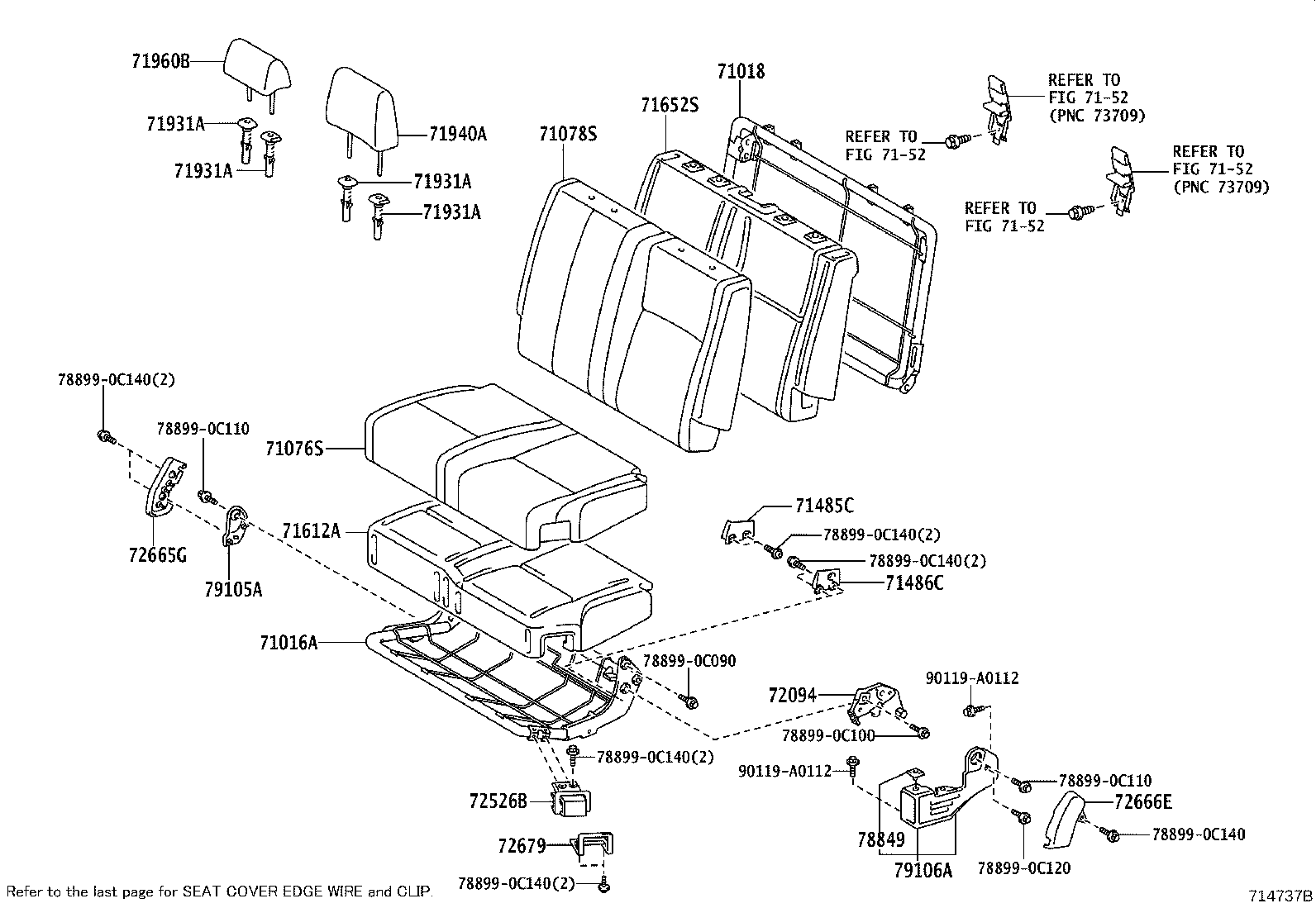

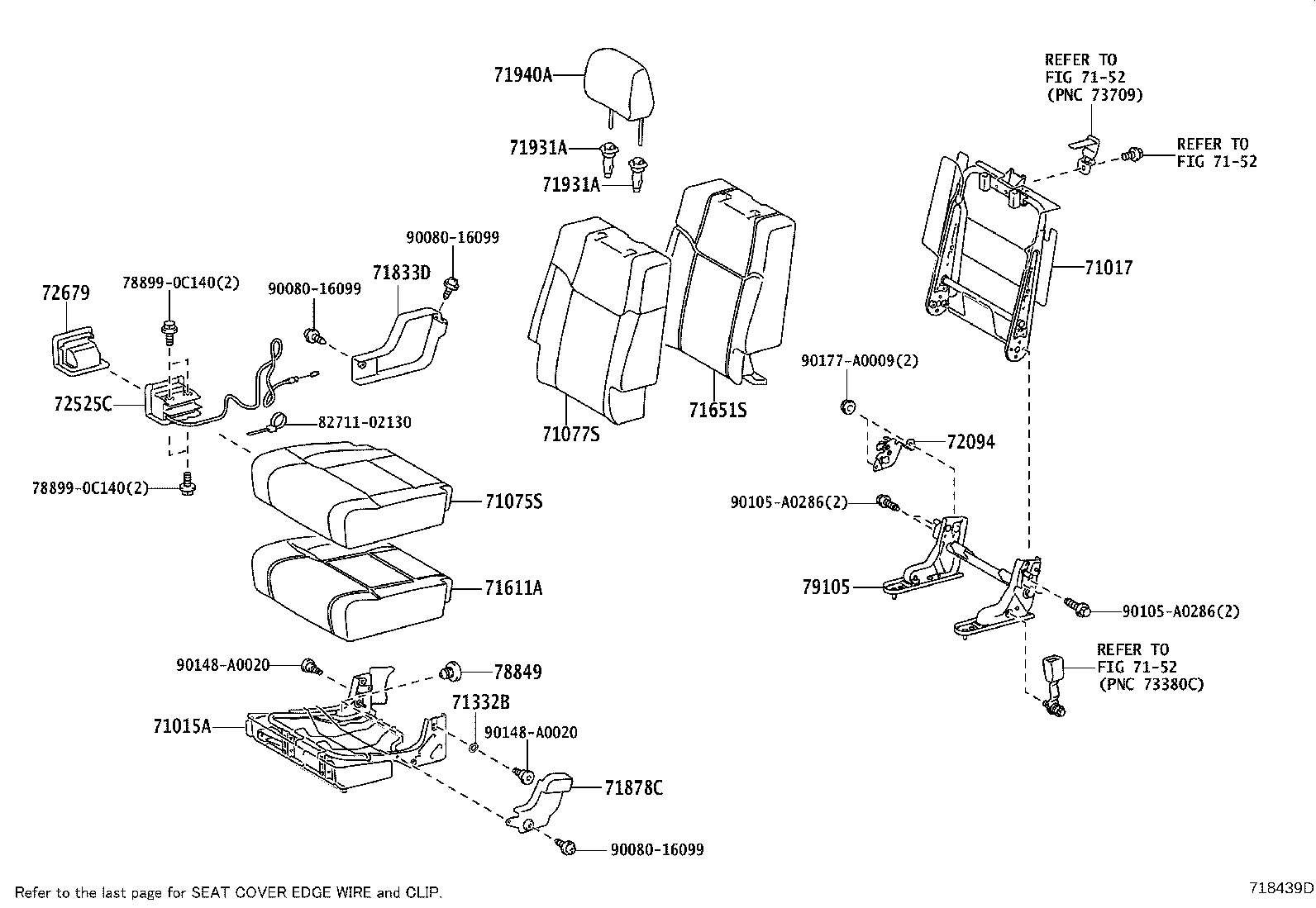

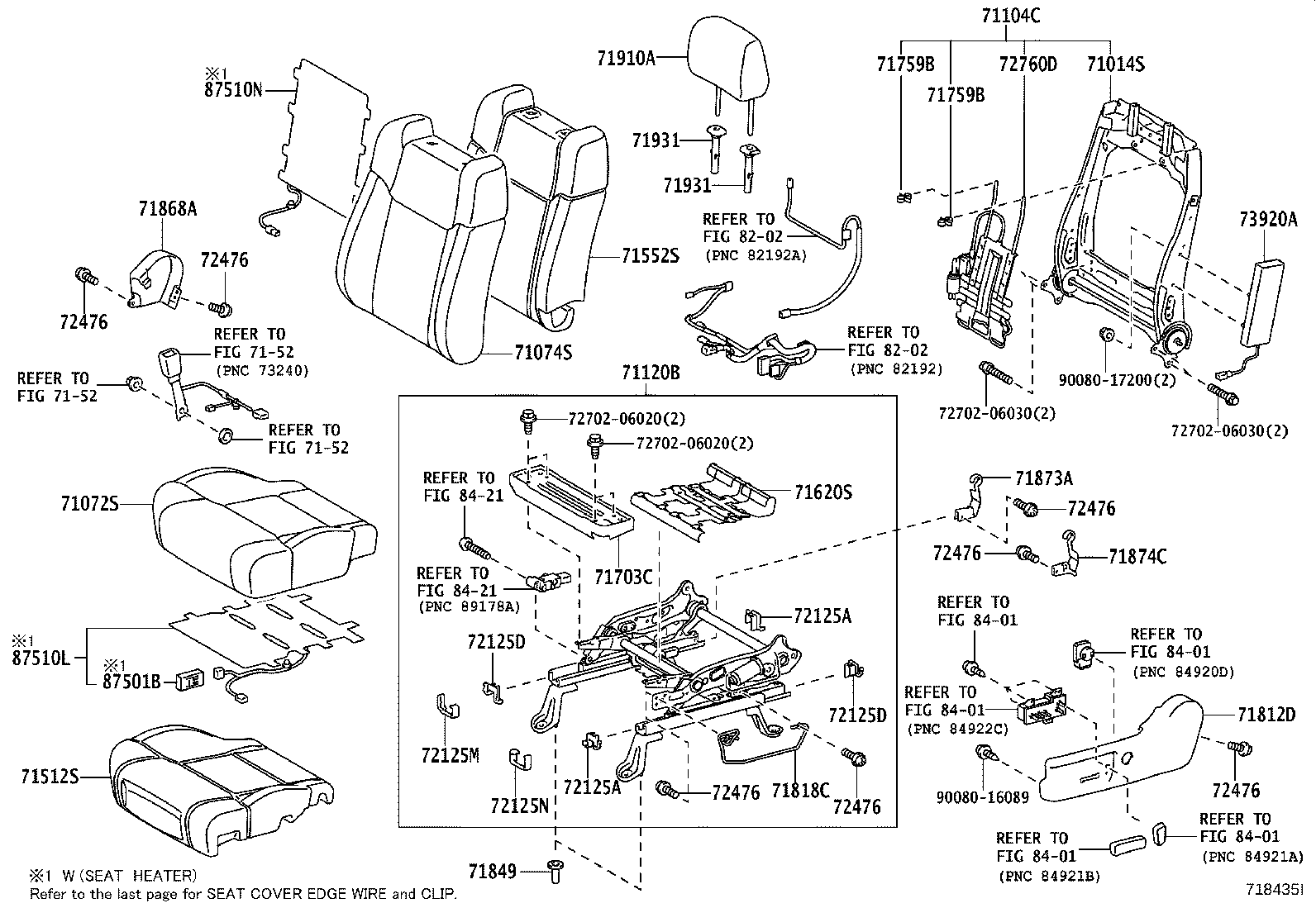

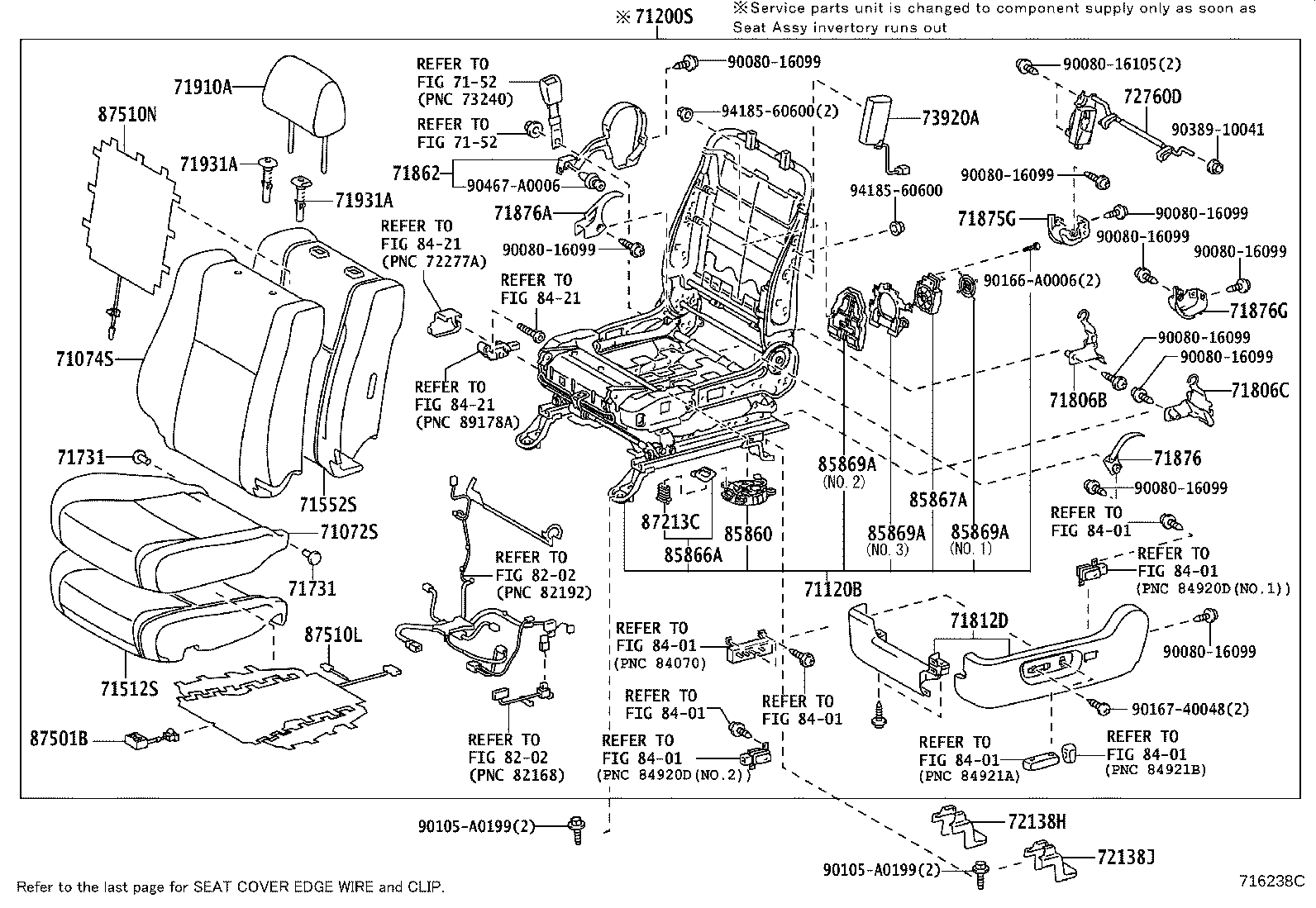

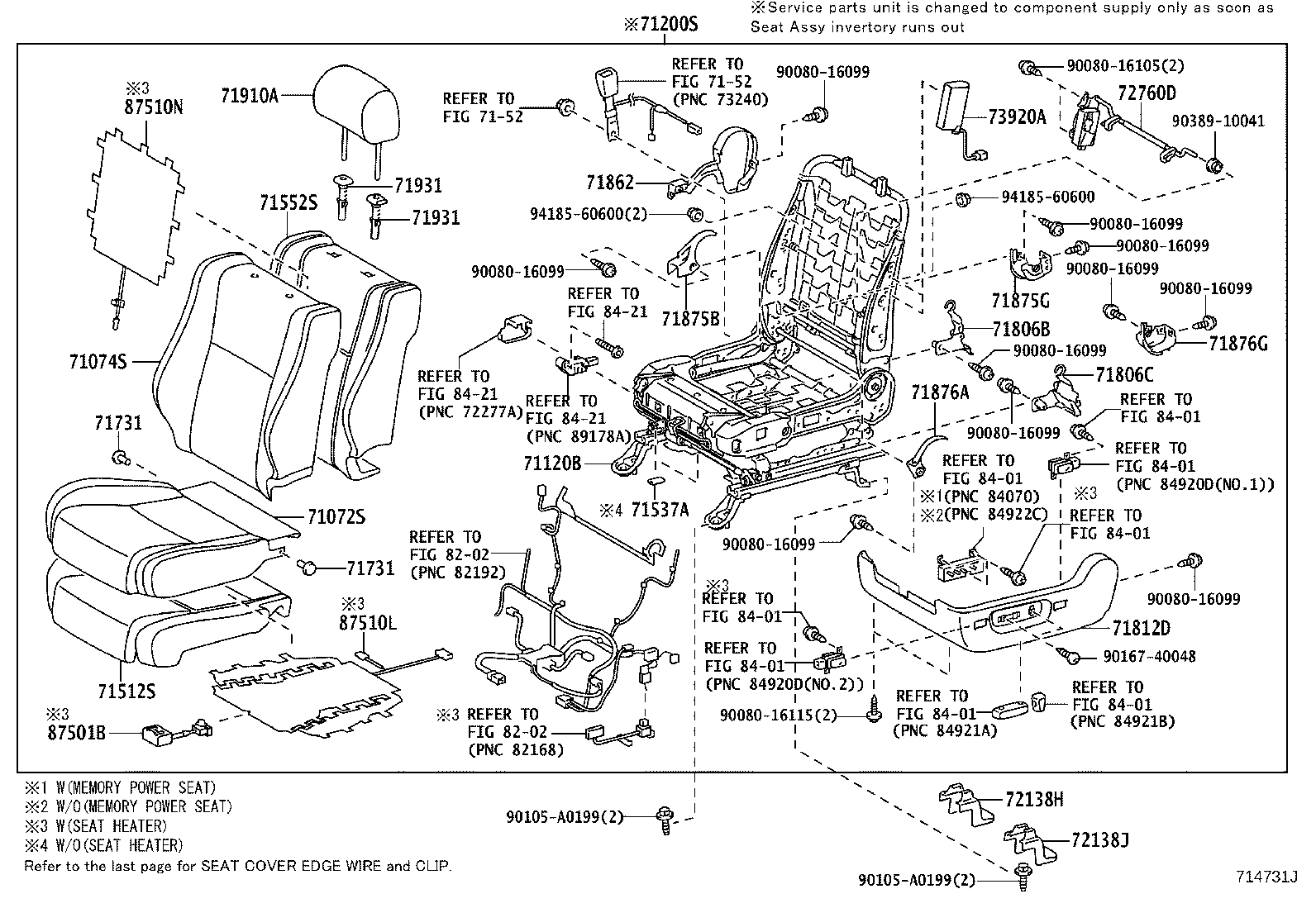

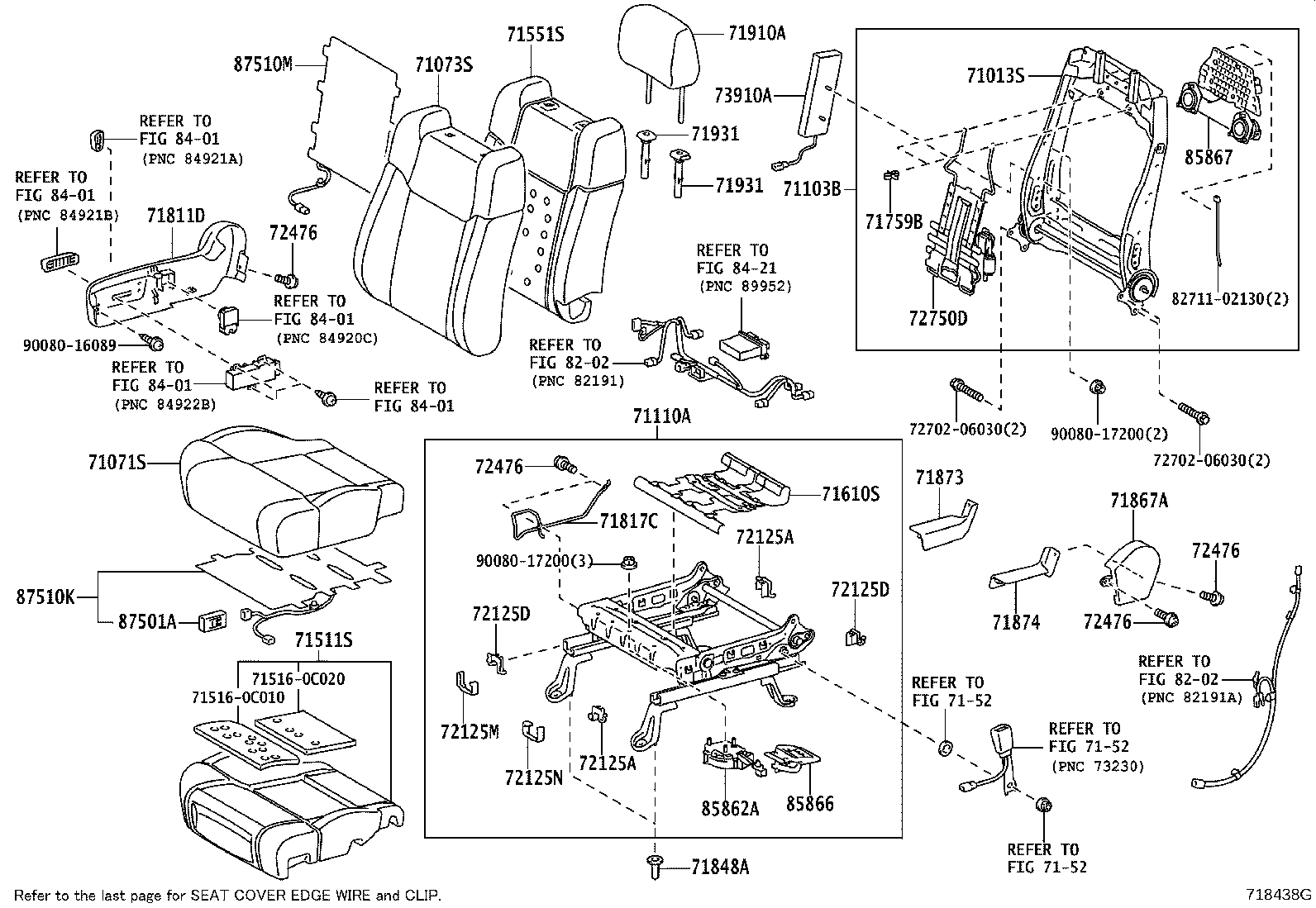

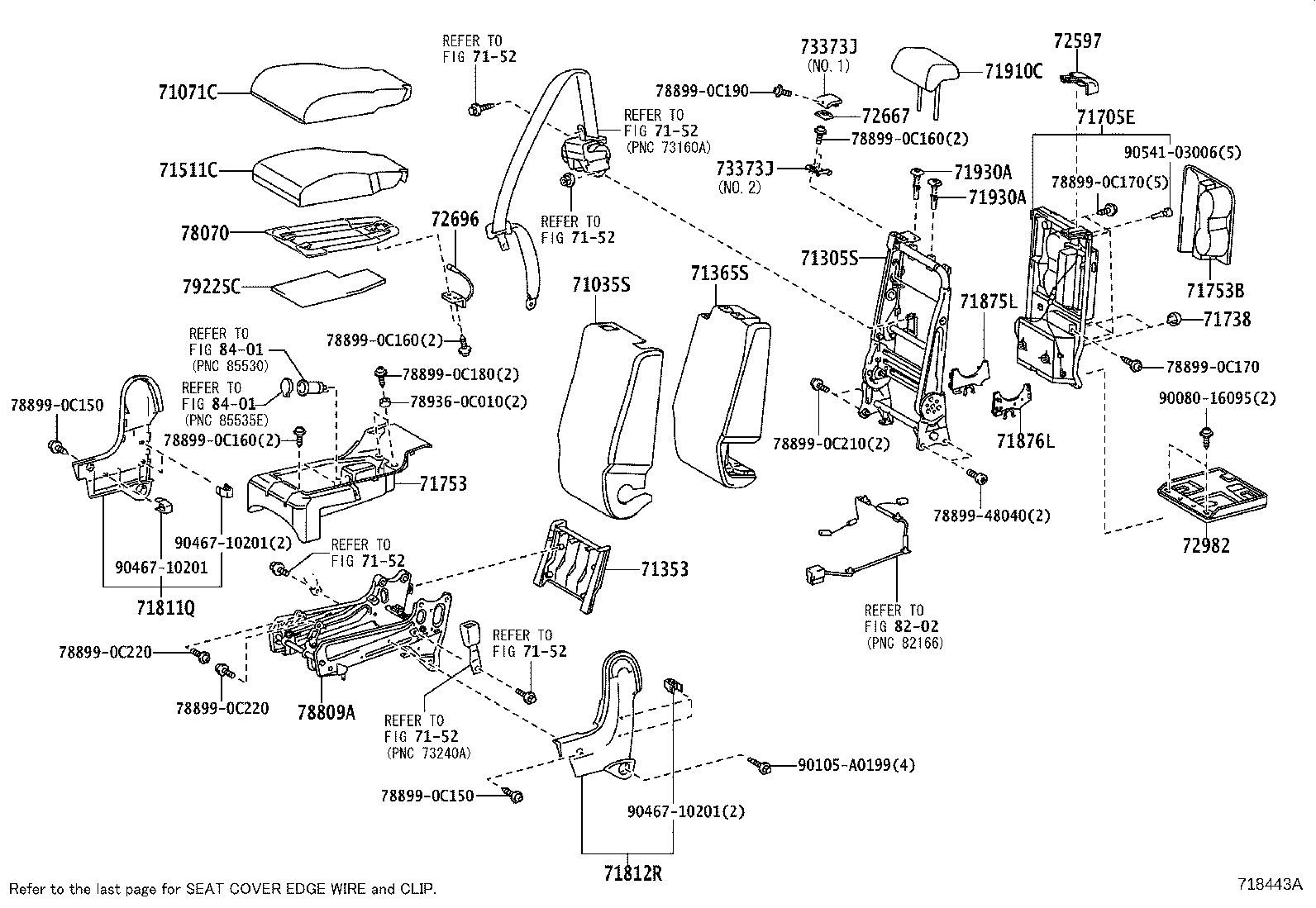

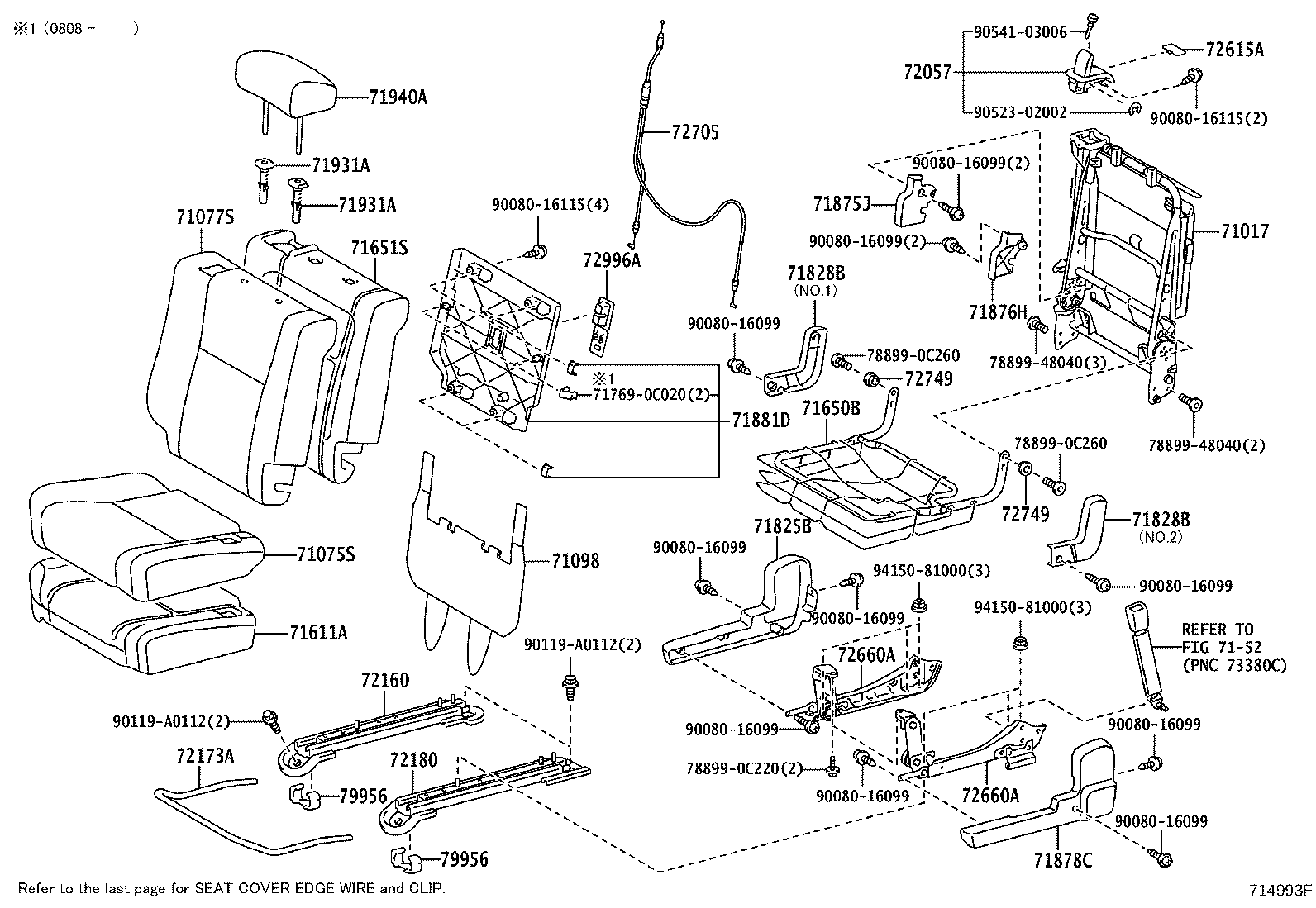

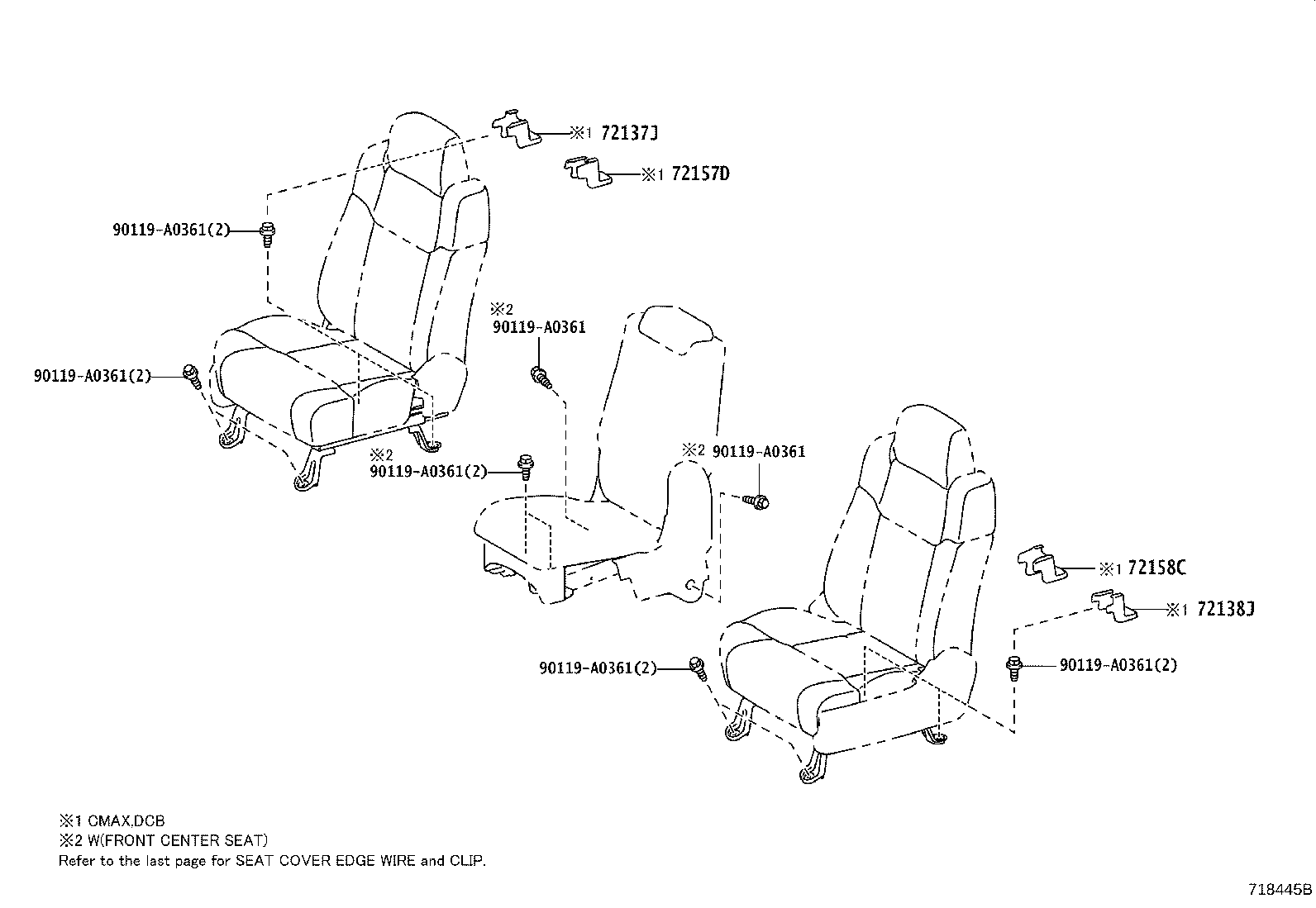

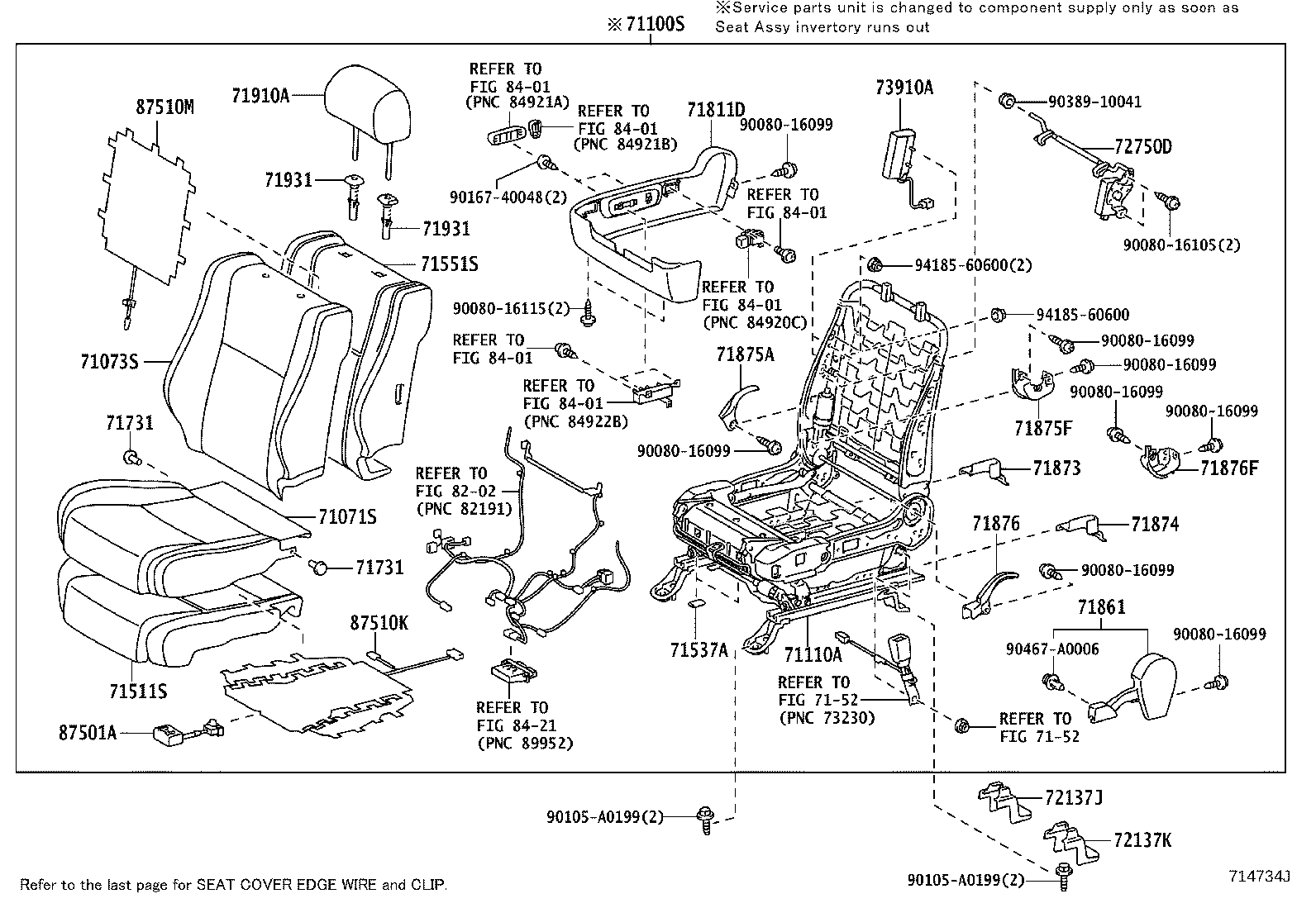

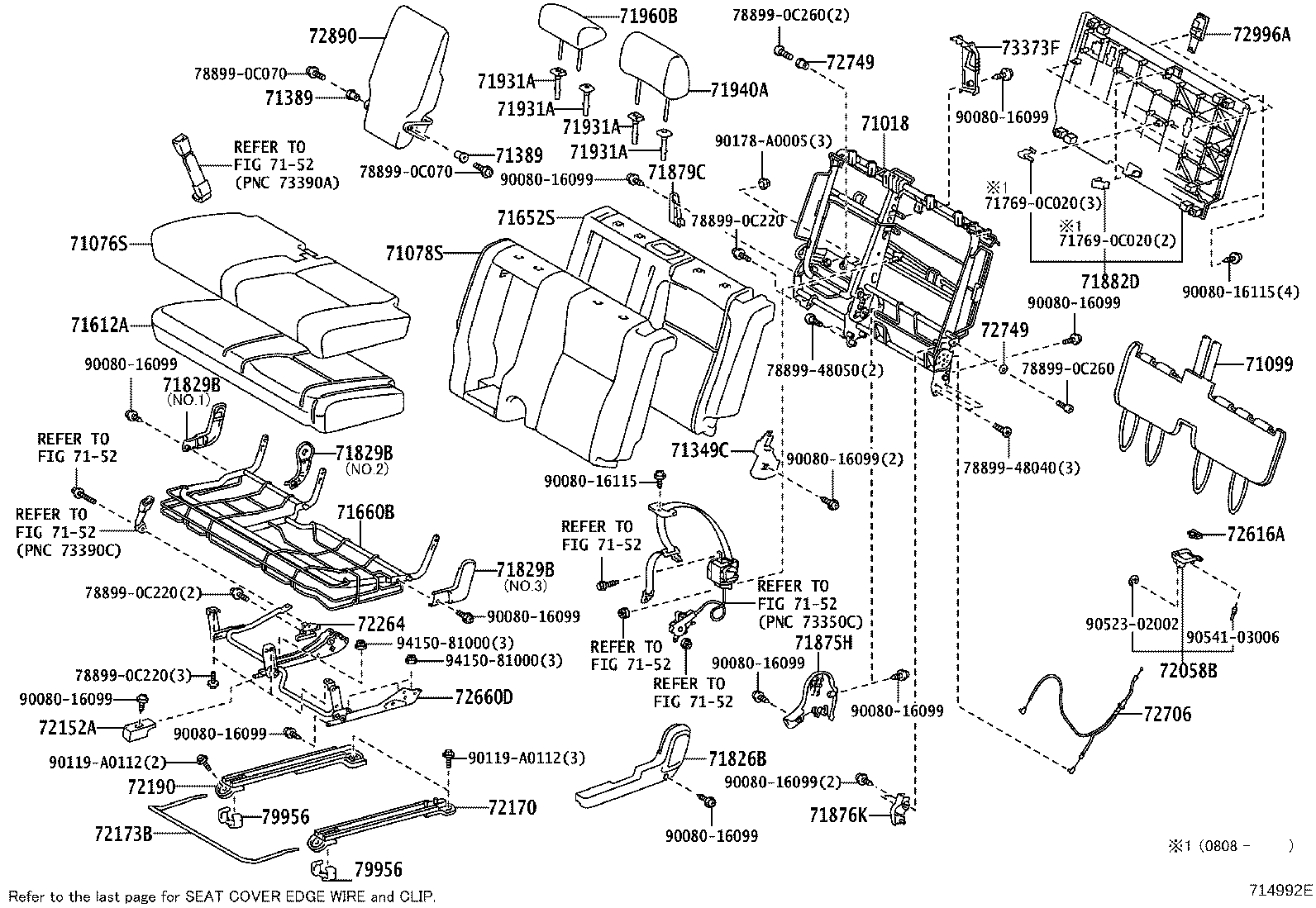

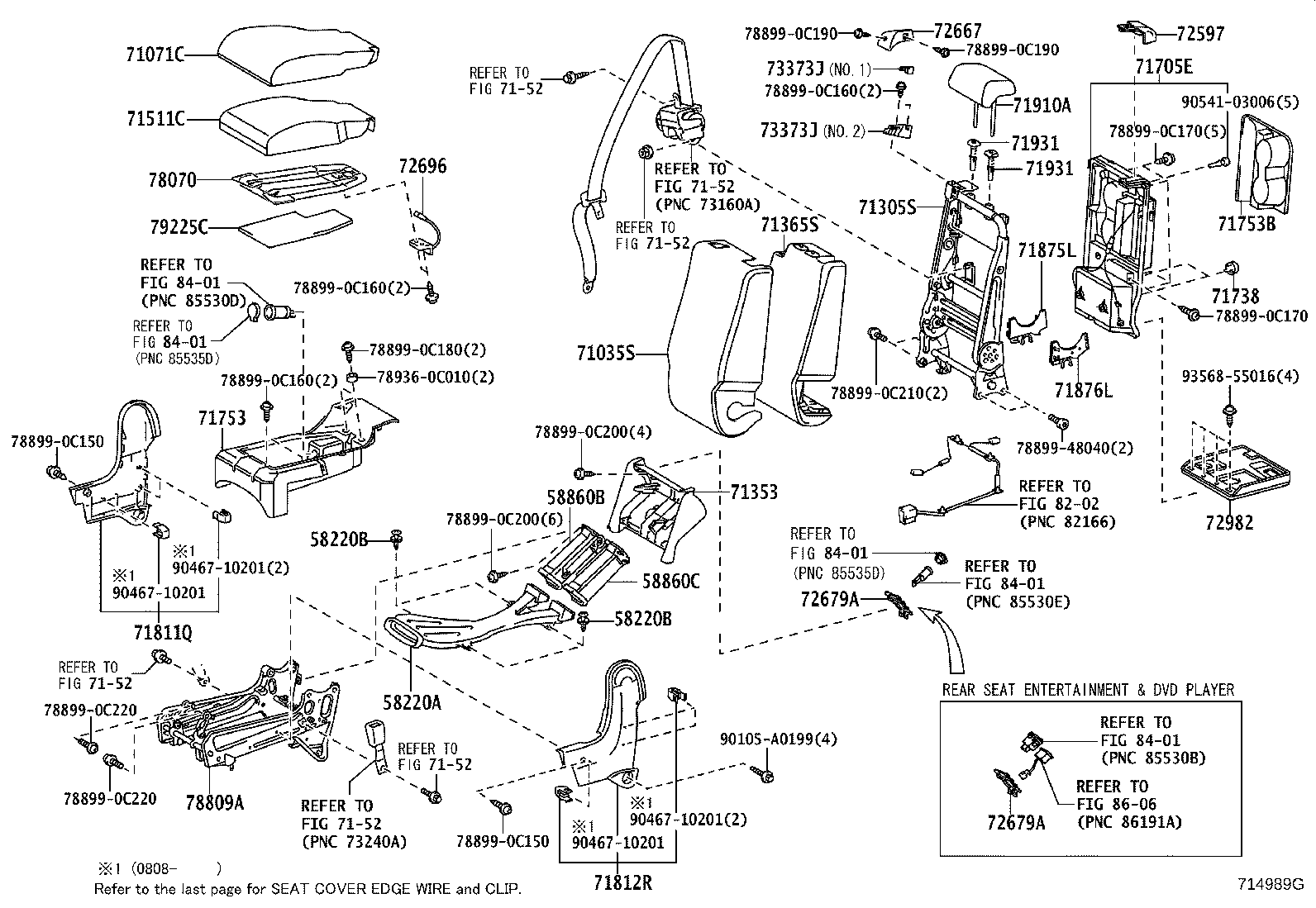

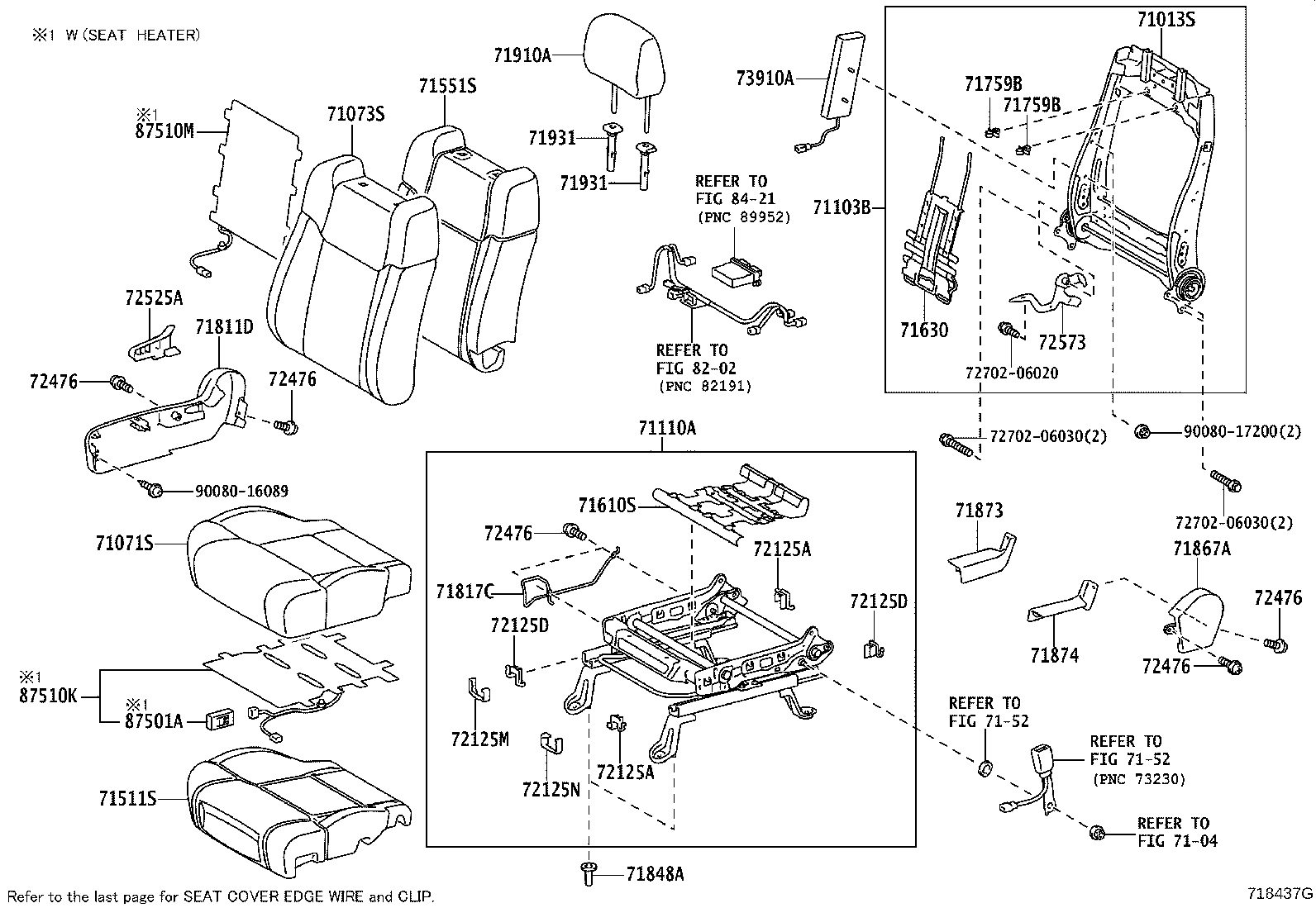

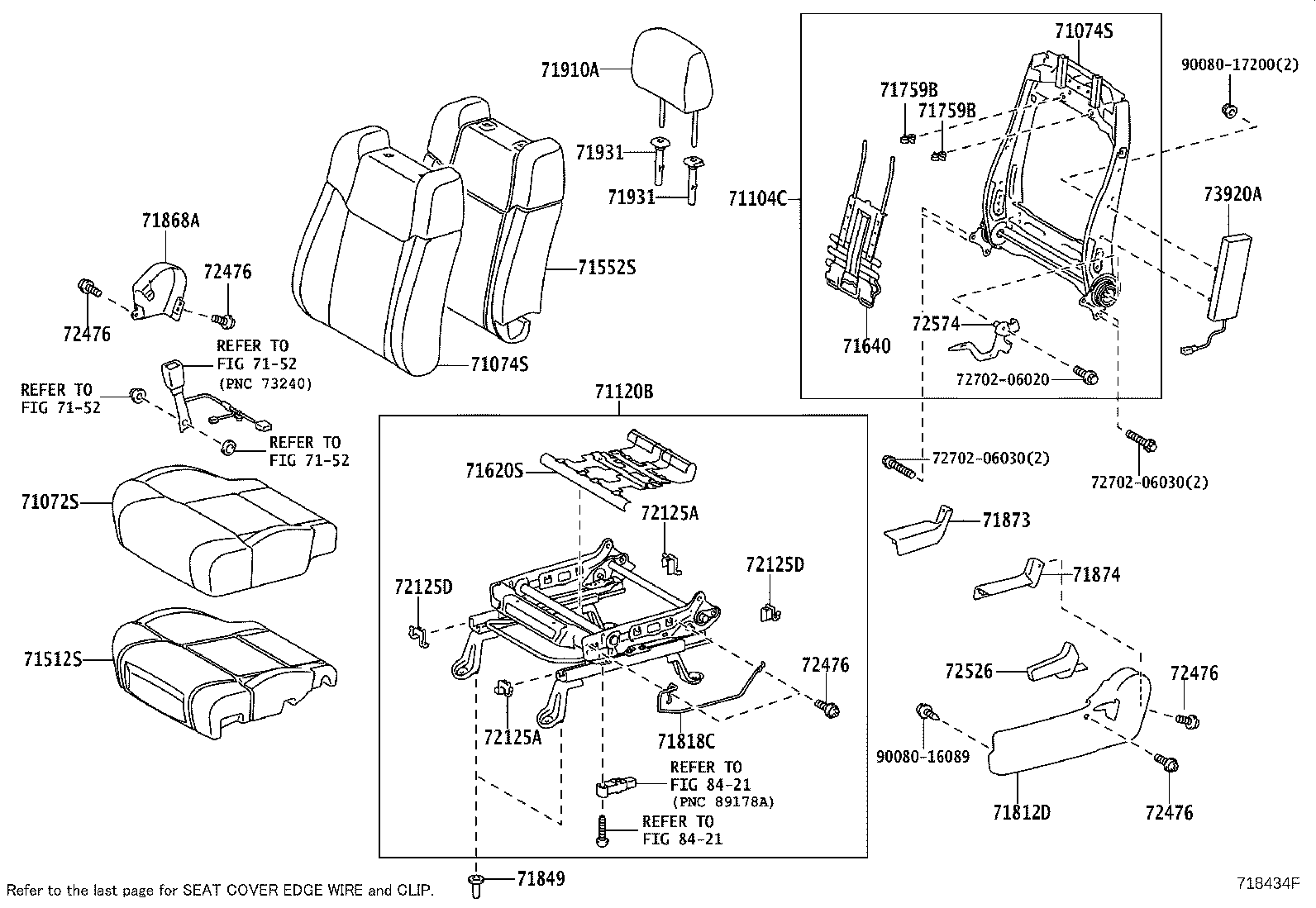

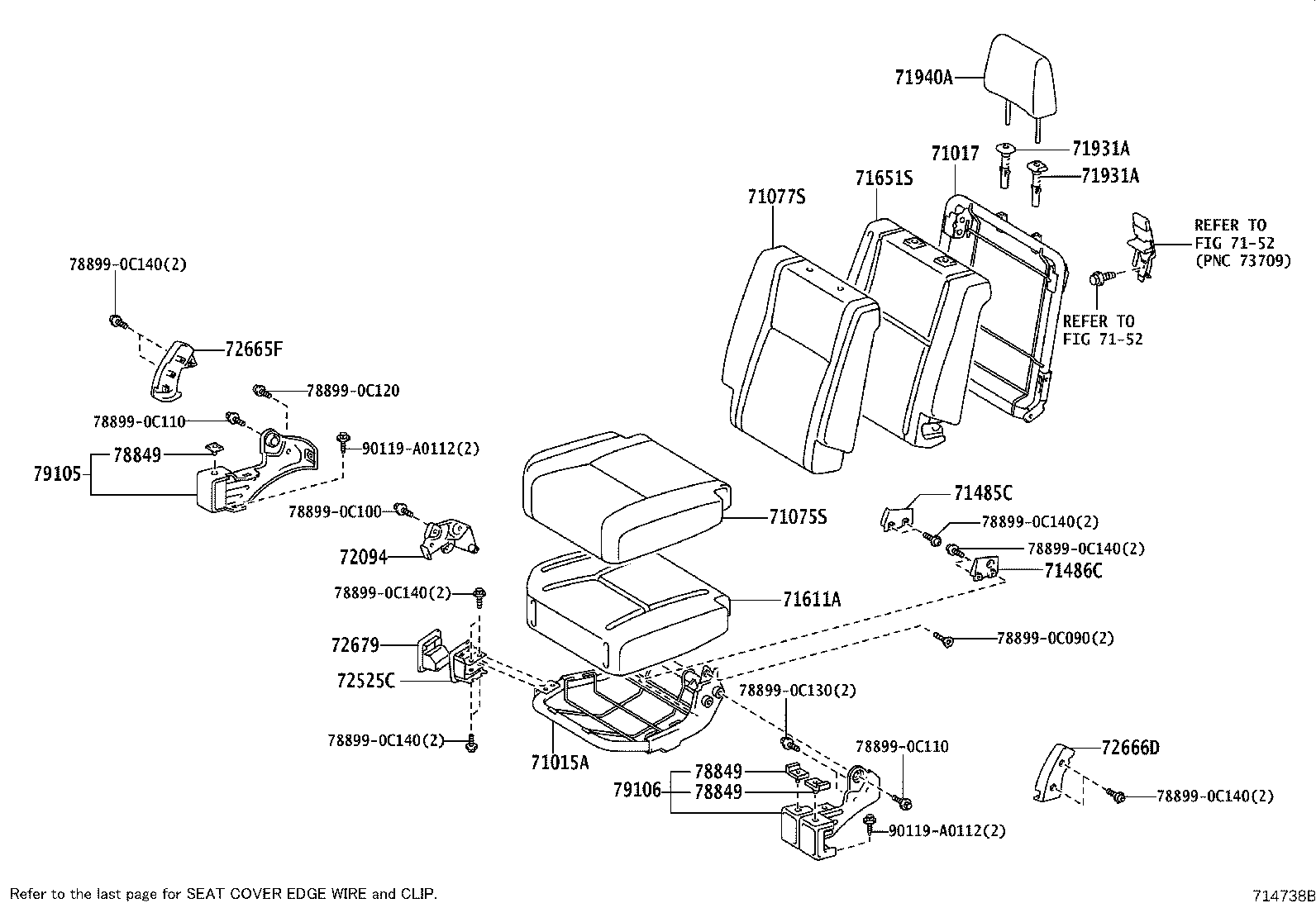

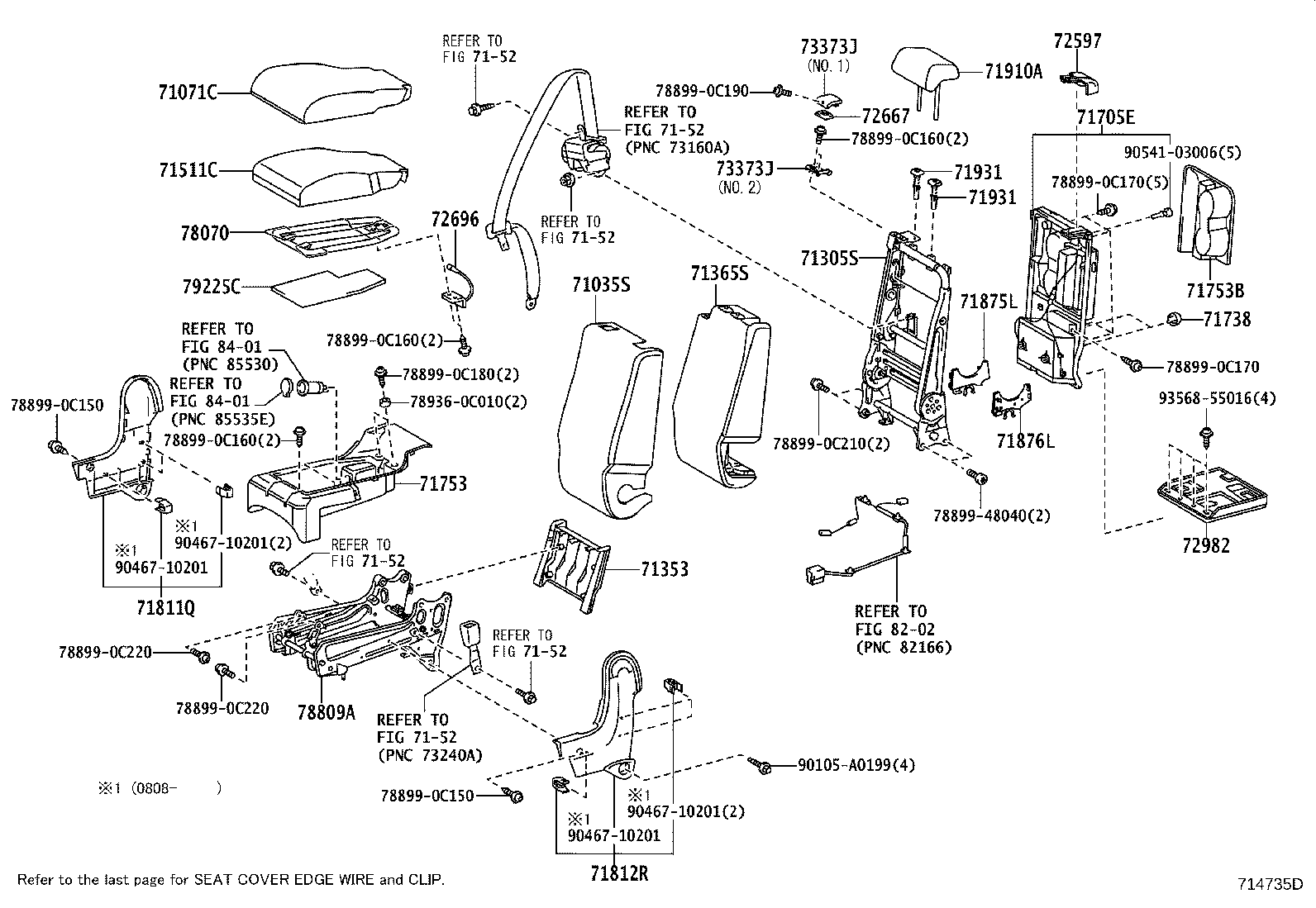

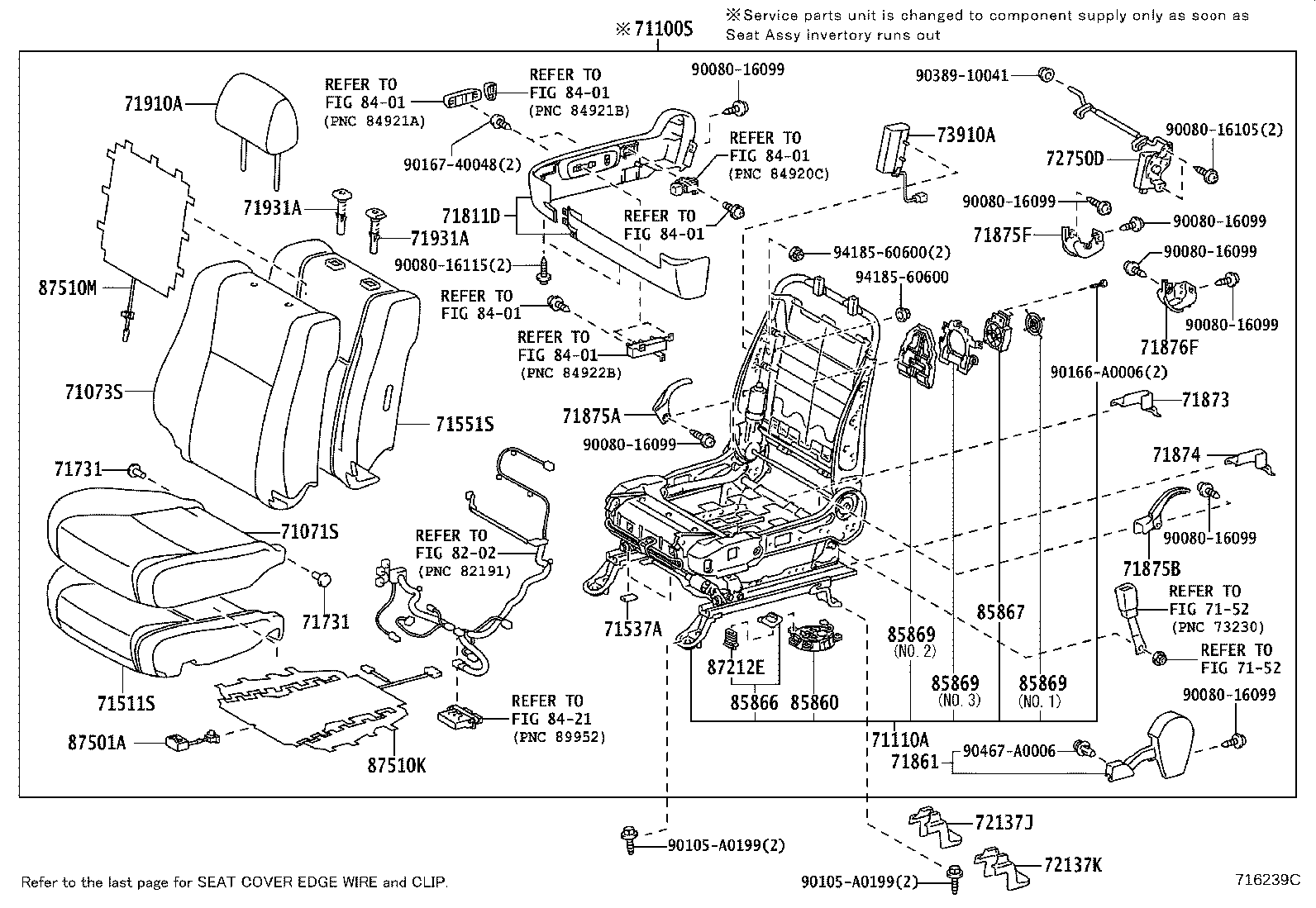

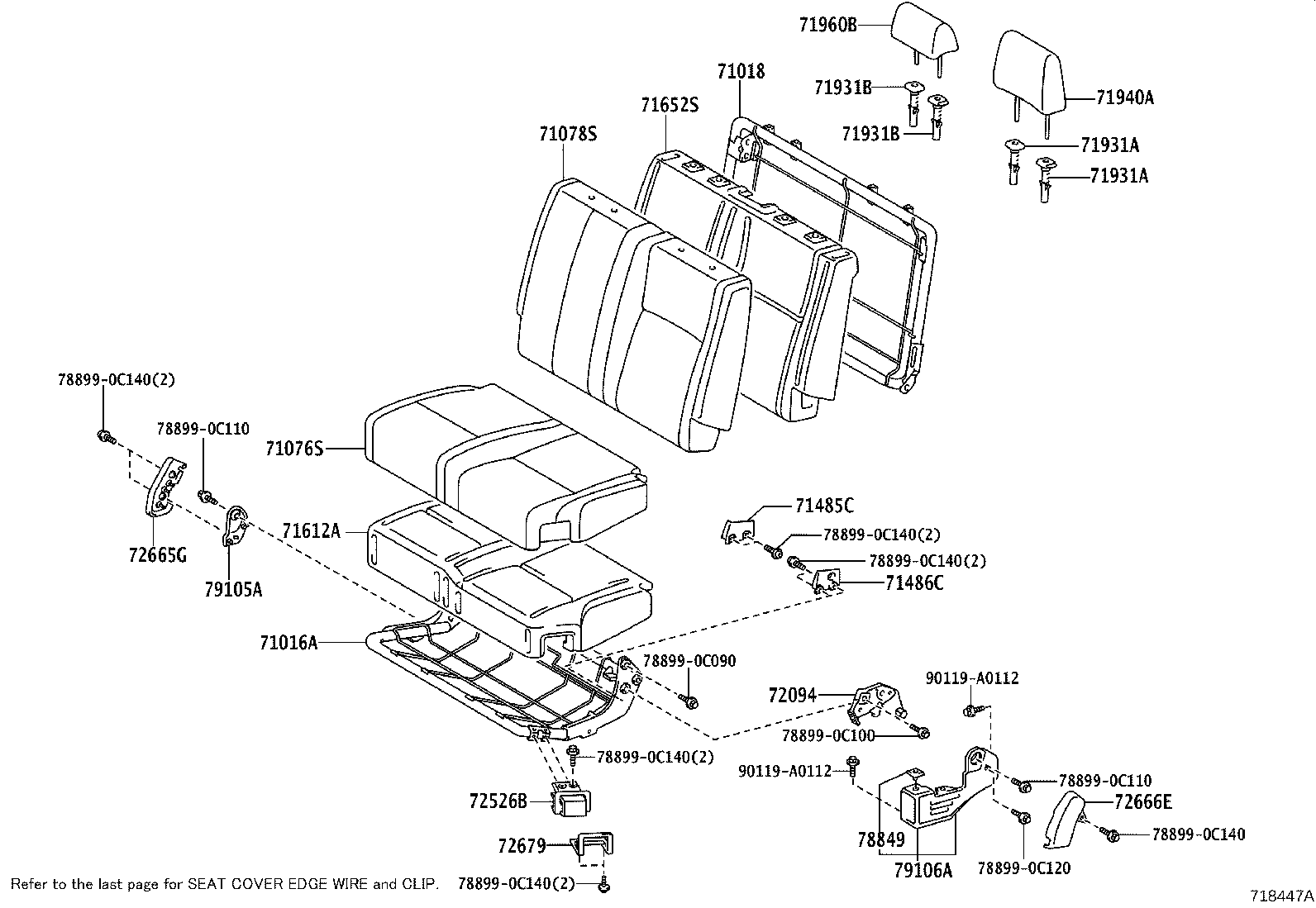

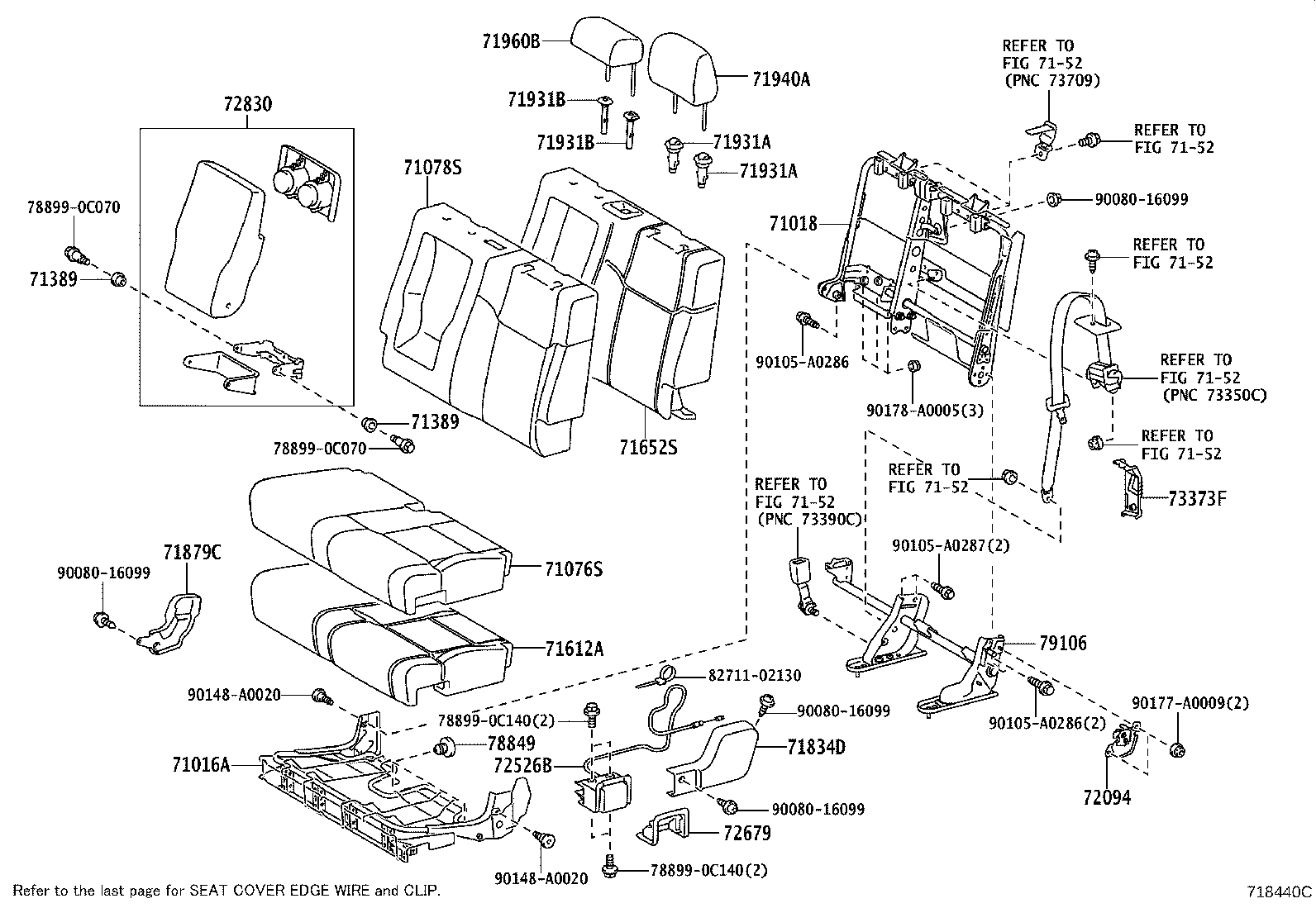

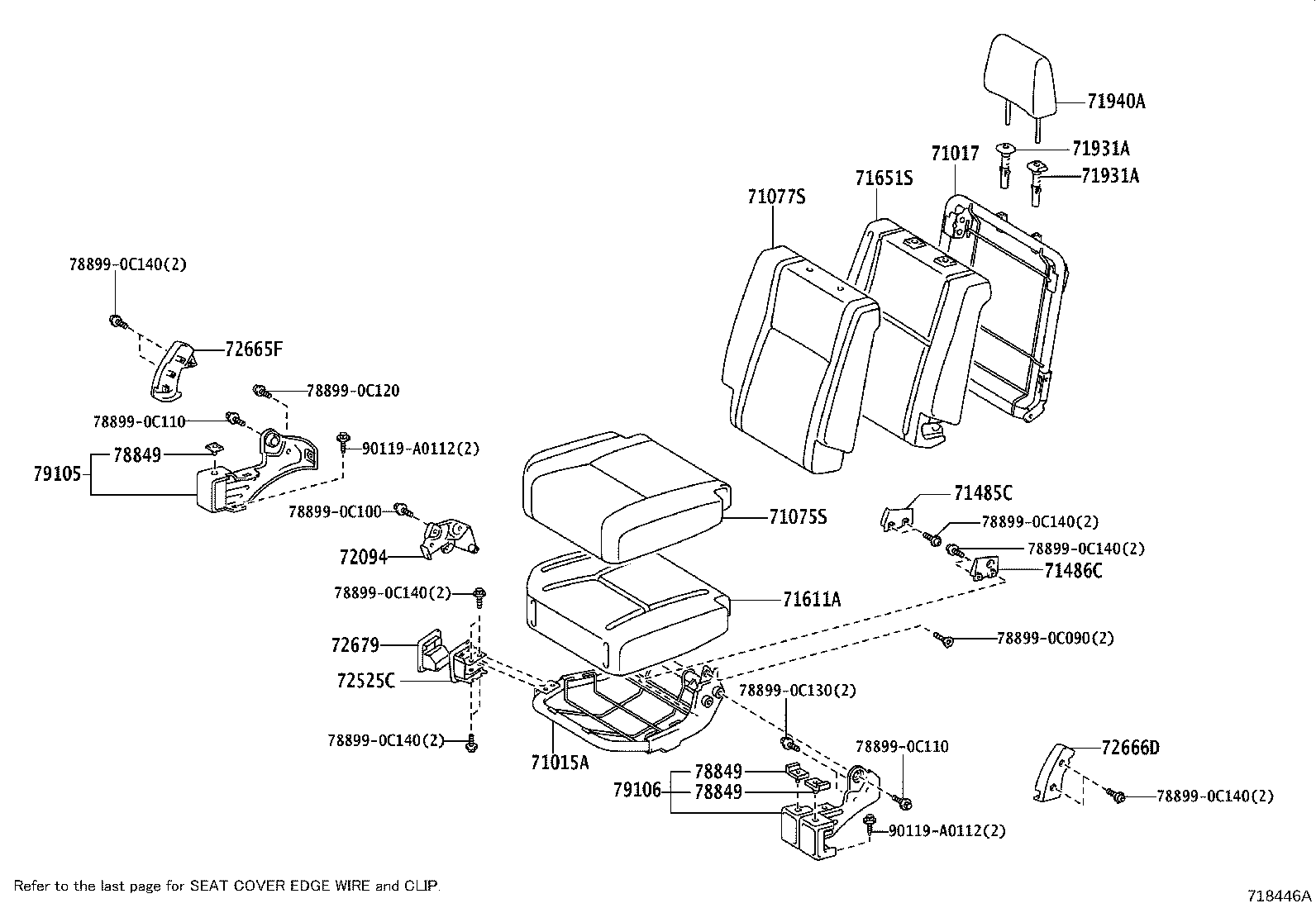

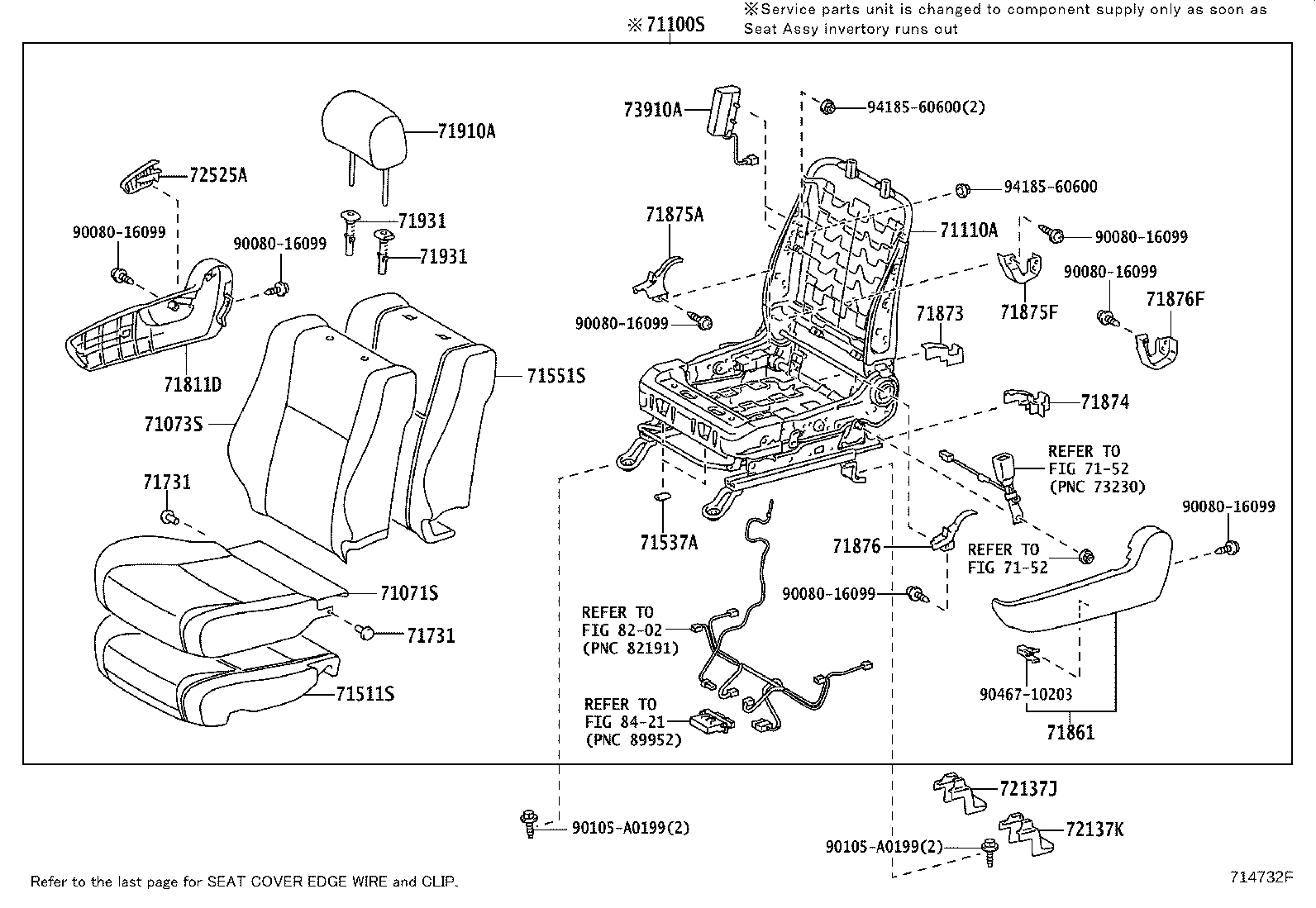

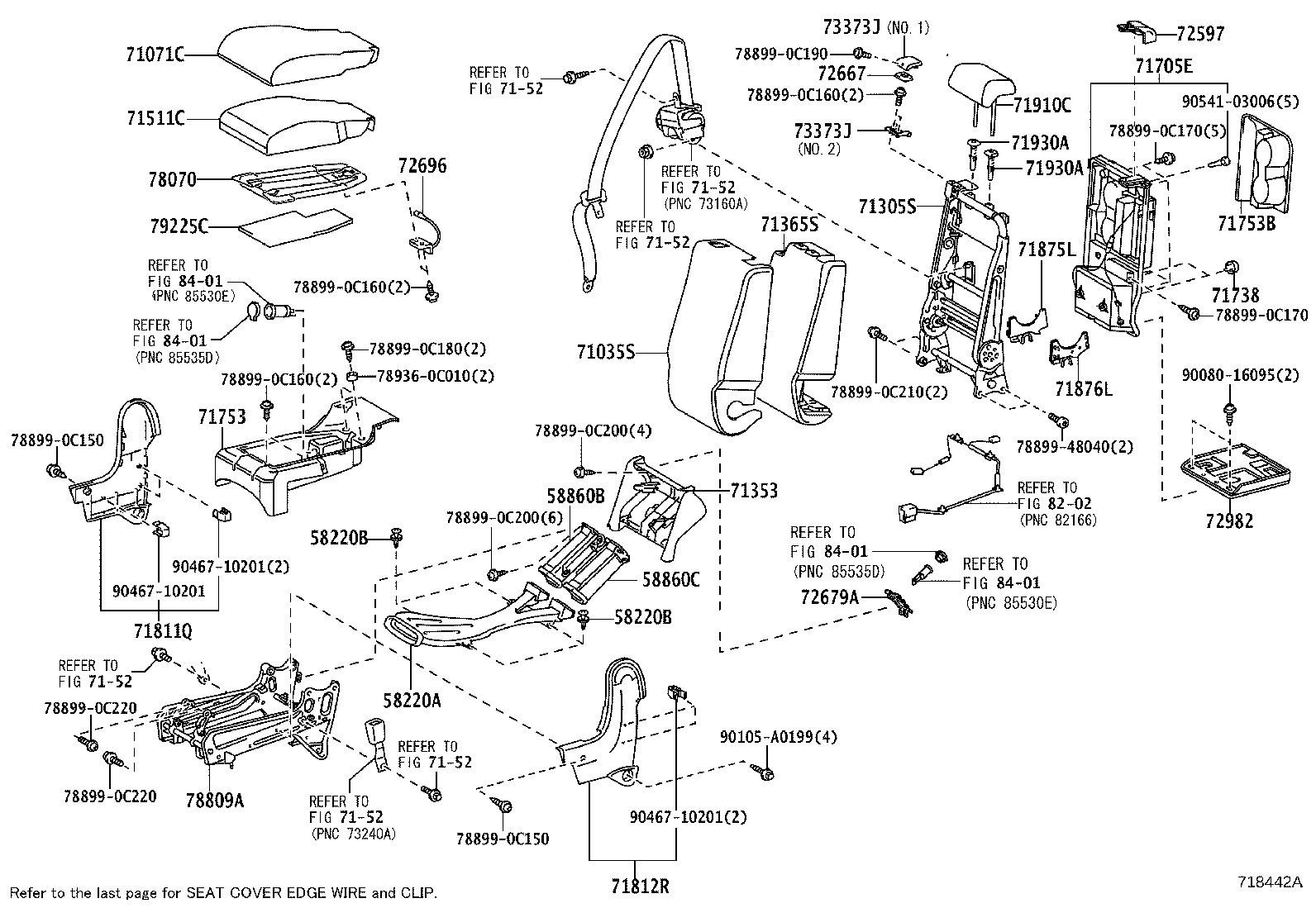

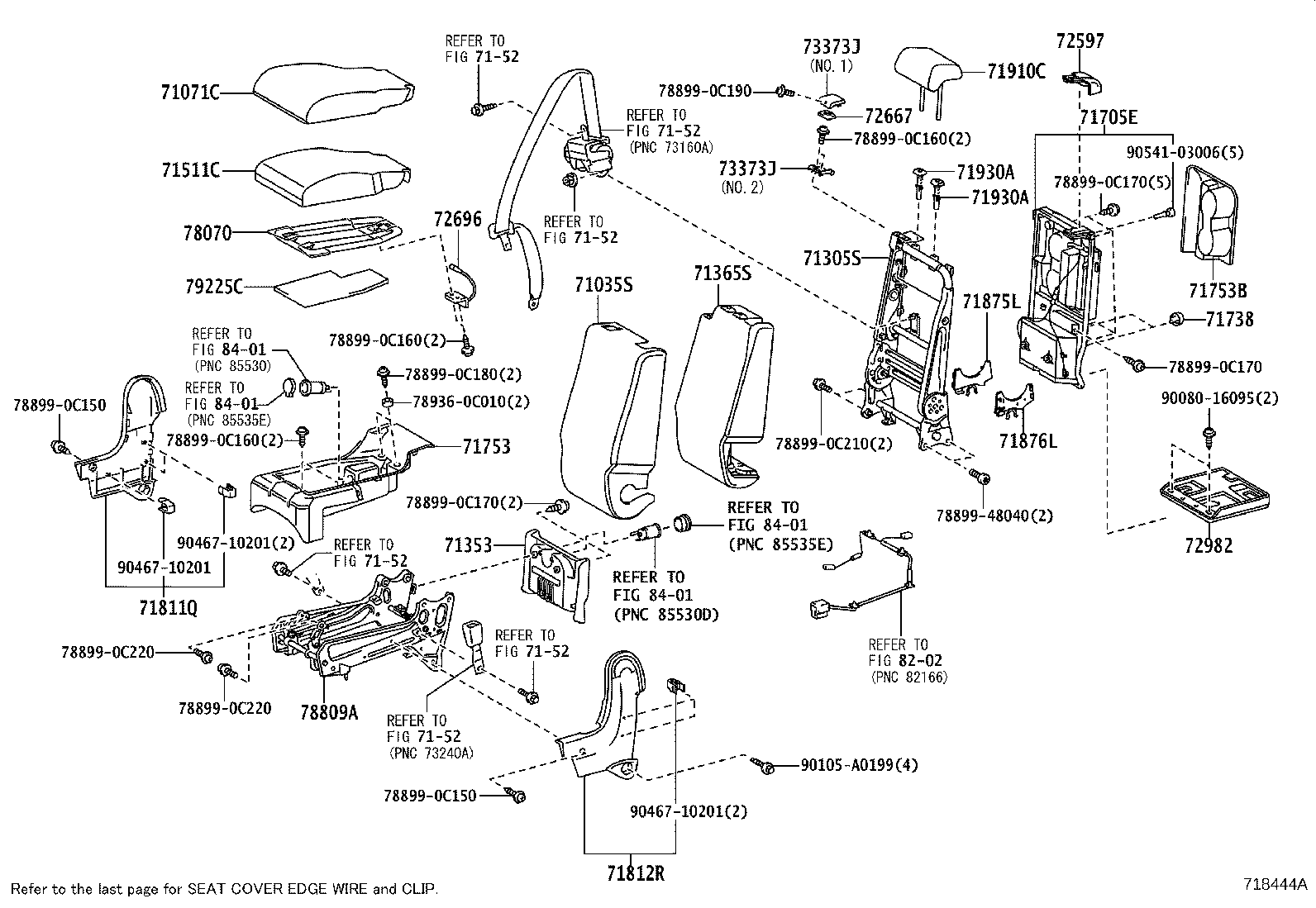

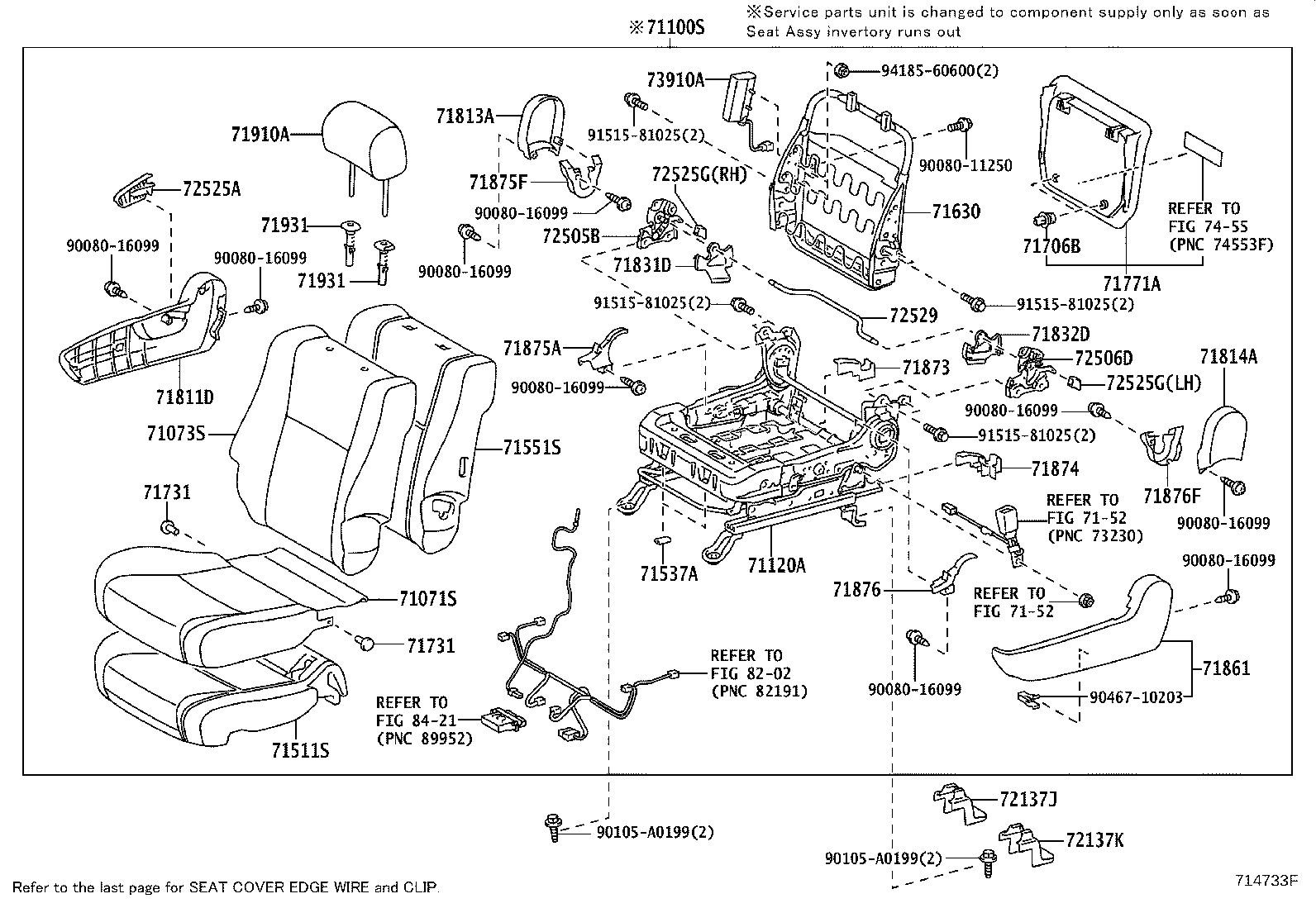

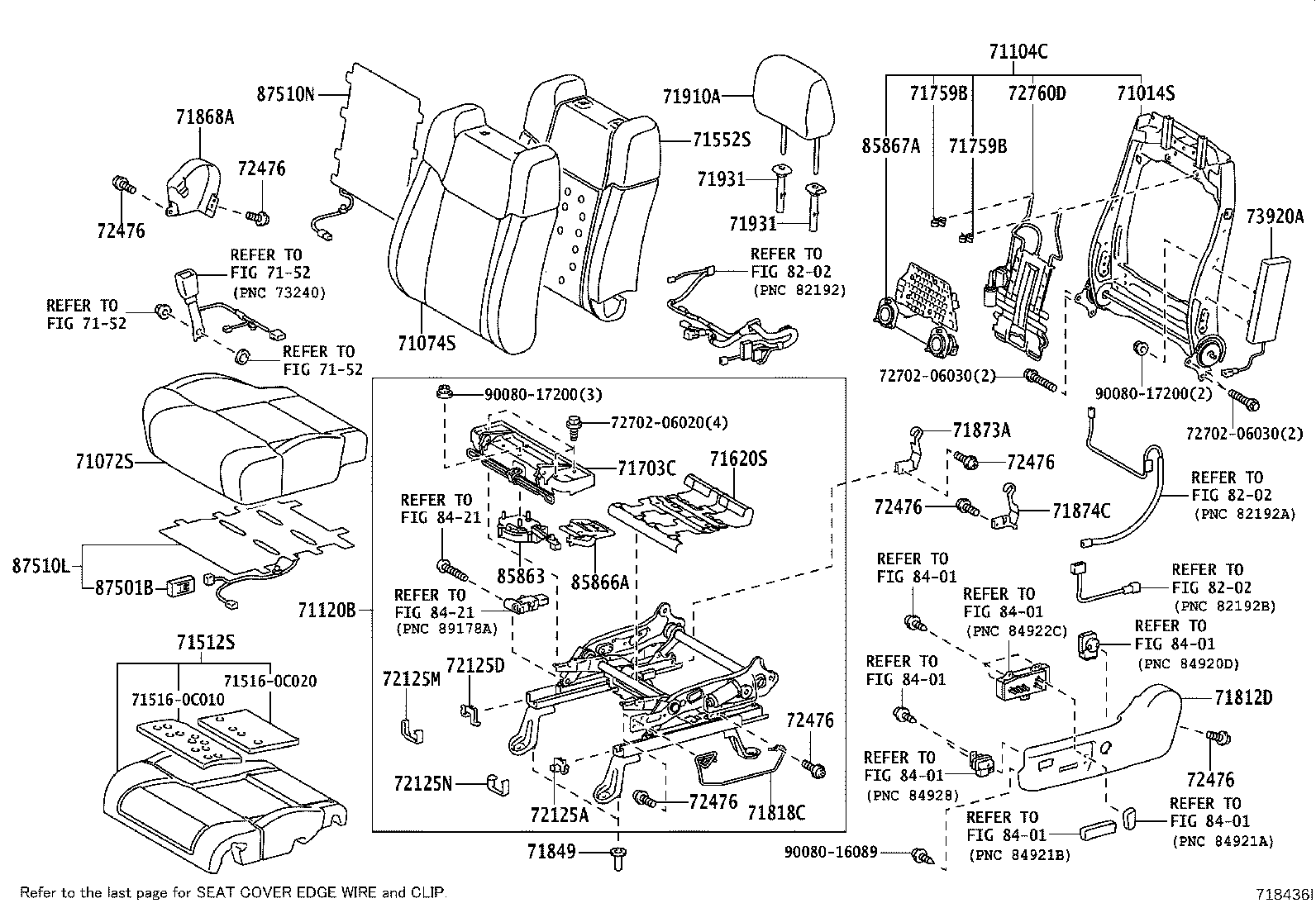

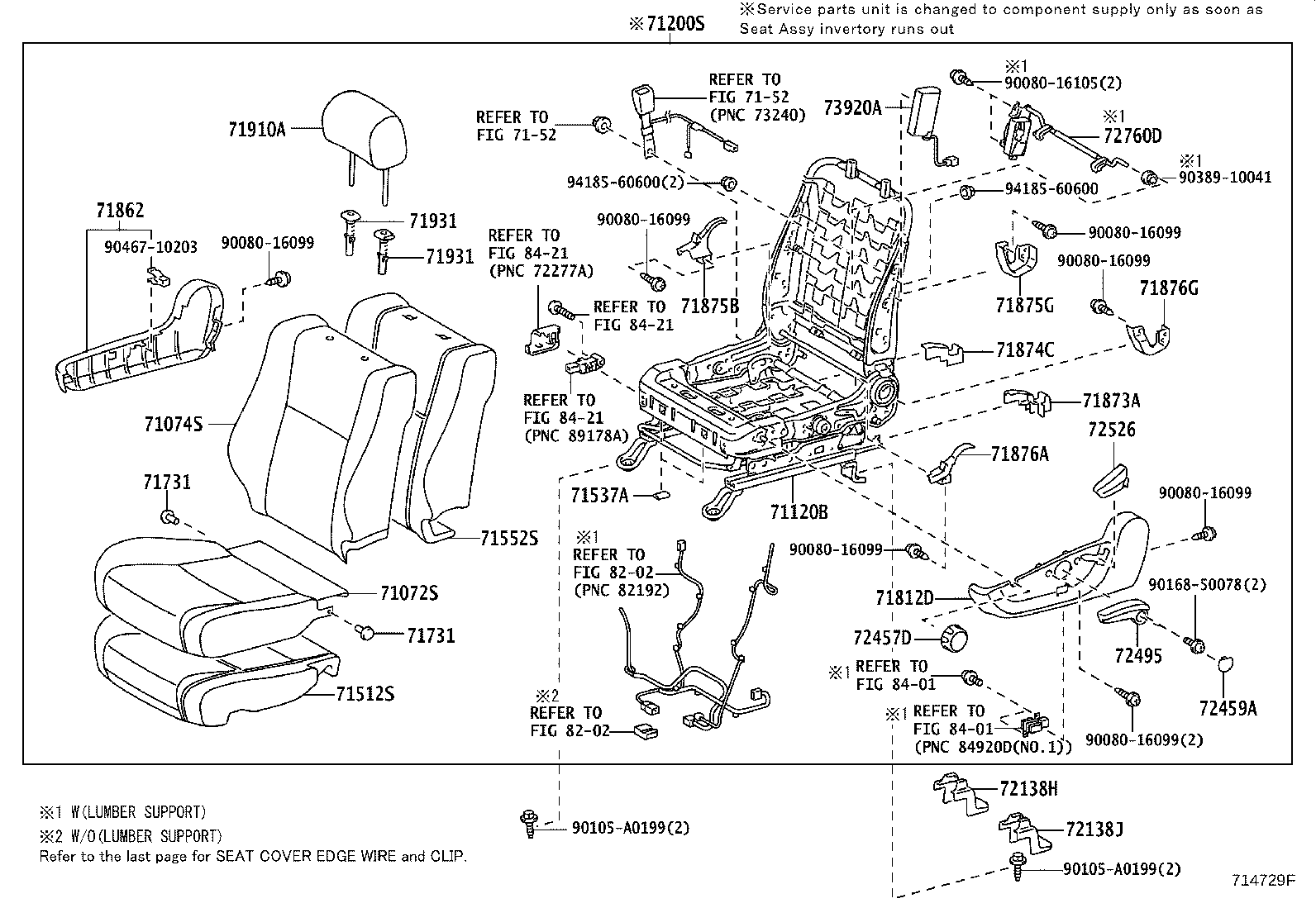

Figure 714730F 714730F 2006-11 → 2013-08 Figure 714729F 714729F 2006-11 → 2013-08 Figure 714731J 714731J 2006-11 → 2013-08 Figure 716238C 716238C 2009-04 → 2013-08 Figure 714732F 714732F 2006-11 → 2013-08 Figure 714733F 714733F 2006-11 → 2013-08 Figure 714734J 714734J 2006-11 → 2013-08 Figure 716239C 716239C 2009-04 → 2013-08 Figure 714735D 714735D 2006-11 → 2013-08 Figure 714989G 714989G 2007-03 → 2013-08 Figure 714993F 714993F 2007-03 → 2013-08 Figure 714992E 714992E 2007-03 → 2013-08 Figure 714738B 714738B 2006-11 → 2013-08 Figure 714737B 714737B 2006-11 → 2013-08 Figure 718434F 718434F 2013-08 → — Figure 718435I 718435I 2013-08 → — Figure 718436I 718436I 2013-08 → — Figure 718437G 718437G 2013-08 → 2016-08 Figure 718437G 718437G 2013-08 → — Figure 718438G 718438G 2013-08 → — Figure 718438G 718438G 2016-08 → — Figure 718438G 718438G 2019-08 → — Figure 718442A 718442A 2013-08 → — Figure 718444A 718444A 2013-08 → — Figure 718443A 718443A 2013-08 → — Figure 718445B 718445B 2013-08 → — Figure 718446A 718446A 2013-08 → — Figure 718447A 718447A 2013-08 → — Figure 718439D 718439D 2013-08 → — Figure 718440C 718440C 2013-08 → — Figure 718441A 718441A 2013-08 → — Figure 71B435B 71B435B 2006-11 → —

Part groups

PNCDescription
58220A Duct Assy, Center Floor Vent
58220B Clip
58860B Register Assy, Console Box, NO.1
58860C Register Assy, Console Box, NO.2
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71035S Cover, Front Seatback, Center
71071C Cover, Front Seat Cushion, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71098 Cover Sub-assy, Rear Seatback, Lower RH
71099 Cover Sub-assy, Rear Seatback, Lower LH
71100S Seat Assy, Front RH
71103B Frame Sub-assy, Front Seatback Main, RH
71104C Frame Sub-assy, Front Seatback Main, LH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120A Frame Assy, Front Seat, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71305S Frame Sub-assy, Center Seatback
71332B Spacer, Rear Seatback Hinge
71349C Cover, Rear Seatback Hinge
71353 Panel, Center Seatback
71365S Pad, Center Seatback
71389 Spacer, Center Seat Hinge
71485C Cover, Rear Seat Hinge, RH
71486C Cover, Rear Seat Hinge, LH
71511C Pad, Front Seat Cushion, Center
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630 Spring Assy, Front Seatback, RH
71640 Spring Assy, Front Seatback, LH
71650B Spring Assy, Rear Seat Cushion, RH
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71660B Spring Assy, Rear Seat Cushion, LH
71703C Panel Sub-assy, Front Seat Cushion
71705E Board Sub-assy, Front Seatback
71706B Clip, Front Seatback Board
71731 Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
71738 Cover, Seat Fastener
71753 Tray, Front Seat Under
71753B Tray, Front Seat
71759B Hook, Front Seatback
71771A Board, Front Seatback
71806B Shield Sub-assy, Front Seat Cushion, LH NO.1
71806C Shield Sub-assy, Front Seat Cushion, LH NO.2
71811D Shield, Front Seat Cushion, RH
71811Q Shield, Center Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71812R Shield, Center Seat Cushion, LH
71813A Shield, Front Seatback, RH
71814A Shield, Front Seatback, LH
71817C Wire, Front Seat Cushion Shield, RH
71818C Wire, Front Seat Cushion Shield, LH
71825B Moulding, Rear Seat Cushion, RH
71826B Moulding, Rear Seat Cushion, LH
71828B Moulding, Rear Seat Cushion, Rear RH
71829B Moulding, Rear Seat Cushion, Rear LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833D Cover Rear Seat Reclining, RH
71834D Cover, Rear Seat Reclining, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874C Shield, Front Seat Cushion, Lower
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875H Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875J Cover, Reclining Adjuster Inside, RH
71875L Cover, Reclining Adjuster Inside, RH (FOR CENTER SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876H Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876K Cover, Reclining Adjuster Inside, LH
71876L Cover, Reclining Adjuster Inside, LH (FOR CENTER SEAT)
71878C Cover, Rear Seat Reclining, Inner RH
71879C Cover, Rear Seat Reclining, Inner LH
71881D Board, Rear Seatback, RH
71882D Board, Rear Seatback, LH
71910A Headrest Assy, Front Seat
71910C Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72058B Lever Sub-assy, Rear Seat Lock Control, LH
72094 Lock Sub-assy, Rear Seat Turn
72125A Cover, Seat Track, Upper Rear
72125D Cover, Seat Track, Upper Rear NO.2
72125M Cover, Seat Track, Upper NO.3
72125N Cover, Seat Track, Upper NO.4
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72152A Cover, Rear Seat Track Bracket, Inner
72157D Cover, Seat Track Bracker, Inner RH
72158C Cover, Seat Track Bracket, Inner LH
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72173A Handle, Rear Seat Track Adjusting, RH
72173B Handle, Rear Seat Track Adjusting, LH
72180 Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72264 Reinforcement, Inner Seat Track, LH
72457D Knob, Vertical Seat Adjuster, LH
72459A Cap, Vertical Seat Adjuster Knob
72476 Screw, Horizontal Jack, Inner
72495 Handle, Vertical Adjusting, LH
72505B Lock Sub-assy, Front Seatback, RH
72506D Lock Sub-assy, Front Seatback, LH
72525A Handle, Reclining Adjuster Release, RH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72525G Handle, Front Seatback Lock
72526 Handle, Reclining Adjuster Release, LH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72529 Rod, Front Seat Backlock Handle
72573 Lever, Reclining Control, RH
72574 Lever, Reclining Control, LH
72597 Bezel, Reclining Remote Control
72615A Cover, Rear Seatback Lock Striker, RH
72616A Cover, Rear Seatback Lock Striker, LH
72660A Support Assy, Rear Seat Cushion
72660D Support Assy, Rear Seat Cushion
72665F Cover, Rear Seat Lock, RH(FOR RH SEAT)
72665G Cover, Rear Seat Lock, RH(FOR LH SEAT)
72666D Cover, Rear Seat Lock, LH(FOR RH SEAT)
72666E Cover, Rear Seat Lock, LH(FOR LH SEAT)
72667 Bezel, Rear Seatback Lock, Upper
72679 Bezel, Rear Seatback Lock Control
72679A Bezel, NO.2 Seatback Lock Control
72696 Latch, Rear Seat Lock
72705 Cable Sub-assy, Seat Lock Control, RH
72706 Cable Sub-assy, Seat Lock Control, LH
72749 Spacer, Rear Seat Reclining
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72830 Armrest Assy, Rear Seat, Center
72890 Armrest Assy, Seat, C LH
72982 Cover, Front Seat Center Armrest
72996A Cover, Rear Seatback
73373F Cover, Rear Seat Shoulder Belt Hole
73373J Cover, Front Seat Shoulder Belt
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
78070 Frame Assy, Sub Seat
78809A Support Sub-assy, Center Sub Seat Bracket
78849 Bumper, Sub Seat Leg
79105 Leg Sub-assy, NO.1 Seat, RH
79105A Leg Sub-assy, NO.1 Seat
79106 Leg Sub Assy, NO.1 Seat, LH
79106A Leg Sub Assy, Seat, LH
79107A Leg Sub-assy, NO.1 Seat, Rear
79107C Leg Sub-assy, NO.1 Seat, Rear
79225C Carpet, Center Seat Cushion
79956 Cover, Rear Seat Leg Bracket
85860 Blower Assy, Seat Cushion Climate Control
85862A Blower, Rear Seat Climate Control, RH
85863 Blower, Seat Climate Control, LH
85866 Duct, Seat Cushion Climate Control, RH
85866A Duct, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
85869 Cover, Seatback Climate Control, RH
85869A Cover, Seatback Climate Control, LH
87212E Duct, Air, Rear RH
87213C Duct, Air, Rear LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
