Toyota Tundra
2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States
Supported model
Data version 2023-05

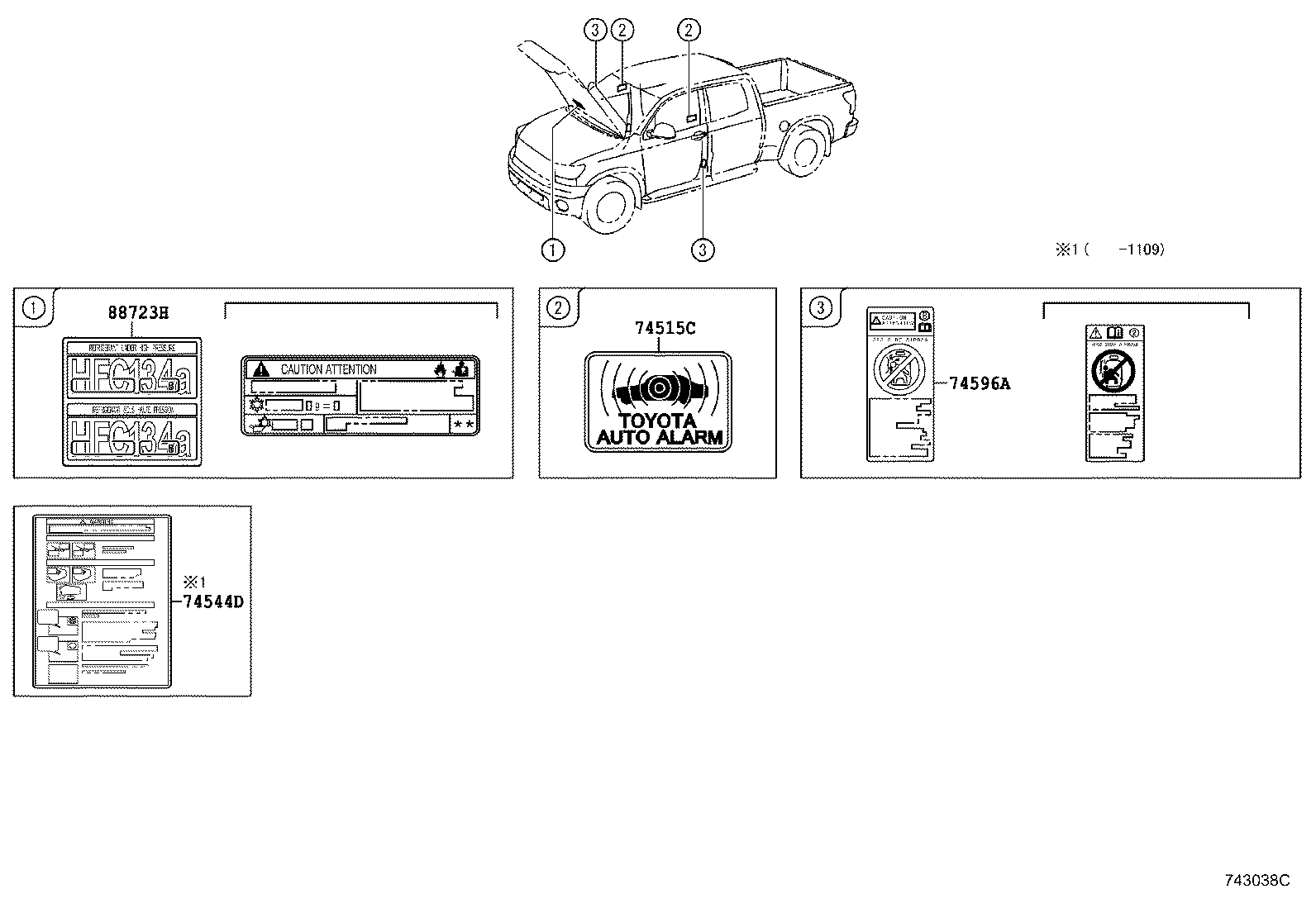

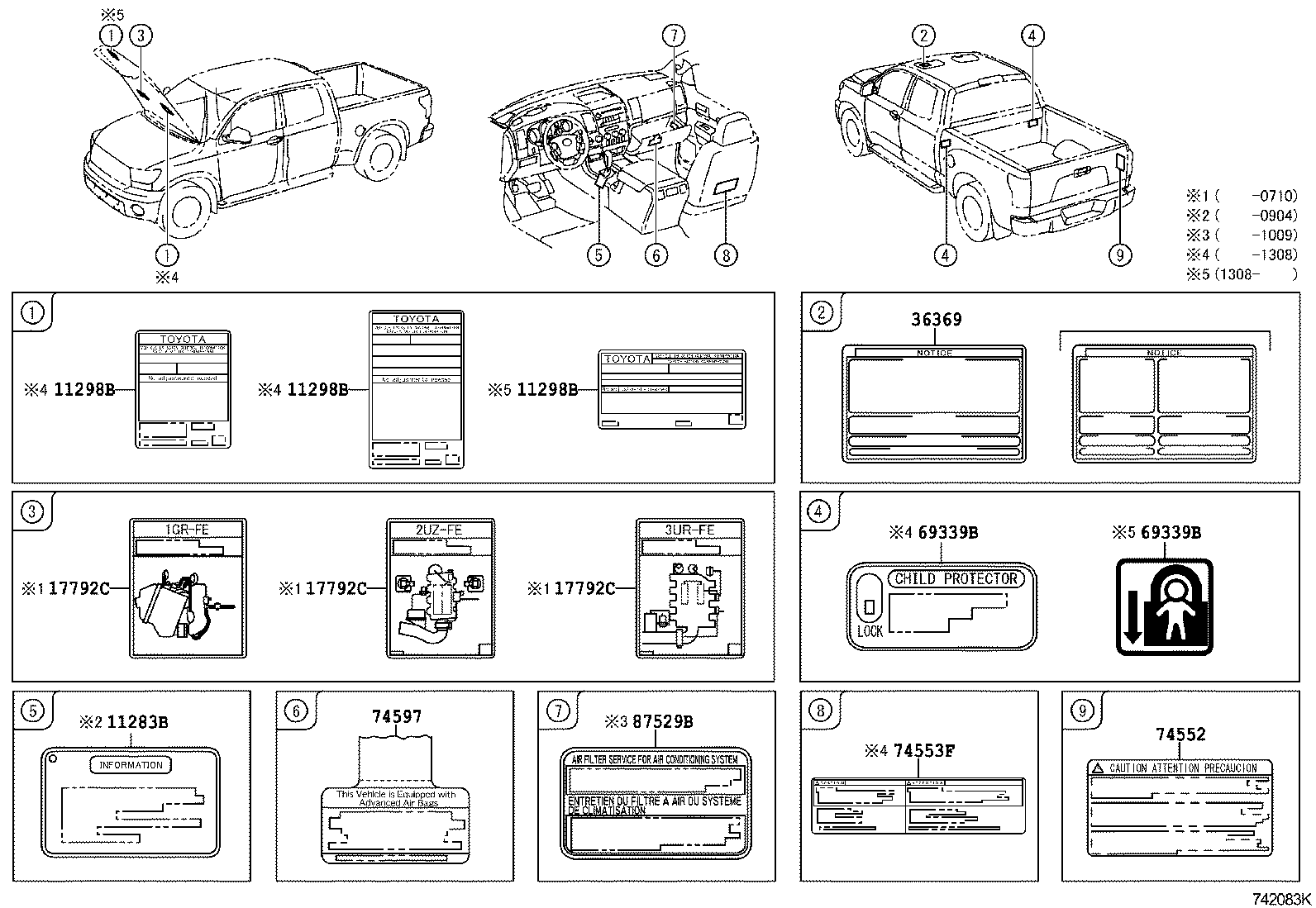

Caution Plate
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11283B | Label, Leak Detection Pump Information |
| 11289B | Label, Spark Plug Notice |
| 11296C | Label, Engine Service Information |
| 11297C | Label, Engine Service Information, NO.2 |
| 11298B | Label, Emission Control Information |
| 16448A | Plate, Radiator Caution |
| 17792C | Label, Engine Vacuum Hose Information |
| 36369 | Label, Transfer Information |
| 69339B | Plate, Child Protector Lock Caution |
| 74515C | Label, Theft Warning Information |
| 74544D | Plate, Tire Carrier Caution |
| 74552 | Plate, Safety Caution |
| 74553F | Label, Front Seat Caution |
| 74596A | Label, Side Airbag Caution |
| 74597 | Label, Driver & Passenger Airbag Caution |
| 87529B | Label, A/C Filter Information |
| 88723H | Label, Cooler Service Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
