Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

149 part groups · 35 illustrations

Illustrations

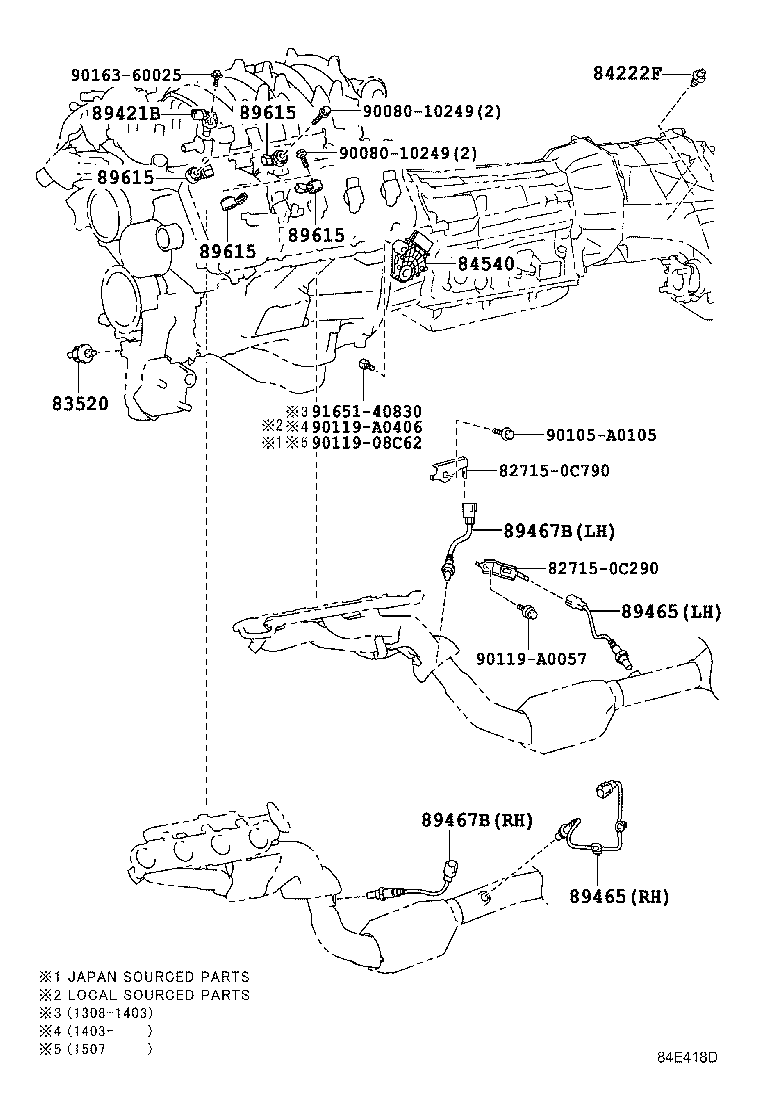

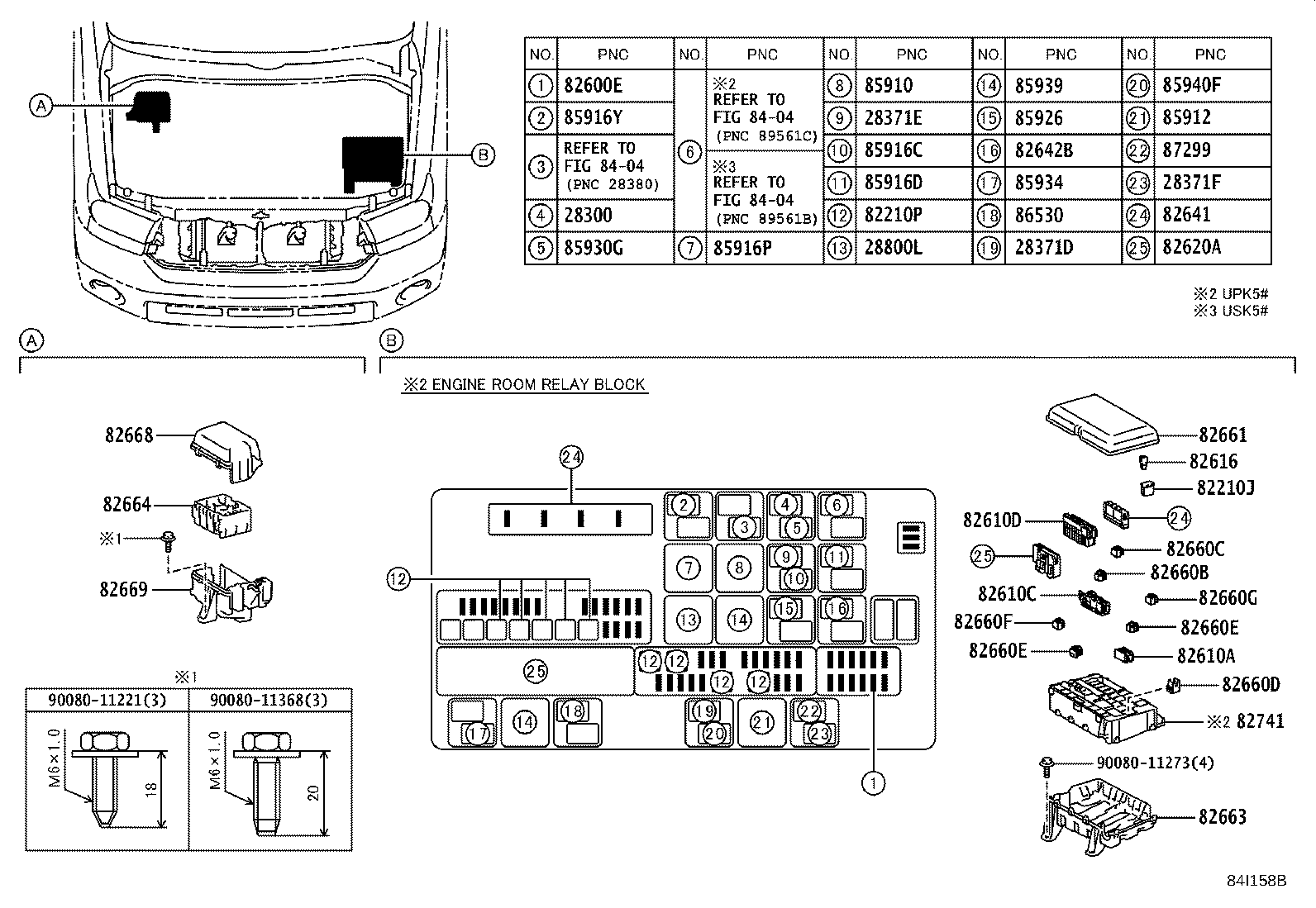

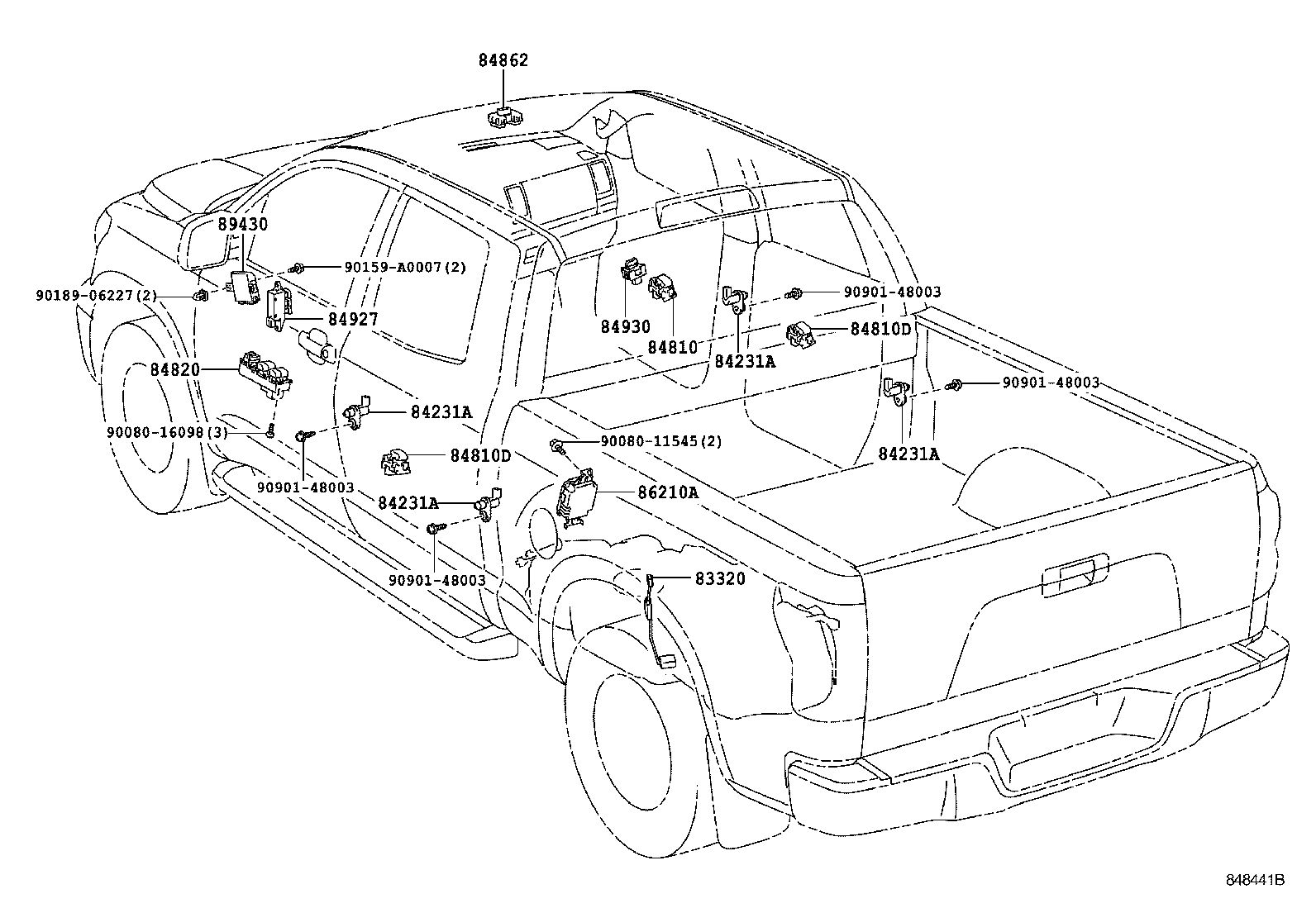

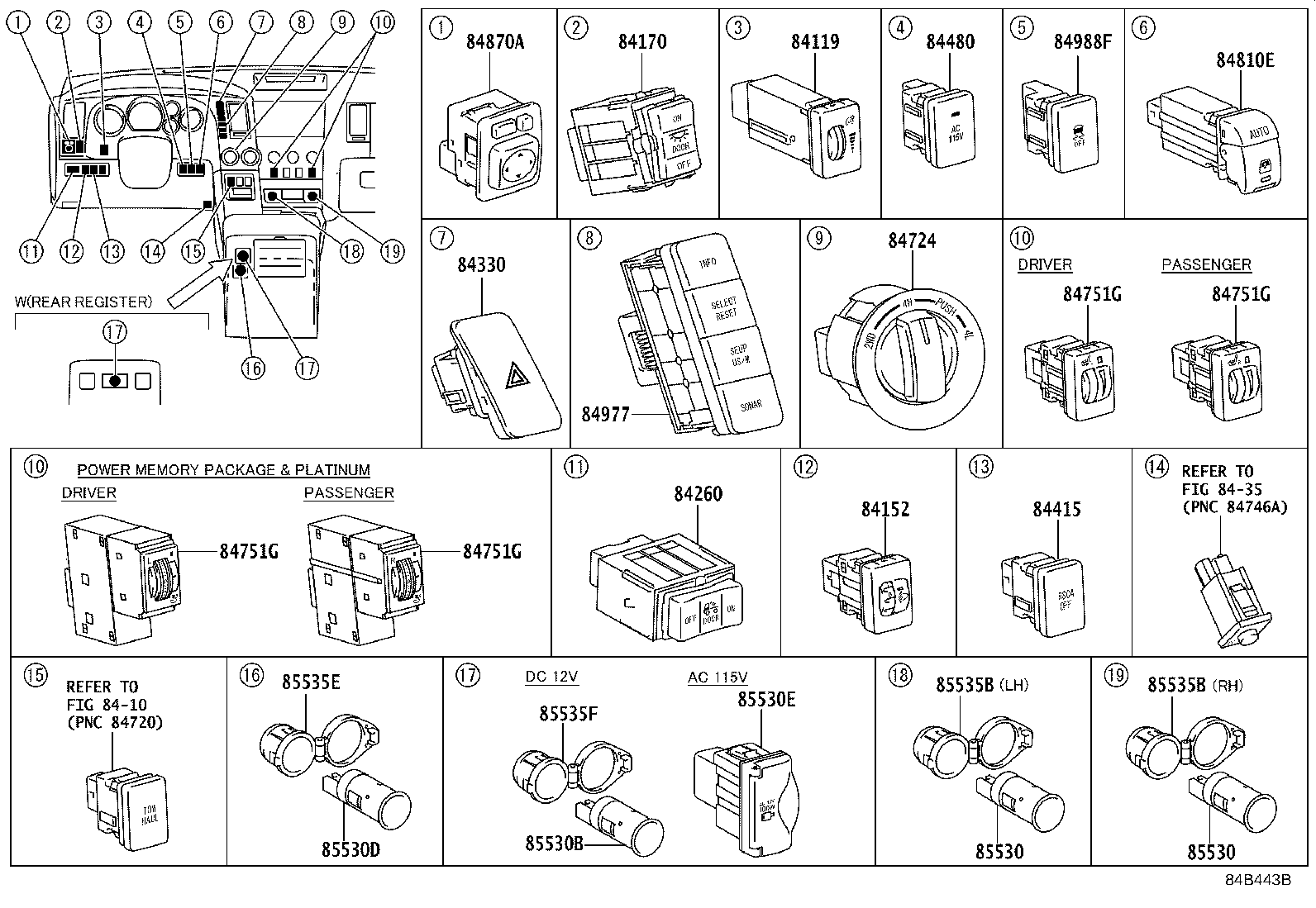

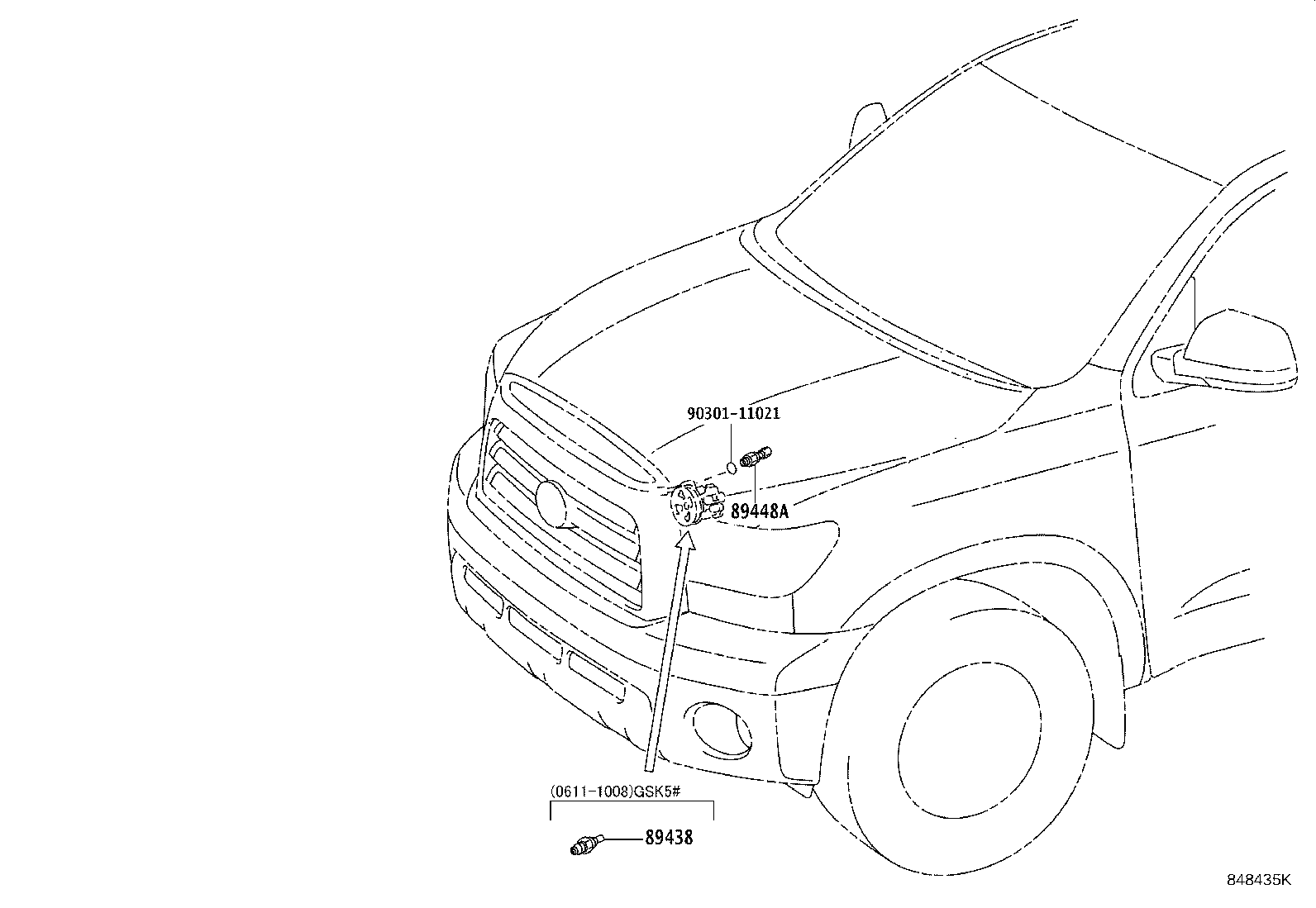

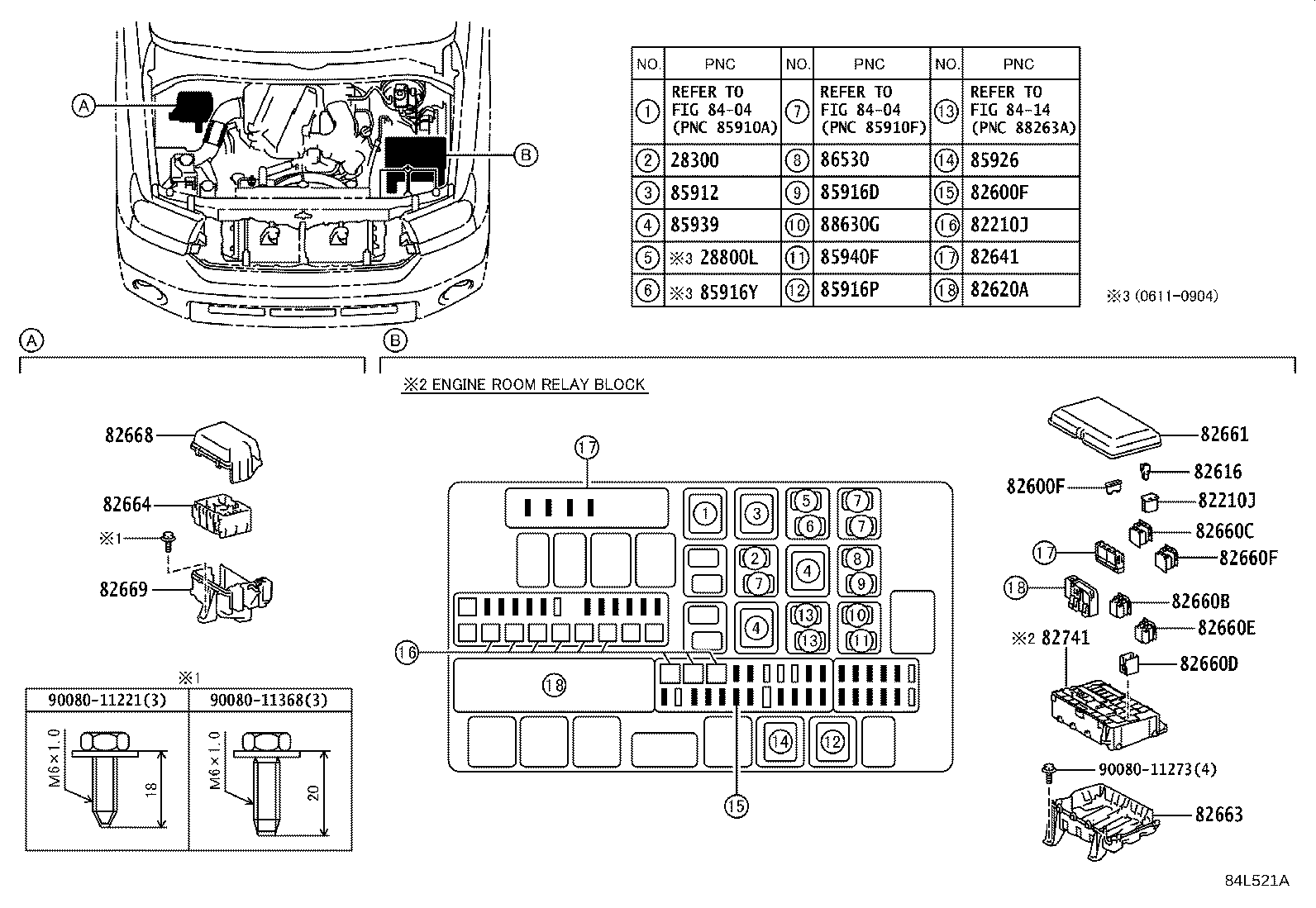

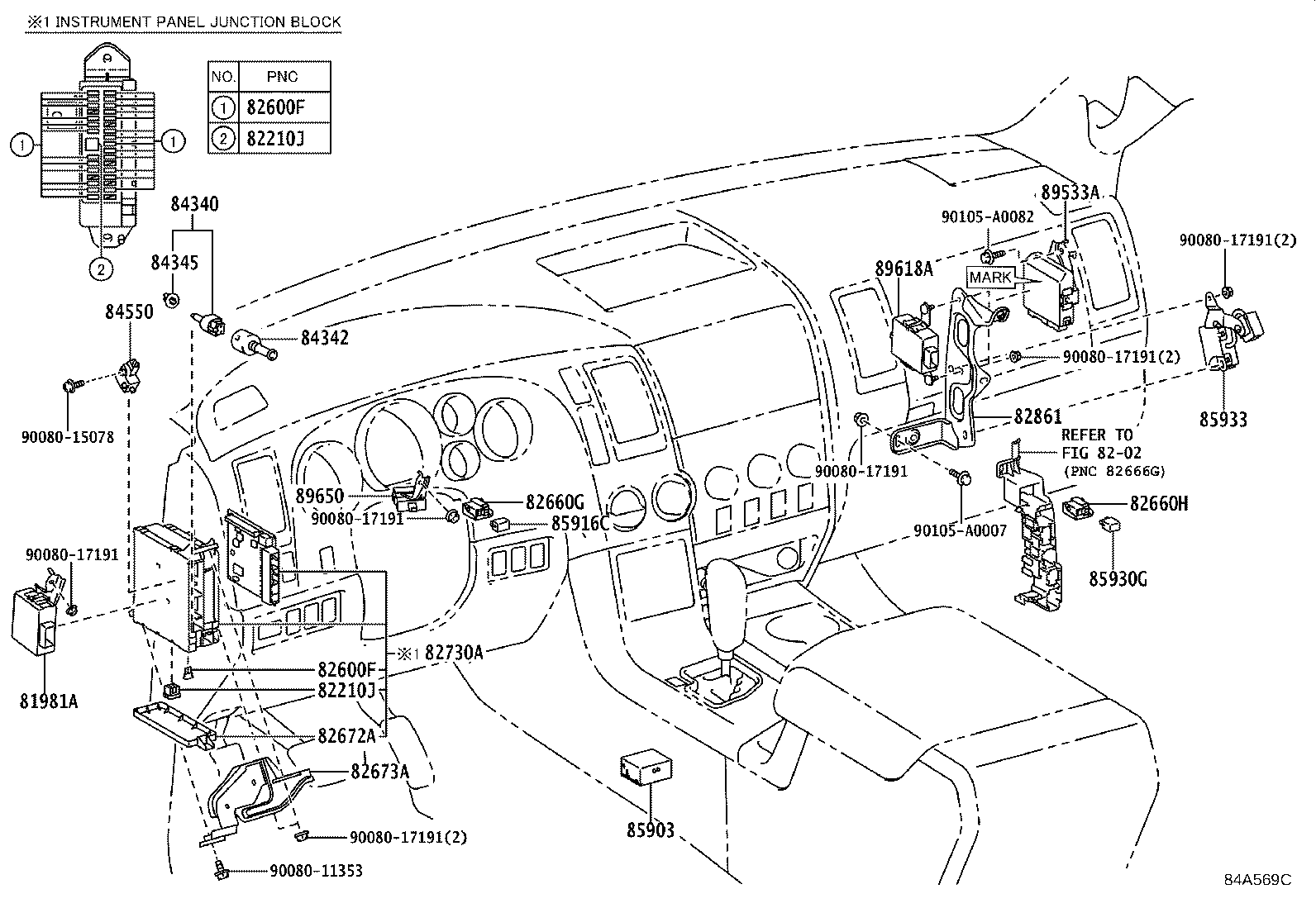

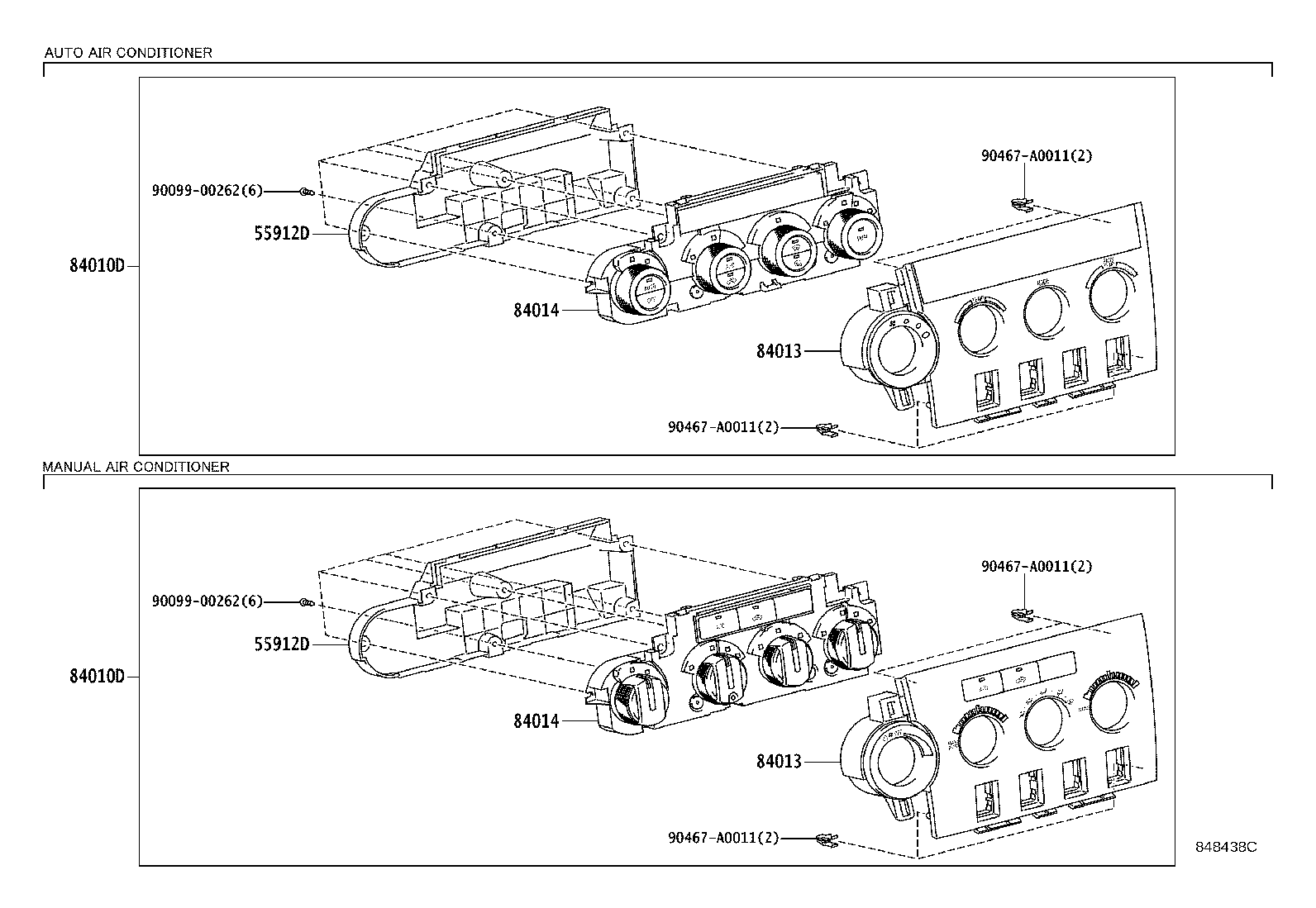

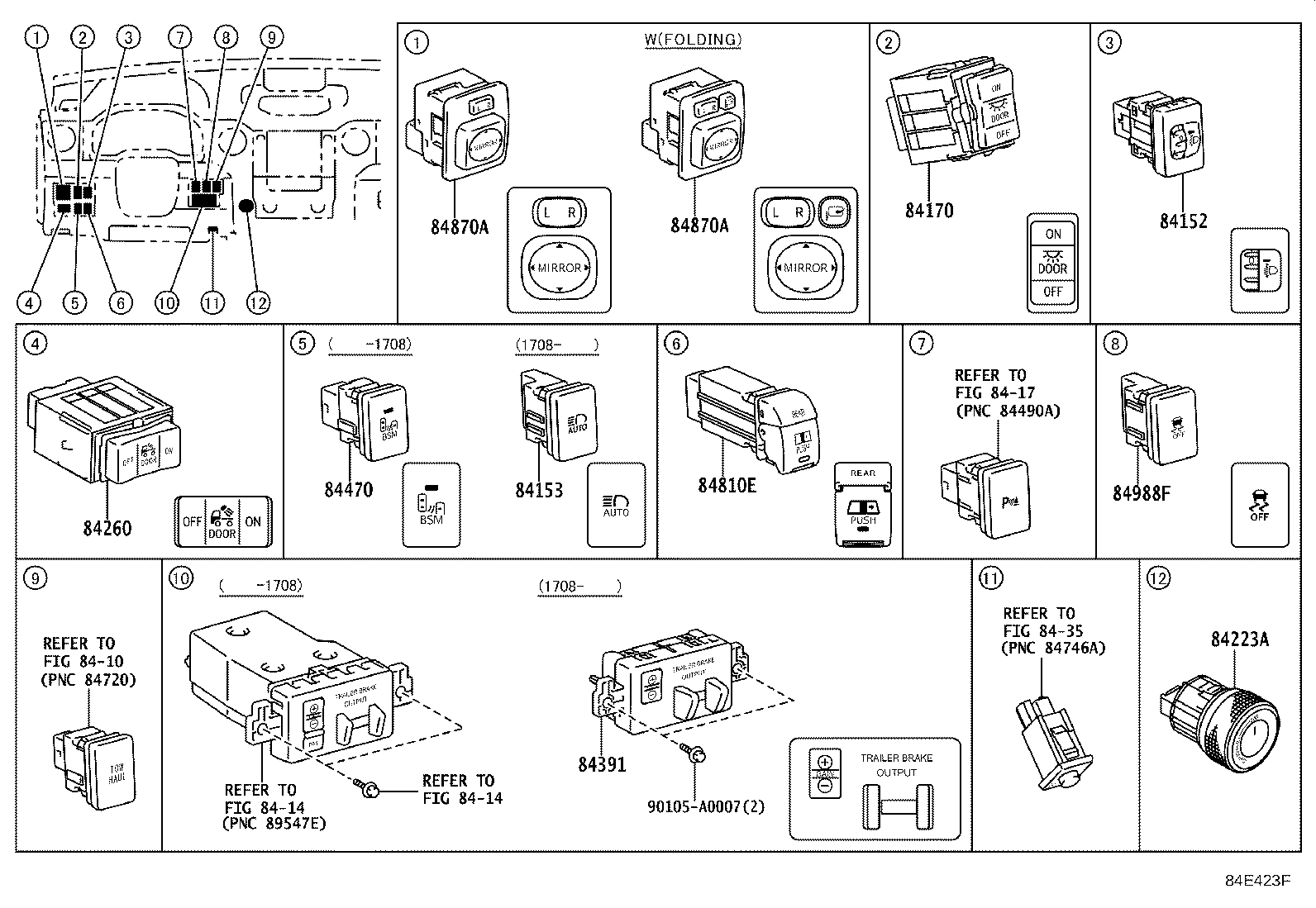

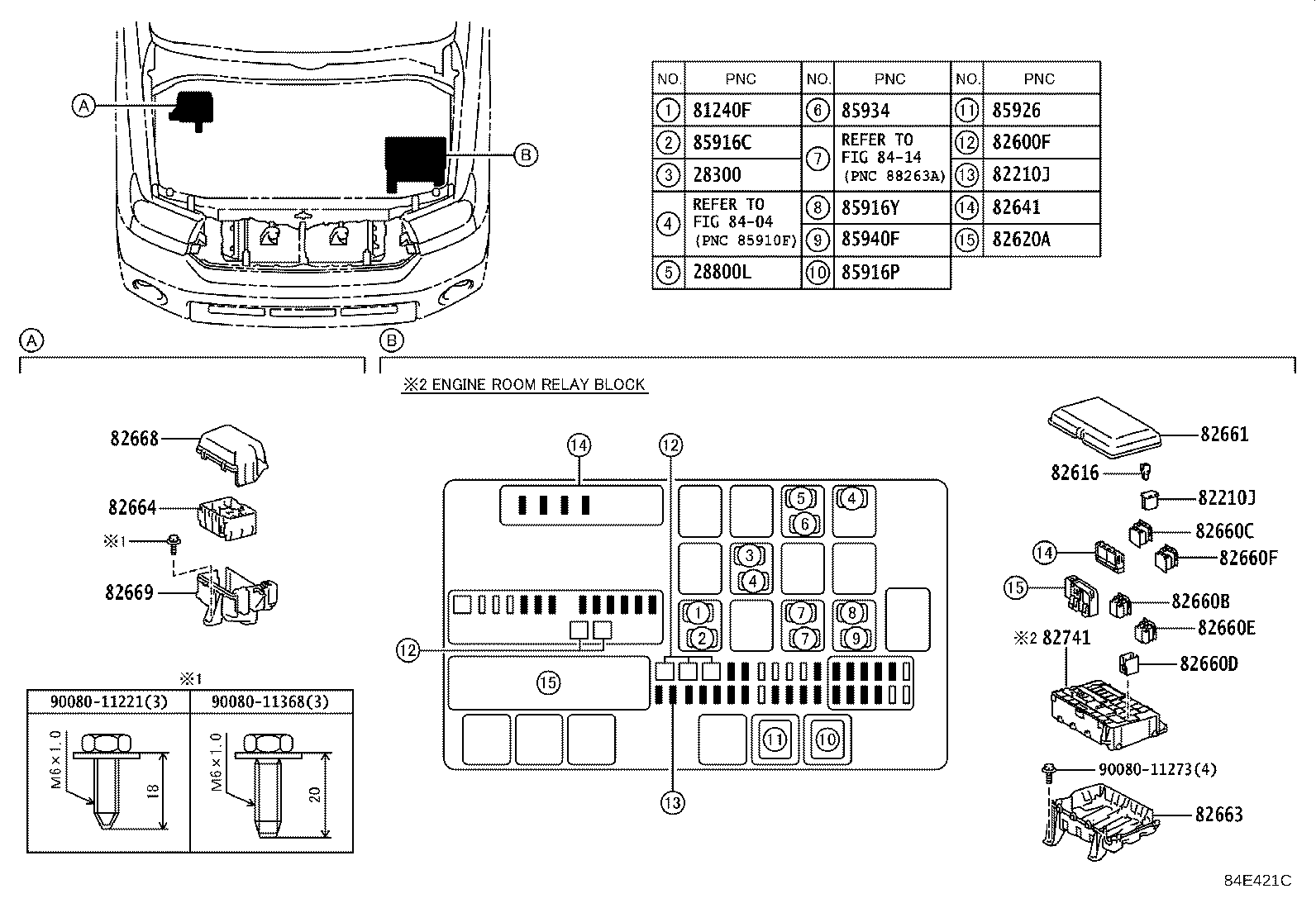

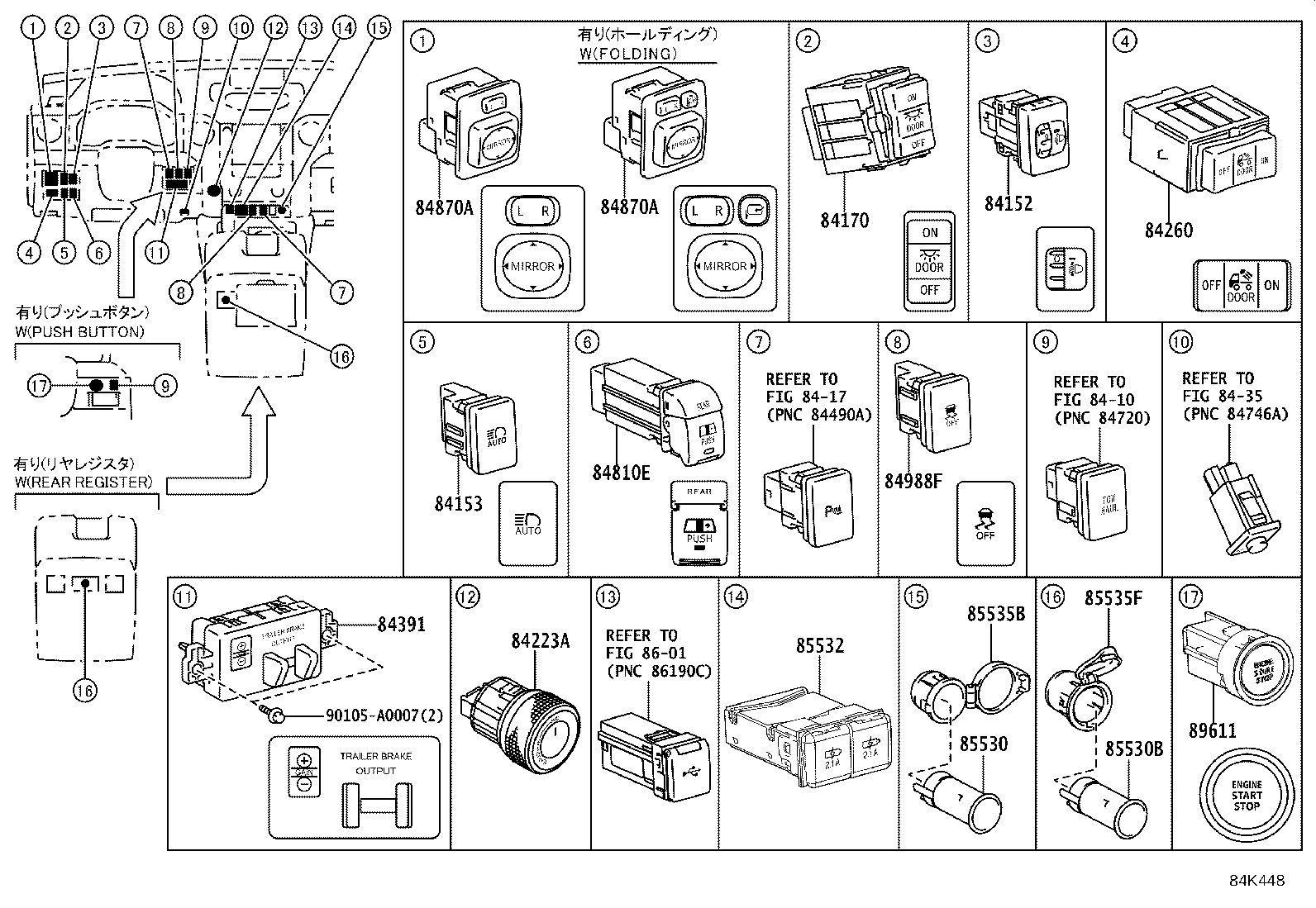

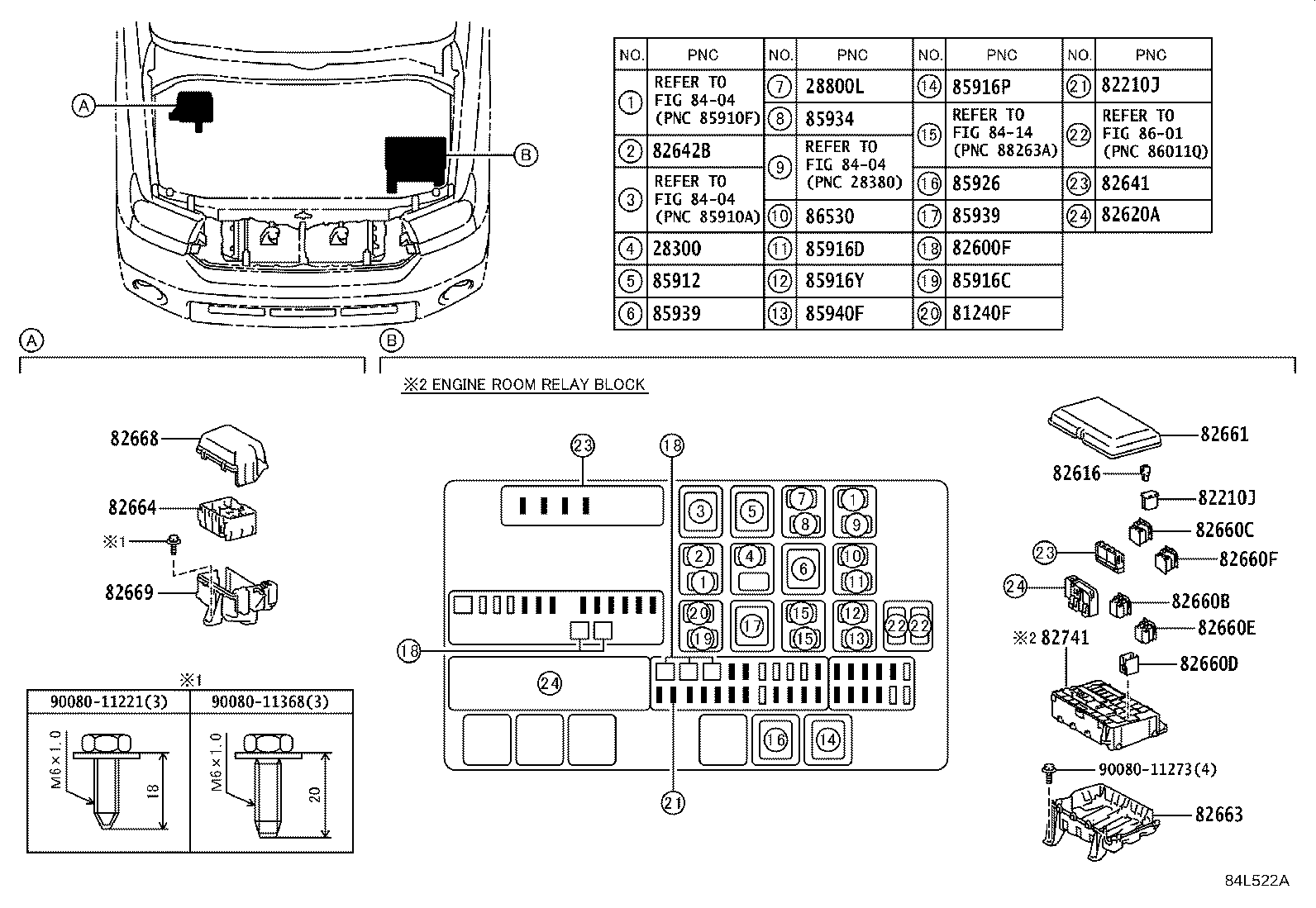

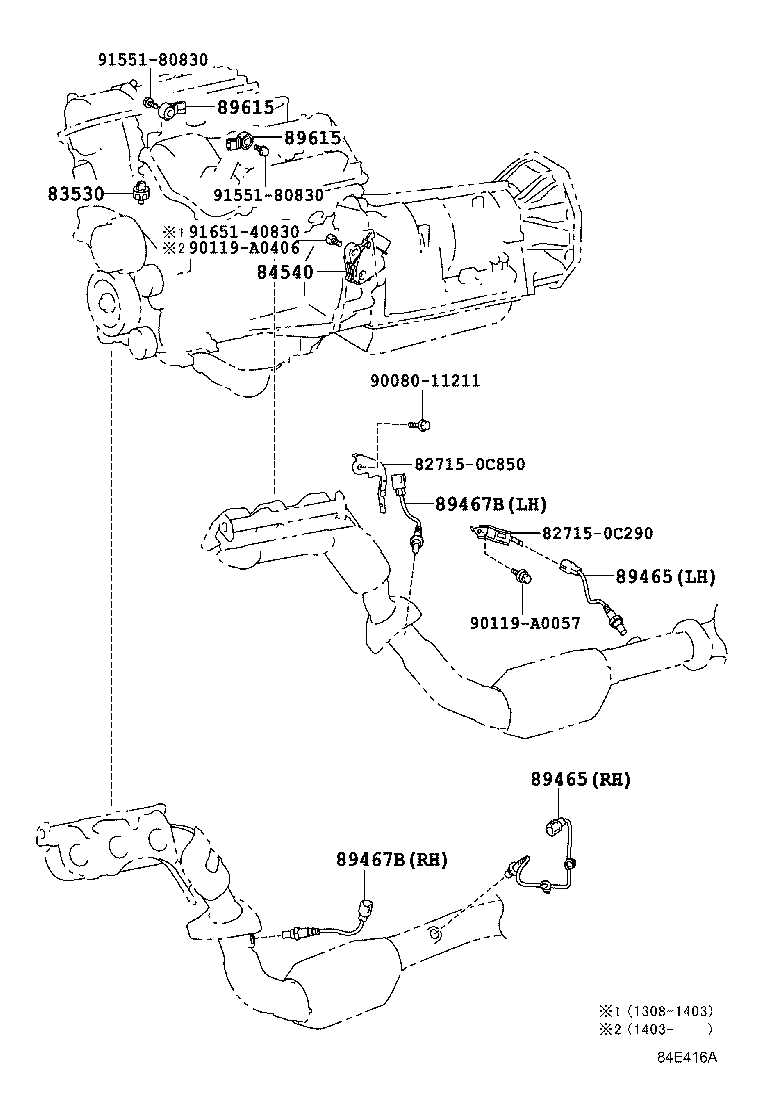

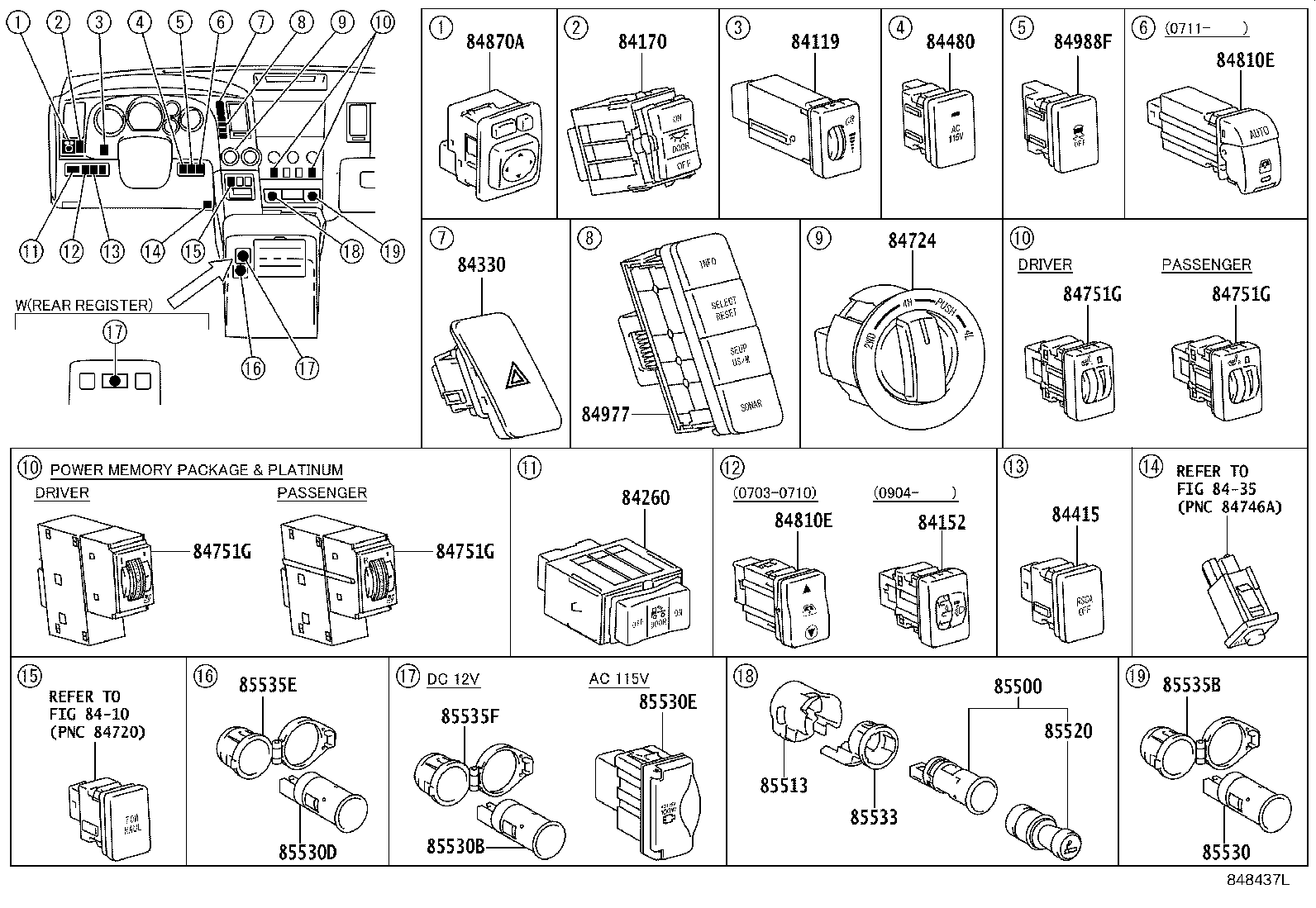

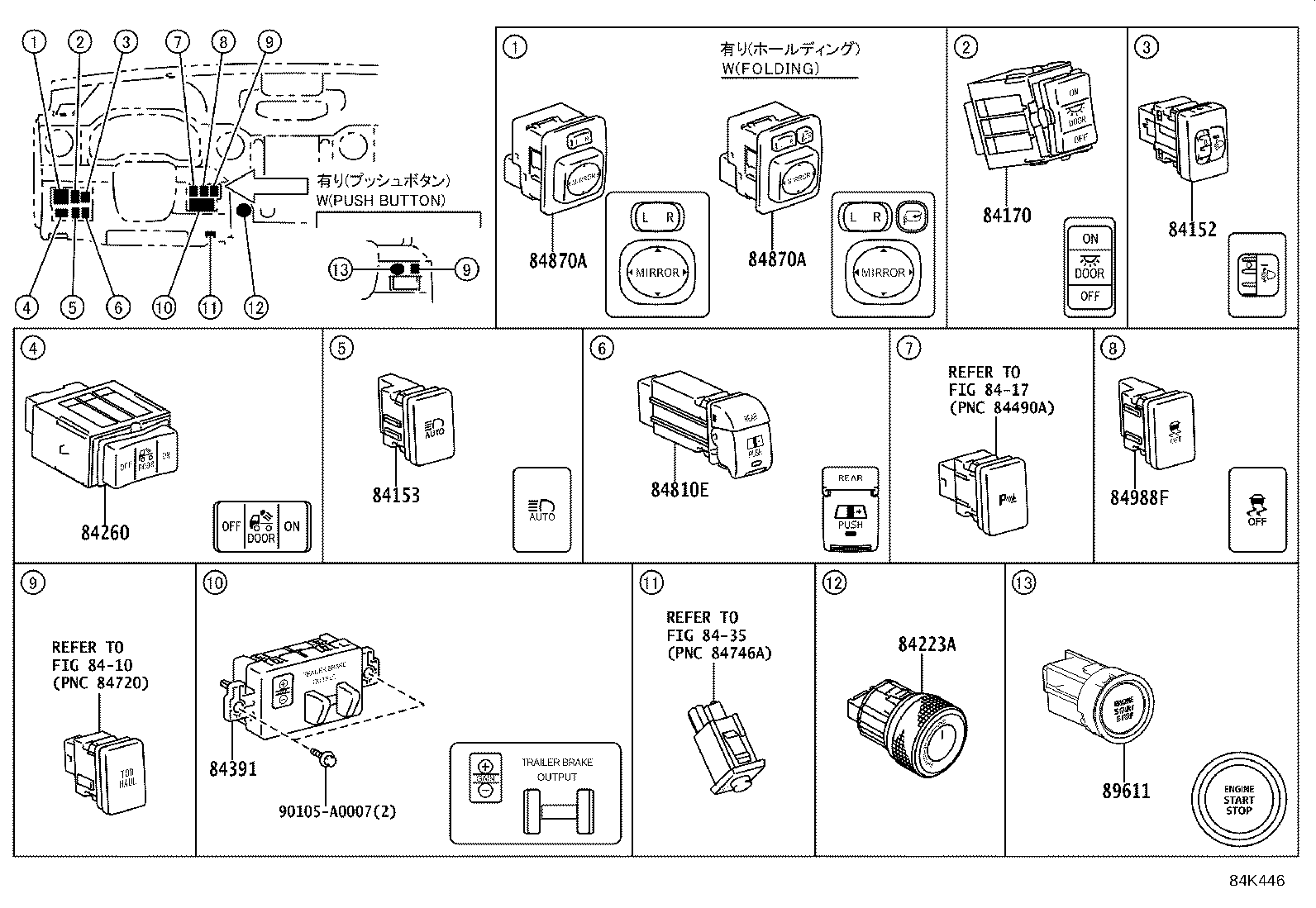

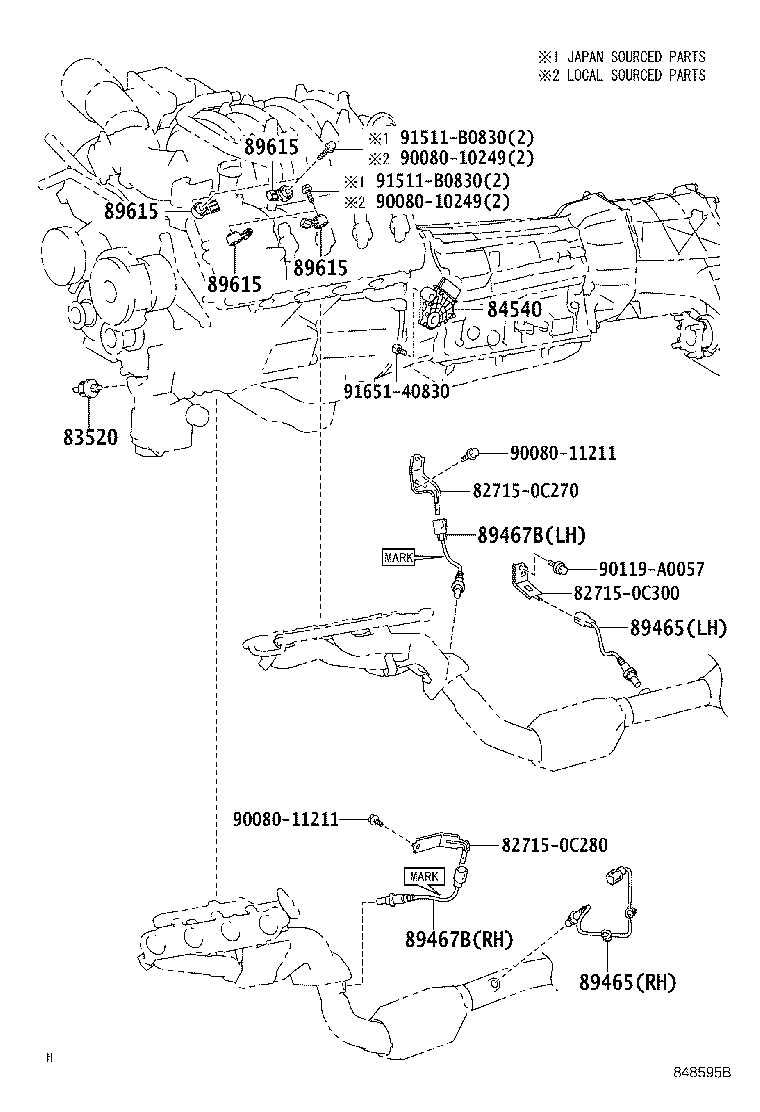

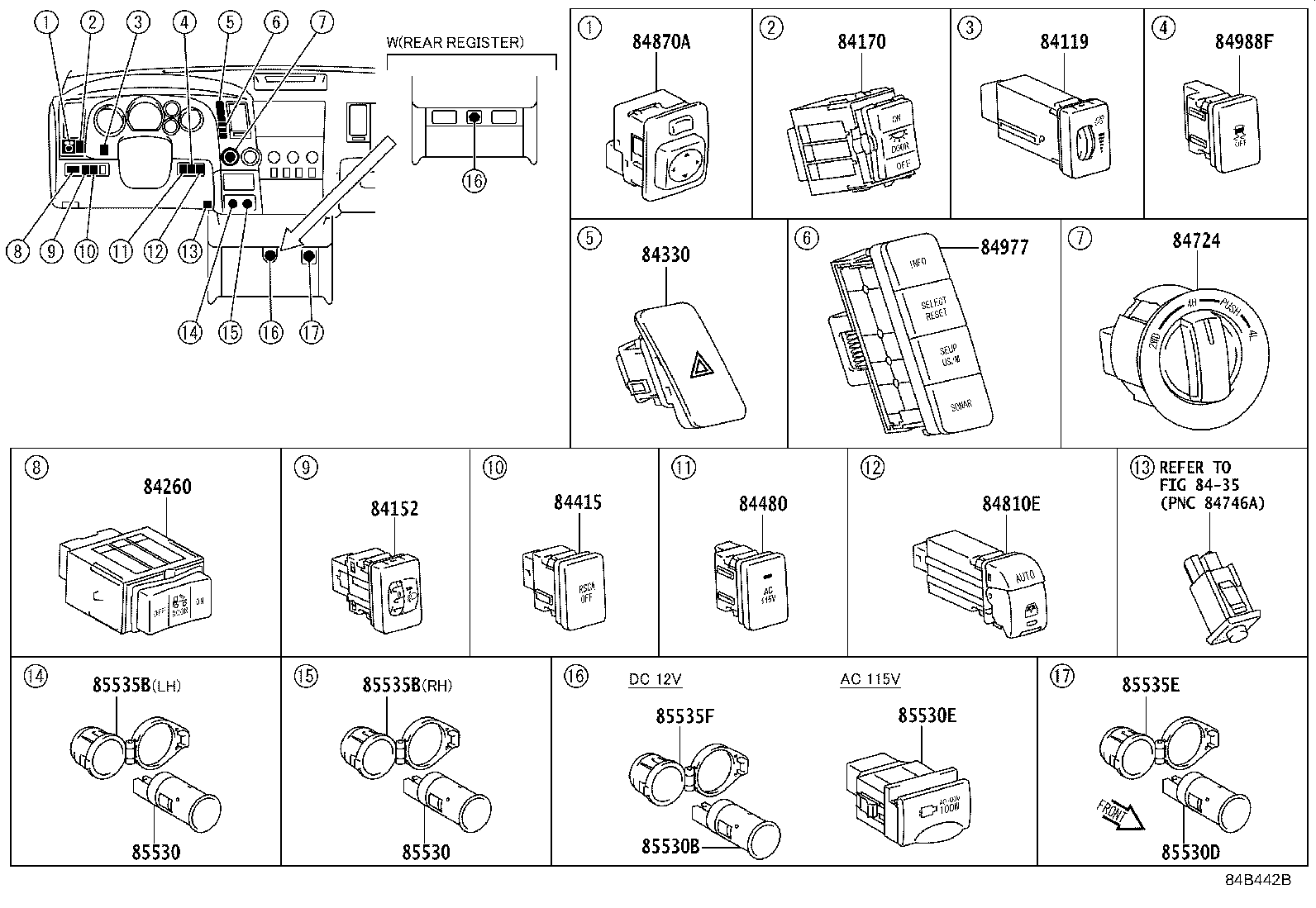

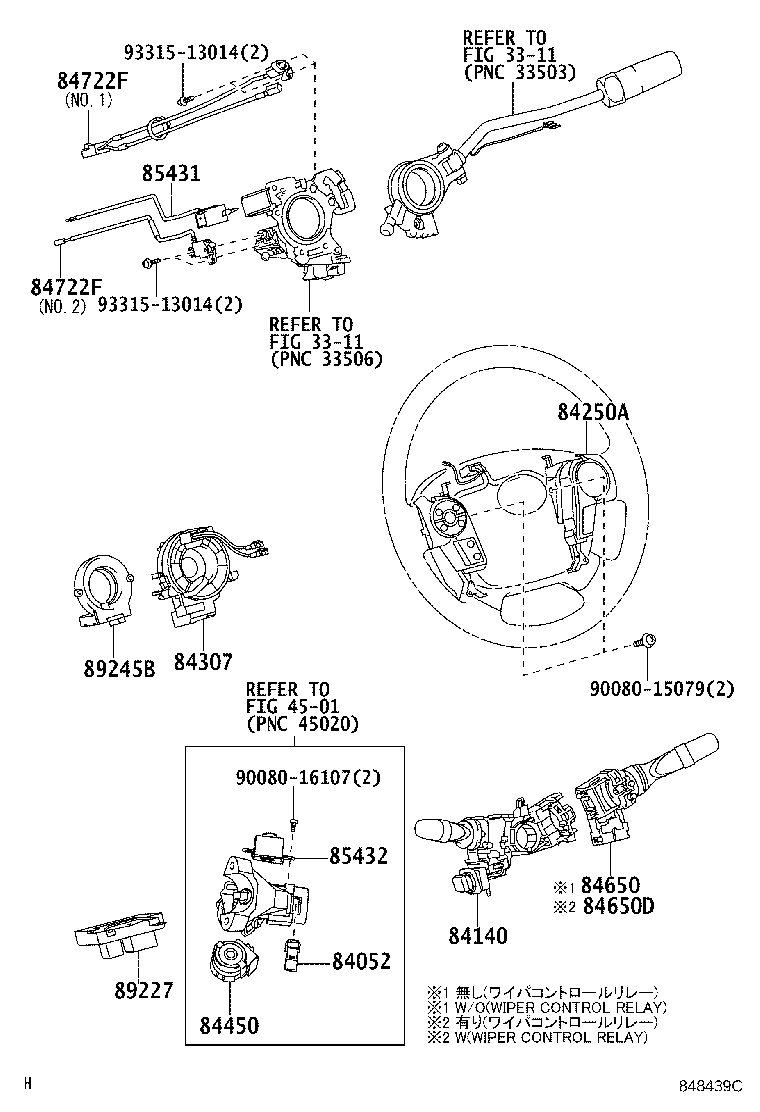

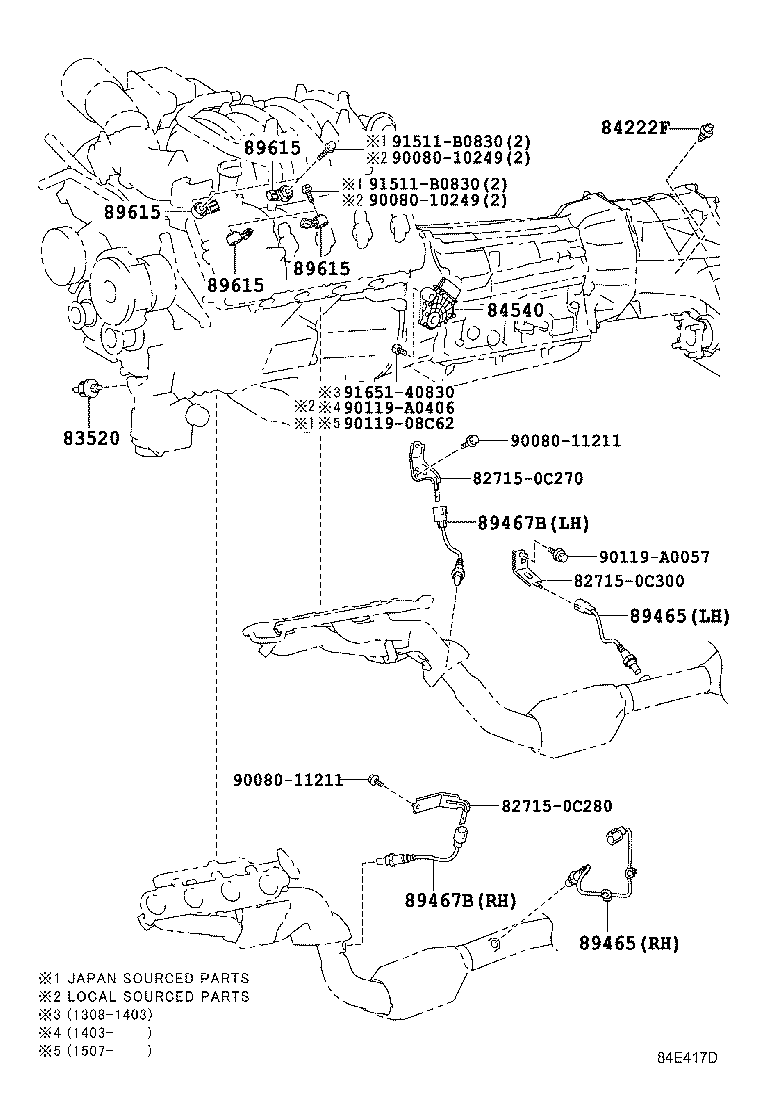

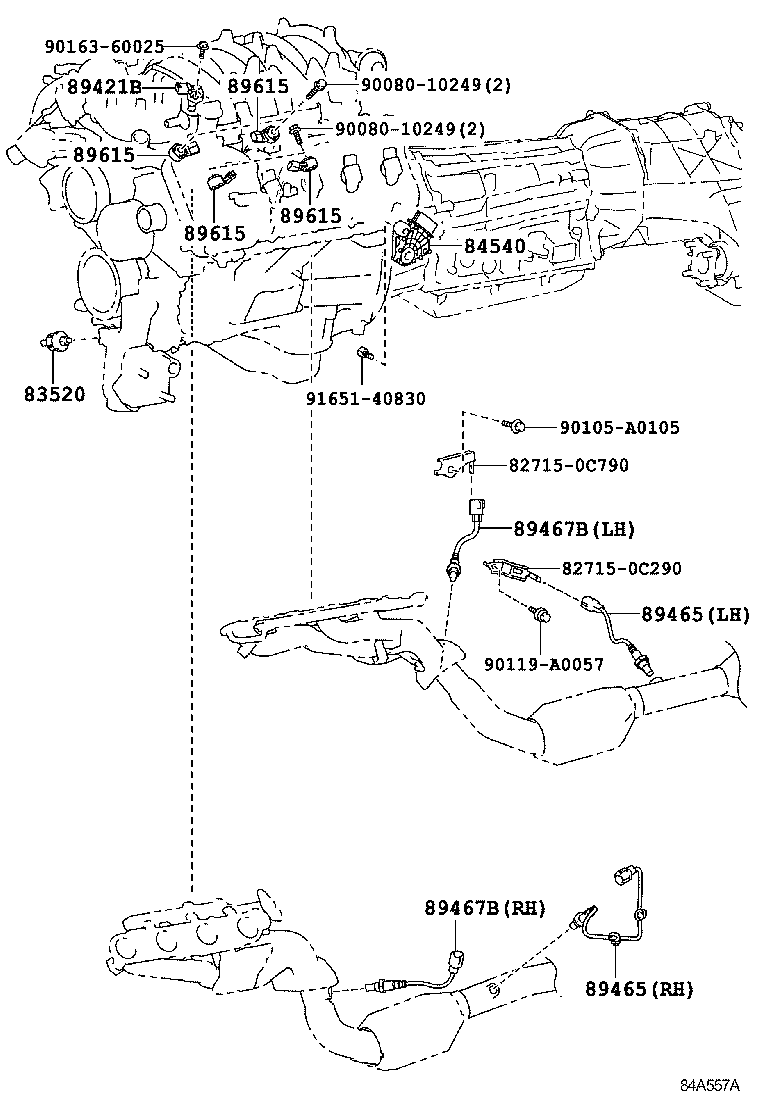

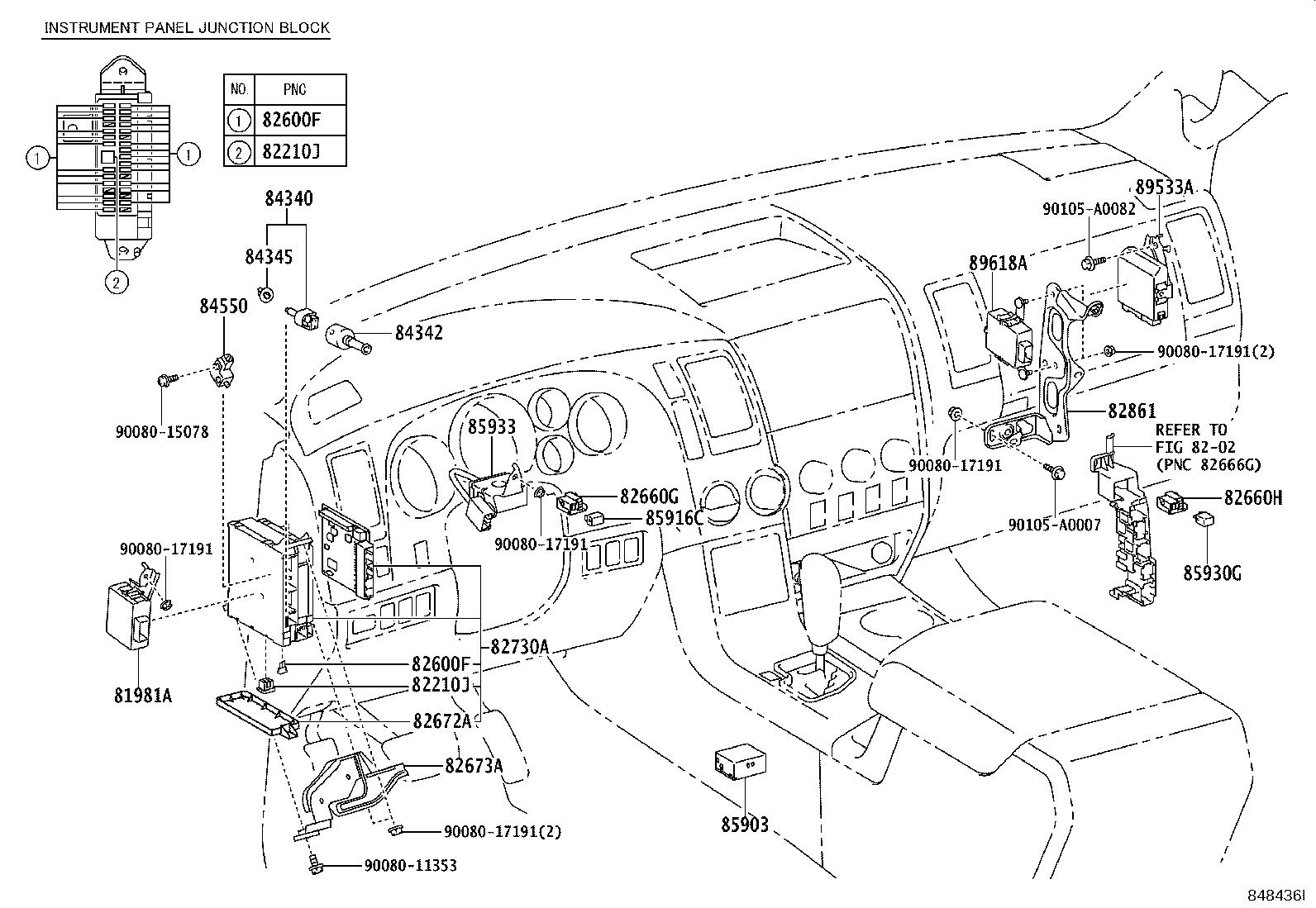

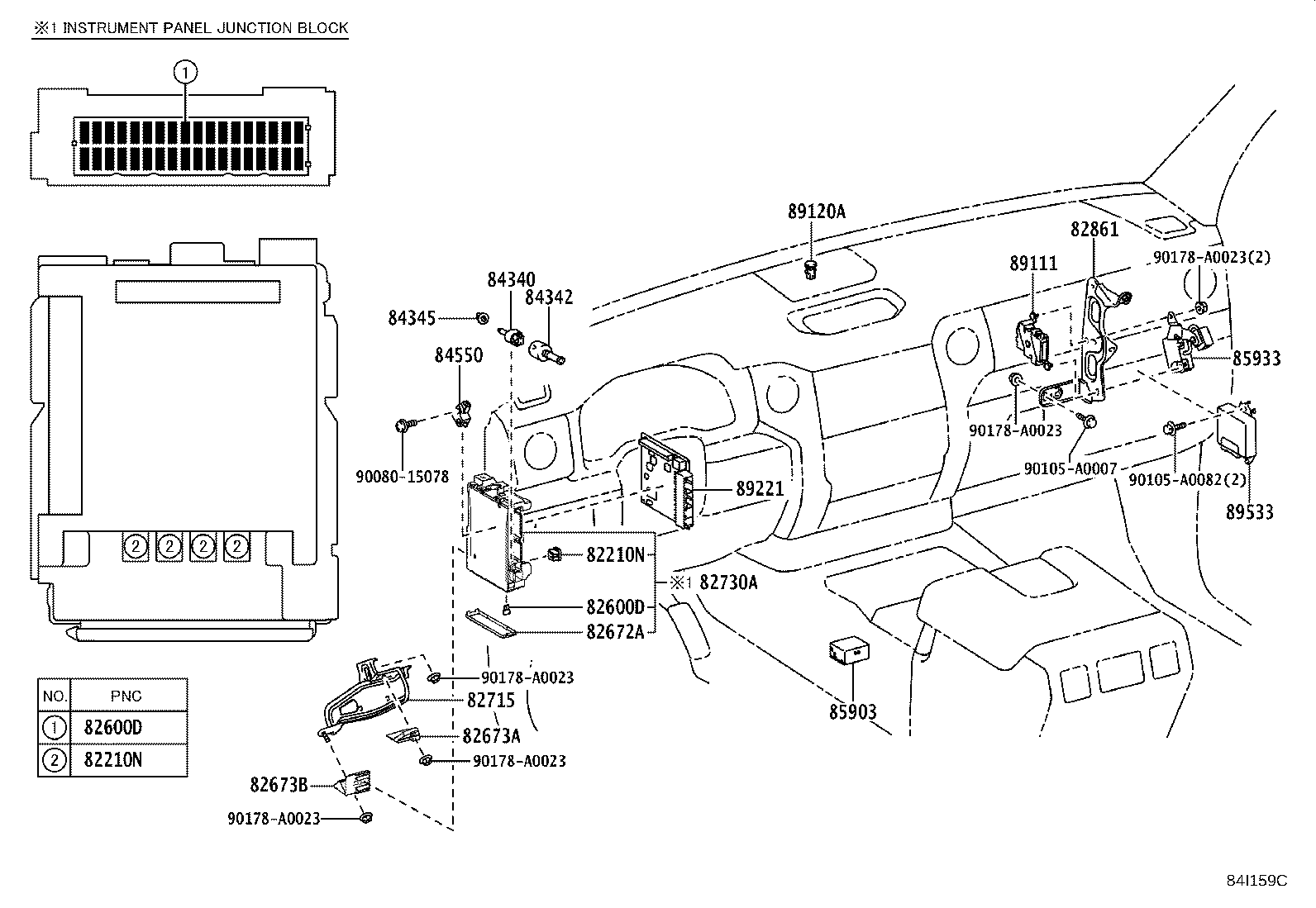

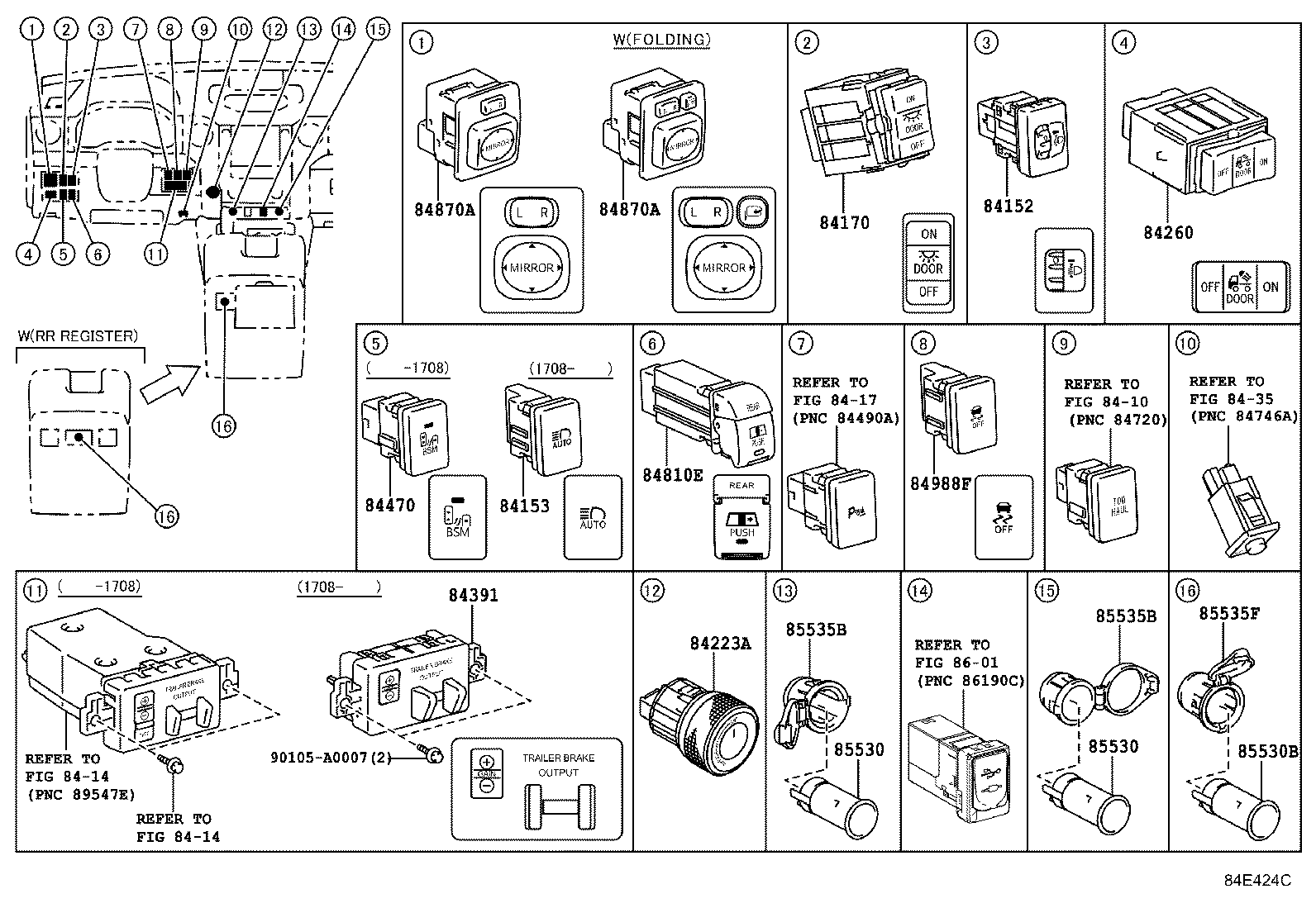

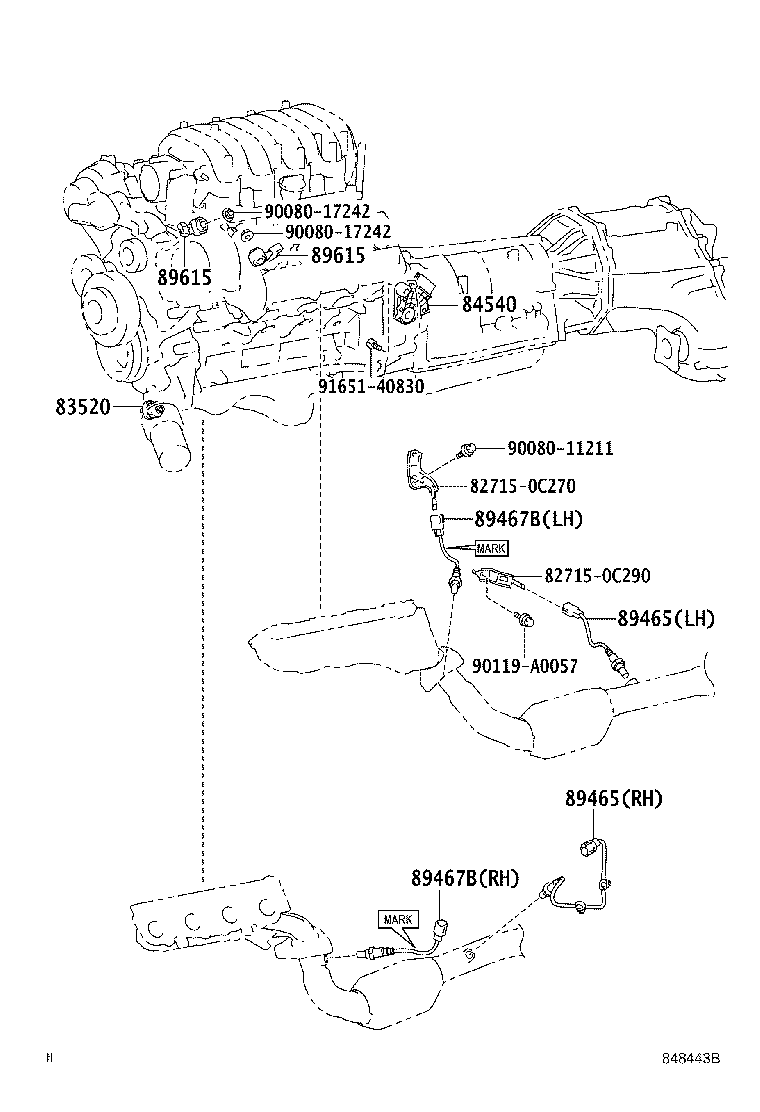

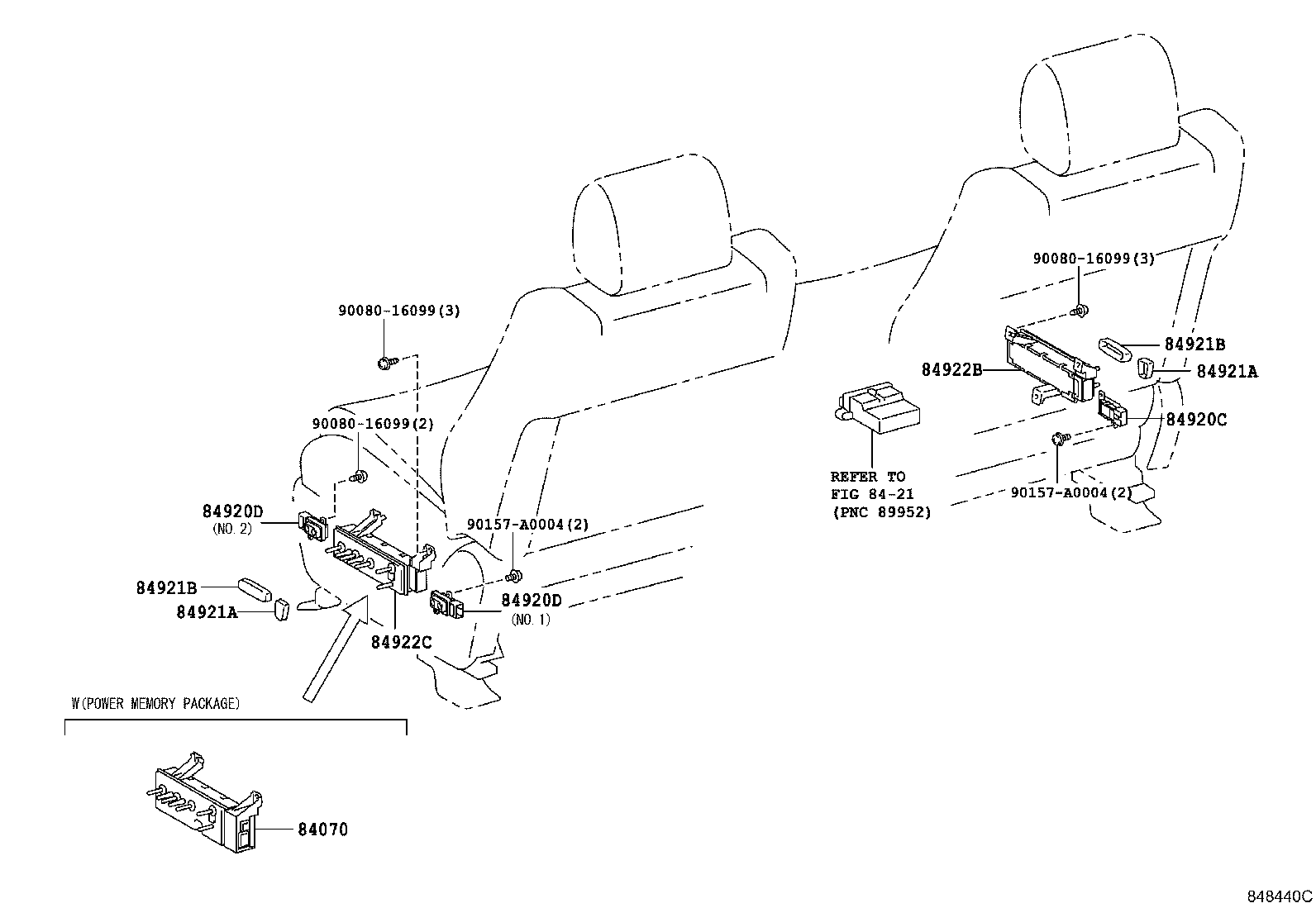

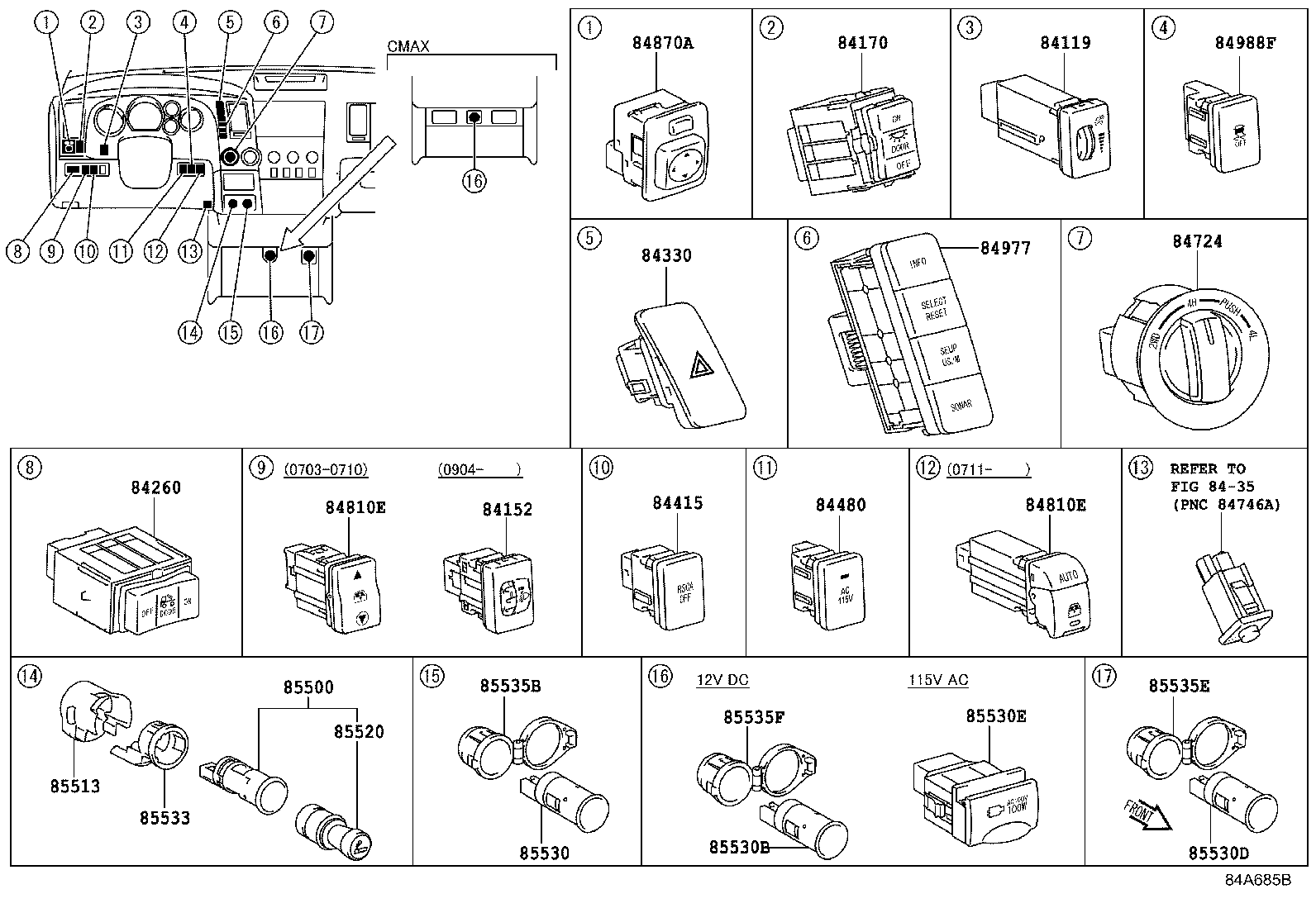

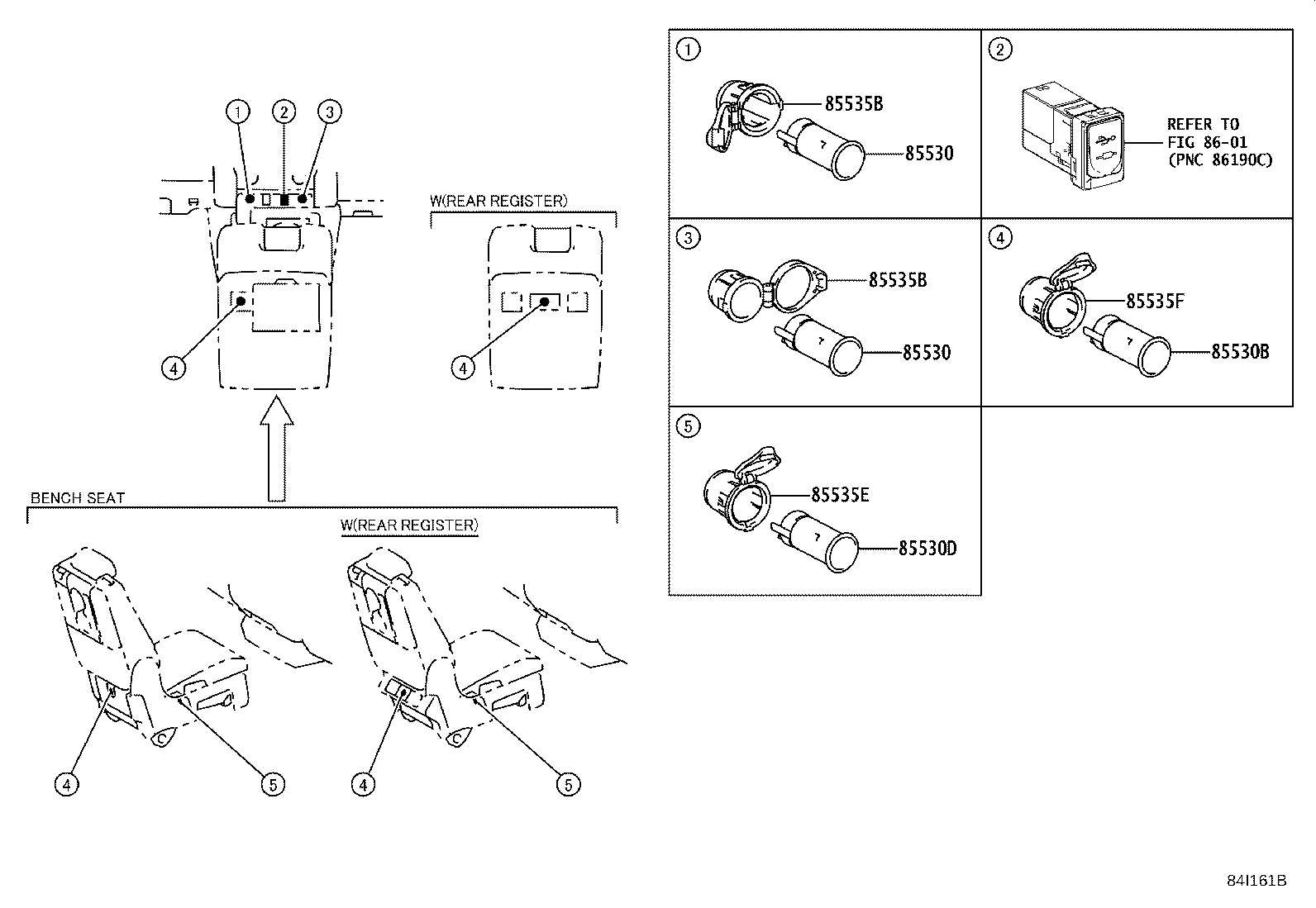

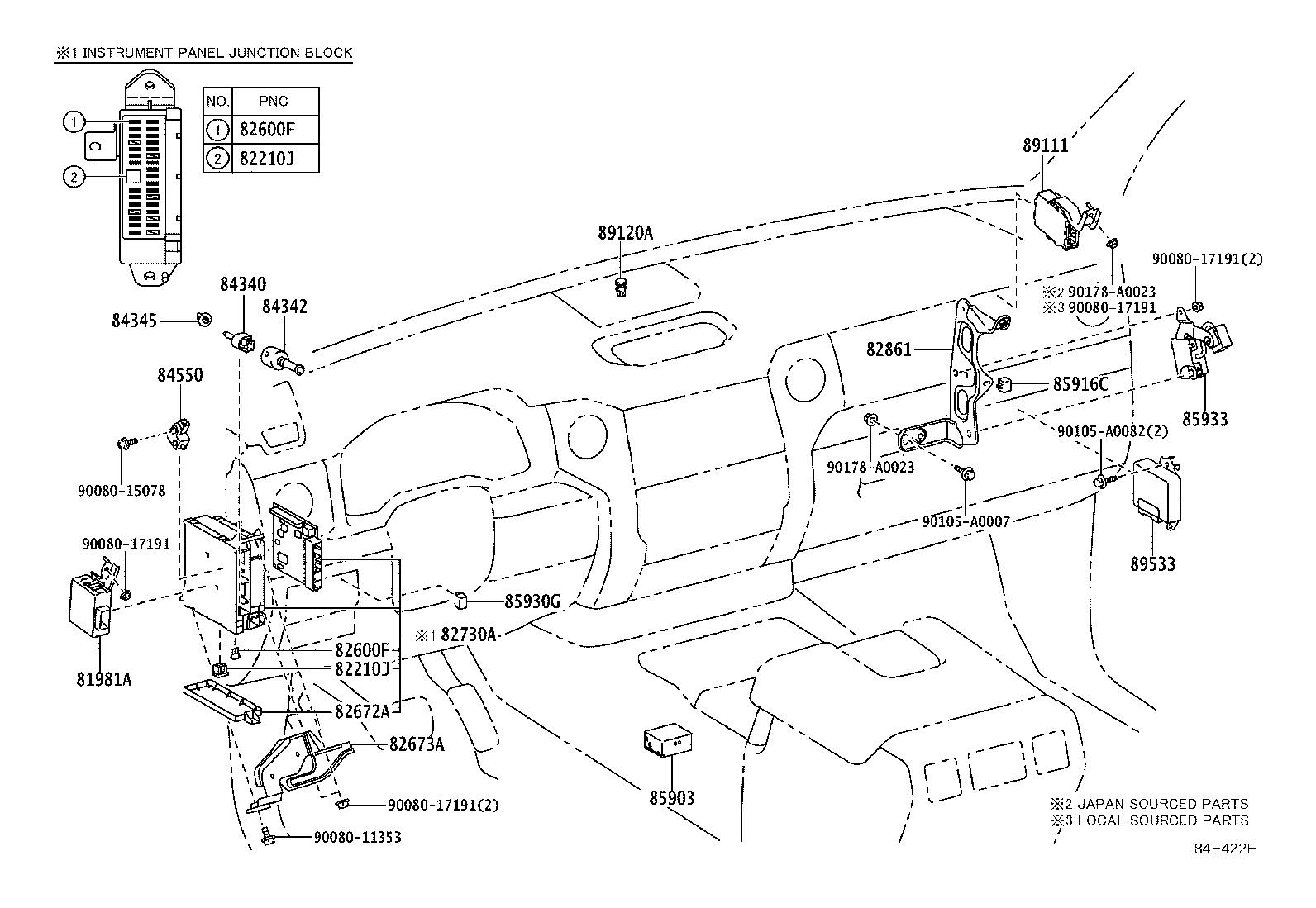

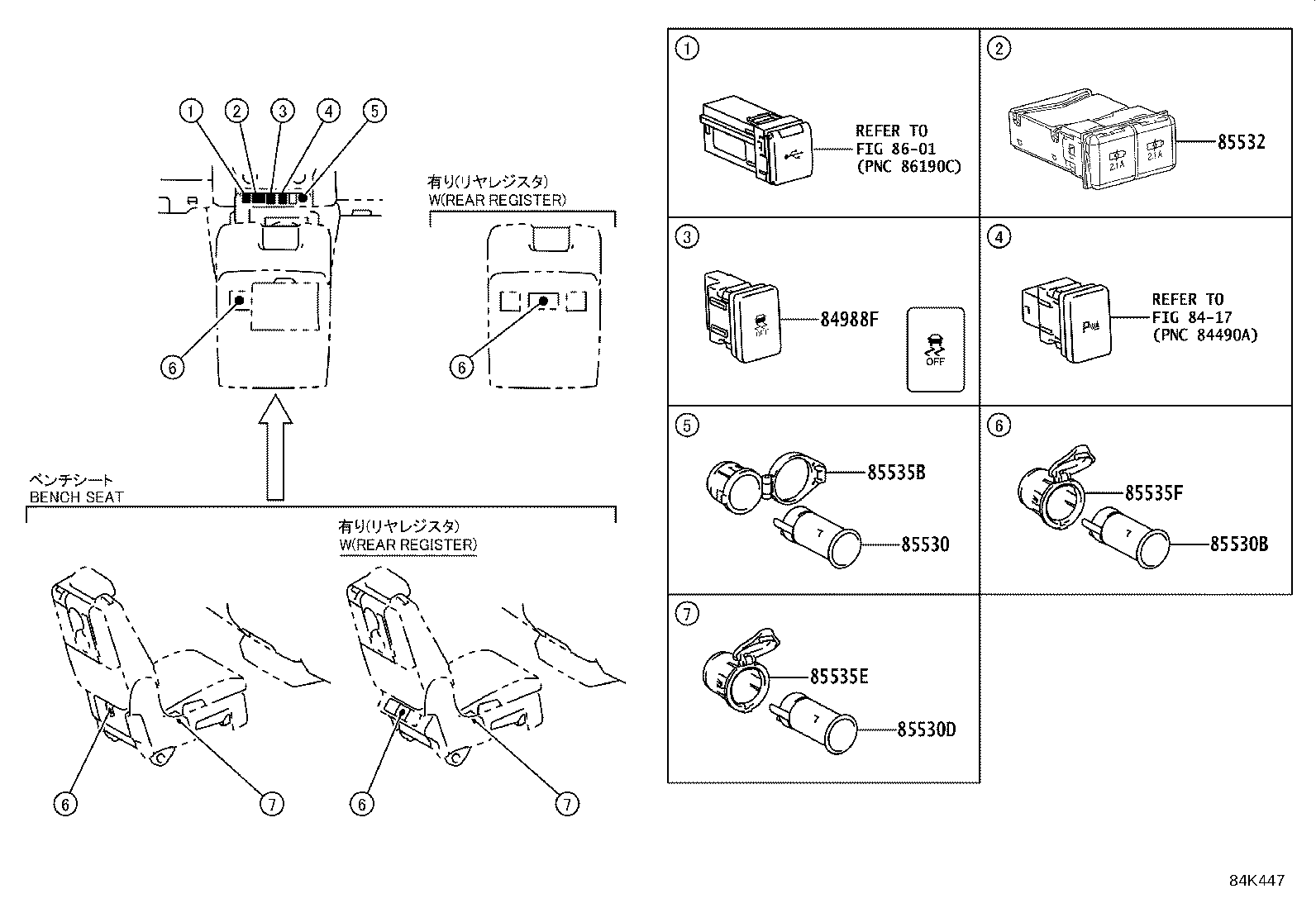

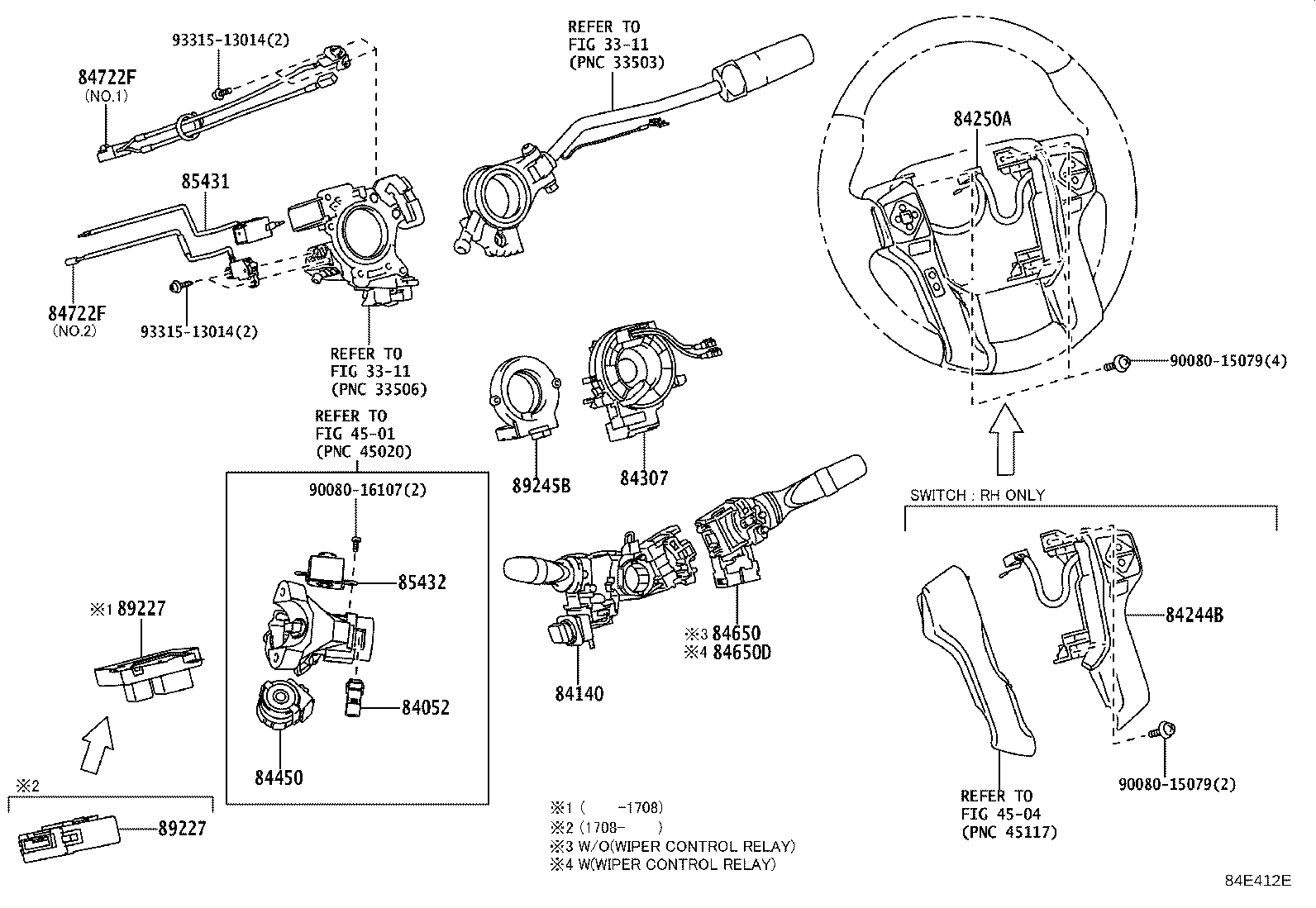

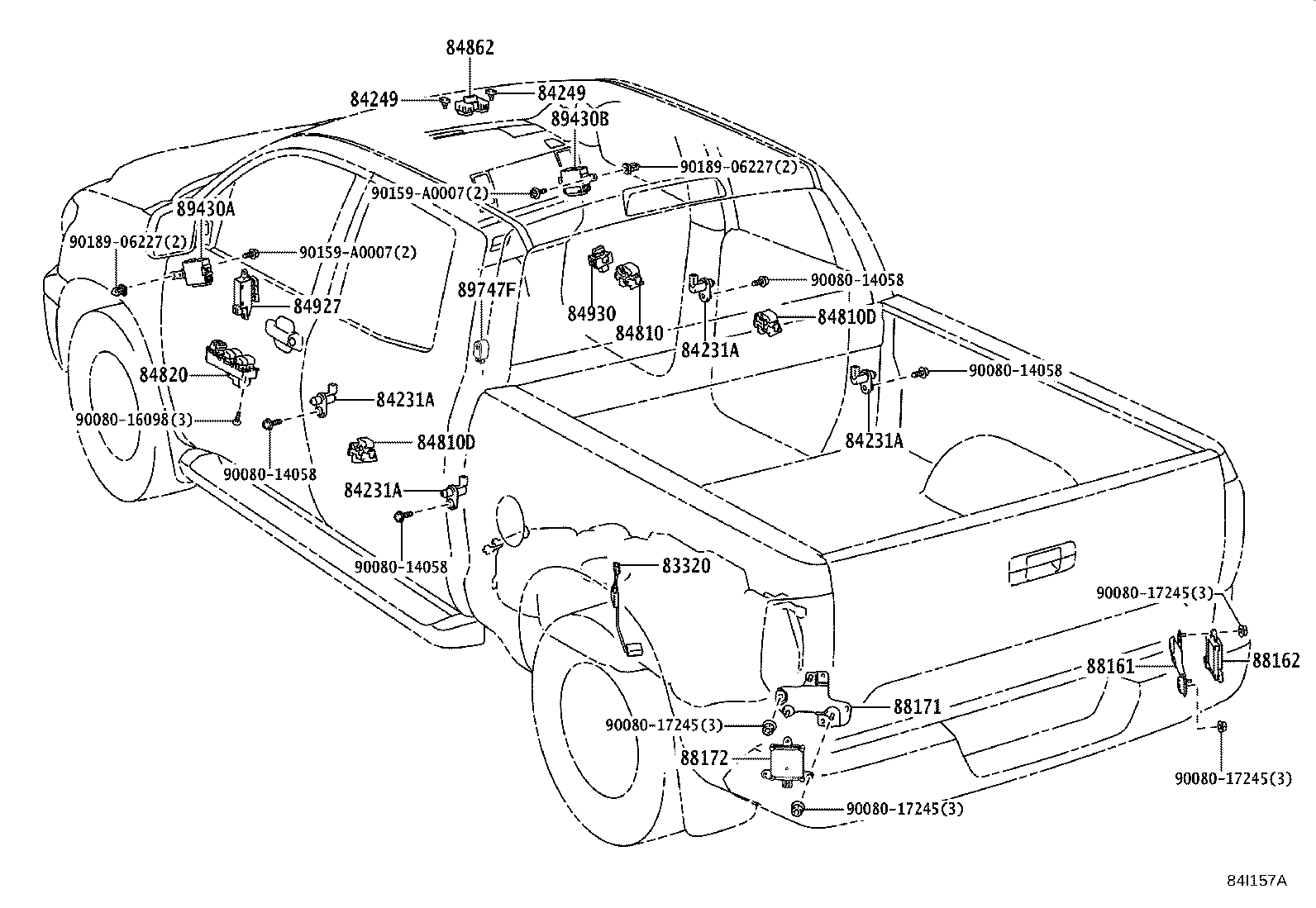

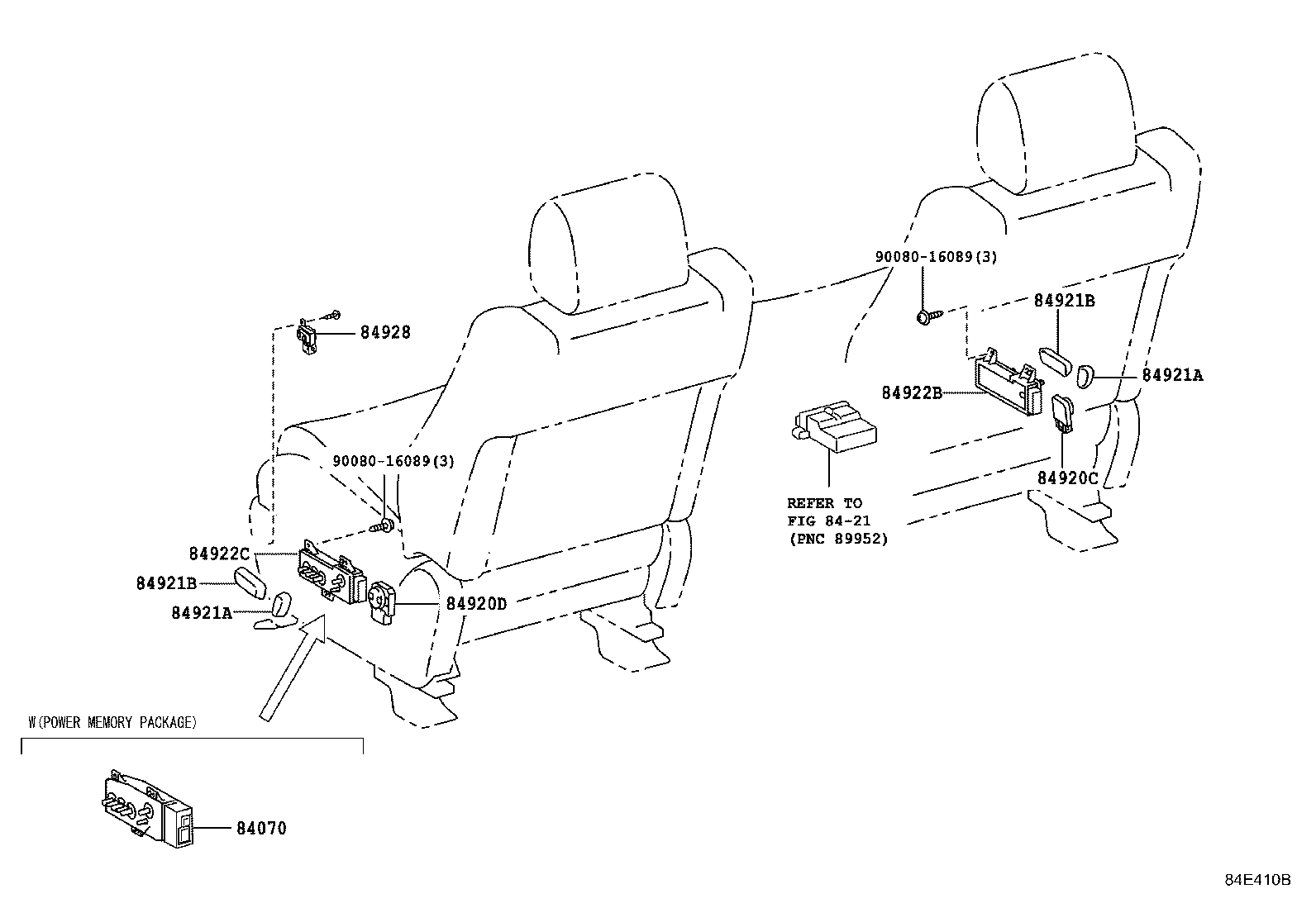

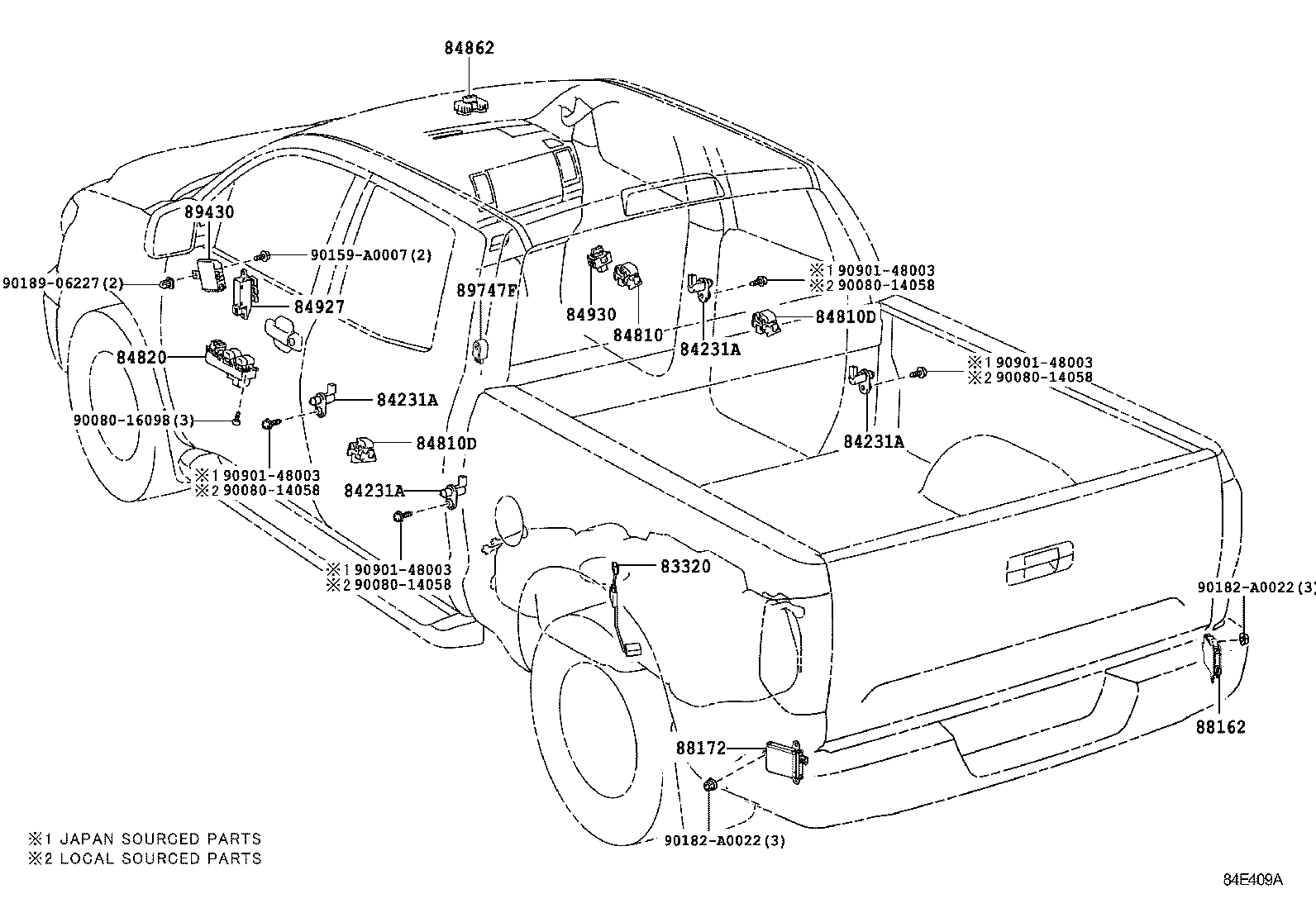

Figure 848442D 848442D 2006-11 → 2013-08 Figure 848443B 848443B 2006-11 → 2013-08 Figure 848595B 848595B 2007-01 → 2013-08 Figure 84A557A 84A557A 2009-04 → 2013-08 Figure 84E416A 84E416A 2013-08 → — Figure 84E417D 84E417D 2013-08 → — Figure 84E418D 84E418D 2013-08 → — Figure 848435K 848435K 2006-11 → — Figure 84L521A 84L521A 2006-11 → 2013-08 Figure 84E421C 84E421C 2013-08 → 2017-08 Figure 84L522A 84L522A 2013-08 → 2017-08 Figure 84I158B 84I158B 2017-08 → — Figure 848436I 848436I 2006-11 → 2009-04 Figure 84A569C 84A569C 2009-04 → 2013-08 Figure 84E422E 84E422E 2013-08 → 2017-08 Figure 84I159C 84I159C 2017-08 → — Figure 84A685B 84A685B 2006-11 → 2010-08 Figure 848437L 848437L 2006-11 → 2010-08 Figure 84B442B 84B442B 2010-08 → 2013-08 Figure 84B443B 84B443B 2010-08 → 2013-08 Figure 84E423F 84E423F 2013-08 → 2017-08 Figure 84K446 84K446 2017-08 → — Figure 84I161B 84I161B 2013-08 → 2017-08 Figure 84K447 84K447 2017-08 → — Figure 84E424C 84E424C 2013-08 → 2017-08 Figure 84E424C 84E424C 2013-08 → 2017-08 Figure 84K448 84K448 2017-08 → — Figure 848438C 848438C 2006-11 → 2013-08 Figure 848439C 848439C 2006-11 → 2013-08 Figure 84E412E 84E412E 2013-08 → — Figure 848440C 848440C 2006-11 → 2013-08 Figure 84E410B 84E410B 2013-08 → — Figure 848441B 848441B 2006-11 → 2013-08 Figure 84E409A 84E409A 2013-08 → 2017-08 Figure 84I157A 84I157A 2017-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371D Relay, Ignition, NO.3
28371E Relay, Ignition, NO.4
28371F Relay, Ignition, NO.5
28800L Relay, Sub Battery
55912D Housing, Heater Control
81240F Relay, Dome Lamp
81981A Flasher, Turn Signal
82210J Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82610D Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82641 Relay, Integration NO.1
82642B Relay, Day Time Running Light, NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82660F Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82661 Cover, Relay Block, NO.1
82663 Cover, Relay Block, Lower
82664 Block, Connector Holder
82668 Cover, Connector Holder Block, Upper
82669 Cover, Connector Holder Block, Lower
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
82730A Block Assy, Driver Side Junction
82741 Block, Engine Room Relay
82861 Bracket, Computer Integration, NO.1
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84010D Control & Panel Assy, Integration
84013 Panel Sub-assy, Integration
84014 Board Sub-assy, Printed Wire Integration
84052 Switch Assy, Un-lock Warning
84070 Computer & Switch Assy, Position Control
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84170 Switch Assy, Interior Dome Lamp
84222F Switch, Transfer Indicator
84223A Switch, Transfer Position
84231A Switch, Courtesy Lamp
84244B Switch, Steering Pad, RH
84249 Switch, Map Lamp
84250A Switch Assy, Steering Pad
84260 Switch Assy, Deck Lamp
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84342 Cover, Stop Lamp Switch
84345 Adjuster, Stop Lamp Switch Mounting
84391 Switch, Trailer Brake Control
84415 Switch, Curtain Airbag Cutoff
84450 Switch Assy, Ignition OR Starter
84470 Switch Assy, Warning Canceling
84480 Switch Assy, Main
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84722F Switch, Transmission Control
84724 Switch, 4 Wheel Drive Control
84751G Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810E Switch Assy, Back Door Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84862 Switch, Slide Roof Motor
84870A Switch Assy, Outer Mirror
84920C Switch Assy, Power Seat Front, RH
84920D Switch Assy, Power Seat Front, LH
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84928 Switch, Seat Variable Cushion
84930 Switch Assy, Door Control
84977 Switch, Drive Monitor
84988F Switch, Traction Control
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85532 Socket, Usb Charger
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85535F Cover, Power Outlet Socket, Rear
85903 Computer Sub-assy, Shift Lock Control
85910 Relay Assy, Circuit Opening
85912 Relay, Defogger
85916C Relay, Back UP Lamp
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85916Y Relay, Towing Tail
85926 Relay, Headlamp Dimmer
85930G Relay, Acc
85933 Computer, Shift Lock Control
85934 Relay, Magnet-clutch
85939 Relay, Power Window
85940F Relay Assy, Windshield Deicer
86210A Inverter Assy, Voltage
86530 Relay Assy, Horn
87299 Relay, Heater
88161 Bracket, Blind Spot Monitor, RH
88162 Sensor, Blind Spot Monitor, RH
88171 Bracket, Blind Spot Monitor, LH
88172 Sensor, Blind Spot Monitor, LH
88630G Relay Assy, Cooler
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89245B Sensor, Steering
89421B Sensor, Vacuum
89430 Computer Assy, Outer Mirror Control
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89438 Switch, Power Steering Oil Pressure
89448A Sensor, Power Steering Oil Pressure
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89533 Computer, 4 Wheel Drive Control
89533A Computer, 4 Wheel Drive Control, NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89618A Computer, Power Source Control
89650 Computer Assy, Power Steering
89747F Buzzer, Blind Spot Monitor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
