Toyota Tundra

2006-11 → 2021-10 · chassis GSK5#,UCK5#,UPK5#,USK5# · catalogue 841430 · United States

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

16 part groups · 24 illustrations

Illustrations

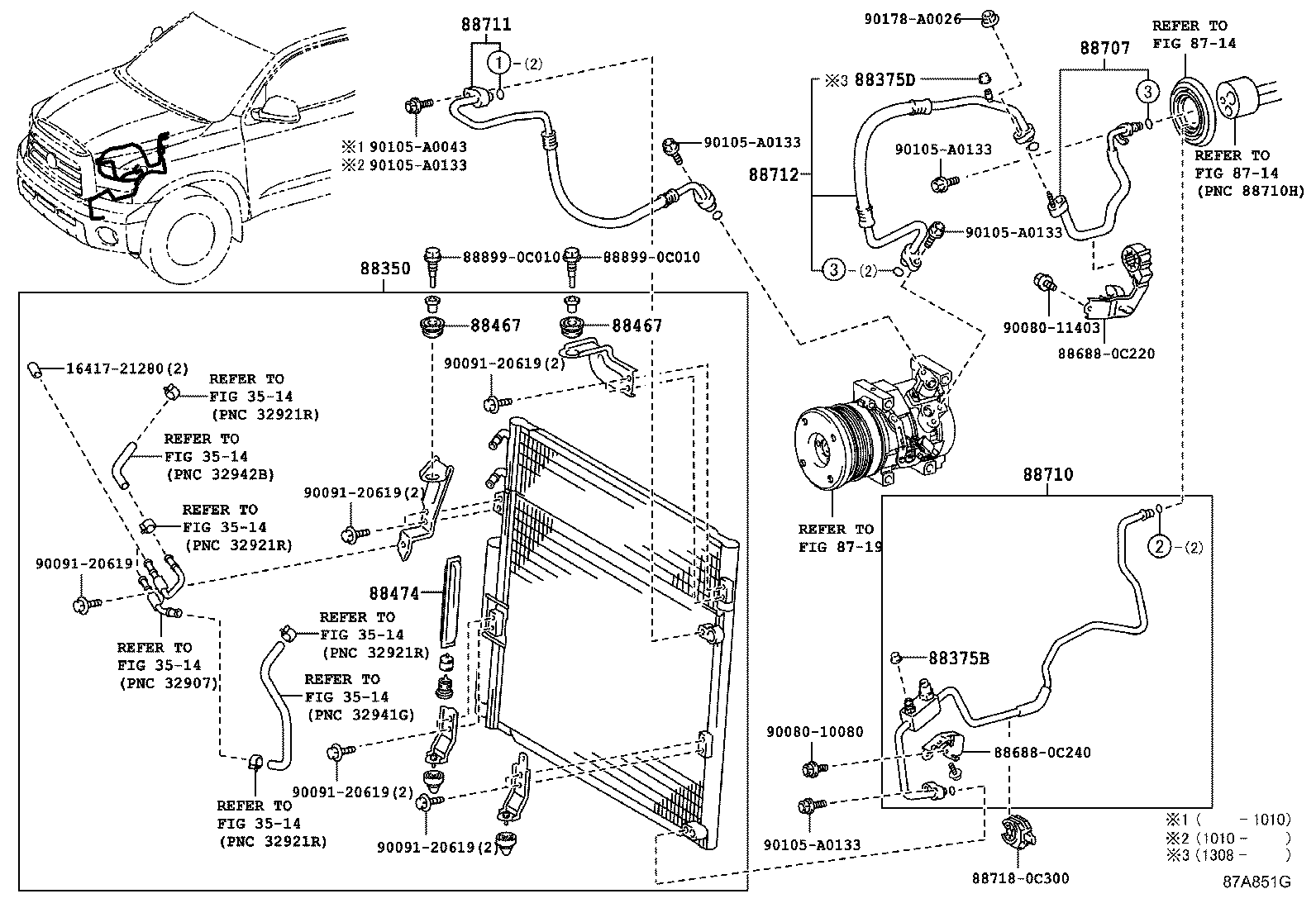

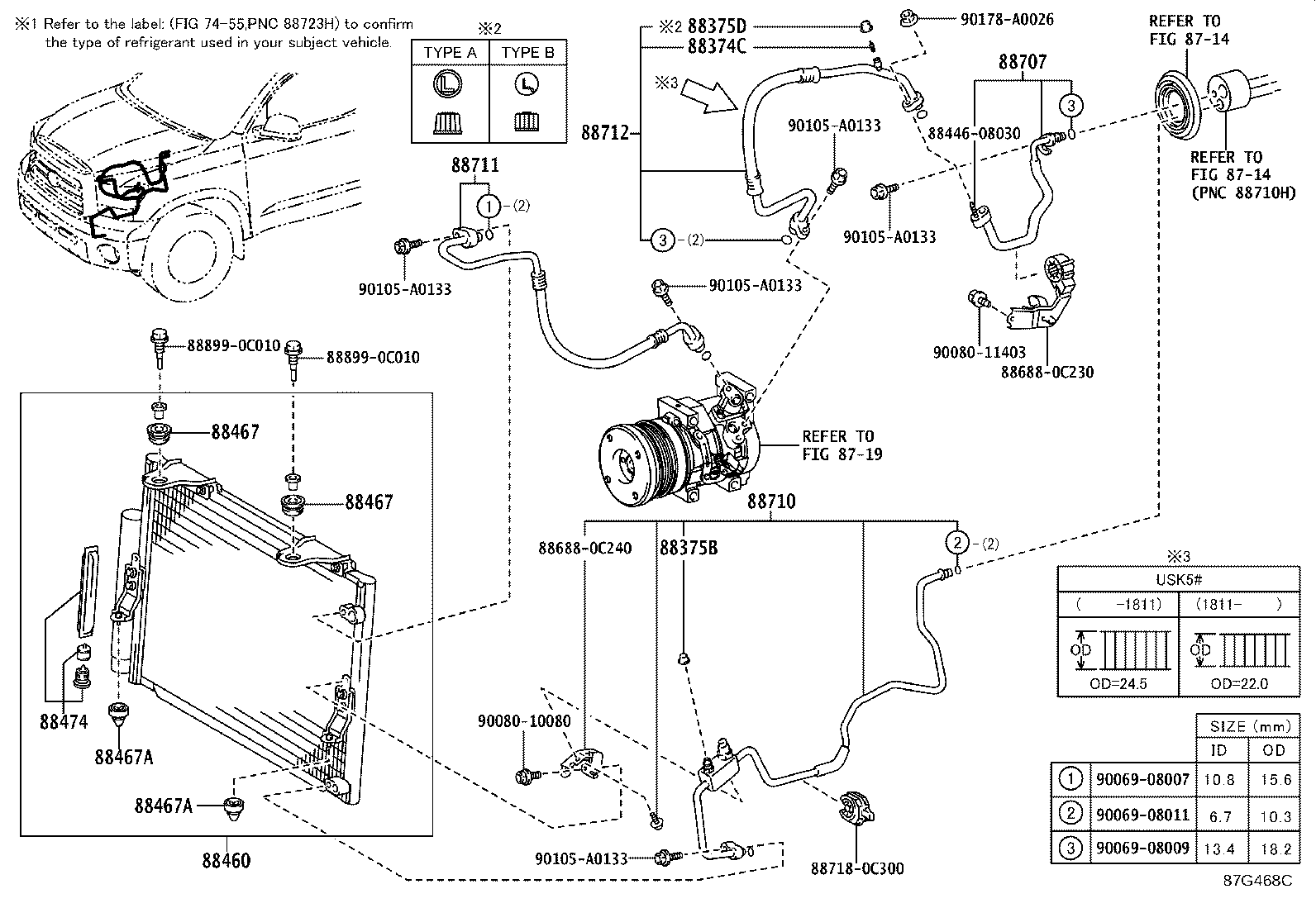

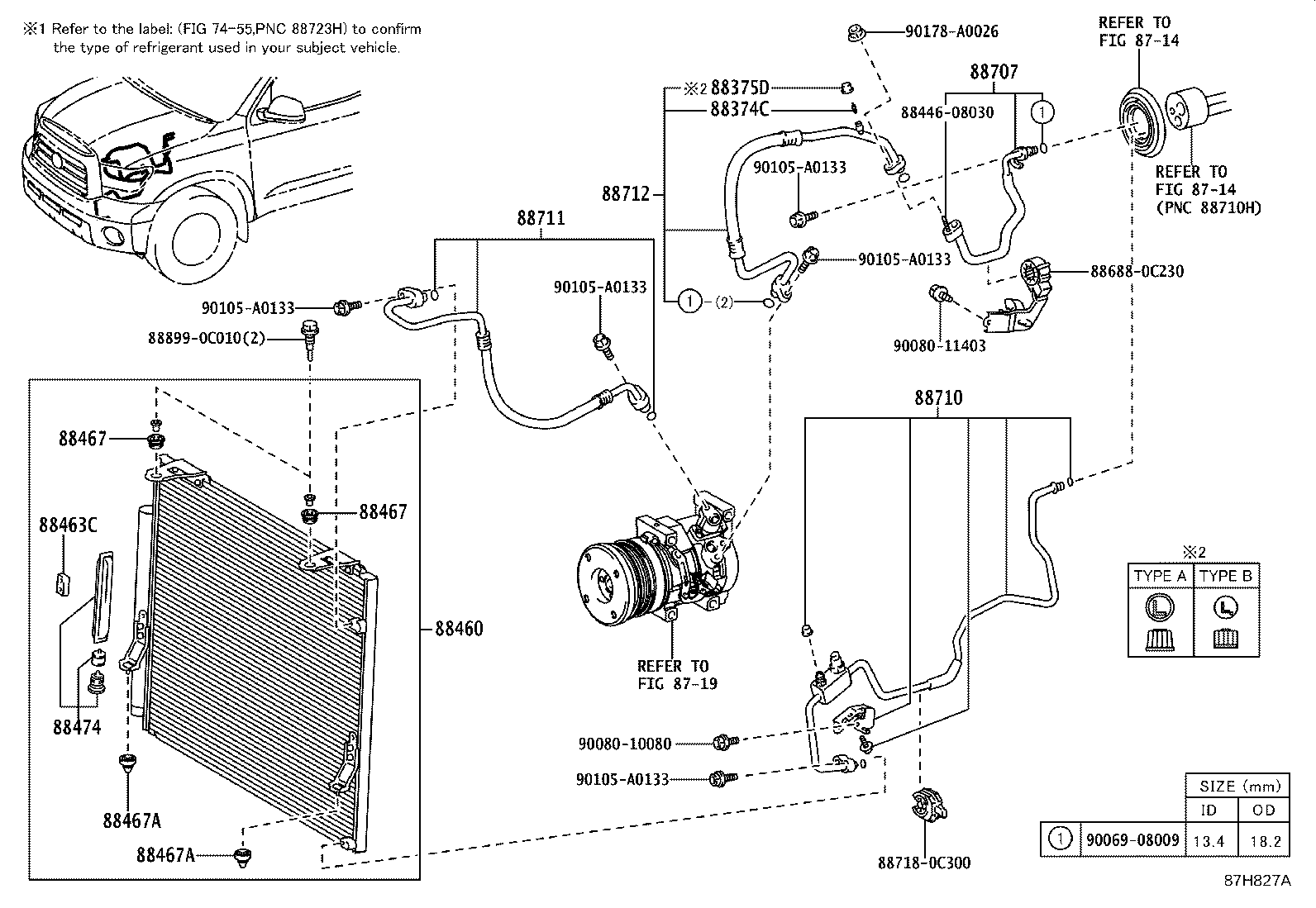

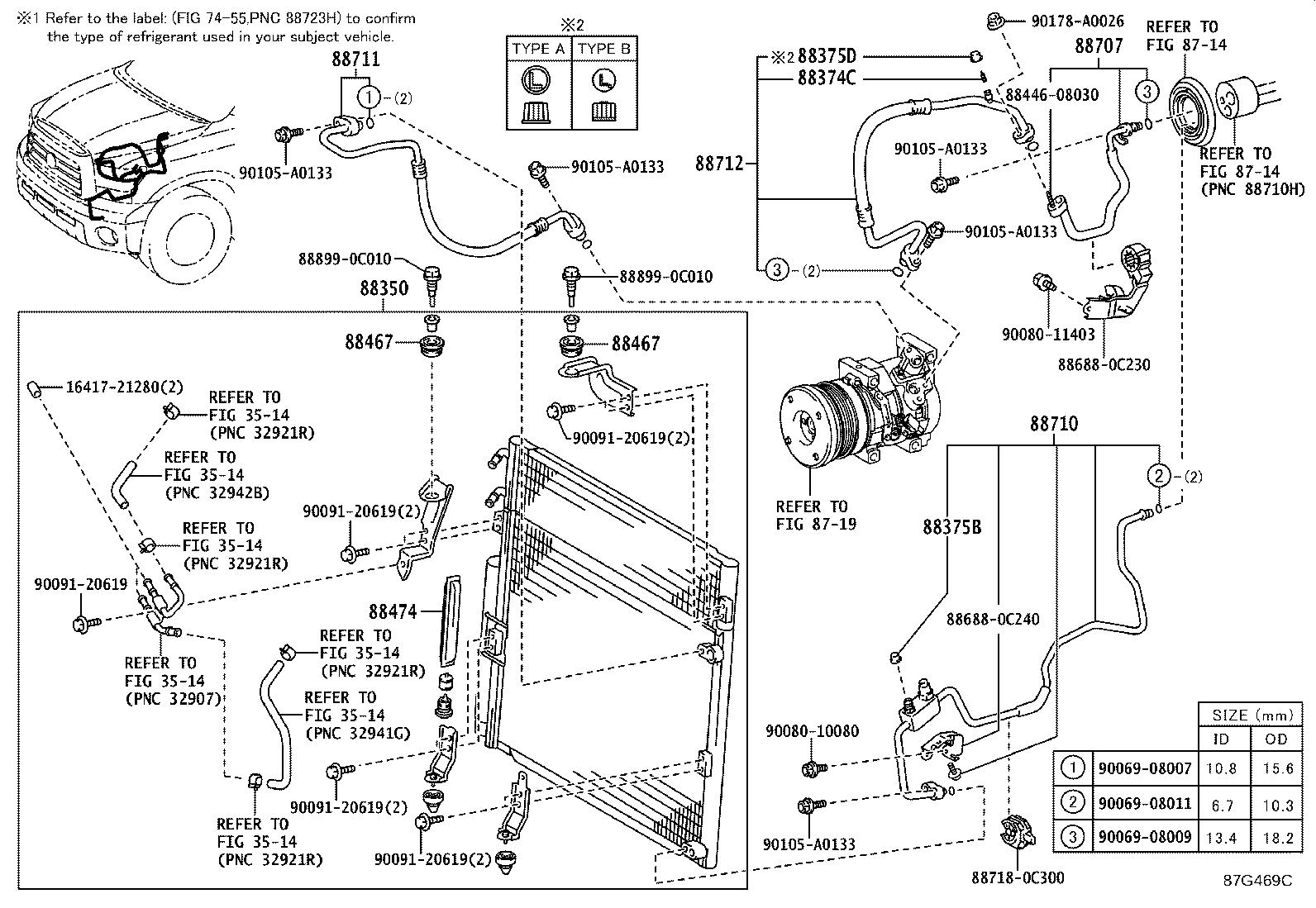

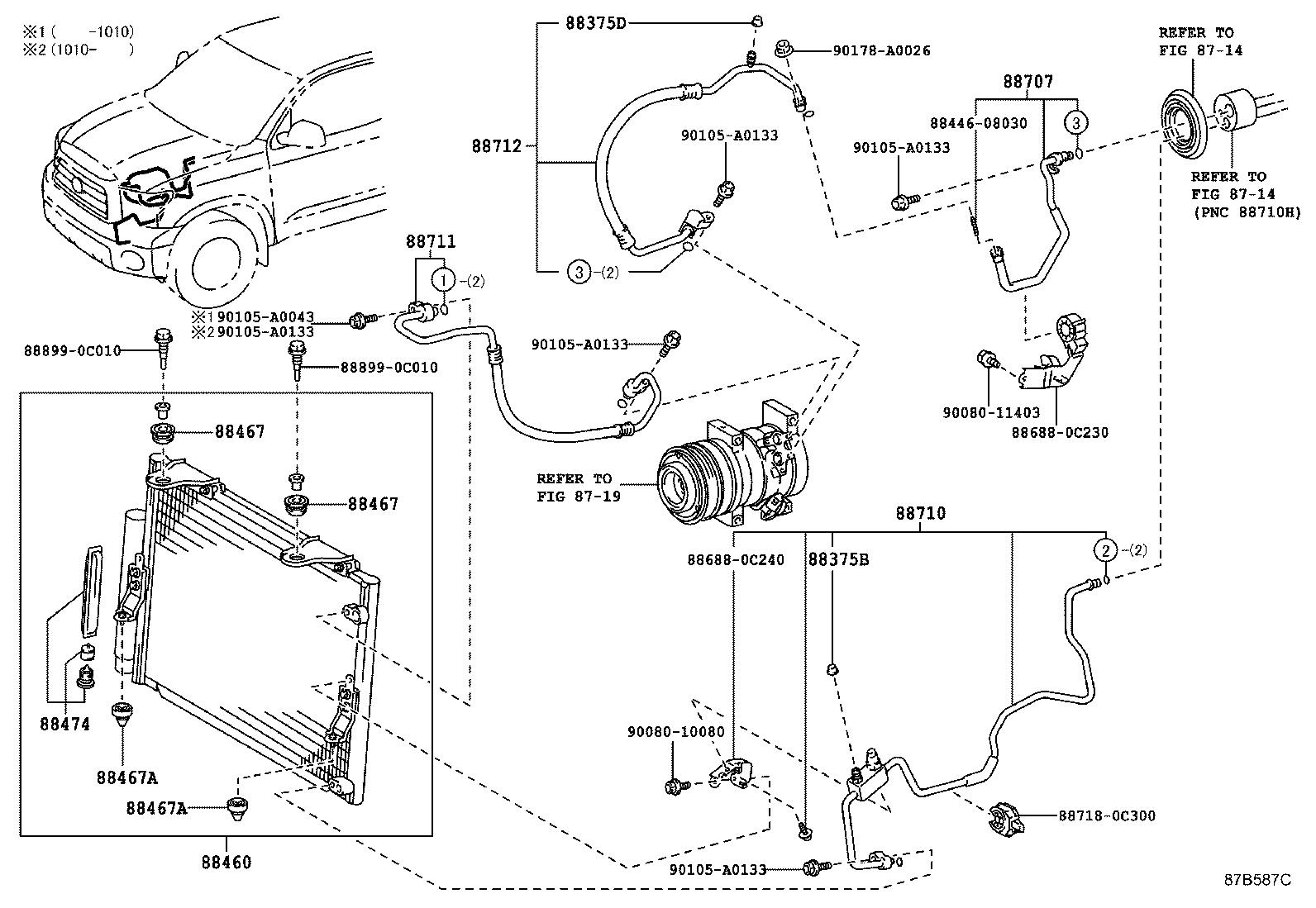

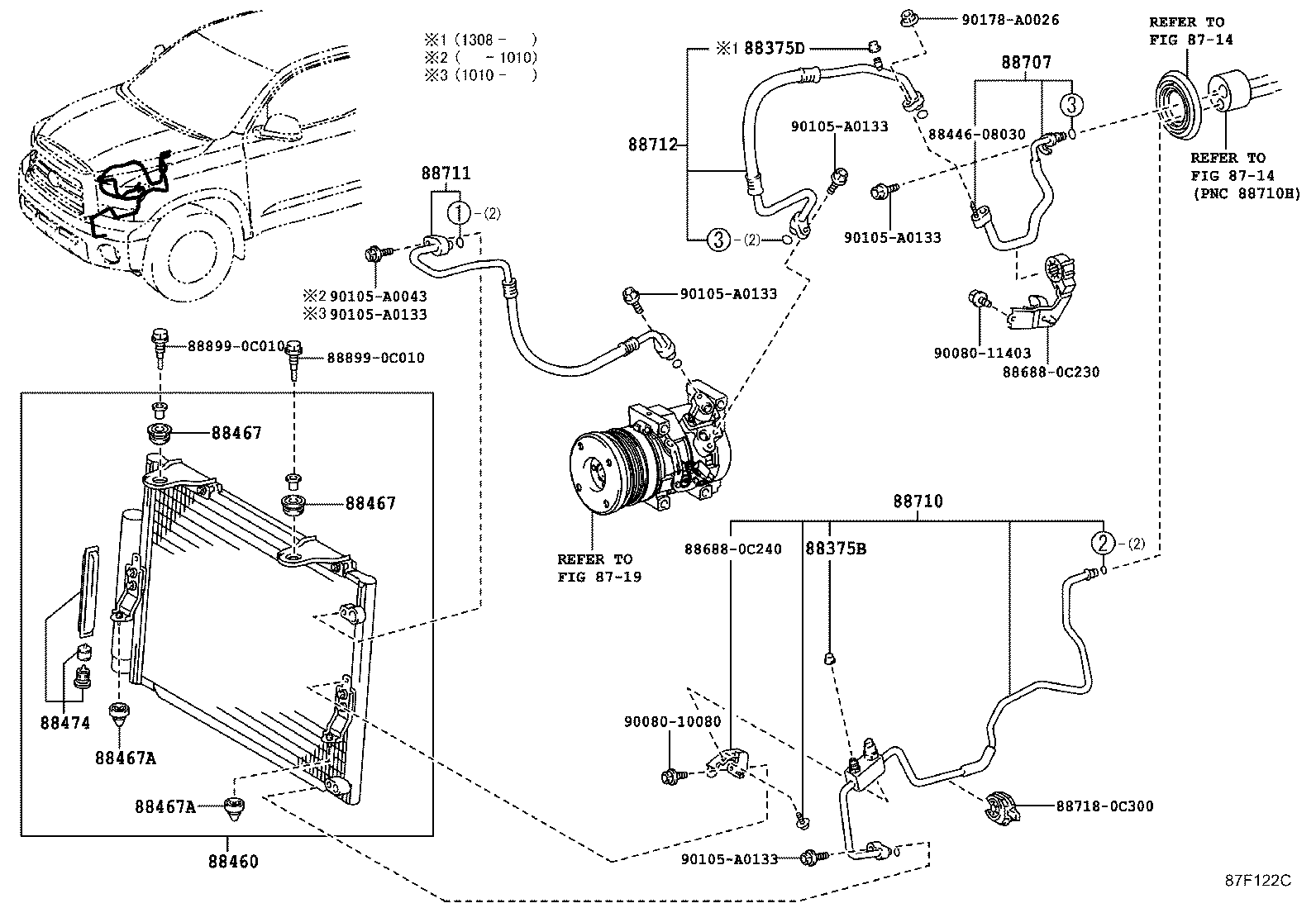

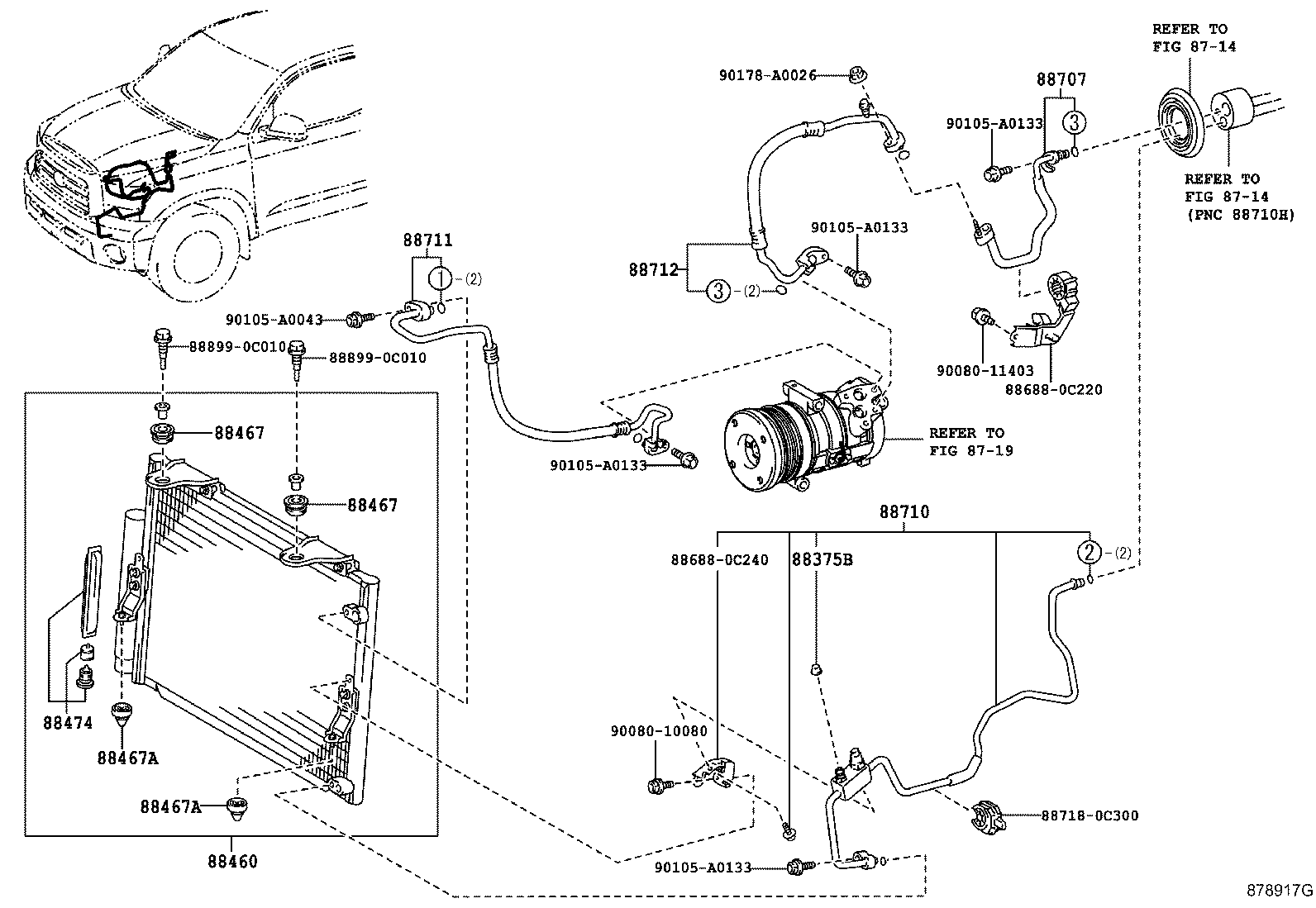

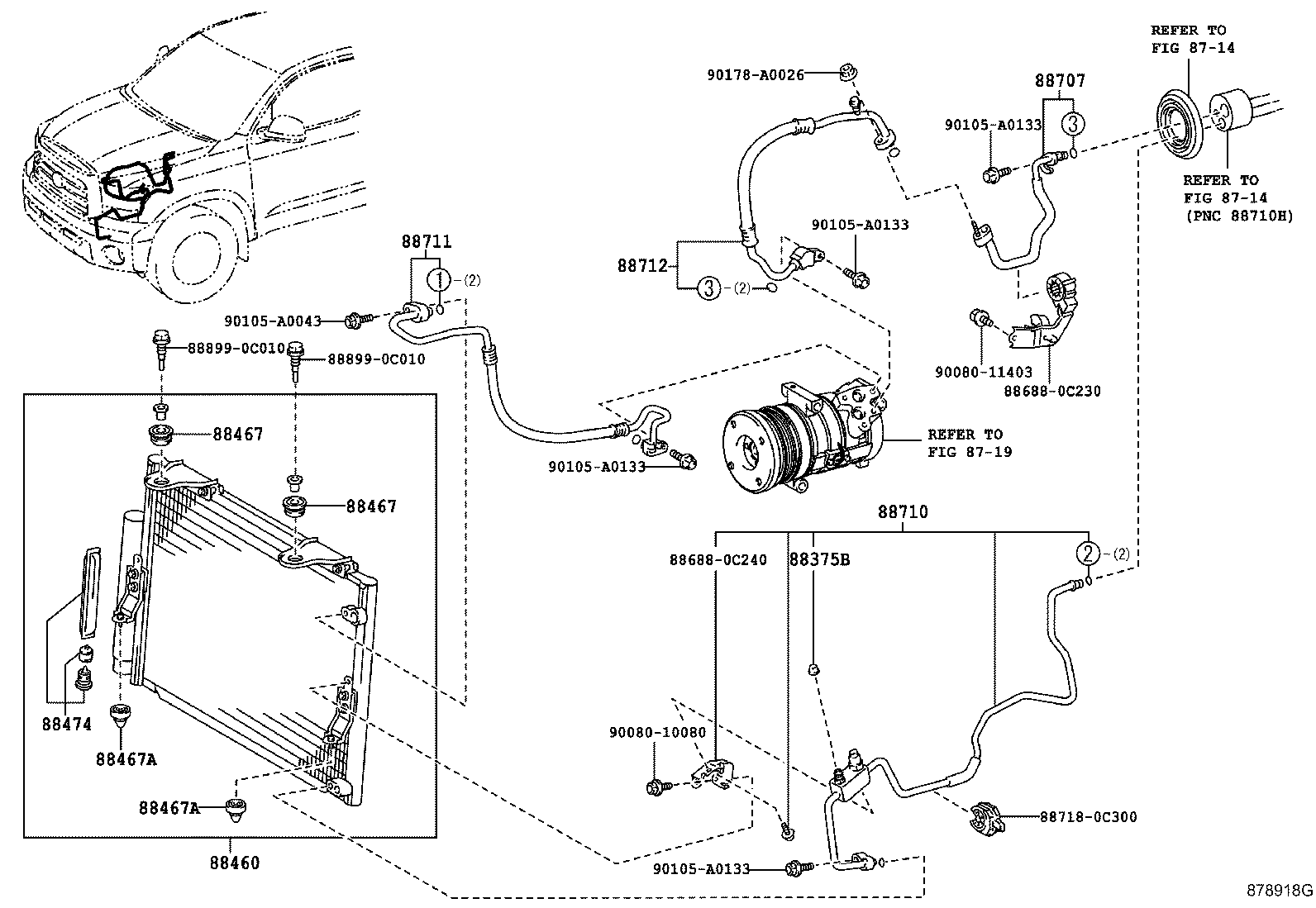

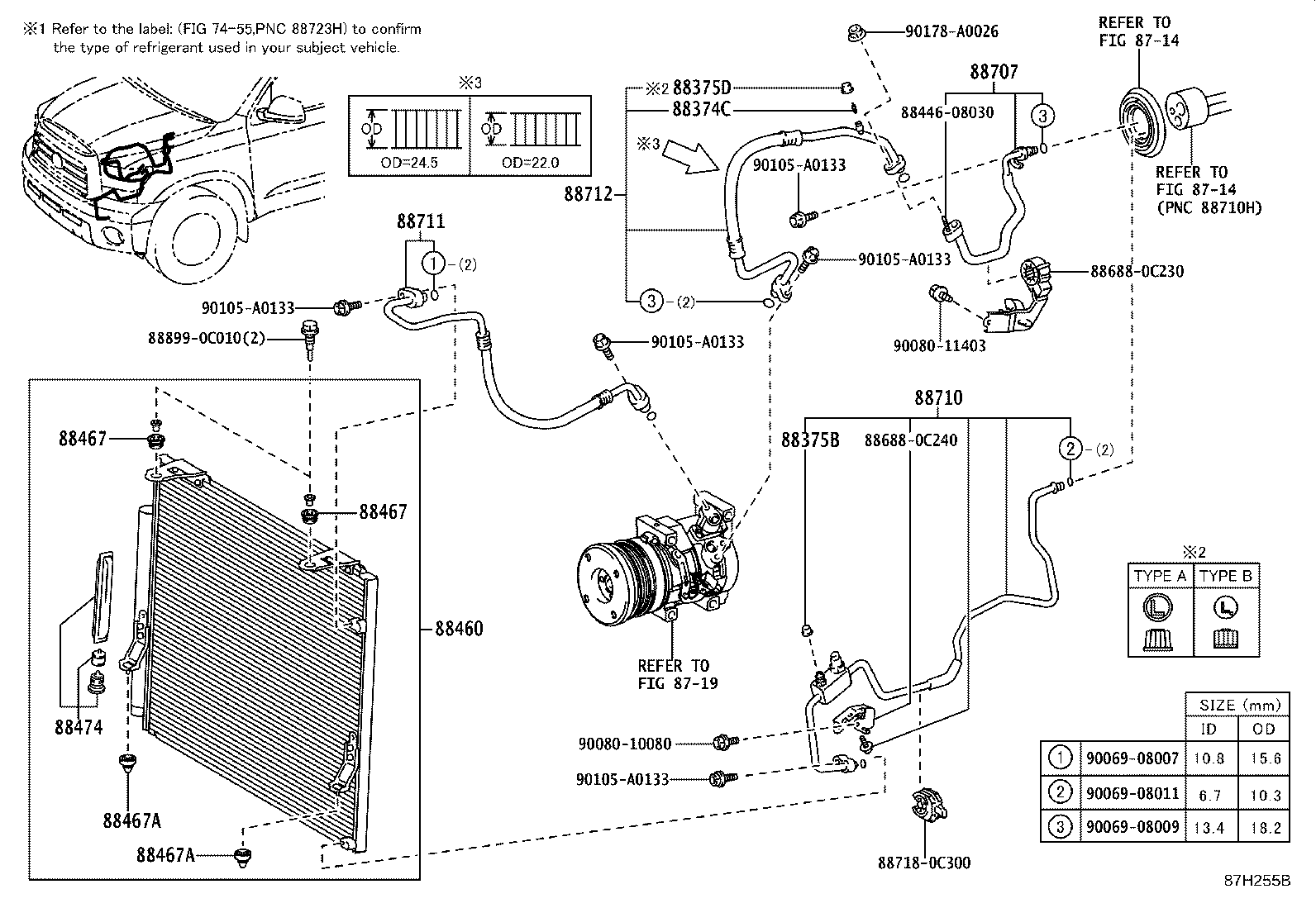

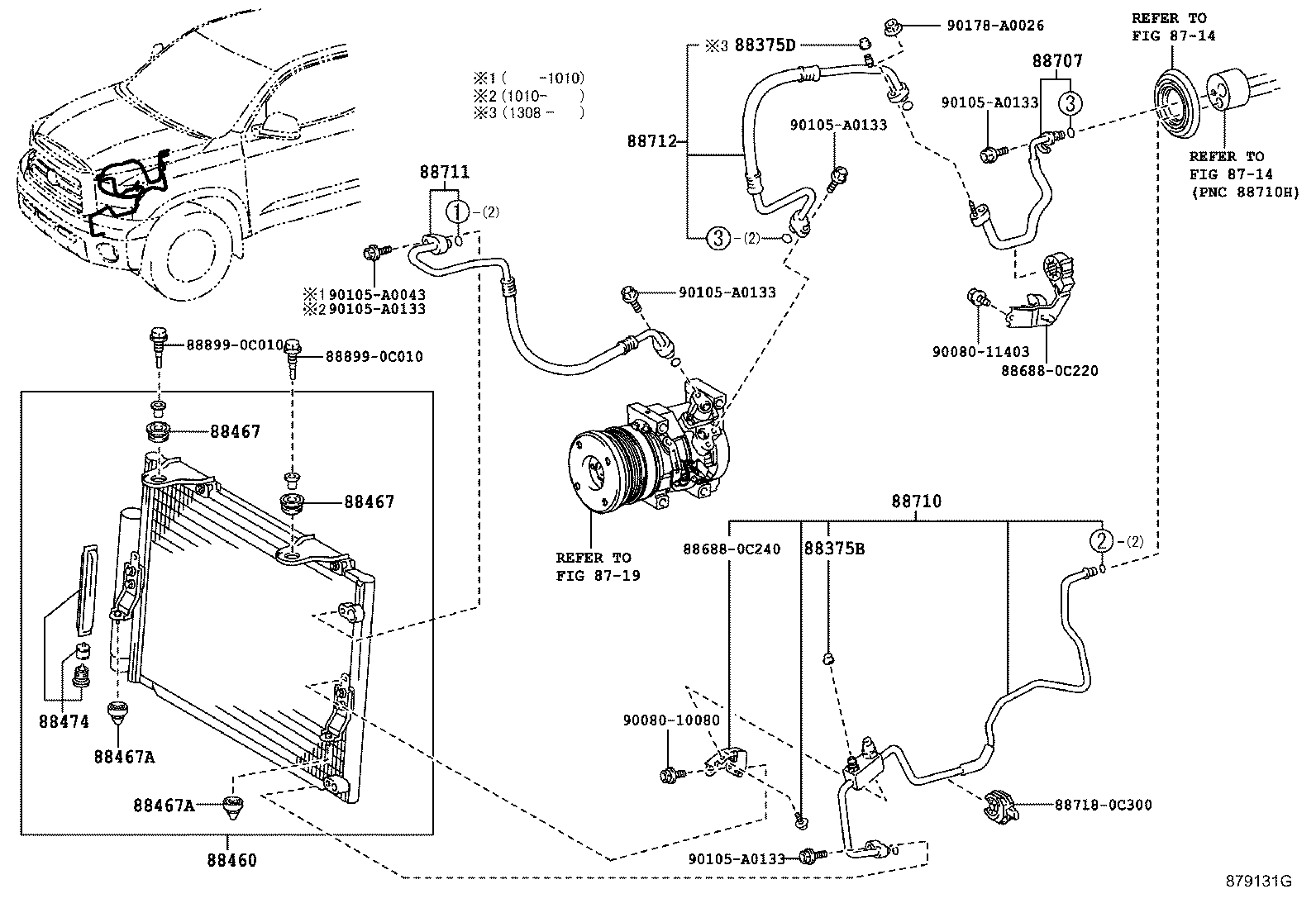

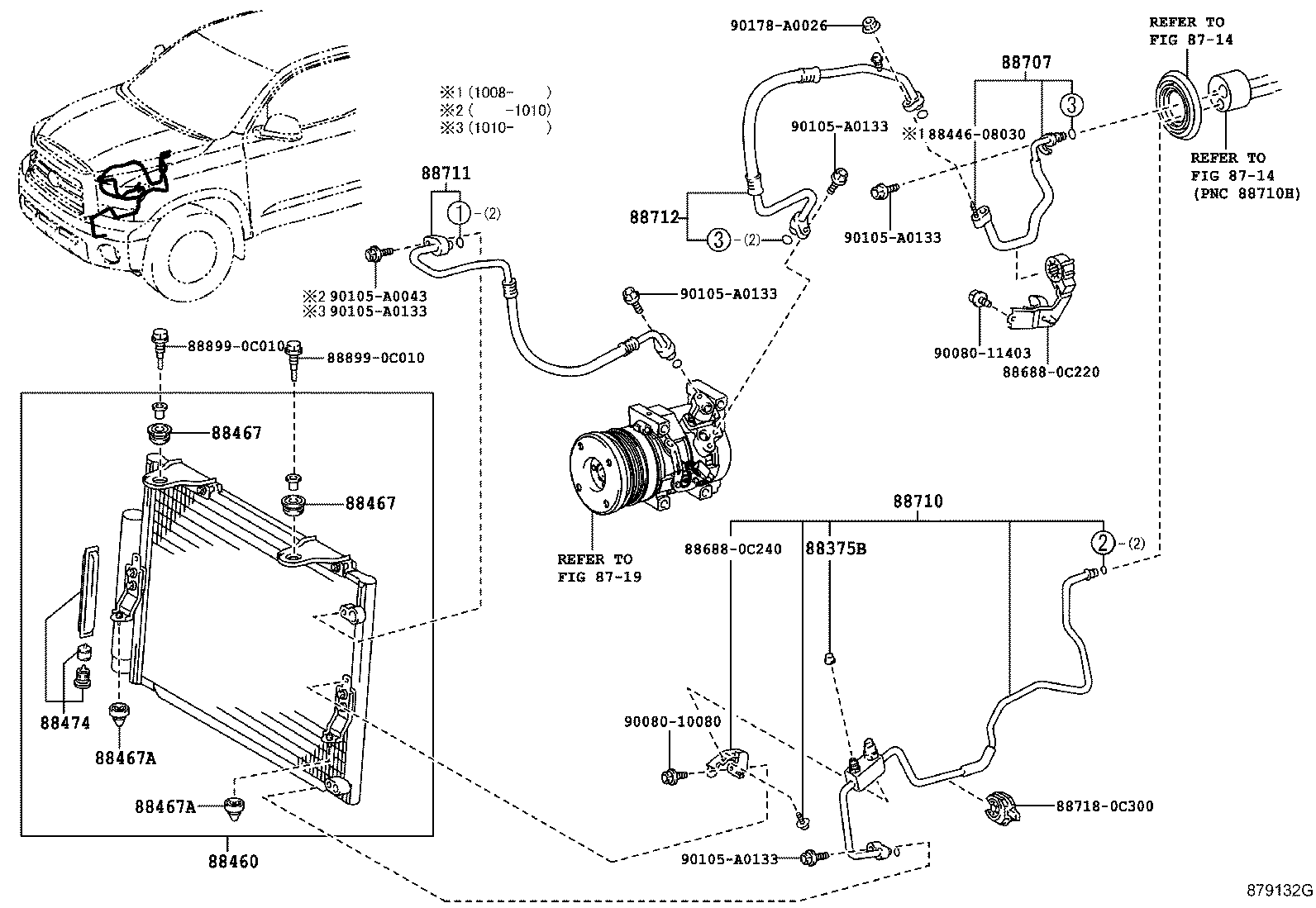

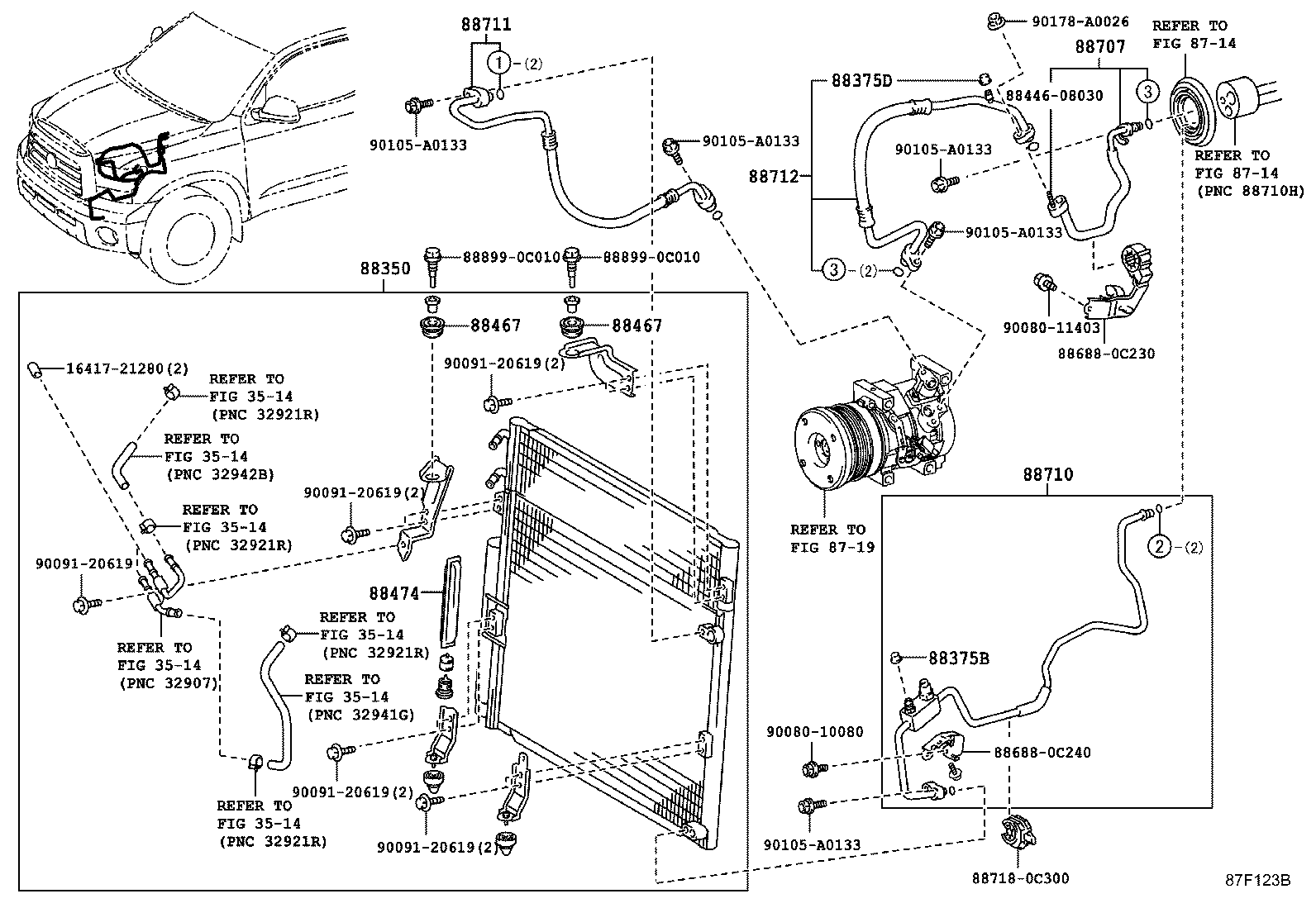

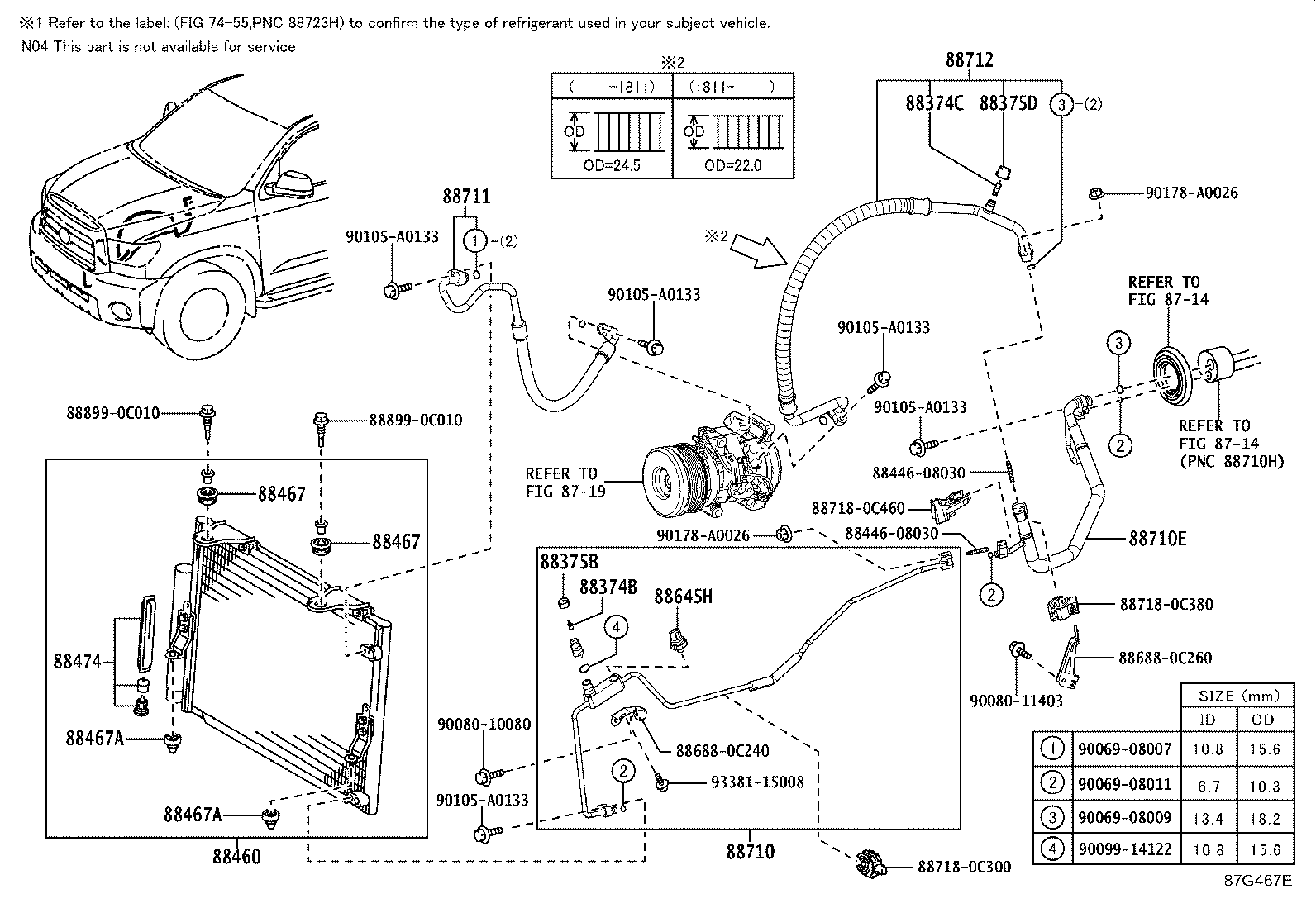

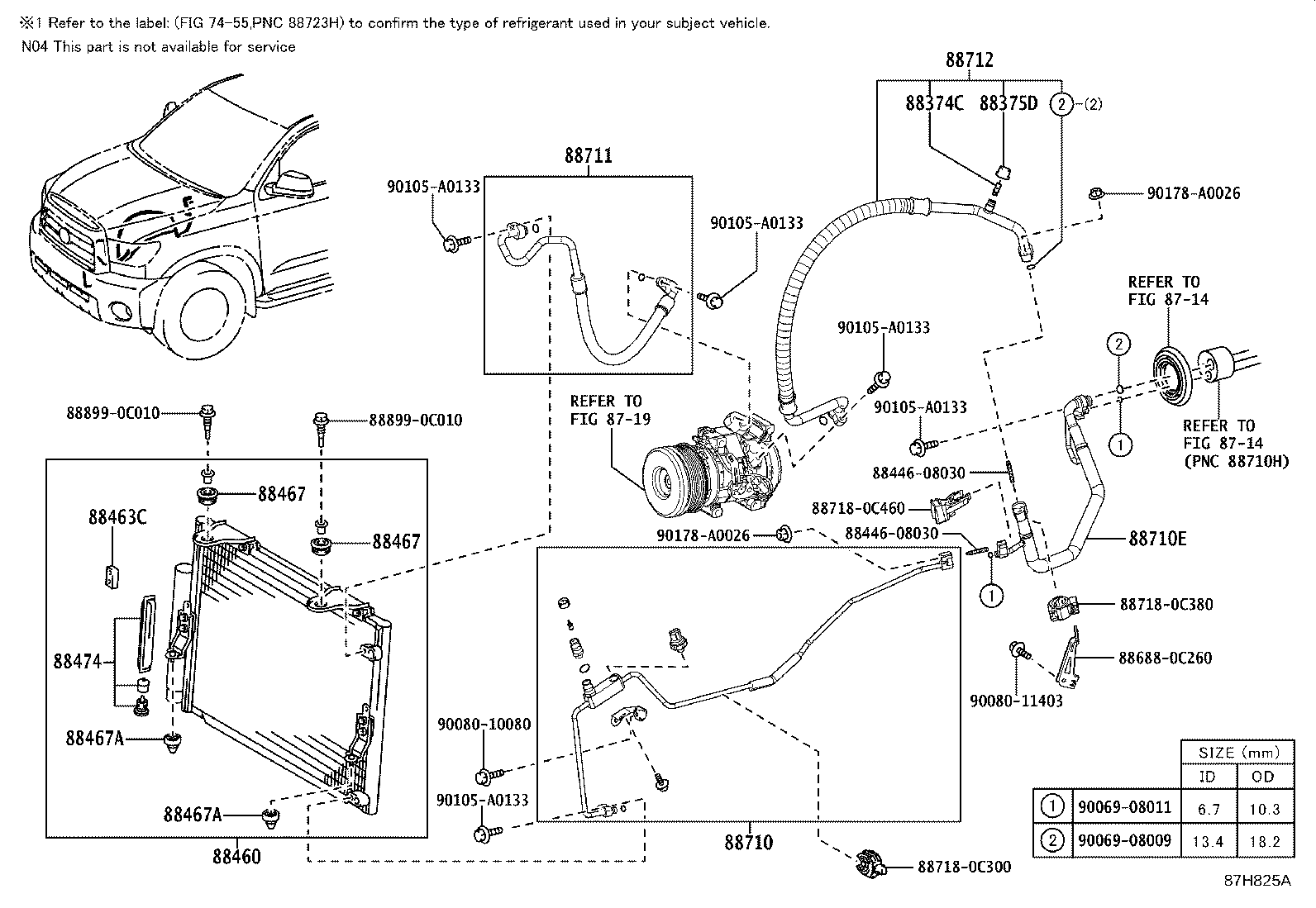

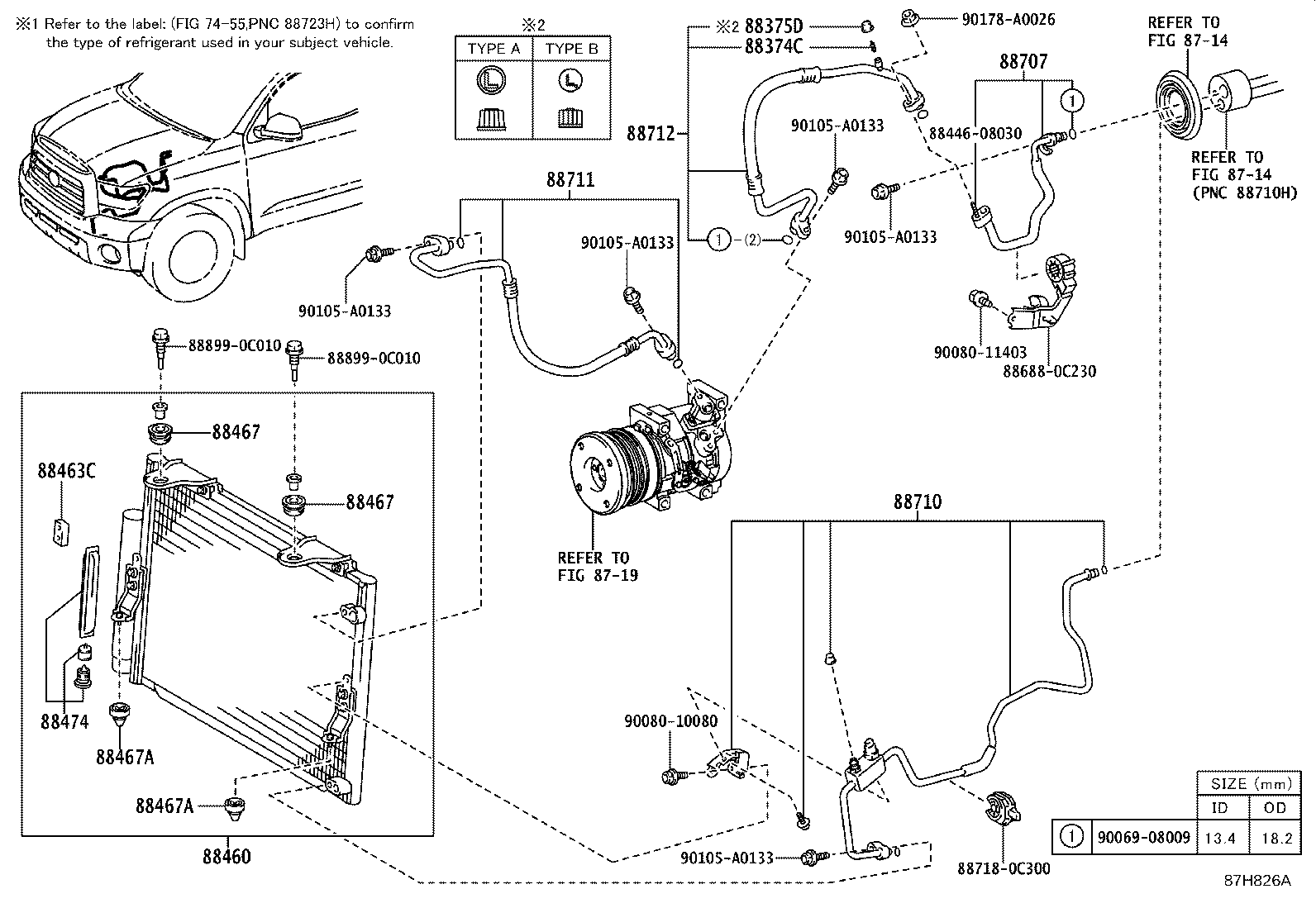

Figure 878916H 878916H 2006-11 → 2010-08 Figure 87B587C 87B587C 2010-08 → 2013-08 Figure 87B587C 87B587C 2013-08 → 2014-09 Figure 878917G 878917G 2006-11 → 2009-04 Figure 878918G 878918G 2006-11 → 2009-04 Figure 879131G 879131G 2007-01 → 2009-04 Figure 879131G 879131G 2009-04 → 2013-08 Figure 879131G 879131G 2013-08 → 2017-08 Figure 87A851G 87A851G 2009-04 → 2013-08 Figure 87A851G 87A851G 2013-08 → 2017-08 Figure 879132G 879132G 2007-01 → 2009-04 Figure 879132G 879132G 2009-04 → 2013-08 Figure 87A808H 87A808H 2009-04 → 2013-08 Figure 87F122C 87F122C 2009-04 → 2013-08 Figure 87F122C 87F122C 2013-08 → 2017-08 Figure 87F123B 87F123B 2013-08 → 2017-08 Figure 87G467E 87G467E 2017-08 → 2020-08 Figure 87H825A 87H825A 2020-08 → — Figure 87G468C 87G468C 2017-08 → 2020-08 Figure 87H826A 87H826A 2020-08 → — Figure 87G469C 87G469C 2017-08 → 2018-08 Figure 87H255B 87H255B 2018-08 → 2020-08 Figure 87H827A 87H827A 2020-08 → — Figure 878910 878910 2006-11 → —

Part groups

PNCDescription
88350 Unit Assy, Cooler
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88463C Bracket, Cooler Condenser, NO.4
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
