Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

9 part groups · 4 illustrations

Illustrations

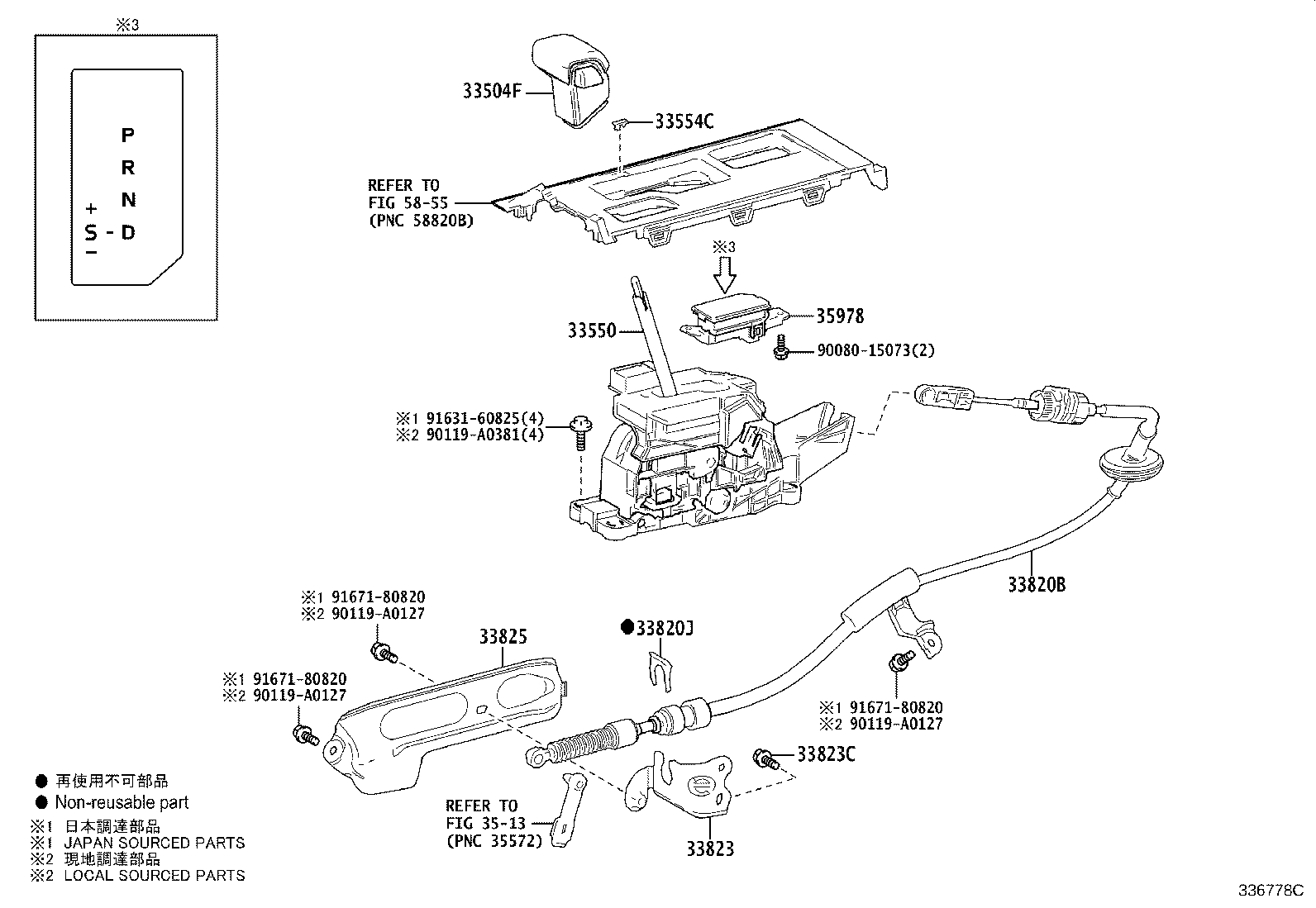

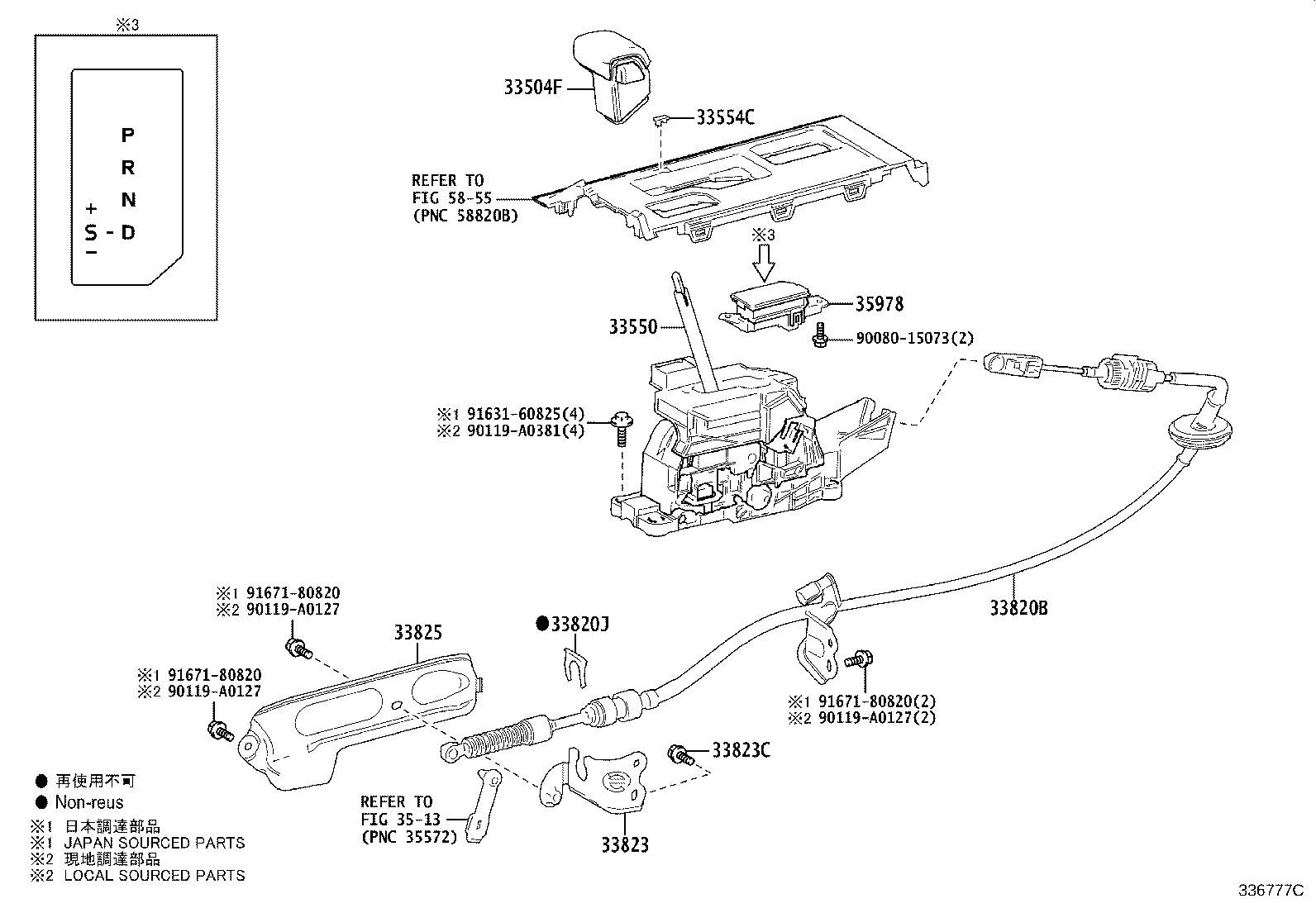

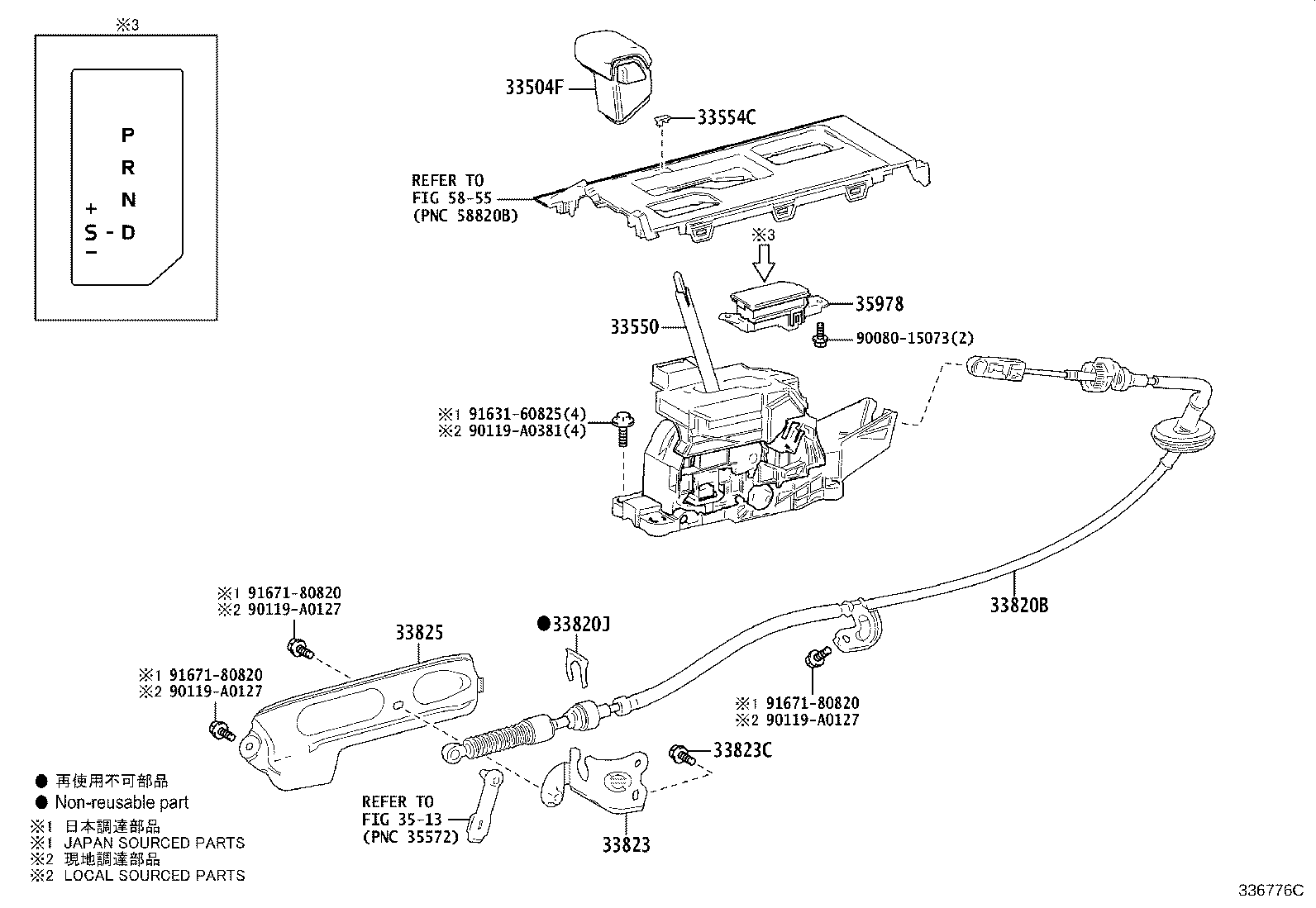

Figure 336775C 336775C 2021-11 → — Figure 336776C 336776C 2021-11 → — Figure 336777C 336777C 2022-03 → — Figure 336778C 336778C 2022-03 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33554C Cover, Shift Lock Release Button
33820B Cable Assy, Transmission Control
33820J Clip(FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33825 Insulator, Transmission Control Cable
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
