Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

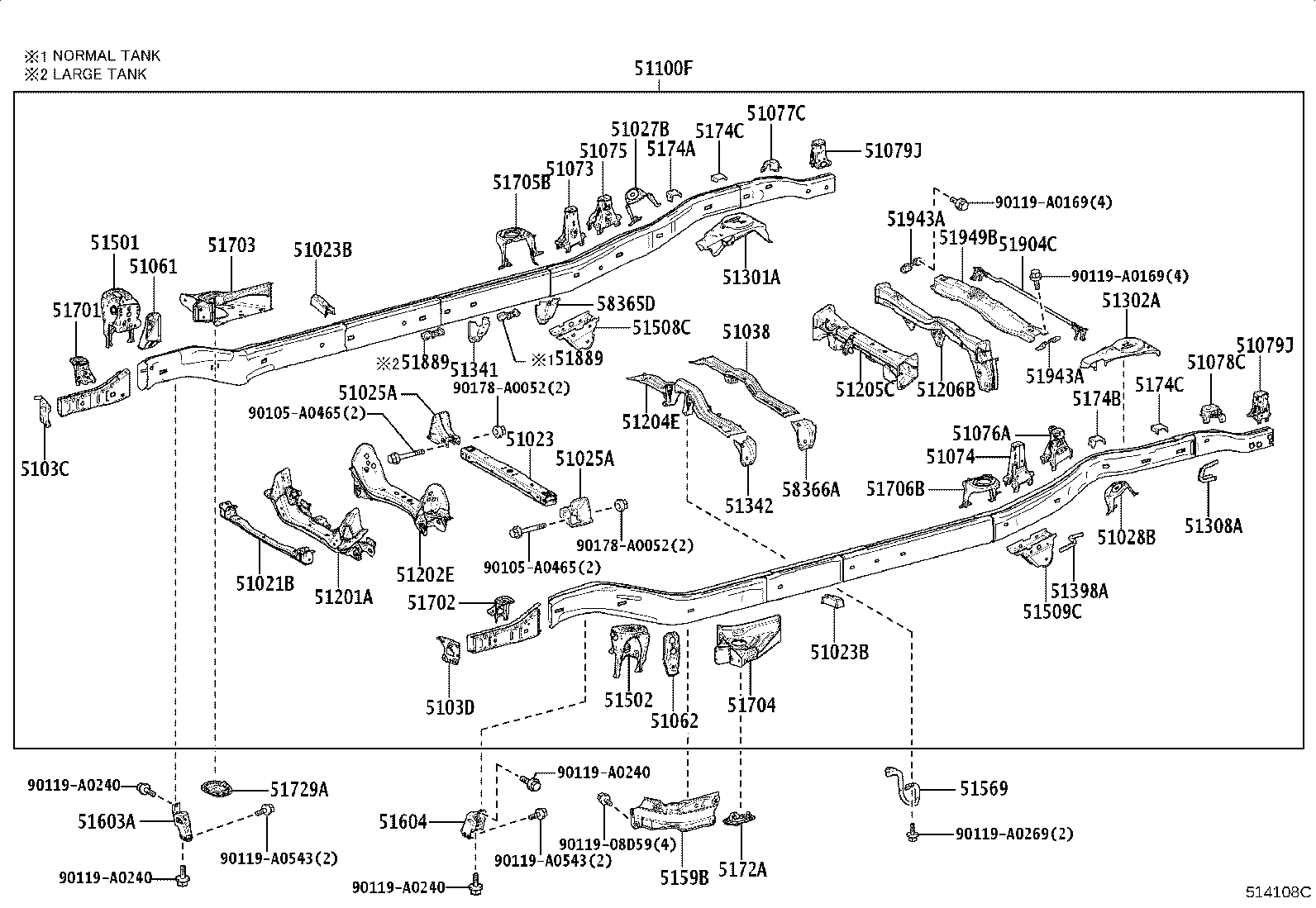

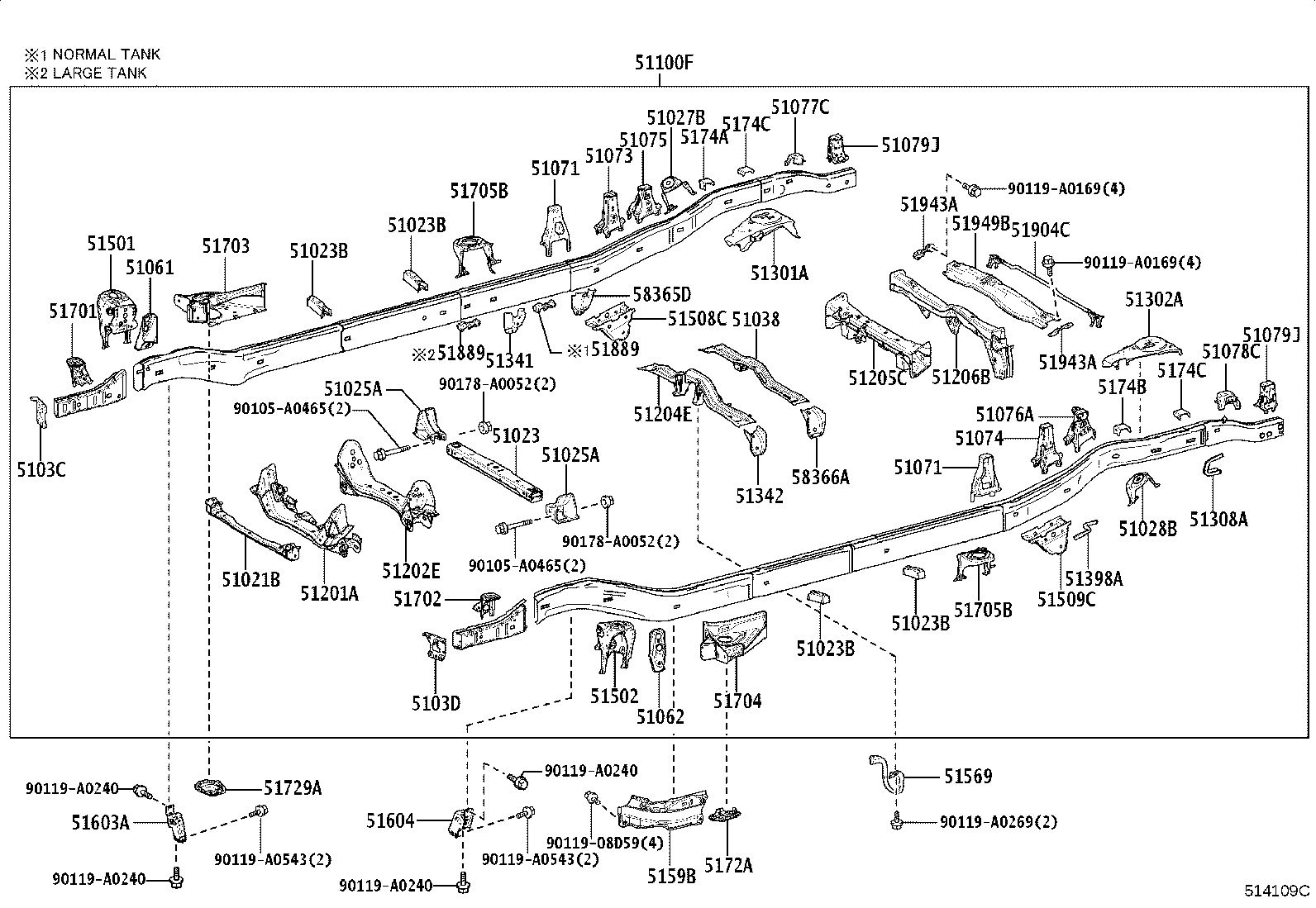

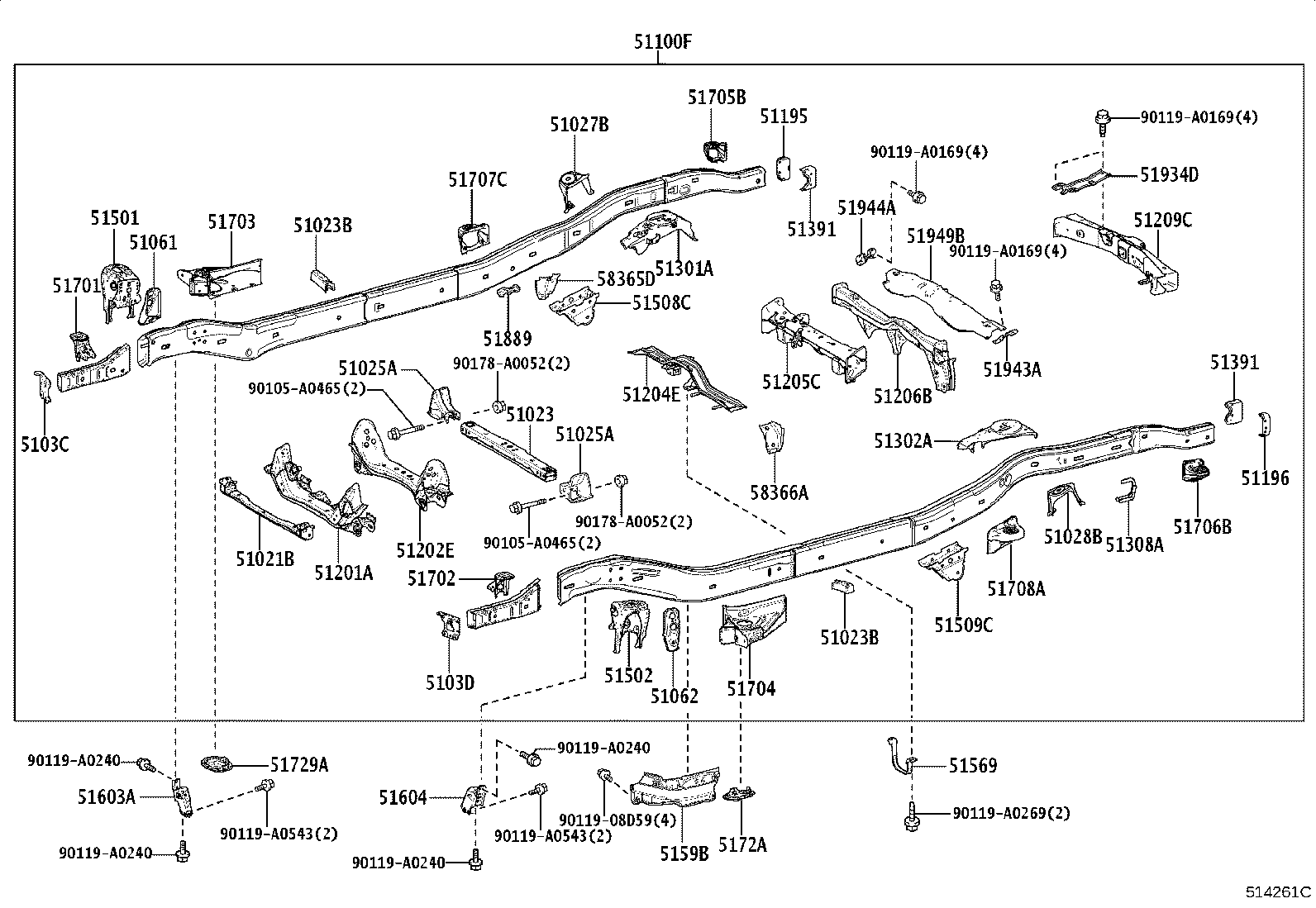

Frame
66 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 51021B | Crossmember Sub-assy, Frame Auxiliary |
| 51023 | Bracket Sub-assy, Front Suspension Member, RH |
| 51023B | Bracket Sub-assy, Center Rail, NO.1 |
| 51025A | Bracket Sub-assy, Frame NO.3 Crossmember, RH |
| 51027B | Bracket Sub-assy, Rear Shock Absorber Mount, RH |
| 51028B | Bracket Sub-assy, Rear Shock Absorber Mount, LH |
| 51038 | Member Sub-assy, Fuel Tank Support |
| 5103C | Plate Sub-assy, Side Rail Extension, RH |
| 5103D | Plate Sub-assy, Side Rail Extension, LH |
| 51061 | Stopper Sub-assy, Front Suspension Bound, Rear RH |
| 51062 | Stopper Sub-assy, Front Suspension Bound, Rear LH |
| 51071 | Bracket Sub-assy, Rear Body Mounting, NO.1 RH |
| 51073 | Bracket Sub-assy, Rear Body Mounting, NO.2 RH |
| 51074 | Bracket Sub-assy, Rear Body Mounting, NO.2 LH |
| 51075 | Bracket Sub-assy, Rear Body Mounting, NO.3 RH |
| 51076A | Bracket Sub-assy, Rear Body Mounting, NO.3 LH |
| 51077C | Bracket Sub-assy, Rear Body Mounting, NO.4 RH |
| 51078C | Bracket Sub-assy, Rear Body Mounting, NO.4 LH |
| 51079J | Bracket Sub-assy, Rear Body Mounting, NO.5 |
| 51100F | Frame Sub-assy |
| 51195 | Patch, Rear Frame Rail, RH |
| 51196 | Patch, Rear Frame Rail, LH |
| 51201A | Crossmember Sub-assy, Frame, Front |
| 51202E | Crossmember Sub-assy, Frame, NO.2 |
| 51204E | Crossmember Sub-assy, Frame, NO.4 |
| 51205C | Crossmember Sub-assy, Frame, NO.5 |
| 51206B | Crossmember Sub-assy, Frame, NO.6 |
| 51209C | Crossmember Sub-assy, Frame, Rear |
| 51301A | Bracket Sub-assy, Rear Spring, Rear RH |
| 51302A | Bracket Sub-assy, Rear Spring, Rear LH |
| 51308A | Bracket Sub-assy, Exhaust Pipe Clamp |
| 51341 | Gusset, Frame NO.4 Crossmember, RH |
| 51342 | Gusset, Frame NO.4 Crossmember, LH |
| 51391 | Gusset, Frame Rear Crossmember, RH |
| 51398A | Bracket, Exhaust Pipe Clamp, NO.4 |
| 51501 | Support Sub-assy, Suspension Arm, RH |
| 51502 | Support Sub-assy, Suspension Arm, LH |
| 51508C | Bracket Sub-assy, Lower Control Link, RH |
| 51509C | Bracket Sub-assy, Lower Control Link, LH |
| 51569 | Guard, Propeller Shaft |
| 5159B | Insulator, Frame Inner Channel Heat, LH |
| 51603A | Bracket Sub-assy, Front Bound Stopper, RH |
| 51604 | Bracket Sub-assy, Front Bound Stopper, LH |
| 51701 | Bracket Sub-assy, Cab Mounting, NO.1 RH |
| 51702 | Bracket Sub-assy, Cab Mounting, NO.1 LH |
| 51703 | Bracket Sub-assy, Cab Mounting, NO.2, RH |
| 51704 | Bracket Sub-assy, Cab Mounting, NO.2 LH |
| 51705B | Bracket Sub-assy, Cab Mounting, NO.3 RH |
| 51706B | Bracket Sub-assy, Cab Mounting, NO.3 LH |
| 51707C | Bracket Sub-assy, Cab Mounting, NO.4 RH |
| 51708A | Bracket Sub-assy, Cab Mounting, NO.4 LH |
| 51729A | Cover, NO.2 Cab Mounting, RH |
| 5172A | Cover, NO.2 Cab Mounting, LH |
| 5174A | Bracket, Rear Body Support, NO.1 RH |
| 5174B | Bracket, Rear Body Support, NO.1 LH |
| 5174C | Bracket, Rear Body Support, NO.2 |
| 51889 | Stopper, Fuel Tank Mounting |
| 51904C | Stopper Sub-assy, Spare Wheel, NO.2 |
| 51908E | Bracket Sub-assy, Receiver Hitch |
| 51934D | Stopper, Spare Wheel, NO.2 |
| 51943A | Bracket, Spare Wheel Carrier |
| 51944A | Bracket, Spare Wheel Carrier, NO.2 |
| 51949B | Crossmember, Spare Wheel Carrier |
| 52360A | Step Assy, Back, LH |
| 58365D | Bracket, Fuel Tank Support, RH |
| 58366A | Bracket, Fuel Tank Support, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
