Toyota Tundra/Sequoia
2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States
Supported model
Data version 2022-06

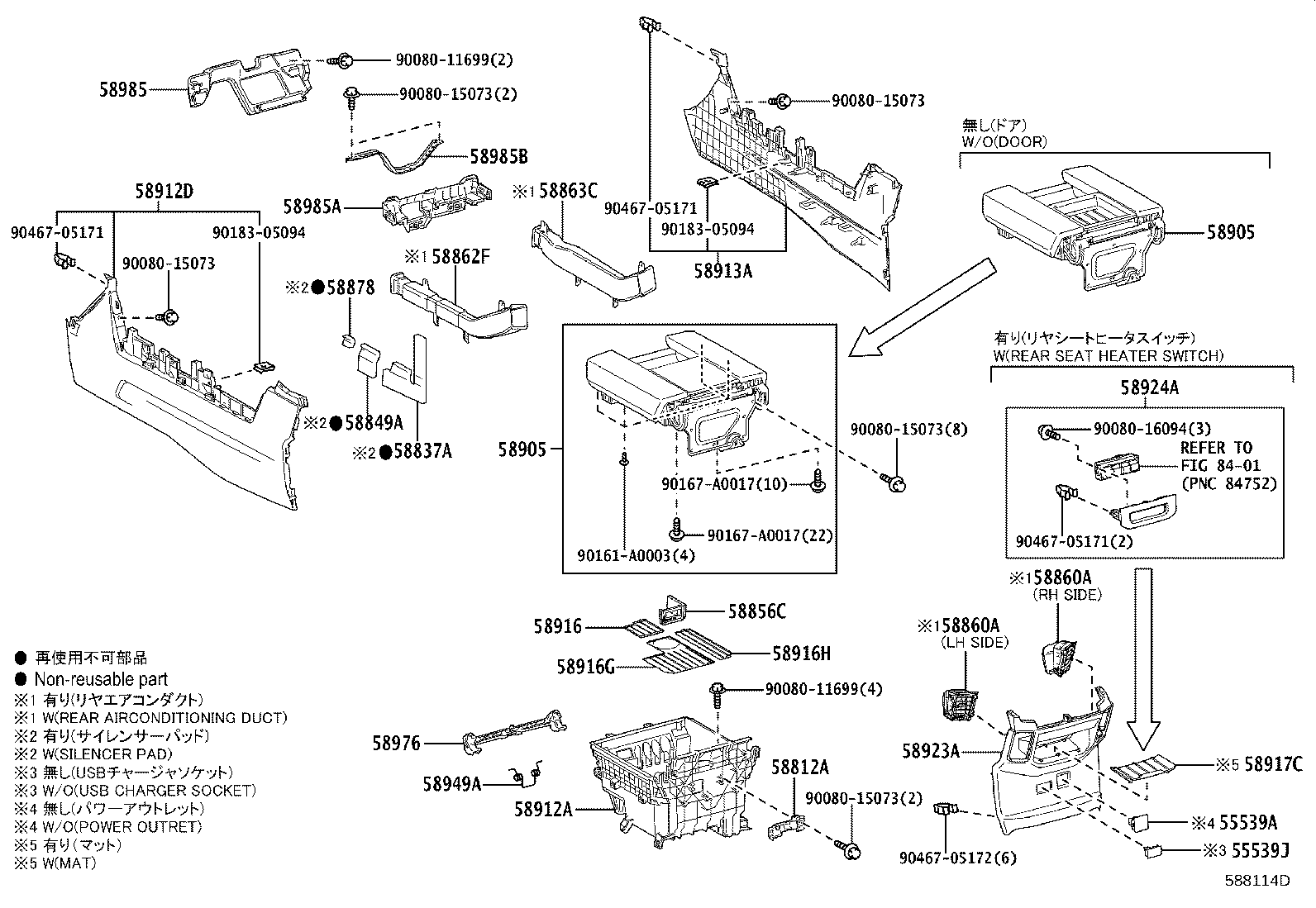

Console Box & Bracket
55 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 55618A | Holder, Console Box Cup |
| 55620E | Holder Assy, Instrument Panel Cup |
| 55622 | Spring, Instr Panel Cup Holder, NO.1 |
| 55625B | Tray, Instrument Panel Cup Holder |
| 55627B | Rail, Console Box Cup Holder |
| 55633A | Support, Instrument Panel Cup Holder, NO.1 |
| 58280B | Boot Assy, Shift Lever |
| 58629B | Mat, Center Console |
| 58802E | Box Sub-assy, Console, Front |
| 58804A | Panel Sub-assy, Console, Upper |
| 58812A | Box, Console, Lower |
| 58818A | Cover, Console Box, FR |
| 58820B | Panel Assy, Console, Upper |
| 58822A | Panel, Console, Upper Rear |
| 58825A | Pocket, Console Box |
| 58832A | Garnish, Console Upper Panel, Rear |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58834B | Garnish, Console Upper Panel, NO.2 |
| 58835C | Ornament, Console Box |
| 58836B | Pad, Console Box Silencer, NO.1 |
| 58837A | Pad, Console Box Silencer, NO.2 |
| 58839A | Cover, Console Box Hole |
| 58844 | Bezel, Console Box |
| 58849A | Pad, Console Box Silencer, NO.3 |
| 58856C | Holder, Console |
| 58860A | Register Assy, Console Box |
| 58862F | Duct, Console Box, NO.2 |
| 58863C | Duct, Console Box, NO.3 |
| 58878 | Pad, Console Box Silencer, NO.4 |
| 58905 | Door Sub-assy, Console Compartment |
| 58912A | Box, Rear Console |
| 58912D | Panel, Box, NO.2 |
| 58913A | Panel, Box, NO.3 |
| 58916 | Mat, Box Bottom |

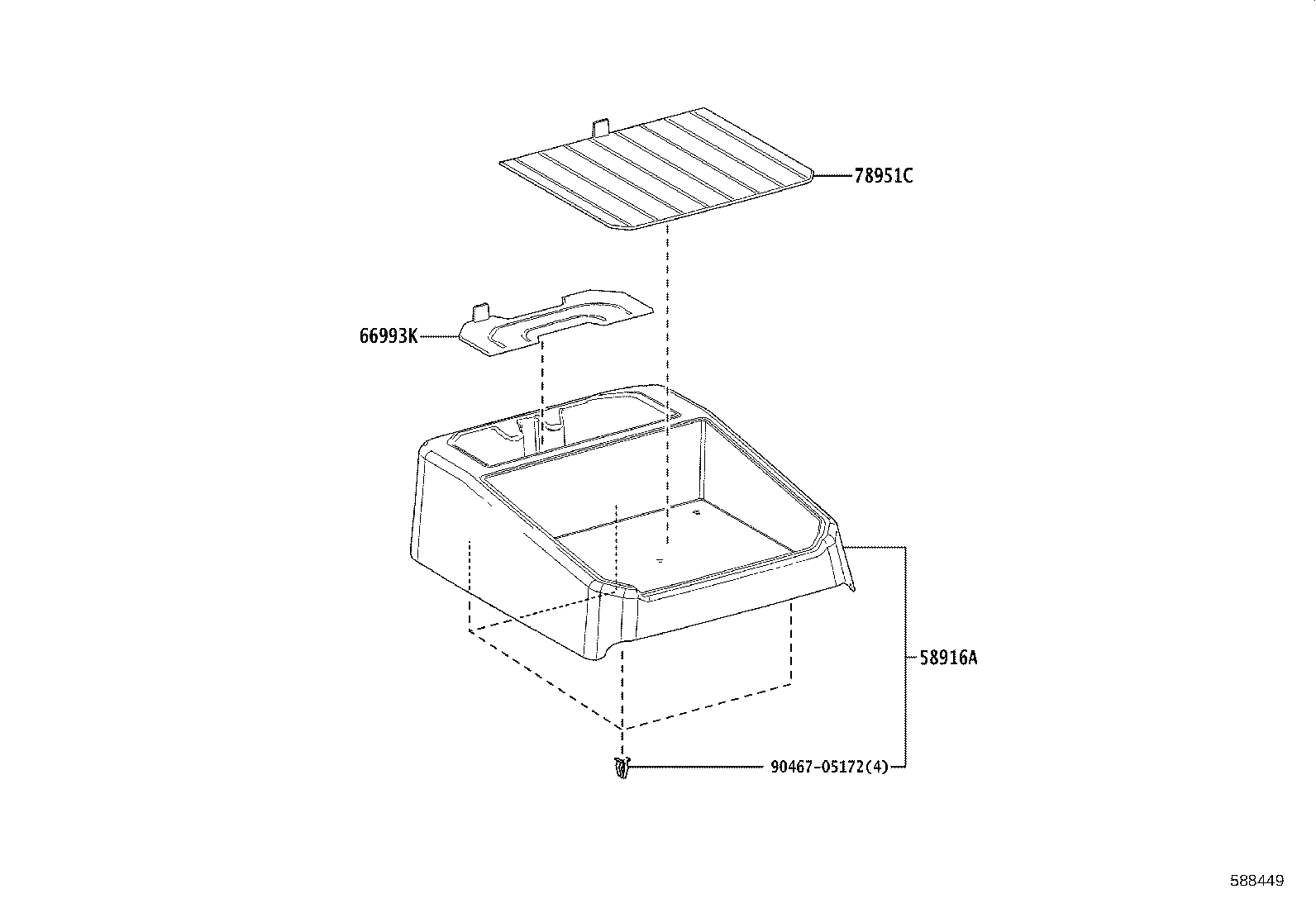

| 58916A | Insert, Console Box, Rear |
| 58916G | Mat, Box Bottom, NO.2 |
| 58916H | Mat, Box Bottom, NO.3 |
| 58917 | Mat, Box Bottom, NO.2 |
| 58917C | Mat, Box Bottom, NO.2 |
| 58923A | Panel, Console Rear End |
| 58924A | Panel, Console Rear End, NO.2 |
| 58933 | Garnish, Console Rear End Panel |
| 58934A | Garnish, Console Rear End Panel, NO.2 |
| 58945B | Garnish, Console, Rear |
| 58949A | Spring, Console Box Mounting Bracket |
| 58976 | Striker, Console Compartment Door Lock |
| 58985 | Retainer, Console Box |
| 58985A | Retainer, Console Box, NO.2 |
| 58985B | Retainer, Console Box, NO.1 |
| 58994B | Bracket, Console Box Mounting, NO.4 |
| 66993K | Tray, Cup Holder |
| 78951C | Tray, Rear Seat Under |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
