Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

315 part groups · 47 illustrations

Illustrations

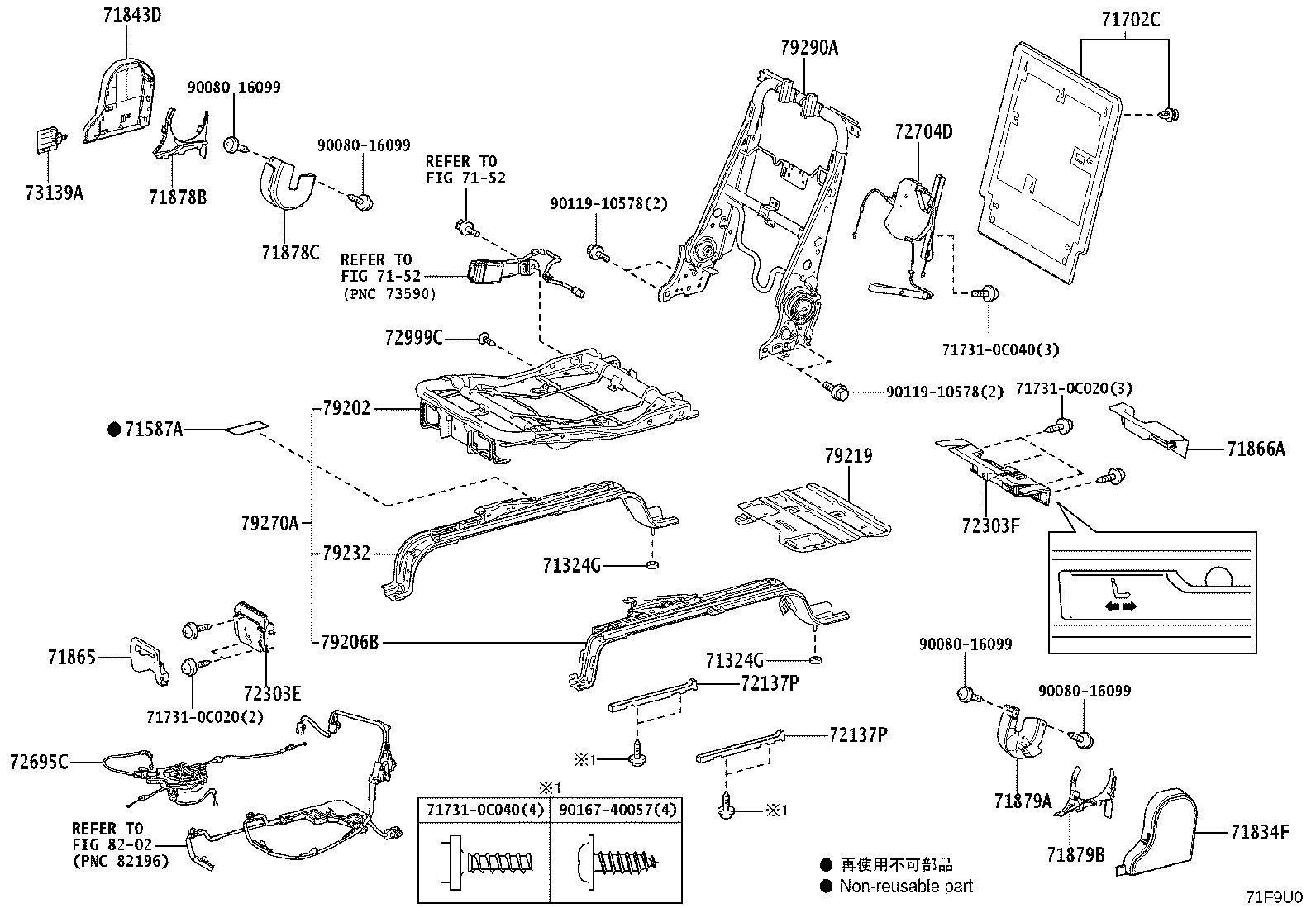

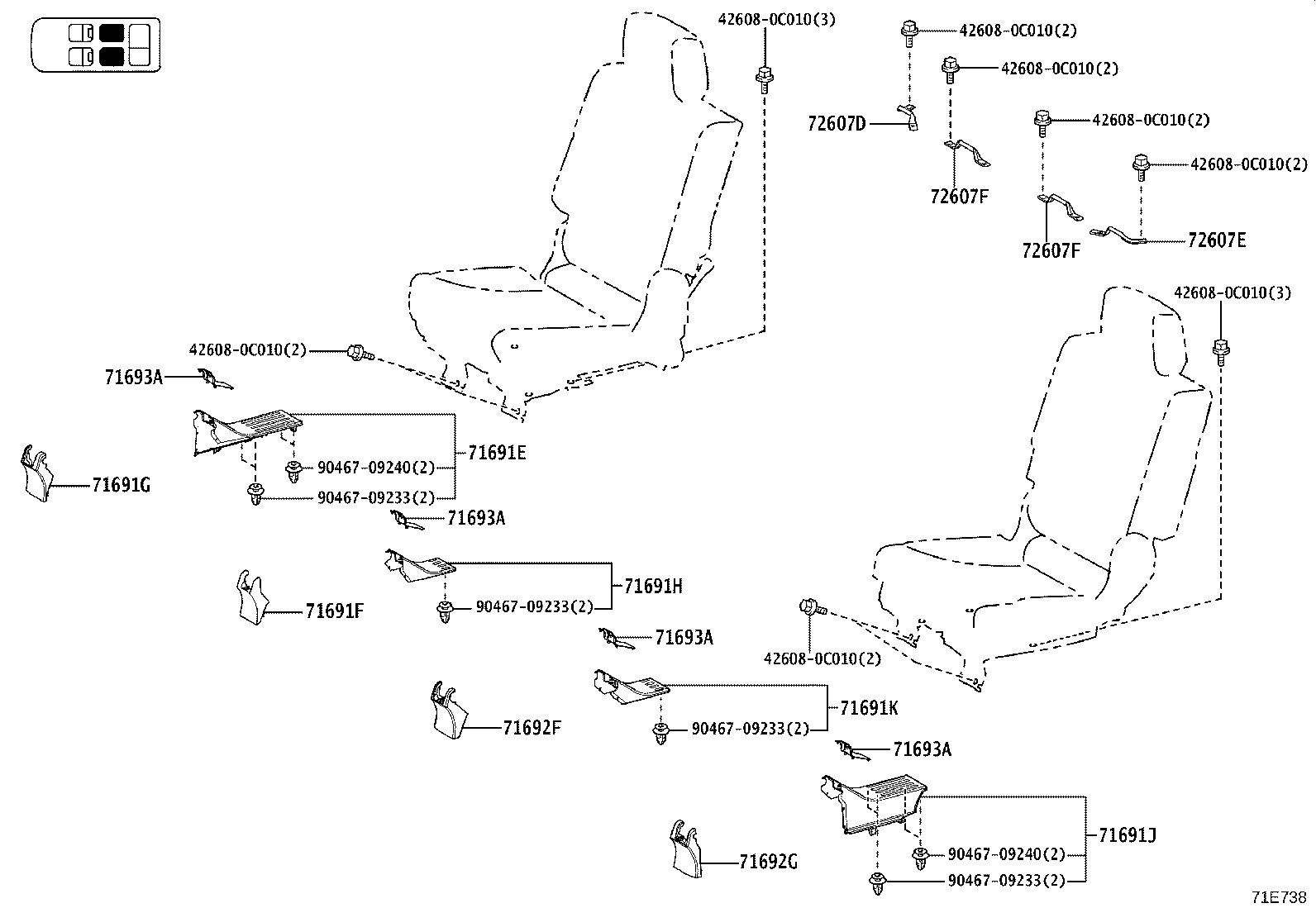

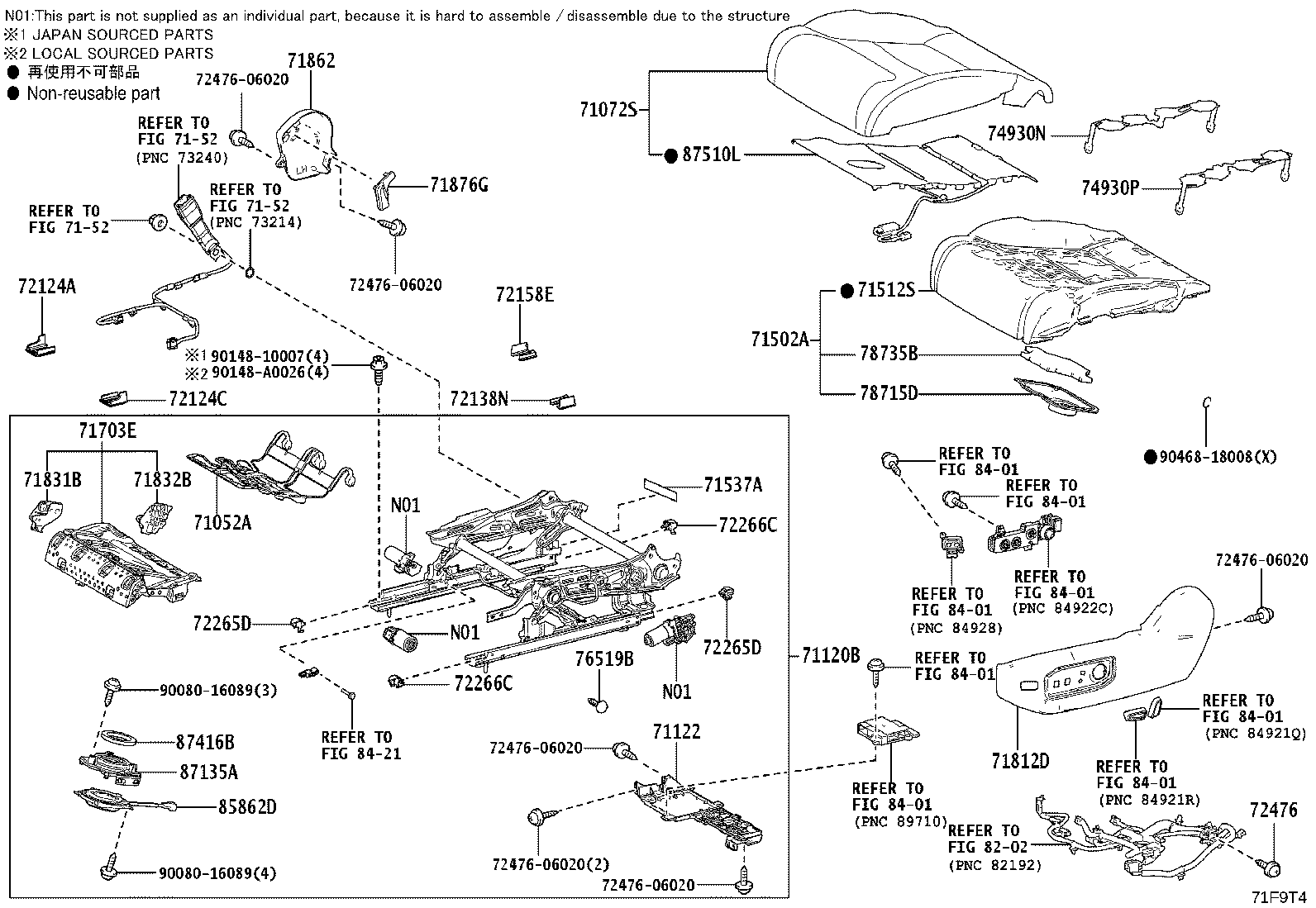

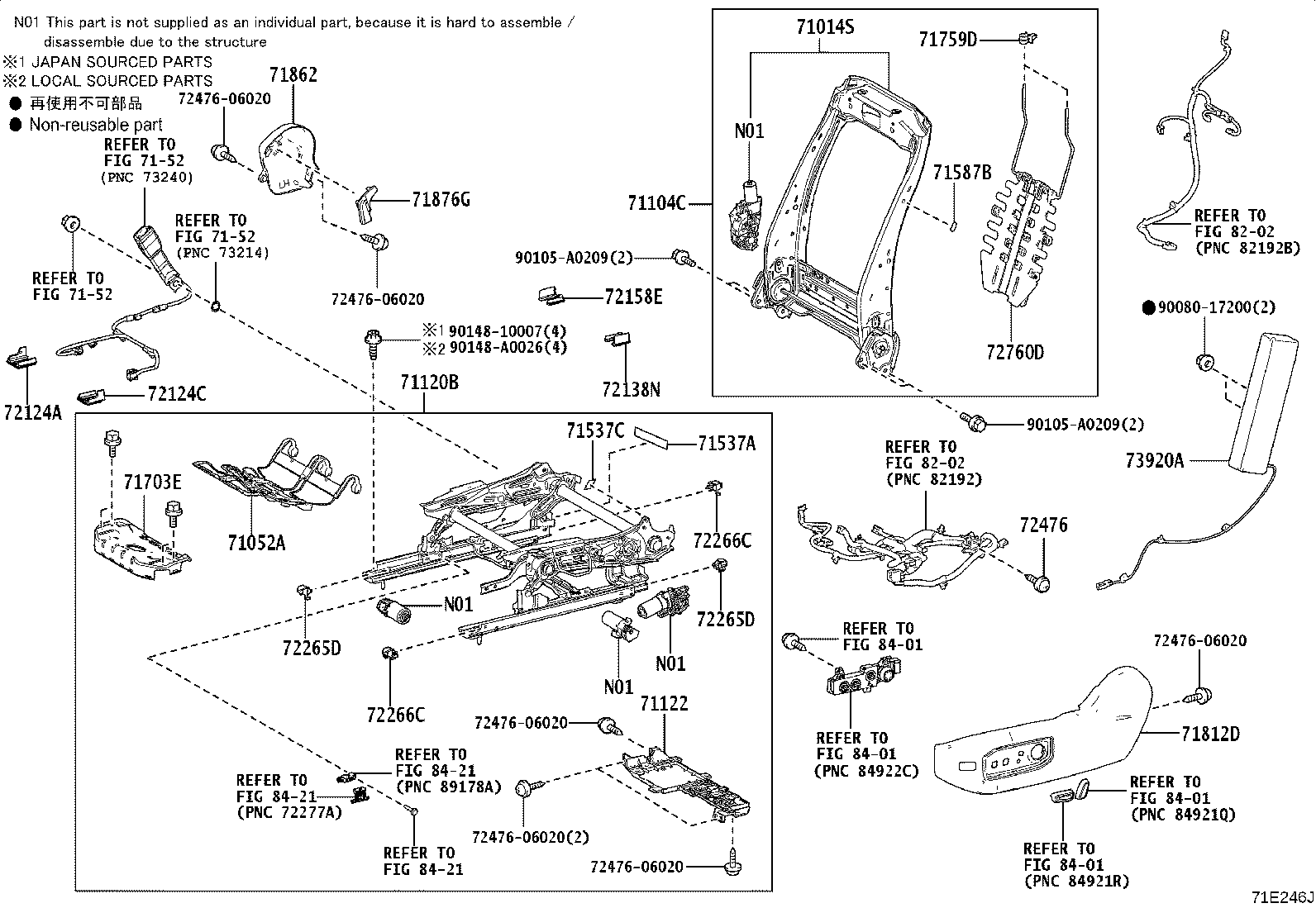

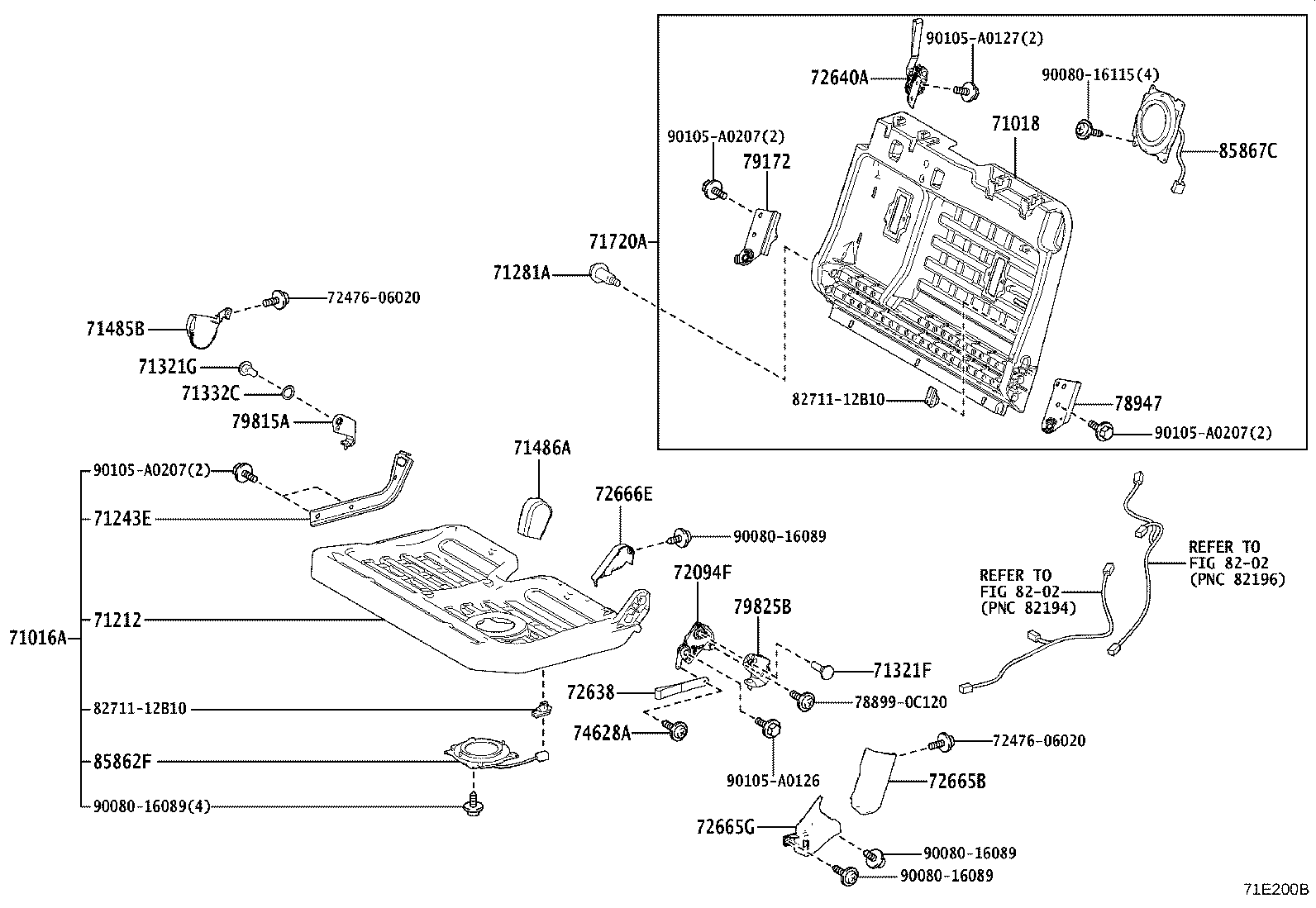

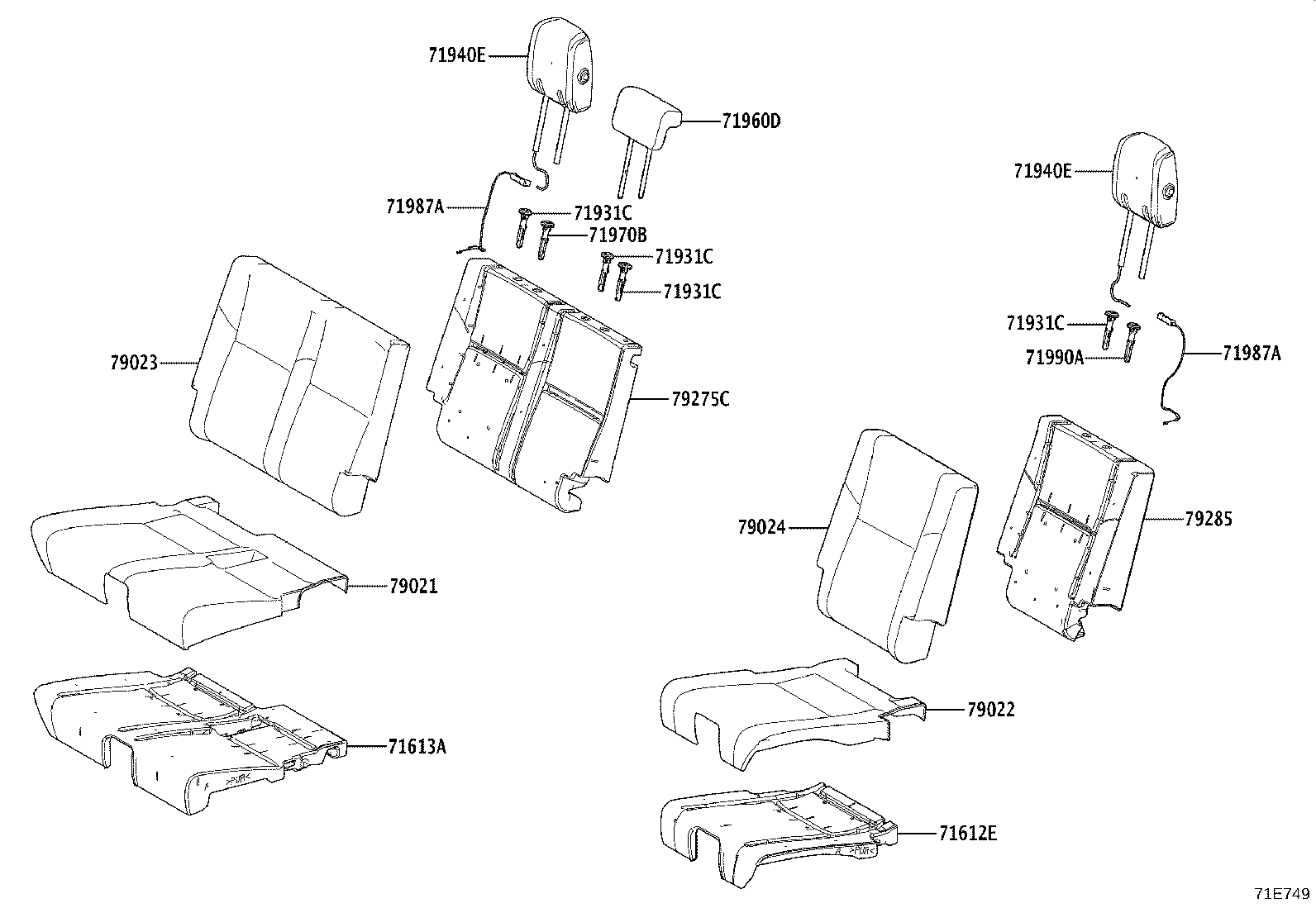

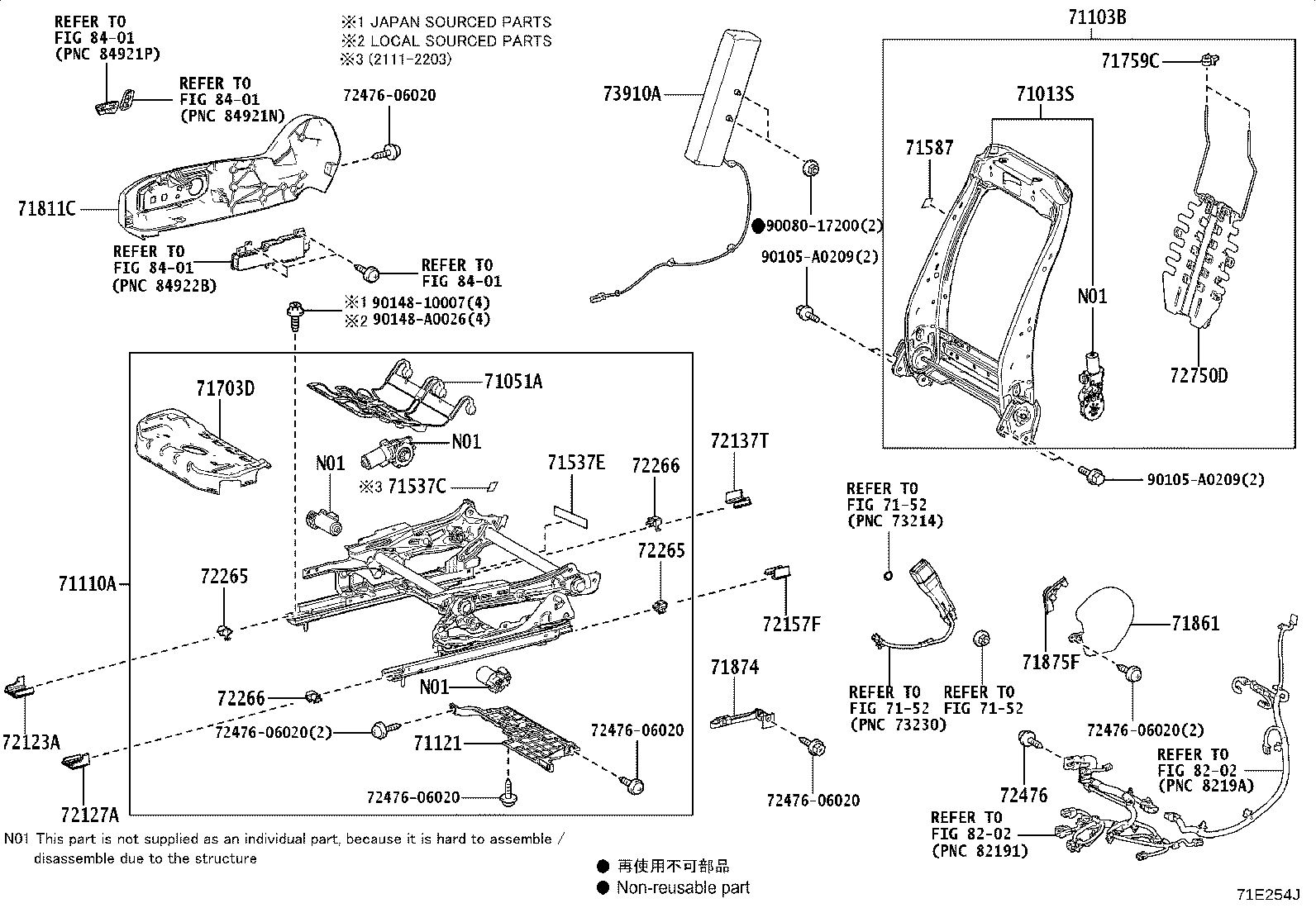

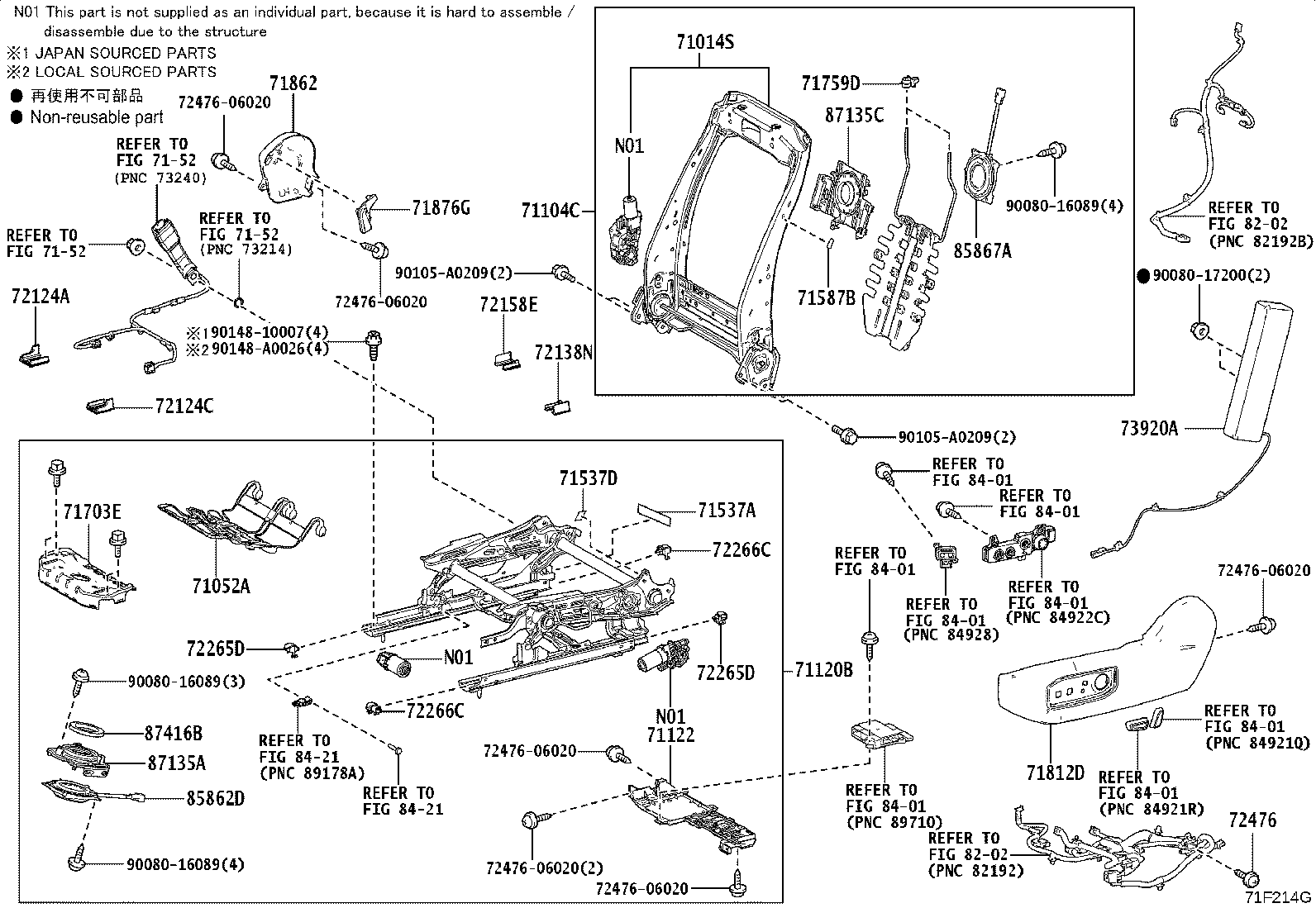

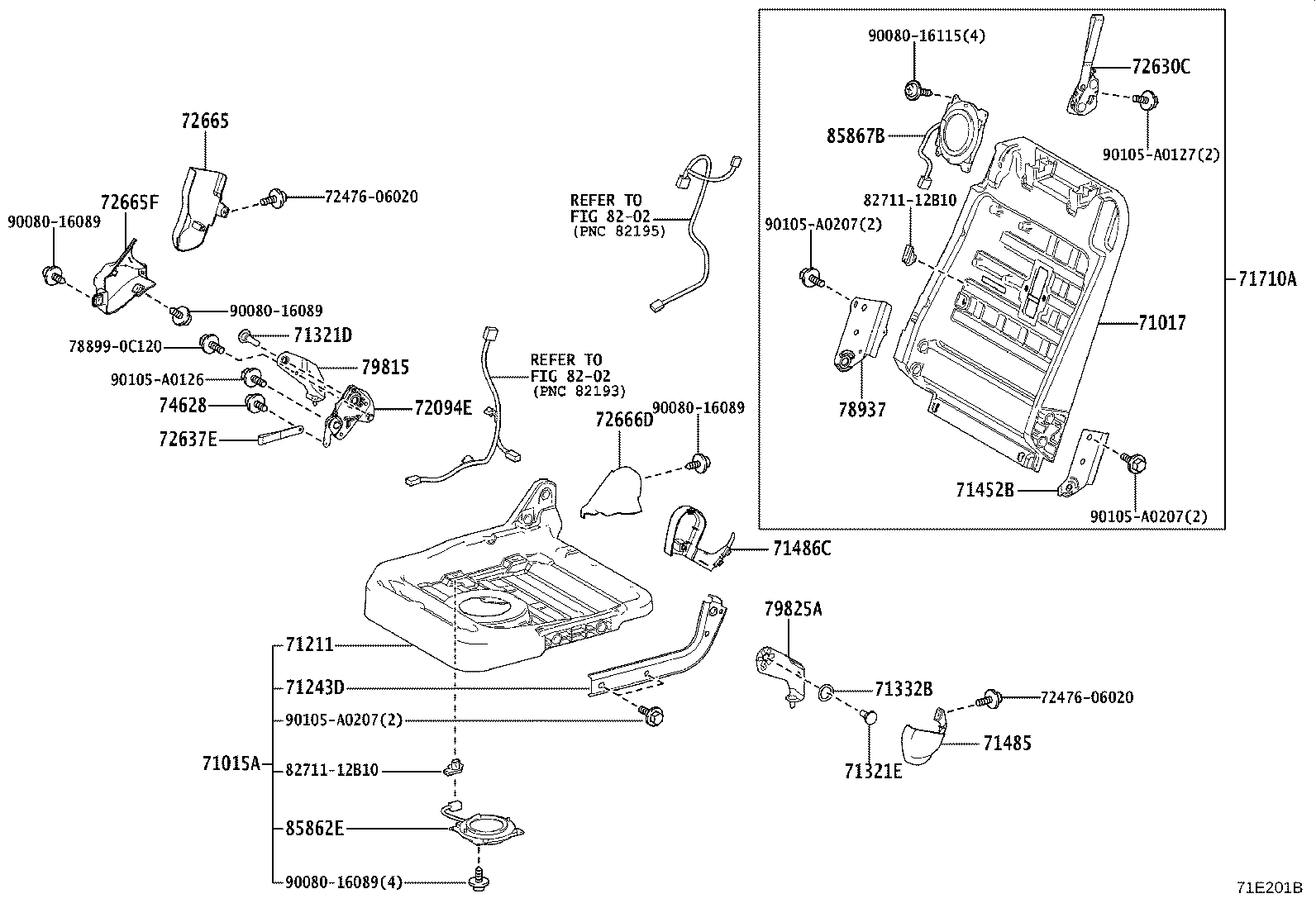

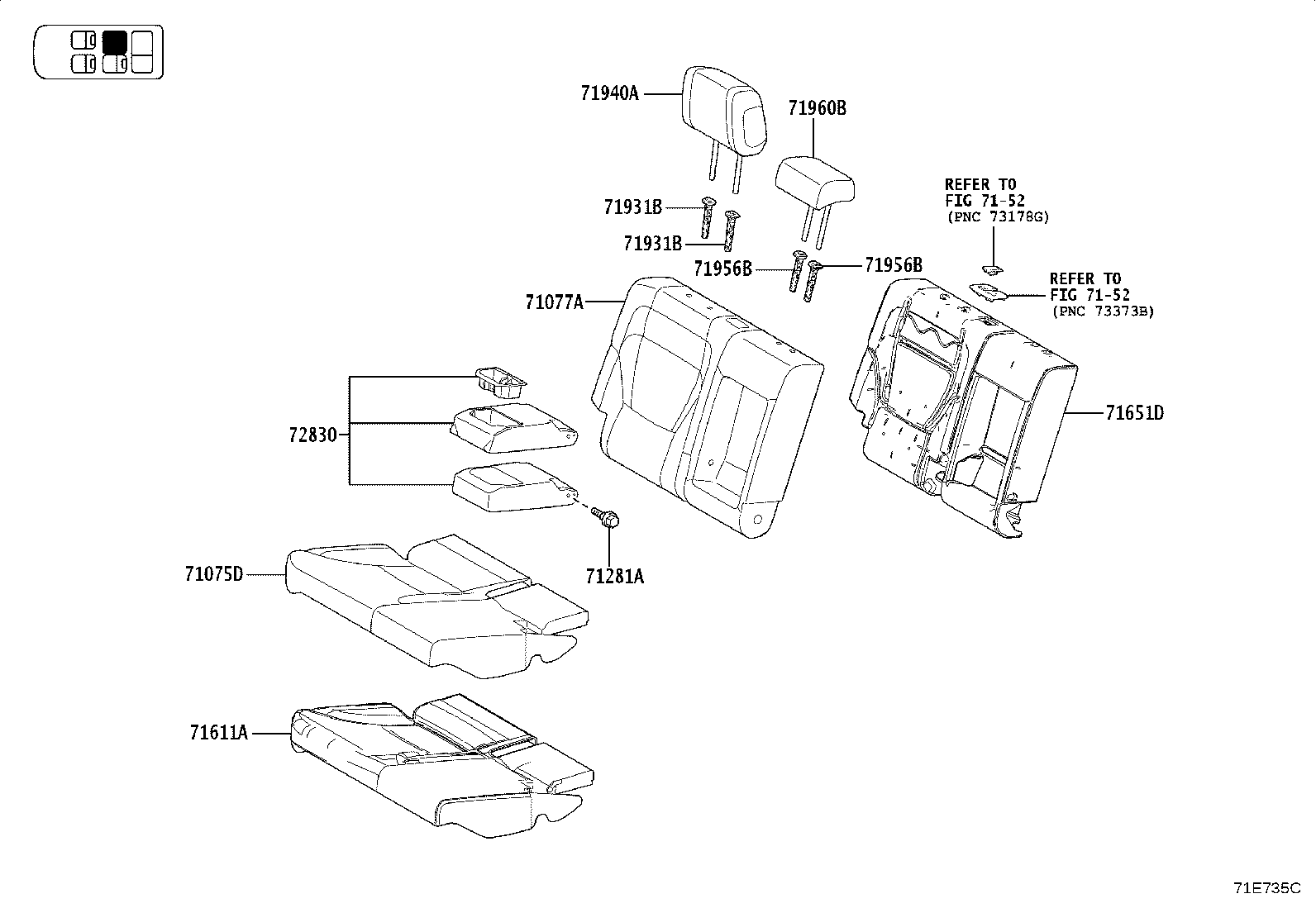

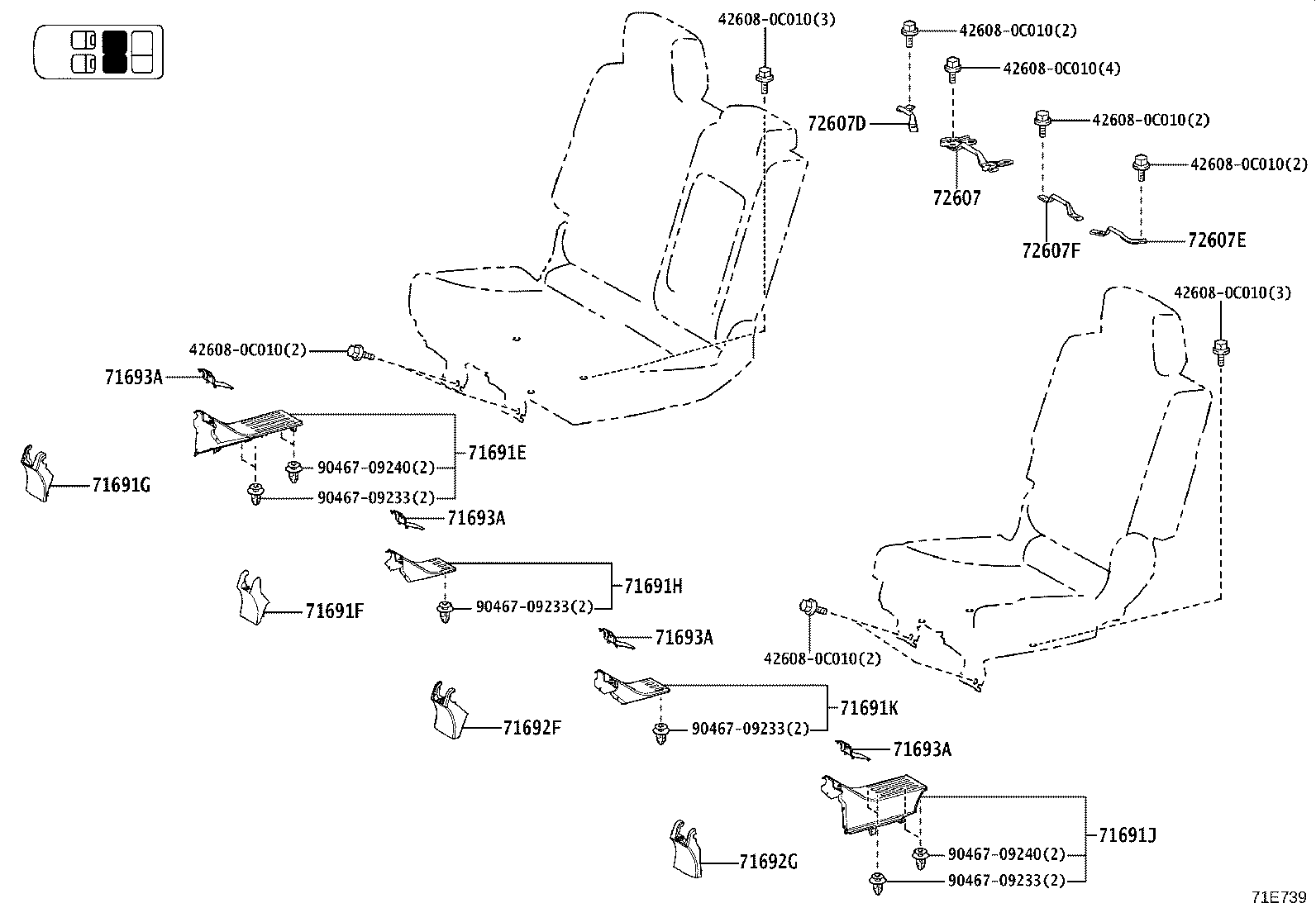

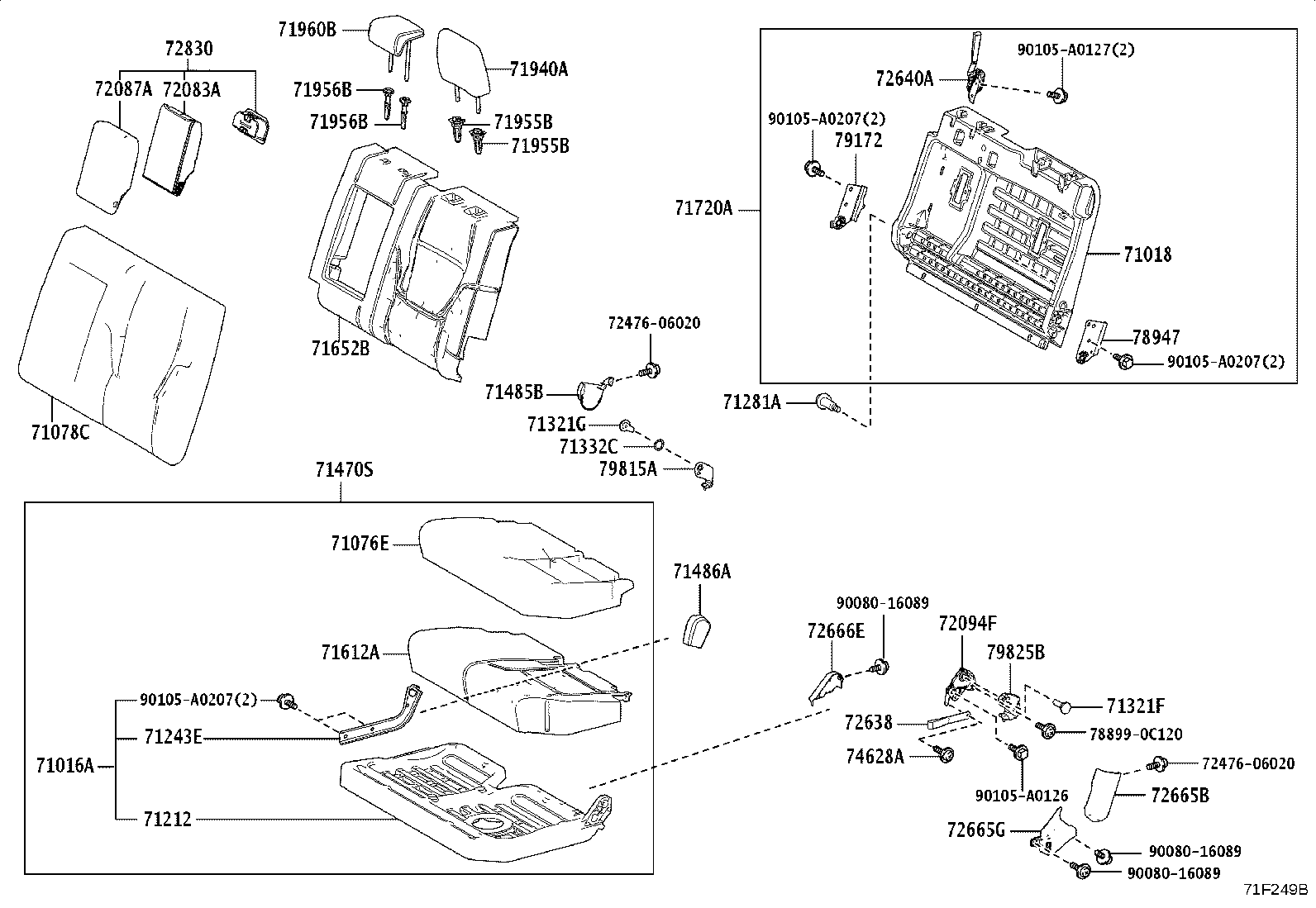

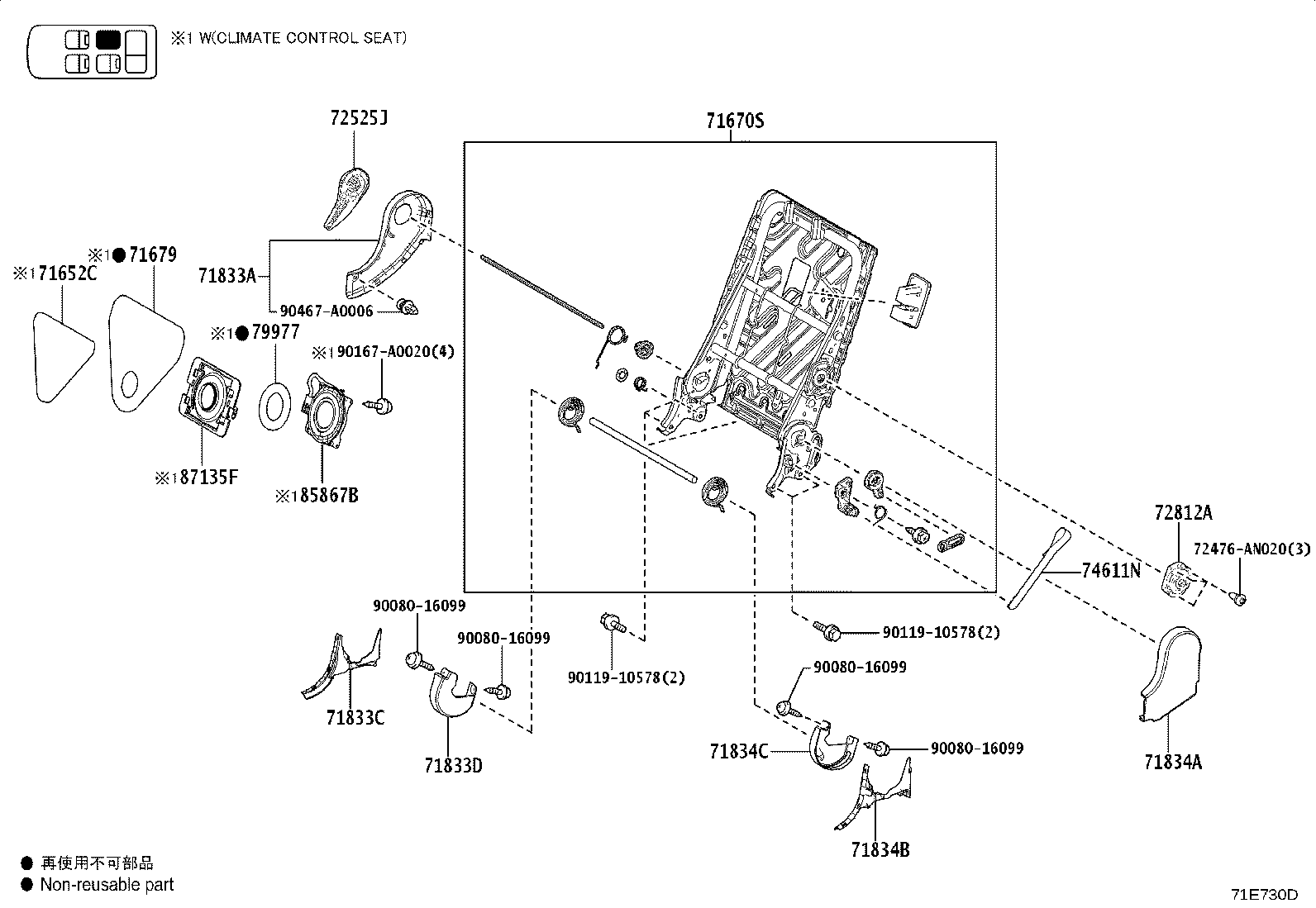

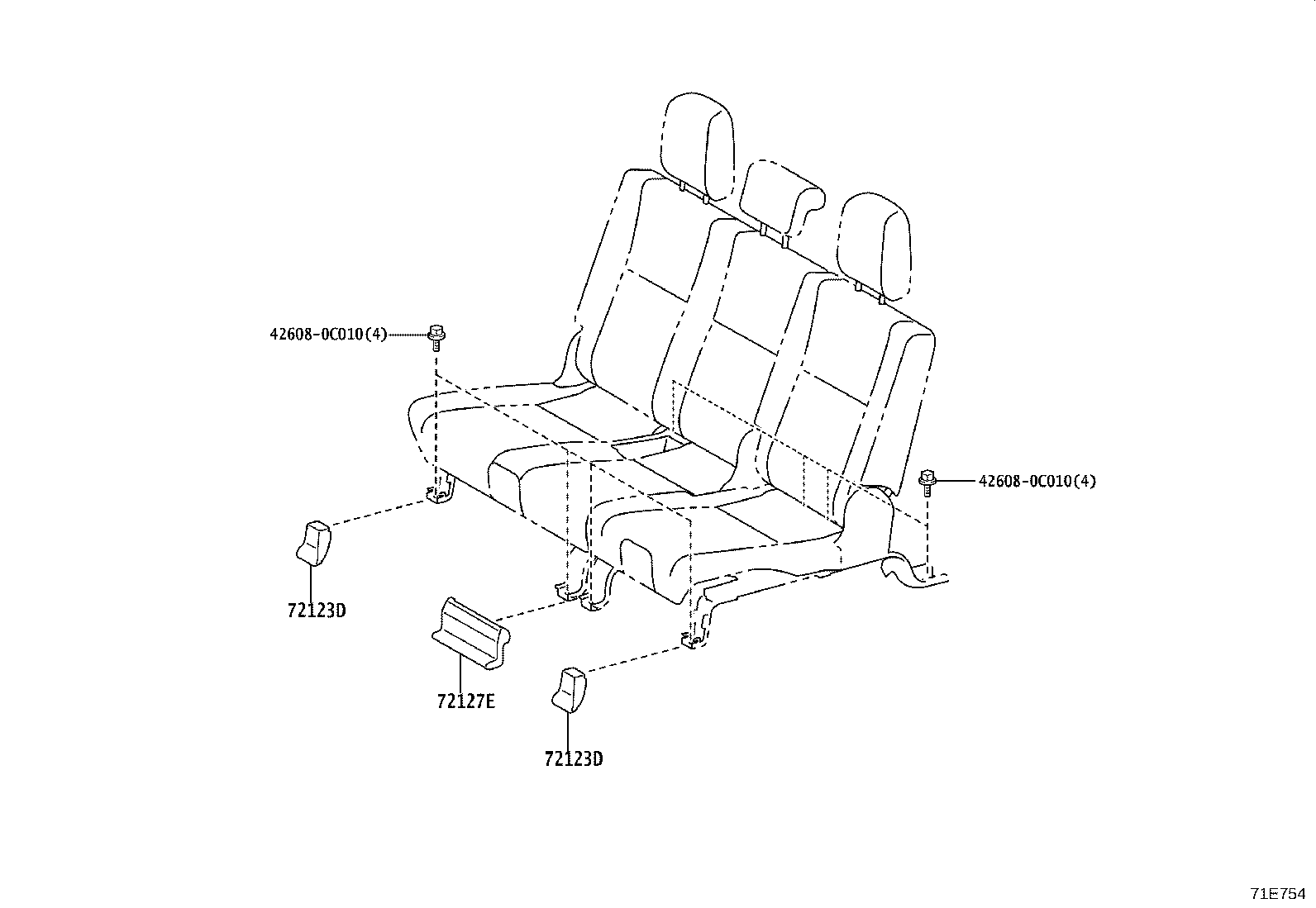

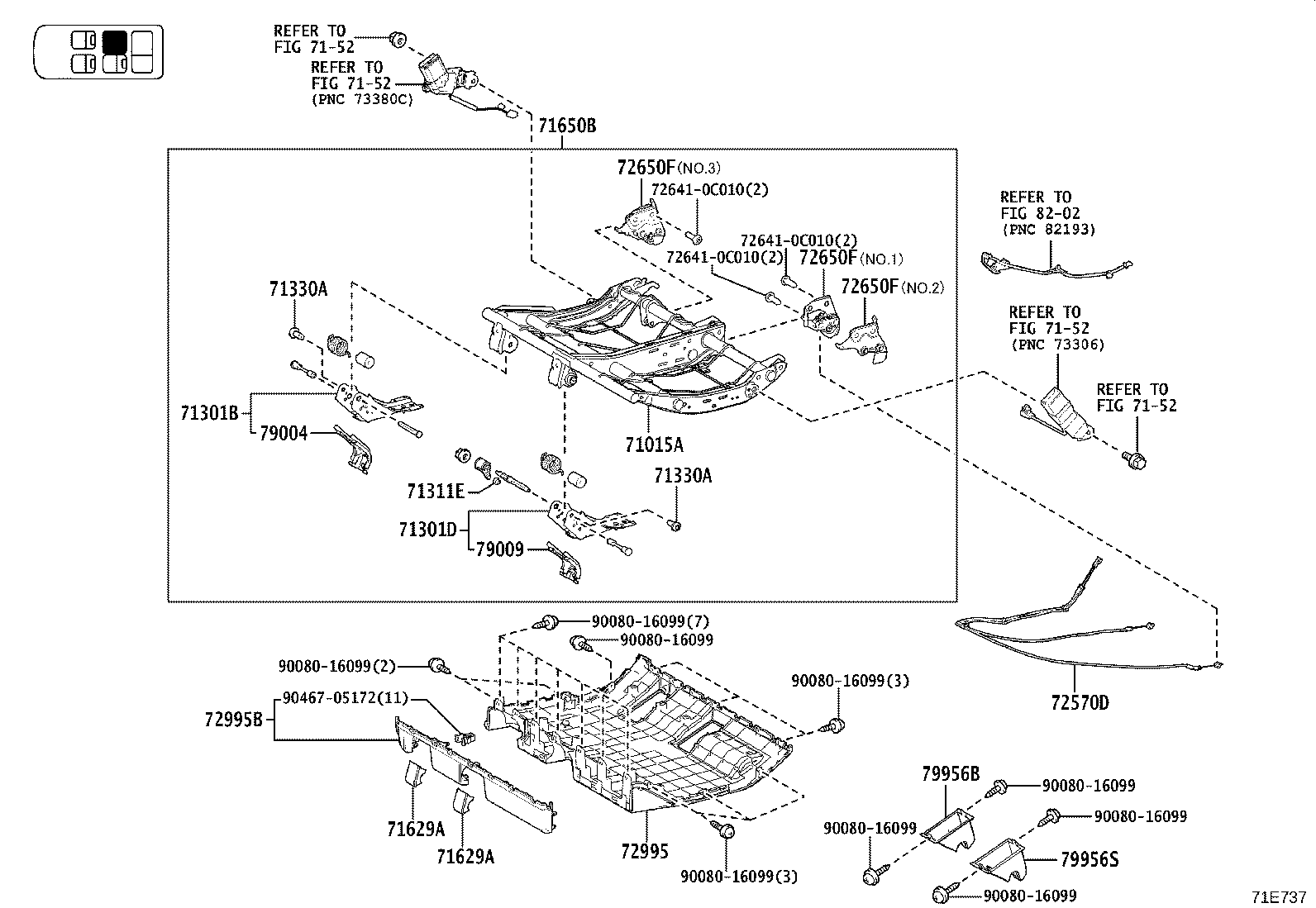

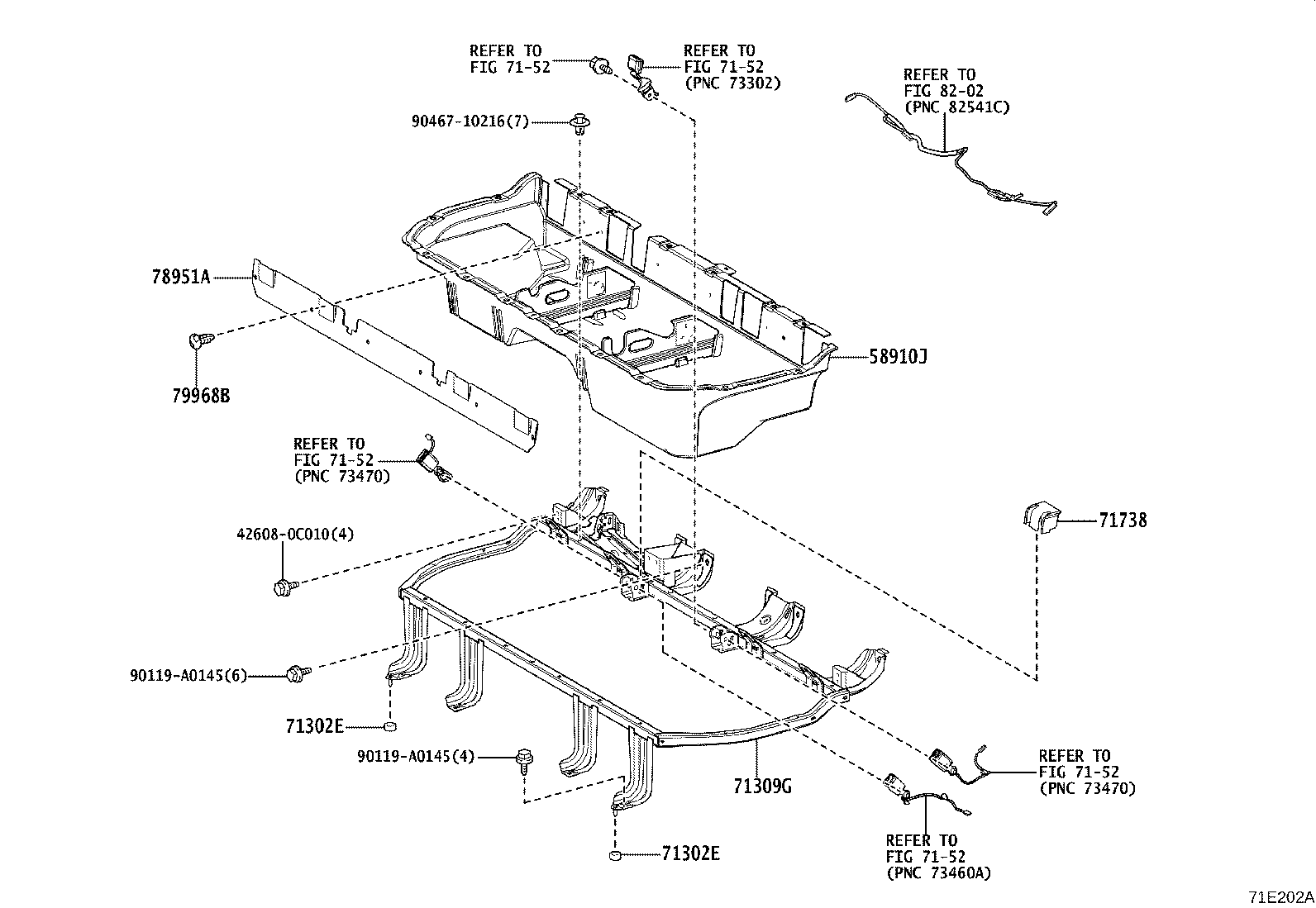

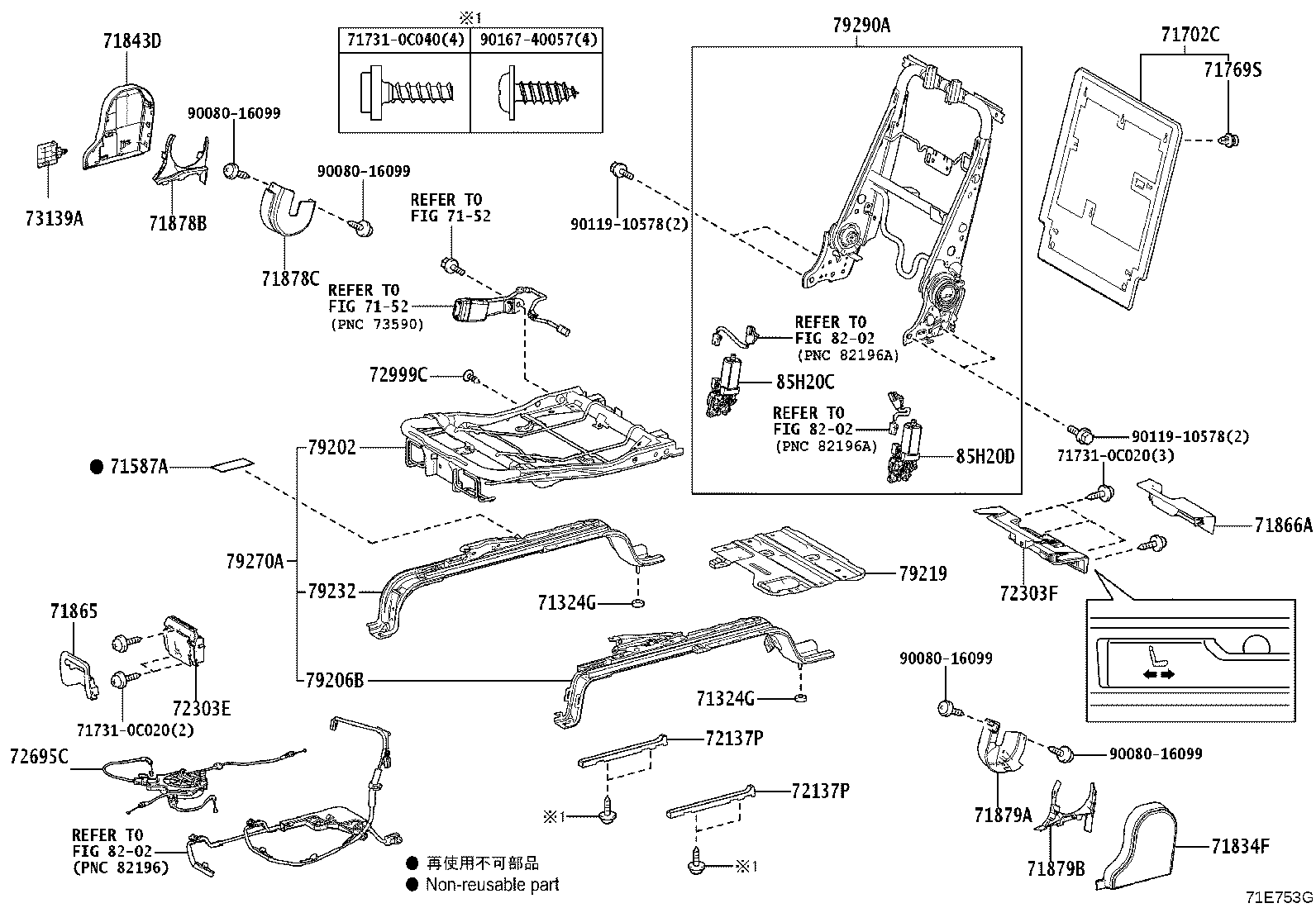

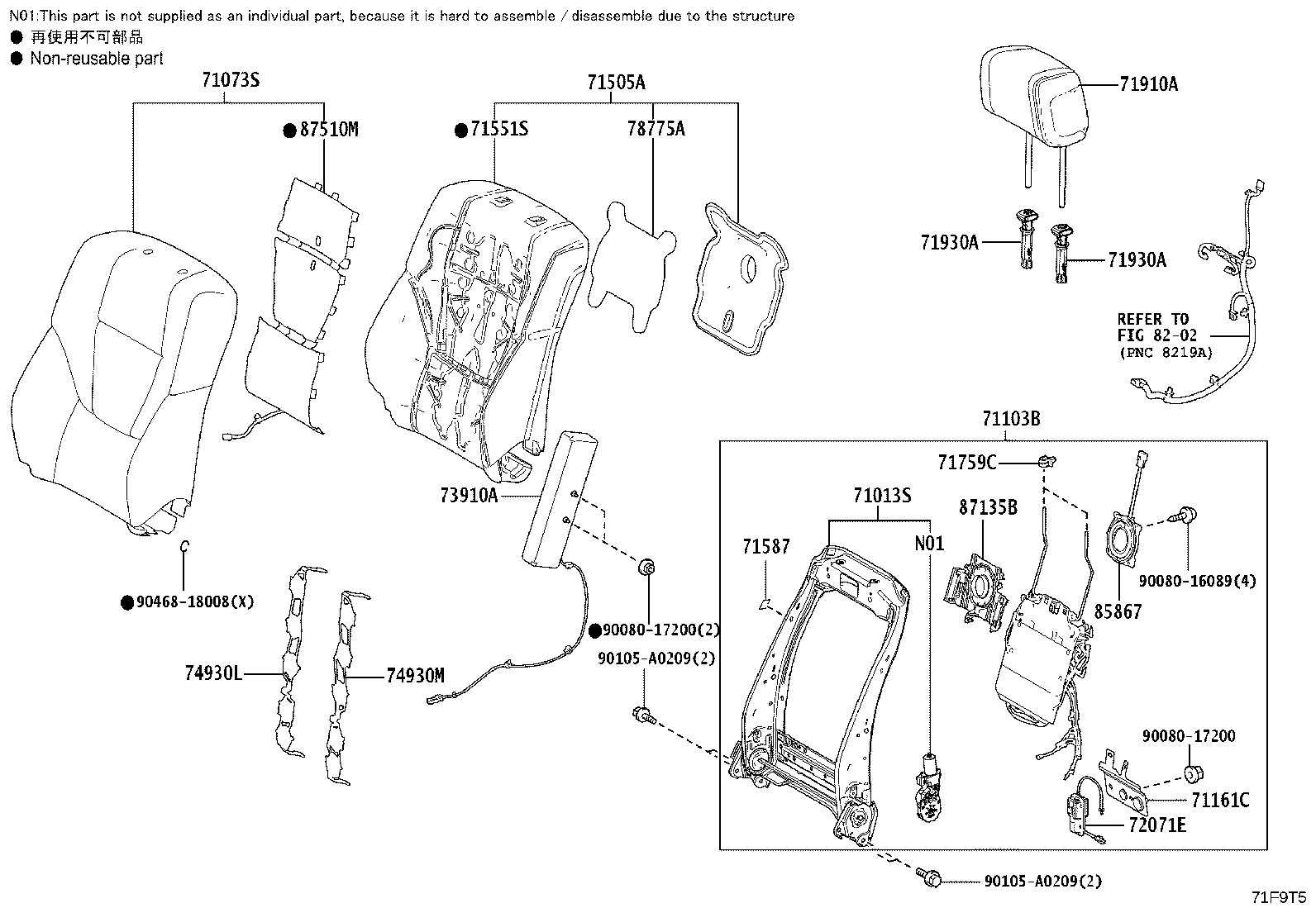

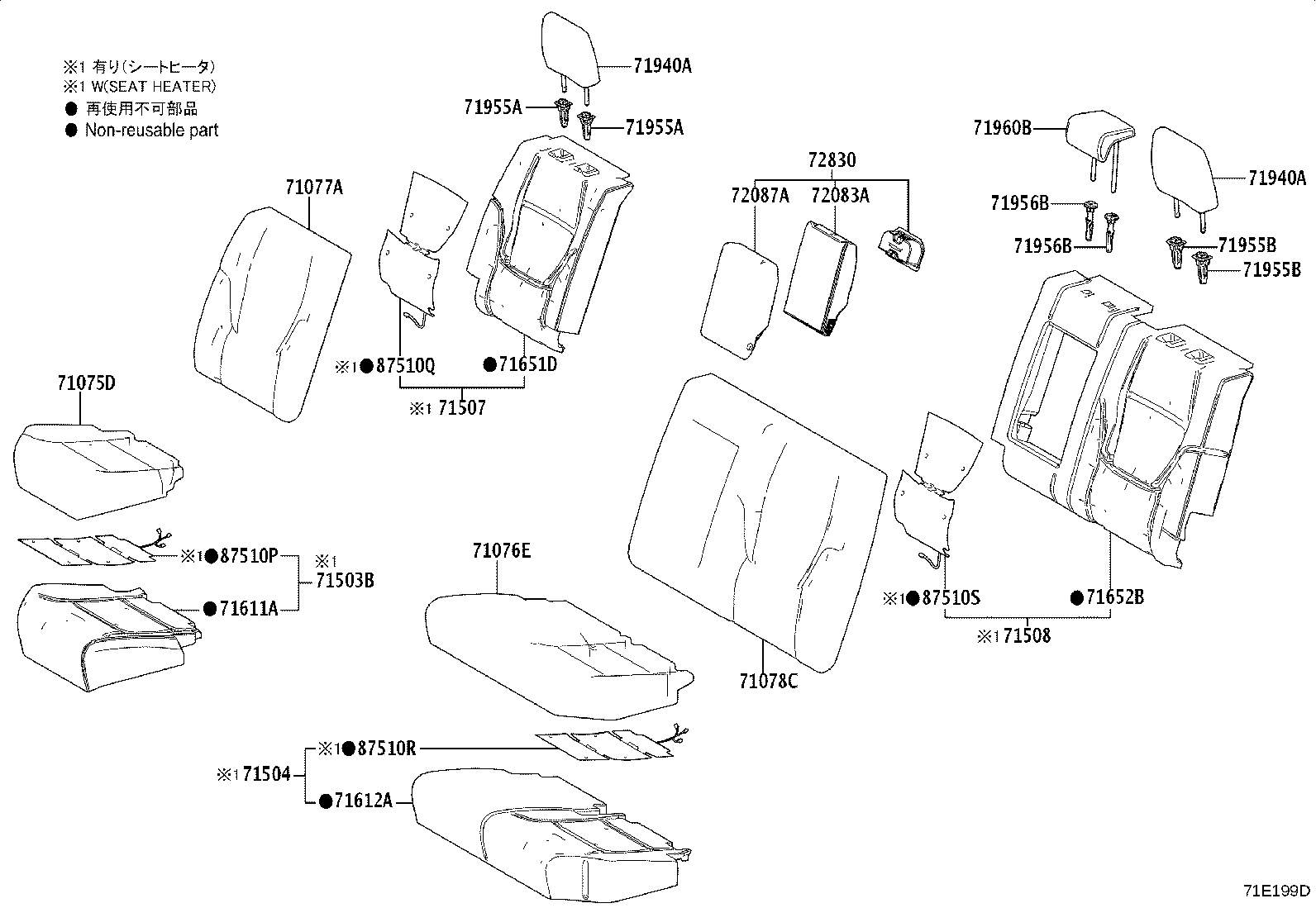

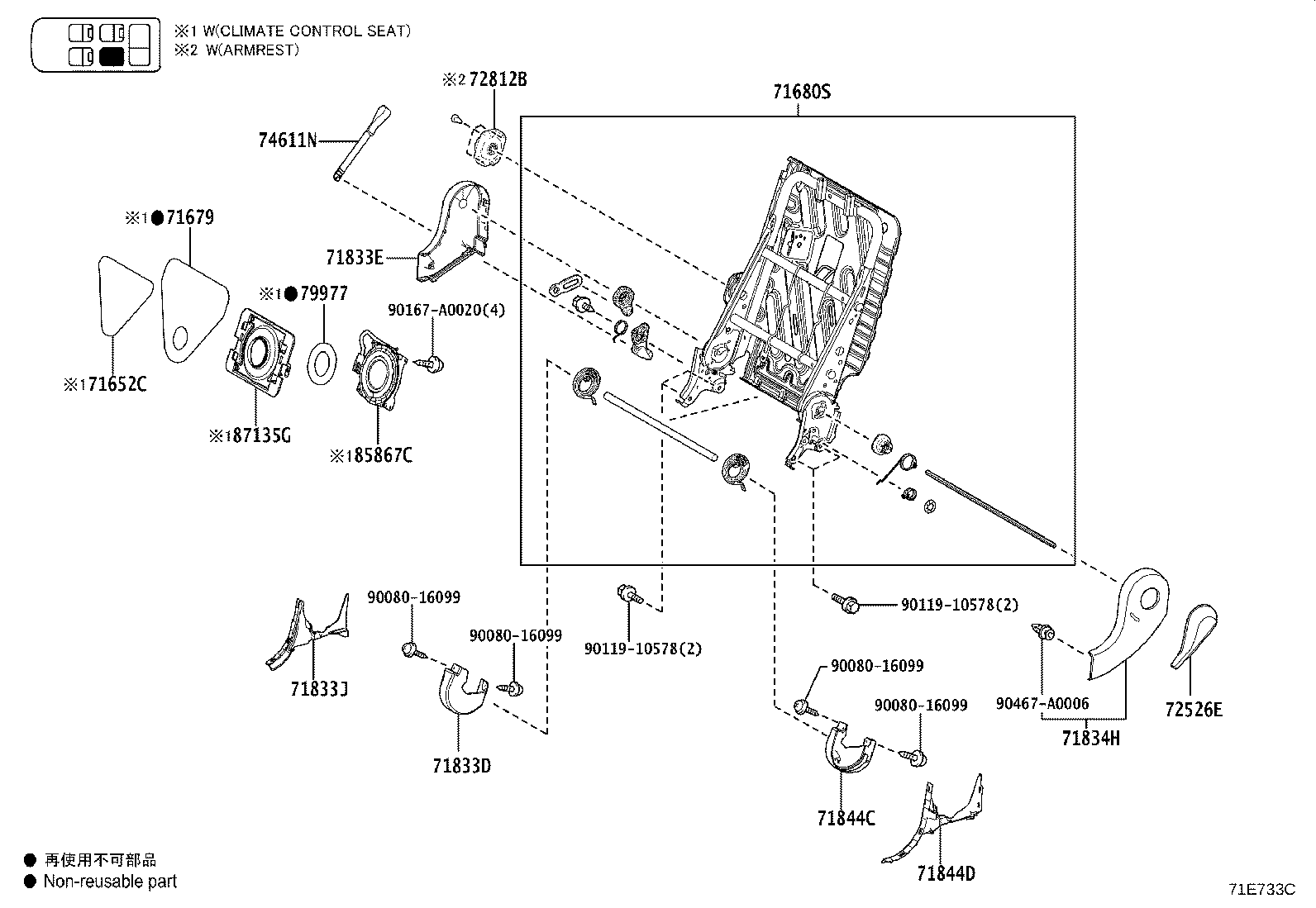

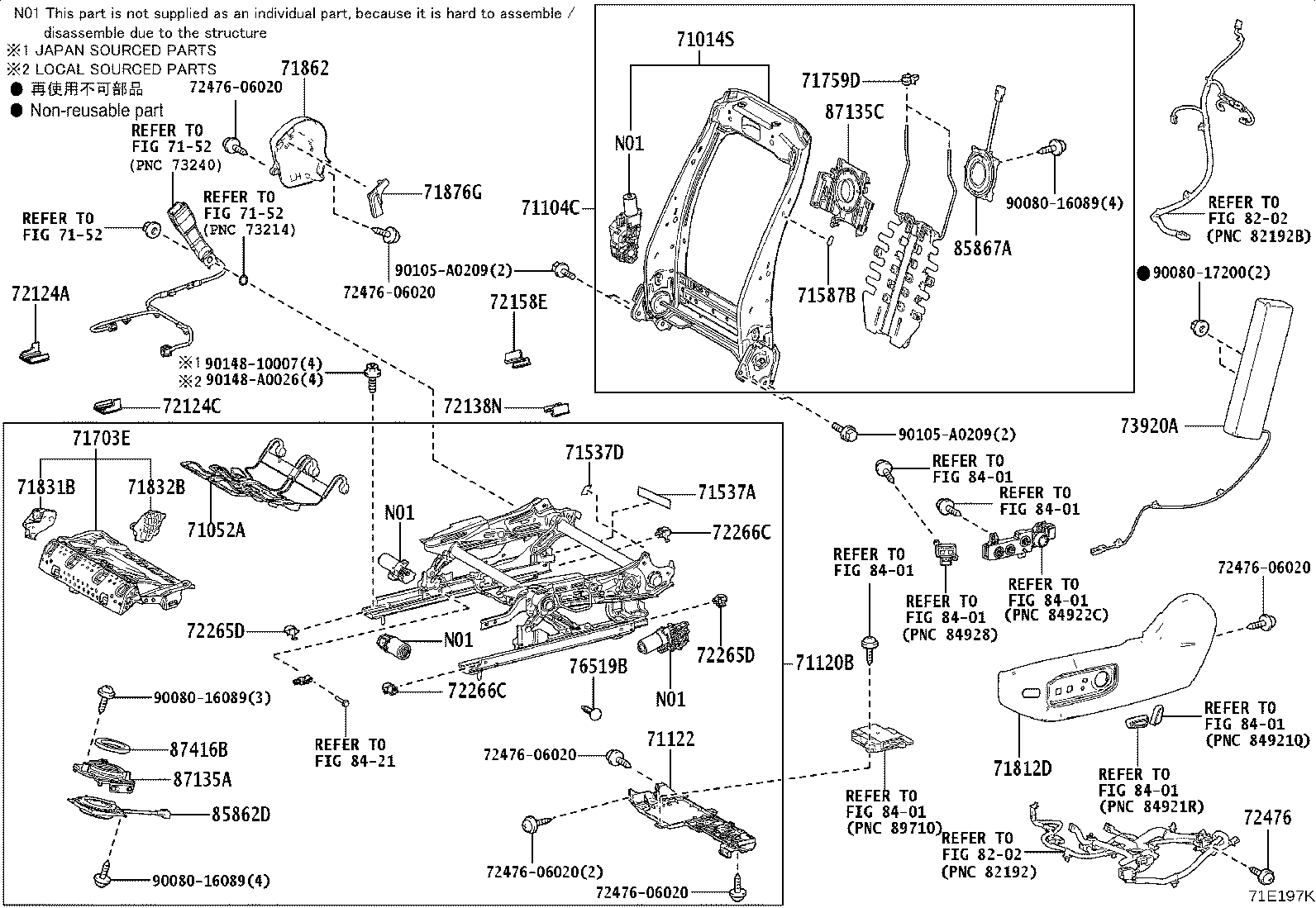

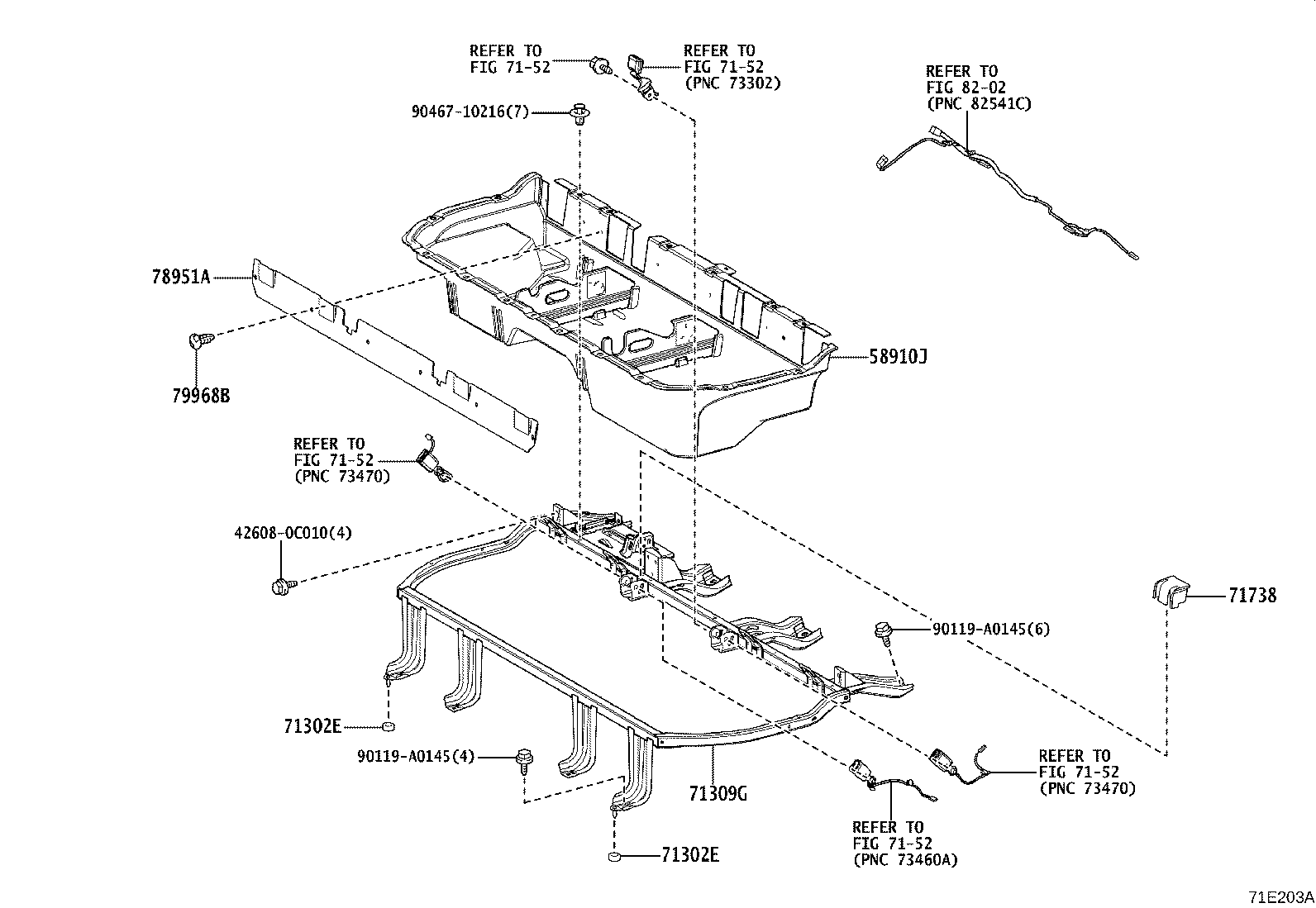

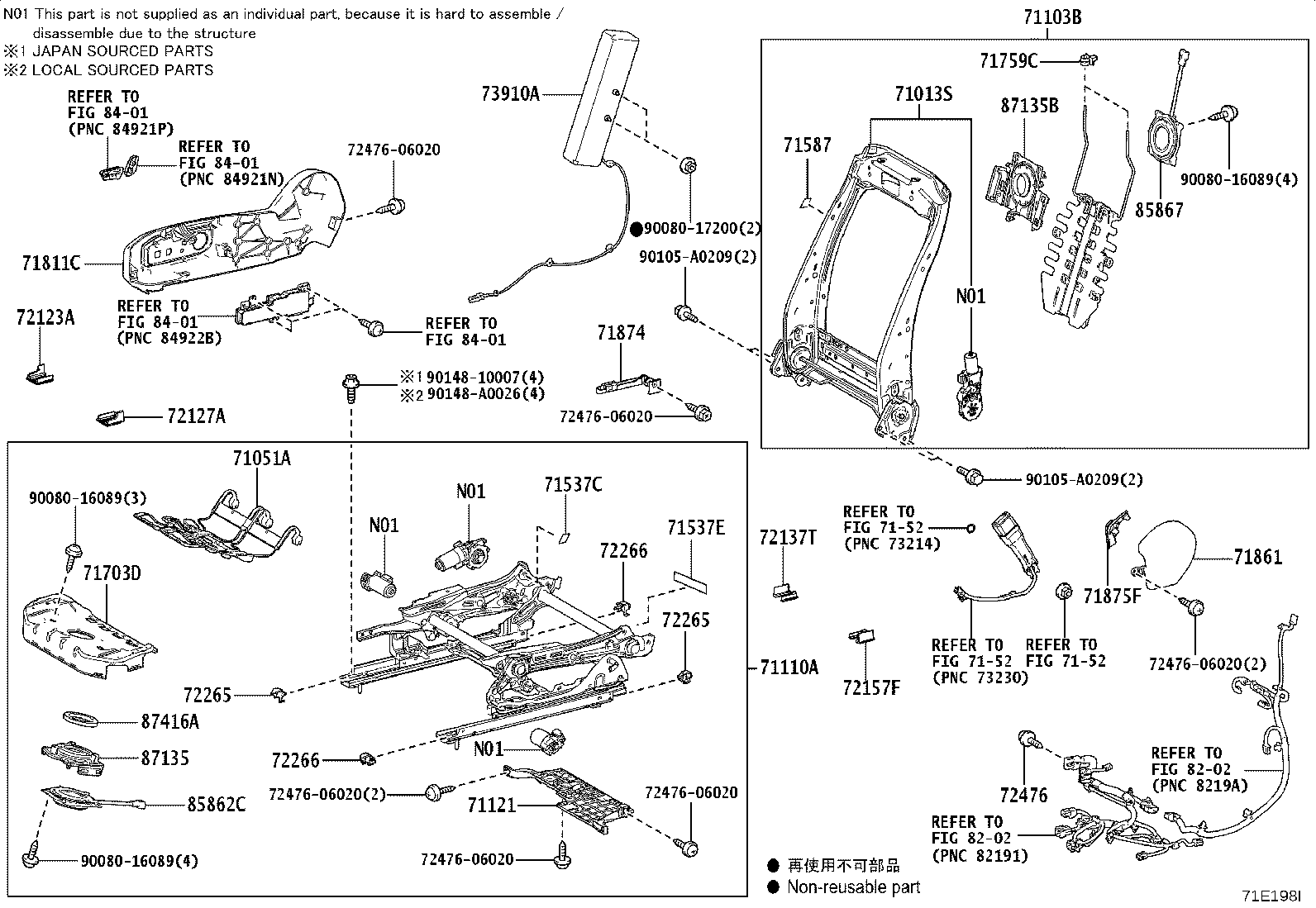

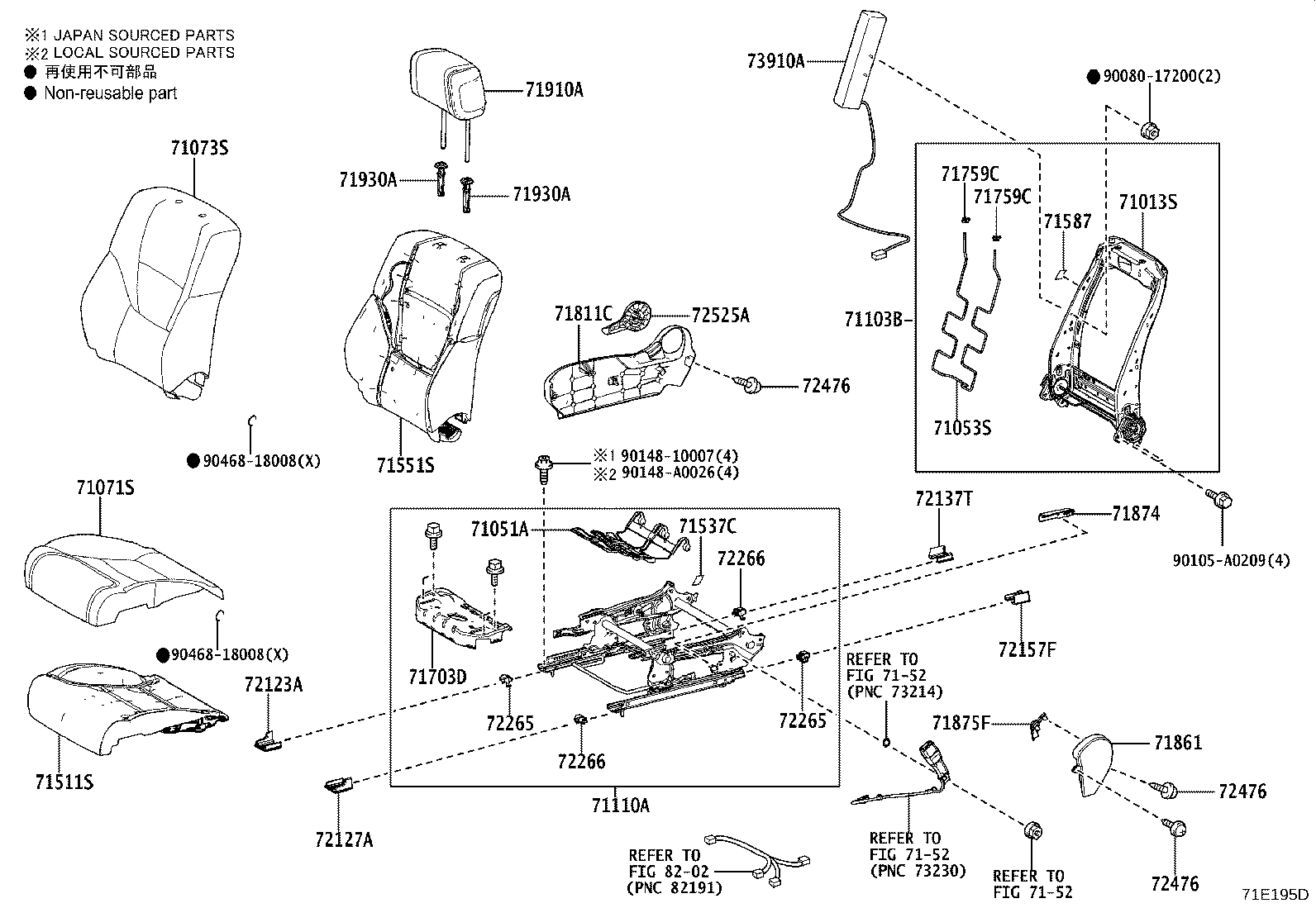

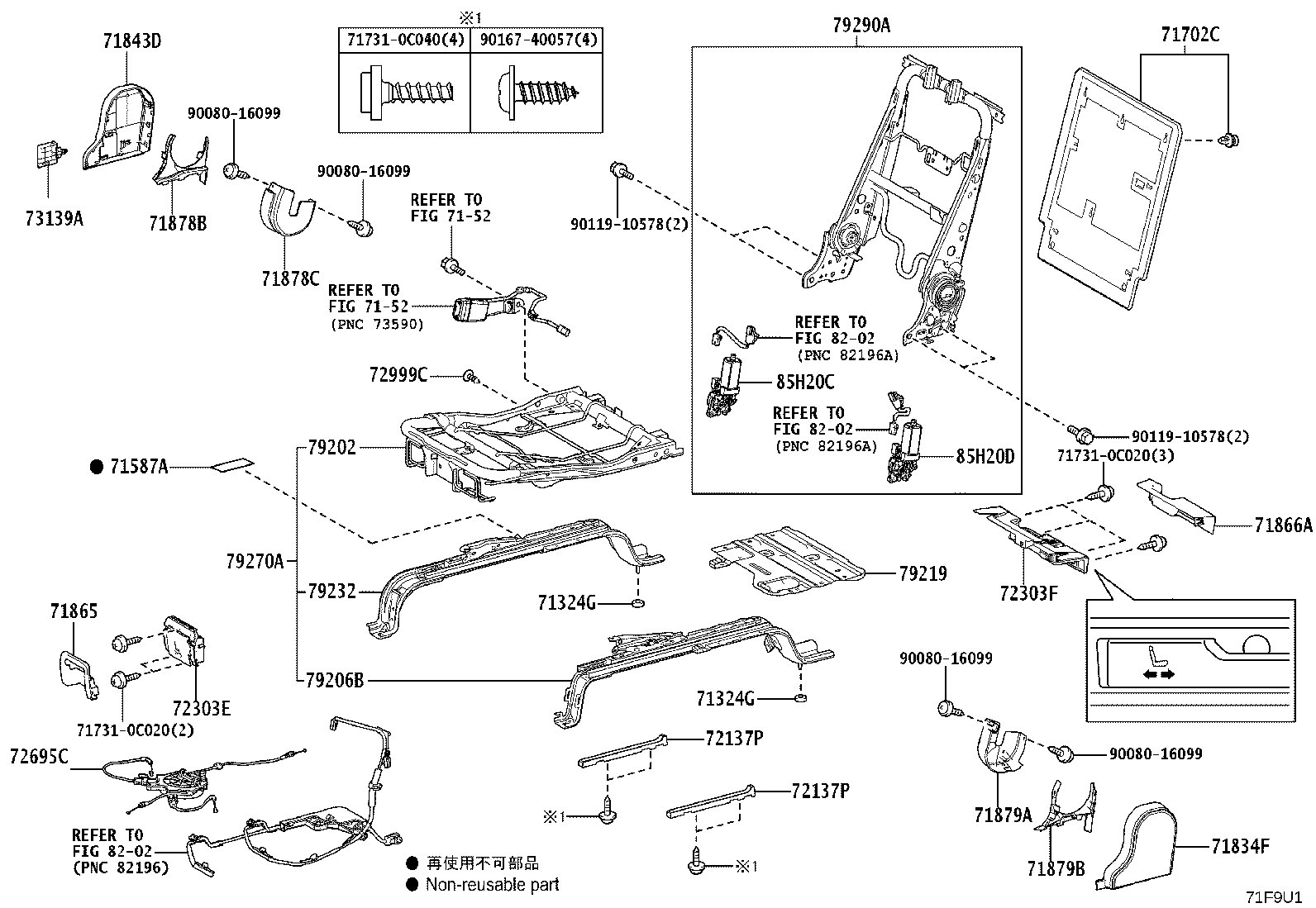

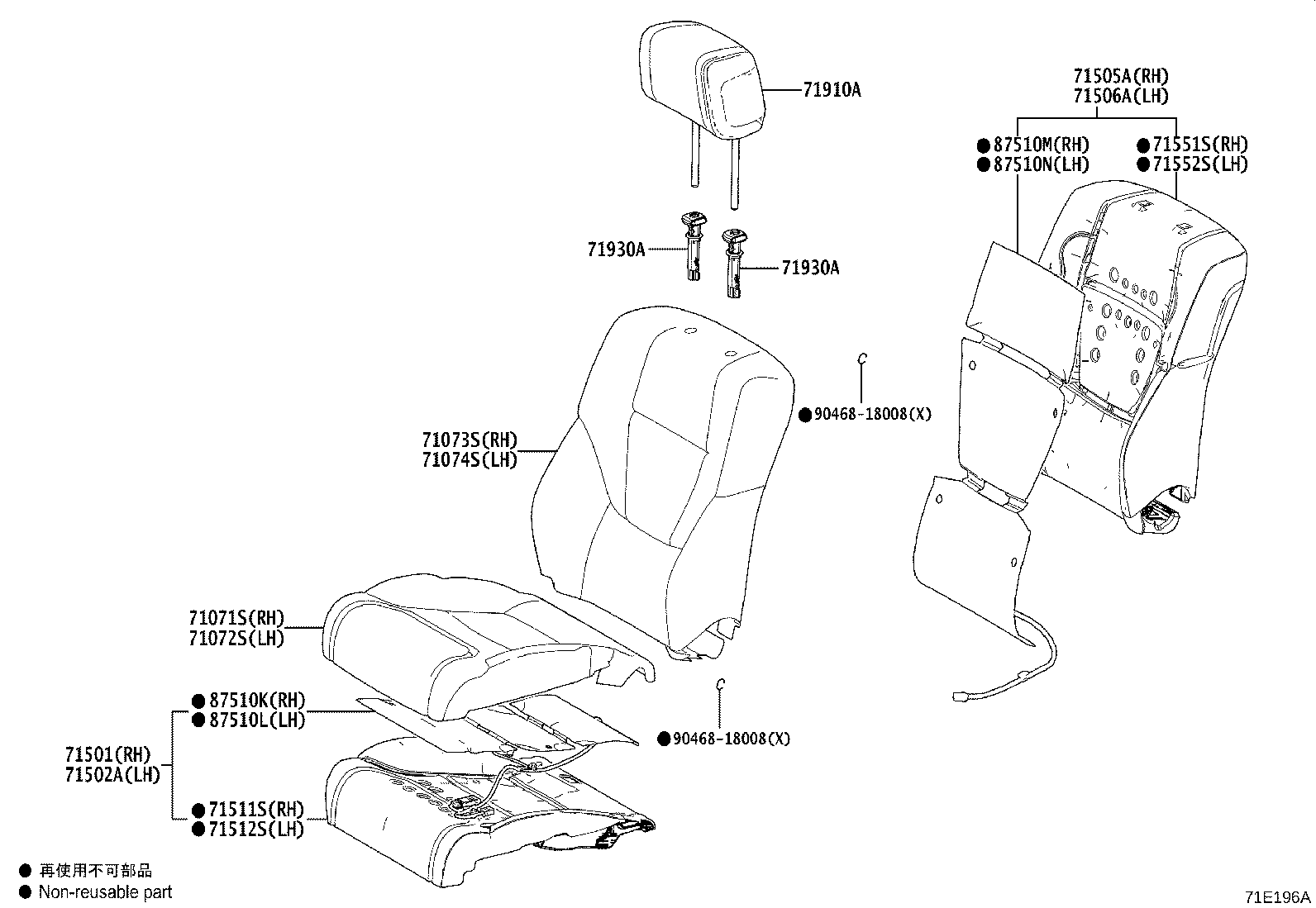

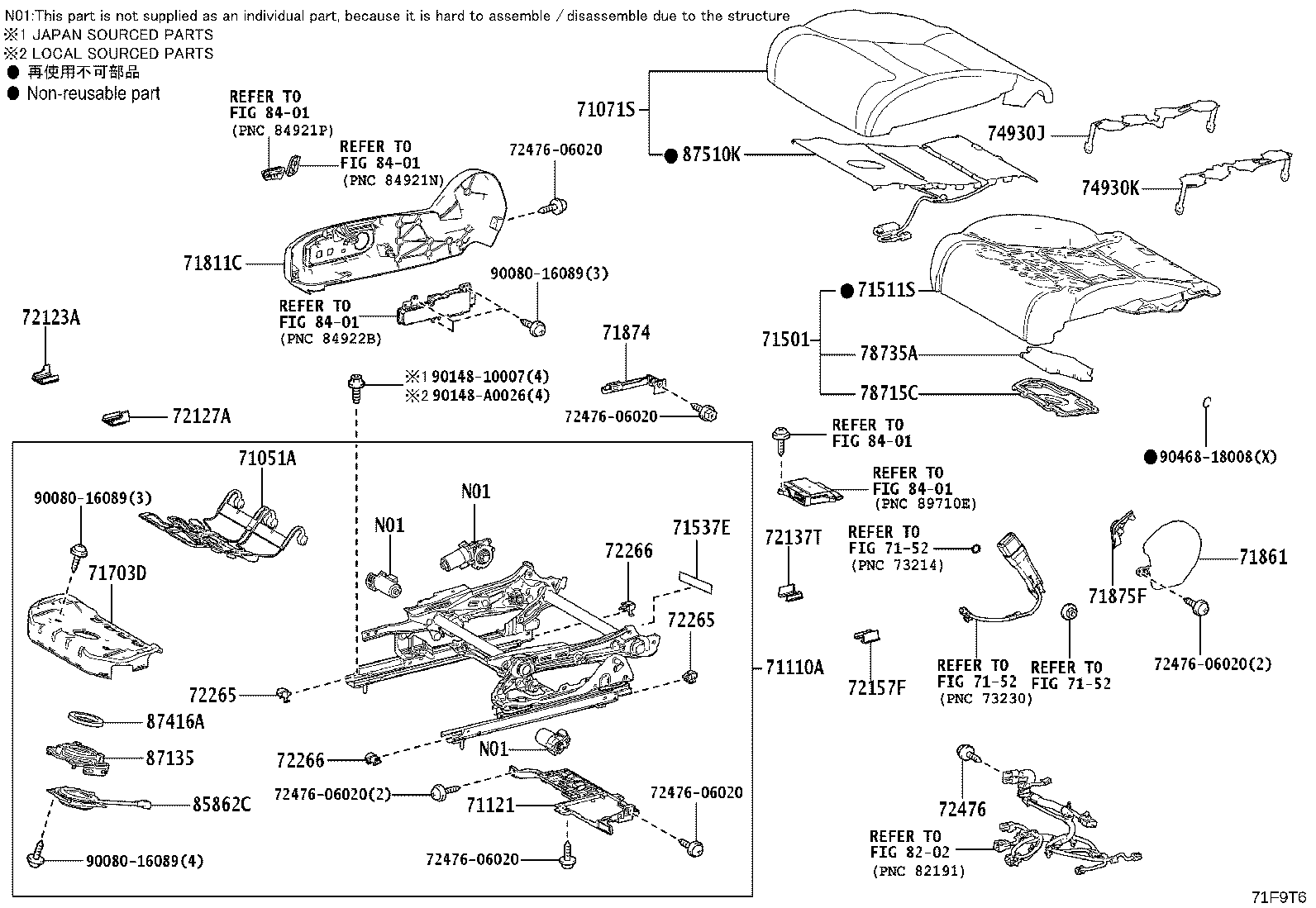

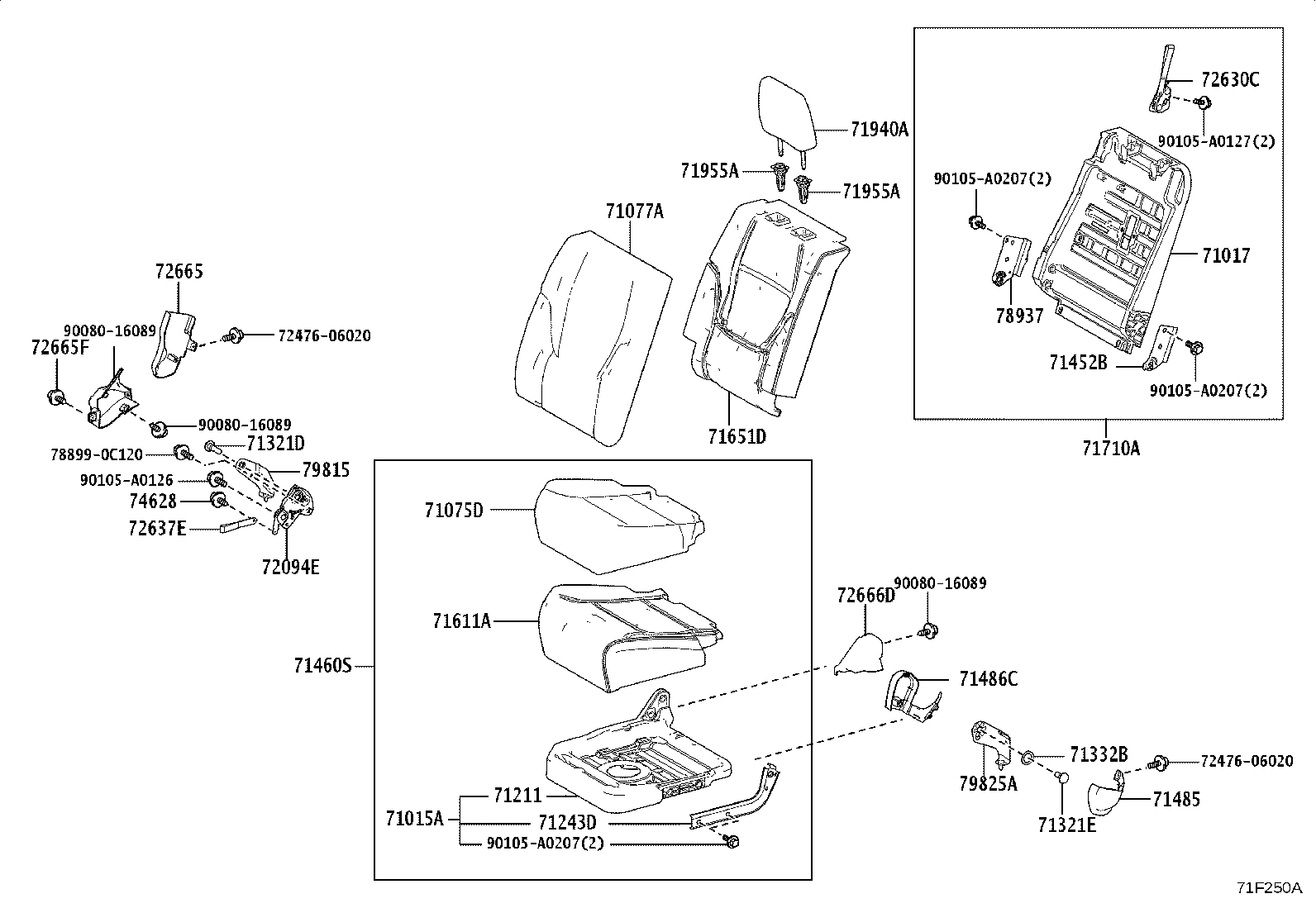

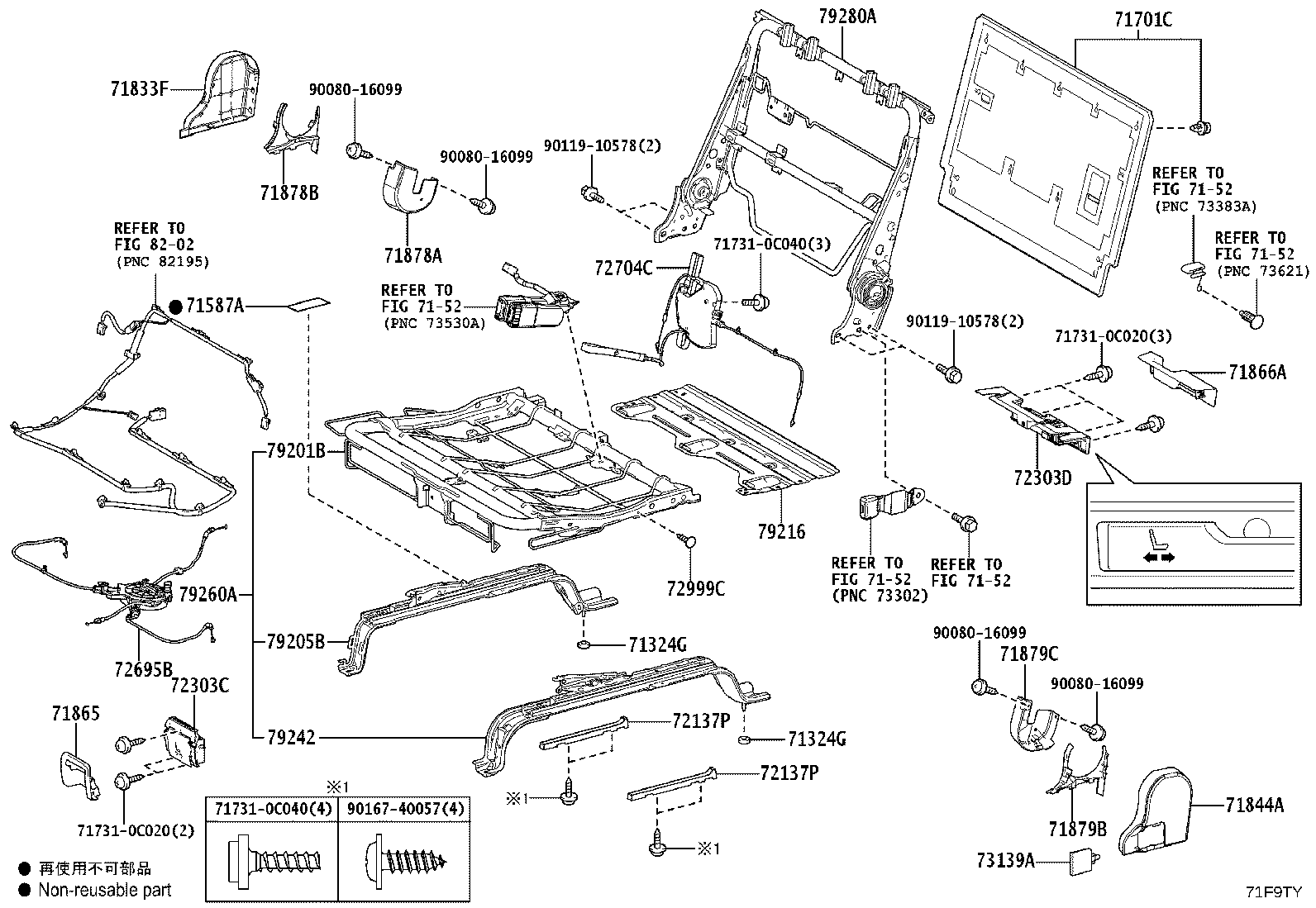

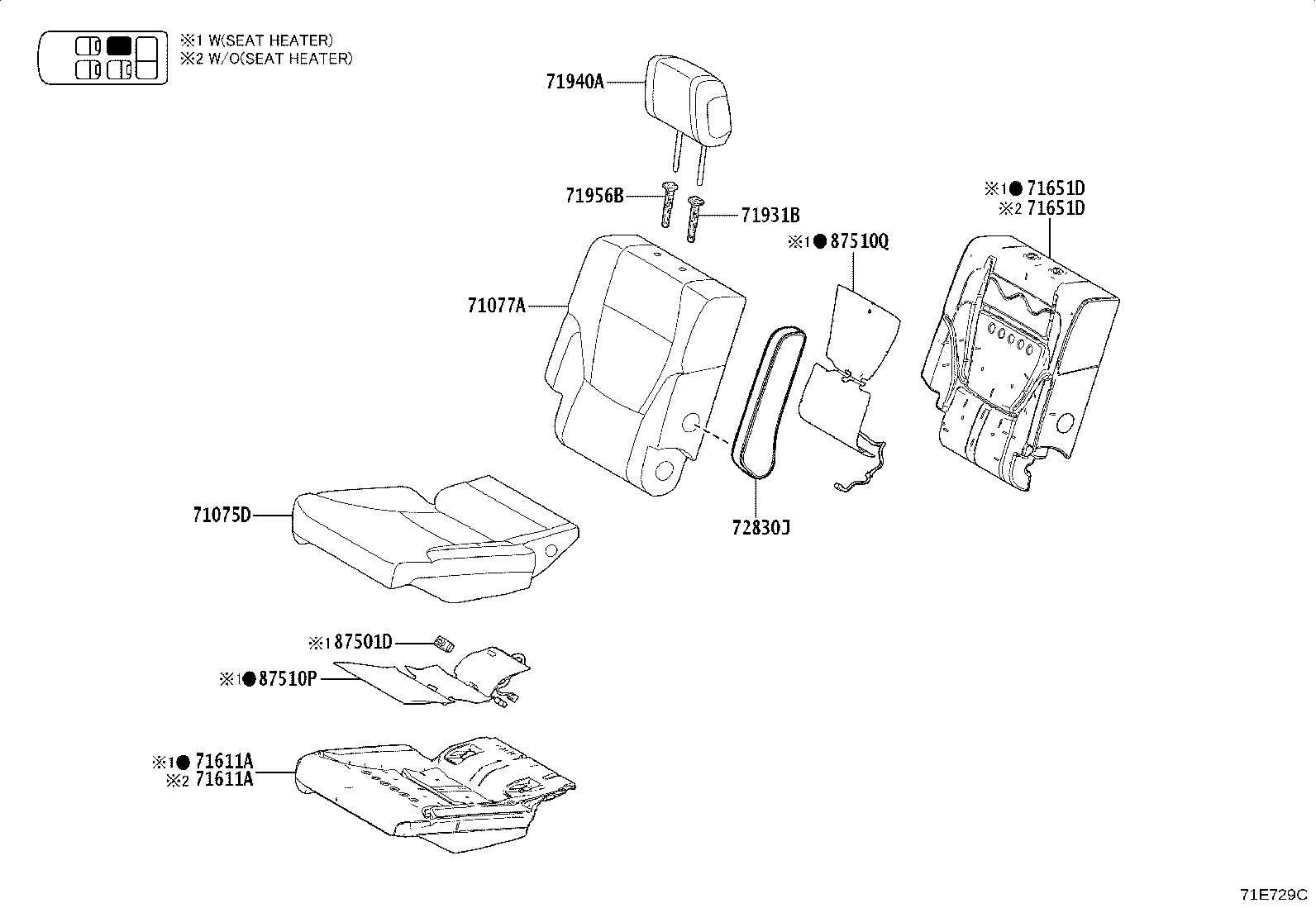

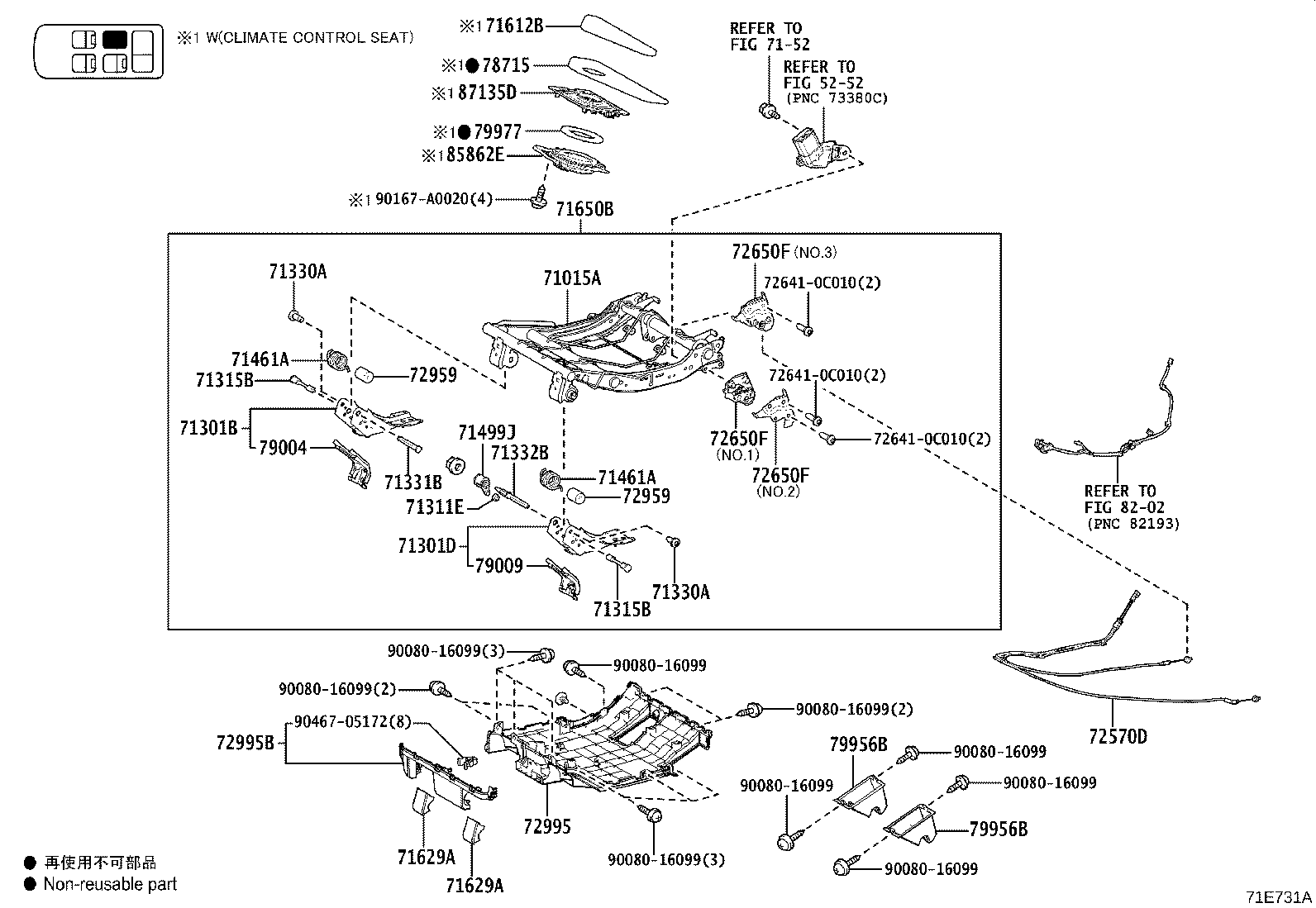

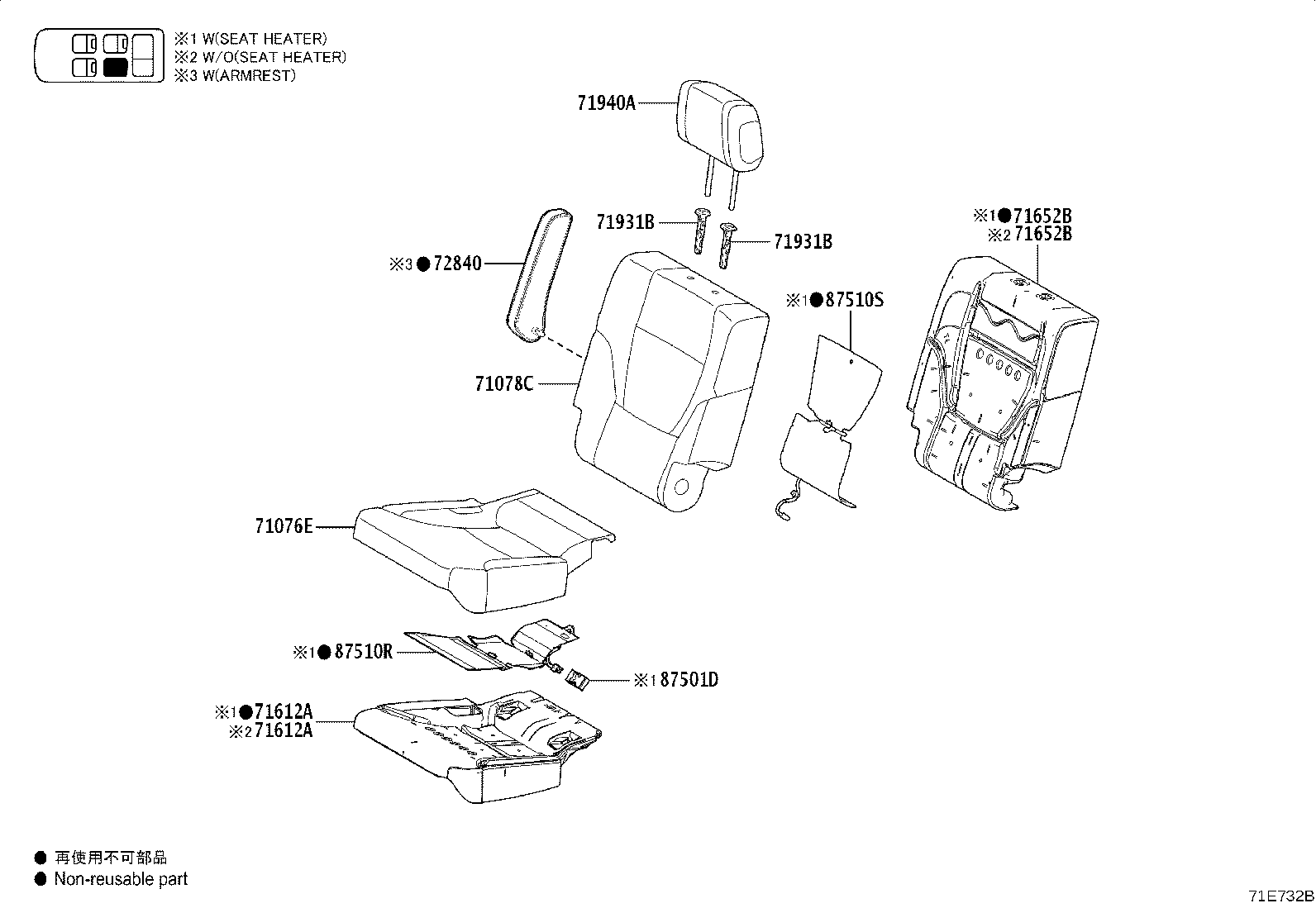

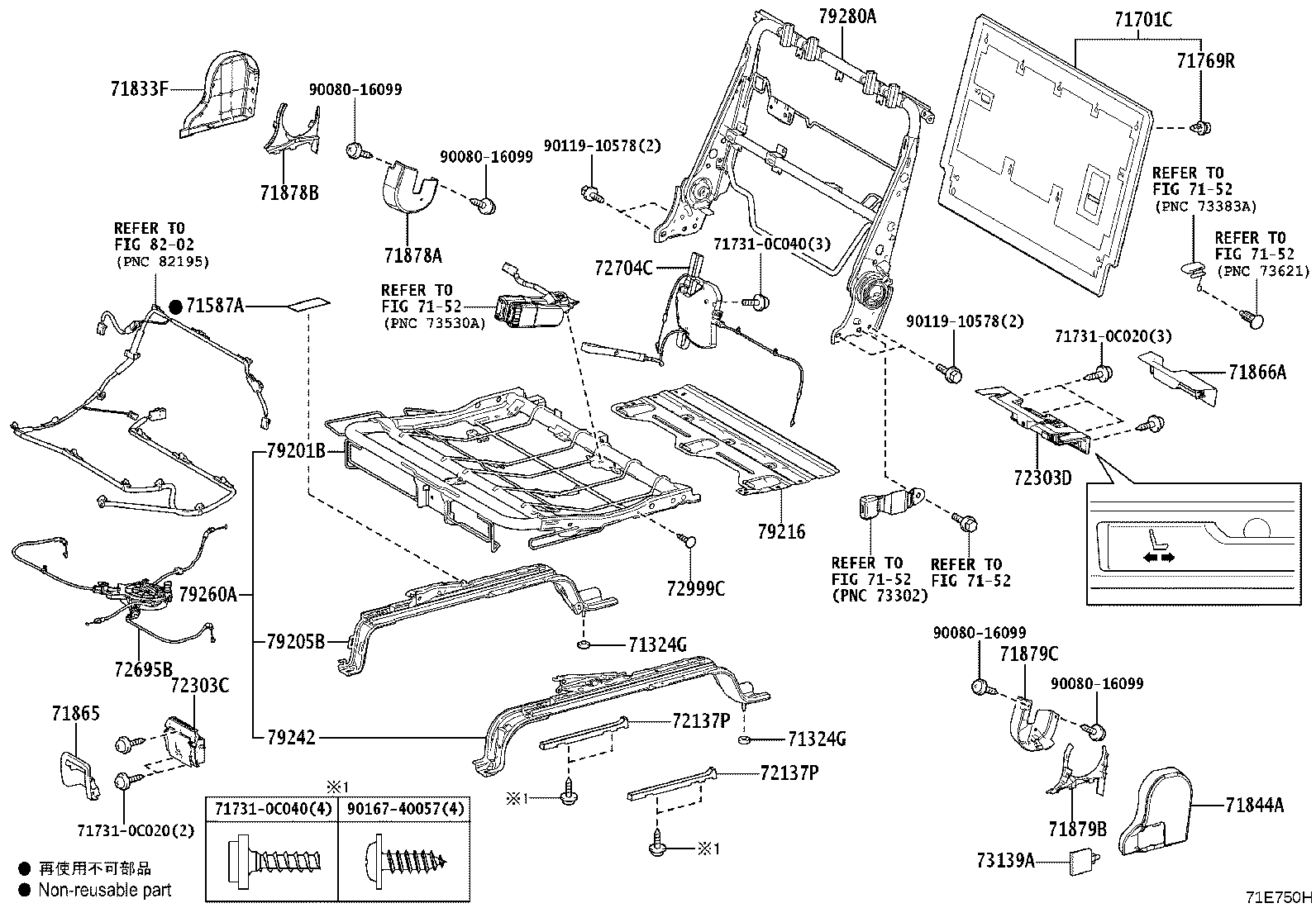

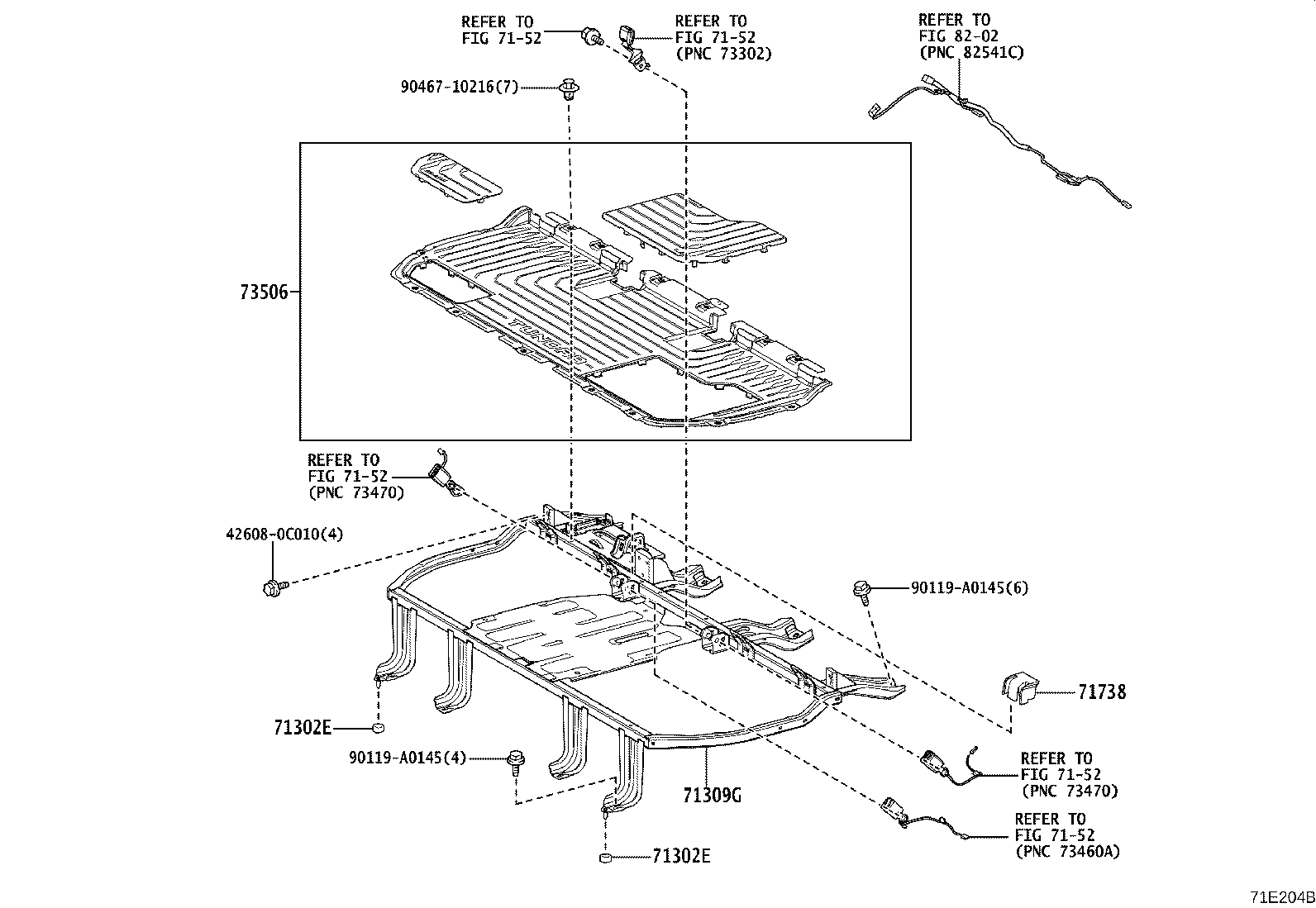

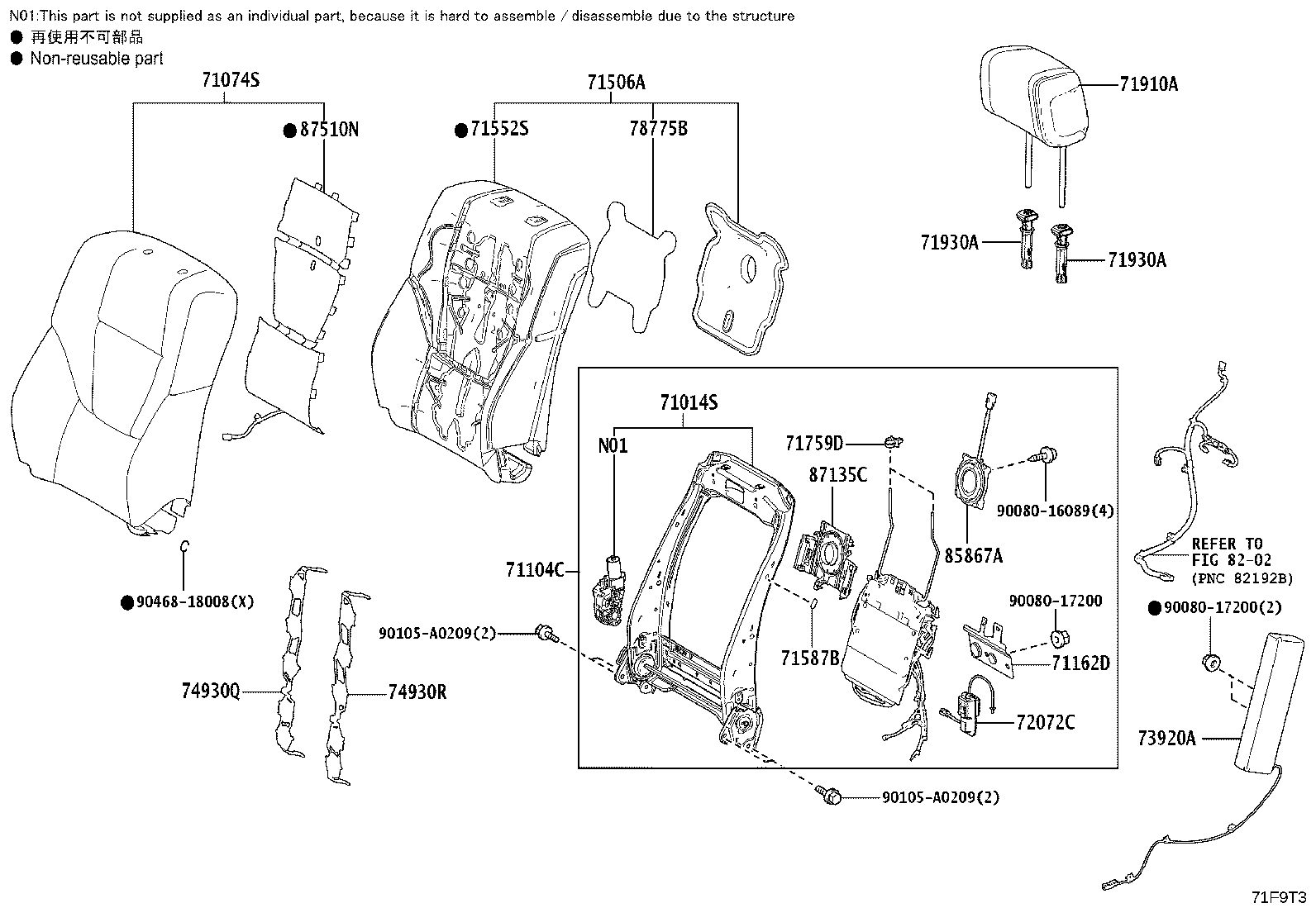

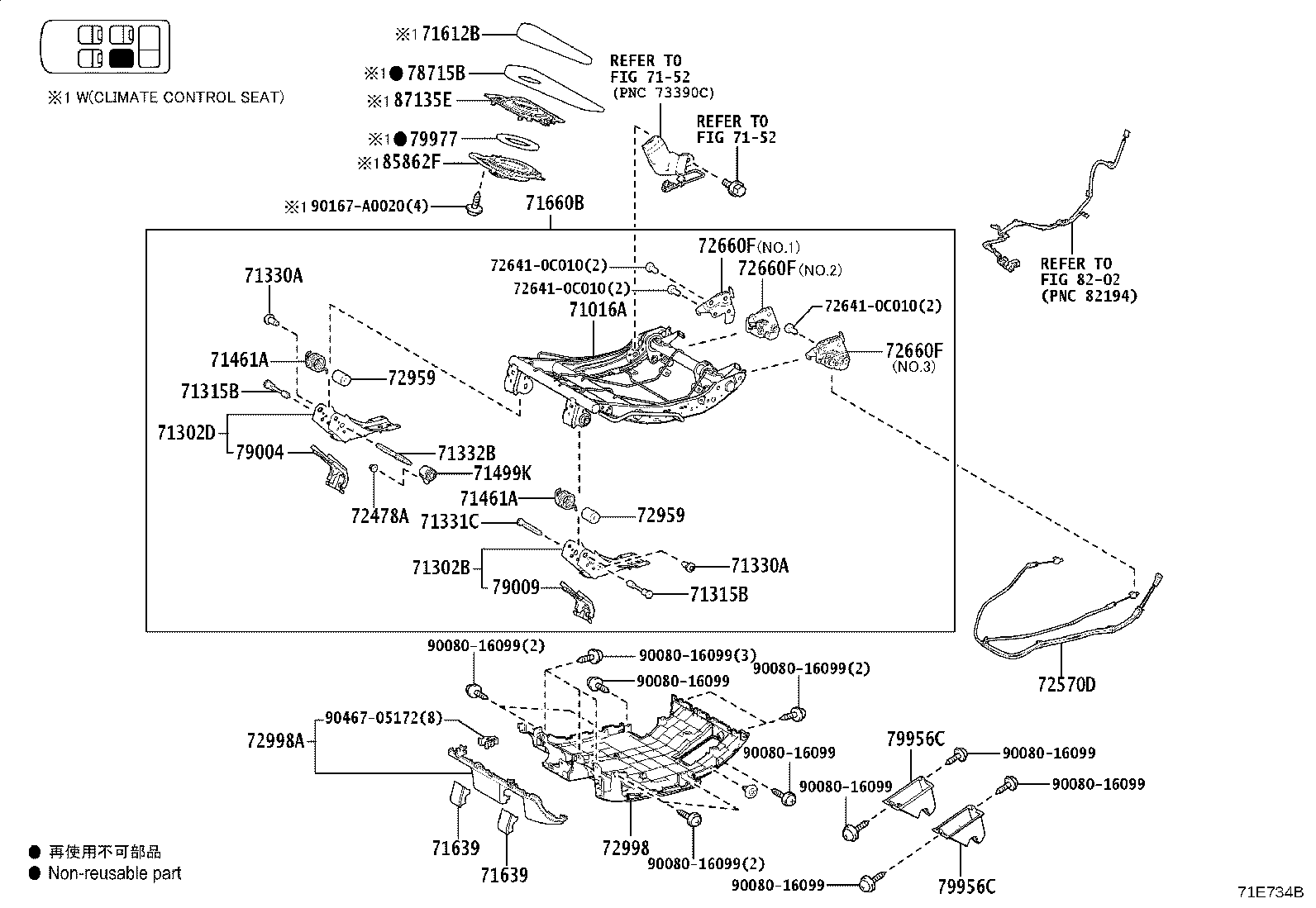

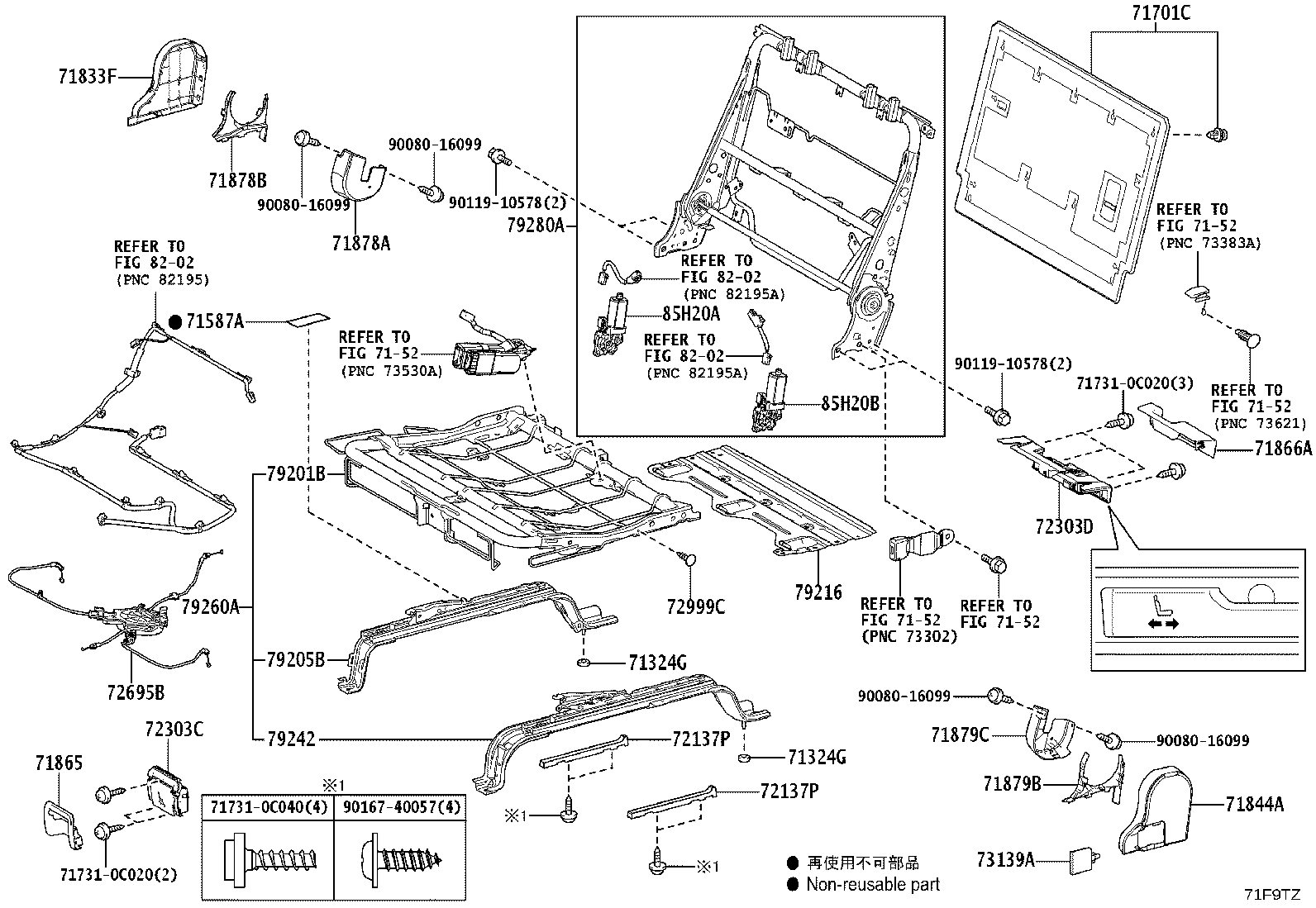

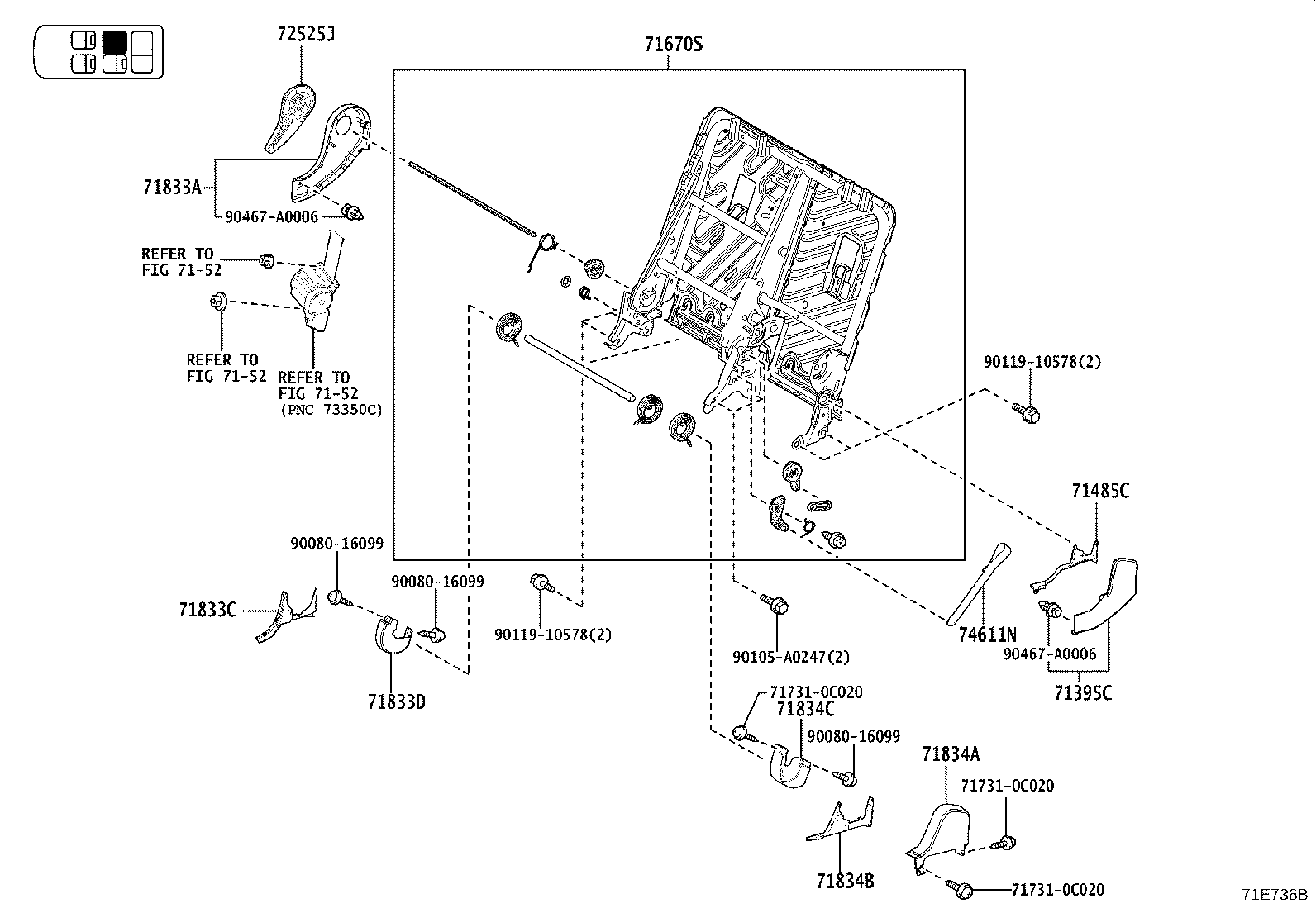

Figure 71E194G 71E194G 2021-11 → — Figure 71E195D 71E195D 2021-11 → — Figure 71E196A 71E196A 2021-11 → 2024-09 Figure 71E196A 71E196A 2021-11 → — Figure 71F214G 71F214G 2021-11 → — Figure 71E197K 71E197K 2021-11 → 2024-09 Figure 71E246K 71E246K 2021-11 → — Figure 71E198I 71E198I 2021-11 → 2024-09 Figure 71E198I 71E198I 2021-11 → — Figure 71E254J 71E254J 2021-11 → — Figure 71F9T3 71F9T3 2024-09 → — Figure 71F9T4 71F9T4 2024-09 → — Figure 71F9T5 71F9T5 2024-09 → — Figure 71F9T6 71F9T6 2024-09 → — Figure 71E199D 71E199D 2021-11 → — Figure 71E200B 71E200B 2021-11 → — Figure 71E201B 71E201B 2021-11 → — Figure 71E203A 71E203A 2021-11 → — Figure 71E204B 71E204B 2022-03 → — Figure 71F249B 71F249B 2021-11 → — Figure 71F250A 71F250A 2021-11 → — Figure 71E202A 71E202A 2021-11 → — Figure 71E729C 71E729C 2022-07 → — Figure 71E729C 71E729C 2023-08 → — Figure 71E735C 71E735C 2022-07 → — Figure 71E730D 71E730D 2022-07 → — Figure 71E730D 71E730D 2023-08 → — Figure 71E736B 71E736B 2022-07 → — Figure 71E731A 71E731A 2022-07 → — Figure 71E731A 71E731A 2023-08 → — Figure 71E737 71E737 2022-07 → — Figure 71E732B 71E732B 2022-07 → — Figure 71E733C 71E733C 2022-07 → — Figure 71E734C 71E734C 2022-07 → — Figure 71E738 71E738 2022-07 → — Figure 71E738 71E738 2023-08 → — Figure 71E739 71E739 2022-07 → — Figure 71E749 71E749 2022-07 → — Figure 71E750H 71E750H 2022-07 → 2023-01 Figure 71F9TY 71F9TY 2023-01 → — Figure 71E752G 71E752G 2022-07 → 2023-01 Figure 71F9TZ 71F9TZ 2023-01 → — Figure 71E751H 71E751H 2022-07 → 2023-01 Figure 71F9U0 71F9U0 2023-01 → — Figure 71E753G 71E753G 2022-07 → 2023-01 Figure 71F9U1 71F9U1 2023-01 → — Figure 71E754 71E754 2022-07 → —

Part groups

PNCDescription
58910J Box Assy
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075D Cover Sub-assy, Rear Seat Cushion, RH
71076E Cover Sub-assy, Rear Seat Cushion, LH
71077A Cover Sub-assy, Rear Seatback, RH
71078C Cover Sub-assy, Rear Seatback, LH
71103B Frame Sub-assy, Front Seatback Main, RH
71104C Frame Sub-assy, Front Seatback Main, LH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71121 Bracket, Front Seat Cushion, RH
71122 Bracket, Front Seat Cushion, LH
71161C Bracket, Front Seatback, RH
71162D Bracket, Front Seatback, LH
71211 Panel, Rear Seat Cushion, RH
71212 Panel, Rear Seat Cushion, LH
71243D Bracket, Rear Seat Cushion Hinge, RH
71243E Bracket, Rear Seat Cushion Hinge, LH
71281A Hinge, Rear Seat Center Armrest
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71301D Hinge Sub-assy, Rear Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71302D Hinge Sub-assy, Rear Seat, LH
71302E Stopper Sub-assy, Rear Seat Leg
71309G Leg Sub-assy, Rear Seat
71311E Bush(FOR REAR SEAT HINGE PIN)
71315B Pin, Rear Seat Hinge
71321D Hinge, Rear Seat Cushion, RH NO.1
71321E Hinge, Rear Seat Cushion, RH NO.2
71321F Hinge, Rear Seat Cushion, LH NO.1
71321G Hinge, Rear Seat Cushion, LH NO.2
71324G Cushion, Rear NO.2 Seat
71330A Pin, Rear Seat Cushion Hinge
71331B Pin, Rear Seat Hinge, RH
71331C Pin, Rear Seat Hinge, LH
71332B Spacer, Rear Seatback Hinge
71332C Spacer, Rear Seatback Hinge
71395C Cover, Center Seat Hinge, RH
71452B Bracket, Rear Seatback
71460S Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71461A Spring, Rear Seat Cushion, NO.1
71470S Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71485 Cover, Rear Seat Hinge
71485B Cover, Rear Seat Hinge
71485C Cover, Rear Seat Hinge, RH
71486A Cover, Rear Seat Hinge, NO.2 LH
71486C Cover, Rear Seat Hinge, LH
71499J Damper, Rear Seat Cushion Spring, RH
71499K Damper, Rear Seat Cushion Spring, LH
71501 Pad Sub-assy, Front Seat Cushion, RH
71502A Pad Sub-assy, Front Seat Cushion, LH
71503B Pad Sub-assy, Rear Seat Cushion, RH
71504 Pad Sub-assy, Rear Seat Cushion, LH
71505A Pad Sub-assy, Front Seatback, RH
71506A Pad Sub-assy, Front Seatback, LH
71507 Pad Sub-assy, Rear Seatback, RH
71508 Pad Sub-assy, Rear Seatback, LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71537E Protector, Front Seat Cushion, NO.1
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71587A Protector, Rear Seatback Edge
71587B Protector, Front Seatback Edge
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71612B Pad, Rear Seat Cushion, B
71612E Pad, Rear NO.2 Seat Cushion, LH
71613A Pad, Rear NO.2 Seat Cushion
71629A Cover, Rear Seat Cushion Hinge, RH
71639 Cover, Rear Seat Cushion Hinge, LH
71650B Spring Assy, Rear Seat Cushion, RH
71651D Pad, Rear Seatback, RH
71652B Pad, Rear Seatback, LH
71652C Pad, Rear Seatback, B
71660B Spring Assy, Rear Seat Cushion, LH
71670S Spring Assy, Rear Seatback, RH(FOR SEPARATE SEAT)
71679 Panel, Rear Seatback
71680S Spring Assy, Rear Seatback, LH(FOR SEPARATE SEAT)
71691E Cover, Rear Seat Cushion Hinge, NO.1
71691F Cover, Rear NO.1 Seat Cushion Hinge, Inner RH
71691G Cover, Rear NO.1 Seat Cushion Hinge, Outer RH
71691H Cover, Rear Seat Cushion Hinge, NO.2
71691J Cover, Rear Seat Cushion Hinge, NO.3
71691K Cover, Rear Seat Cushion Hinge, NO.4
71692F Cover, Rear NO.1 Seat Cushion Hinge, Inner LH
71692G Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
71693A Cover, Rear Seat Cushion Hinge, NO.3
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71703D Panel Sub-assy, Front Seat Cushion, RH
71703E Panel Sub-assy, Front Seat Cushion, LH
71710A Frame Assy, Rear Side Seat, RH
71720A Frame Assy, Rear Side Seat, LH
71738 Cover, Seat Fastener
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71769R Clip, Rear Seatback Board, RH
71769S Clip, Rear Seatback Board, LH
71811C Cover, Reclining Adjuster, RH
71812D Shield, Front Seat Cushion, LH
71831B Cover, Front Seat Hinge, RH
71832B Cover, Front Seat Hinge, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833C Cover, Rear Seat Reclining, NO.2 RH
71833D Cover Rear Seat Reclining, RH
71833E Cover, Rear Seat Reclining, NO.3 RH
71833F Cover, Rear NO.2 Seat Reclining, Outer RH
71833J Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71834C Cover, Rear Seat Reclining, NO.3 LH
71834F Cover, Rear NO.2 Seat Reclining, Outer LH
71834H Cover, Rear Seat Reclining, NO.1 LH
71843D Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71844C Cover, Rear Seat Reclining, NO.2 LH
71844D Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71865 Bezel, Rear Seat Cover, NO.1
71866A Bezel, Rear Seat Cover, NO.2
71874 Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71878C Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71879B Cover, Rear Seat Reclining, Inner LH
71879C Cover, Rear Seat Reclining, Inner LH
71910A Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71940E Headrest Assy, NO.2 Seat
71955A Support, Rear Seat Headrest
71955B Support, Rear Seat Headrest
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
71960D Headrest Assy, Rear NO.2 Seat, Center
71970B Support Assy, Rear Seat Headrest, RH
71987A Cable, Rear Seat Headrest
71990A Support Assy, Rear Seat Headrest, LH
72071E Pump Sub-assy, Lumber Support, RH
72072C Pump Sub-assy, Lumber Support, LH
72083A Pad Sub-assy, Rear Seat Center Armrest
72087A Cover Sub-assy, Rear Seat Center Armrest
72094E Lock Sub-assy, Rear Seat Turn, RH
72094F Lock Sub-assy, Rear Seat Turn, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72123D Cover, Rear NO.2 Seat Track Bracket
72124A Cover, Seat Track Bracket, Inner Front LH
72124C Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72127E Cover, Seat Track Bracket, Inner Front
72137P Cover, Rear NO.2 Seat Track
72137T Cover, Seat Track Bracket, Outer Rear RH
72138N Cover, Seat Track Bracket, Outer Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72265 Cover, Seat Track Upper Rail, RH
72265D Cover, Seat Track Upper Rail
72266 Cover, Seat Track Upper Rail, LH
72266C Cover, Seat Track Upper Rail, LH
72303C Lever Sub-assy, Rear Seat Track Lock, RH NO.1
72303D Lever Sub-assy, Rear Seat Track Lock, RH NO.2
72303E Lever Sub-assy, Rear Seat Track Lock, LH NO.1
72303F Lever Sub-assy, Rear Seat Track Lock, LH NO.2
72476 Screw, Horizontal Jack, Inner
72478A Bush, Rear Seat Vertical Adjuster
72525A Handle, Reclining Adjuster Release, RH
72525J Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526E Handle, Reclining Adjuster Release, LH
72570D Cable Assy, Reclining Adjusting
72607 Striker Sub-assy, Rear Seat Cushion Lock
72607D Striker Sub-assy, Rear Seat Cushion Lock, NO.2
72607E Striker Sub-assy, Rear Seat Cushion Lock, NO.3
72607F Striker Sub-assy, Rear Seat Cushion Lock, NO.4
72630C Lock Assy, Rear Seatback, RH
72637E Handle, Rear Seat Lock, RH
72638 Handle, Rear Seat Lock, LH
72640A Lock Assy, Rear Seatback, LH
72650F Lock Assy, Rear Seat, RH
72660F Lock Assy, Rear Seat, LH
72665 Cover, Rear Seatback Lock, RH
72665B Cover, Rear Seatback Lock
72665F Cover, Rear Seat Lock, RH(FOR RH SEAT)
72665G Cover, Rear Seat Lock, RH(FOR LH SEAT)
72666D Cover, Rear Seat Lock, LH(FOR RH SEAT)
72666E Cover, Rear Seat Lock, LH(FOR LH SEAT)
72695B Cable, Rear Seat Lock Control, RH
72695C Cable, Rear Seat Lock Control, LH
72704C Cable, Rear NO.2 Seat Reclining Control
72704D Cable, Rear NO.2 Seat Reclining Control
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72812A Plate, Rear Seat Armrest, NO.1 RH
72812B Plate, Rear Seat Armrest, NO.1 LH
72830 Armrest Assy, Rear Seat, Center
72830J Armrest Assy, Rear NO.1 Seat, RH
72840 Armrest Assy, Rear NO.1 Seat, LH
72959 Spacer, Rear Seat Turn Side
72995 Cover, Rear Seat Cushion, RH
72995B Cover, NO.1 Seat Cushion, RH
72998 Cover, Rear Seat Cushion, LH
72998A Cover, NO.1 Seat Cushion, LH
72999C Clip, Rear Seat Cushion Cover
73139A Cover, Seat Belt Anchor
73506 Board Sub-assy, Rear Seat Sub Floor, NO.2
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
74611N Strap, Assist Grip
74628 Screw, Assist Strap, RH (FOR REAR SEAT)
74628A Screw, Assist Strap, LH (FOR REAR SEAT)
74930J Cushion Assy, Main Stretcher, RH NO.1(FOR SEAT CUSHION)
74930K Cushion Assy, Main Stretcher, RH NO.2(FOR SEAT CUSHION)
74930L Cushion Assy, Main Stretcher, RH NO.1(FOR SEATBACK)
74930M Cushion Assy, Main Stretcher, RH NO.2(FOR SEATBACK)
74930N Cushion Assy, Main Stretcher, LH NO.1(FOR SEAT CUSHION)
74930P Cushion Assy, Main Stretcher, LH NO.2(FOR SEAT CUSHION)
74930Q Cushion Assy, Main Stretcher, LH NO.1(FOR SEATBACK)
74930R Cushion Assy, Main Stretcher, LH NO.2(FOR SEATBACK)
76519B Clip, Front Seat Cushion Cover
78715 Panel, Sub Seat Cushion
78715B Panel, Sub Seat Cushion NO.2
78715C Panel, Sub Seat Cushion NO.3
78715D Panel, Sub Seat Cushion NO.4
78735A Pad, Sub Seat Cushion, RH
78735B Pad, Sub Seat Cushion, LH
78775A Pad, Sub Seatback, RH
78775B Pad, Sub Seatback, LH
78937 Bracket, Fold Seatback Hinge, RH
78947 Bracket, Fold Seatback Hinge, LH
78951A Tray, Rear Seat Under
79004 Bracket Sub-assy, NO.1 Seat Cushion
79009 Bracket Sub-assy, NO.1 Seat
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79172 Bracket, Rear Seatback, Inside RH
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79216 Plate, NO.2 Seat Leg
79219 Plate, NO.2 Seat Leg, LH
79232 Leg, Rear NO.2 Seat, RH
79242 Leg, Rear NO.2 Seat, LH
79260A Spring Assy, NO.2 Seat Cushion, RH
79270A Spring Assy, NO.2 Seat Cushion, LH
79275C Pad, NO.2 Seatback, RH
79280A Spring Assy, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79290A Spring Assy, NO.2 Seatback, LH
79815 Bracket, Fold Seat Cushion Hinge, RH (FOR RH SEAT)
79815A Bracket, Fold Seat Cushion Hinge, RH (FOR LH SEAT)
79825A Bracket, Fold Seat Cushion Hinge, LH (FOR RH SEAT)
79825B Bracket, Fold Seat Cushion Hinge, LH (FOR LH SEAT)
79956B Cover, Rear Seat Leg Side, RH
79956C Cover, Rear Seat Leg Side, LH
79956S Cover, Rear Seat Leg Side
79968B Clip
79977 Felt, Seatback
85862C Blower, Seat Cushion Climate Control, RH
85862D Blower, Seat Cushion Climate Control, LH
85862E Blower, Rear Seat Cushion Climate Control, RH
85862F Blower, Rear Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
85867B Blower, Rear Seatback Climate Control, RH
85867C Blower, Rear Seatback Climate Control, LH
85H20A Motor Assy, Power Rear Seat, RH NO.1
85H20B Motor Assy, Power Rear Seat, RH NO.2
85H20C Motor Assy, Power Rear Seat, LH NO.1
85H20D Motor Assy, Power Rear Seat, LH NO.2
87135 Adapter, Blower Fan, RH(FOR SEAT CUSHION)
87135A Adapter, Blower Fan, LH(FOR SEAT CUSHION)
87135B Adapter, Blower Fan, RH(FOR SEATBACK)
87135C Adapter, Blower Fan, LH(FOR SEATBACK)
87135D Adapter, Blower Fan, RH (FOR REAR SEAT CUSHION)
87135E Adapter, Blower Fan, LH (FOR REAR SEAT CUSHION)
87135F Adapter, Blower Fan, RH (FOR REAR SEATBACK)
87135G Adapter, Blower Fan, LH (FOR REAR SEATBACK)
87416A Gasket, Air Duct, RH
87416B Gasket, Air Duct, LH
87501D Control Sub-assy, Seat Heater
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
87510R Heater Assy, Seat
87510S Heater Assy, Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
