Toyota Tundra/Sequoia

2021-11 → present · chassis VXKA7#,VXKH7#,VXKH8# · catalogue 841440 · United States

Supported model Data version 2022-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

140 part groups · 26 illustrations

Illustrations

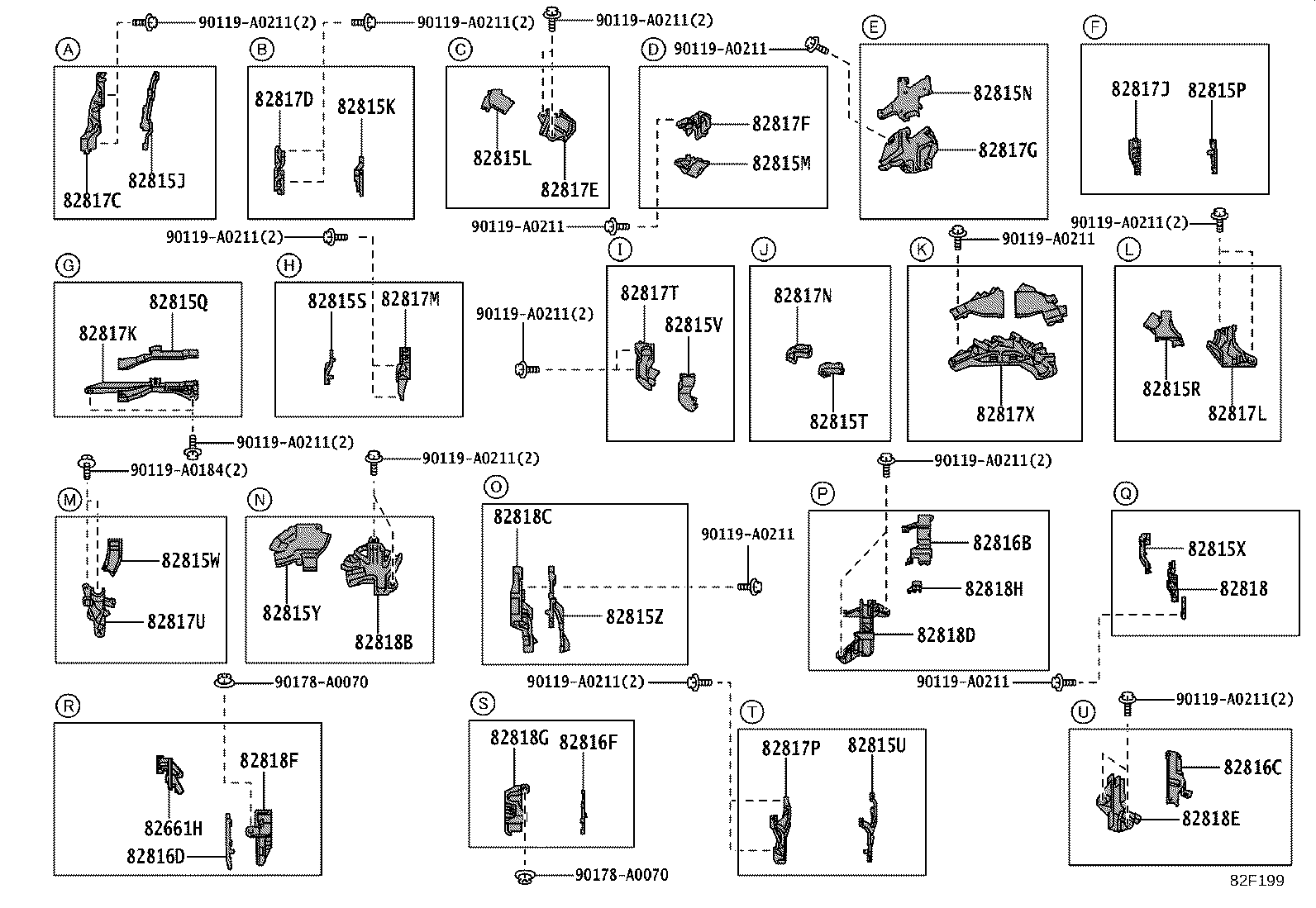

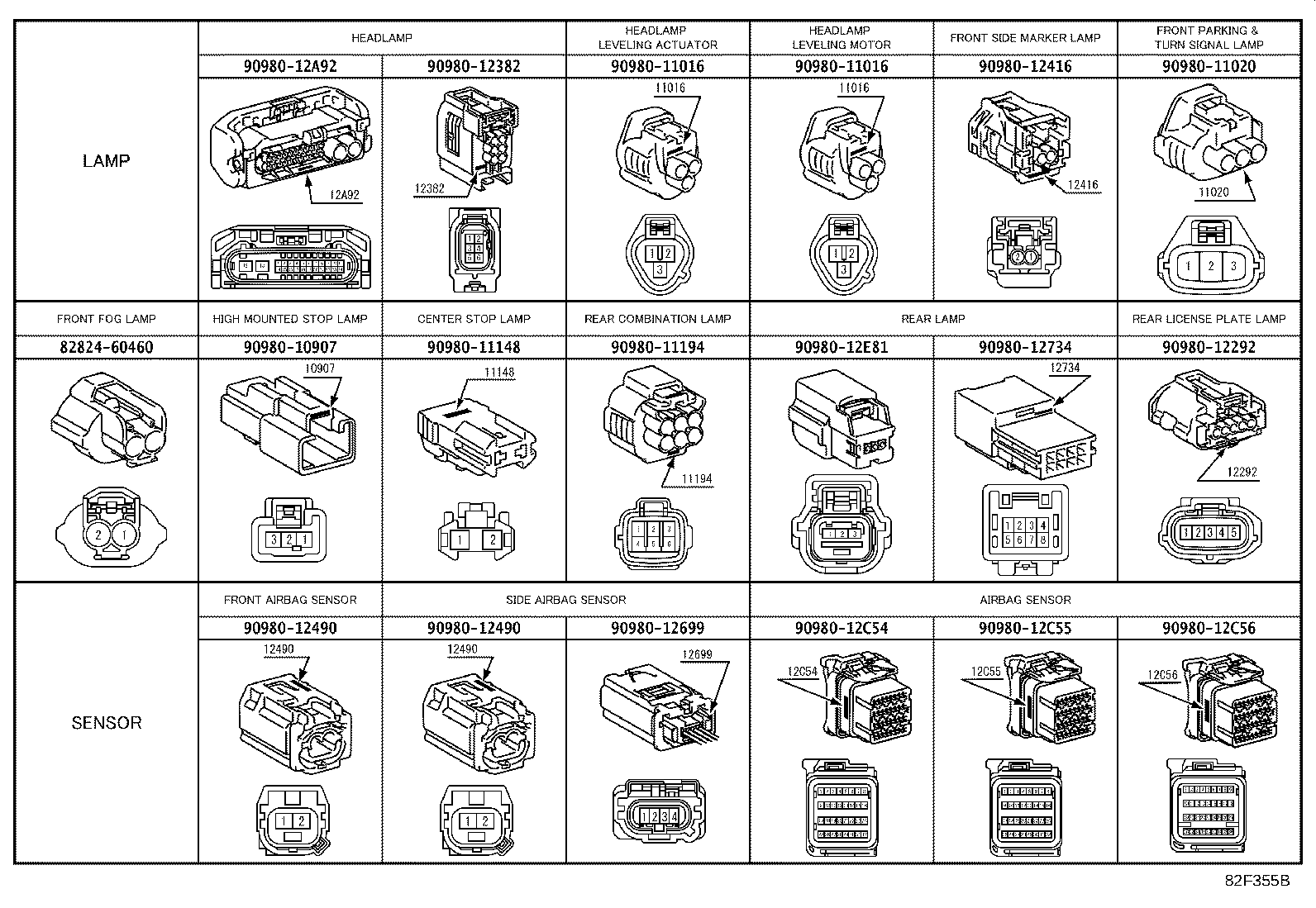

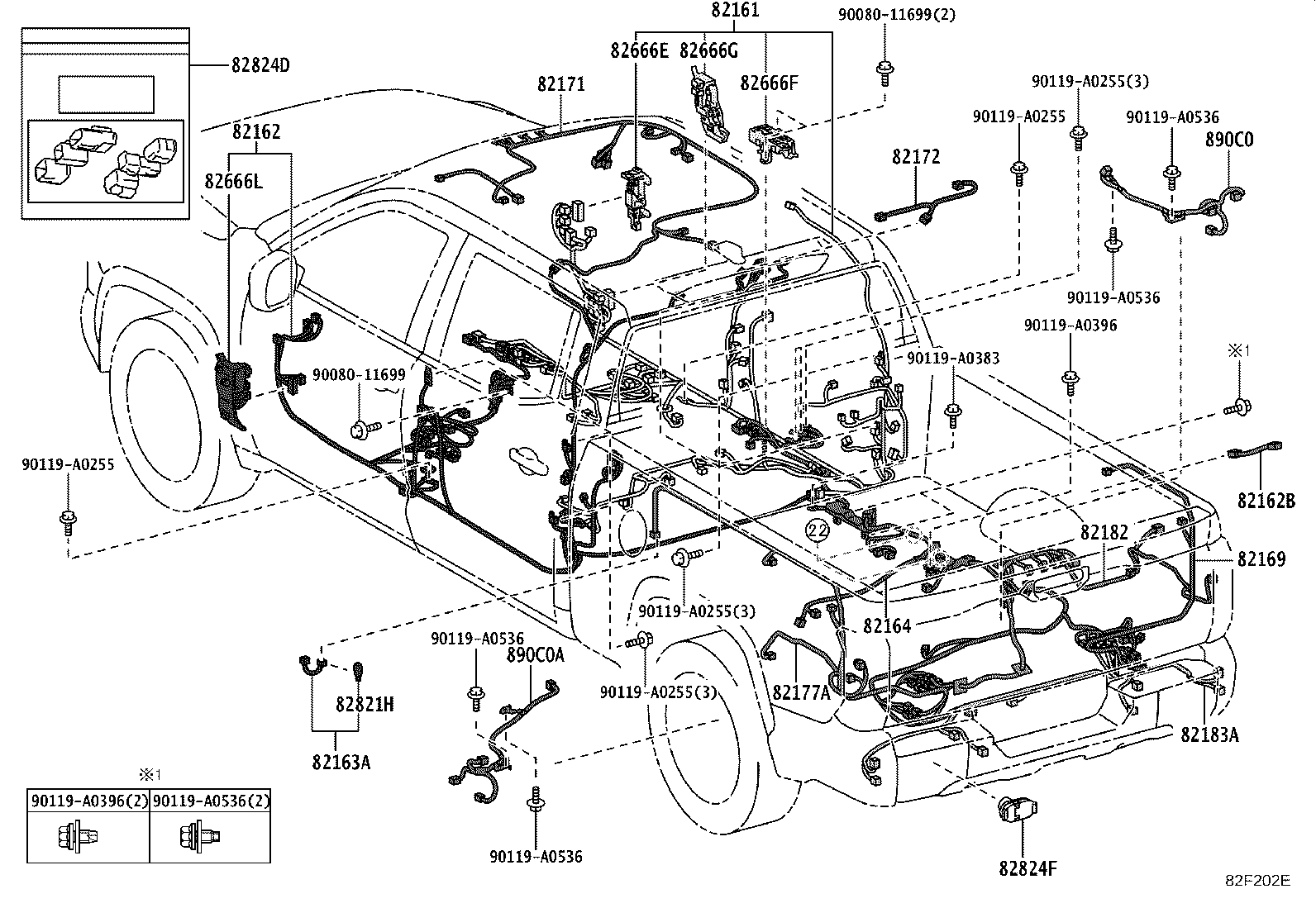

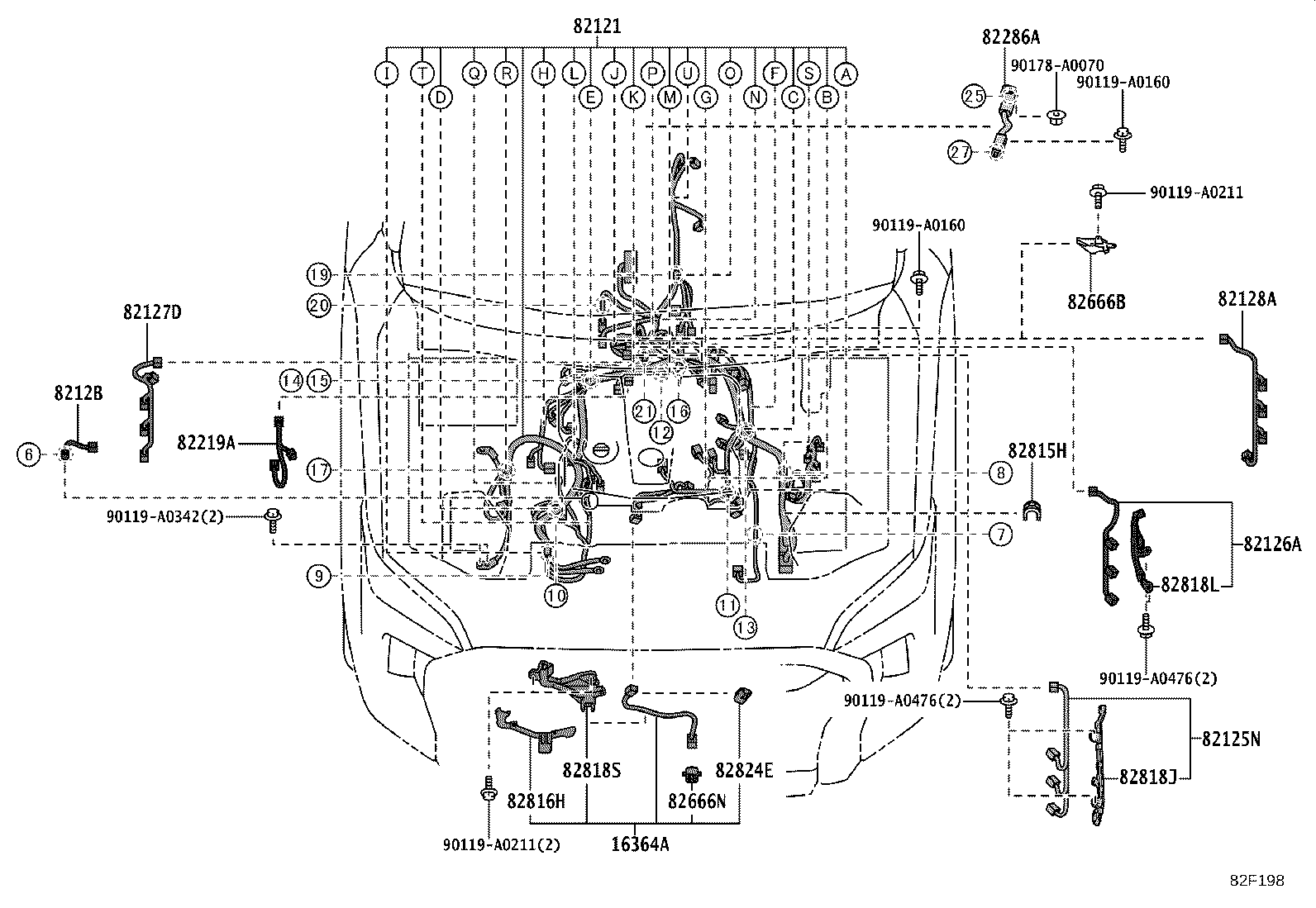

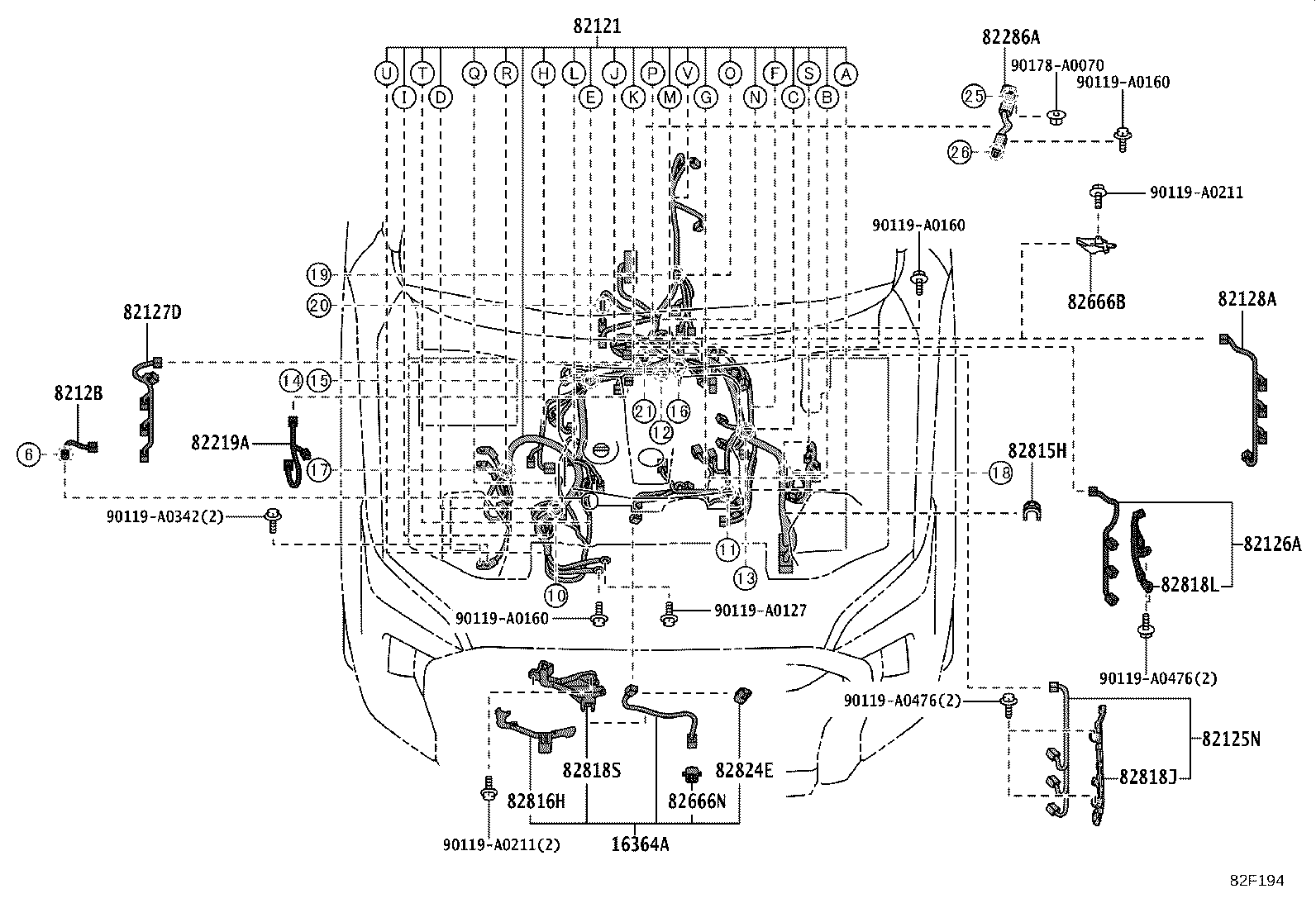

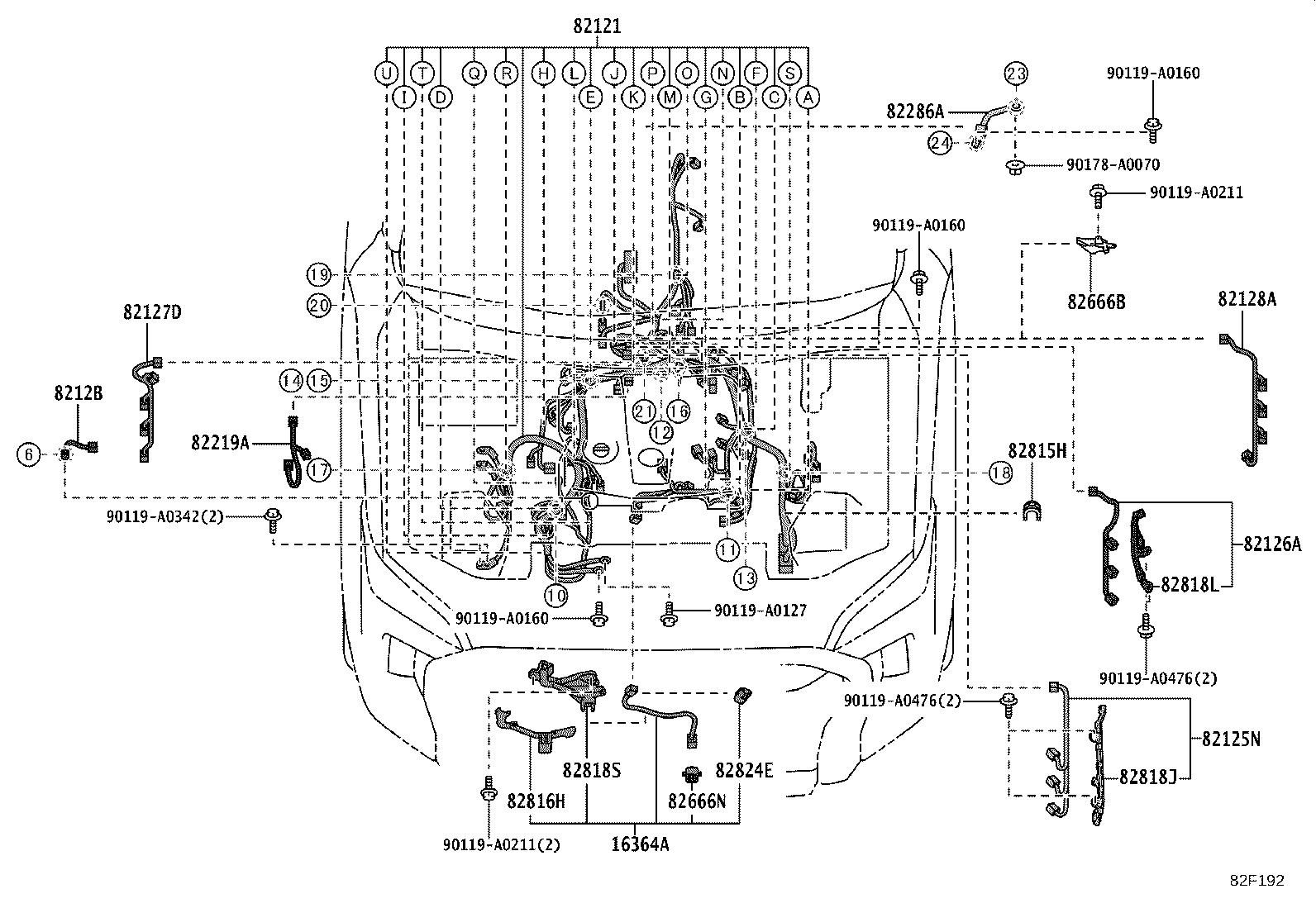

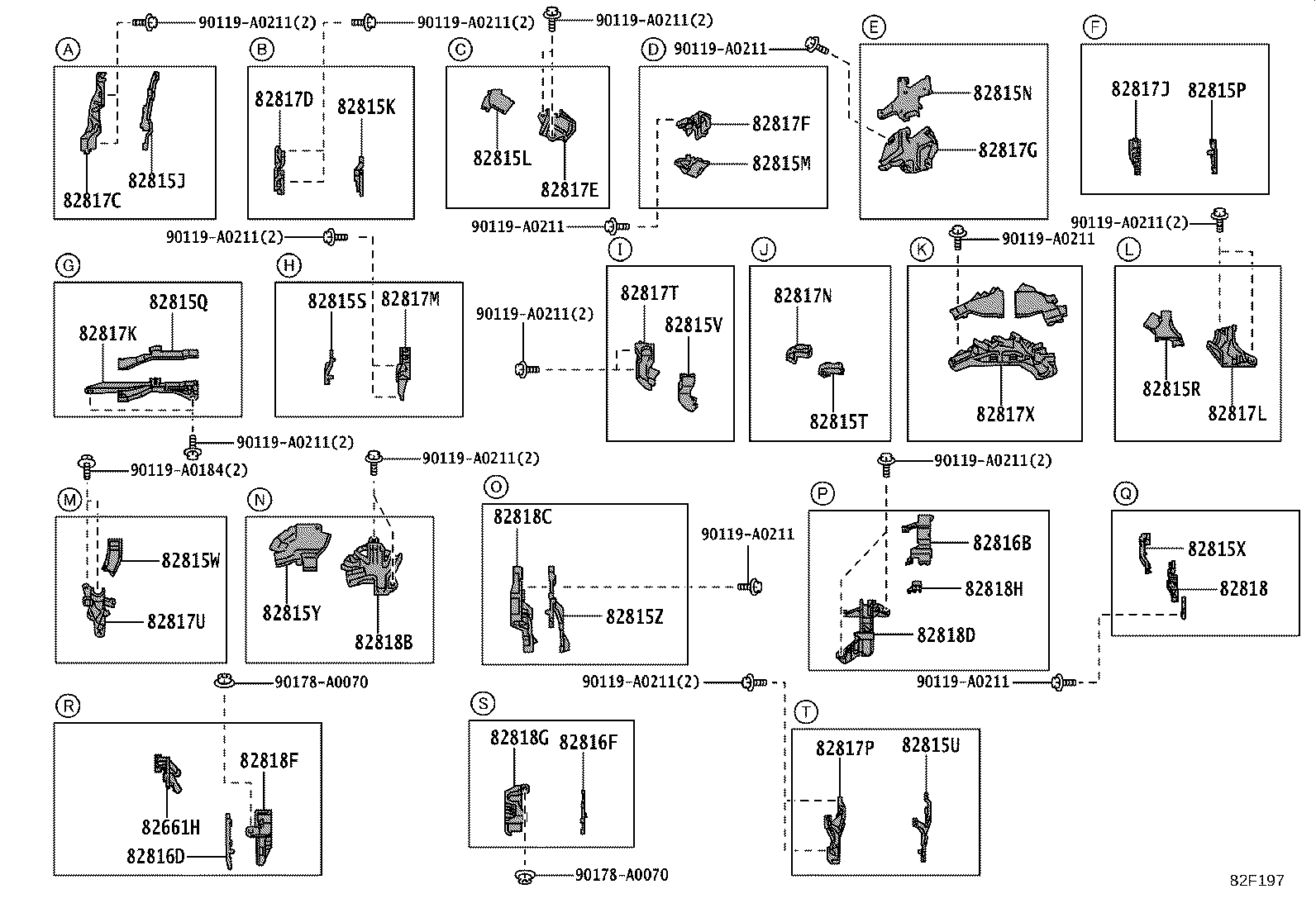

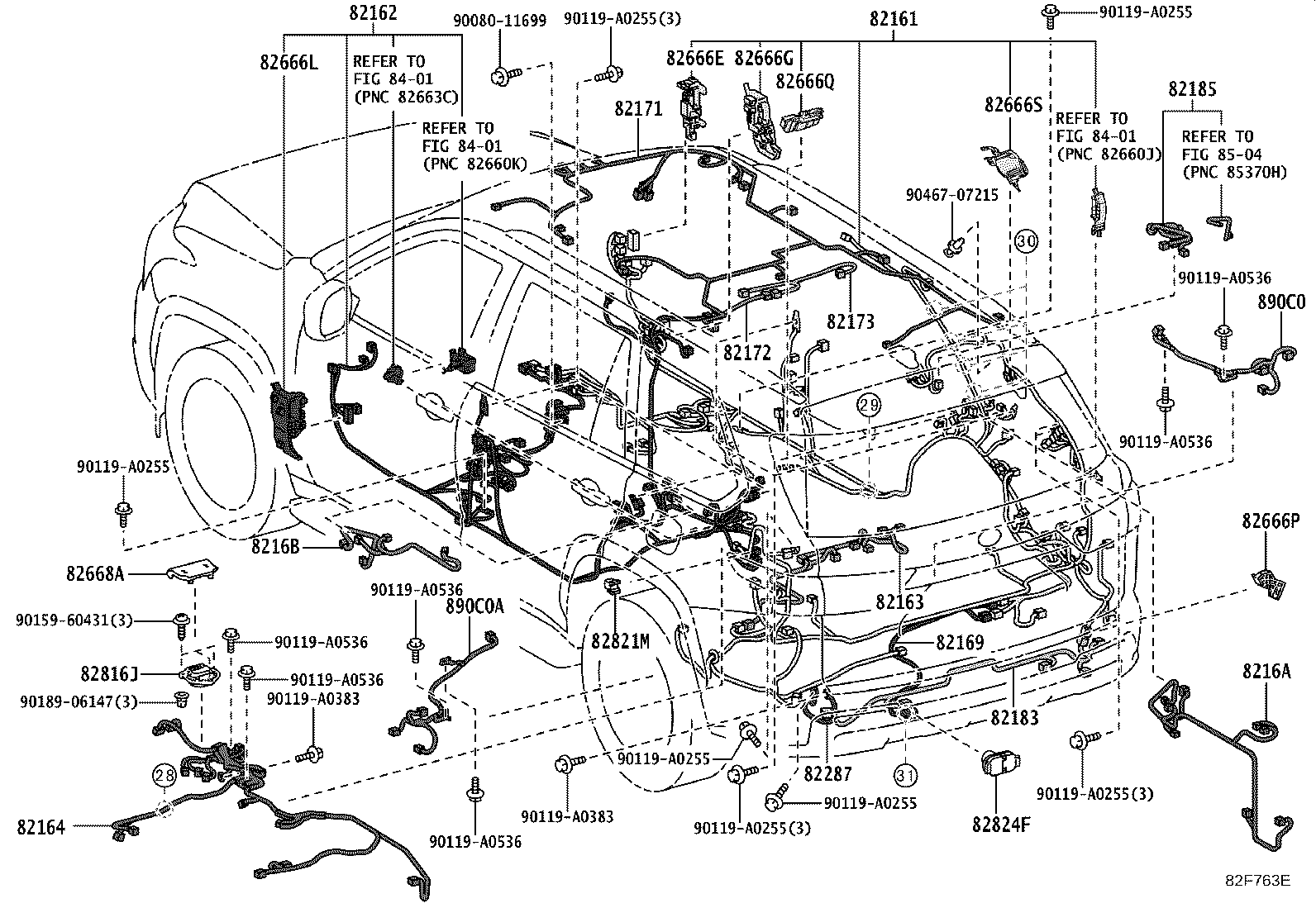

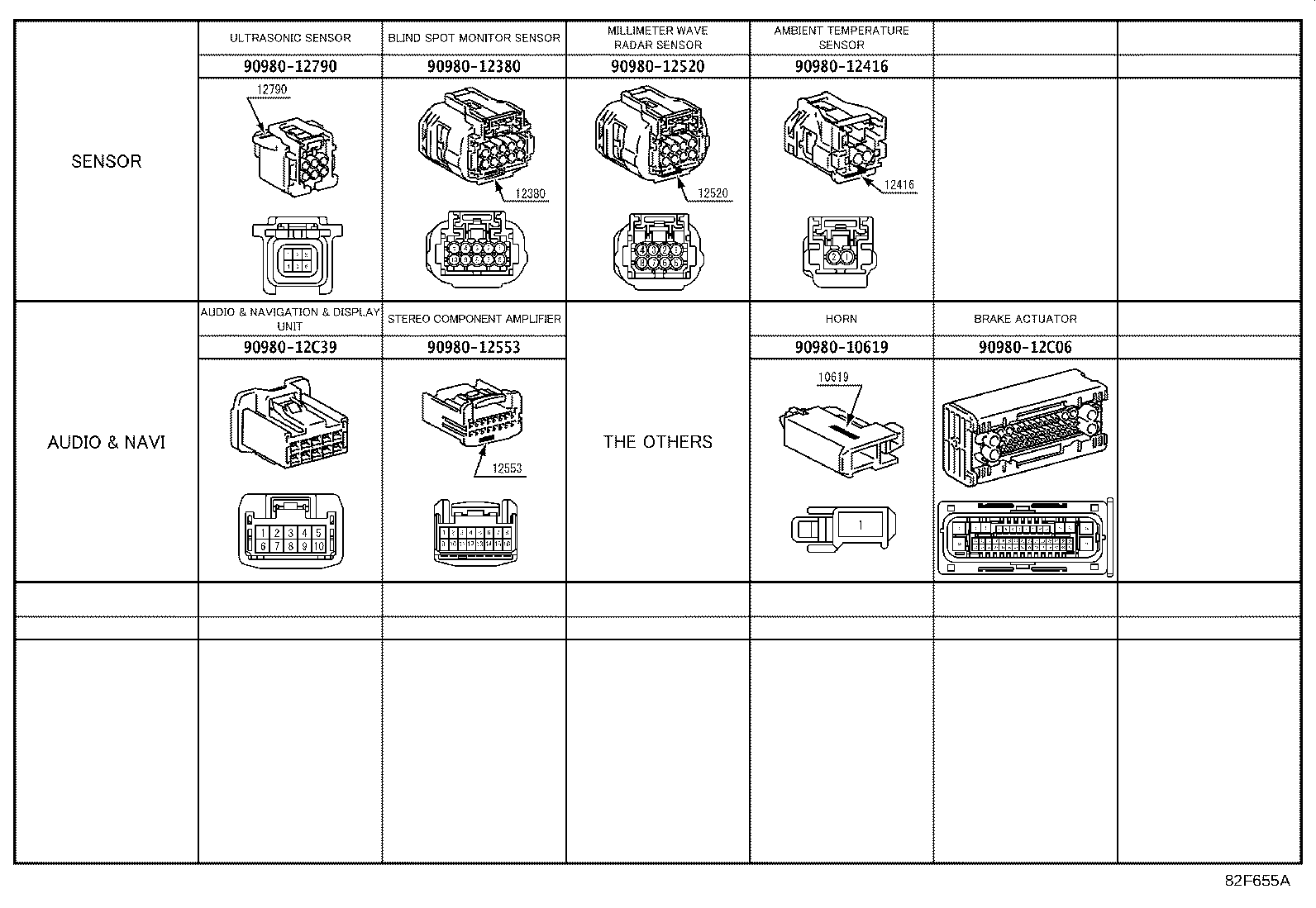

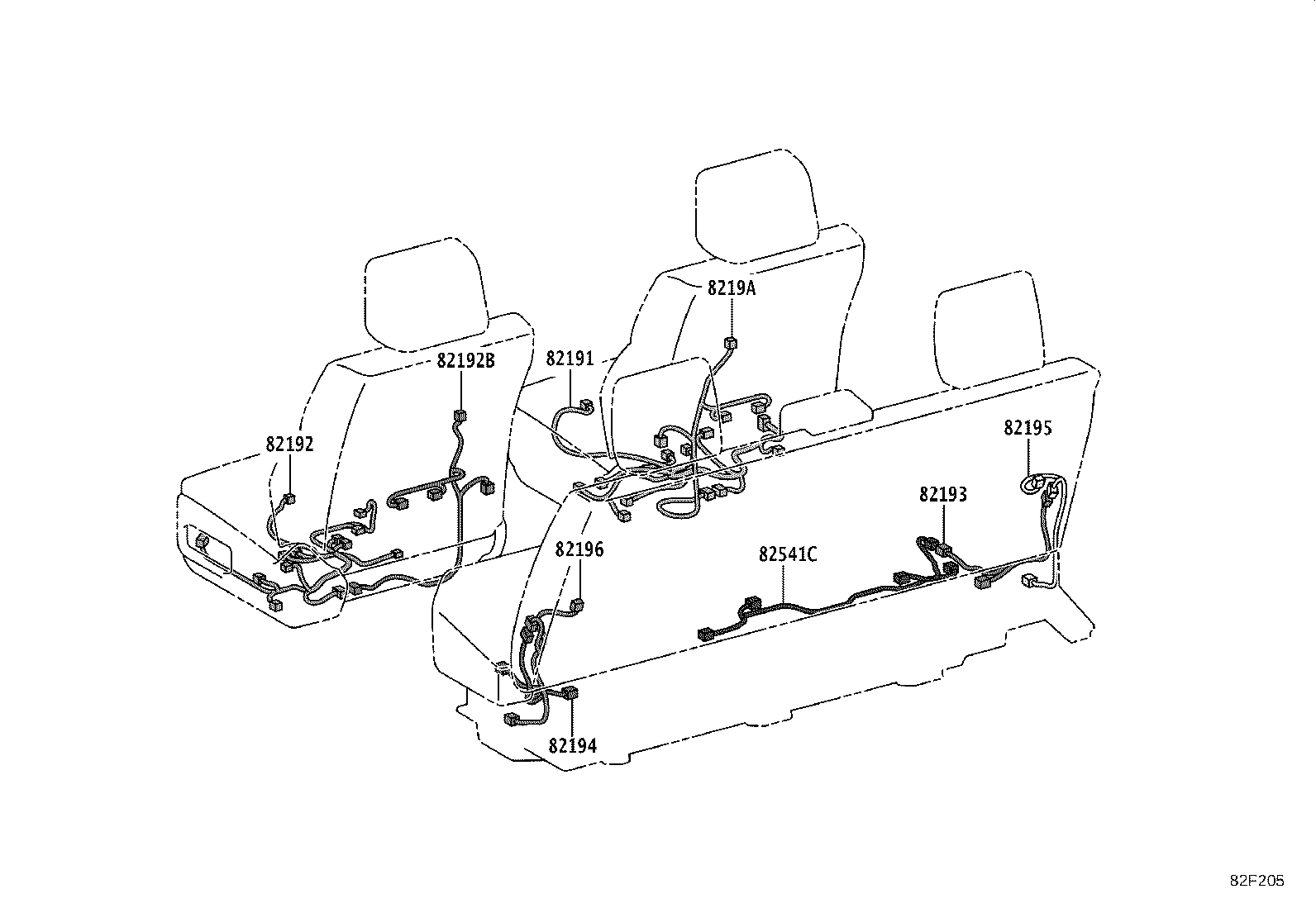

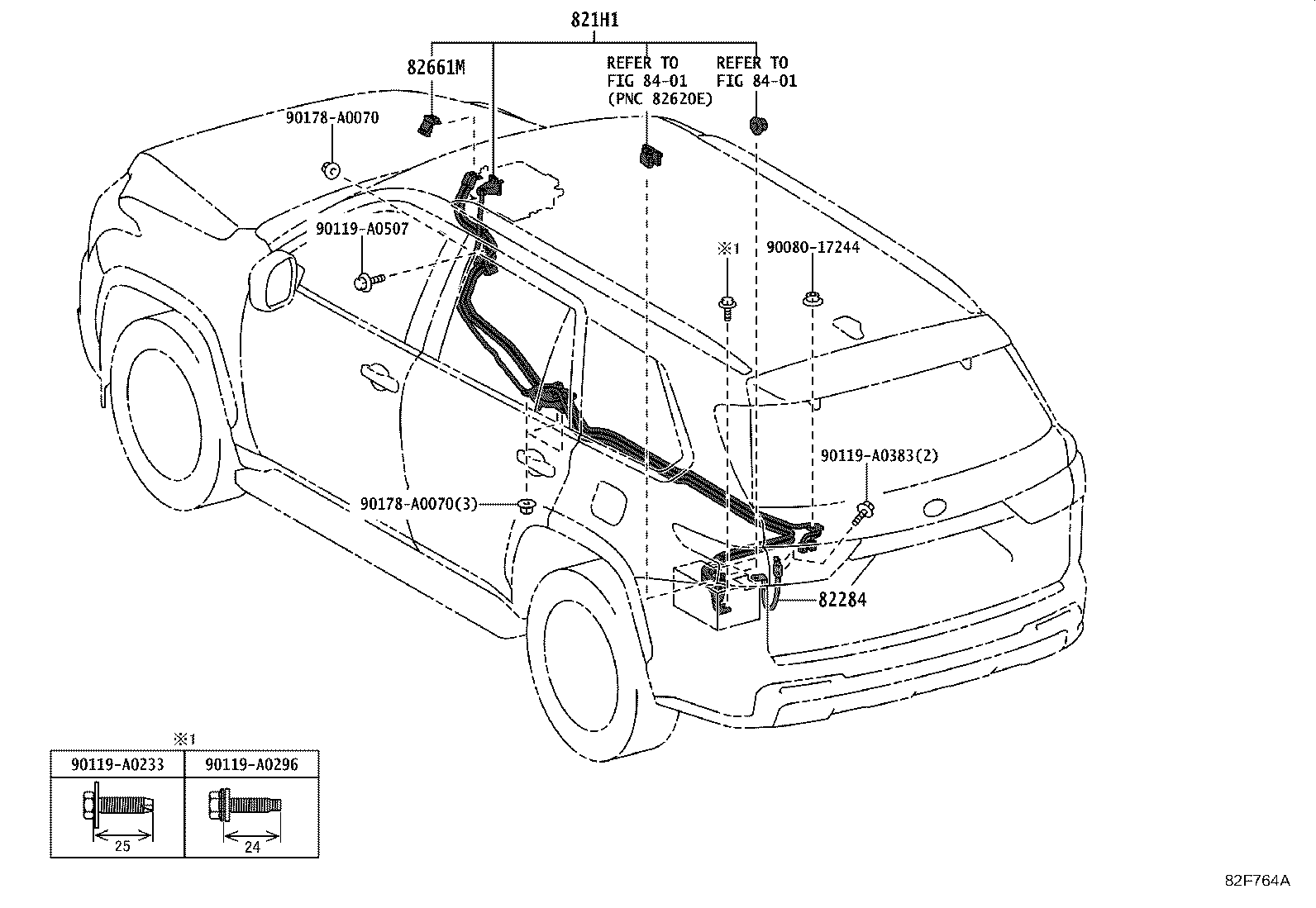

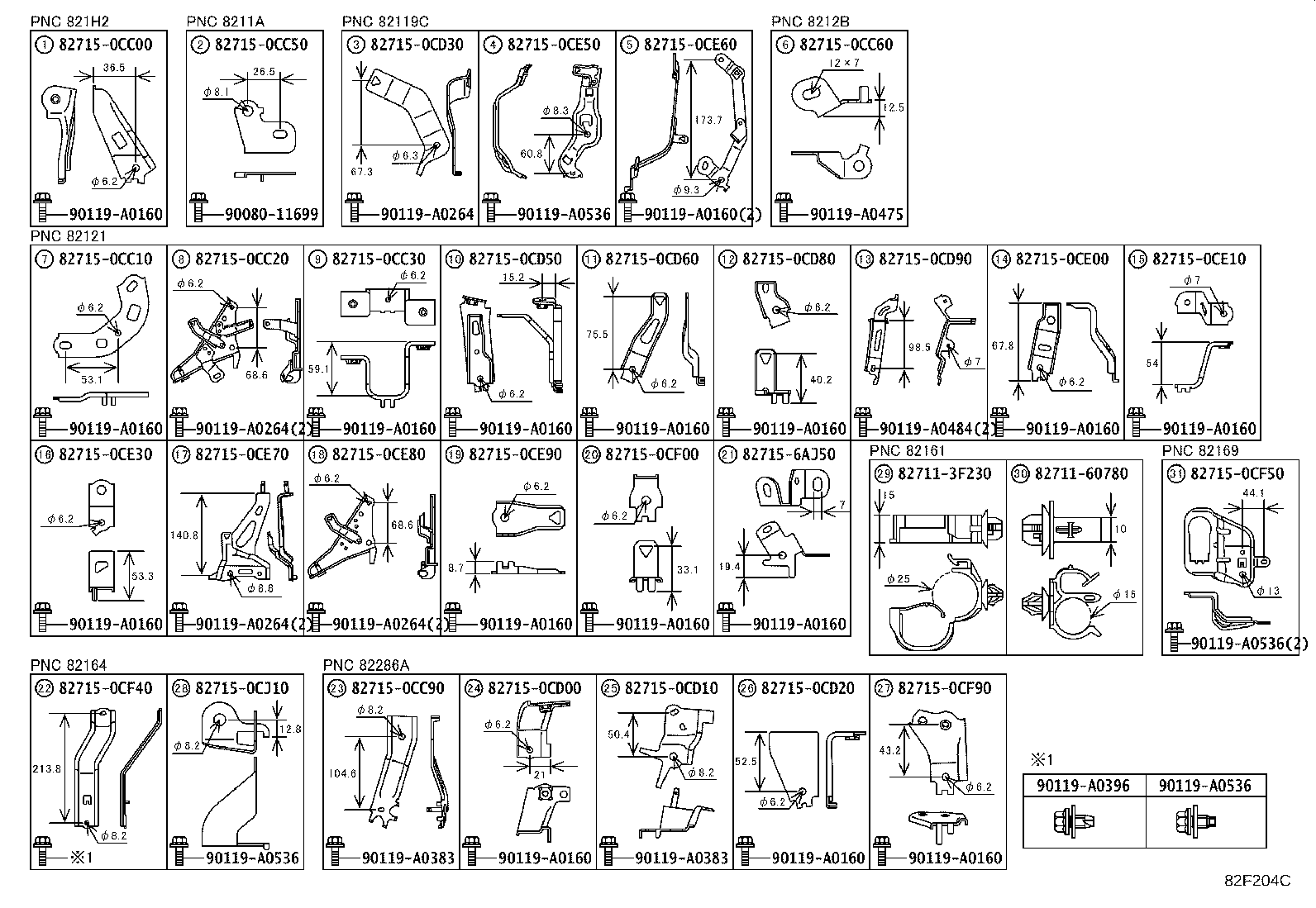

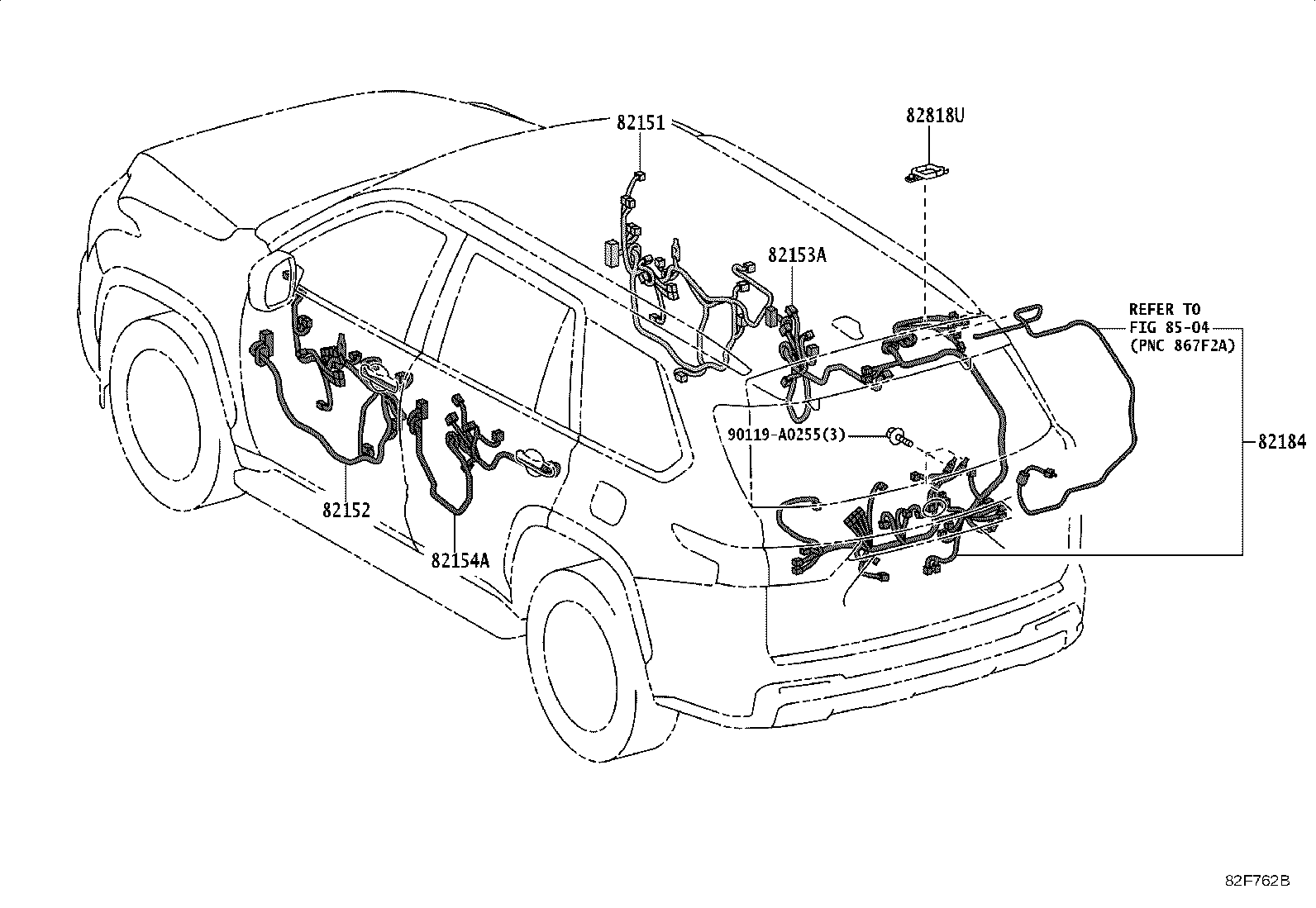

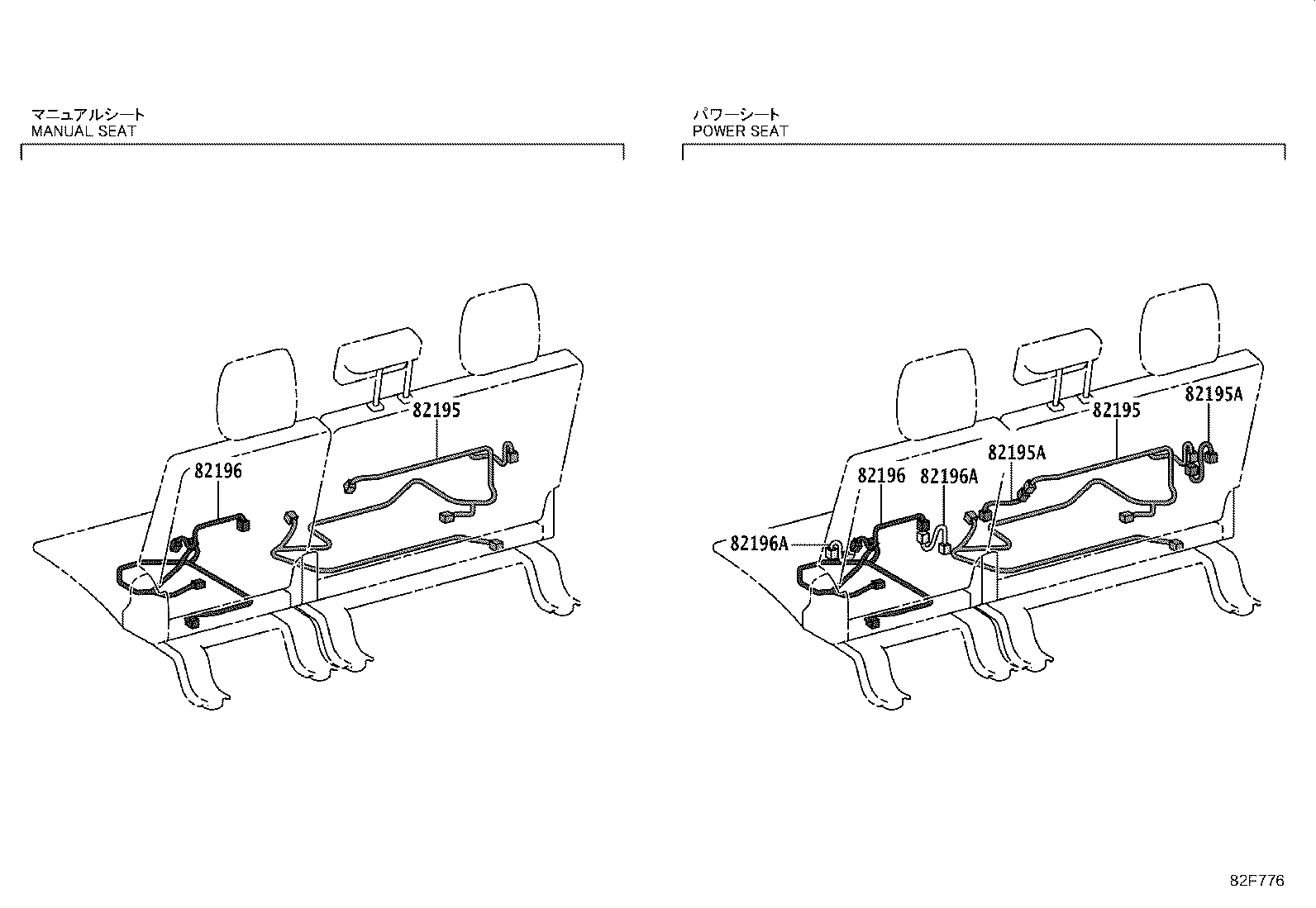

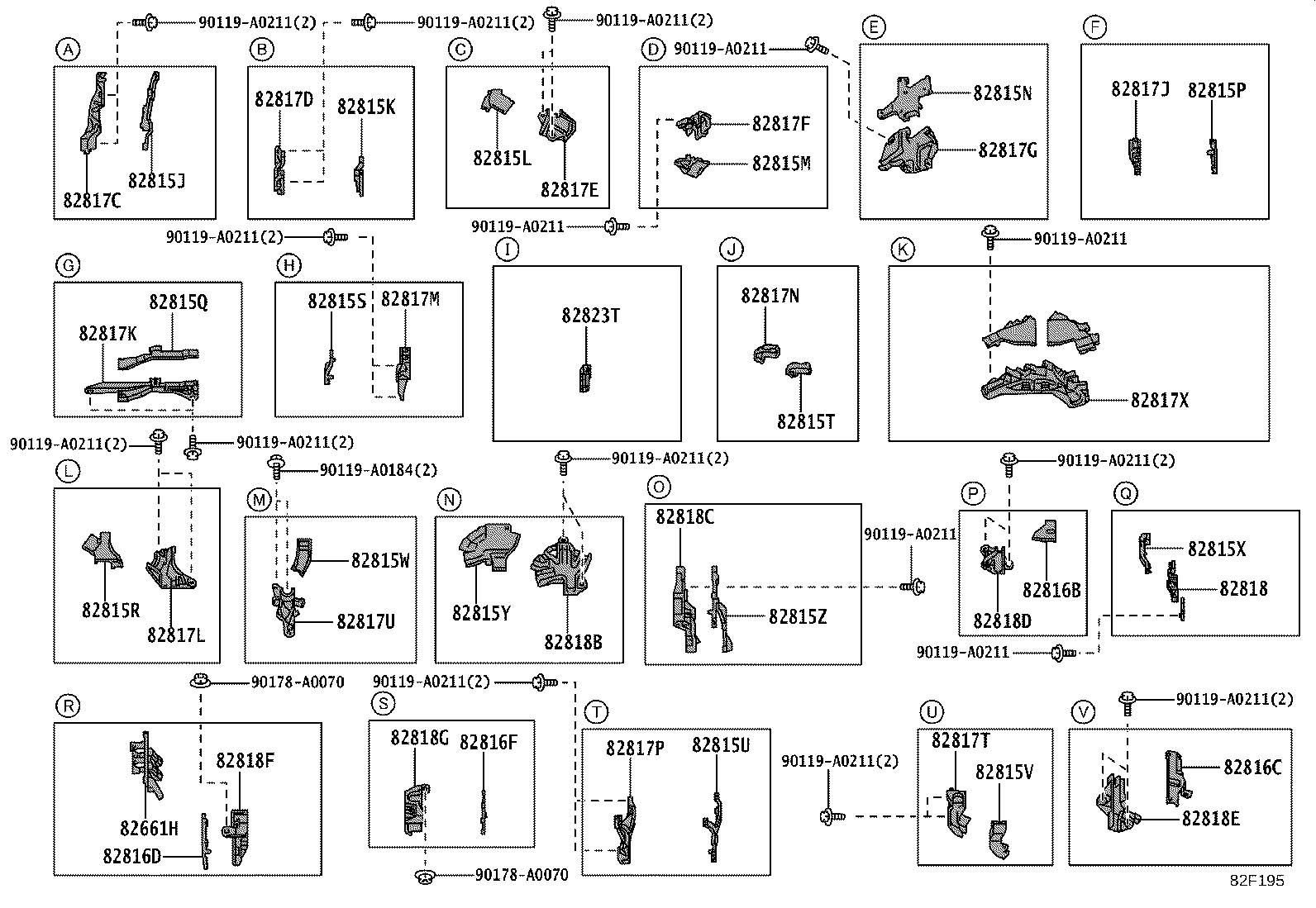

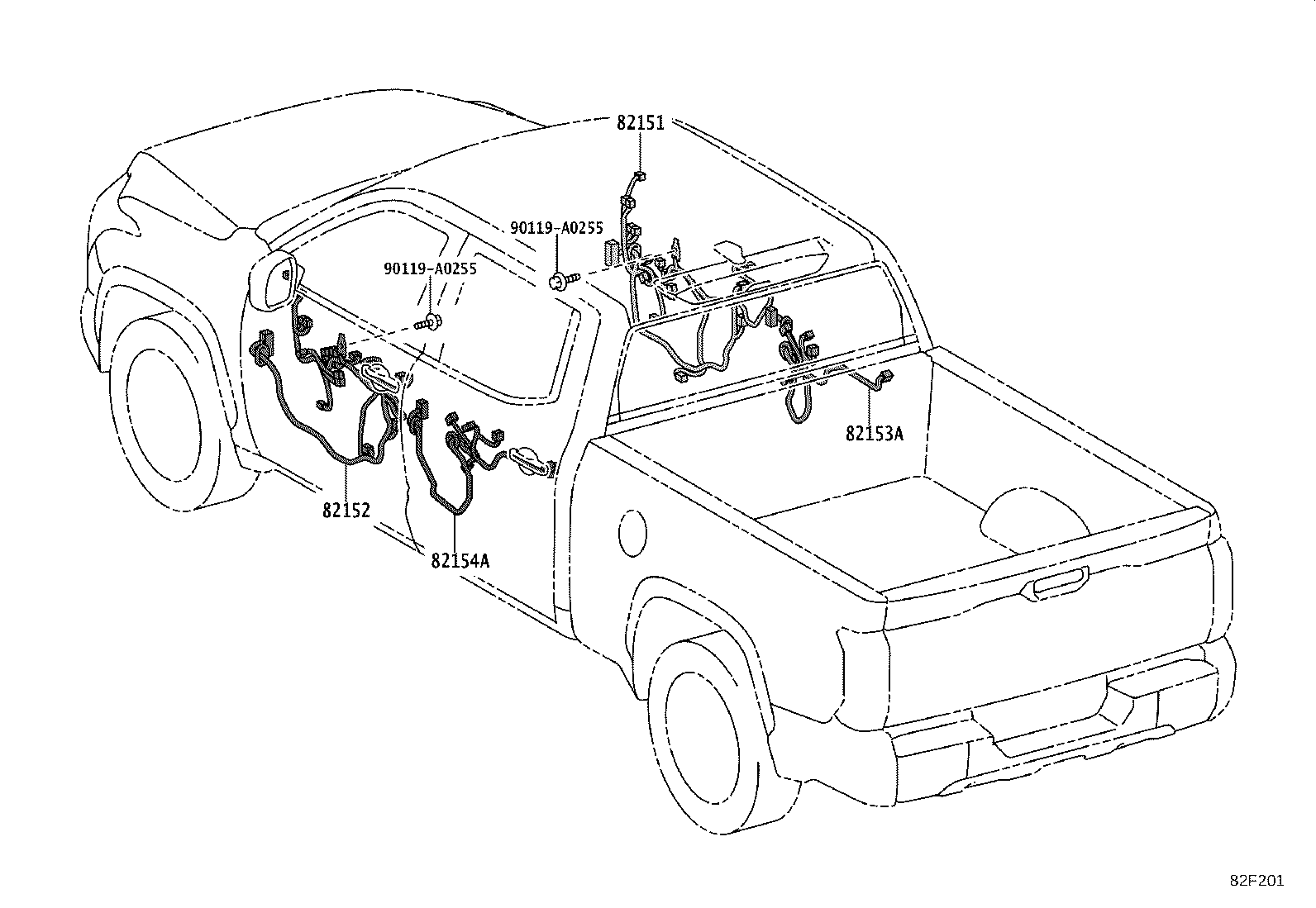

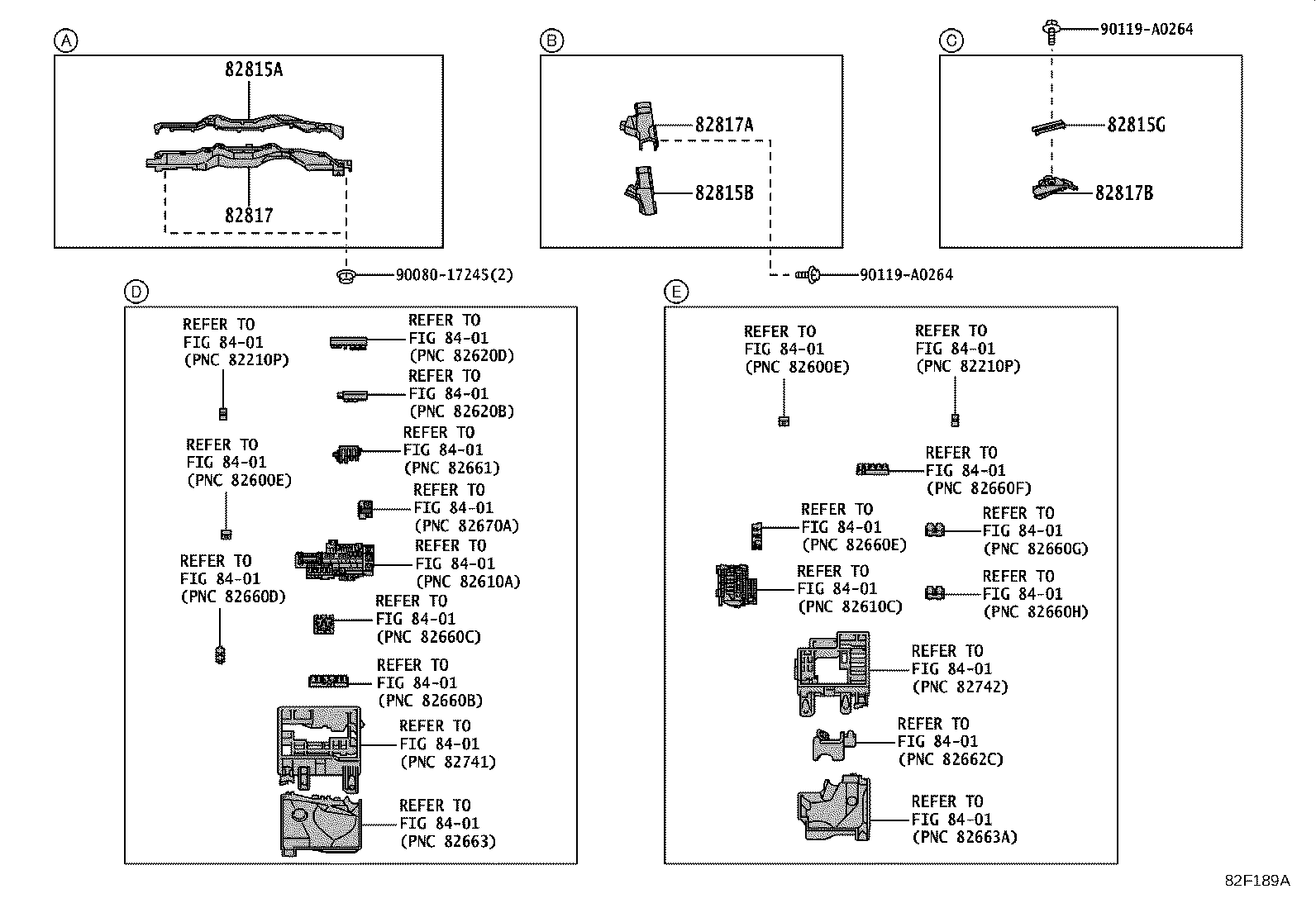

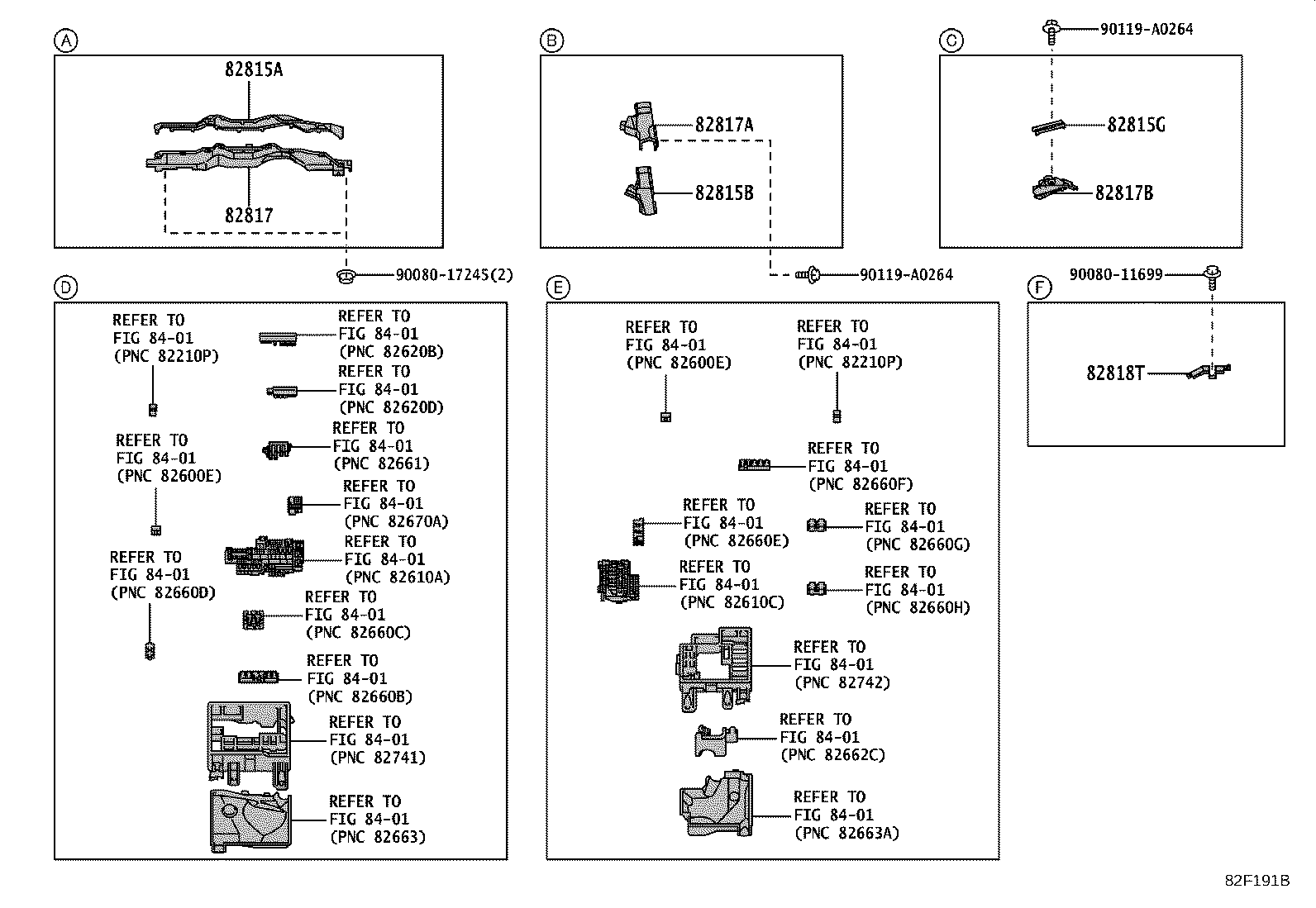

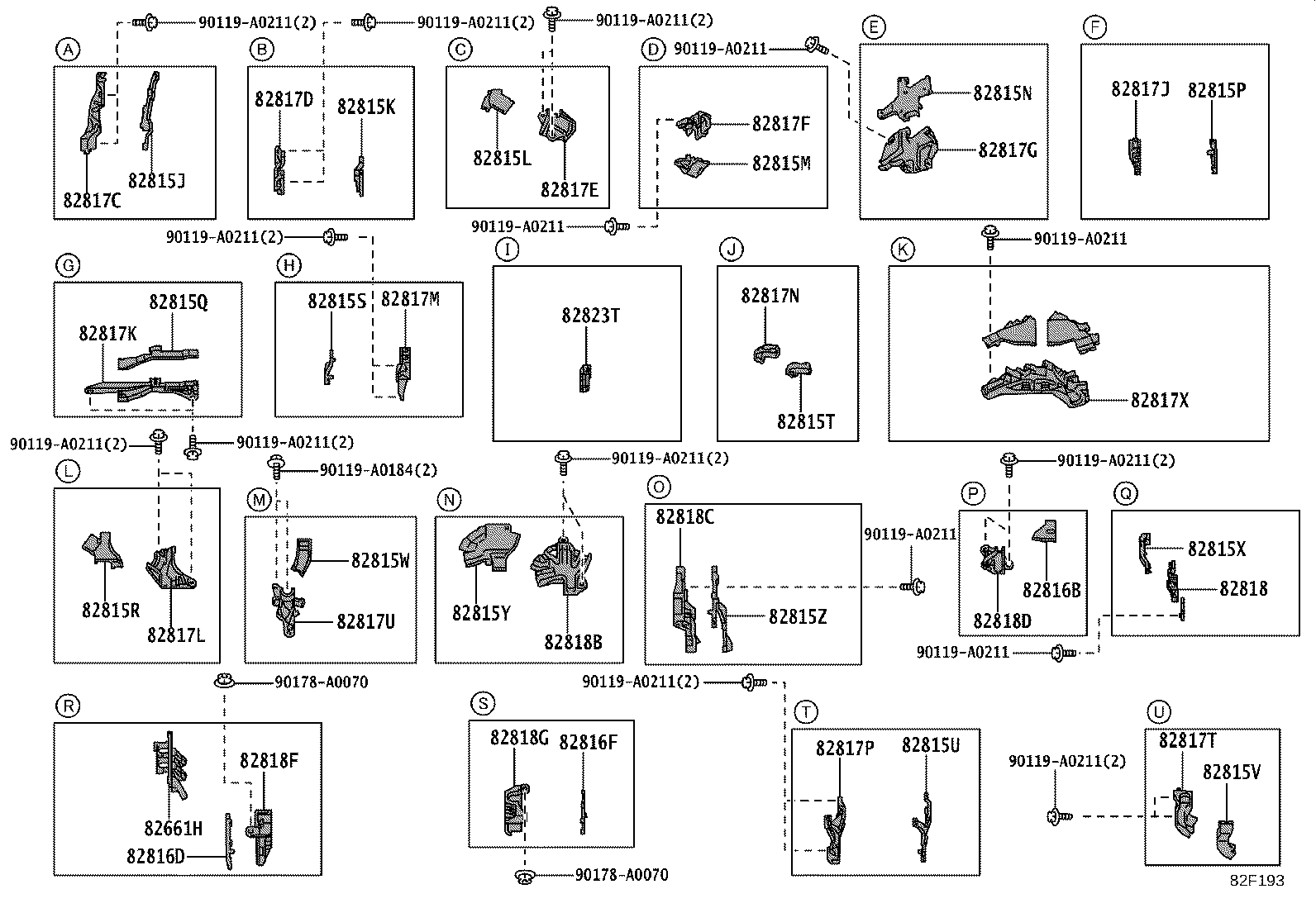

Figure 82F188B 82F188B 2021-11 → — Figure 82F189A 82F189A 2021-11 → — Figure 82F190B 82F190B 2021-11 → — Figure 82F191B 82F191B 2021-11 → — Figure 82F192 82F192 2021-11 → — Figure 82F193 82F193 2021-11 → — Figure 82F194 82F194 2021-11 → — Figure 82F195 82F195 2021-11 → — Figure 82F196 82F196 2021-11 → — Figure 82F197 82F197 2021-11 → — Figure 82F198 82F198 2021-11 → — Figure 82F199 82F199 2021-11 → — Figure 82F200 82F200 2021-11 → — Figure 82F201 82F201 2021-11 → — Figure 82F762B 82F762B 2022-07 → — Figure 82F202E 82F202E 2021-11 → — Figure 82F763E 82F763E 2022-07 → — Figure 82F203A 82F203A 2021-11 → — Figure 82F764A 82F764A 2022-07 → — Figure 82F205 82F205 2021-11 → — Figure 82F774 82F774 2022-07 → — Figure 82F775 82F775 2022-07 → — Figure 82F776 82F776 2022-07 → — Figure 82F204C 82F204C 2021-11 → — Figure 82F355B 82F355B 2021-11 → — Figure 82F655A 82F655A 2021-11 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan

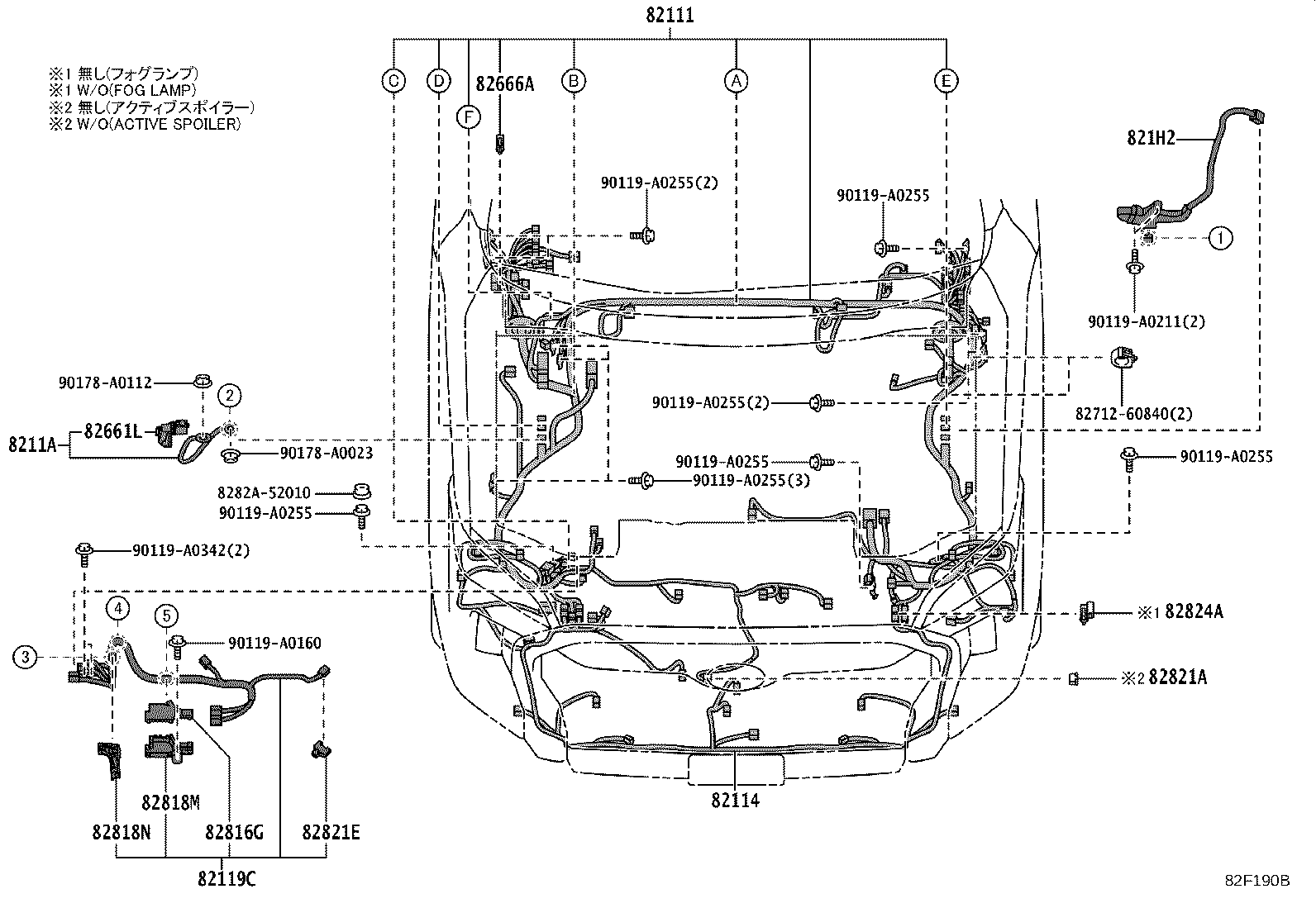

82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
8211A Wire, Engine Room, NO.6

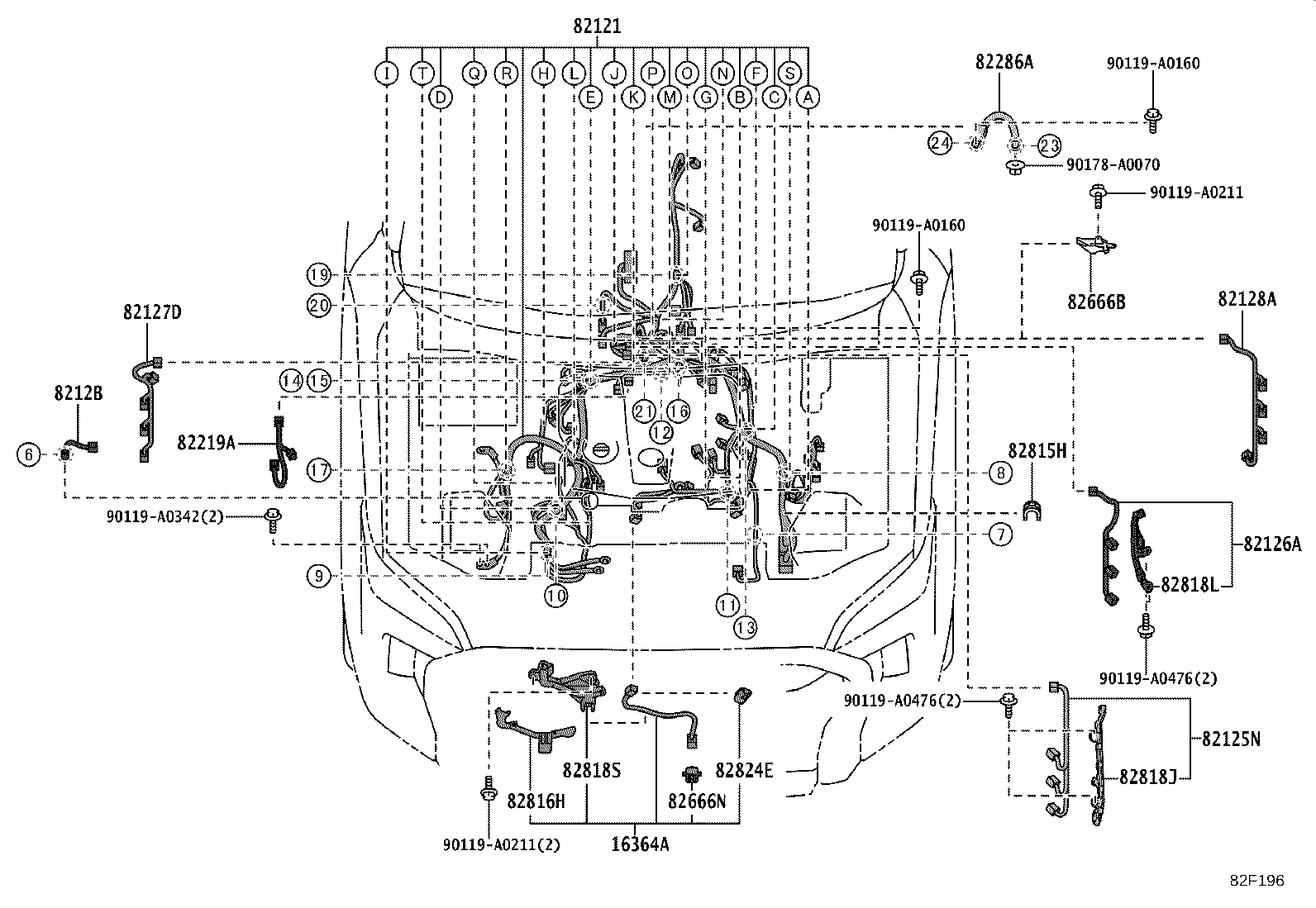

82121 Wire, Engine
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
8212B Wire, Engine, NO.10

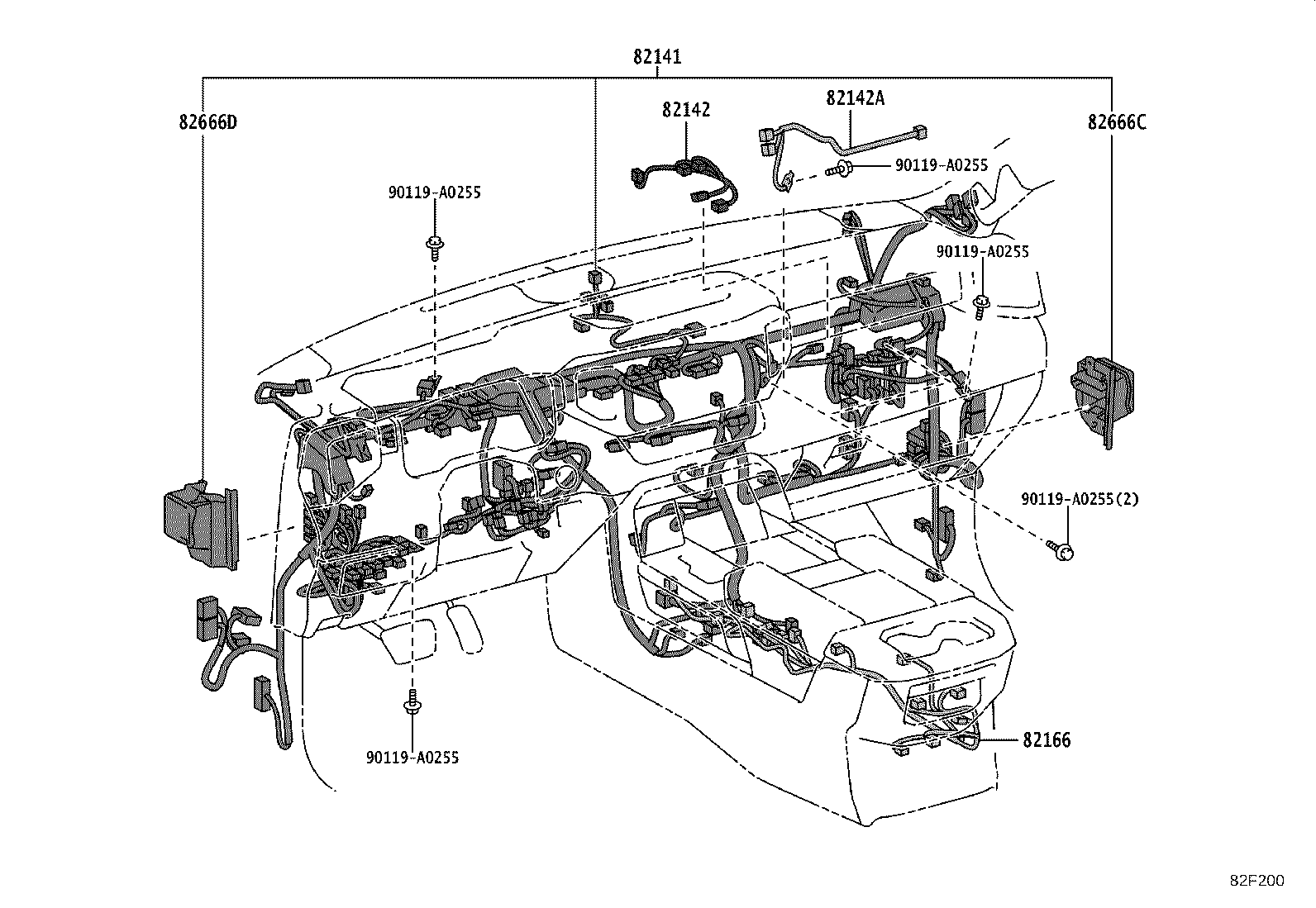

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82162B Wire, Floor, NO.3
82163 Wire, Floor, NO.3
82163A Wire, Floor, NO.4
82164 Wire, Frame
82166 Wire, Console Box
82169 Wire Frame, NO.3
8216A Wire, Floor NO.7
8216B Wire, Floor NO.8
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82177A Wire, Frame, NO.4
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2

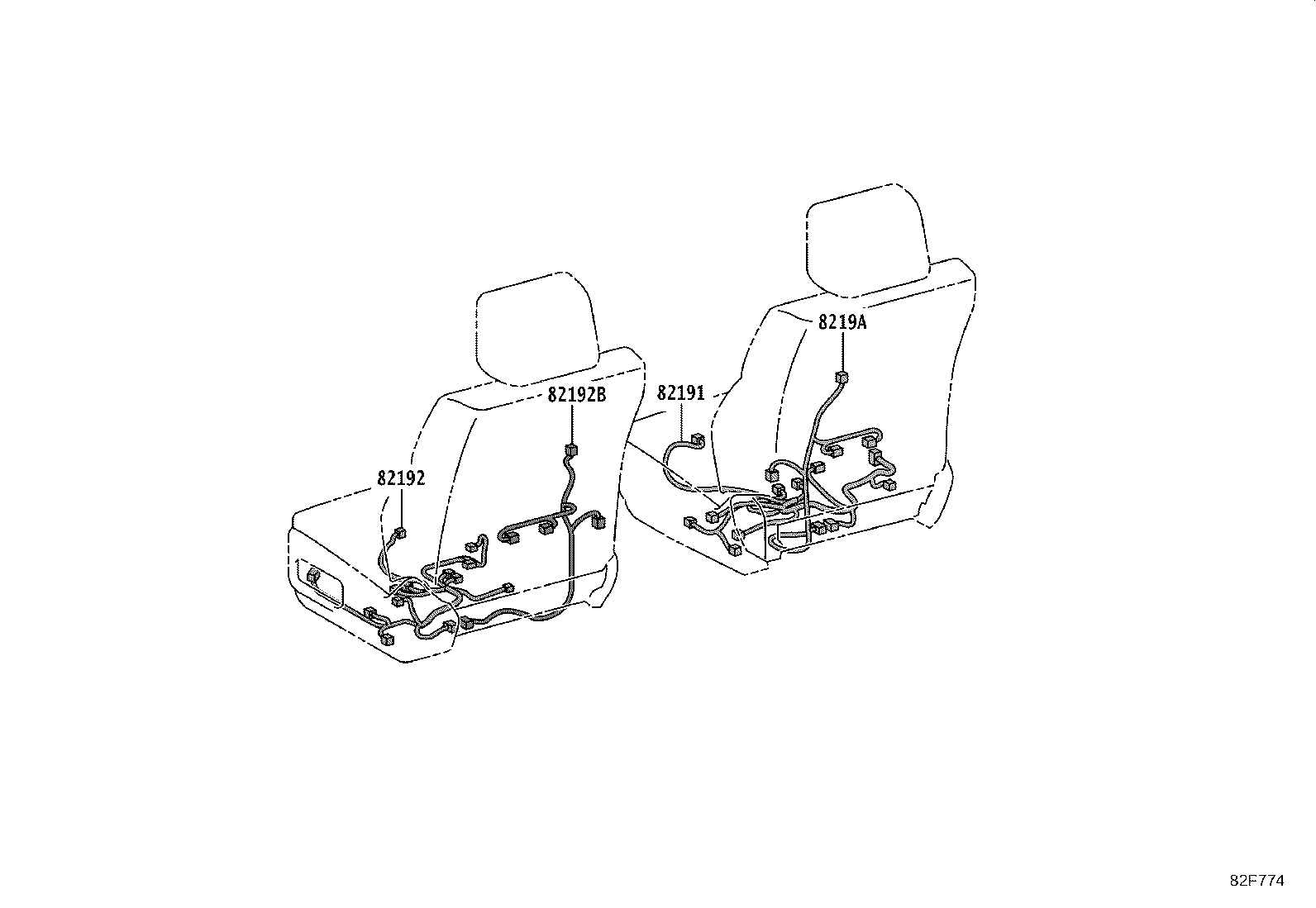

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2

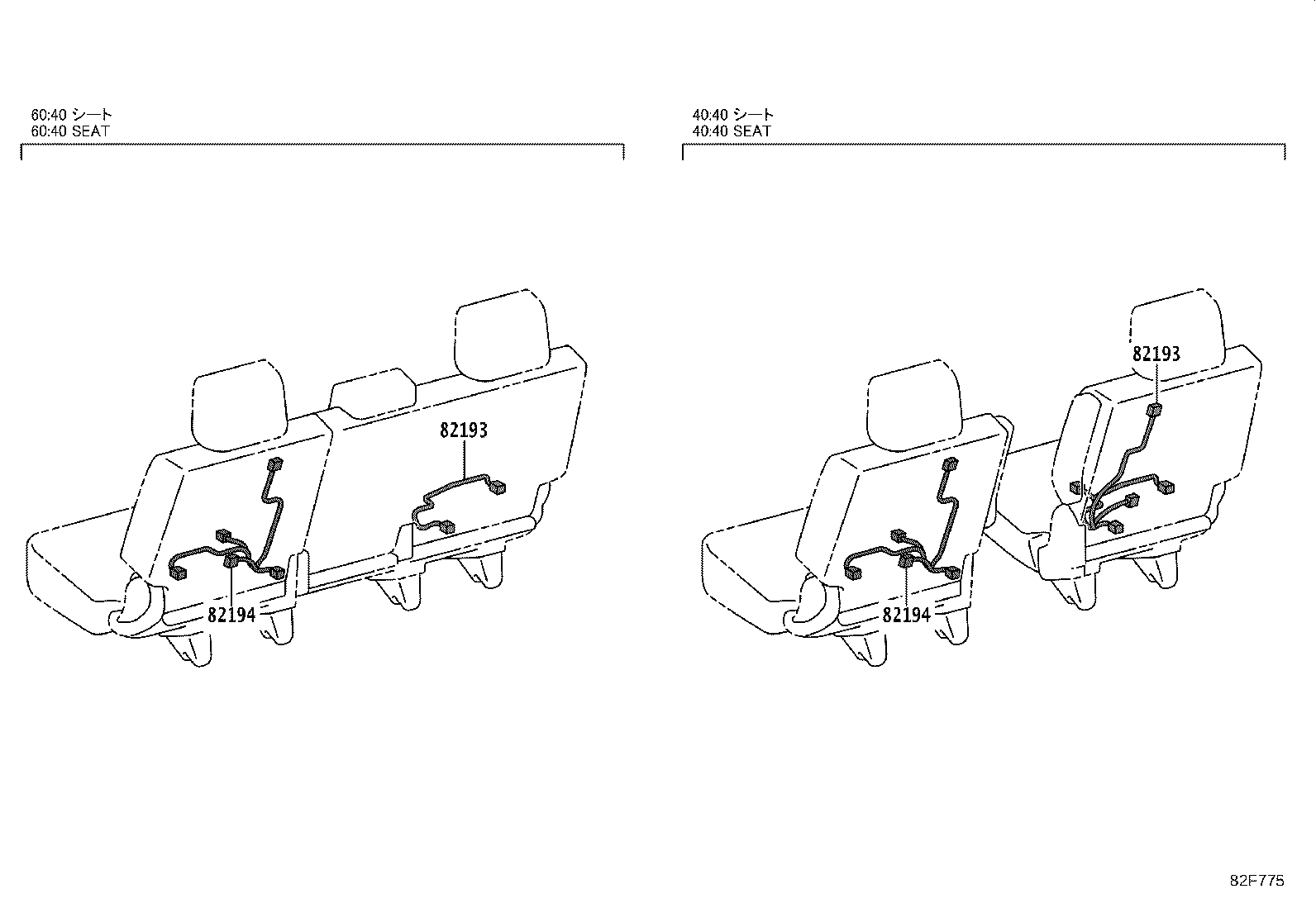

82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82195A Wire, Rear Seat, RH NO.3
82196 Wire, Rear Seat, LH NO.2
82196A Wire, Rear Seat, LH NO.3
8219A Wire, Front Seat, RH NO.2

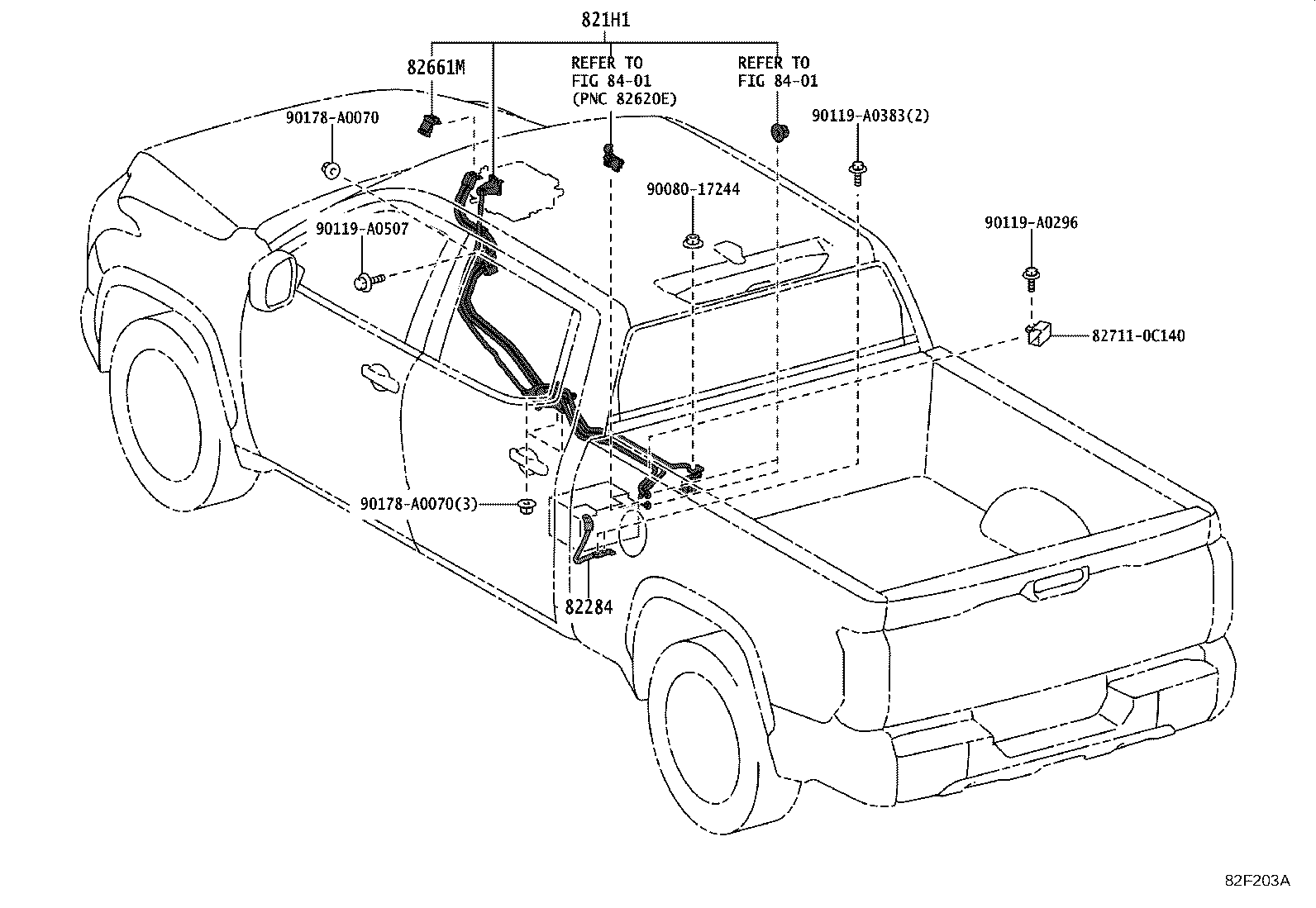

821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219A Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82287 Wire, Earth, NO.3
82541C Wire, Seat Belt Warning
82661H Cover, Relay Block
82661L Cover, Relay Block, NO.2
82661M Cover, Relay Block, NO.3
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82668A Cover, Connector Holder Block, Upper
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82823T Cap, Alternator Terminal
82824A Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
