Toyota Sequoia
2007-11 → 2021-12 · chassis UCK6#,UPK6#,USK6# · catalogue 842420 · United States
Supported model
Data version 2022-11

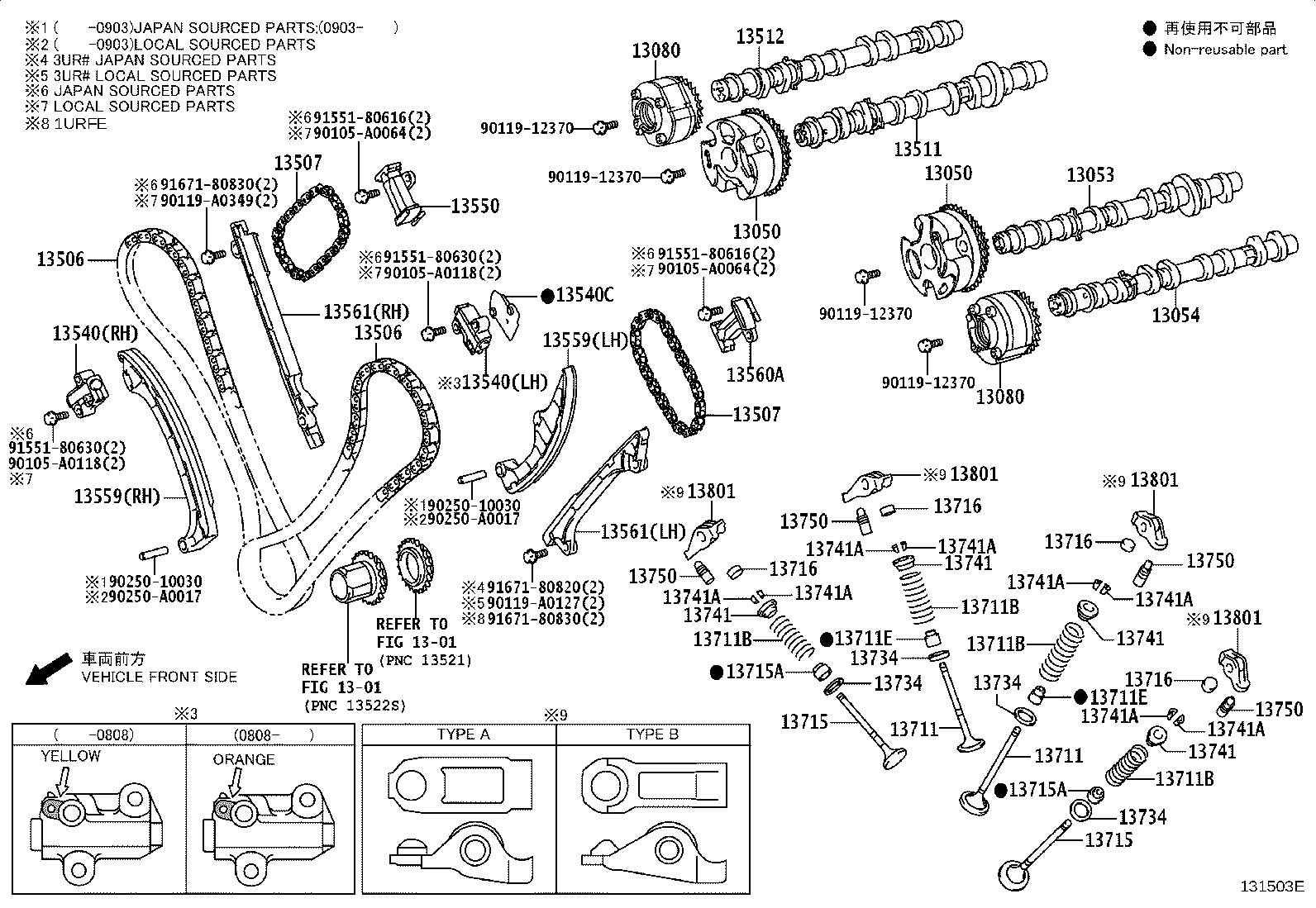

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 13050 — Gear Assy, Camshaft Timing | ||||
| 13050-0S010 note |
Gear Assy, Camshaft Timing
2007-11 → 2008-11
ended
|
3UR# USK6# | — | |
| 13050-0S010 |
Gear Assy, Camshaft Timing
2009-12 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13050-0S010 |
Gear Assy, Camshaft Timing
2009-12 → 2017-08
ended
|
3UR# USK6# | — | |
| 13050-0S020 |
Gear Assy, Camshaft Timing
2008-11 → 2009-12
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 13050-38010 note |
Gear Assy, Camshaft Timing
2007-11 → 2008-11
ended
|
3UR# USK6# | — | |
| 13050-0S010 |
Gear Assy, Camshaft Timing
2017-08 → —
|
3URFE USK6# | — | |
| 13050-0S010 |
Gear Assy, Camshaft Timing
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13053 — Camshaft Sub-assy, NO.3 | ||||
| 13053-0F020 |
Camshaft Sub-assy, NO.3
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 13053-0S010 note |
Camshaft Sub-assy, NO.3
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13053-0S020 |
Camshaft Sub-assy, NO.3
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13053-38010 note |
Camshaft Sub-assy, NO.3
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13053-0S010 |
Camshaft Sub-assy, NO.3
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13053-0S010 |
Camshaft Sub-assy, NO.3
2017-08 → —
|
3URFE USK6# | — | |
| 13054 — Camshaft Sub-assy, NO.4 | ||||
| 13054-0F020 |
Camshaft Sub-assy, NO.4
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 13054-0S010 note |
Camshaft Sub-assy, NO.4
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13054-0S020 |
Camshaft Sub-assy, NO.4
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13054-38010 note |
Camshaft Sub-assy, NO.4
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13054-0S010 |
Camshaft Sub-assy, NO.4
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13054-0S010 |
Camshaft Sub-assy, NO.4
2017-08 → —
|
3URFE USK6# | — | |
| 13080 — Gear Assy, Camshaft Timing Exhaust, LH | ||||
| 13080-0P020 note |
Gear Assy, Camshaft Timing Exhaust, LH
2007-11 → 2008-10
ended
|
3UR# USK6# | — | |
| 13080-0P040 |
Gear Assy, Camshaft Timing Exhaust, LH
2008-10 → 2008-11
ended
|
3UR# USK6# | — | |
| 13080-0S010 |
Gear Assy, Camshaft Timing Exhaust, LH
2008-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13080-0S010 |
Gear Assy, Camshaft Timing Exhaust, LH
2008-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13080-31030 note |
Gear Assy, Camshaft Timing Exhaust, LH
2007-11 → 2008-10
ended
|
3UR# USK6# | — | |
| 13080-0S010 |
Gear Assy, Camshaft Timing Exhaust, LH
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13080-0S010 |
Gear Assy, Camshaft Timing Exhaust, LH
2017-08 → —
|
3URFE USK6# | — | |
| 13506 — Chain Sub-assy | ||||
| 13506-0S010 note |
Chain Sub-assy
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13506-0S020 note |
Chain Sub-assy
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13506-38020 note |
Chain Sub-assy
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13506-38030 note |
Chain Sub-assy
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13506-0S010 |
Chain Sub-assy
2017-08 → —
|
3URFE USK6# | — | |
| 13506-0S010 |
Chain Sub-assy
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13507 — Chain Sub-assy, NO.2 | ||||
| 13507-0P010 note |
Chain Sub-assy, NO.2
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13507-0P010 note |
Chain Sub-assy, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13507-31020 note |
Chain Sub-assy, NO.2
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13507-31020 note |
Chain Sub-assy, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13507-0P010 note |
Chain Sub-assy, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13507-0P010 note |
Chain Sub-assy, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 13507-31020 note |
Chain Sub-assy, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 13507-31020 note |
Chain Sub-assy, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13511 — Camshaft | ||||
| 13501-0F020 |
Camshaft
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 13501-0S010 note |
Camshaft
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13501-0S020 |
Camshaft
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13501-38010 note |
Camshaft
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13501-0S010 |
Camshaft
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13501-0S010 |
Camshaft
2017-08 → —
|
3URFE USK6# | — | |
| 13512 — Camshaft, NO.2 | ||||
| 13502-0F020 |
Camshaft, NO.2
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 13502-0S010 note |
Camshaft, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13502-0S020 |
Camshaft, NO.2
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13502-38010 note |
Camshaft, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13502-0S010 |
Camshaft, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13502-0S010 |
Camshaft, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 13540 — Tensioner Assy, Chain, NO.1 | ||||
| 13540-0S010 note |
Tensioner Assy, Chain, NO.1
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13540-0S010 note |
Tensioner Assy, Chain, NO.1
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13540-0S020 note |
Tensioner Assy, Chain, NO.1
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13540-0S021 note |
Tensioner Assy, Chain, NO.1
2008-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13540-0S021 note |
Tensioner Assy, Chain, NO.1
2008-08 → 2016-06
ended
|
3UR# USK6# | — | |
| 13540-0S022 note |
Tensioner Assy, Chain, NO.1
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 13540-38020 note |
Tensioner Assy, Chain, NO.1
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13540-38020 note |
Tensioner Assy, Chain, NO.1
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13540-38041 note |
Tensioner Assy, Chain, NO.1
2008-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13540-38041 note |
Tensioner Assy, Chain, NO.1
2008-08 → 2016-06
ended
|
3UR# USK6# | — | |
| 13540-38042 note |
Tensioner Assy, Chain, NO.1
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 13540-38060 note |
Tensioner Assy, Chain, NO.1
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13540-50030 |
Tensioner Assy, Chain, NO.1
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 13540-0S010 note |
Tensioner Assy, Chain, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 13540-0S010 note |
Tensioner Assy, Chain, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13540-0S022 note |
Tensioner Assy, Chain, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 13540-0S022 note |
Tensioner Assy, Chain, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13540-38020 note |
Tensioner Assy, Chain, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13540-38020 note |
Tensioner Assy, Chain, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 13540-38042 note |
Tensioner Assy, Chain, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13540-38042 note |
Tensioner Assy, Chain, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 13540C — Gasket(FOR CHAIN TENSIONER) | ||||
| 13552-0S010 note |
Gasket(FOR CHAIN TENSIONER)
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 13552-38010 |
Gasket(FOR CHAIN TENSIONER)
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13552-38010 |
Gasket(FOR CHAIN TENSIONER)
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 13552-38010 note |
Gasket(FOR CHAIN TENSIONER)
2013-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 13552-0S010 note |
Gasket(FOR CHAIN TENSIONER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13552-0S010 note |
Gasket(FOR CHAIN TENSIONER)
2017-08 → —
|
3URFE USK6# | — | |
| 13552-38010 note |
Gasket(FOR CHAIN TENSIONER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13552-38010 note |
Gasket(FOR CHAIN TENSIONER)
2017-08 → —
|
3URFE USK6# | — | |
| 13550 — Tensioner Assy, Chain, NO.2 | ||||
| 13550-0S011 note |
Tensioner Assy, Chain, NO.2
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13550-0S011 note |
Tensioner Assy, Chain, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13550-38020 note |
Tensioner Assy, Chain, NO.2
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13550-38020 note |
Tensioner Assy, Chain, NO.2
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13550-0S011 note |
Tensioner Assy, Chain, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13550-0S011 note |
Tensioner Assy, Chain, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 13550-38020 note |
Tensioner Assy, Chain, NO.2
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13550-38020 note |
Tensioner Assy, Chain, NO.2
2017-08 → —
|
3URFE USK6# | — | |
| 13559 — Slipper, Chain Tensioner | ||||
| 13559-0S010 note |
Slipper, Chain Tensioner
2008-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 13559-0S010 note |
Slipper, Chain Tensioner
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13559-0S020 note |
Slipper, Chain Tensioner
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13559-0S021 note |
Slipper, Chain Tensioner
2008-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 13559-0S030 note |
Slipper, Chain Tensioner
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13559-0S040 note |
Slipper, Chain Tensioner
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13559-38010 note |
Slipper, Chain Tensioner
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13559-38020 note |
Slipper, Chain Tensioner
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13559-38030 note |
Slipper, Chain Tensioner
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13559-38040 note |
Slipper, Chain Tensioner
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13559-0S010 note |
Slipper, Chain Tensioner
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13559-0S010 note |
Slipper, Chain Tensioner
2017-08 → —
|
3URFE USK6# | — | |
| 13559-0S021 note |
Slipper, Chain Tensioner
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13559-0S021 note |
Slipper, Chain Tensioner
2017-08 → —
|
3URFE USK6# | — | |
| 13560A — Tensioner Assy, Chain, NO.3 | ||||
| 13560-0S011 note |
Tensioner Assy, Chain, NO.3
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13560-0S011 note |
Tensioner Assy, Chain, NO.3
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13560-38021 note |
Tensioner Assy, Chain, NO.3
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13560-38021 note |
Tensioner Assy, Chain, NO.3
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13560-0S011 note |
Tensioner Assy, Chain, NO.3
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13560-0S011 note |
Tensioner Assy, Chain, NO.3
2017-08 → —
|
3URFE USK6# | — | |
| 13560-38021 note |
Tensioner Assy, Chain, NO.3
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13560-38021 note |
Tensioner Assy, Chain, NO.3
2017-08 → —
|
3URFE USK6# | — | |
| 13561 — Damper, Chain Vibration, NO.1 | ||||
| 13561-0S010 note |
Damper, Chain Vibration, NO.1
2008-08 → 2008-10
ended
|
3UR# USK6# | — | |
| 13561-0S010 note |
Damper, Chain Vibration, NO.1
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13561-0S011 note |
Damper, Chain Vibration, NO.1
2008-10 → 2017-08
ended
|
3UR# USK6# | — | |
| 13561-0S020 note |
Damper, Chain Vibration, NO.1
2008-08 → 2008-10
ended
|
3UR# USK6# | — | |
| 13561-0S020 note |
Damper, Chain Vibration, NO.1
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13561-0S021 note |
Damper, Chain Vibration, NO.1
2008-10 → 2017-08
ended
|
3UR# USK6# | — | |
| 13561-0S030 note |
Damper, Chain Vibration, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13561-0S040 note |
Damper, Chain Vibration, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13561-38020 note |
Damper, Chain Vibration, NO.1
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13561-38030 note |
Damper, Chain Vibration, NO.1
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13561-38060 note |
Damper, Chain Vibration, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13561-38070 note |
Damper, Chain Vibration, NO.1
2009-04 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13561-0S011 note |
Damper, Chain Vibration, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13561-0S011 note |
Damper, Chain Vibration, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 13561-0S021 note |
Damper, Chain Vibration, NO.1
2017-08 → —
|
3URFE USK6# | — | |
| 13561-0S021 note |
Damper, Chain Vibration, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13711 — Valve, Intake | ||||
| 13711-0F010 |
Valve, Intake
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 13711-0P010 note |
Valve, Intake
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13711-0P010 |
Valve, Intake
2008-08 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13711-0P010 |
Valve, Intake
2008-08 → 2017-08
ended
|
3UR# USK6# | — | |
| 13711-31100 note |
Valve, Intake
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13711-0P010 |
Valve, Intake
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13711-0P010 |
Valve, Intake
2017-08 → —
|
3URFE USK6# | — | |
| 13711B — Spring, Compression(FOR INNER) | ||||
| 90501-29059 note |
Spring, Compression(FOR INNER)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90501-32056 note |
Spring, Compression(FOR INNER)
2007-11 → 2008-11
ended
|
3UR# USK6# | — | |
| 90501-32065 note |
Spring, Compression(FOR INNER)
2013-08 → 2016-07
ended
|
3UR# USK6# | — | |
| 90501-32065 note |
Spring, Compression(FOR INNER)
2008-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 90501-32065 note |
Spring, Compression(FOR INNER)
2008-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90501-33030 note |
Spring, Compression(FOR INNER)
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 90501-A0047 note |
Spring, Compression(FOR INNER)
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90501-A0052 note |
Spring, Compression(FOR INNER)
2007-11 → 2008-11
ended
|
3UR# USK6# | — | |
| 90501-A0088 note |
Spring, Compression(FOR INNER)
2008-11 → 2010-03
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 90501-33030 |
Spring, Compression(FOR INNER)
2017-08 → —
|
3URFE USK6# | — | |
| 90501-33030 |
Spring, Compression(FOR INNER)
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13711E — Seal, Intake Valve Stem Oil | ||||
| 90080-31043 |
Seal, Intake Valve Stem Oil
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90080-31043 |
Seal, Intake Valve Stem Oil
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90080-31043 |
Seal, Intake Valve Stem Oil
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90080-31043 |
Seal, Intake Valve Stem Oil
2017-08 → —
|
3URFE USK6# | — | |
| 13715 — Valve, Exhaust | ||||
| 13715-0F020 |
Valve, Exhaust
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 13715-0S010 note |
Valve, Exhaust
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13715-0S020 note |
Valve, Exhaust
2011-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13715-0S020 note |
Valve, Exhaust
2011-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13715-0S020 |
Valve, Exhaust
2008-08 → 2011-11
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 13715-31140 note |
Valve, Exhaust
2011-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13715-31140 note |
Valve, Exhaust
2011-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13715-38060 note |
Valve, Exhaust
2007-11 → 2008-08
ended
|
3URFE USK6# | — | |
| 13715-0S020 note |
Valve, Exhaust
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13715-0S020 note |
Valve, Exhaust
2017-08 → —
|
3URFE USK6# | — | |
| 13715-31140 note |
Valve, Exhaust
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13715-31140 note |
Valve, Exhaust
2017-08 → —
|
3URFE USK6# | — | |
| 13715A — Seal, Exhaust Valve Stem Oil | ||||
| 90080-31101 |
Seal, Exhaust Valve Stem Oil
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90080-31101 |
Seal, Exhaust Valve Stem Oil
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90080-31101 |
Seal, Exhaust Valve Stem Oil
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90080-31101 |
Seal, Exhaust Valve Stem Oil
2017-08 → —
|
3URFE USK6# | — | |
| 13716 — Cap, Valve Stem | ||||
| 13716-75020 |
Cap, Valve Stem
2007-11 → 2017-08
ended
|
1URFE,3UR# UPK6#,USK6# | — | |
| 13716-75020 |
Cap, Valve Stem
2017-08 → —
|
3URFE USK6# | — | |
| 13716-75020 |
Cap, Valve Stem
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13734 — Seat, Valve Spring | ||||
| 13734-0P010 |
Seat, Valve Spring
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13734-0P010 |
Seat, Valve Spring
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13734-62020 |
Seat, Valve Spring
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 13734-0P010 |
Seat, Valve Spring
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13734-0P010 |
Seat, Valve Spring
2017-08 → —
|
3URFE USK6# | — | |
| 13741 — Retainer, Valve Spring | ||||
| 13741-0F010 |
Retainer, Valve Spring
2007-11 → 2008-07
ended
|
2UZFE UCK6# | — | |
| 13741-0P010 |
Retainer, Valve Spring
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13741-0P010 |
Retainer, Valve Spring
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 13741-0P010 note |
Retainer, Valve Spring
2013-08 → 2016-07
ended
|
3UR# USK6# | — | |
| 13741-0P020 note |
Retainer, Valve Spring
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 13741-50030 |
Retainer, Valve Spring
2008-07 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 13741-0P020 |
Retainer, Valve Spring
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13741-0P020 |
Retainer, Valve Spring
2017-08 → —
|
3URFE USK6# | — | |
| 13741A — Lock, Valve Spring Retainer | ||||
| 90913-03028 |
Lock, Valve Spring Retainer
2007-11 → 2009-04
ended
|
2UZFE UCK6# | — | |
| 90913-A3001 |
Lock, Valve Spring Retainer
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 90913-A3001 |
Lock, Valve Spring Retainer
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 90913-A3001 |
Lock, Valve Spring Retainer
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 90913-A3001 |
Lock, Valve Spring Retainer
2017-08 → —
|
3URFE USK6# | — | |
| 13750 — Adjuster Assy, Valve Lash | ||||
| 13750-0P010 |
Adjuster Assy, Valve Lash
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13750-0P010 |
Adjuster Assy, Valve Lash
2007-11 → 2017-08
ended
|
3UR# USK6# | — | |
| 13750-0P010 |
Adjuster Assy, Valve Lash
2017-08 → —
|
3UR# USK6# | — | |
| 13801 — Arm Sub-assy, Valve Rocker, NO.1 | ||||
| 13801-0P010 |
Arm Sub-assy, Valve Rocker, NO.1
2007-11 → 2012-08
ended
|
1URFE UPK6# | — | |
| 13801-0P010 |
Arm Sub-assy, Valve Rocker, NO.1
2007-11 → 2013-08
ended
|
3UR# USK6# | — | |
| 13801-0P010 note |
Arm Sub-assy, Valve Rocker, NO.1
2013-08 → 2016-07
ended
|
3UR# USK6# | — | |
| 13801-0P030 note |
Arm Sub-assy, Valve Rocker, NO.1
2016-07 → 2017-08
ended
|
3UR# USK6# | — | |
| 13801-0P030 |
Arm Sub-assy, Valve Rocker, NO.1
2017-08 → 2017-09
ended
|
3URFBE USK65 | — | |
| 13801-0P030 |
Arm Sub-assy, Valve Rocker, NO.1
2017-08 → —
|
3URFE USK6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
