Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · Europe

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

46 part groups · 11 illustrations

Illustrations

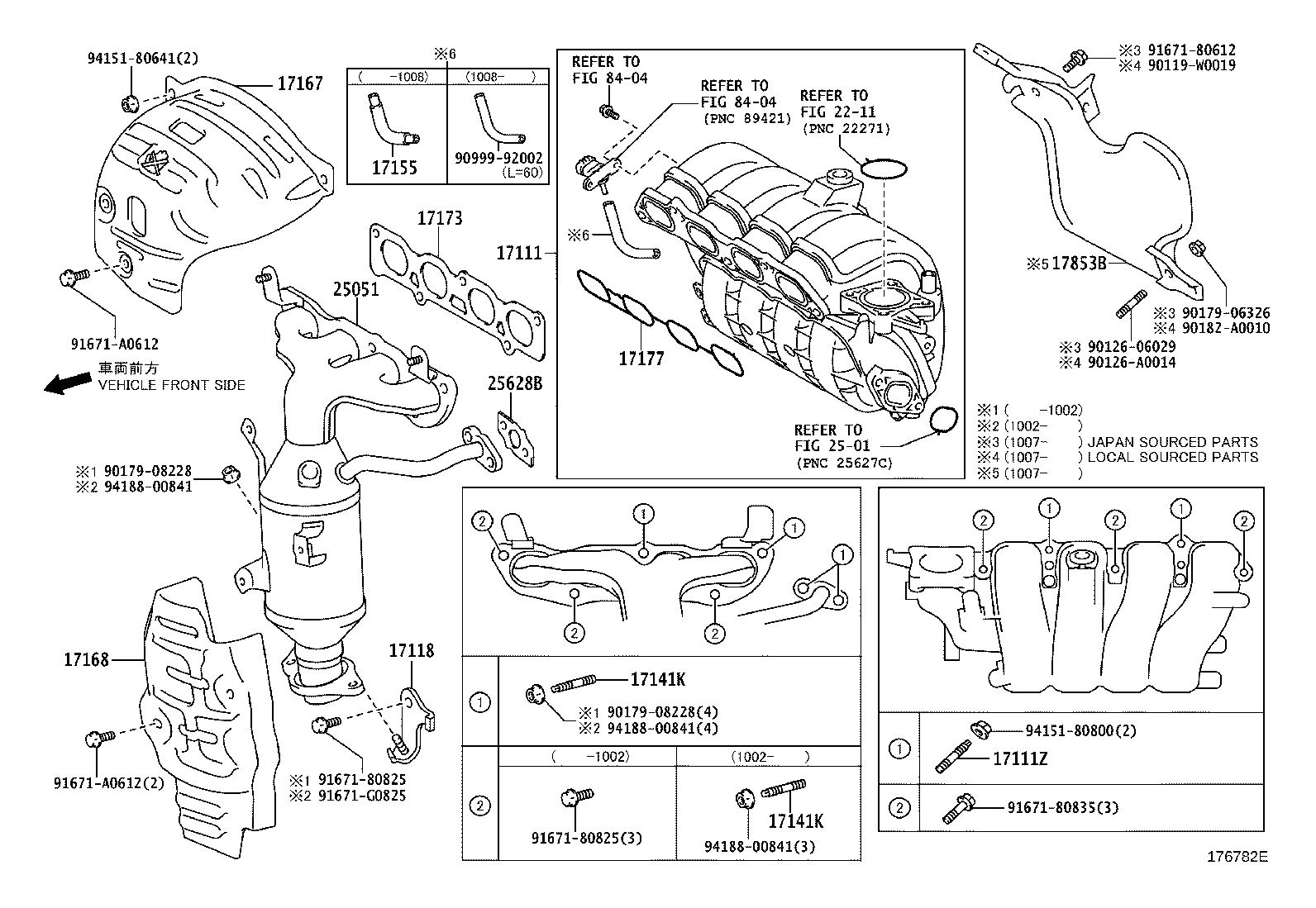

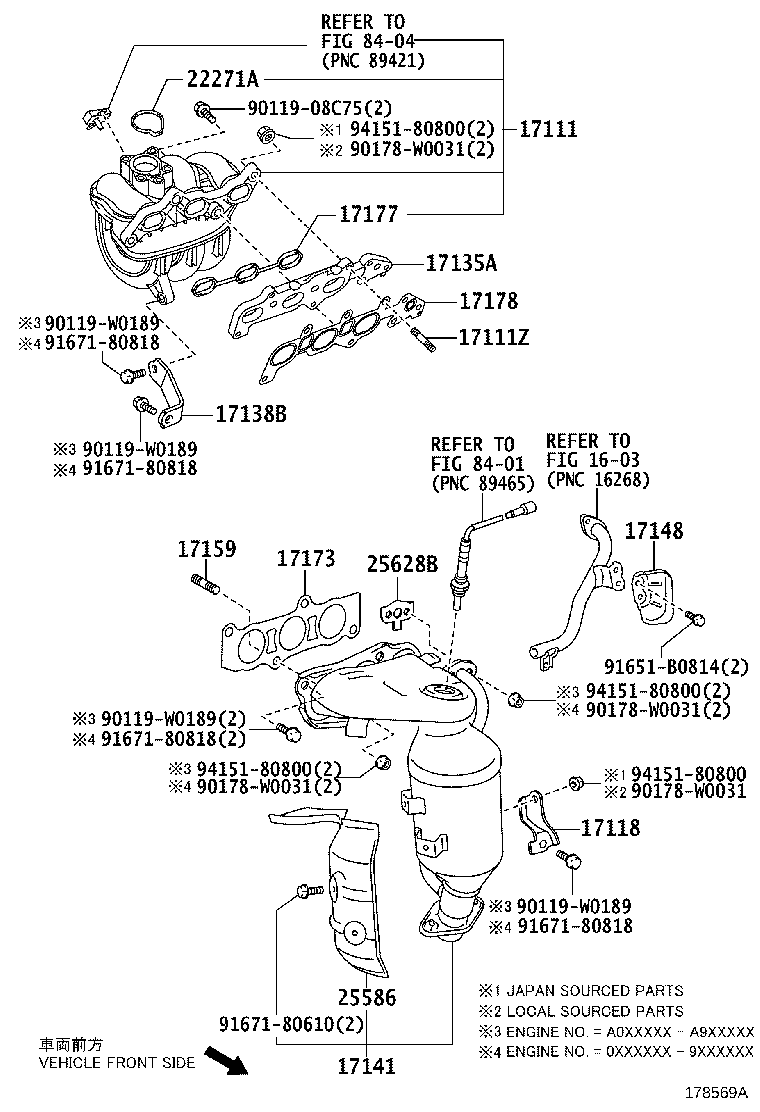

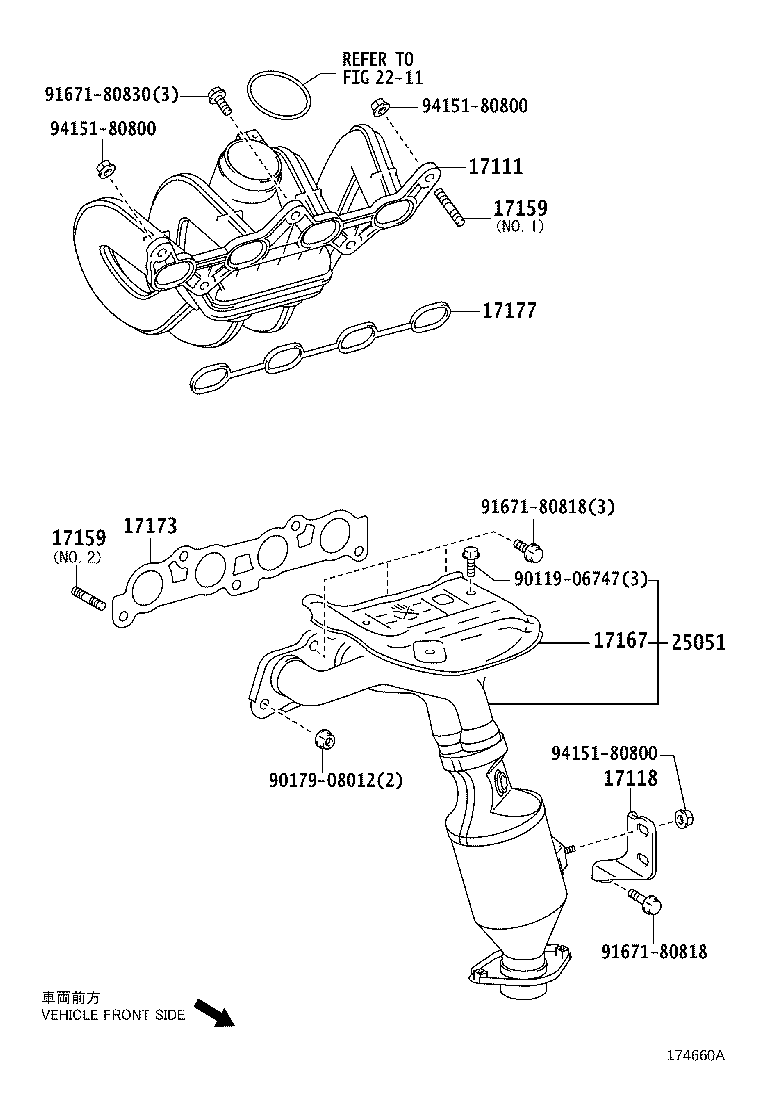

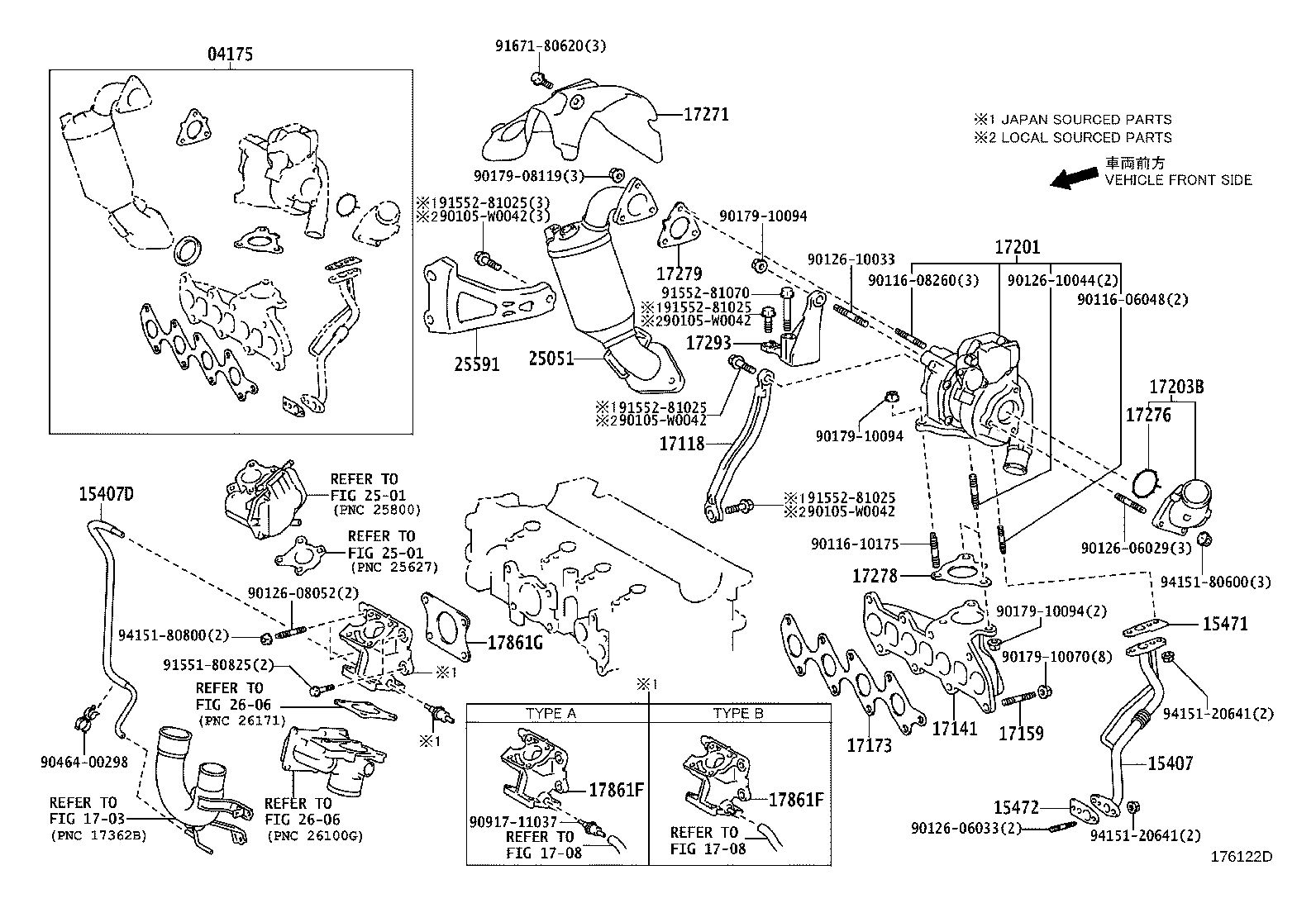

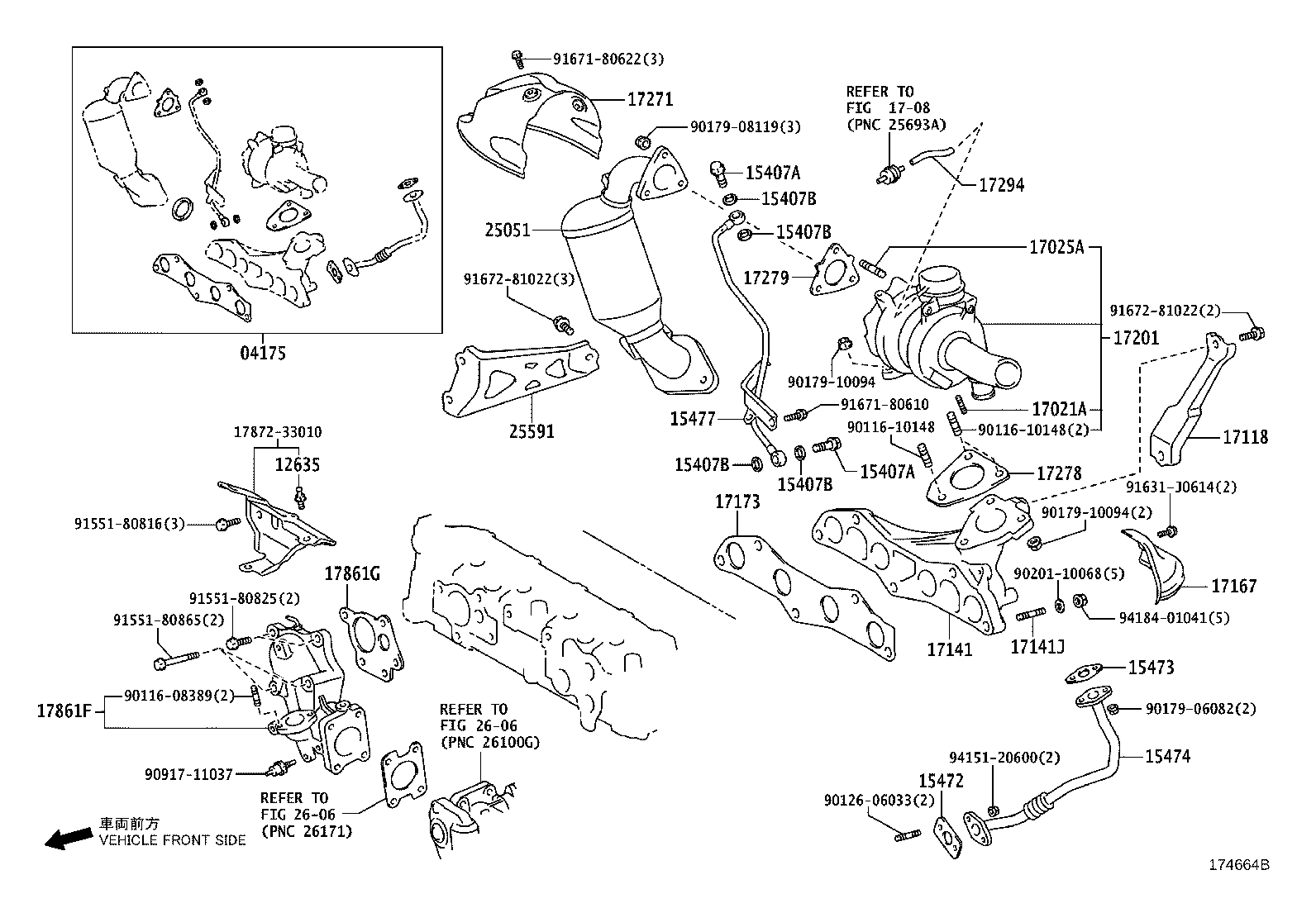

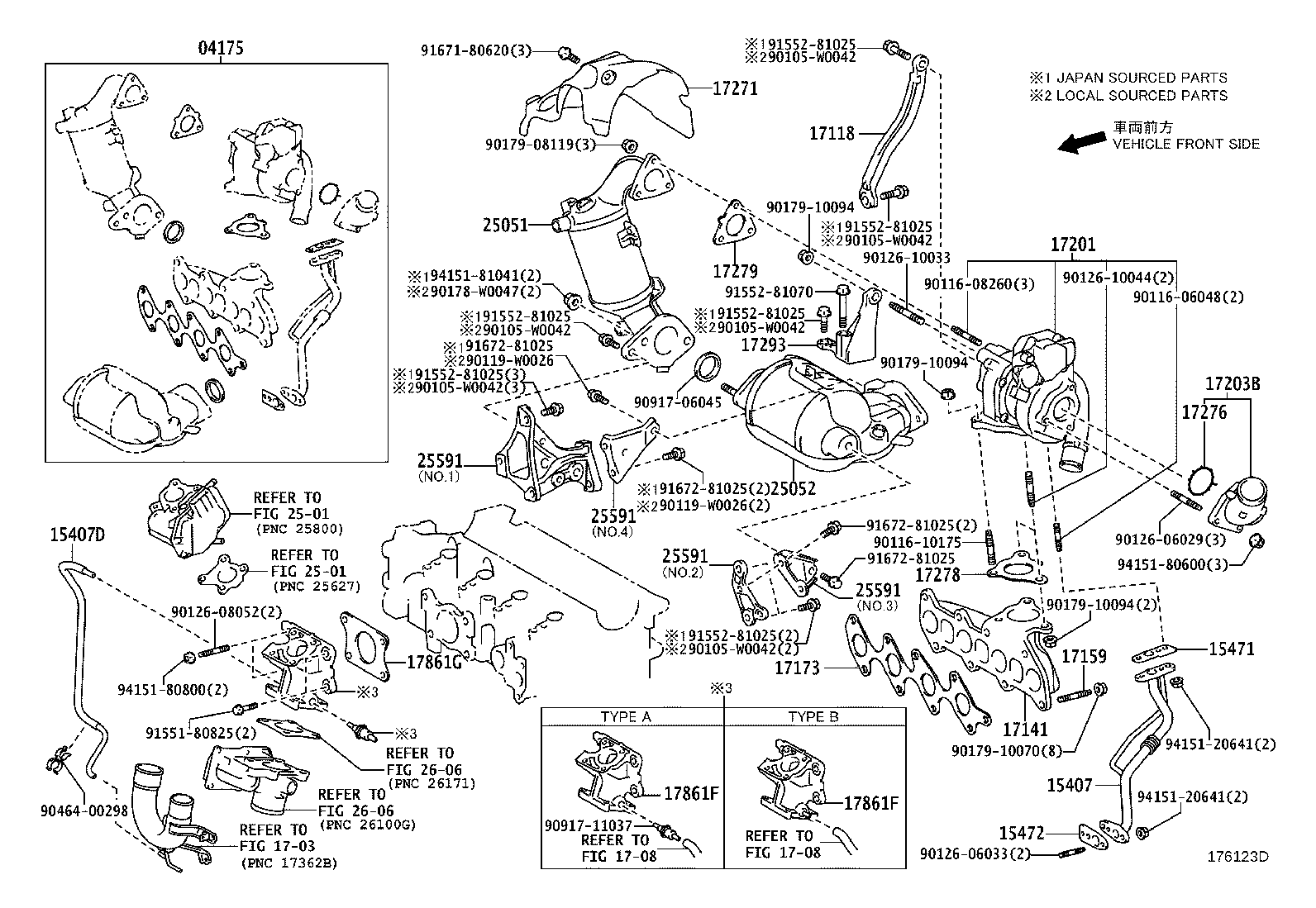

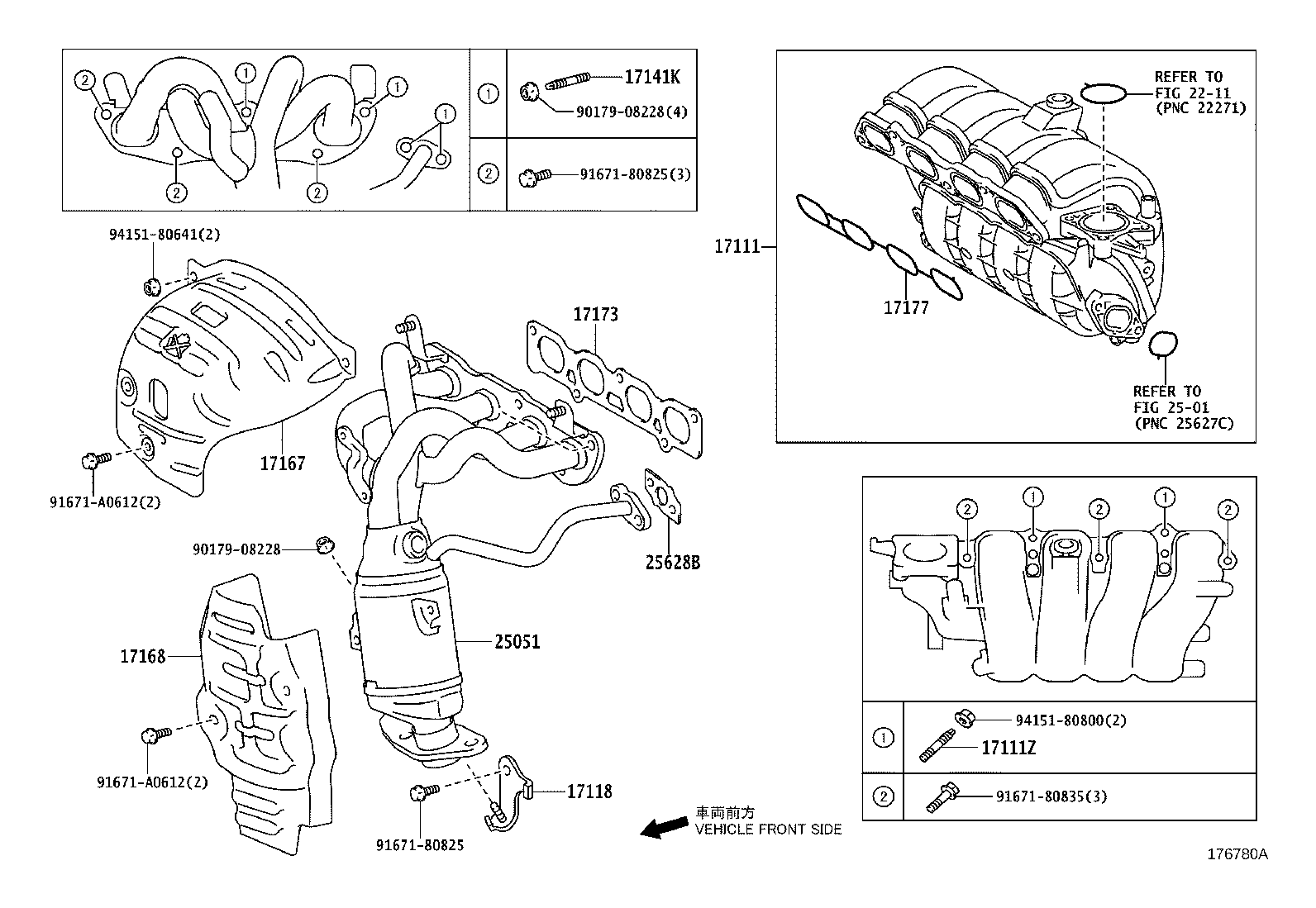

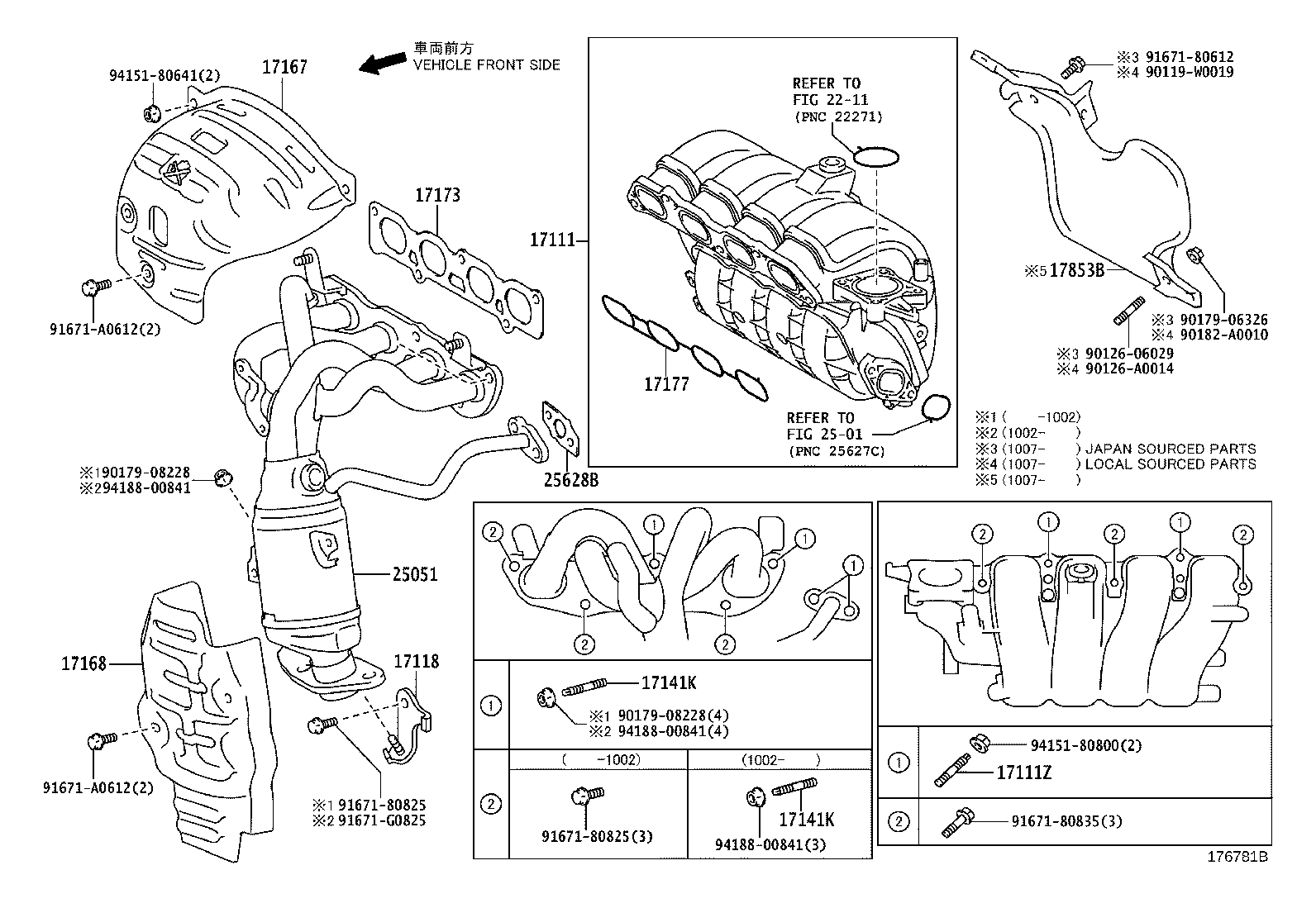

Figure 174677F 174677F 2005-11 → 2008-11 Figure 178569A 178569A 2008-11 → — Figure 174664B 174664B 2005-11 → 2008-11 Figure 176122D 176122D 2008-11 → 2010-07 Figure 176122D 176122D 2008-11 → — Figure 176123D 176123D 2008-11 → — Figure 176123D 176123D 2010-07 → — Figure 176780A 176780A 2008-11 → 2010-01 Figure 176781B 176781B 2010-01 → — Figure 176782E 176782E 2010-01 → — Figure 174660A 174660A 2005-11 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
12635 Joint, Engine Cover
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15407D Hose, Oil, NO.1
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15473 Gasket, Turbo Oil Outlet, NO.2
15474 Pipe, Turbo Oil Outlet
15477 Pipe, Turbo Oil Inlet
17021A Bolt, Stud(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17155 Hose(FOR MANIFOLD)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17201 Turbocharger Sub-assy
17203B Elbow Sub-assy, Compressor Inlet
17271 Insulator, Turbo, NO.1
17276 Gasket, Compressor Inlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17293 Stay, Turbocharger
17294 Hose, Actuator
17853B Insulator, Intake Manifold
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
22271A Gasket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25052 Converter Sub-assy, Exhaust Manifold, NO.2
25586 Insulator, Manifold Converter, NO.1
25591 Bracket, Manifold Support
25628B Gasket, Egr Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
