Toyota Lexus RX Series

2022-11 → present · chassis AALH1#,SALA15,TALA1#,TALH17 · catalogue 521260 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

170 part groups · 59 illustrations

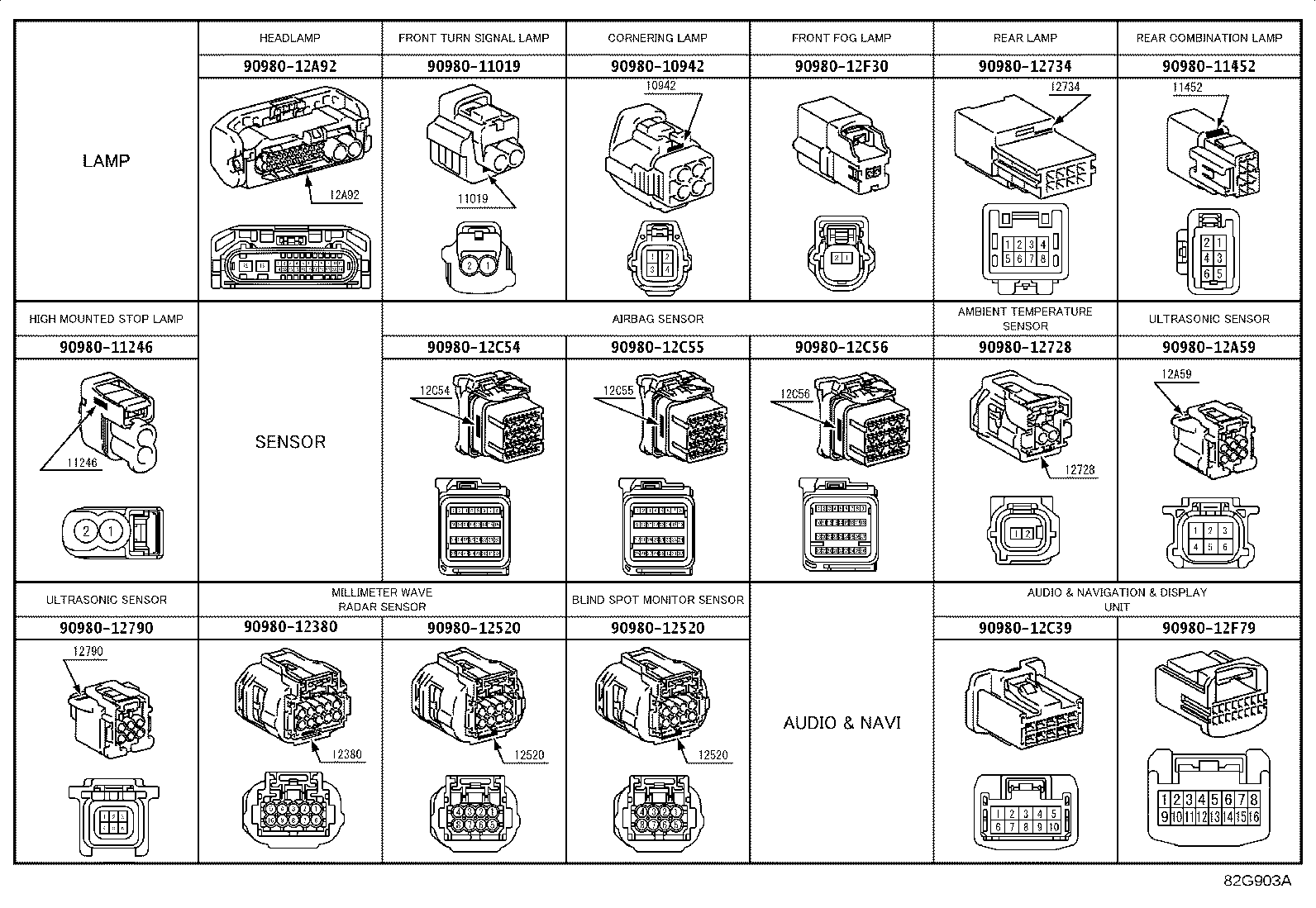

Illustrations

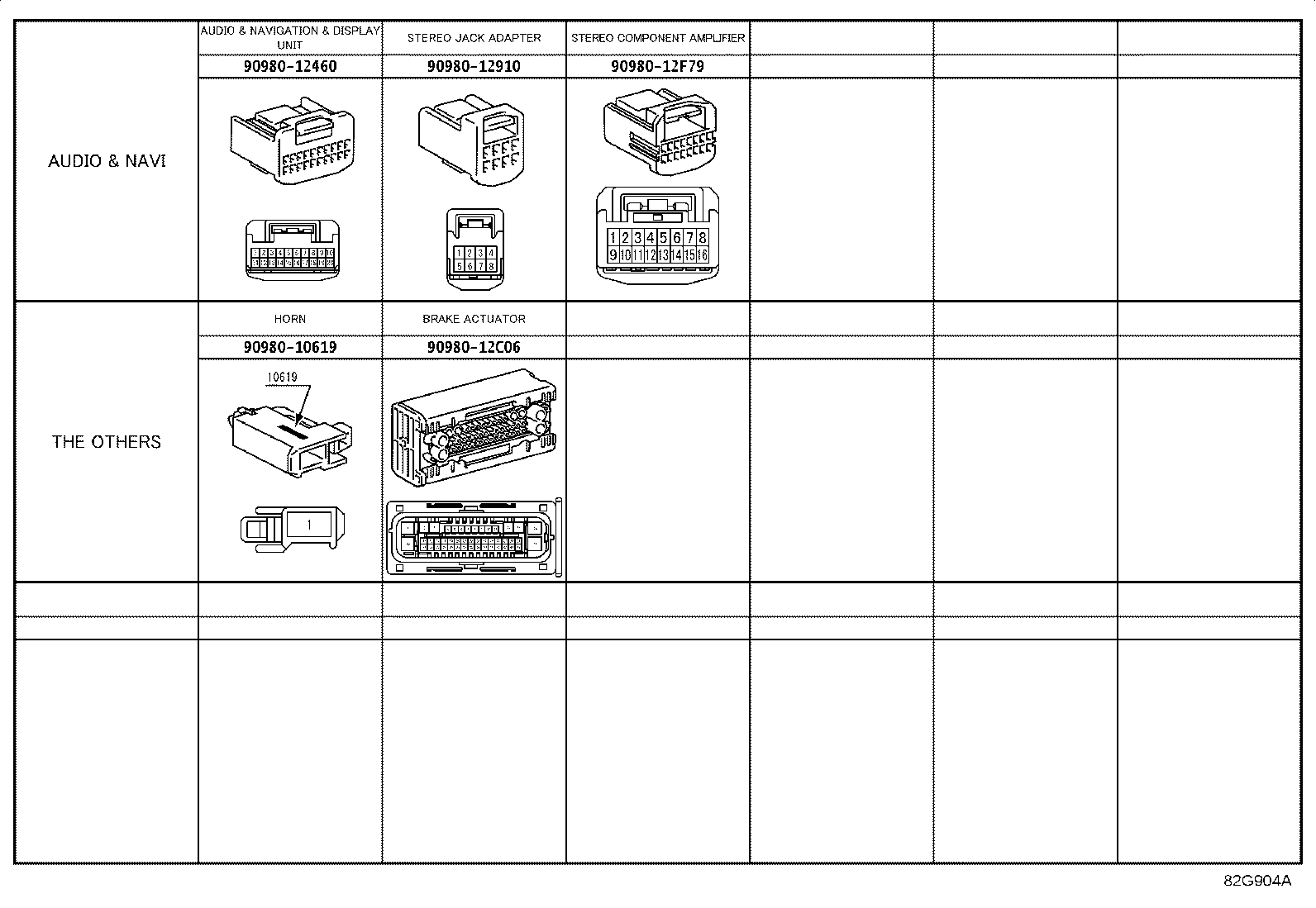

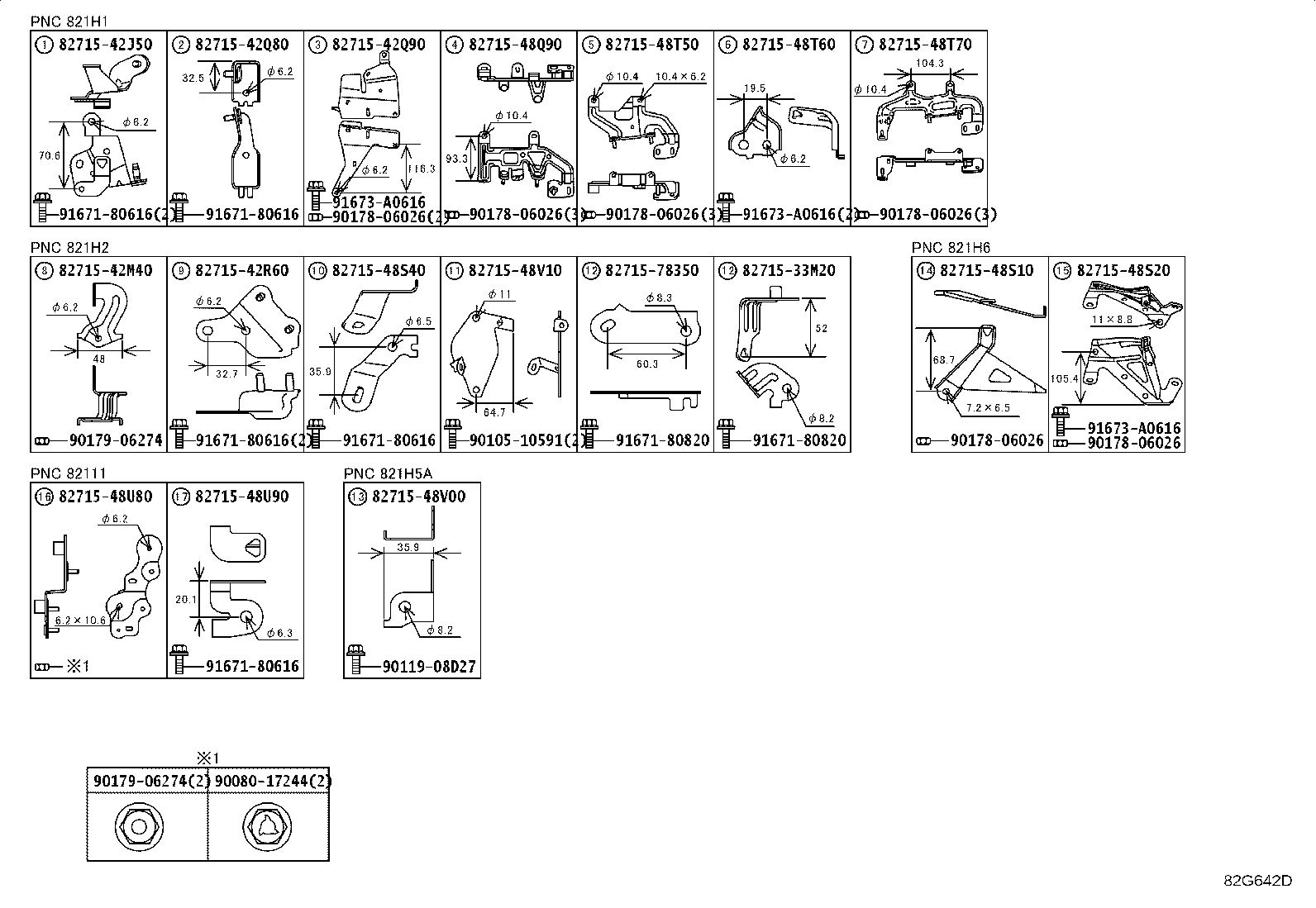

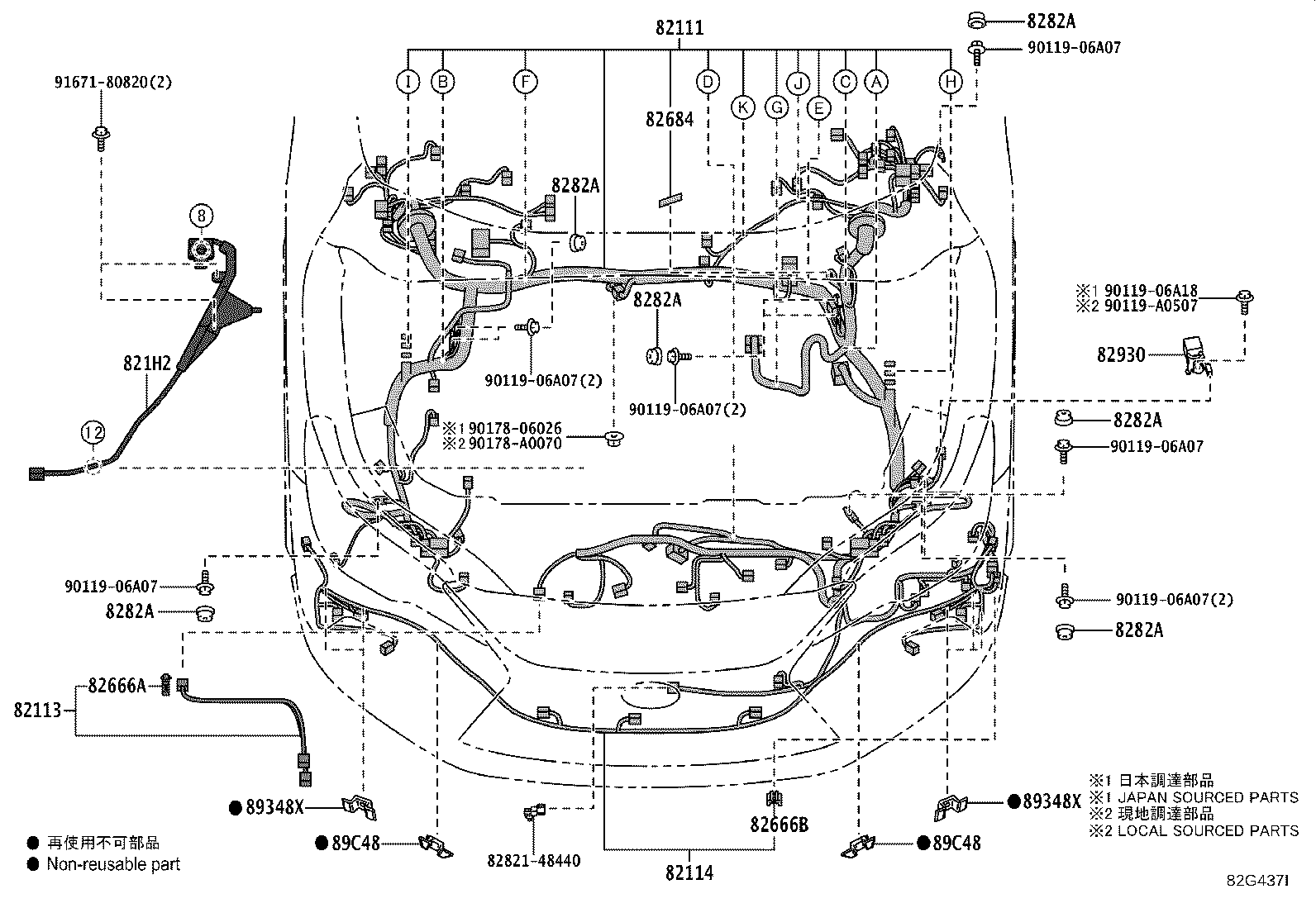

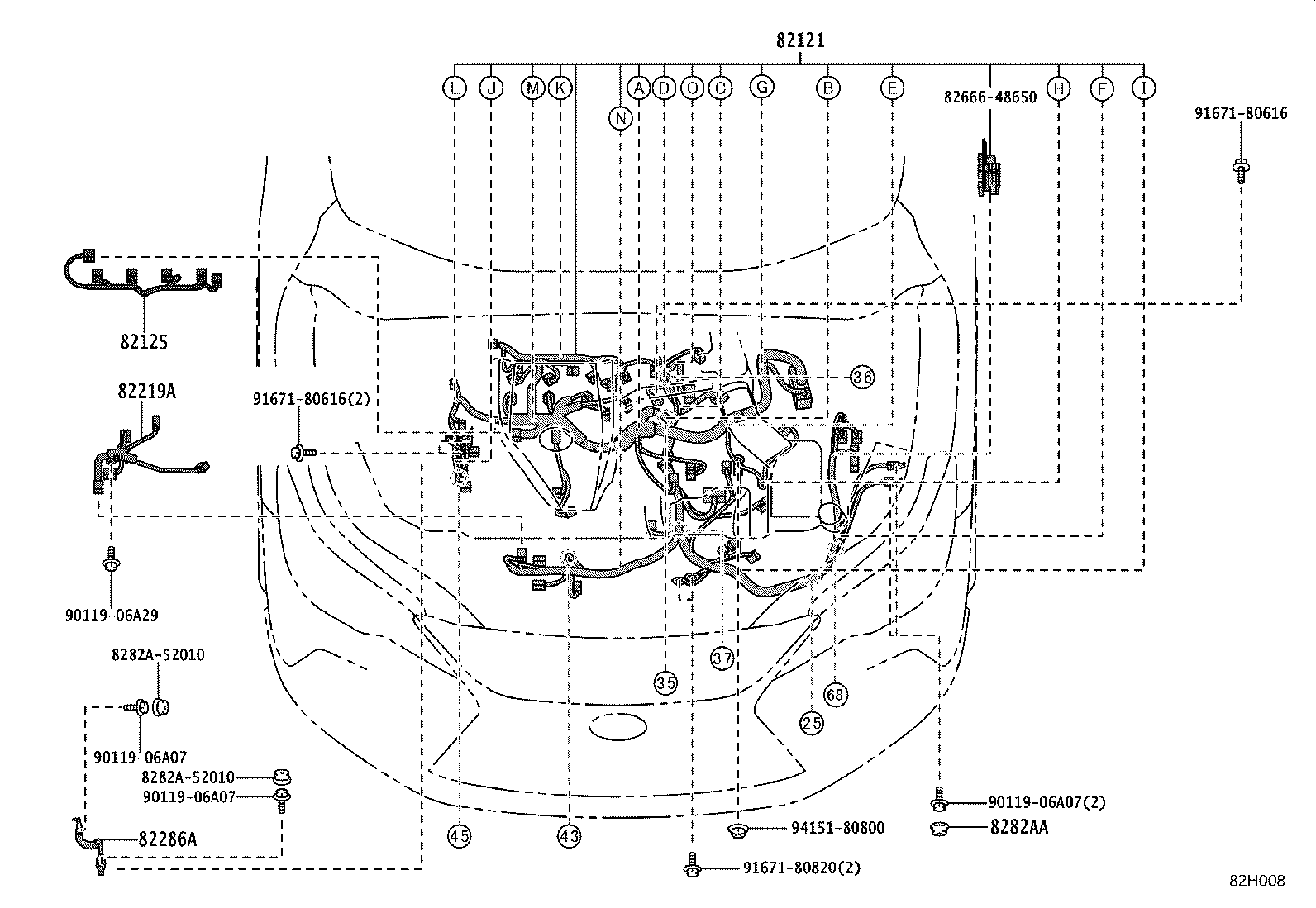

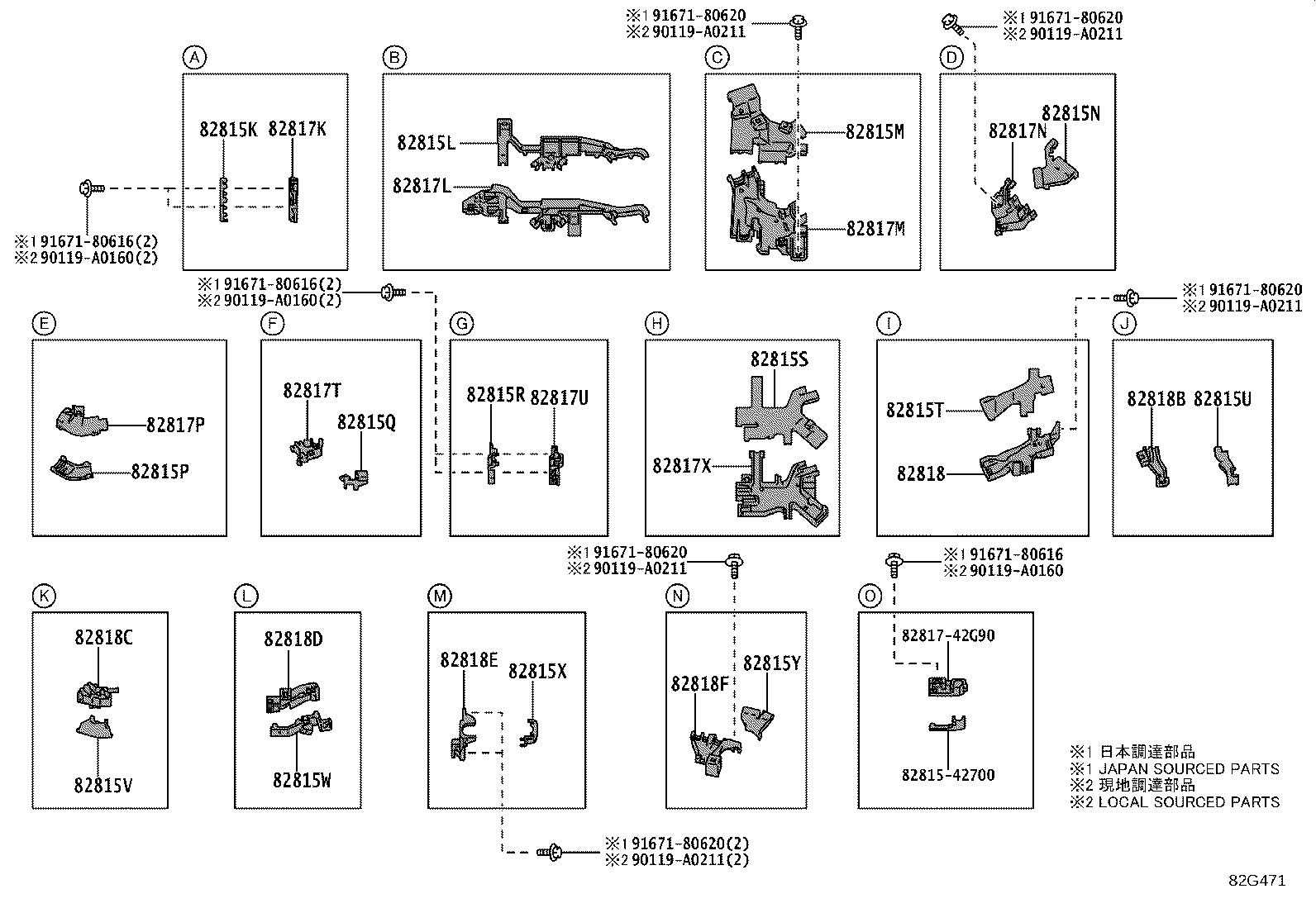

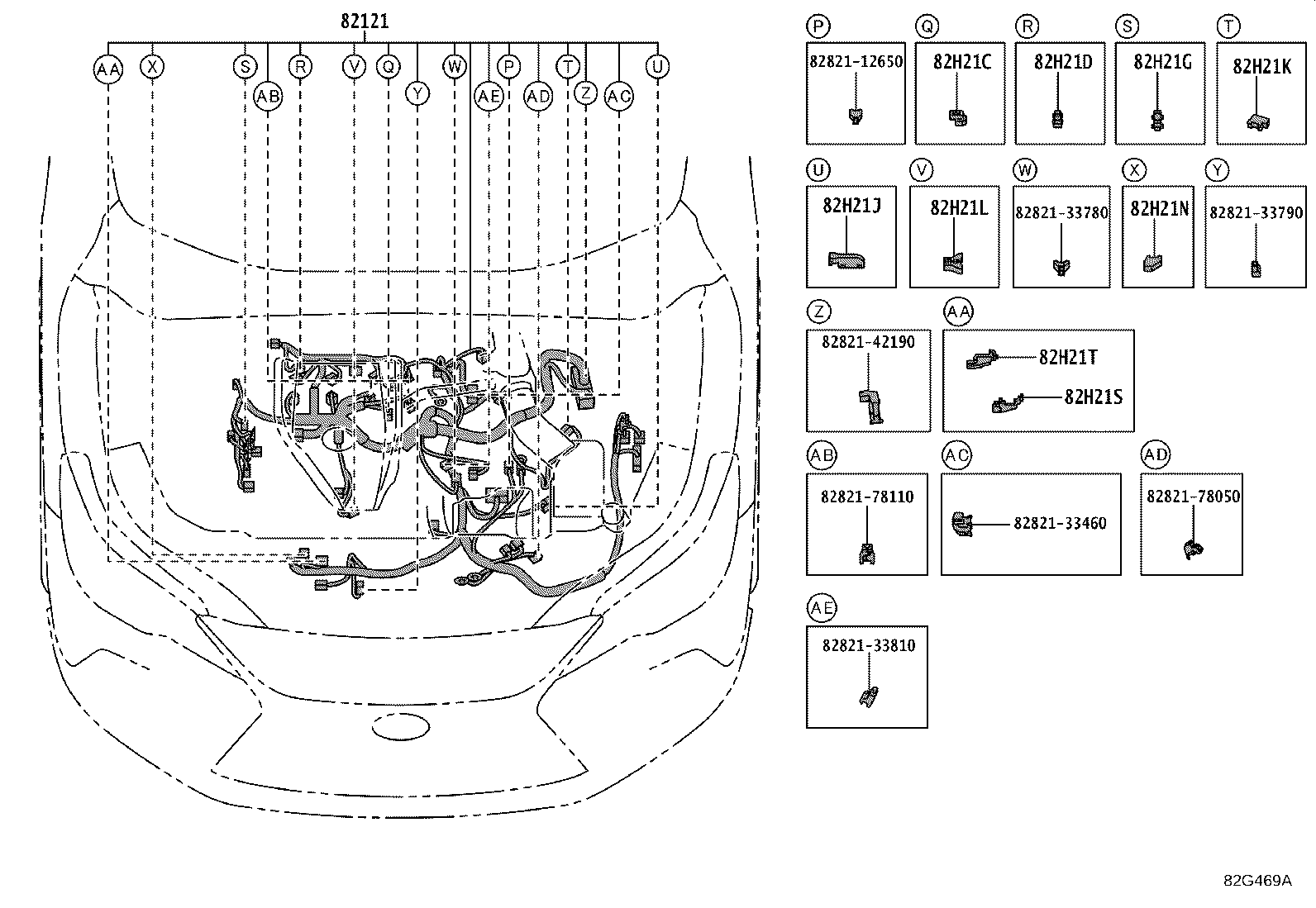

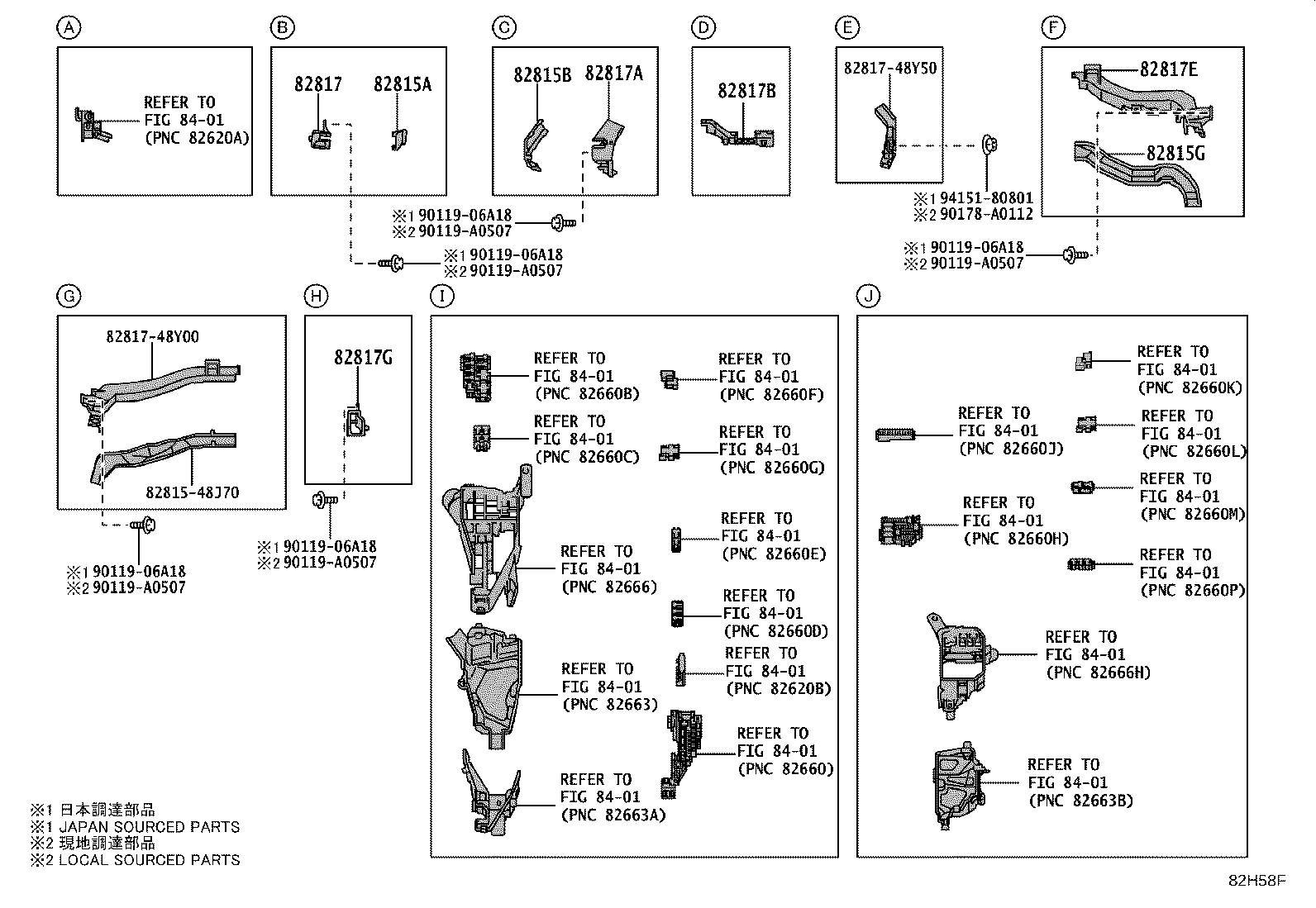

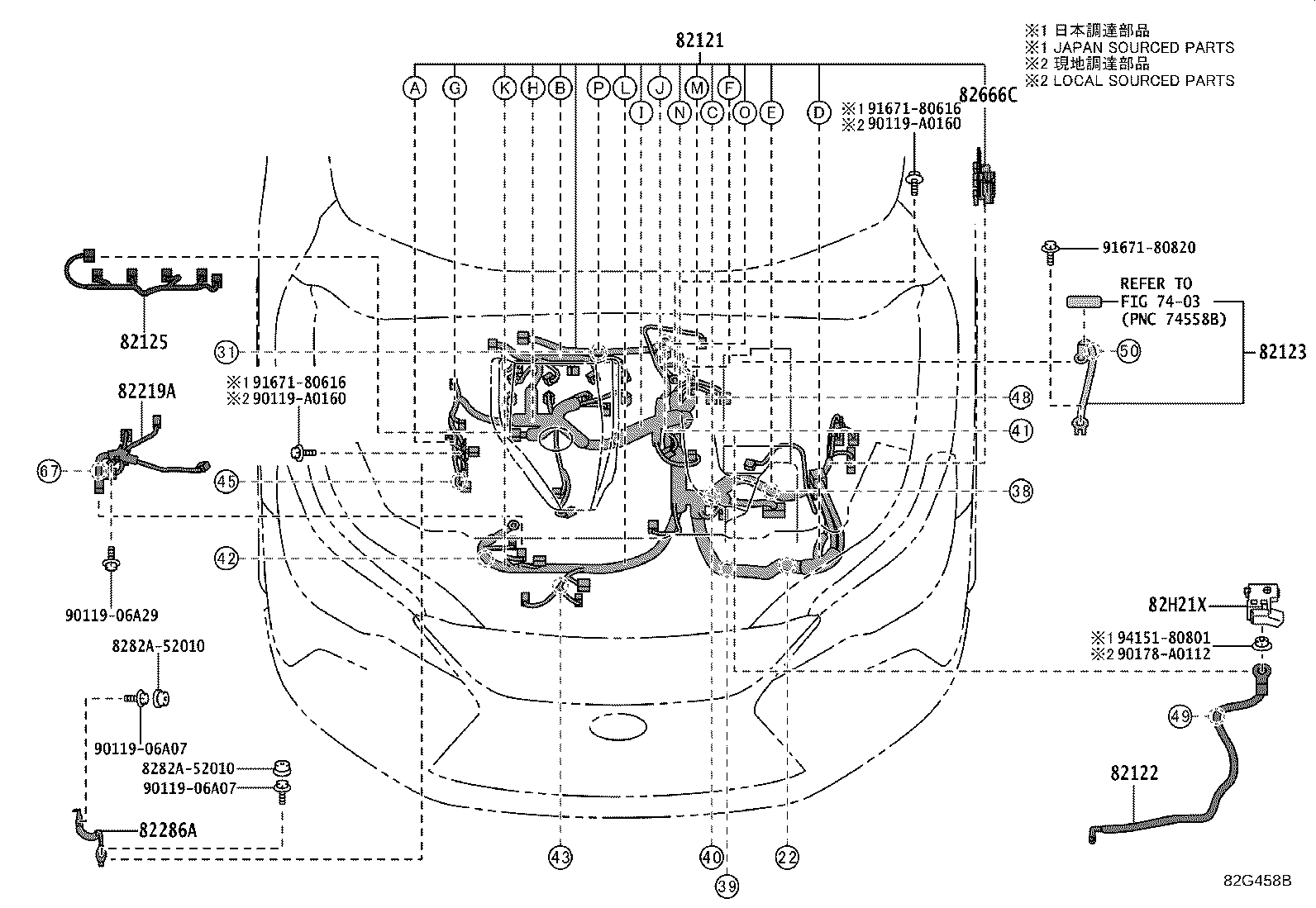

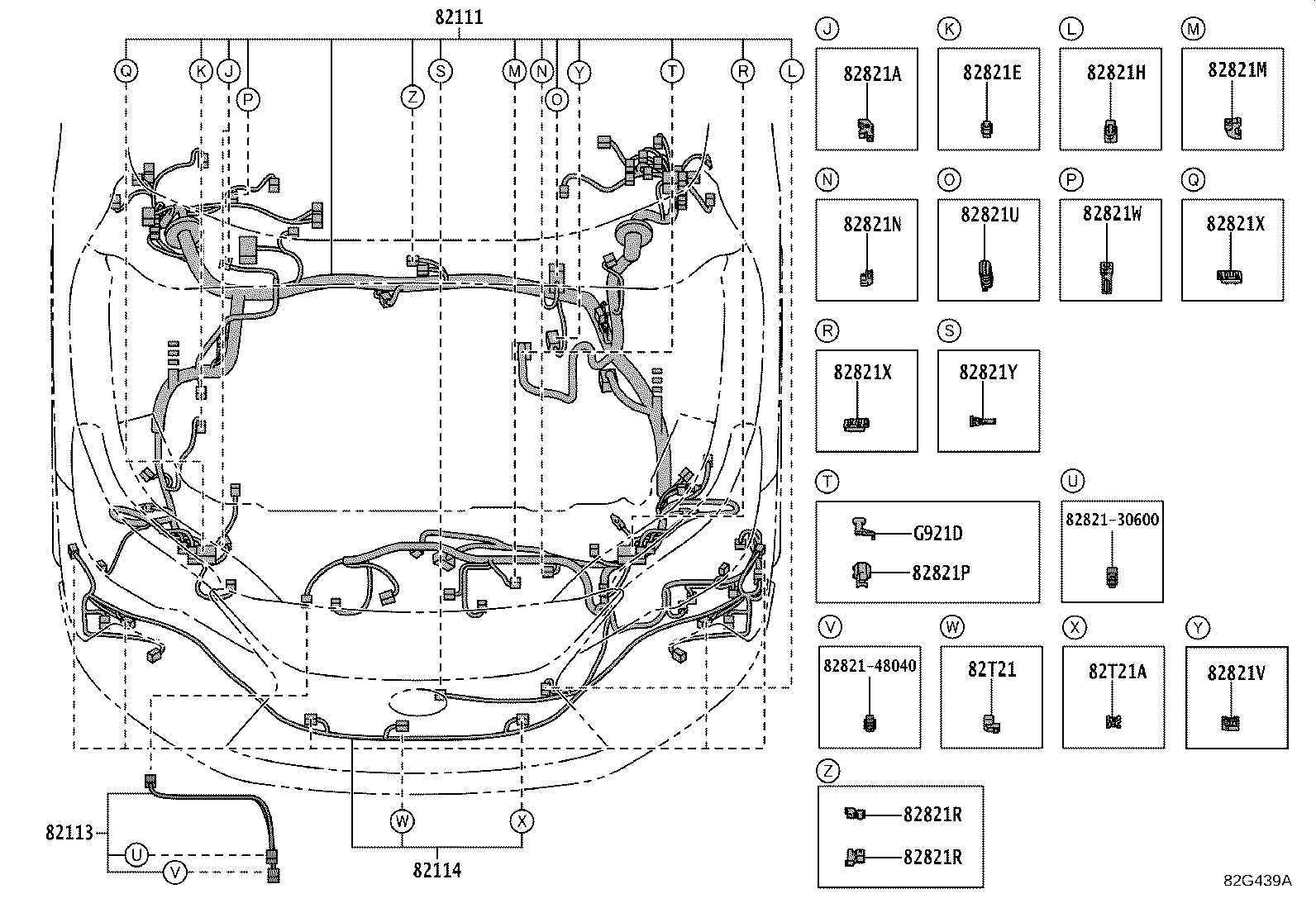

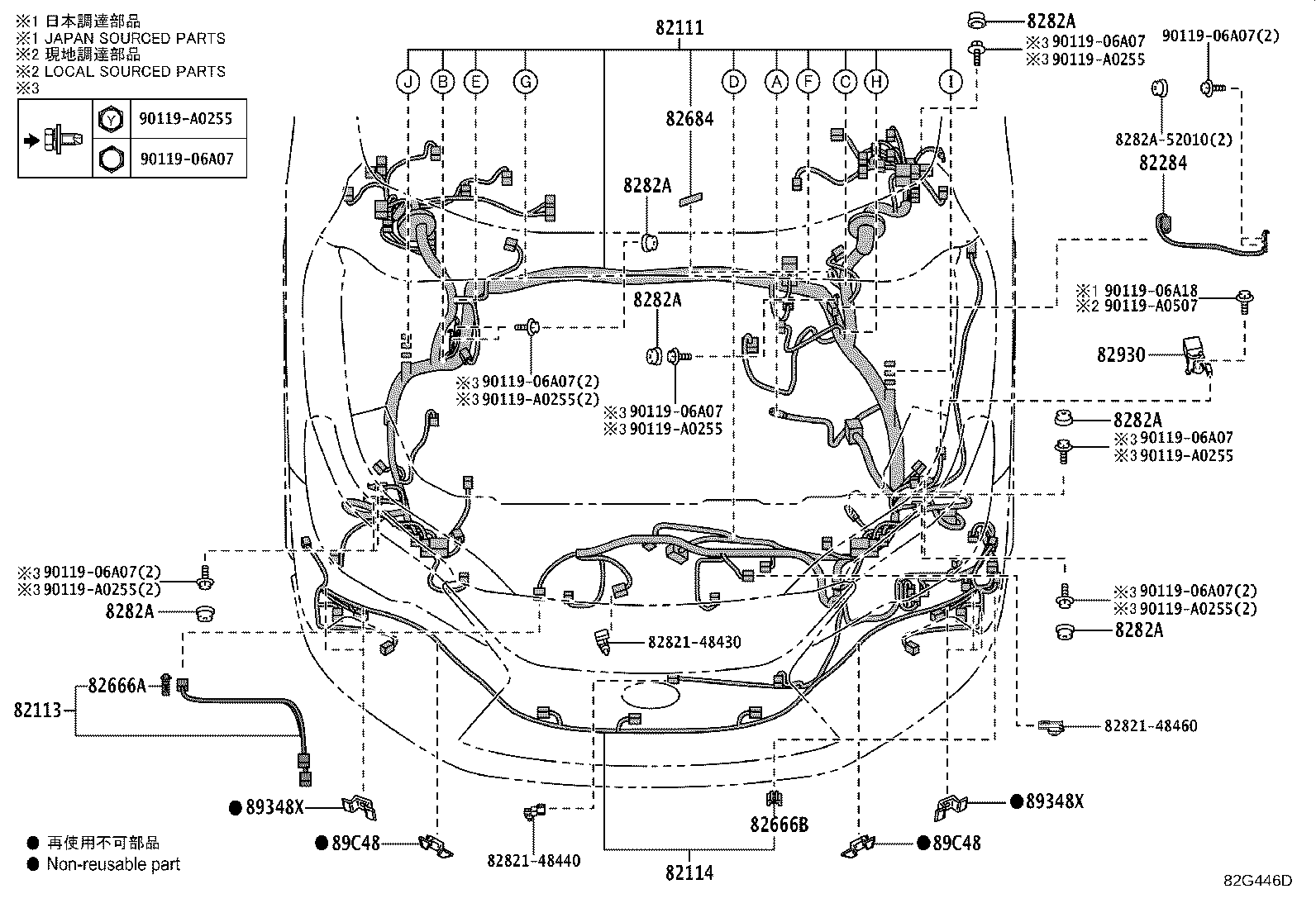

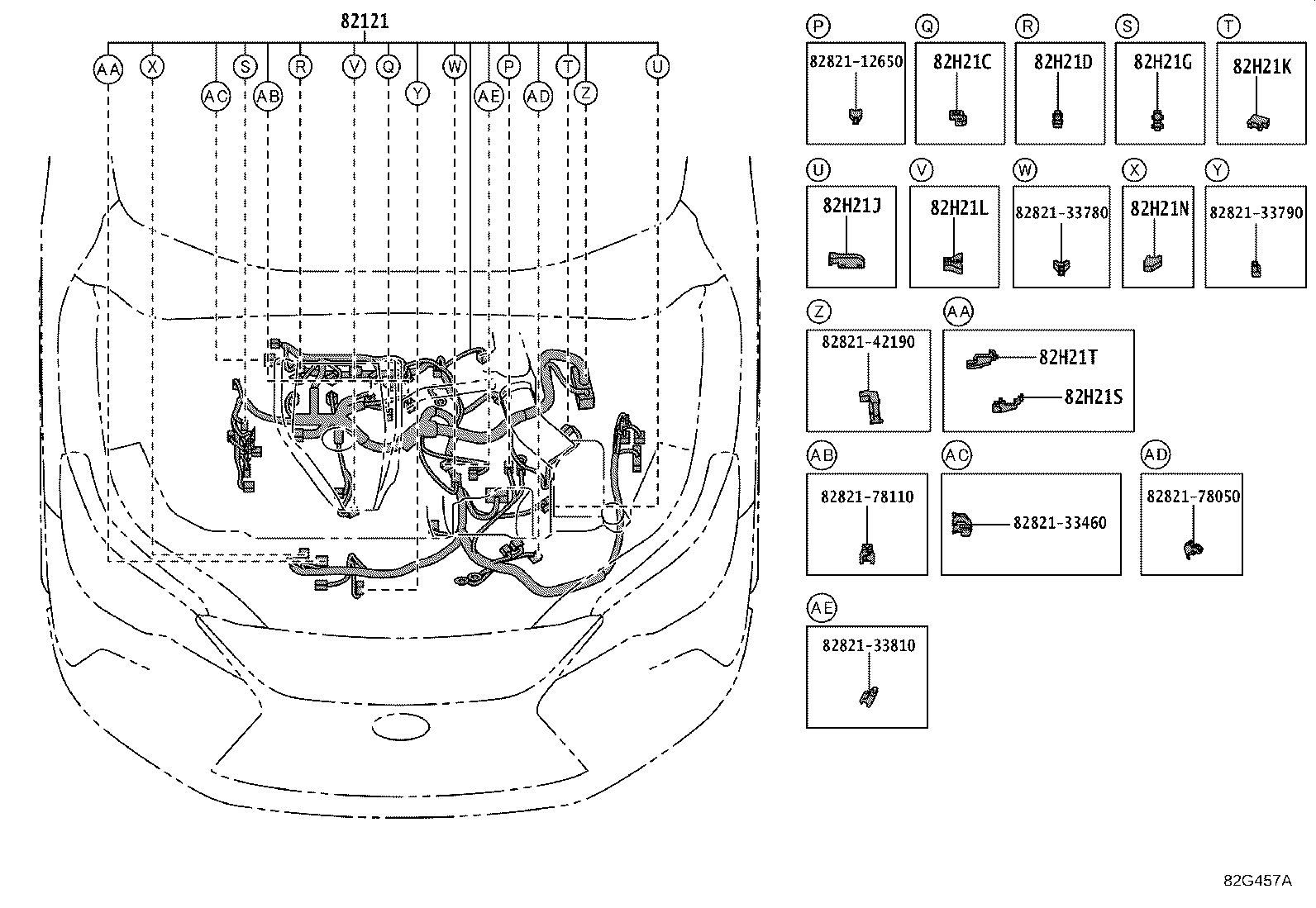

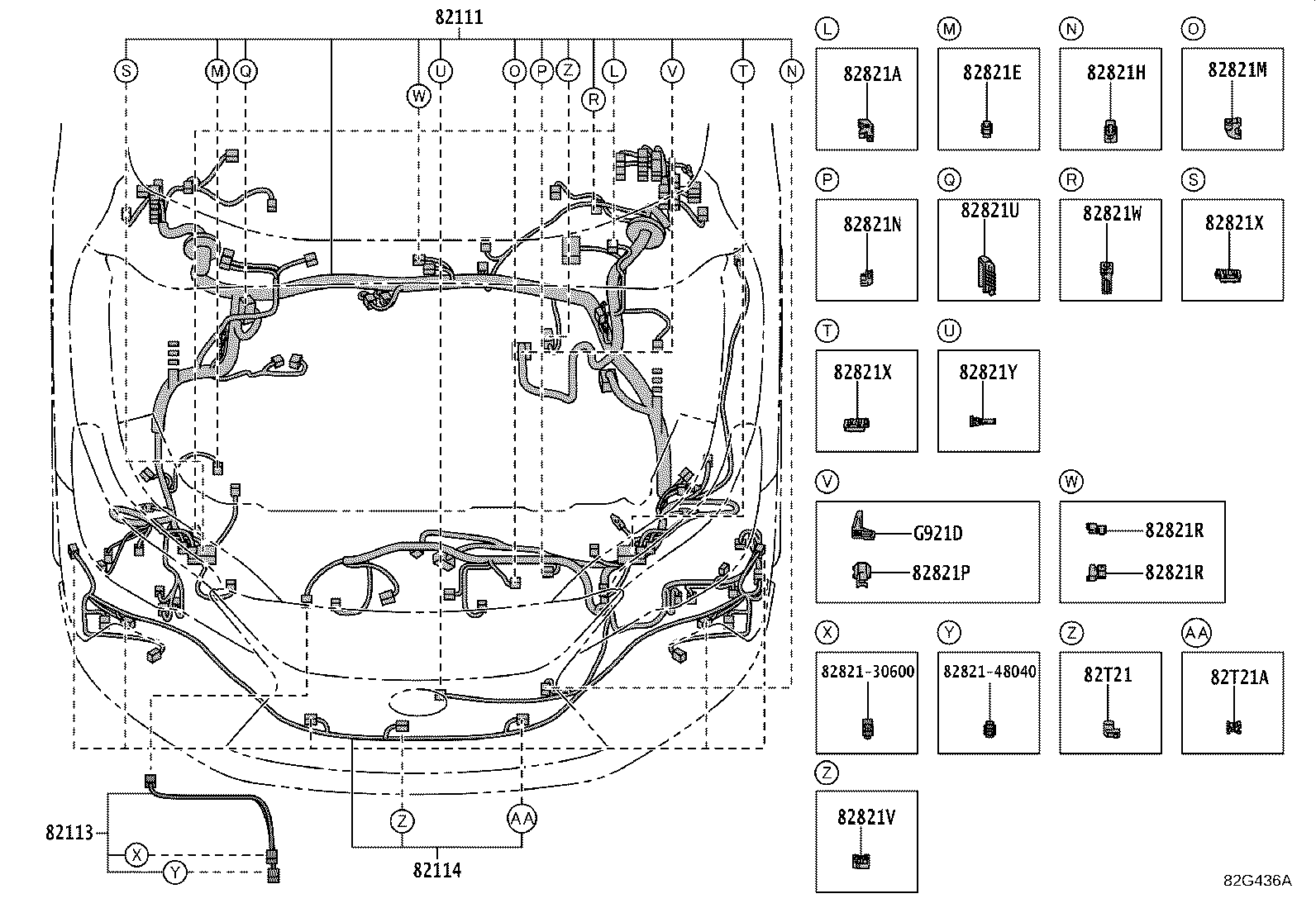

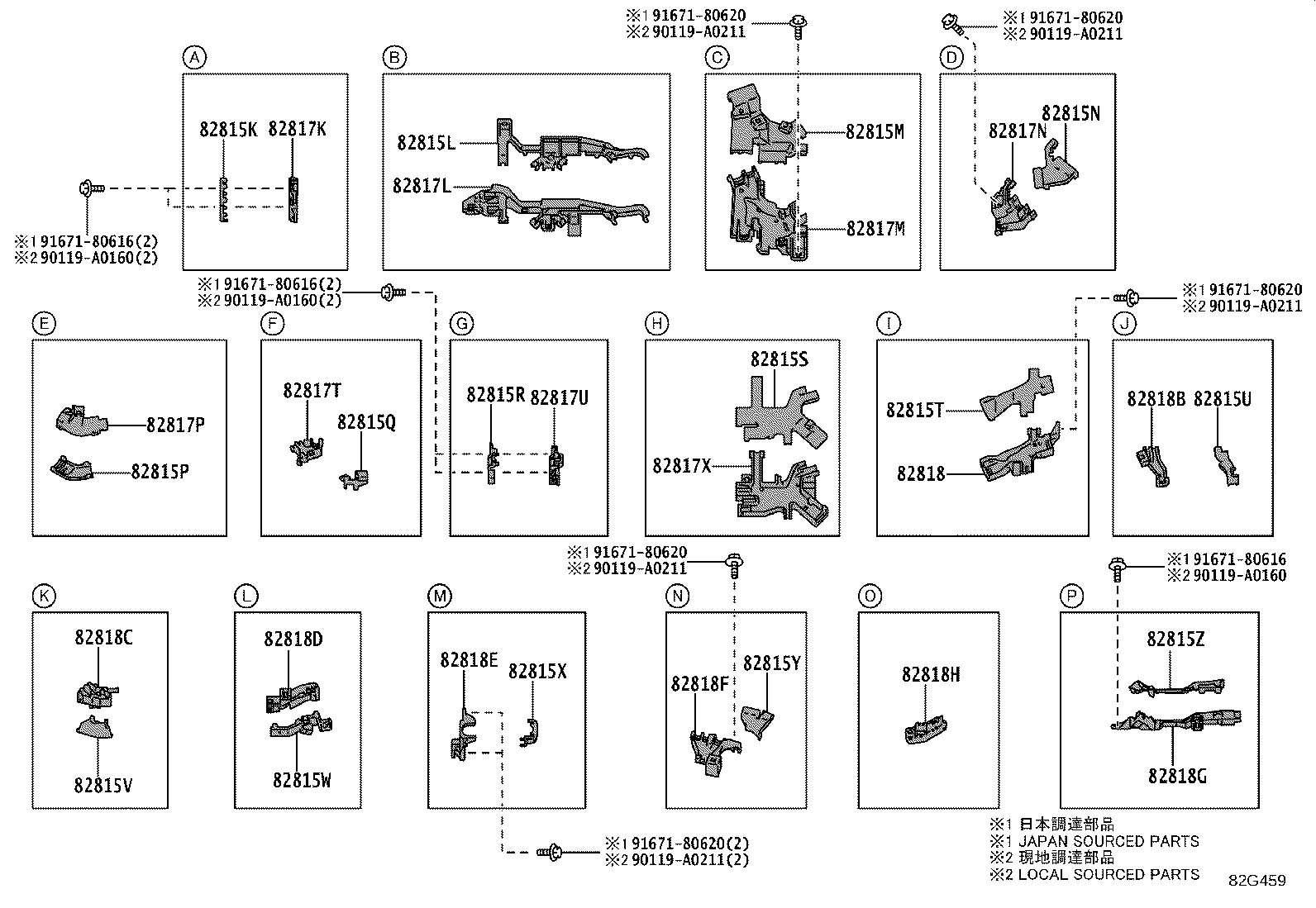

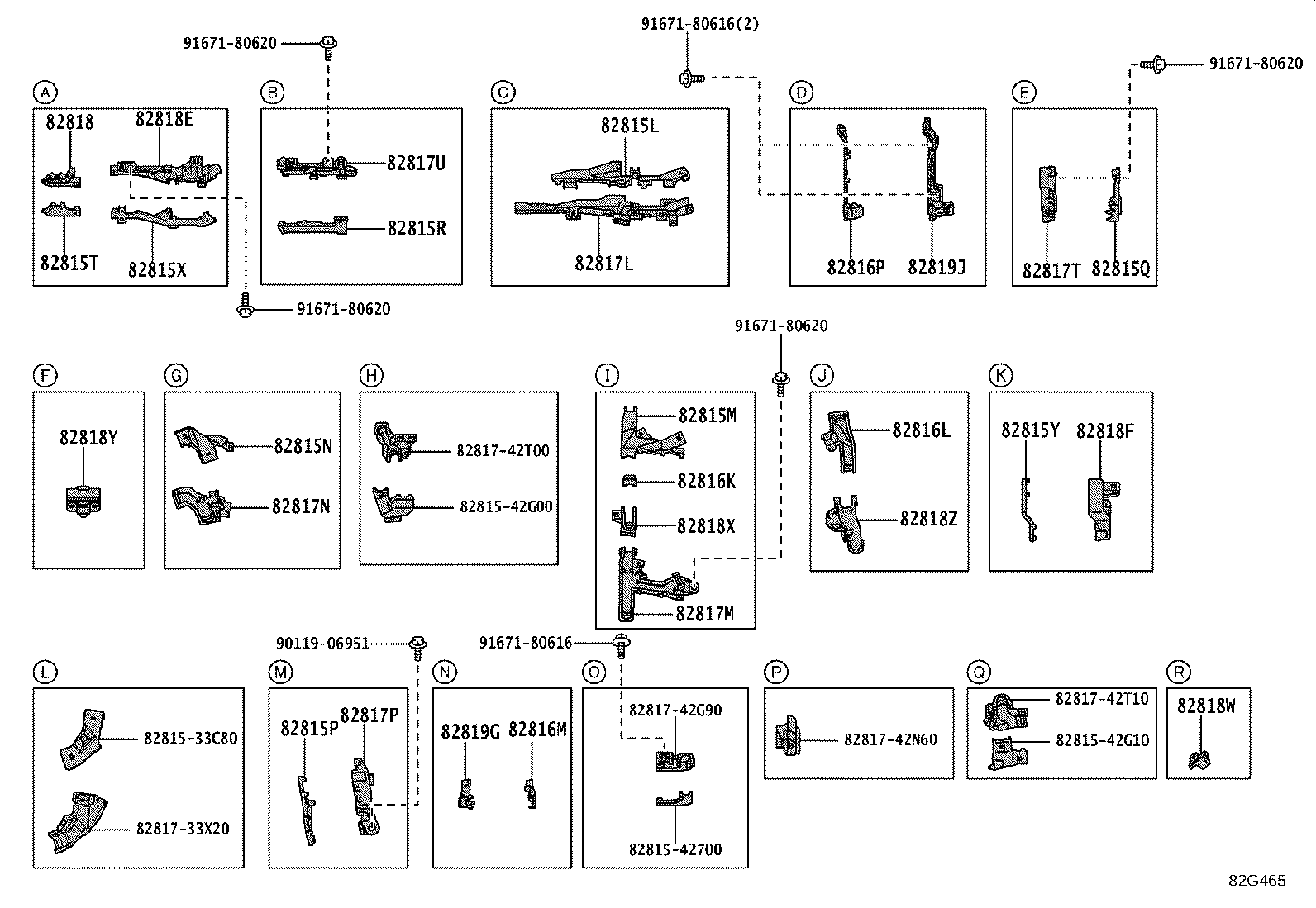

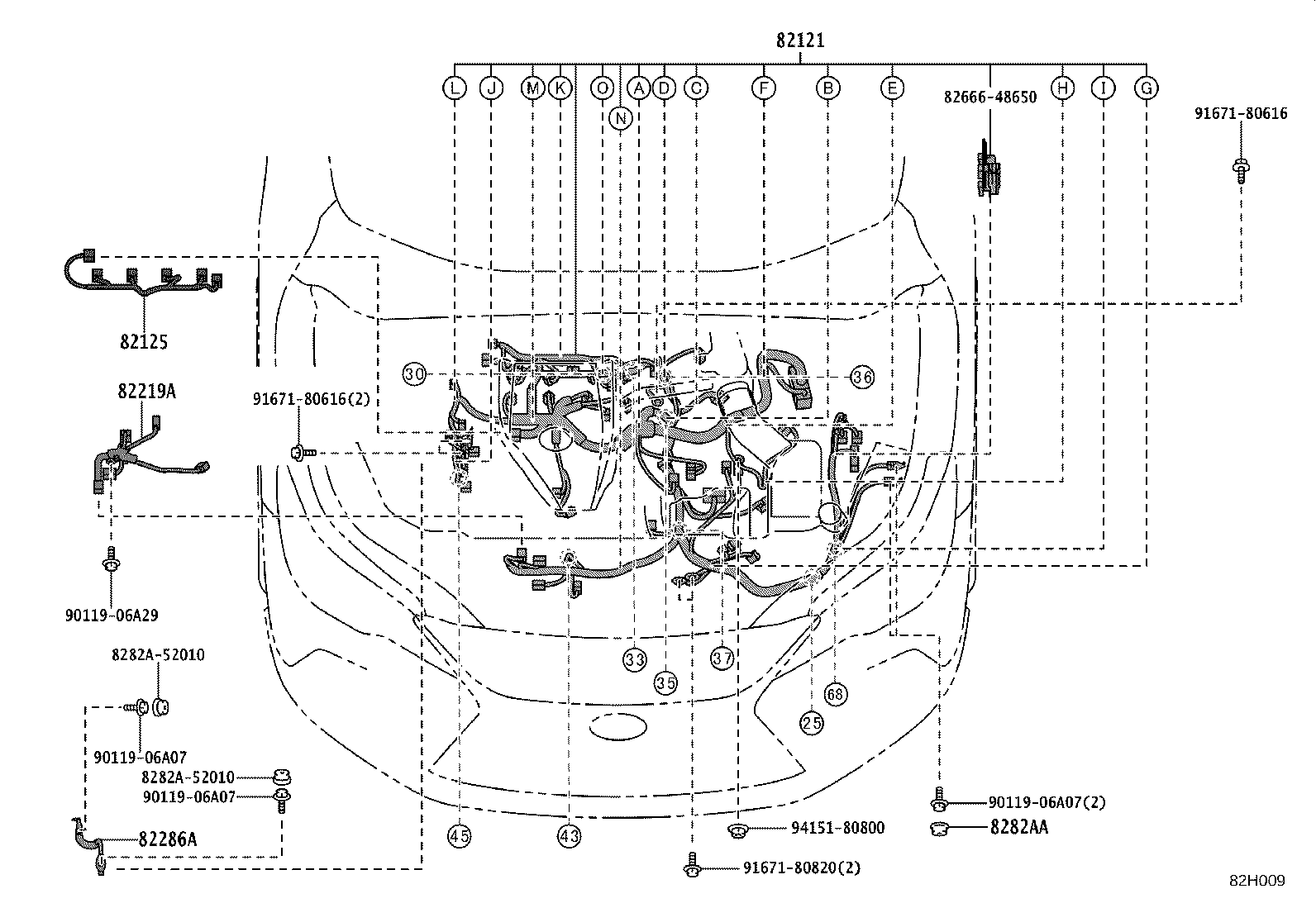

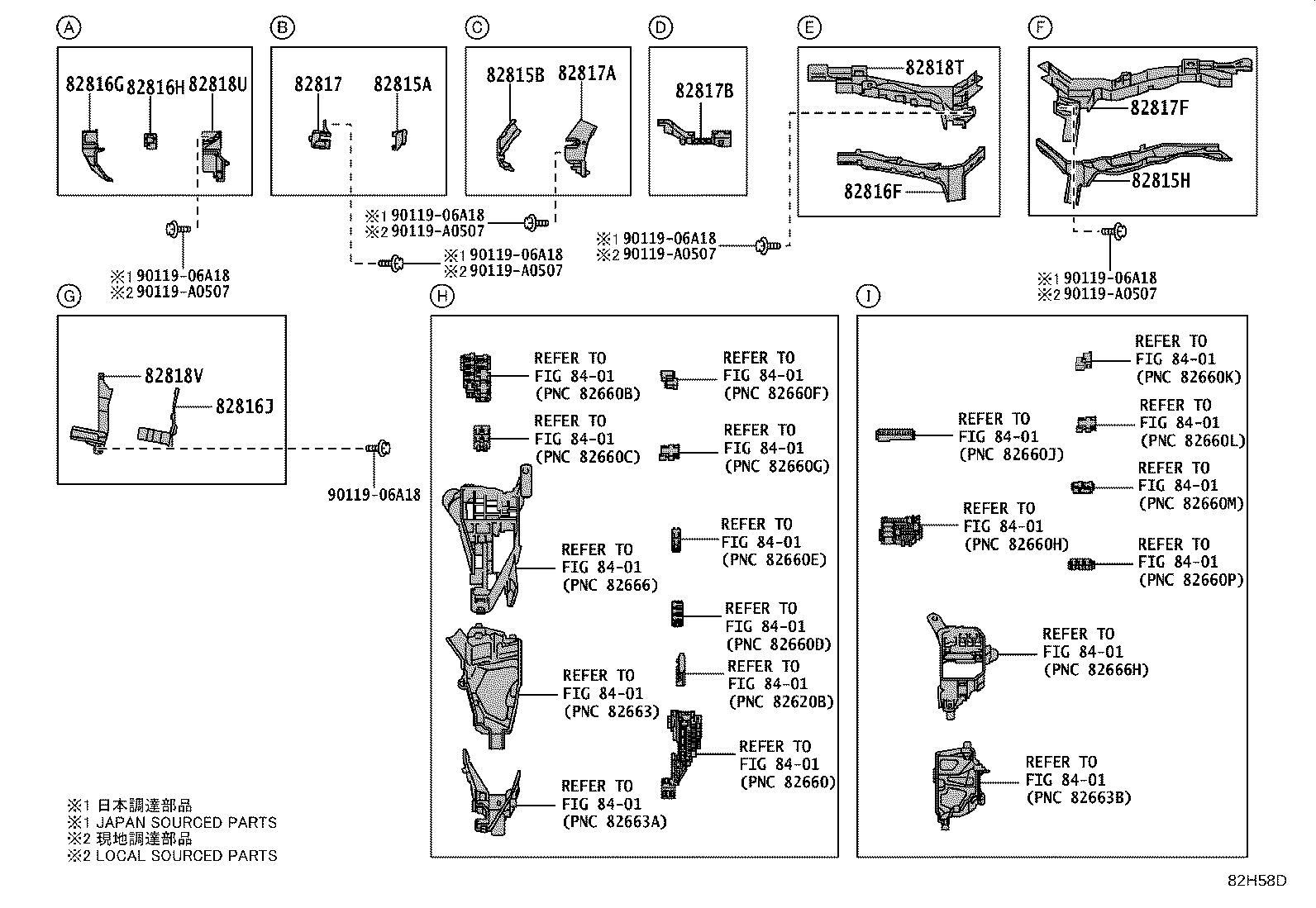

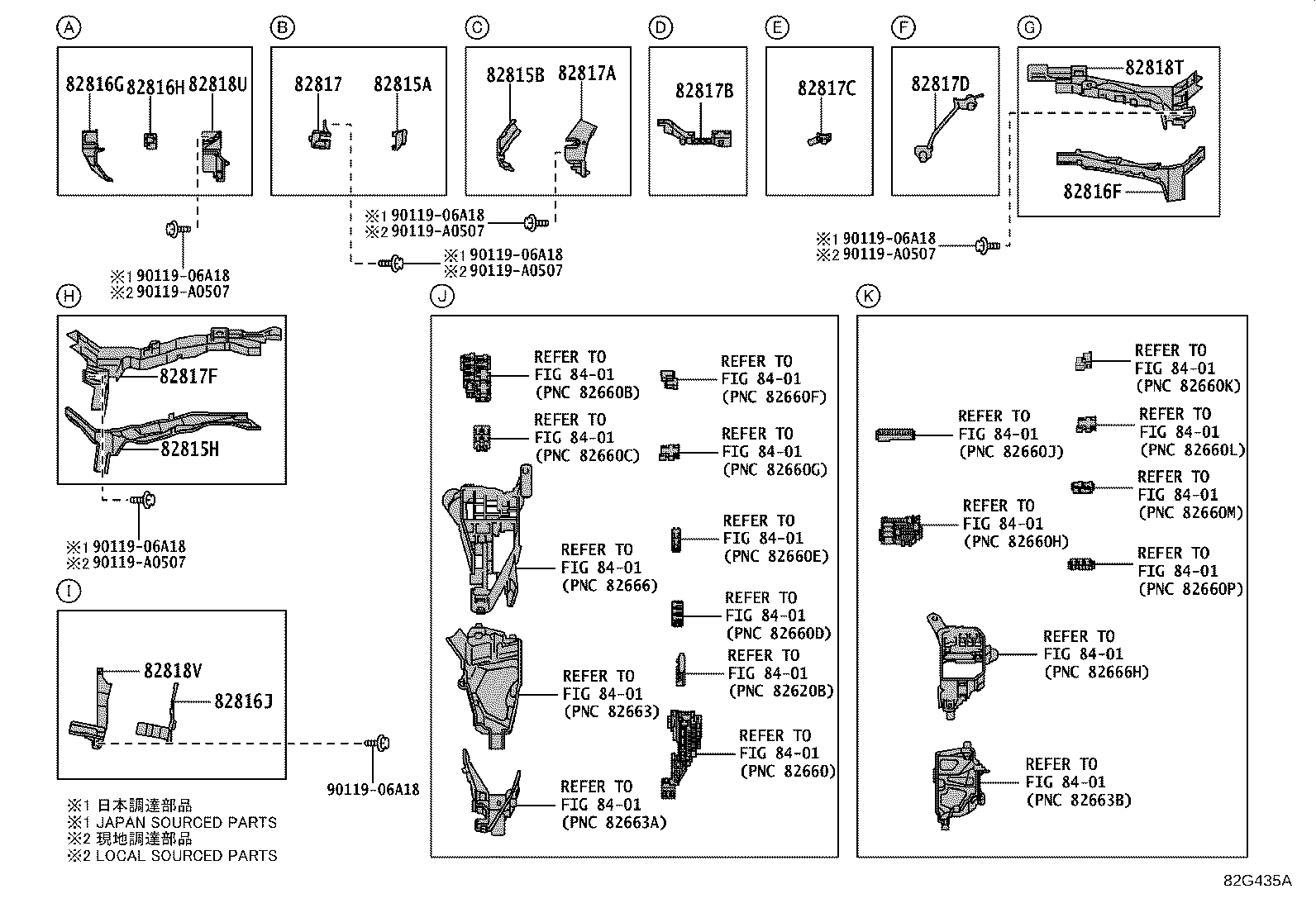

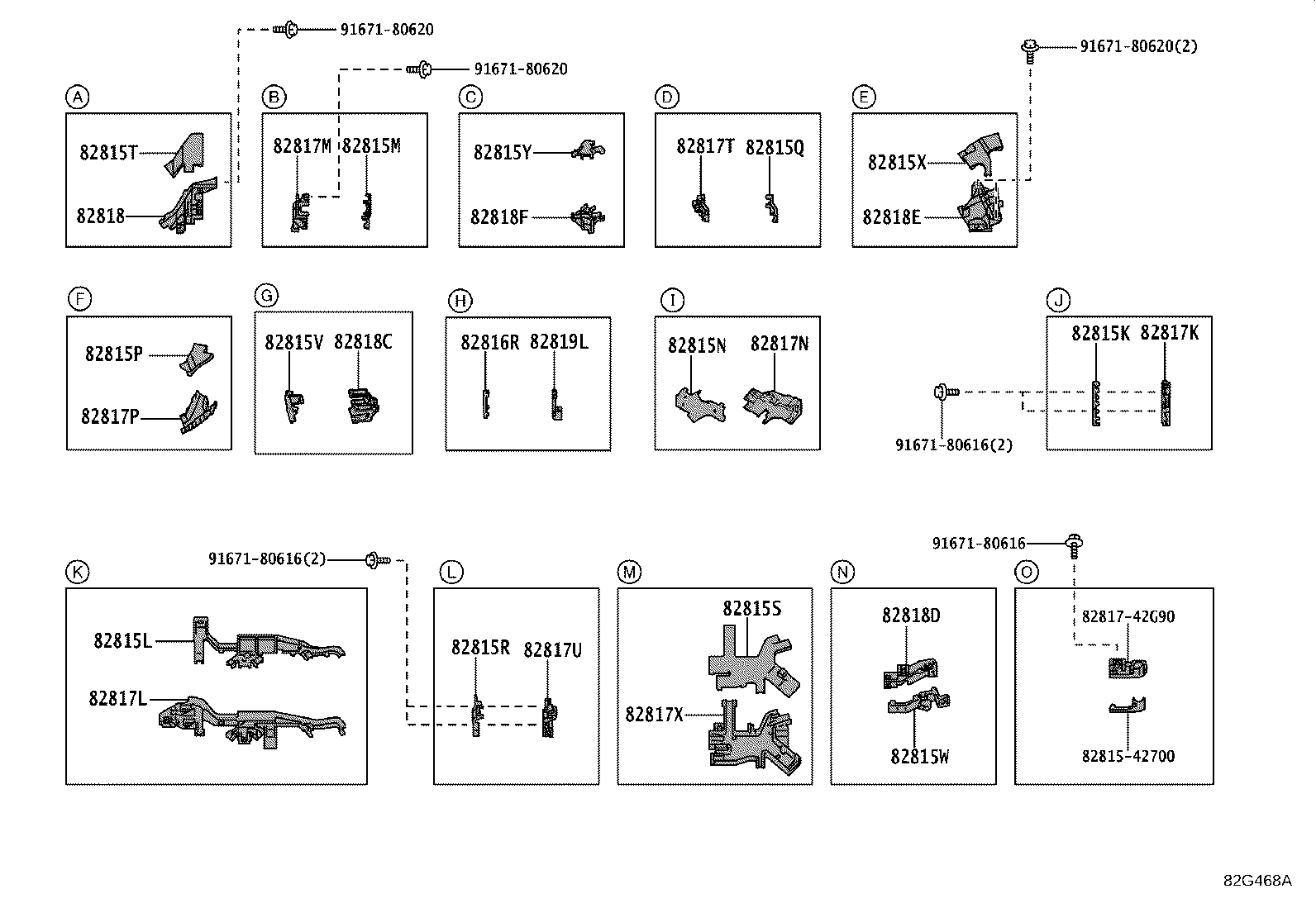

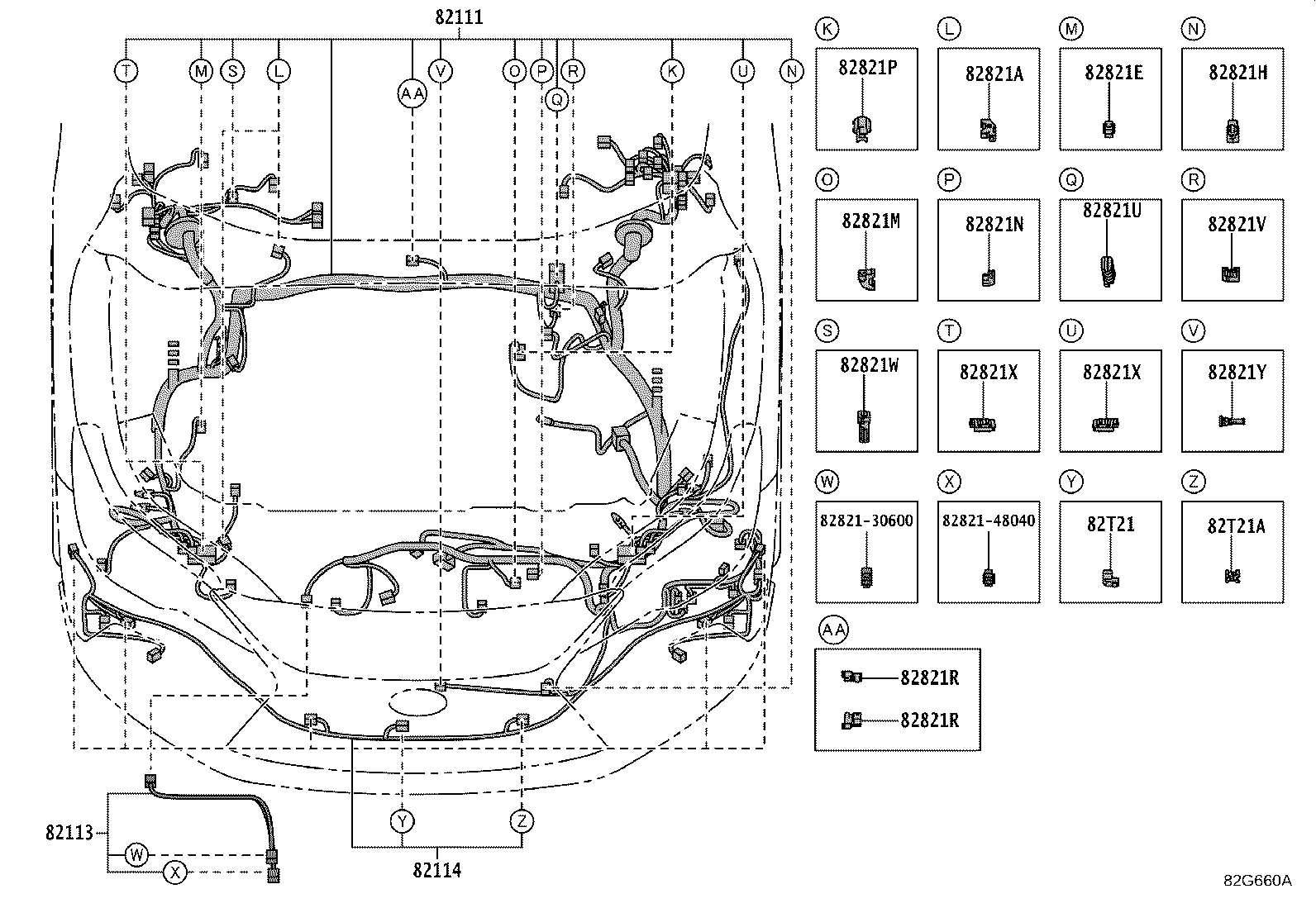

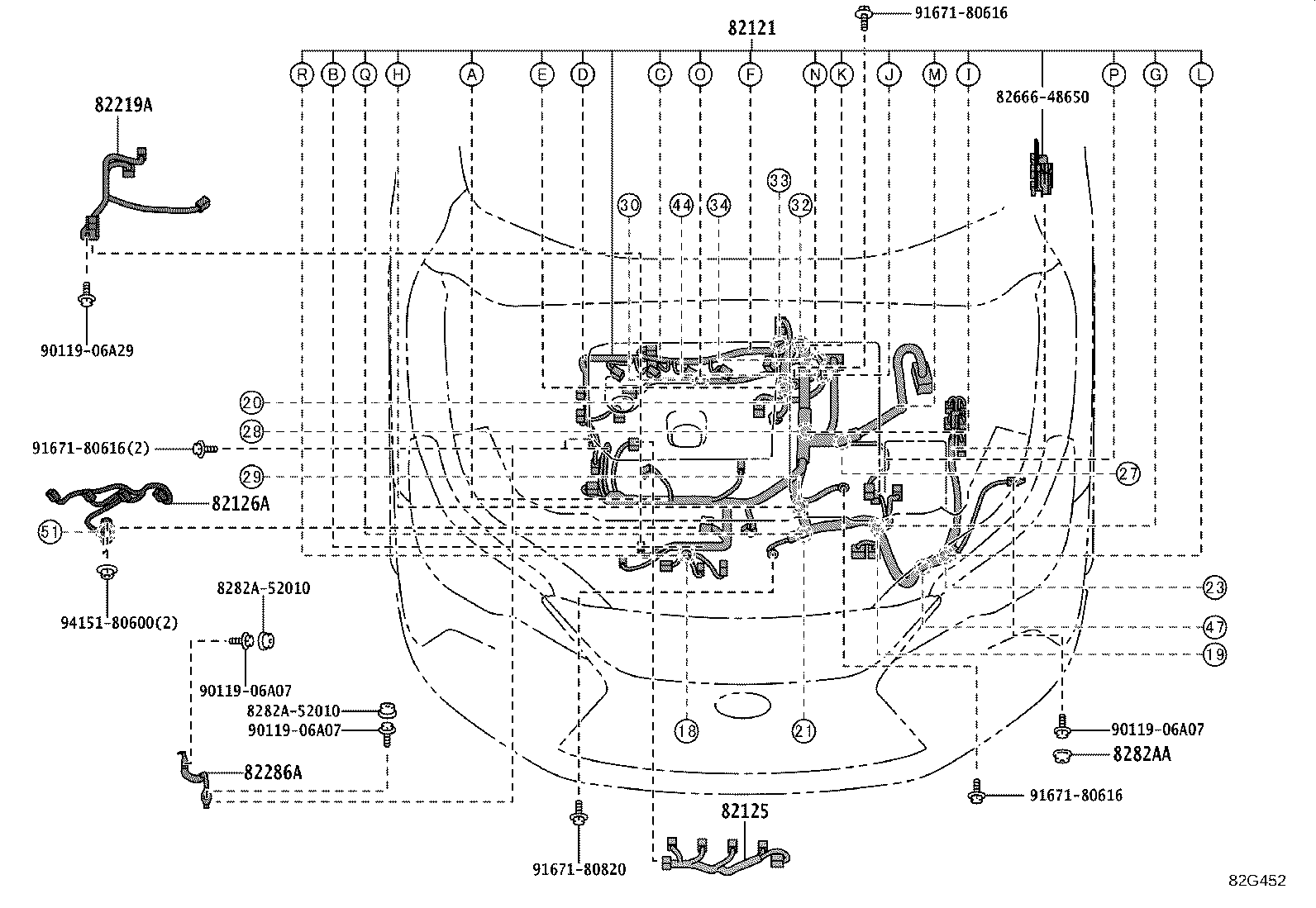

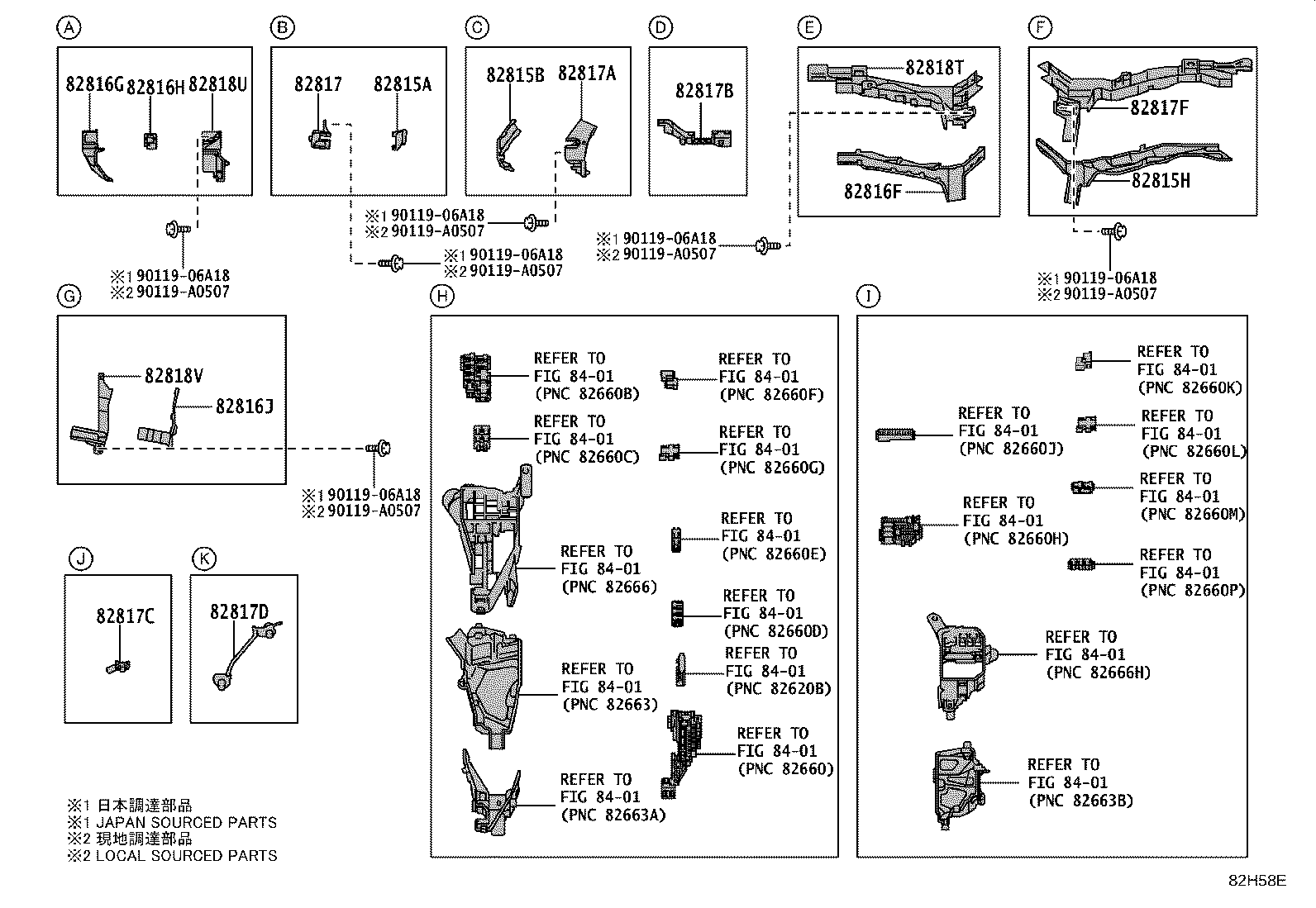

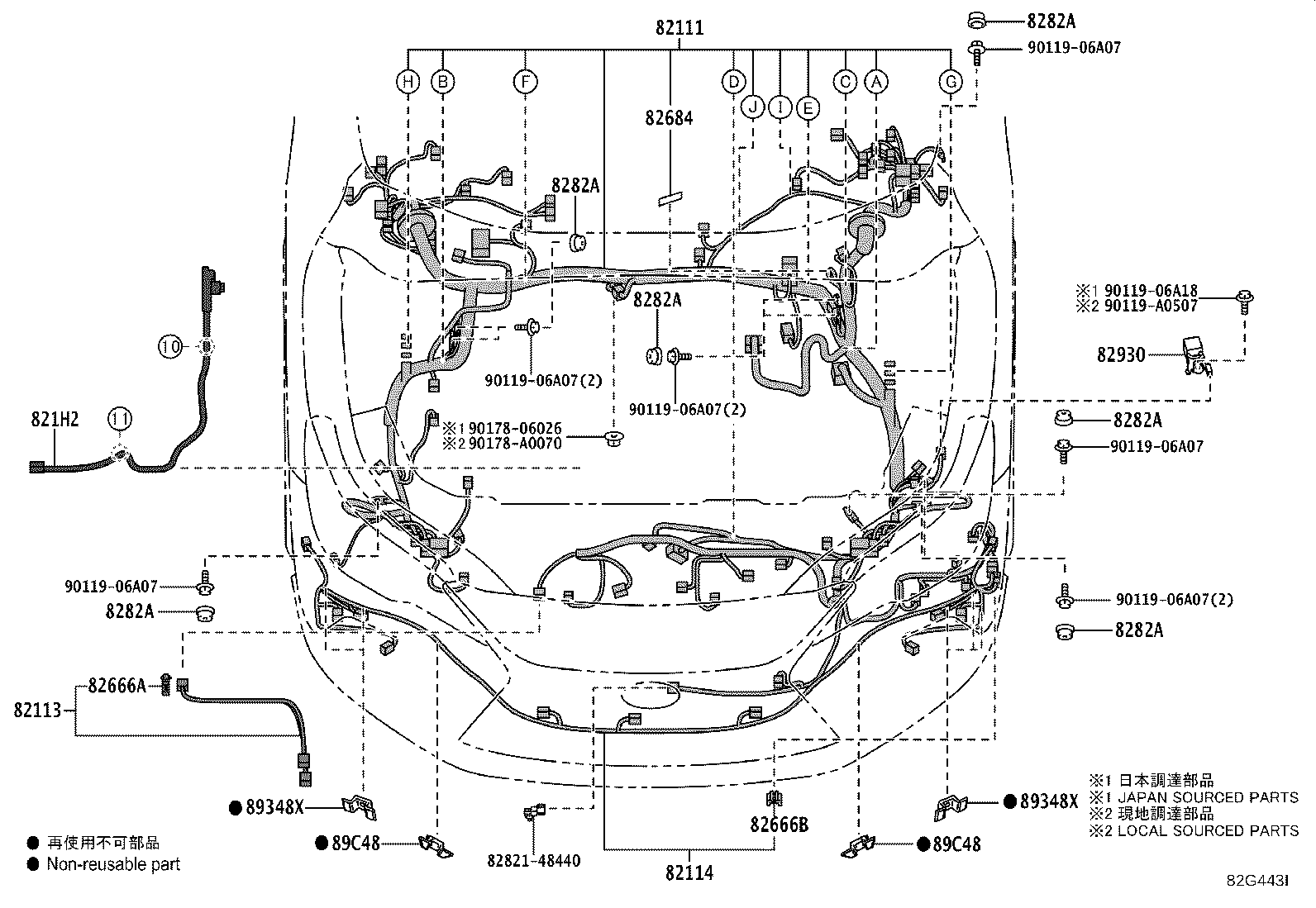

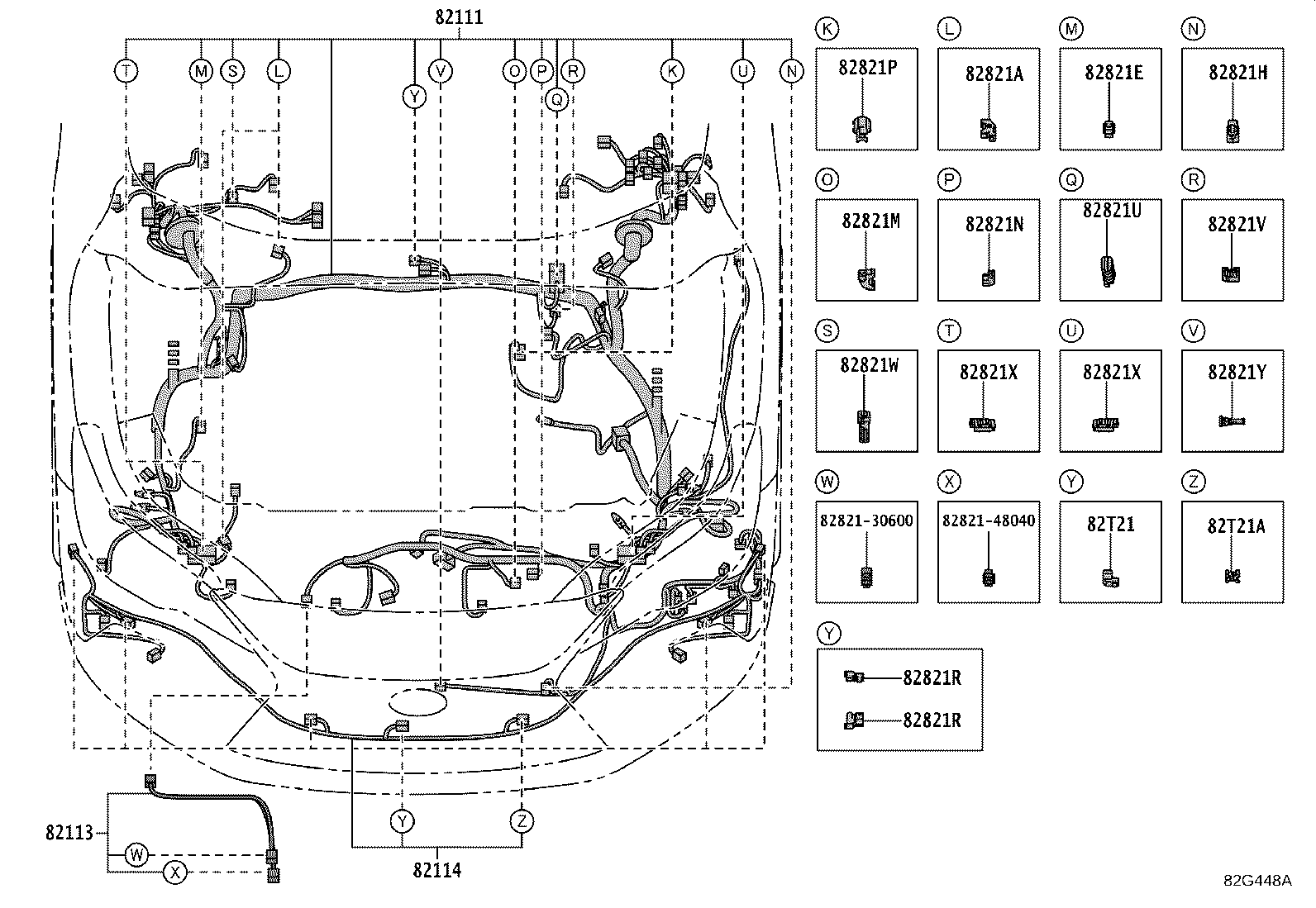

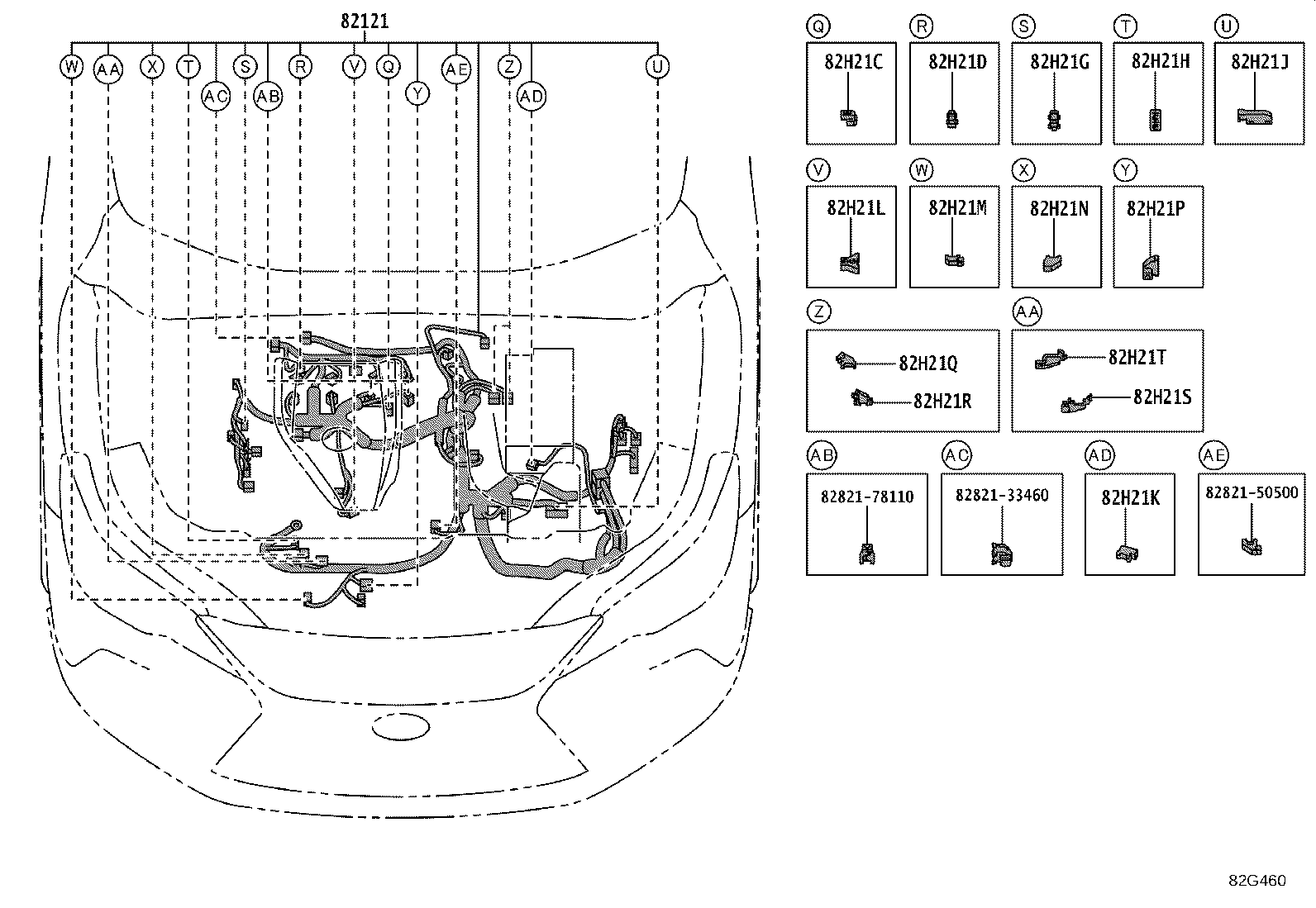

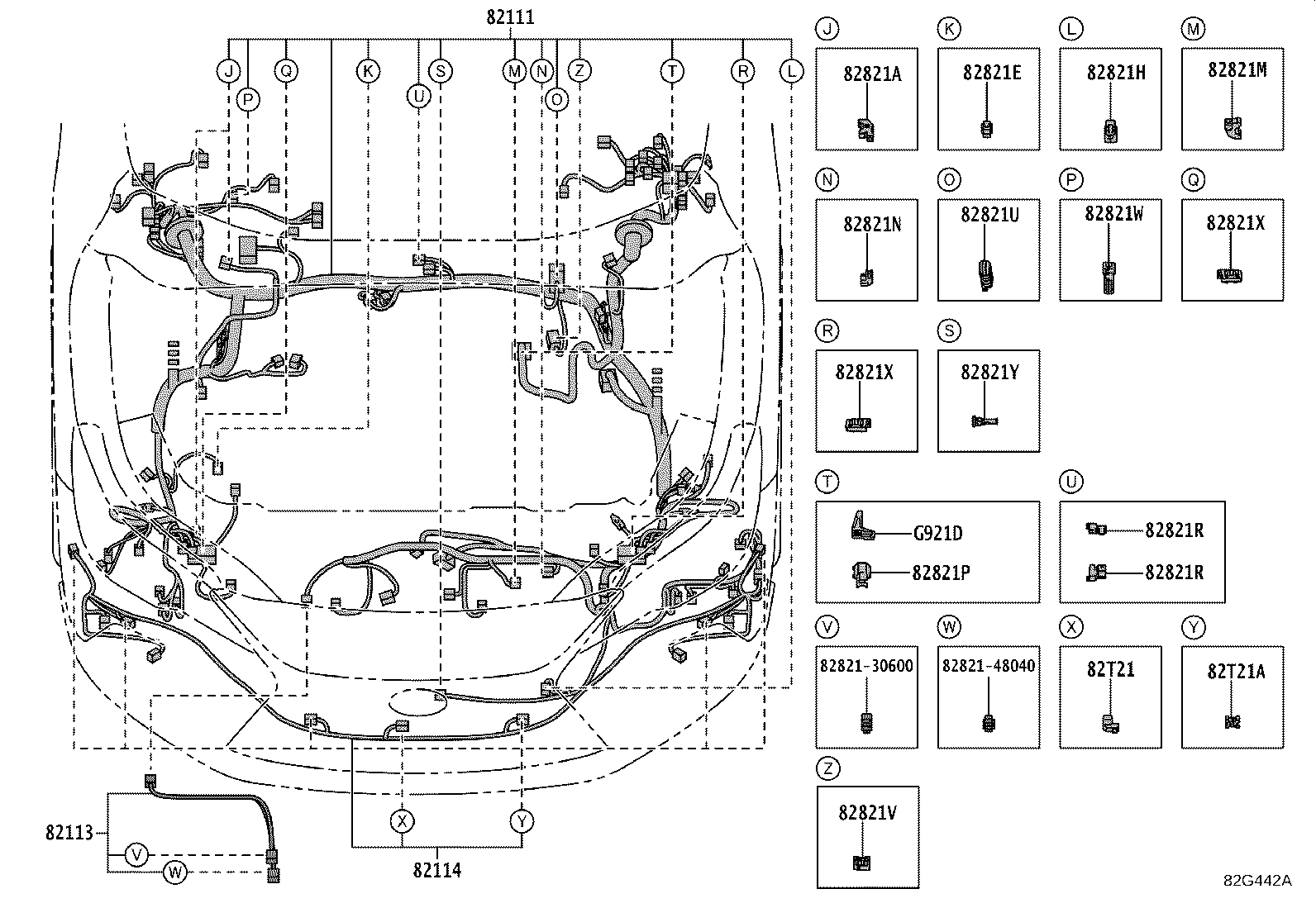

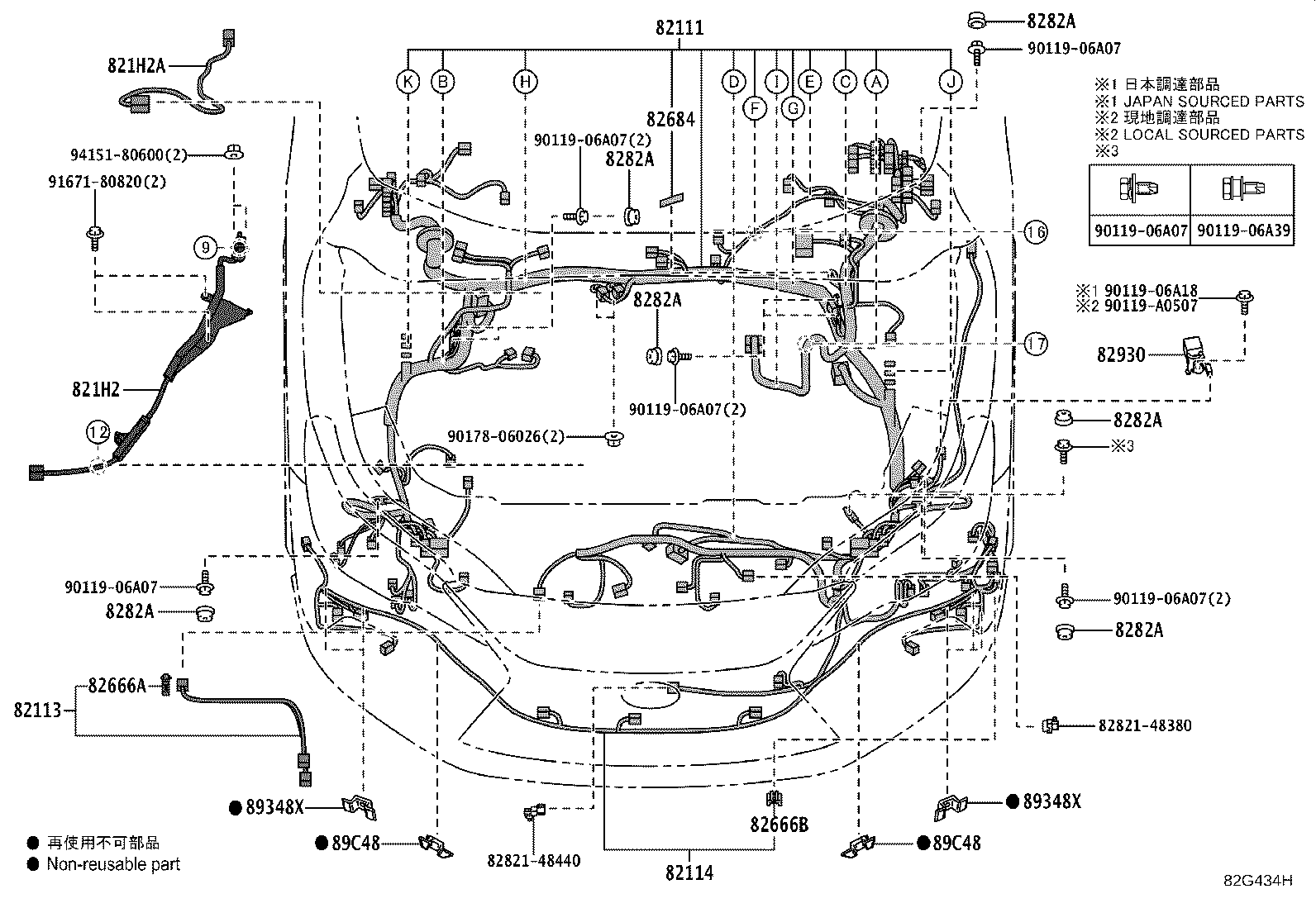

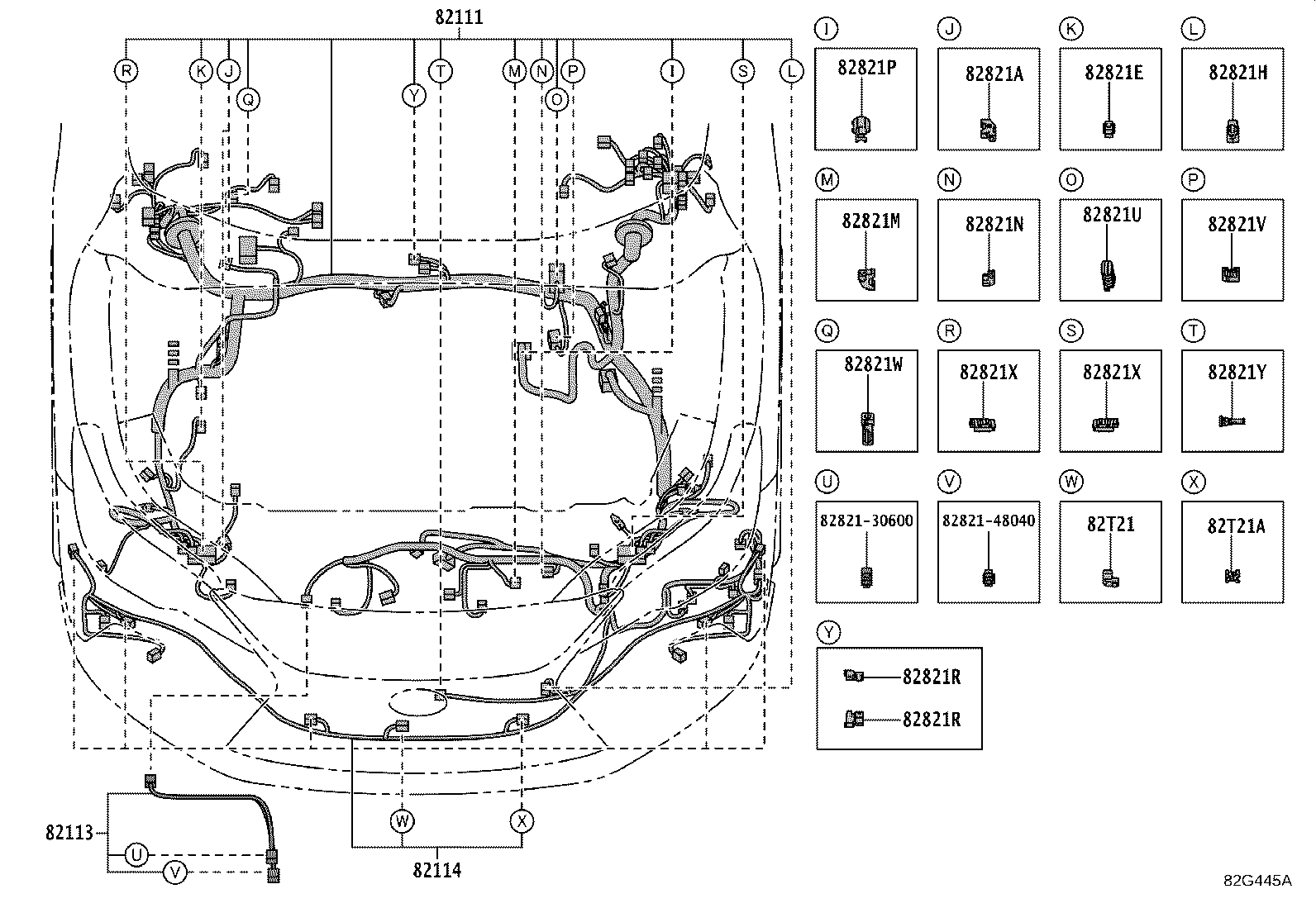

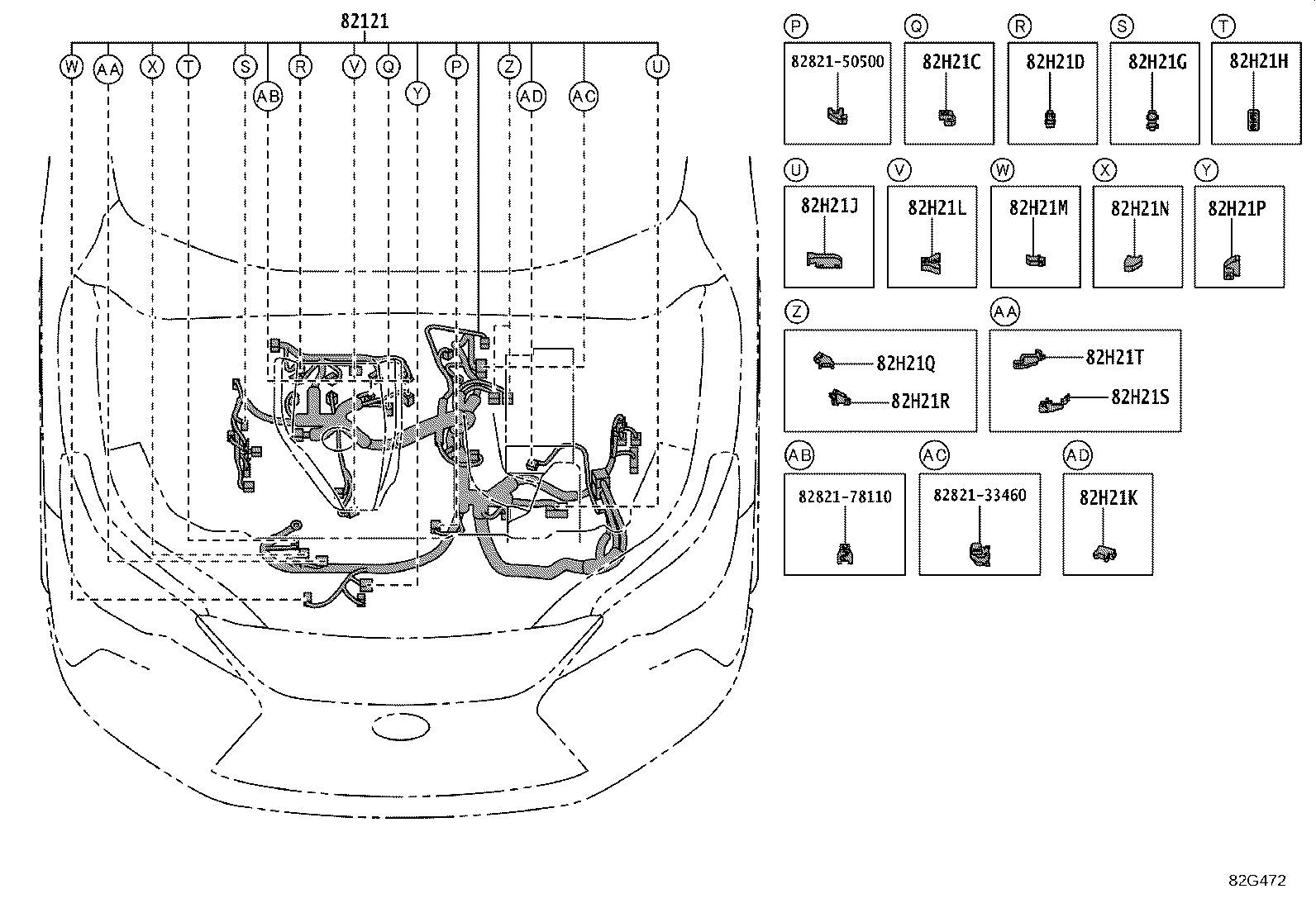

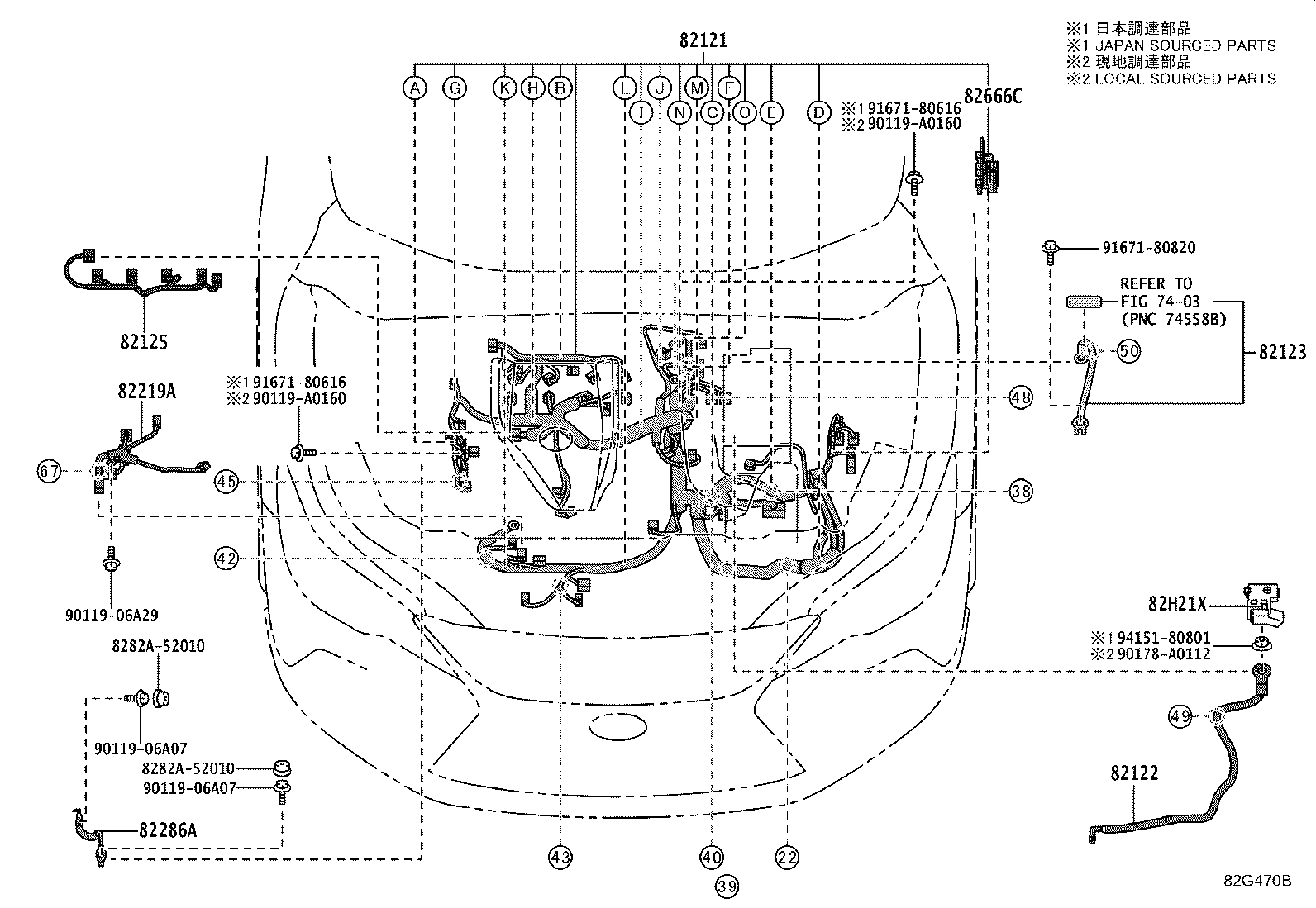

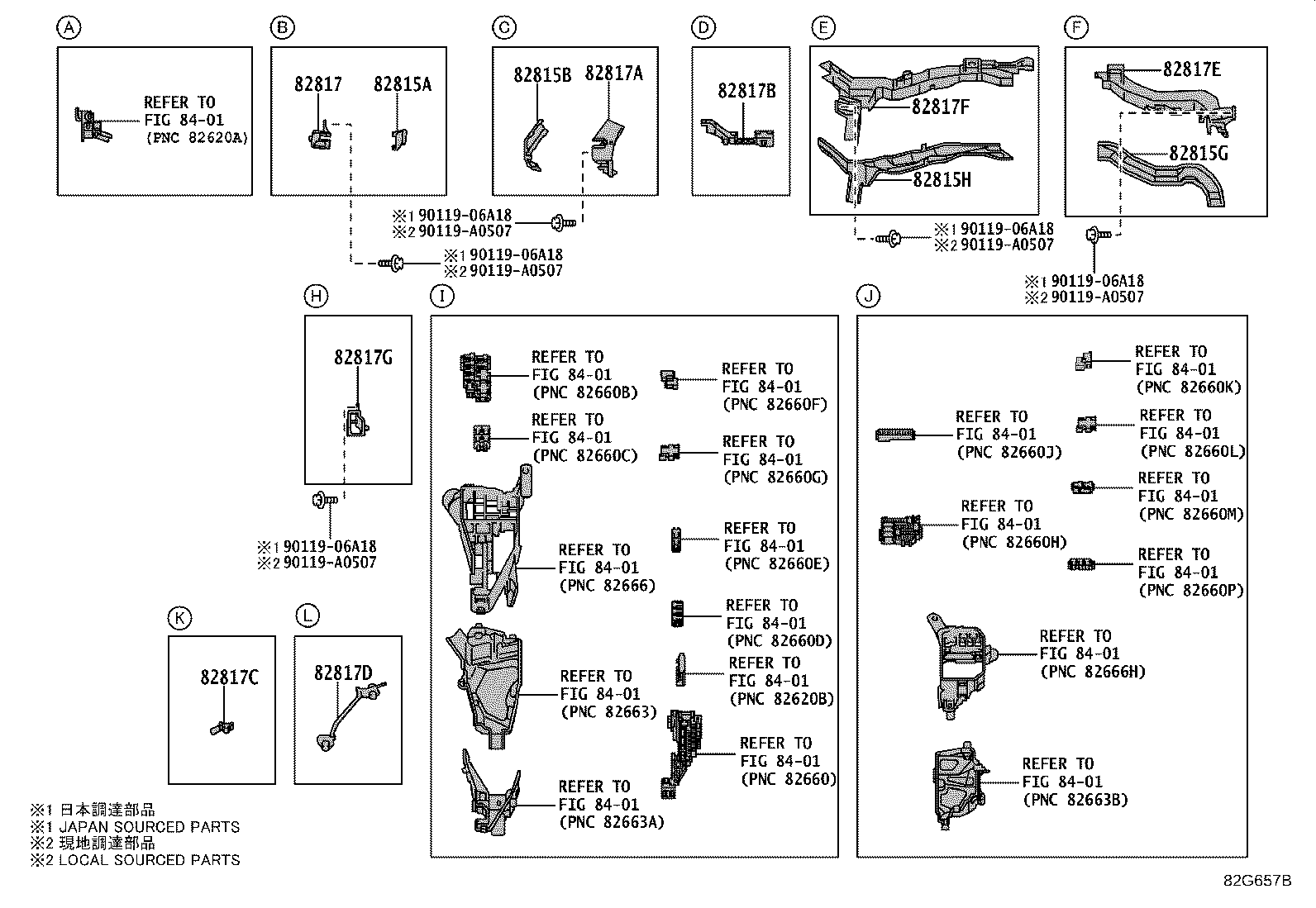

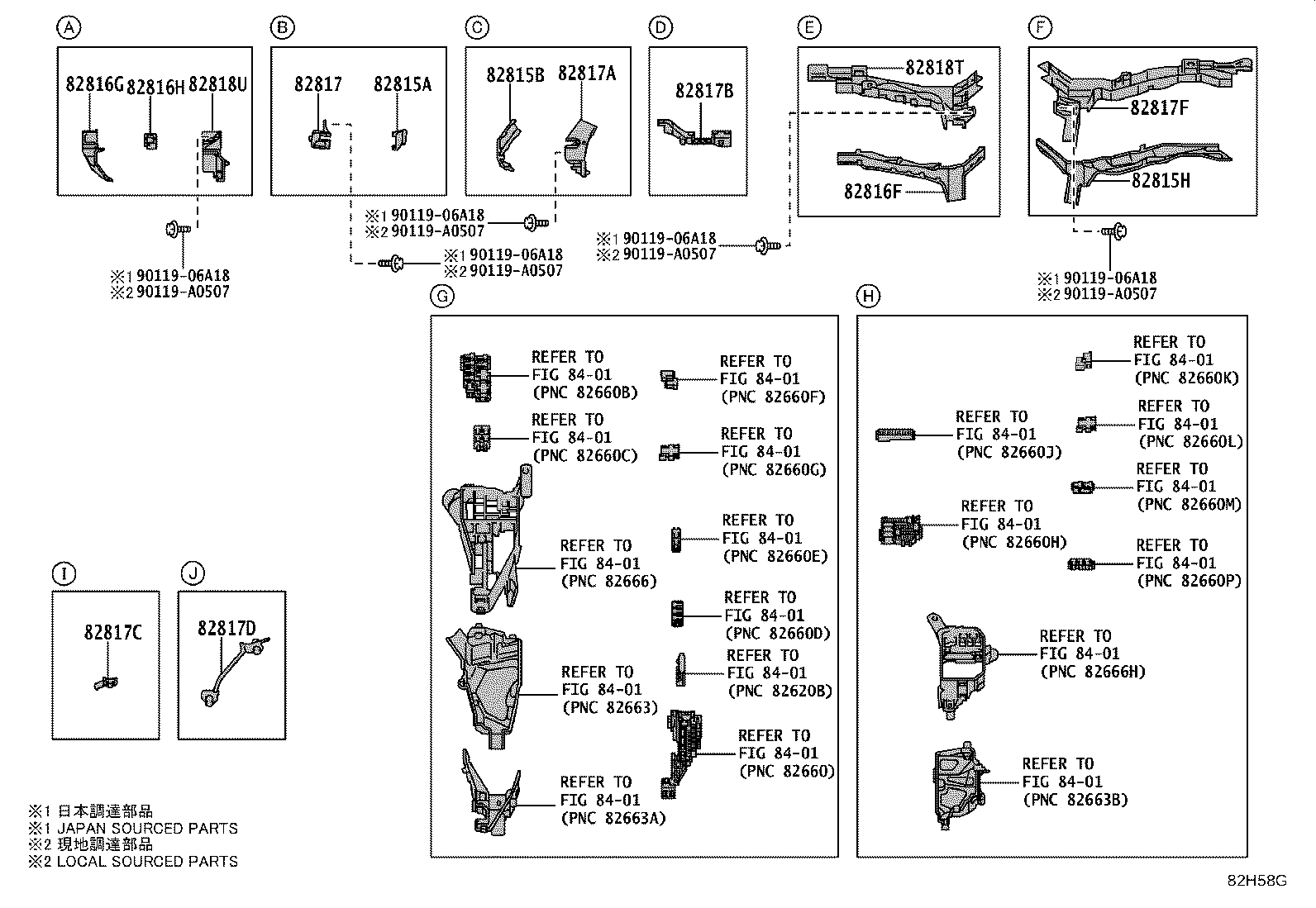

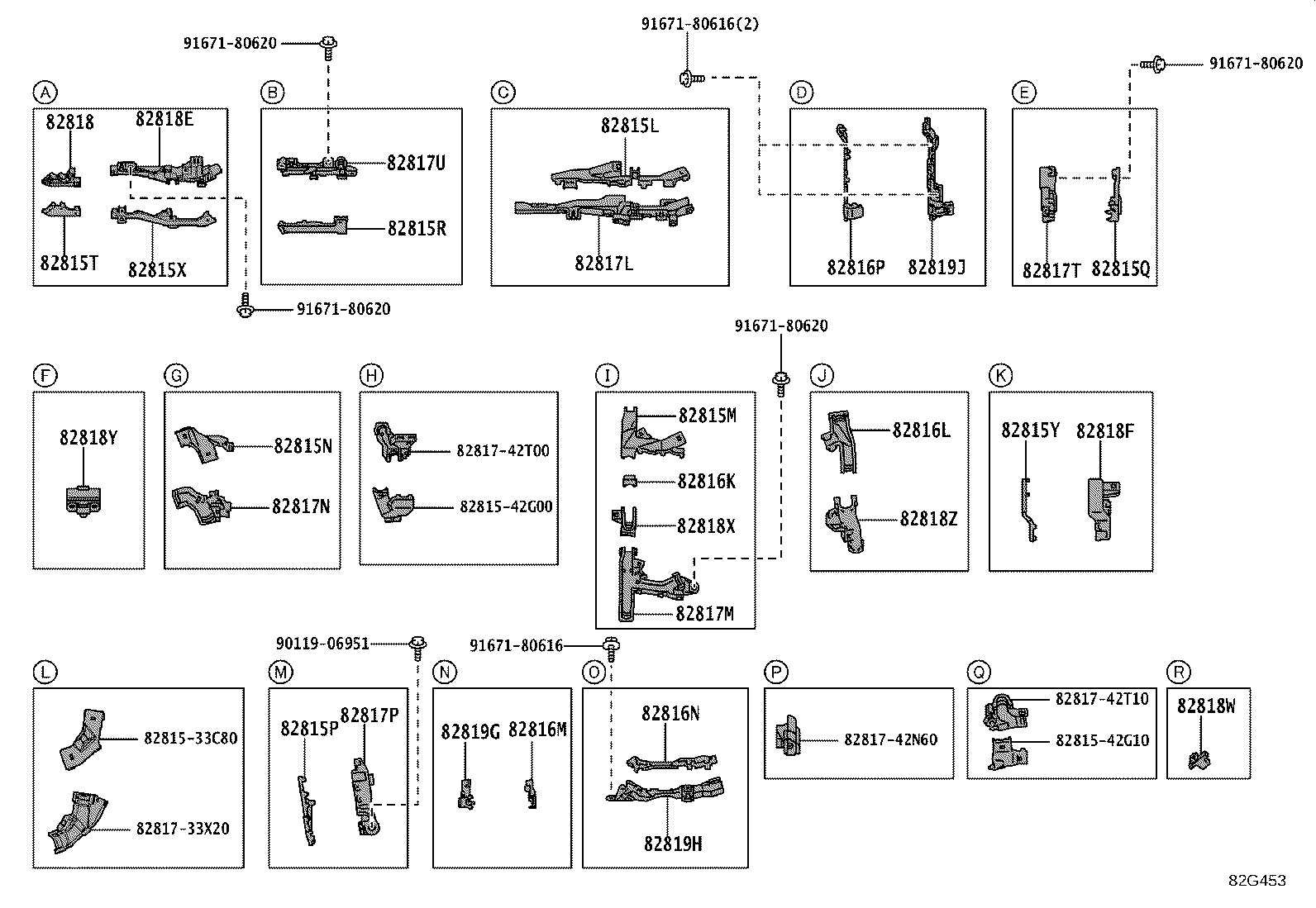

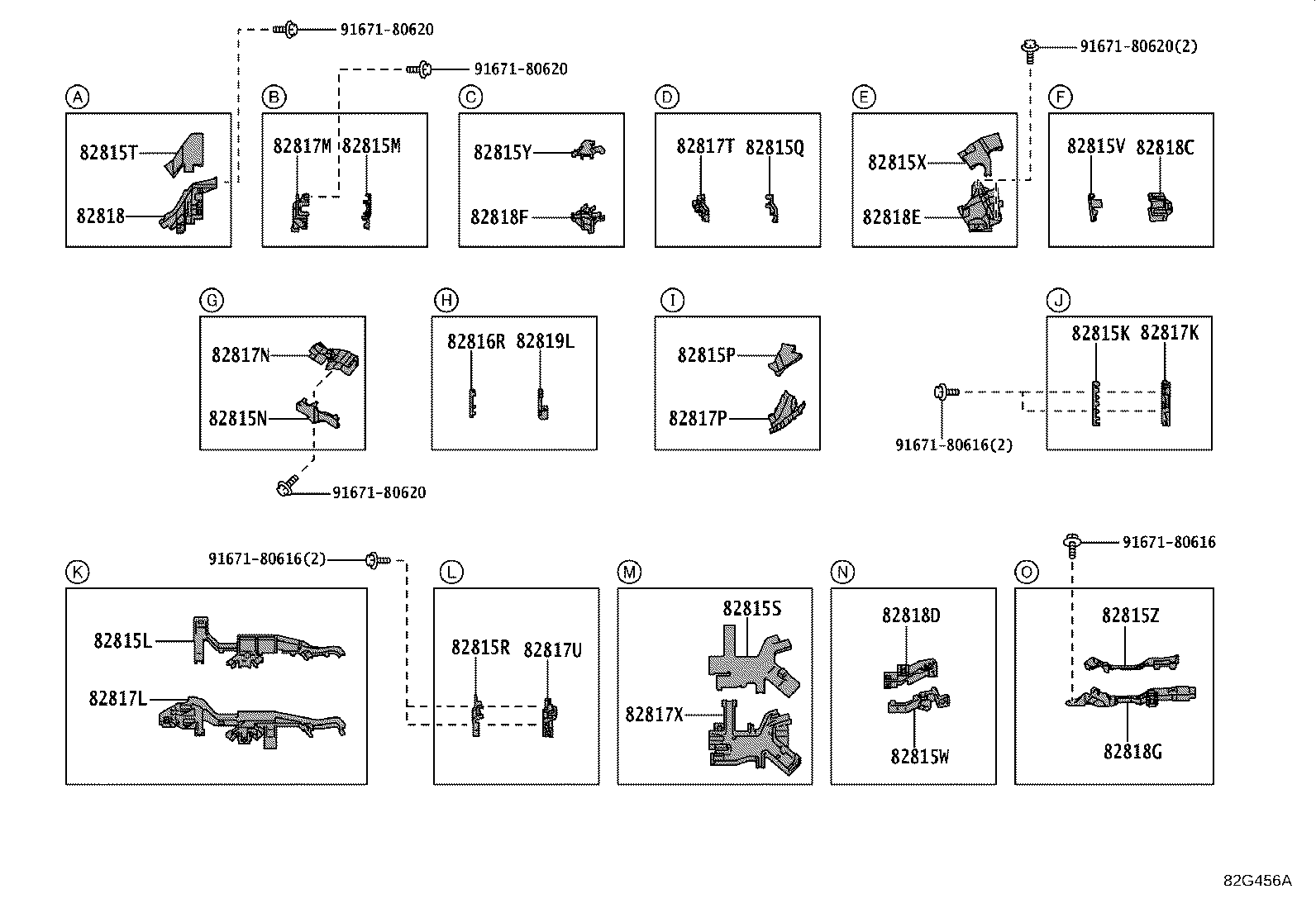

Figure 82G646B 82G646B 2022-10 → — Figure 82H58D 82H58D 2022-10 → — Figure 82G442A 82G442A 2022-10 → — Figure 82G434H 82G434H 2022-10 → — Figure 82G435A 82G435A 2022-10 → — Figure 82G436A 82G436A 2022-10 → — Figure 82G437I 82G437I 2022-10 → — Figure 82H58E 82H58E 2022-10 → — Figure 82G439A 82G439A 2022-10 → — Figure 82G446D 82G446D 2022-10 → — Figure 82H58F 82H58F 2022-10 → — Figure 82G448A 82G448A 2022-10 → — Figure 82G656E 82G656E 2022-10 → — Figure 82G657B 82G657B 2022-10 → — Figure 82G660A 82G660A 2022-10 → — Figure 82G443I 82G443I 2022-10 → — Figure 82H58G 82H58G 2022-10 → — Figure 82G445A 82G445A 2022-10 → — Figure 82G470B 82G470B 2022-10 → — Figure 82G471 82G471 2022-10 → — Figure 82G472 82G472 2022-10 → — Figure 82G458B 82G458B 2022-10 → — Figure 82G459 82G459 2022-10 → — Figure 82G460 82G460 2022-10 → — Figure 82H008 82H008 2022-10 → — Figure 82G468A 82G468A 2022-10 → — Figure 82G469A 82G469A 2022-10 → — Figure 82H009 82H009 2022-10 → — Figure 82G456A 82G456A 2022-10 → — Figure 82G457A 82G457A 2022-10 → — Figure 82G464 82G464 2022-10 → — Figure 82G465 82G465 2022-10 → — Figure 82G466A 82G466A 2022-10 → — Figure 82G452 82G452 2022-10 → — Figure 82G453 82G453 2022-10 → — Figure 82G454A 82G454A 2022-10 → — Figure 82G461A 82G461A 2022-10 → — Figure 82G462 82G462 2022-10 → — Figure 82G463A 82G463A 2022-10 → — Figure 82G449 82G449 2022-10 → — Figure 82G450 82G450 2022-10 → — Figure 82G451A 82G451A 2022-10 → — Figure 82G662A 82G662A 2022-10 → — Figure 82G473A 82G473A 2022-10 → — Figure 82G638A 82G638A 2022-10 → — Figure 82H58H 82H58H 2022-10 → — Figure 82H58IB 82H58IB 2022-10 → — Figure 82G477A 82G477A 2022-10 → — Figure 82H58J 82H58J 2022-10 → — Figure 82H215 82H215 2022-10 → — Figure 82G480B 82G480B 2022-10 → — Figure 82G481B 82G481B 2022-10 → — Figure 82G661 82G661 2022-10 → — Figure 82G659 82G659 2022-10 → — Figure 82G642D 82G642D 2022-10 → — Figure 82G643B 82G643B 2022-10 → — Figure 82G644B 82G644B 2022-10 → — Figure 82G903A 82G903A 2022-10 → — Figure 82G904A 82G904A 2022-10 → —

Part groups

PNCDescription

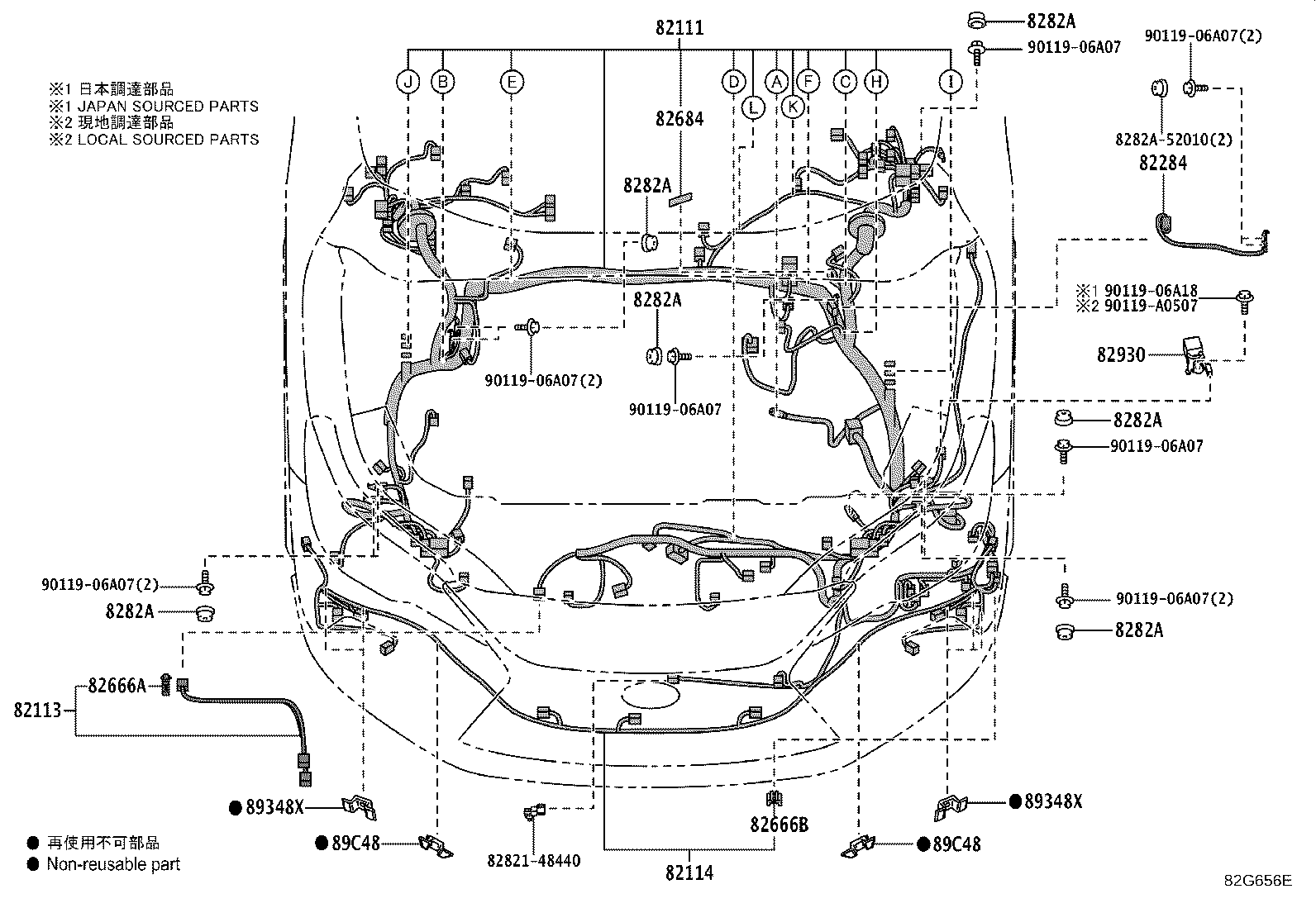

82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4

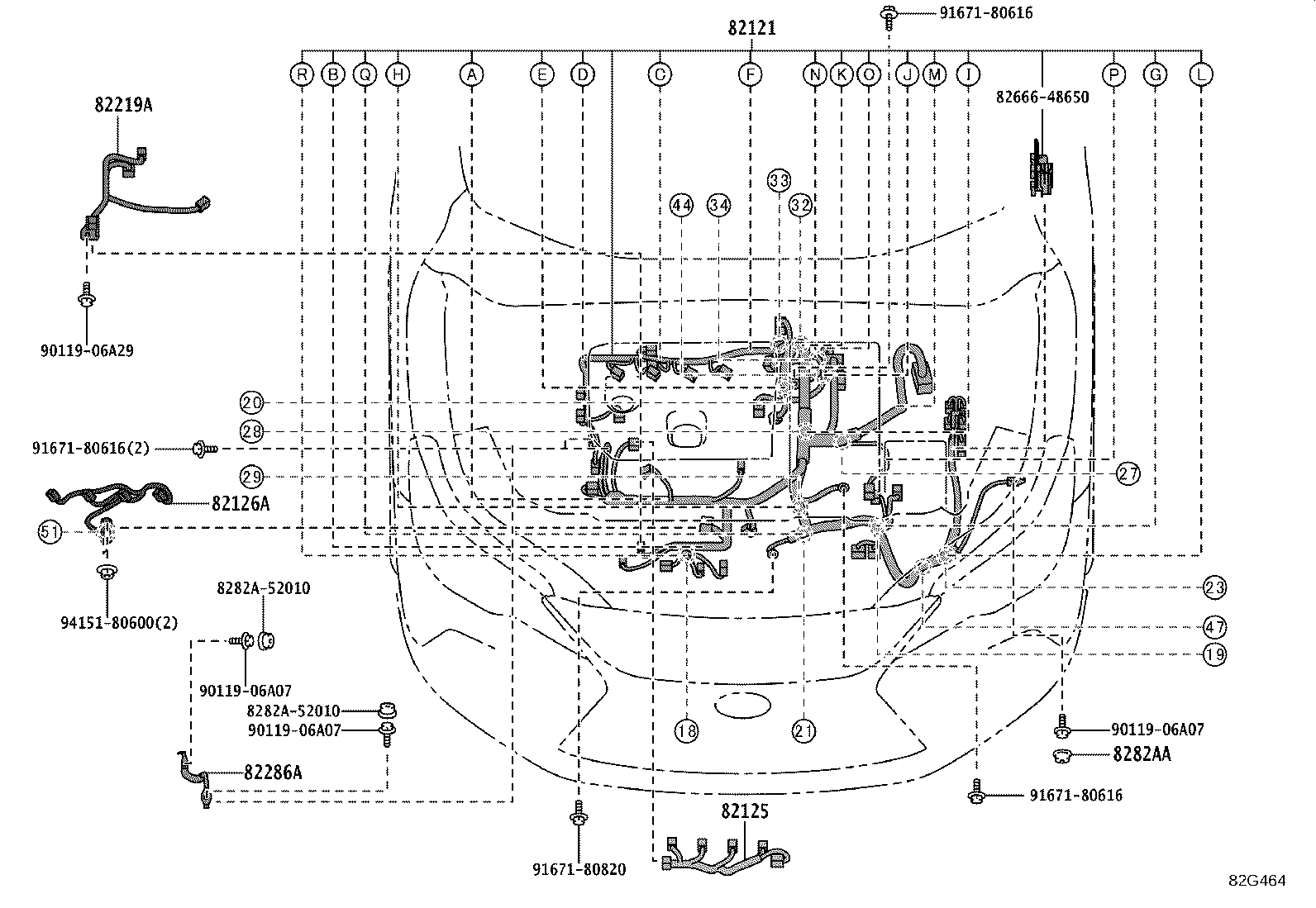

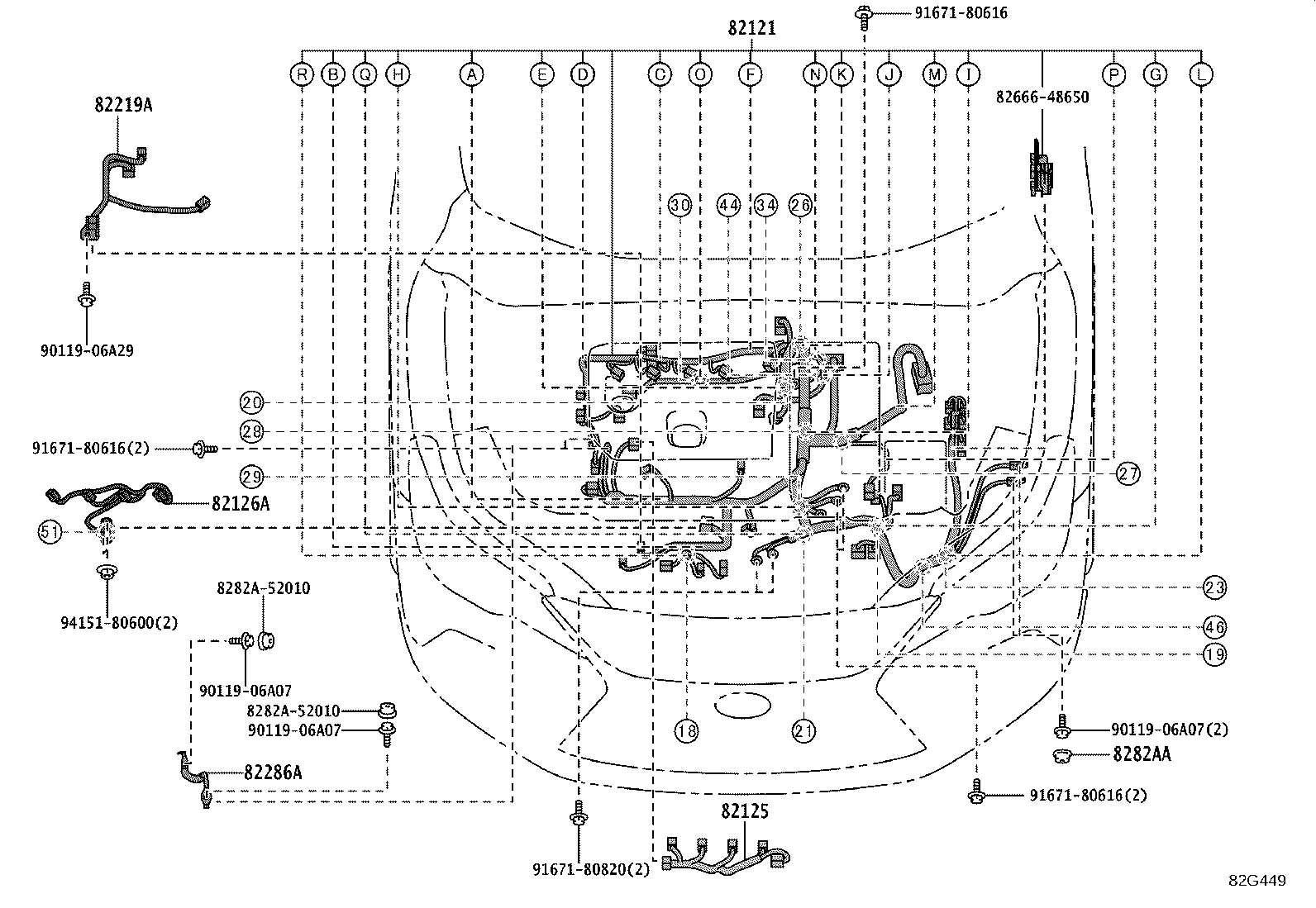

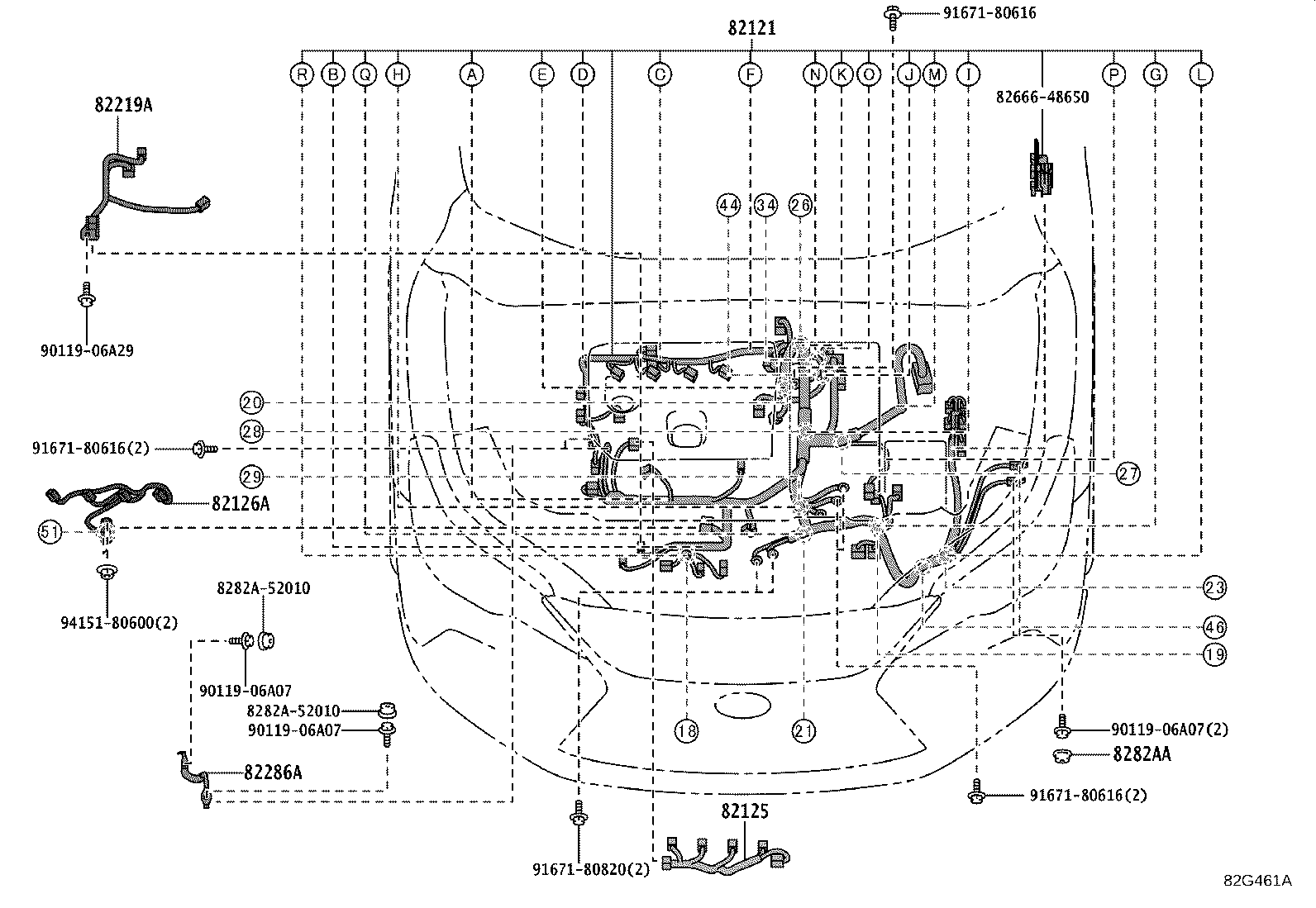

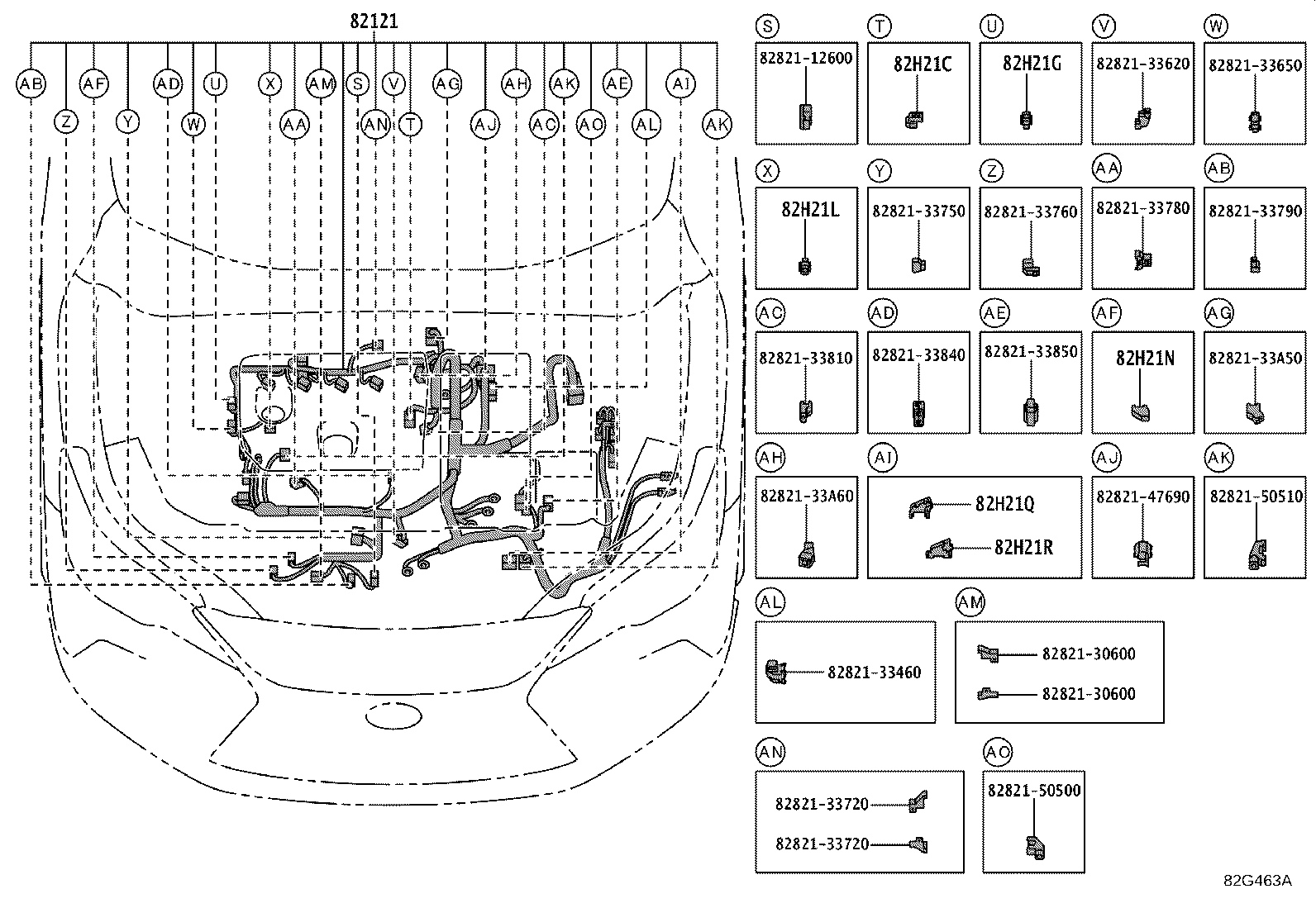

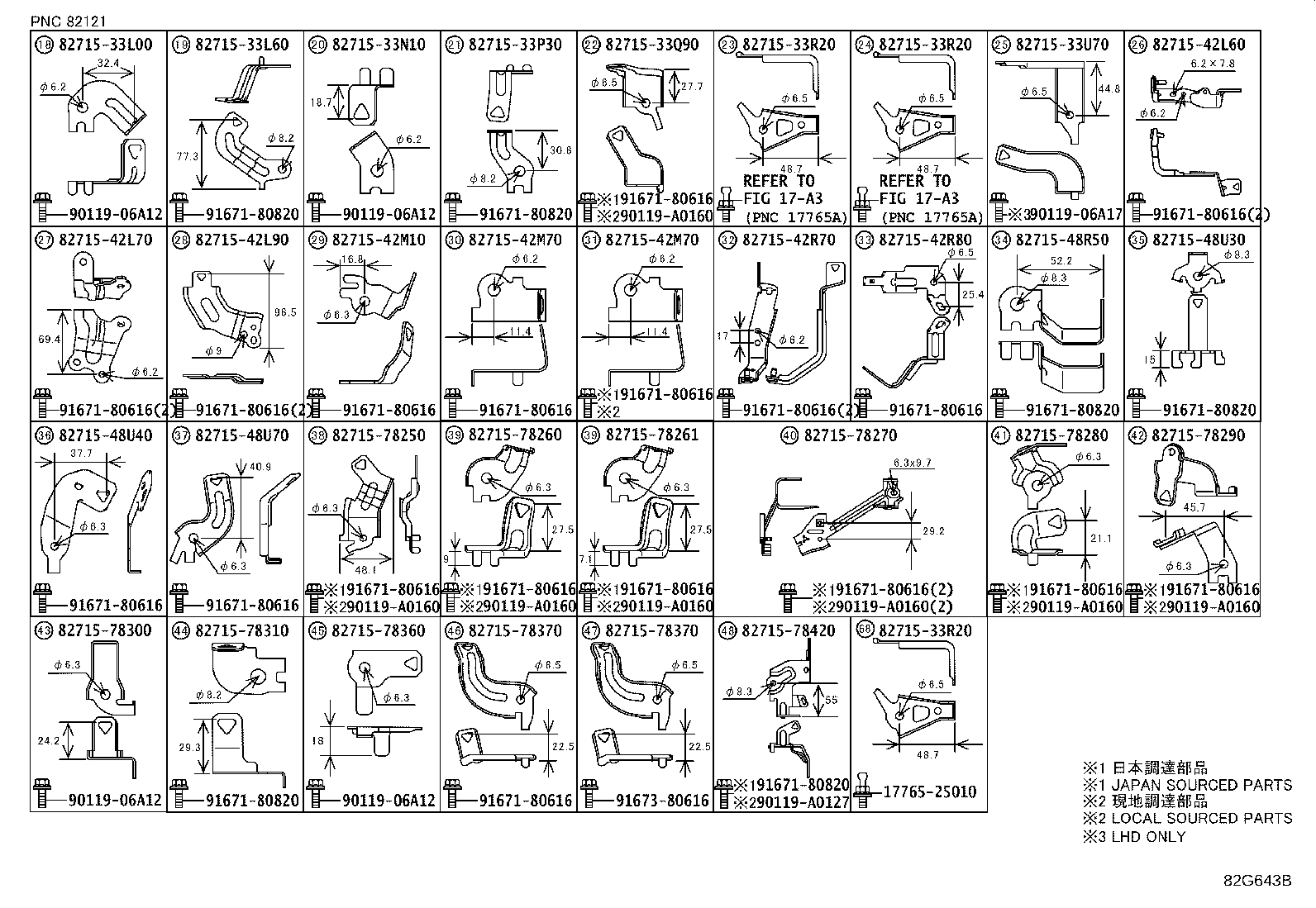

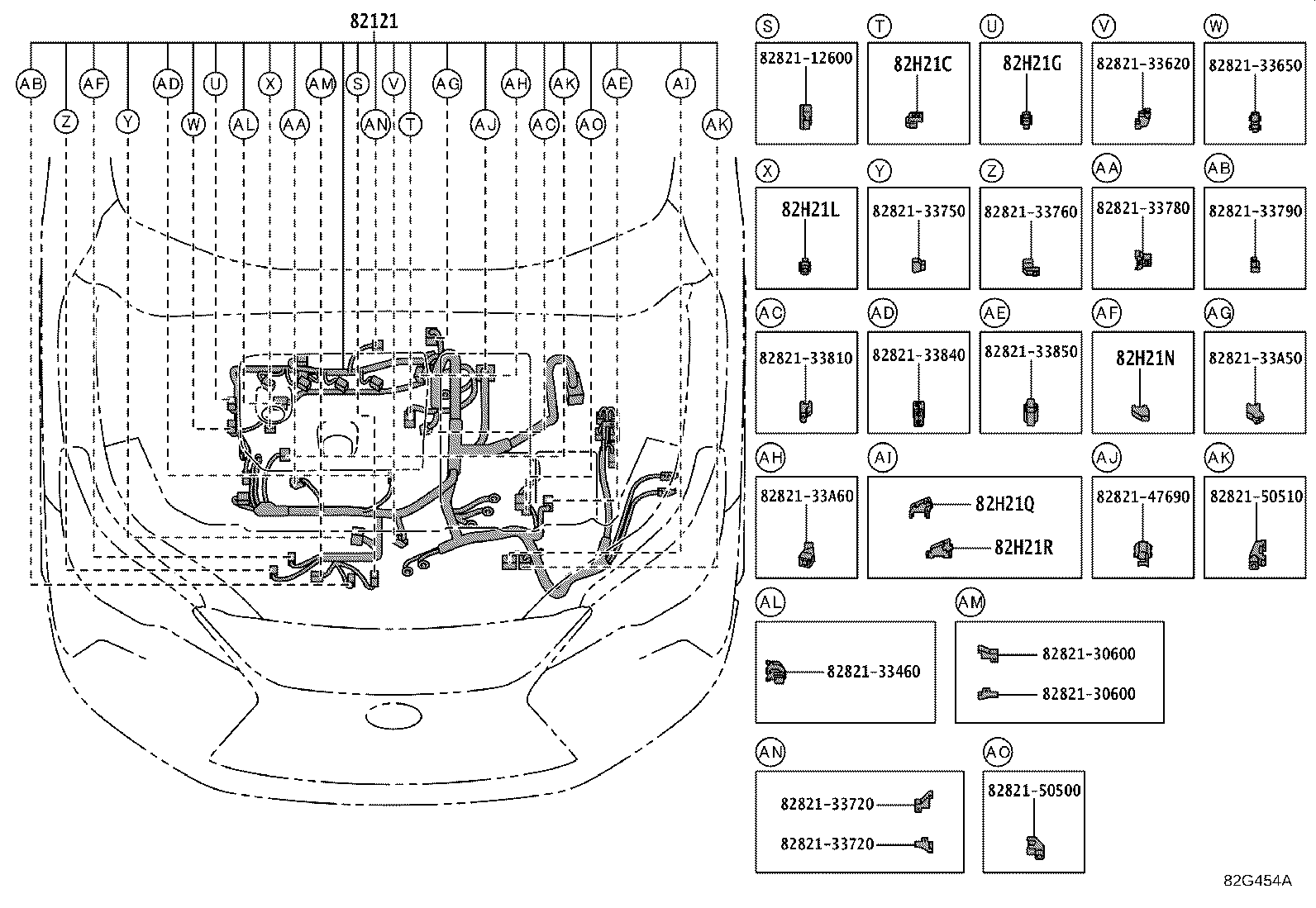

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82125 Wire, Transmission
82126A Wire, Engine, NO.6

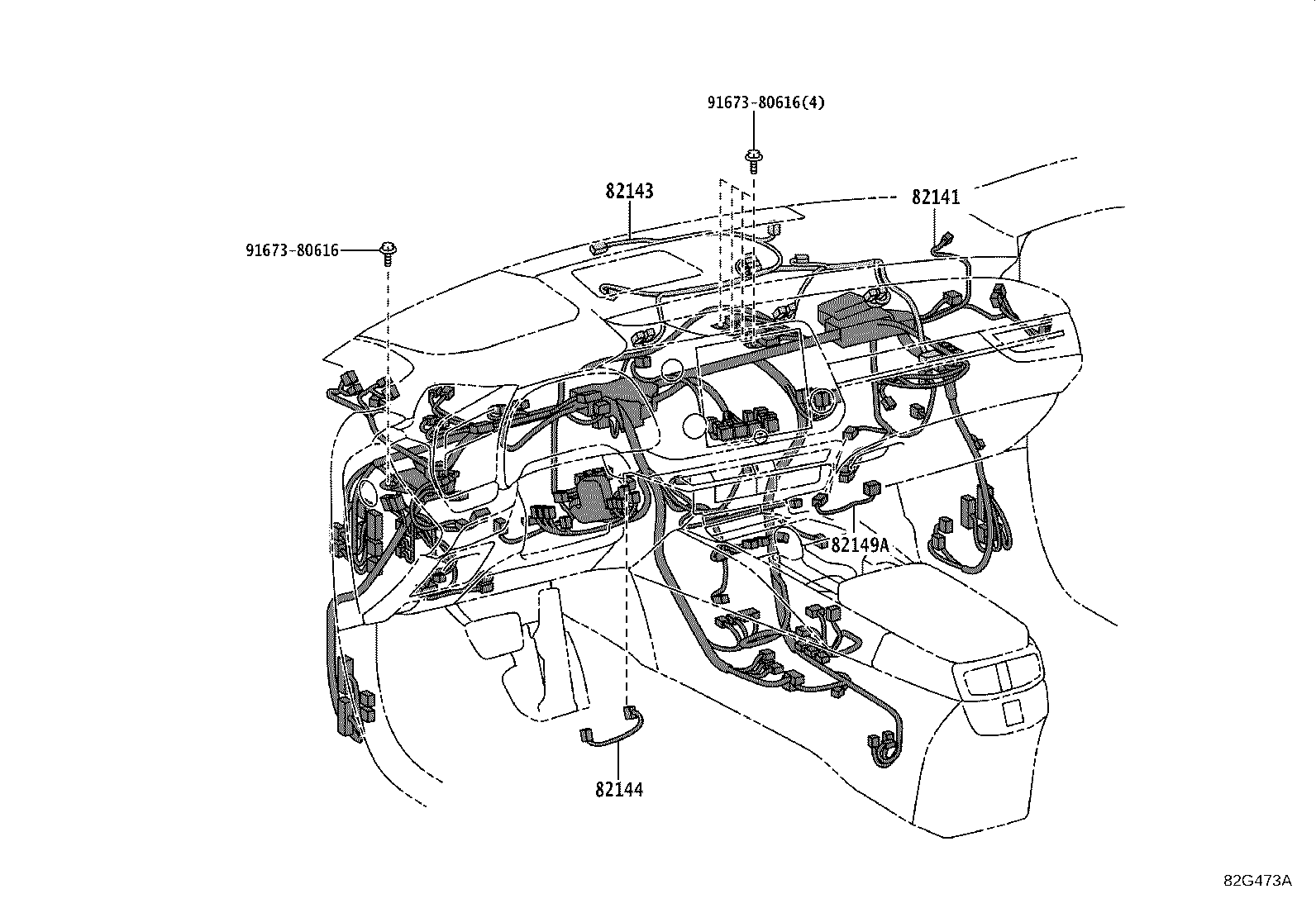

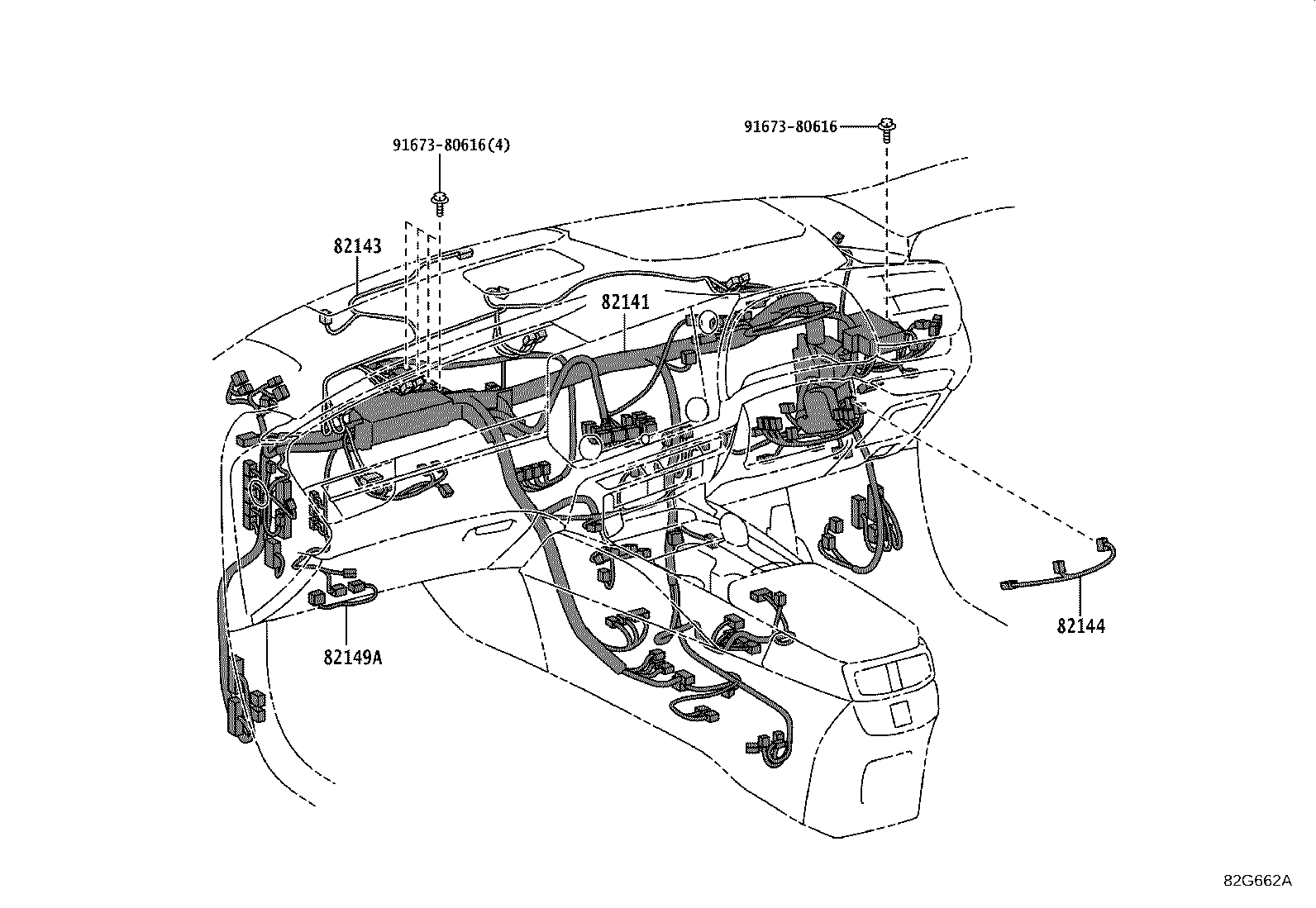

82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82149A Wire, Instrument Panel, NO.5

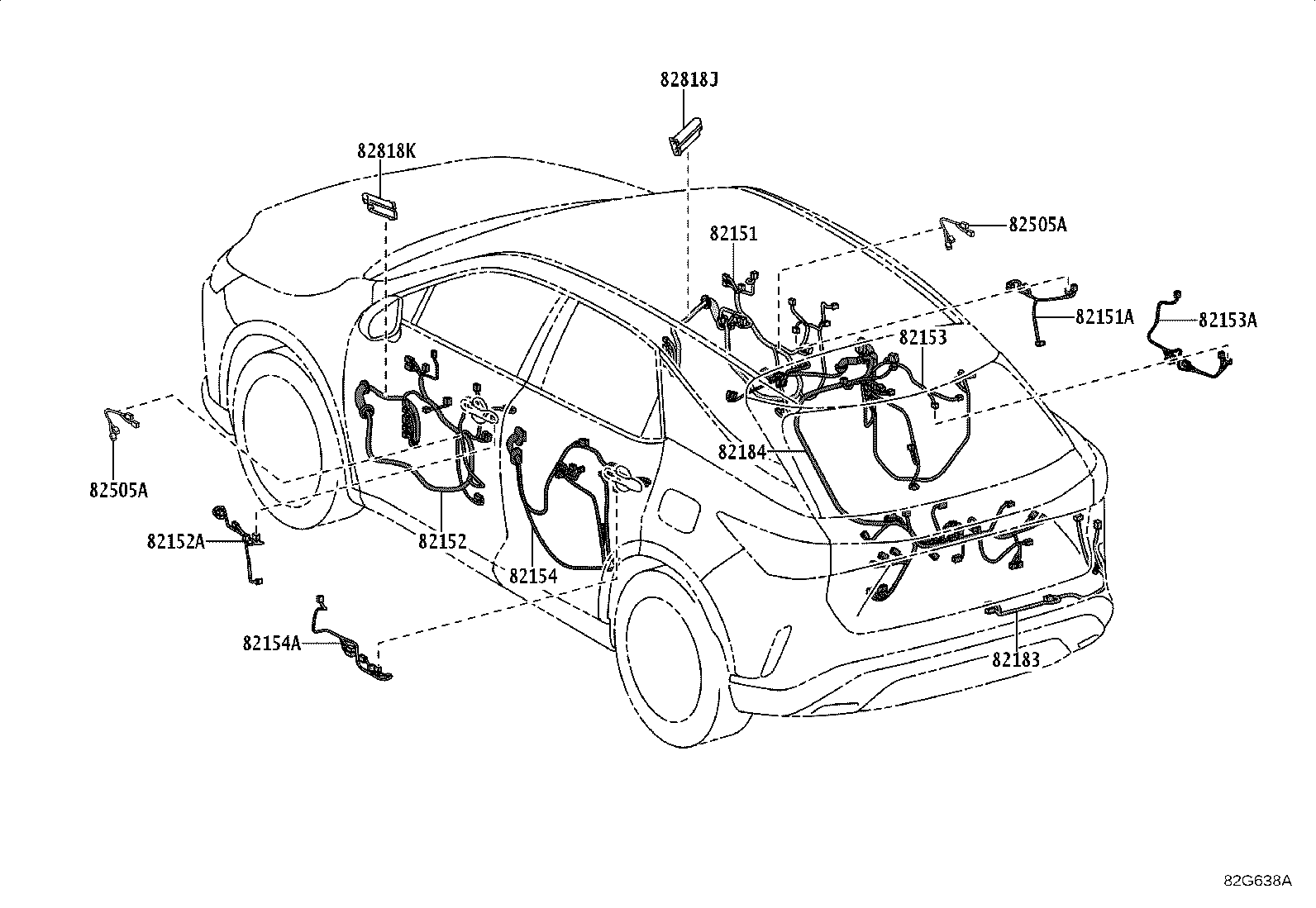

82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82154A Wire, Rear Door, LH

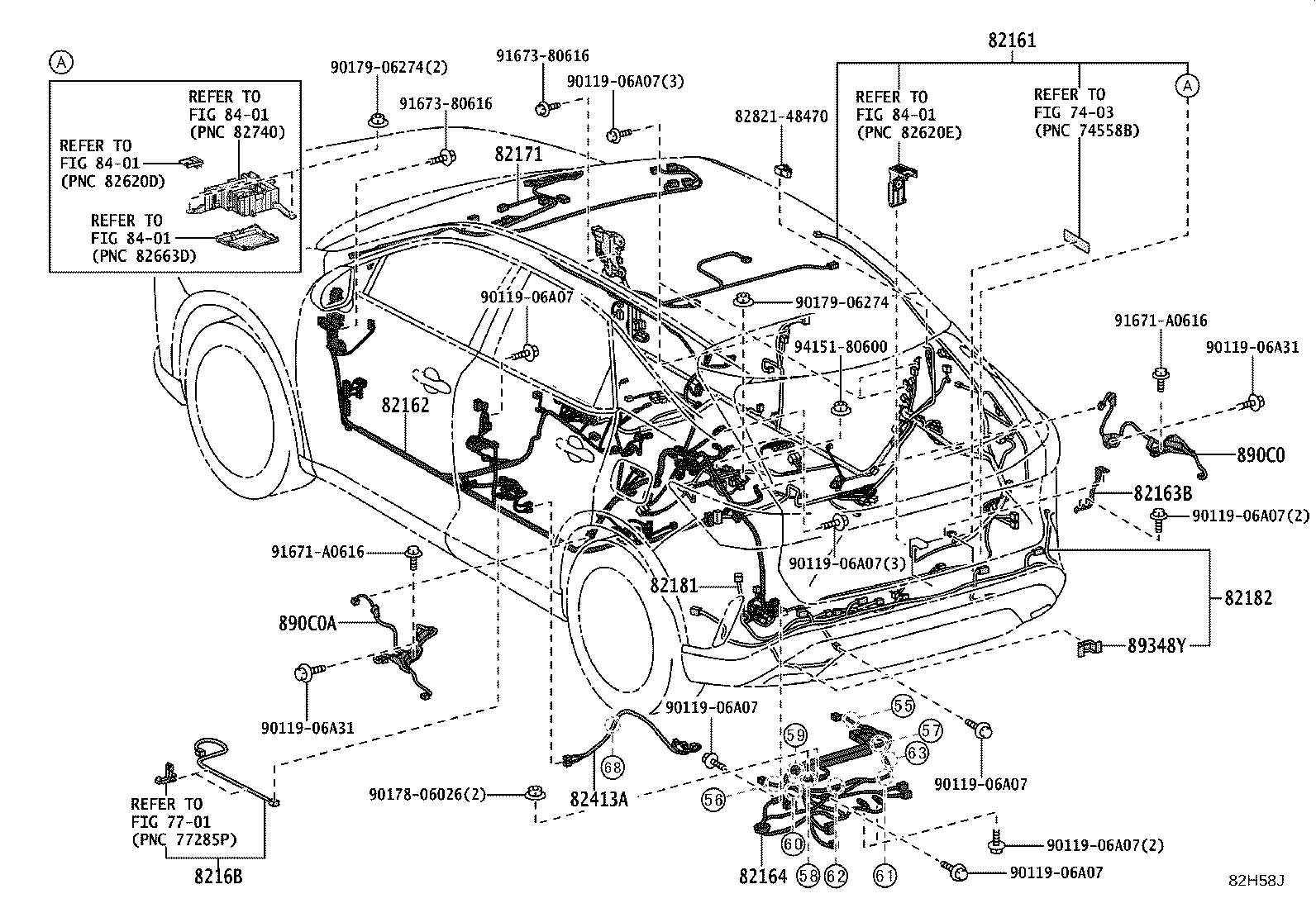

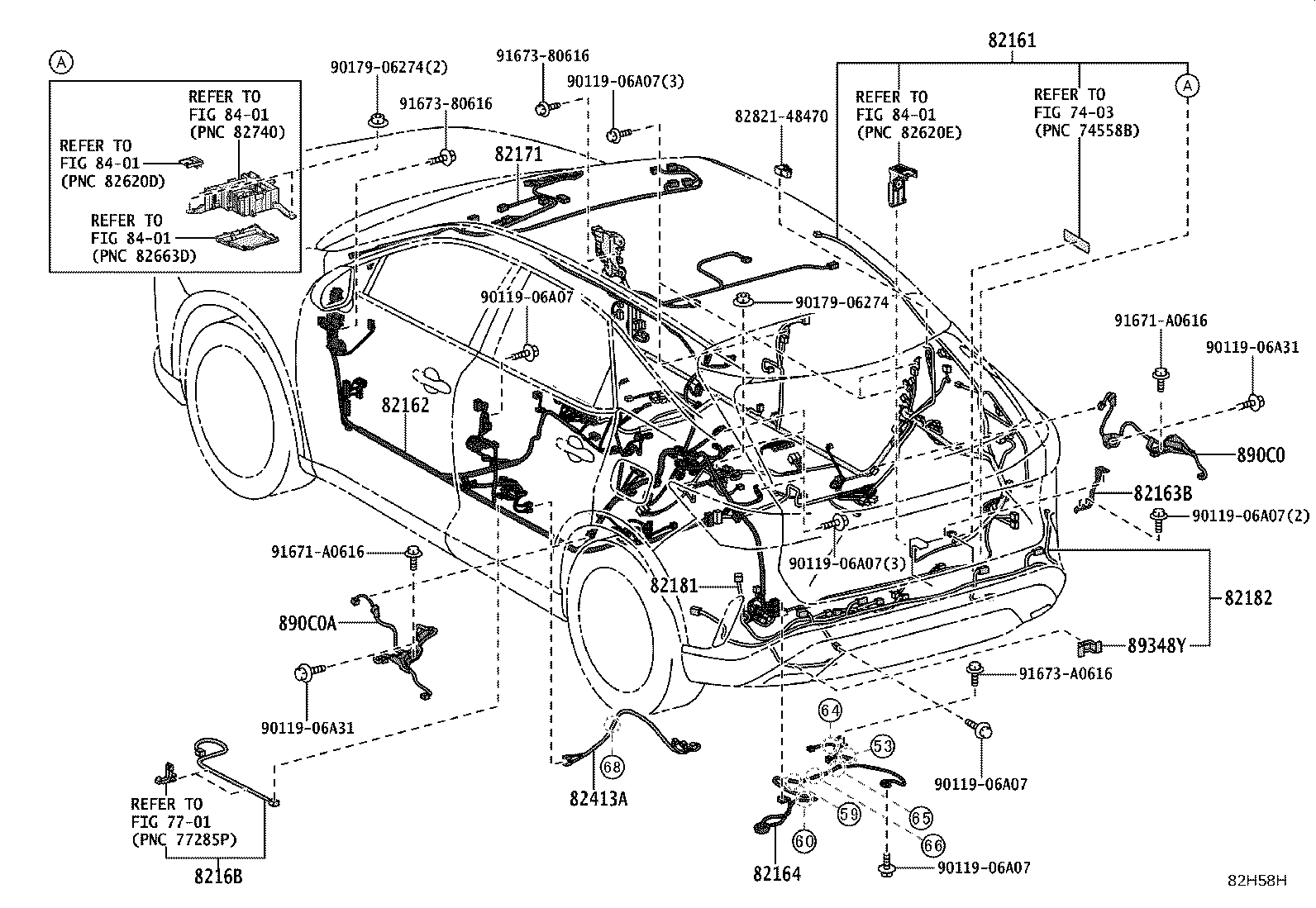

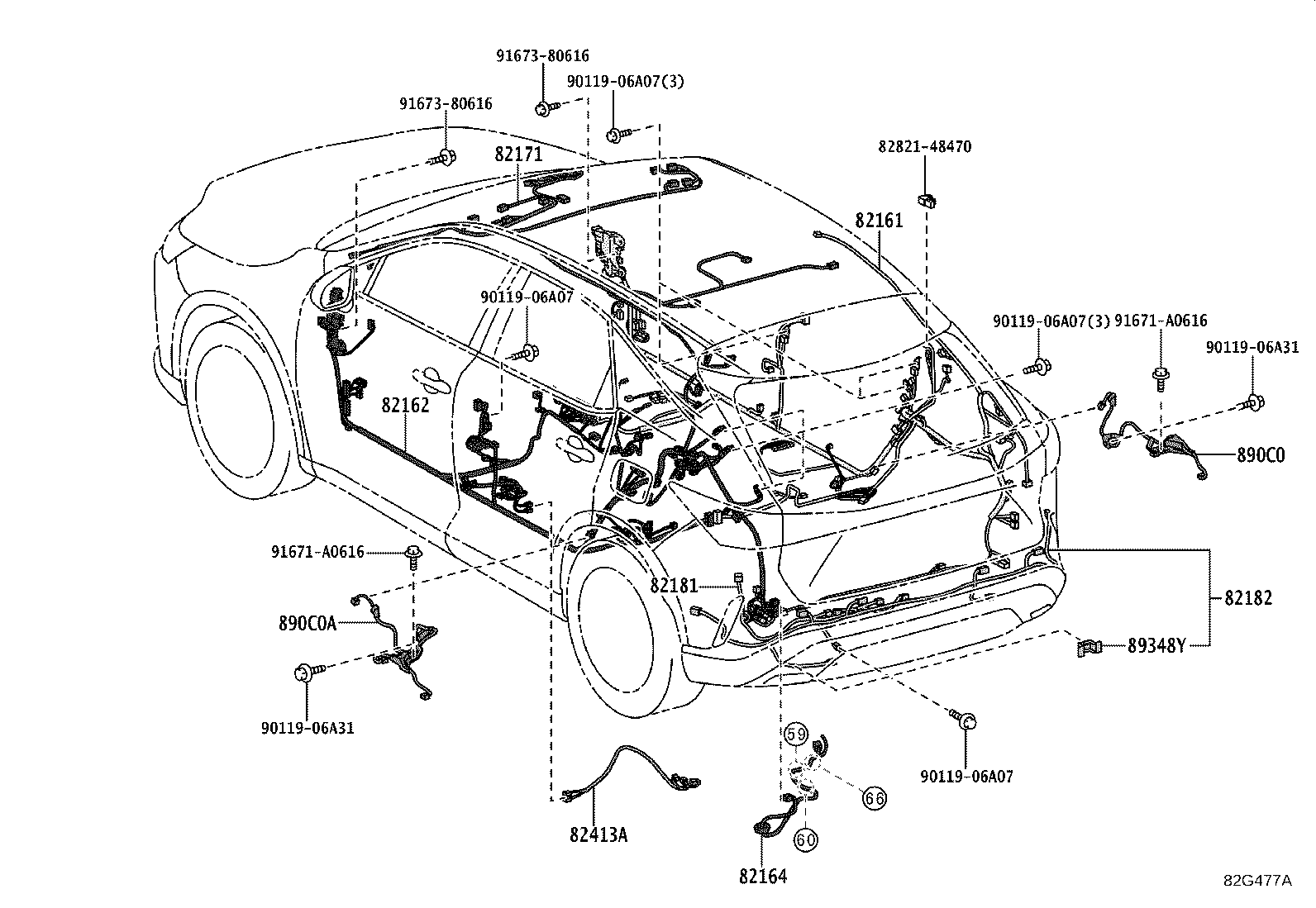

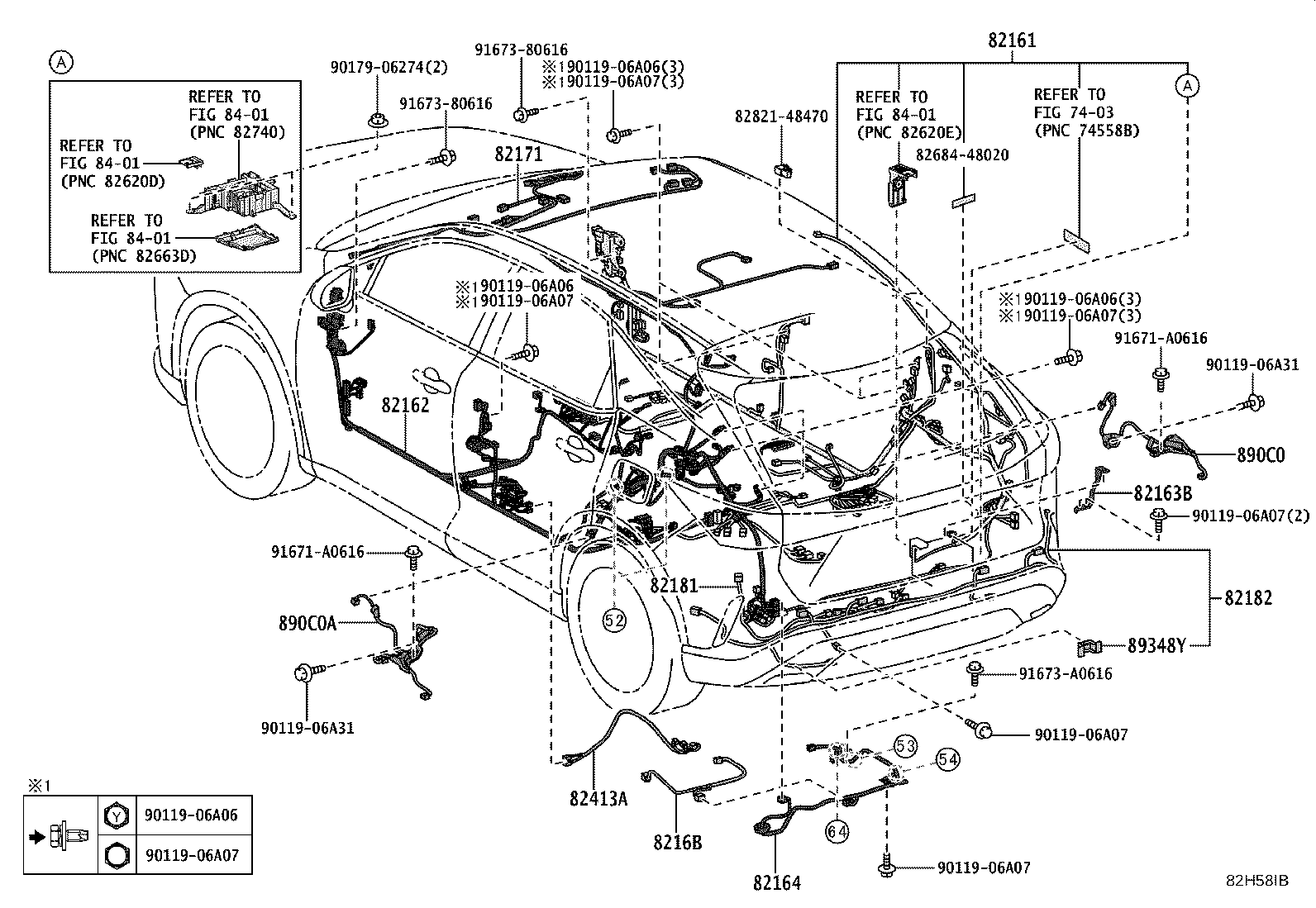

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163B Wire, Floor NO.5
82164 Wire, Frame
8216B Wire, Floor NO.8
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1

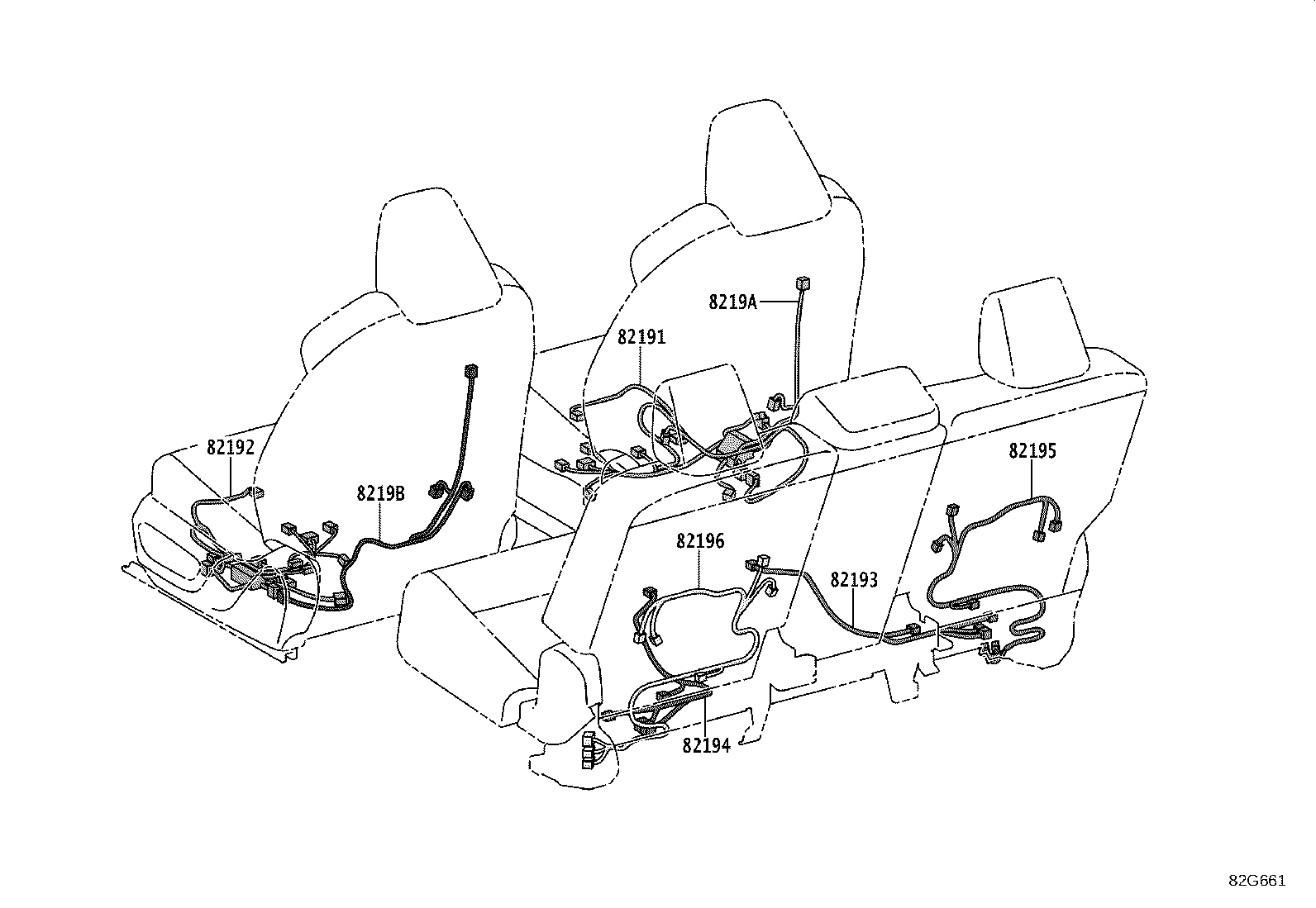

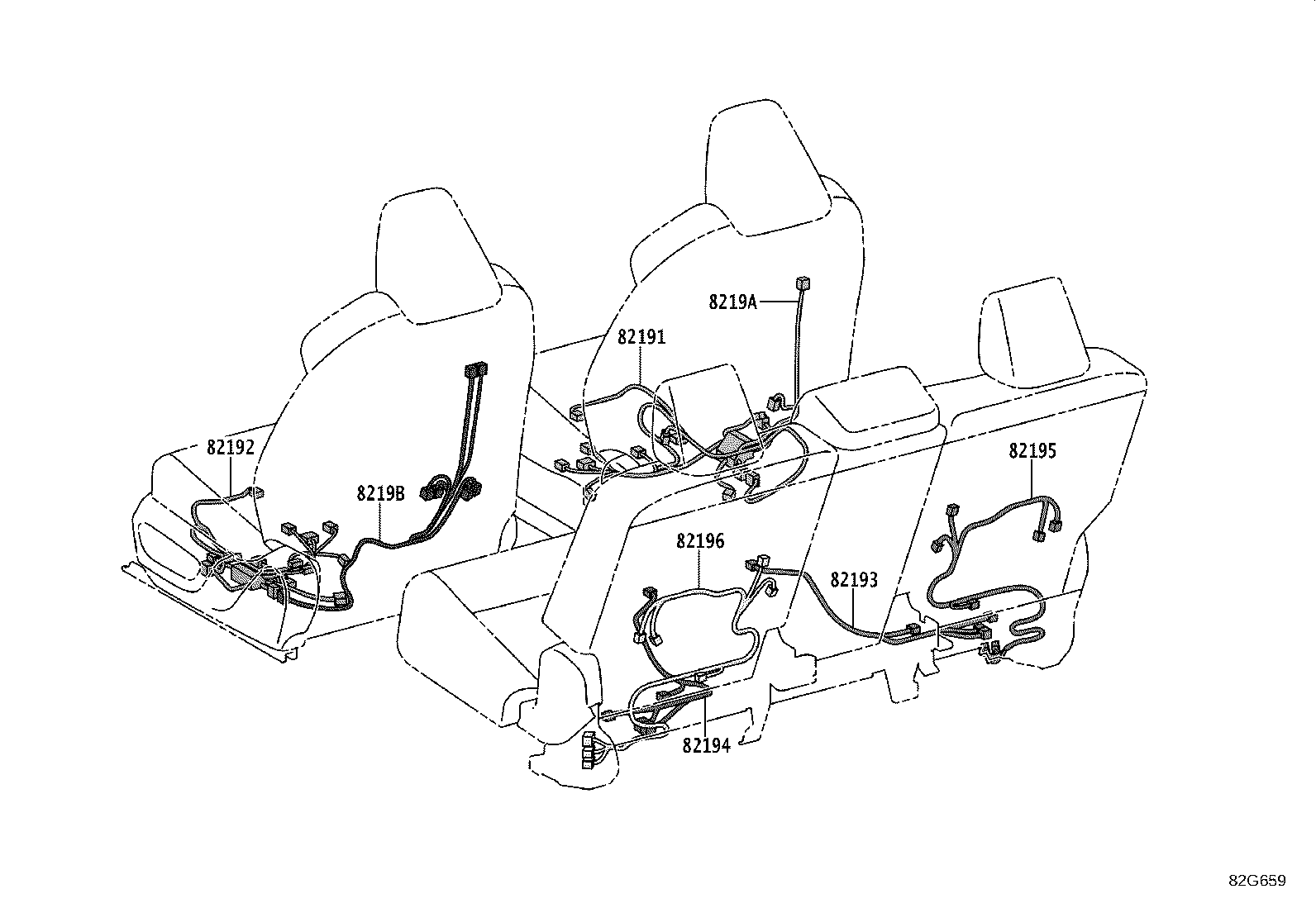

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2

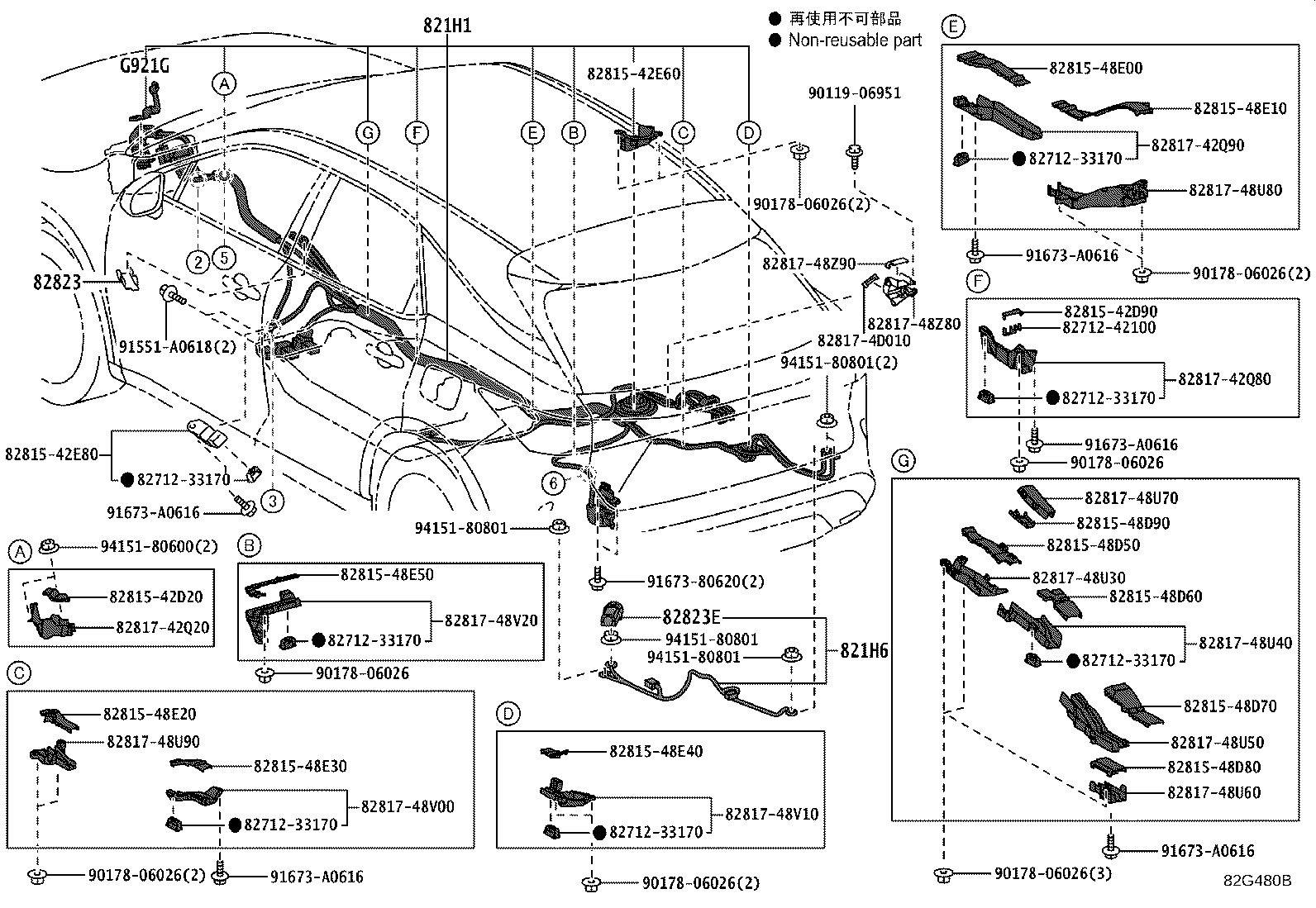

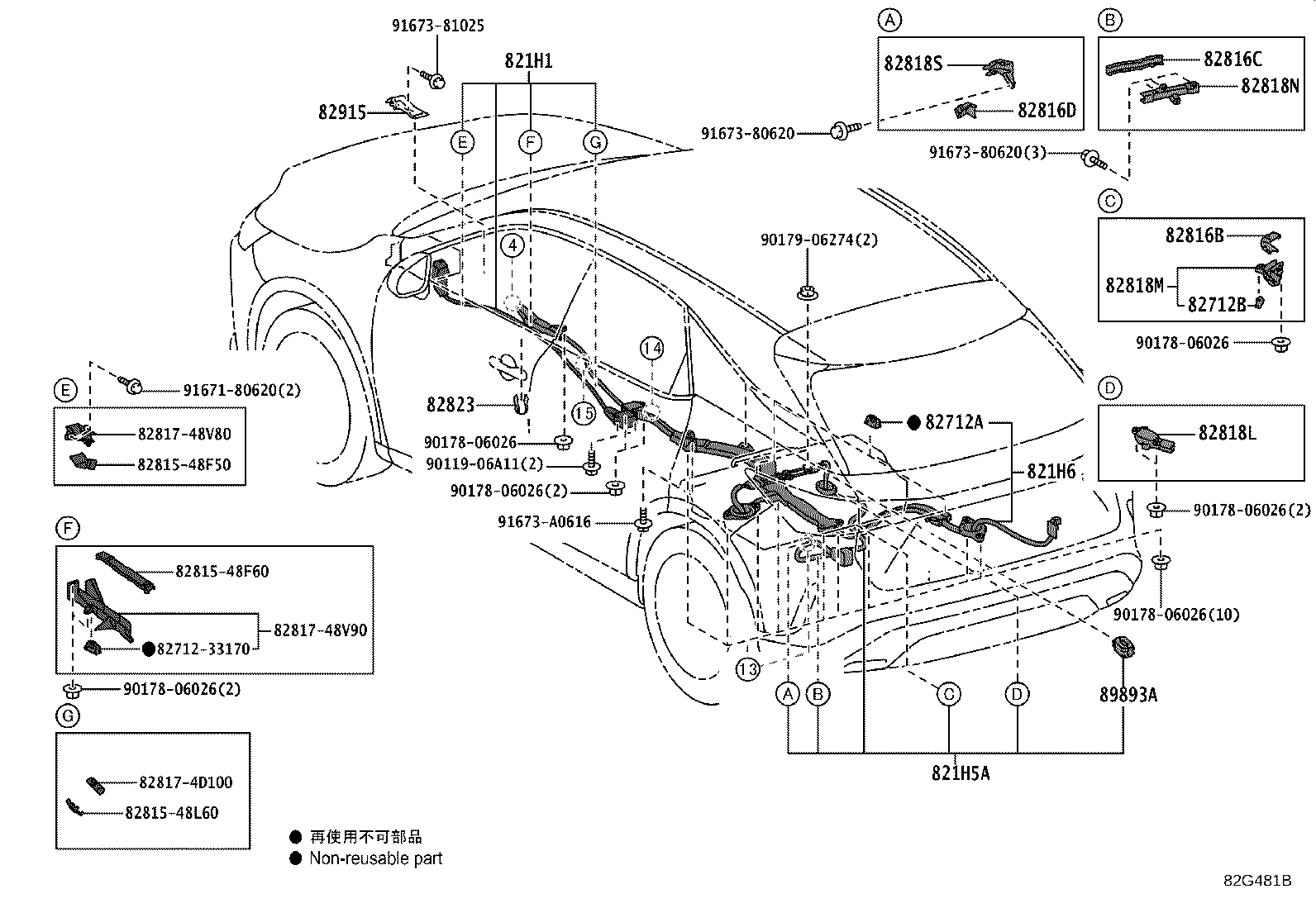

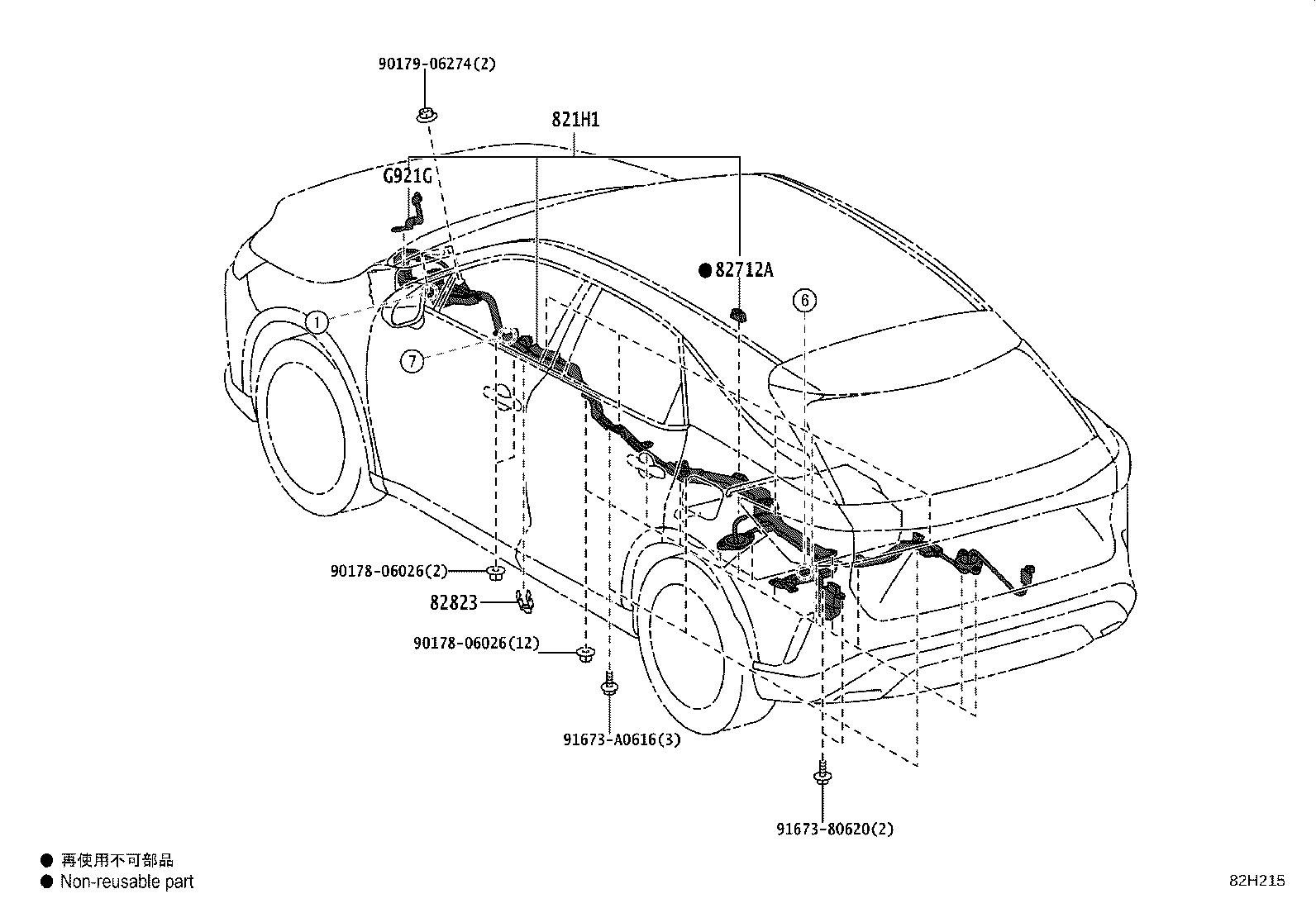

821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H2A Wire, High Voltage Air Conditioner
821H5A Wire, HV Battery Charger
821H6 Wire, HV Floor Under, NO.2
82219A Wire, Sensor
82284 Wire, Earth
82286A Wire, Earth, NO.2
82413A Wire, Fuel Tank
82505A Wiring Sub-assy, Front Door
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82684 Label, Cut High Voltage Electricity

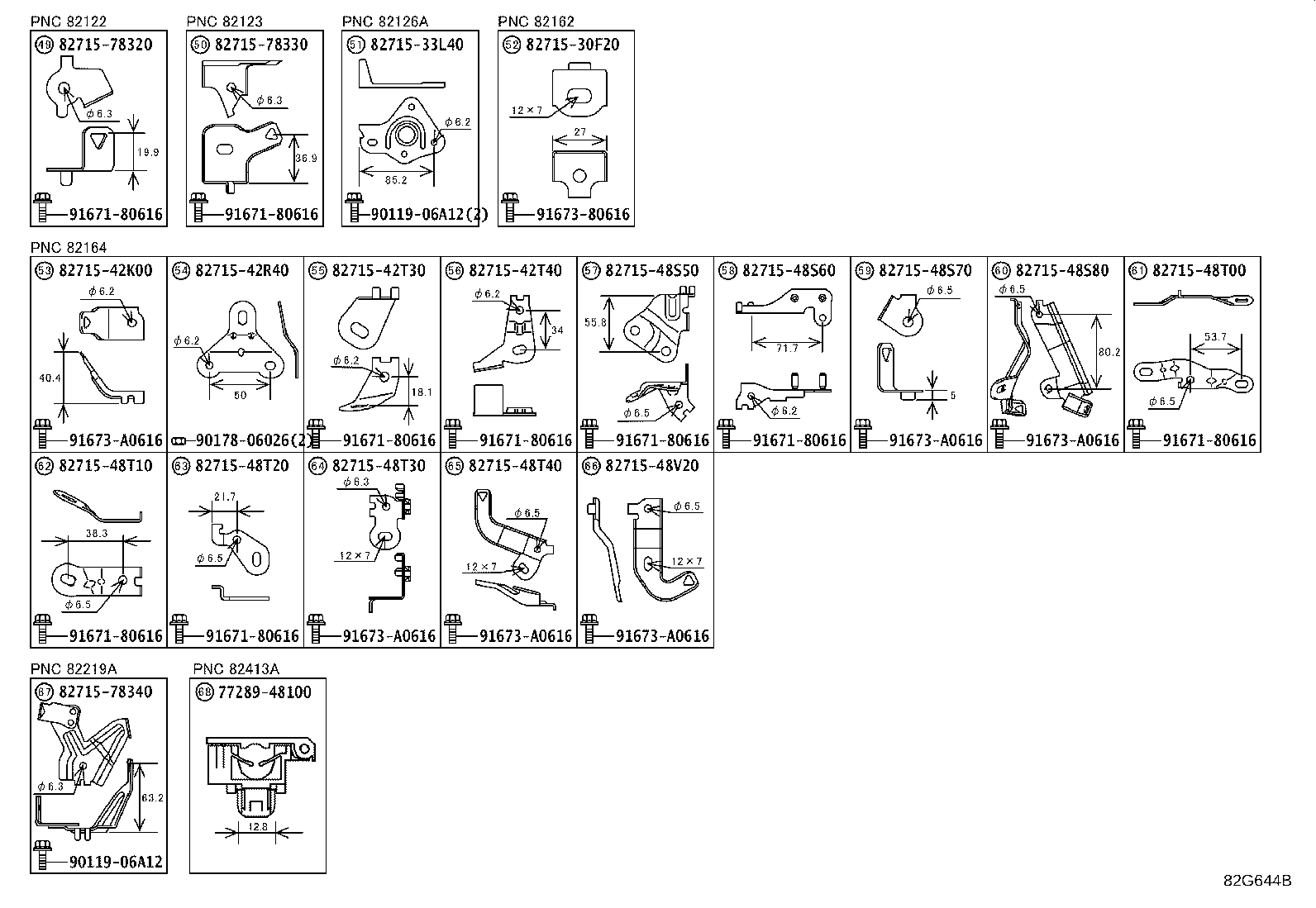

82712A Support, Wiring Harness
82712B Support, Wiring Harness

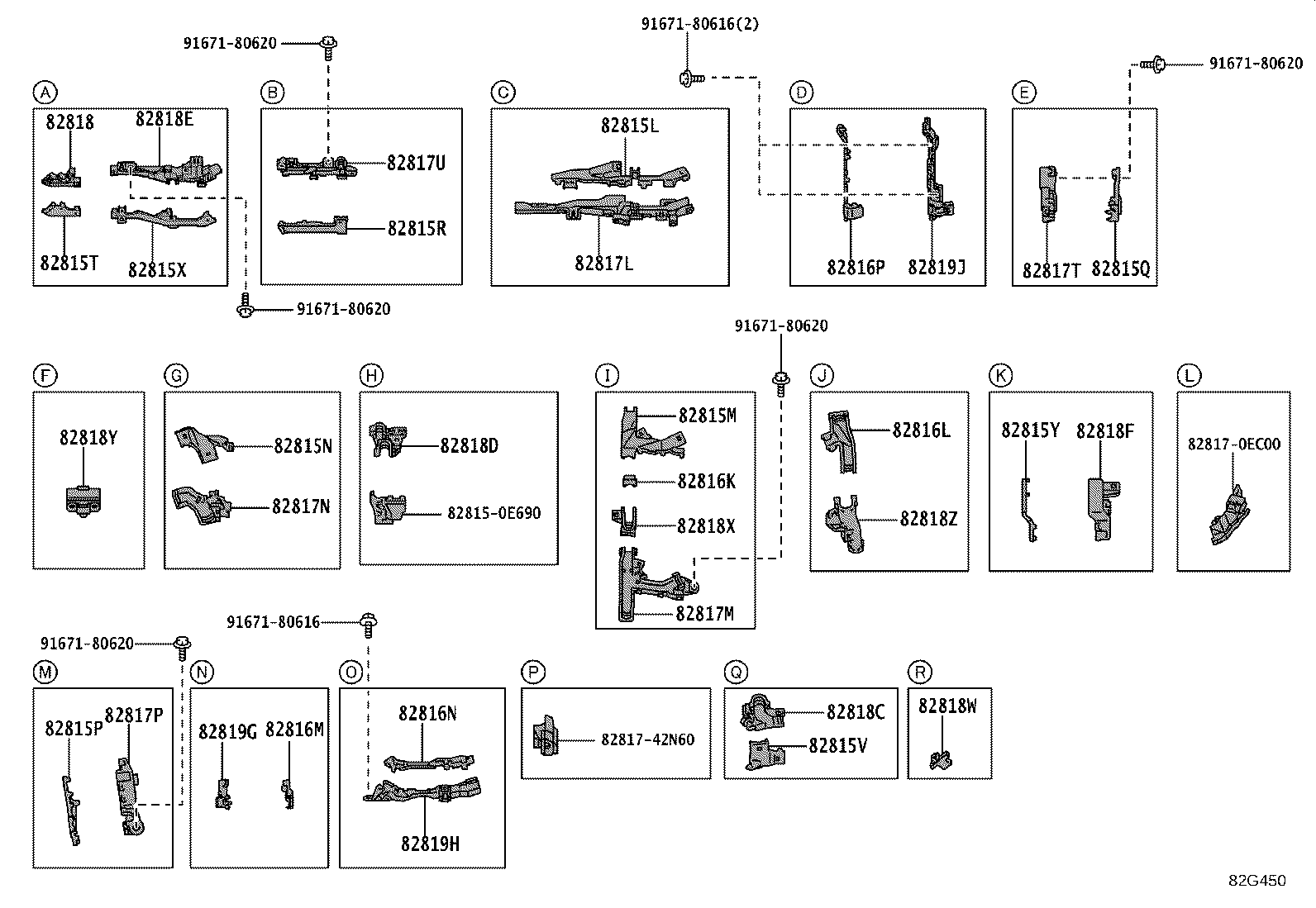

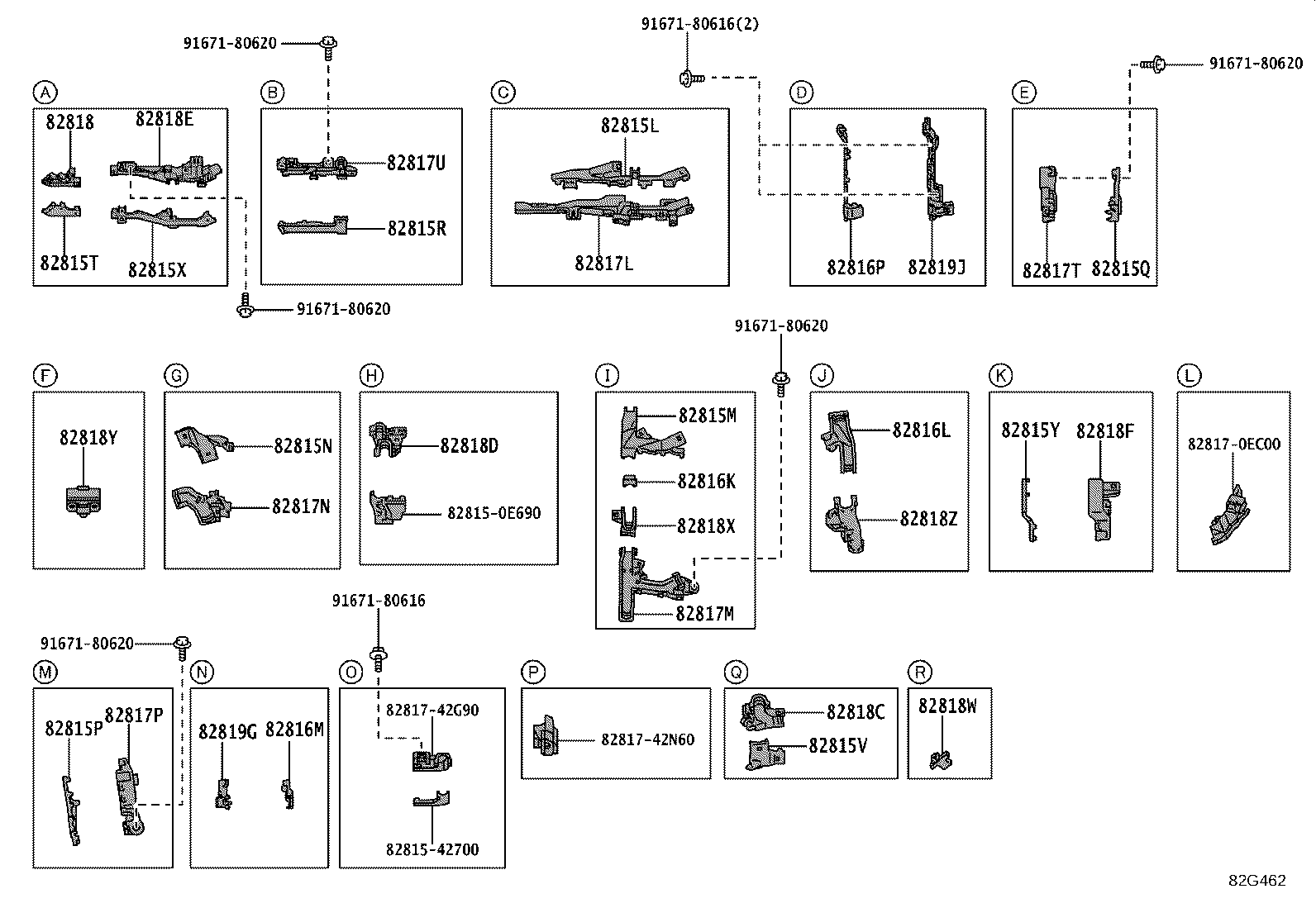

82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816M Cover, Wiring Harness Protector, NO.10
82816N Cover, Wiring Harness Protector, NO.11
82816P Cover, Wiring Harness Protector, NO.12
82816R Cover, Wiring Harness Protector, NO.14
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82818X Protector, Wiring Harness, NO.20
82818Y Protector, Wiring Harness, NO.21
82818Z Protector, Wiring Harness, NO.22
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82819L Protector, Wiring Harness, NO.27
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82821Y Cover, Connector
82823 Cap, Terminal, NO.1
82823E Cap, Terminal, NO.5
8282A Cap, Earth Bolt, NO.1
8282AA Cap, Earth Bolt, NO.2
82915 Insulator, Wiring Harness Heat, NO.1
82930 Condenser Assy, Wiring Harness, NO.1
82H21C Cover, Connector
82H21D Cover, Connector
82H21G Cover, Connector
82H21H Cover, Connector
82H21J Cover, Connector
82H21K Cover, Connector
82H21L Cover, Connector
82H21M Cover, Connector
82H21N Cover, Connector
82H21P Cover, Connector
82H21Q Cover, Connector
82H21R Cover, Connector
82H21S Cover, Connector
82H21T Cover, Connector
82H21X Cover, Connector
82T21 Cover, Connector
82T21A Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348X Clip, Ultrasonic Sensor, Front
89348Y Clip, Ultrasonic Sensor, Rear
89893A Filter, Battery Noise
89C48 Clip, Ultrasonic Sensor, Front NO.2
G921D Protector, Inverter Connector Cover
G921G Protector, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
