Toyota Hilux (JPP)

1988-08 → 1997-08 · chassis RN1##,YN85,90,1##,LN85,90,1##,VZN130,KZN130 · catalogue 671550 · Europe

Discontinued model Data version 1998-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

124 part groups · 12 illustrations

Illustrations

MBP619A 1988-08 → —

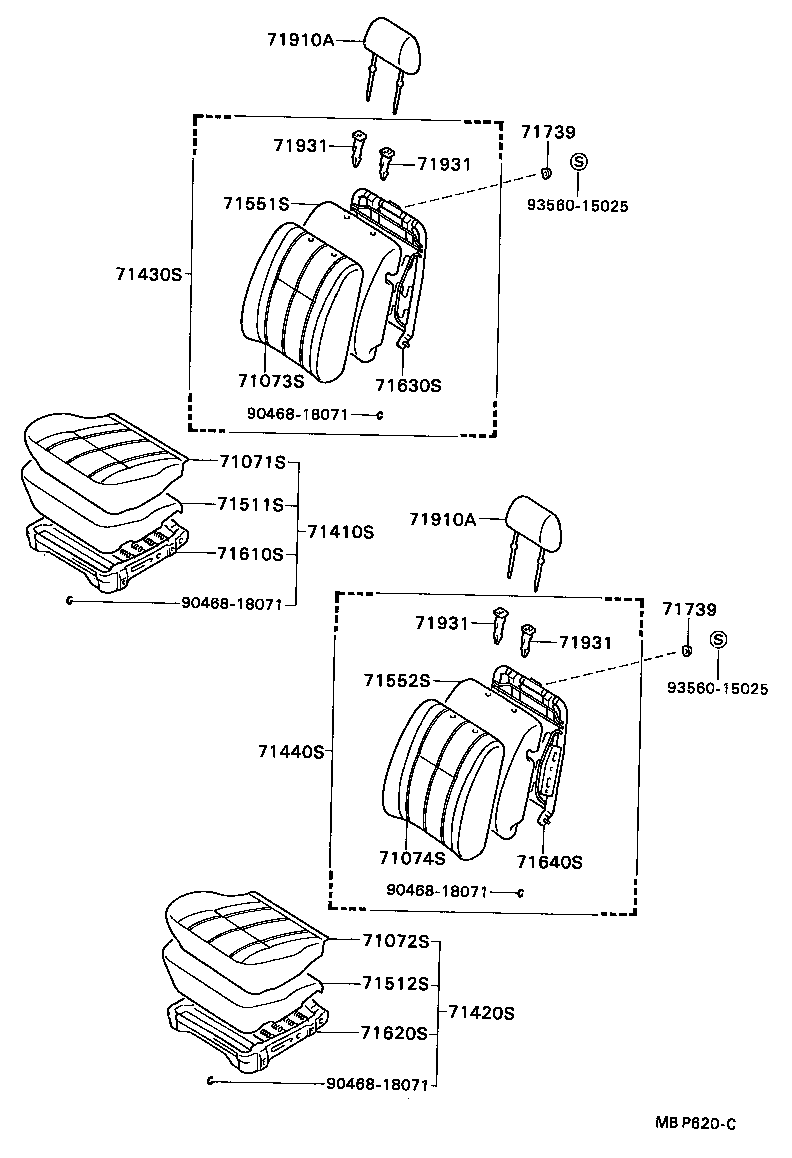

MBP620C 1988-08 → —

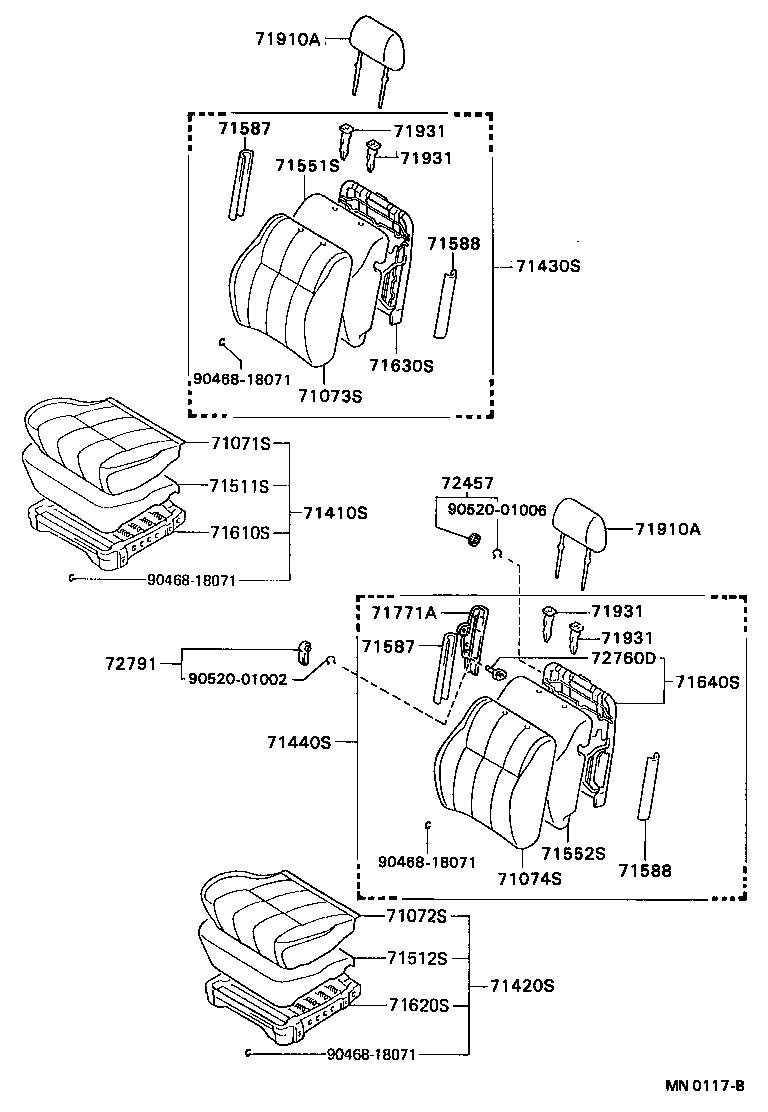

MN0117B 1989-08 → —

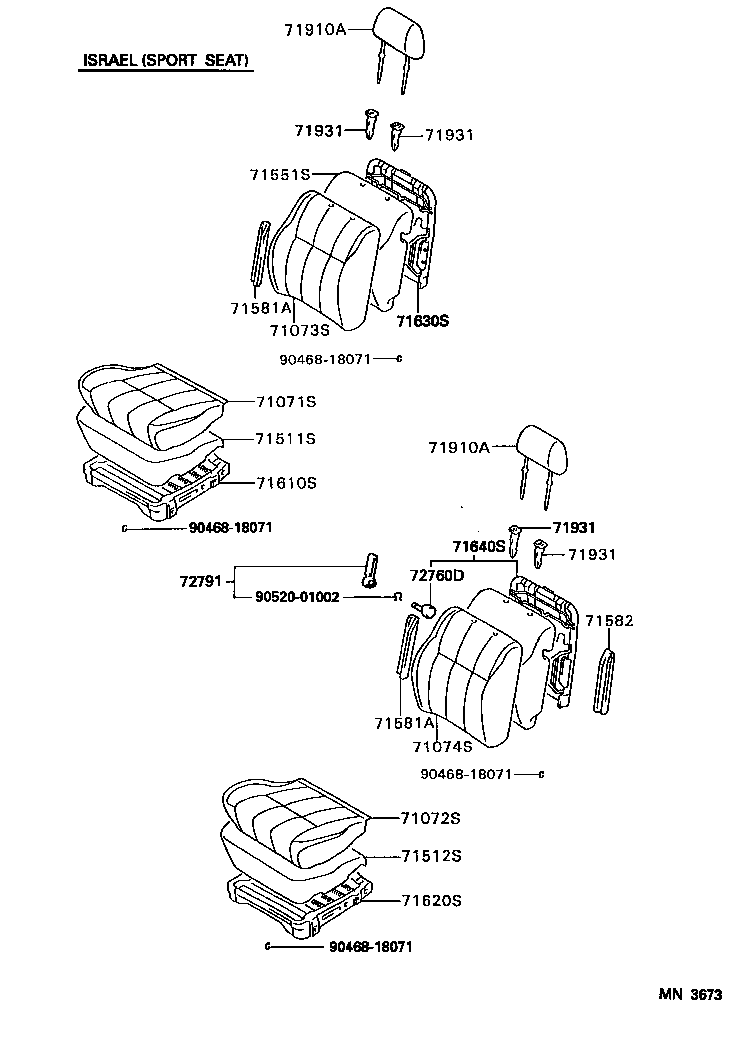

MN3673 1995-10 → 1995-12

MN3673 1995-11 → 1997-03

MN3673 1996-07 → 1997-01

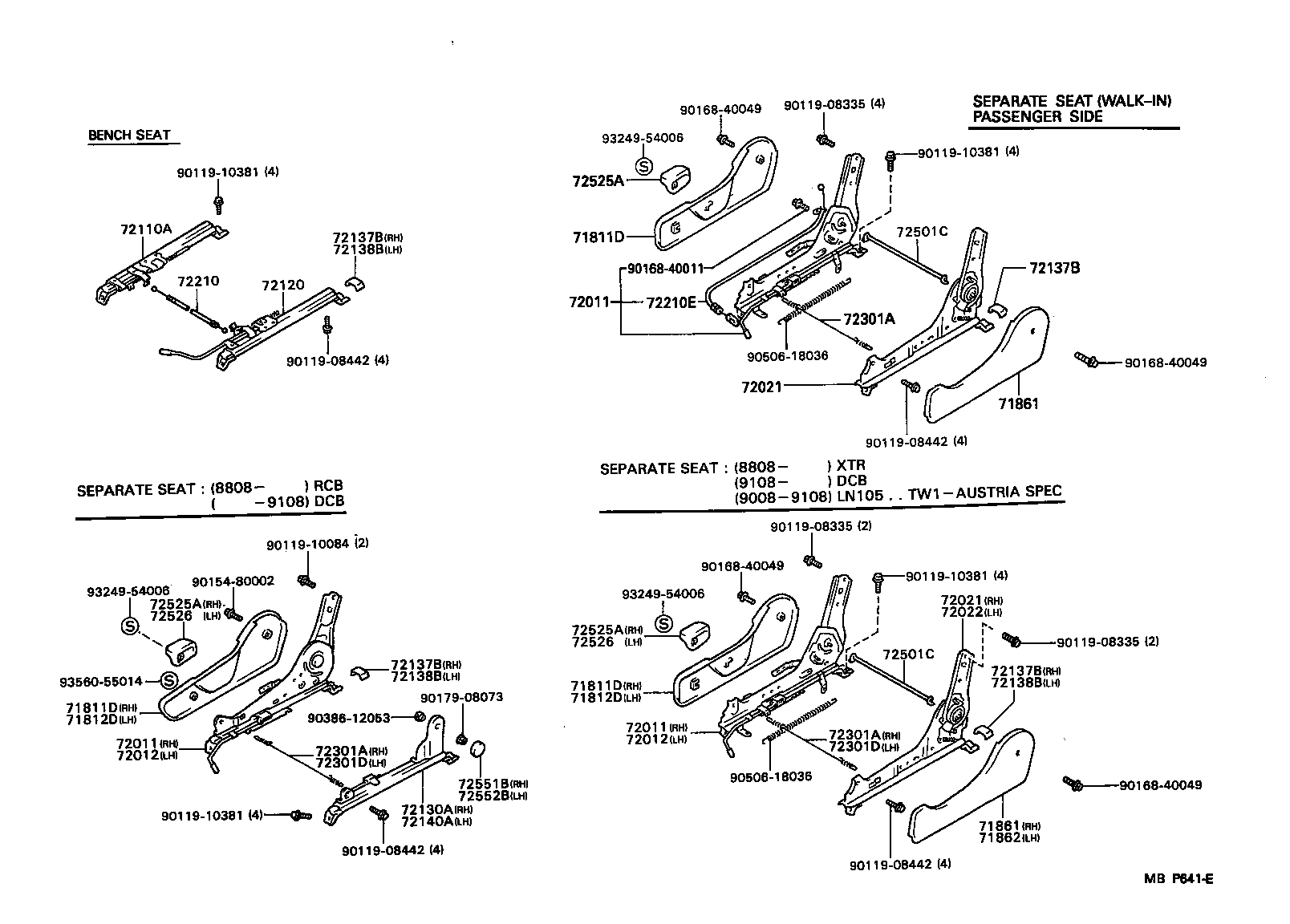

MBP641E 1988-08 → —

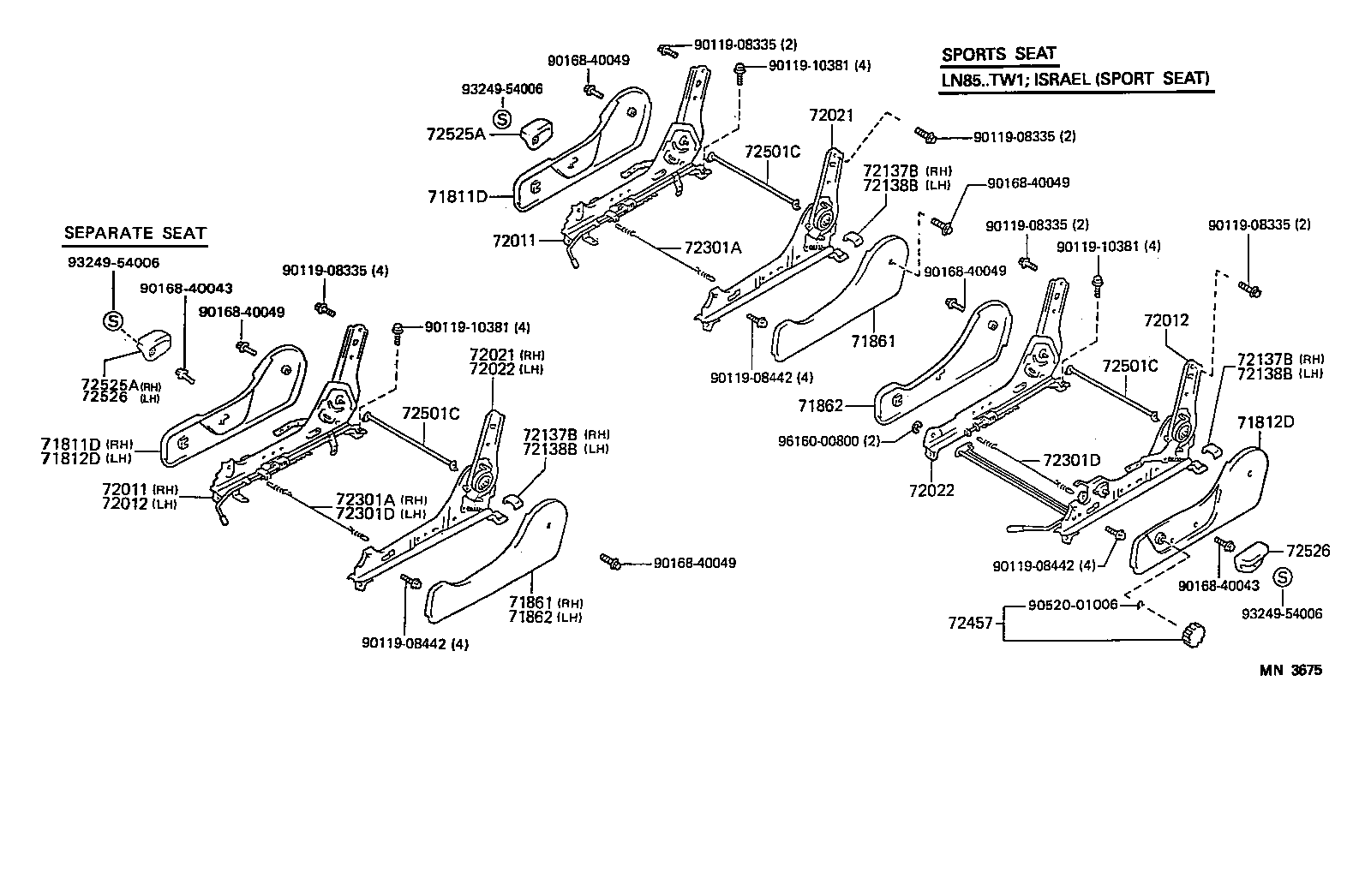

MN3675 1989-08 → 1995-11

MN3675 1995-10 → 1995-12

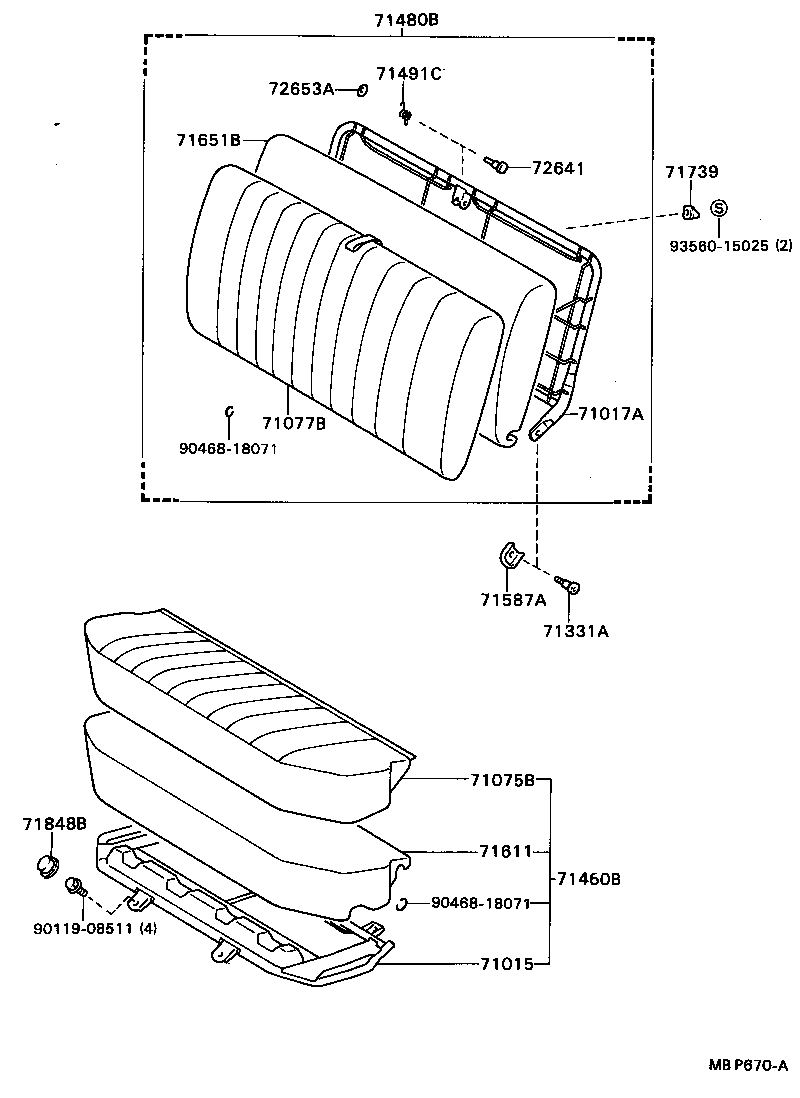

MBP670A 1988-08 → —

MBP672A 1988-08 → —

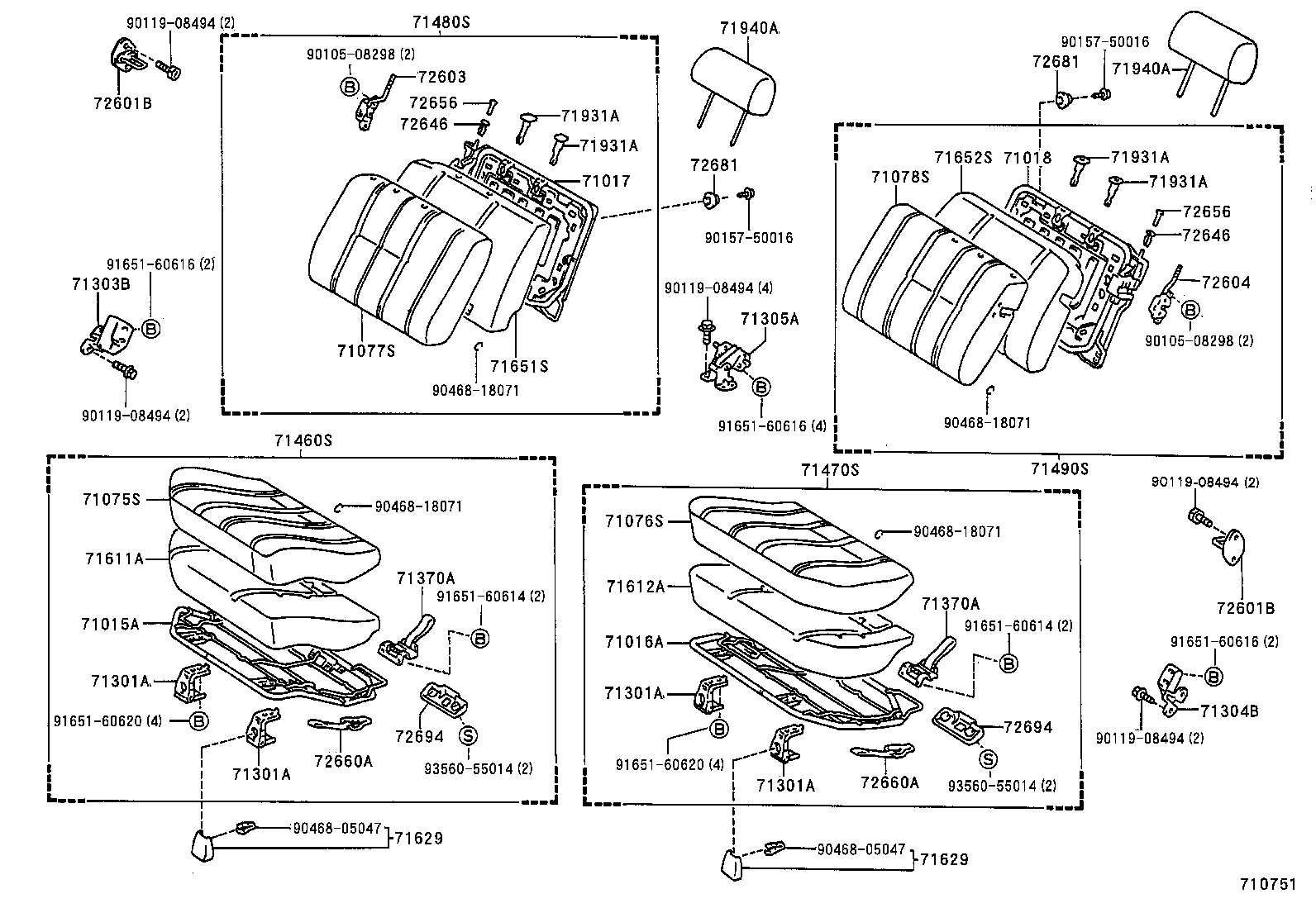

710751 1989-08 → 1995-11

Part groups

PNC	Description
71015	Frame Sub-assy, Rear Seat Cushion
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71017A	Frame Sub-assy, Rear Seatback
71018	Frame Sub-assy, Rear Seatback, LH
71071B	Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B	Cover, Front Seatback(FOR BENCH TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71301A	Hinge Sub-assy, Rear Seat Cushion
71303B	Hinge Sub-assy, Rear NO.2 Seat, RH
71304B	Hinge Sub-assy, Rear NO.2 Seat, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71311	Pin, Front Seat Hinge
71331A	Pin, Rear Seat Hinge
71344A	Plate, Rear Seat Cushion Hinge
71370A	Holder Assy, Rear Seat Cushion
71379A	Stopper, Front Seat Vertical Handle
71410B	Cushion Assy, Front Seat(FOR BENCH TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B	Back Assy, Front Seat(FOR BENCH TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71461	Spring, Rear Seat Cushion
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71491C	Spring, Rear Seat Set
71495	Spring, Rear Seat Cusion
71511B	Pad, Front Seat Cushion(FOR BENCH TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551B	Pad, Front Seatback(FOR BENCH TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71561B	Pad, Front Seatback, Upper
71567	Pad, Front Seatback Safety
71571	Pad, Front Seatback Silencer, A
71581A	Pad, Front Seatback Corner, A
71582	Pad, Front Seatback Corner, B
71587	Protector, Front Seatback Edge
71587A	Protector, Rear Seatback Edge
71588	Protector, Front Seatback Edge, NO.2
71610B	Spring Assy, Front Seat Cushion(FOR BENCH TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611	Pad, Rear Seat Cushion
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71628E	Spacer, Rear Seat Cushion
71629	Cover, Rear Seat Cushion Hinge
71629A	Cover, Rear Seat Cushion Hinge, RH
71630B	Spring Assy, Front Seatback(FOR BENCH TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71639	Cover, Rear Seat Cushion Hinge, LH
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691D	Cover, Rear Seat Cushion Hinge, Upper RH
71692D	Cover, Rear Seat Cushion Hinge, Upper LH
71693	Cover, Rear Seat Cushion Hinge, Lower RH
71694	Cover, Rear Seat Cushion Hinge, Lower LH
71739	Cushion, Seat Support
71771A	Board, Front Seatback
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848B	Cap, Seat Adjuster Cover, RH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71897	Hook, Seat Cover Side
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72011	Adjuster Sub-assy, Front Seat, Outer RH
72012	Adjuster Sub-assy, Front Seat, Outer LH
72021	Adjuster Sub-assy, Front Seat, Inner RH
72022	Adjuster Sub-assy, Front Seat, Inner LH
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72130A	Track Assy, Front Seat, Inner RH
72137B	Cover, Seat Track, RH
72138B	Cover, Seat Track, LH
72140A	Track Assy, Front Seat,Inner LH
72210	Cable Assy, Seat Track Control
72210E	Cable Assy, Seat Track Control(FOR WALK IN)
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72301D	Wire Sub-assy, Seat Track Equalizing, LH
72457	Knob, Vertical Seat Adjuster
72501C	Pipe Sub-assy, Reclining Connecting
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72551B	Cover, Reclining Hinge, RH
72552B	Cover, Reclining Hinge, LH
72601B	Striker Sub-assy, Rear Seatback Lock
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72641	Pin, Rear Seatback Lock
72646	Grommet, Rear Seatback Stop Button
72653A	Snap, Rear Seatback Lock Rod
72656	Button, Rear Seatback Stop Release
72658B	Knob, Rear Seat Lock Handle
72660A	Support Assy, Rear Seat Cushion
72681	Hook, Rear Seatback Lock, Lower
72694	Cover, Rear Seat Cushion Lock
72696	Latch, Rear Seat Lock
72760D	Adjuster Assy, Lumbar Support, LH
72791	Lever, Lumbar Support
72955A	Plate, Rear Seat Turn Lock, NO.1
72956	Plate, Rear Seat Turn Lock, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
