Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Housing & Differential

68 part groups · 14 illustrations

Illustrations

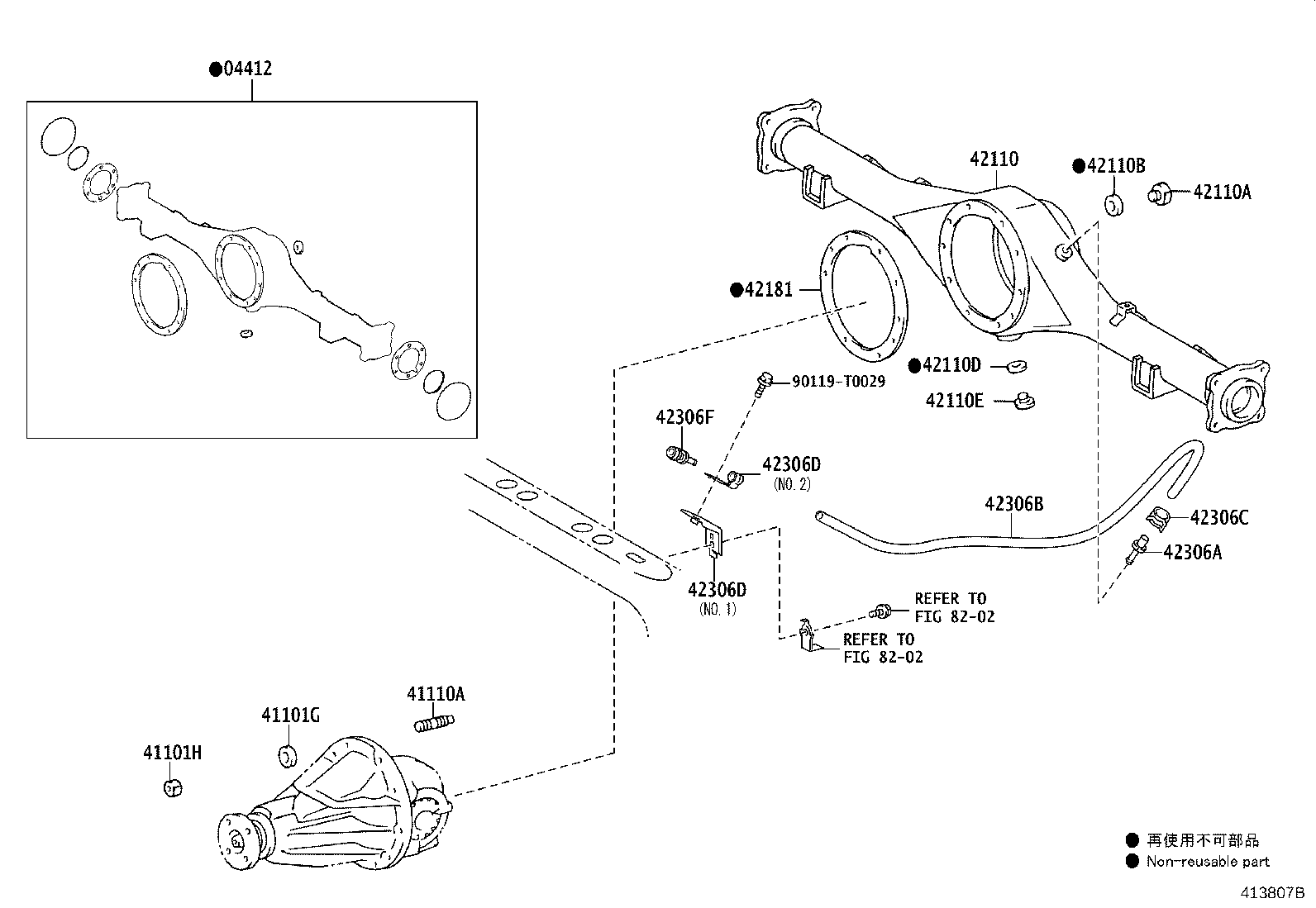

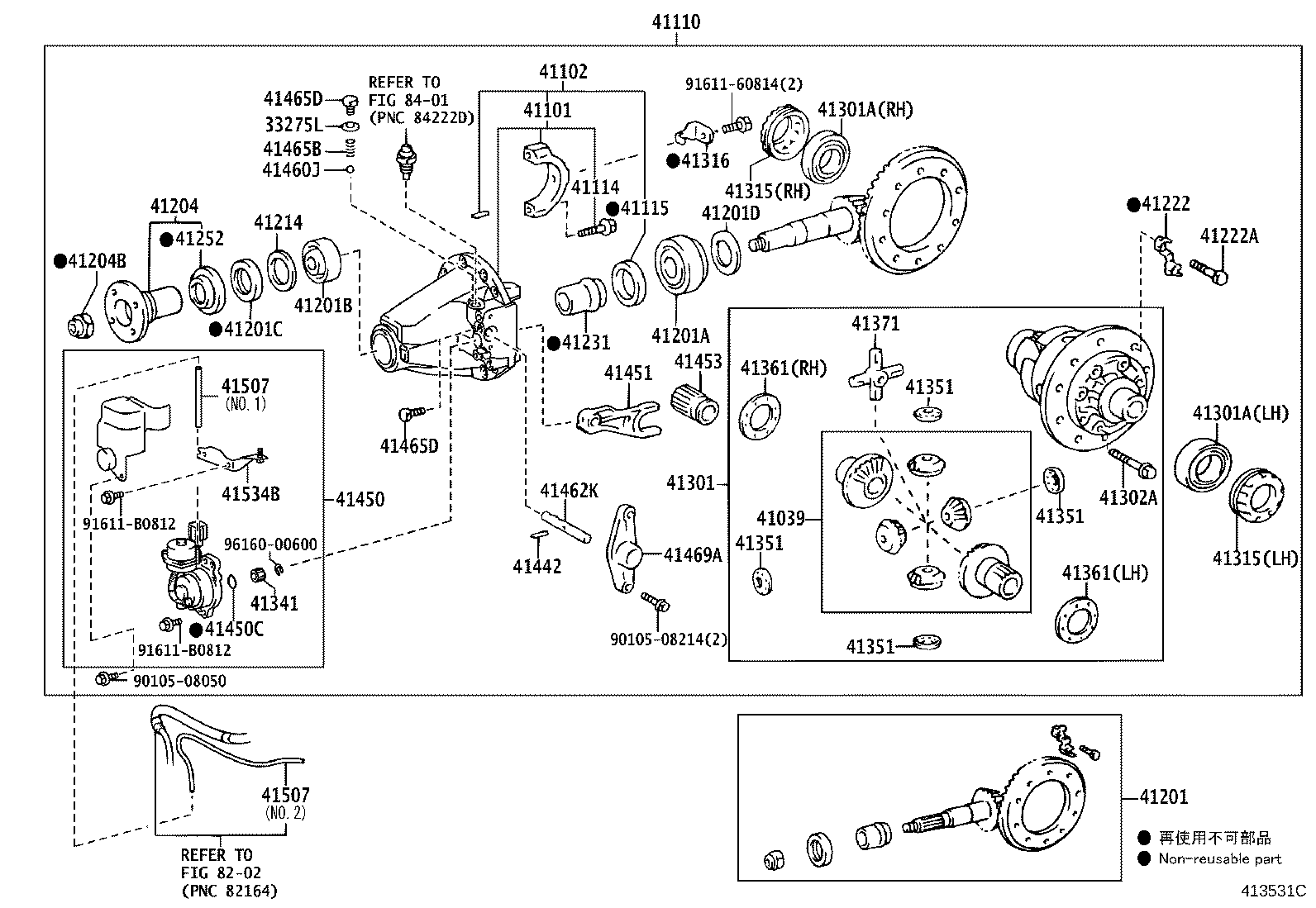

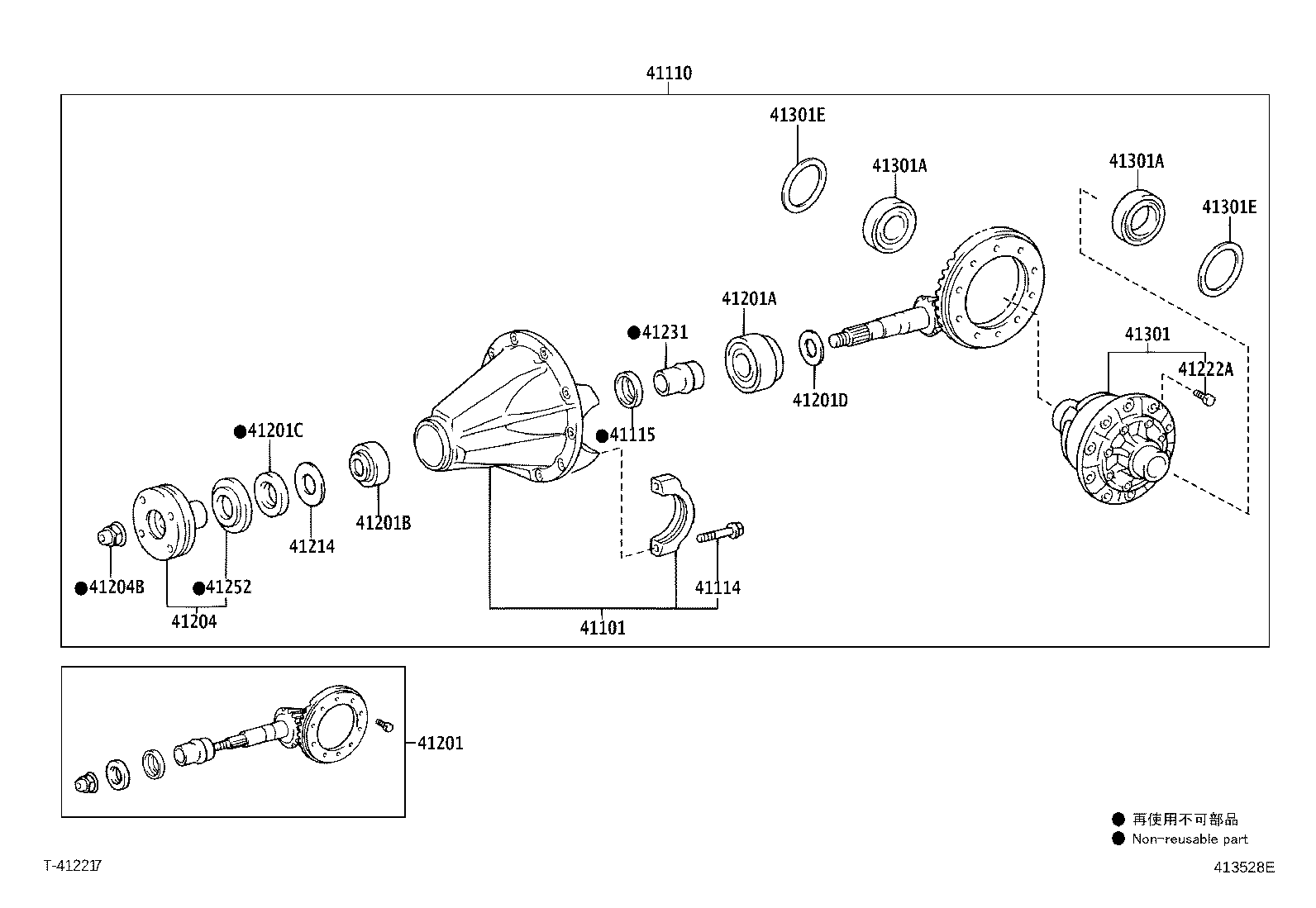

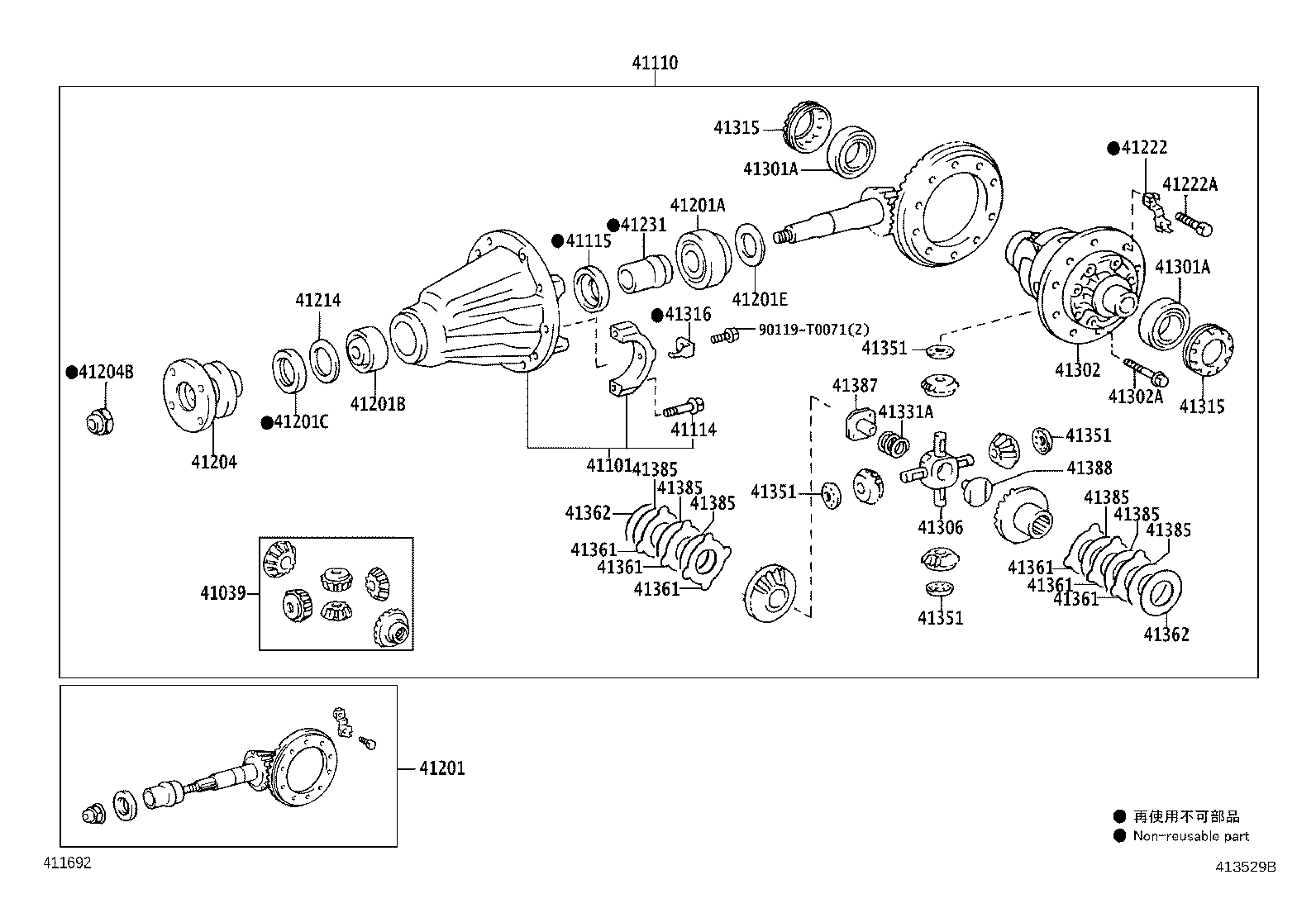

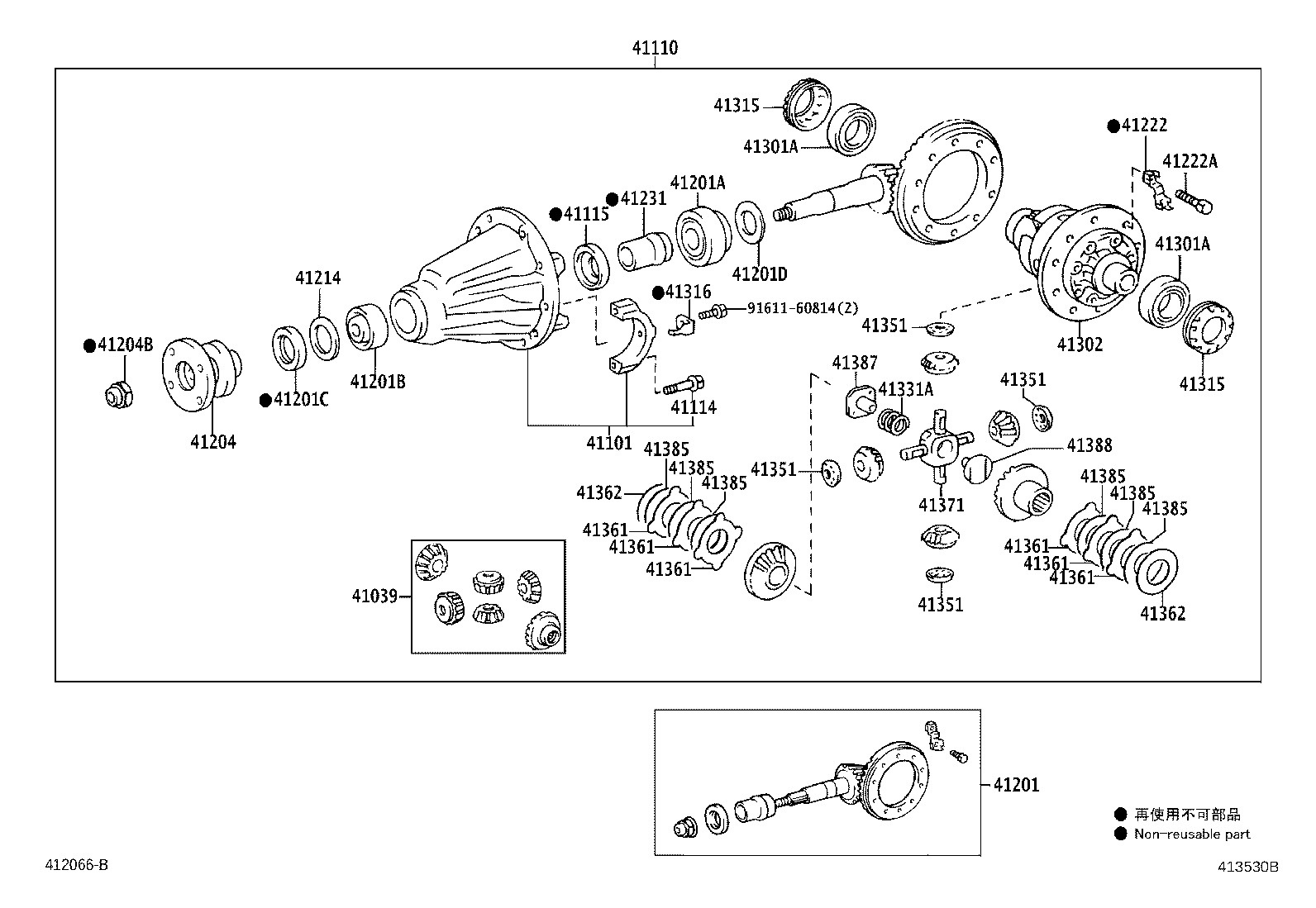

Figure 413527D 413527D 2011-07 → — Figure 413527D 413527D 2013-08 → — Figure 413528E 413528E 2011-07 → — Figure 413528E 413528E 2012-10 → — Figure 413528E 413528E 2013-10 → — Figure 413529B 413529B 2011-07 → — Figure 413529B 413529B 2012-08 → — Figure 413530B 413530B 2011-07 → — Figure 413531C 413531C 2011-07 → — Figure 413531C 413531C 2013-08 → — Figure 413531C 413531C 2013-08 → — Figure 413531C 413531C 2013-10 → — Figure 413532C 413532C 2011-07 → — Figure 413807B 413807B 2012-10 → —

Part groups

PNCDescription
04412 Gasket Kit, Rear Differential Carrier
33275L Seat, Rear Differential Lock Shift Detent Ball Spring
41039 Gear Kit, Differential, Rear
41101 Carrier Sub-assy, Differential, Rear
41101G Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
41101H Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
41102 Carrier Sub-assy, Differential W/Pin, Rear
41110 Carrier Assy, Differential, Rear
41110A Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
41114 Bolt, Rear Differential Bearing Cap
41115 Ring, Differential Oil Storage
41201 Final Gear Kit, Differential, Rear
41201A Bearing (FOR REAR DRIVE PINION REAR)
41201B Bearing (FOR REAR DRIVE PINION FRONT)
41201C Seal, Oil (FOR REAR DIFFERENTIAL CARRIER)
41201D Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION)
41201E Shim (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
41204 Flange Sub-assy, Rear Drive Pinion Companion, Rear
41204B Nut (FOR REAR DRIVE PINION)
41214 Slinger, Rear Differential Drive Pinion Oil
41222 Plate, Rear Differential Ring Gear Set Bolt Lock
41222A Bolt (FOR REAR DIFFERENTIAL RING GEAR SET)
41231 Spacer, Rear Differential Drive Pinion Bearing
41252 Deflector, Dust (FOR REAR DIFFERENTIAL)
41301 Case Sub-assy, Rear Differential
41301A Bearing(FOR REAR DIFFERENTIAL CASE)
41301E Shim(FOR DIFFERENTIAL CASE)
41302 Case Sub-assy, Rear Differential
41302A Bolt(FOR REAR DIFFERENTIAL CASE)
41306 Spider Sub-assy, Front Differential
41315 Nut, Rear Differential Bearing Adjusting
41316 Lock, Rear Differential Bearing Adjusting Nut
41331A Spring, Compression
41341 Pinion, Rear Differential
41342 Shaft, Rear Differential Pinion
41342B Pin, Straight (FOR REAR DIFFERENTIAL PINION SHAFT)
41351 Washer, Rear Differential Pinion Thrust
41361 Washer, Rear Differential Side Gear Thrust, NO.1
41362 Washer, Rear Differential Side Gear Thrust, NO.2
41371 Spider, Rear Differential
41385 Plate, Clutch
41387 Retainer, Spring, RH
41388 Retainer, Spring, LH
41442 Bolt OR Pin, Shift Fork Lock
41450 Actuator, Differential Lock Shift
41450C Ring, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR)
41451 Fork, Rear Differential Lock Shift
41453 Sleeve, Rear Differential Lock
41460J Ball (FOR REAR DIFFERENTIAL LOCK CYLINDER)
41462K Shaft, Rear Differential Lock Shift Fork
41465B Spring, Compression (FOR REAR DIFFERENTIAL LOCK RETAINER)
41465D Plug (FOR REAR DIFFERENTIAL LOCK CYLINDER)
41469A Retainer, Rear Differential Lock Shaft
41507 Tube, Rear Differential Lock Actuator Breather
41534B Bracket, Differential Breather
41991 Caution Plate, Rear Differential
42110 Housing Assy, Rear Axle
42110A Plug (FOR REAR AXLE HOUSING FILLER)
42110B Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
42110C Plug, Breather (FOR REAR AXLE HOUSING)
42110D Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
42110E Plug (FOR REAR AXLE HOUSING DRAIN)
42181 Gasket, Rear Differential Carrier
42306A Union (FOR REAR AXLE BREATHER HOUSE)
42306B Hose (FOR REAR AXLE BREATHER)
42306C Clip, Hose (FOR REAR AXLE BREATHER HOSE)
42306D Clamp (FOR REAR AXLE BRATHER HOSE)
42306F Plug, Breather (FOR REAR AXLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
