Toyota DYNA200

1995-05 → 2003-12 · chassis BU10#,11#,14#,21#,22#,YU210,RZU100 · catalogue 751260 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

55 part groups · 18 illustrations

Illustrations

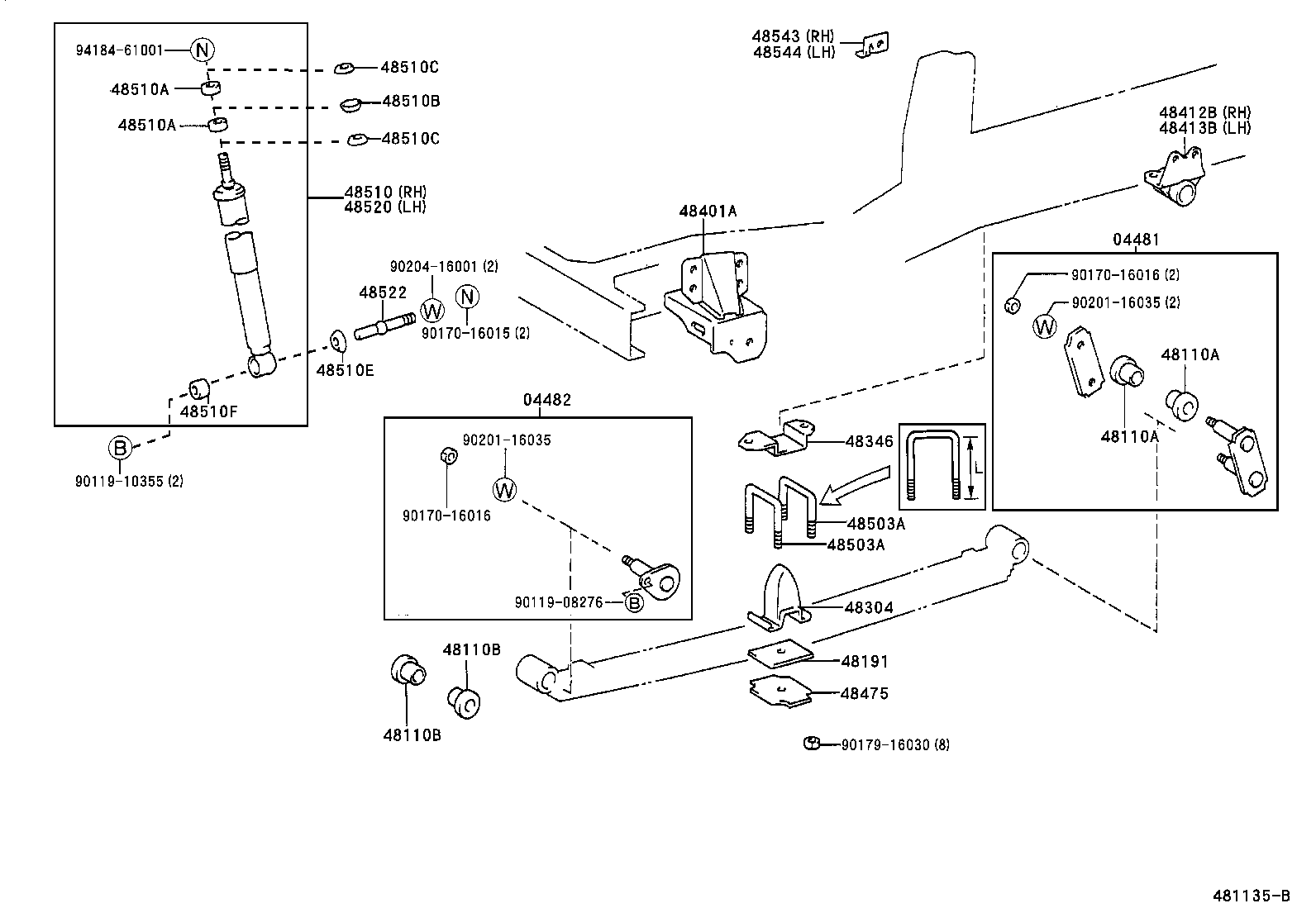

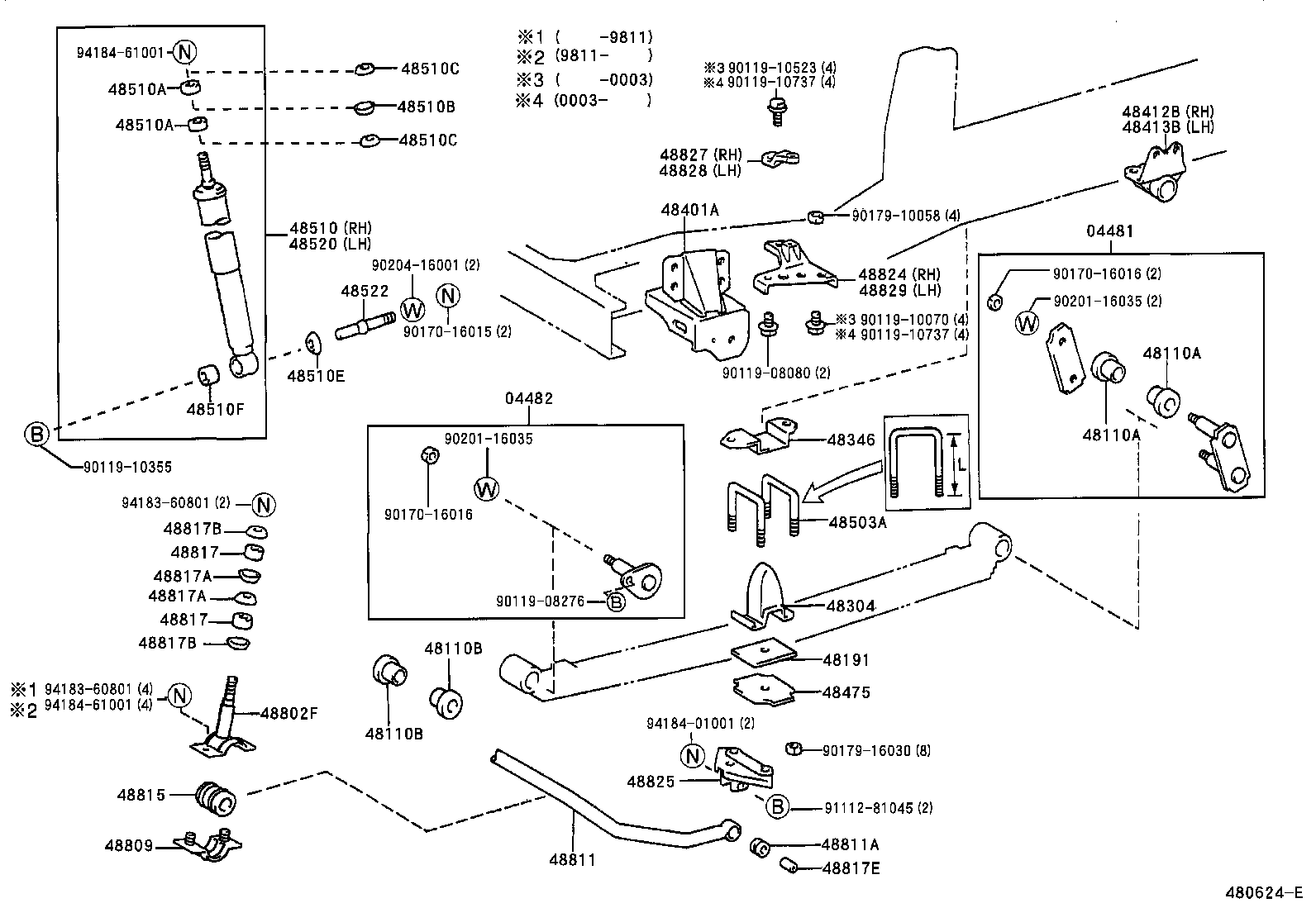

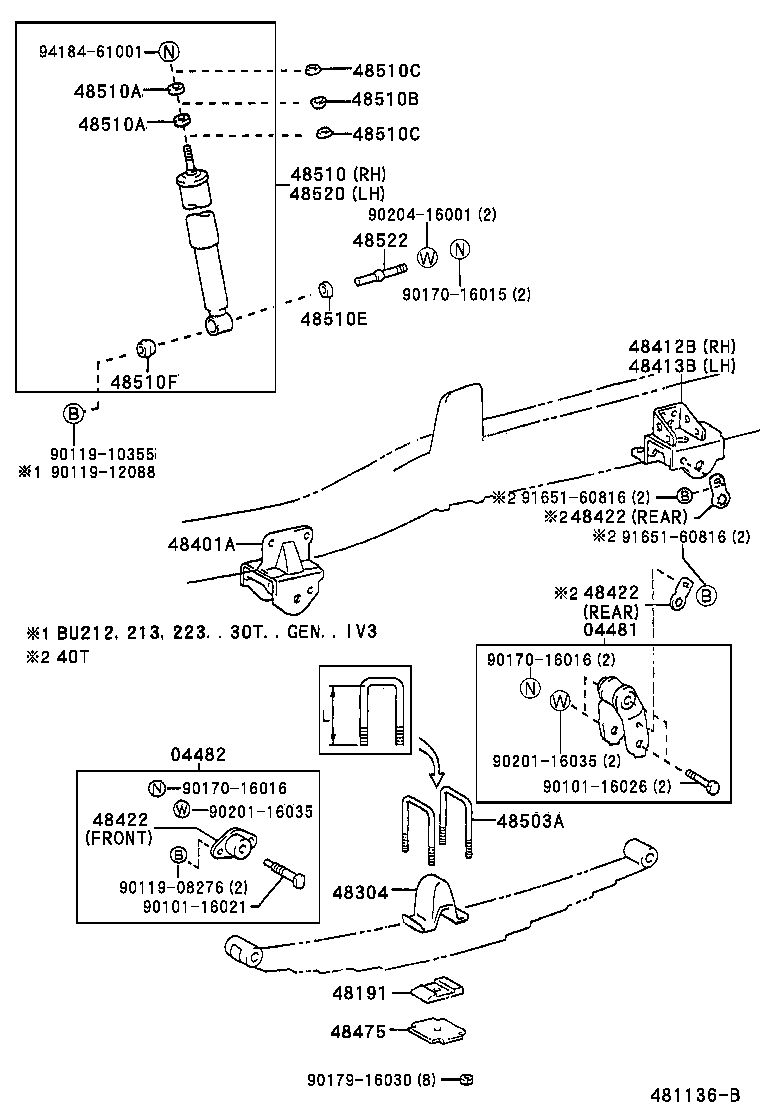

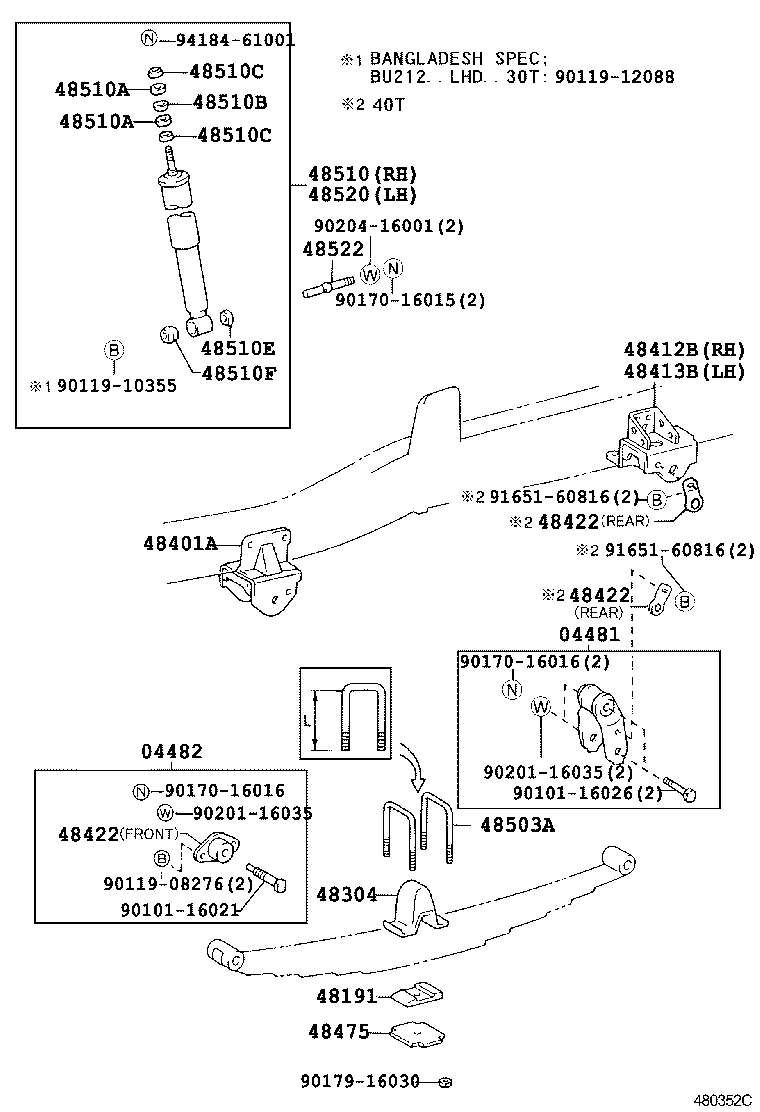

Figure 480463B 480463B 1995-05 → 1997-03 Figure 481135B 481135B 1997-03 → — Figure 480352C 480352C 1995-05 → 1997-03 Figure 481136B 481136B 1997-03 → — Figure 480624E 480624E 1997-12 → — Figure 480948A 480948A 1999-08 → — Figure 480754B 480754B 1995-05 → — Figure 480755A 480755A 1995-05 → — Figure 480755A 480755A 1995-05 → — Figure 480529 480529 1995-05 → — Figure 480525A 480525A 1995-05 → — Figure 481464 481464 1995-05 → — Figure 480526 480526 1995-05 → — Figure 480526 480526 1995-05 → — Figure 480527A 480527A 1995-05 → — Figure 480528 480528 1995-05 → — Figure 480530 480530 1995-05 → — Figure 480531A 480531A 1995-05 → —

Part groups

PNCDescription
04481 Shackle Kit, Front Spring
04482 Pin Kit, Front Spring
48110 Spring Assy, Front, RH
48110A Bush(FOR FRONT SPRING SHACKLE)
48110B Bush(FOR FRONT SPRING PIN)
48110F Bimetal Formed Bush(FOR FRONT SPRING)
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48116 Leaf, Front Spring, NO.6
48117 Leaf, Front Spring, NO.7
48118 Leaf, Front Spring, NO.8
48119 Leaf, Front Spring, NO.9
48119A Leaf, Front Spring NO.10
48120 Spring Assy, Front, LH
48147 Bolt, Front Spring, Center
48153 Spacer, Front Leaf Spring, NO.1
48191 Wedge, Caster(FOR FRONT LEAF SPRING)
48251B Spacer(FOR FRONT SPRING)
48252D Silencer
48253C Spacer, Front Leaf Spring, NO.2
48304 Bumper Sub-assy, Front Spring, NO.1
48346 Stopper, Bumper, Front
48401A Bracket Sub-assy, Spring, NO.1
48412B Bracket, Spring, NO.2 RH
48413B Bracket, Spring, NO.2 LH
48422 Support, Front Spring Pin
48475 Plate, Distance(FOR FRONT)
48503A Bolt, U(FOR FRONT SHOCK ABSORBER BRACKET)
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510E Washer, Front Shock Absorber Cushion, NO.2
48510F Cushion, Shock Absorber
48520 Absorber Assy, Shock, Front LH
48522 Pin, Front Shock Absorber Lower Pivot
48543 Reinforcement, Front Absorber Bracket, RH
48544 Reinforcement, Front Absorber Bracket, LH
48802F Link Sub-assy, Front Stabilizer
48809 Bracket Sub-assy, Stabilizer
48811 Bar, Stabilizer, Front
48811A Bush(FOR FRONT STABILIZER BAR)
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817E Spacer(FOR STABILIZER BAR)
48824 Bracket, Stabilizer, Front
48825 Bracket, Stabilizer, NO.2
48827 Bracket, Front Stabilizer, NO.2 RH
48828 Bracket, Front Stabilizer, NO.2 LH
48829 Bracket, Stabilizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
