Toyota Land Cruiser Prado

2009-08 → 2017-08 · chassis GDJ15#,GRJ150,KDJ15# · catalogue 781560 · Europe

Supported model Data version 2018-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

111 part groups · 12 illustrations

Illustrations

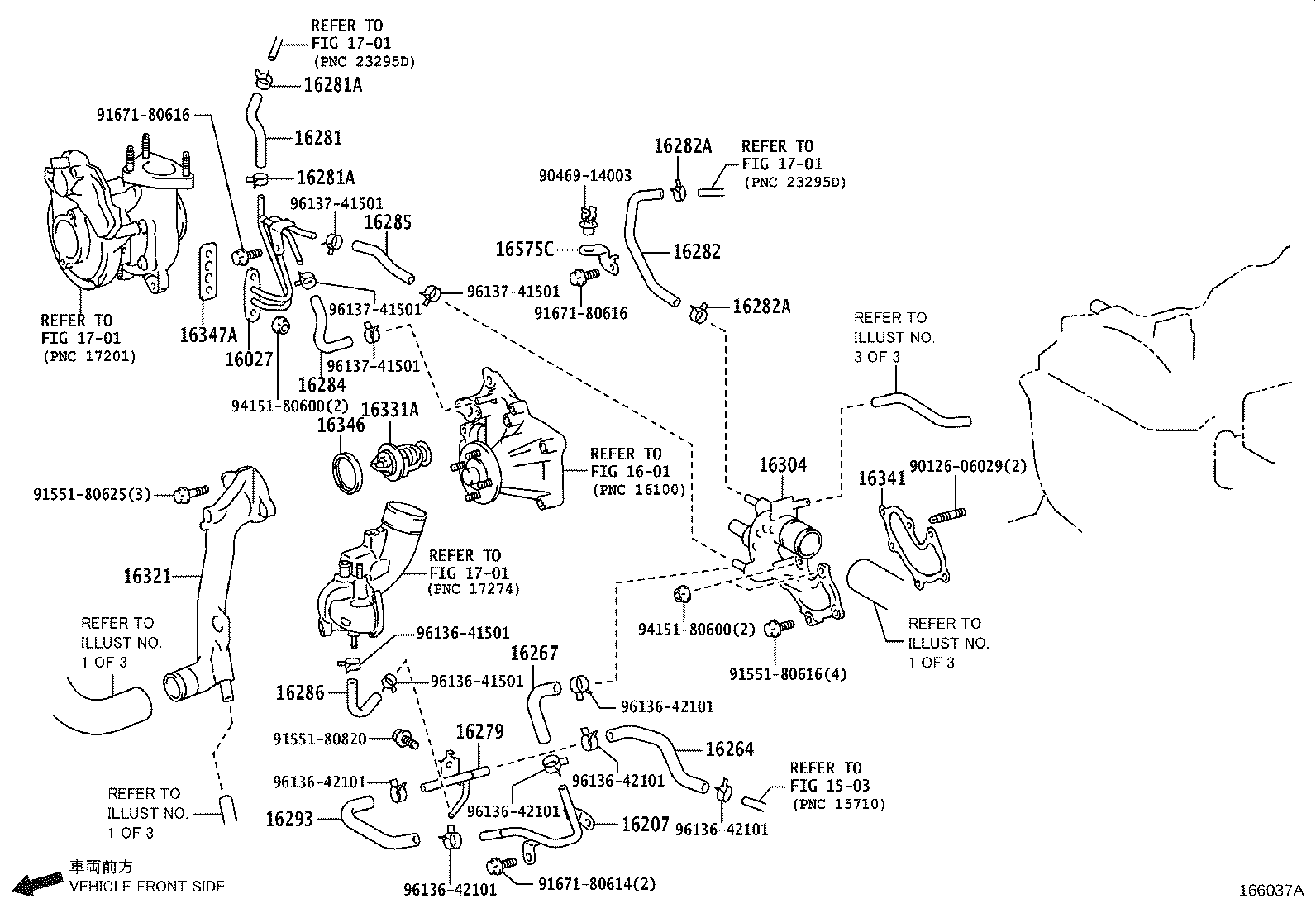

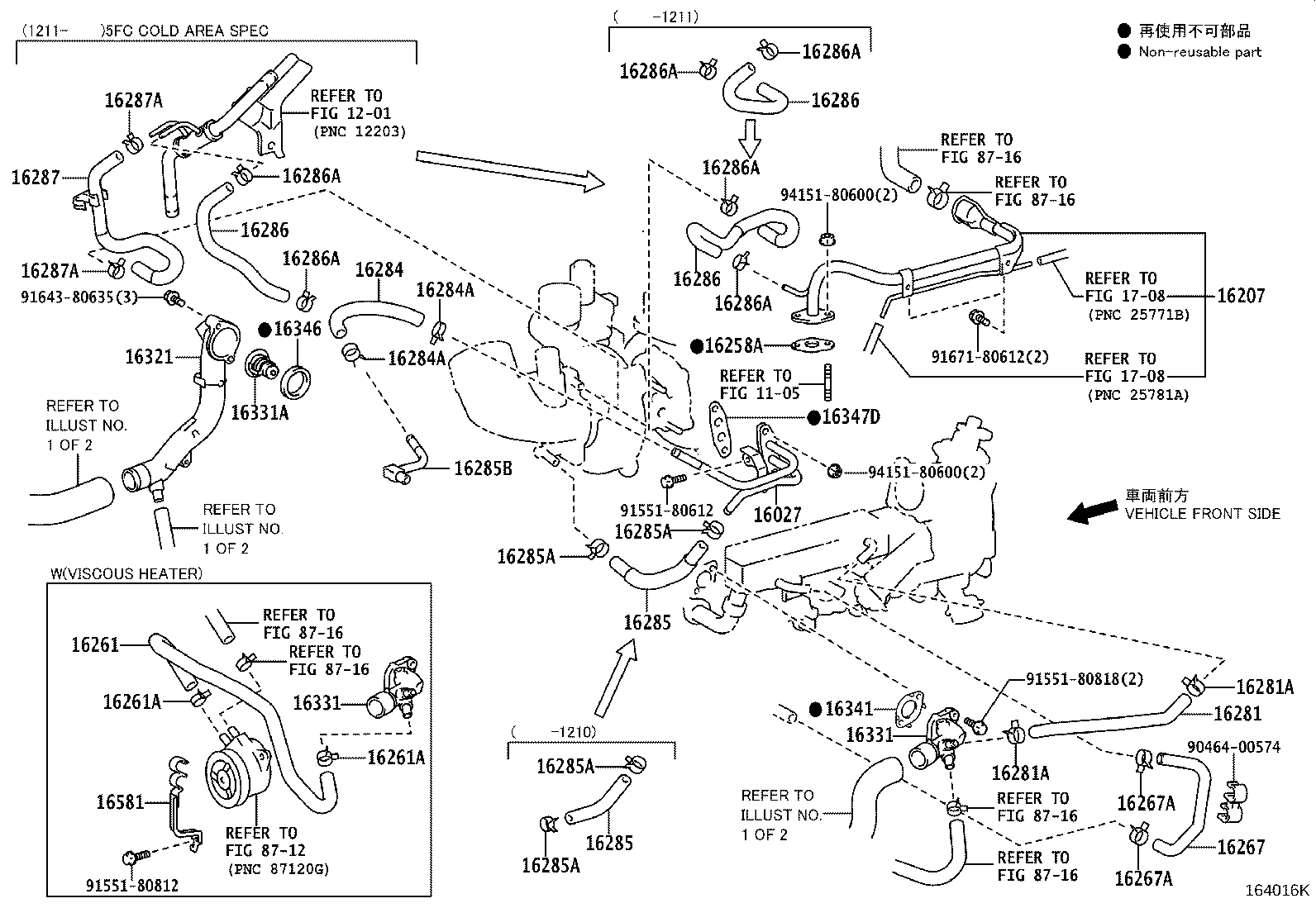

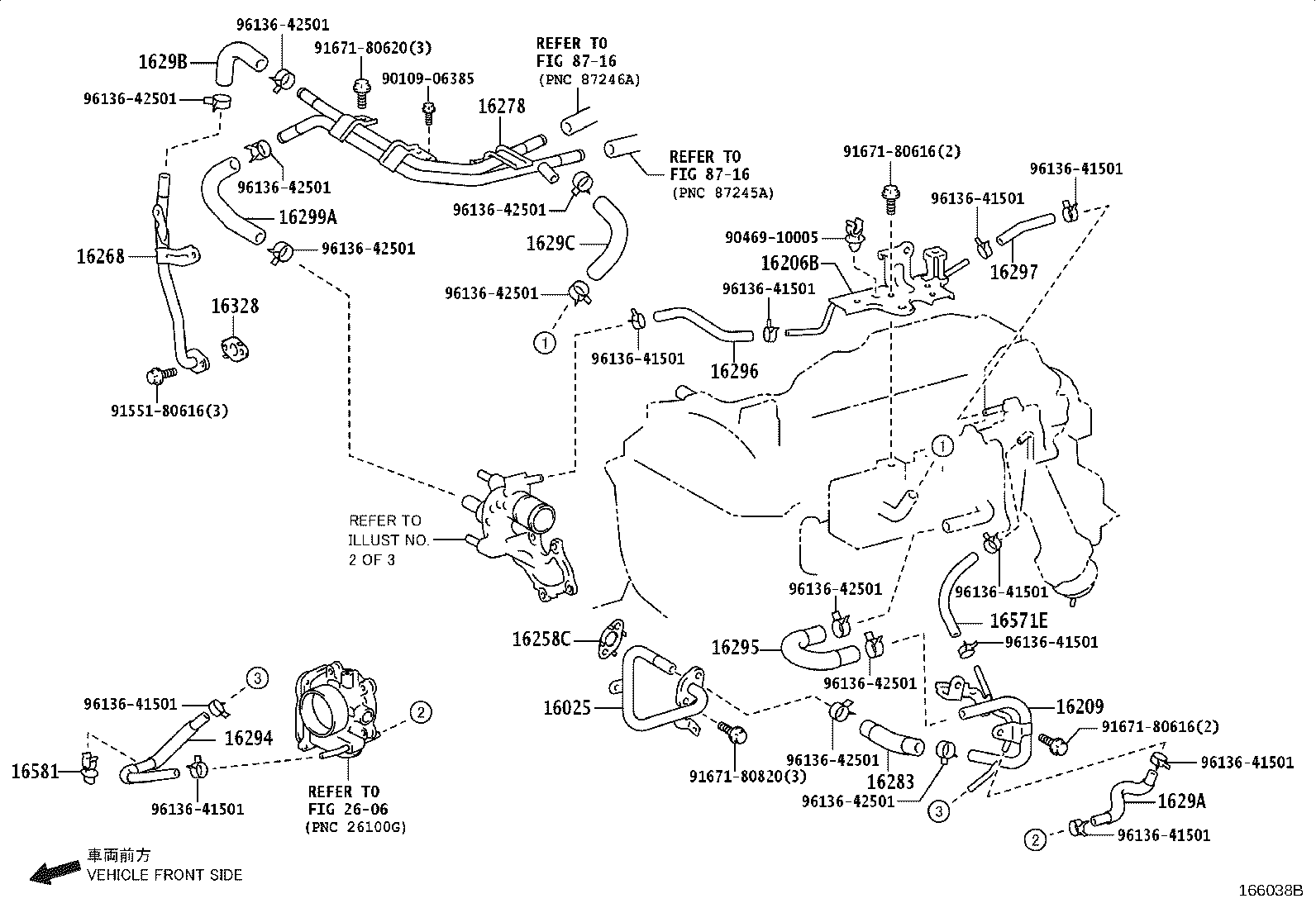

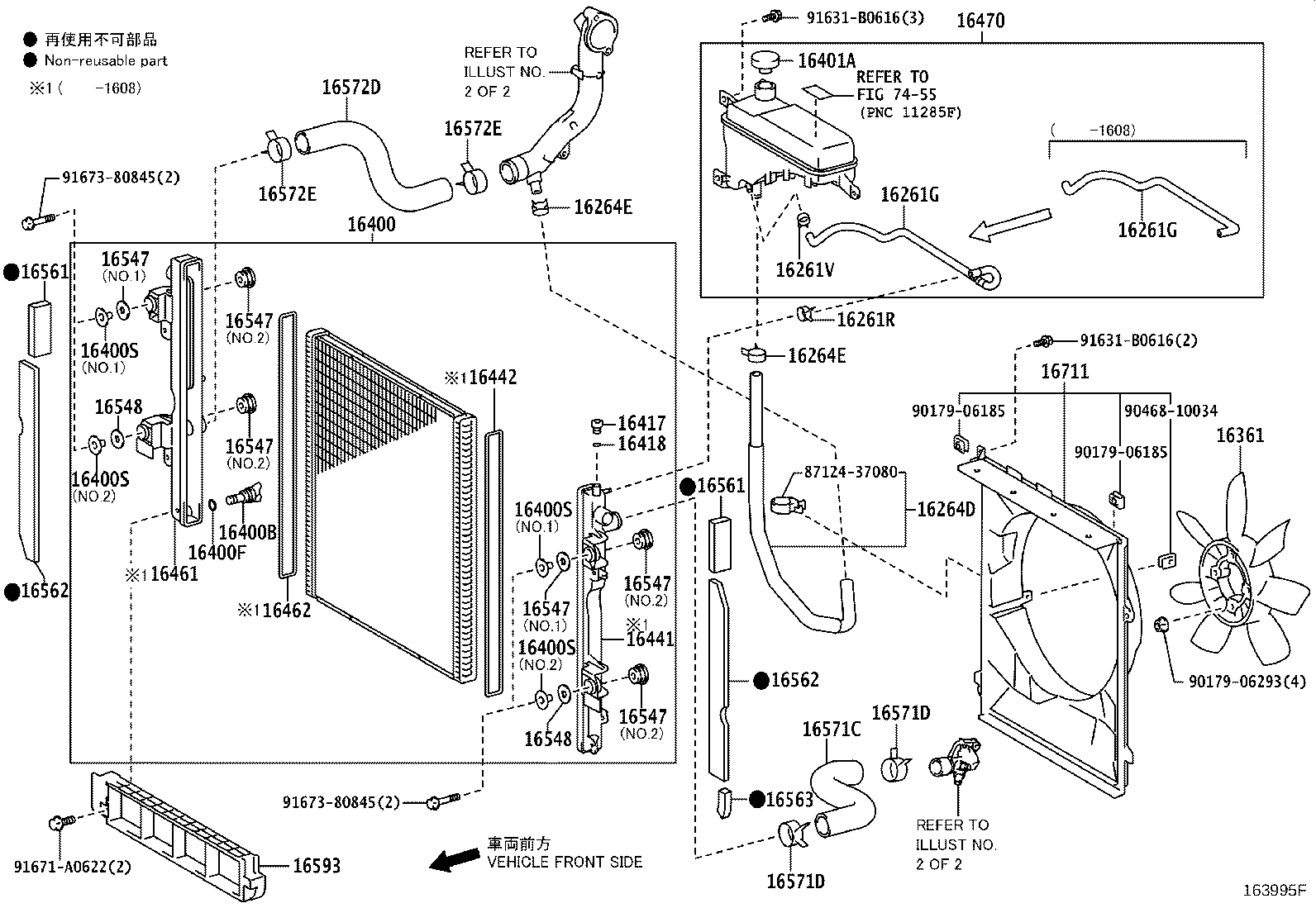

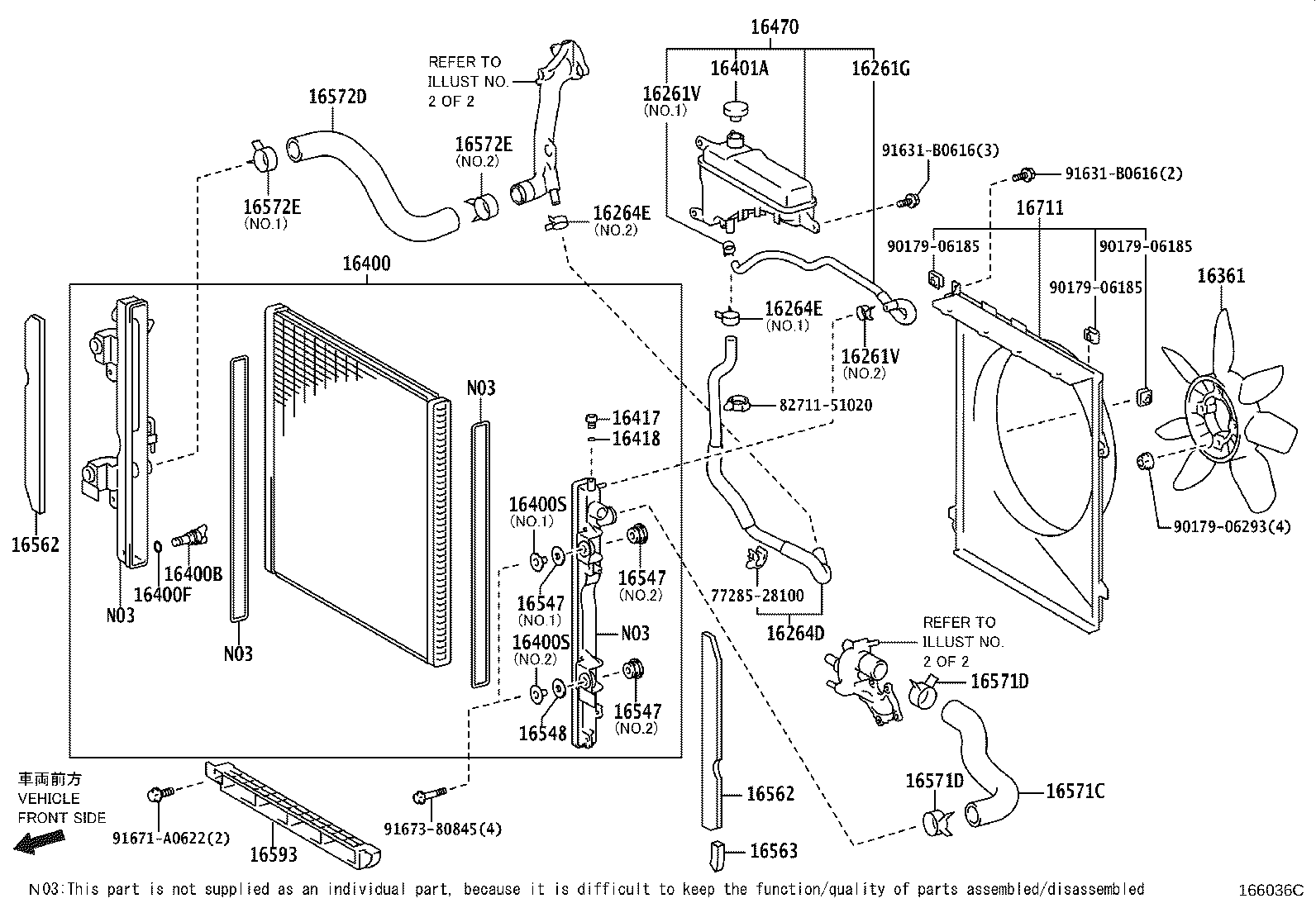

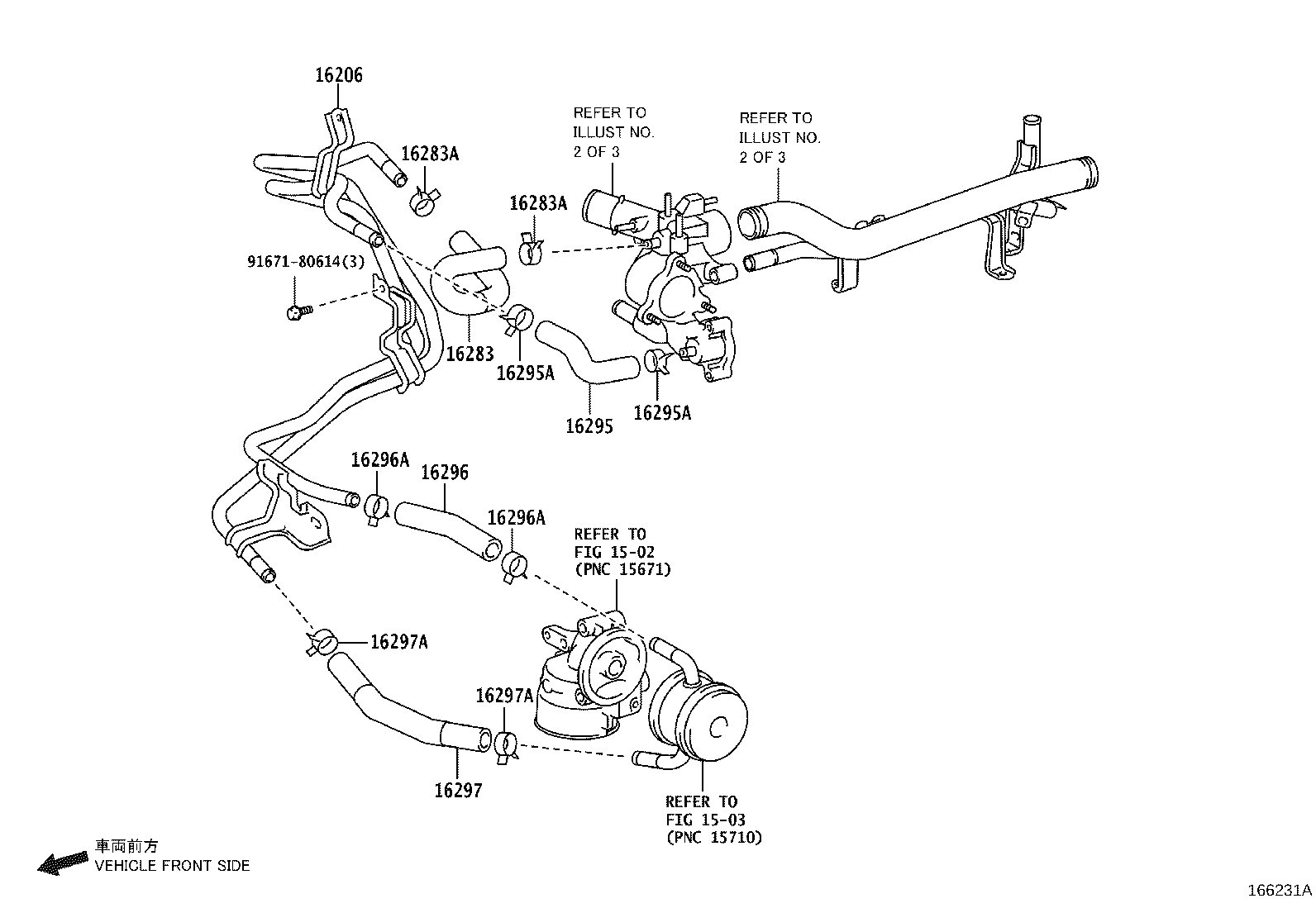

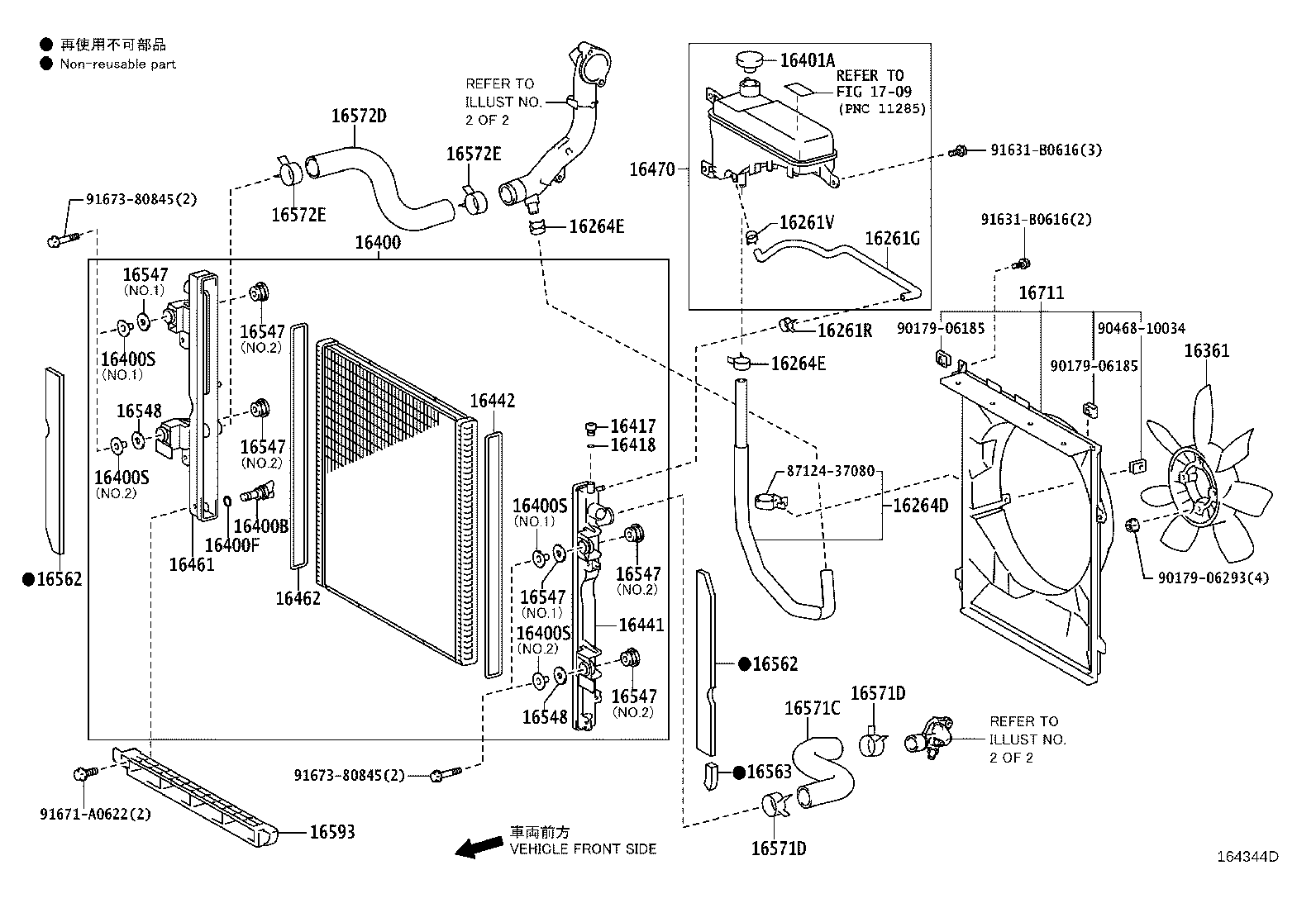

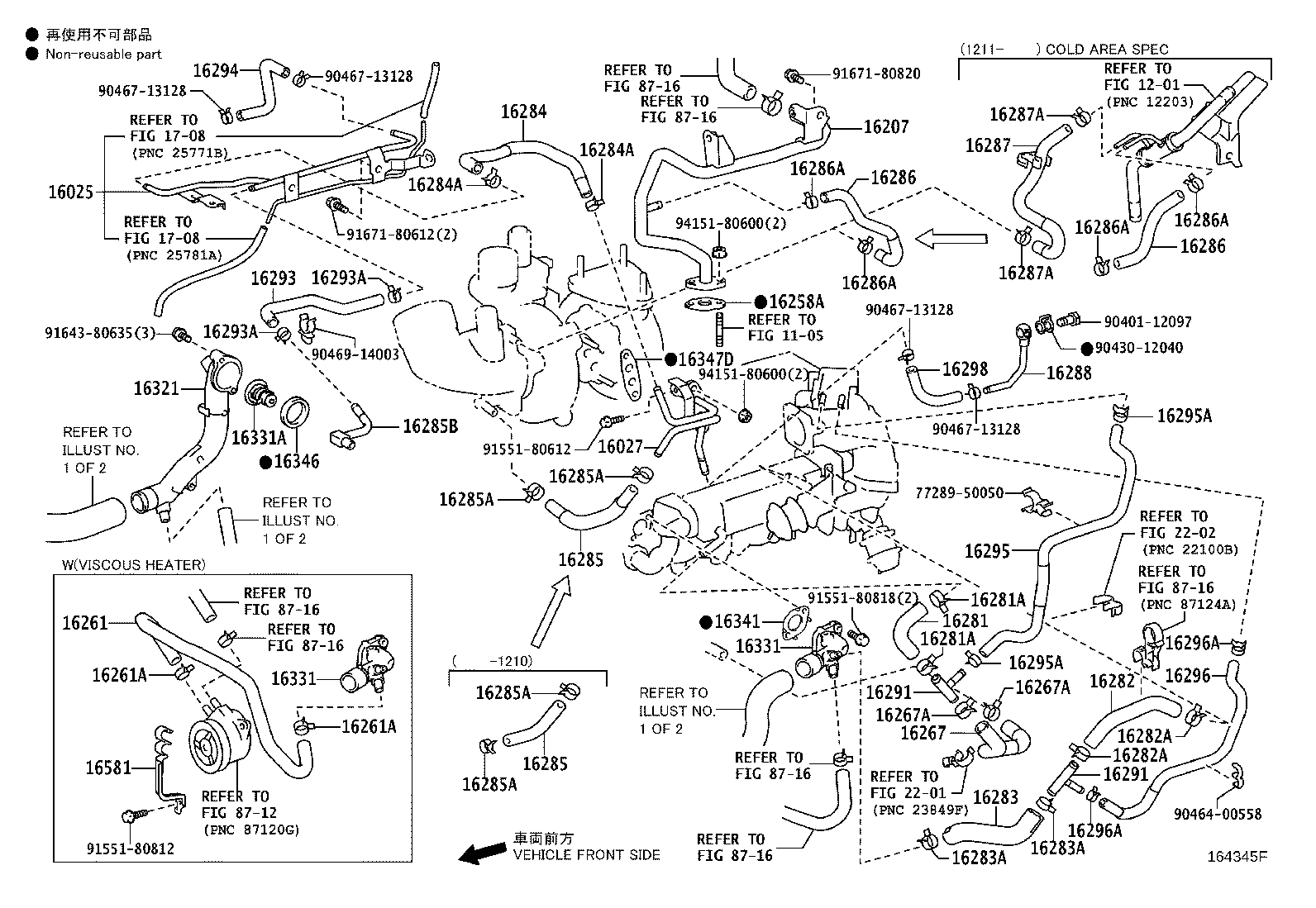

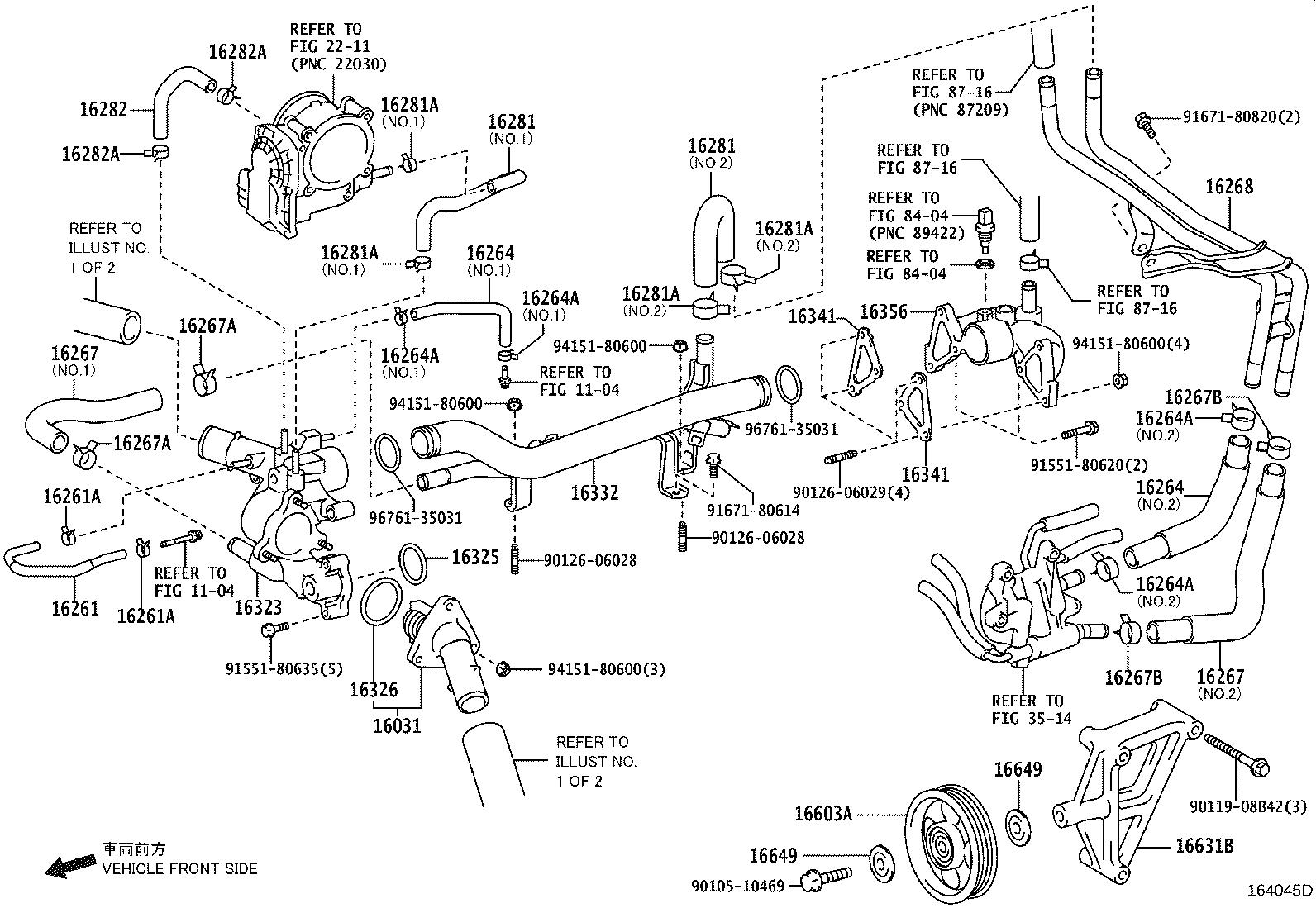

Figure 164186G 164186G 2009-08 → — Figure 164045D 164045D 2009-08 → — Figure 166231A 166231A 2015-09 → — Figure 166036C 166036C 2015-06 → — Figure 166037A 166037A 2015-06 → — Figure 166038B 166038B 2015-06 → — Figure 163995F 163995F 2009-08 → 2013-08 Figure 163995F 163995F 2013-08 → — Figure 164016K 164016K 2009-08 → 2013-08 Figure 164016K 164016K 2013-08 → — Figure 164344D 164344D 2010-10 → 2015-06 Figure 164345F 164345F 2010-10 → 2015-06

Part groups

PNCDescription
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16031 Water Inlet Sub-assy, W/Thermostat
16206 Pipe Sub-assy, Water By-pass
16206B Pipe Sub-assy, Water By-pass, NO.3
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258A Gasket(FOR HEATER RETURN)
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16261V Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16268 Pipe, Water By-pass, NO.1
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16285B Union(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16291 Joint, Water Hose
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
16299A Hose, Water By-pass, NO.13
1629A Hose, Water By-pass, NO.14
1629B Hose, Water By-pass, NO.15
1629C Hose, Water By-pass, NO.16
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331 Outlet, Water
16331A Thermostat
16332 Pipe, Water Outlet, NO.1
16341 Gasket, Water Outlet
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16347D Gasket, Water By-pass
16356 Joint, Water By-pass, Rear
16361 Fan
16400 Radiator Assy
16400A Cock Sub-assy, Radiator Drain
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16400S Collar(FOR RADIATOR)
16401 Cap Sub-assy, Radiator
16401A Cap Sub-assy, Radiator Reserve Tank
16417 Cock
16418 Packing
16441 Tank, Radiator, Upper
16442 Ring, O(FOR RADIATOR UPPER TANK)
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16461 Tank, Radiator, Lower
16462 Ring, O(FOR RADIATOR LOWER TANK)
16470 Tank Assy, Radiator Reserve
16471 Cap Sub-assy, Reserve Tank
16547 Bush, Radiator Support, NO.1
16548 Bush, Radiator Support, NO.2
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16563 Seal, Radiator TO Support, NO.3
16567 Hose(FOR RADIATOR RESERVE TANK)
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571E Hose, Water
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16581 Clamp, Hose(FOR WATER HOSE)
16581C Clamp, Hose(FOR RADIATOR HOSE NO.2)
16593 Guide, Radiator Air, NO.1
16603A Pulley Sub-assy, Idler, NO.1
16631B Bracket, Idler Pulley
16649 Plate, Idler Pulley Cover
16711 Shroud, Fan
