Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

196 part groups · 23 illustrations

Illustrations

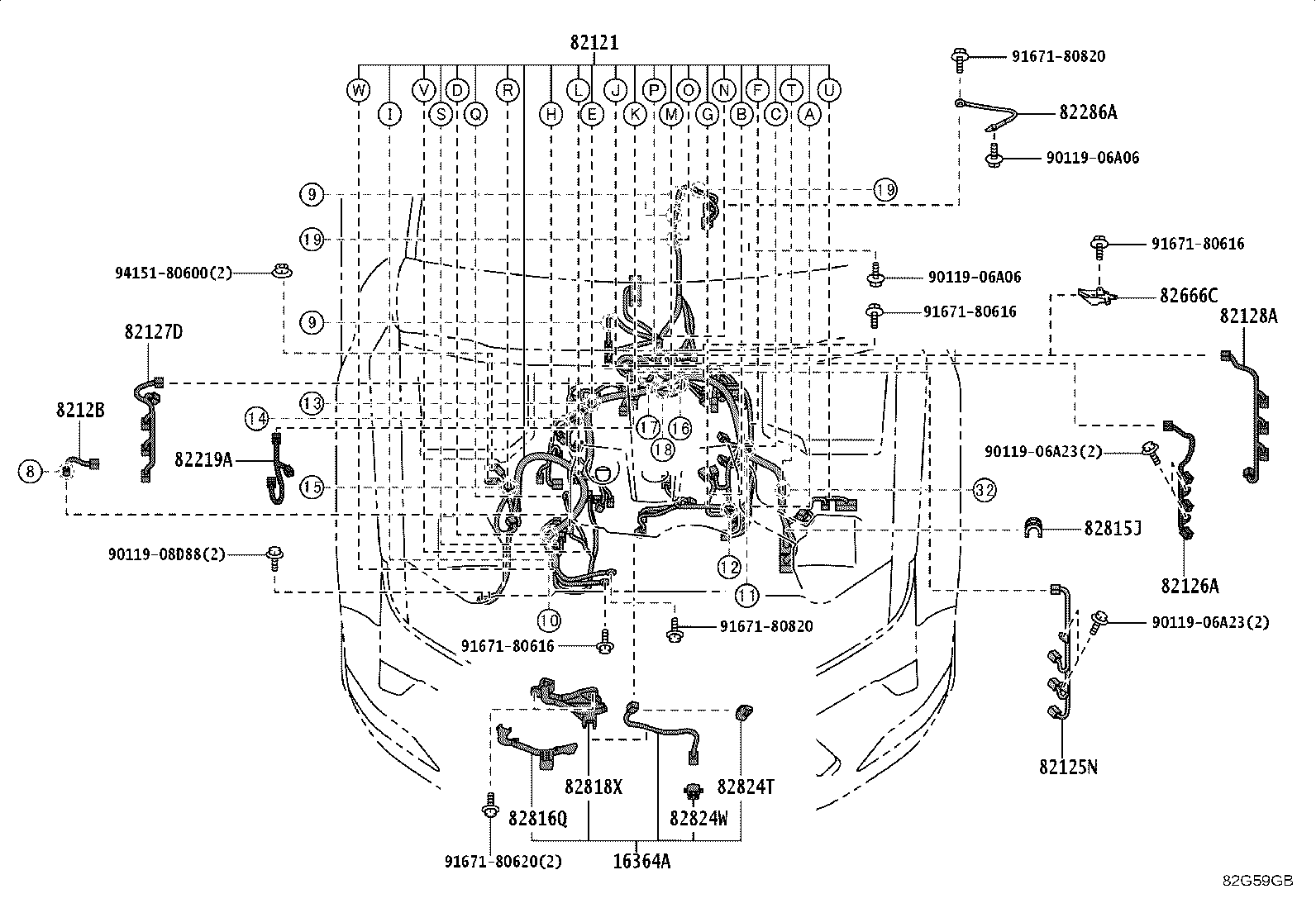

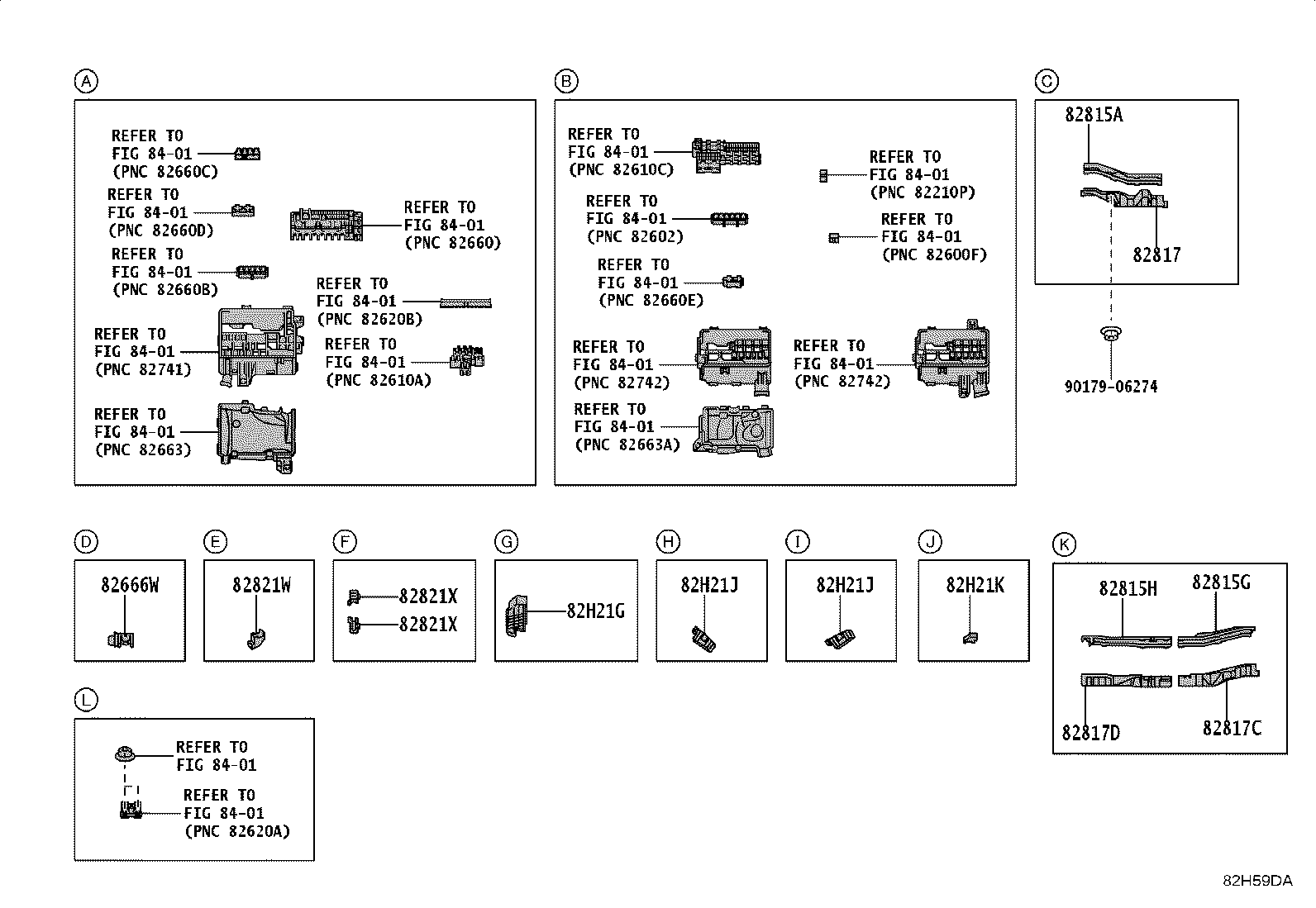

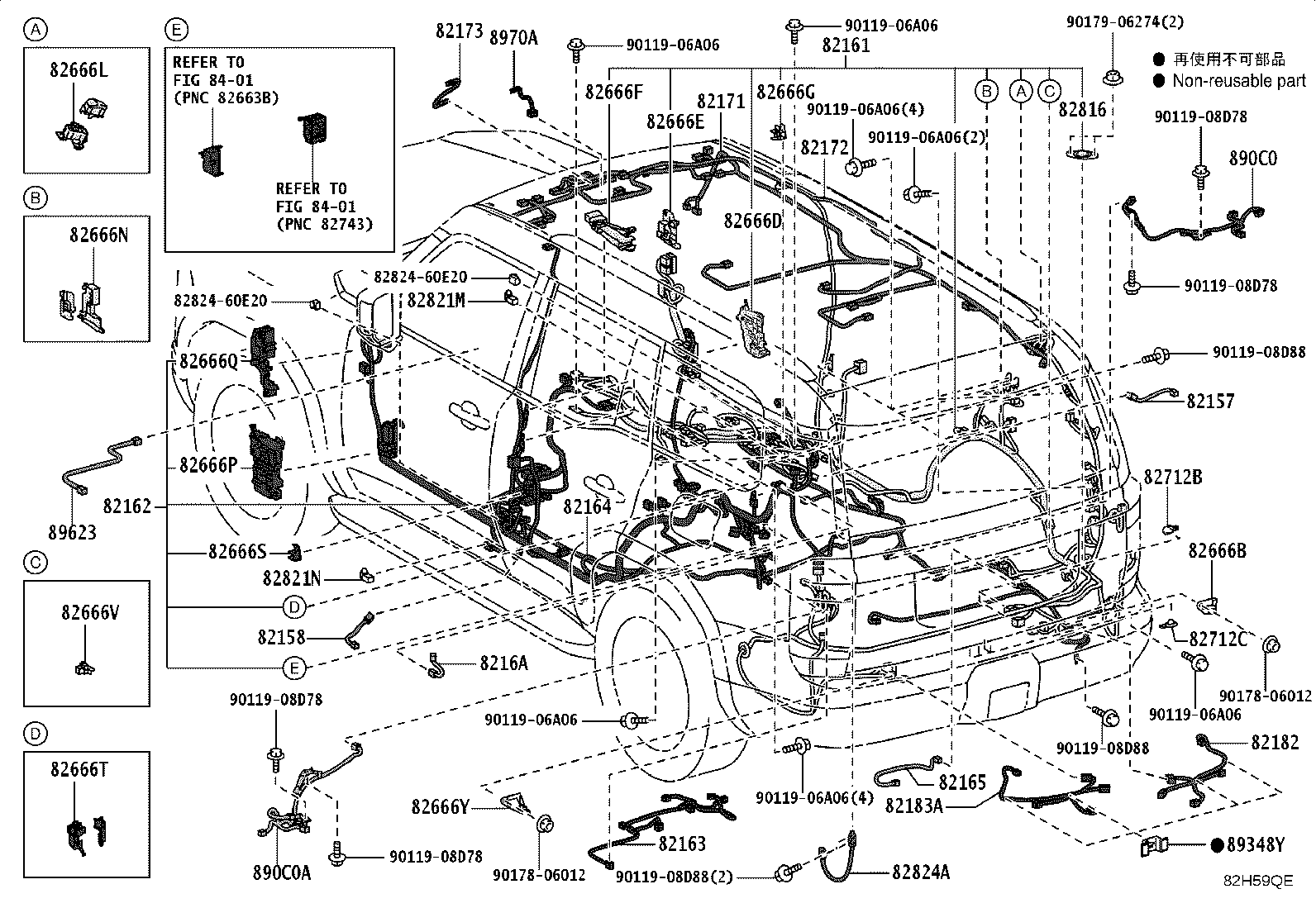

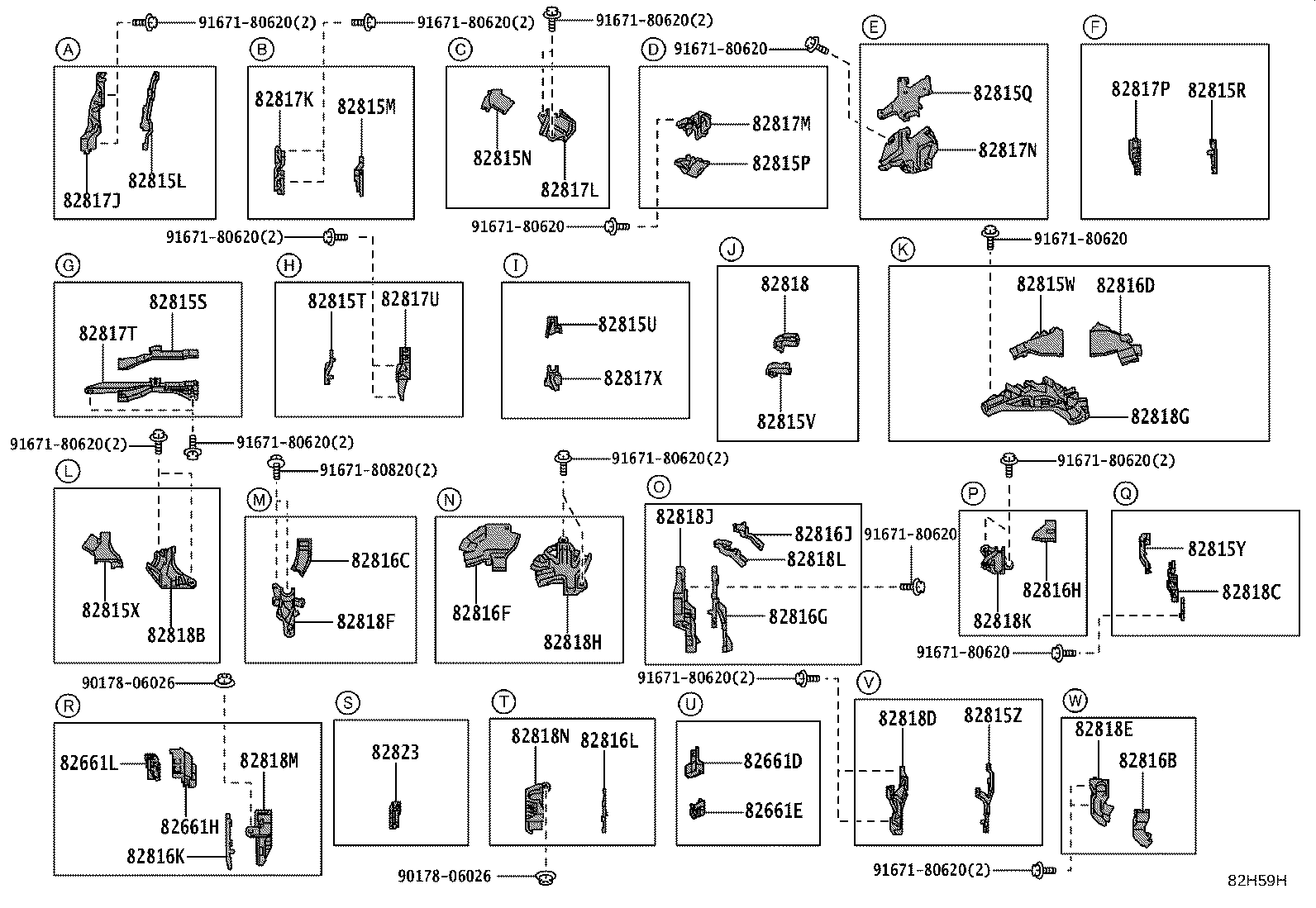

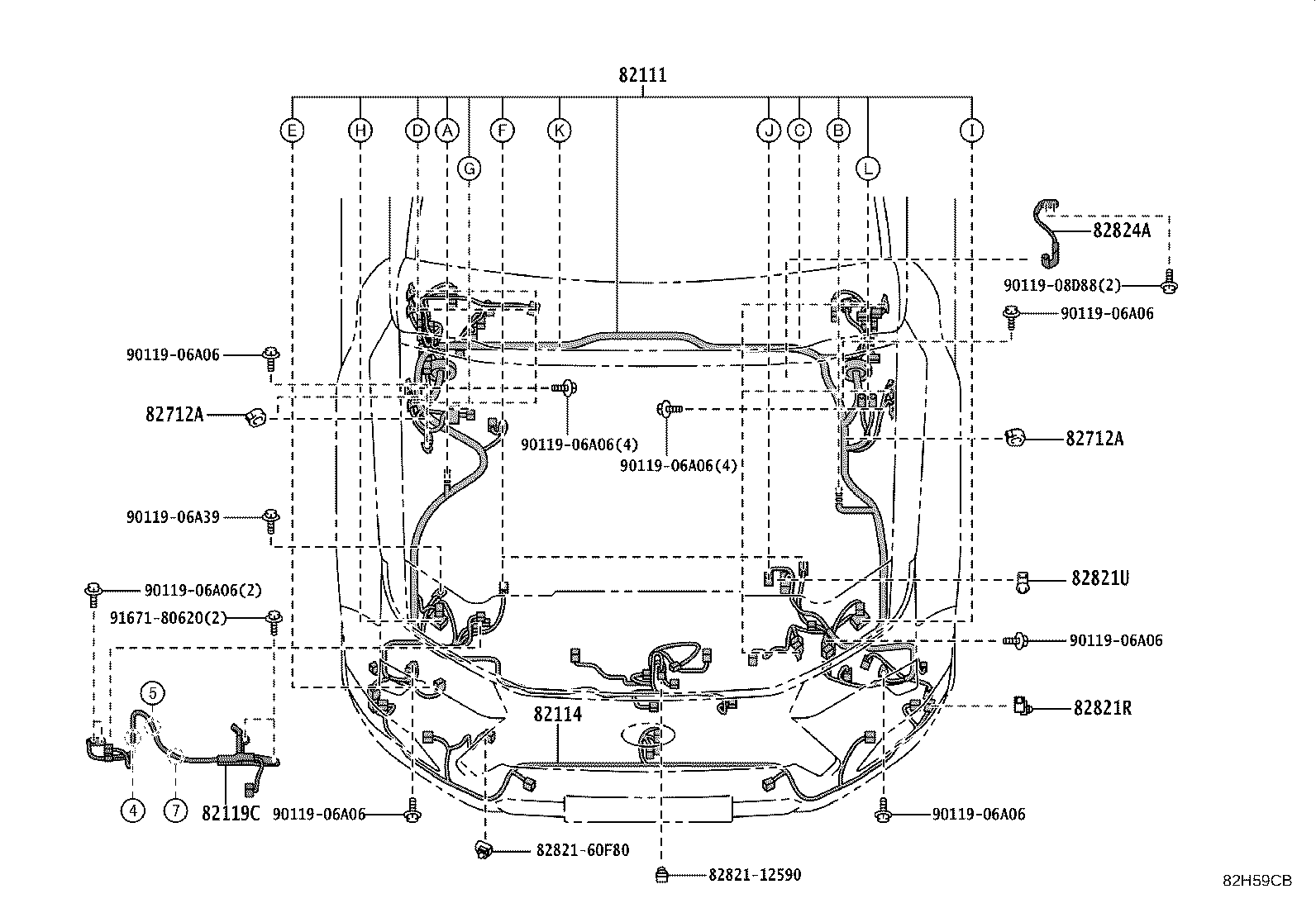

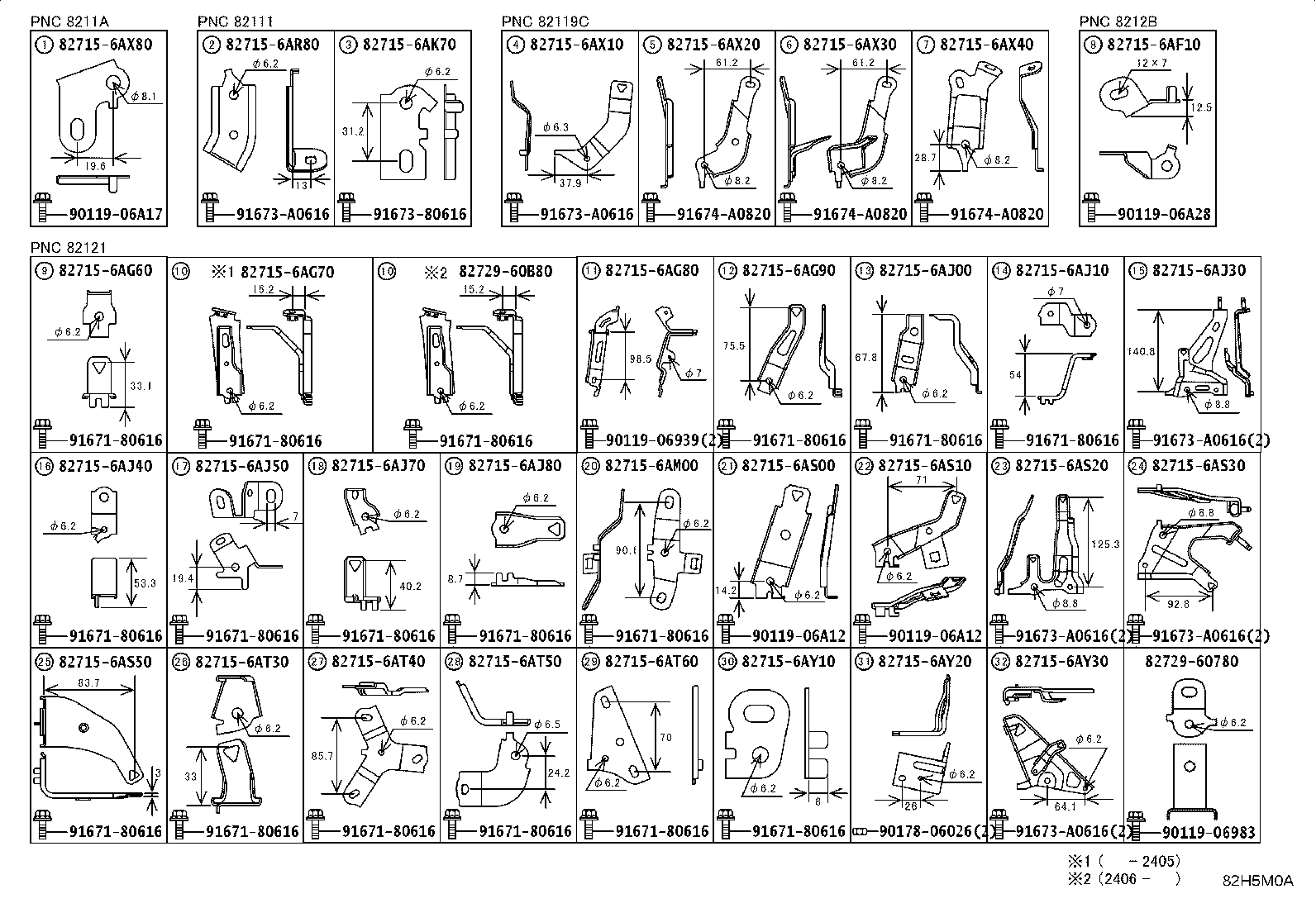

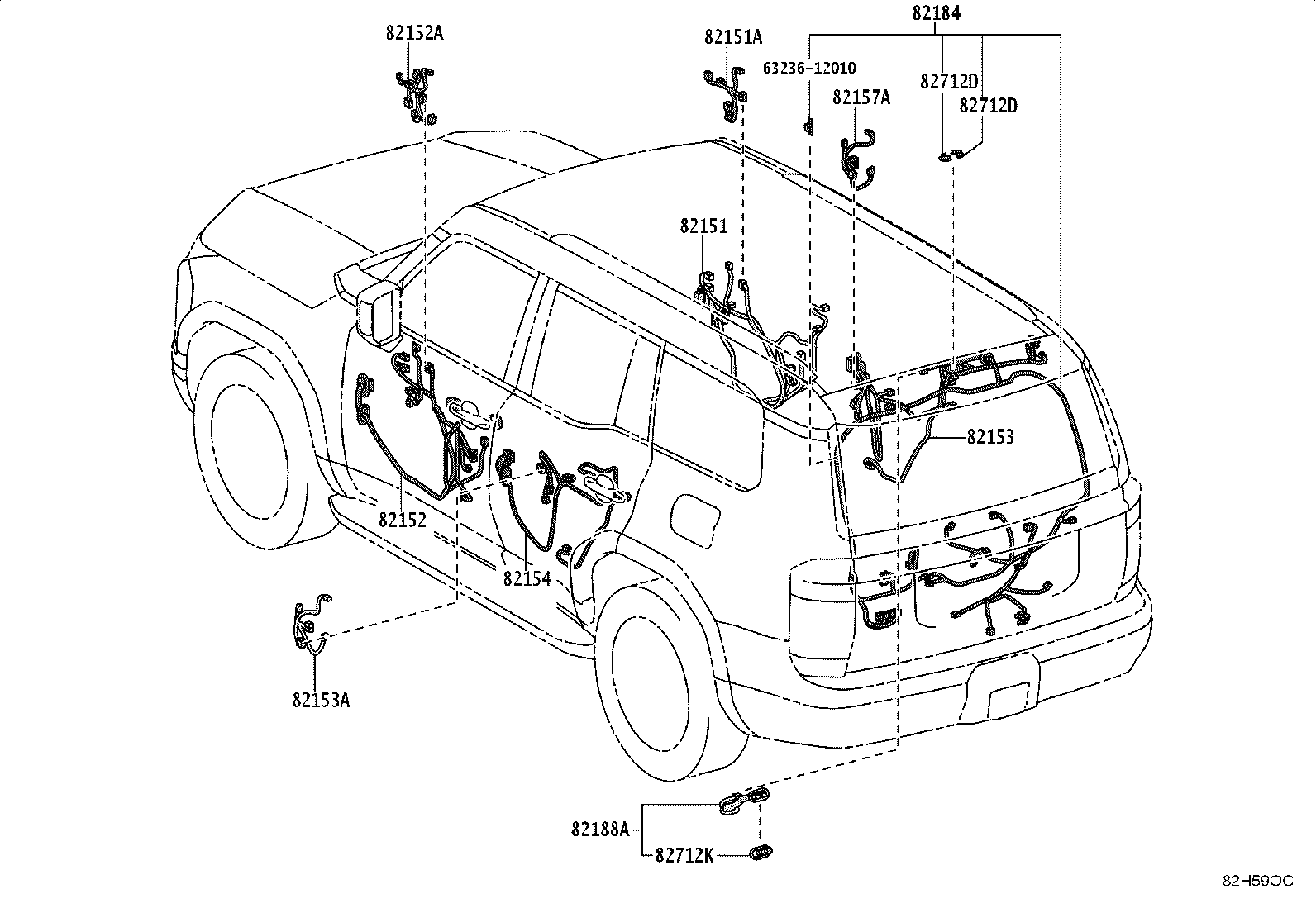

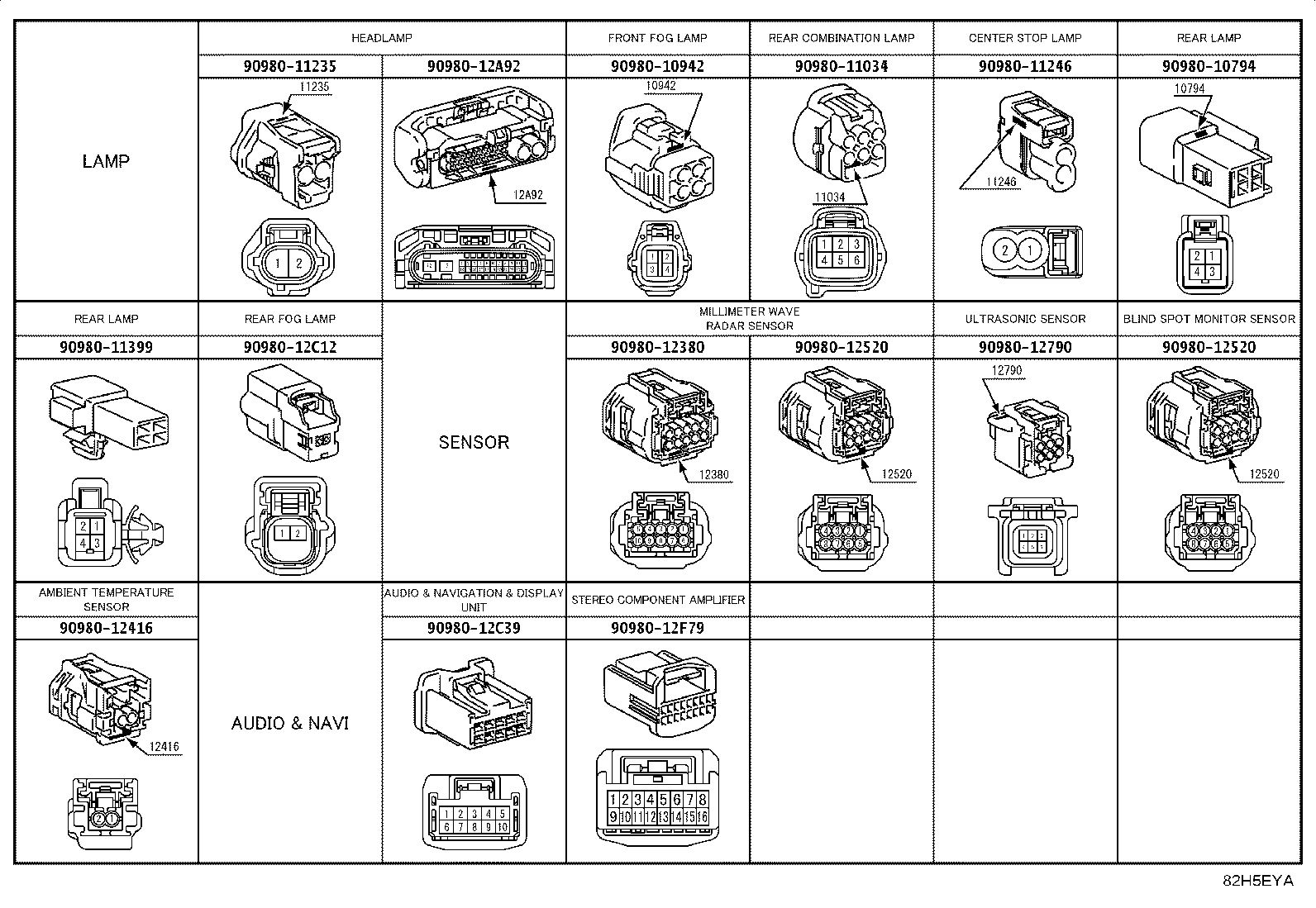

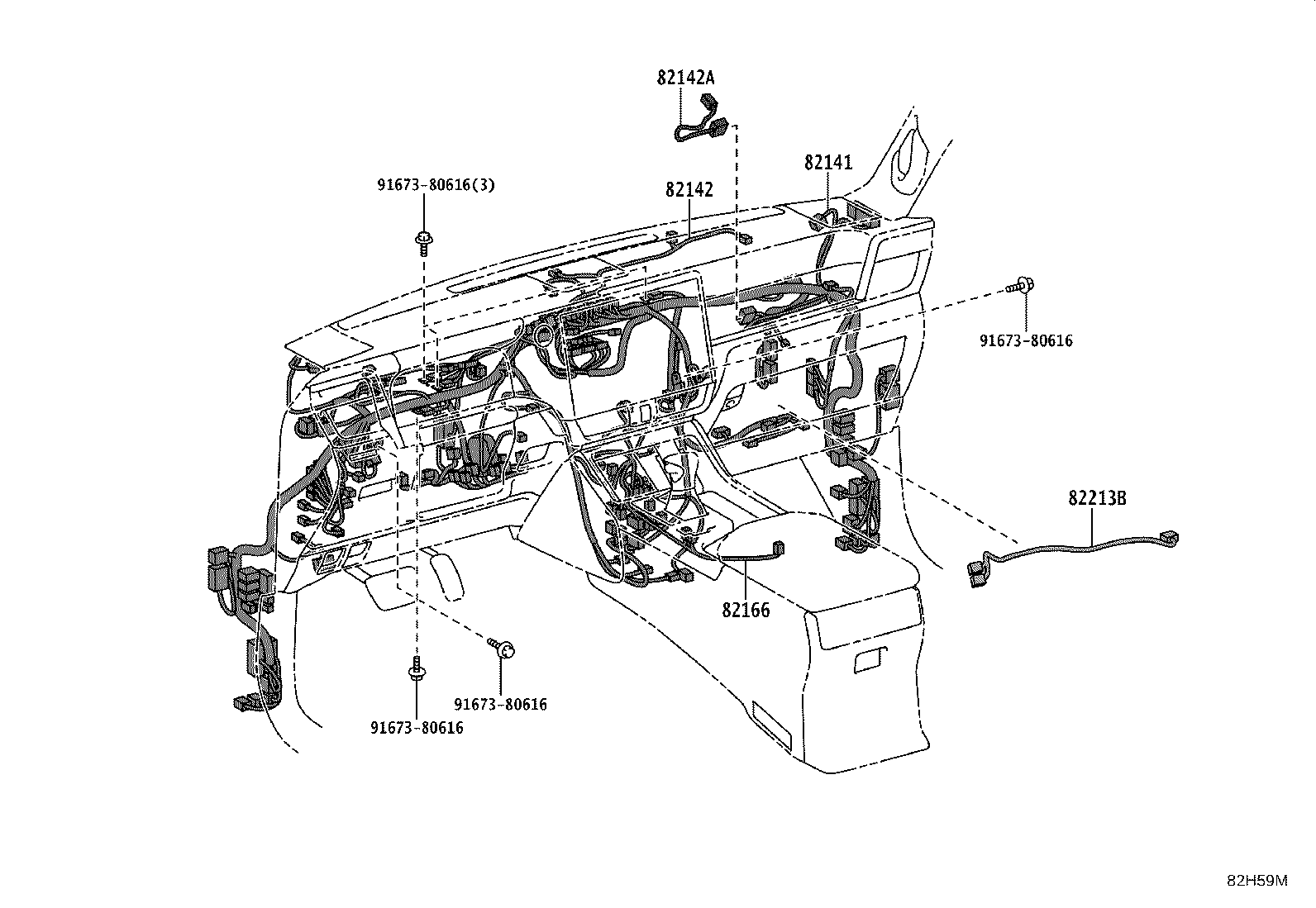

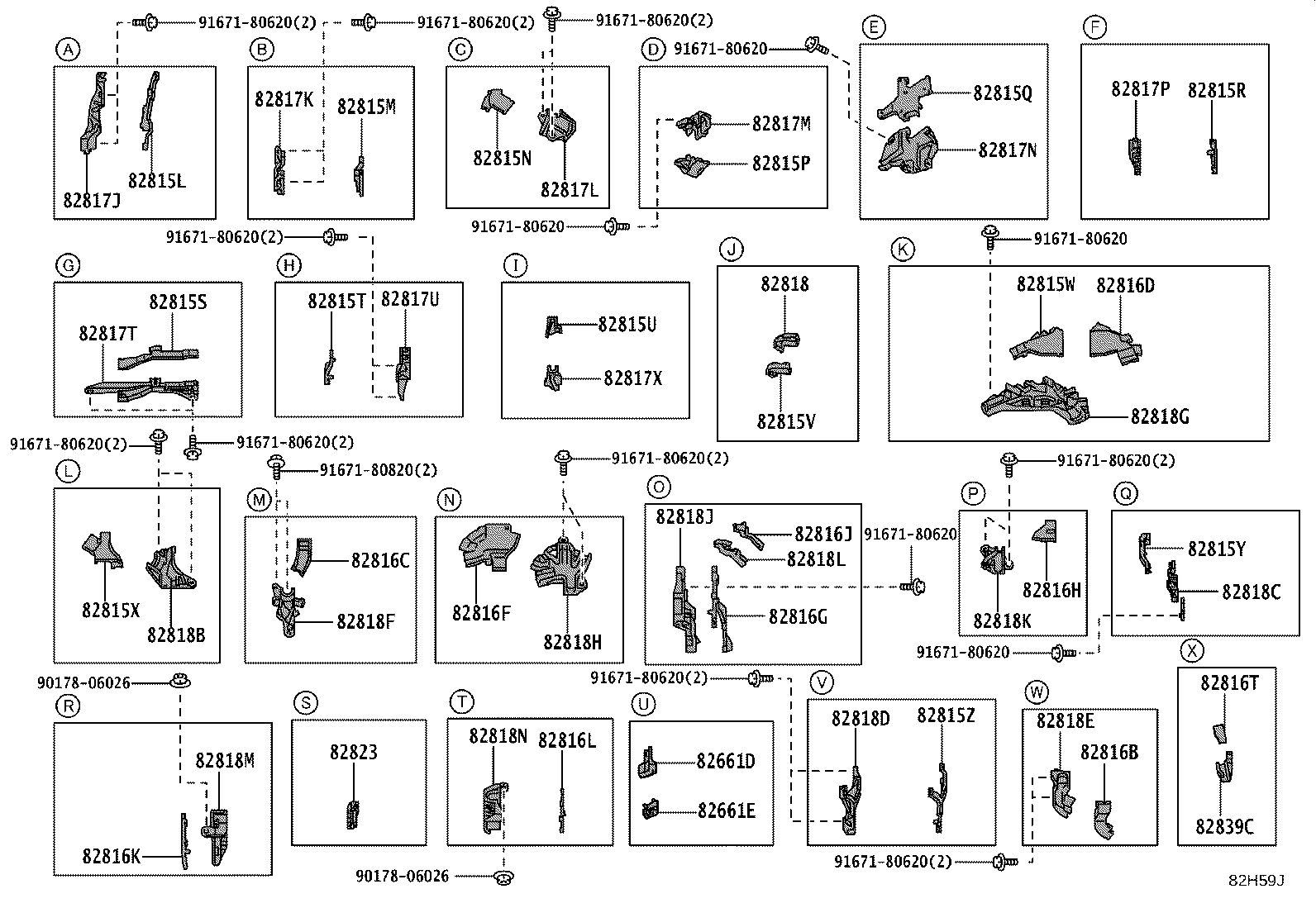

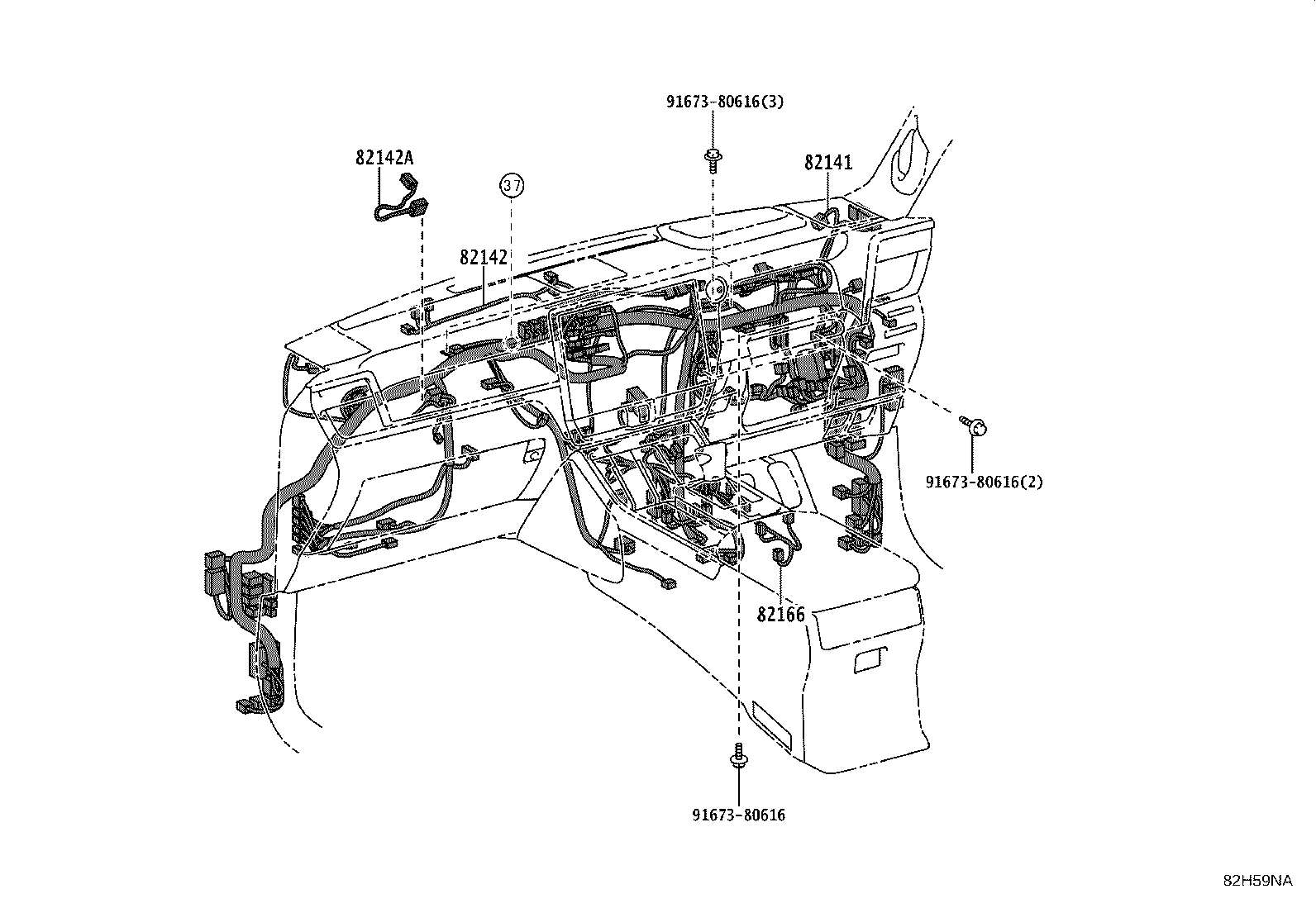

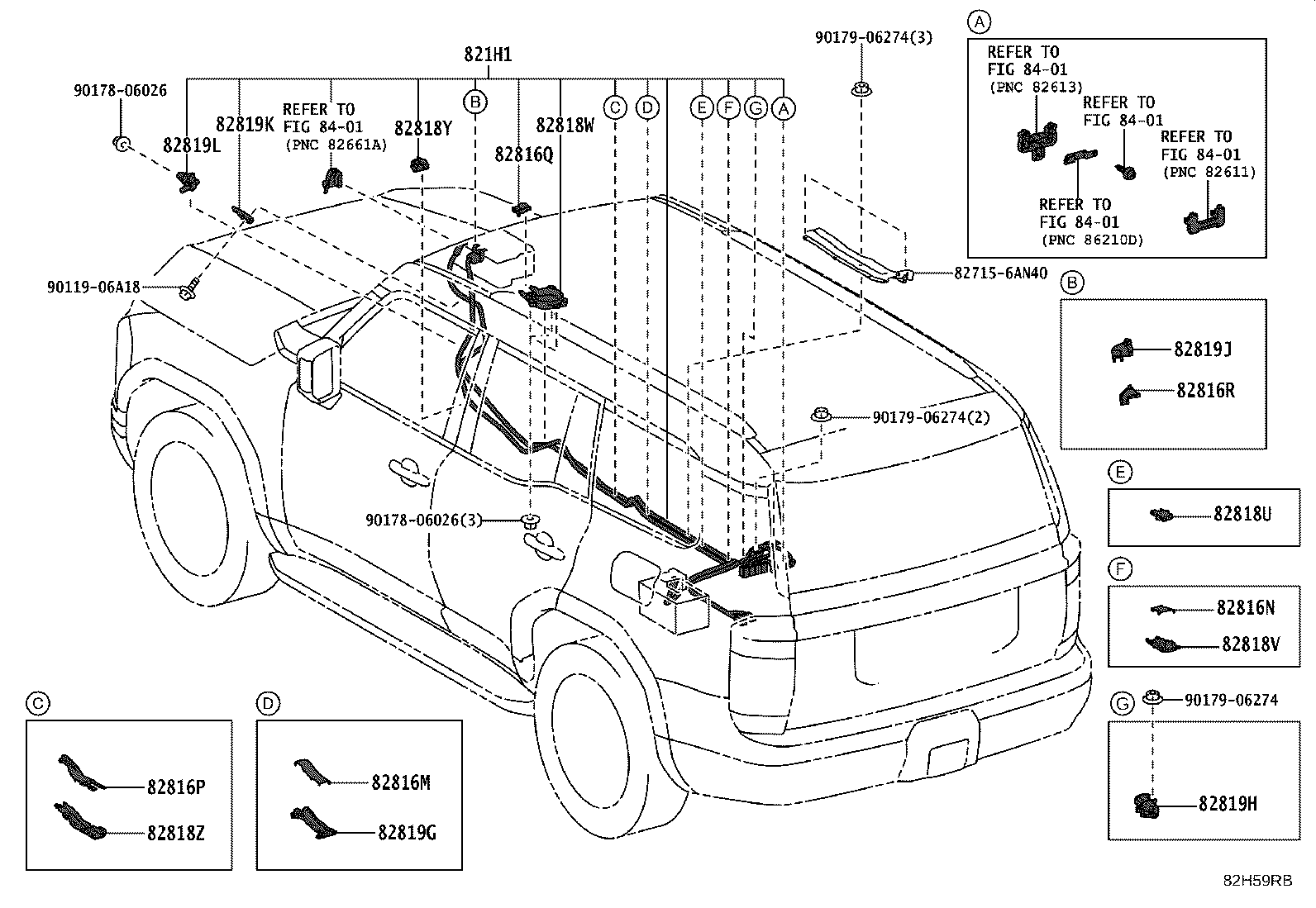

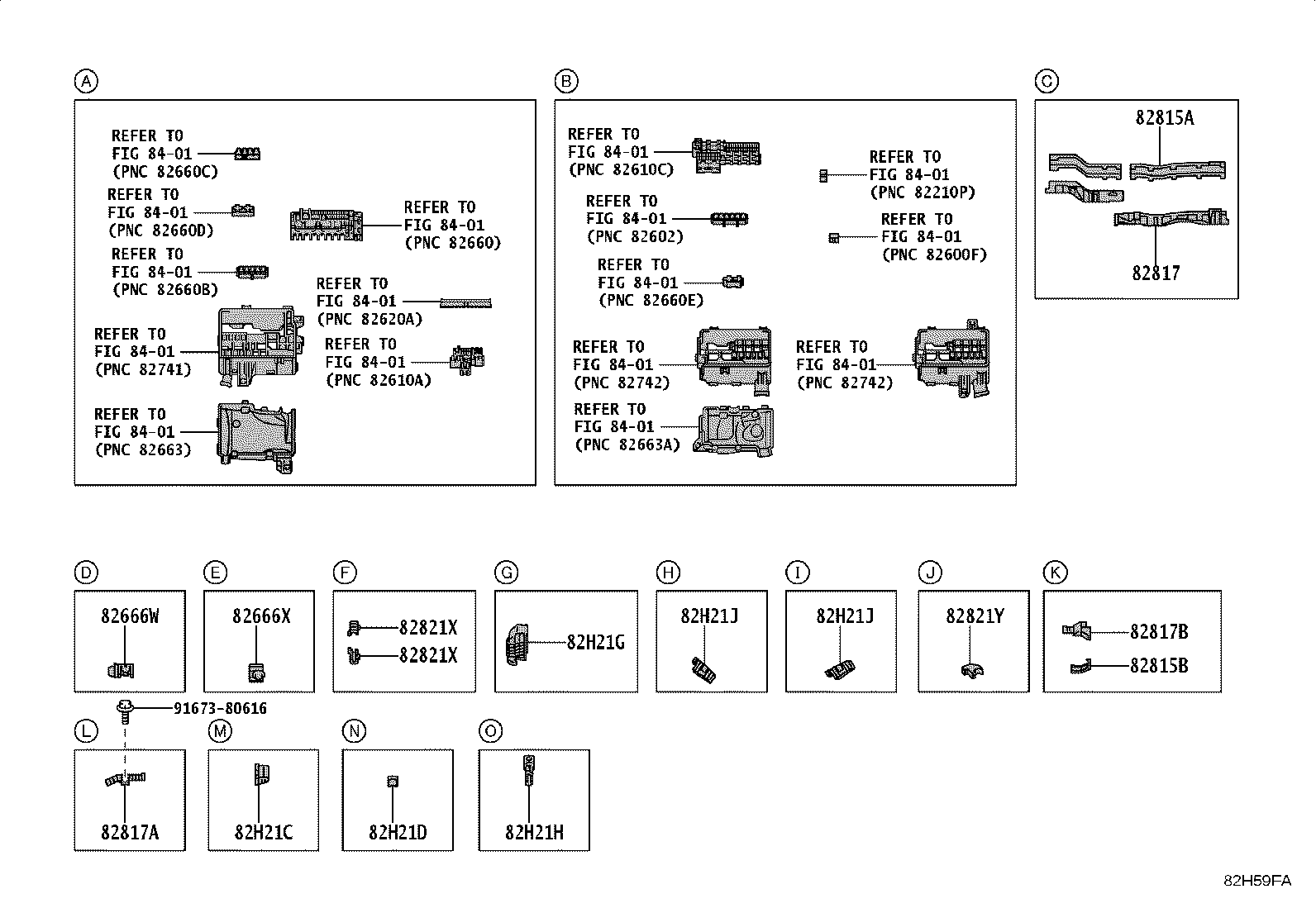

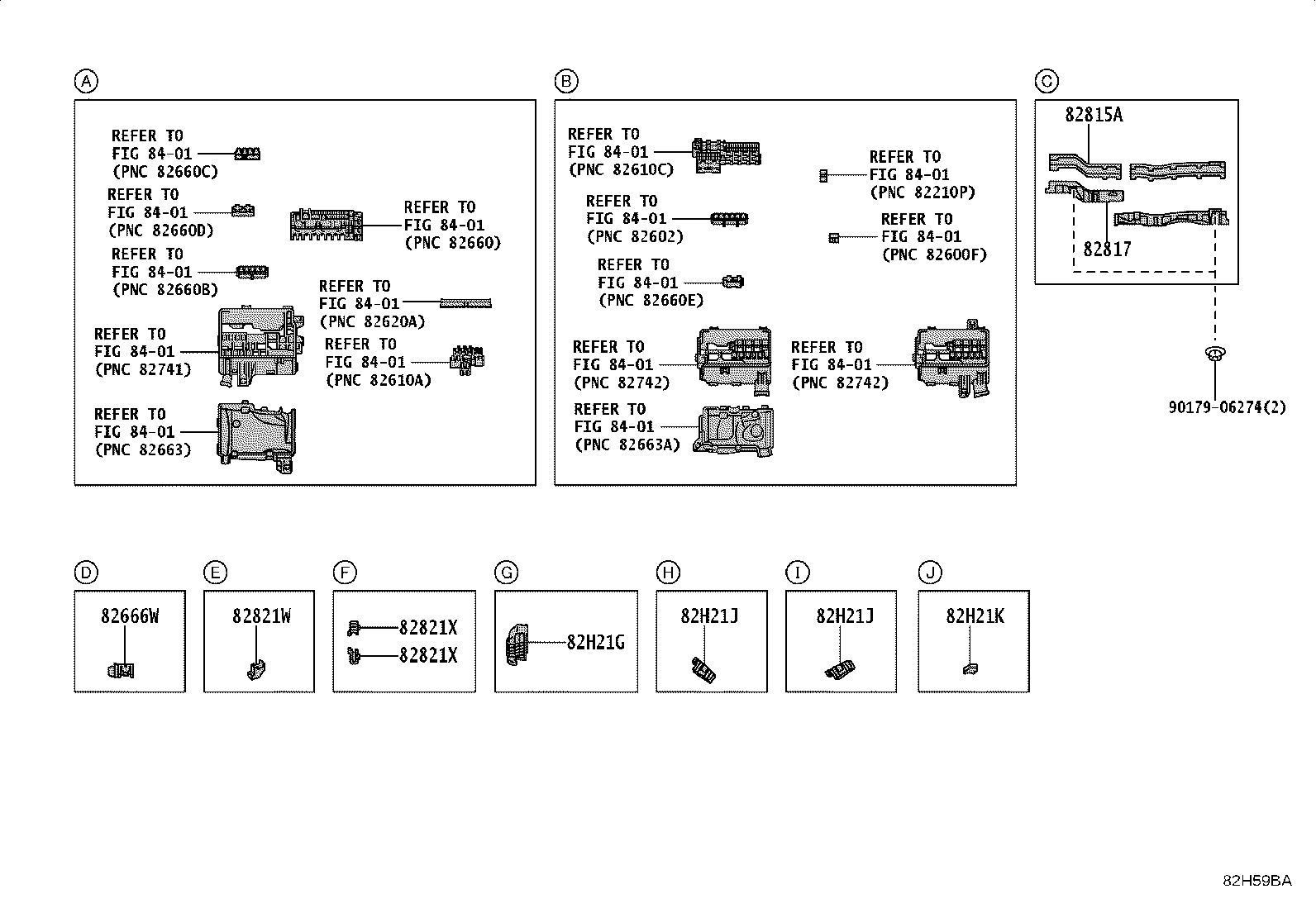

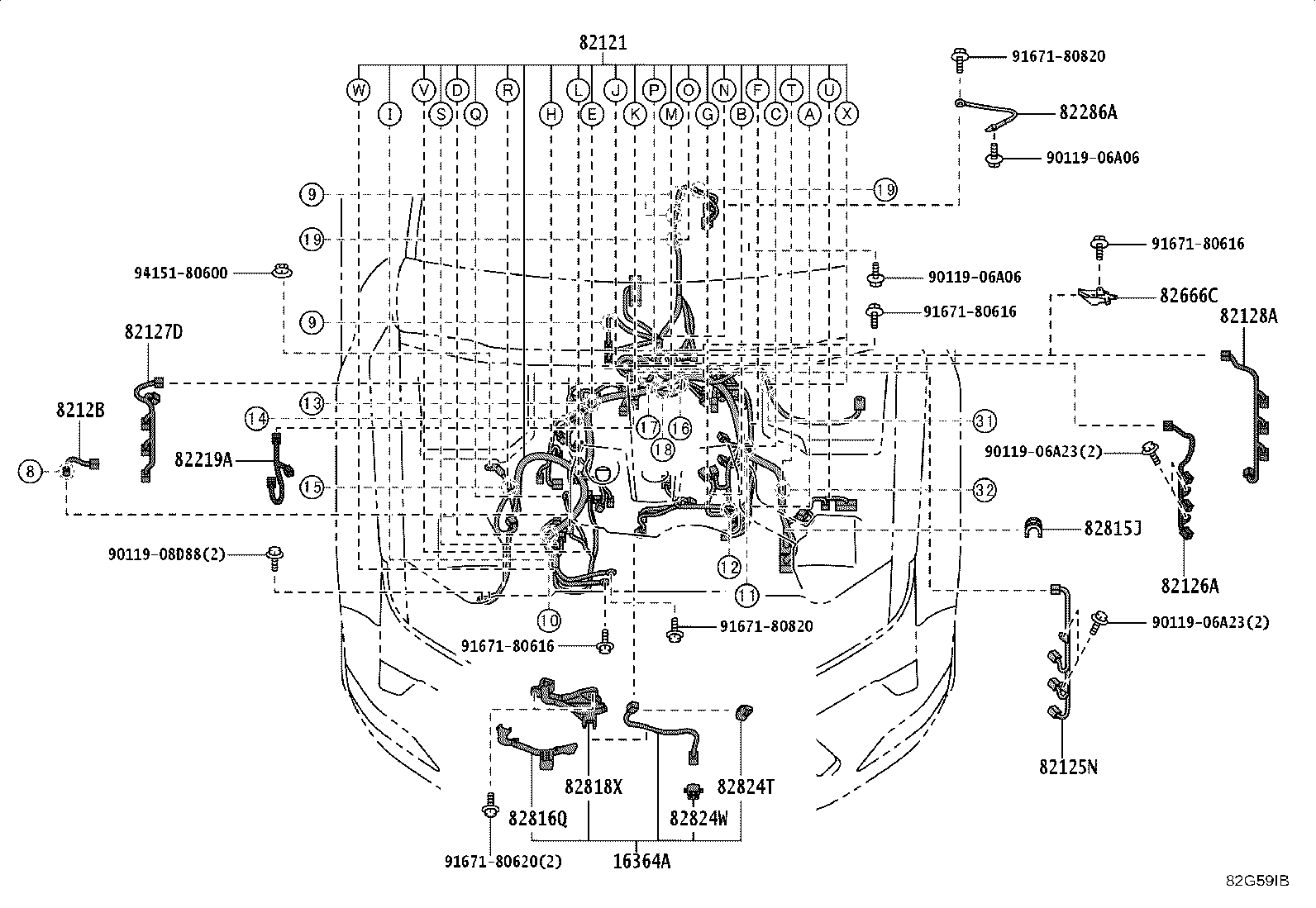

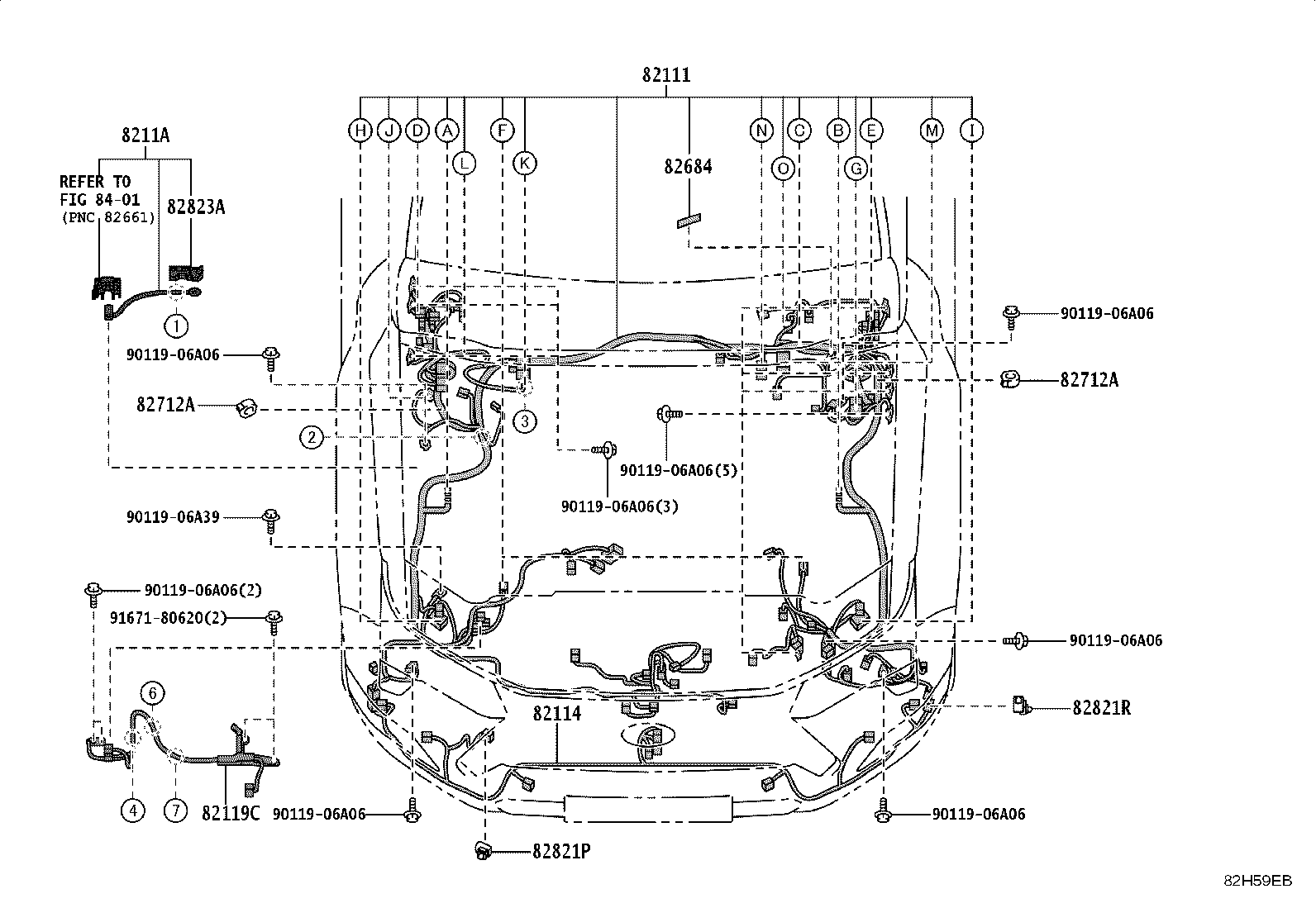

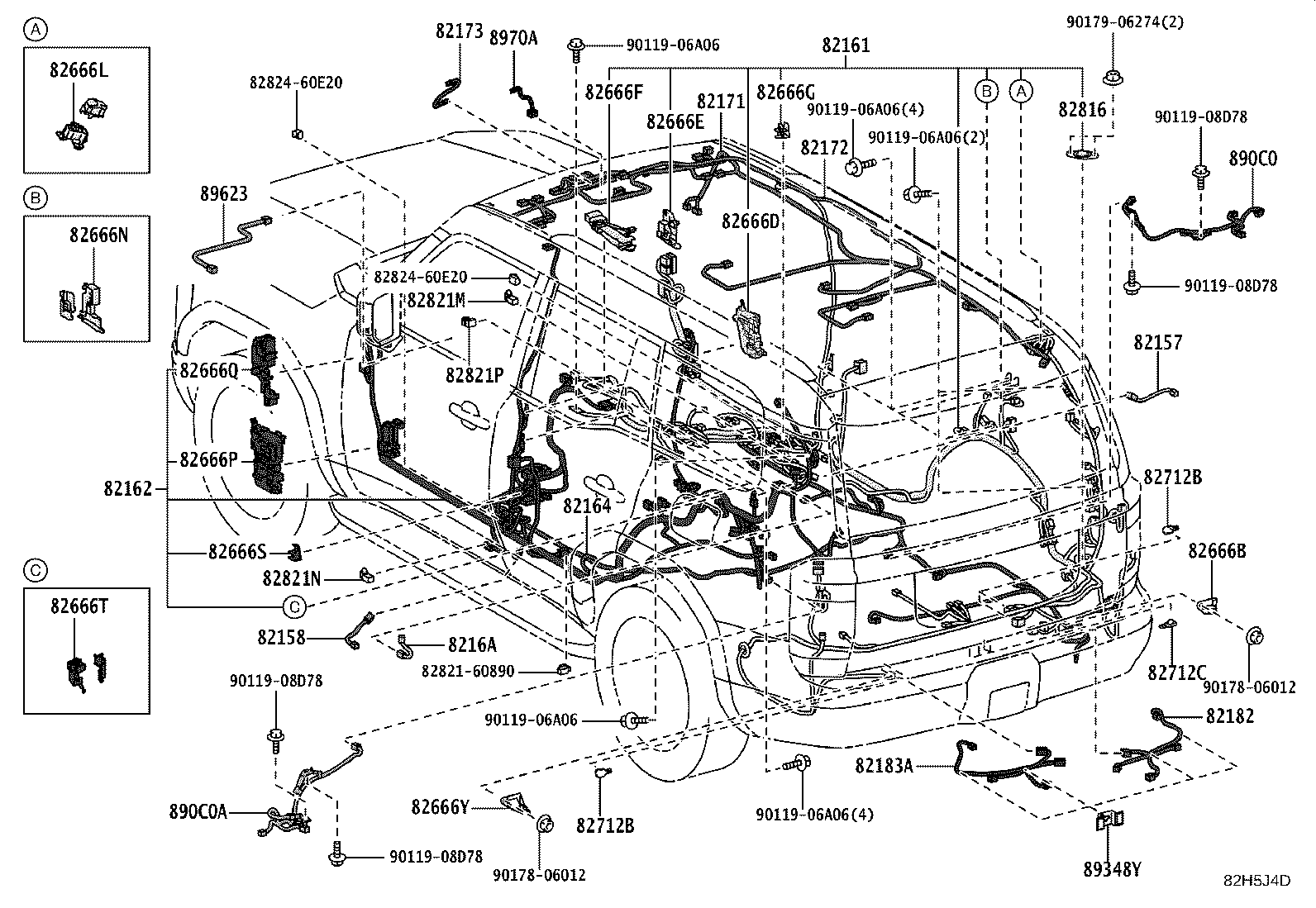

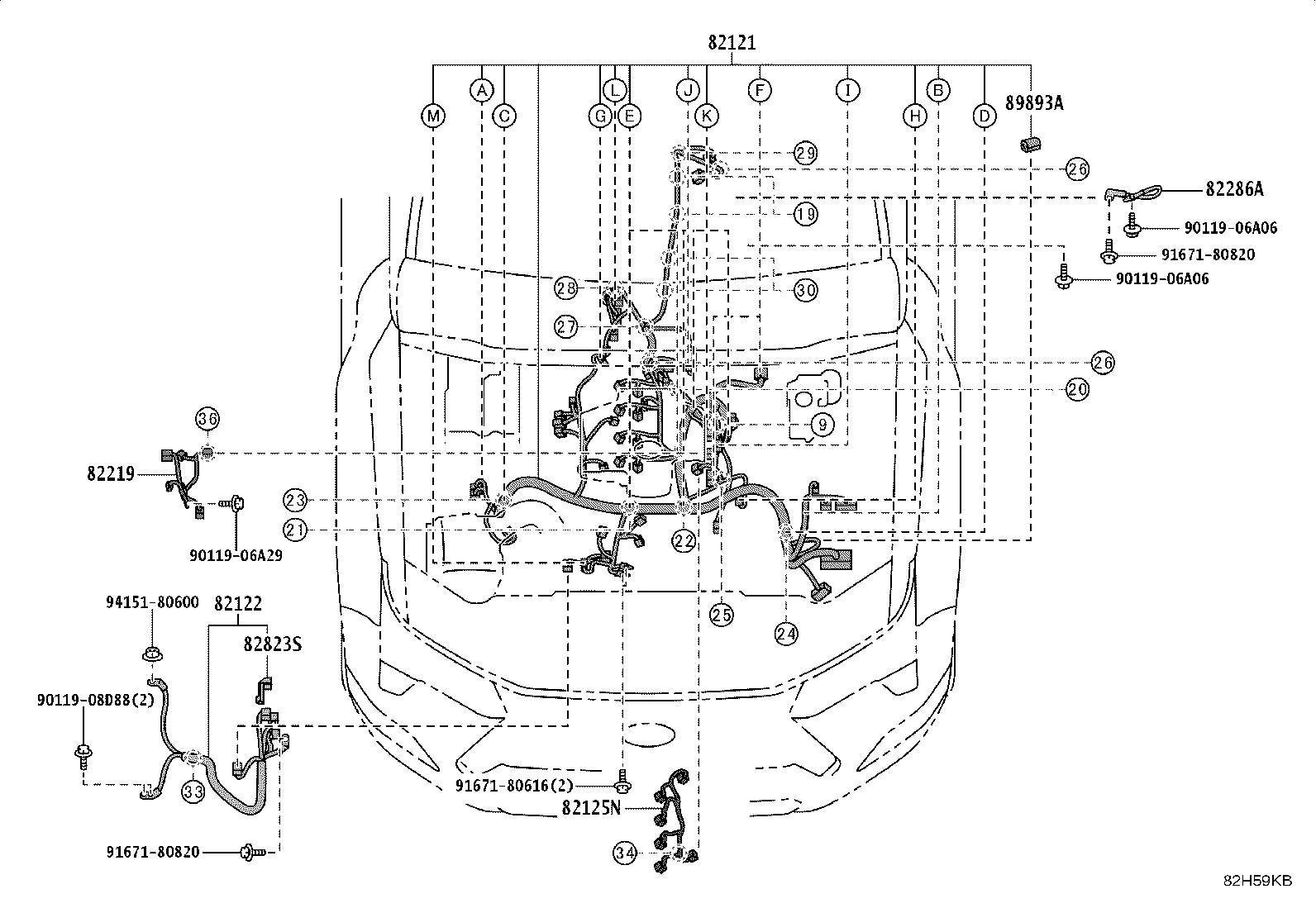

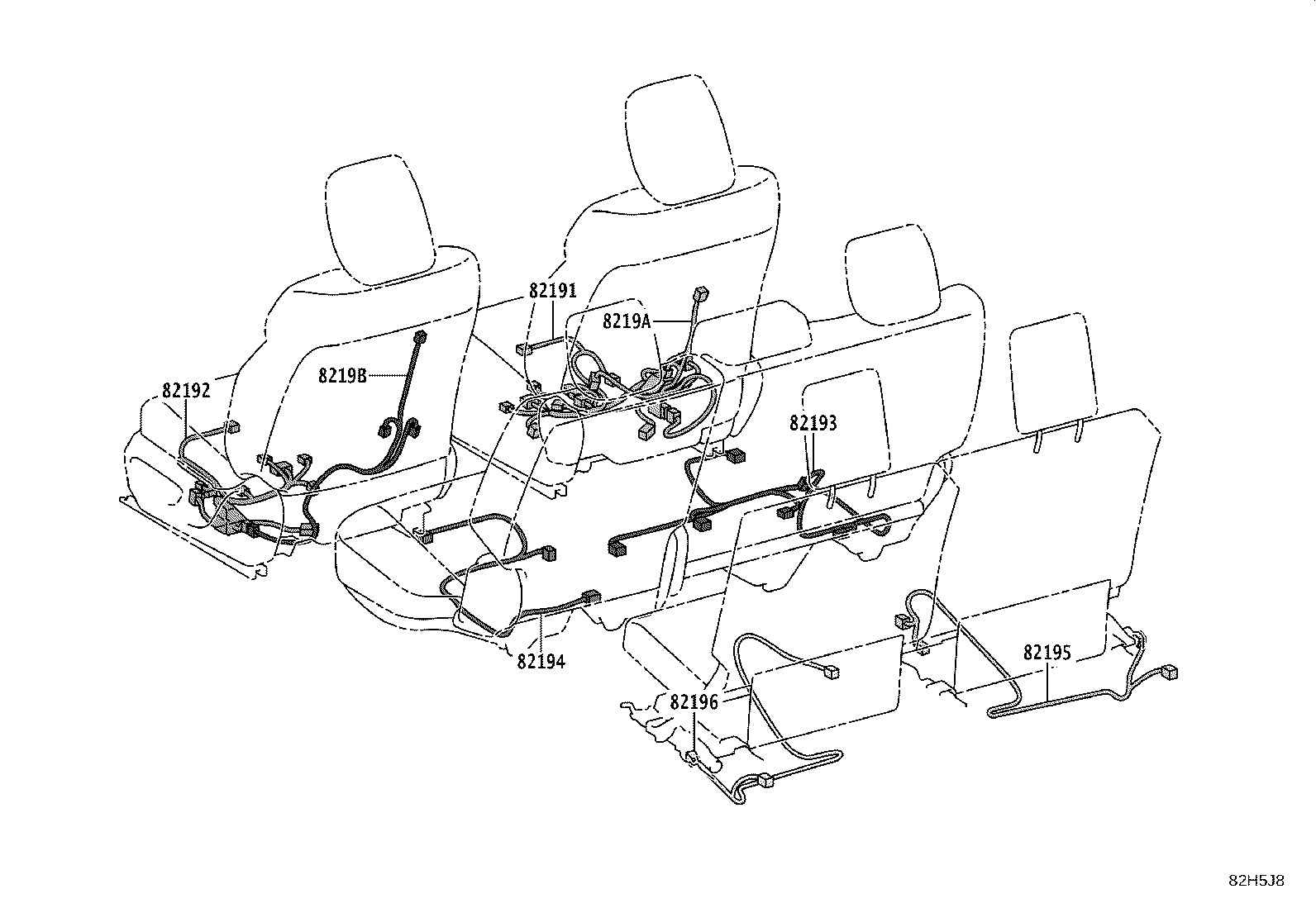

Figure 82H5J6A 82H5J6A 2023-11 → — Figure 82H59BA 82H59BA 2023-11 → — Figure 82H59CB 82H59CB 2023-11 → — Figure 82H59DA 82H59DA 2023-11 → — Figure 82H59EB 82H59EB 2024-02 → — Figure 82H59FA 82H59FA 2024-02 → — Figure 82H59GB 82H59GB 2023-11 → — Figure 82H59H 82H59H 2023-11 → — Figure 82H59IB 82H59IB 2023-11 → — Figure 82H59J 82H59J 2023-11 → — Figure 82H59KB 82H59KB 2024-02 → — Figure 82H59L 82H59L 2024-02 → — Figure 82H59M 82H59M 2023-11 → — Figure 82H59NA 82H59NA 2023-11 → — Figure 82H59OC 82H59OC 2023-11 → — Figure 82H5J4D 82H5J4D 2023-11 → — Figure 82H59QE 82H59QE 2024-02 → — Figure 82H59RB 82H59RB 2024-02 → — Figure 82H5J8 82H5J8 2023-11 → — Figure 82H5M0A 82H5M0A 2023-11 → — Figure 82H59UB 82H59UB 2023-11 → — Figure 82H5EYA 82H5EYA 2023-11 → — Figure 82H5XW 82H5XW 2023-11 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82119C Wire, Engine Room, NO.5
8211A Wire, Engine Room, NO.6
82121 Wire, Engine
82122 Wire, Engine, NO.2
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
8212B Wire, Engine, NO.10
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82157 Wire, Step Panel, RH
82157A Wire, Step Panel, RH
82158 Wire, Step Panel, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
8216A Wire, Floor NO.7
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82182 Wire, Luggage Room, NO.2
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82188A Wire, Back Door, NO.3
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82196 Wire, Rear Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
82213B Wire, Heater
82219 Wire, Thermo Sensor
82219A Wire, Sensor
82286A Wire, Earth, NO.2
82374 Wire, Washer
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82661H Cover, Relay Block
82661L Cover, Relay Block, NO.2
82661M Cover, Relay Block, NO.3
82661N Cover, Relay Block, NO.4
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82684 Label, Cut High Voltage Electricity
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82712D Support, Wiring Harness
82712K Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816 Bracket, Wiring Harness Grommet
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816M Cover, Wiring Harness Protector, NO.10
82816N Cover, Wiring Harness Protector, NO.11
82816P Cover, Wiring Harness Protector, NO.12
82816Q Cover, Wiring Harness Protector, NO.13
82816R Cover, Wiring Harness Protector, NO.14
82816T Cover, Wiring Harness Protector, NO.16
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818U Protector, Wiring Harness, NO.17
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82818X Protector, Wiring Harness, NO.20
82818Y Protector, Wiring Harness, NO.21
82818Z Protector, Wiring Harness, NO.22
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82819K Protector, Wiring Harness, NO.26
82819L Protector, Wiring Harness, NO.27
82821A Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82821Y Cover, Connector
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82823S Cap, Starter Terminal
82824A Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82839C Protector, Wiring Harness, NO.4
82H21C Cover, Connector
82H21D Cover, Connector
82H21G Cover, Connector
82H21H Cover, Connector
82H21J Cover, Connector
82H21K Cover, Connector
82H21L Cover, Connector
82H21M Cover, Connector
82H21N Cover, Connector
82H21P Cover, Connector
82H21Q Cover, Connector
82H21R Cover, Connector
82H21S Cover, Connector
82H21T Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
89348Y Clip, Ultrasonic Sensor, Rear
89623 Wire, Power Steering Sensor
8970A Cord Sub-assy, Theft Warning Sensor
89893A Filter, Battery Noise
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
