Toyota Yaris

2019-11 → present · chassis NSP15# · catalogue 14B310 · General

Supported model Data version 2021-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

52 part groups · 12 illustrations

Illustrations

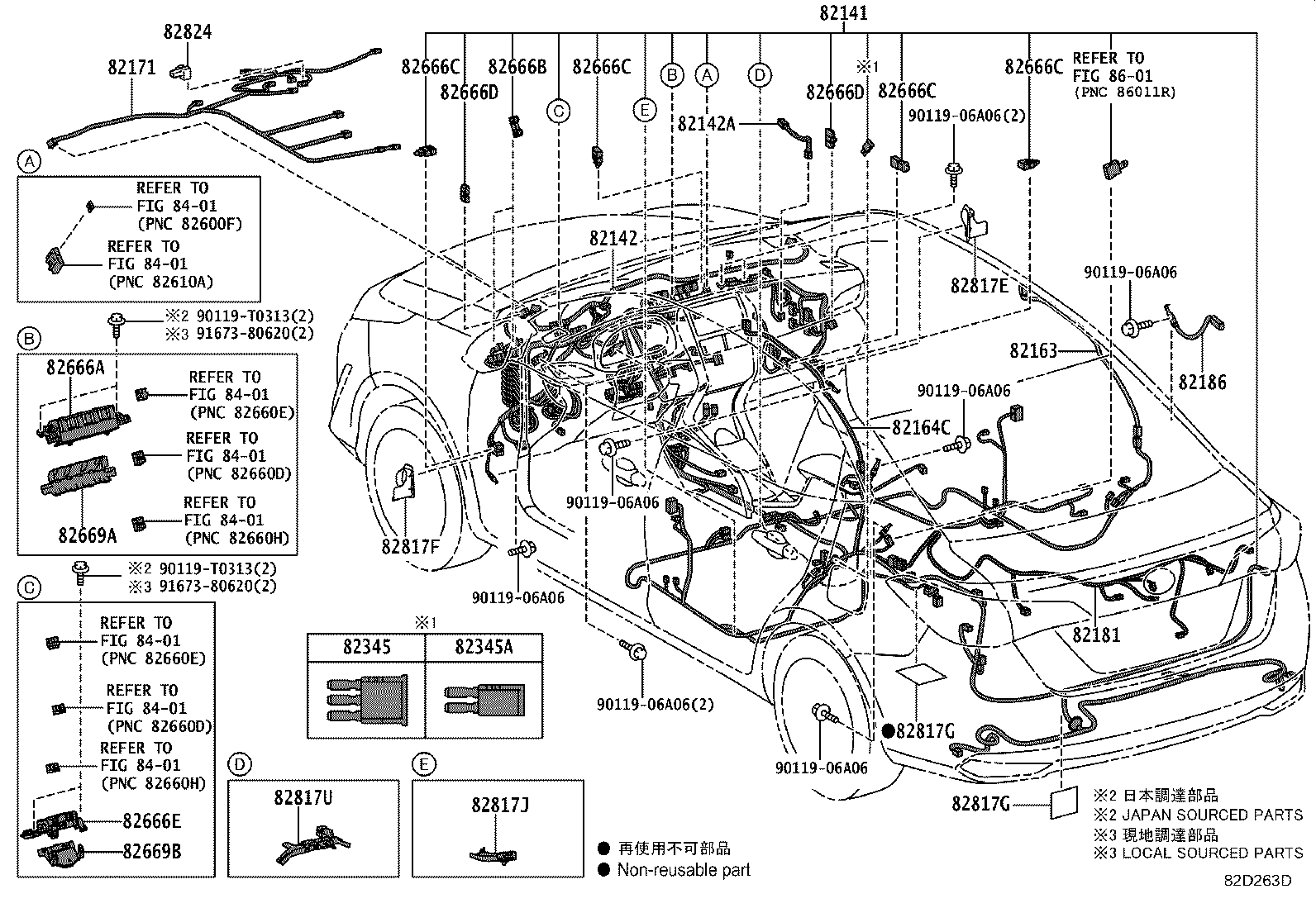

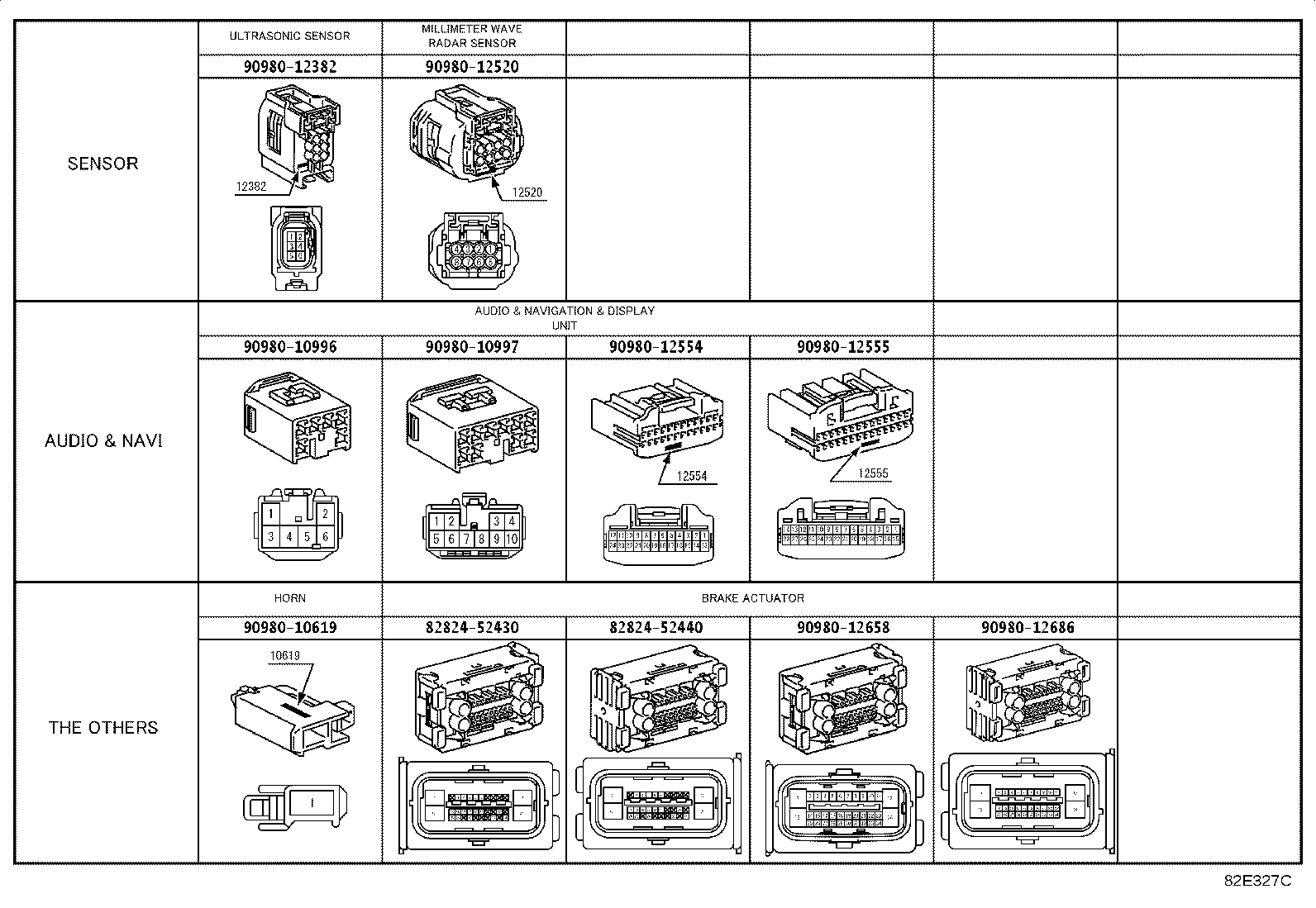

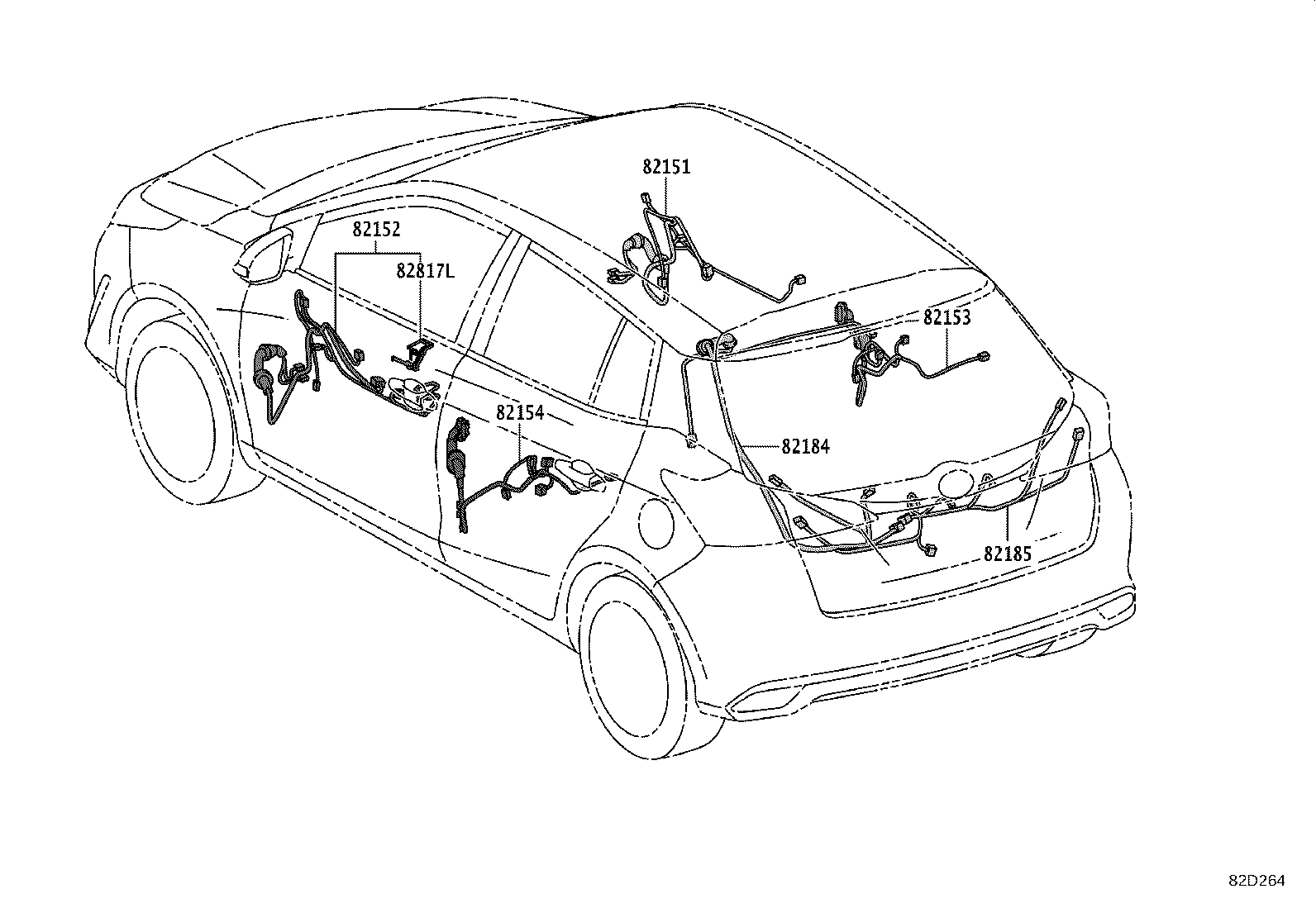

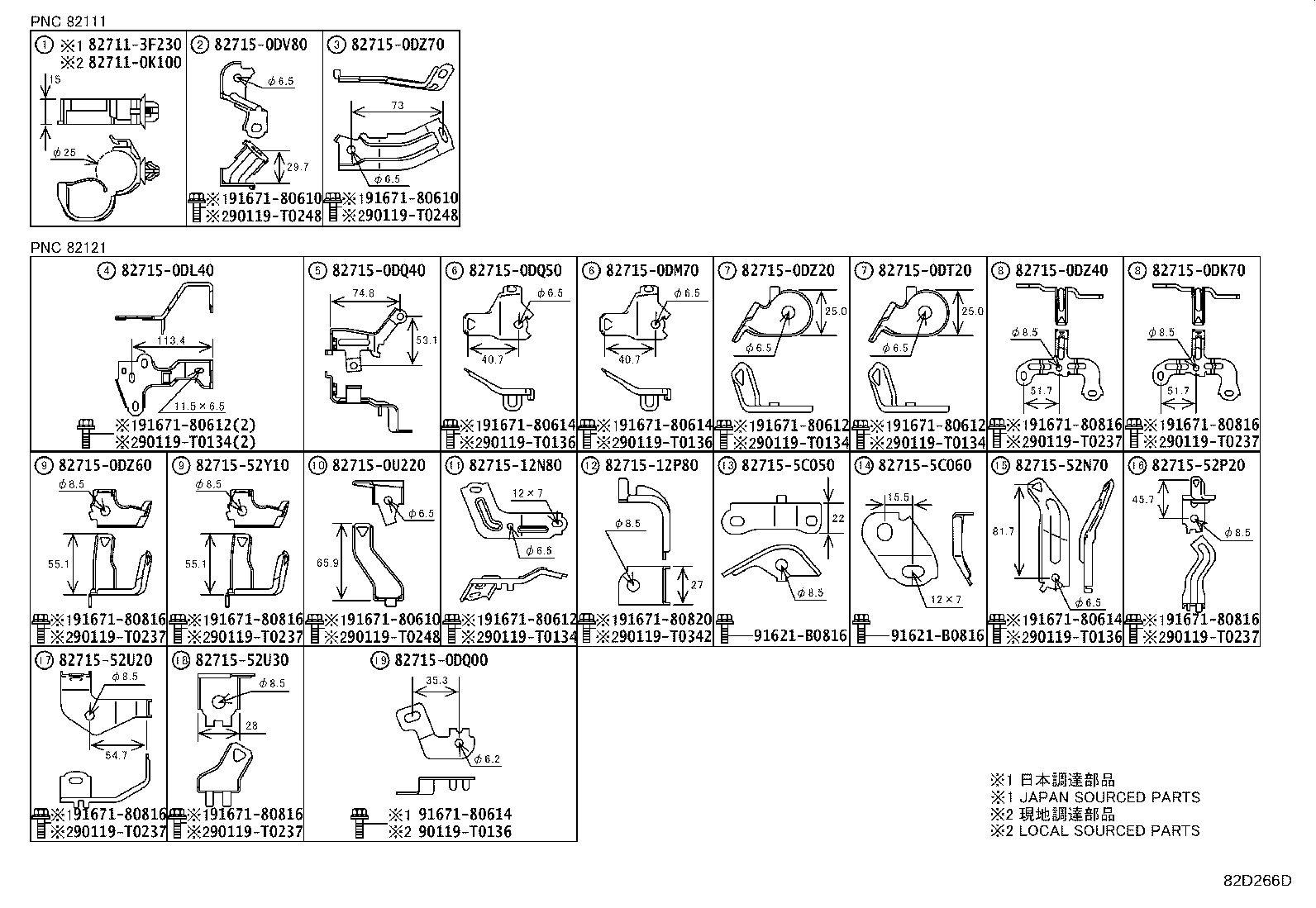

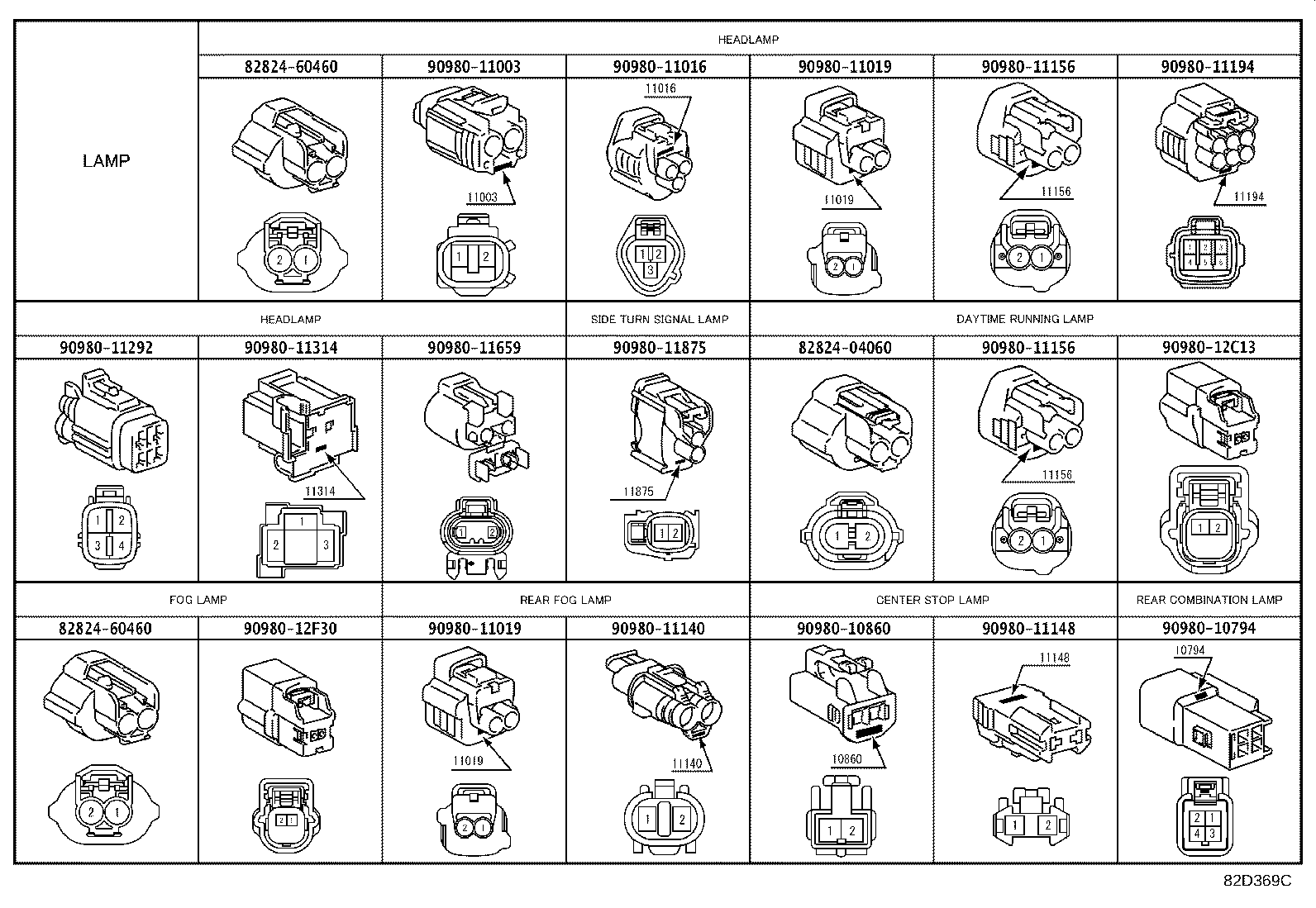

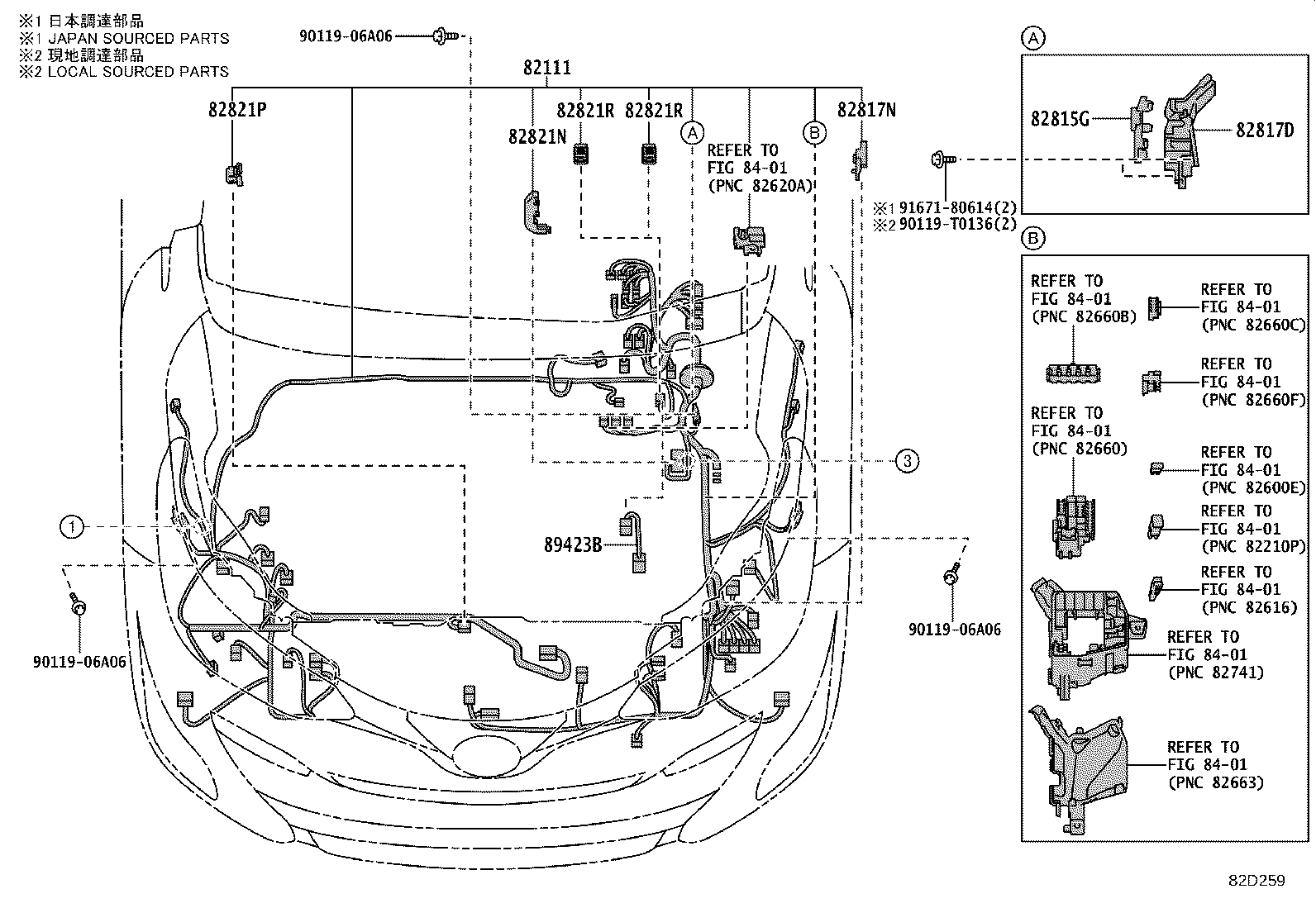

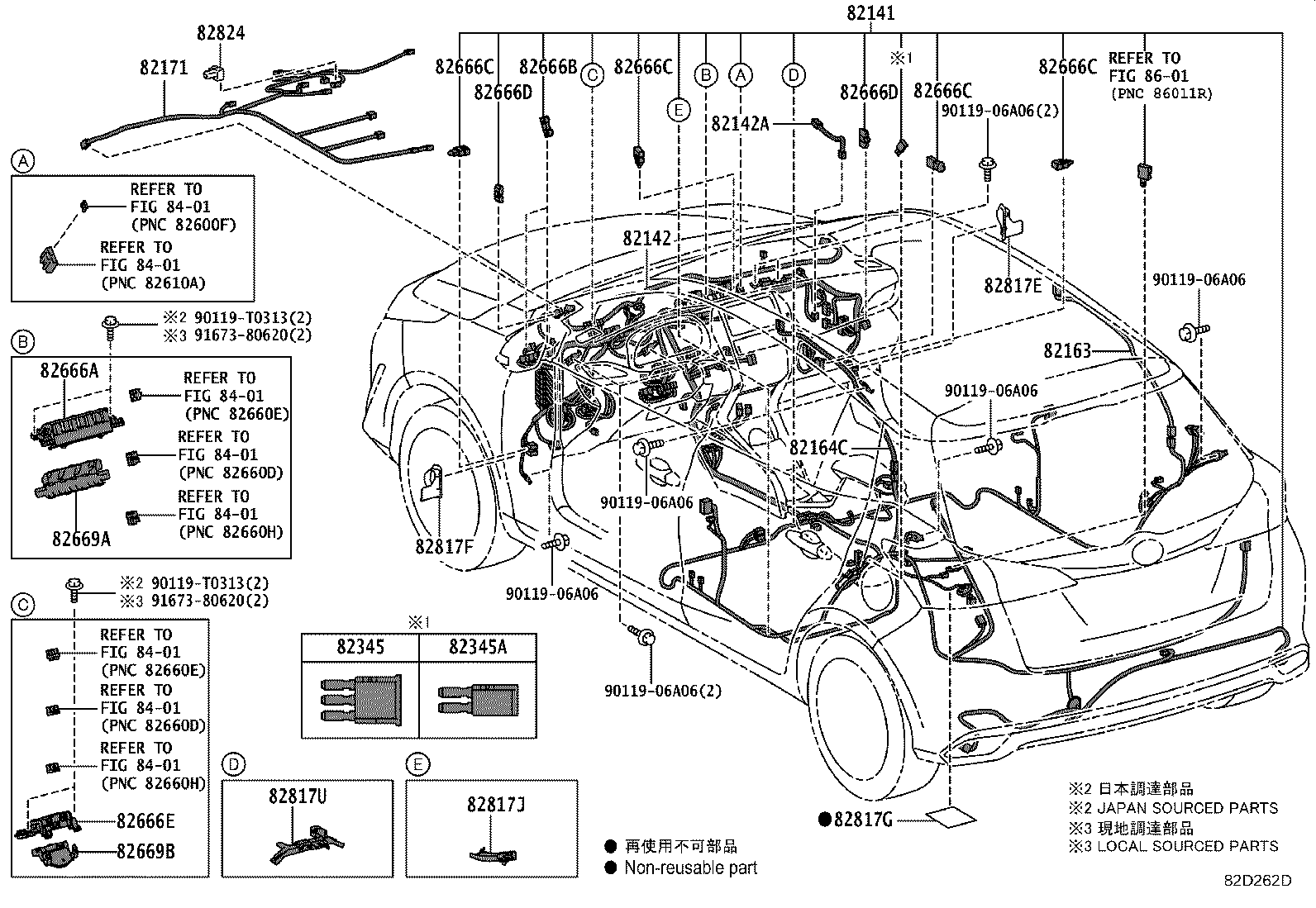

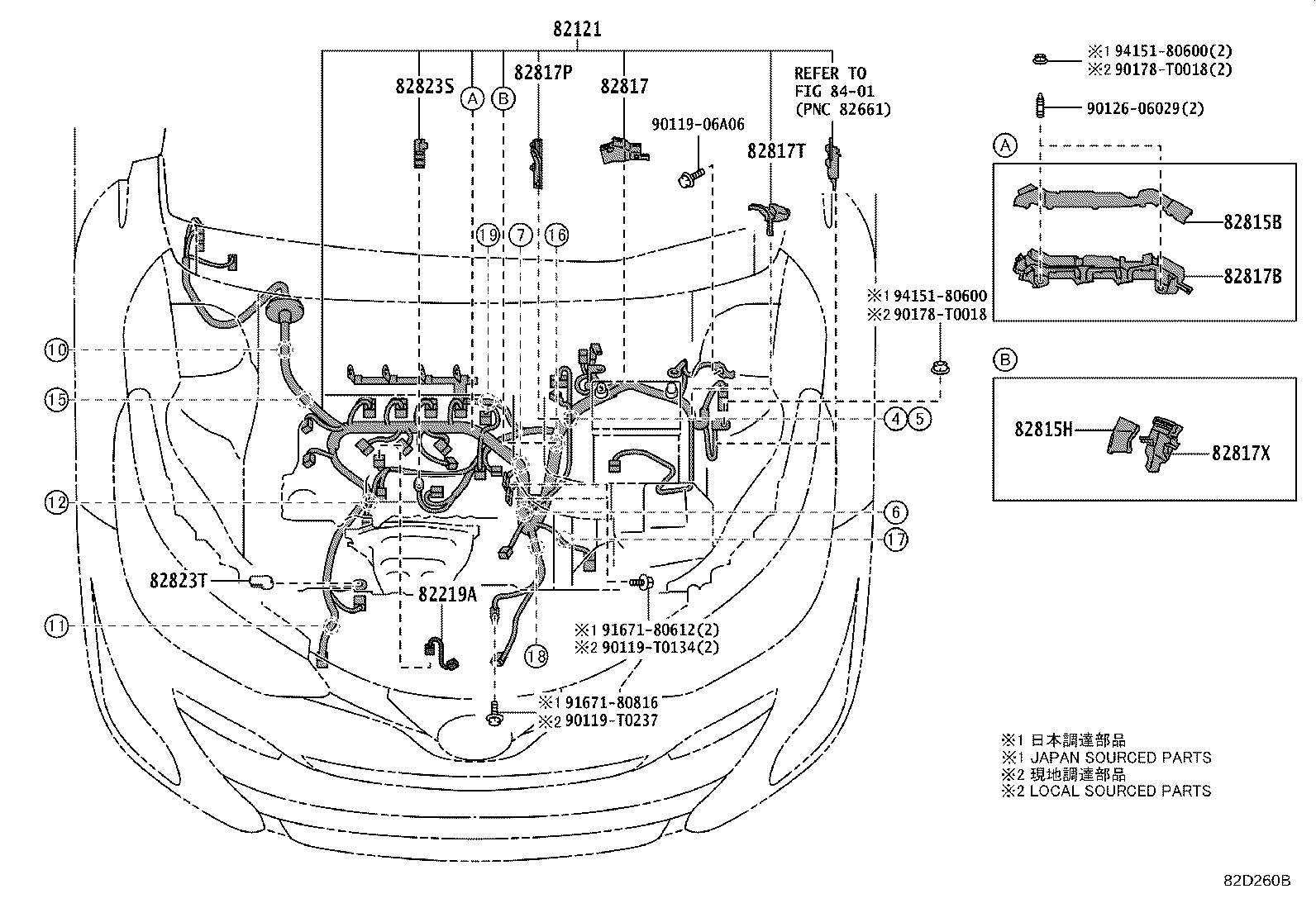

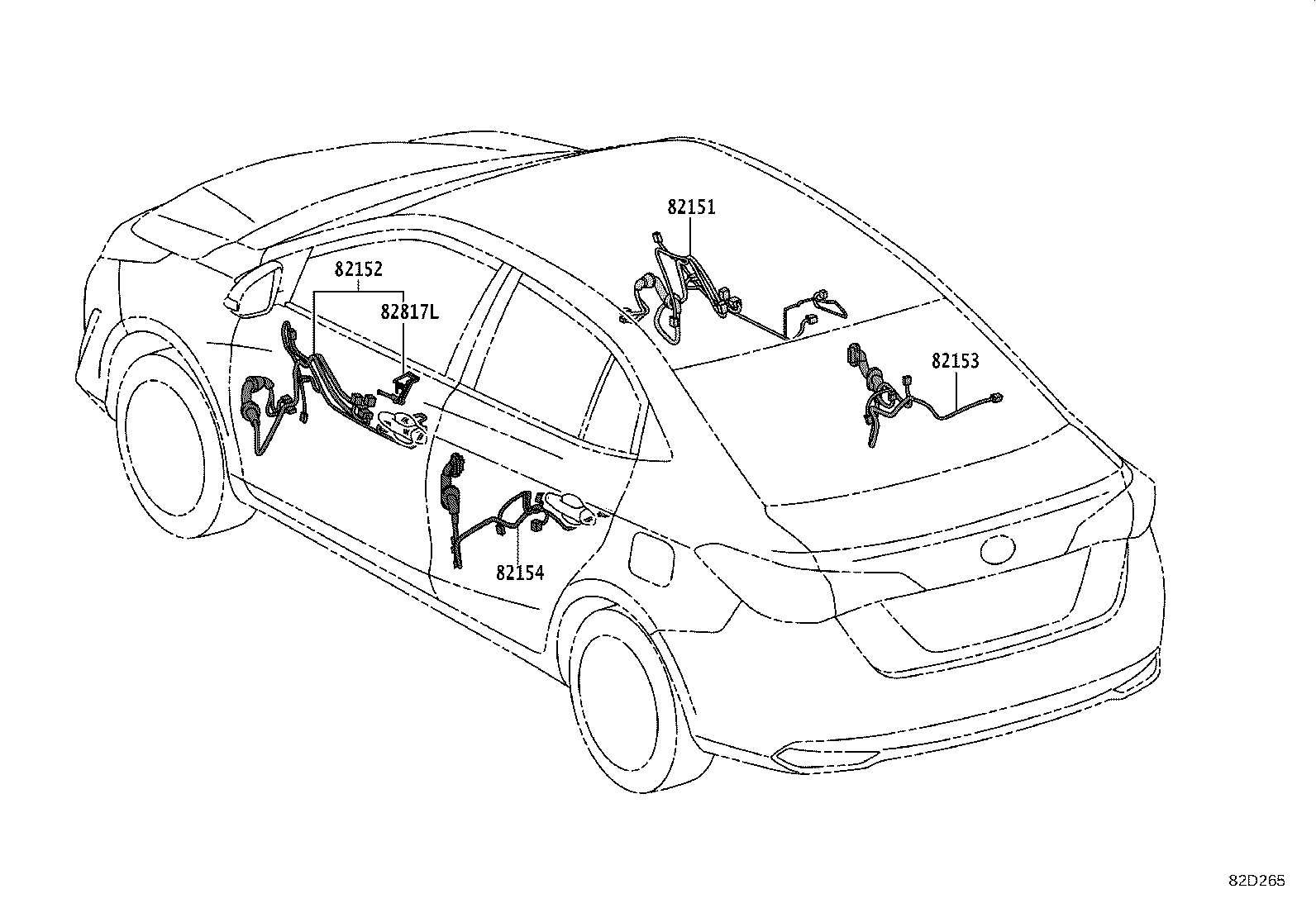

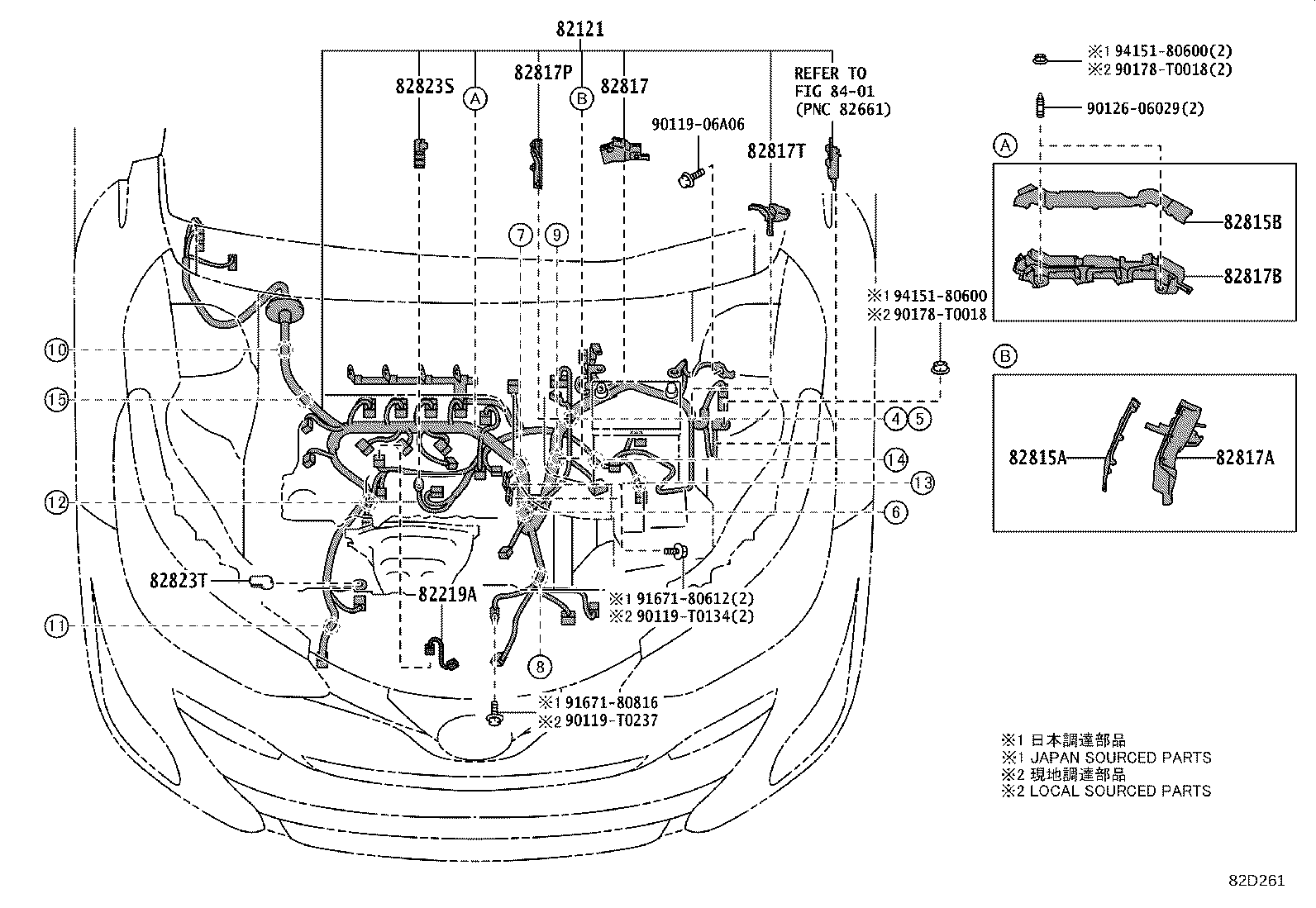

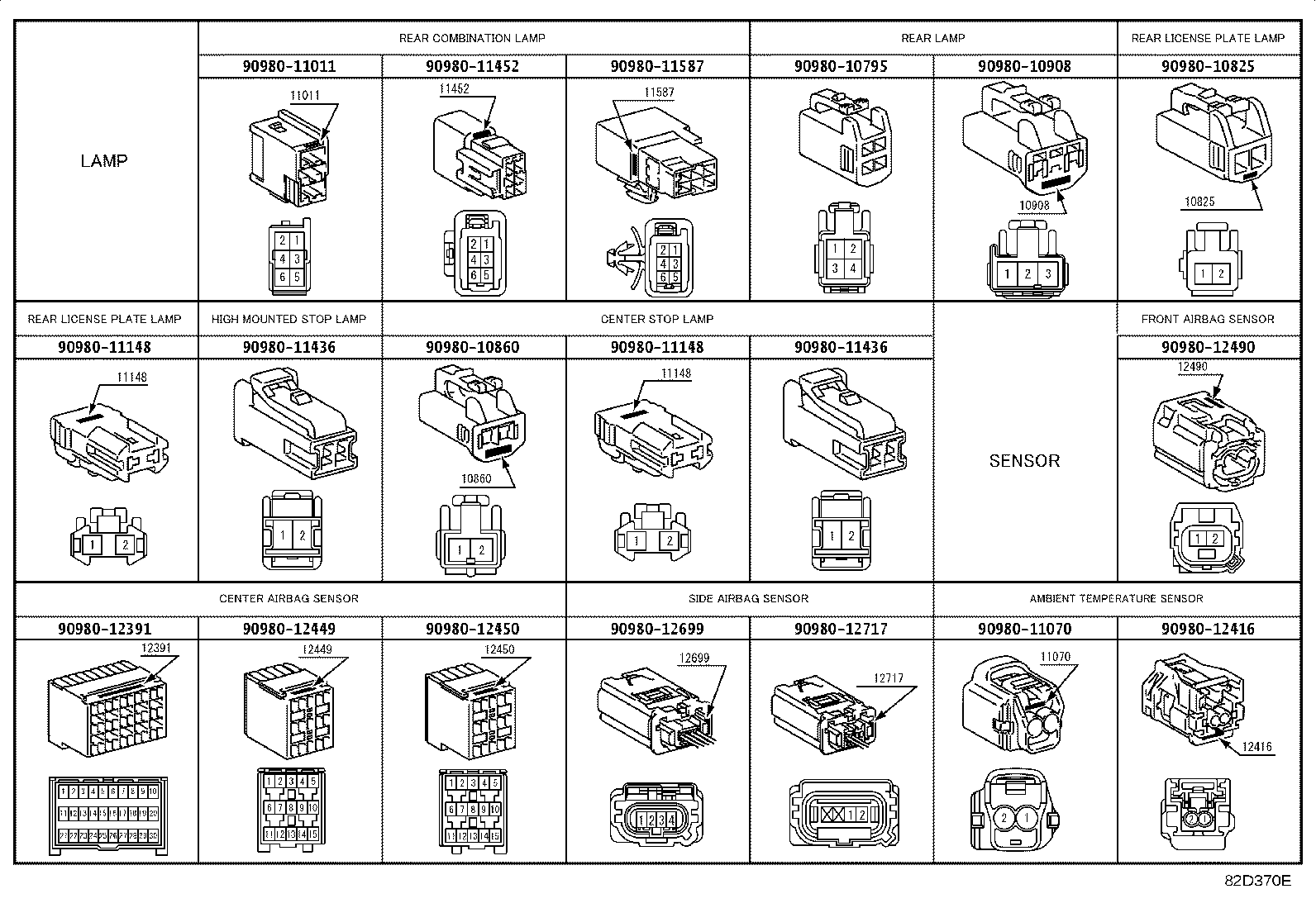

Figure 82D258 82D258 2019-11 → — Figure 82D259 82D259 2019-11 → — Figure 82D260B 82D260B 2019-11 → — Figure 82D261 82D261 2019-11 → — Figure 82D262D 82D262D 2019-11 → — Figure 82D263D 82D263D 2019-11 → — Figure 82D264 82D264 2019-11 → — Figure 82D265 82D265 2019-11 → — Figure 82D266D 82D266D 2019-11 → — Figure 82D369C 82D369C 2019-11 → — Figure 82D370E 82D370E 2019-11 → — Figure 82E327C 82E327C 2019-11 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82345 Diode
82345A Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82669A Cover, Connector Holder Block, Lower
82669B Cover, Connector Holder Block, Lower
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817L Protector, Wiring Harness, NO.11
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
89423B Wire, Vacuum Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
