Toyota Crown

1991-10 → 2001-04 · chassis GS131,JZS133,LS130,YS132 · catalogue 331270 · General

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

40 part groups · 11 illustrations

Illustrations

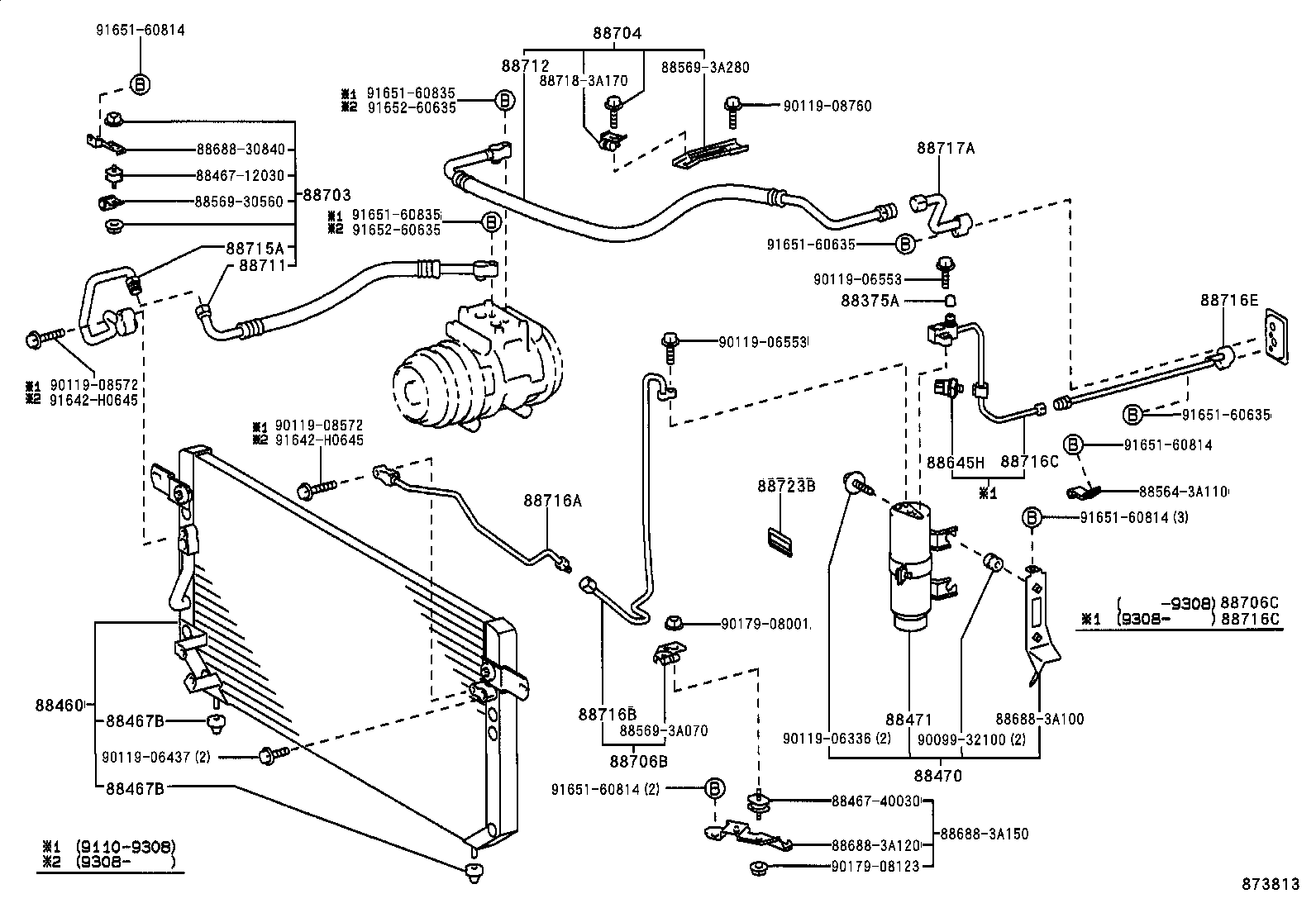

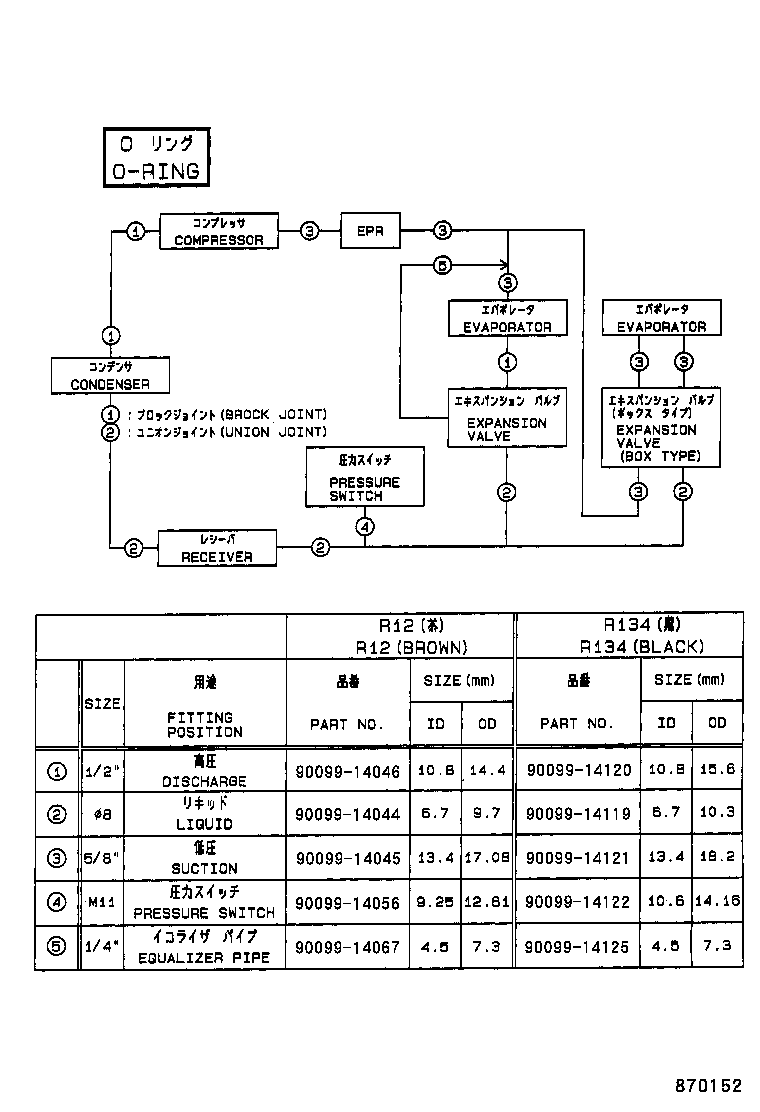

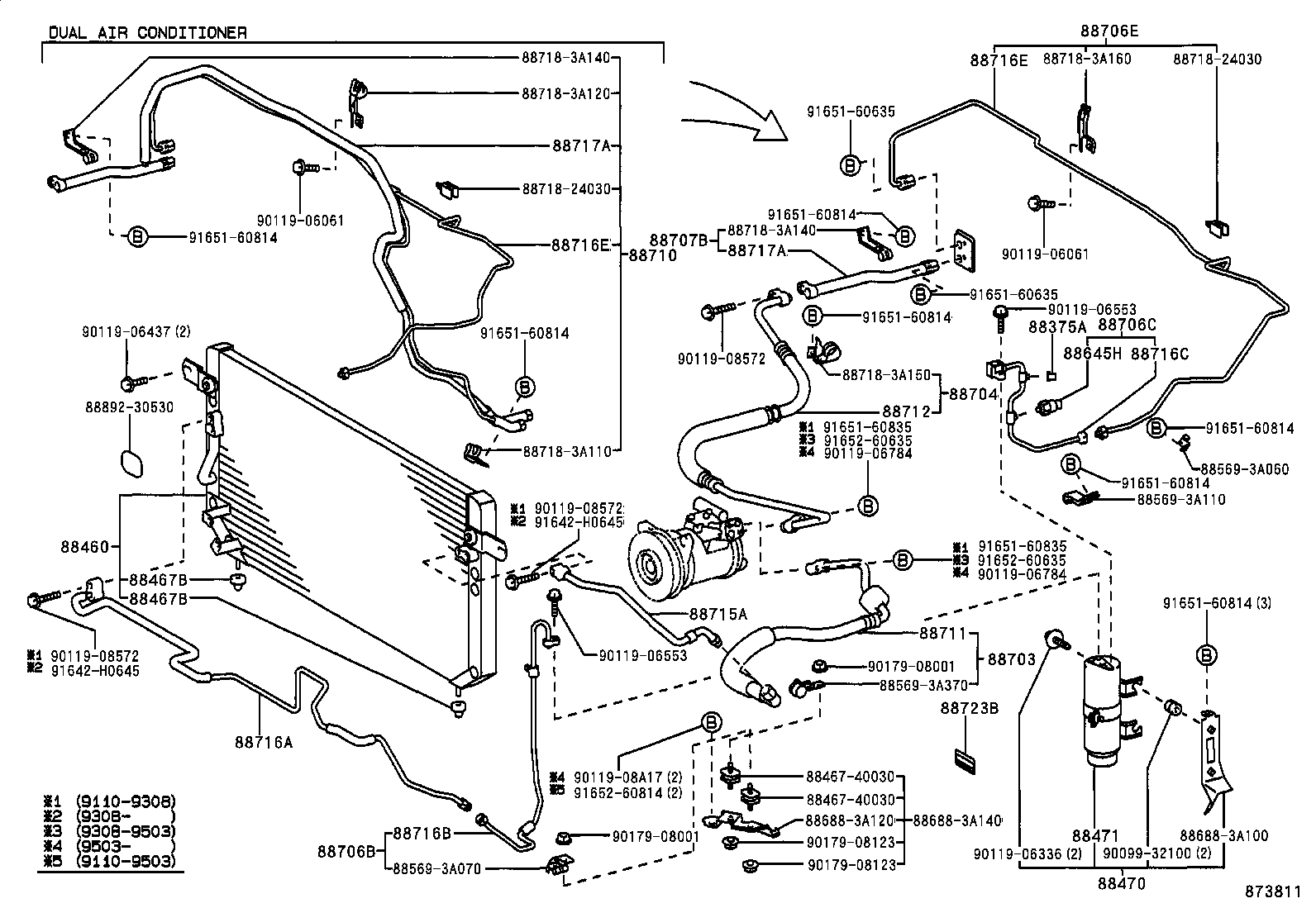

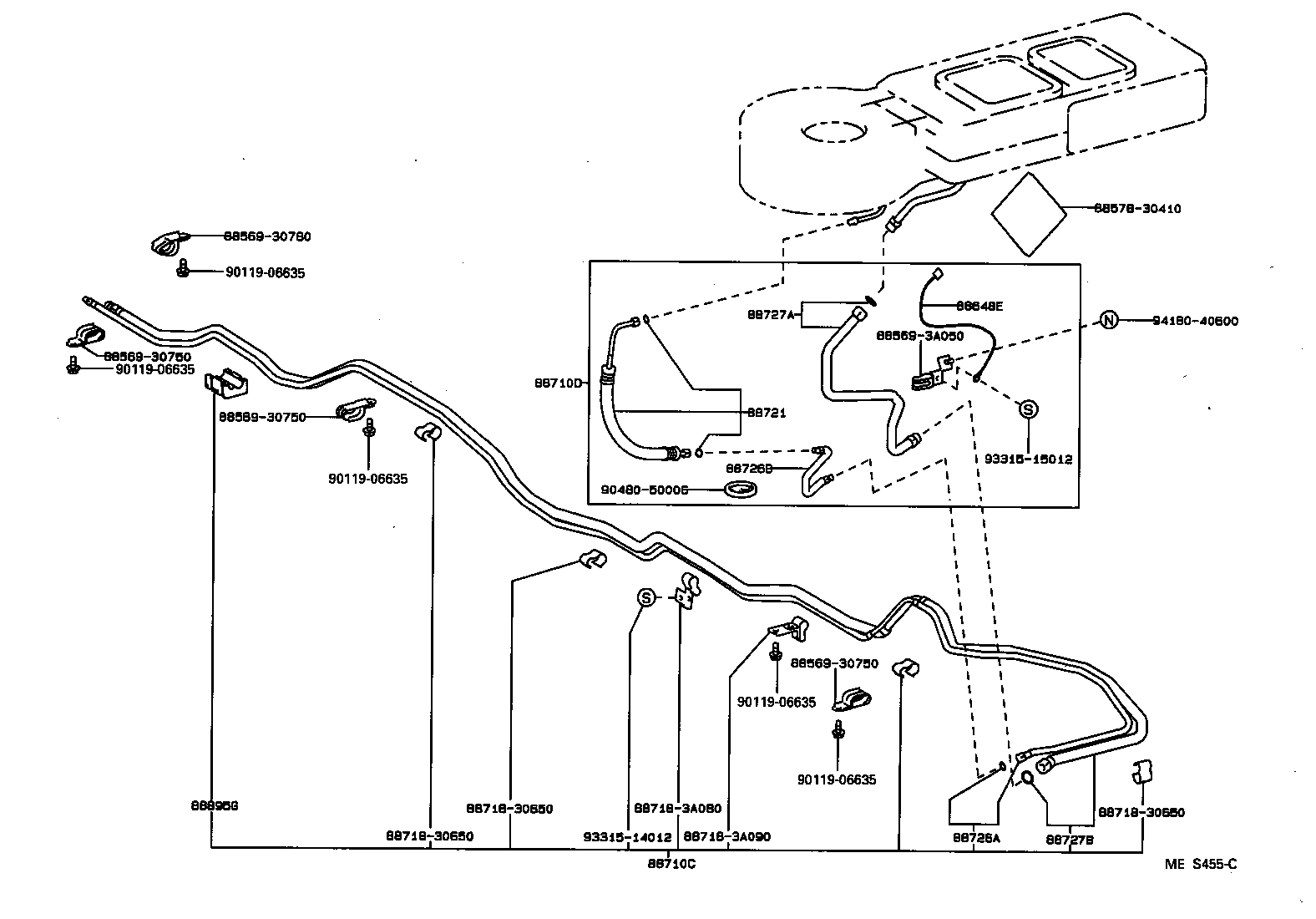

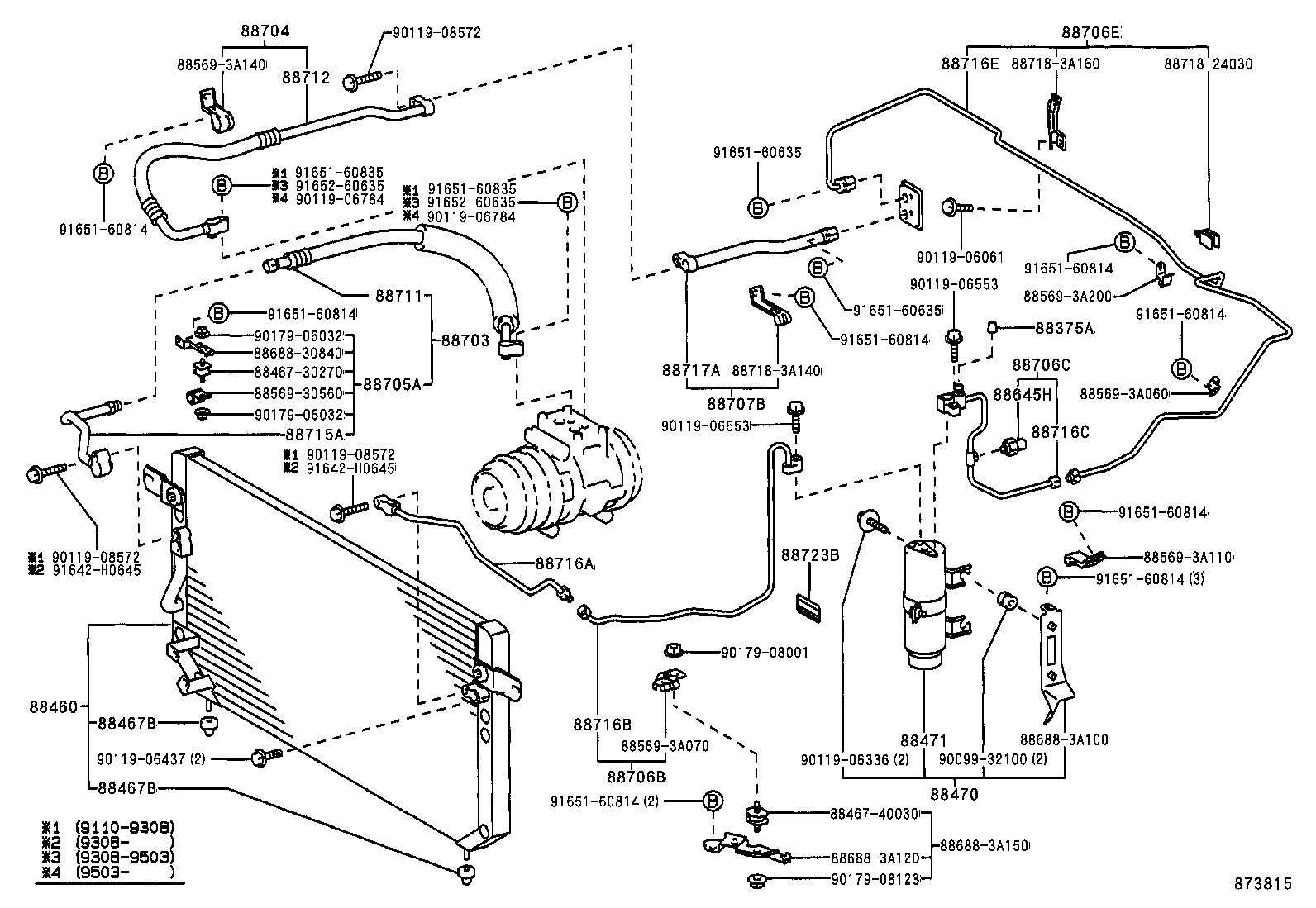

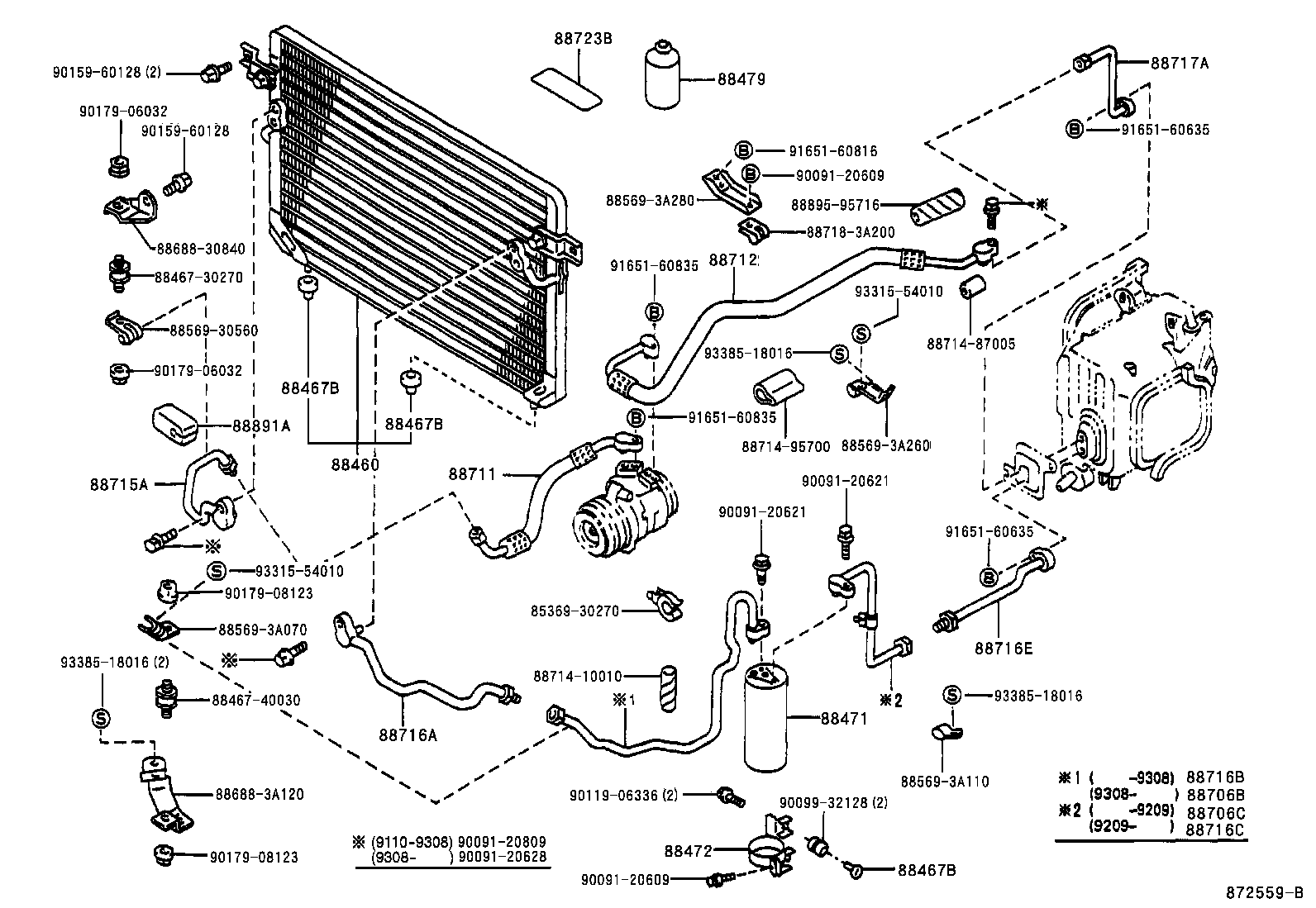

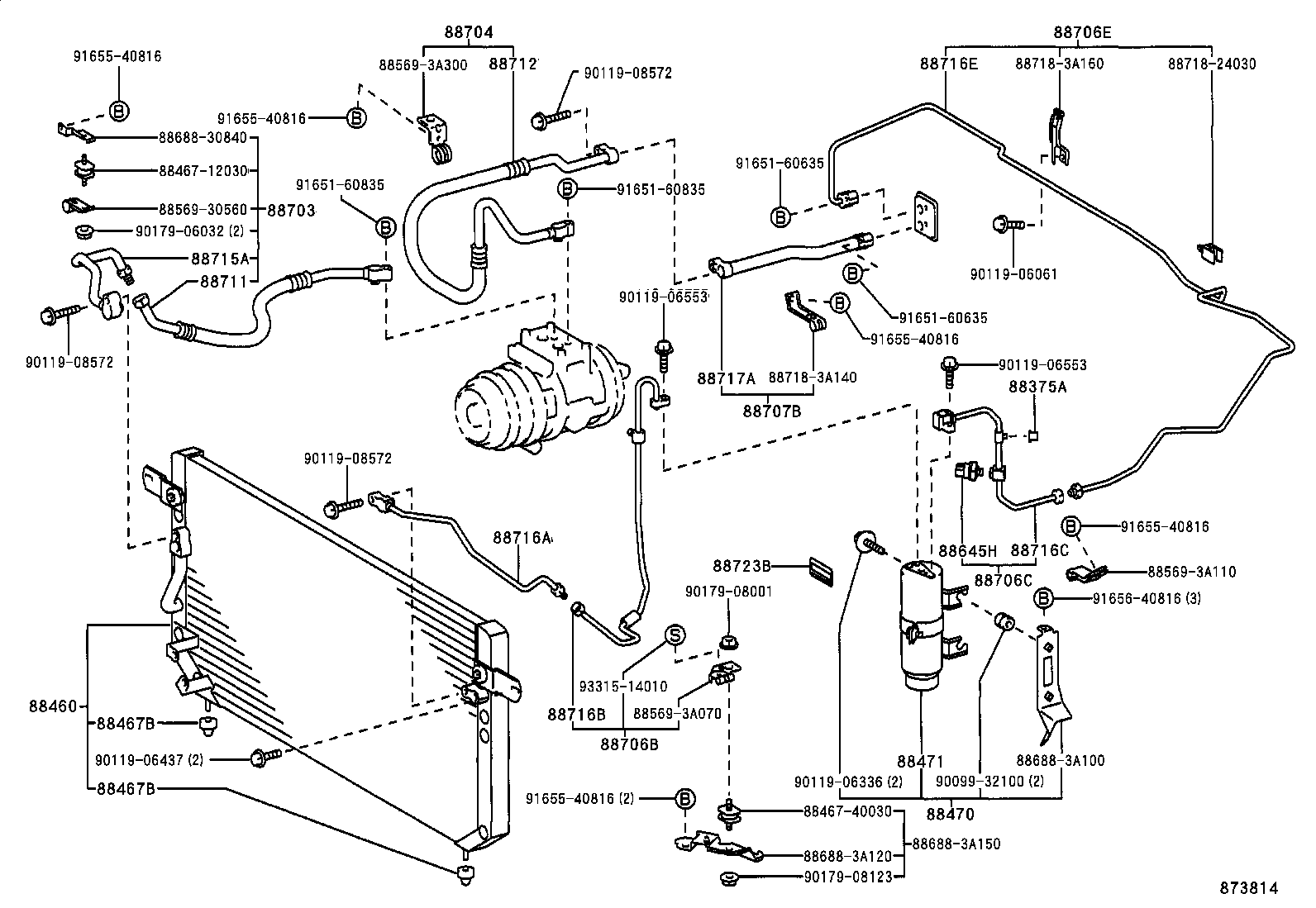

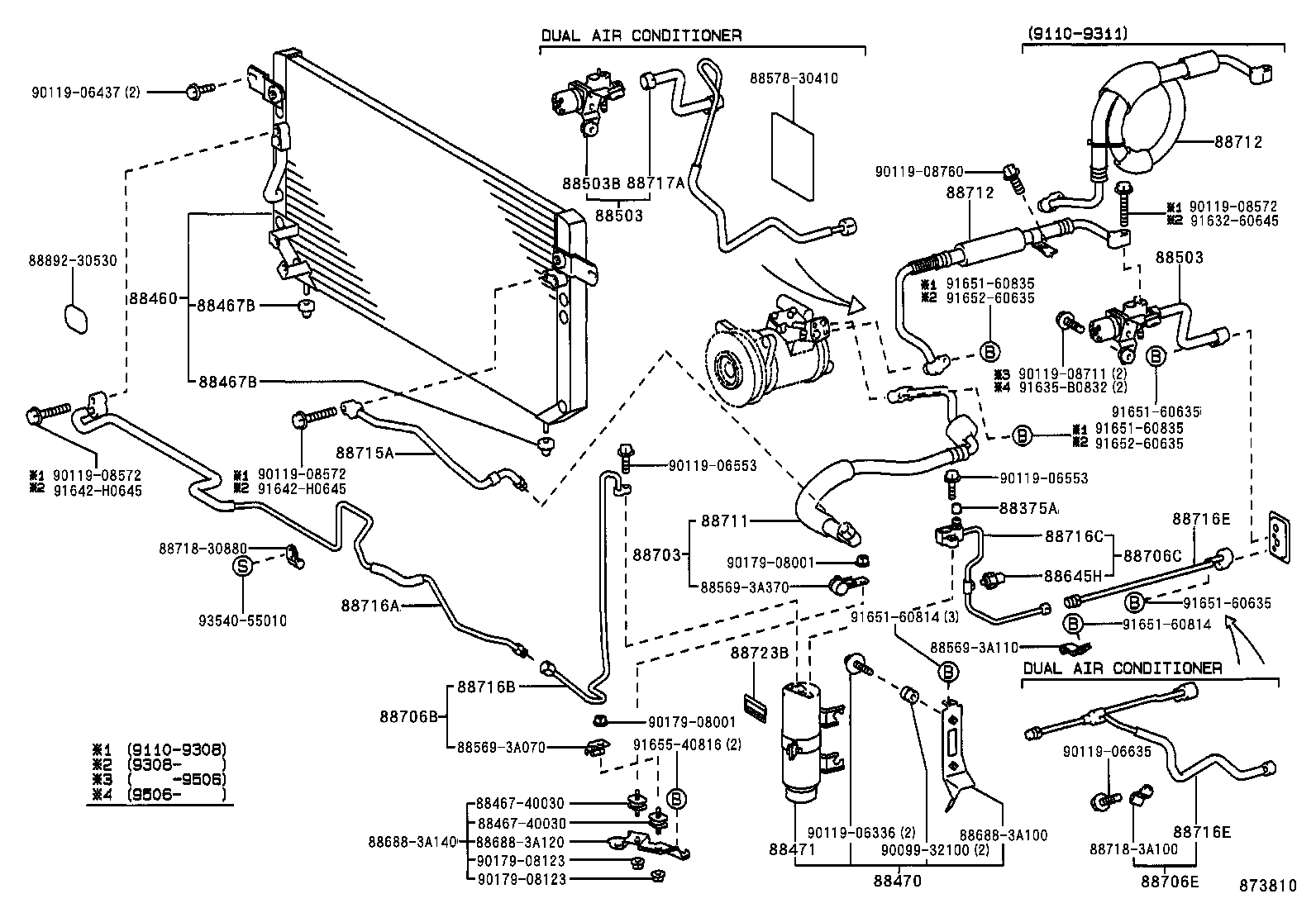

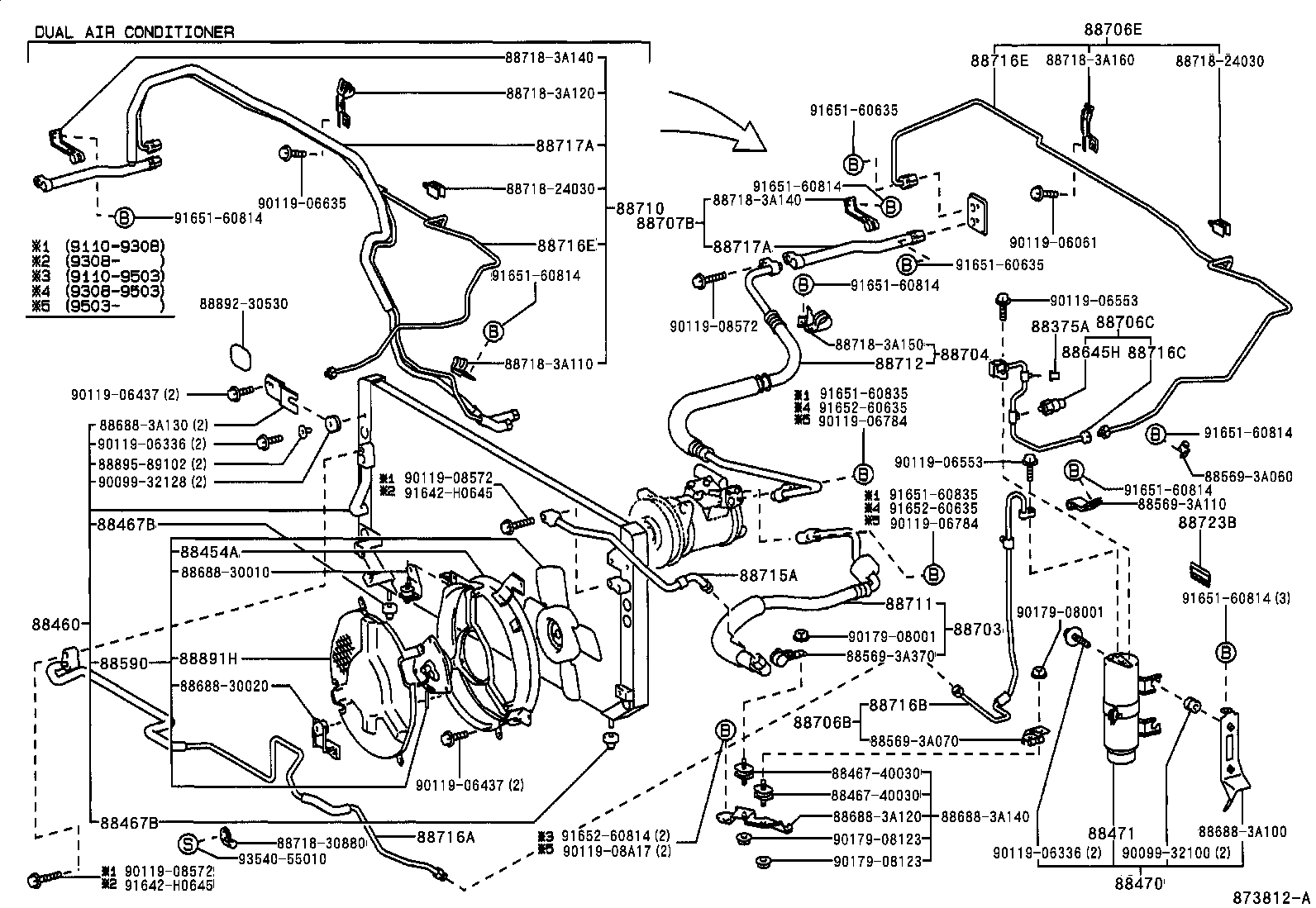

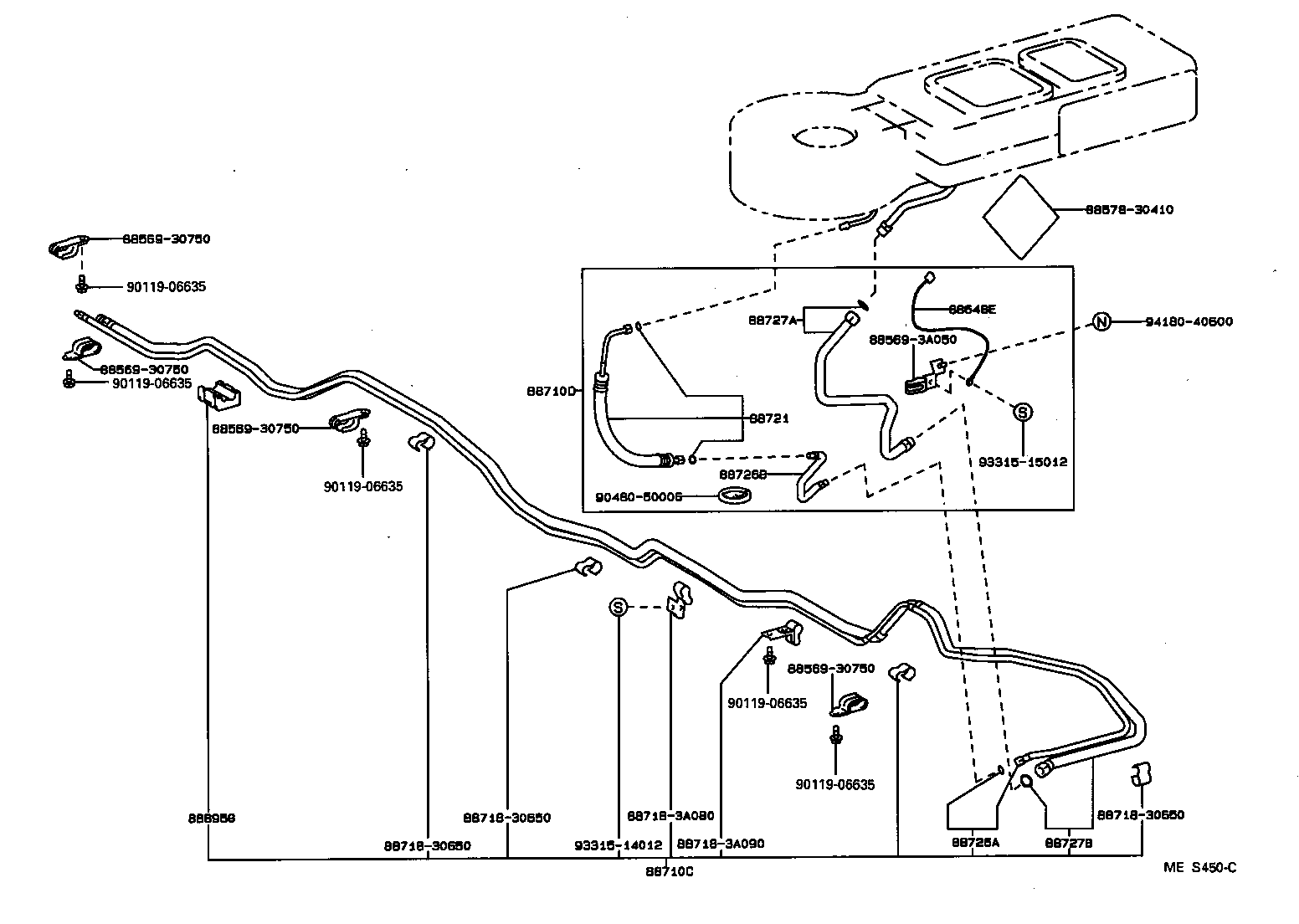

Figure 873809 873809 1991-10 → 1995-12 Figure 873810 873810 1991-10 → — Figure 873811 873811 1991-10 → — Figure 873812A 873812A 1991-10 → 1995-12 Figure 873813 873813 1991-12 → 1995-12 Figure 872559B 872559B 1991-10 → 1995-12 Figure 873814 873814 1991-10 → 1993-08 Figure 873815 873815 1991-10 → 1995-12 Figure MES450C MES450C 1991-10 → — Figure MES455C MES455C 1991-10 → — Figure 870152 870152 1991-10 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88503B Regulator Sub-assy, Pressure
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88706E Tube Sub-assy, Liquid, E
88707B Tube Sub-assy, Suction, B
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88710D Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88721 Pipe, Cooler Refrigerant Suction, NO.5
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88891A Packing A (FOR COOLER)
88891H Cover, Cooler, NO.1
88895G Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
