Toyota Fortuner

2005-01 → 2012-04 · chassis GGN50,60,KUN5#,6#,LAN50,TGN51,61 · catalogue 671380 · General

Supported model Data version 2012-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

188 part groups · 16 illustrations

Illustrations

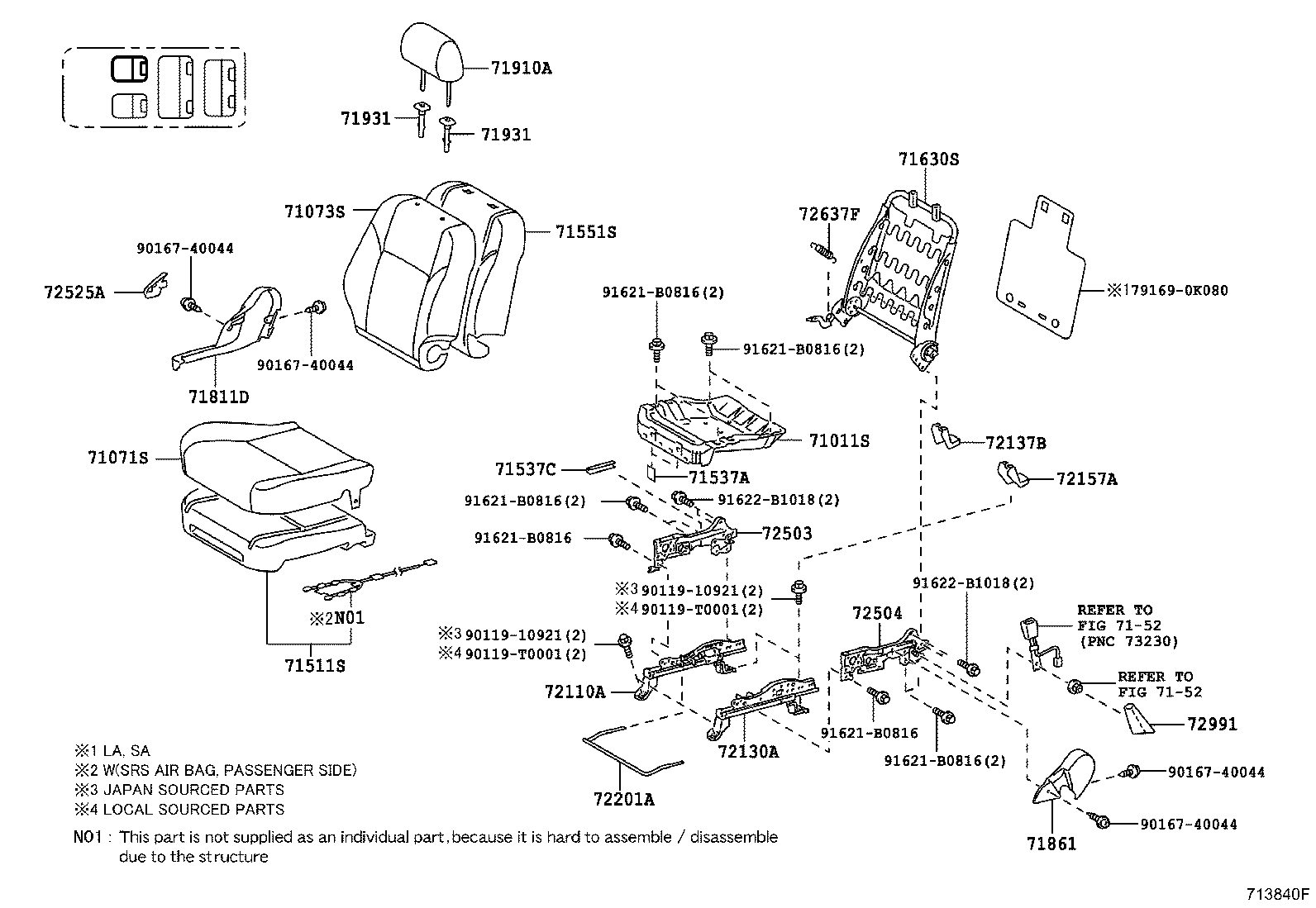

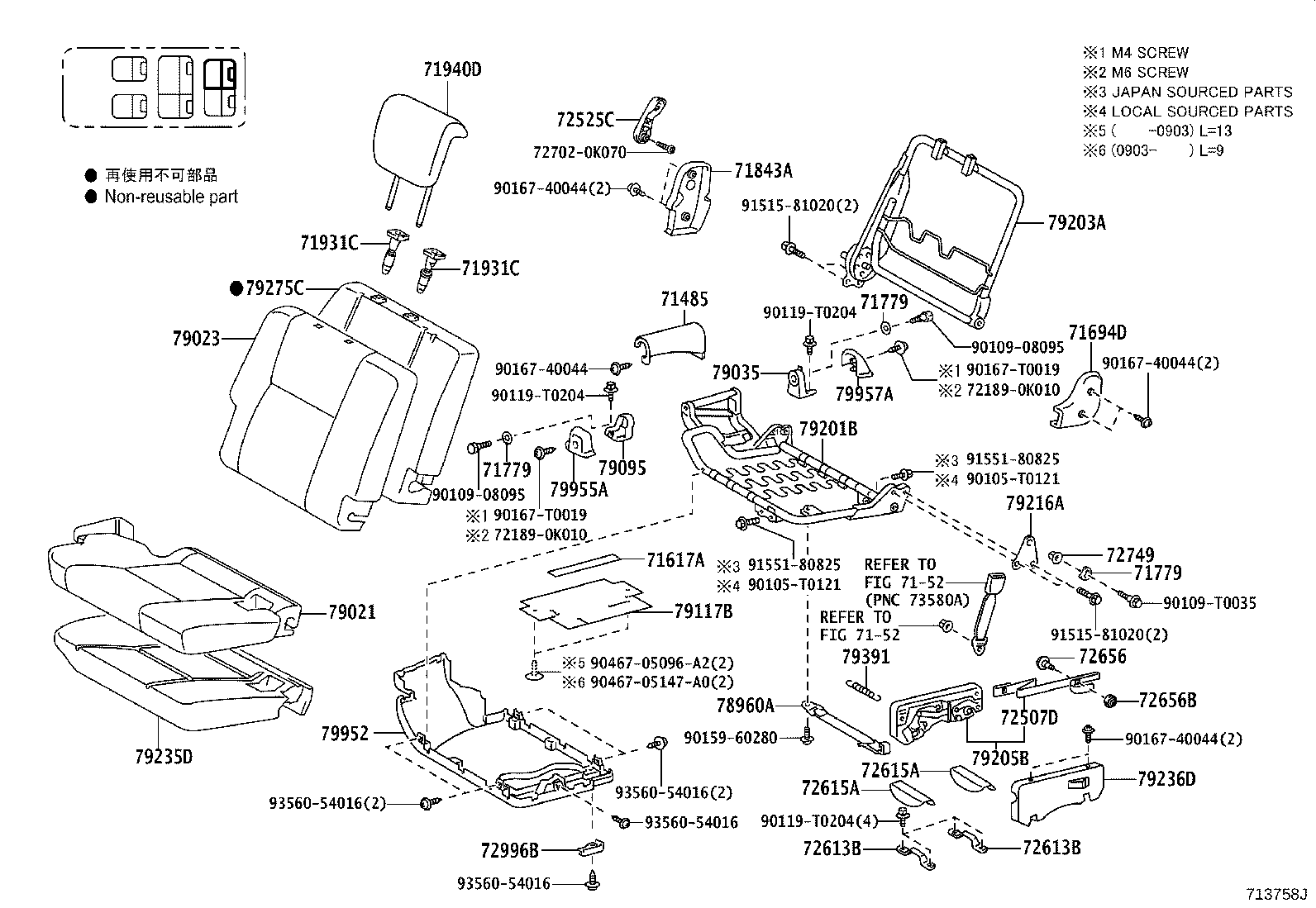

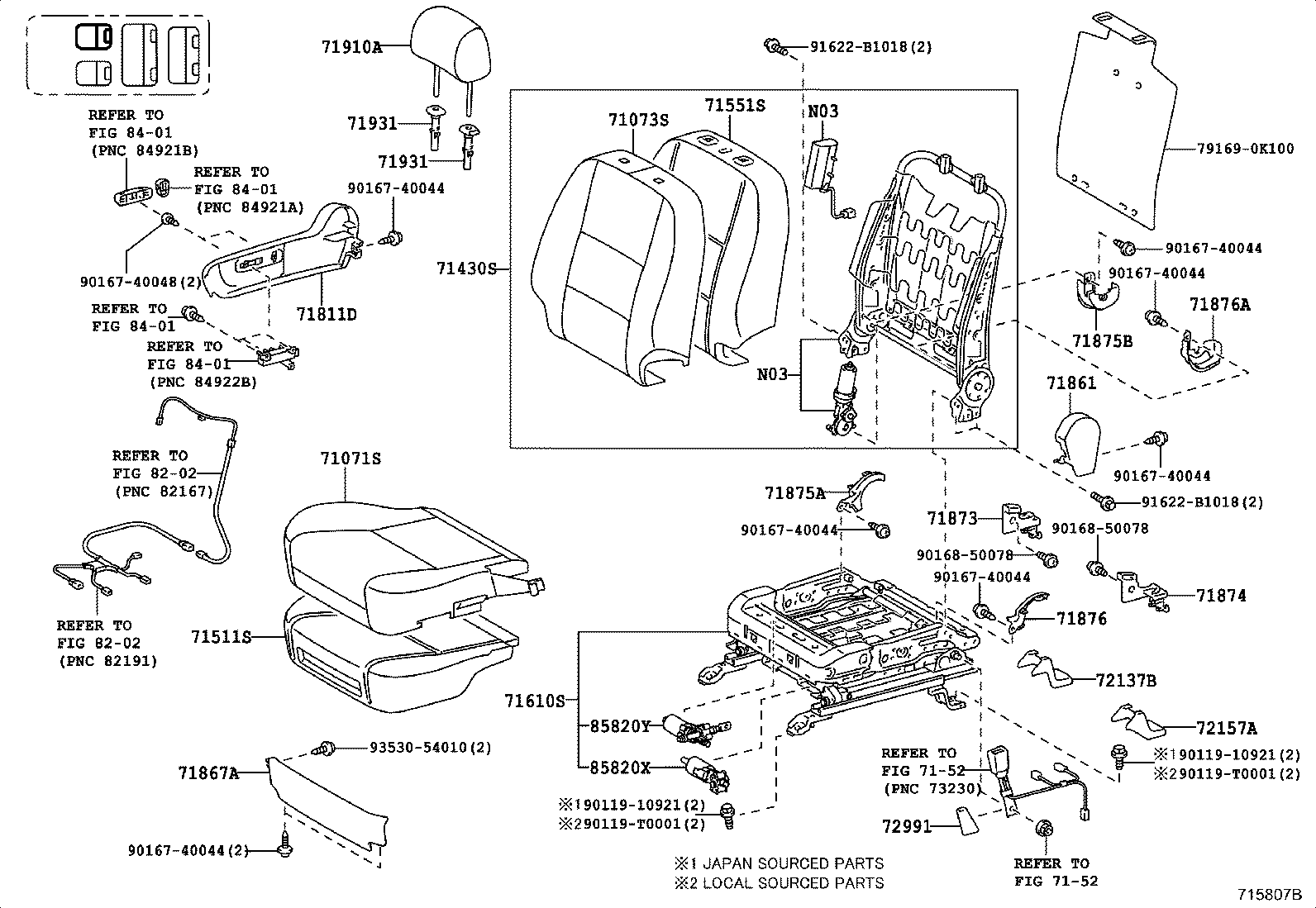

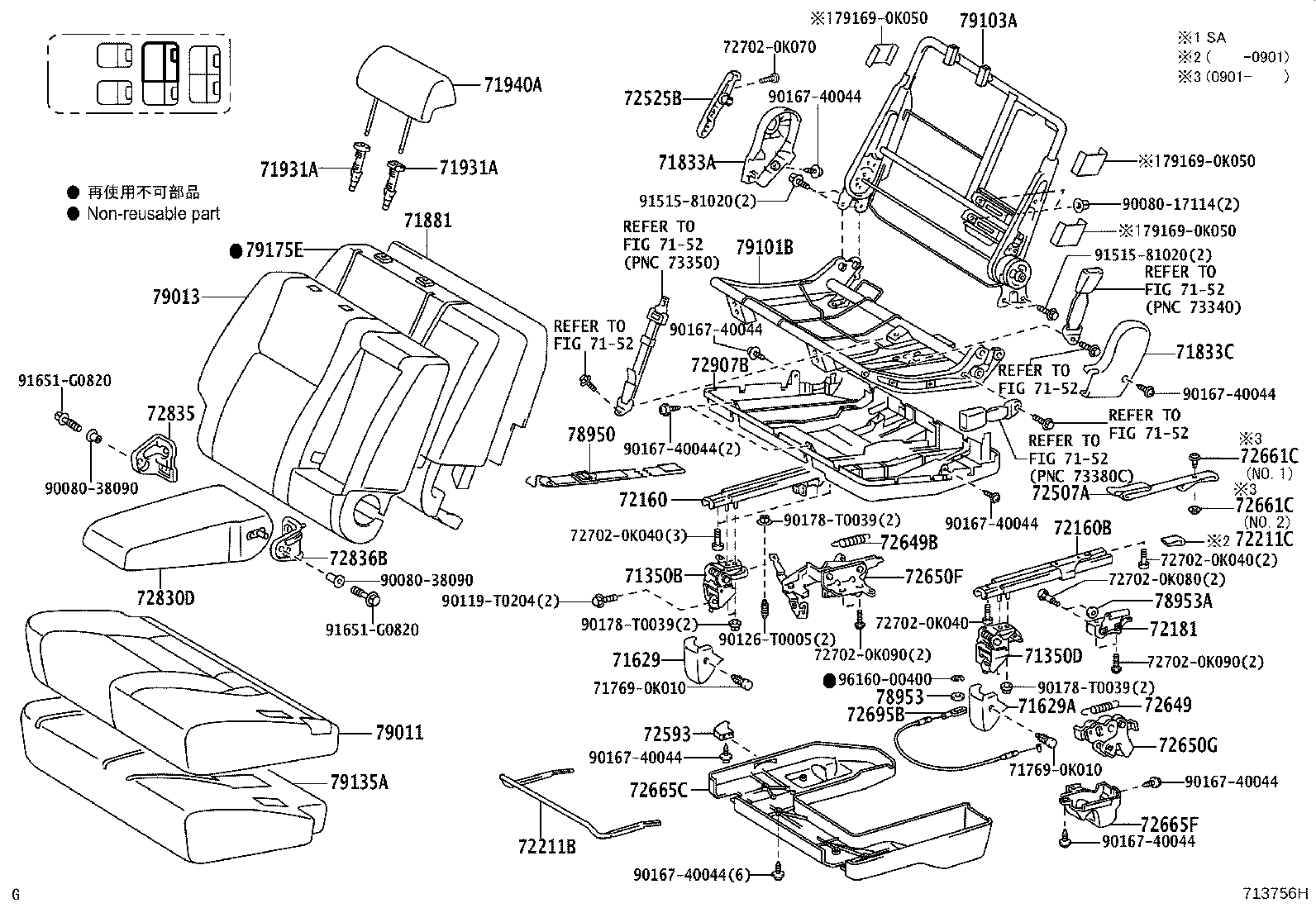

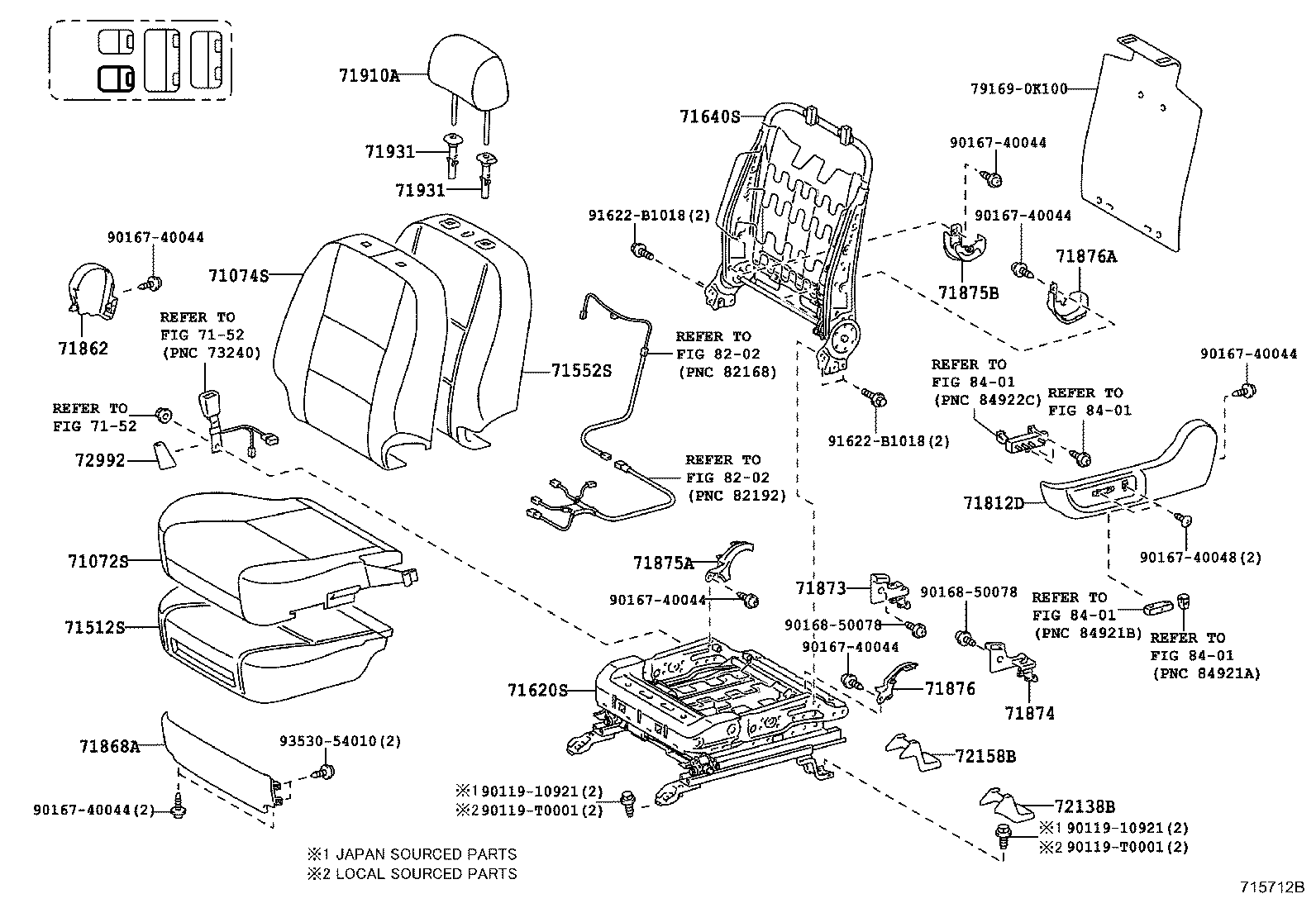

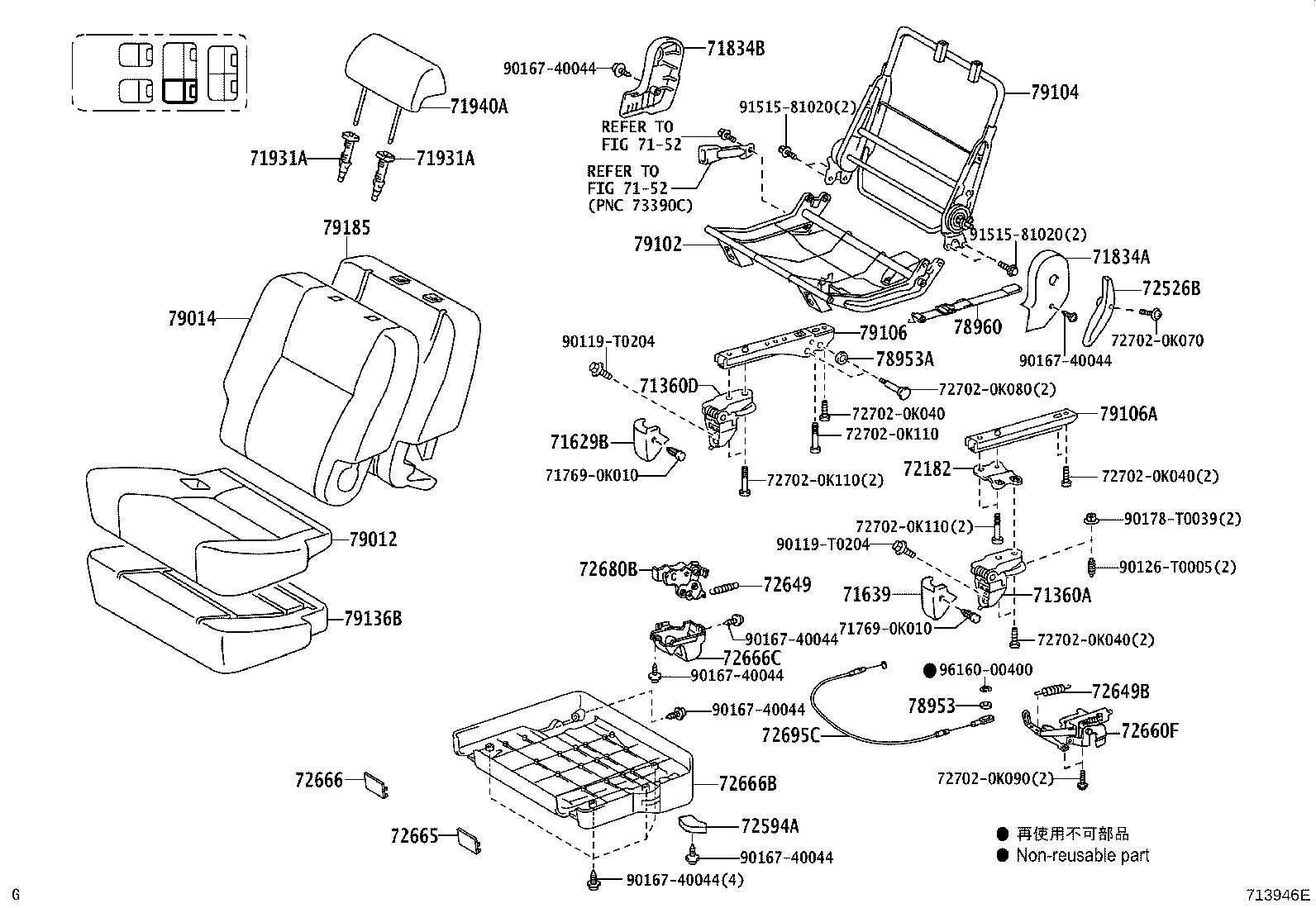

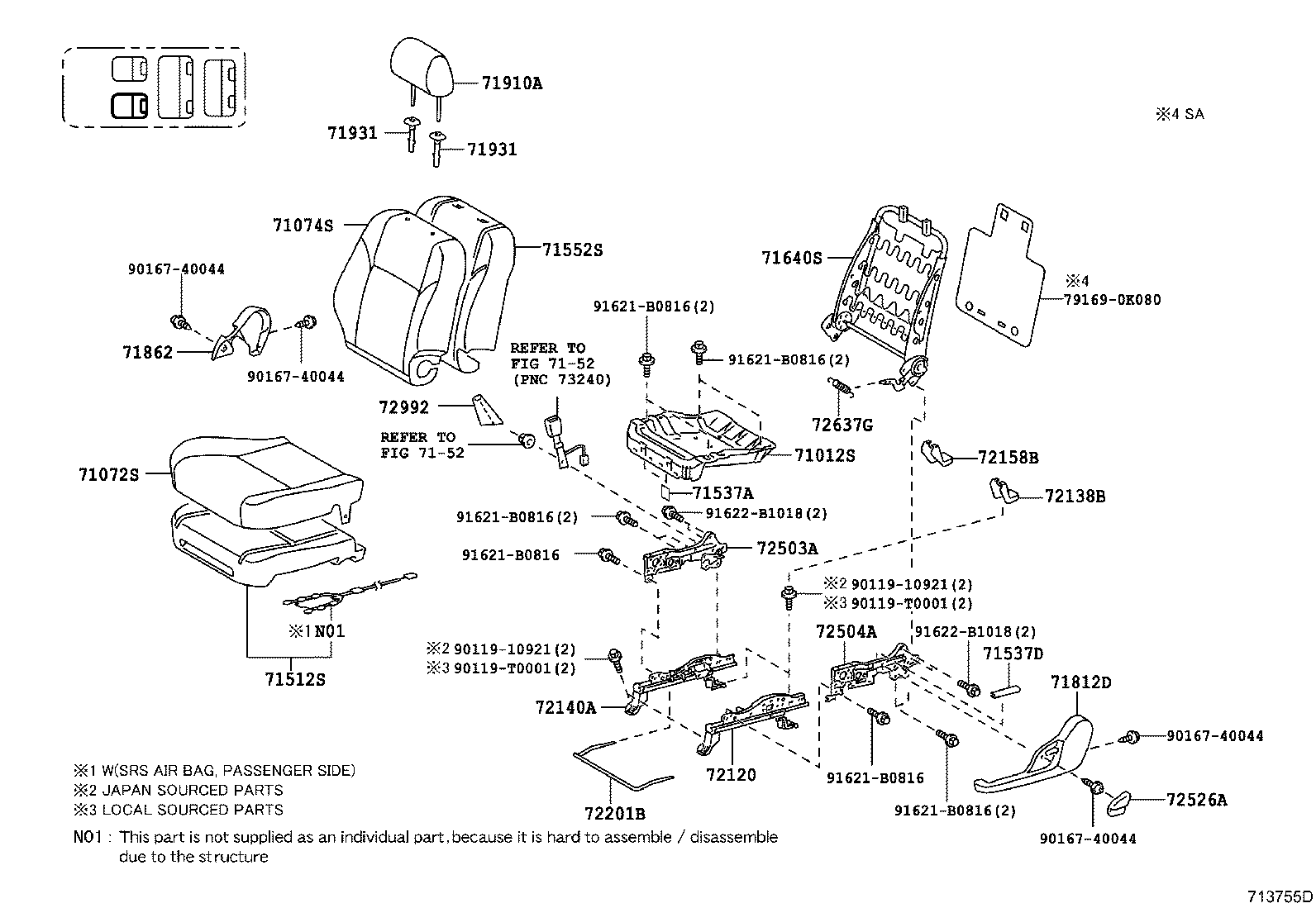

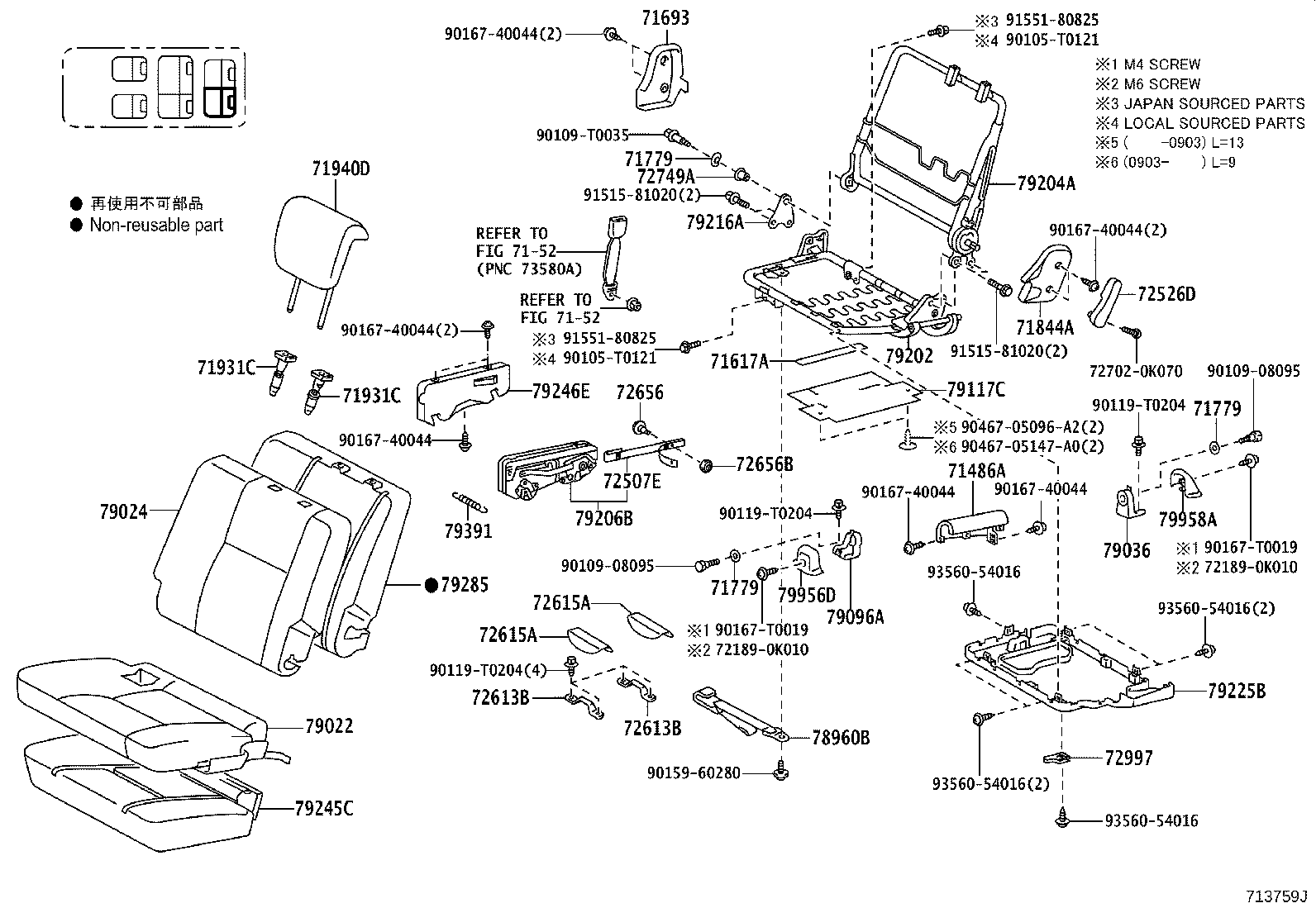

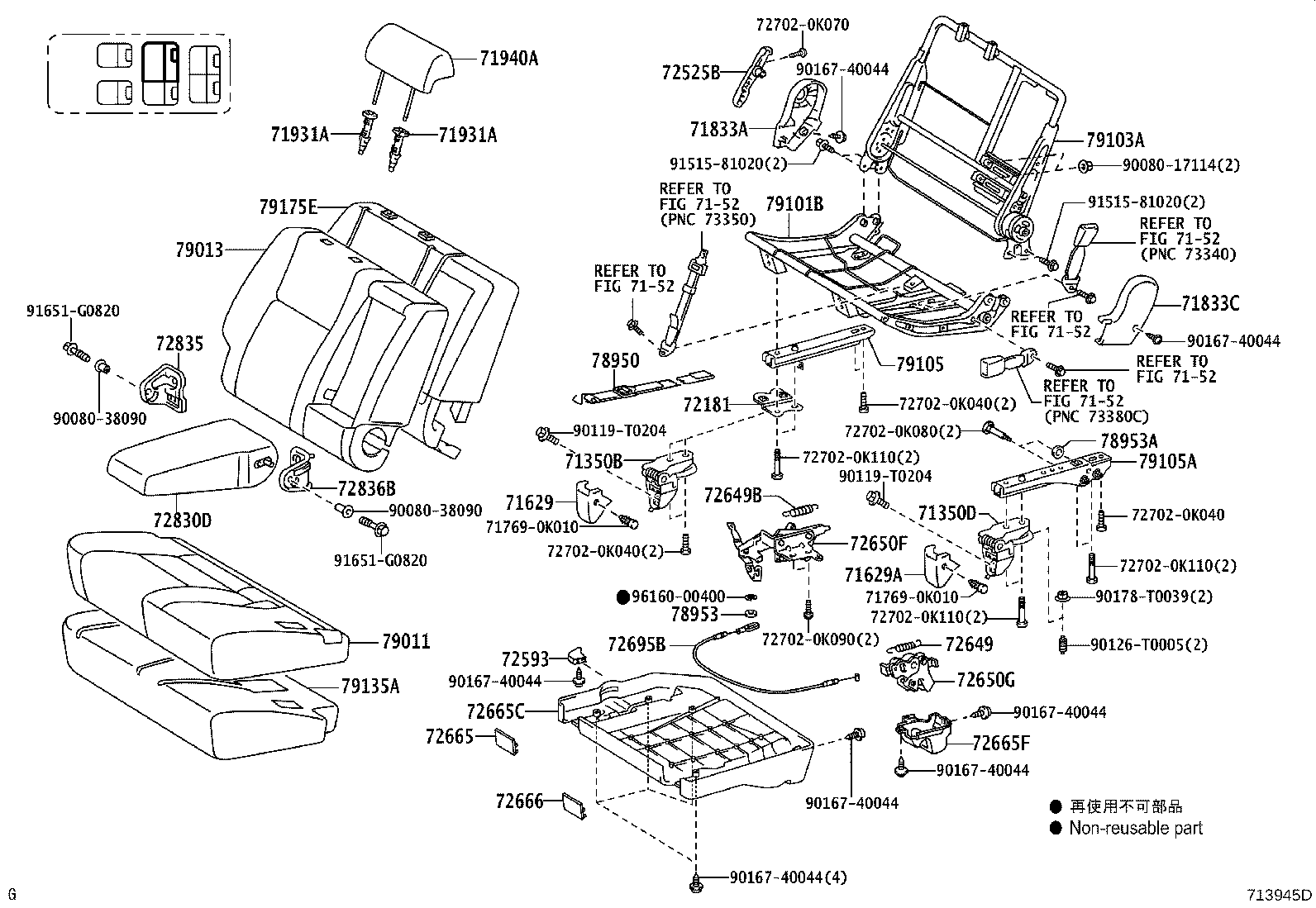

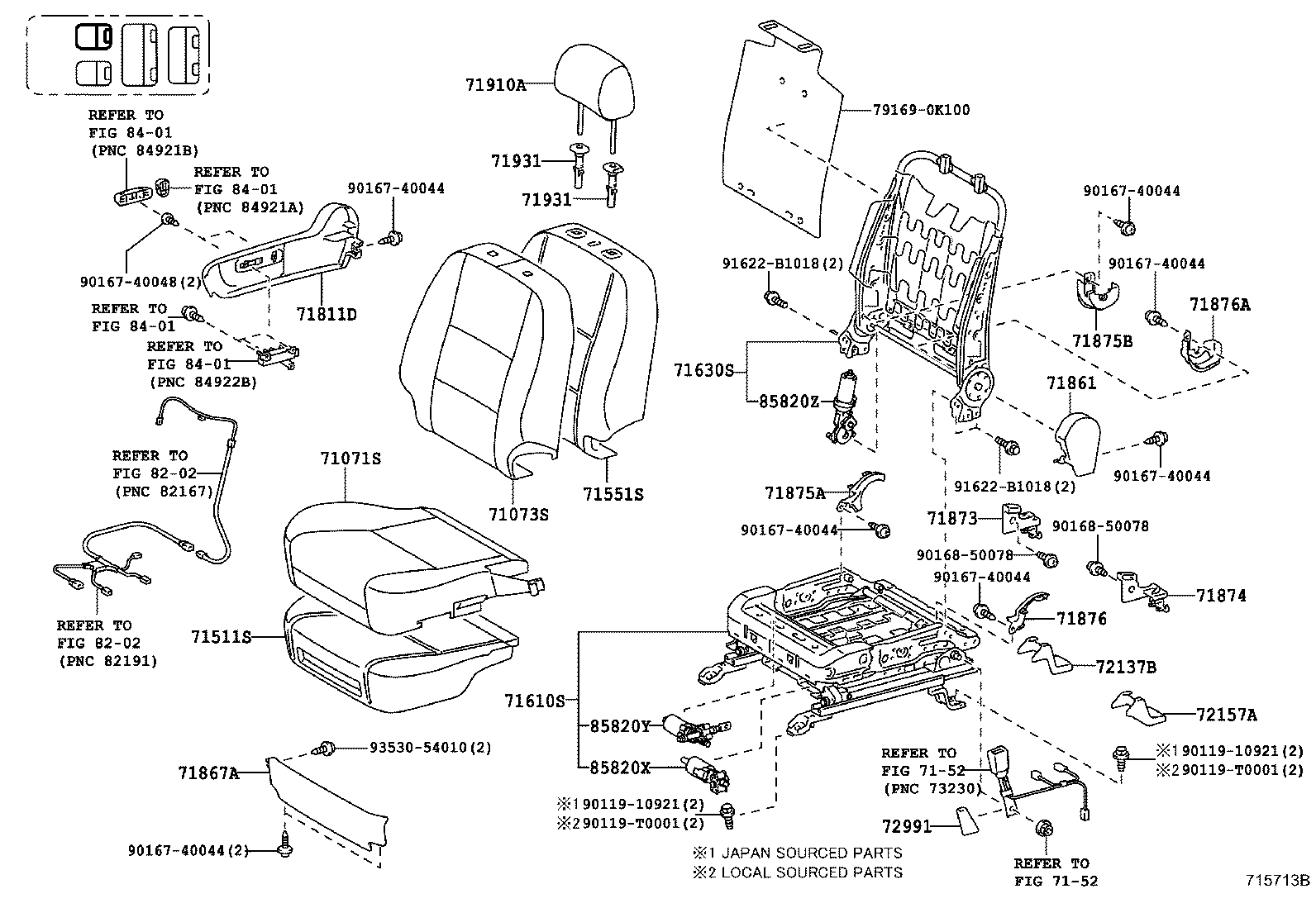

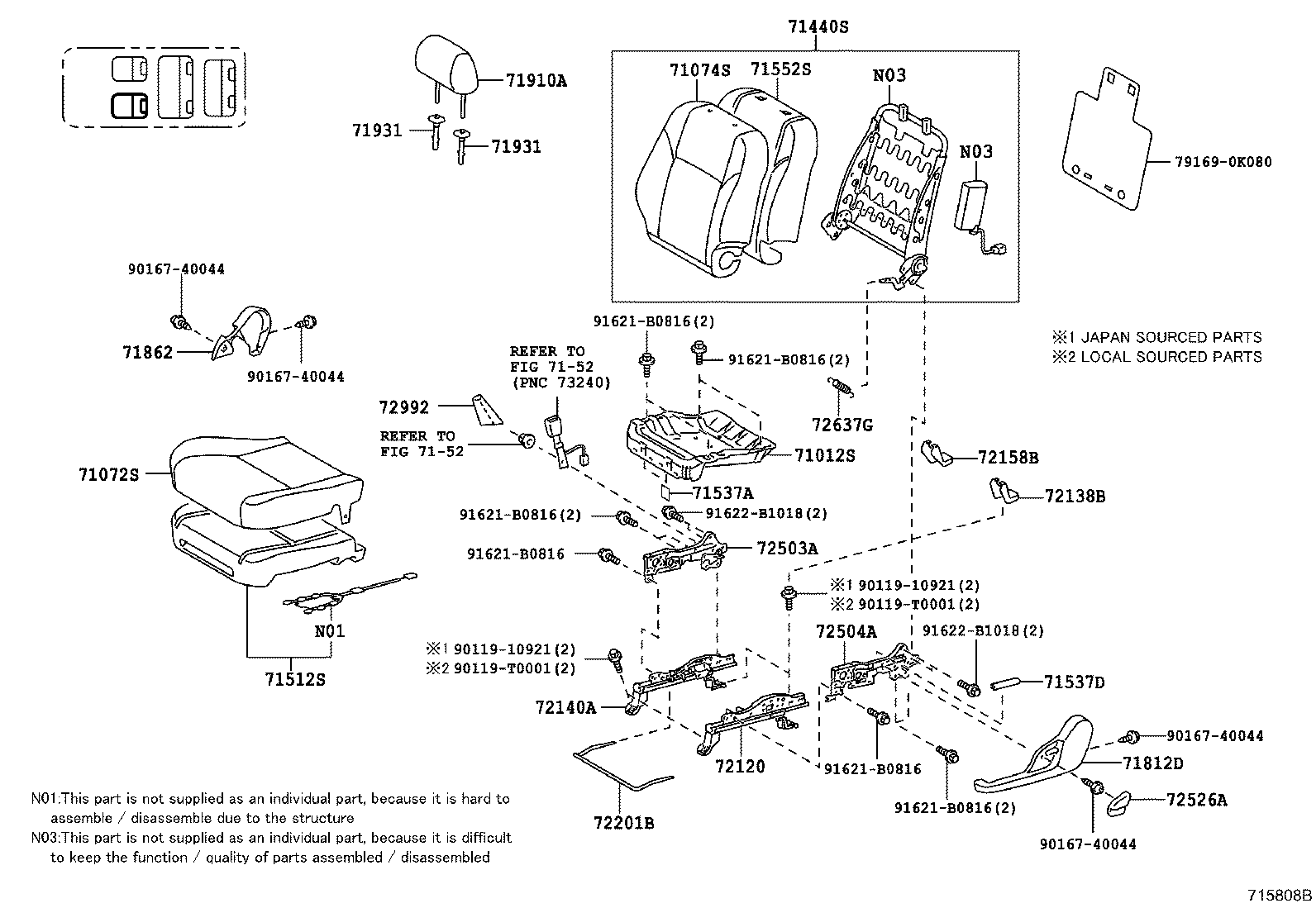

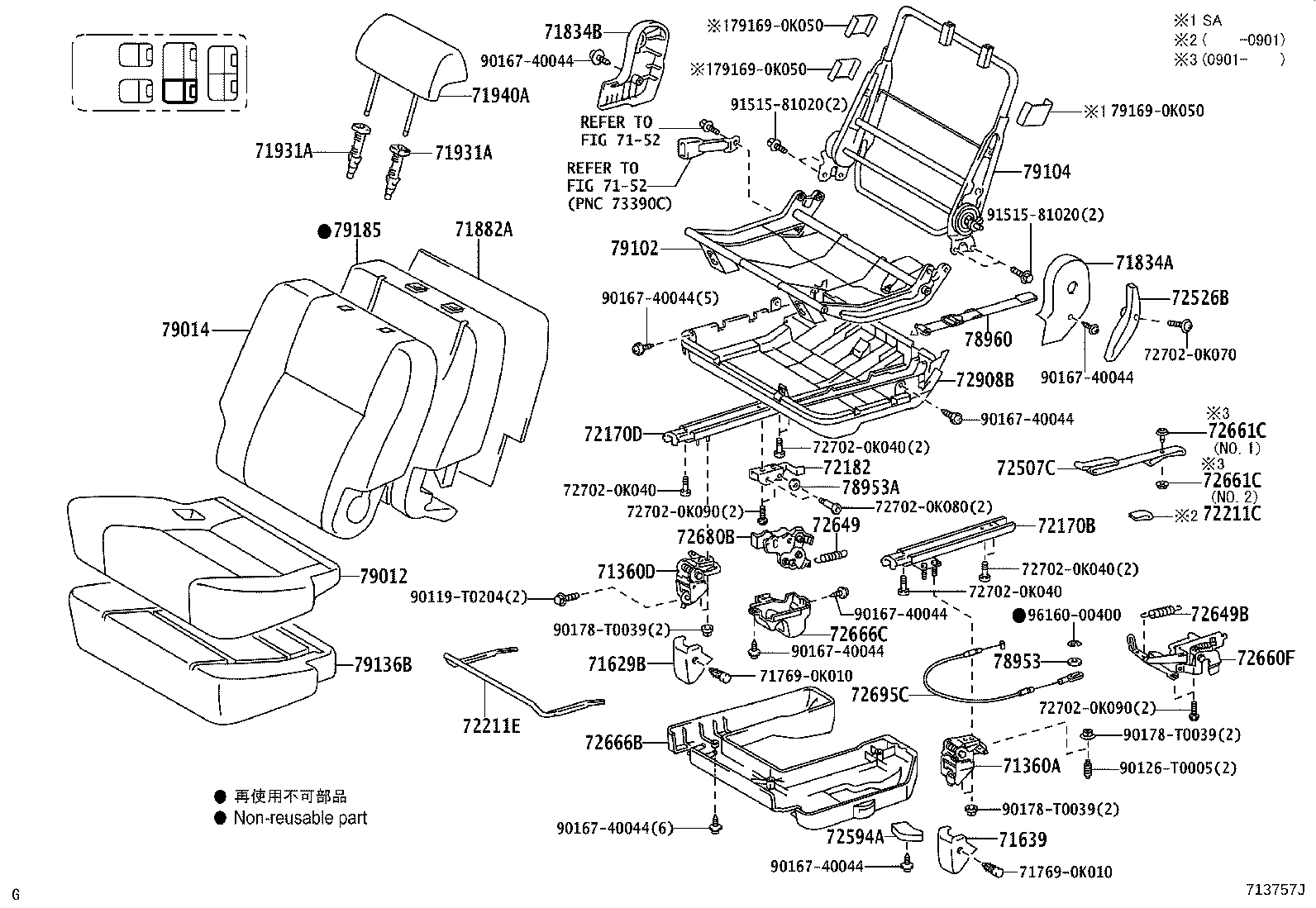

Figure 713839I 713839I 2005-04 → — Figure 715712B 715712B 2008-08 → — Figure 713754F 713754F 2005-01 → — Figure 715713B 715713B 2008-08 → — Figure 715807B 715807B 2008-10 → — Figure 713840F 713840F 2005-04 → — Figure 713755D 713755D 2005-01 → — Figure 715808B 715808B 2008-10 → — Figure 713756H 713756H 2005-01 → — Figure 713757J 713757J 2005-01 → — Figure 713945D 713945D 2005-09 → 2008-10 Figure 713945D 713945D 2005-09 → 2009-03 Figure 713946E 713946E 2005-09 → 2008-10 Figure 713946E 713946E 2005-09 → 2009-03 Figure 713758J 713758J 2005-01 → — Figure 713759J 713759J 2005-01 → —

Part groups

PNCDescription
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71350B Hinge Assy, Rear Seat, RH
71350D Hinge Assy, Rear Seat, NO.2 RH
71360A Hinge Assy, Rear Seat, LH
71360D Hinge Assy, Rear Seat, NO.2 LH
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71485 Cover, Rear Seat Hinge
71486A Cover, Rear Seat Hinge, NO.2 LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71617A Cloth, Rear Seat Cushion Under
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629 Cover, Rear Seat Cushion Hinge
71629A Cover, Rear Seat Cushion Hinge, RH
71629B Pad, Rear Seat Cushion Cover Side, LH
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71639 Cover, Rear Seat Cushion Hinge, LH
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71694D Cover, Rear Seat Cushion Hinge, Outer LH
71779 Cover, Rear Seat Side Hinge Male, LH
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833C Cover, Rear Seat Reclining, NO.2 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71881 Board, Rear Seatback, RH
71882A Board, Rear Seatback, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71940D Headrest Assy, Rear NO.2 Seat, RH
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72157A Cover, Seat Track Bracket, Inner RH
72158B Cover, Seat Track Bracket, Inner LH
72160 Track Assy, Rear Seat, Outer RH
72160B Track Assy, Rear NO.1 Seat, RH
72170B Track Assy, Rear NO.1 Seat, LH
72170D Track Assy, Rear Seat, Outer LH
72181 Bracket, Rear Outer Seat Track, Lower Front RH
72182 Bracket, Rear Outer Seat Track, Lower Front LH
72201A Handle Sub-assy, Seat Track RH
72201B Handle Sub-assy, Seat Track LH
72211B Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72211E Handle, Seat Track Adjusting
72409 Shaft Sub-assy, Vertical Adjusting
72422A Rod, Front Seat Adjuster
72422B Rod, Front Seat Adjustter
72448 Pin, FR Seat Adjuster, NO.2 RH
72448A Pin, FR Seat Adjuster, NO.2 LH
72457B Knob, Vertical Seat Adjuster, RH
72457D Knob, Vertical Seat Adjuster, LH
72503 Arm Sub-assy, Reclining Adjuster, Lower RH
72503A Arm Sub-assy, Reclining Adjuster, Lower RH
72504 Arm Sub-assy, Reclining Adjuster, Lower LH
72504A Arm Sub-assy, Reclining Adjuster, Lower LH
72507A Handle Sub-assy, Reclining Release
72507C Handle Sub-assy, Reclining Release, LH
72507D Handle Sub-assy, NO.2 Seat Reclining Release
72507E Handle Sub-assy, Reclining Release, NO.1
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72526A Handle, Reclining Adjuster Release, LH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72526D Handle, Reclining Adjuster Release, NO.3 LH
72593 Knob, Reclining Remote Control Lever
72594A Knob, Reclining Remote Control Lever, LH
72613B Striker, Rear Seat Lock
72615A Cover, Rear Seatback Lock Striker, RH
72637F Spring, Seatback, RH
72637G Spring, Seatback, LH
72649 Spring, Rear Seat Cushion Support
72649B Spring, Rear Seat Cushion Support
72650F Lock Assy, Rear Seat, RH
72650G Lock Assy, Rear NO.2 Seat, RH
72656 Button, Rear Seatback Stop Release
72656B Button, Rear Seatback Stop Release
72660F Lock Assy, Rear Seat, LH
72661C Button, Rear Seatback Lock Release
72665 Cover, Rear Seatback Lock, RH
72665C Cover, Rear Seat Lock, RH
72665F Cover, Rear Seat Lock, RH(FOR RH SEAT)
72666 Cover, Rear Seatback Lock, LH
72666B Cover, Rear Seat Lock, LH
72666C Cover, Rear Seat Lock, NO.2 LH
72680B Lock Assy, Rear Seat Cushion, LH
72695B Cable, Rear Seat Lock Control, RH
72695C Cable, Rear Seat Lock Control, LH
72749 Spacer, Rear Seat Reclining
72749A Spacer, Rear Seat Reclining
72830D Armrest Assy, Rear Seat, RH
72835 Arm, RR Seat Armrest, RH
72836B Arm, Rear Seat Armrest, LH
72907B Cover Sub-assy, Rear Seat Cushion Under, RH
72908B Cover Sub-assy, Rear Seat Cush Under, LH
72991 Cover, Front Seat Cushion, RH
72992 Cover, Front Seat Cushion, LH
72996B Cover, Rear Seatback, Inner RH
72997 Cover, Rear Seatback, LH
78950 Band Assy, Fold Seat Stopper, NO.1
78953 Plate, Rear Seat Under
78953A Plate, Rear Seat Under, NO.1
78960 Band Assy, Fold Seat Stopper, NO.2
78960A Band Assy, NO.2 Fold Seat Stopper, NO.2
78960B Band Assy, Fold Seat Stopper, NO.4
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79035 Leg Sub Assy, NO.3 Seat Outer Rear, RH
79036 Leg Sub Assy, NO.3 Seat Outer Rear, LH
79095 Leg Sub Assy, NO.3 Seat Outer Front, RH
79096A Leg Sub Assy, NO.3 Seat Outer Front, LH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79103A Frame Sub-assy, NO.1 Seatback, RH
79104 Frame Sub-assy, NO.1 Seatback, LH
79105 Leg Sub-assy, NO.1 Seat, RH
79105A Leg Sub-assy, NO.1 Seat
79106 Leg Sub Assy, NO.1 Seat, LH
79106A Leg Sub Assy, Seat, LH
79117B Cover, NO.1 Seat Cushion, RH
79117C Cover, NO.1 Seat Cushion, LH
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79175E Pad, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79203A Frame Sub-assy, NO.2 Seatback, RH
79204A Frame Sub-assy, NO.2 Seatback, LH
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79216A Plate, NO.2 Seat Cushion
79225B Carpet, Rear NO.2 Seat Cushion, LH
79235D Pad, NO.2 Seat Cushion, RH
79236D Cover, Rear Seat Leg, RH (FOR RH SEAT)
79245C Pad, NO.2 Seat Cushion, LH
79246E Cover, NO.2 Seat Leg, Rear LH (FOR LH SEAT)
79275C Pad, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79391 Spring, Rear Seat Cushion
79952 Cover, NO.2 Seat Cushion
79955A Cover, Rear Seat Front Bracket, RH
79956D Cover, Rear Seat Front Bracket, LH
79957A Cover, Rear Seat Rear Bracket, RH
79958A Cover, Rear Seat Rear Bracket, LH
85820X Motor Assy, Power Seat
85820Y Motor Assy, Power Seat
85820Z Motor Assy, Power Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
