Toyota Dyna

2002-09 → present · chassis BU3##,WU3##,XZU3## · catalogue 751280 · General

Discontinued model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

91 part groups · 41 illustrations

Illustrations

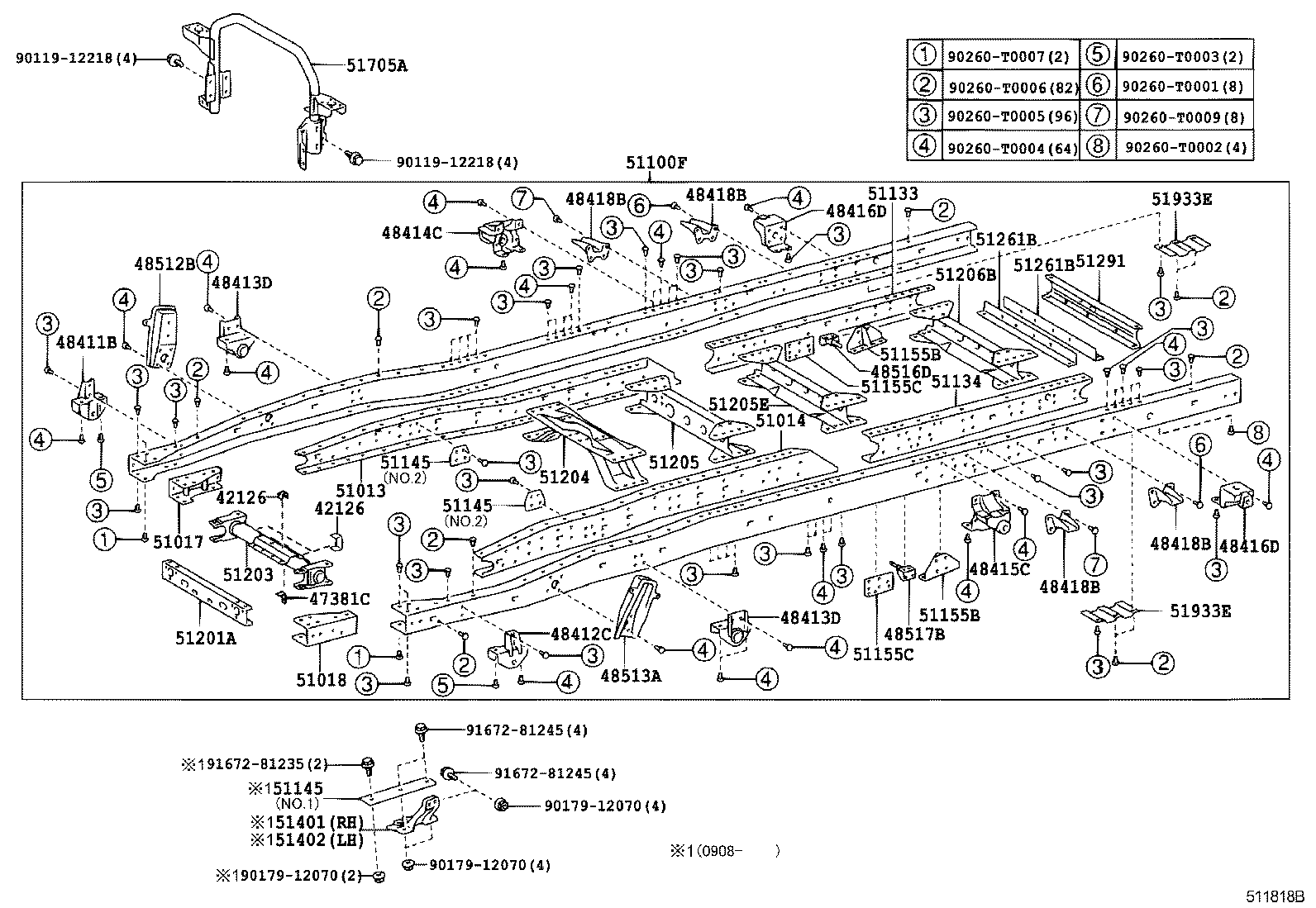

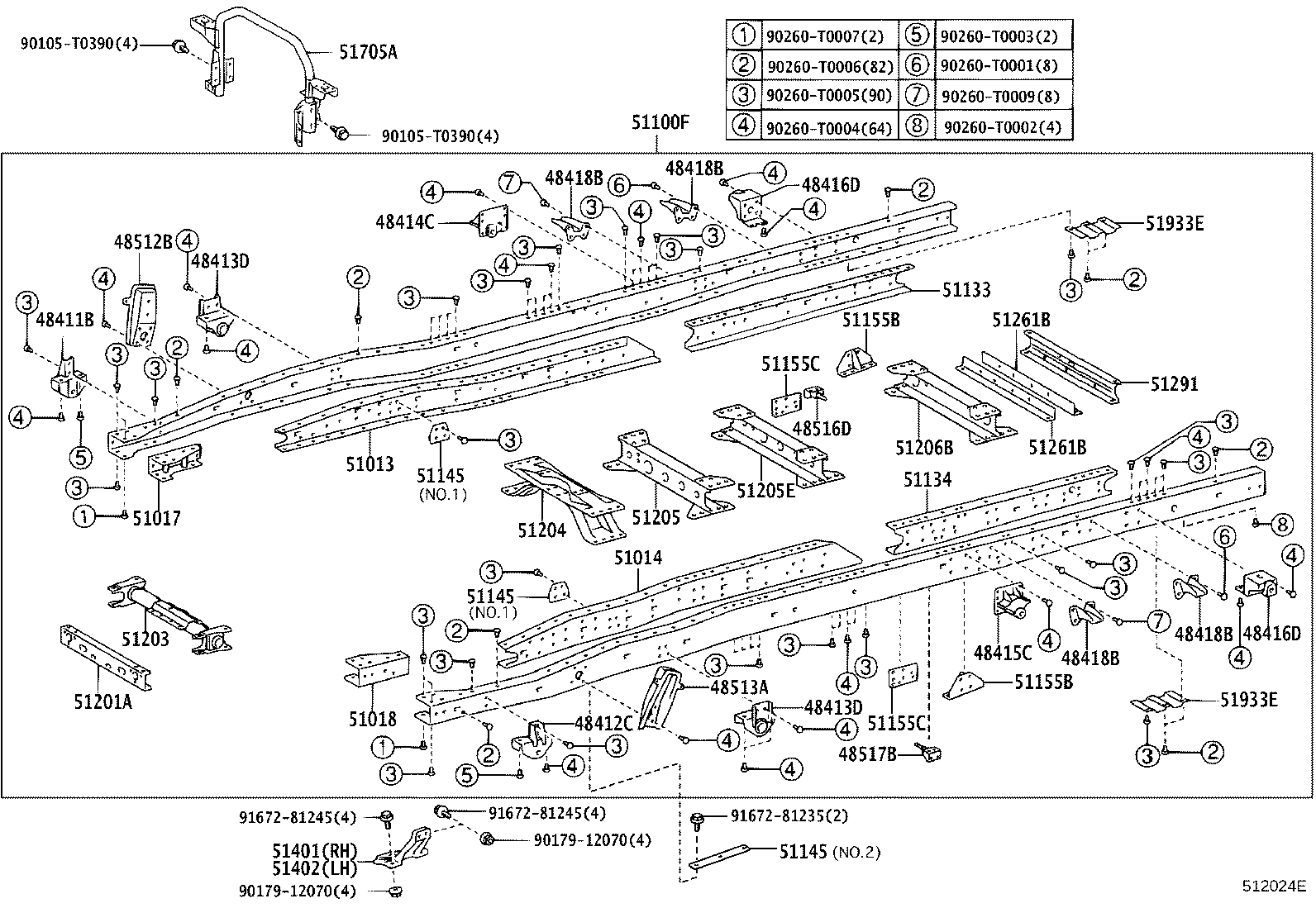

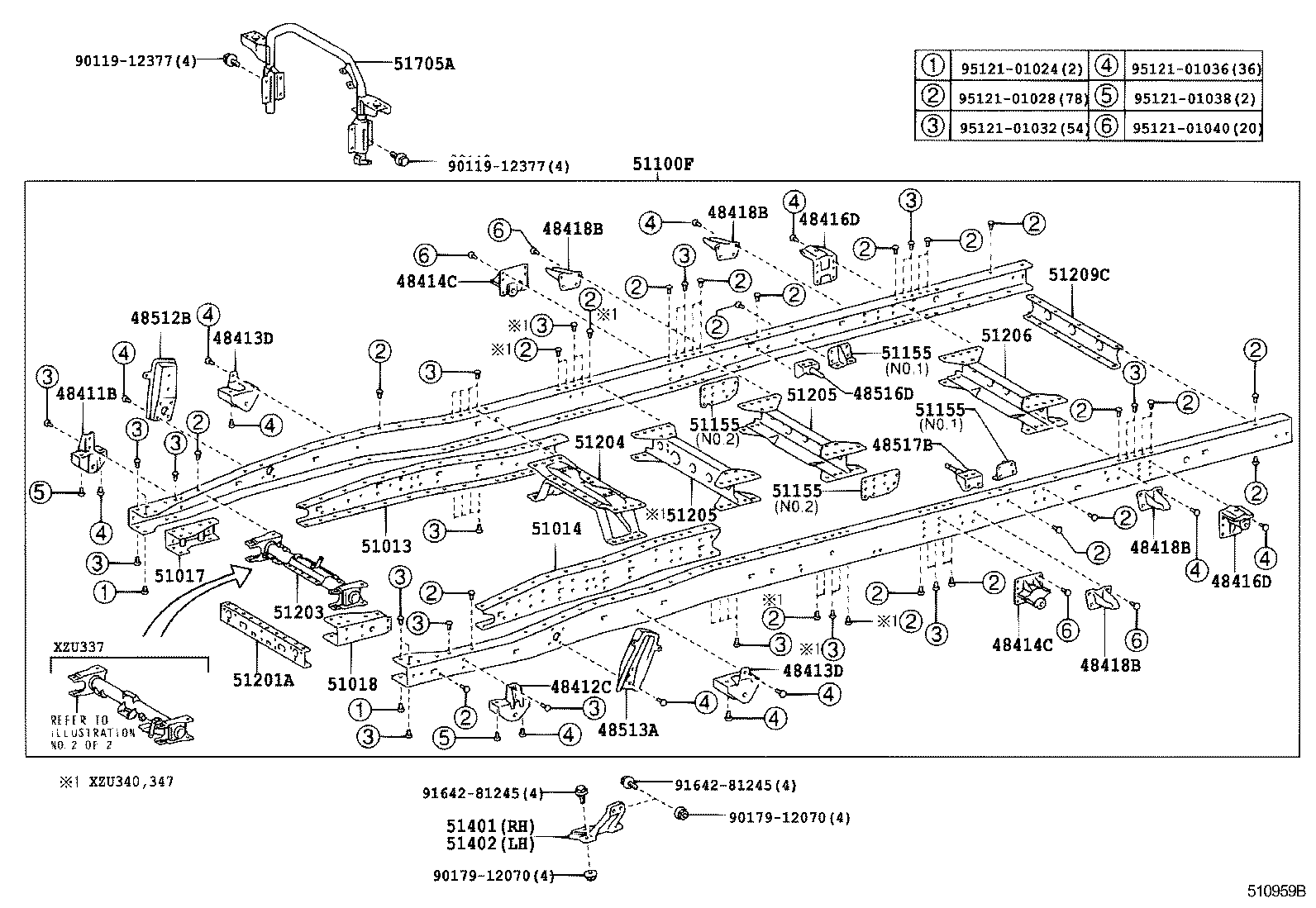

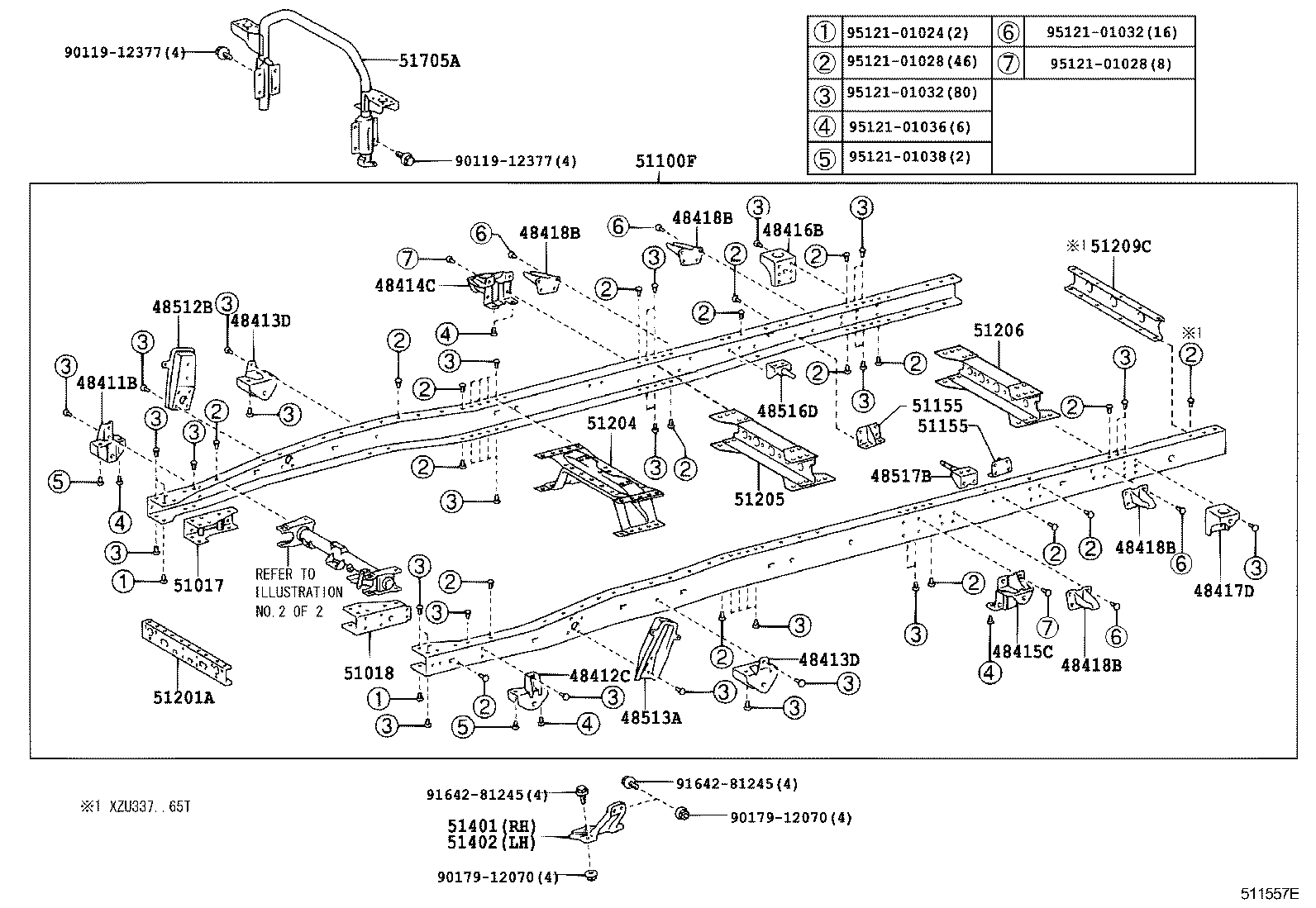

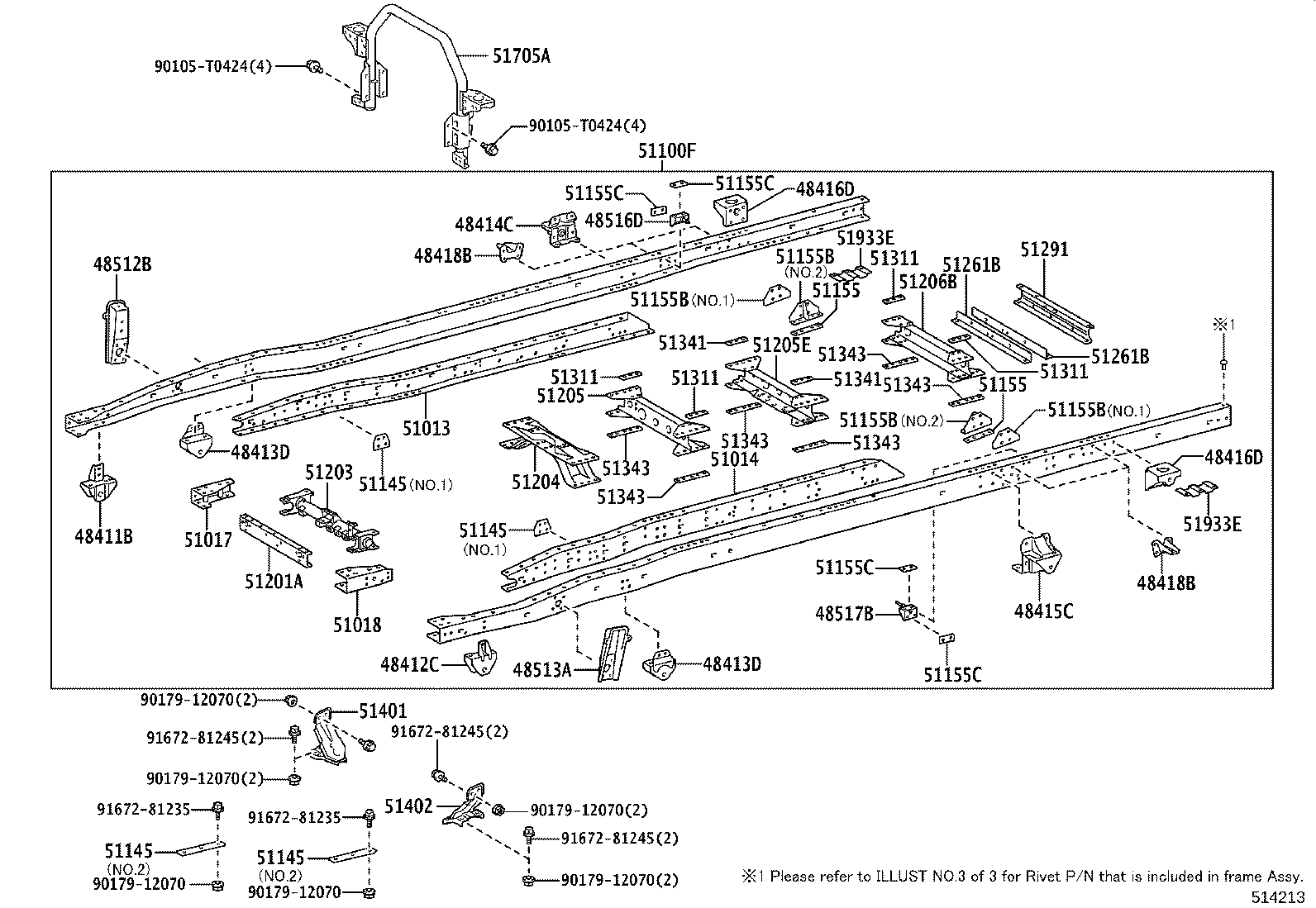

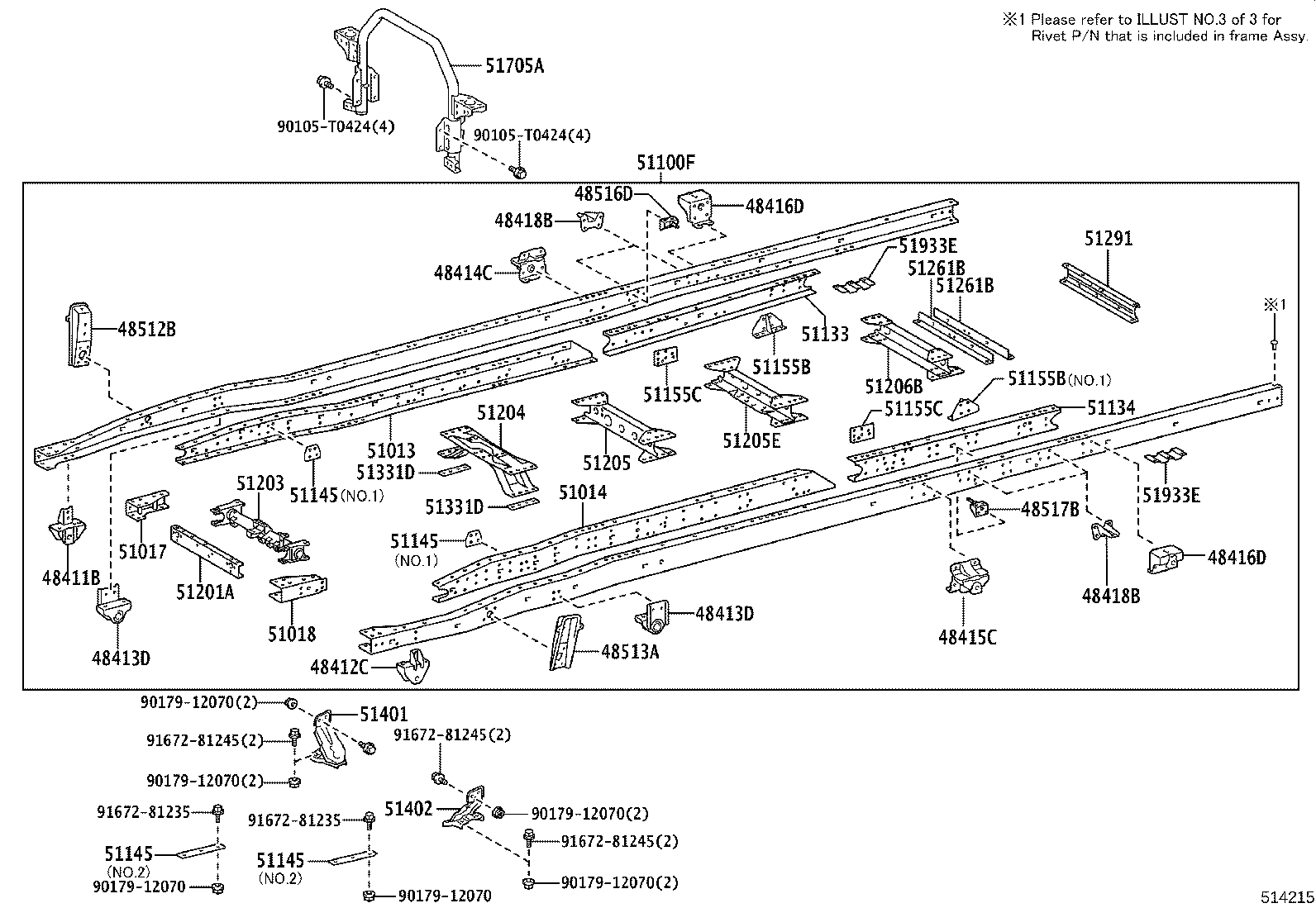

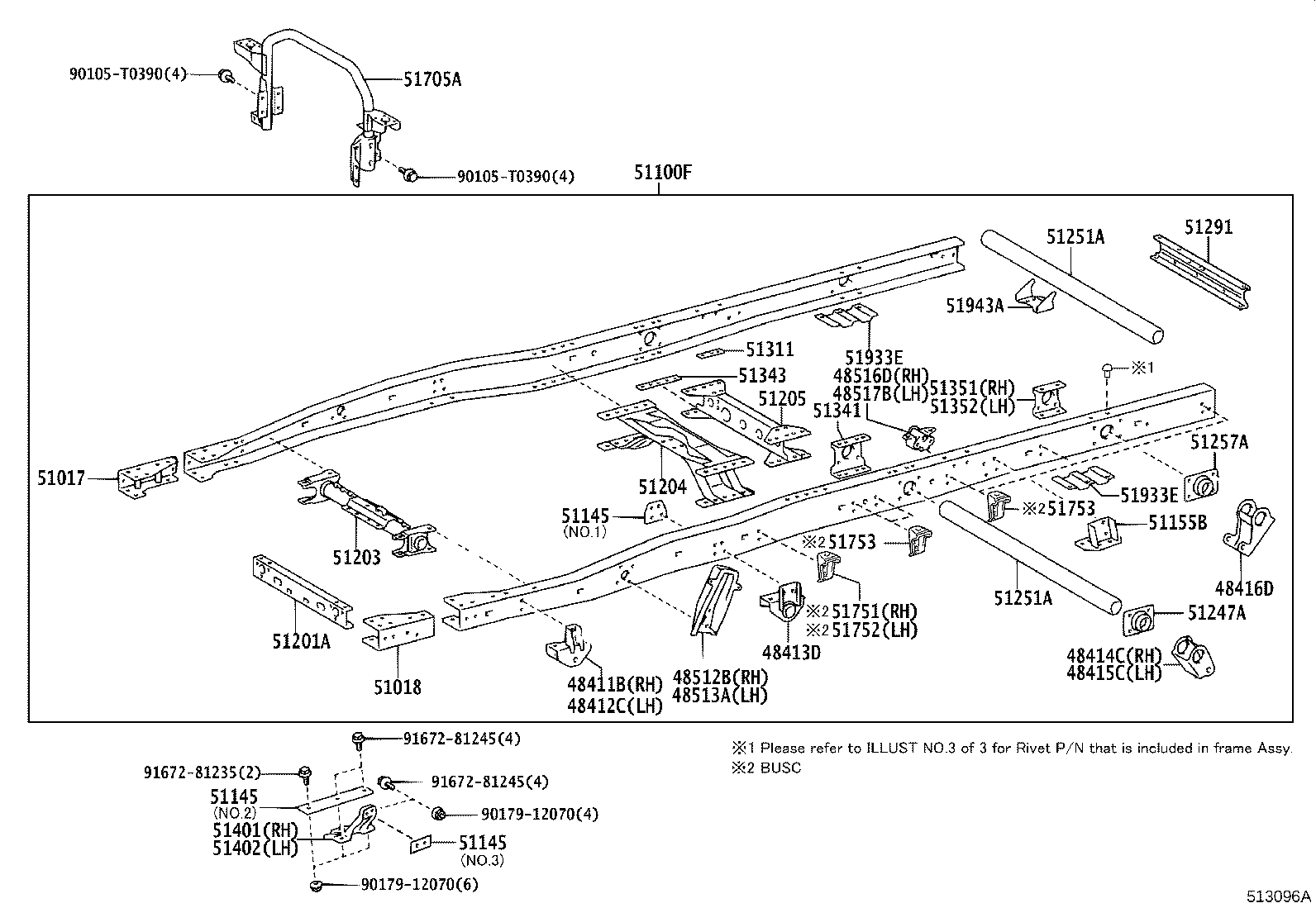

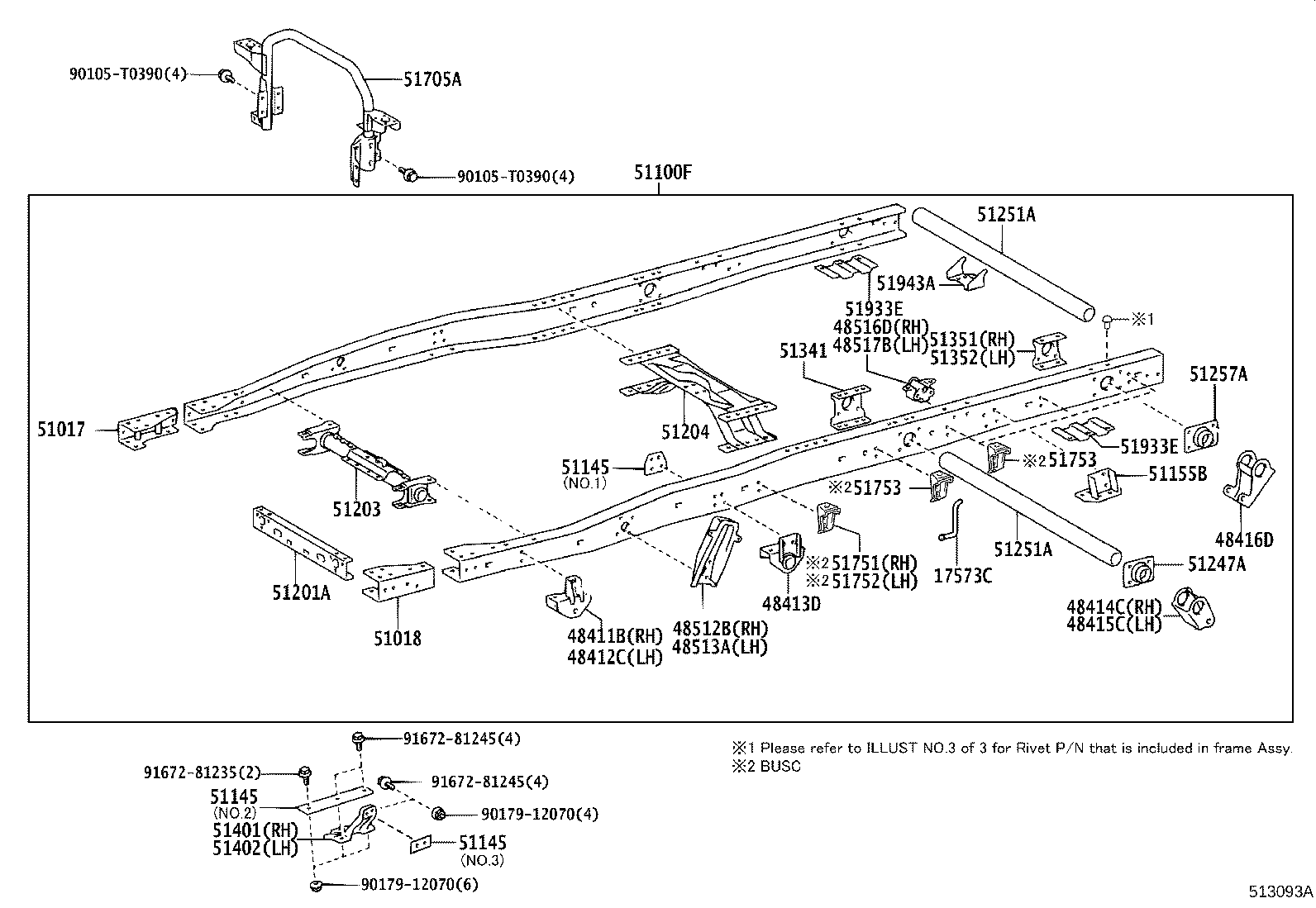

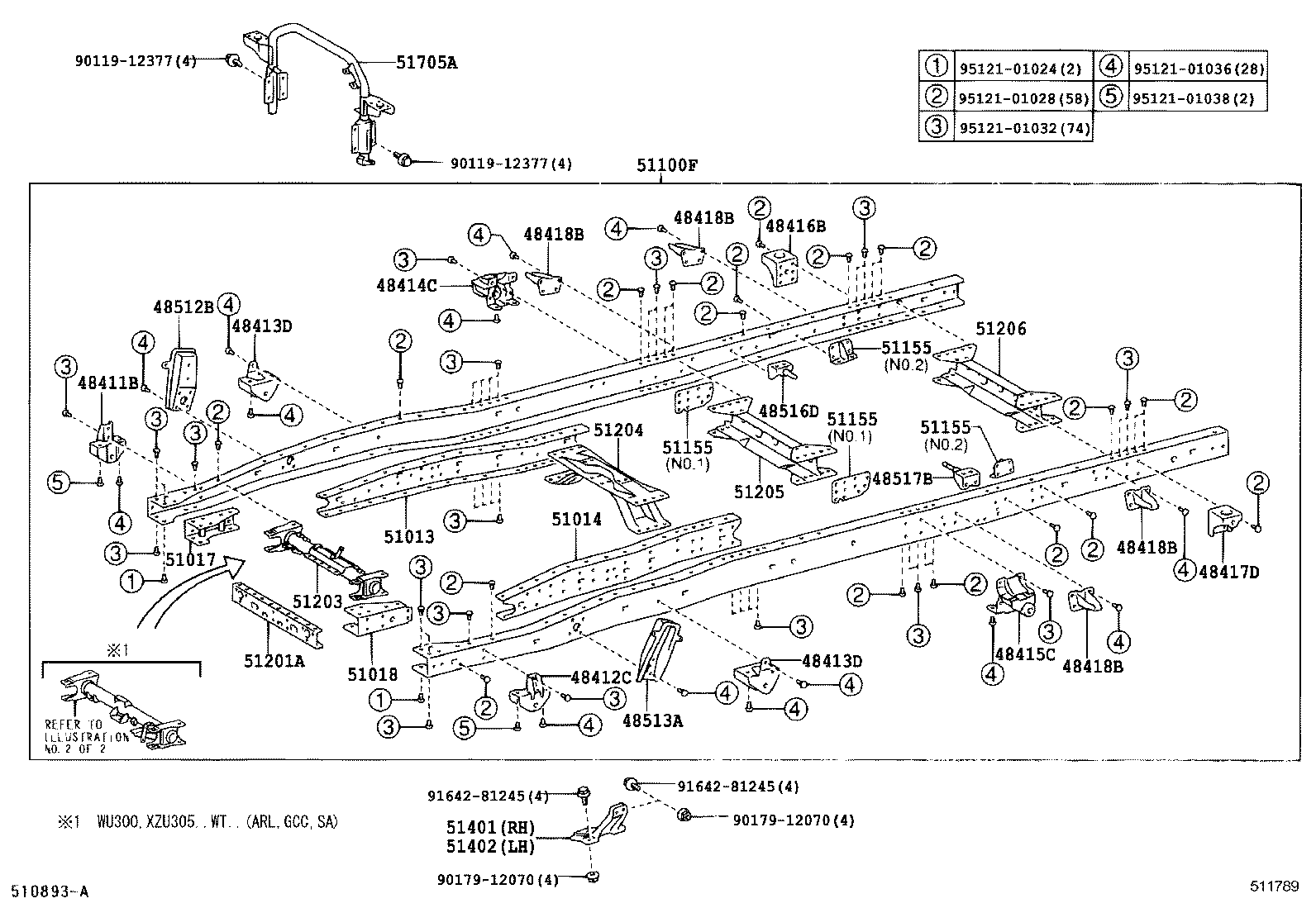

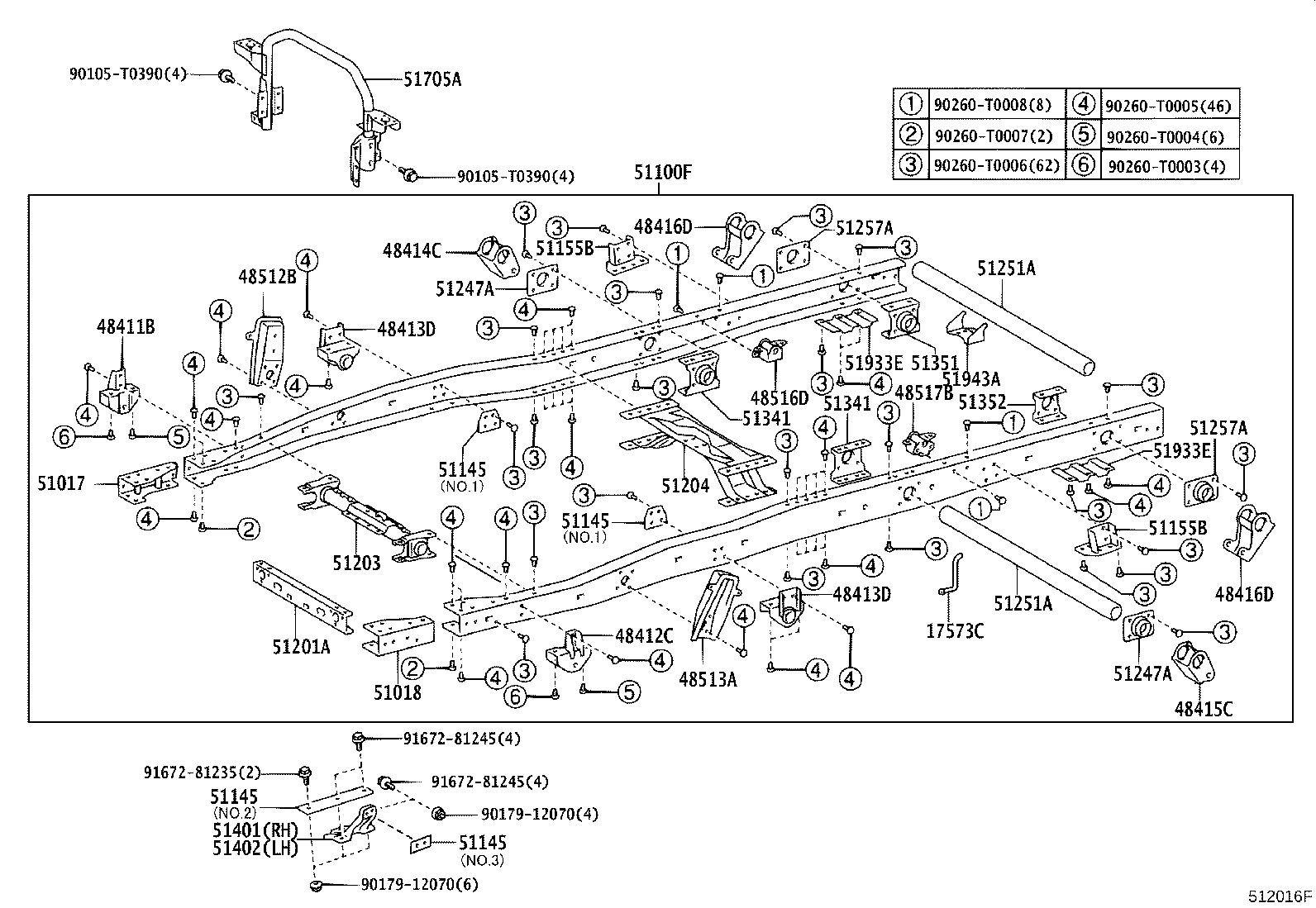

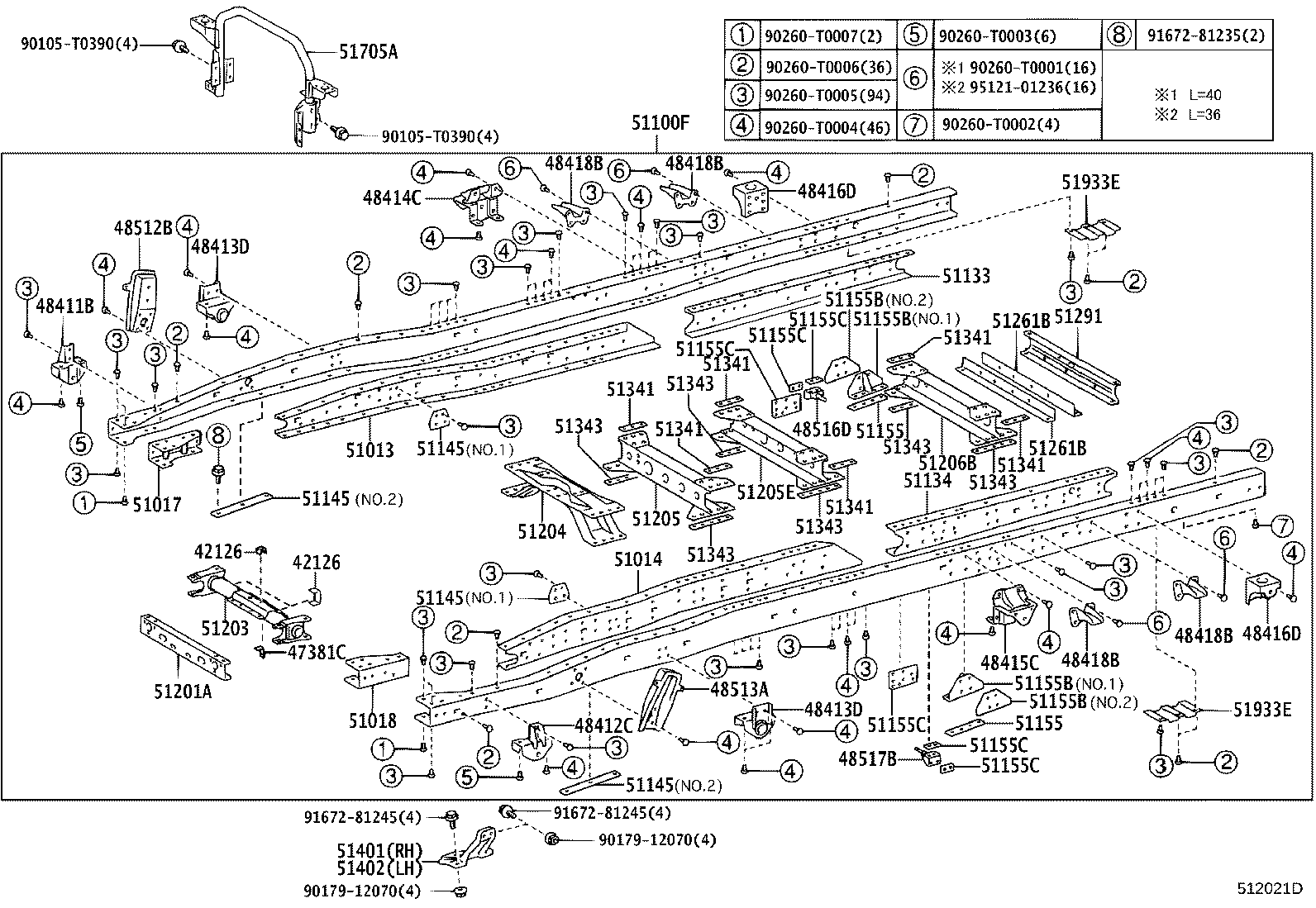

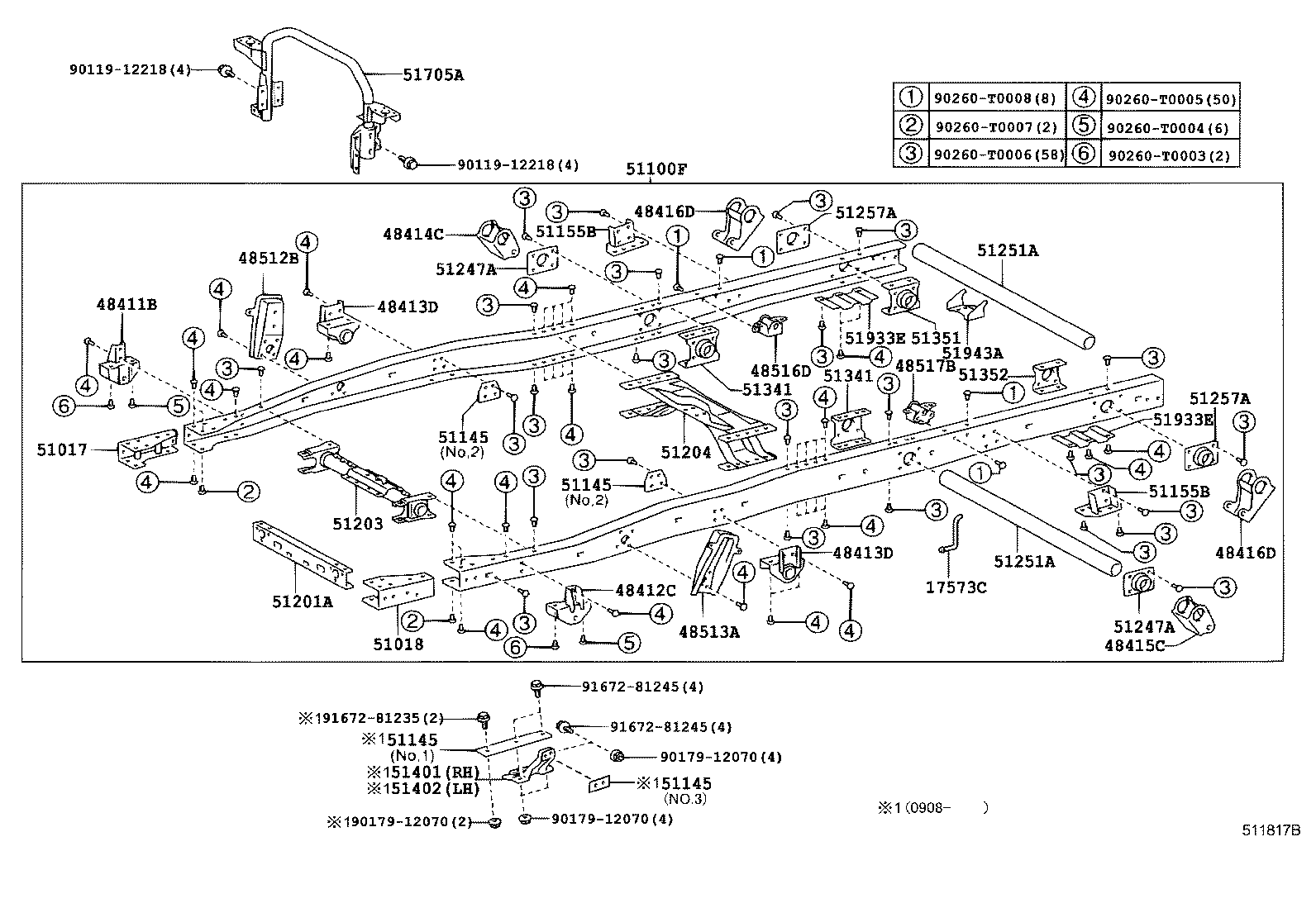

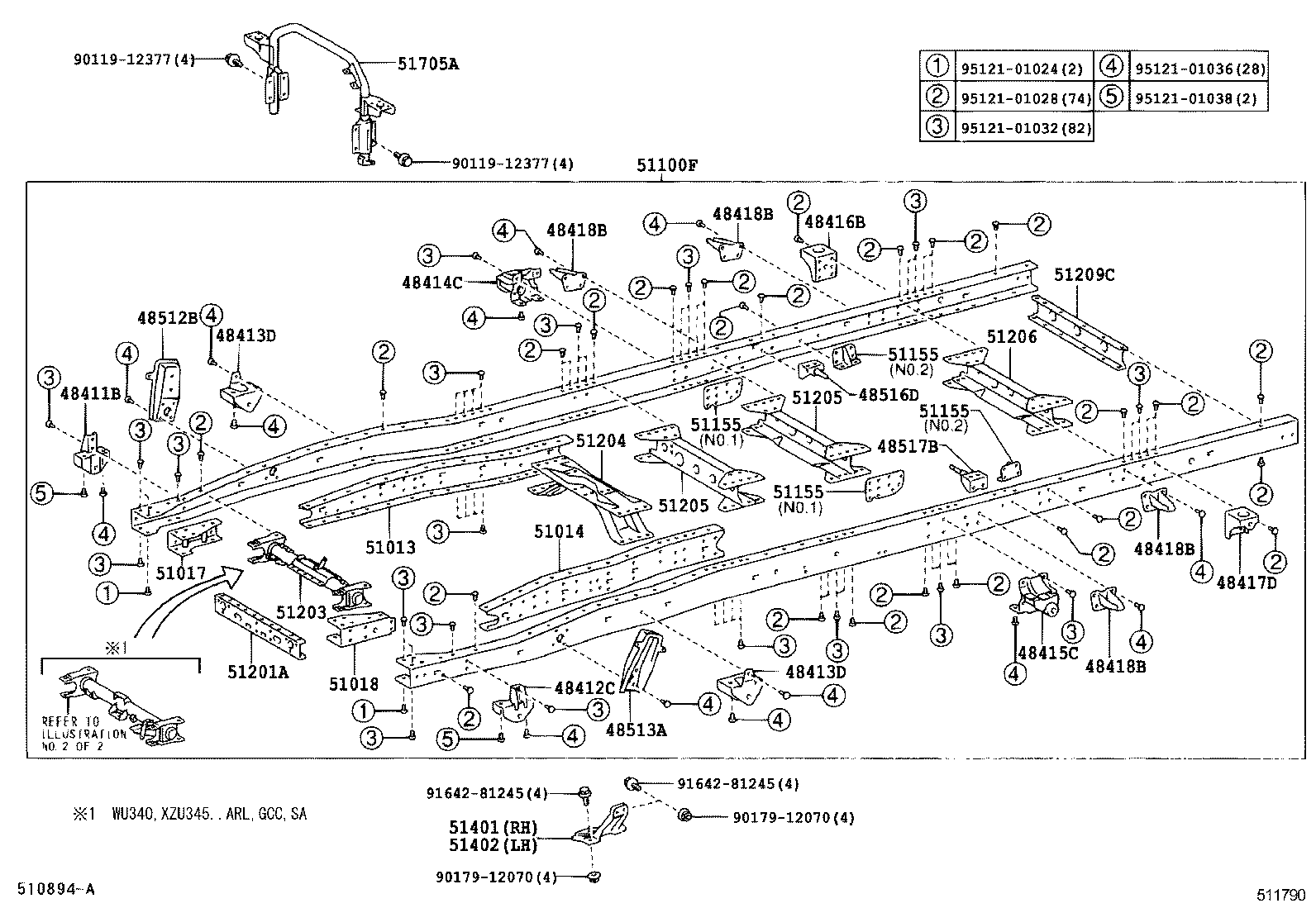

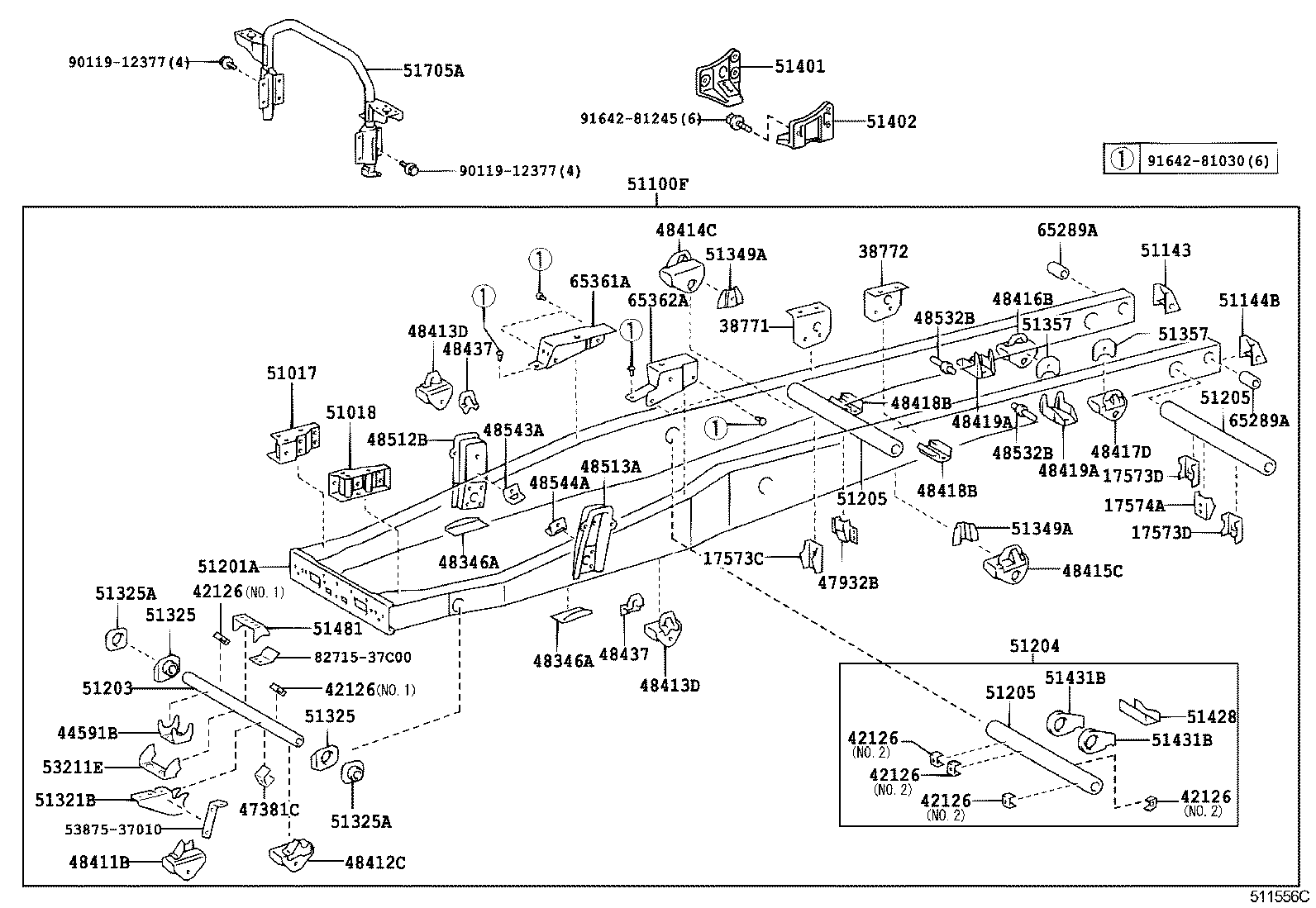

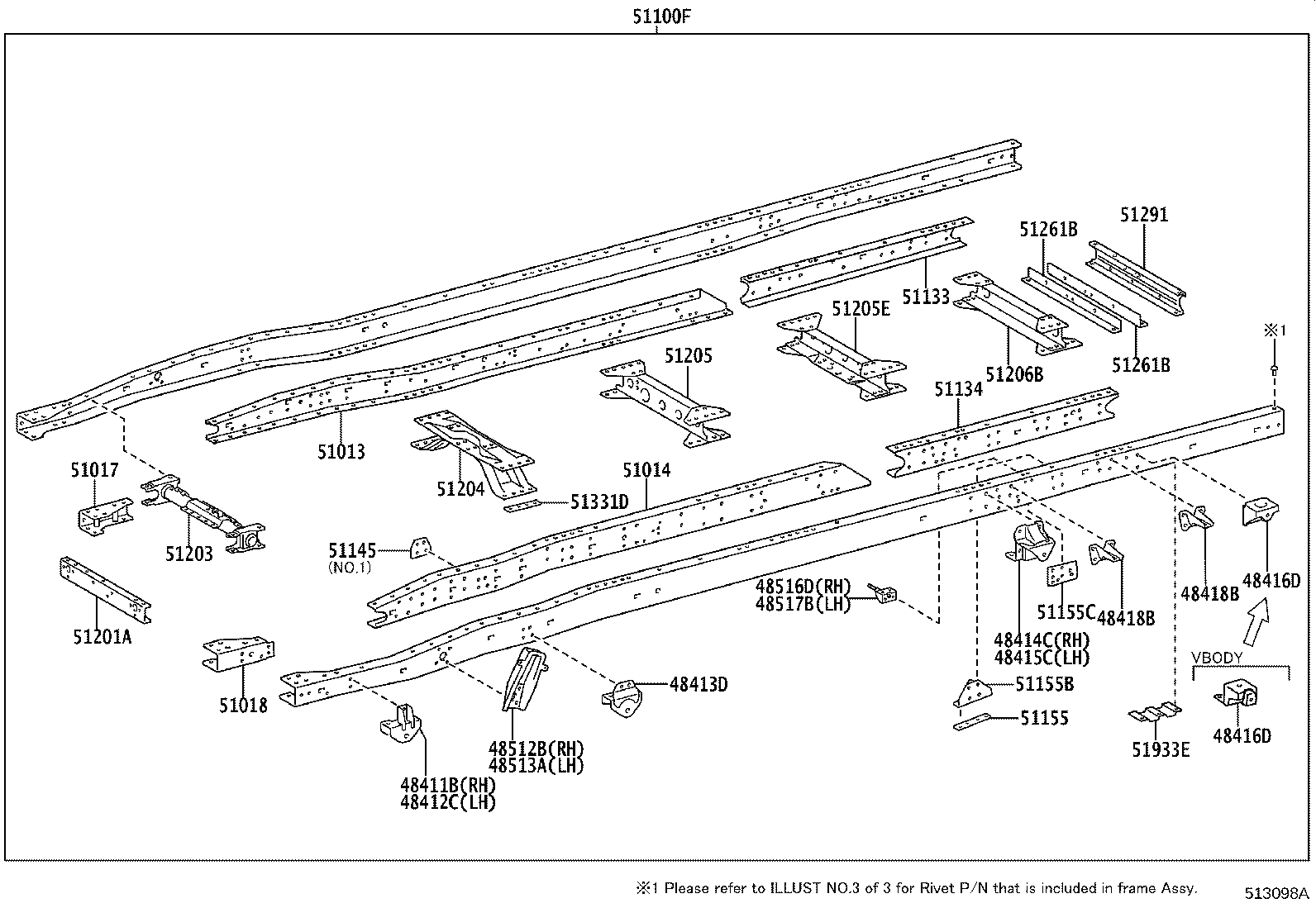

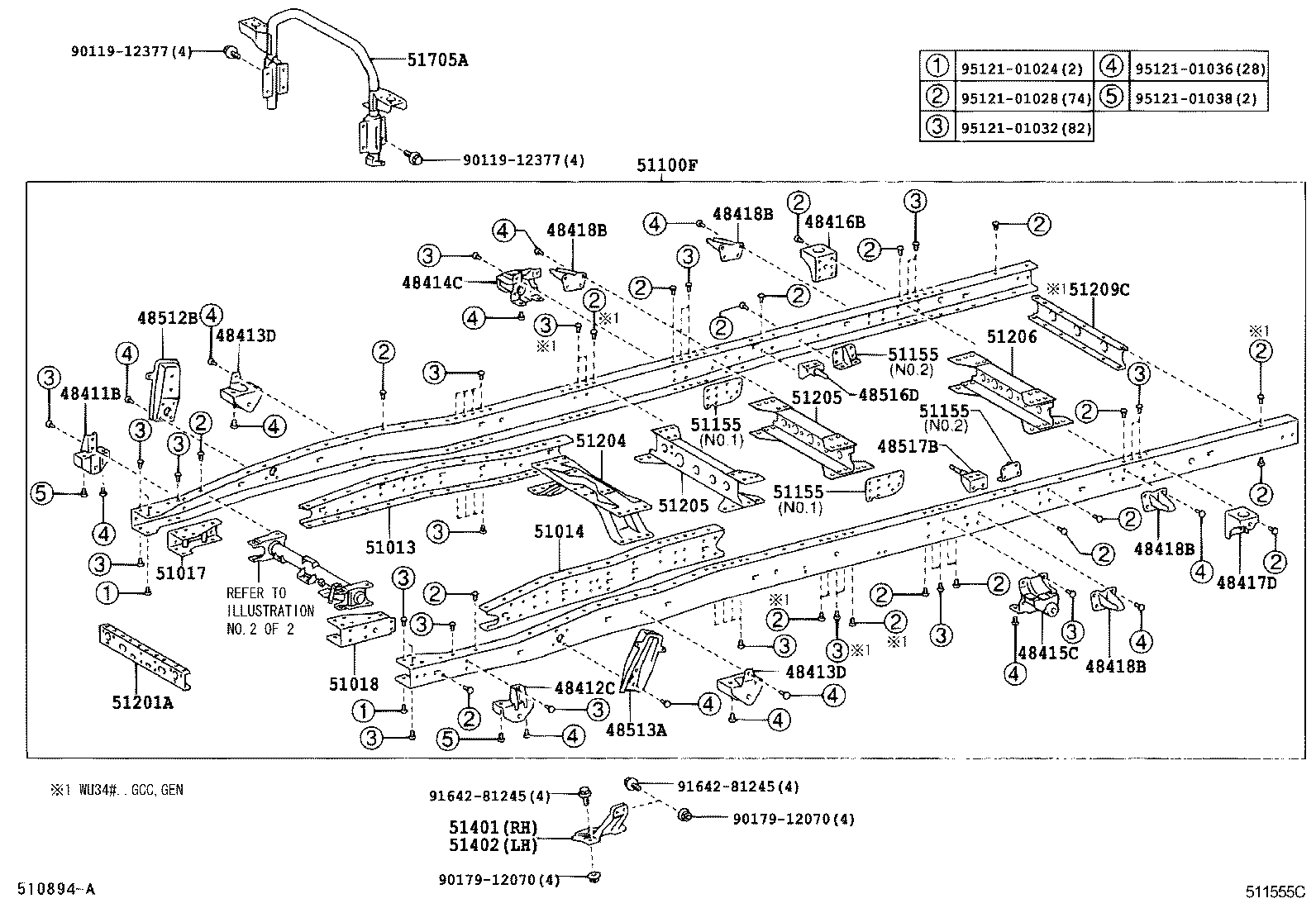

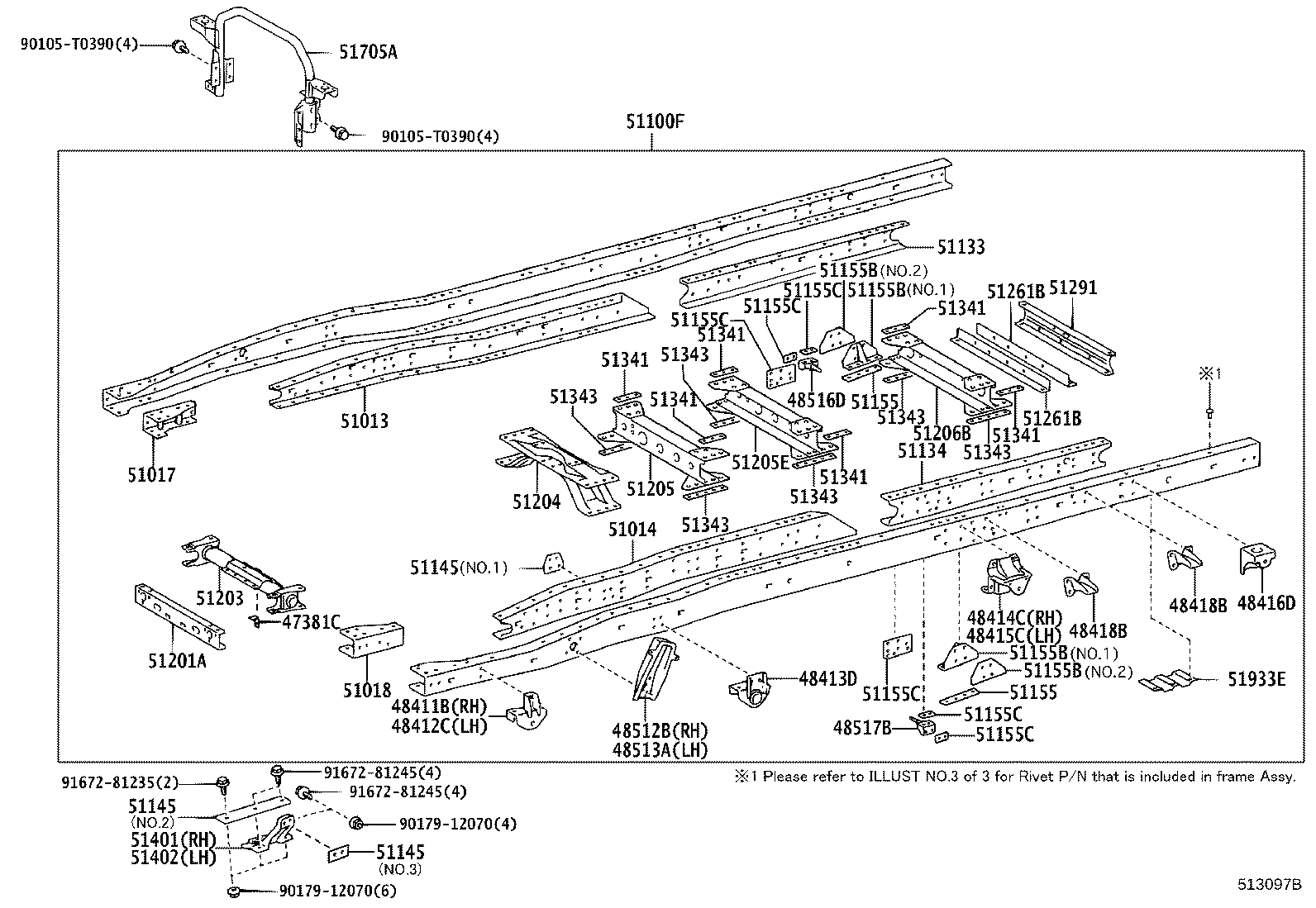

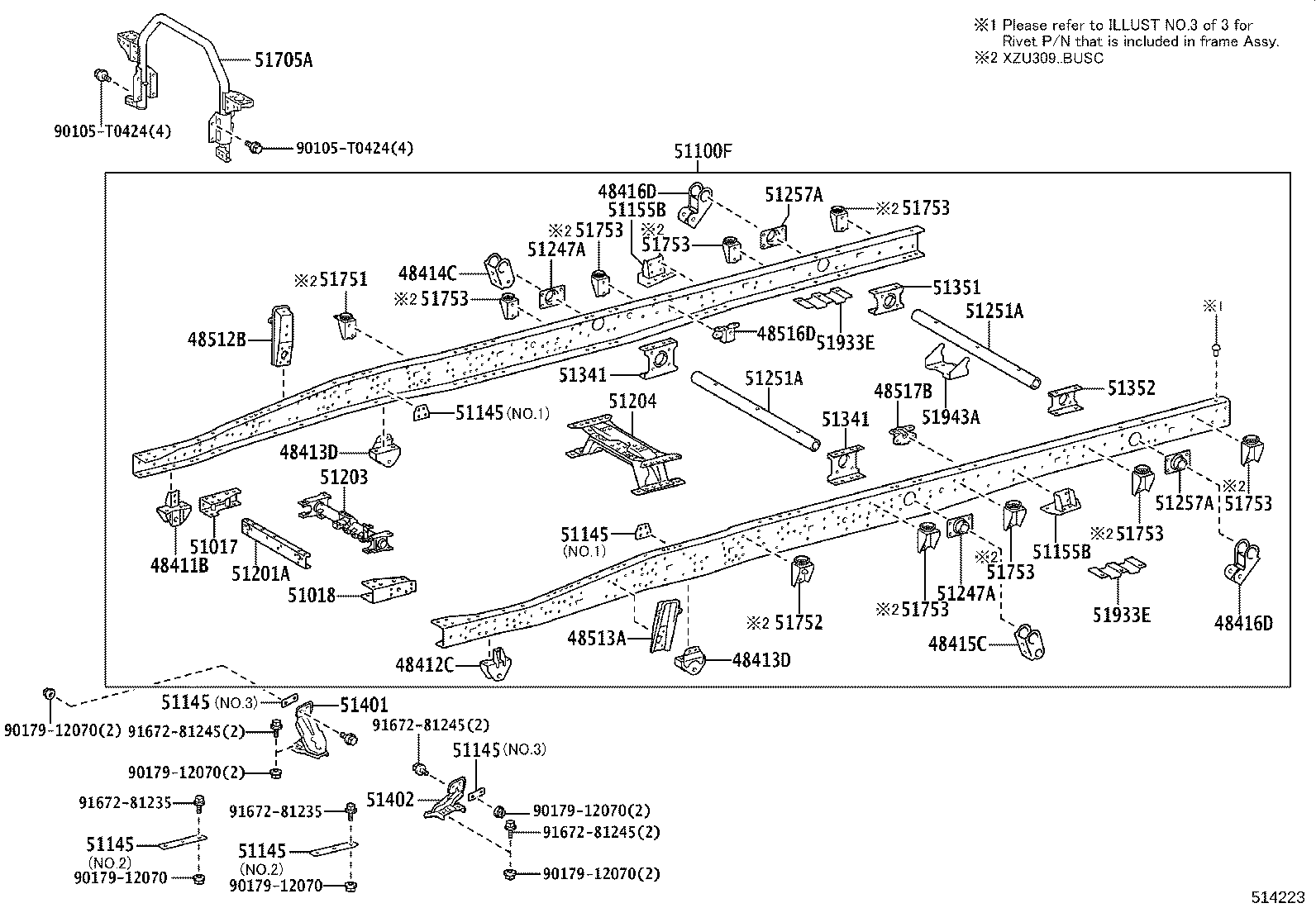

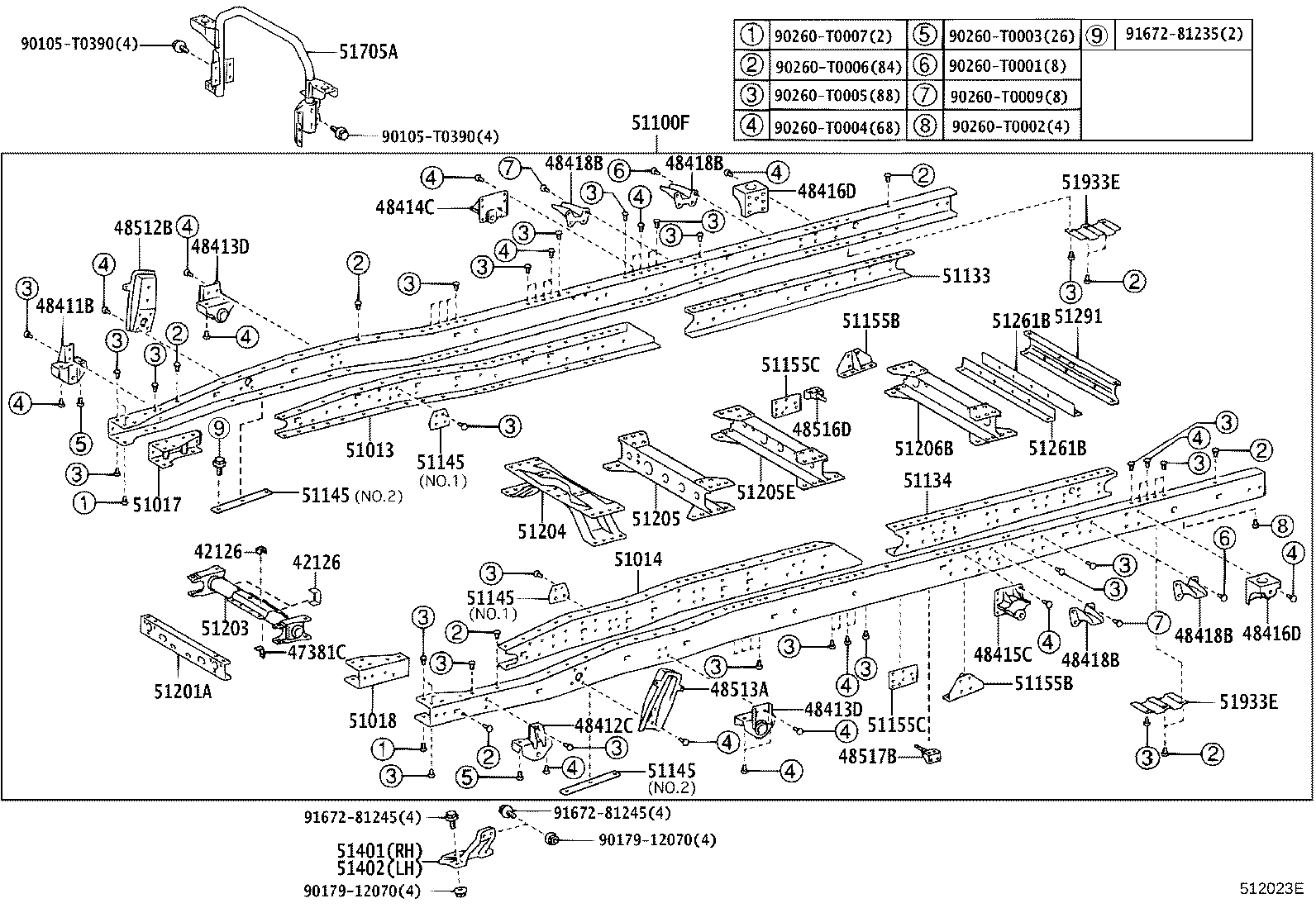

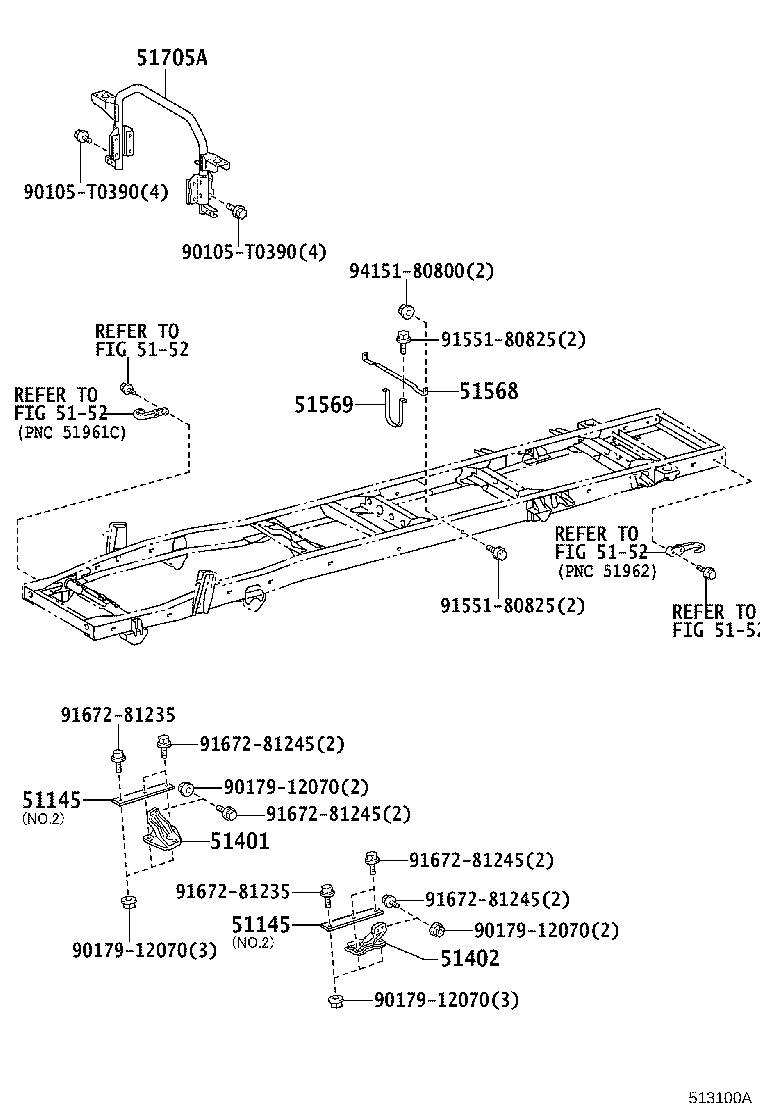

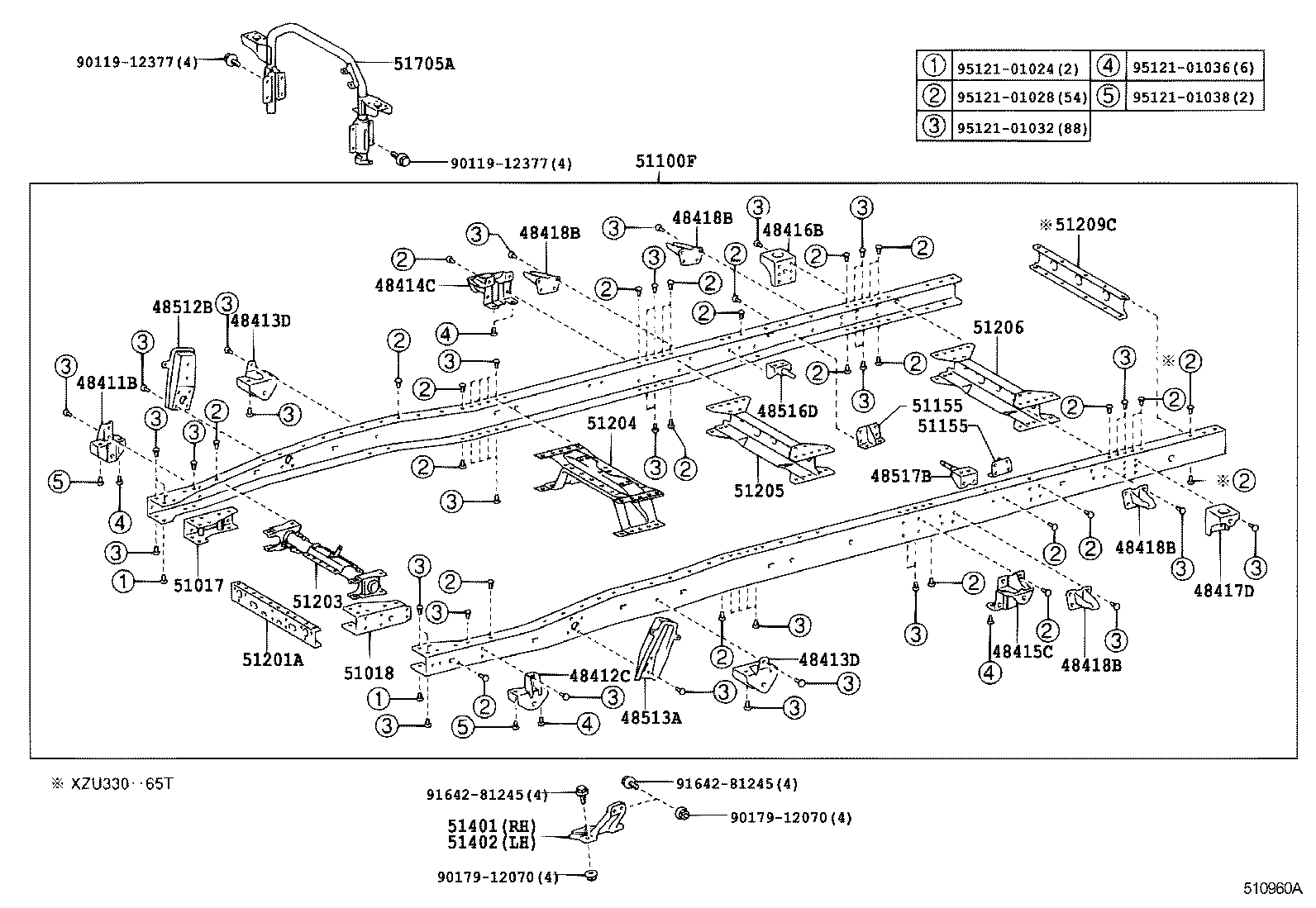

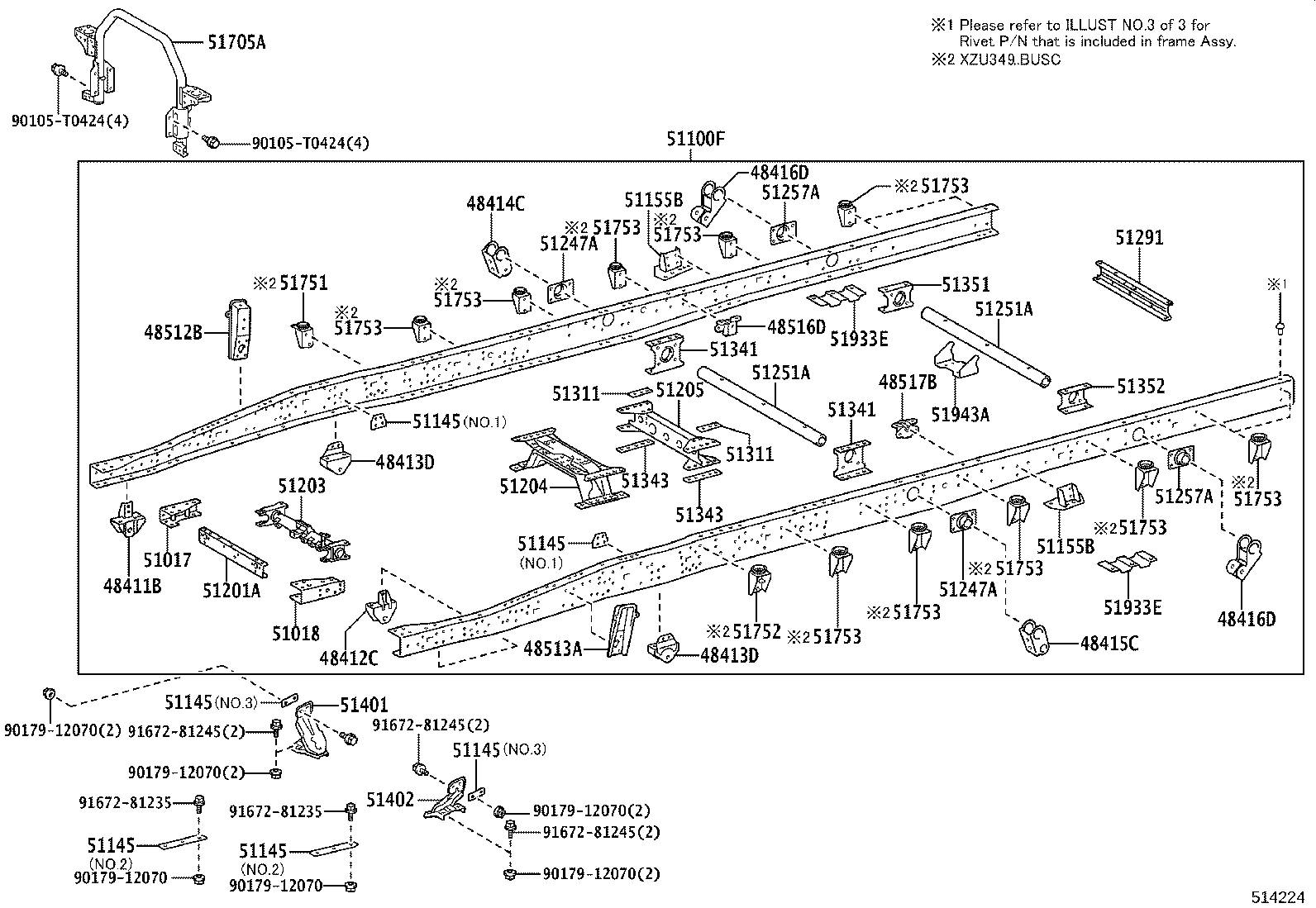

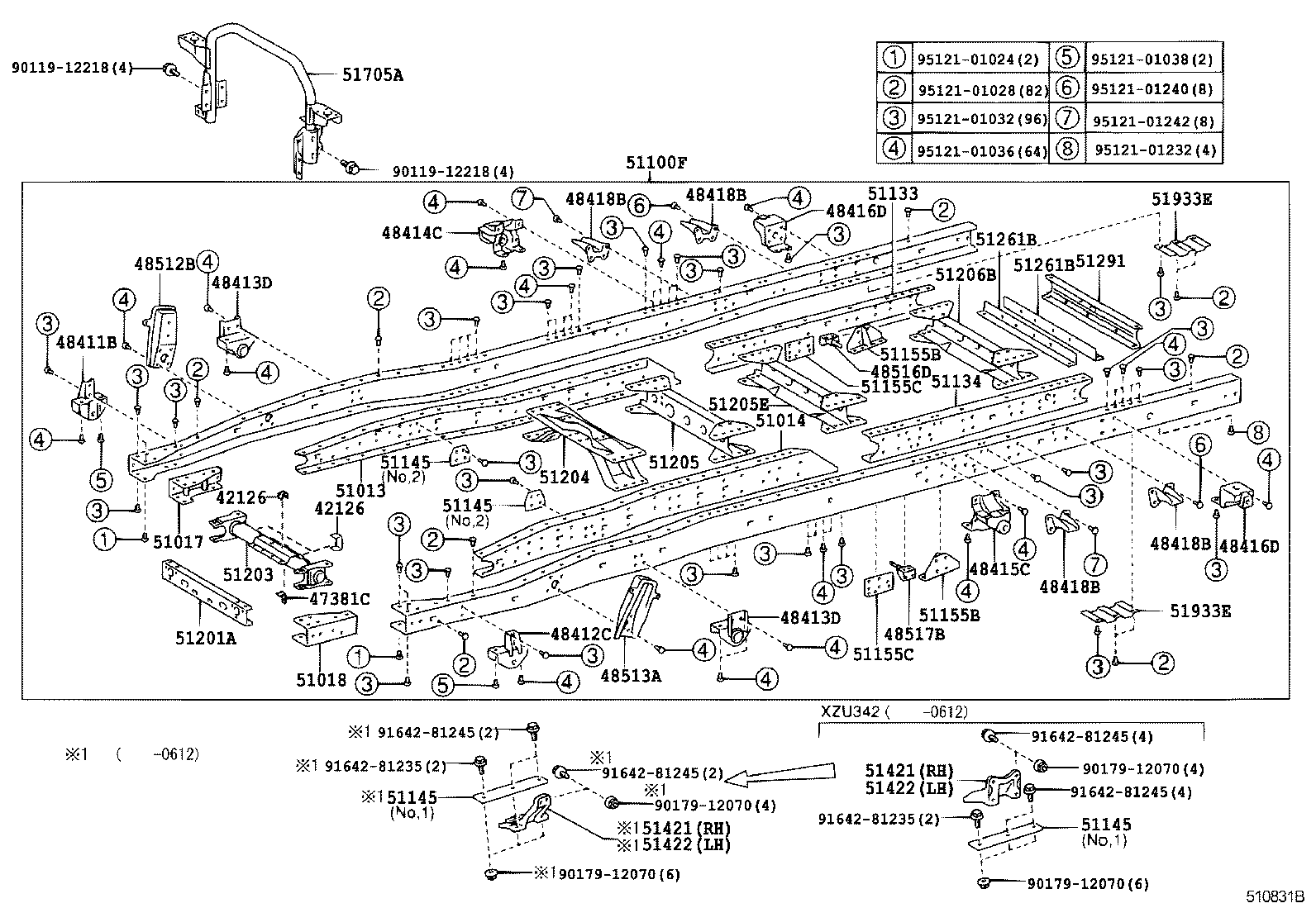

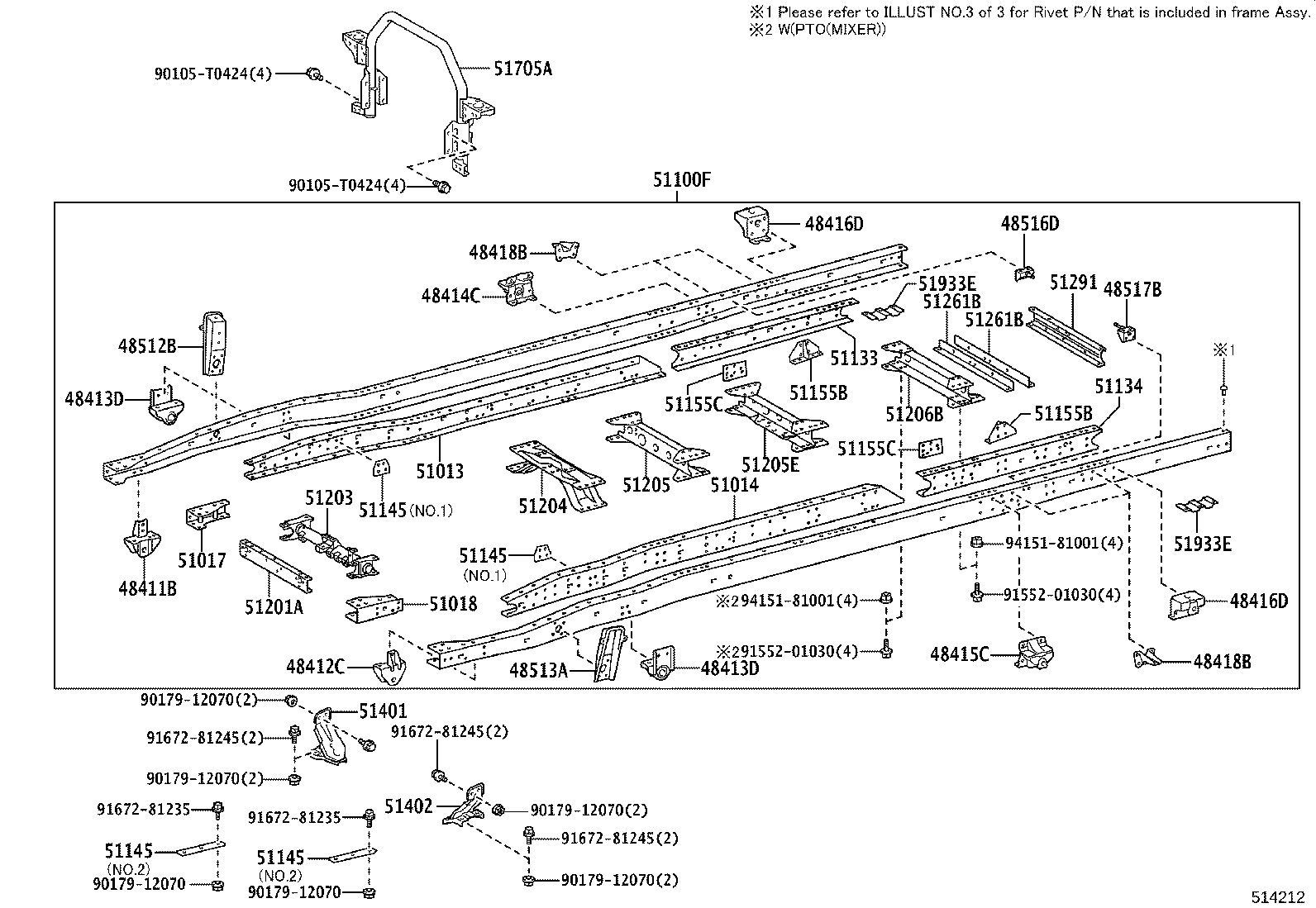

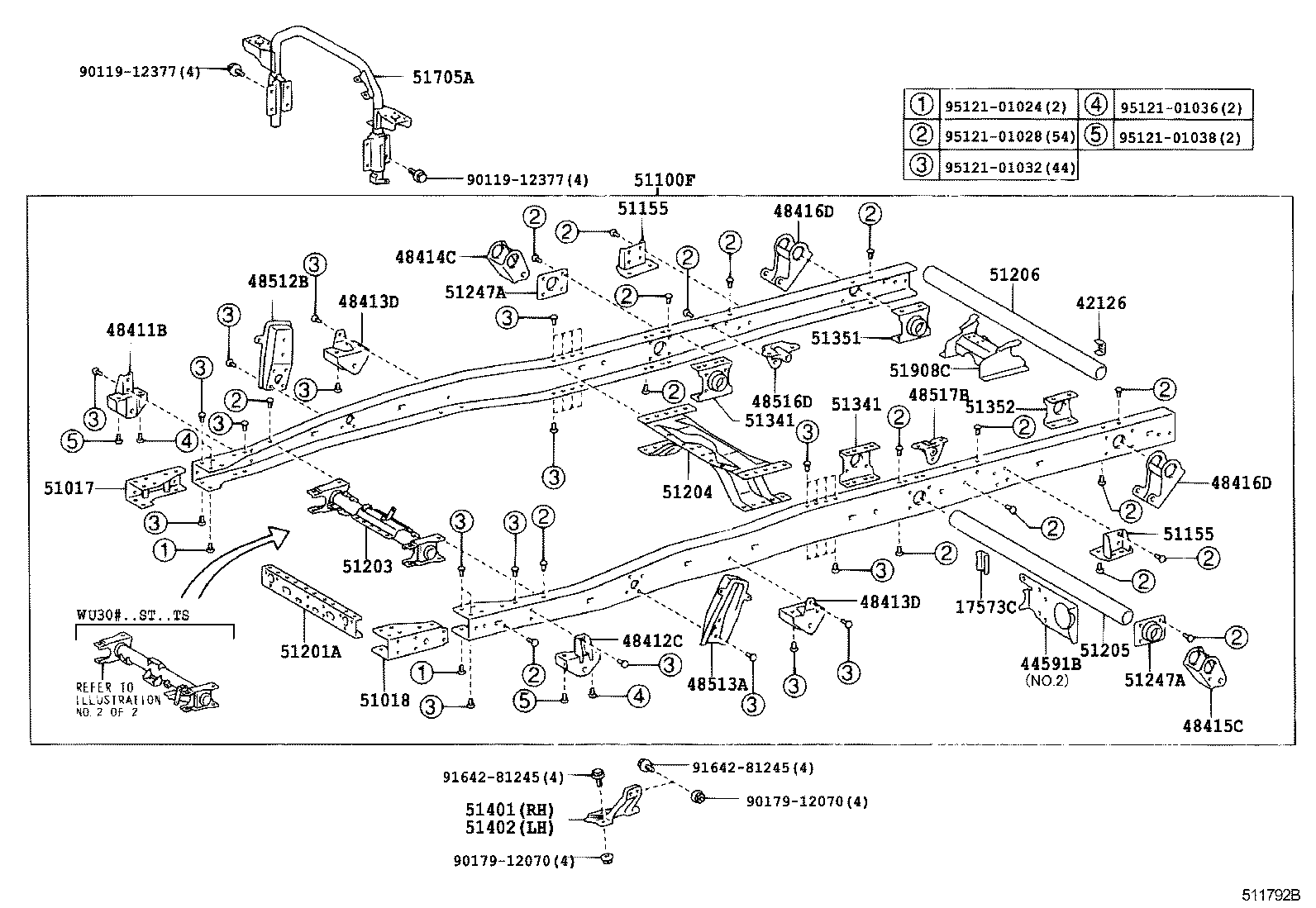

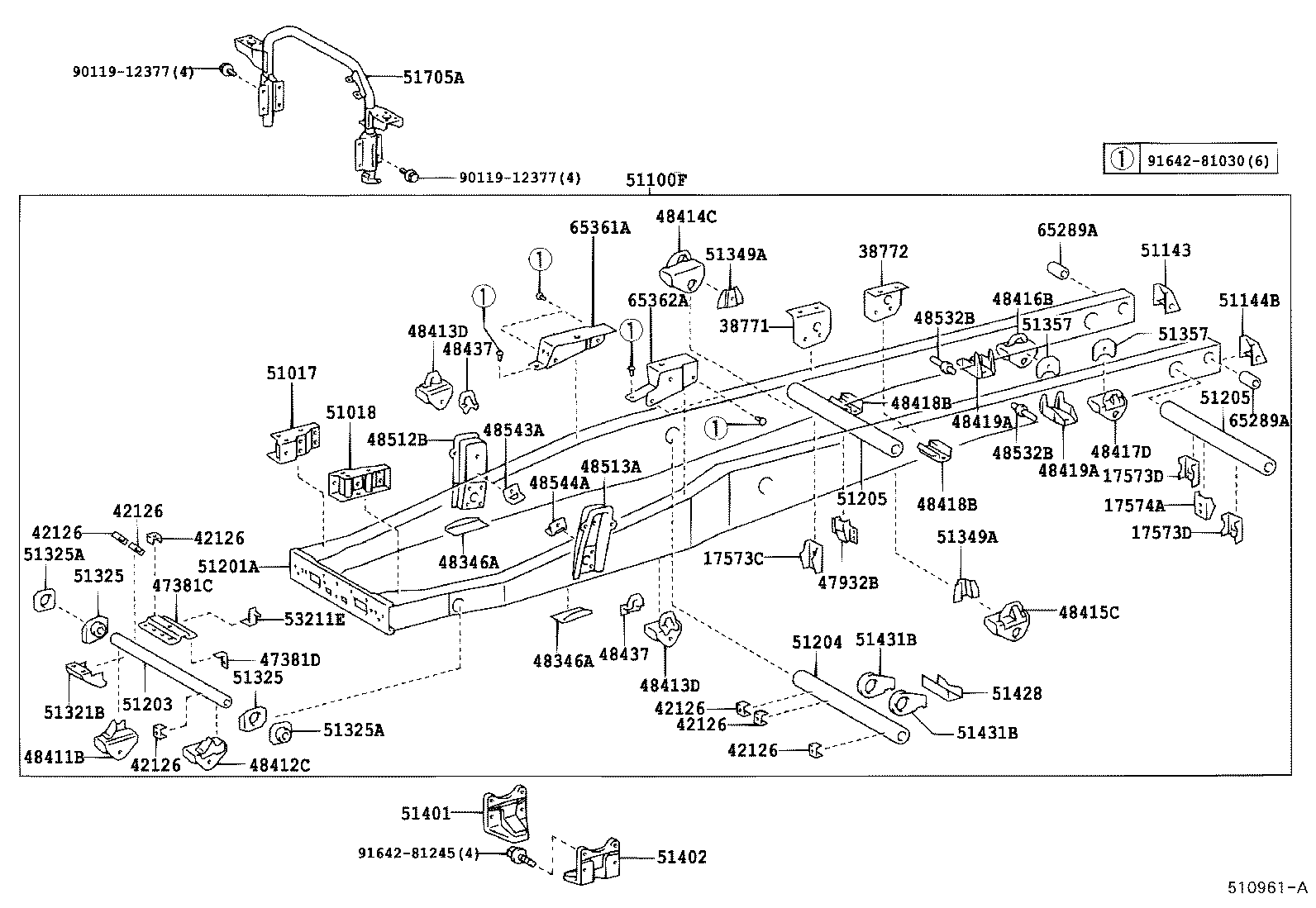

Figure 510830B 510830B 2002-09 → 2007-12 Figure 510831B 510831B 2002-09 → 2007-12 Figure 511818B 511818B 2007-12 → — Figure 511817B 511817B 2007-12 → — Figure 511792B 511792B 2002-12 → — Figure 510959B 510959B 2002-12 → — Figure 510960A 510960A 2002-12 → 2006-10 Figure 510961A 510961A 2002-12 → 2006-10 Figure 511789 511789 2002-12 → 2006-10 Figure 511789 511789 2003-04 → — Figure 511790 511790 2002-12 → 2006-10 Figure 511790 511790 2003-04 → — Figure 511555C 511555C 2006-10 → — Figure 511556C 511556C 2006-10 → — Figure 511557E 511557E 2006-10 → — Figure 512016F 512016F 2009-12 → — Figure 512021D 512021D 2009-12 → — Figure 512023E 512023E 2009-12 → — Figure 512024E 512024E 2009-12 → — Figure 511791B 511791B 2003-12 → — Figure 511323 511323 2004-12 → — Figure 511324A 511324A 2004-12 → — Figure 513093A 513093A 2017-07 → — Figure 513096A 513096A 2017-07 → — Figure 513097A 513097A 2017-07 → — Figure 513098A 513098A 2017-07 → — Figure 514223 514223 2022-03 → — Figure 514224 514224 2022-03 → — Figure 514212 514212 2022-03 → — Figure 514213 514213 2022-03 → — Figure 514225 514225 2022-03 → — Figure 514215 514215 2022-03 → — Figure 513094 513094 2017-07 → — Figure 513099 513099 2017-07 → — Figure 513100A 513100A 2017-07 → — Figure 514216 514216 2022-03 → — Figure 514217 514217 2022-03 → — Figure 514218 514218 2022-03 → — Figure 514219 514219 2022-03 → — Figure 513095 513095 2017-07 → — Figure 513095 513095 2022-03 → —

Part groups

PNCDescription
17573C Bracket, Exhaust Pipe Support, NO.3
17573D Bracket, Exhaust Pipe Support, NO.3
17574A Bracket, Exhaust Pipe Support, NO.4
38771 Stay, Trunnion Bracket, RH
38772 Stay, Trunnion Bracket, LH
42126 Attachment, Brake 3 Way
44591B Bracket, Brake Actuator
47381C Bracket, Tube Clamp
47381D Bracket, Tube Clamp
47932B Bracket, Load Sensing Valve, NO.2
48346A Stopper, Bumper, FR
48411B Bracket, Spring, NO.1 RH
48412C Bracket, Spring, NO.1 LH
48413D Bracket, Spring, NO.2
48414C Bracket, Spring, NO.3 RH
48415C Bracket, Spring, NO.3 LH
48416B Bracket, Spring, NO.4 RH
48416D Bracket, Spring, NO.4
48417D Bracket, Spring, NO.4 LH
48418B Bracket, Spring, NO.6
48419A Bracket, Spring, NO.7
48437 Attachment, Spring Bracket
48512B Bracket, Front Shock Absorber, Upper RH
48513A Bracket, Front Shock Absorber, Upper LH
48516D Bracket Sub-assy, Rear Shock Absorber, Upper RH
48517B Bracket Sub-assy, Rear Shock Absorber, Upr LH
48532B Pin, Rear Shock Absorber Upper Pivot
48543A Reinforcement, Front Absorber Bracket, RH
48544A Reinforcement, Front Absorber Bracket, LH
51013 Channel Sub-assy, Side Rail, Inner Front RH
51014 Channel Sub-assy, Side Rail, Inner Front LH
51017 Reinforcement Sub-assy, Side Rail, NO.1 RH
51018 Reinforcement Sub-assy, Side Rail, NO.1 LH
51100F Frame Sub-assy
51133 Channel, Side Rail, Inner Rear RH
51134 Channel, Side Rail, Inner Rear LH
51143 Reinforcement, Side Rail, Rear RH
51144B Reinforcement, Side Rail, Rear LH
51145 Stiffener, Frame Side Rail
51155 Stiffener, Frame Side Rail, Rear RH
51155B Stiffener, Frame Side Rail, Rear NO.2
51155C Stiffener, Frame Side Rail, Rear NO.3
51201A Crossmember Sub-assy, Frame, Front
51203 Crossmember Sub-assy, Frame, NO.2
51204 Crossmember Sub-assy, Frame, NO.3
51205 Crossmember Sub-assy, Frame, NO.4
51205E Crossmember Sub-assy, Frame, NO.4
51206 Crossmember Sub-assy, Frame, NO.5
51206B Crossmember Sub-assy, Frame, NO.6
51209C Crossmember Sub-assy, Frame, Rear
51247A Reinforcement, Frame NO.4 Crossmember
51251A Crossmember, Frame, NO.5
51257A Reinforcement, Frame NO.5 Crossmember
51261B Member, Spare Wheel Set
51291 Crossmember, Frame, Rear
51311 Gusset, Frame Front Crossmember
51321 Gusset, Crossmember, NO.2 RH
51321B Gusset, Crossmember, NO.2
51321C Bracket, Frame NO.2 Crossmember, RH
51322 Gusset, Crossmember, NO.2 LH
51325 Retainer, Frame NO.2 Crossmember
51325A Retainer, Frame NO.2 Crossmember
51325B Retainer, Frame NO.2 Crossmember, RH
51326 Retainer, Frame NO.2 Crossmember, LH
51331D Gusset, Frame NO.3 Crossmember
51341 Gusset, Frame NO.4 Crossmember, RH
51343 Gusset, Crossmember NO.4 Under
51349A Reinforcement, Rear Spring Front Bracket, NO.2
51351 Gusset, Crossmember, NO.5 RH
51352 Gusset, Crossmember, NO.5 LH
51357 Reinforcement, Rear Spring Rear Bracket, RH
51401 Bracket Sub-assy, Engine Front Mounting, RH
51402 Bracket Sub-assy, Engine Front Mounting, LH
51421 Bracket, Engine Front Mounting, RH
51422 Bracket, Engine Front Mounting, LH
51428 Reinforce, Engine Mounting, Rear
51431B Bracket, Engine Rear Mounting
51481 Bracket, Power Steering Tube Clamp

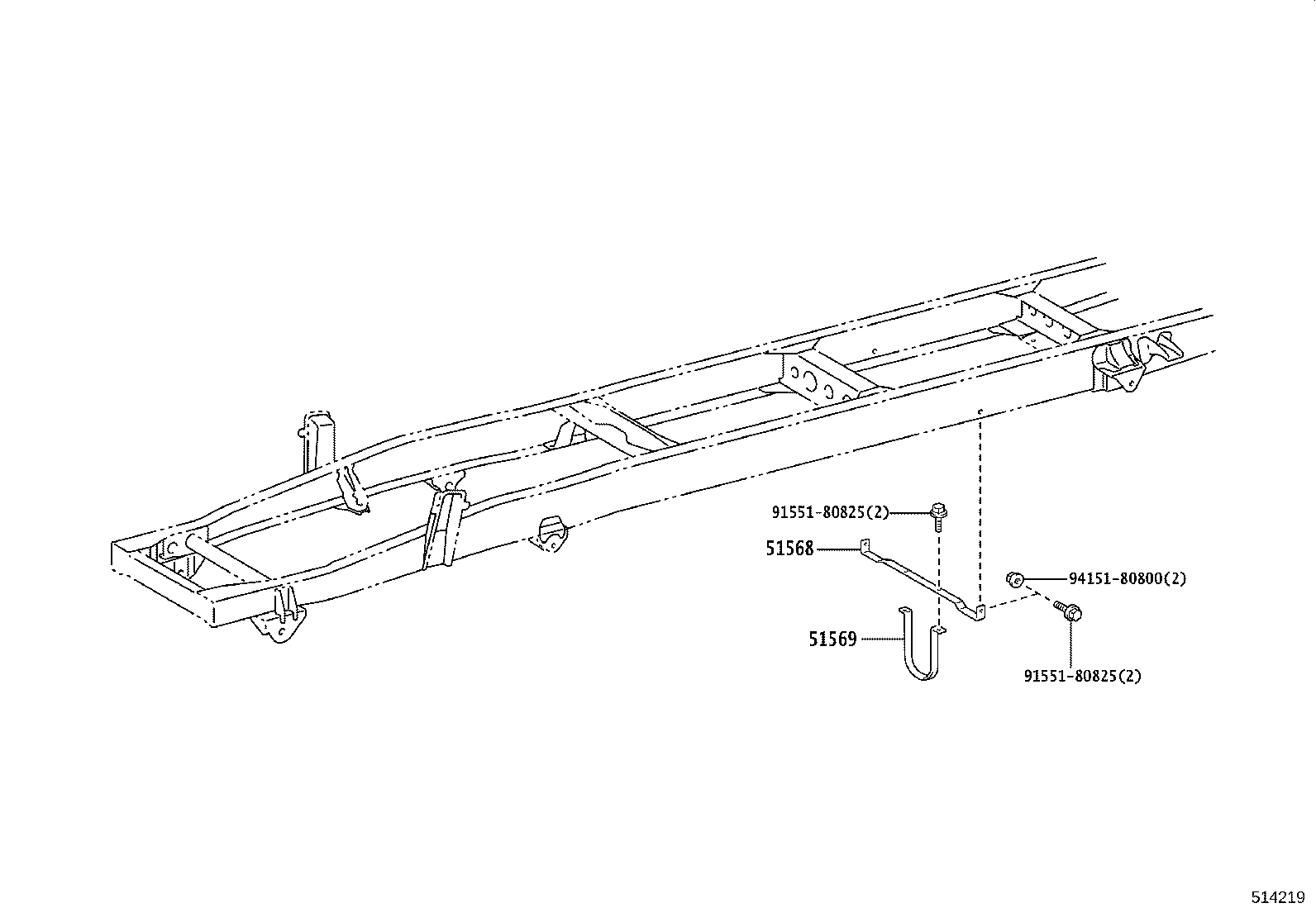

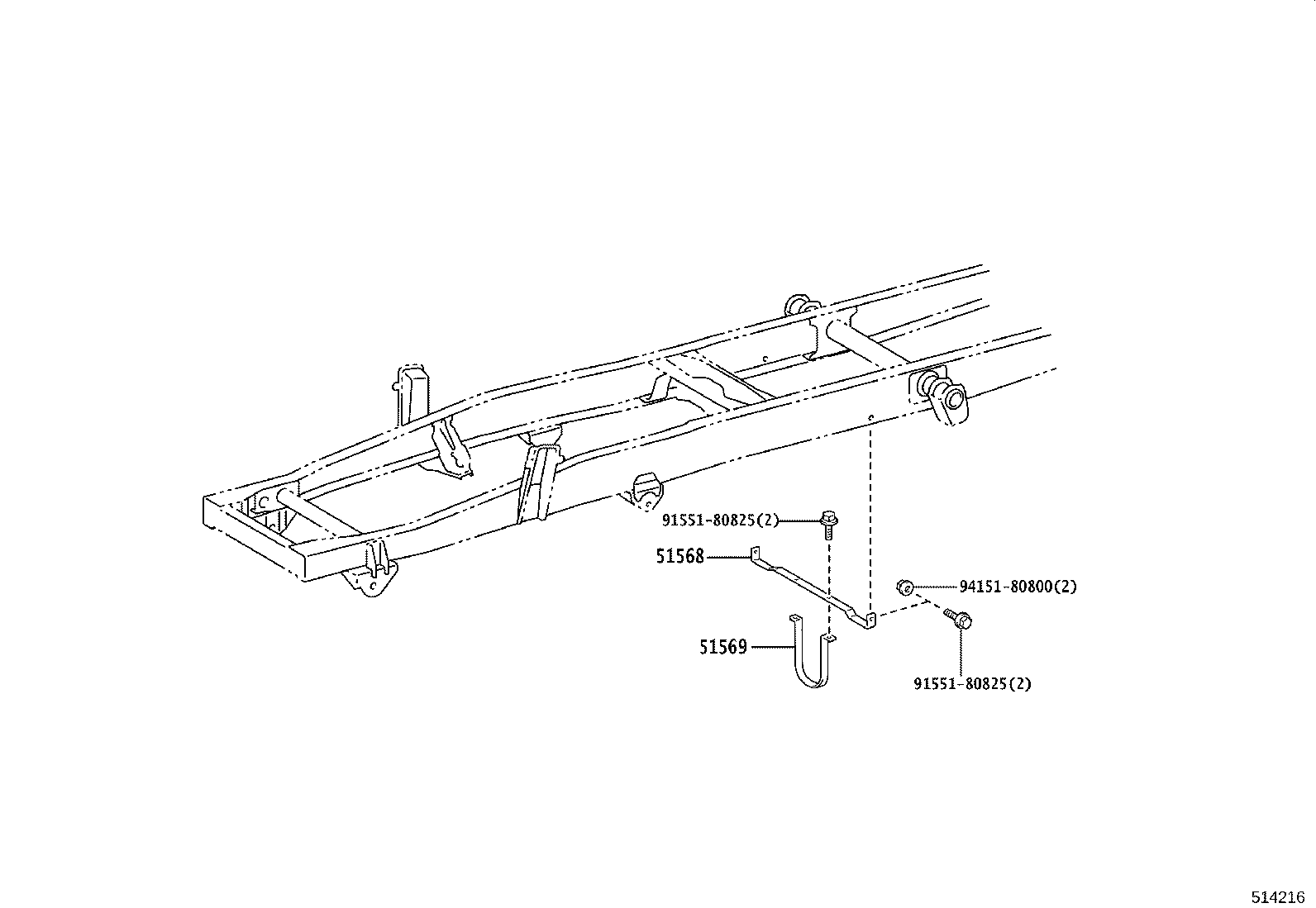

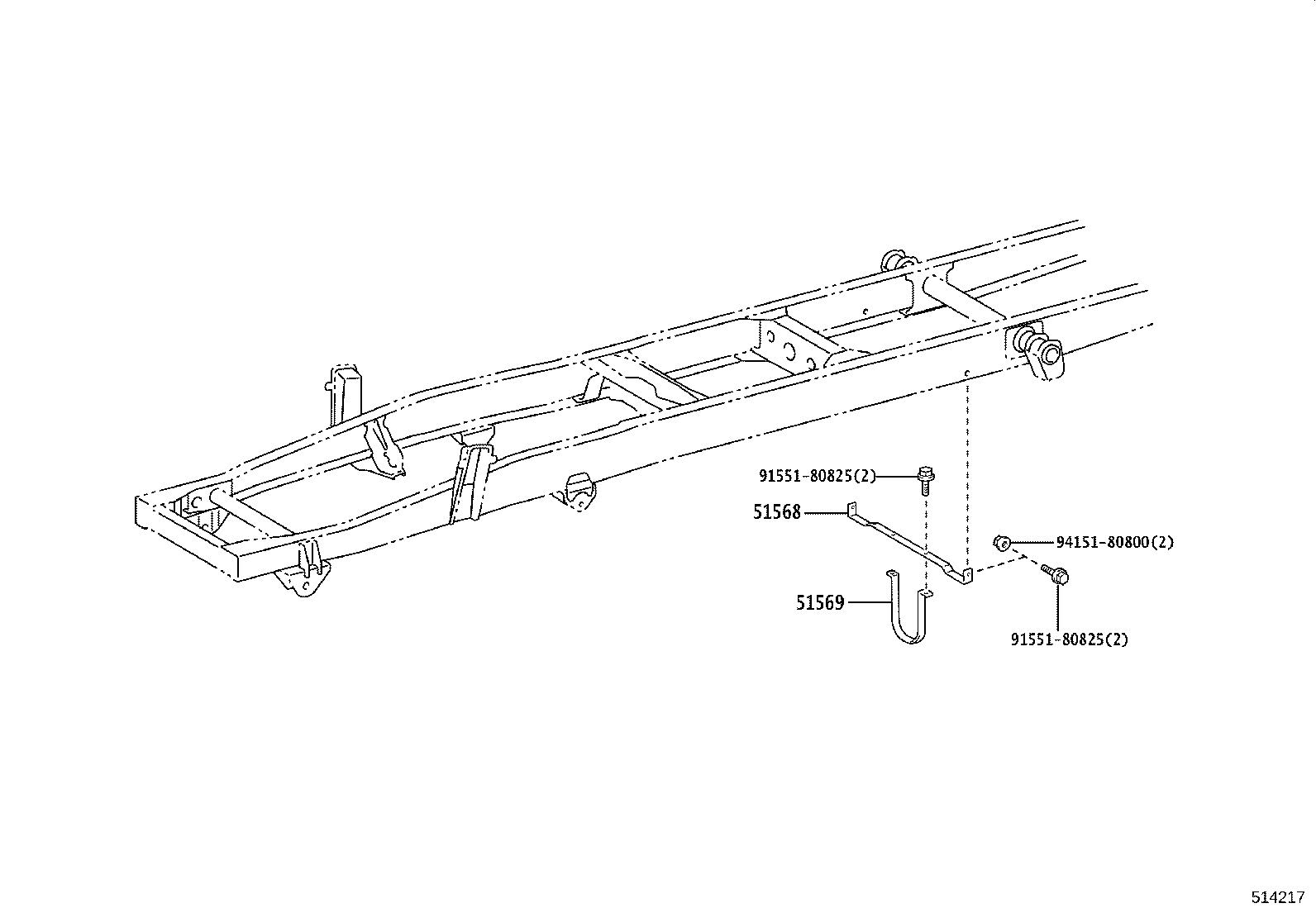

51568 Bracket, Propeller Shaft Guard
51569 Guard, Propeller Shaft
51705A Bracket Sub-assy, Cab Mounting, NO.3
51751 Bracket, Body Support, NO.1
51752 Bracket, Body Support, NO.1 LH
51753 Bracket, Body Support, NO.2
51908C Bracket Sub-assy, Spare Wheel Carrier
51933E Stopper, Spare Wheel, NO.1
51943A Bracket, Spare Wheel Carrier
53211E Support, Radiator
65289A Support, Vessel Hinge
65361A Stay, Vessel Lock, RH
65362A Stay, Vessel Lock, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
