Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 7 illustrations

Illustrations

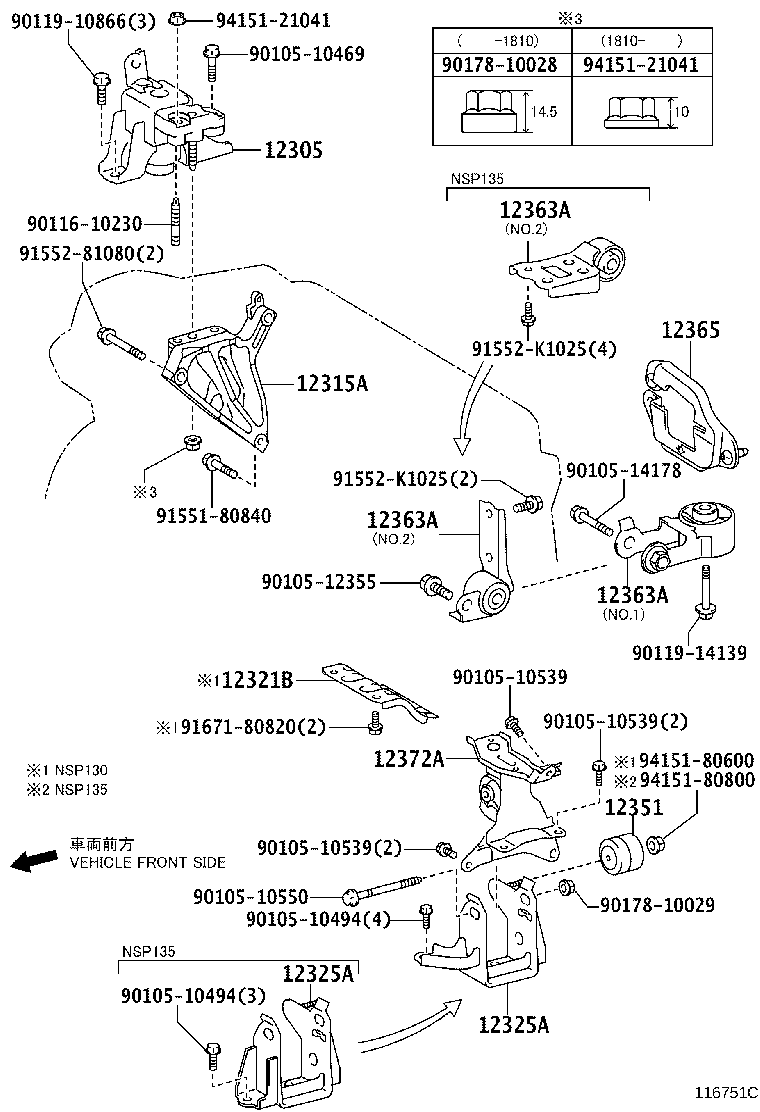

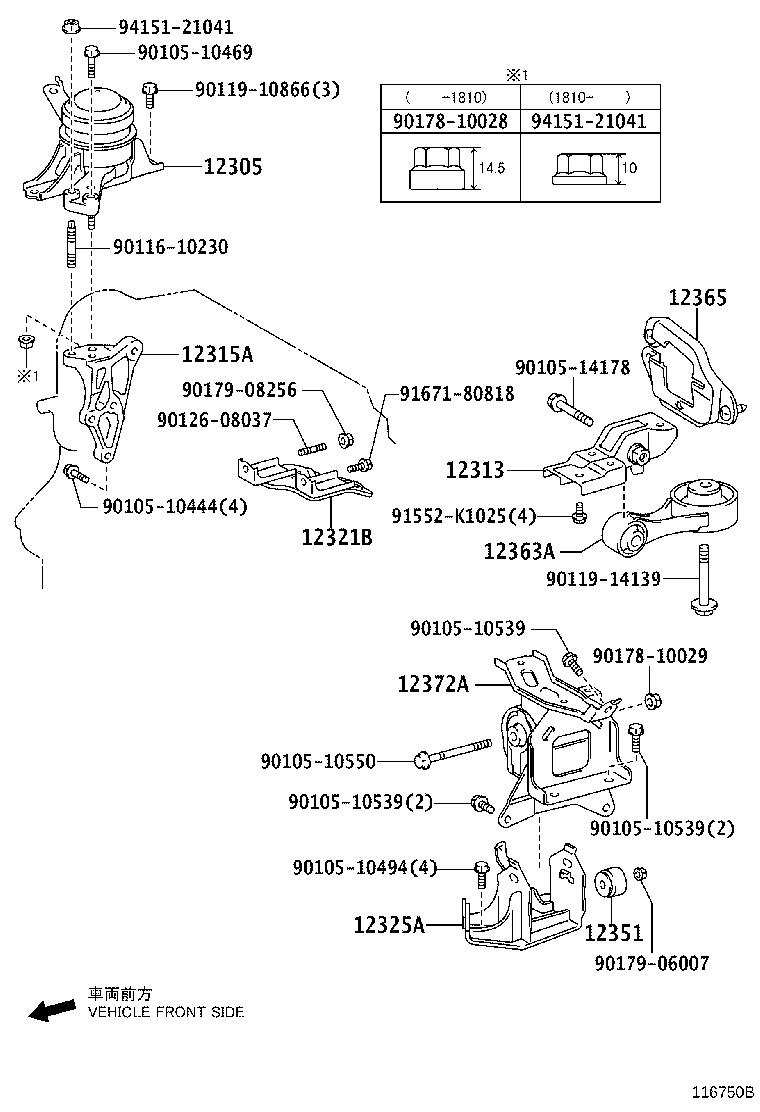

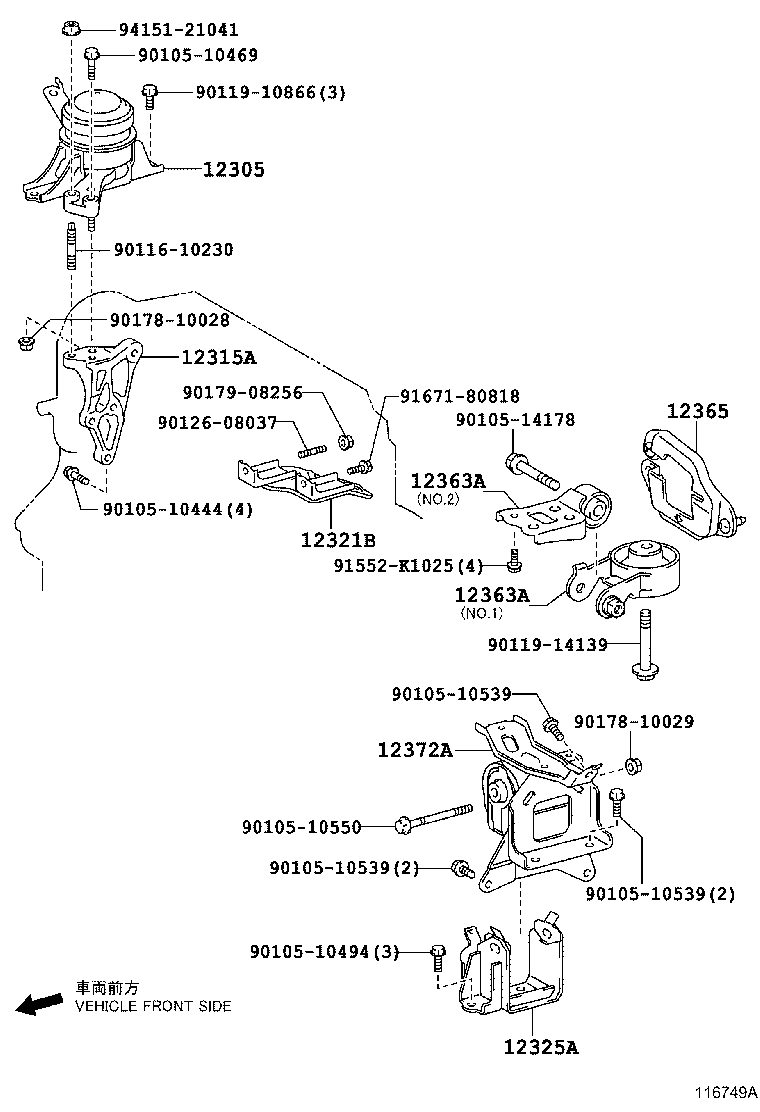

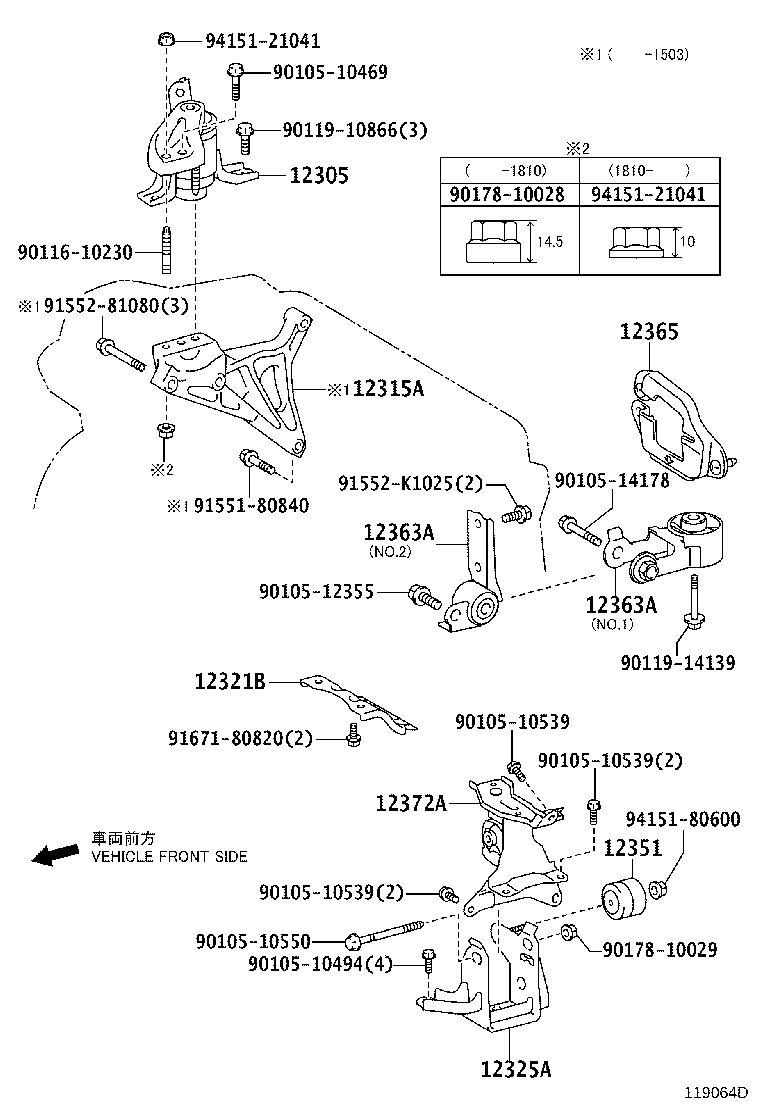

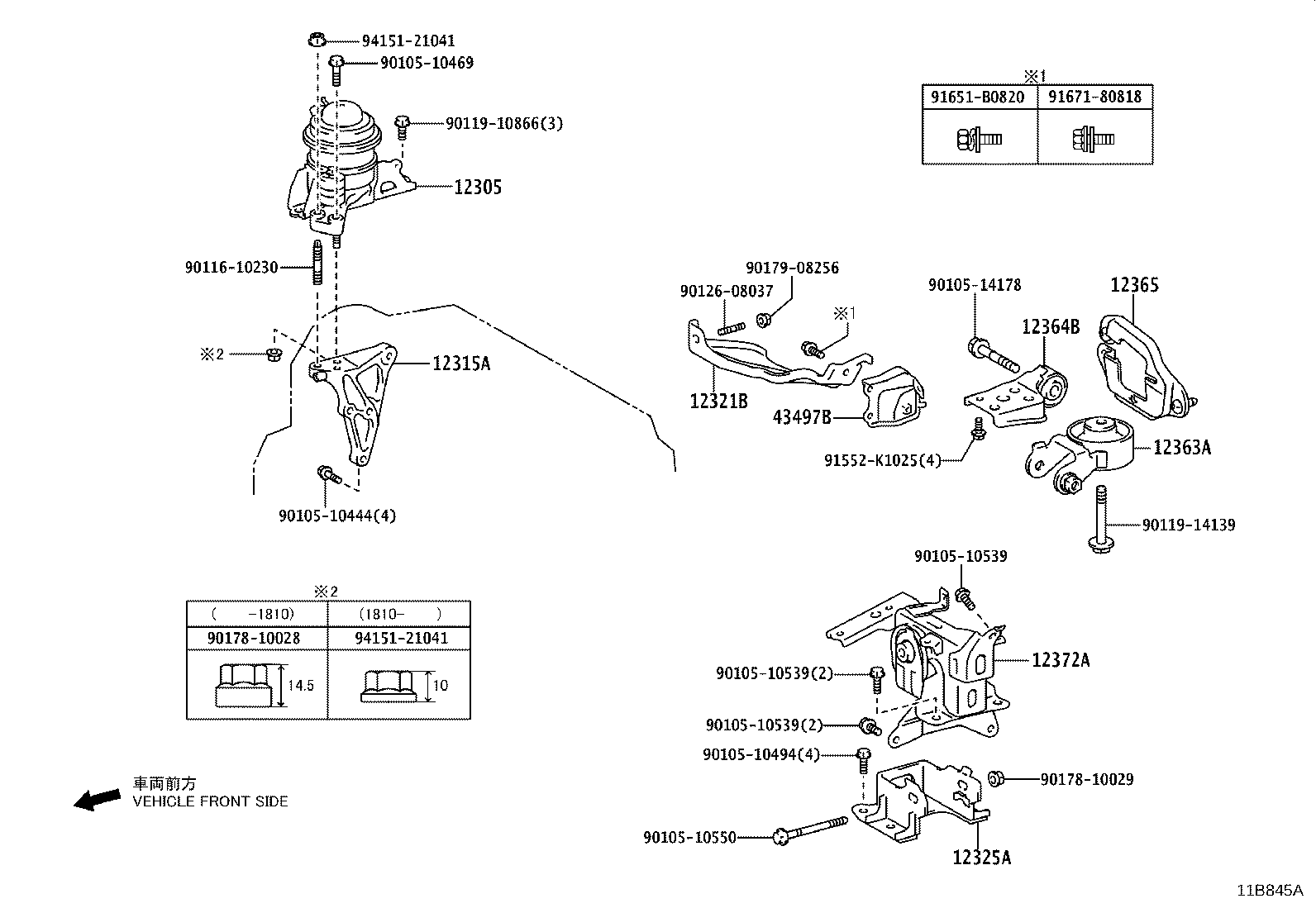

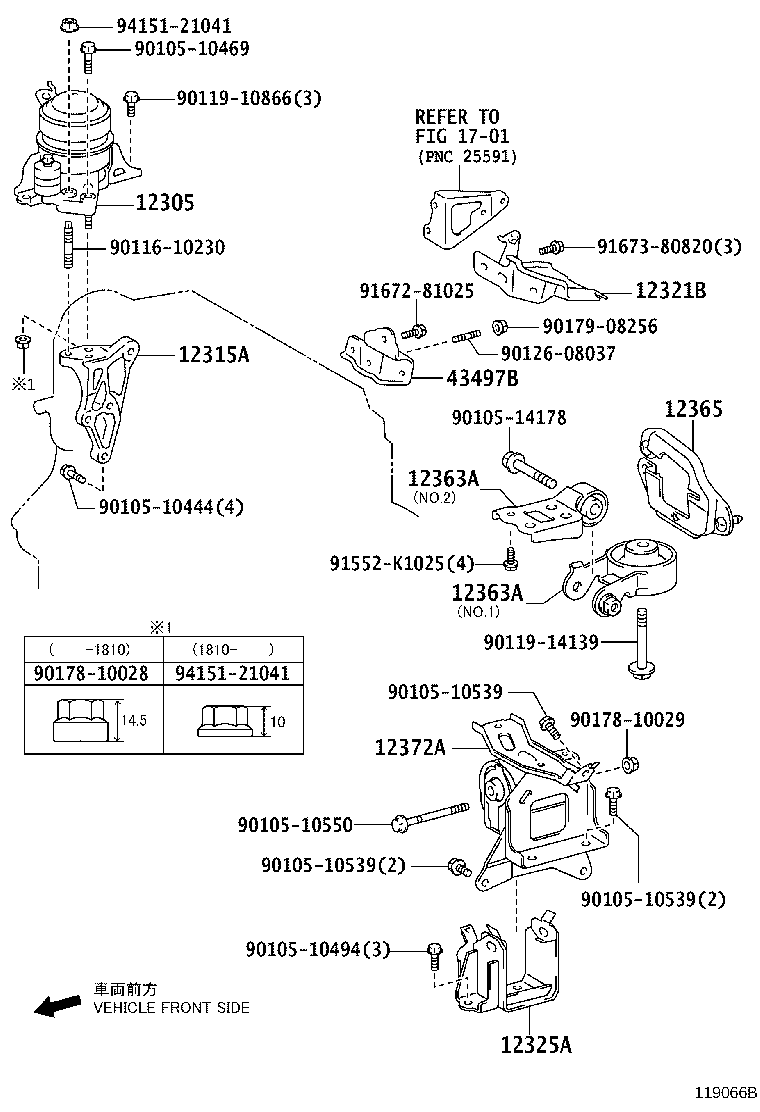

Figure 116743E 116743E 2010-12 → — Figure 116750B 116750B 2010-12 → — Figure 116749A 116749A 2010-12 → 2014-04 Figure 119066B 119066B 2014-04 → — Figure 116751C 116751C 2010-12 → — Figure 119064D 119064D 2014-04 → — Figure 11B845A 11B845A 2017-01 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12363A Rod, Engine Moving Control
12364A Rod, Engine Lateral Control
12364B Rod, Engine Moving Control, NO.2
12365 Cover, Engine Moving Control Rod
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
43497B Bracket, Drive Shaft Heat Insulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
