Toyota Vitz

2010-12 → 2020-01 · chassis KSP130,NCP131,NHP130,NSP13# · catalogue 112130 · Japan

Supported model Data version 2020-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

49 part groups · 8 illustrations

Illustrations

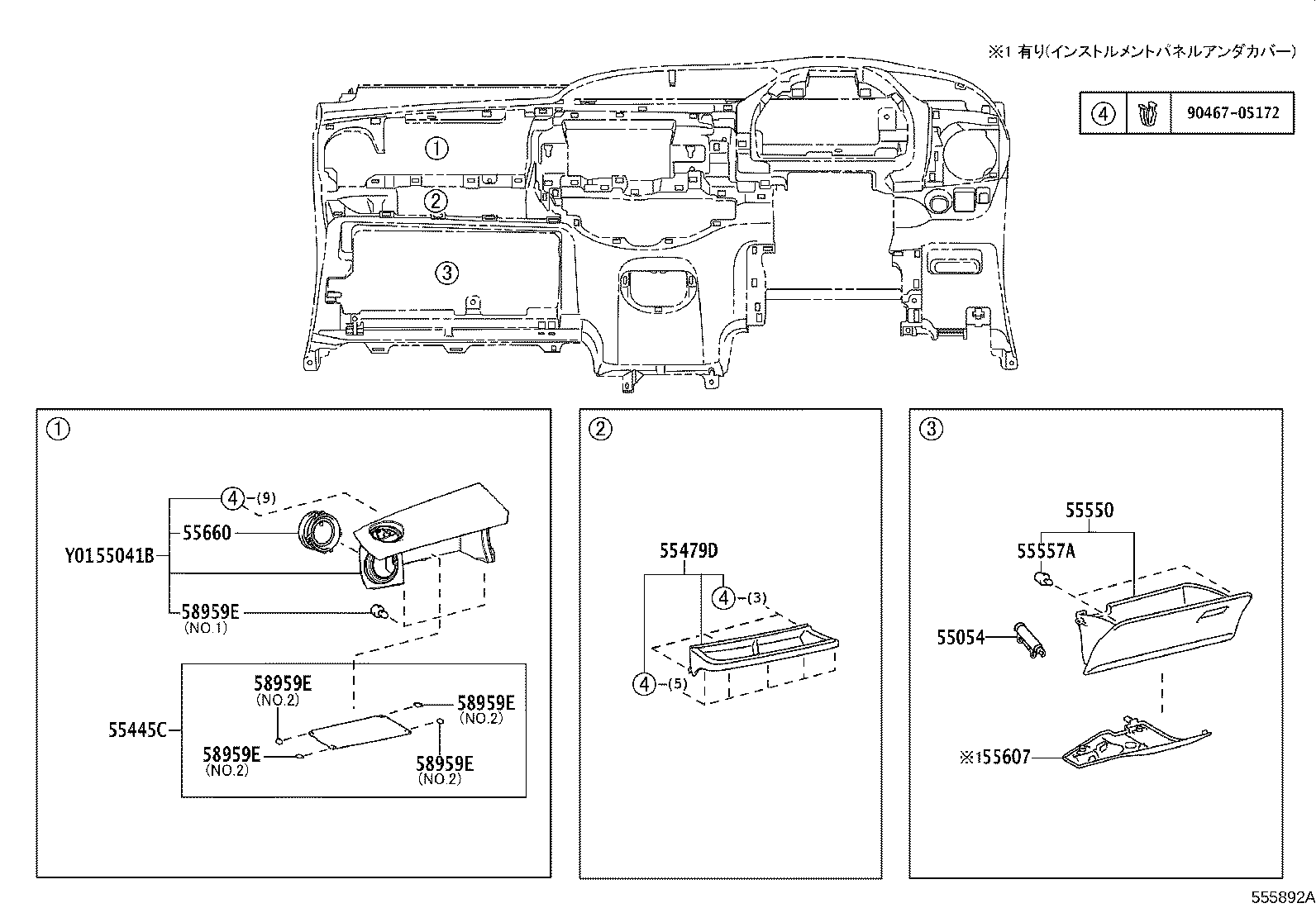

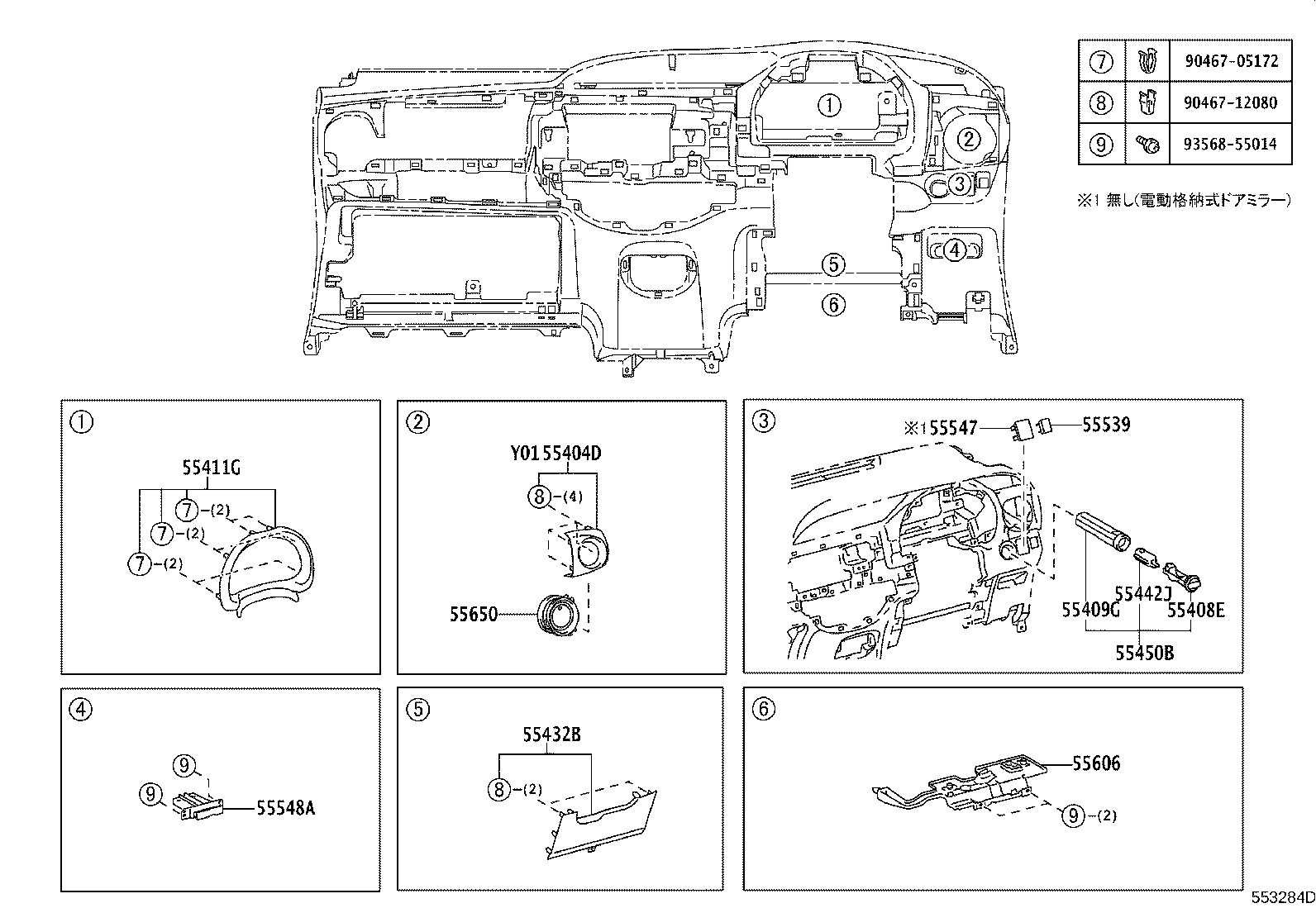

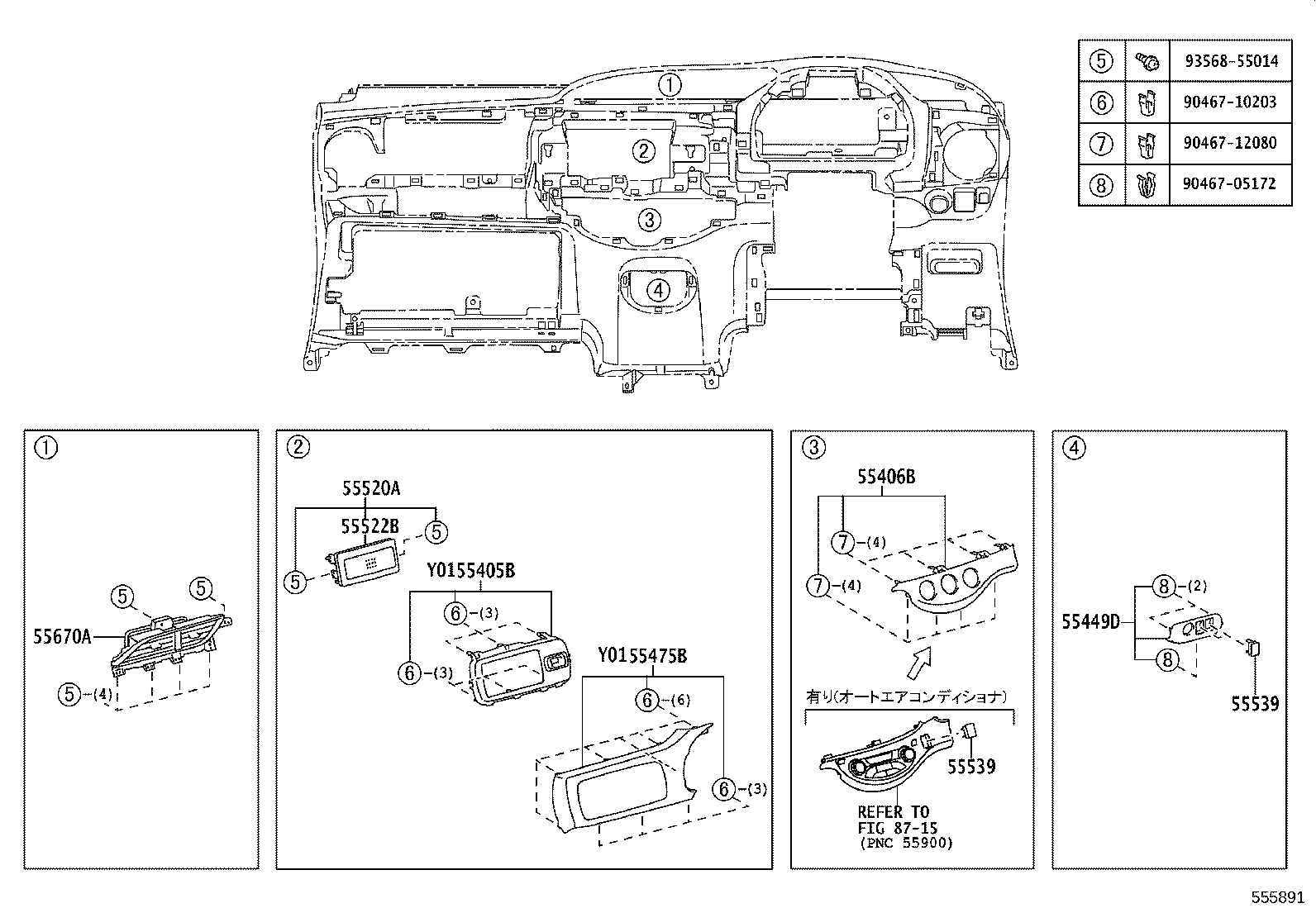

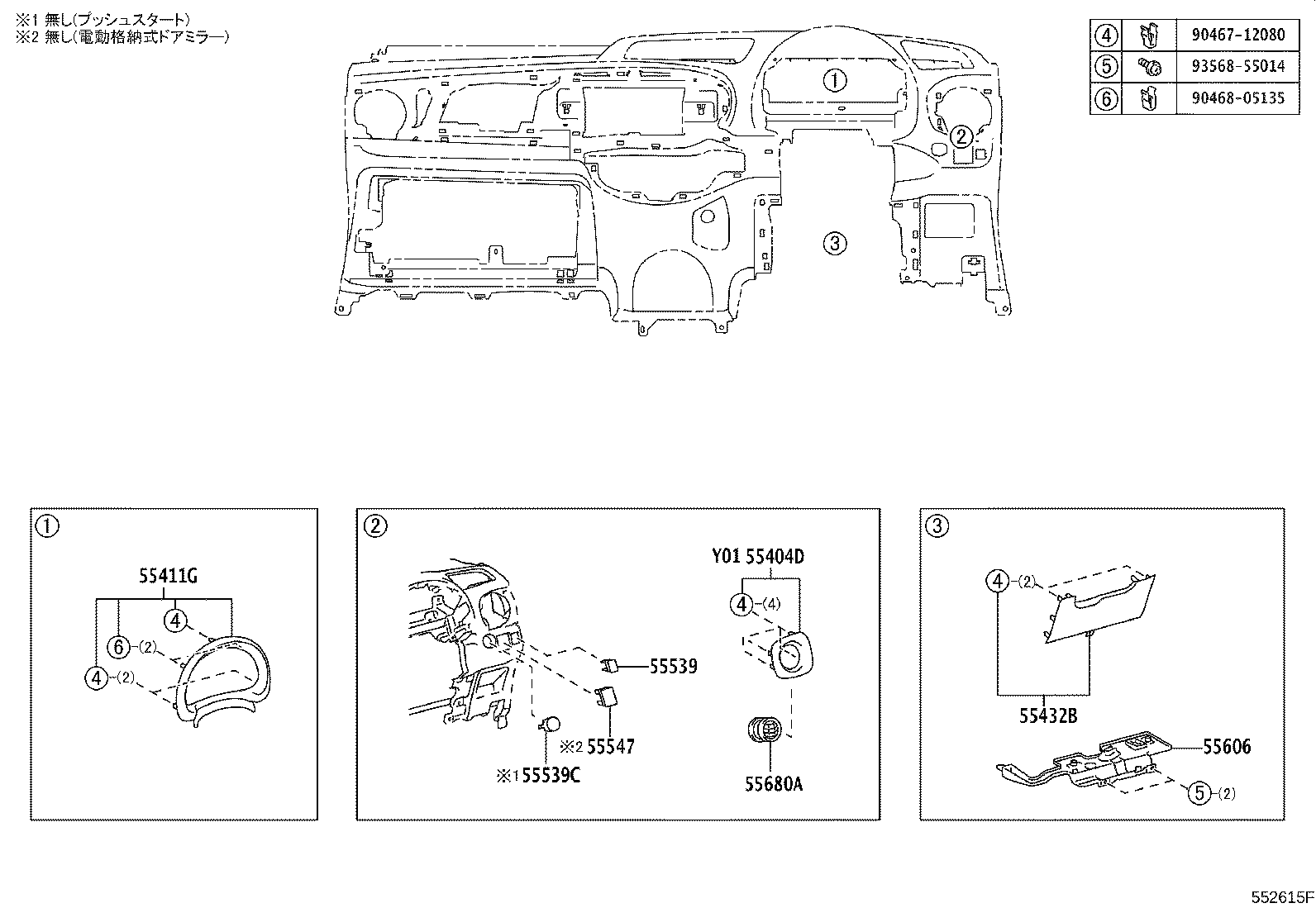

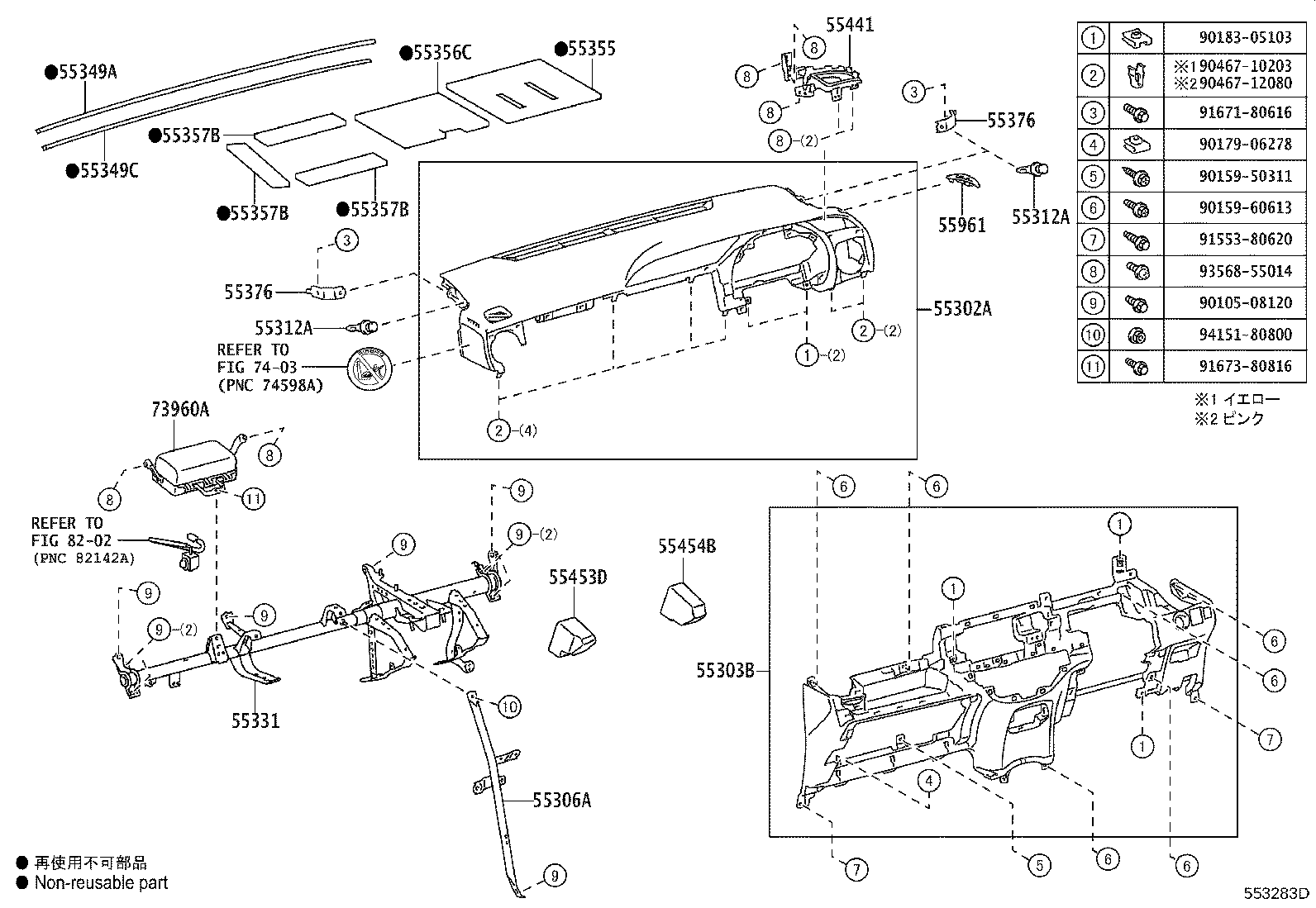

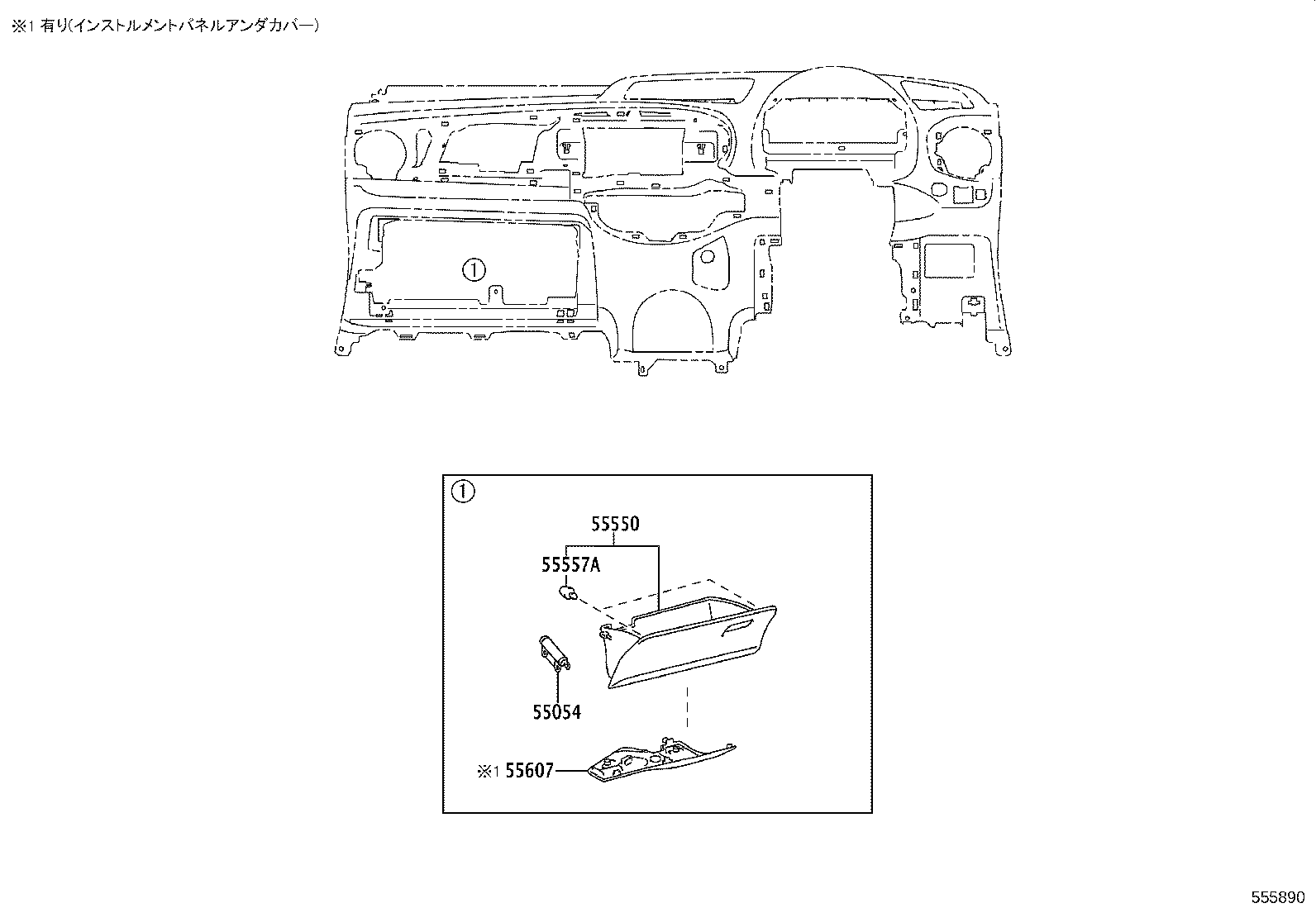

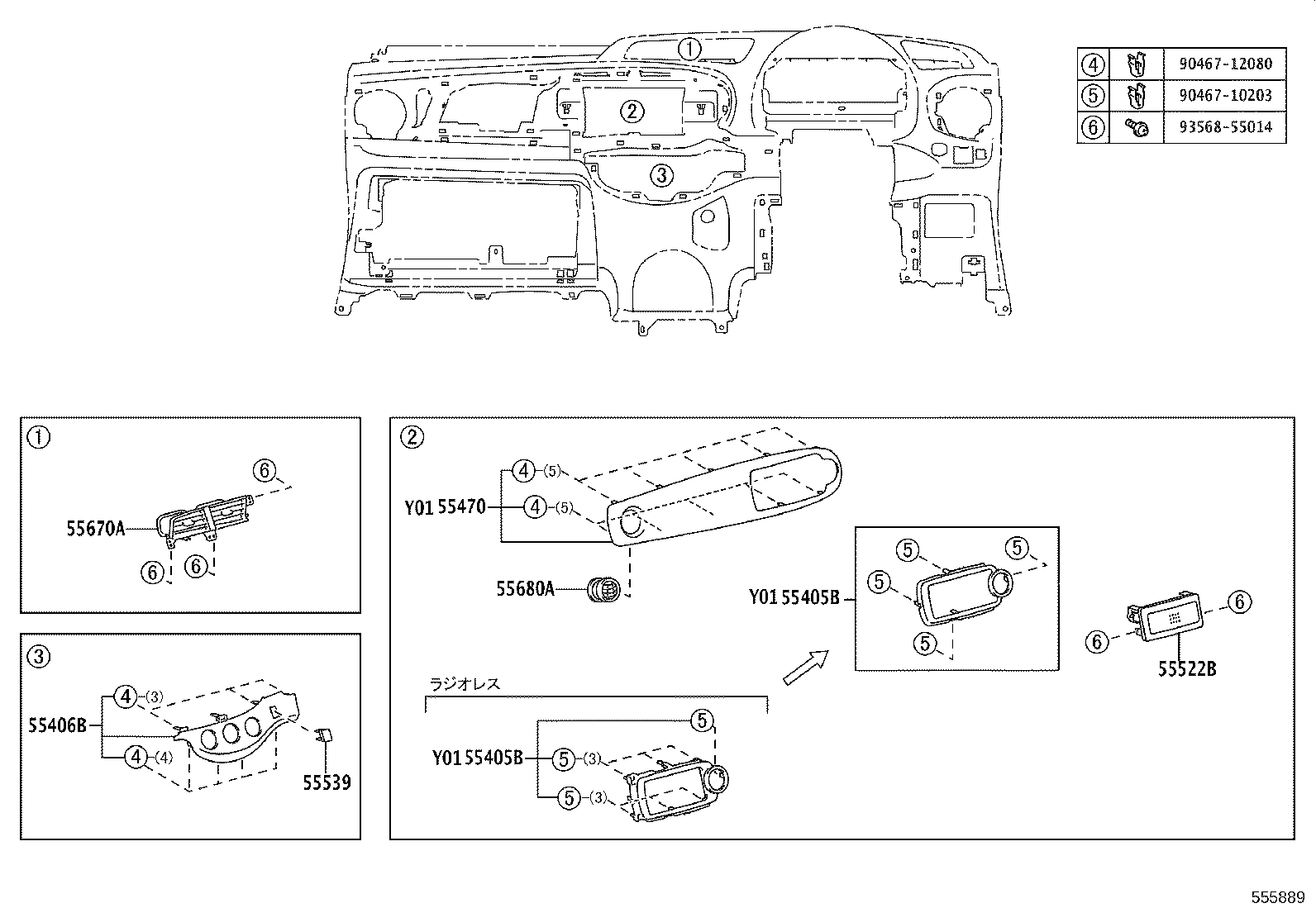

Figure 552612F 552612F 2010-12 → 2014-04 Figure 552615F 552615F 2010-12 → 2014-04 Figure 555889 555889 2010-12 → 2014-04 Figure 555890 555890 2010-12 → 2014-04 Figure 553283D 553283D 2014-04 → — Figure 553284D 553284D 2014-04 → — Figure 555891 555891 2014-04 → — Figure 555892A 555892A 2014-04 → —

Part groups

PNCDescription
55041B Door Sub-assy, Instrument Panel Box, NO.1
55054 Stopper Sub-assy, Glove Compartment Door
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55312A Clip, Instrument Panel
55331 Reinforcement, Instrument Panel
55349A Cushion, Instrument Panel
55349C Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55357B Cushion, Instrument Panel, NO.3
55376 Bracket, Instrument Panel Mounting, NO.1
55404D Panel Sub-assy, Instrument Cluster Finish
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55408E Box Sub-assy, Instrument Panel Coin
55409G Retainer Sub-assy, Coin Box
55411G Panel, Instrument Cluster Finish, NO.1
55432B Panel, Instrument Panel Finish, Lower
55441 Box, Instrument Panel
55442J Bezel, Instrument Panel Coin Box
55445C Plate, Instrument Panel Box
55449D Base, Switch
55450B Box Assy, Coin
55451C Box, Instrument Panel, NO.1
55453D Pad, Instrument Panel Safety, NO.1
55454B Pad, Instrument Panel Safety, NO.2
55470 Garnish Assy, Instrument Cluster Finish Panel
55475B Garnish, Instrument Cluster Finish Panel, Center
55479D Garnish, Instrument Cluster Finish Panel, Lower
55520A Cover Assy, Stereo Opening
55522B Cover, Radio Tuner Opening
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55547 Cover, Remote Control Mirror Hole
55548A Cover, Instrument Panel Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55680A Register Assy, Instrument Panel, NO.4
55961 Nozzle, Side Defroster, NO.1
58959E Cushion, Console Compartment Door
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
