Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

37 part groups · 6 illustrations

Illustrations

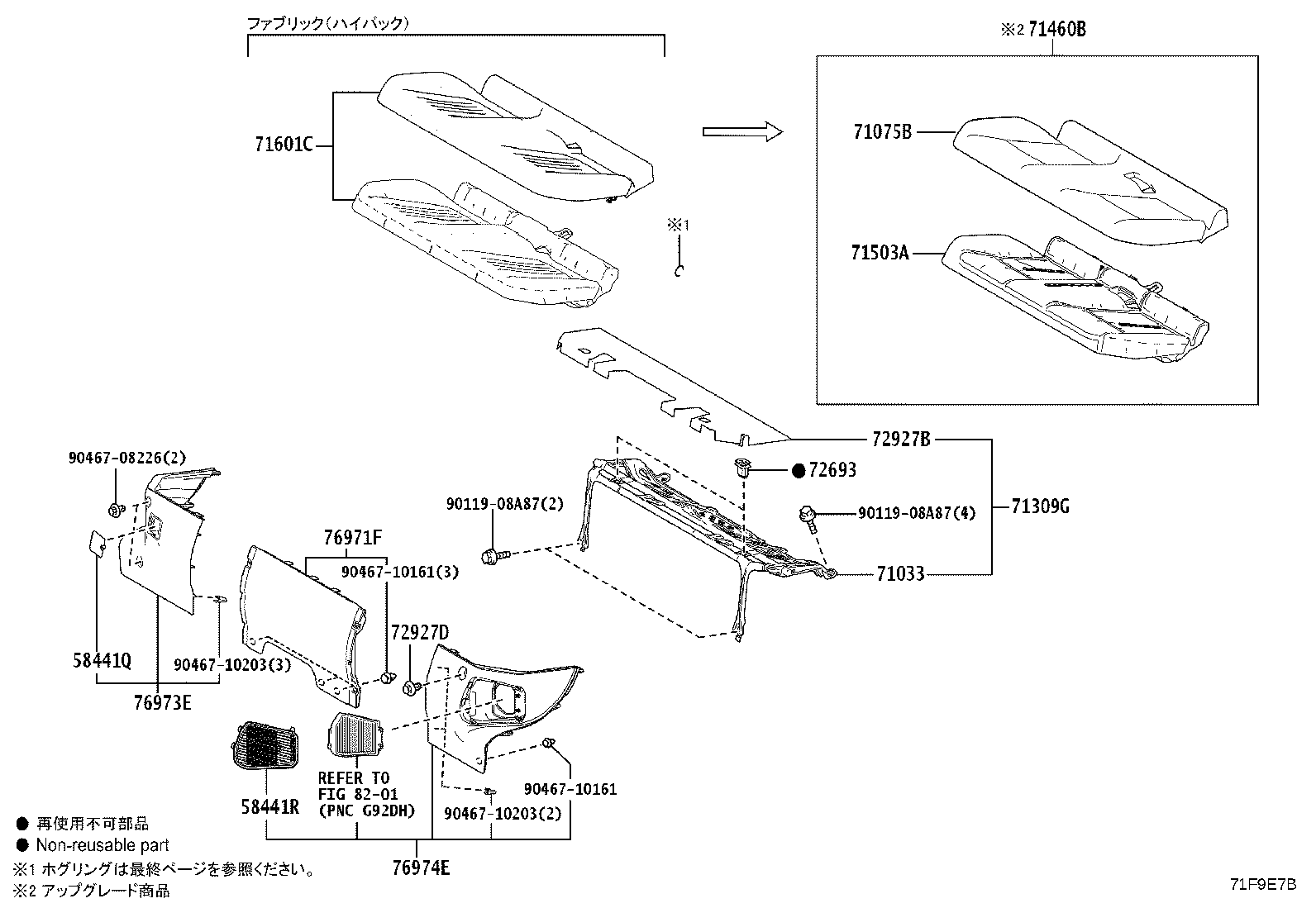

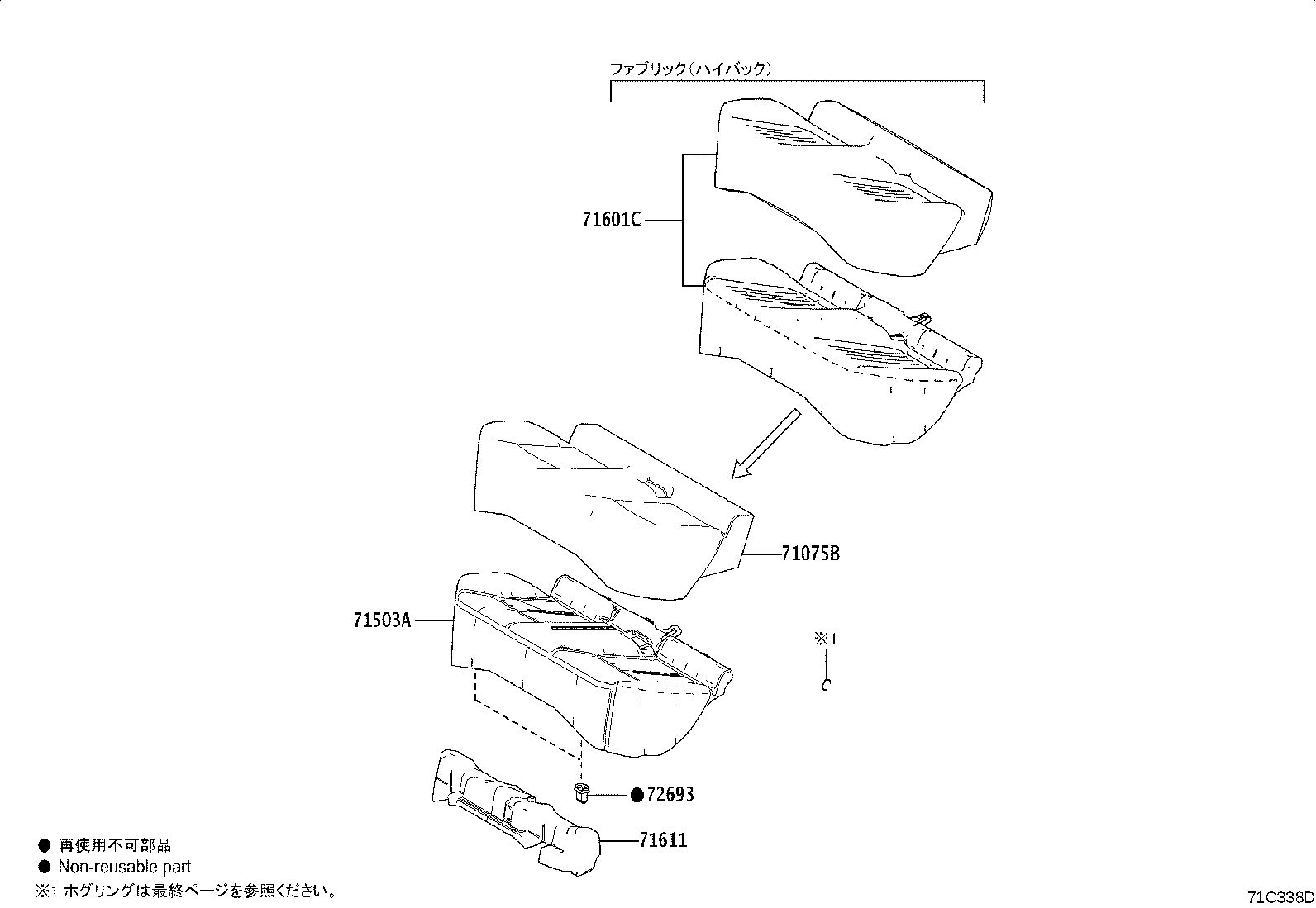

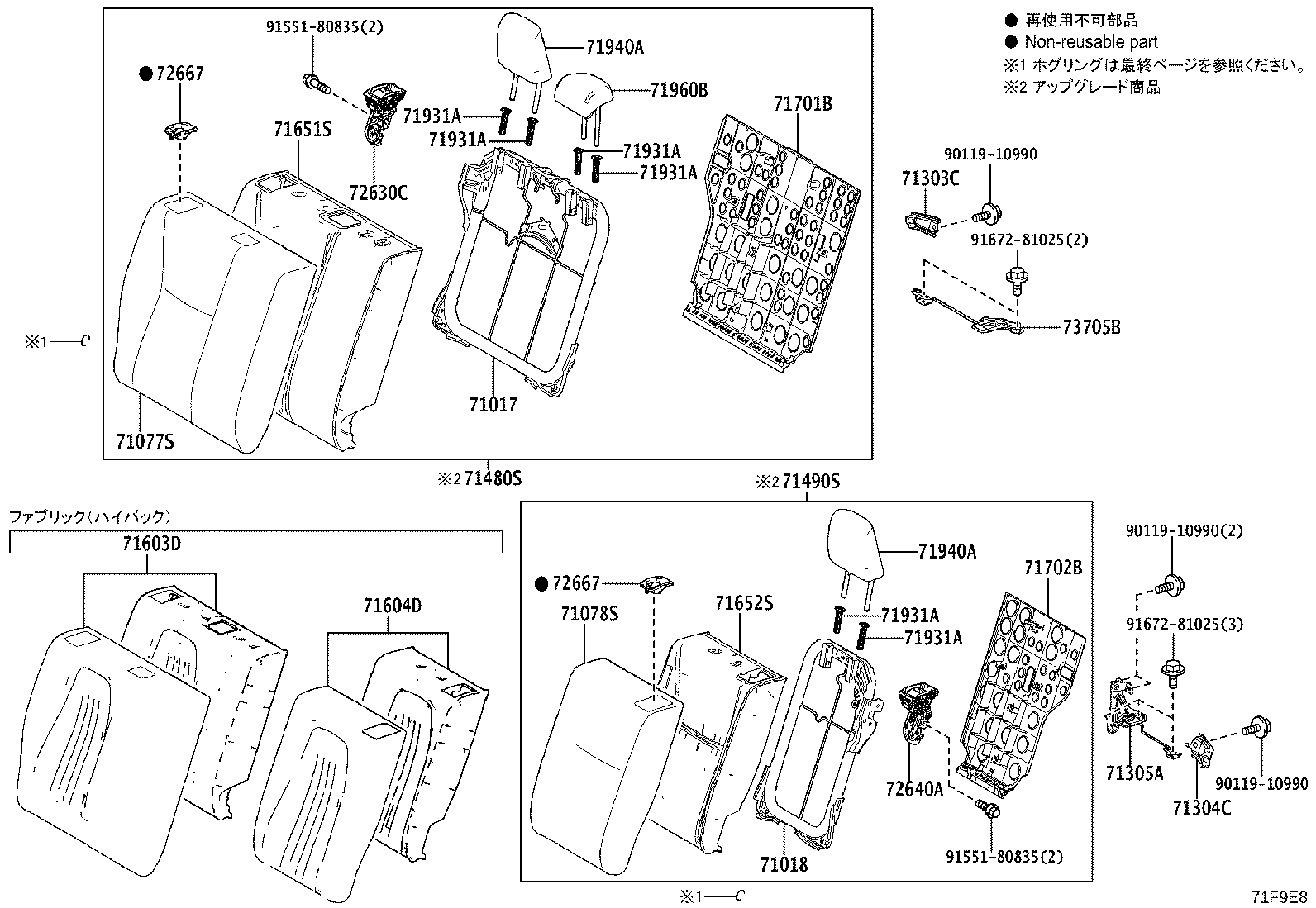

Figure 71C337B 71C337B 2020-02 → 2024-01 Figure 71C337B 71C337B 2020-02 → — Figure 71F9E8 71F9E8 2024-01 → — Figure 71C338D 71C338D 2020-02 → — Figure 71F9E7B 71F9E7B 2020-02 → — Figure 71A614A 71A614A 2020-02 → —

Part groups

PNCDescription
58441Q Cover, Battery Service Hole, RH
58441R Cover, Battery Service Hole, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71309G Leg Sub-assy, Rear Seat
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480S Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71490S Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71503A Pad Sub-assy, Rear Seat Cushion
71601C Pad Sub-assy, Rear Seat Cushion W/Cover, RH
71603D Pad Sub-assy, Rear Seatback W/Cover, RH
71604D Pad Sub-assy, Rear Seatback W/Cover, LH
71611 Pad, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71701B Board Sub-assy, Rear Seatback, RH
71702B Board Sub-assy, Rear Seatback, LH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72667 Bezel, Rear Seatback Lock, Upper
72693 Hook, Rear Seat Cushion Lock
72927B Cover, Rear Seat Cushion Under
72927D Clip (FOR REAR SEAT CUSHION UNDER COVER)
73705B Bracket Sub-assy, Cross Anchor
76971F Cover, Rear Under
76973E Cover, Rear Under Side, RH
76974E Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
