Toyota Yaris

2020-02 → present · chassis KSP210,MXPA1#,MXPH1# · catalogue 112140 · Japan

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

134 part groups · 22 illustrations

Illustrations

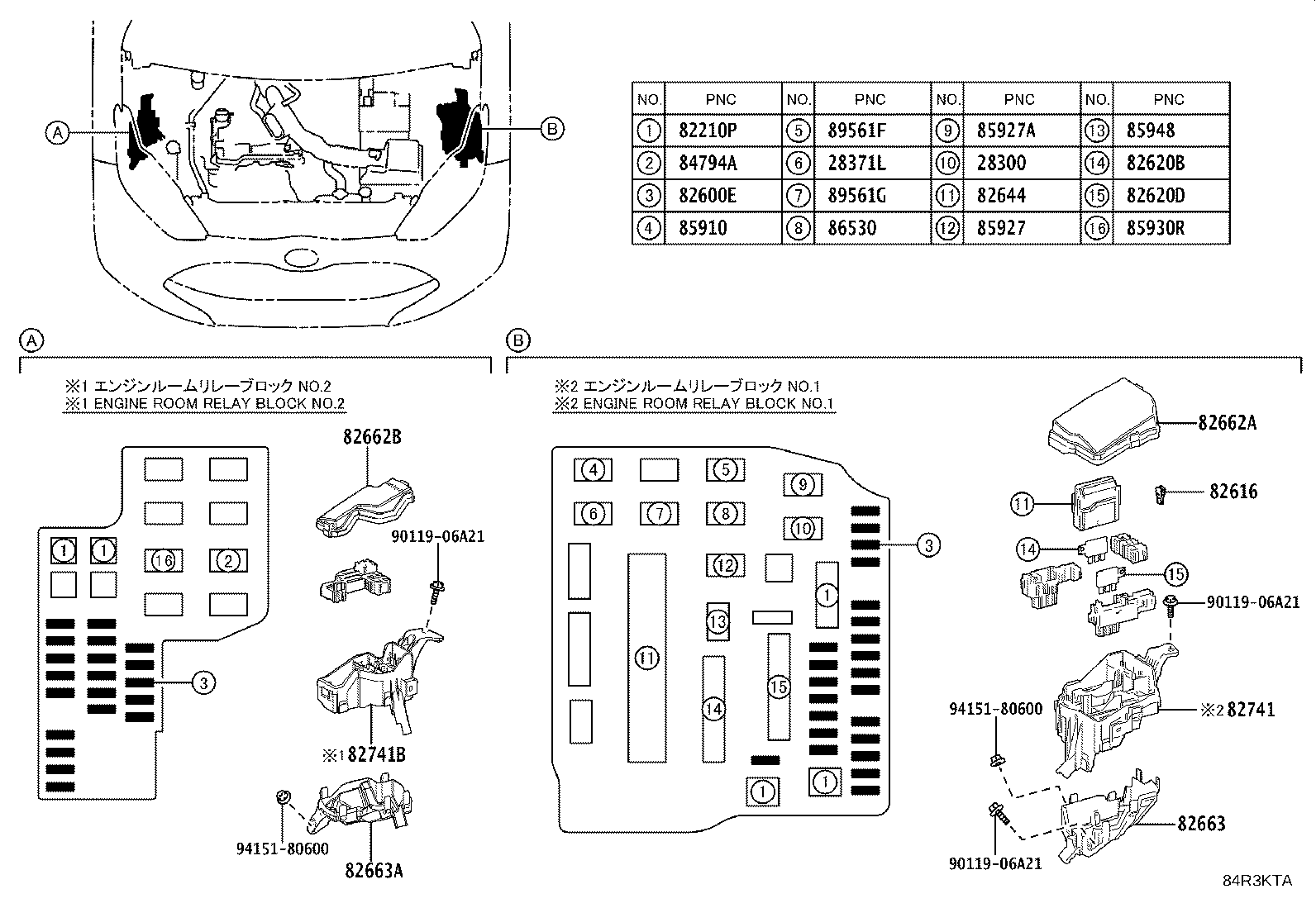

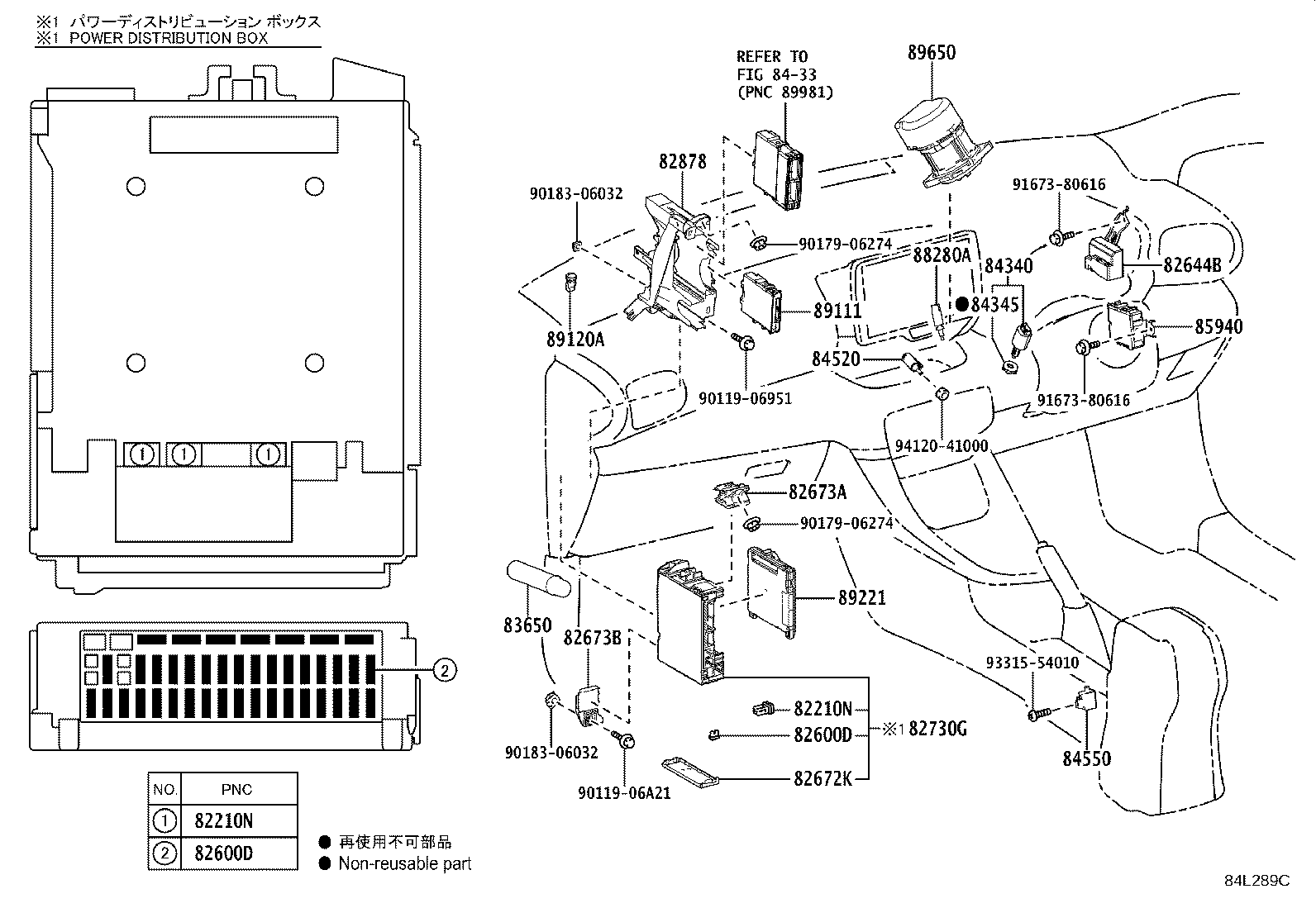

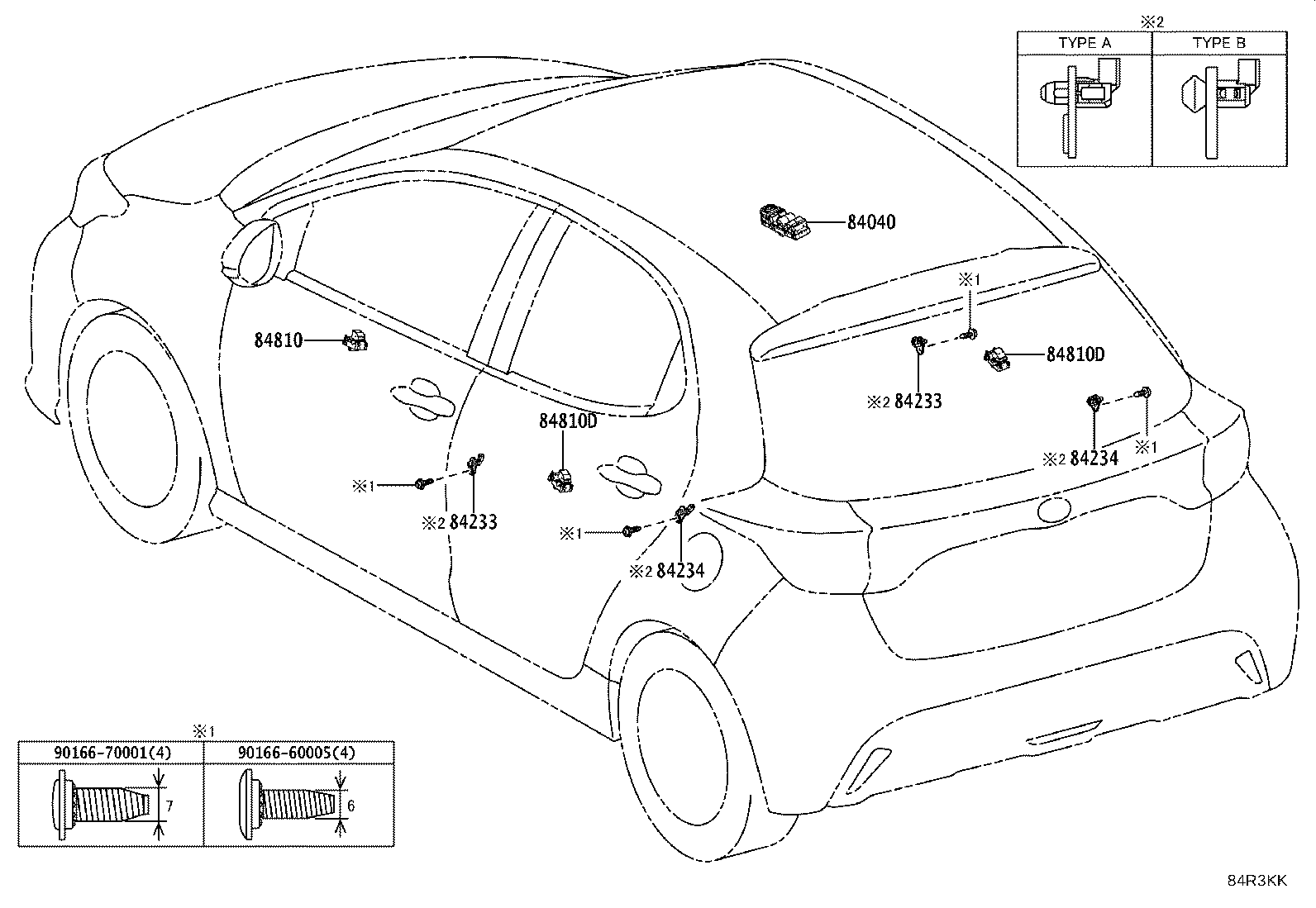

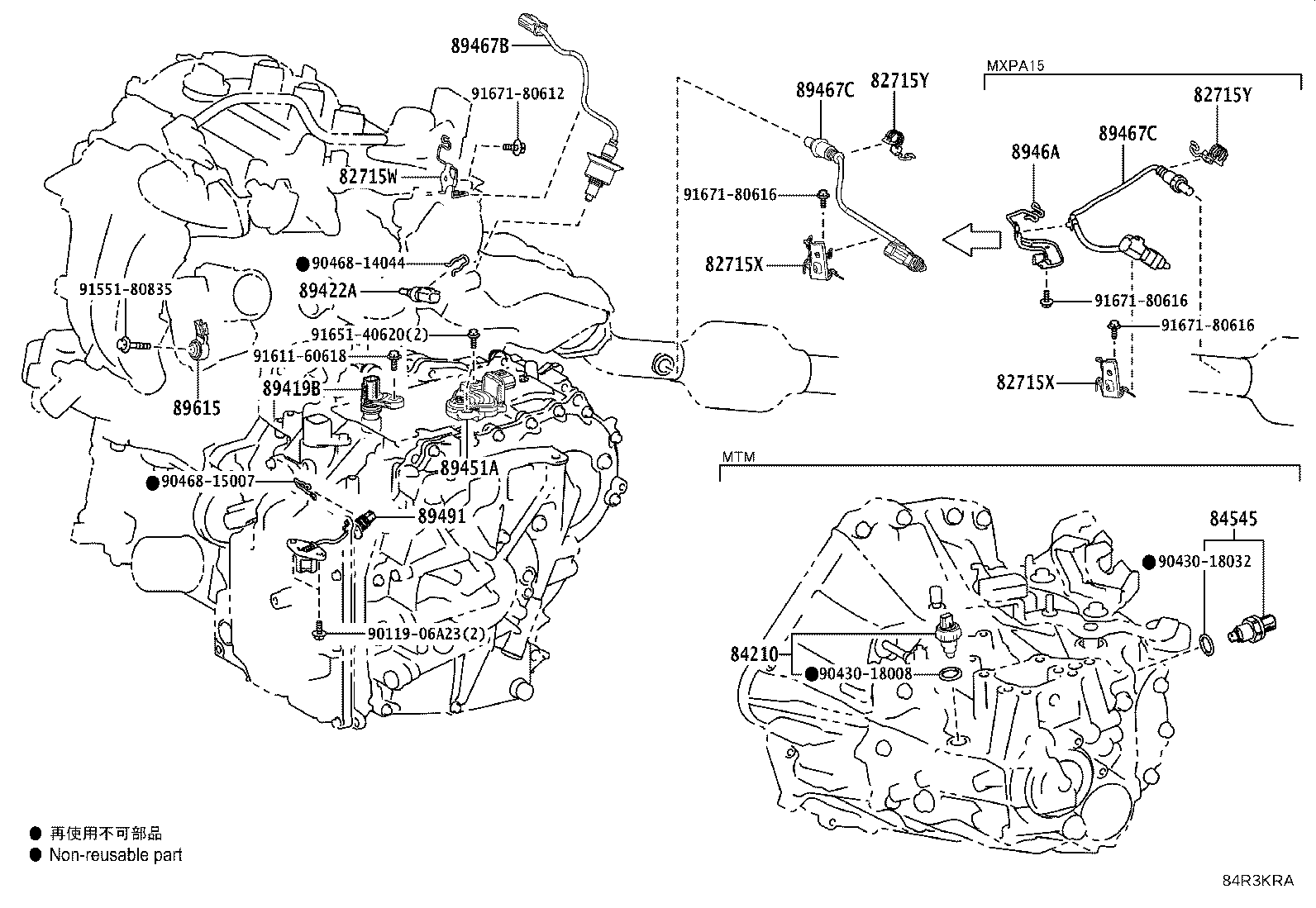

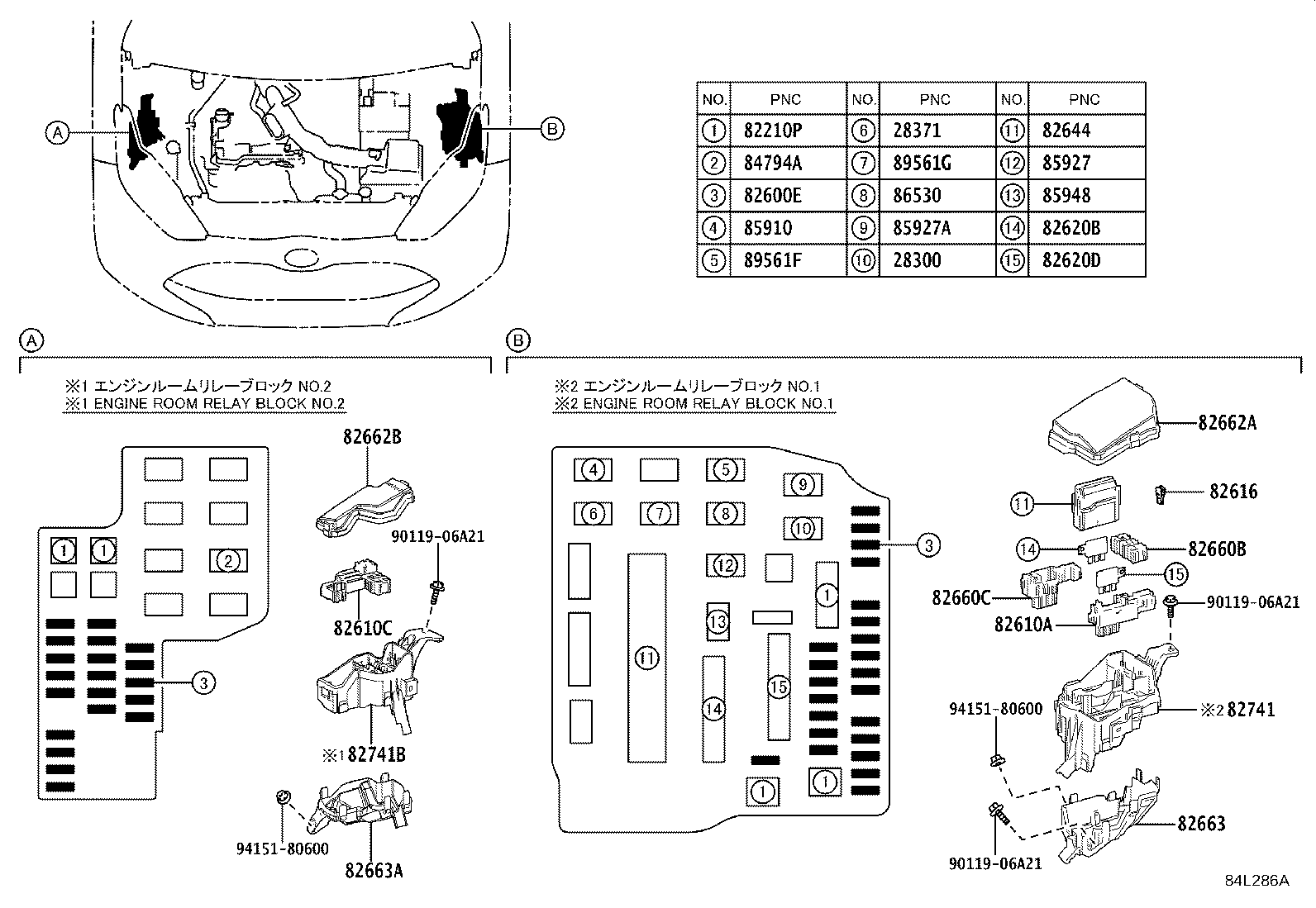

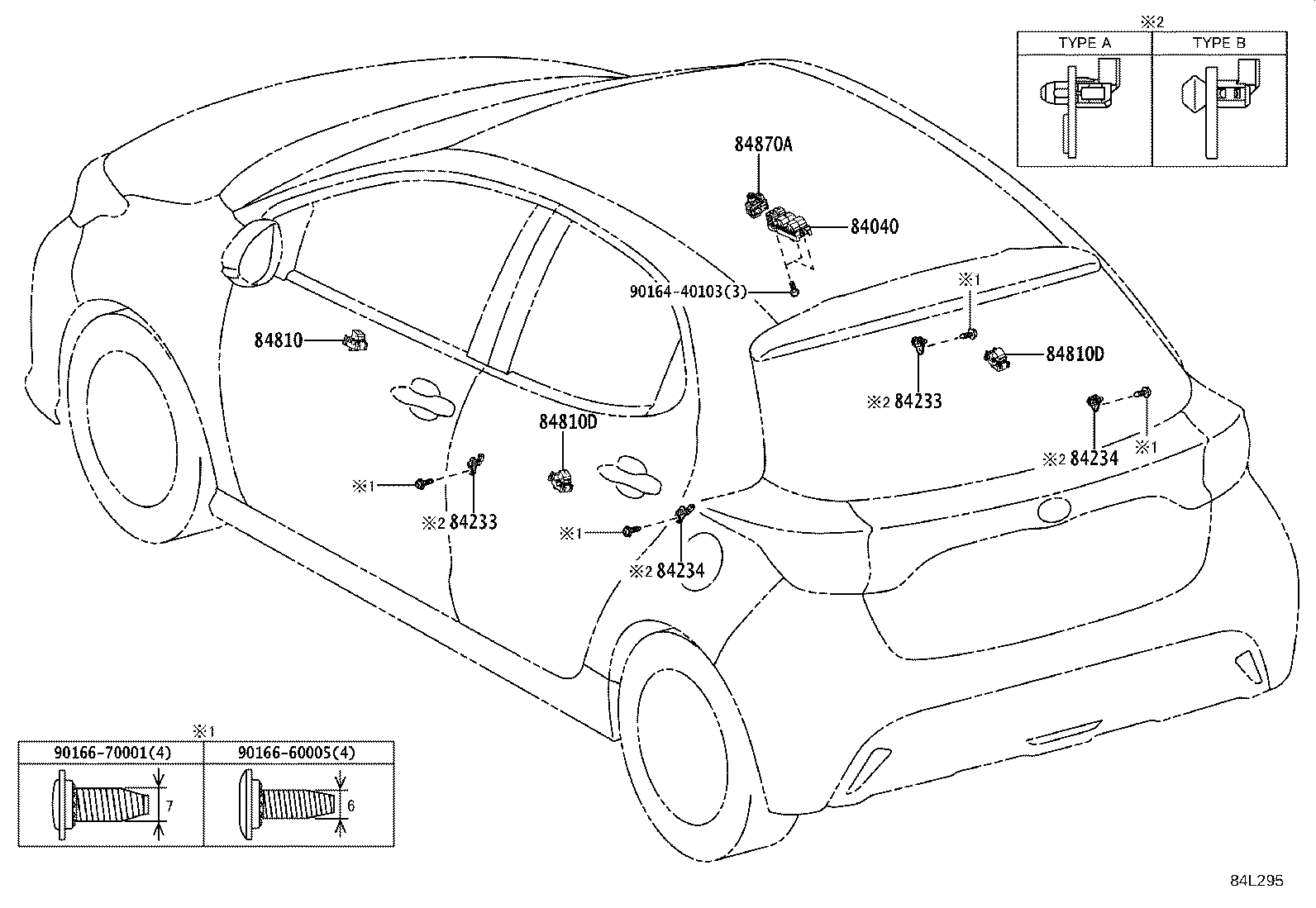

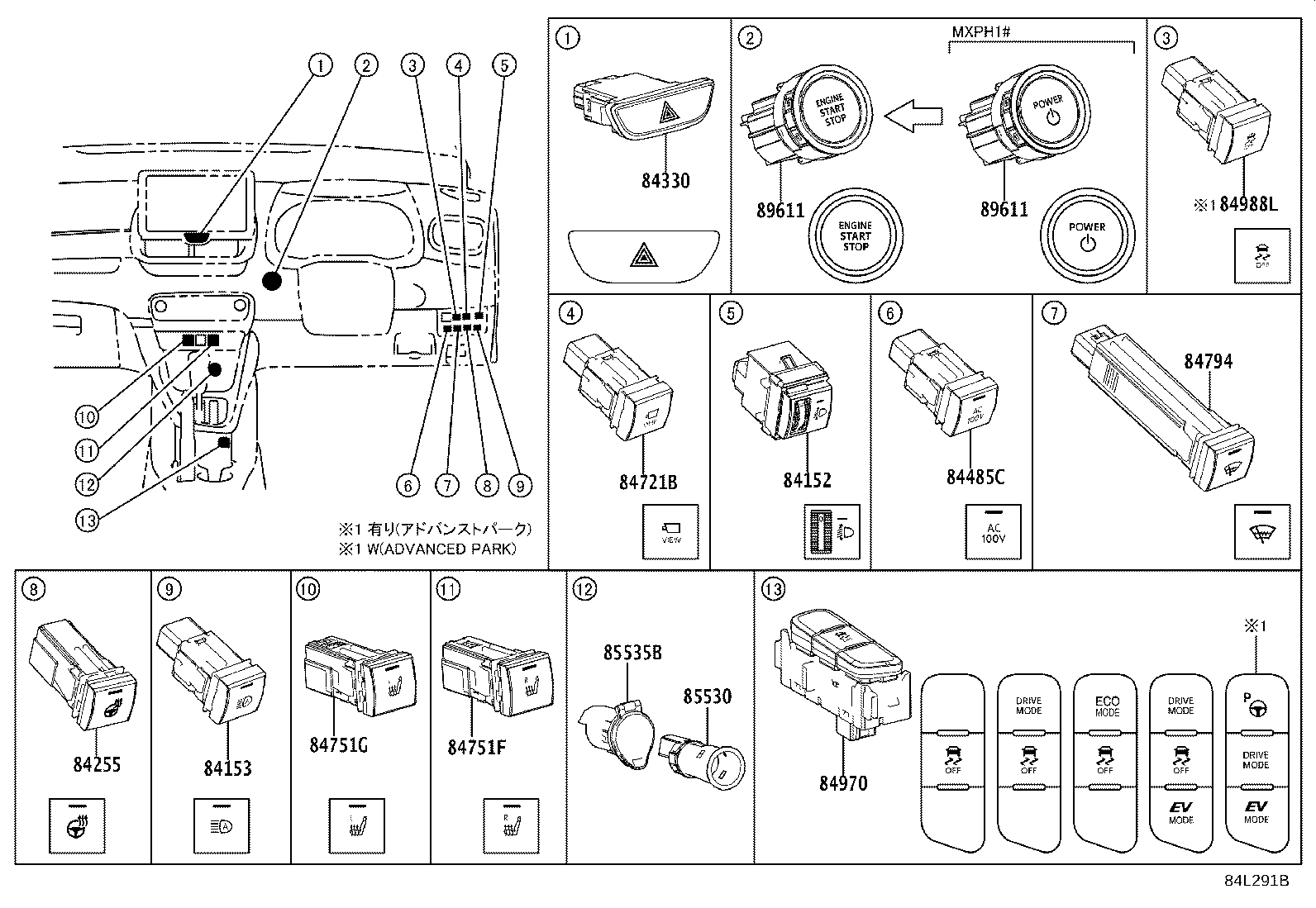

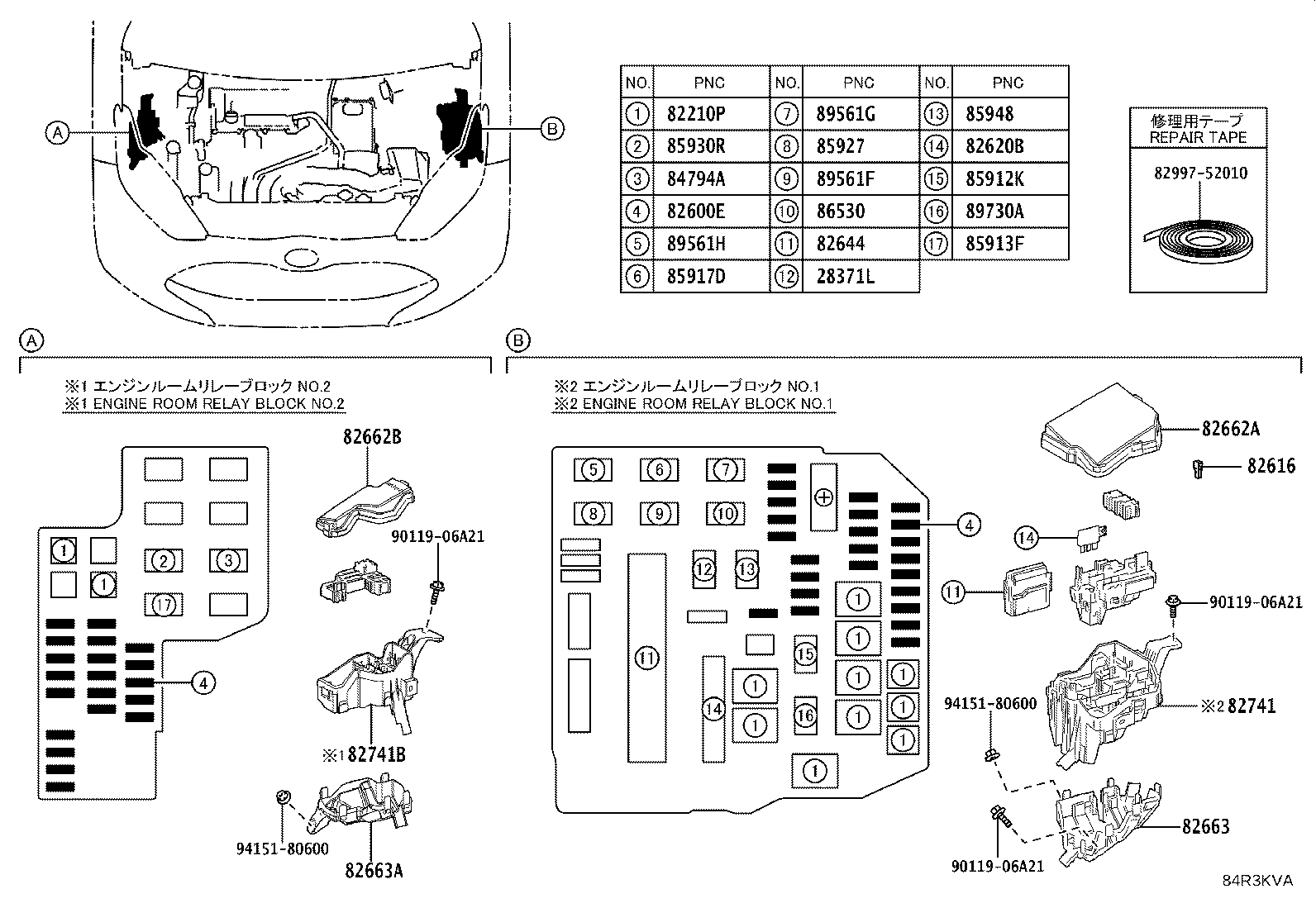

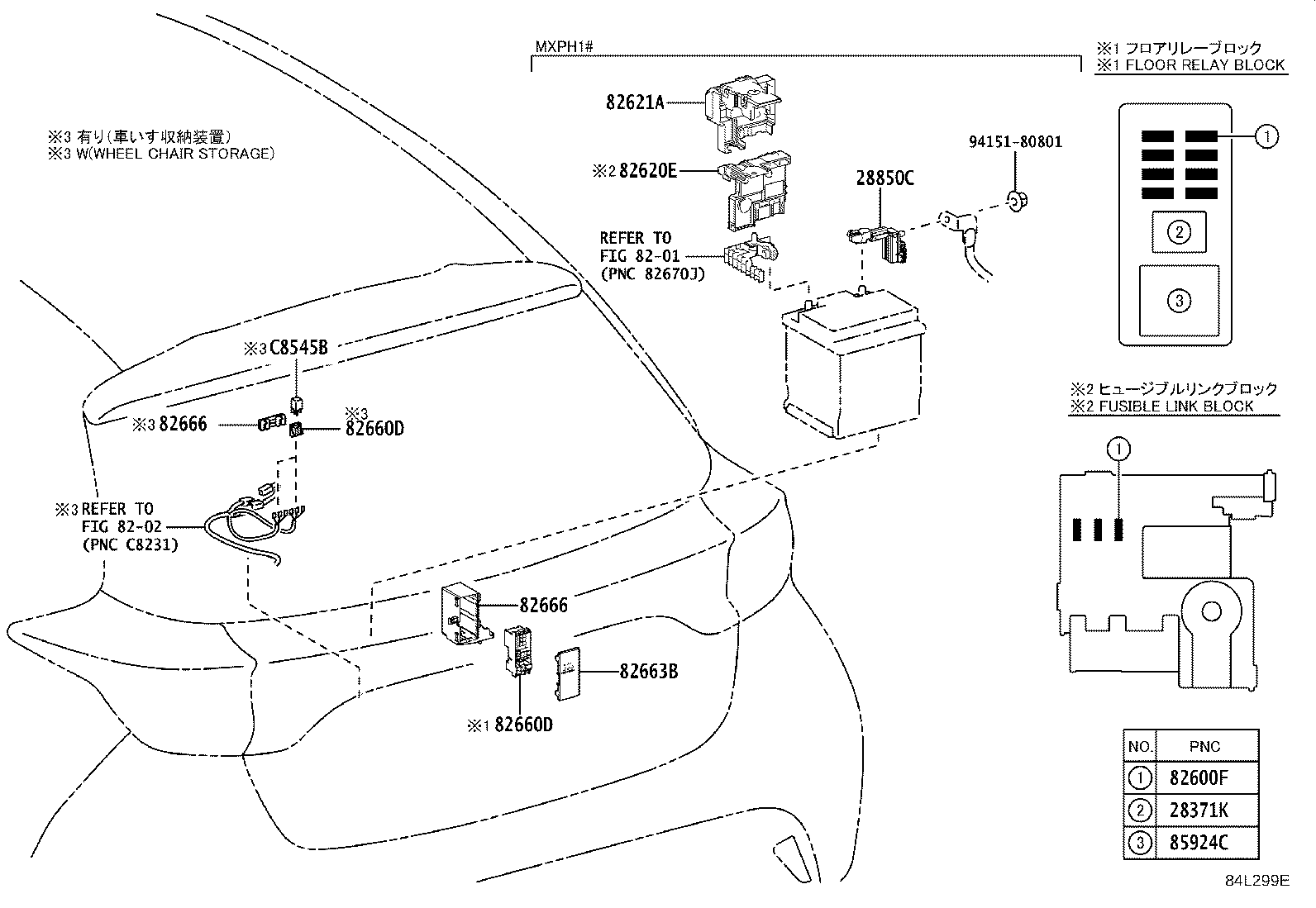

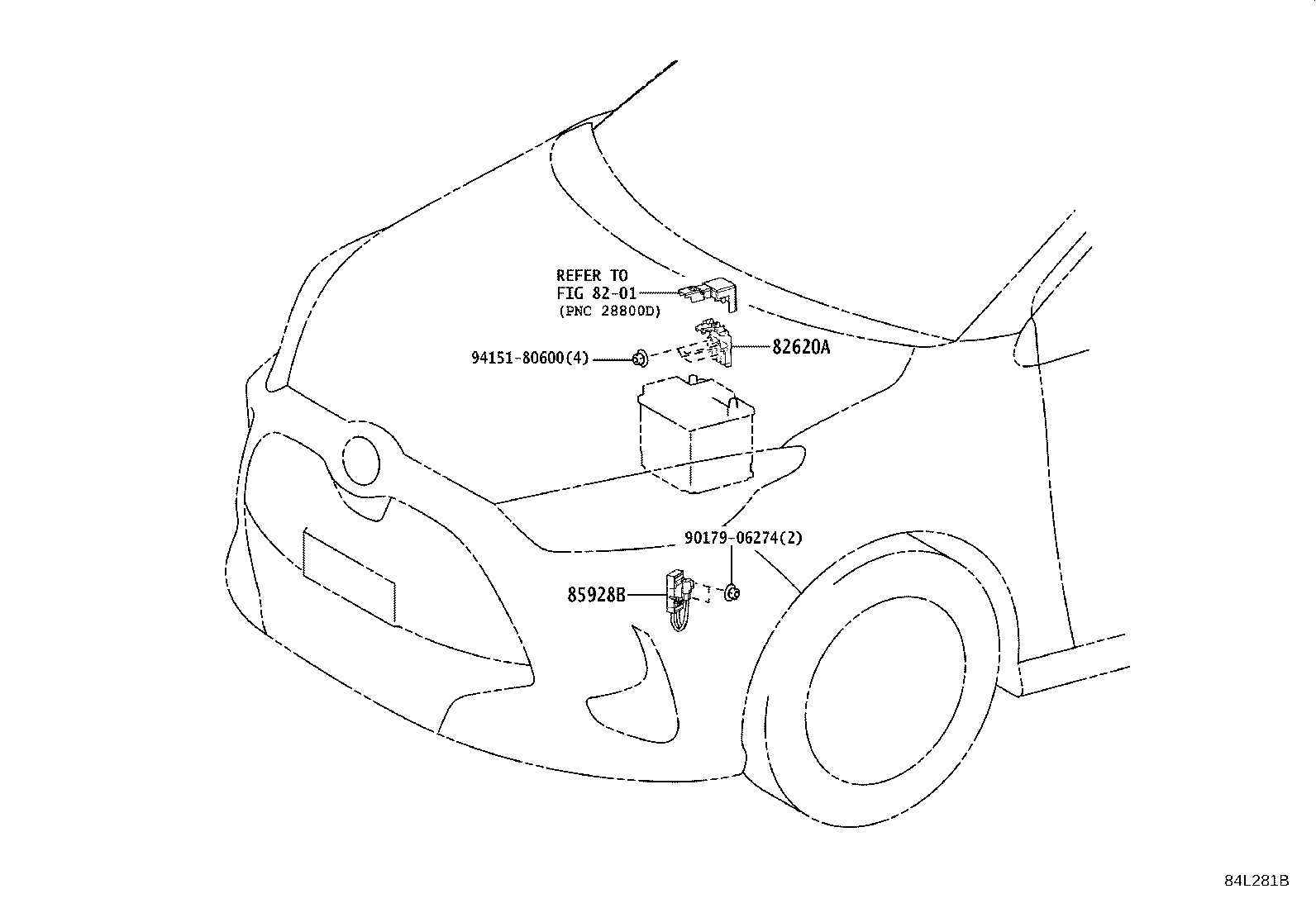

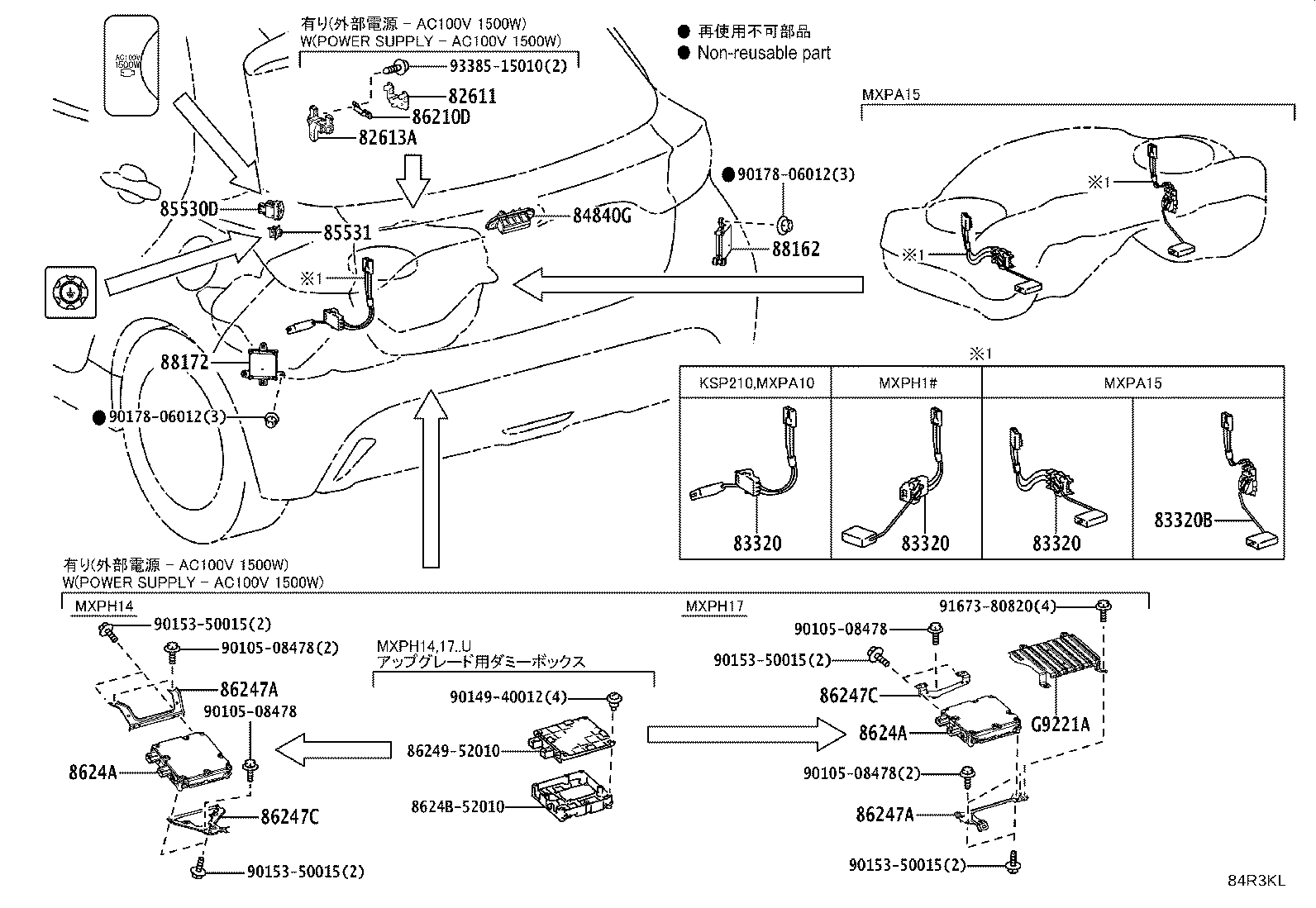

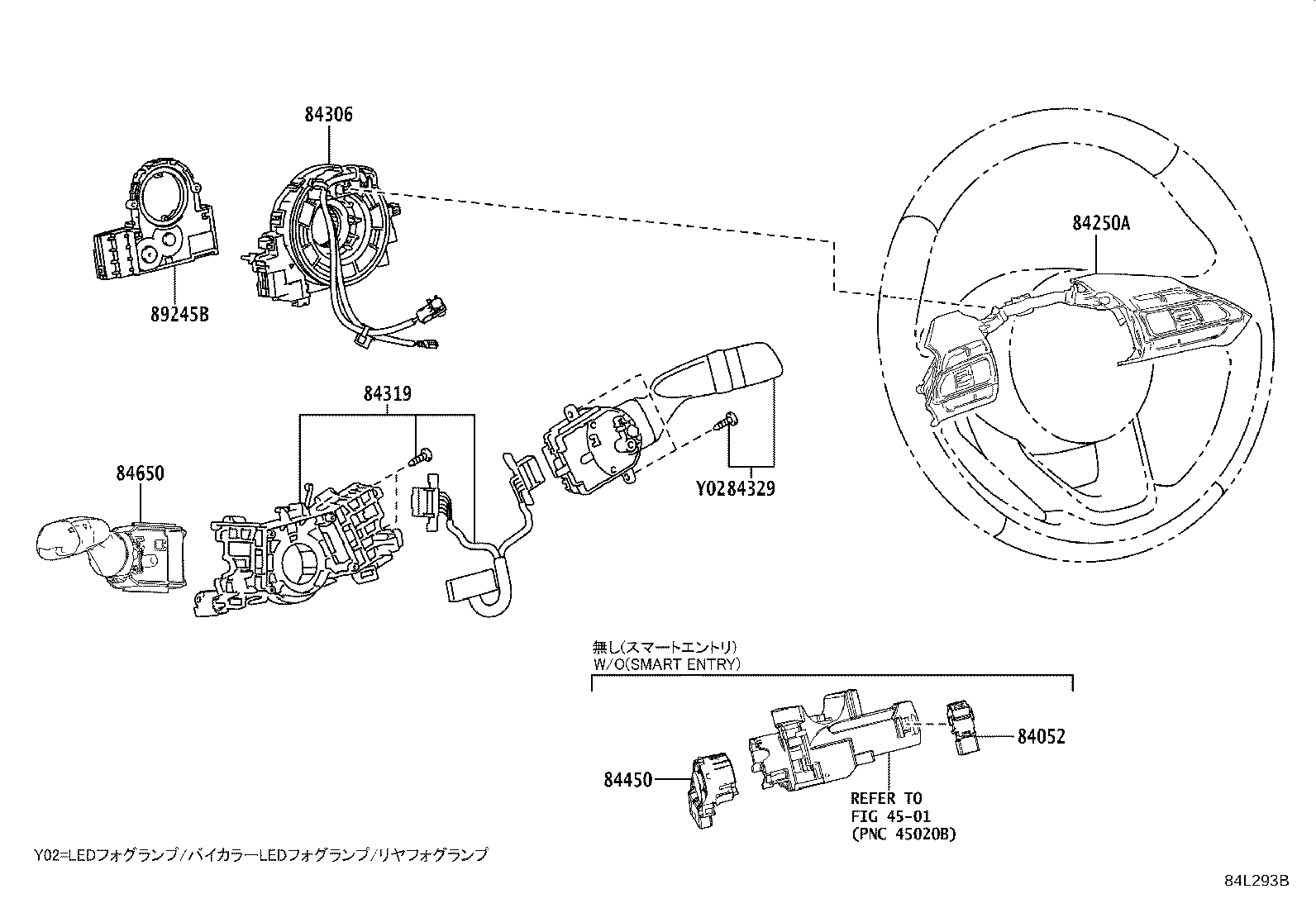

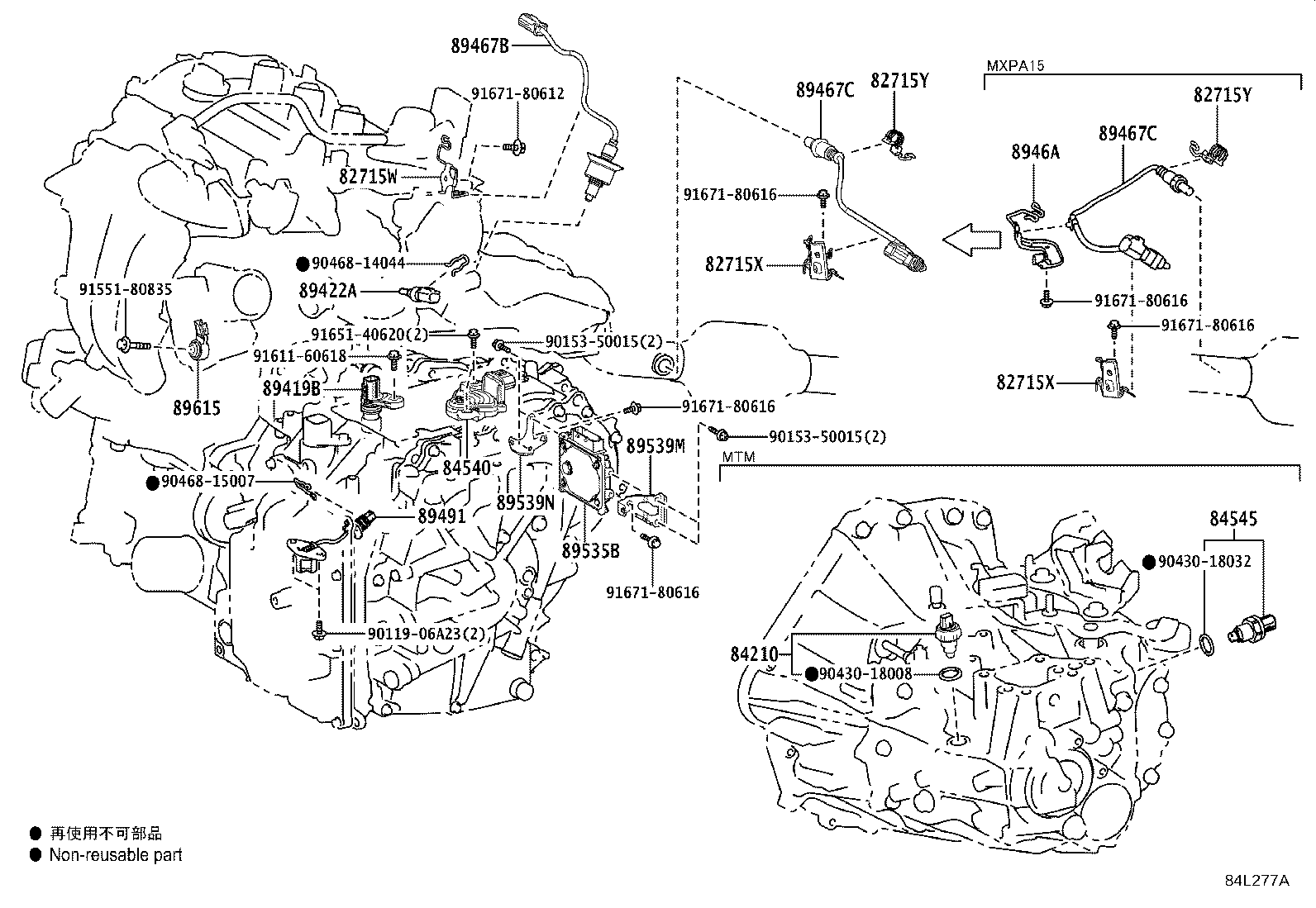

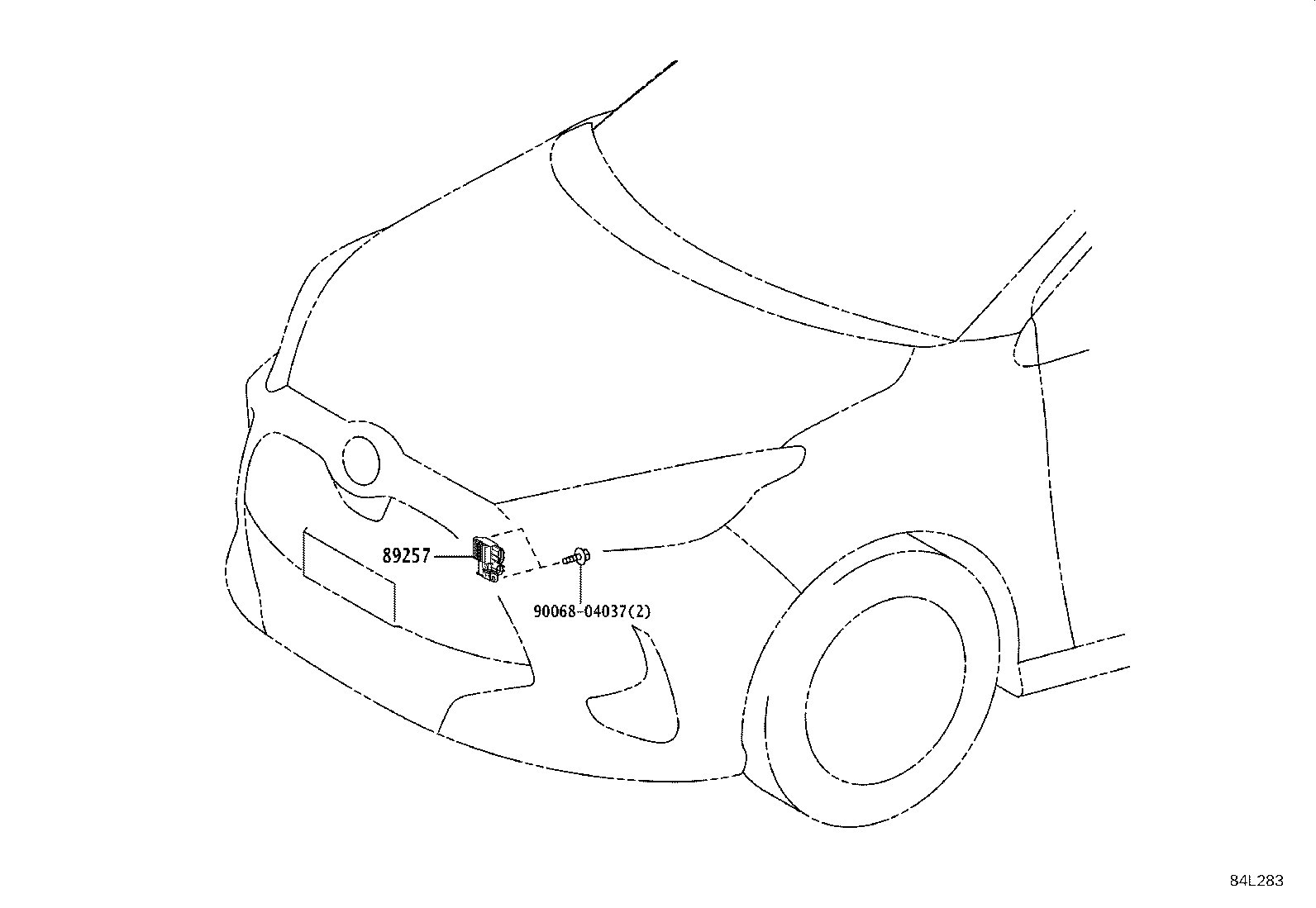

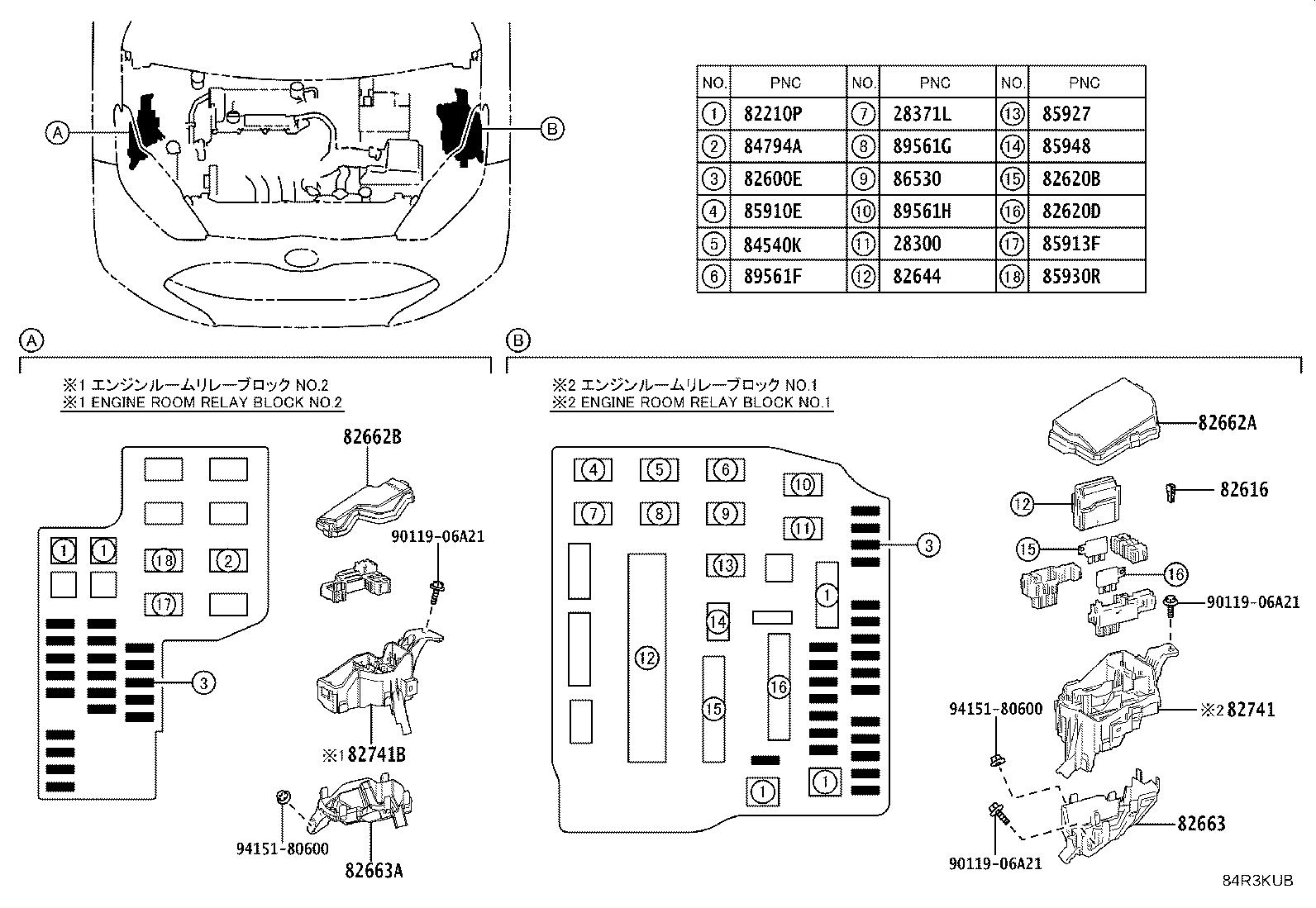

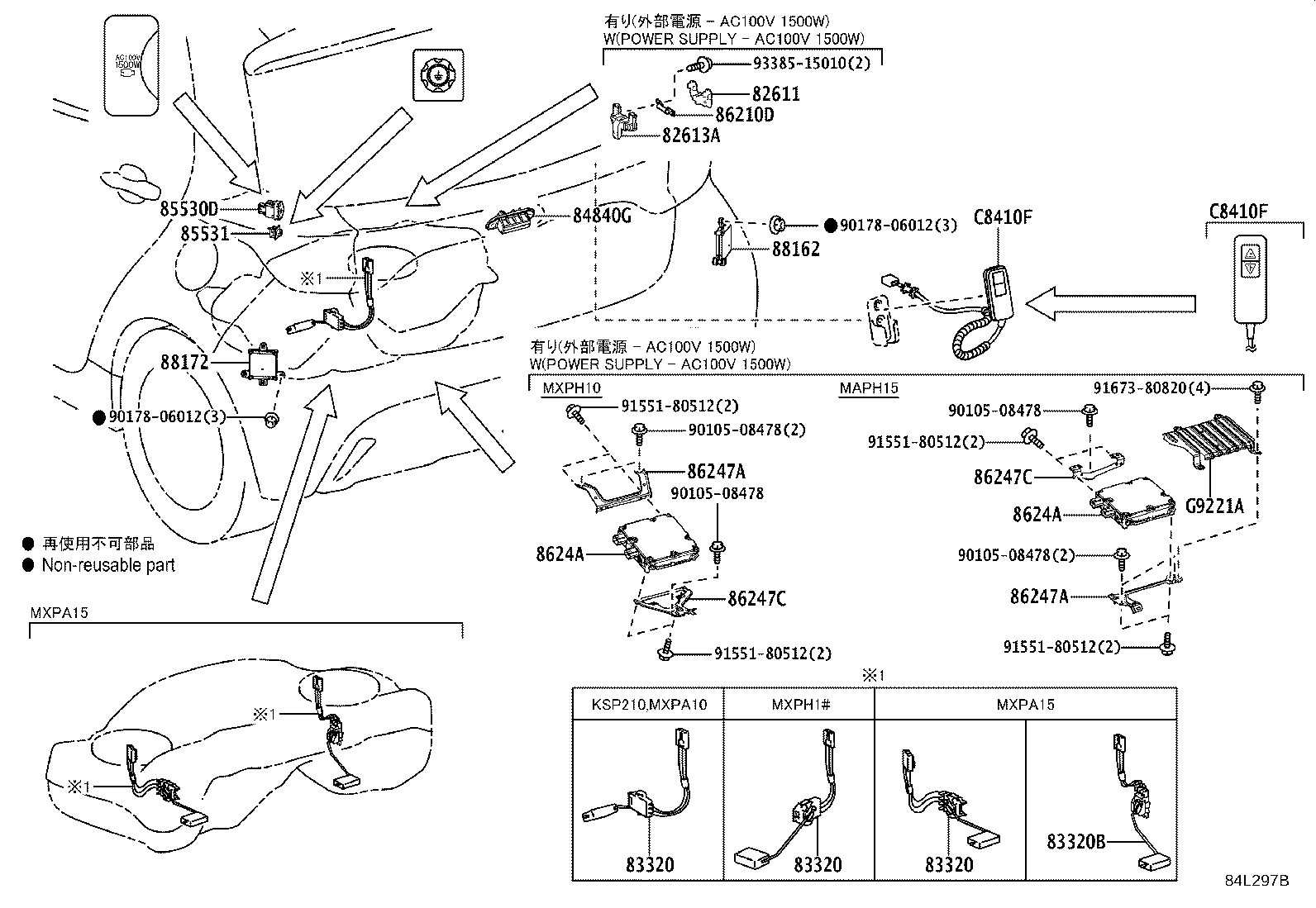

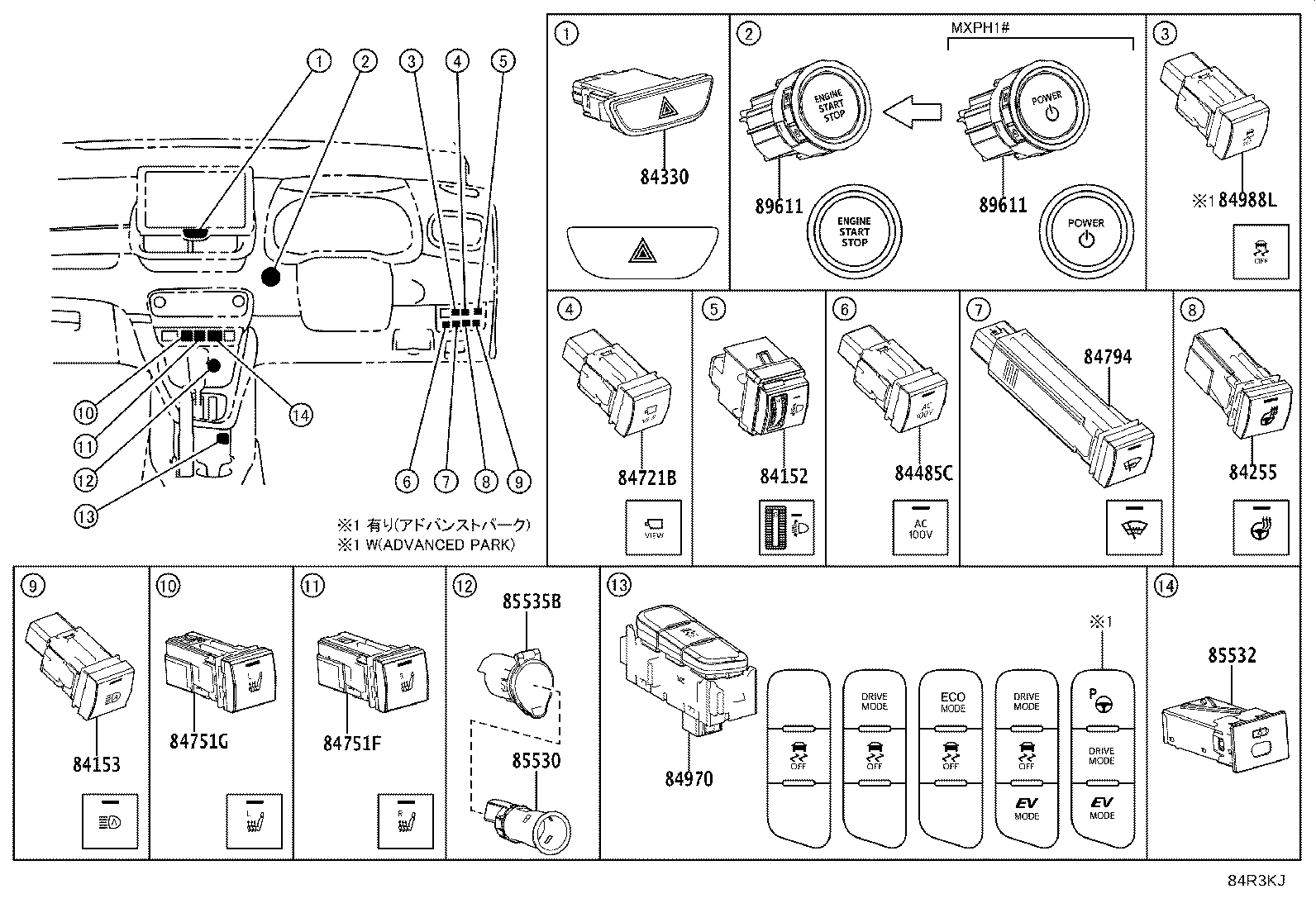

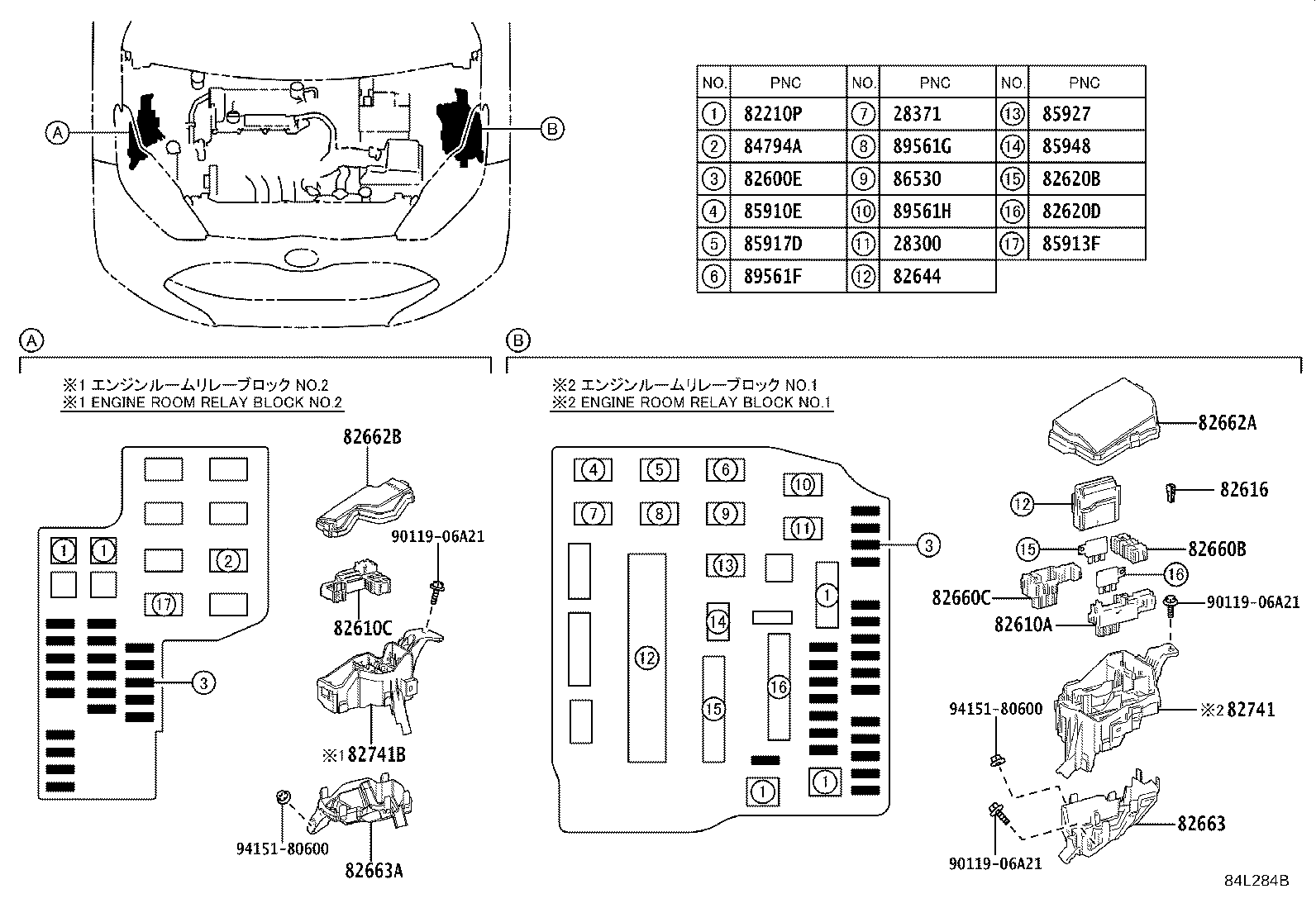

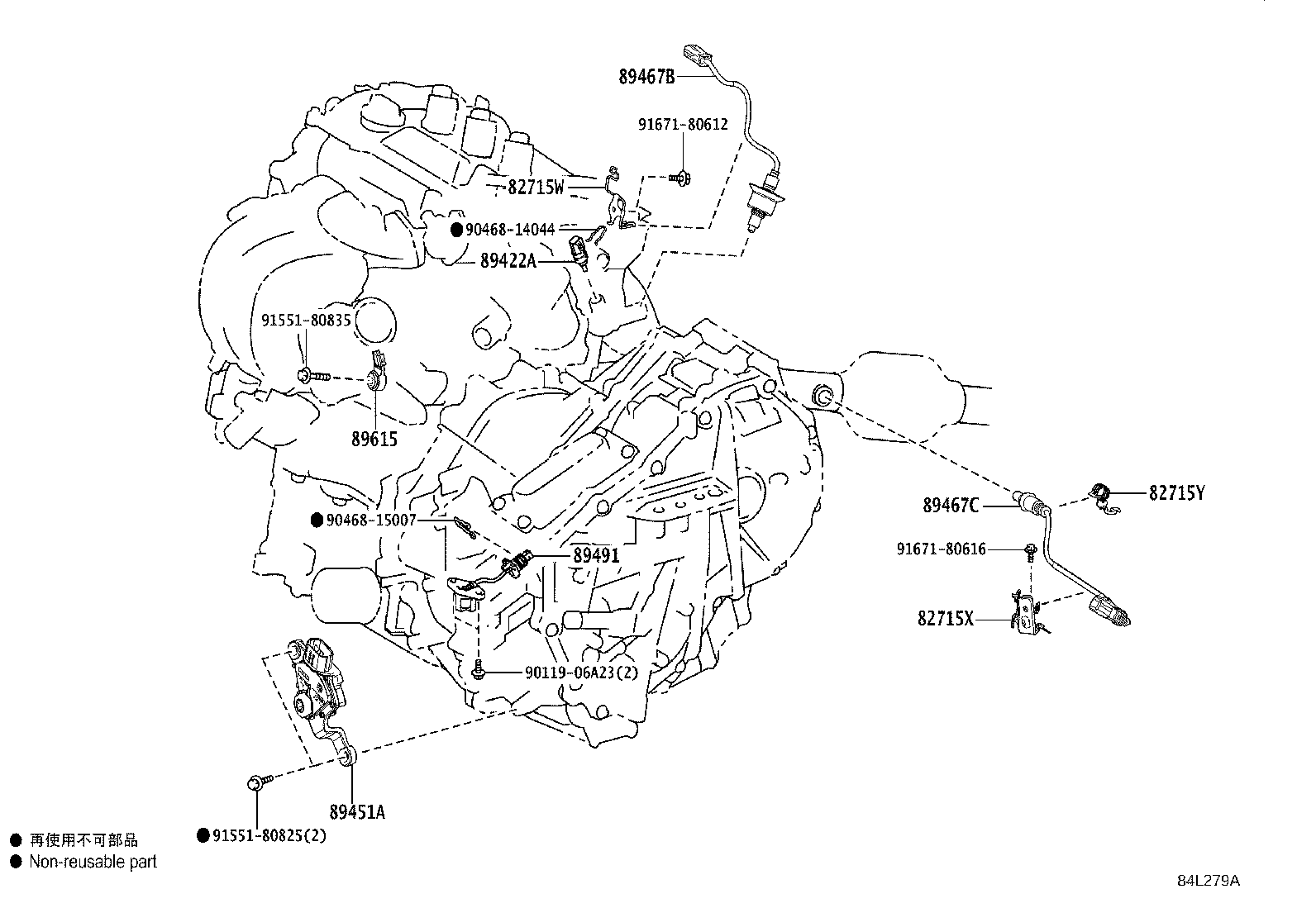

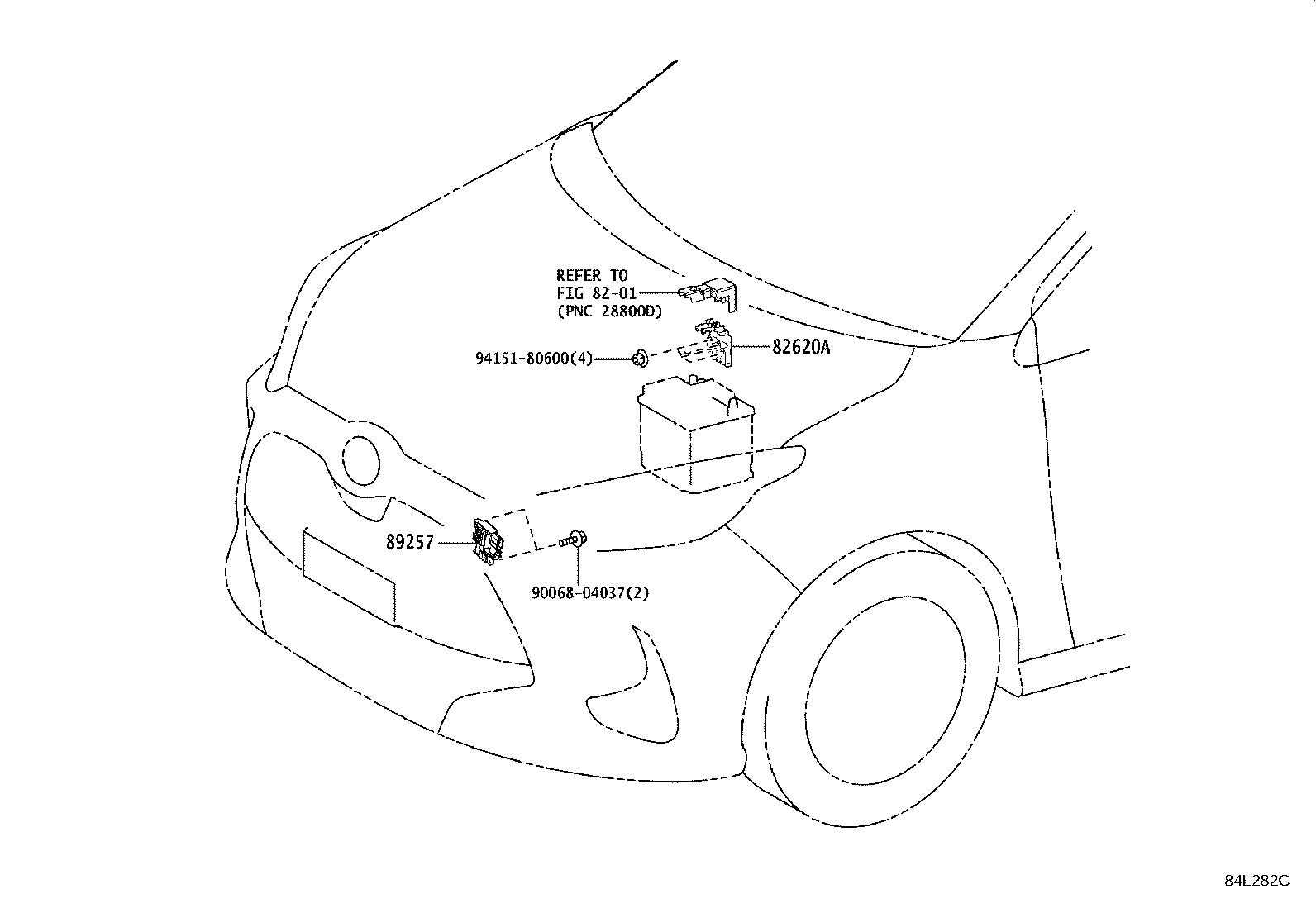

Figure 84L276A 84L276A 2020-02 → — Figure 84L277A 84L277A 2020-02 → 2024-01 Figure 84R3KRA 84R3KRA 2024-01 → — Figure 84L279A 84L279A 2020-02 → — Figure 84L281B 84L281B 2020-02 → — Figure 84L282C 84L282C 2020-02 → — Figure 84L283 84L283 2020-02 → — Figure 84L286A 84L286A 2020-02 → 2024-01 Figure 84R3KTA 84R3KTA 2024-01 → — Figure 84L284B 84L284B 2020-02 → 2024-01 Figure 84R3KUB 84R3KUB 2024-01 → — Figure 84L287C 84L287C 2020-02 → — Figure 84R3KVA 84R3KVA 2024-01 → — Figure 84L289C 84L289C 2020-02 → — Figure 84L291B 84L291B 2020-02 → — Figure 84R3KJ 84R3KJ 2024-01 → — Figure 84L293B 84L293B 2020-02 → — Figure 84L295 84L295 2020-02 → — Figure 84R3KK 84R3KK 2024-01 → — Figure 84L297B 84L297B 2020-02 → — Figure 84R3KL 84R3KL 2024-01 → — Figure 84L299E 84L299E 2020-02 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371K Relay, PC
28371L Relay, Igp
28850C Sensor Assy, Battery State
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82611 Cover, Fuse Block
82613A Block, Fuse Base
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82621A Cover, Fusible Link
82644 Computer, Semiconductor Power Integration
82644B Computer, Semiconductor Power Integration, NO.2
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82666 Holder, Connector
82672K Cover, Power Distribution Box
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
82715W Bracket, Wiring Harness Clamp
82715X Bracket, Wiring Harness Clamp, NO.2
82715Y Bracket, Wiring Harness Clamp, NO.3
82730G Box Assy, Power Distribution
82741 Block, Engine Room Relay
82741B Block, Engine Room Relay
82878 Box, Computer Integration, LH
83320 Gage Assy, Fuel Sender
83320B Gage Assy, Fuel Sender, NO.2
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84306 Cable Sub-assy, Spiral
84319 Housing, Steering Wheel Switch
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84485C Switch, Power Outlet
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84540K Relay,Neutral Start Switch
84545 Switch, Neutral Position
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84721B Switch, Panoramic View Monitor
84751F Switch, Seat Heater
84751G Switch, Seat Heater
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84970 Switch Assy, Combination
84988L Switch, Vsc Off
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85531 Socket, Power Outlet
85532 Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85910 Relay Assy, Circuit Opening
85910E Relay, Injector
85912K Relay, Vvt
85912S Relay, IR
85913F Relay, Steering Heater
85917D Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85924C Relay, Igct
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85930R Relay, +BA
85940 Relay Assy, Windshield Wiper
85948 Relay, Windshield Wiper
86210D Fuse, High Voltage
86247A Bracket, Voltage Inverter
86247C Bracket, Voltage Inverter, NO.2
8624A Inverter, Voltage
86530 Relay Assy, Horn
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88280A Switch Assy, Clutch
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89257 Computer, Cooling Fan
89419B Sensor, Shift Stroke
89422A Sensor, Water Temperature
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
8946A Bracket, Exhaust Sensor Clamp
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
89535B Computer, Transmission Control
89539M Bracket, Transmission Control Computer, NO.1
89539N Bracket, Transmission Control Computer, NO.2
89561F Relay, Electronic Fuel Injection Main, NO.1
89561G Relay, Electronic Fuel Injection Main, NO.2
89561H Relay, Electronic Fuel Injection Main, NO.3
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89730A Relay(FOR SECURITY WARNING)
C8410F Switch, Power Lift Remote Control
C8545B Relay, Power Lift Control, NO.2
G9221A Cover, Inverter, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
