Toyota Porte/Spade

2012-07 → 2020-12 · chassis NCP14#,NSP14# · catalogue 123120 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

19 part groups · 3 illustrations

Illustrations

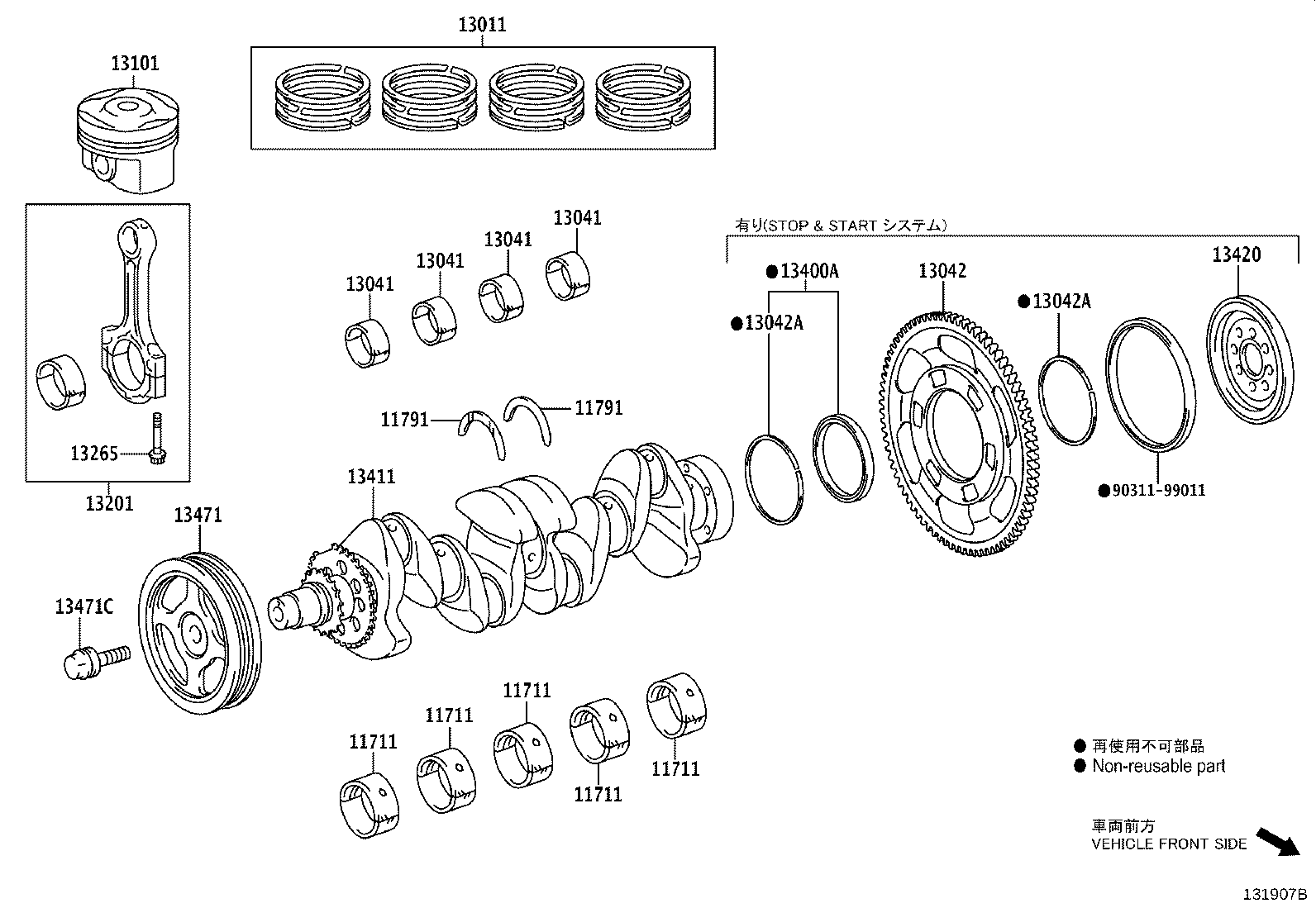

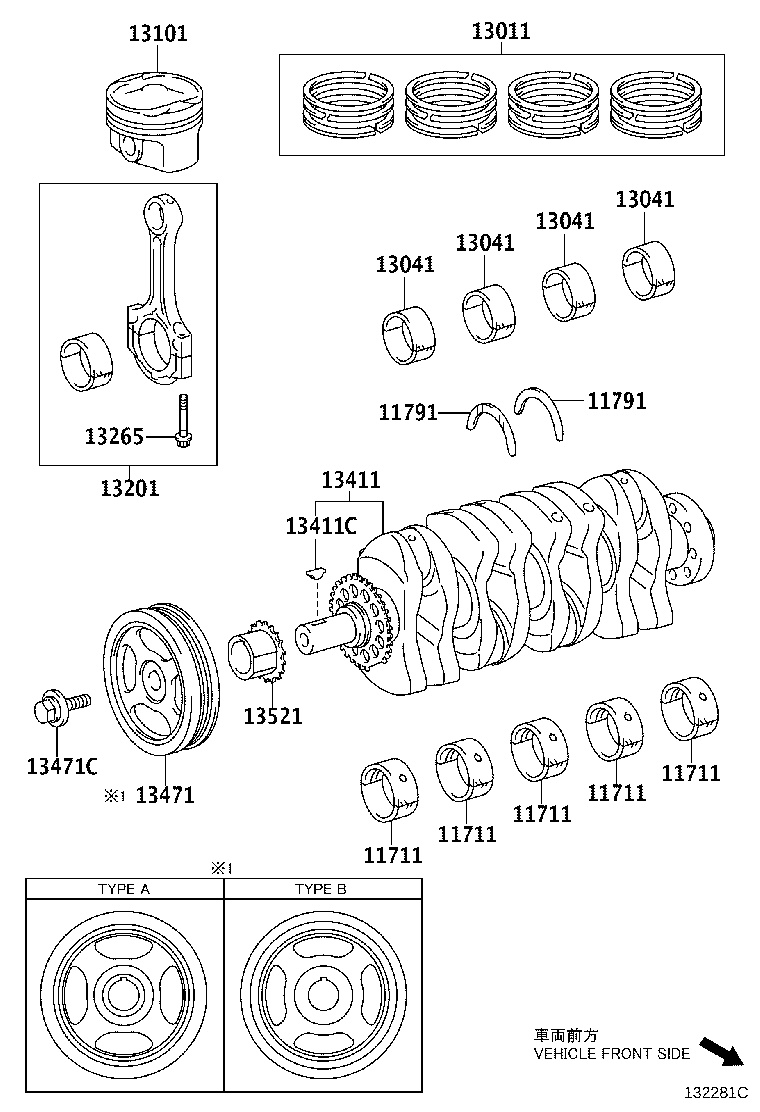

Figure 131906A 131906A 2012-07 → — Figure 131907B 131907B 2012-07 → — Figure 132281C 132281C 2015-07 → —

Part groups

PNCDescription
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
11791 Washer, Crankshaft Thrust, Upper
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13042 Gear Sub-assy, Ers Ring
13042A Ring, Snap(FOR RING GEAR)
13101 Piston Sub-assy, W/Pin
13201 Rod Sub-assy, Connecting
13202 Bearing Set, Connecting Rod
13265 Bolt, Connecting Rod
13400A Bearing(FOR CRANKSHAFT)
13407 Damper Sub-assy, Crankshaft
13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)
13420 Cluch Assy, Ers 1Way
13471 Pulley, Crankshaft
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13521 Gear OR Sprocket, Crankshaft Timing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
