Toyota Corona

1992-02 → 1996-01 · chassis AT190,CT19#,ST19# · catalogue 271130 · Japan

Discontinued model Data version 1996-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

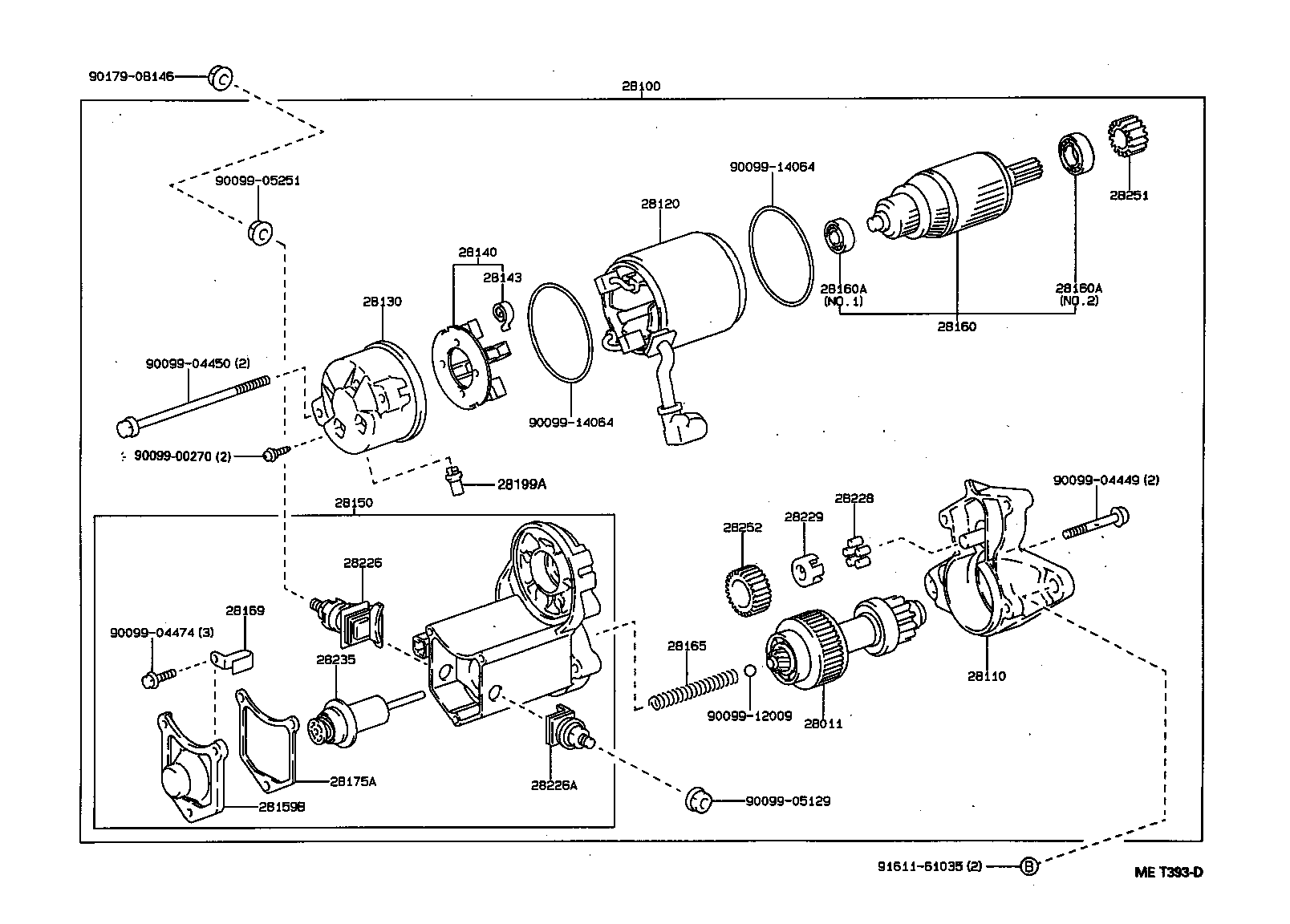

188 parts on this figure

Part number	Description	Fitment	Price
28011 — Clutch Sub-assy, Starter
28011-26042 note	Clutch Sub-assy, Starter 1994-02 → 1996-01 ended	4AFE AT190	¥24,000
28011-64010	Clutch Sub-assy, Starter 1992-08 → 1996-01 ended	2C CT195	¥23,000
28011-64010 note	Clutch Sub-assy, Starter 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	¥23,000
28011-64010 note	Clutch Sub-assy, Starter 1992-02 → 1994-02 ended	2C CT190	¥23,000
28011-64130	Clutch Sub-assy, Starter 1992-02 → 1996-01 ended	2C CT190	¥20,300
28011-70020	Clutch Sub-assy, Starter 1992-02 → 1996-01 ended	4AFE AT190	¥3,990
28011-74070	Clutch Sub-assy, Starter 1992-02 → 1996-01 ended	3SFE,4SFE ST19#	¥14,100
28011-76070 note	Clutch Sub-assy, Starter 1992-02 → 1994-02 ended	4AFE AT190	¥5,400
28100 — Starter Assy
28100-16150 note	Starter Assy 1994-02 → 1996-01 ended	4AFE AT190	¥95,200
28100-16160 note	Starter Assy 1992-02 → 1996-01 ended	4AFE AT190	¥66,800
28100-16180 note	Starter Assy 1992-02 → 1994-02 ended	4AFE AT190	¥101,000
28100-64200 note	Starter Assy 1992-02 → 1994-02 ended	2C CT190 EXS,GX,SELS	¥105,000
28100-64210 note	Starter Assy 1992-02 → 1994-02 ended	2C CT190 EXS,GX,SELS	¥147,000
28100-64210 note	Starter Assy 1992-08 → 1994-02 ended	2C CT195	¥147,000
28100-64230 note	Starter Assy 1992-11 → 1994-02 ended	2C CT190 KYO	¥105,000
28100-64240 note	Starter Assy 1992-11 → 1994-02 ended	2C CT190 KYO	¥147,000
28100-64300 note	Starter Assy 1994-02 → 1996-01 ended	2C CT190 EXS,GX,SELS	¥105,000
28100-64310 note	Starter Assy 1994-02 → 1996-01 ended	2C CT195	¥148,000
28100-64310 note	Starter Assy 1994-02 → 1996-01 ended	2C CT190 EXS,GX,SELS	¥148,000
28100-64320 note	Starter Assy 1994-02 → 1996-01 ended	2C CT190 KYO	¥105,000
28100-64330 note	Starter Assy 1994-02 → 1996-01 ended	2C CT190 KYO	¥147,000
28100-74130 note	Starter Assy 1992-02 → 1996-01 ended	3SFE,4SFE ST19# EXG,EXS,GX,SELS,TYPE1,TYPE2	¥101,000
28100-74180 note	Starter Assy 1992-11 → 1996-01 ended	4SFE ST190 KYO	¥99,700
28110 — Housing Assy, Starter Drive
28110-16130 note	Housing Assy, Starter Drive 1992-02 → 1994-02 ended	4AFE AT190	¥6,800
28110-16150 note	Housing Assy, Starter Drive 1994-02 → 1996-01 ended	4AFE AT190	¥6,800
28110-16160	Housing Assy, Starter Drive 1992-02 → 1996-01 ended	4AFE AT190	¥7,200
28110-64170	Housing Assy, Starter Drive 1994-02 → 1996-01 ended	2C CT190	¥7,100
28110-64200	Housing Assy, Starter Drive 1992-02 → 1994-02 ended	2C CT190	¥7,100
28110-74100	Housing Assy, Starter Drive 1992-02 → 1996-01 ended	3SFE,4SFE ST19#	¥6,700
28115-64040	Housing Assy, Starter Drive 1994-02 → 1996-01 ended	2C CT195	—
28115-64040 note	Housing Assy, Starter Drive 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28115-64210	Housing Assy, Starter Drive 1992-08 → 1994-02 ended	2C CT195	—
28115-64210 note	Housing Assy, Starter Drive 1992-02 → 1994-02 ended	2C CT190	—
28120 — Yoke Assy, Starter
28120-16180 note	Yoke Assy, Starter 1992-02 → 1994-02 ended	4AFE AT190	—
28120-16180	Yoke Assy, Starter 1994-09 → 1996-01 ended	3SFE,4SFE ST19# EXG,EXS,GX,SELS,TYPE1,TYPE2	—
28120-26071 note	Yoke Assy, Starter 1994-02 → 1996-01 ended	4AFE AT190	—
28120-64040	Yoke Assy, Starter 1992-08 → 1996-01 ended	2C CT195	—
28120-64040 note	Yoke Assy, Starter 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28120-64040 note	Yoke Assy, Starter 1992-02 → 1994-02 ended	2C CT190	—
28120-64130	Yoke Assy, Starter 1992-02 → 1996-01 ended	2C CT190	—
28120-70020	Yoke Assy, Starter 1992-02 → 1996-01 ended	4AFE AT190	—
28120-76061	Yoke Assy, Starter 1992-02 → 1994-09 ended	3SFE,4SFE ST19#	—
28120-76061	Yoke Assy, Starter 1994-09 → 1996-01 ended	4SFE ST190 KYO	—
28130 — Frame Assy, Starter Commutator End
28130-10040 note	Frame Assy, Starter Commutator End 1994-02 → 1996-01 ended	4AFE AT190	¥0
28130-16070	Frame Assy, Starter Commutator End 1992-02 → 1996-01 ended	4AFE AT190	¥3,340
28130-16180 note	Frame Assy, Starter Commutator End 1992-02 → 1994-02 ended	4AFE AT190	¥0
28130-64130	Frame Assy, Starter Commutator End 1992-02 → 1996-01 ended	2C CT190	¥0
28130-74120	Frame Assy, Starter Commutator End 1992-02 → 1996-01 ended	3SFE,4SFE ST19#	¥0
28140 — Holder Assy, Starter Brush
28140-26070 note	Holder Assy, Starter Brush 1994-02 → 1996-01 ended	4AFE AT190	—
28140-64040	Holder Assy, Starter Brush 1992-08 → 1996-01 ended	2C CT195	—
28140-64040 note	Holder Assy, Starter Brush 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28140-64040 note	Holder Assy, Starter Brush 1992-02 → 1994-02 ended	2C CT190	—
28140-64130	Holder Assy, Starter Brush 1992-02 → 1996-01 ended	2C CT190	—
28140-70020	Holder Assy, Starter Brush 1992-02 → 1996-01 ended	4AFE AT190	—
28140-74120	Holder Assy, Starter Brush 1992-02 → 1996-01 ended	3SFE,4SFE ST19#	—
28140-76060 note	Holder Assy, Starter Brush 1992-02 → 1994-02 ended	4AFE AT190	—
28143 — Spring, Starter Brush
28143-70020	Spring, Starter Brush 1992-02 → 1996-01 ended	4AFE AT190	—
28143-76060	Spring, Starter Brush 1992-02 → 1994-02 ended	3SFE,4SFE ST19# EXG,EXS,GX,SELS,TYPE1,TYPE2	—
28143-76060 note	Spring, Starter Brush 1992-02 → 1994-02 ended	4AFE AT190	—
28143-76060	Spring, Starter Brush 1994-02 → 1996-01 ended	3SFE,4SFE ST19#	—
28146-76060	Spring, Starter Brush 1992-11 → 1994-02 ended	4SFE ST190 KYO	—
90099-17112	Spring, Starter Brush 1992-02 → 1996-01 ended	2C CT190	—
90099-17112 note	Spring, Starter Brush 1994-02 → 1996-01 ended	4AFE AT190	—
90099-17115 note	Spring, Starter Brush 1992-02 → 1994-02 ended	2C CT190	—
90099-17115	Spring, Starter Brush 1992-08 → 1996-01 ended	2C CT195	—
90099-17115 note	Spring, Starter Brush 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28150 — Switch Assy, Magnet Starter
28150-16150 note	Switch Assy, Magnet Starter 1994-02 → 1996-01 ended	4AFE AT190	¥14,400
28150-16160	Switch Assy, Magnet Starter 1992-02 → 1996-01 ended	4AFE AT190	¥9,300
28150-16181 note	Switch Assy, Magnet Starter 1992-02 → 1994-02 ended	4AFE AT190	¥15,900
28150-64200	Switch Assy, Magnet Starter 1992-02 → 1994-02 ended	2C CT190 EXS,GX,SELS	¥16,700
28150-64210 note	Switch Assy, Magnet Starter 1992-02 → 1994-02 ended	2C CT190 EXS,GX,SELS	¥23,000
28150-64210	Switch Assy, Magnet Starter 1992-08 → 1994-02 ended	2C CT195	¥23,000
28150-64230	Switch Assy, Magnet Starter 1992-11 → 1994-02 ended	2C CT190 KYO	¥16,500
28150-64240 note	Switch Assy, Magnet Starter 1992-11 → 1994-02 ended	2C CT190 KYO	¥23,000
28150-64300	Switch Assy, Magnet Starter 1994-02 → 1996-01 ended	2C CT190 EXS,GX,SELS	¥16,700
28150-64310	Switch Assy, Magnet Starter 1994-02 → 1996-01 ended	2C CT195	¥23,200
28150-64310 note	Switch Assy, Magnet Starter 1994-02 → 1996-01 ended	2C CT190 EXS,GX,SELS	¥23,200
28150-64320	Switch Assy, Magnet Starter 1994-02 → 1996-01 ended	2C CT190 KYO	¥16,500
28150-64330 note	Switch Assy, Magnet Starter 1994-02 → 1996-01 ended	2C CT190 ATM KYO	¥23,200
28150-74130	Switch Assy, Magnet Starter 1992-02 → 1994-09 ended	3SFE,4SFE ST19# EXG,EXS,GX,SELS,TYPE1,TYPE2	¥15,900
28150-74140	Switch Assy, Magnet Starter 1994-09 → 1996-01 ended	3SFE,4SFE ST19# EXG,EXS,GX,SELS,TYPE1,TYPE2	¥15,500
28150-74180	Switch Assy, Magnet Starter 1992-11 → 1996-01 ended	4SFE ST190 KYO	¥15,900
28159B — Cover, Magnet Switch
28159-10040 note	Cover, Magnet Switch 1992-02 → 1994-02 ended	2C CT190 EXS,GX,SELS	—
28159-10040 note	Cover, Magnet Switch 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28159-10040 note	Cover, Magnet Switch 1994-02 → 1996-01 ended	4AFE AT190	—
28159-10040	Cover, Magnet Switch 1992-08 → 1996-01 ended	2C CT195	—
28159-55050	Cover, Magnet Switch 1992-02 → 1992-11 ended	2C CT190	—
28159-55050	Cover, Magnet Switch 1994-02 → 1996-01 ended	3SFE,4SFE ST19#;2C CT190 ATM +4	—
28159-55050	Cover, Magnet Switch 1992-11 → 1994-02 ended	2C,3SFE,4SFE CT190,ST19#	—
28159-55050 note	Cover, Magnet Switch 1992-02 → 1994-02 ended	4AFE AT190	—
28159-72010 note	Cover, Magnet Switch 1992-11 → 1994-02 ended	2C CT190 KYO	—
28160 — Armature Assy, Starter
28160-26071 note	Armature Assy, Starter 1994-02 → 1996-01 ended	4AFE AT190	—
28160-64041 note	Armature Assy, Starter 1992-02 → 1994-02 ended	2C CT190	¥18,500
28160-64041 note	Armature Assy, Starter 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	¥18,500
28160-64041	Armature Assy, Starter 1992-08 → 1996-01 ended	2C CT195	¥18,500
28160-70021	Armature Assy, Starter 1992-02 → 1996-01 ended	4AFE AT190	¥9,800
28160-74070	Armature Assy, Starter 1994-02 → 1996-01 ended	2C CT190 MTM KYO;2C +2	—
28160-74070	Armature Assy, Starter 1992-02 → 1994-02 ended	2C CT190 EXS,GX,SELS	—
28160-74180	Armature Assy, Starter 1992-11 → 1996-01 ended	4SFE ST190 KYO	¥22,200
28160-75060	Armature Assy, Starter 1994-02 → 1996-01 ended	2C CT190 ATM KYO	¥14,600
28160-75060 note	Armature Assy, Starter 1994-02 → 1996-01 ended	2C CT190 MTM KYO	¥14,600
28160-75060	Armature Assy, Starter 1992-11 → 1994-02 ended	2C CT190 KYO	¥14,600
28160-76060 note	Armature Assy, Starter 1992-02 → 1994-02 ended	4AFE AT190	¥23,700
28160-76060	Armature Assy, Starter 1992-02 → 1996-01 ended	3SFE,4SFE ST19# EXG,EXS,GX,SELS,TYPE1,TYPE2	¥23,700
28160A — Bearing, Starter Armature
28253-45020 note	Bearing, Starter Armature 1994-02 → 1996-01 ended	4AFE AT190	—
28253-54070 note	Bearing, Starter Armature 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	¥1,620
28253-54070 note	Bearing, Starter Armature 1992-08 → 1996-01 ended	2C CT195	¥1,620
28253-54070 note	Bearing, Starter Armature 1992-02 → 1994-02 ended	2C CT190	¥1,620
90099-10113 note	Bearing, Starter Armature 1994-02 → 1996-01 ended	4AFE AT190	—
90099-10139 note	Bearing, Starter Armature 1992-11 → 1996-01 ended	2C,4SFE CT190,ST190 KYO	—
90099-10143 note	Bearing, Starter Armature 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
90099-10143 note	Bearing, Starter Armature 1992-08 → 1996-01 ended	2C CT195	—
90099-10143 note	Bearing, Starter Armature 1992-02 → 1994-02 ended	2C CT190	—
90099-10196 note	Bearing, Starter Armature 1992-02 → 1996-01 ended	2C,3SFE,4SFE CT190,ST19#	—
90099-10196 note	Bearing, Starter Armature 1992-02 → 1994-02 ended	4AFE AT190	—
90099-10197 note	Bearing, Starter Armature 1992-02 → 1996-01 ended	2C,3SFE,4SFE CT190,ST19# EXG,EXS,GX,SELS,TYPE1,TYPE2	¥0
90099-10197 note	Bearing, Starter Armature 1992-02 → 1994-02 ended	4AFE AT190	¥0
28165 — Spring, Starter Magnet Switch Return
28165-26040 note	Spring, Starter Magnet Switch Return 1992-02 → 1994-02 ended	2C CT190	—
28165-26040	Spring, Starter Magnet Switch Return 1992-08 → 1996-01 ended	2C CT195	—
28165-26040 note	Spring, Starter Magnet Switch Return 1994-02 → 1996-01 ended	4AFE AT190	—
28165-26040 note	Spring, Starter Magnet Switch Return 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28165-74070	Spring, Starter Magnet Switch Return 1992-02 → 1996-01 ended	3SFE,4SFE ST19#	¥0
28165-76070 note	Spring, Starter Magnet Switch Return 1992-02 → 1994-02 ended	4AFE AT190	—
28165-76070	Spring, Starter Magnet Switch Return 1992-02 → 1996-01 ended	2C CT190	—
28169 — Clamp, Starter Motor Lead Wire
28169-10040 note	Clamp, Starter Motor Lead Wire 1994-02 → 1996-01 ended	4AFE AT190	¥0
28169-55050	Clamp, Starter Motor Lead Wire 1994-02 → 1996-01 ended	3SFE,4SFE ST19#;2C CT190 ATM +4	—
28169-55050 note	Clamp, Starter Motor Lead Wire 1992-02 → 1994-02 ended	4AFE AT190	—
28169-55050	Clamp, Starter Motor Lead Wire 1992-02 → 1992-11 ended	2C CT190	—
28169-55050	Clamp, Starter Motor Lead Wire 1992-11 → 1994-02 ended	2C,3SFE,4SFE CT190,ST19#	—
28175A — Gasket, Magnet Switch Cover
28175-10040 note	Gasket, Magnet Switch Cover 1992-02 → 1994-02 ended	2C CT190	—
28175-10040	Gasket, Magnet Switch Cover 1992-08 → 1996-01 ended	2C CT195	—
28175-10040 note	Gasket, Magnet Switch Cover 1994-02 → 1996-01 ended	4AFE AT190	—
28175-10040 note	Gasket, Magnet Switch Cover 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28175-55050	Gasket, Magnet Switch Cover 1992-02 → 1992-11 ended	2C CT190	—
28175-55050 note	Gasket, Magnet Switch Cover 1992-02 → 1994-02 ended	4AFE AT190	—
28175-55050	Gasket, Magnet Switch Cover 1992-11 → 1994-02 ended	2C,3SFE,4SFE CT190,ST19#	—
28175-55050	Gasket, Magnet Switch Cover 1994-02 → 1996-01 ended	3SFE,4SFE ST19#;2C CT190 ATM +4	—
28199A — Protector, Dust Starter
28199-46080	Protector, Dust Starter 1992-02 → 1996-01 ended	4AFE AT190	—
28199-46080 note	Protector, Dust Starter 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28199-46080	Protector, Dust Starter 1992-08 → 1996-01 ended	2C CT195	—
28199-46080 note	Protector, Dust Starter 1992-11 → 1994-02 ended	2C CT190 KYO	—
28199-46080 note	Protector, Dust Starter 1992-02 → 1994-02 ended	2C CT190 EXS,GX,SELS	—
28199-74110	Protector, Dust Starter 1992-02 → 1996-01 ended	2C,3SFE,4SFE CT190,ST19#	—
28199-74110 note	Protector, Dust Starter 1992-02 → 1994-02 ended	4AFE AT190	—
28226 — Starter Kit, Battery Terminal
28226-55050 note	Starter Kit, Battery Terminal 1992-02 → 1994-02 ended	4AFE AT190	—
28226-55050	Starter Kit, Battery Terminal 1992-02 → 1996-01 ended	2C CT190 EXS,GX,SELS	—
28226-55050	Starter Kit, Battery Terminal 1992-02 → 1996-01 ended	3SFE,4SFE ST19# EXG,EXS,GX,SELS,TYPE1,TYPE2	—
28226-64230	Starter Kit, Battery Terminal 1992-11 → 1996-01 ended	2C CT190 KYO	¥0
28226-70040 note	Starter Kit, Battery Terminal 1994-02 → 1996-01 ended	4AFE AT190	¥0
28226-72170 note	Starter Kit, Battery Terminal 1992-11 → 1994-02 ended	2C CT190 KYO	¥0
28226-72170 note	Starter Kit, Battery Terminal 1994-02 → 1996-01 ended	2C CT190 KYO	¥0
28226-74180	Starter Kit, Battery Terminal 1992-11 → 1996-01 ended	4SFE ST190 KYO	¥0
28226-76100 note	Starter Kit, Battery Terminal 1992-02 → 1994-02 ended	2C CT190 EXS,GX,SELS	¥0
28226-76100 note	Starter Kit, Battery Terminal 1994-02 → 1996-01 ended	2C CT190 EXS,GX,SELS	¥0
28226-76100	Starter Kit, Battery Terminal 1992-08 → 1996-01 ended	2C CT195	¥0
28226A — Starter Kit, Motor Terminal
28226-72010 note	Starter Kit, Motor Terminal 1992-02 → 1994-02 ended	2C CT190	¥0
28226-72010	Starter Kit, Motor Terminal 1992-08 → 1996-01 ended	2C CT195	¥0
28226-72010 note	Starter Kit, Motor Terminal 1994-02 → 1996-01 ended	4AFE AT190	¥0
28226-72010 note	Starter Kit, Motor Terminal 1994-02 → 1996-01 ended	2C CT190	¥0
28226-74070 note	Starter Kit, Motor Terminal 1992-02 → 1994-02 ended	4AFE AT190	—
28226-74070	Starter Kit, Motor Terminal 1992-02 → 1996-01 ended	2C,3SFE,4SFE CT190,ST19#	—
28228 — Roller, Starter Idle Gear Clutch
28228-26040	Roller, Starter Idle Gear Clutch 1992-02 → 1996-01 ended	2C,3SFE,4SFE CT19#,ST19#	—
28228-26040 note	Roller, Starter Idle Gear Clutch 1992-02 → 1996-01 ended	4AFE AT190	—
28228-64040 note	Roller, Starter Idle Gear Clutch 1992-11 → 1994-02 ended	2C CT190 KYO	—
28229 — Retainer, Starter Idle Gear
28229-26040 note	Retainer, Starter Idle Gear 1992-02 → 1994-02 ended	2C CT190	—
28229-26040 note	Retainer, Starter Idle Gear 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28229-26040	Retainer, Starter Idle Gear 1992-08 → 1996-01 ended	2C CT195	—
28229-26040 note	Retainer, Starter Idle Gear 1994-02 → 1996-01 ended	4AFE AT190	—
28229-74070 note	Retainer, Starter Idle Gear 1992-02 → 1994-02 ended	4AFE AT190	—
28229-74070	Retainer, Starter Idle Gear 1992-02 → 1996-01 ended	2C,3SFE,4SFE CT190,ST19#	—
28235 — Plunger, Magnet Switch
28235-35080 note	Plunger, Magnet Switch 1992-02 → 1994-02 ended	2C CT190	—
28235-35080	Plunger, Magnet Switch 1992-08 → 1996-01 ended	2C CT195	—
28235-35080 note	Plunger, Magnet Switch 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28235-35080 note	Plunger, Magnet Switch 1994-02 → 1996-01 ended	4AFE AT190	—
28235-55050	Plunger, Magnet Switch 1992-02 → 1994-02 ended	2C CT190	—
28235-55050	Plunger, Magnet Switch 1994-02 → 1996-01 ended	2C CT190 ATM KYO;2C +3	—
28235-55050 note	Plunger, Magnet Switch 1992-02 → 1994-02 ended	4AFE AT190	—
28235-74130	Plunger, Magnet Switch 1992-11 → 1996-01 ended	3SFE,4SFE ST19#	—
28251 — Pinion, Starter Drive
28251-54070 note	Pinion, Starter Drive 1992-02 → 1994-02 ended	2C CT190	—
28251-54070	Pinion, Starter Drive 1992-08 → 1996-01 ended	2C CT195	—
28251-54070 note	Pinion, Starter Drive 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28254-45020 note	Pinion, Starter Drive 1994-02 → 1996-01 ended	4AFE AT190	—
28252 — Gear, Starter Idle
28254-64040 note	Gear, Starter Idle 1992-02 → 1994-02 ended	2C CT190	—
28254-64040	Gear, Starter Idle 1992-08 → 1996-01 ended	2C CT195	—
28254-64040 note	Gear, Starter Idle 1994-02 → 1996-01 ended	2C CT190 ATM;2C CT190 +2	—
28254-64130	Gear, Starter Idle 1992-02 → 1996-01 ended	2C CT190	—
28254-74070 note	Gear, Starter Idle 1992-02 → 1994-02 ended	4AFE AT190	—
28254-74070	Gear, Starter Idle 1992-02 → 1996-01 ended	3SFE,4SFE ST19#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
