Toyota Premio/Allion

2007-05 → 2021-03 · chassis NZT260,ZRT26# · catalogue 271160 · Japan

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

59 part groups · 10 illustrations

Illustrations

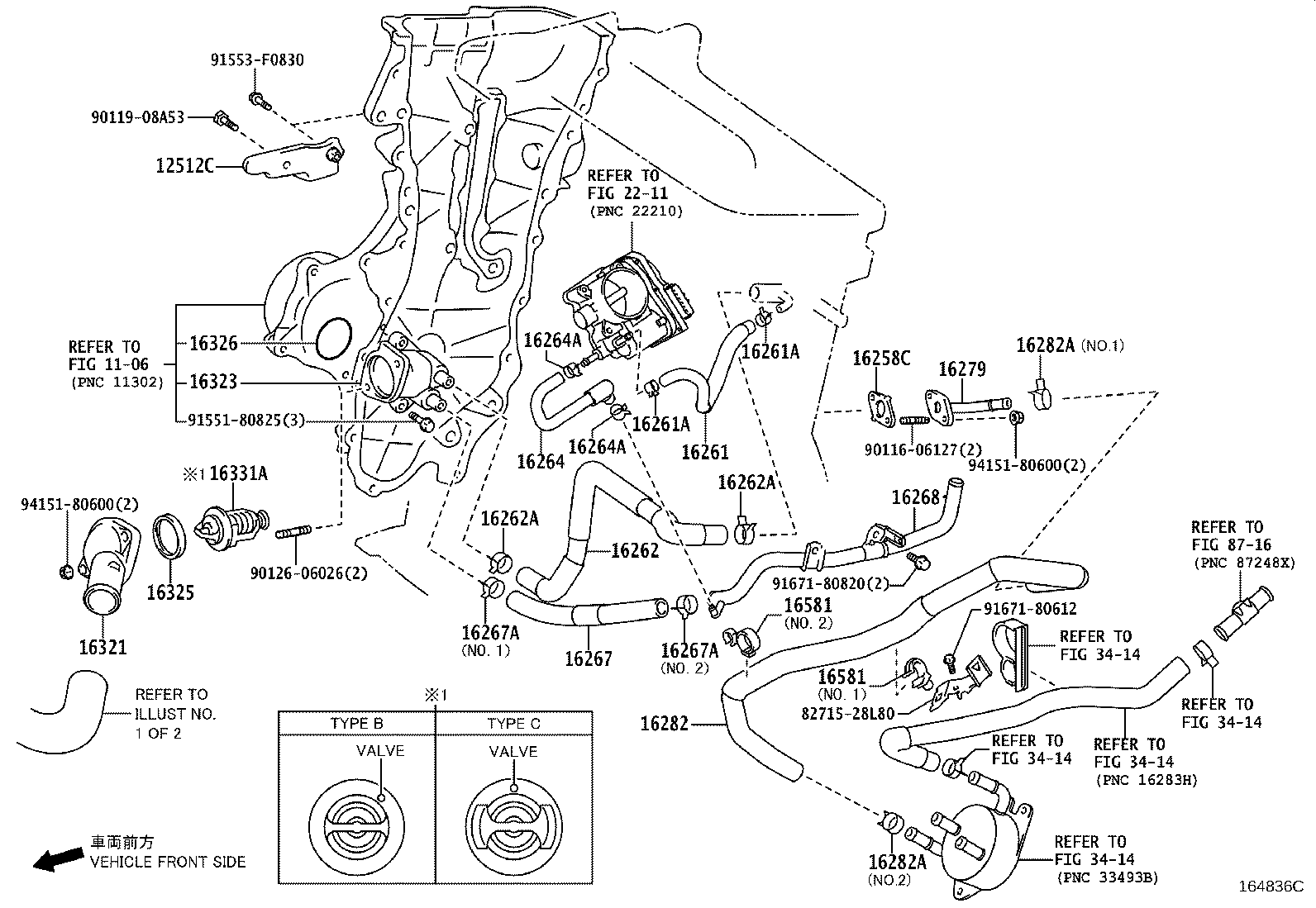

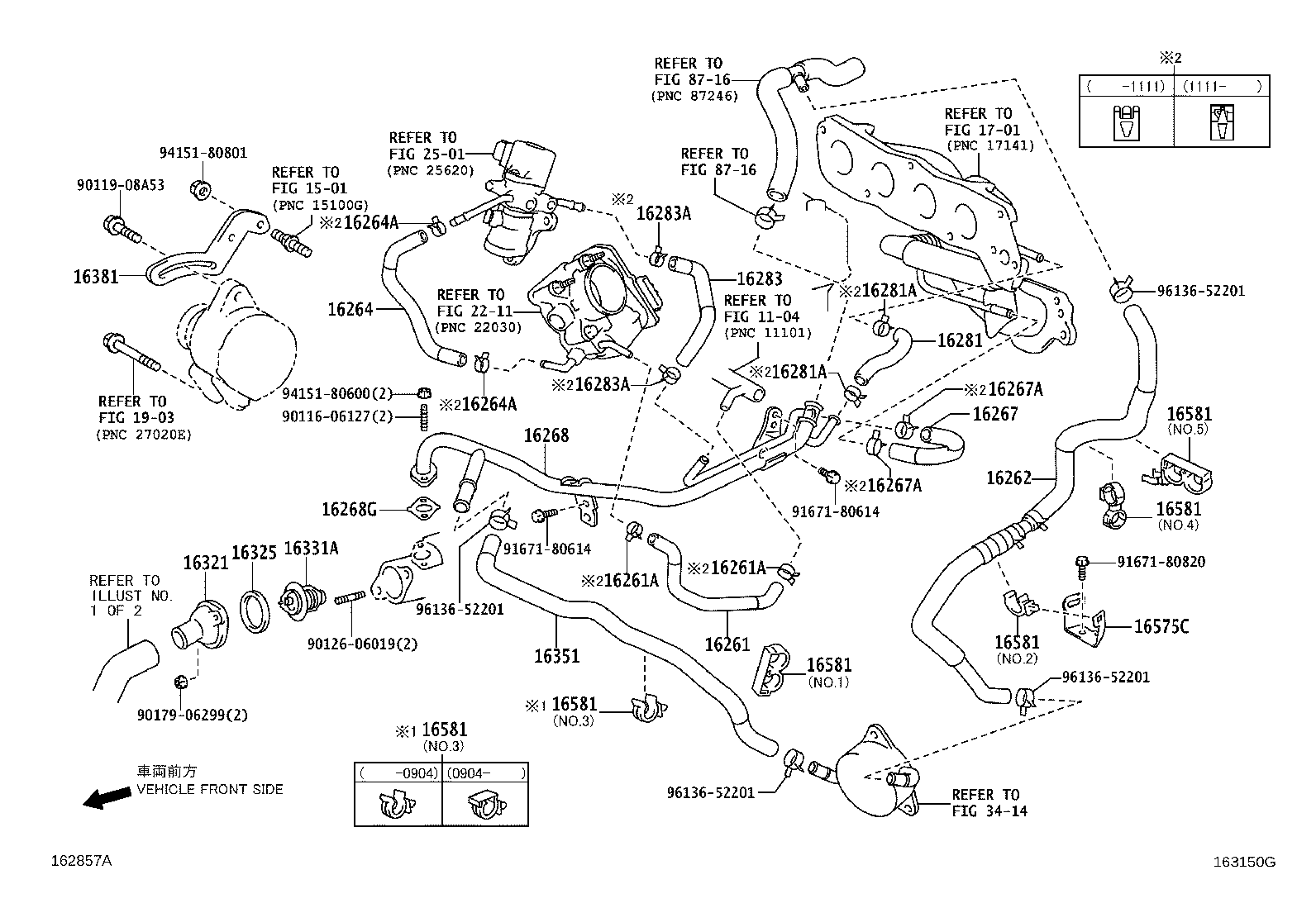

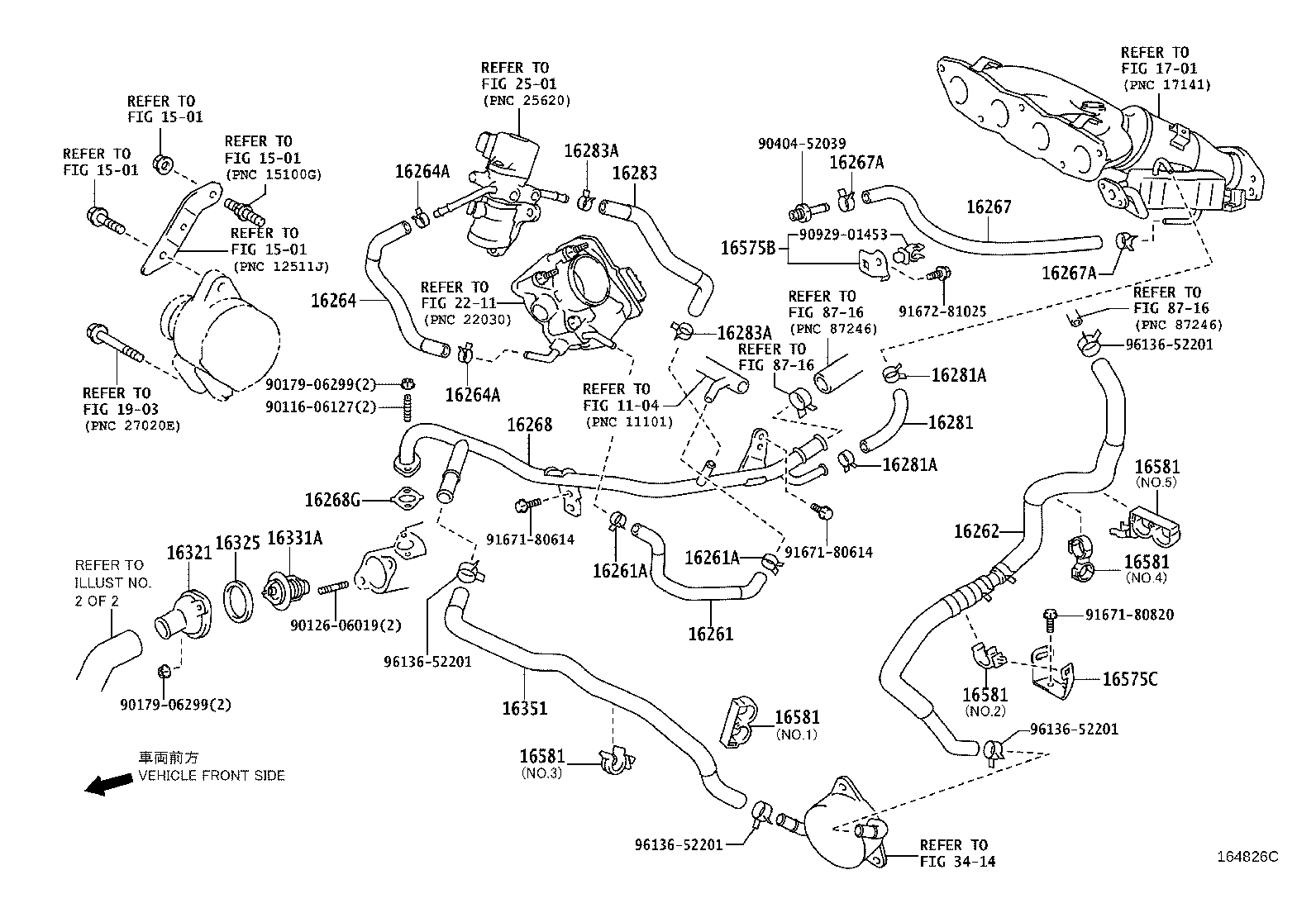

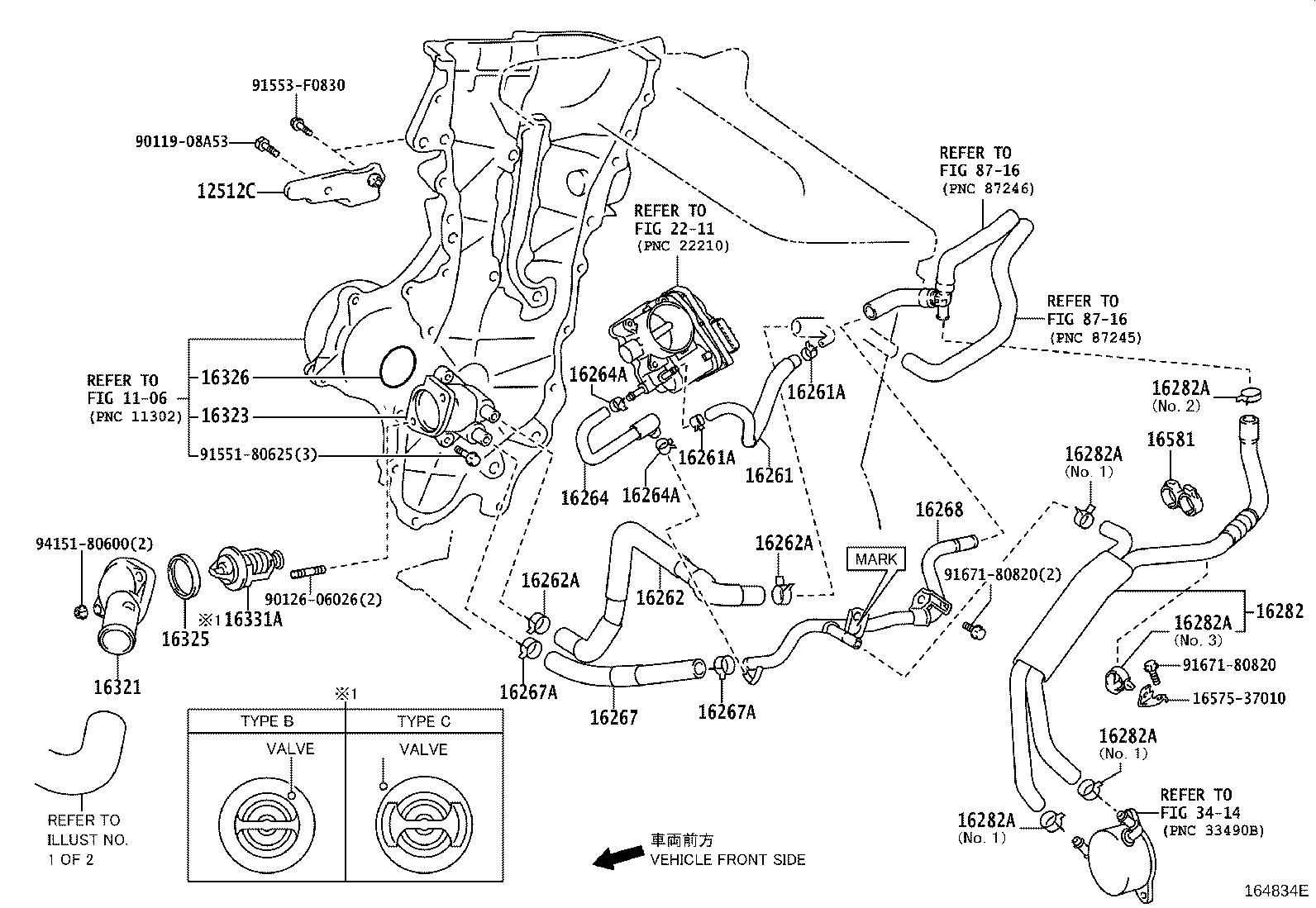

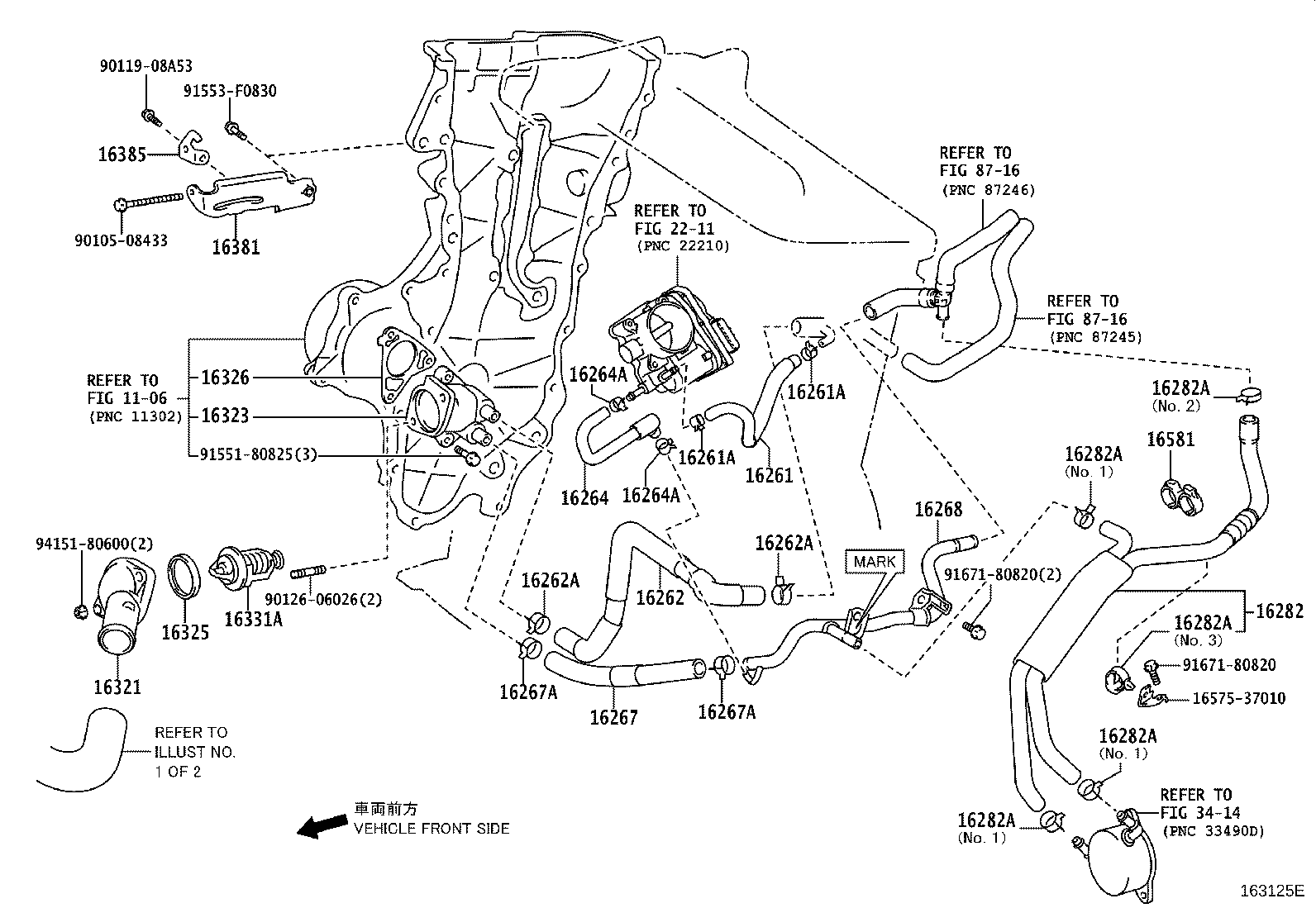

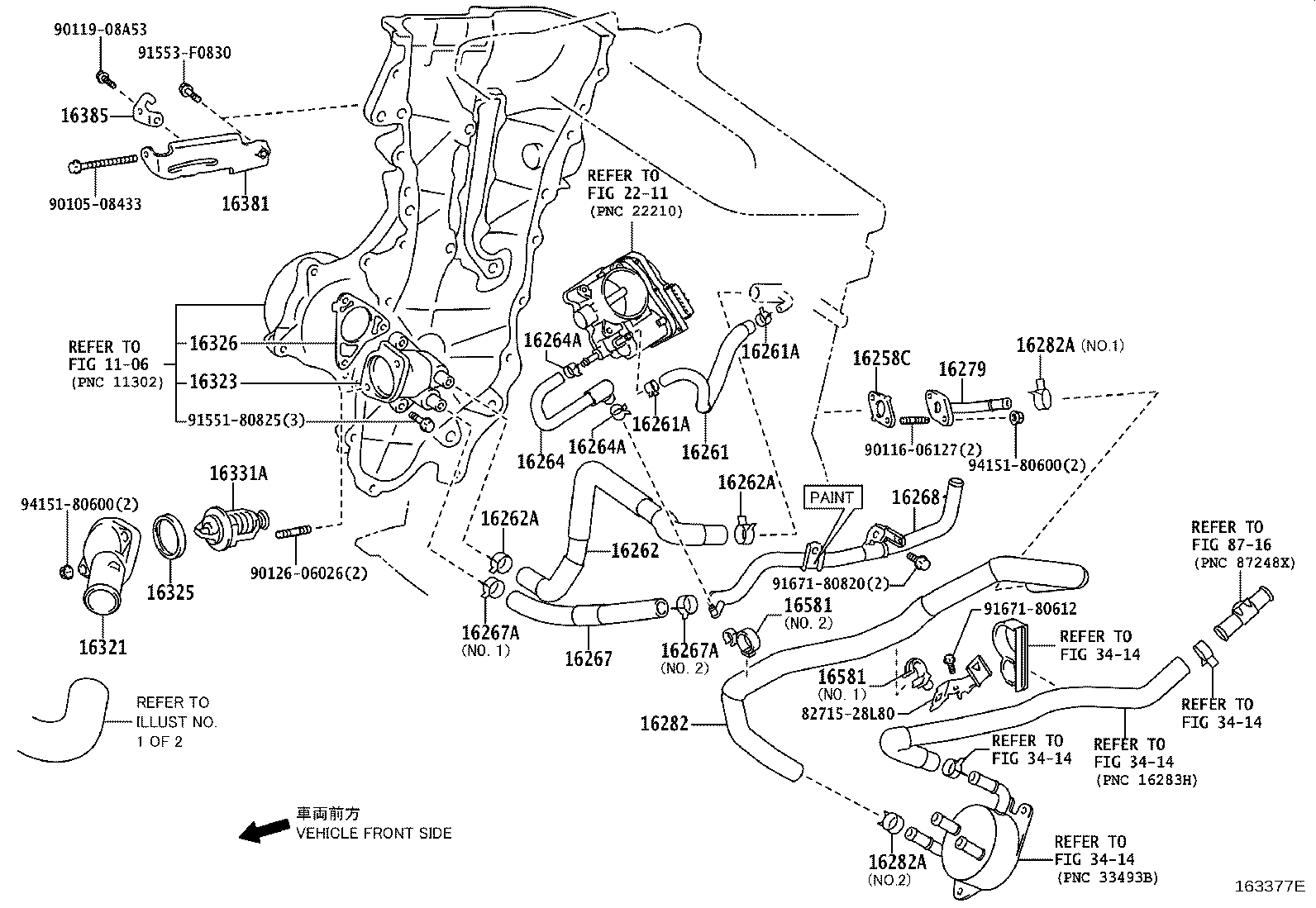

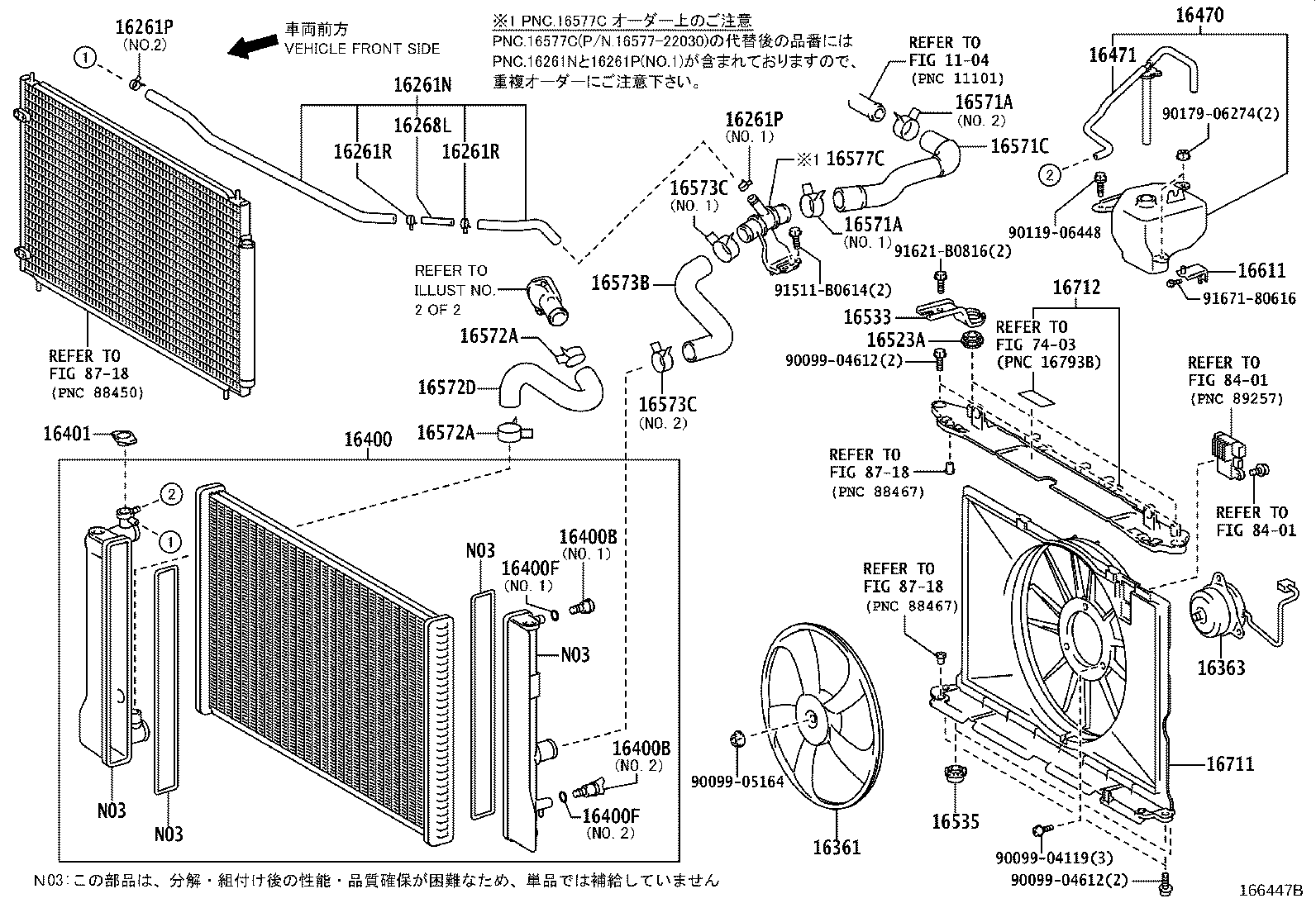

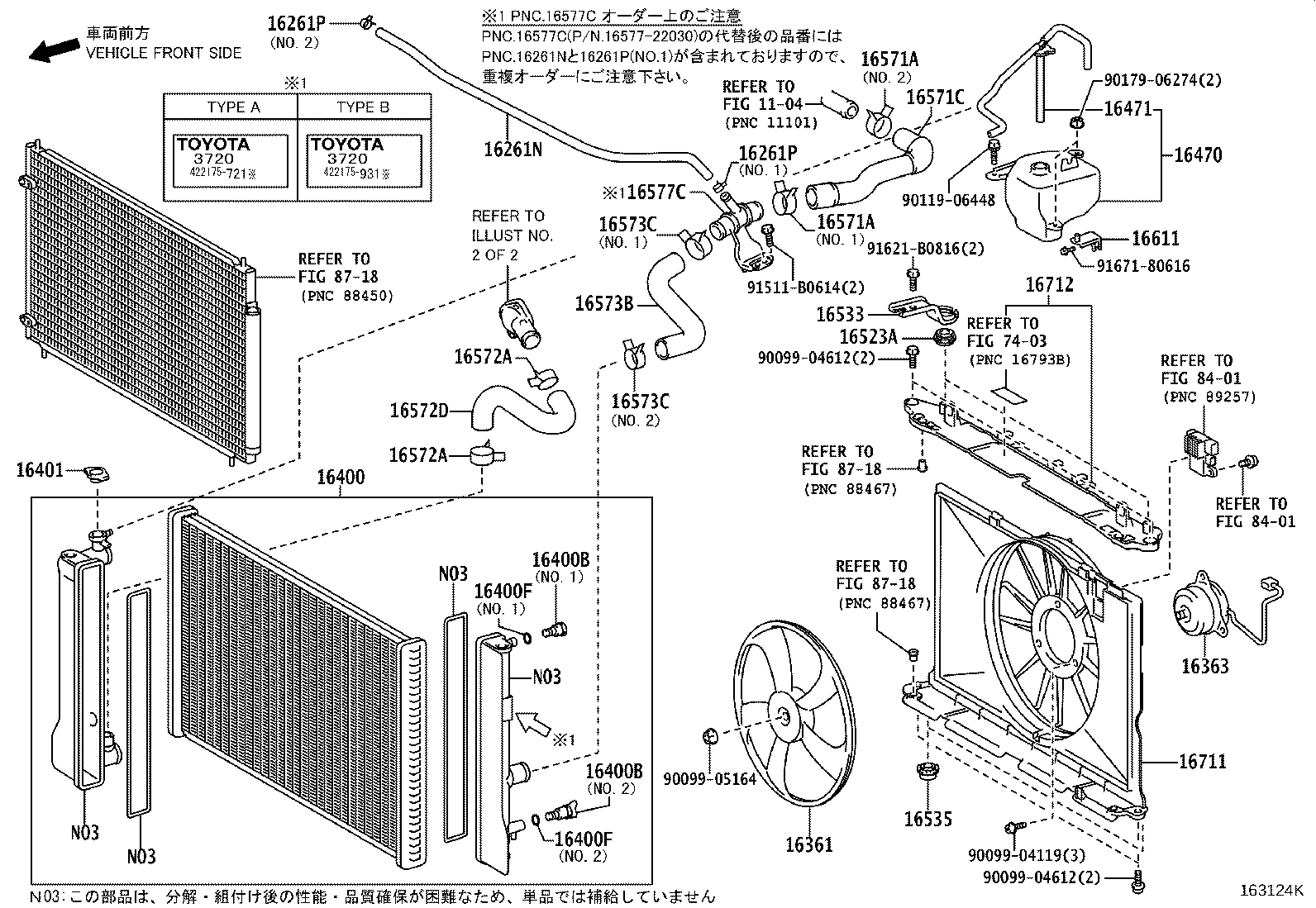

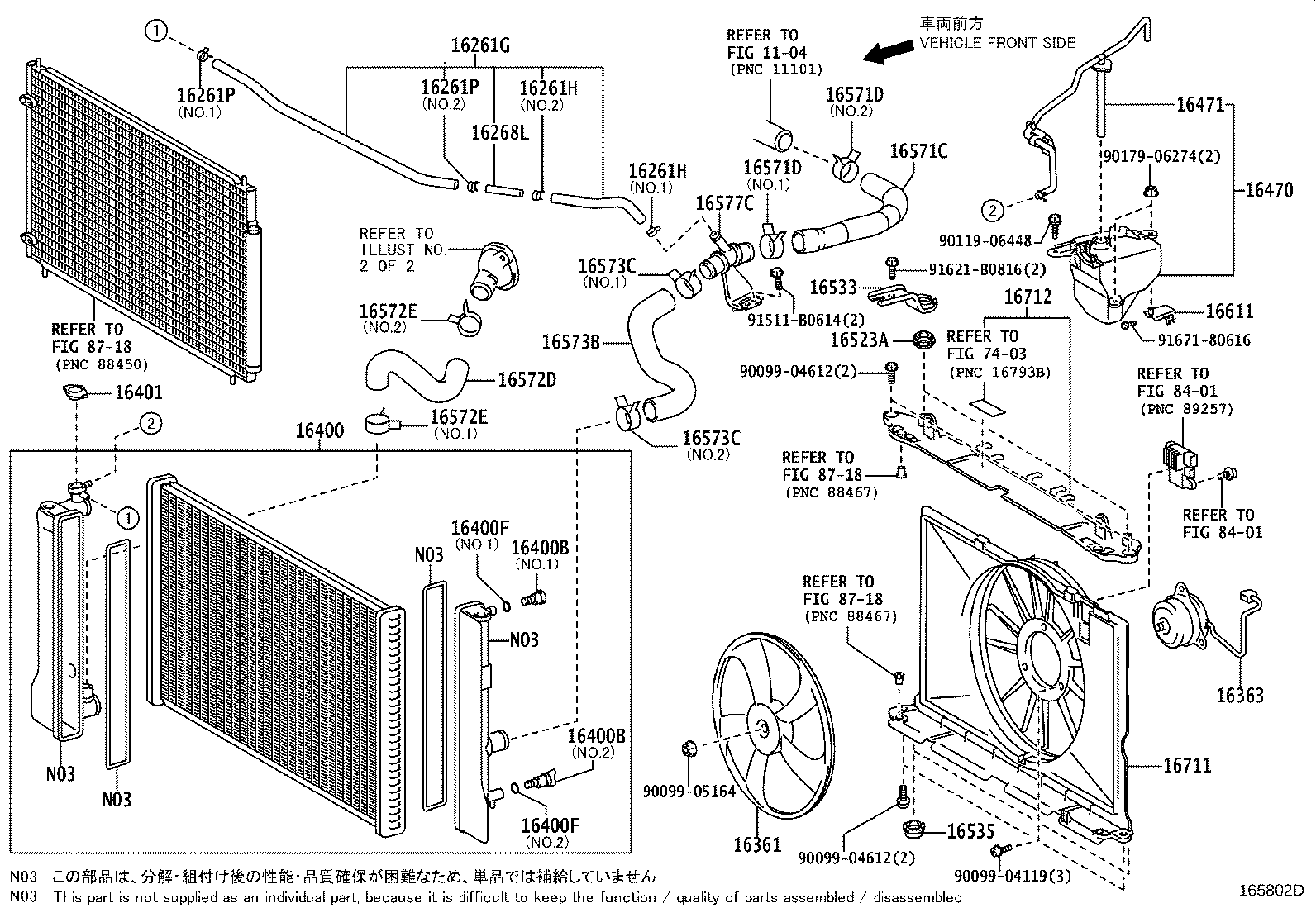

Figure 163149K 163149K 2007-05 → 2014-09 Figure 165802D 165802D 2014-09 → — Figure 163150G 163150G 2007-05 → 2012-12 Figure 164826C 164826C 2012-12 → — Figure 163124K 163124K 2007-05 → 2016-06 Figure 166447B 166447B 2016-06 → — Figure 163125E 163125E 2007-05 → 2012-12 Figure 164834E 164834E 2012-12 → — Figure 163377E 163377E 2007-12 → 2012-12 Figure 164836C 164836C 2012-12 → —

Part groups

PNCDescription
12512C Bracket, Alternator, NO.2
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261N Hose, Water By-pass, NO.2
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16262 Hose, Water Inlet
16262A Clip(FOR WATER INLET HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16268L Pipe, Water By-pass
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331A Thermostat
16351 Outlet, Water By-pass
16361 Fan
16363 Motor, Cooling Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16470 Tank Assy, Radiator Reserve
16471 Cap Sub-assy, Reserve Tank
16523A Cushion, Radiator Support
16533 Support, Radiator, Upper
16535 Support, Radiator, Lower
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16575B Bracket, Water Hose Clamp, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16577C Pipe, Radiator
16581 Clamp, Hose(FOR WATER HOSE)
16611 Bracket, Radiator Reserve Tank
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
