Toyota Caldina

1992-11 → 2002-06 · chassis AT191,CT19#,ET196,ST19# · catalogue 274130 · Japan

Discontinued model Data version 2003-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

24 part groups · 11 illustrations

Illustrations

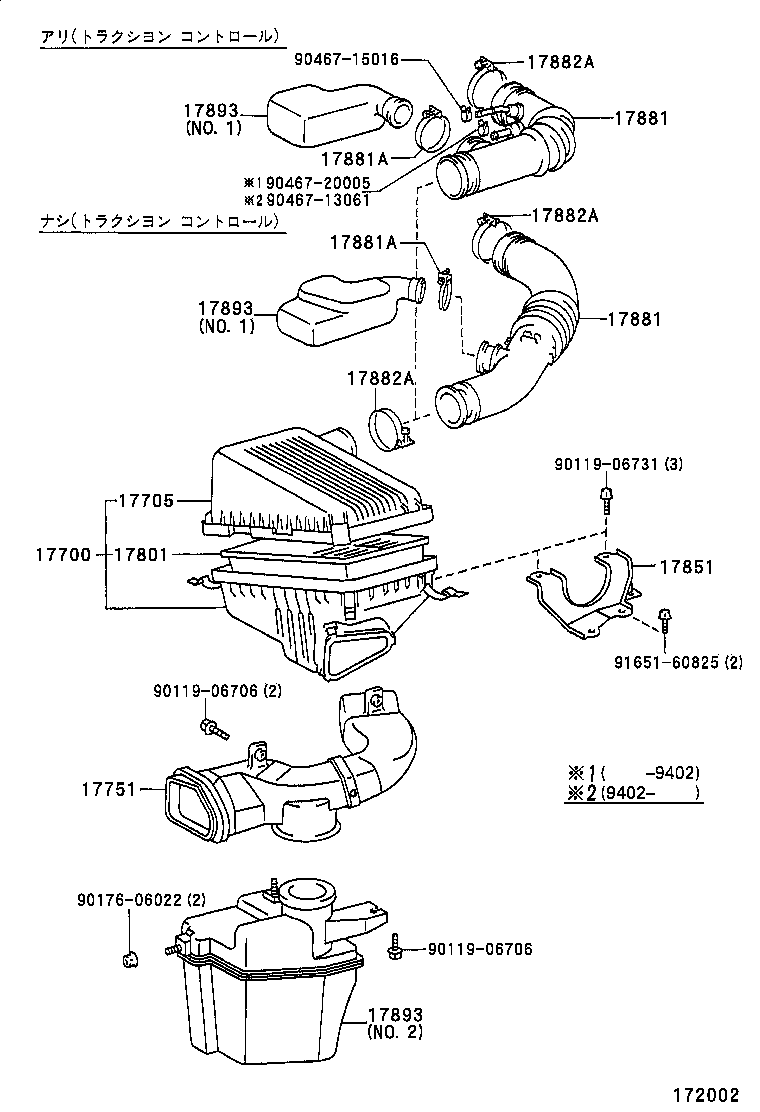

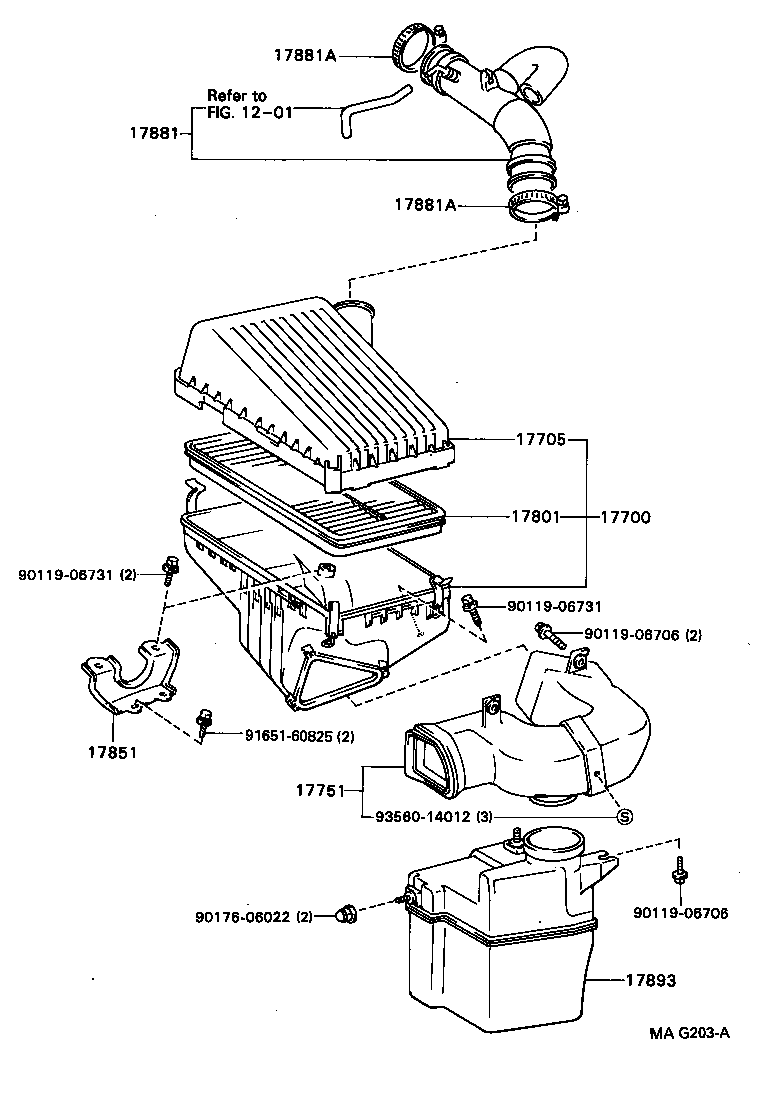

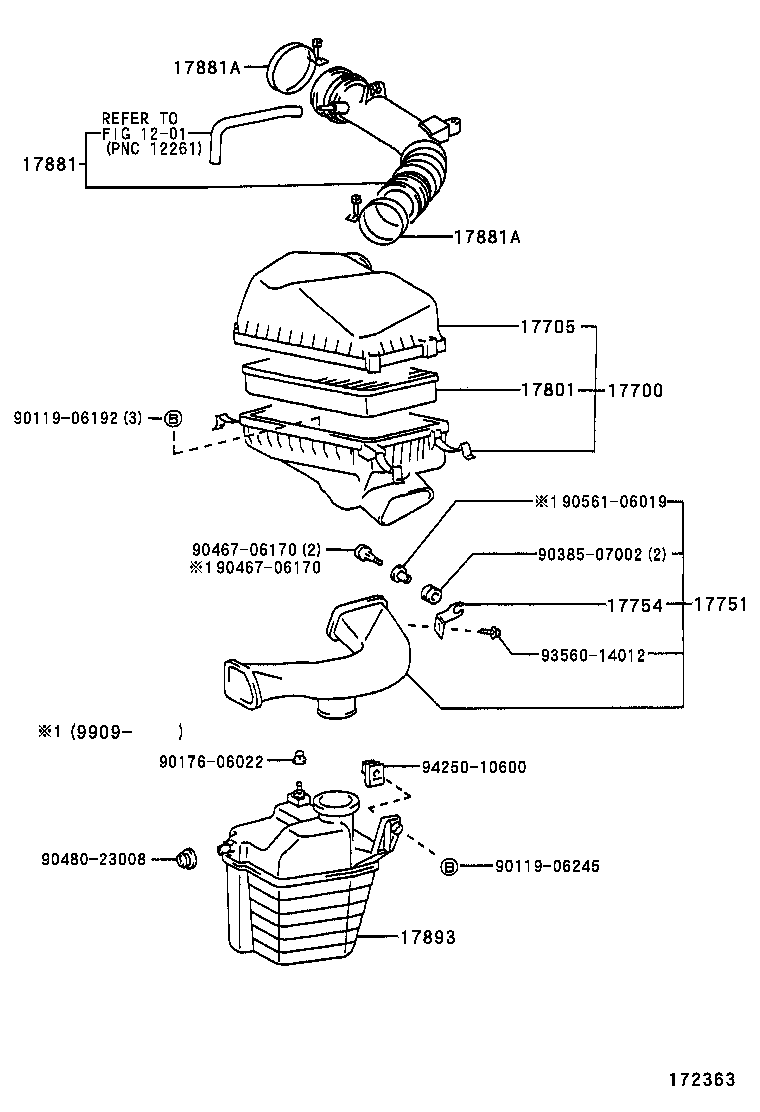

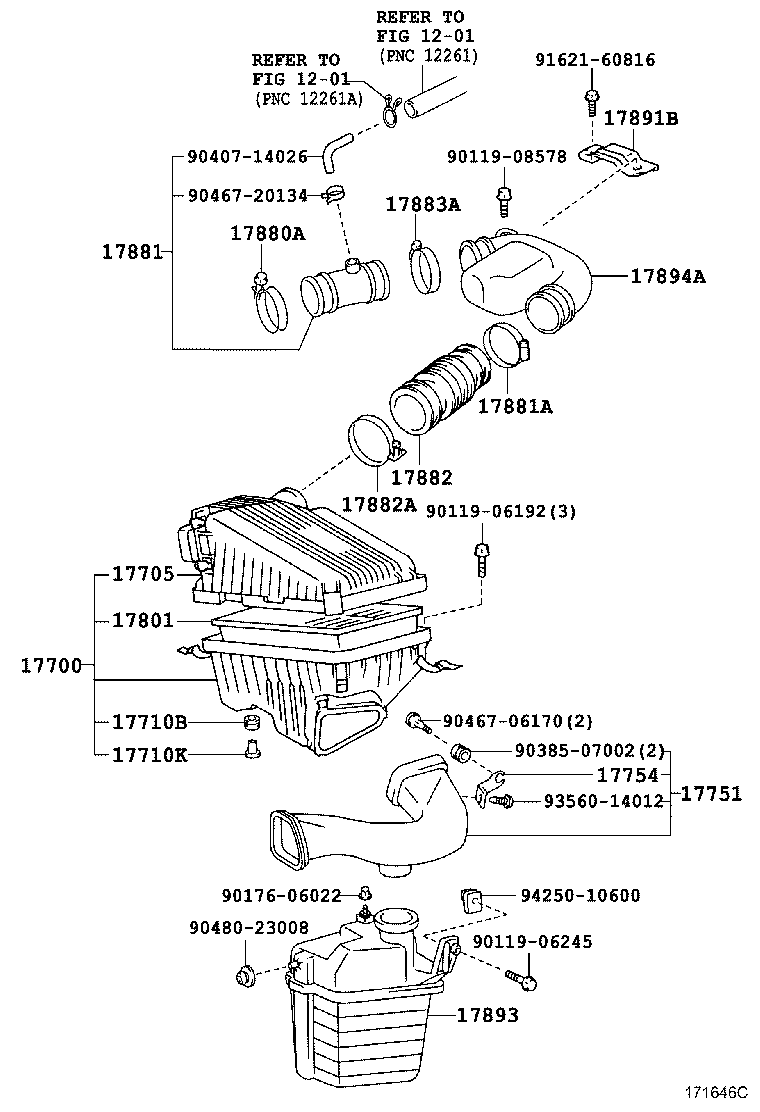

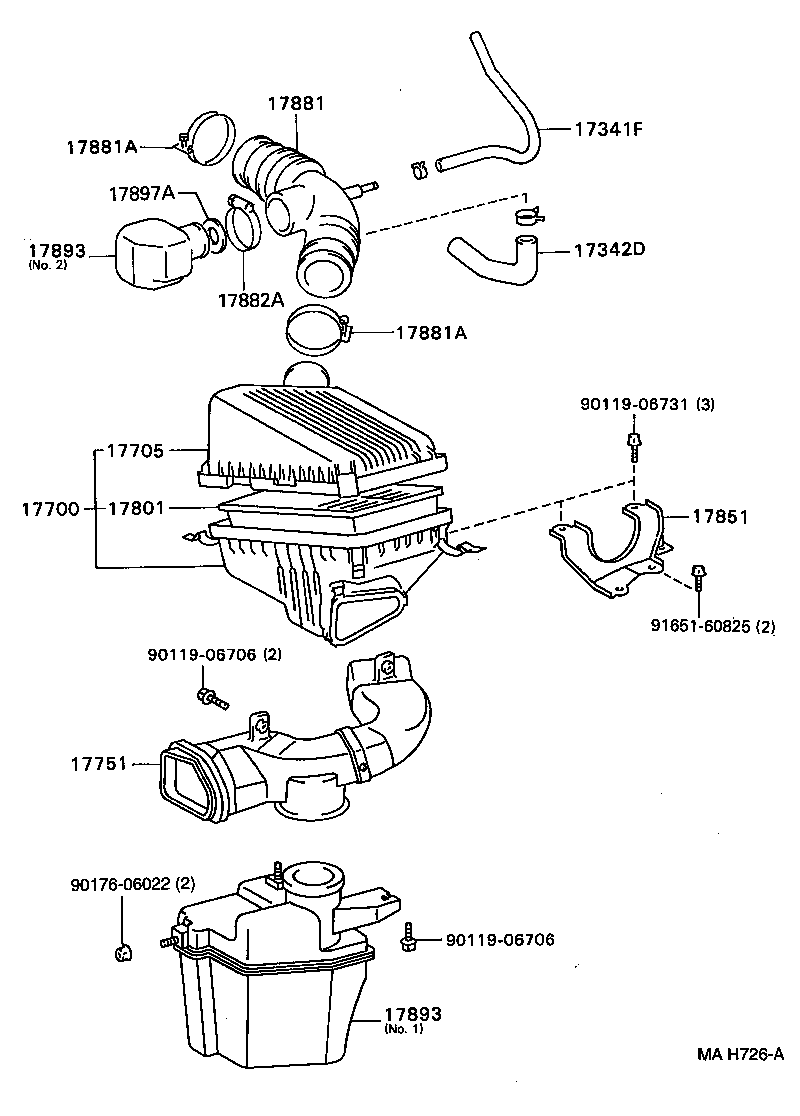

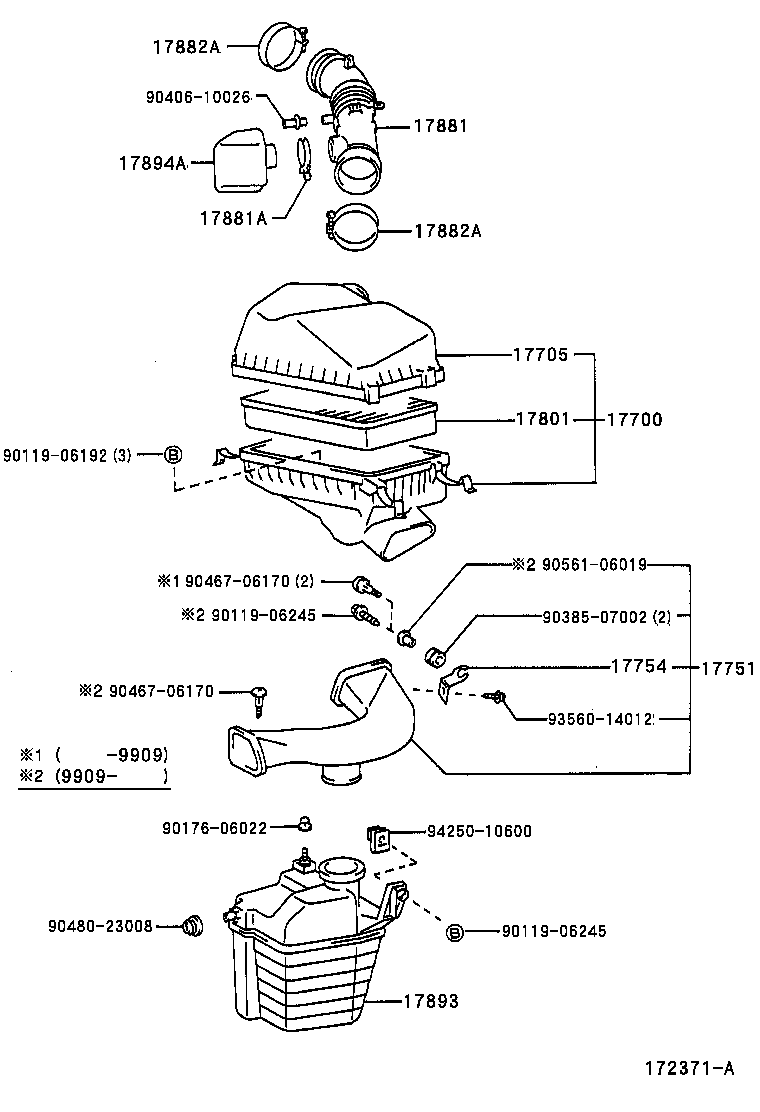

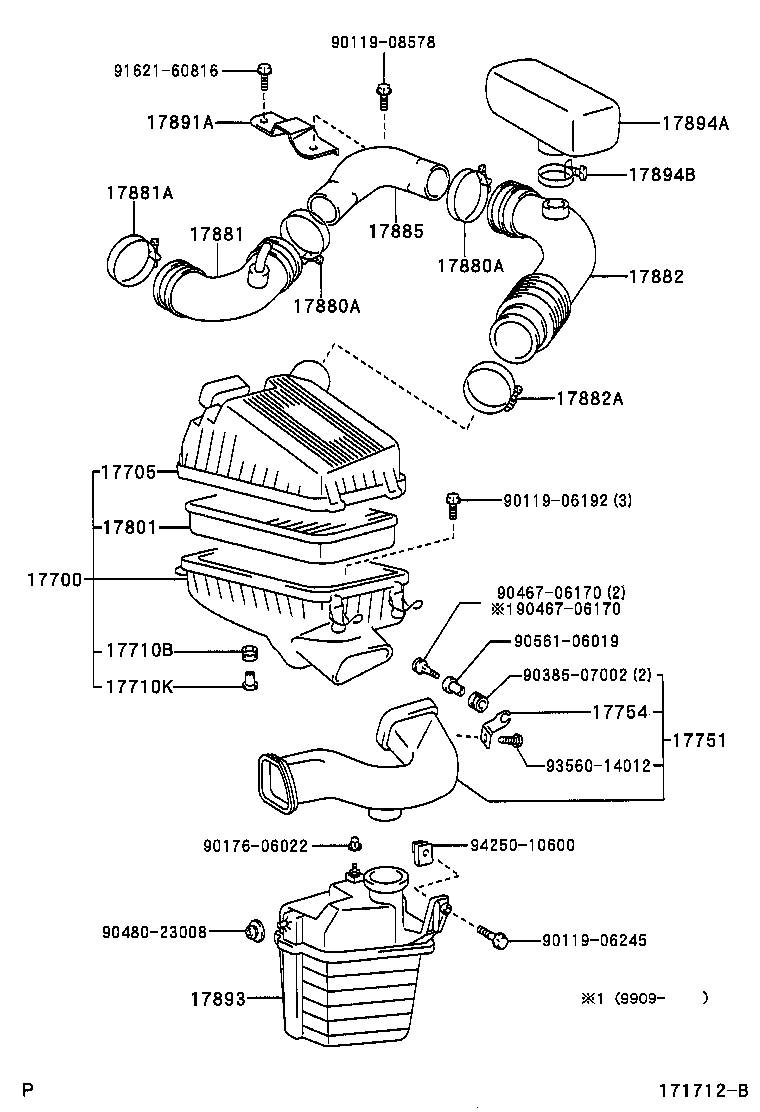

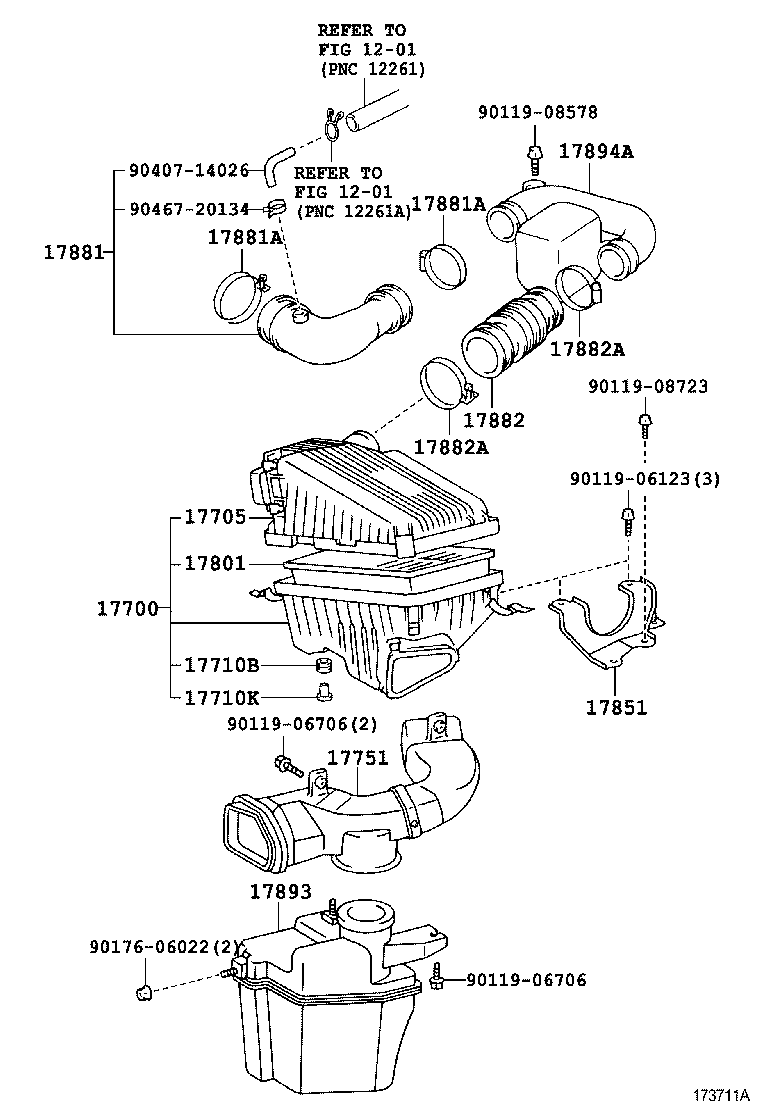

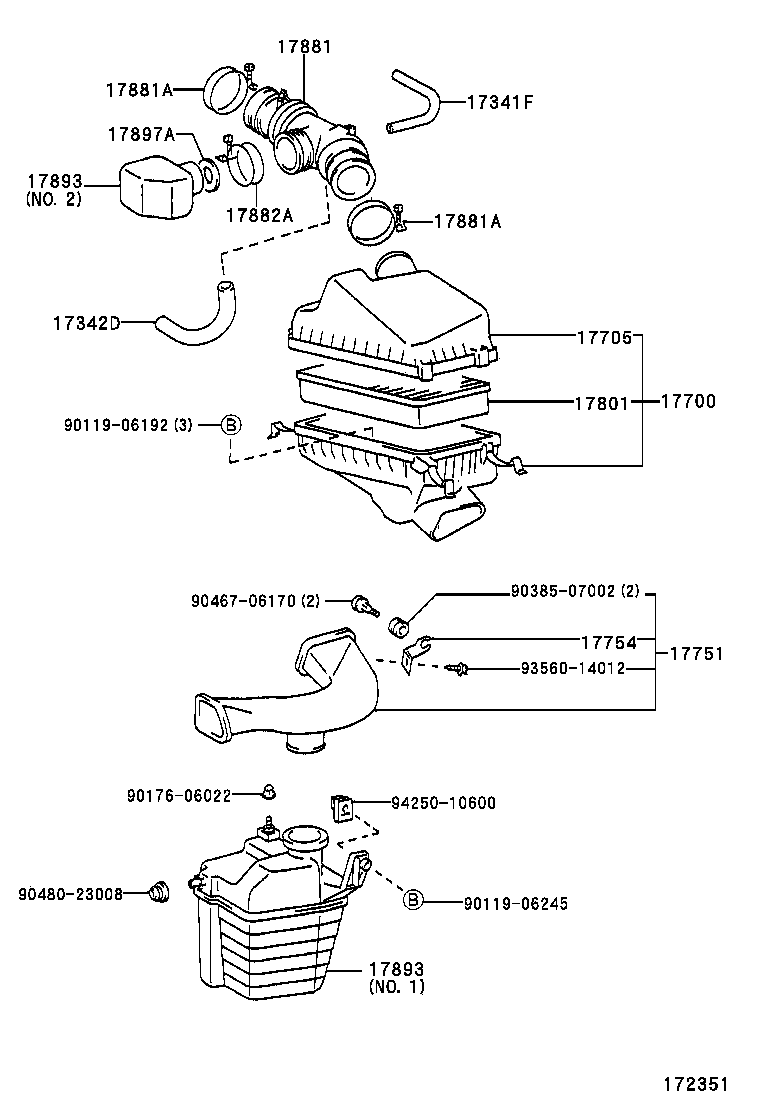

Figure 17A041 17A041 1996-01 → 1997-08 Figure 173711A 173711A 1992-11 → 1996-01 Figure 171646C 171646C 1996-01 → 1998-05 Figure 173710A 173710A 1996-01 → 1997-08 Figure 171712B 171712B 1998-05 → — Figure MAG203A MAG203A 1992-11 → 1996-01 Figure 172363 172363 1996-01 → — Figure 172002 172002 1992-11 → 1996-01 Figure 172371A 172371A 1996-01 → — Figure MAH726A MAH726A 1995-02 → 1996-01 Figure 172351 172351 1996-01 → 1997-08

Part groups

PNCDescription
17341F Hose, Air, NO.1
17342D Hose, Air, NO.2
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17710K Collar(FOR AIR CLEANER)
17751 Inlet, Air Cleaner, NO.1
17754 Stay, Air Cleaner Inlet
17801 Element Sub-assy, Air Cleaner Filter
17851 Bracket, Air Cleaner Support
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
17891A Clamp, Air Cleaner Hose
17891B Bracket, Air Cleaner Hose
17893 Resonator, Intake Air
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17897A Plate, Resonator Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
