Toyota Caldina

2002-09 → 2007-06 · chassis AZT24#,ST246,ZZT241 · catalogue 274150 · Japan

Supported model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

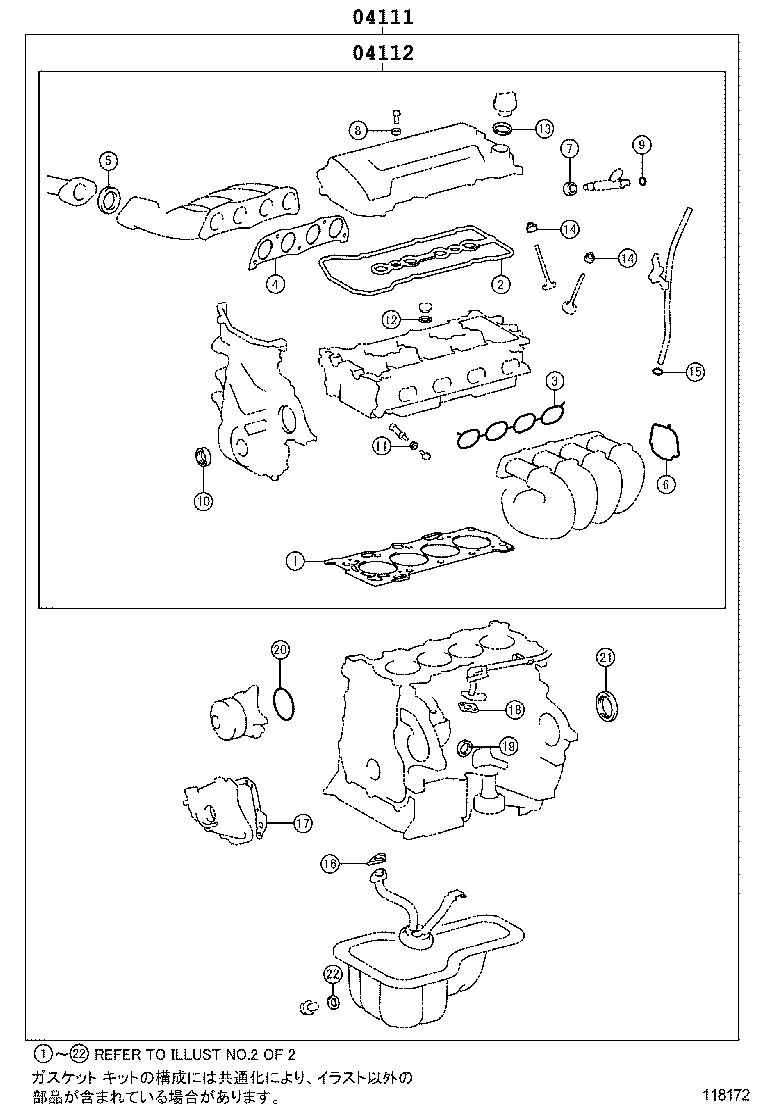

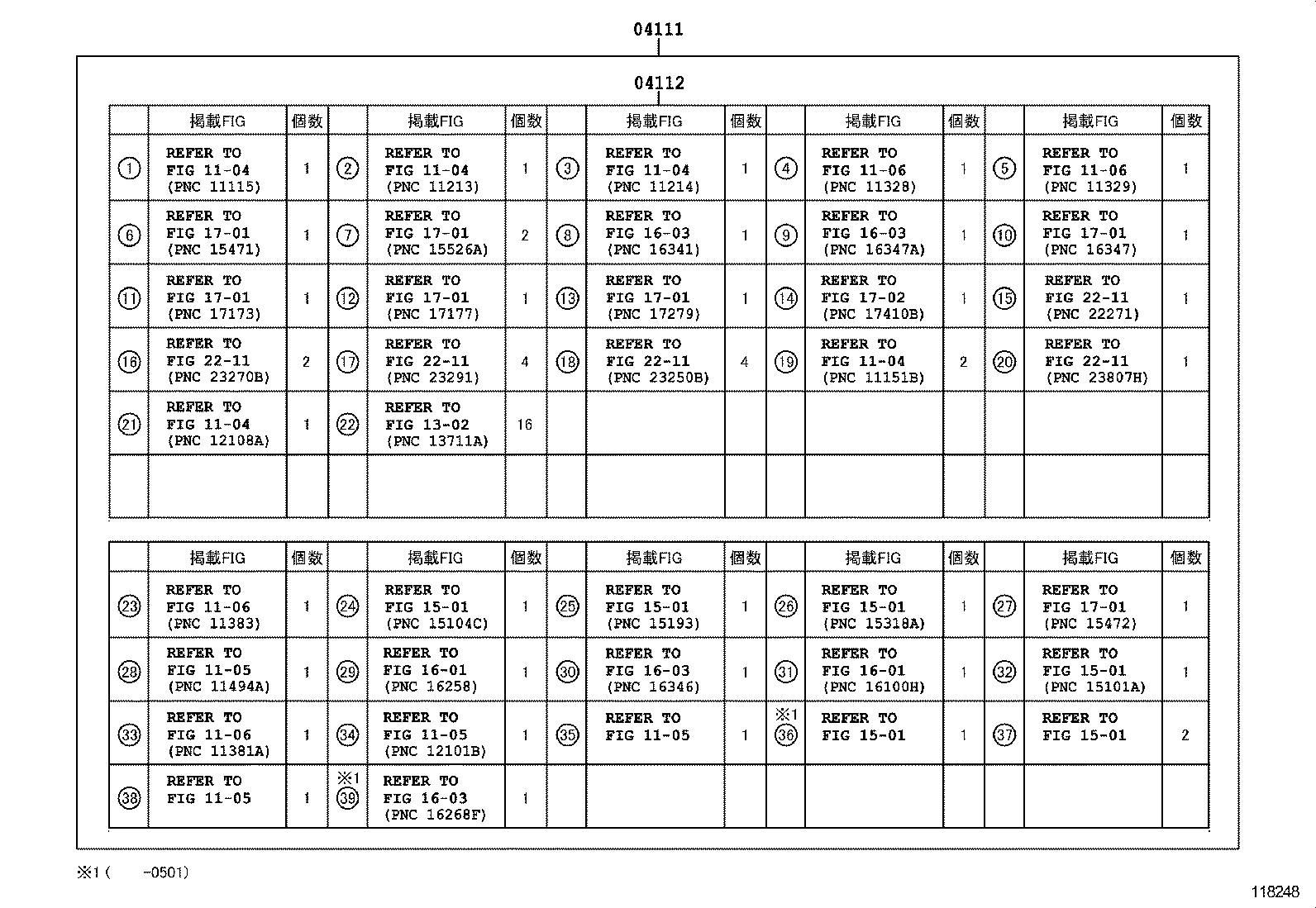

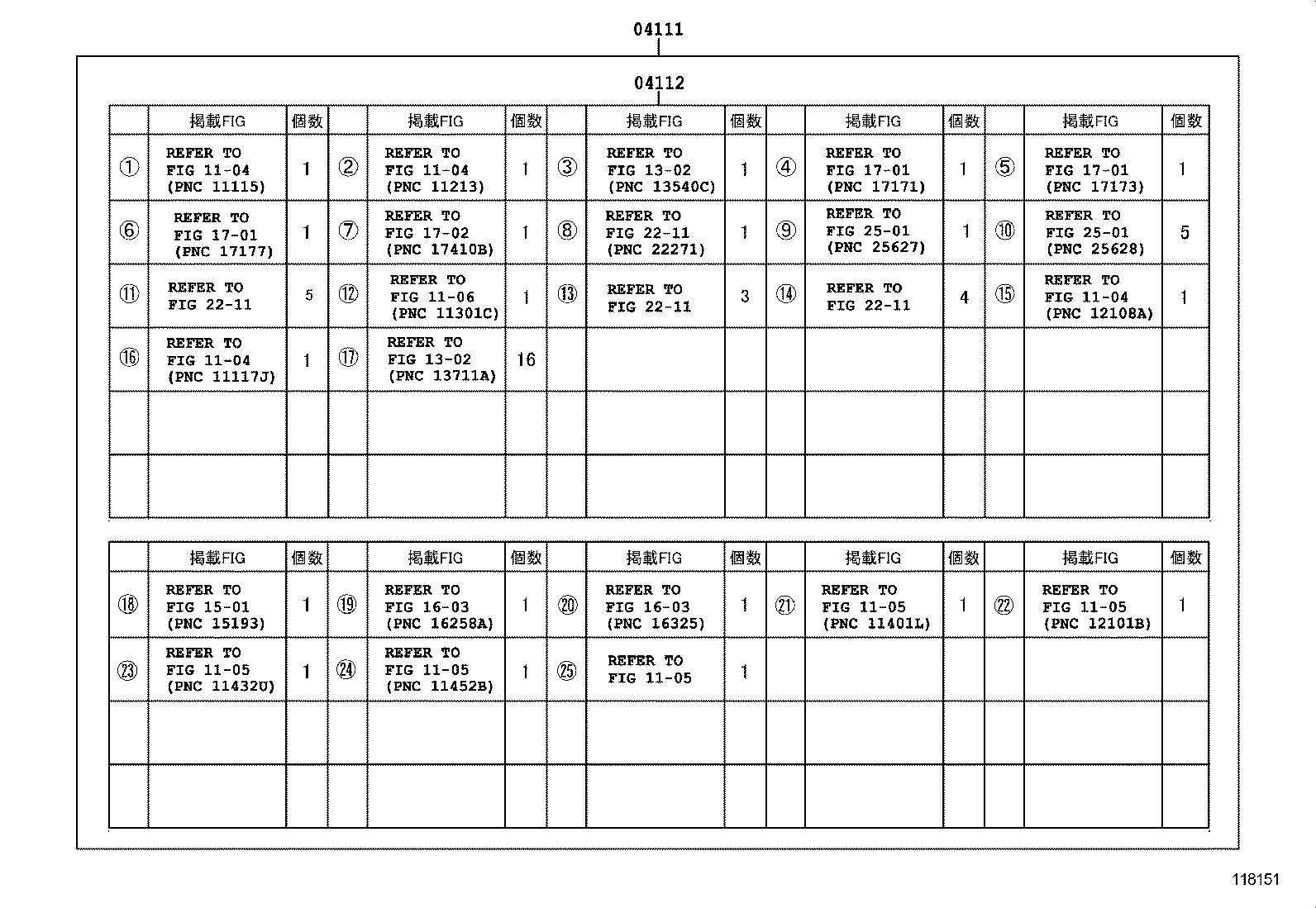

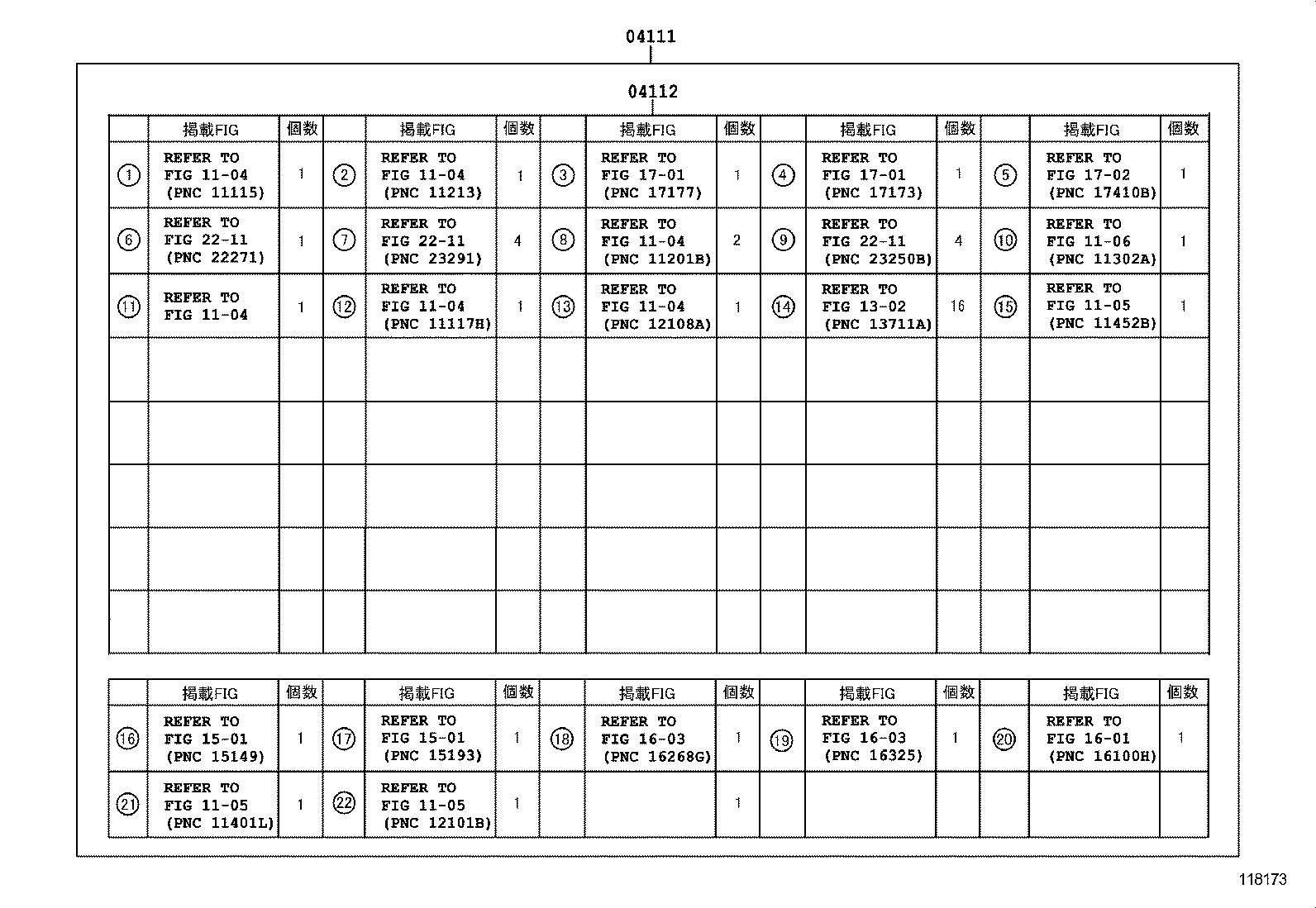

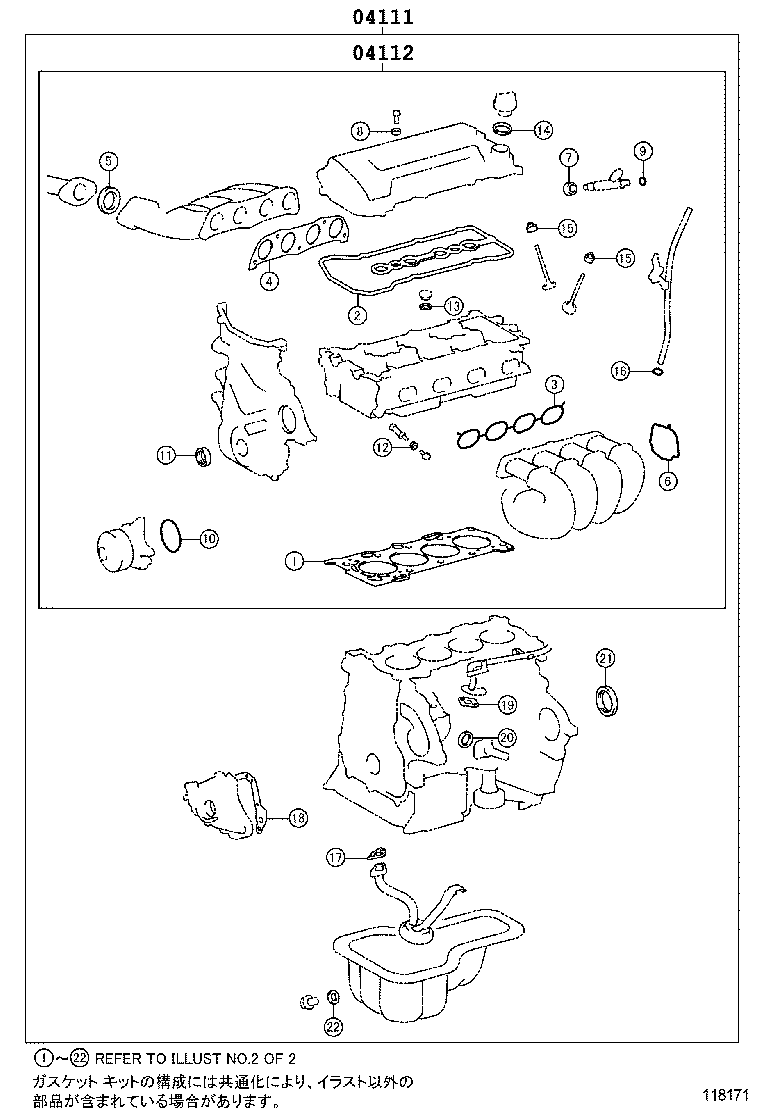

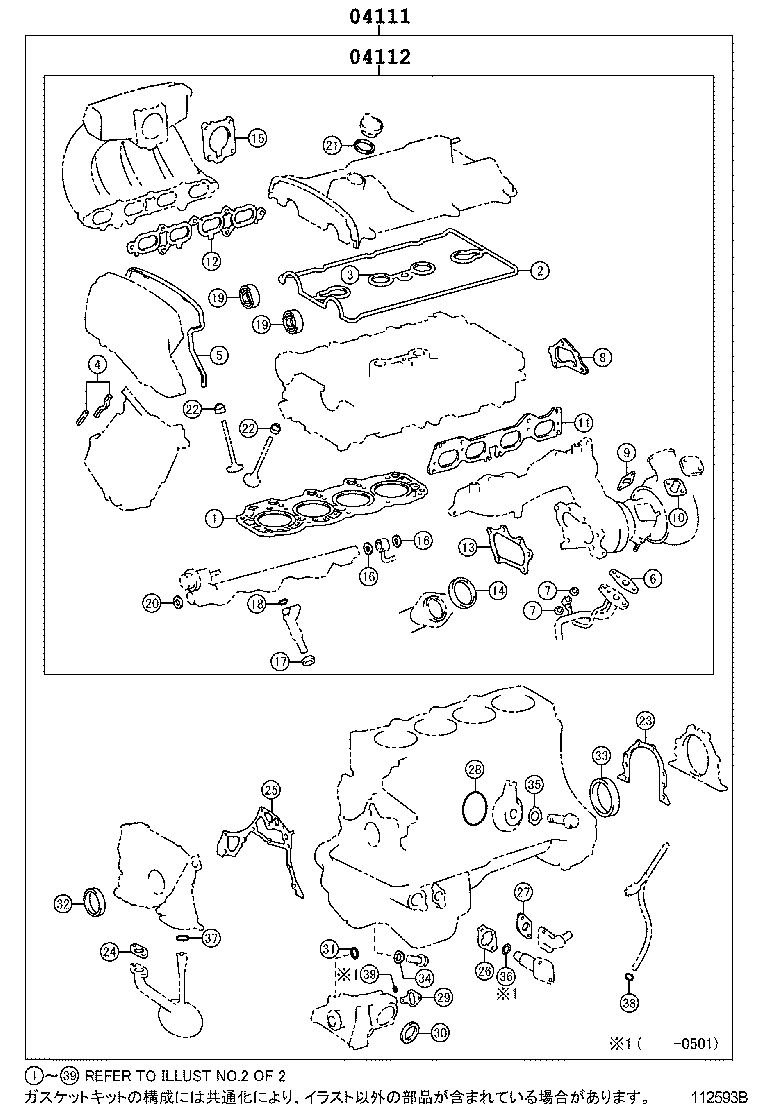

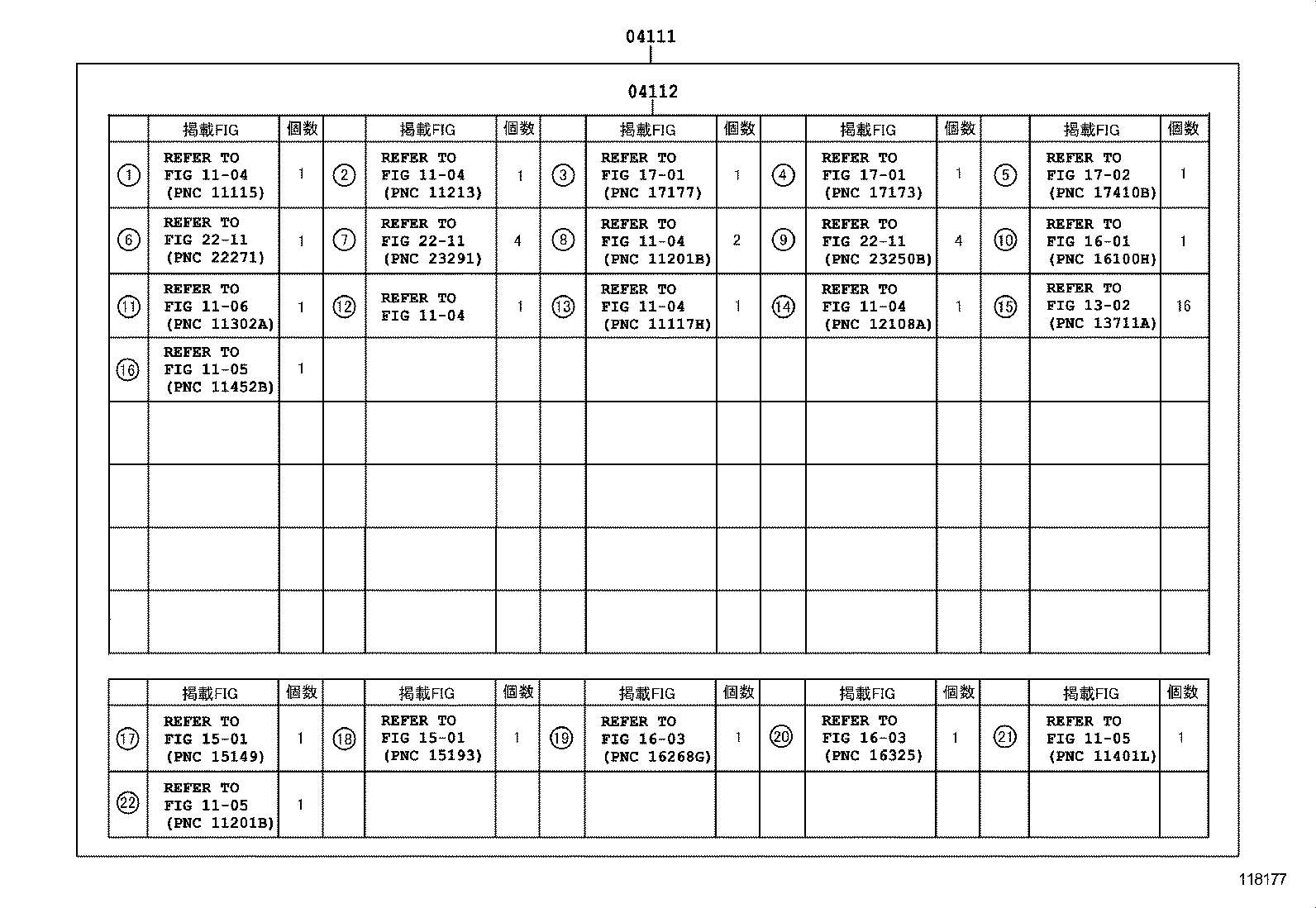

Figure 112539D 112539D 2002-09 → — Figure 118151 118151 2002-09 → — Figure 112593B 112593B 2002-09 → — Figure 118248 118248 2002-09 → — Figure 118171 118171 2002-09 → 2003-11 Figure 118177 118177 2002-09 → 2003-11 Figure 118172 118172 2003-11 → — Figure 118173 118173 2003-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
