Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

77 part groups · 12 illustrations

Illustrations

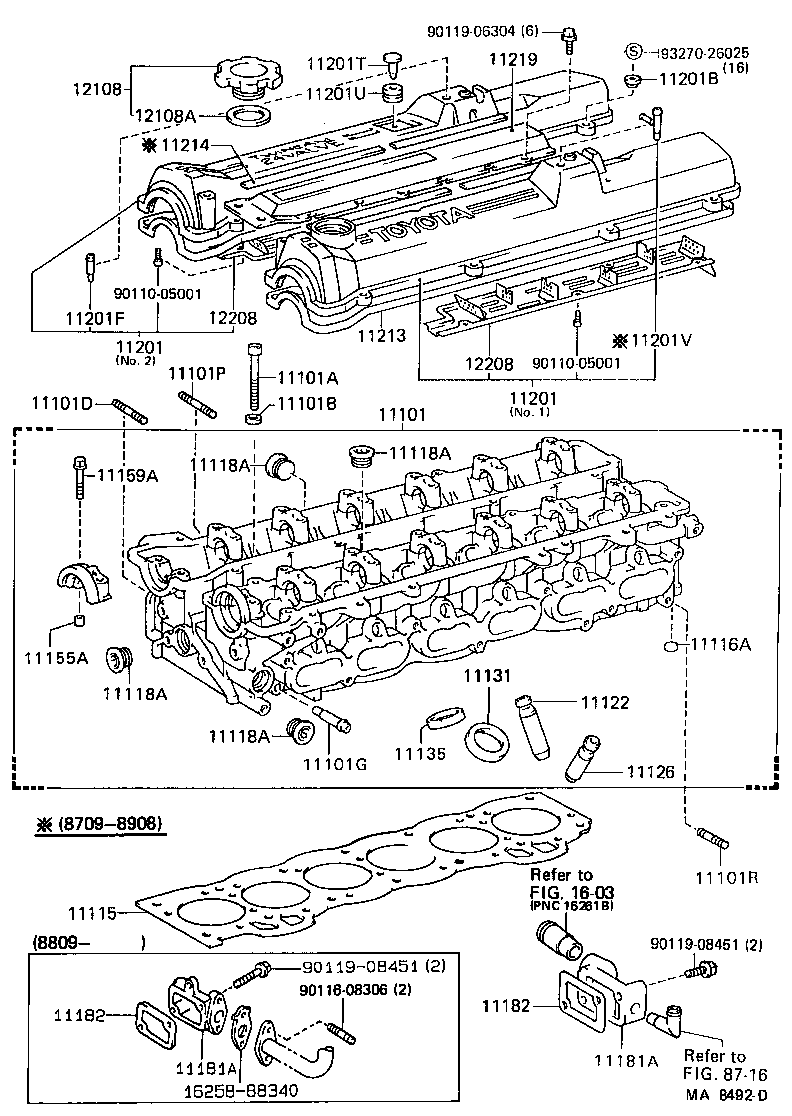

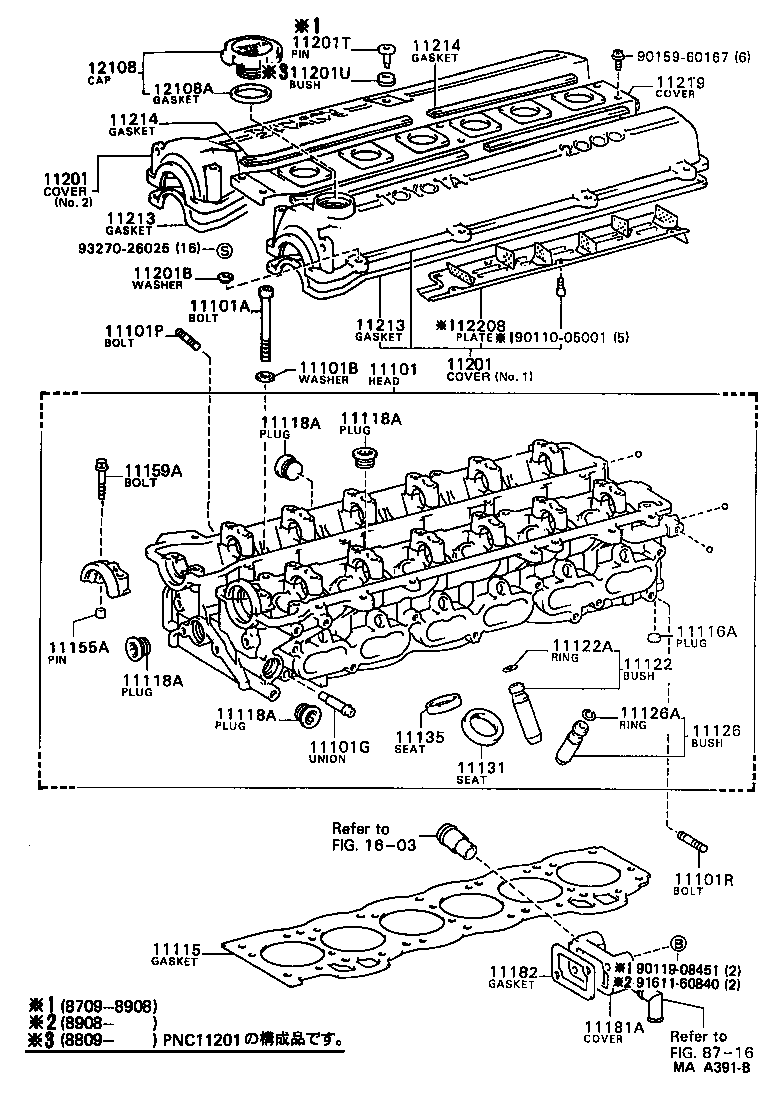

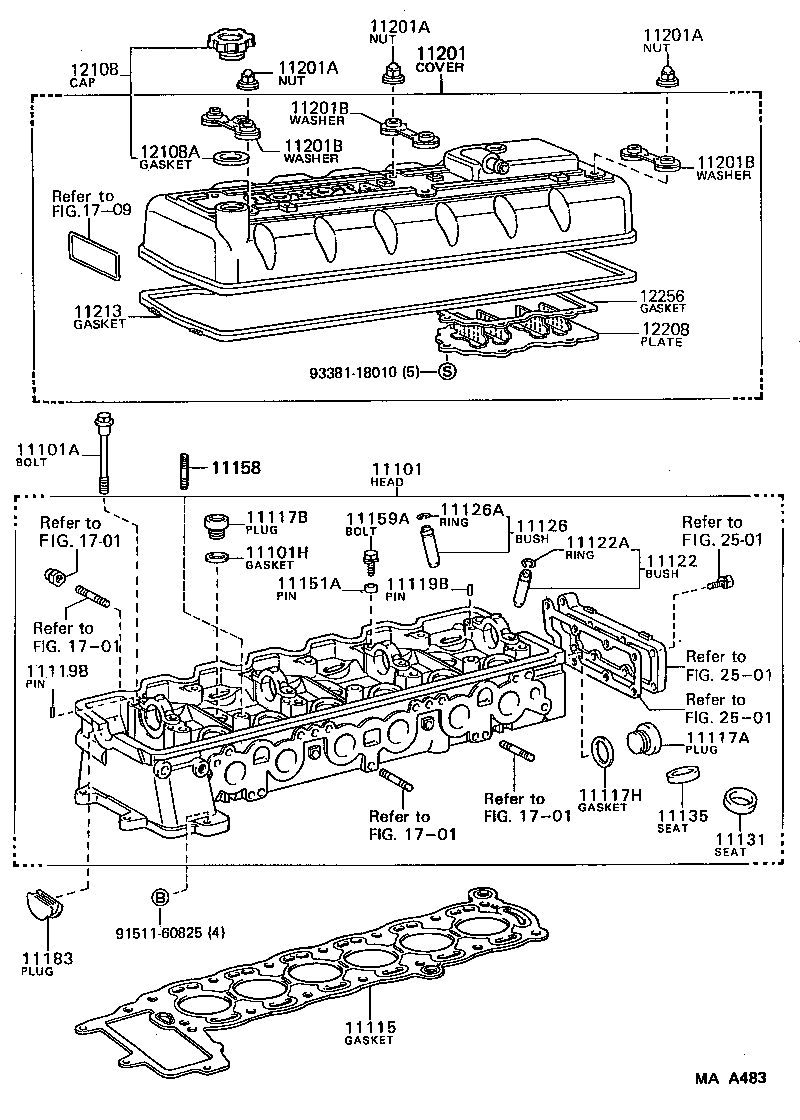

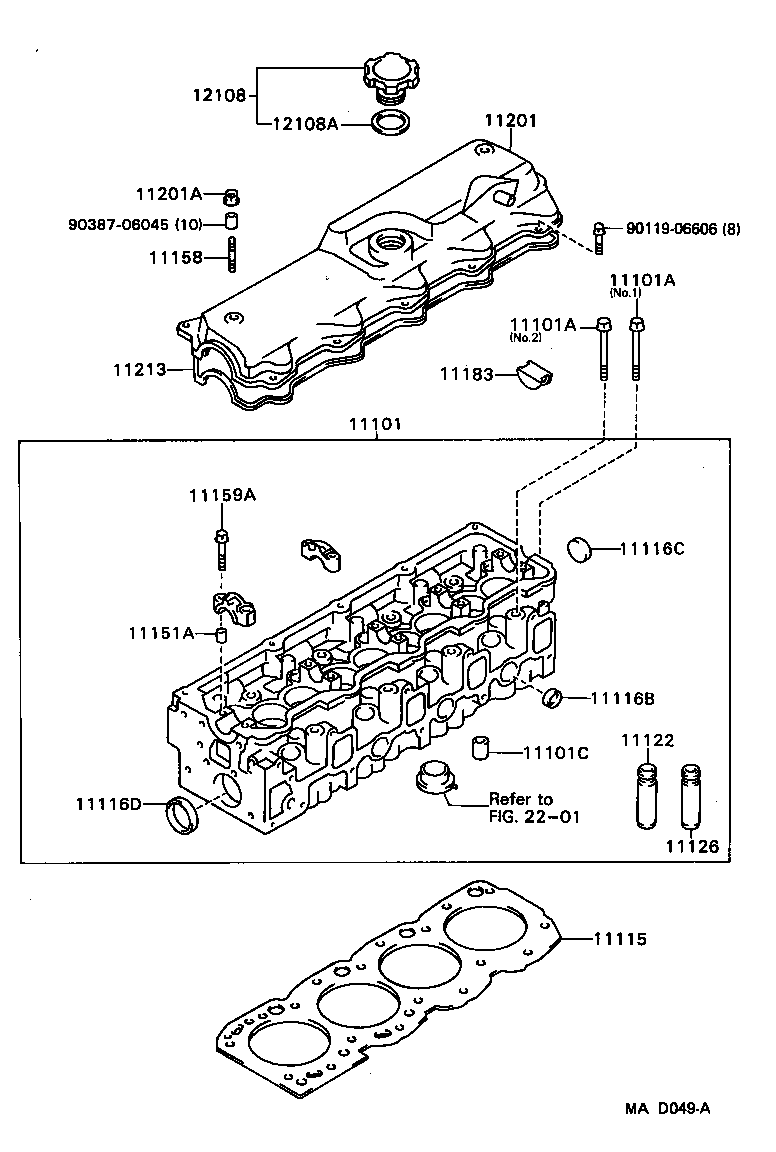

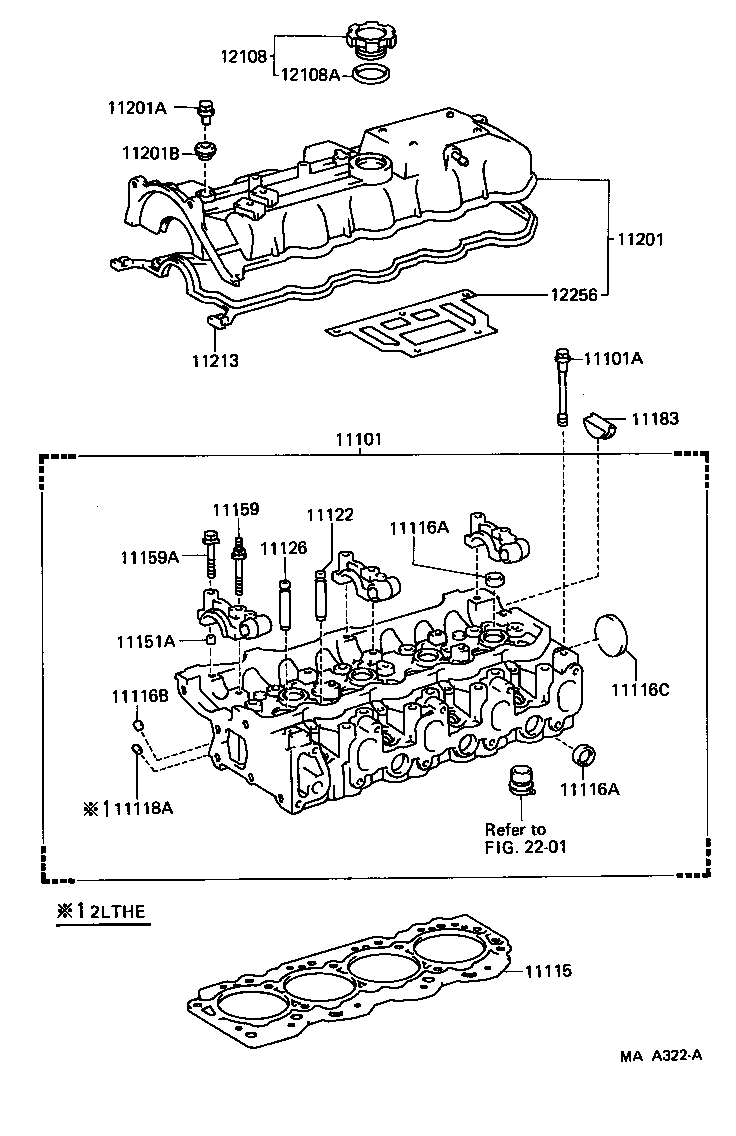

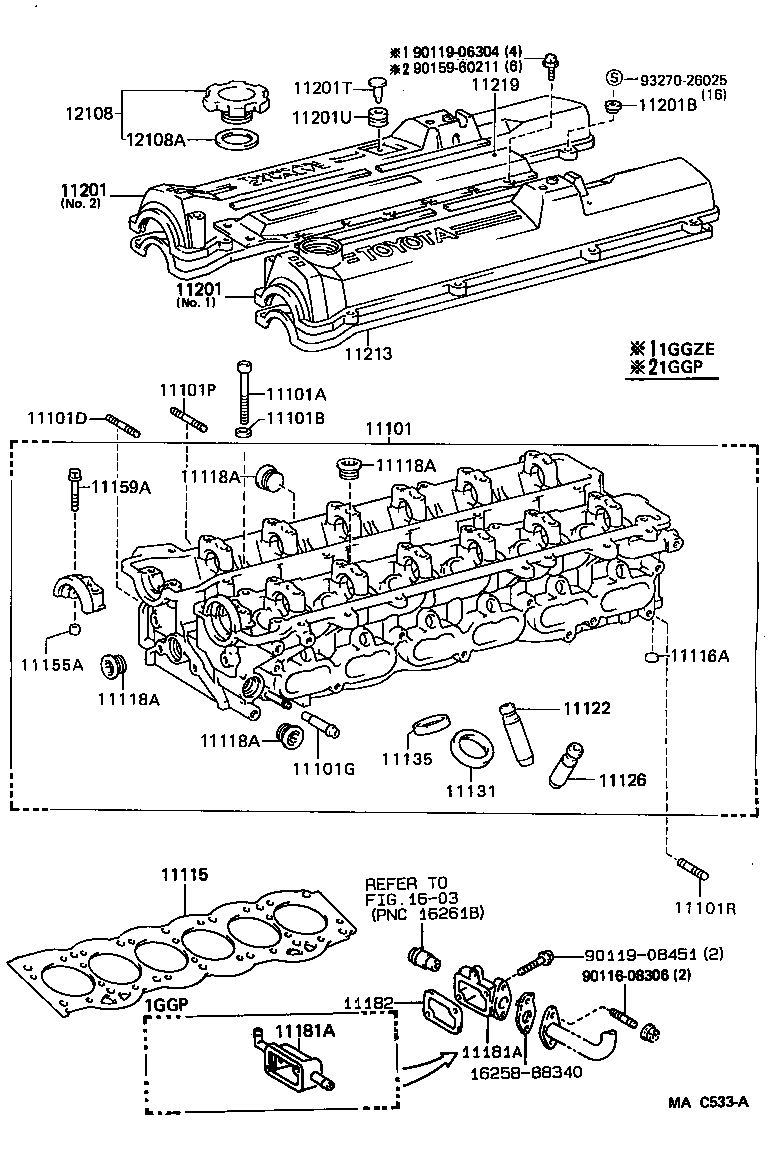

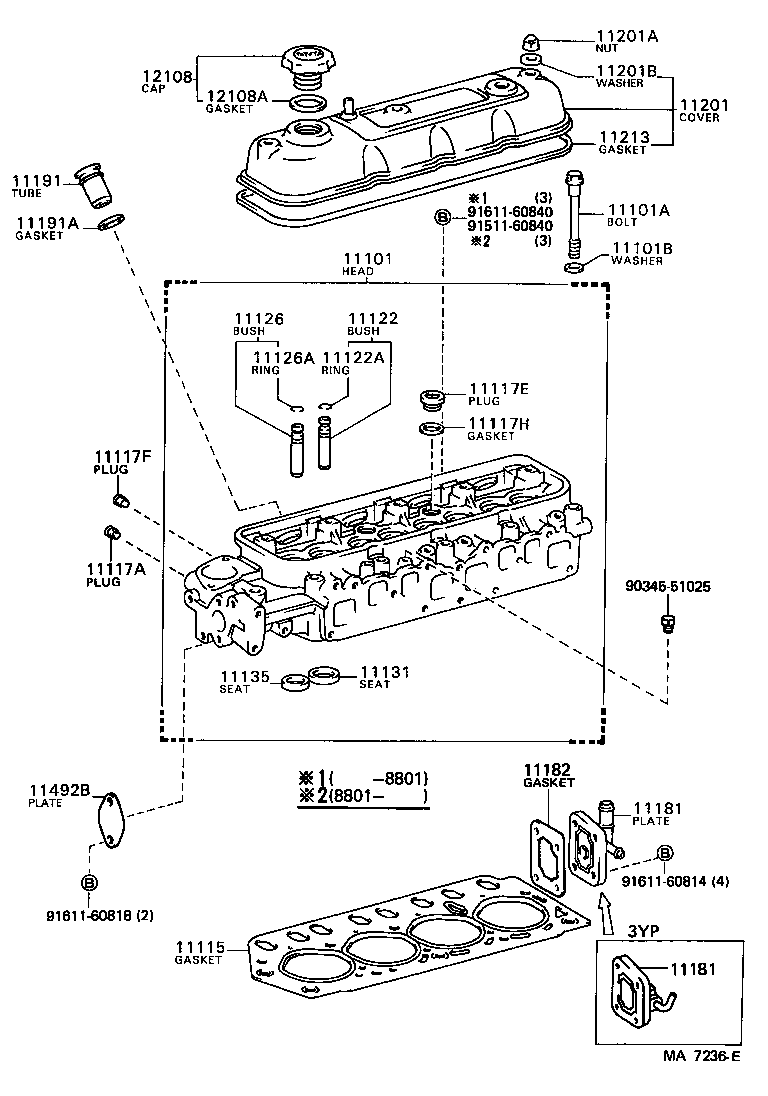

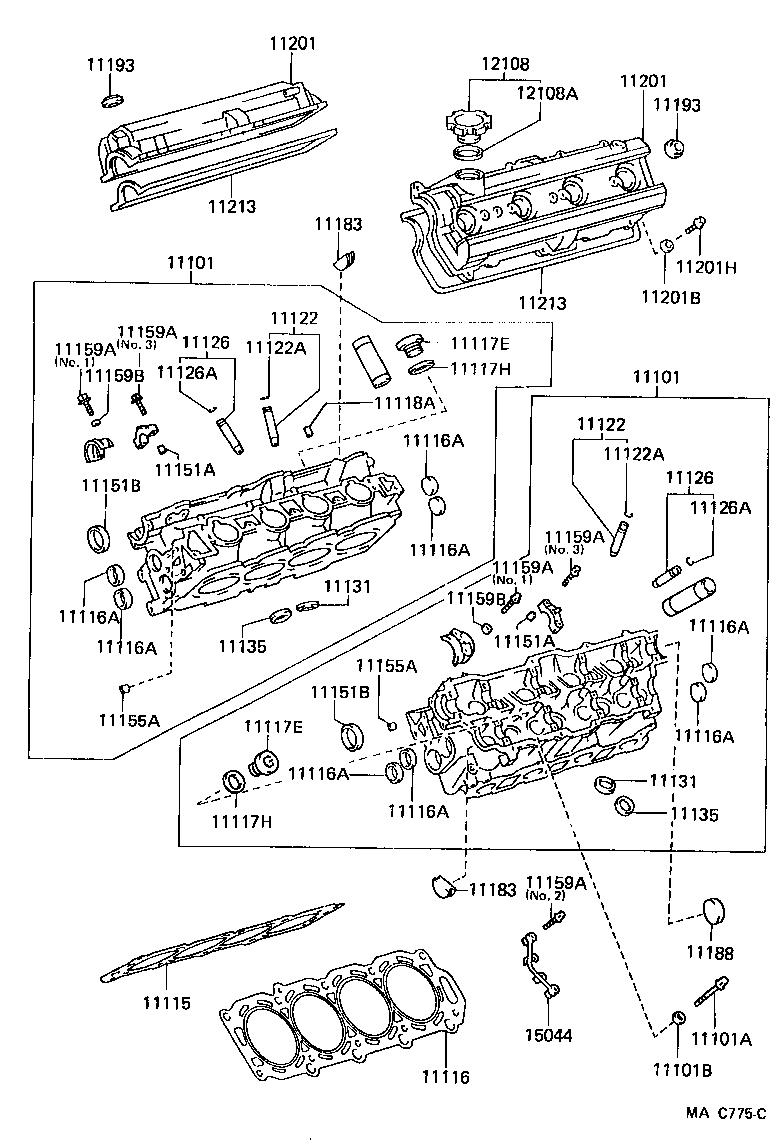

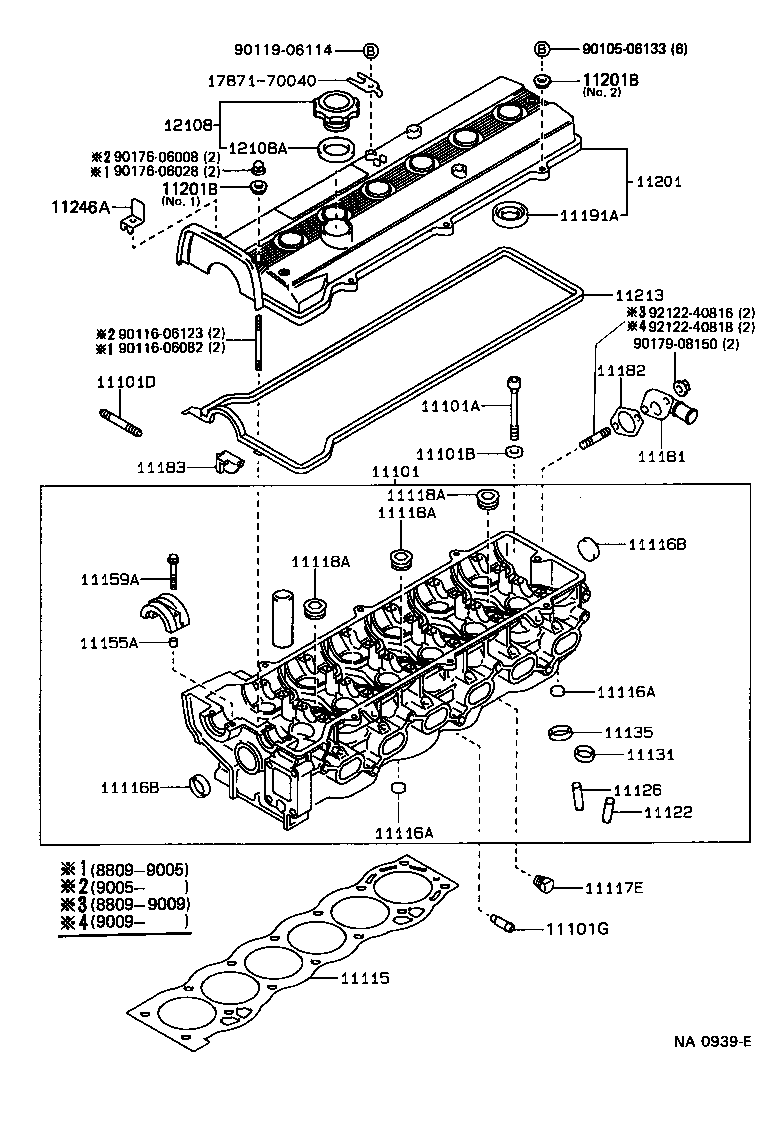

Figure MAA224 MAA224 1987-09 → 1989-08 Figure NA0939E NA0939E 1988-09 → — Figure MAA391B MAA391B 1987-09 → — Figure MA8492D MA8492D 1987-09 → 1989-08 Figure MAC533A MAC533A 1989-08 → — Figure 11D633 11D633 1990-08 → — Figure MAA322A MAA322A 1987-09 → 1989-08 Figure MAD049A MAD049A 1989-08 → — Figure MAA483 MAA483 1987-09 → 1989-08 Figure MA9681 MA9681 1987-09 → — Figure MAC775C MAC775C 1989-08 → — Figure MA7236E MA7236E 1987-09 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101C Tube(FOR CYLINDER HEAD)
11101D Bolt, Stud(FOR WATER OUTLET)
11101G Union(FOR CYLINDER HEAD)
11101H Gasket(FOR CYLINDER HEAD SCREW PLUG)
11101P Bolt, Stud(FOR DISTRIBUTOR)
11101R Bolt, Stud(FOR FUEL PIPE)
11103 Housing Sub-assy, Camshaft
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11114A Pin, Straight
11115 Gasket, Cylinder Head
11116 Gasket, Cylinder Head, NO.2
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117G Plug, W/Head Straight Screw, NO.3
11117H Gasket(FOR WATER HOLE)
11118A Plug, Straight, NO.1
11118B Plug, Straight, NO.2
11118C Plug, Straight, NO.3
11118G Pin, Slotted Spring, NO.1
11118H Pin, Slotted Spring, NO.2
11119B Pin, Straight, NO.2
11122 Bush, Intake Valve Guide
11122A Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126 Bush, Exhaust Valve Guide
11126A Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151B Seal, Oil(FOR CAMSHAFT SETTING)
11153 Bolt, Stud(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
11155 Bolt, Stud(FOR HEAD TO CAMSHAFT HOUSING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159 Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159B Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11181A Cover, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11187 Cover, Camshaft Housing, Rear
11188 Plug, Camshaft Housing
11189 Gasket, Camshaft Housing Rear Cover
11191 Tube, Spark Plug
11191A Gasket(FOR SPARK PLUG TUBE)
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201F Union(FOR POSITIVE CRANKCASE VENTILATION)
11201H Bolt(FOR CYLINDER HEAD COVER)
11201S Tube, Air
11201T Pin(FOR CYLINDER HEAD COVER)
11201U Bush(FOR CYLINDER HEAD COVER)
11201V Way, 3
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11219 Cover, Cylinder Head, NO.3
11229 Gasket, Cylinder Head Cover, NO.3
11239 Gasket, Clinder Head Coner, NO.4
11246A Plate, Clamp Base
11249A Gasket, Clinder Head Coner, NO.5
11492B Plate, Water Seal
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12208 Plate Sub-assy, Ventilation Baffle
12256 Gasket, Ventilation Baffle
15044 Pipe Sub-assy, Camshaft Oil Feed
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
