Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

113 part groups · 18 illustrations

Illustrations

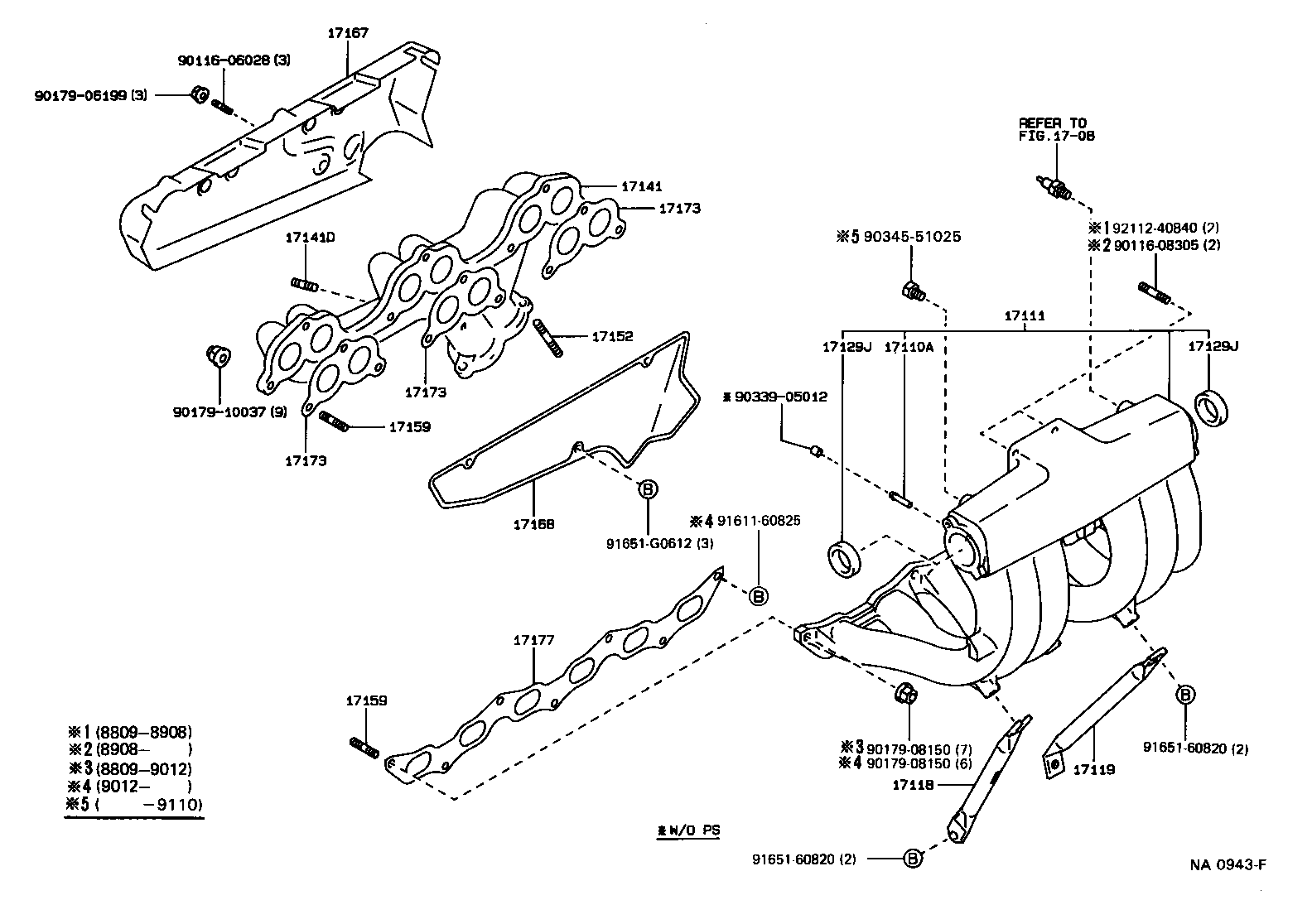

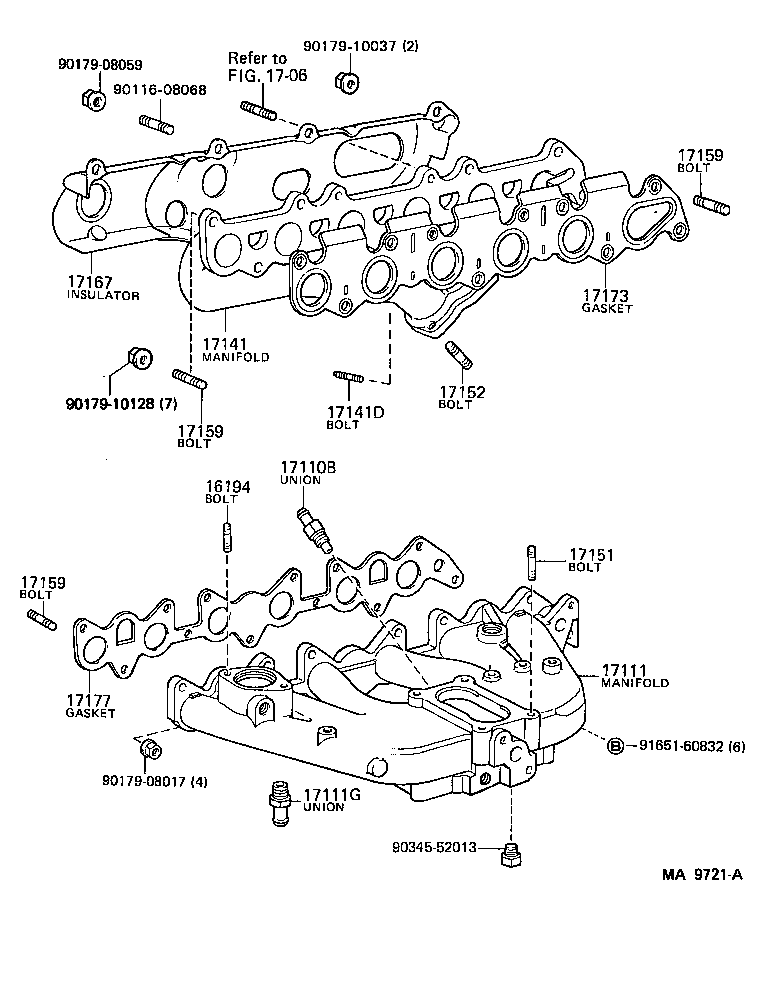

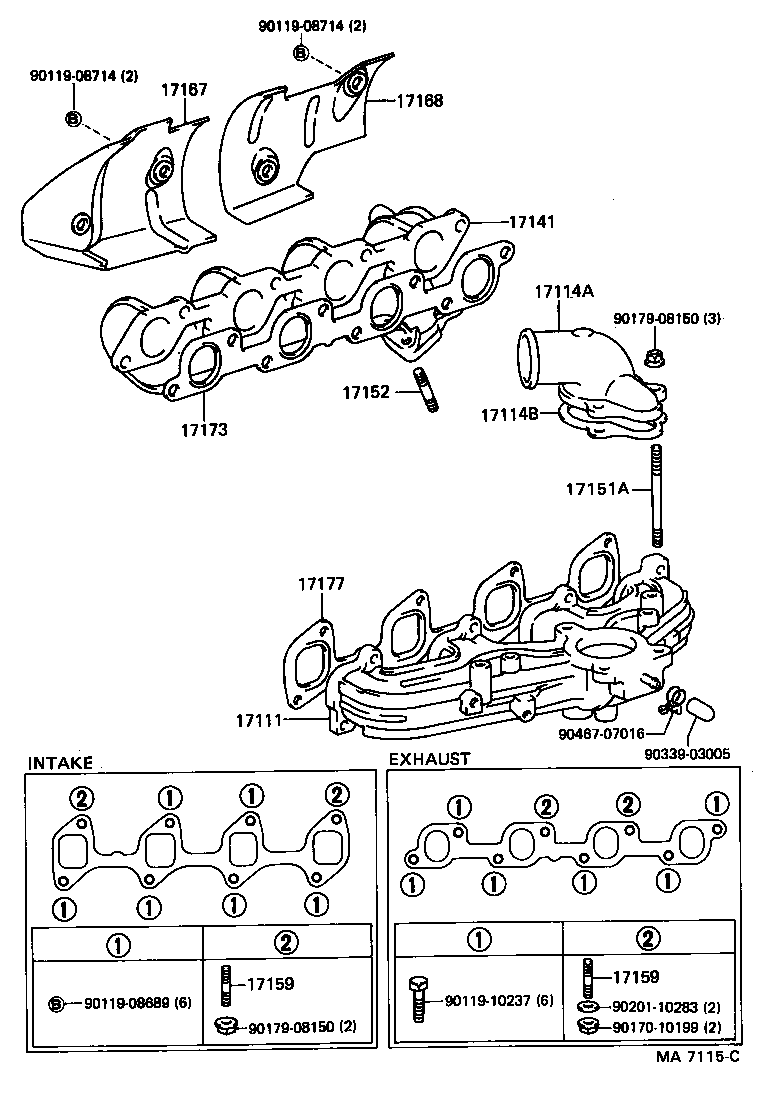

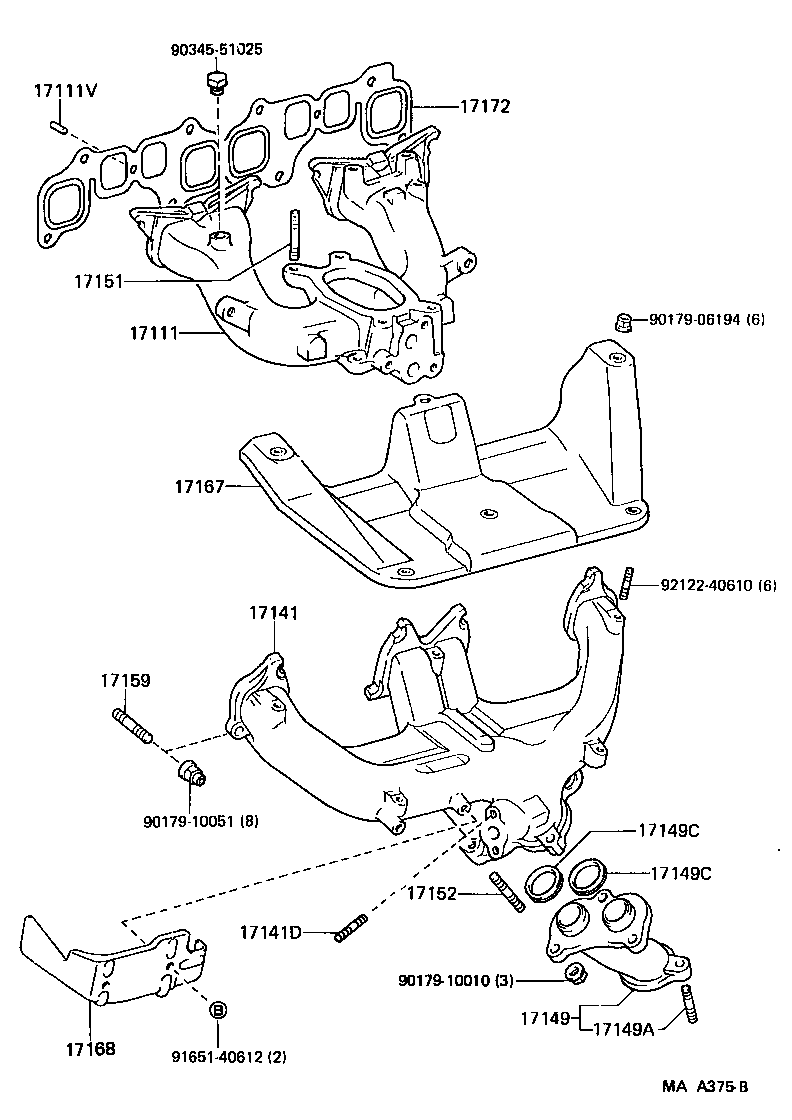

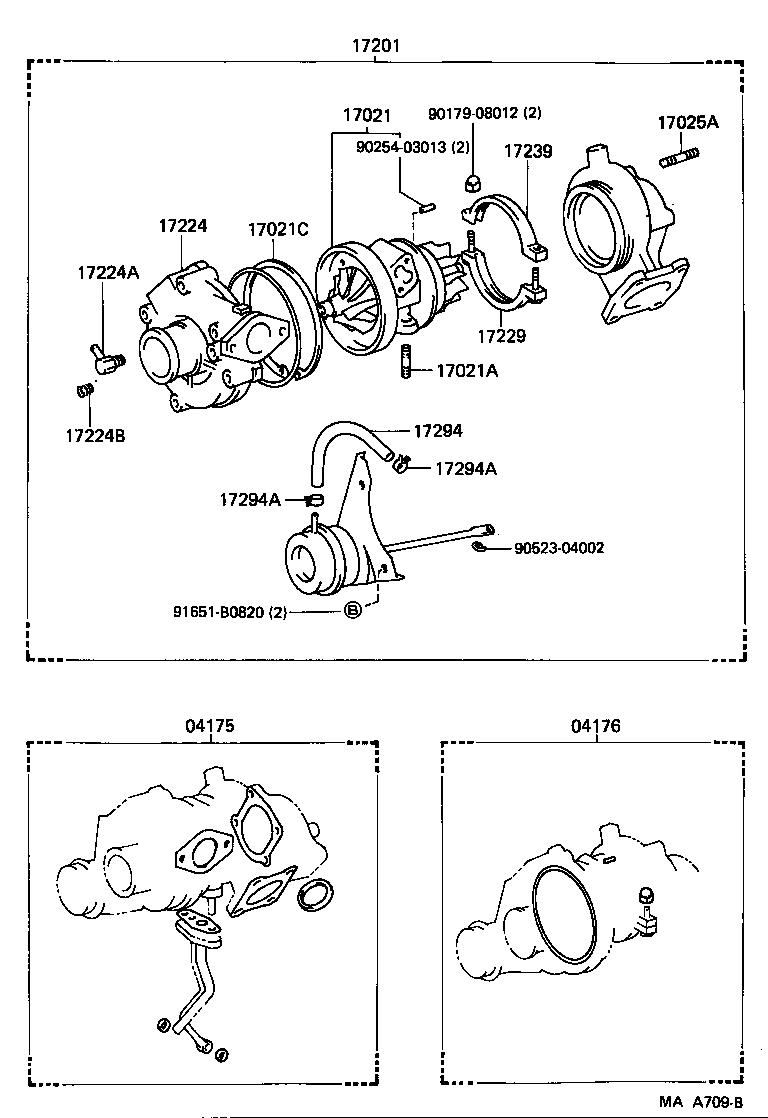

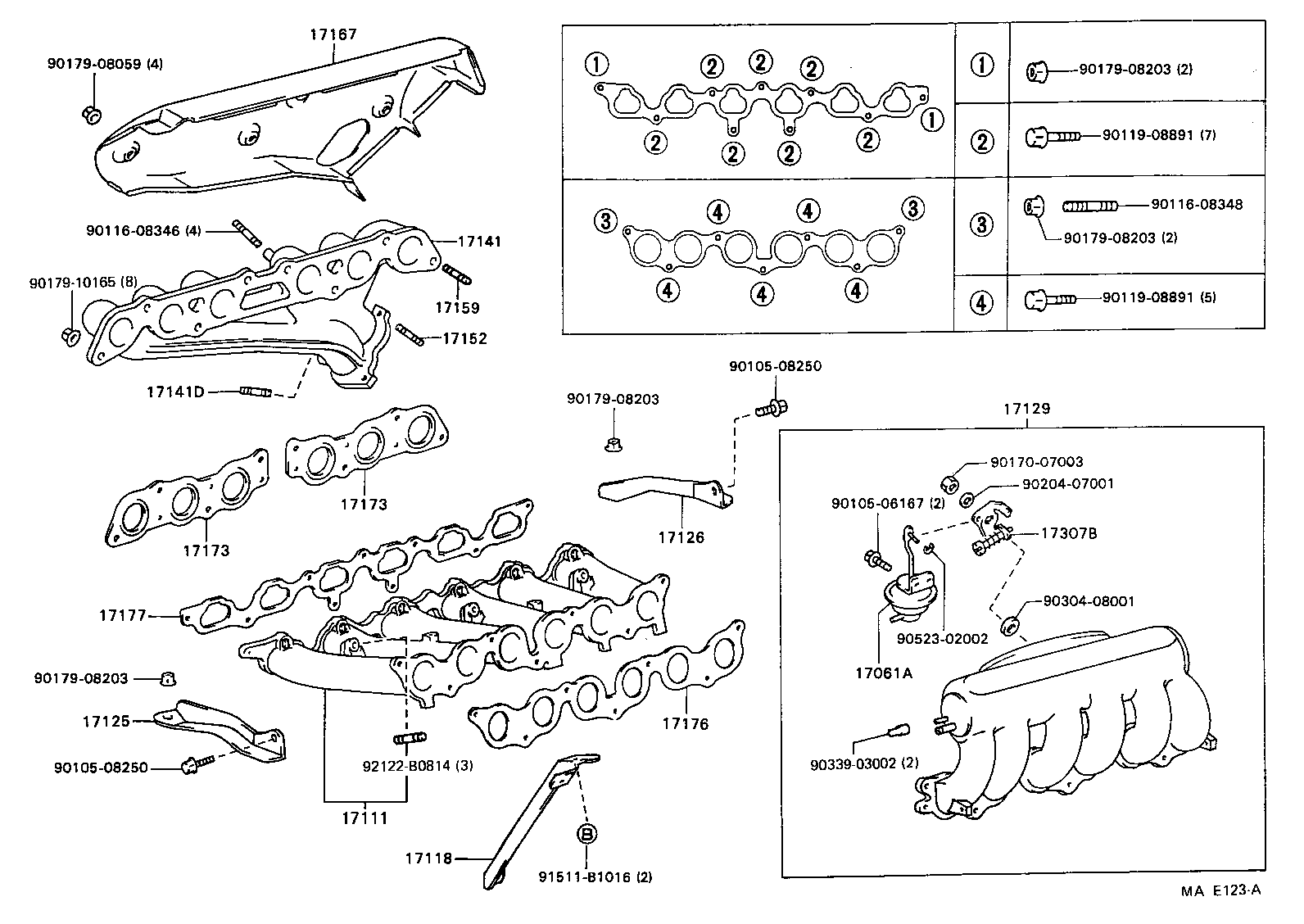

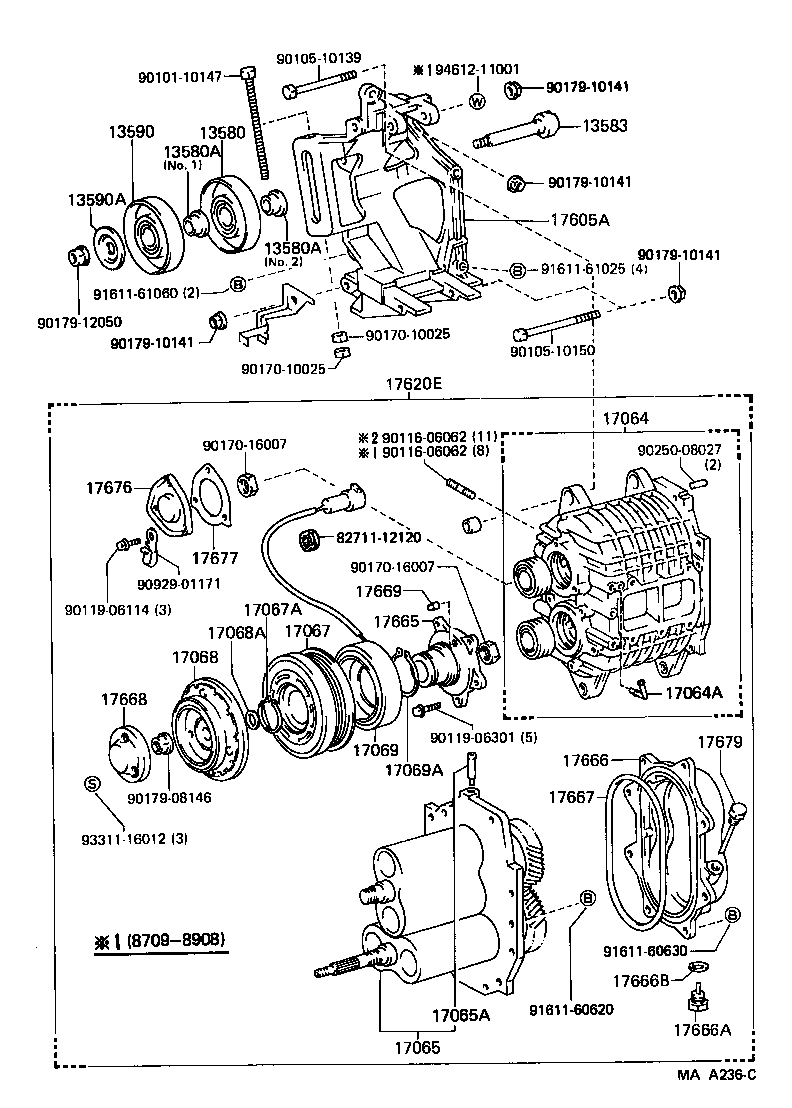

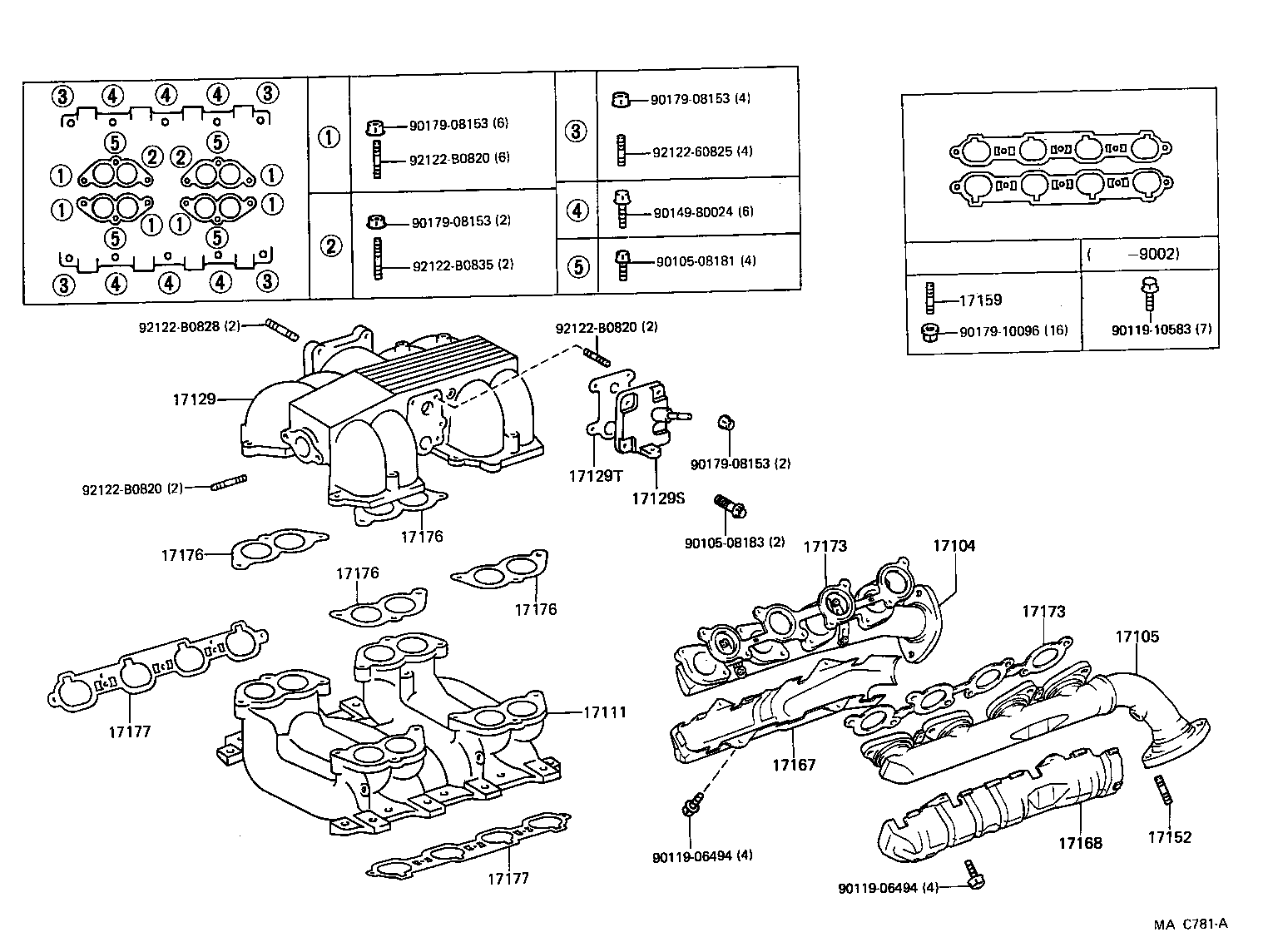

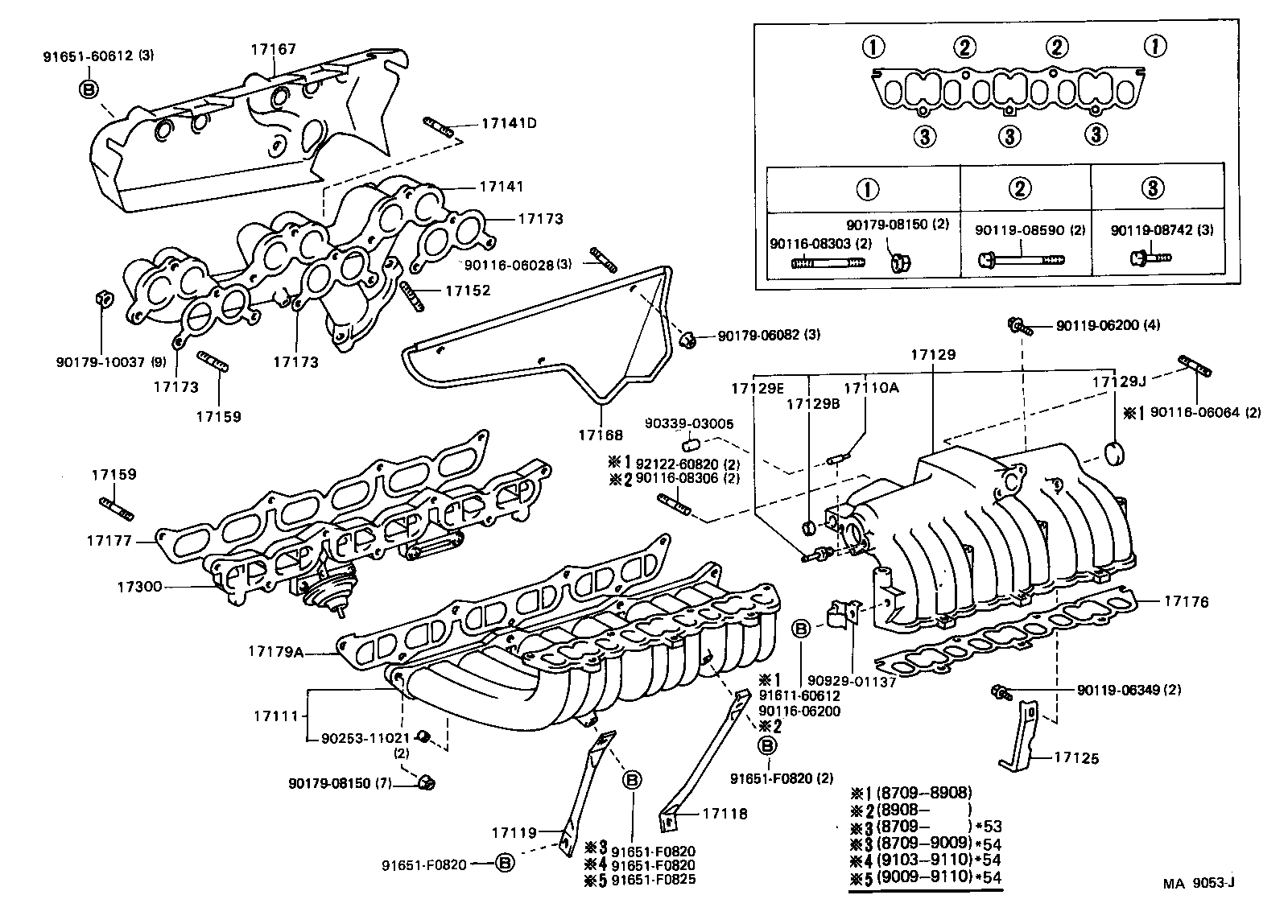

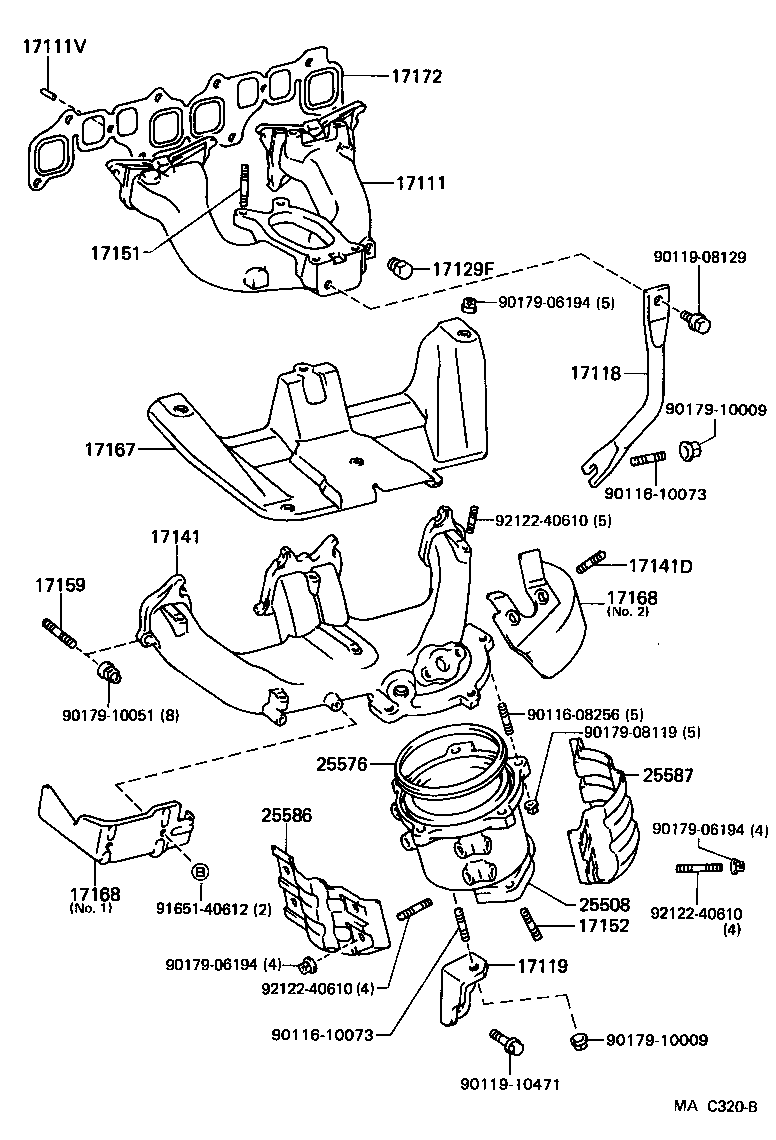

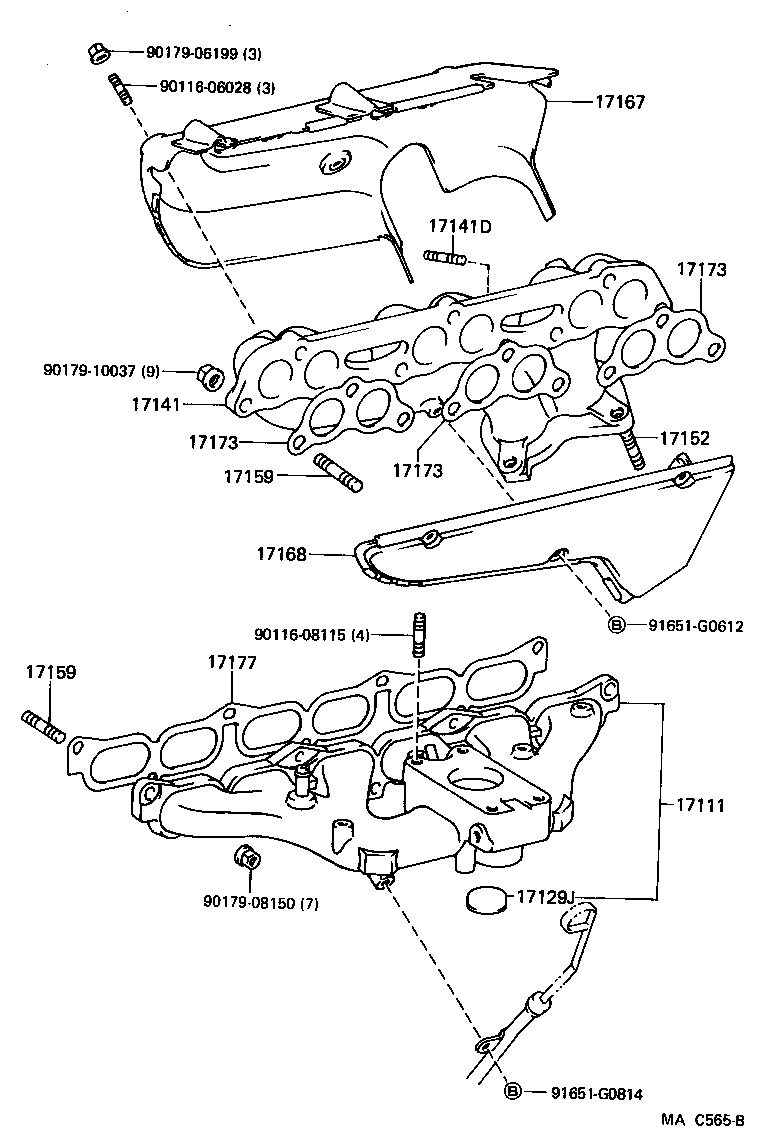

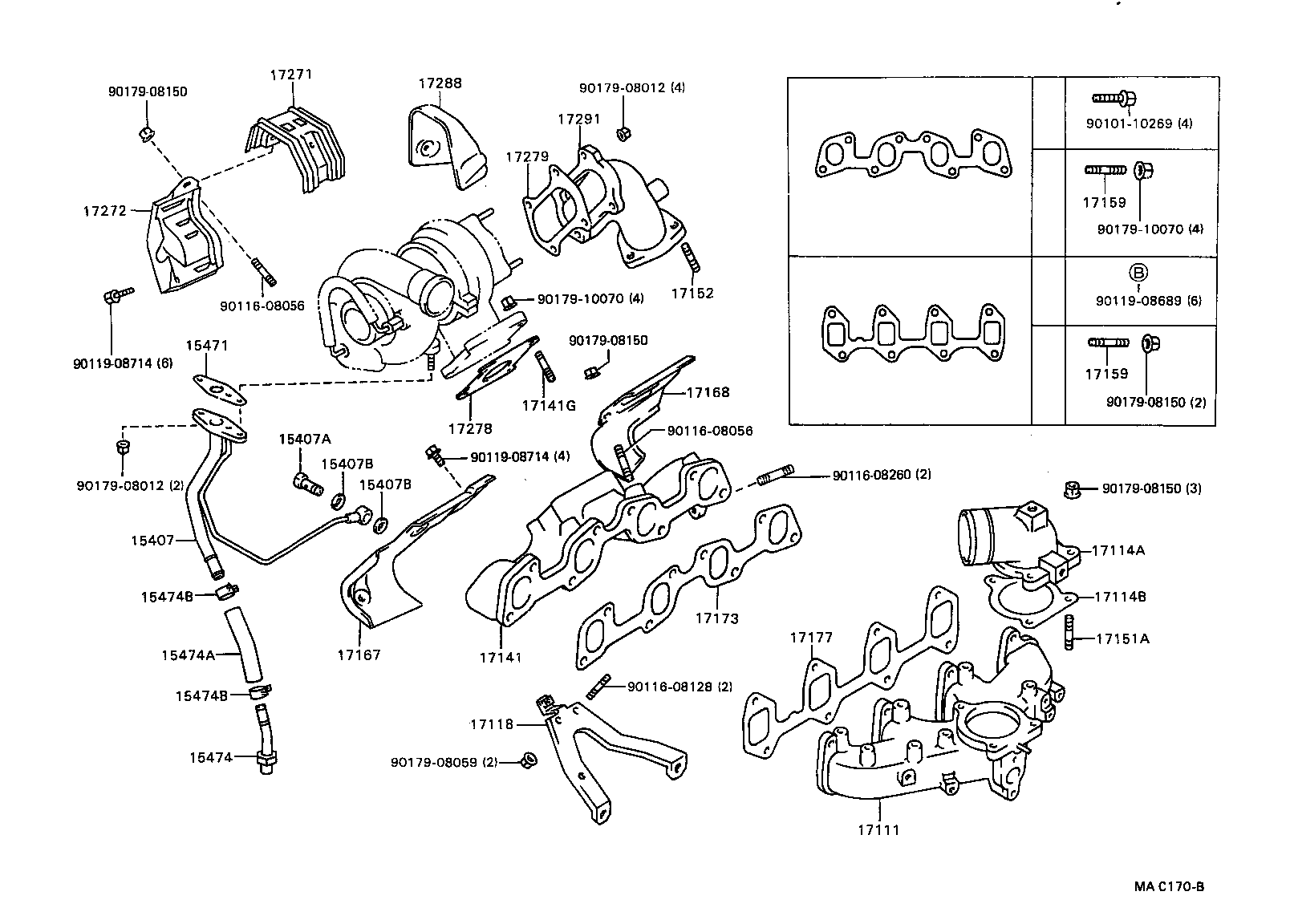

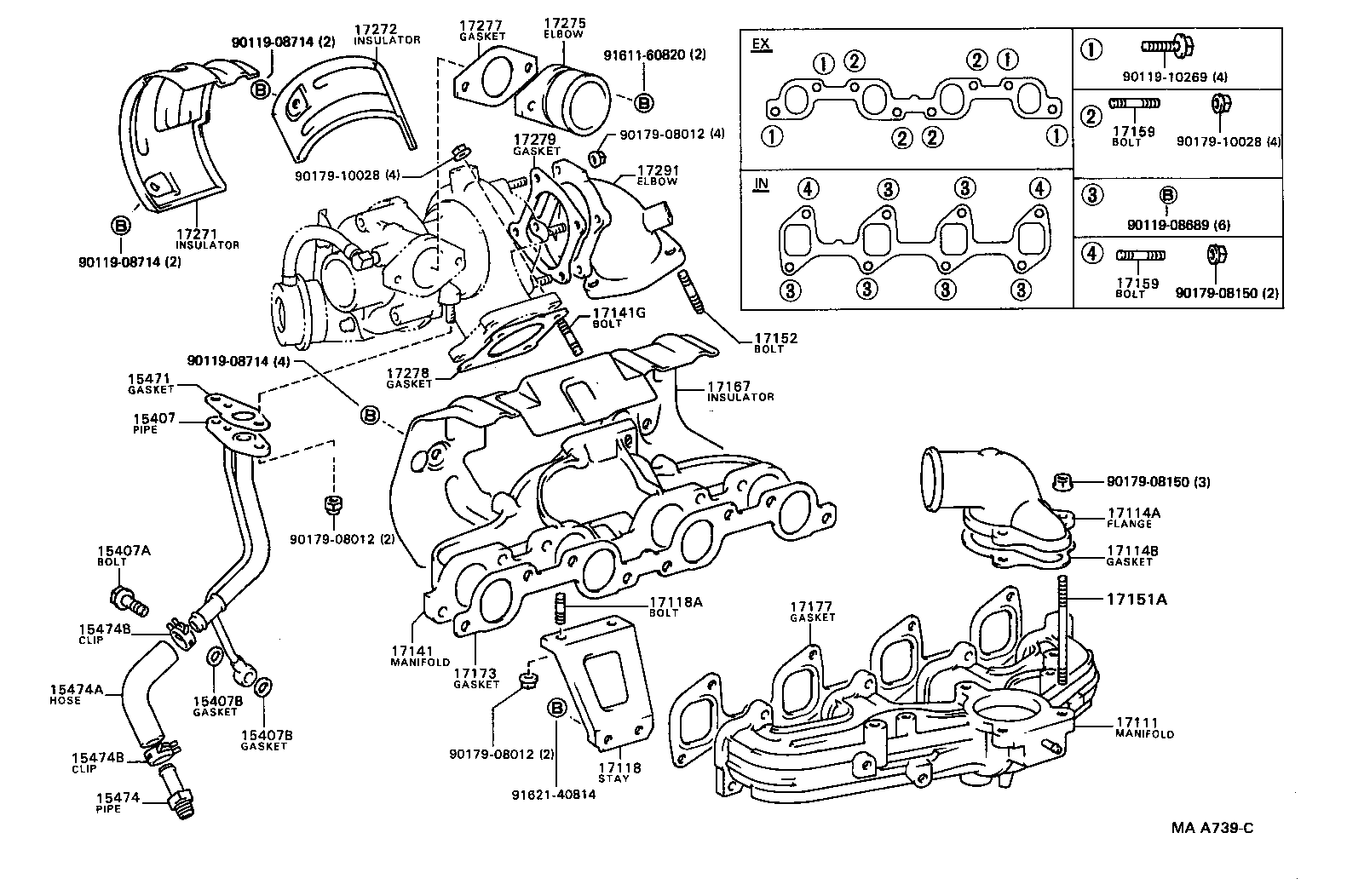

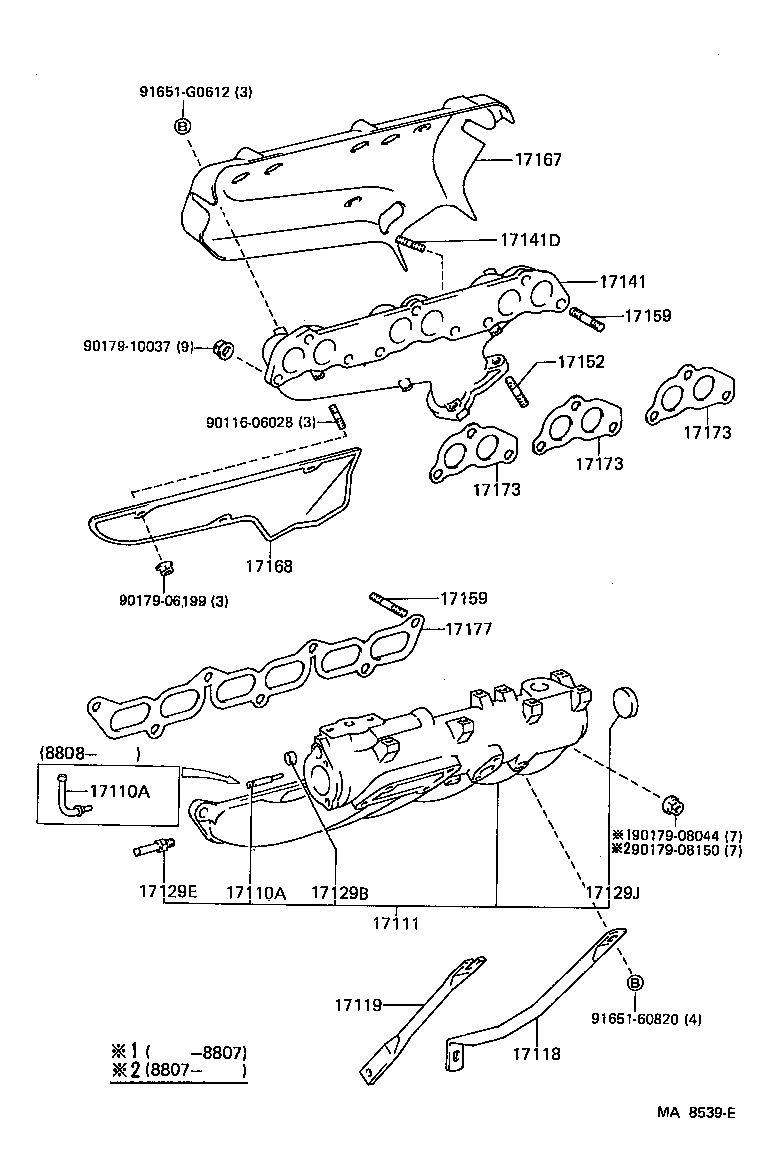

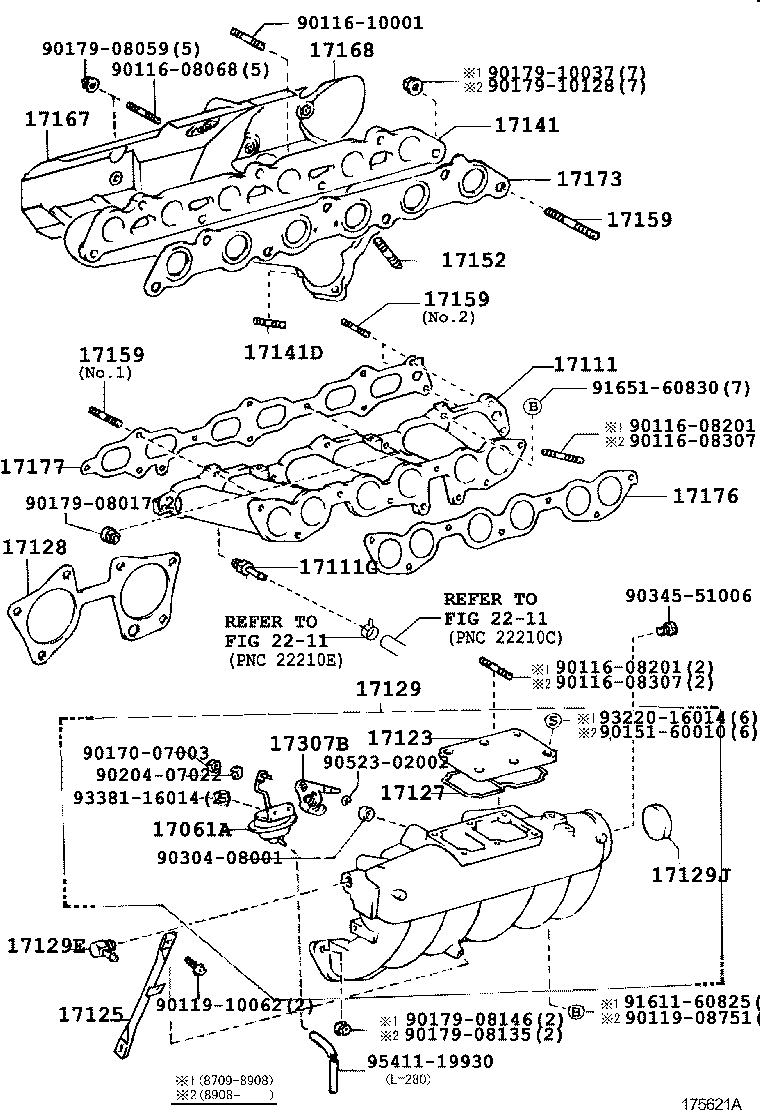

Figure MAA238B MAA238B 1987-09 → 1989-08 Figure NA0943F NA0943F 1988-09 → — Figure MA9053J MA9053J 1987-09 → — Figure MA8539E MA8539E 1987-09 → — Figure MAA236C MAA236C 1987-09 → — Figure MAC565B MAC565B 1989-08 → — Figure MAE123A MAE123A 1990-08 → — Figure MA7115C MA7115C 1987-09 → 1989-08 Figure MAA739C MAA739C 1987-09 → 1989-08 Figure MAA709B MAA709B 1987-09 → 1989-08 Figure MAB248E MAB248E 1989-08 → — Figure MAC170B MAC170B 1989-08 → — Figure MAB251C MAB251C 1989-08 → — Figure MA9721A MA9721A 1987-09 → 1989-08 Figure 175621A 175621A 1987-09 → — Figure MAC781A MAC781A 1989-08 → — Figure MAA375B MAA375B 1987-09 → 1989-08 Figure MAC320B MAC320B 1989-08 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
04176 Seal Kit, Turbocharger
13580 Idler Assy, V-ribbed, NO.2(FOR SUPERCHARGER)
13580A Spacer(FOR SUPERCHARGER V-RIBBED IDLER)
13583 Shaft, Idler, V-ribbed Belt(FOR SUPERCHARGER)
13590 Idler Assy, V-ribbed, NO.3(FOR SUPERCHARGER)
13590A Washer(FOR SUPERCHARGER V-RIBBED IDLER)
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15474B Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
16194 Bolt, Stud(FOR WATER OUTLET SETTING)
16347 Gasket, Water By-pass
17021 Housing Sub-assy, Bearing
17021A Bolt, Stud(FOR BEARING HOUSING)
17021C Ring, Hole Snap(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17061A Diaphragm Sub-assy
17064 Housing Sub-assy, Rotor
17064A Elbow(FOR SUPERCHARGER)
17065 Plate Sub-assy, Rotor Housing, RR
17065A Union(FOR SUPERCHARGER)
17067 Pulley Sub-assy, Clutch
17067A Ring, Shaft Snap(FOR CLUTCH PULLEY SUB-ASSY)
17068 Hub Sub-assy, Clutch
17068A Shim(FOR SUPERCHARGER)
17069 Stator Sub-assy, Clutch
17069A Ring, Shaft Snap(FOR CLUTCH STATOR SUB-ASSY)
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111G Union(FOR INTAKE MANIFOLD WATER)
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17114A Flange, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17118A Bolt, Stud(FOR MANIFOLD STAY)
17119 Stay, Manifold, NO.2
17123 Cover, Surge Tank
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17127 Gasket, Surge Tank Cover
17128 Gasket, Surge Tank
17129 Tank, Intake Air Surge
17129B Plug
17129D Union, NO.2
17129E Union, NO.3
17129F Plug, Intake Manifold Suction Hole
17129H Union, NO.4
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17129M Bolt, Stud(FOR COLD START INJECTOR)
17129R Plug, W/Head Taper Screw(FOR INTAKE AIR SURGE TANK)
17129S Plate(FOR INTAKE AIR SURGE TANK)
17129T Gasket(FOR INTAKE AIR SURGE TANK)
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141G Bolt, Stud(FOR TURBOCHARGER)
17149 Extension, Exhaust Manifold
17149A Bolt, Stud(FOR MANIFOLD EXTENSION)
17149C Gasket(FOR MANIFOLD EXTENSION)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17187 Gasket, Heat Insulator, NO.1
17188 Gasket, Heat Insulator, NO.2
17201 Turbocharger Sub-assy
17224 Housing, Compressor
17224A Union(FOR COMPRESSOR HOUSING)
17224B Plug, Taper Screw
17229 Band, V
17239 Clamp, V, NO.2
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17275 Elbow, Compressor Outlet
17277 Gasket, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17288 Insulator, Turbo, NO.3
17291 Elbow, Turbine Outlet
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17296 Plate, Bearing Housing, Side
17300 Valve Assy, Intake Air Control
17307B Lever Sub-assy, Intake Air Control
17605A Bracket, Sub-assy, Supercharger
17620E Supercharger Assy
17665 Flange, Clutch
17666 Cover, Rear(FOR SUPERCHARGER)
17666A Plug Sub-assy, W/Head Straight Screw(FOR SUPERCHARGER)
17666B Gasket, Seat(FOR SUPERCHARGER)
17667 Gasket, Rear Cover(FOR SUPERCHARGER)
17668 Cover, Clutch Hub
17669 Pin, Clutch
17676 Cover, Housing, Front
17677 Gasket, Housing Front Cover
17679 Gage, Supercharger Oil Level
25508 Converter Sub-assy, Manifold
25576 Gasket, Manifold Converter
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
