Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

17 part groups · 9 illustrations

Illustrations

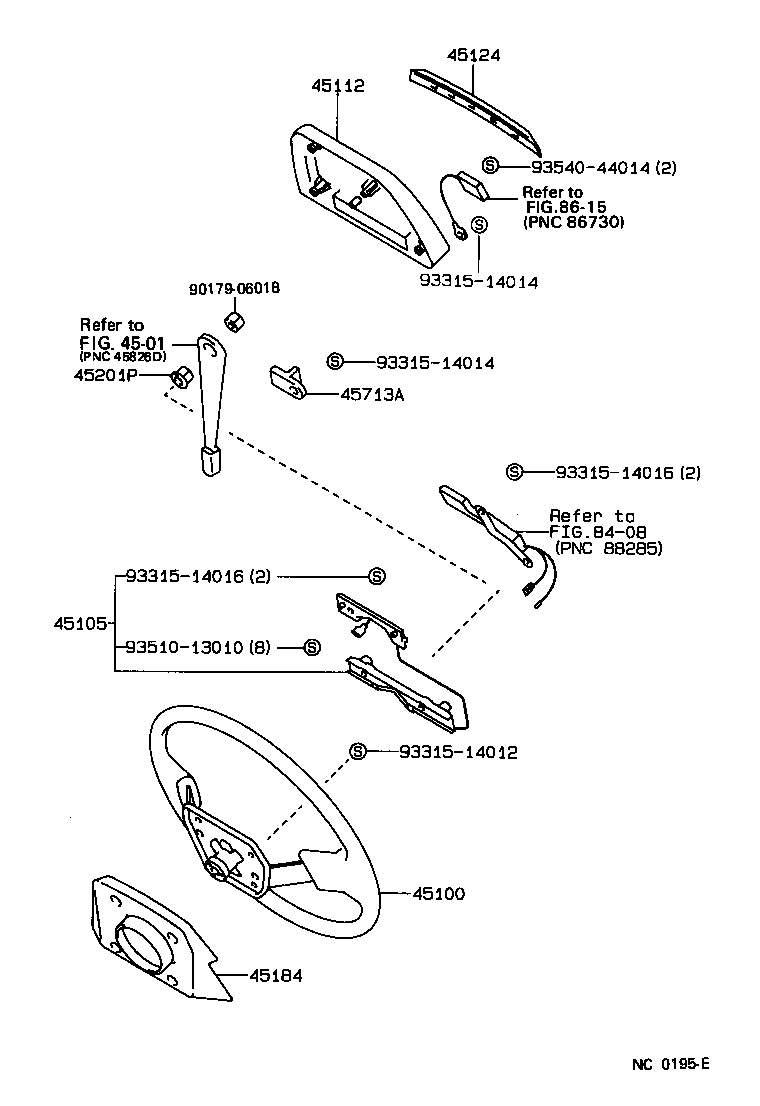

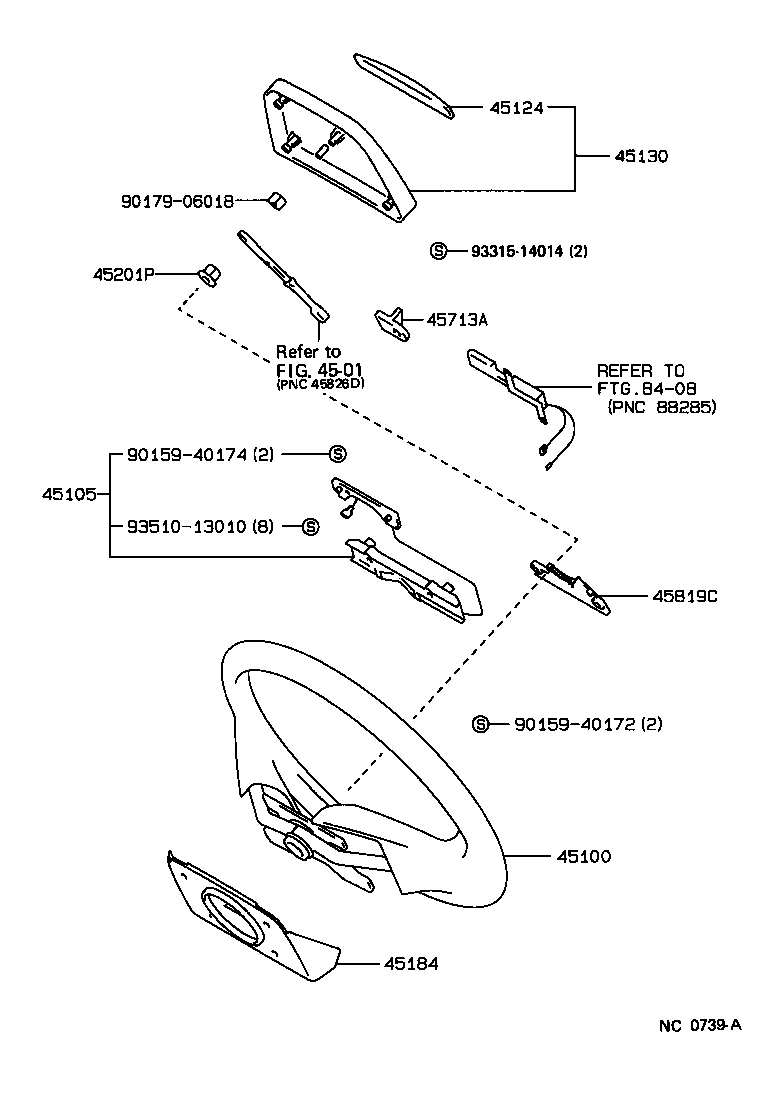

Figure NC0196B NC0196B 1987-09 → 1989-08 Figure NC0740A NC0740A 1989-08 → — Figure NC0193 NC0193 1987-09 → — Figure NC0194C NC0194C 1987-09 → 1989-08 Figure NC0739A NC0739A 1989-08 → — Figure NC0195E NC0195E 1987-09 → — Figure 451747A 451747A 1989-08 → — Figure 451717 451717 1989-08 → — Figure 451718 451718 1989-08 → —

Part groups

PNCDescription
45015B Plate Sub-assy, Horn Button Contact, NO.2
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45124 Ornament, Steering Wheel Mark
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45176 Ring, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45197 Label, Airbag Caution
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
45819C Retainer, Telescopic Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
