Toyota Crown
1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan
Discontinued model
Data version 1992-04
Rear Seat & Seat Track
121 part groups · 16 illustrations

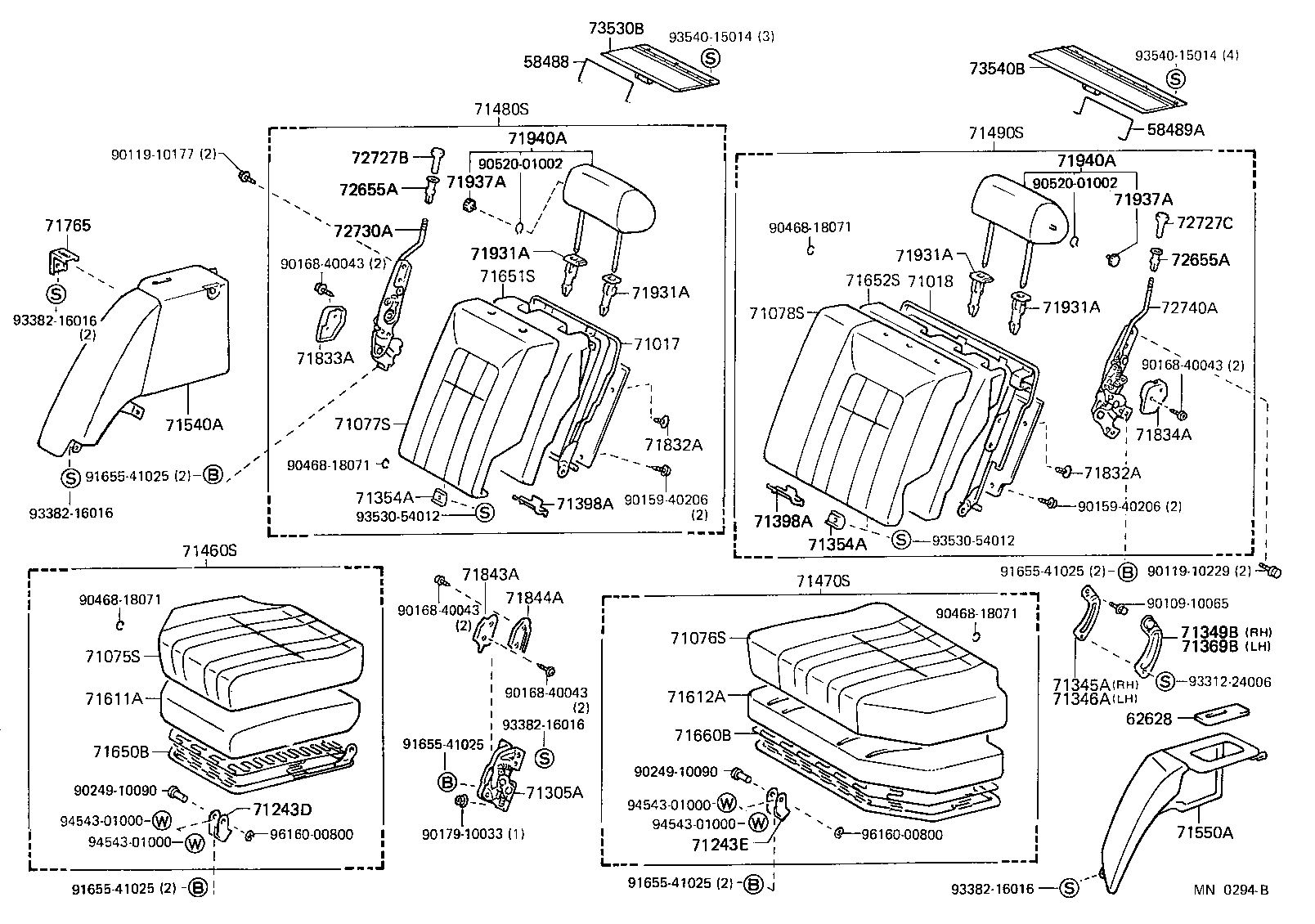

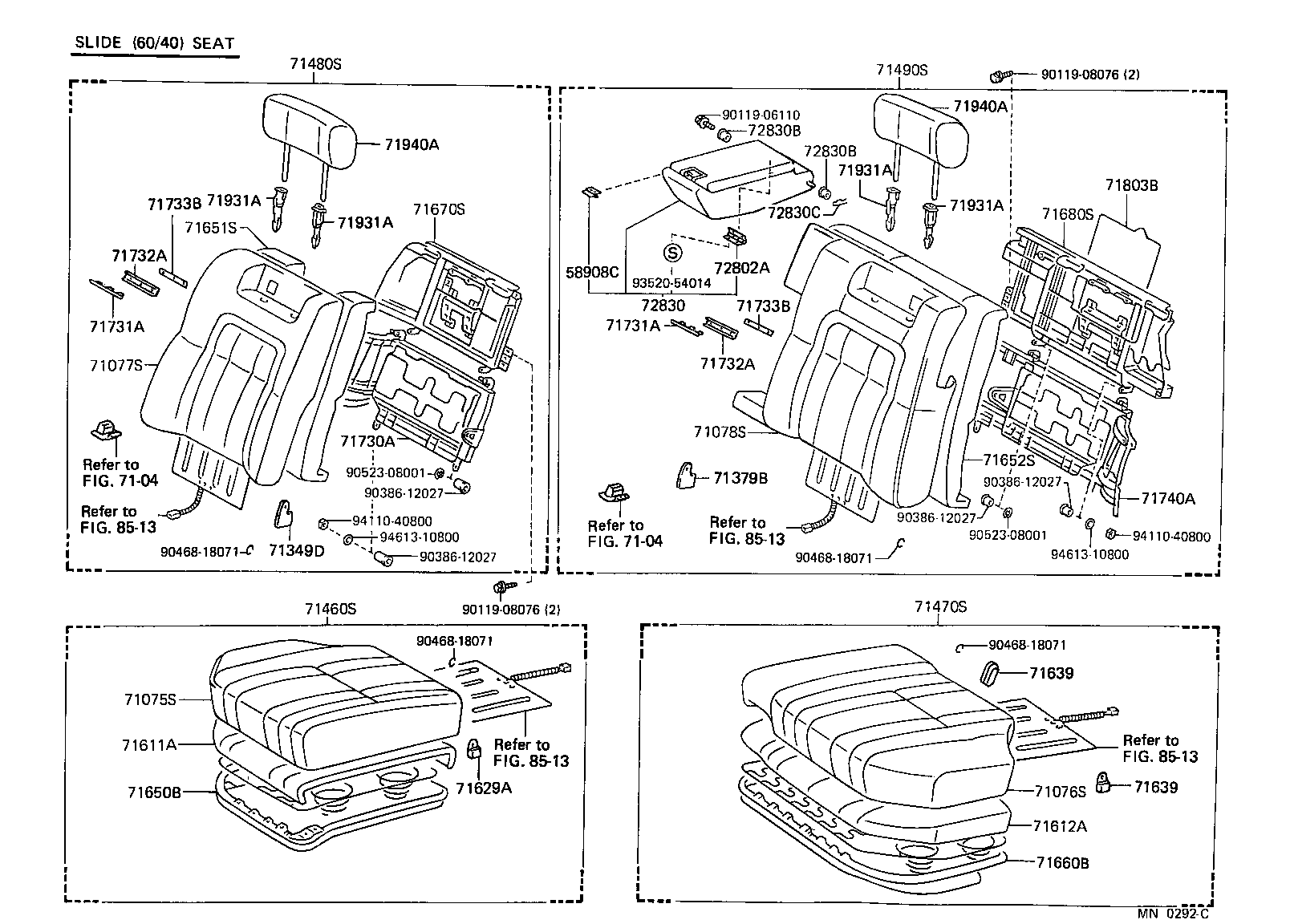

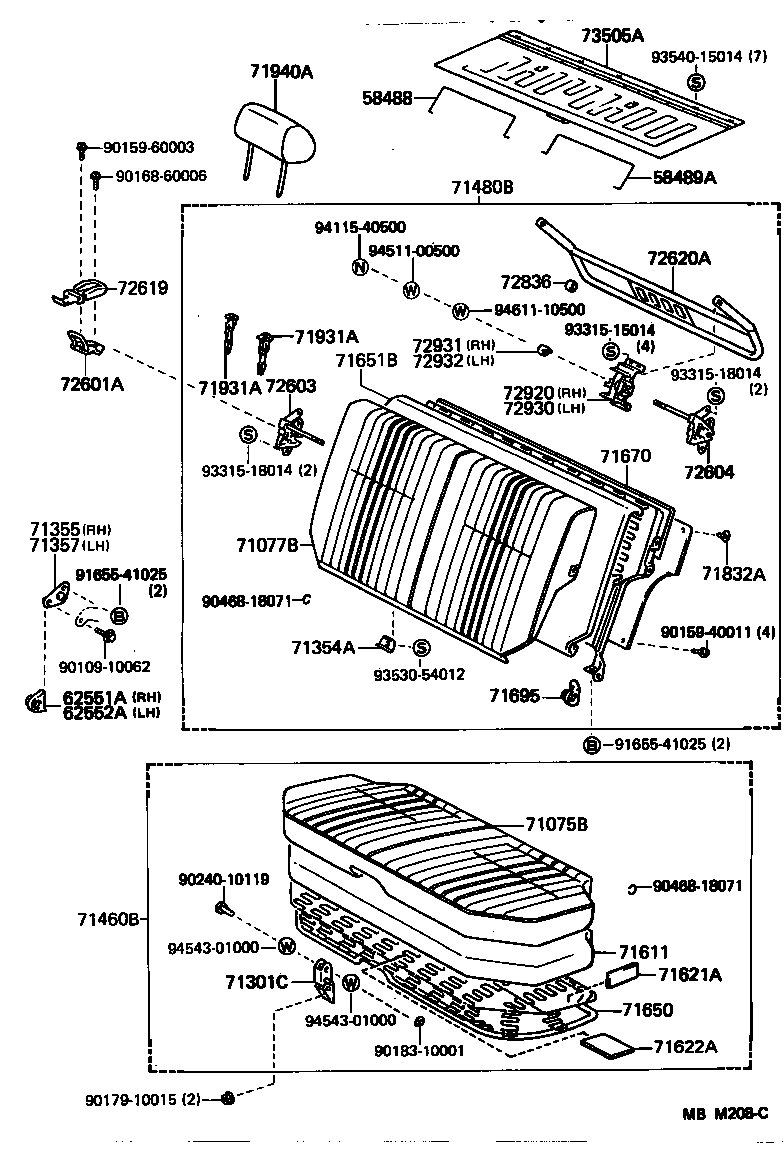

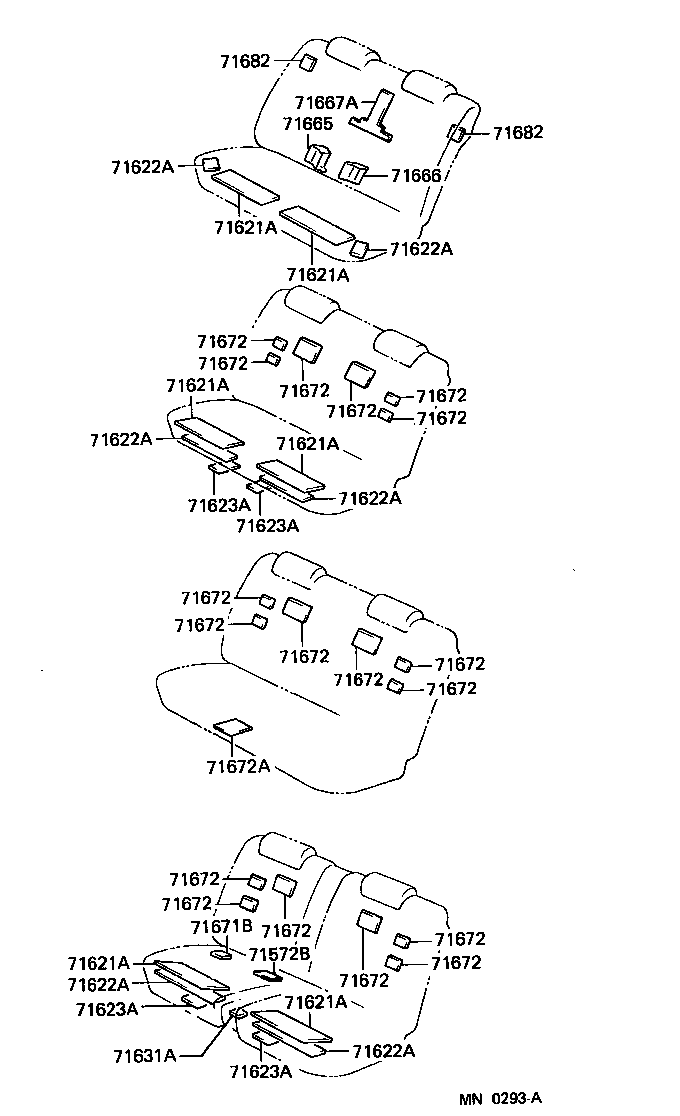

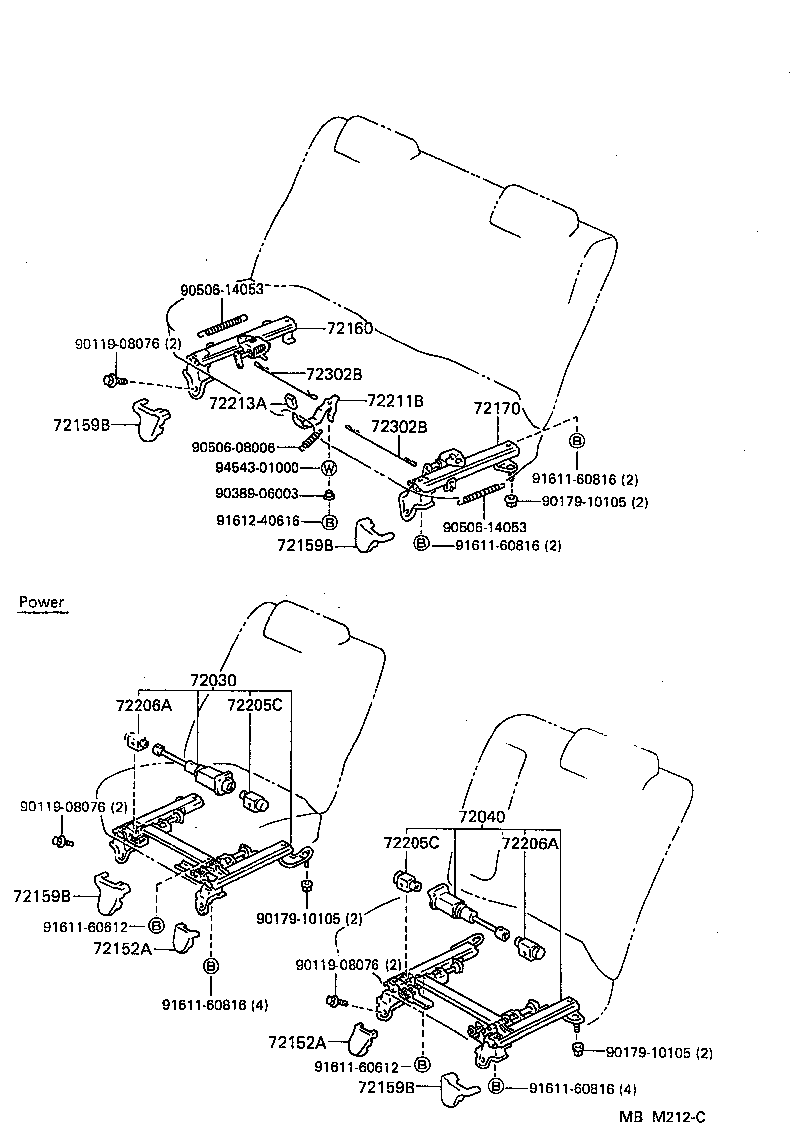

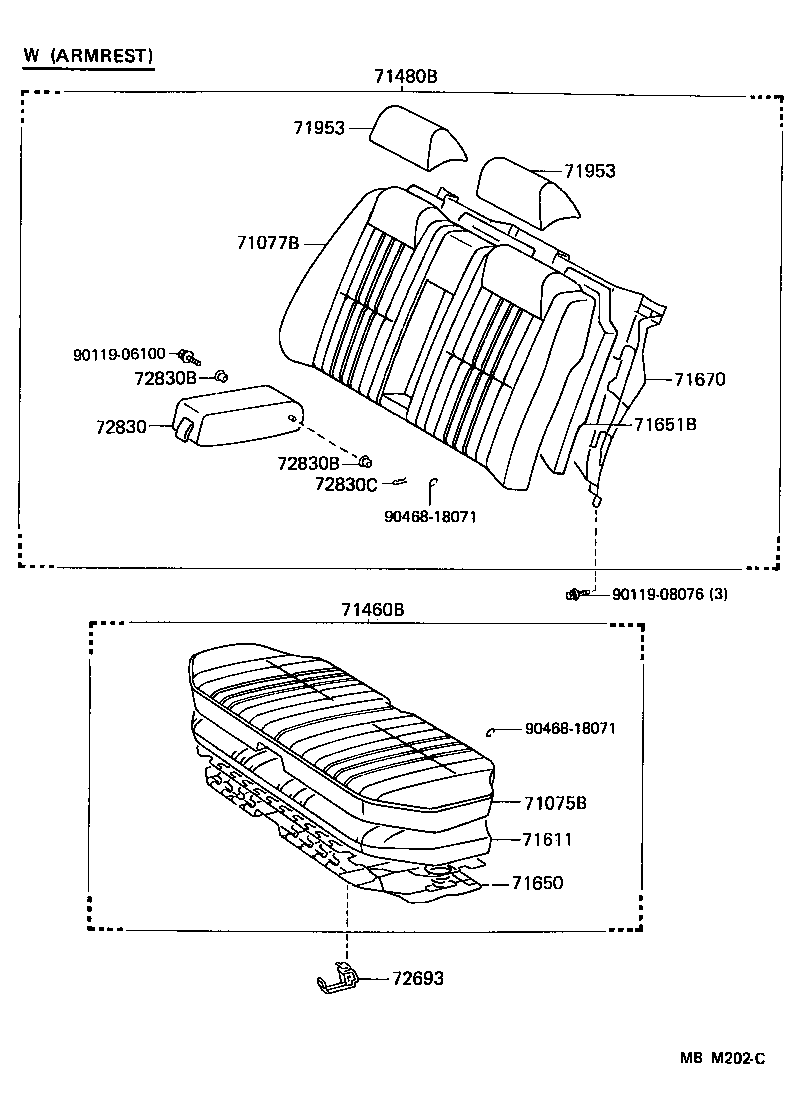

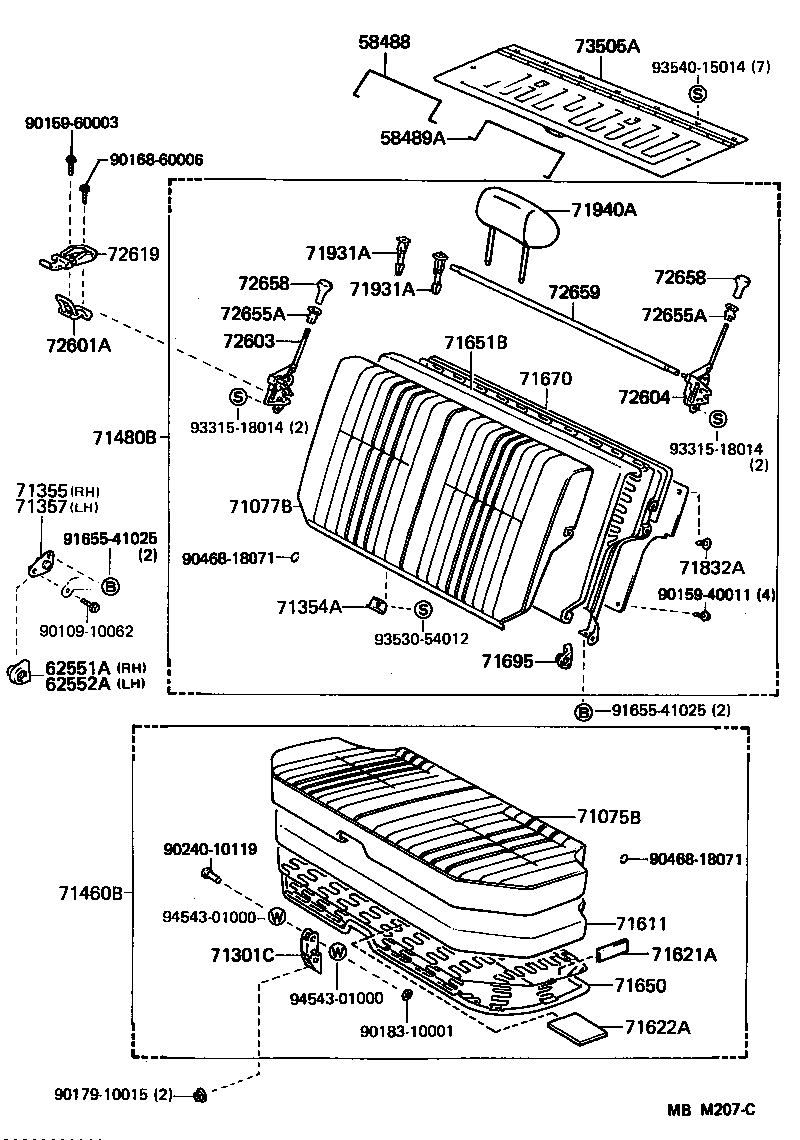

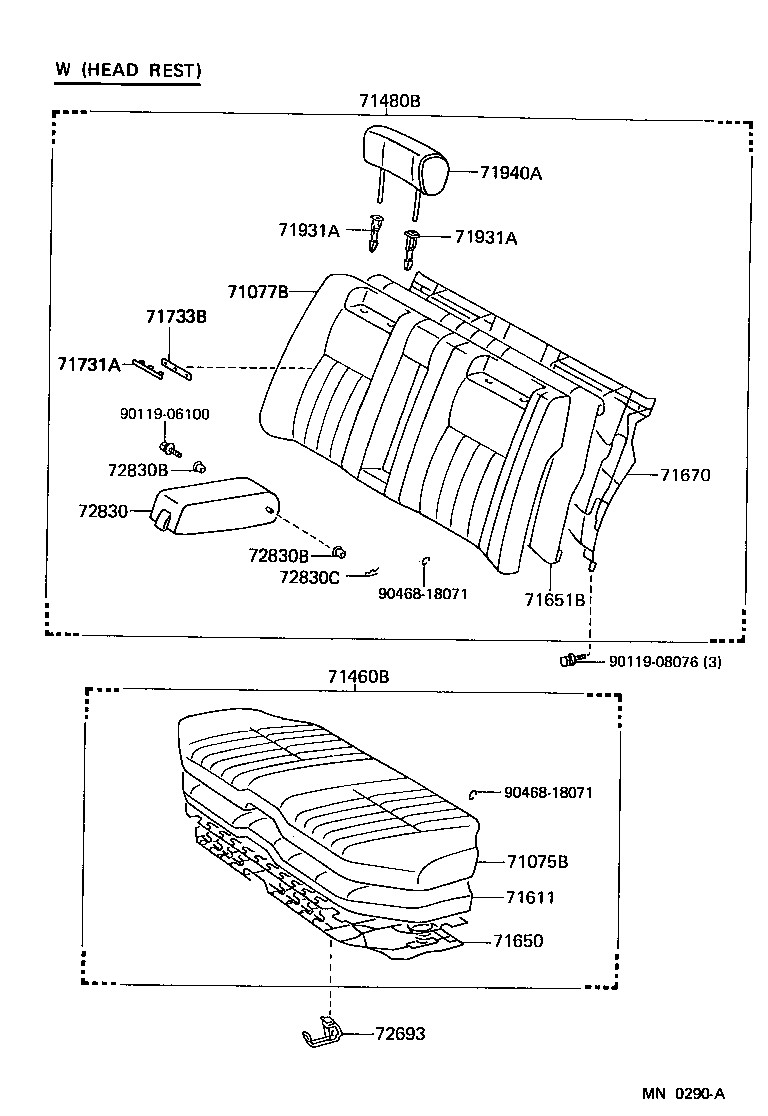

Illustrations
Part groups
| PNC | Description |
|---|---|
| 58488 | Spring, Deck Board, RH |
| 58489A | Spring, Deck Board, LH |
| 58908C | Lock Sub-assy, Rear Seat Armrest |
| 62551A | Cover, Rear Seat Side, RH |
| 62552A | Cover, Rear Seat Side, LH |
| 62628 | Cover, Side Trim Cover, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71243D | Bracket, Rear Seat Cushion Hinge, RH |
| 71243E | Bracket, Rear Seat Cushion Hinge, LH |
| 71301C | Link Sub-assy, Rear Seat Cushion |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71345A | Stay, Rear Seatback, RH |
| 71346A | Stay, Rear Seatback, LH |
| 71349B | Cover, Rear Seatback Stay, RH |
| 71349D | Cover, Rear Seatback Hinge, RH |
| 71354A | Plate, Rear Seatback Set |
| 71355 | Plate, Rear Seatback Hinge, Outer RH |
| 71357 | Plate, Rear Seatback Hinge, Outer LH |
| 71369B | Cover, Rear Seatback Stay, LH |
| 71379B | Cover, Rear Seatback Hinge, LH |
| 71398A | Holder, Rear Seatback |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71460S | Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE) |
| 71470S | Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71540A | Back Assy, Rear Side Seat, RH |
| 71550A | Back Assy, Rear Side Seat, LH |
| 71572B | Pad, Rear Seat Cushion Silencer, B |
| 71611 | Pad, Rear Seat Cushion |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71621A | Pad, Rear Seat Cushion Silencer, A |
| 71622A | Pad, Rear Seat Cushion Silencer, B |
| 71623A | Pad, Rear Seat Cushion Silencer, C |
| 71629A | Cover, Rear Seat Cushion Hinge, RH |
| 71631A | Pad, Rear Seat Cushion Corner |
| 71639 | Cover, Rear Seat Cushion Hinge, LH |
| 71650 | Spring Assy, Rear Seat Cushion |
| 71650B | Spring Assy, Rear Seat Cushion, RH |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71660B | Spring Assy, Rear Seat Cushion, LH |
| 71665 | Pad, Rear Seatback Side, RH |
| 71666 | Pad, Rear Seatback Side, LH |
| 71667A | Pad, Rear Seatback, Center A |
| 71670 | Spring Assy, Rear Seatback(FOR BENCH SEAT) |
| 71670S | Spring Assy, Rear Seatback, RH(FOR SEPARATE SEAT) |
| 71671B | Pad, Rear Seat Cushion Silencer, A |
| 71672 | Pad, Rear Seatback Silencer, B |
| 71672A | Pad, Rear Seat Cushion Silencer, B |
| 71680S | Spring Assy, Rear Seatback, LH(FOR SEPARATE SEAT) |
| 71682 | Pad, Rear Seatback Corner, B |
| 71695 | Protector, Rear Seatback |
| 71730A | Spring Assy, Rear Seatback, Lower RH |
| 71731A | Fastener, Seat Cover, A (FOR REAR SEAT) |
| 71732A | Fastener, Seat Cover, B (FOR REAR SEAT) |
| 71733B | Retainer, Seat Cover Fastener |
| 71740A | Spring Assy, Rear Seatback, Lower LH |
| 71765 | Bracket, Rear Side Seatback Set, Front RH |
| 71803B | Board Sub-assy, Rear Seat Armrest Hole |
| 71832A | Clip, Rear Seatback Carpet OR Mat |
| 71833A | Cover, Rear Seat Reclining, NO.1 RH |
| 71834A | Cover, Rear Seat Reclining, NO.1 LH |
| 71843A | Cover, Rear Seat Reclining, NO.2 RH |
| 71844A | Cover, Rear Seat Reclining, NO.2 LH |
| 71931A | Support, Rear Seat Headrest |
| 71937A | Handle, Rear Seat Headrest Regulator |
| 71940A | Headrest Assy, Rear Seat |
| 71953 | Pad, Rear Seat Headrest |
| 72030 | Adjuster Assy, Rear NO.1 Seat |
| 72040 | Adjuster Assy, Rear NO.2 Seat |
| 72152A | Cover, Rear Seat Track Bracket, Inner |
| 72159B | Cover, Rear Seat Track Bracket, Outer |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72170 | Track Assy, Rear Seat, Outer LH |
| 72205C | Housing Sub-assy, Power Seat, NO.1 |
| 72206A | Housing Sub-assy, Power Seat, NO.2 |
| 72211B | Handle, Seat Track Adjusting |
| 72213A | Knob, Seat Track Adjusting Handle |
| 72302B | Wire Sub-assy, Rear Seat Track Equalizing |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72603 | Lock Sub-assy, Rear Seatback, RH |
| 72604 | Lock Sub-assy, Rear Seatback, LH |
| 72619 | Cover, Rear Seatback Lock Striker |
| 72620A | Protector Assy, Rear Seatback |
| 72655A | Grommet, Rear Seatback Stop Button |
| 72658 | Knob, Rear Seat Handle |
| 72659 | Rod, Rear Seatback Lock Connecting |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72727B | Knob, Rear Seat Reclining Control Lever, RH |
| 72727C | Knob, Rear Seat Reclining Control Lever, LH |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 72802A | Hinge Sub-assy, Armrest Console |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830B | Bush(FOR REAR SEAT CENTER ARMREST) |
| 72830C | Clip, Rear Seat Center Armrest |
| 72836 | Silencer, Protector Pipe |
| 72905 | Link Sub-assy, 3RD Seat, RH |
| 72906 | Link Sub-assy, 3RD Seat, LH |
| 72910A | Cushion Assy, 3RD Seat |
| 72920 | Clutch Assy, Rear Seatback Protector, RH |
| 72921 | Strap, 3RD Seat |
| 72930 | Clutch Assy, Rear Seatback Protector, LH |
| 72931 | Clutch, Rear Seatback Lock, RH |
| 72932 | Clutch, Rear Seatback Lock, LH |
| 72940 | Back Assy, 3RD Seat |
| 72955 | Bracket, 3RD Seatback, Upper |
| 73505A | Floor Sub-assy, Rear Seat Sub |
| 73530B | Panel Assy, Rear Seat Sub Floor, RH |
| 73540B | Panel Assy, Rear Seat Sub Floor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
