Toyota Crown/Crown Majesta

1995-08 → 2001-08 · chassis GS151,JZS15#,LS151,UZS15# · catalogue 331190 · Japan

Discontinued model Data version 2003-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

334 part groups · 52 illustrations

Illustrations

MCU003A 1995-08 → 1997-07

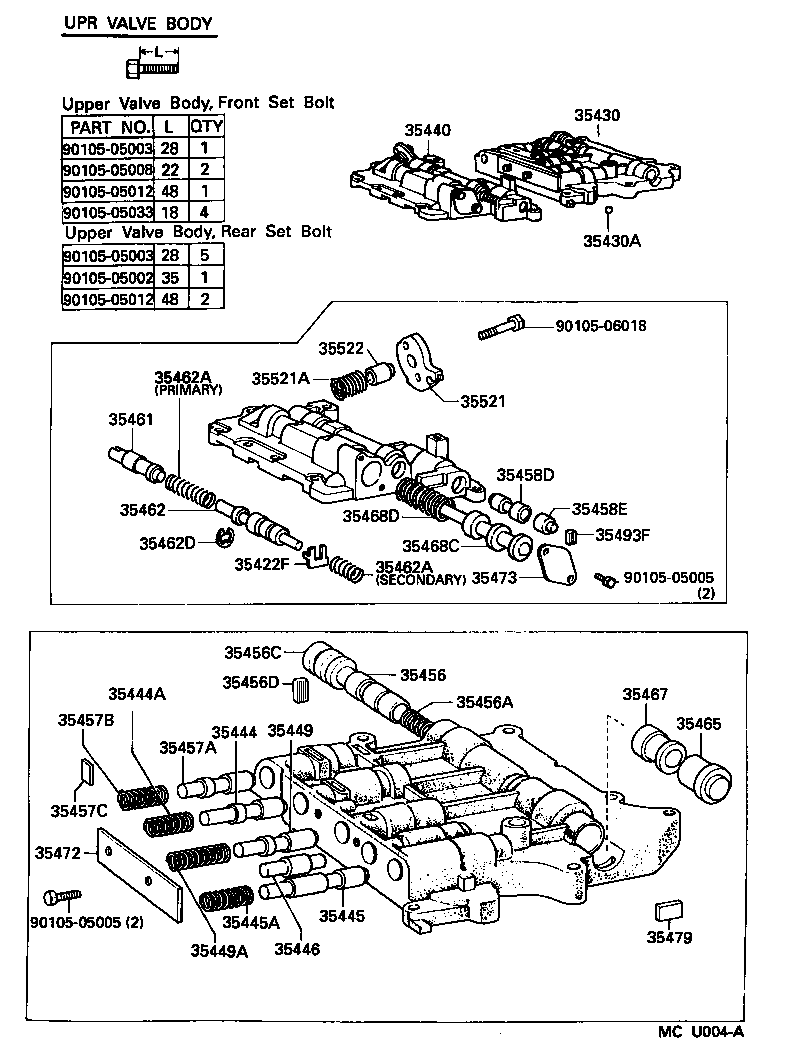

MCU004A 1995-08 → 1997-07

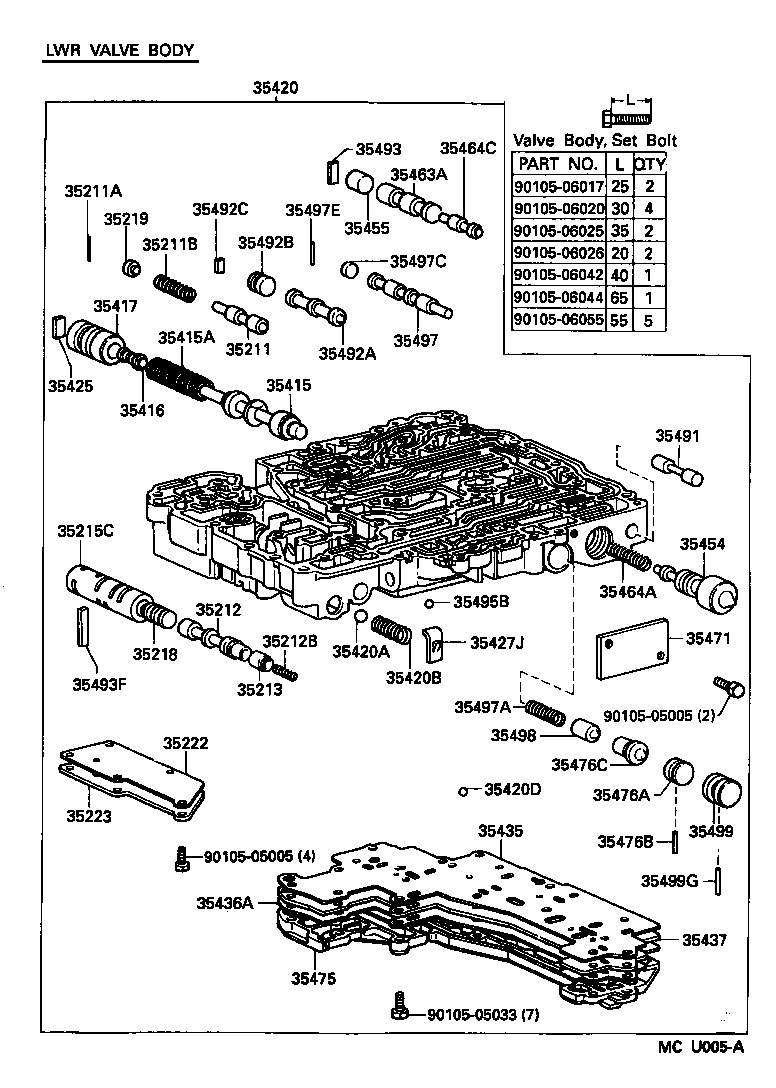

MCU005A 1995-08 → 1997-07

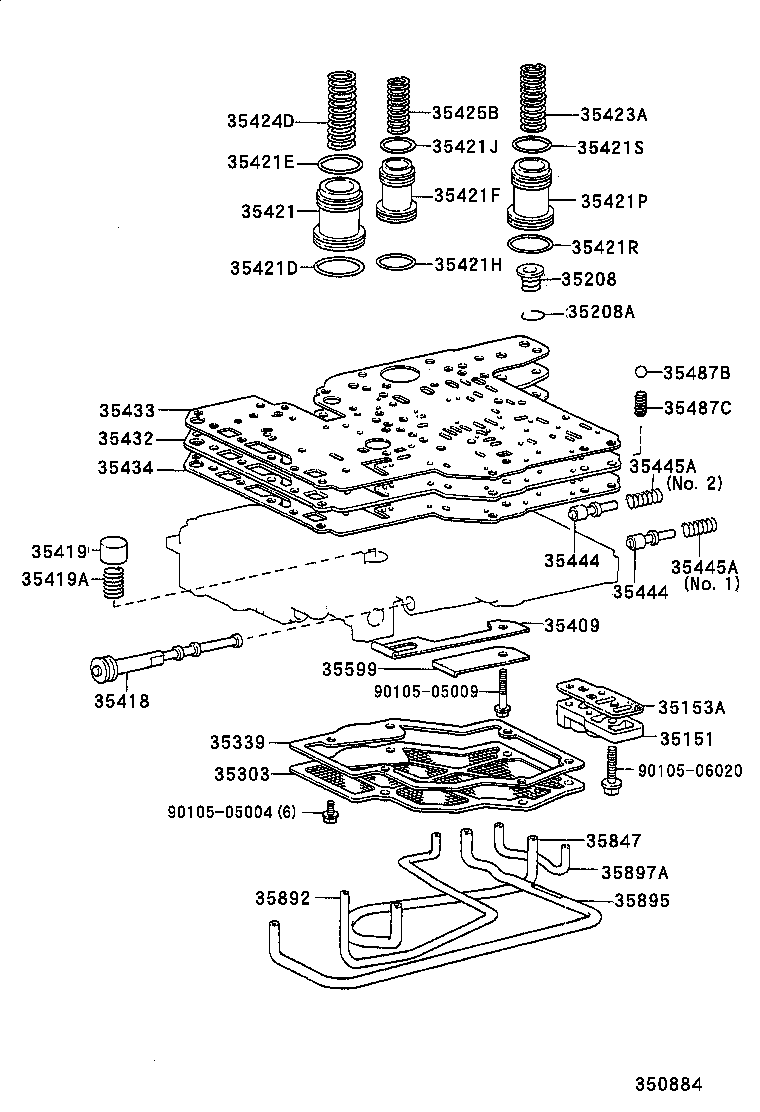

350884 1997-07 → 1998-08

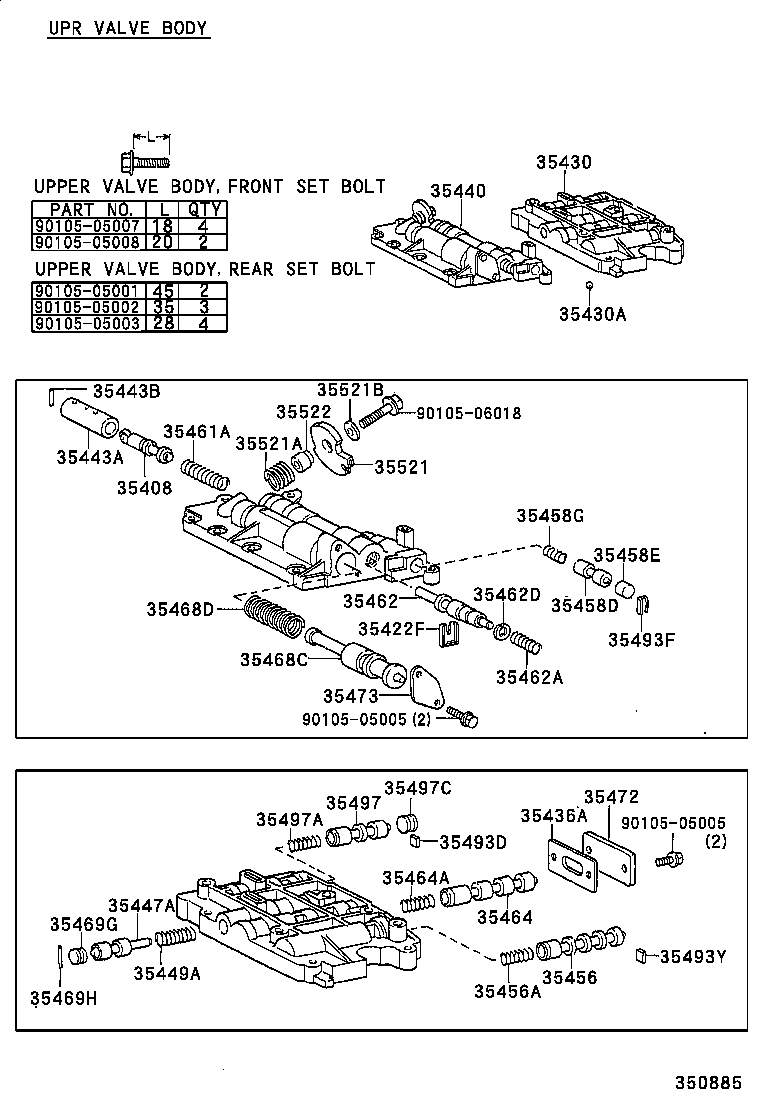

350885 1997-07 → 1998-08

350290 1997-07 → 1998-08

351324 1995-12 → —

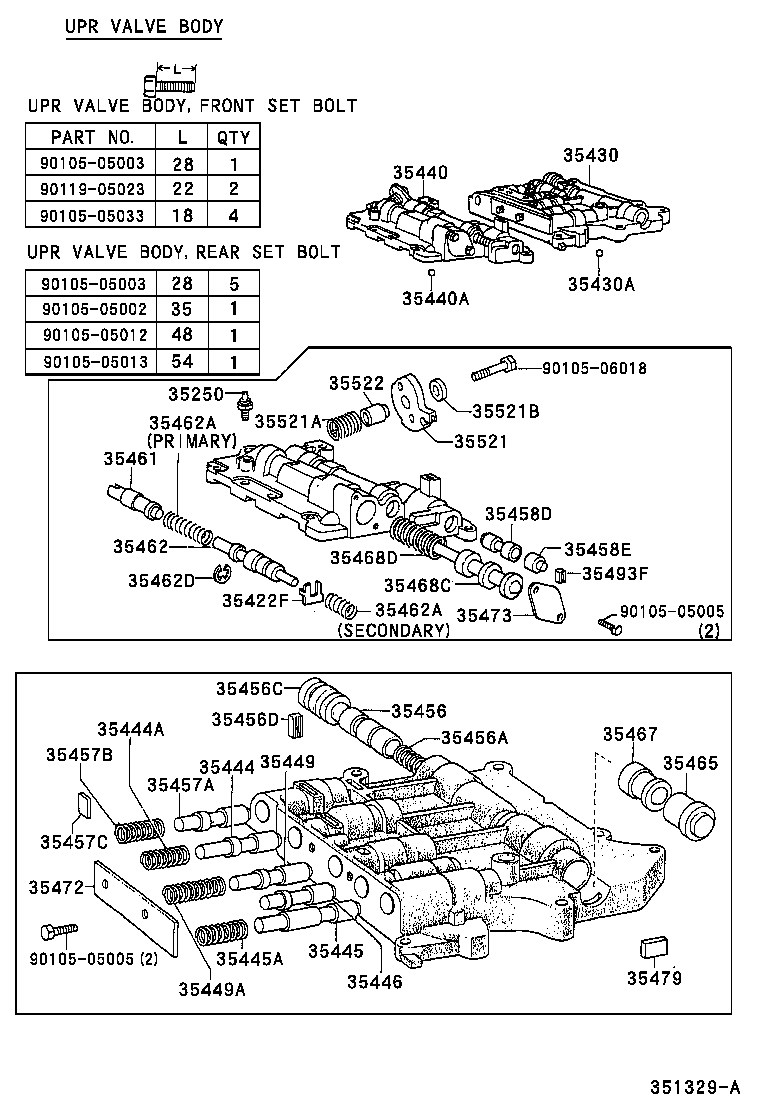

351329A 1995-12 → —

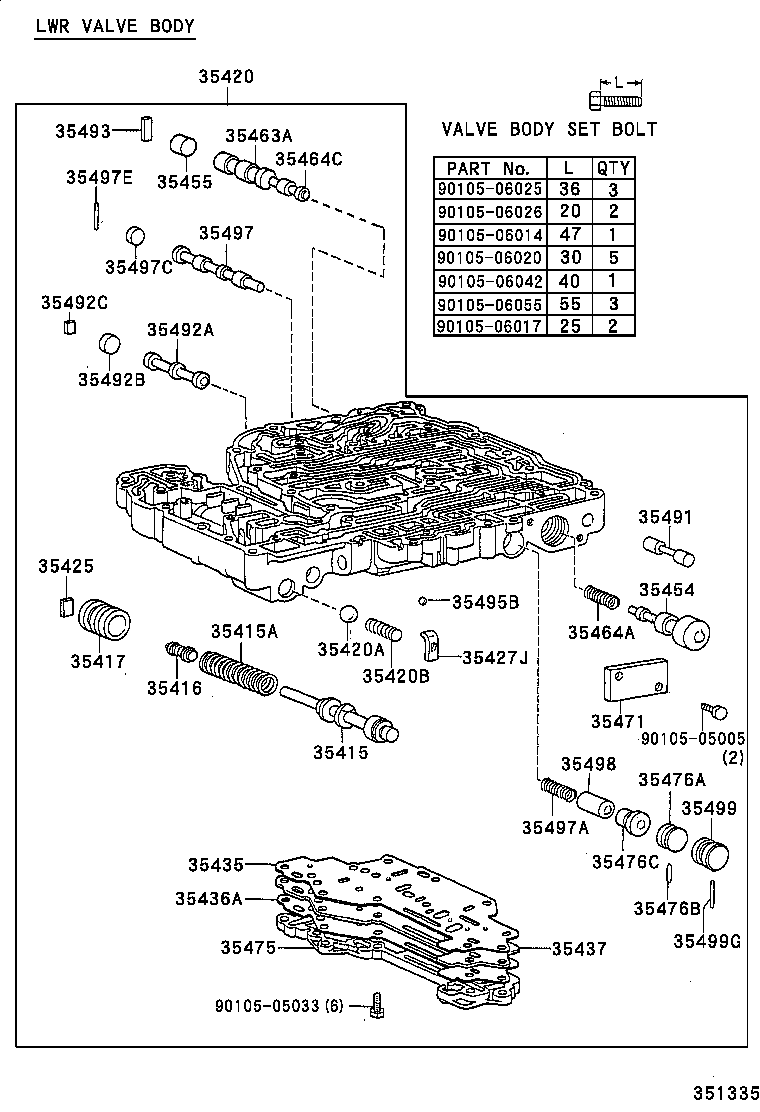

351335 1995-12 → —

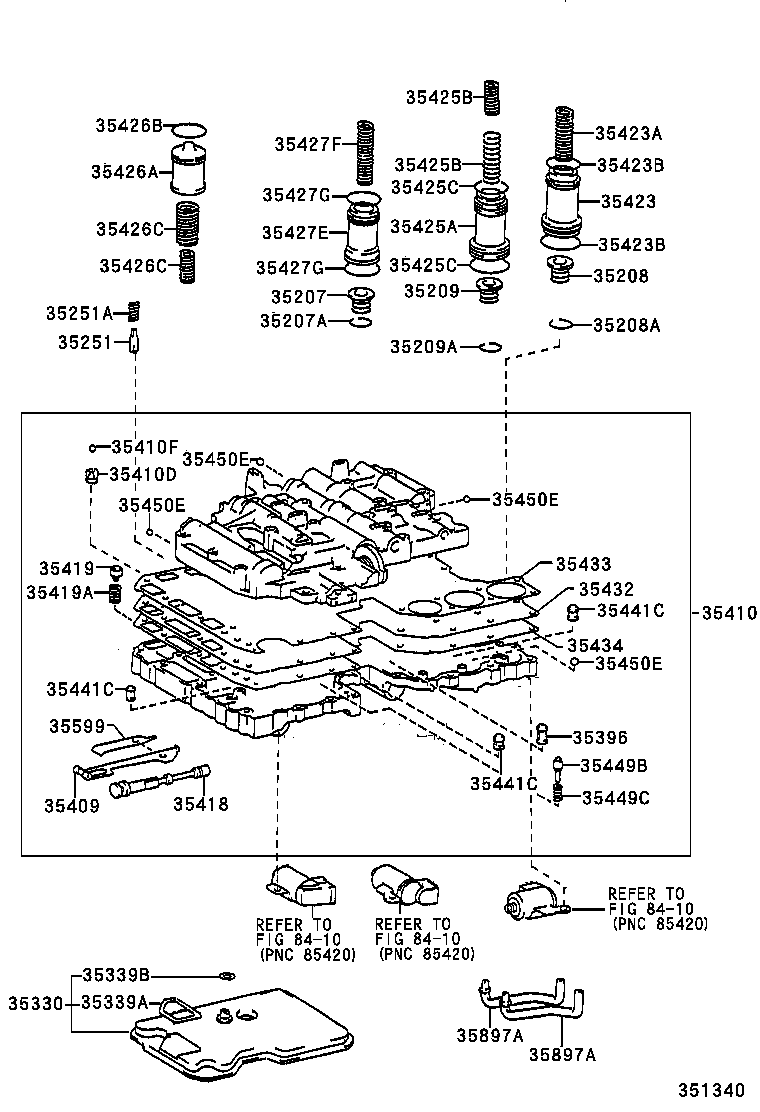

351340 1995-08 → 1996-09

351340 1996-09 → —

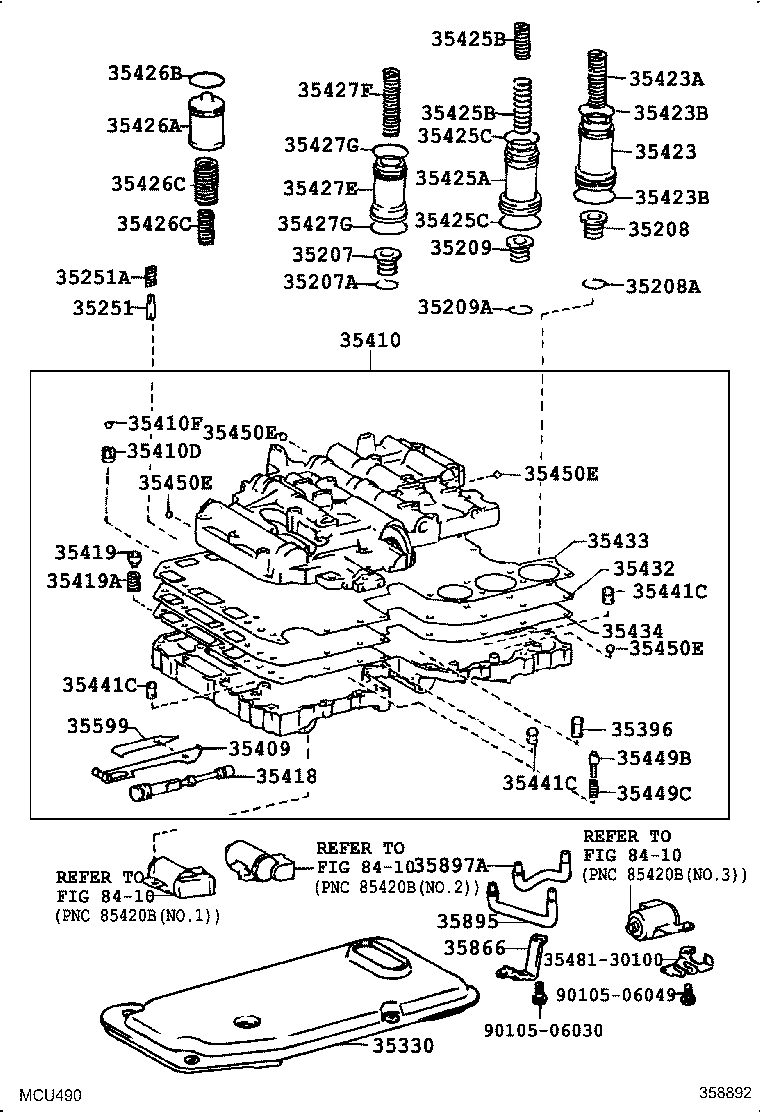

358892 1995-12 → 1996-09

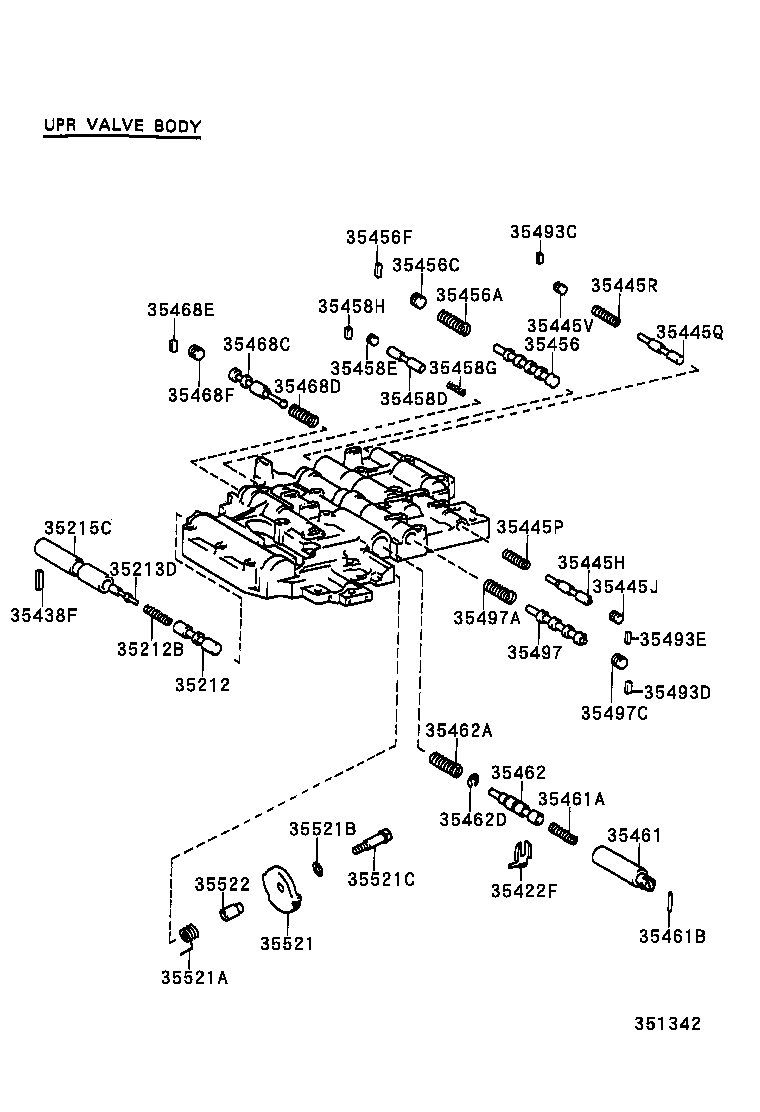

351342 1995-08 → 1996-09

351342 1996-09 → —

351341 1995-08 → 1996-09

351341 1996-09 → —

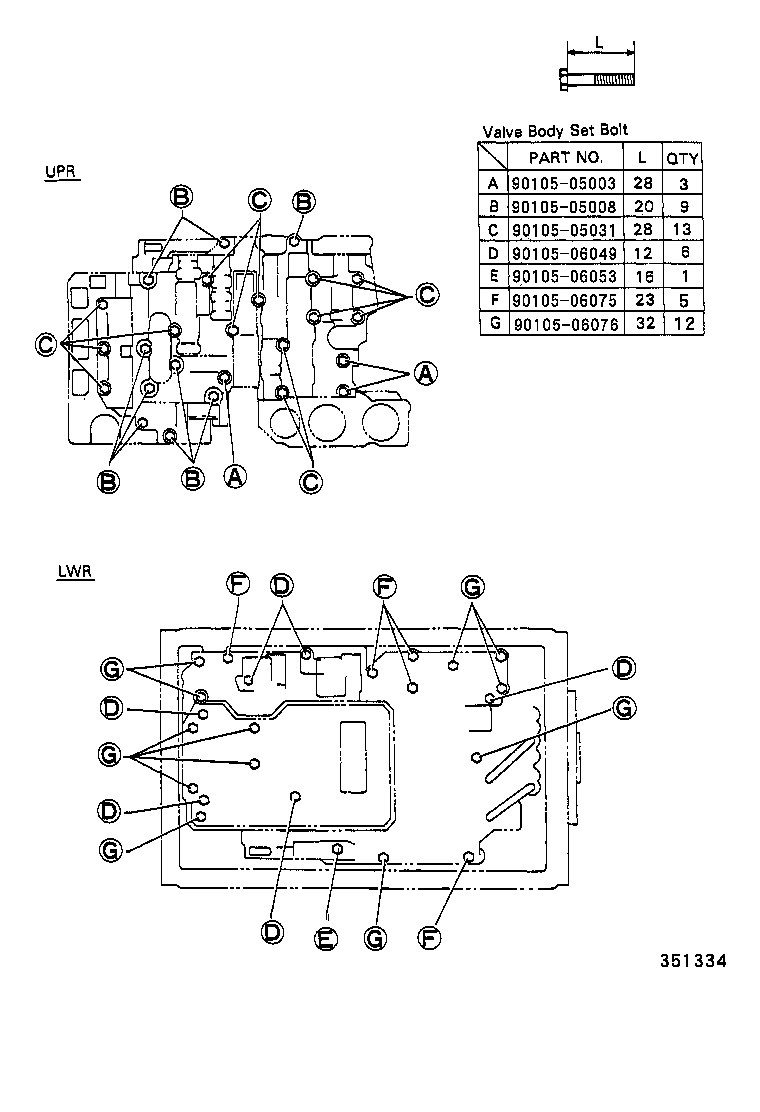

351334 1995-08 → 1996-09

351334 1996-09 → —

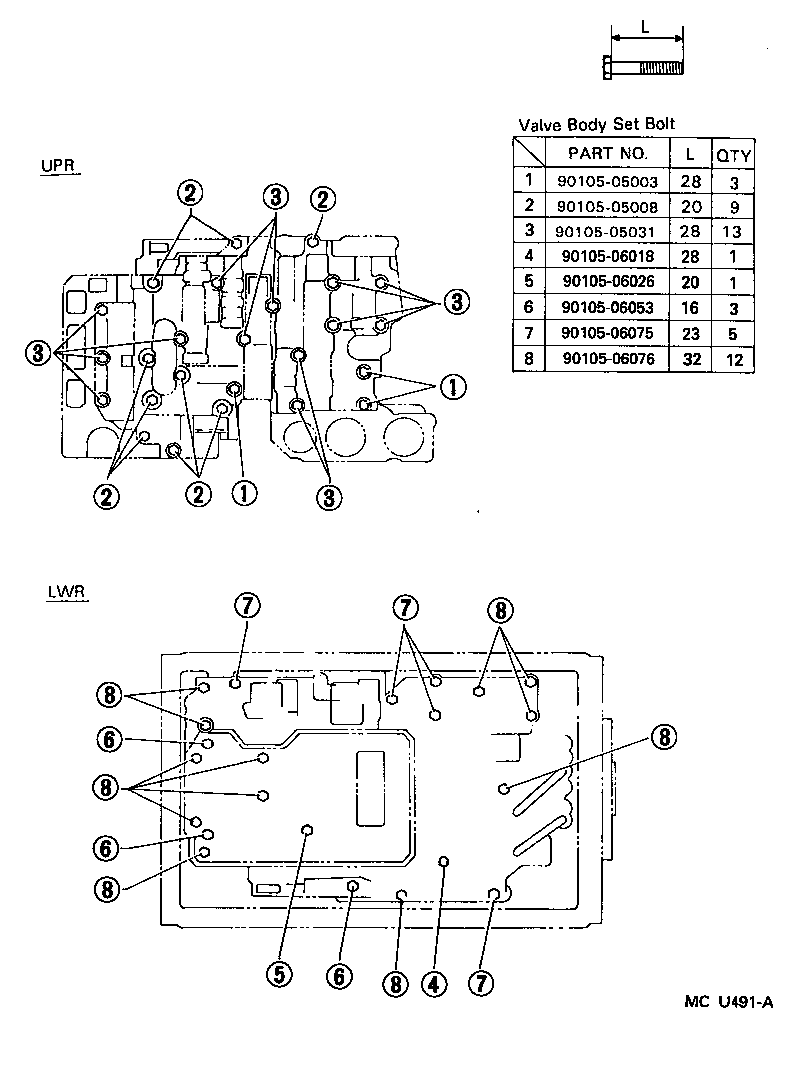

MCU491A 1995-12 → 1996-09

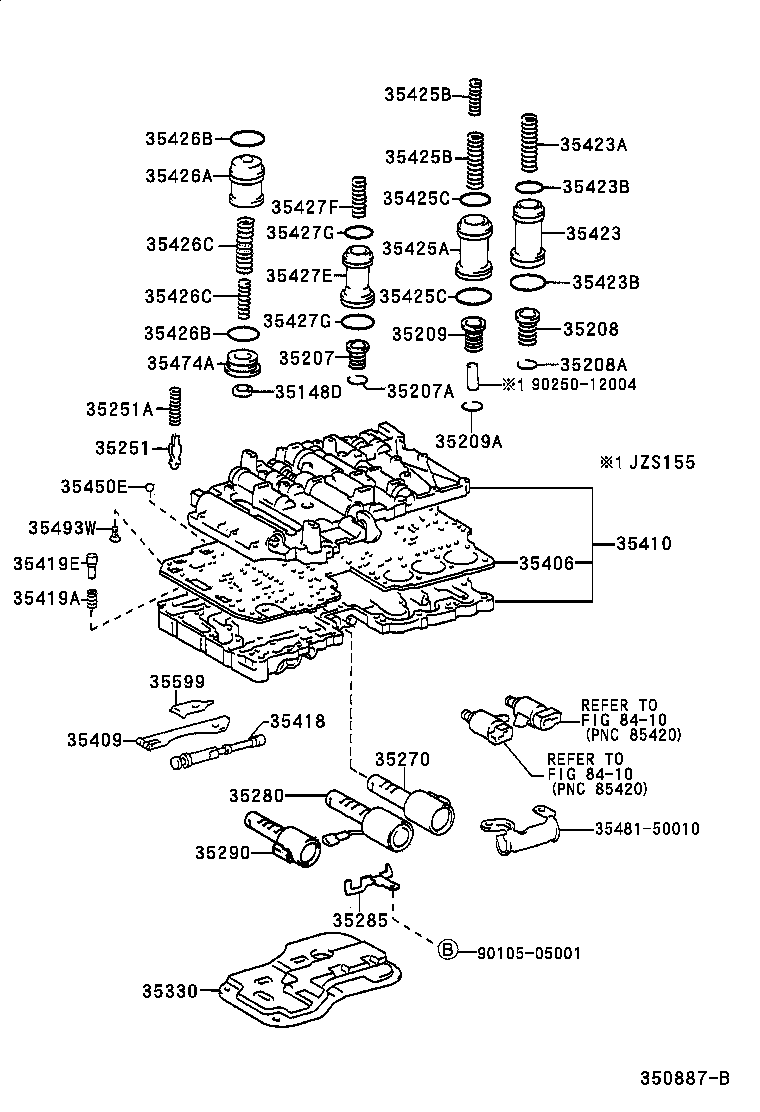

350887B 1995-08 → 1997-07

350887B 1997-07 → —

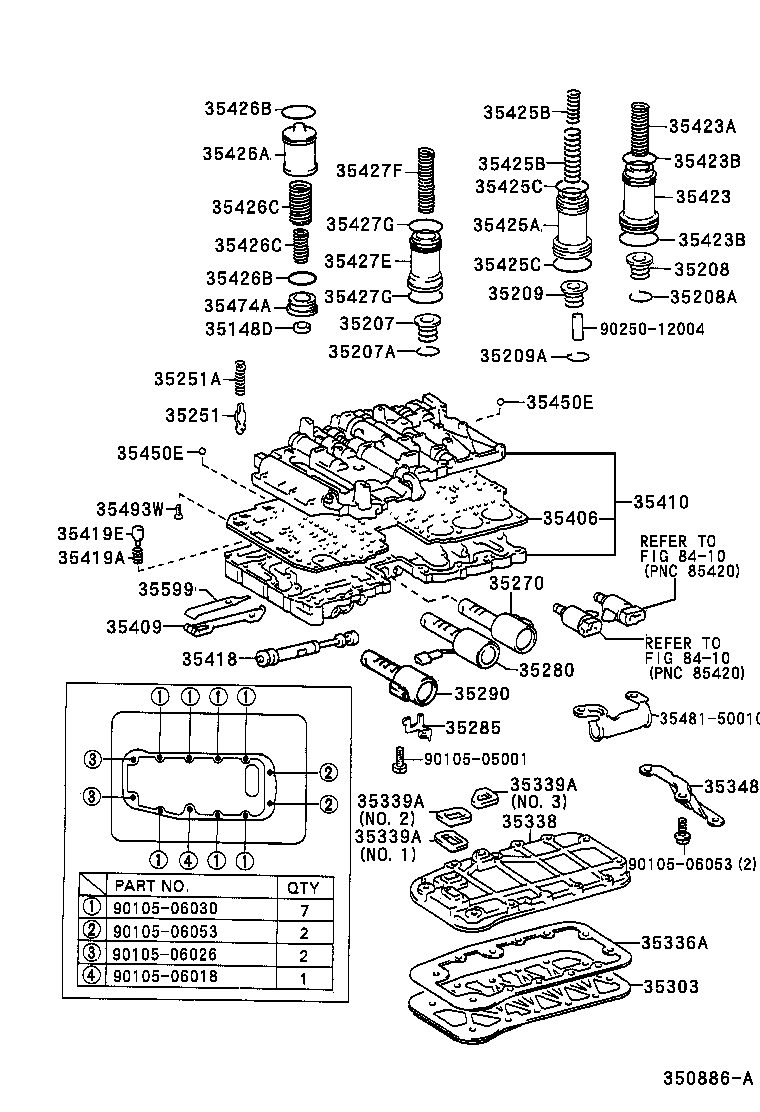

350886A 1995-11 → —

350886A 1997-11 → 1998-08

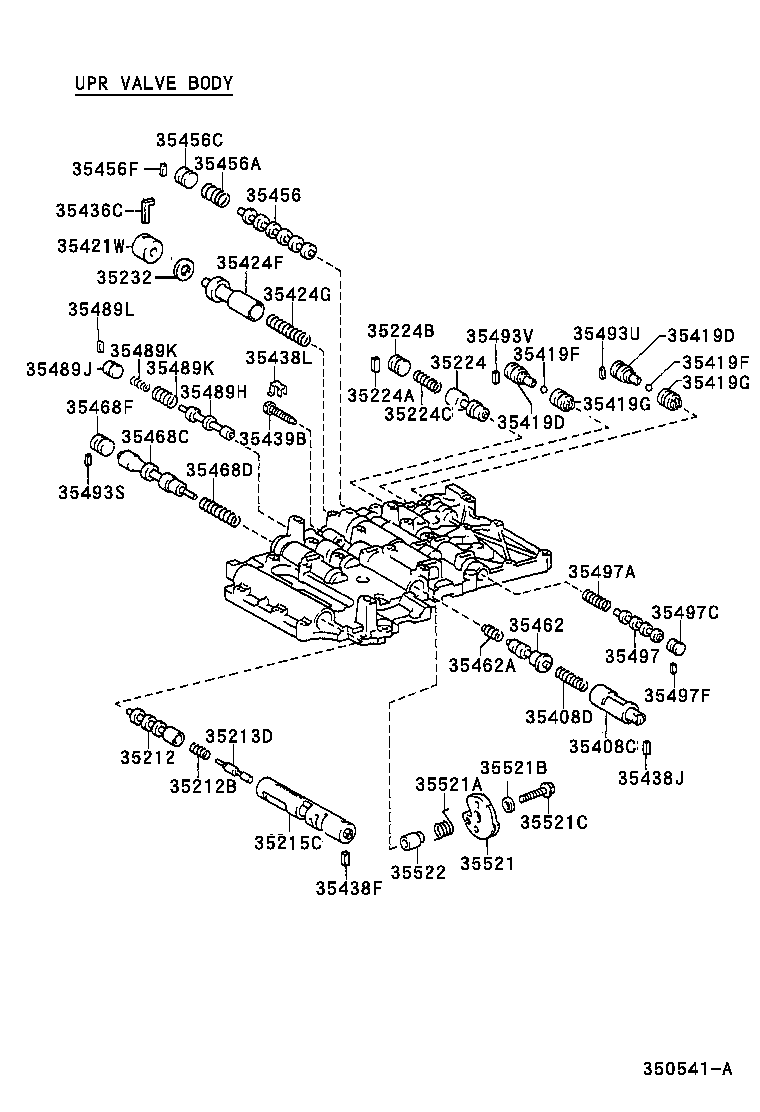

350541A 1995-08 → 1997-07

350541A 1997-07 → —

350541A 1997-11 → 1998-08

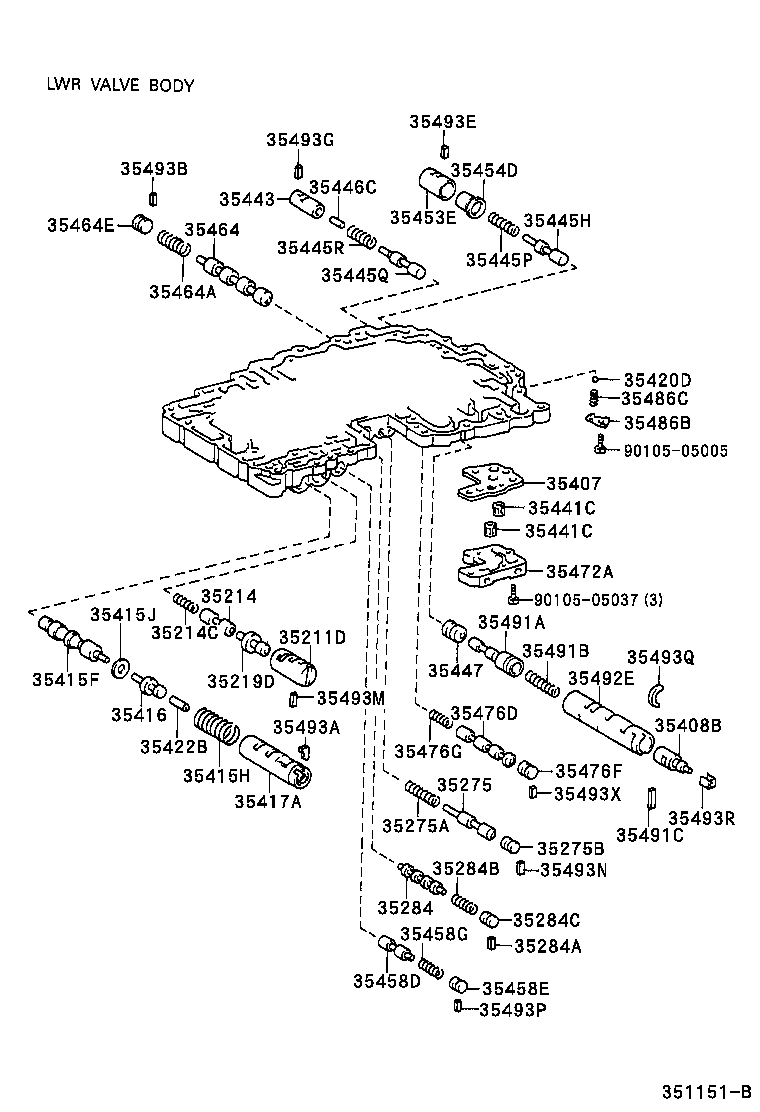

351151B 1995-08 → 1997-07

351151B 1997-07 → —

351151B 1997-11 → 1998-08

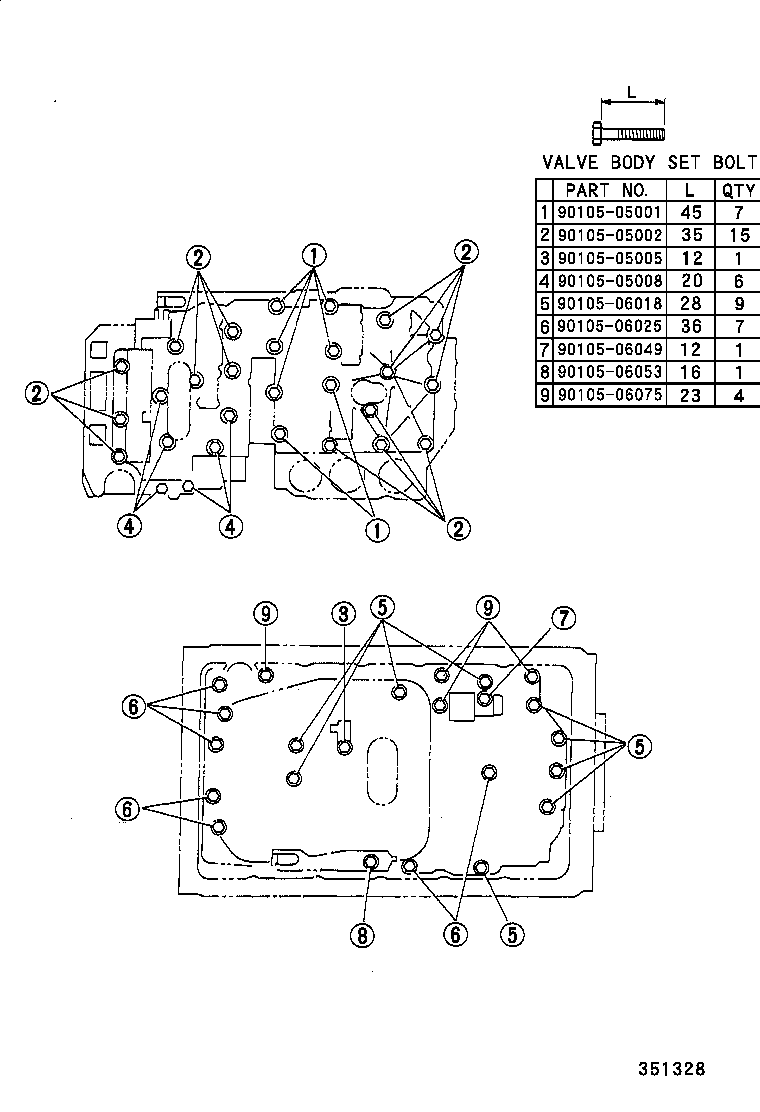

351328 1995-08 → 1997-07

351328 1997-07 → —

351328 1997-11 → 1998-08

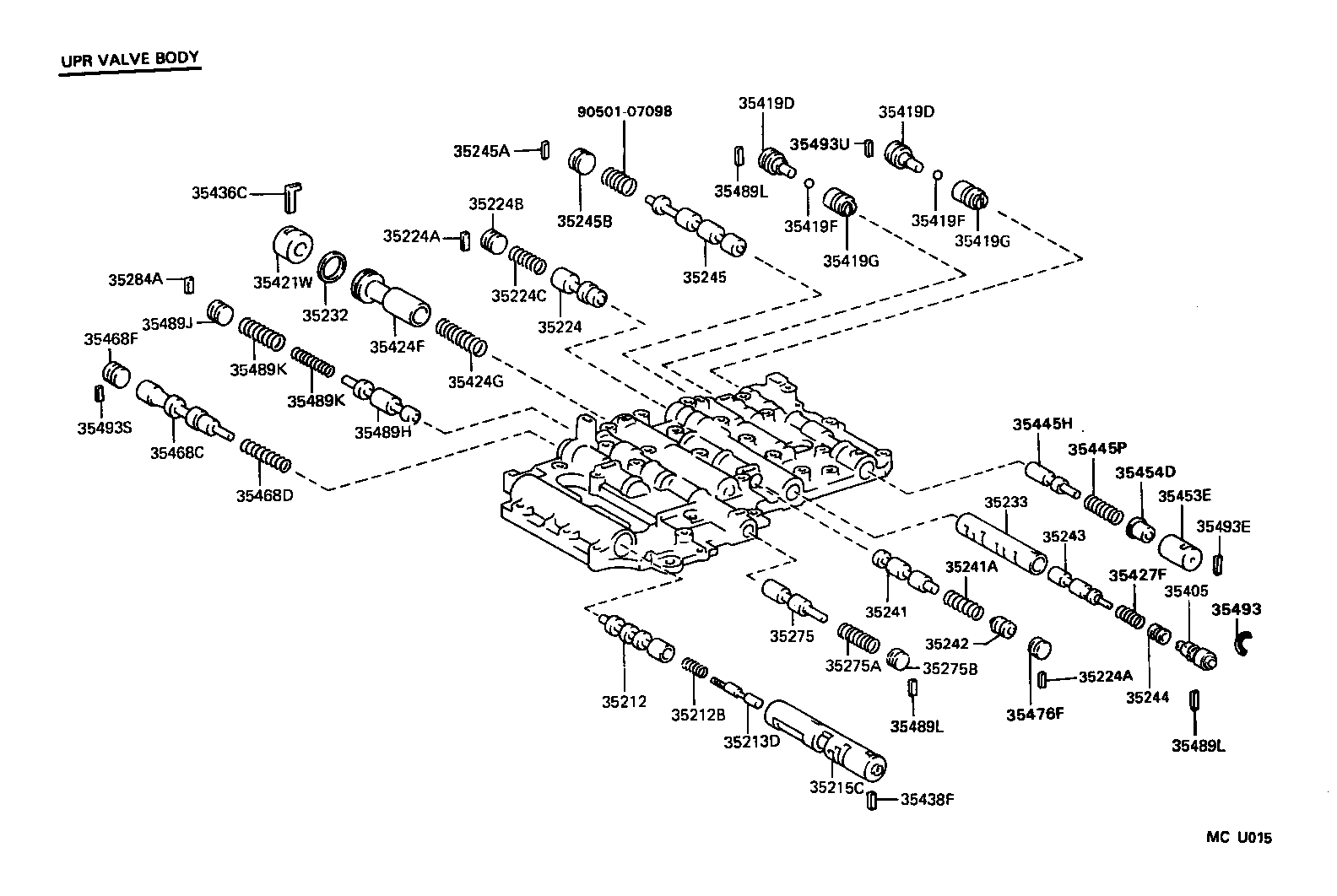

MCU015 1995-08 → 1997-07

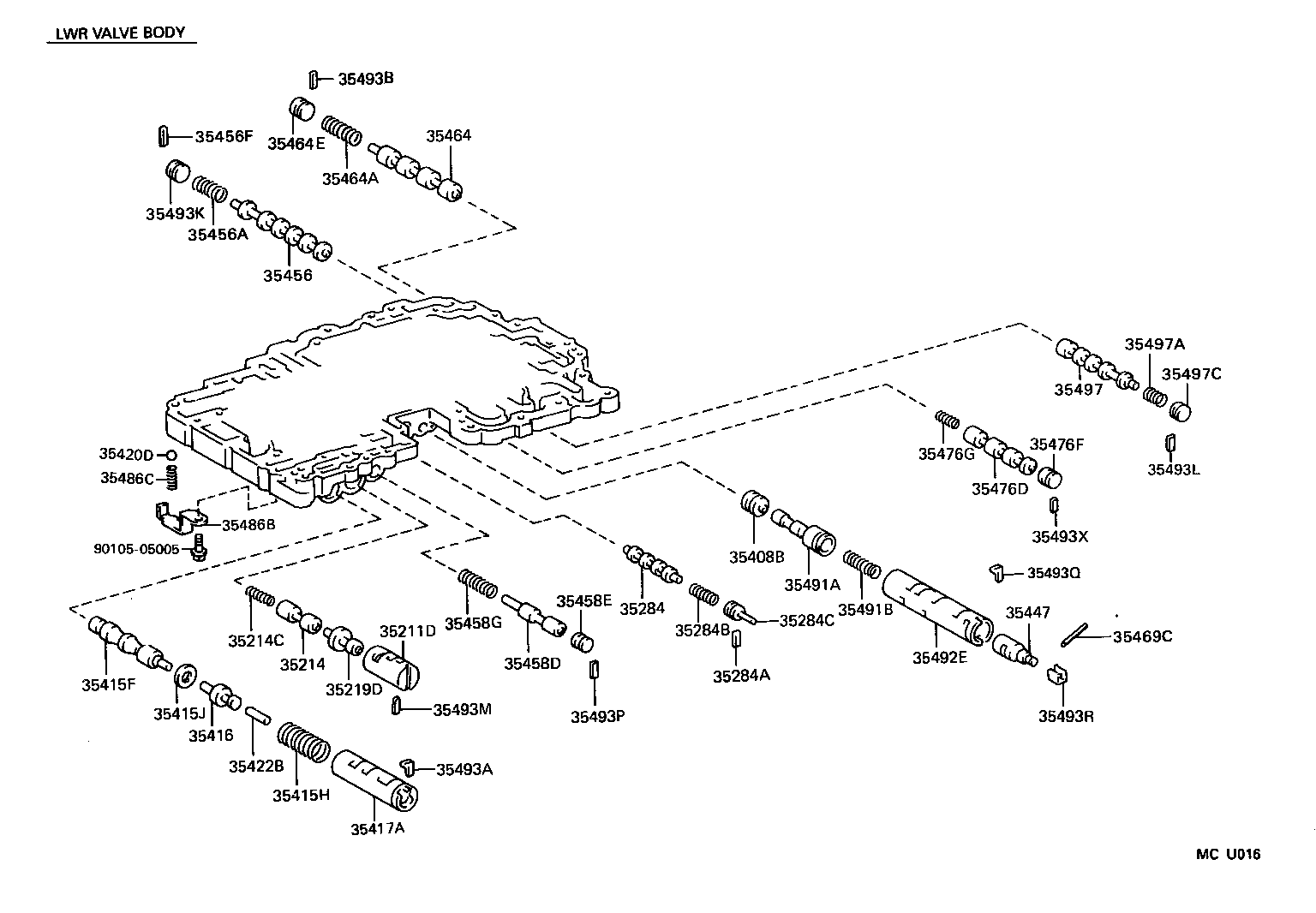

MCU016 1995-08 → 1997-07

MCU017 1995-08 → 1997-07

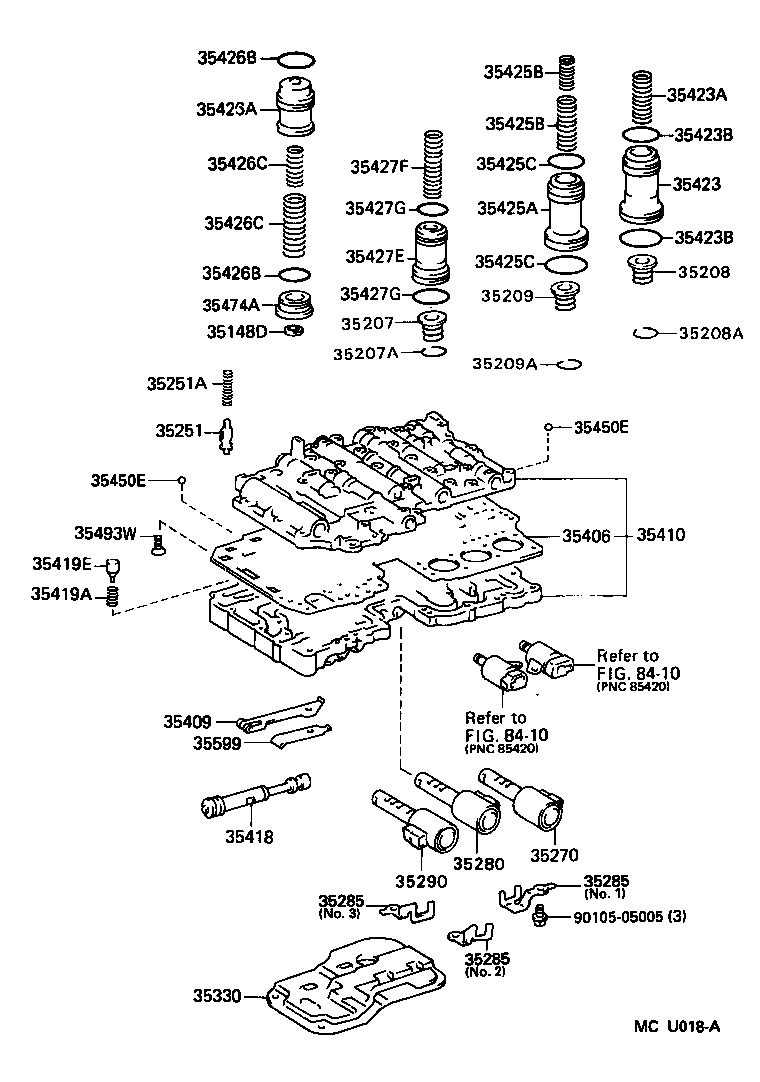

MCU018A 1995-08 → 1997-07

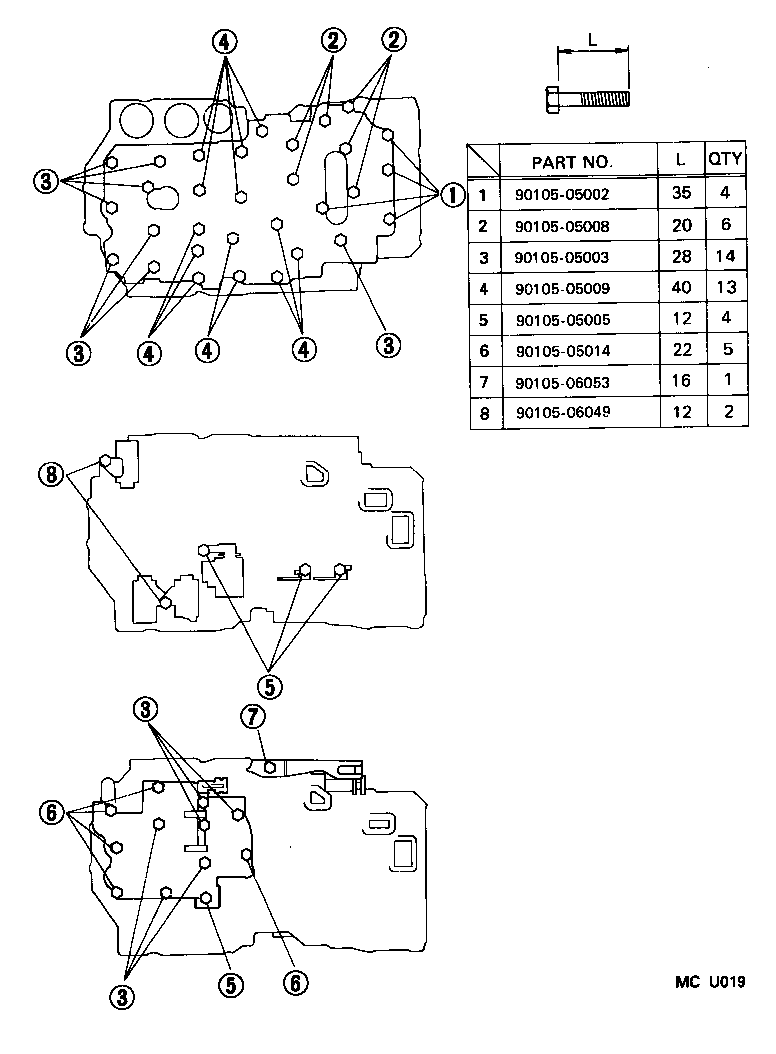

MCU019 1995-08 → 1997-07

Part groups

PNC	Description
35148D	Gasket (FOR C-O ACCUMULATOR PISTON)
35151	Cover, Transmission Case, Lower
35153A	Gasket, Transmission Case Lower Cover
35207	Spring Sub-assy, B-0 Accumulator
35207A	Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208	Spring Sub-assy, B-2 Accumulator
35208A	Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209	Spring Sub-assy, C-2 Accumulator
35209A	Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35211	Valve, Lock UP Signal
35211A	Pin, Straight (FOR LOCK UP SIGNAL VALVE)
35211B	Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35211D	Sleeve, Lock UP Control Valve
35212	Valve, Lock UP Relay
35212A	Seat, Plug (FOR LOCK UP RELAY VALVE)
35212B	Spring, Compression (FOR LOCK UP RELAY VALVE)
35213	Valve, Lock UP Relay Control
35213D	Plunger, Lock UP Relay Valve
35214	Valve, Lock UP Control
35214C	Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215B	Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE)
35215C	Sleeve, Lock UP Relay Valve, NO.1
35217	Valve, Accumulator Control, NO.2
35218	Plug, Lock UP Relay Valve
35218A	Key, Straight (FOR LOCK UP RELAY VALVE PLUG)
35219	Plug, Lock UP Signal Valve
35219D	Plunger, Lock UP Control Valve
35222	Plate, Lock UP Relay Valve Body
35223	Gasket, Lock UP Relay Valve Body
35224	Valve, Reverse Control
35224A	Key, Straight (FOR REVERSE CONTROL VALVE)
35224B	Plug (FOR REVERSE CONTROL VALVE)
35224C	Spring, Compression (FOR REVERSE CONTROL VALVE)
35230	Solenoid Assy, Transmission 3Way, NO.2
35230A	Ring, O, NO.1(FOR TRANSMISSION 3WAY SOLENOID NO.2)
35230B	Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID NO.2)
35232	Ring, C-1 Accumulator Seal
35233	Sleeve, B-0 Control Valve
35240	Solenoid Assy, Automatic Transmission 3Way
35240A	Ring, O, NO.1 (FOR TRANSMISSION 3WAY SOLENOID)
35240B	Ring, O, NO.2 (FOR TRANSMISSION 3WAY SOLENOID)
35241	Valve, B-0 Relay
35241A	Spring, B-0 Relay Valve
35242	Plunger, B-0 Relay Valve
35243	Valve, B-0 Control
35244	Plunger, B-0 Control Valve
35245	Valve, B-0 Accumulator Cut Off
35245A	Key, Straight
35245B	Plug
35246	Valve, Check, NO.1
35246A	Ball, Reverse Shift Restrict (FOR CHECK VALVE NO.1)
35247	Valve, Check, NO.2
35248	Valve, Check, NO.3
35248A	Ball, Reverse Shift Restrict (FOR CHECK VALVE NO.3)
35250	Body Assy, Check Ball
35251	Body, Check Ball
35251A	Spring, Compression (FOR CHECK BALL BODY)
35265B	Tube, Oil Cooler Return
35270	Solenoid Assy, Shift Control
35275	Valve, Solenoid Modulator
35275A	Spring, Compression (FOR SOLENOID MODULATOR VALVE)
35275B	Plug (FOR SOLENOID MODULATOR VALVE)
35275C	Key, Straight
35280	Solenoid Assy, Lock UP Control
35284	Valve, Solenoid Relay
35284A	Key, Straight (FOR SOLENOID RELAY VALVE)
35284B	Spring, Compression (FOR SOLENOID RELAY VALVE)
35284C	Plug (FOR SOLENOID RELAY VALVE)
35285	Plate, Solenoid Lock
35290	Solenoid Assy, Line Pressure Control
35295	Plate, Solenoid Lock, NO.2
35303	Strainer Sub-assy, Oil
35330	Strainer Assy, Valve Body Oil
35331	Cover, Oil Strainer
35336A	Gasket, Oil Strainer Spacer
35338	Spacer, Oil Strainer
35339	Gasket, Oil Strainer
35339A	Gasket, Oil Strainer, NO.1
35339B	Gasket, Oil Strainer, NO.2
35345	Plate, Oil Guide
35348	Bracket, Oil Strainer, NO.1
35396	Strainer, Throttle Oil
35404G	Plate Sub-assy, Valve Body, NO.2
35405	Plug Sub-assy, Secondary Down Shift
35406	Plate Sub-assy, Valve Body
35406A	Plate Sub-assy, Valve Body
35407	Plate Sub-assy, Valve Body Cover
35408	Plug Sub-assy, Primary Down Shift
35408B	Plug Sub-assy, Accumulator Control Valve
35408C	Plug Sub-assy, Throttle Valve
35408D	Spring, Compression (FOR THROTTLE VALVE PLUG)
35409	Spring Sub-assy, Manual Detent
35410	Body Assy, Transmission Valve
35410D	Valve, Check
35410F	Ball (FOR CHECK VALVE)
35415	Valve, Pressure Regulator
35415A	Spring, Compression (FOR PRESSURE REGULATOR VALVE)
35415F	Valve, Primary Regulator
35415H	Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J	Washer (FOR PRIMARY REGULATOR VALVE)
35416	Plunger, Primary Regulator Valve, NO.1
35417	Sleeve, Pressure Regulator Valve
35417A	Sleeve, Primary Regulator Valve
35418	Valve, Manual
35419	Valve, Check, NO.1
35419A	Spring, Compression (FOR CHECK VALVE)
35419D	Valve, Check, NO.2
35419E	Valve, Check, NO.3
35419F	Ball, Check Valve
35419G	Valve, Check, NO.4
35420	Body Assy, Lower Valve
35420A	Ball (FOR PRESSURE RELIEF)
35420B	Spring (FOR PRESSURE RELIEF)
35420D	Ball (FOR LOWER VALVE BODY)
35420E	Spring (FOR LOWER VALVE BODY)
35421	Piston, Accumulator, NO.1
35421A	Spring, Compression (FOR ACCUMULATOR PISTON NO.1)
35421D	Ring (FOR ACCUMULATOR PISTON NO.1)
35421E	Ring (FOR ACCUMULATOR PISTON NO.1)
35421F	Piston, Accumulator, NO.2
35421G	Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421H	Ring (FOR ACCUMULATOR PISTON NO.2)
35421J	Ring (FOR ACCUMULATOR PISTON NO.2)
35421P	Piston, Accumulator, NO.3
35421Q	Spring, Compression (FOR ACCUMULATOR PISTON NO.3)
35421R	Ring (FOR ACCUMULATOR PISTON NO.3)
35421S	Ring (FOR ACCUMULATOR PISTON NO.3)
35421W	Plug, C-1 Accumulator Valve
35422B	Plunger, Primary Regulator Valve, NO.2
35422F	Stopper, Valve Vibrating
35423	Piston, B-2 Accumulator
35423A	Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B	Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C	Piston, C-1 Accumulator
35424D	Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E	Ring, O (FOR C-1 ACCUMULATOR PISTON)
35424F	Valve, C-1 Accumulator
35424G	Spring, Compression (FOR C-1 ACCUMULATOR VALVE)
35425	Seat, Pressure Regulator Valve Sleeve
35425A	Piston, C-2 Accumulator
35425B	Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C	Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A	Piston, C-0 Accumulator
35426B	Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C	Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35426J	Seat, C-0 Accumulator Piston Plug
35426K	Plug, C-0 Accumulator Piston
35427E	Piston, B-0 Accumulator
35427F	Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G	Ring, O (FOR B-0 ACCUMULATOR PISTON)
35427H	Plug, B-0 Accumulator Piston
35427J	Seat, Check Valve Spring (FOR PRESSURE RELIEF)
35427N	Seat, B-0 Accumulator Piston Plug
35429B	Sleeve, B-3 Control Valve
35430	Body Assy, Rear Upper Valve
35430A	Ball (FOR REAR UPPER VALVE BODY)
35432	Plate, Valve Body, NO.1
35433	Gasket, Valve Body, NO.1
35434	Gasket, Valve Body, NO.2
35435	Gasket, Valve Body Plate, NO.3
35436A	Gasket, Valve Body Plate, NO.4
35436C	Retainer, C-1 Accumulator Valve
35437	Plate, 3-4 Shift Valve Separator
35438D	Seat, Accumulator Control Valve Spring
35438F	Seat, Detent Spring
35438G	Plate, Valve Body, NO.2
35438J	Seat, Throttle Valve Spring
35438L	Retainer, Throttle Valve
35439B	Screw, Throttle Valve
35440	Body Assy, Front Upper Valve
35440A	Ball (FOR FRONT UPPER VALVE BODY)
35441C	Strainer, Solenoid Oil
35443	Sleeve, Low Coast Shift Control Valve
35443A	Sleeve, Down Shift Plug
35443B	Pin (FOR DOWN SHIFT PLUG SLEEVE)
35444	Valve, Intermediate Modulator
35444A	Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE)
35444D	Valve, Release Control
35444H	Pin,Straight(FOR INTERMEDIATE MODULATOR PLUG)
35444L	Spring, Compression (FOR SHIFT VALVE PLUG SEAT)
35445	Valve, Low Modulator
35445A	Spring, Compression (FOR LOW MODULATOR VALVE)
35445H	Valve, 2ND Coast Modulator
35445J	Plug (FOR 2ND COAST MODULATOR VALVE)
35445P	Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q	Valve, Low Coast Modulator
35445R	Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445V	Plug (FOR LOW COAST MODULATOR VALVE)
35446	Valve, Governor Modulator
35446C	Plunger, Low Coast Modulator Valve
35447	Plunger, Accumulator Control Valve
35447A	Valve, Reverse Clutch Sequence
35449	Valve, Sequence
35449A	Spring, Compression (FOR SEQUENCE VALVE)
35449B	Valve, Pressure Relief
35449C	Spring, Compression (FOR VALVE PRESSURE RELIEF)
35449E	Plug, Sequence Valve
35449F	Seat, Reverse Sequence Valve Plug
35450E	Ball (FOR UPPER VALVE BODY)
35453E	Sleeve, 2ND Coast Modulator Valve
35454	Valve, Low Coast Shift
35454D	Plunger, 2ND Coast Modulator Valve
35455	Plug, 1-2 Shift Valve Low
35455C	Plug, B-3 Control Valve
35455D	Seat, Shift Valve Plug, NO.3
35455E	Roller, NO.2 (FOR B-3 CONTROL VALVE)
35456	Valve, 2-3 Shift
35456A	Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C	Plug (FOR 2-3 SHIFT VALVE)
35456D	Seat (FOR 2-3 SHIFT VALVE)
35456F	Key, Straight (FOR 2-3 SHIFT VALVE)
35457A	Valve, Detent Regulator
35457B	Spring, Compression (FOR DETENT REGULATOR VALVE)
35457C	Seat (FOR DETENT REGULATOR VALVE)
35458D	Valve, Cut Back
35458E	Plug (FOR CUT BACK VALVE)
35458G	Spring, Compression (FOR CUT BACK VALVE)
35458H	Key, Straight (FOR CUT BACK VALVE)
35461	Plug, Down Shift
35461A	Spring, Compression (FOR DOWN SHIFT PLUG)
35461B	Pin, Straight (FOR DOWN SHIFT PLUG)
35462	Valve, Throttle
35462A	Spring, Compression (FOR THROTTLE VALVE)
35462D	Ring, E (FOR THROTTLE VALVE)
35463A	Valve, 1-2 Shift, Lower
35464	Valve, 1-2 Shift
35464A	Spring, Compression (FOR 1-2 SHIFT VALVE)
35464C	Valve, 1-2 Shift, Upper
35464E	Plug (FOR 1-2 SHIFT VALVE)
35465	Plug, Intermediate Shift Valve
35467	Valve, Intermediate Shift
35467D	Plunger, B-3 Control Valve
35467E	Roller, NO.1 (FOR B-3 CONTROL VALVE)
35468C	Valve, Secondary Regulator
35468D	Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E	Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F	Plug (FOR SECONDARY REGULATOR VALVE)
35469C	Roller, Shift Valve Plug
35469G	Plug, Reverse Clutch Sequence Valve
35469H	Roller (FOR REVERSE CLUTCH SEQUENCE VALVE)
35471	Cover, Valve Body, NO.1
35472	Cover, Valve Body, NO.2
35472A	Cover, Lower Valve Body
35473	Cover, Transmission Valve Body
35474	Cover, Valve Body, NO.4
35474A	Cover, Accumulator
35474B	Ring, O (FOR ACCUMULATOR COVER)
35475	Cover, Valve Body, NO.5
35476A	Plug, Straight (FOR 3RD COAST SHIFT)
35476B	Pin, Locating (FOR 3RD COAST SHIFT)
35476C	Valve, 3RD Coast
35476D	Valve, Cut Off
35476F	Plug (FOR CUT OFF VALVE)
35476G	Spring, Compression (FOR CUT OFF VALVE)
35477A	Valve, Overdrive Clutch Exhaust
35477B	Spring, Compression (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477C	Seat, Valve (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477F	Plug (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35479	Seat, Intermediate Shift Valve
35481B	Clamp, Valve Body Wire Harness
35482B	Clamp, Temperature Sensor
35483E	Valve, C-0 Control Relay
35483F	Plug (FOR C-0 CONTROL RELAY VALVE)
35483G	Spring, Compression (FOR C-0 CONTROL RELAY VALVE)
35484D	Valve, B-3 Control
35484E	Spring, Compression (FOR B-3 CONTROL VALVE)
35485C	Adjuster, B-3 Control Valve
35485D	Cap (FOR B-3 CONTROL VALVE ADJUSTER)
35486B	Seat, Pressure Relief Valve Spring
35486C	Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D	Ball (FOR PRESSURE RELIFE VALVE)
35487B	Ball, Check, NO.4
35487C	Spring, Compression (FOR CHECK BALL)
35489H	Valve, C-1 Orifice Control
35489J	Plug (FOR C-1 ORIFICE CONTROL VALVE)
35489K	Spring, Compression (FOR C-1 ORIFICE CONTROL VALVE)
35489L	Key, Straight (FOR C-1 ORIFICE CONTROL VALVE)
35491	Plug, Reverse Brake
35491A	Valve, Accumulator Control, NO.1
35491B	Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C	Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D	Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492A	Valve, Manual Down Timing
35492B	Plug (FOR MANUAL DOWN TIMING VALVE)
35492C	Seat, Valve (FOR MANUAL DOWN TIMING VALVE)
35492E	Sleeve, Accumulator Control Valve
35493	Seat, Shift Valve Spring
35493A	Seat, Primary Regulator Valve Plug
35493B	Seat, 1-2 Shift Valve Plug
35493C	Seat, Release Control Valve Plug
35493D	Seat, 3-4 Shift Valve Plug
35493E	Seat, 2ND Coast Modulator Valve Plug
35493F	Seat, Shift Valve Plug
35493G	Seat, Low Coast Modulator Valve Plug
35493K	Seat, Shift Valve Plug
35493L	Seat, Shift Valve Plug
35493M	Seat, Lock UP Control Valve Plug
35493N	Seat, Solenoid Modulator Valve Plug
35493P	Seat, Cut Back Valve Plug
35493Q	Seat, Accumulator Control Valve Plug, NO.1
35493R	Seat, Accumulator Control Valve Plug, NO.2
35493S	Seat, Secondary Regulator Valve Plug
35493U	Seat, Check Valve, NO.1
35493V	Seat, Check Valve, NO.2
35493W	Seat, Valve Body
35493X	Seat, Cut Off Valae
35493Y	Seat, 2-3 Shift Valve Plug
35493Z	Seat, Shift Valve Plug, NO.1
35495B	Ball, Check, NO.1
35497	Valve, 3-4 Shift
35497A	Spring, Compression (FOR 3-4 SHIFT VALVE)
35497B	Seat, Shift Valve Plug (FOR 3-4 SHIFT VALVE)
35497C	Plug (FOR 3-4 SHIFT VALVE)
35497E	Roller, Needle (FOR 3-4 SHIFT VALVE)
35497F	Key, Straight (FOR 3-4 SHIFT VALVE)
35498	Valve, 3-4 Coast Shift
35498H	Valve, 4-5 Shift
35498J	Seat, Shift Valve Plug, NO.2
35498K	Plug (FOR 4-5 SHIFT VALVE)
35498L	Spring, Compression (FOR 4-5 SHIFT VALVE)
35499	Plug, 3-4 Shift Valve
35499G	Pin, Straight (FOR 3-4 SHIFT VALVE)
35521	Cam, Throttle Valve
35521A	Spring (FOR THROTTLE VALVE CAM RETURN)
35521B	Washer (FOR THROTTLE VALVE CAM SET)
35521C	Bolt (FOR THROTTLE VALVE CAM SET)
35522	Pin, Throttle Valve Cam
35599	Cover, Manual Detent Spring
35847	Tube, Transmission Lube Apply
35866	Bracket, Transfer Apply Tube
35892	Tube, Overdrive Brake
35895	Tube, Front Clutch Apply
35896	Tube, Overdrive Switch Apply
35897A	Tube, 1ST & Reverse Brake, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
