Toyota Century

1987-09 → 1997-01 · chassis VG4# · catalogue 341130 · Japan

Discontinued model Data version 1997-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

26 part groups · 6 illustrations

Illustrations

Figure MEK440C

MEK440C 1987-09 → —

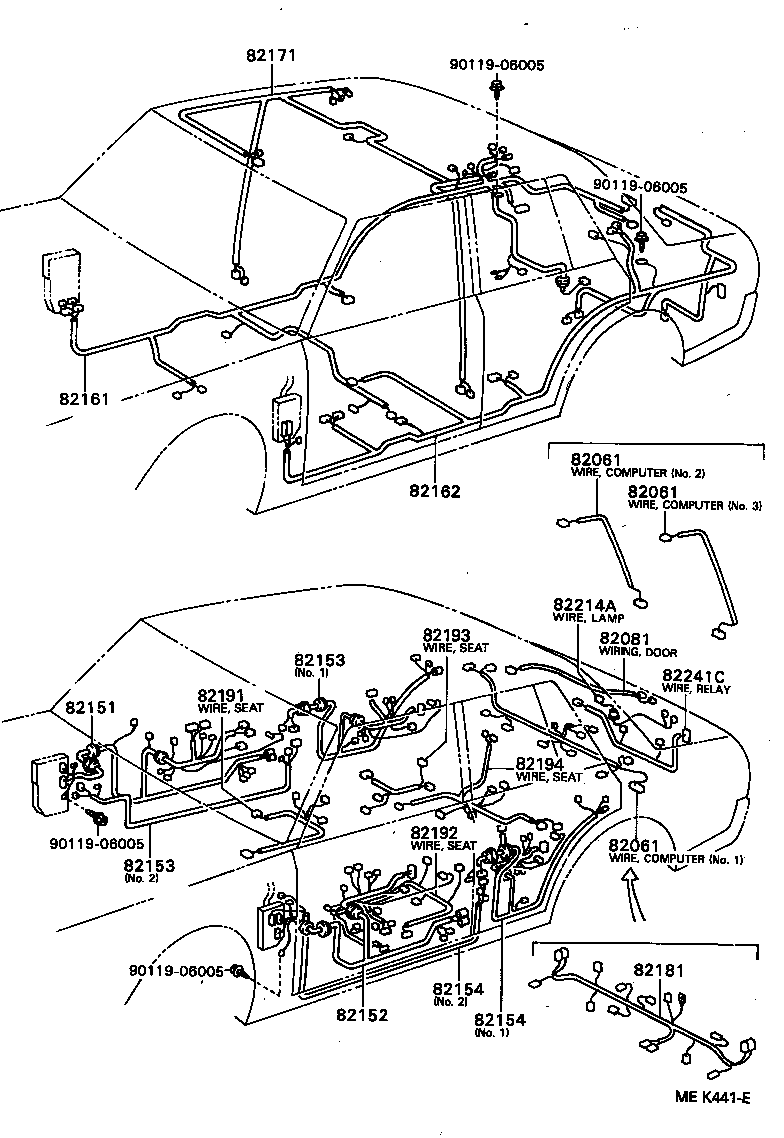

Figure MEK441E

MEK441E 1987-09 → —

Figure MEP373

MEP373 1989-10 → —

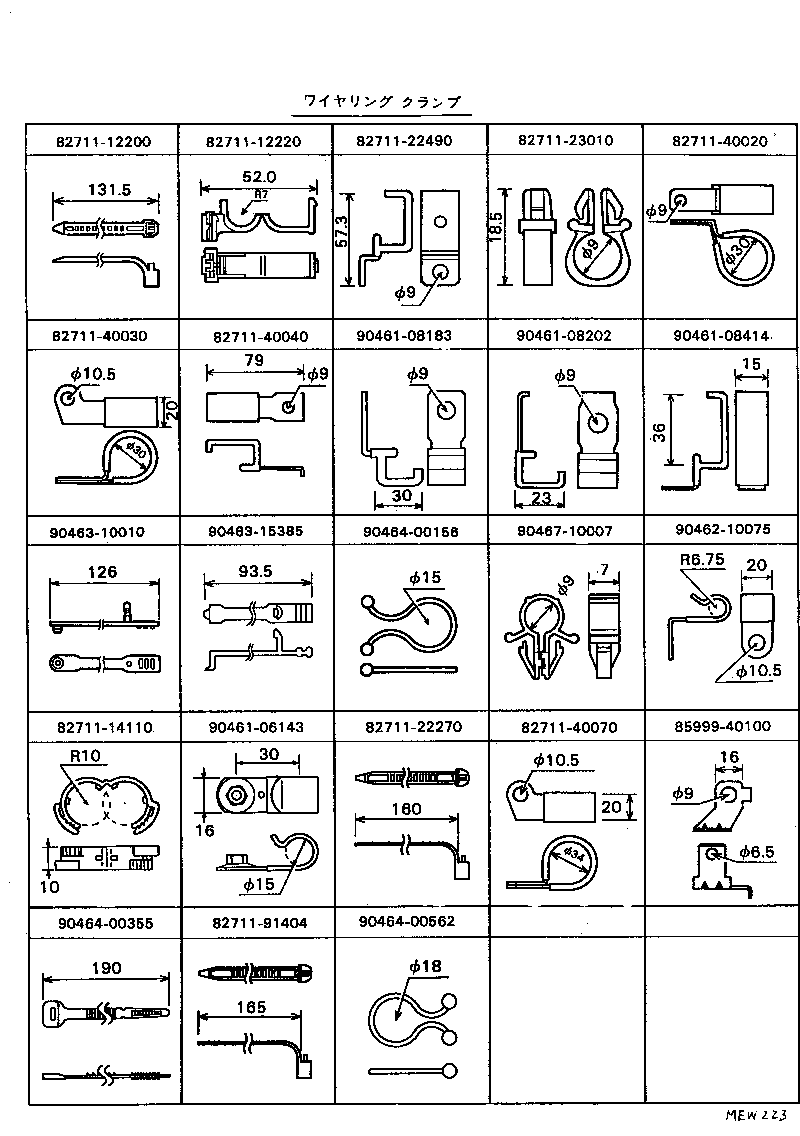

Figure MEW223

MEW223 1987-09 → —

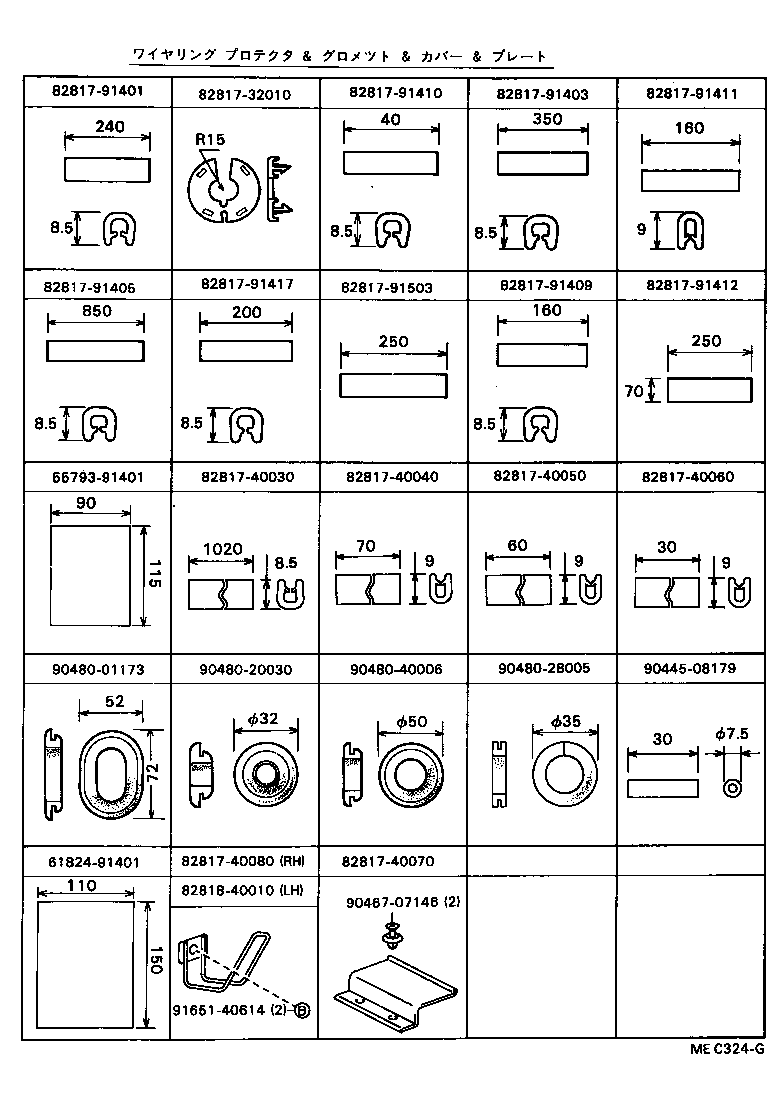

Figure MEC324G

MEC324G 1987-09 → —

Figure MEU983A

MEU983A 1992-12 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82001G	Cable, Bond, NO.4
82061	Wiring Sub-assy, Computer
82081	Wiring Assy, Door Lock
82111	Wire, Engine Room Main
82121	Wire, Engine
82122	Wire, Engine, NO.2
82131	Wire, Cowl
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82171	Wire, Roof, NO.1
82181	Wire, Luggage Room, NO.1
82191	Wire, Front Seat, RH
82192	Wire, Front Seat, LH
82193	Wire, Rear Seat, RH
82194	Wire, Rear Seat, LH
82210C	Fusible Link
82214A	Wire, Lamp
82233	Wire, Computer
82241C	Wire, Relay
82342	Wire, Clock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
