Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

188 part groups · 16 illustrations

Illustrations

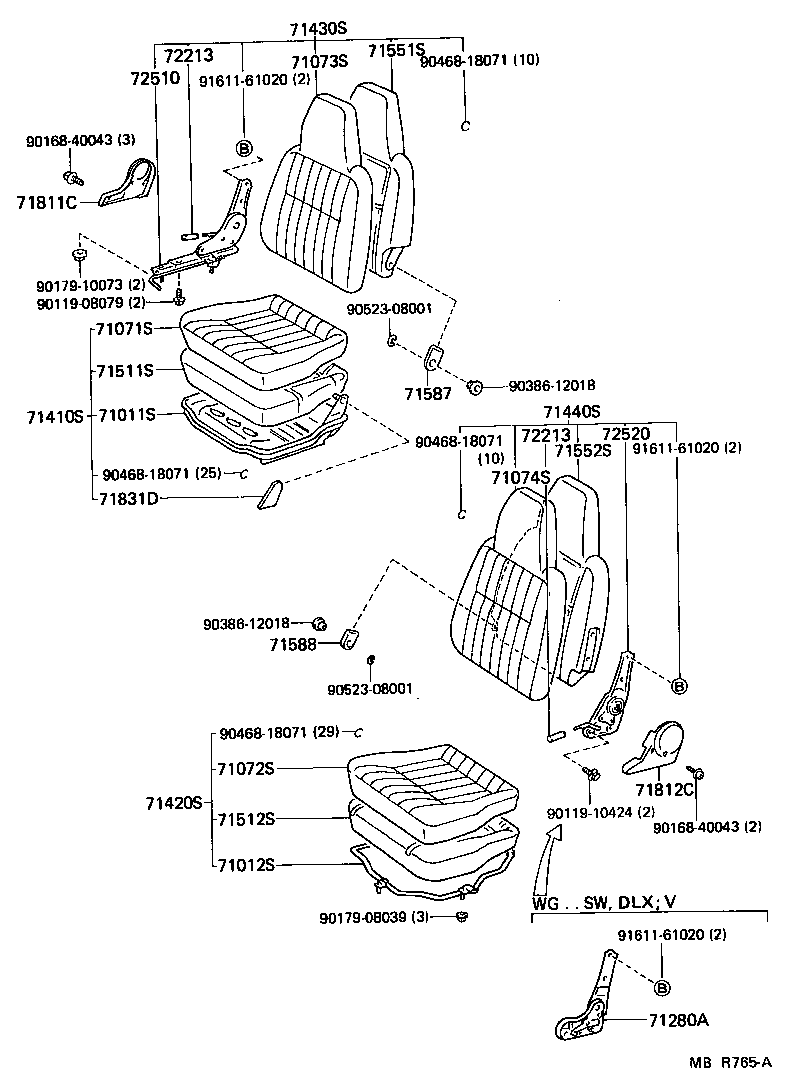

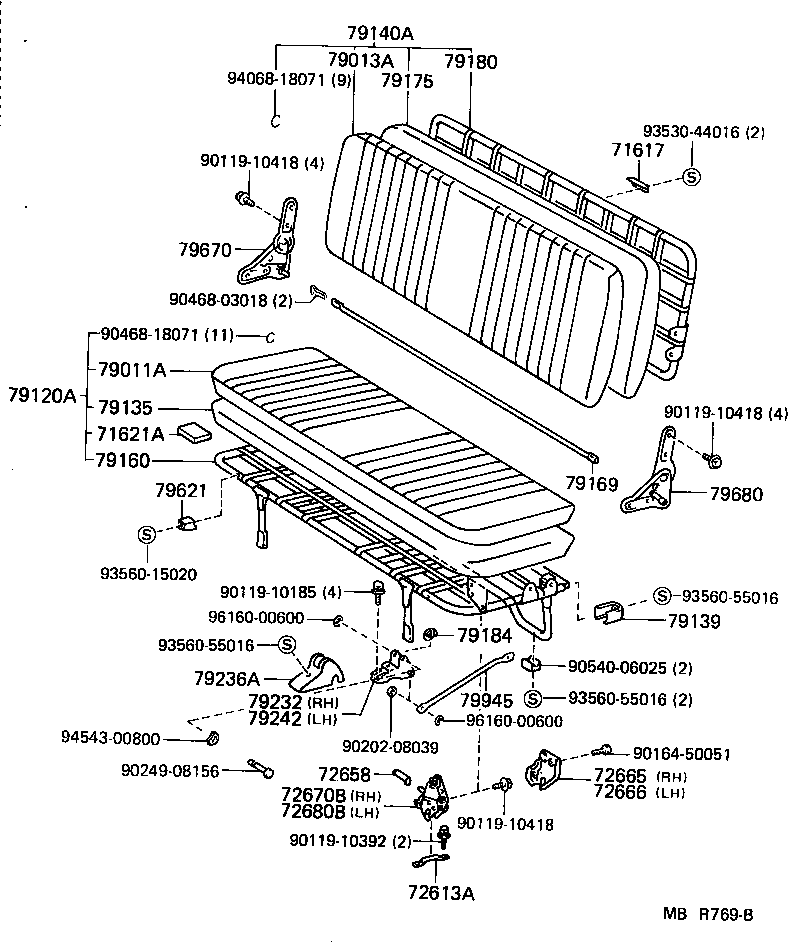

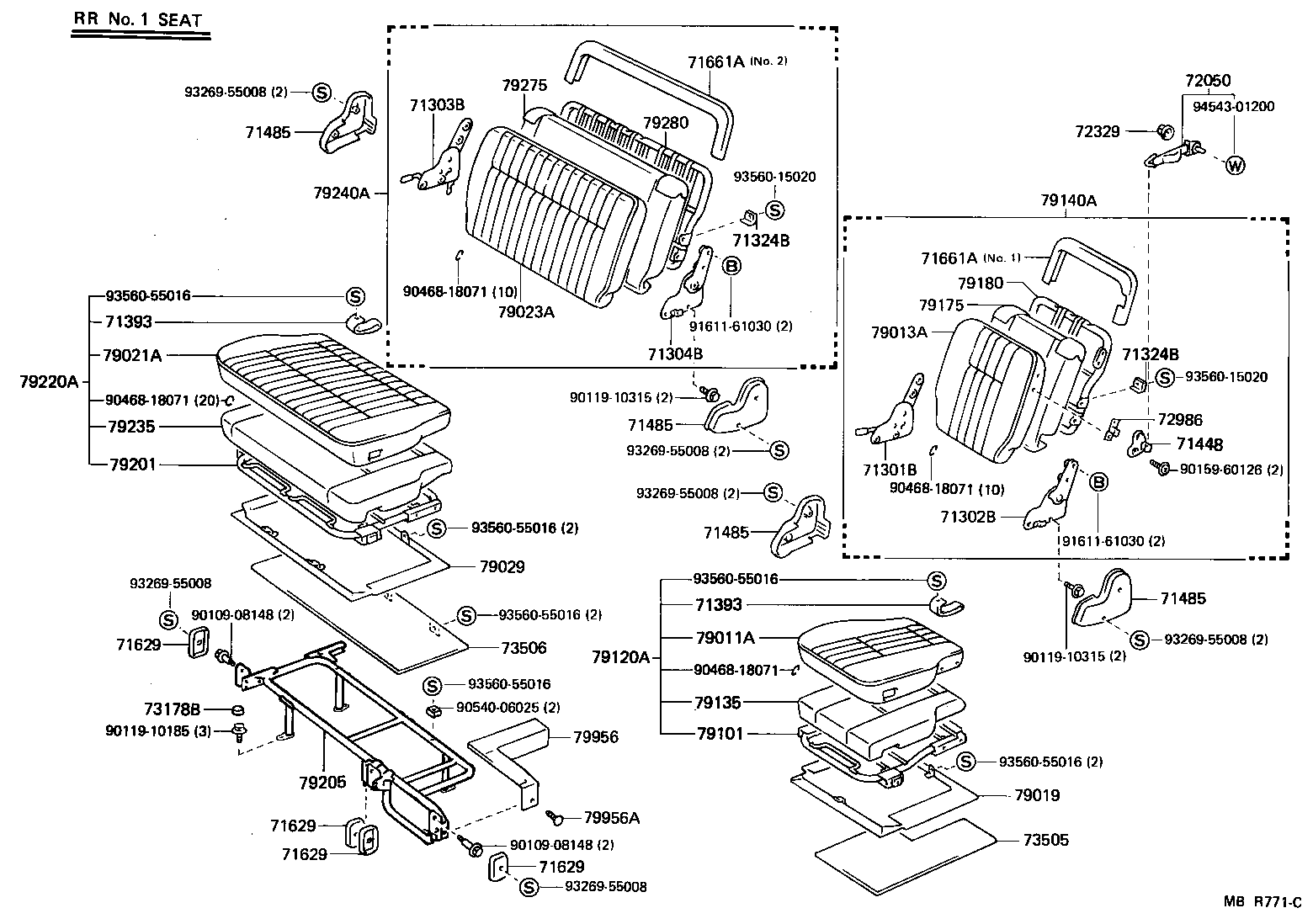

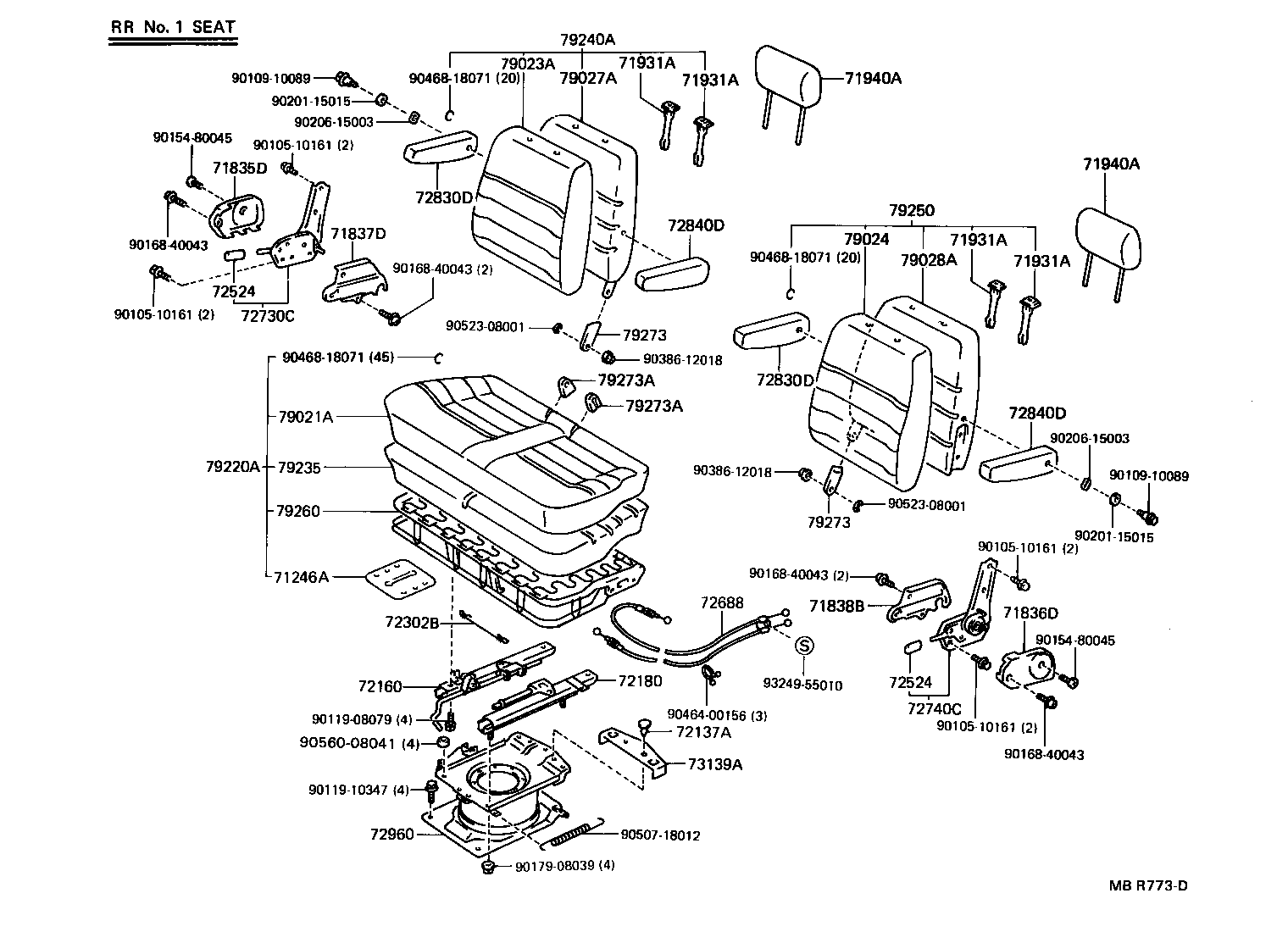

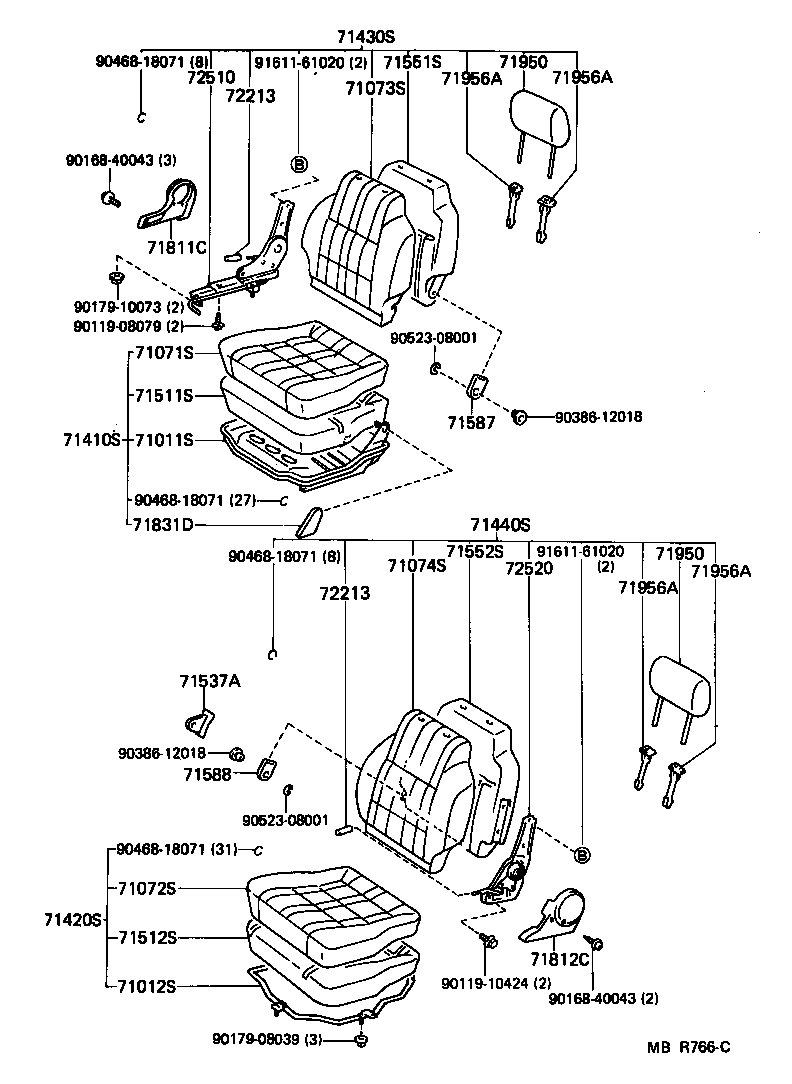

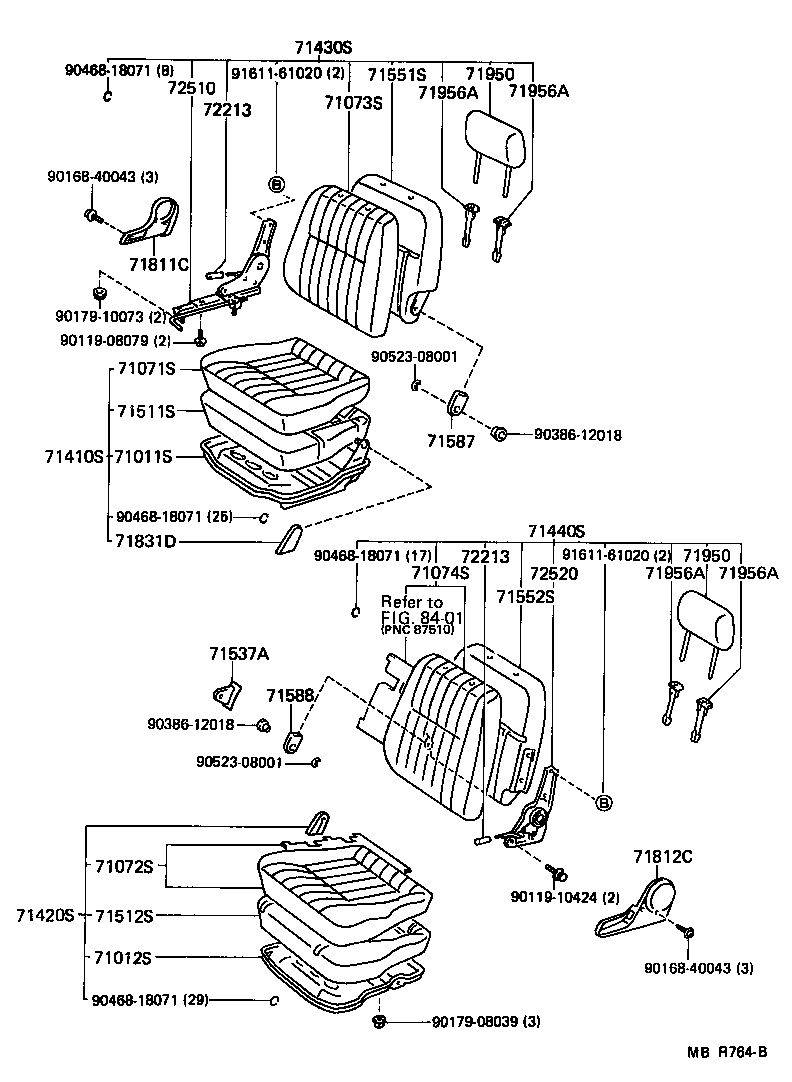

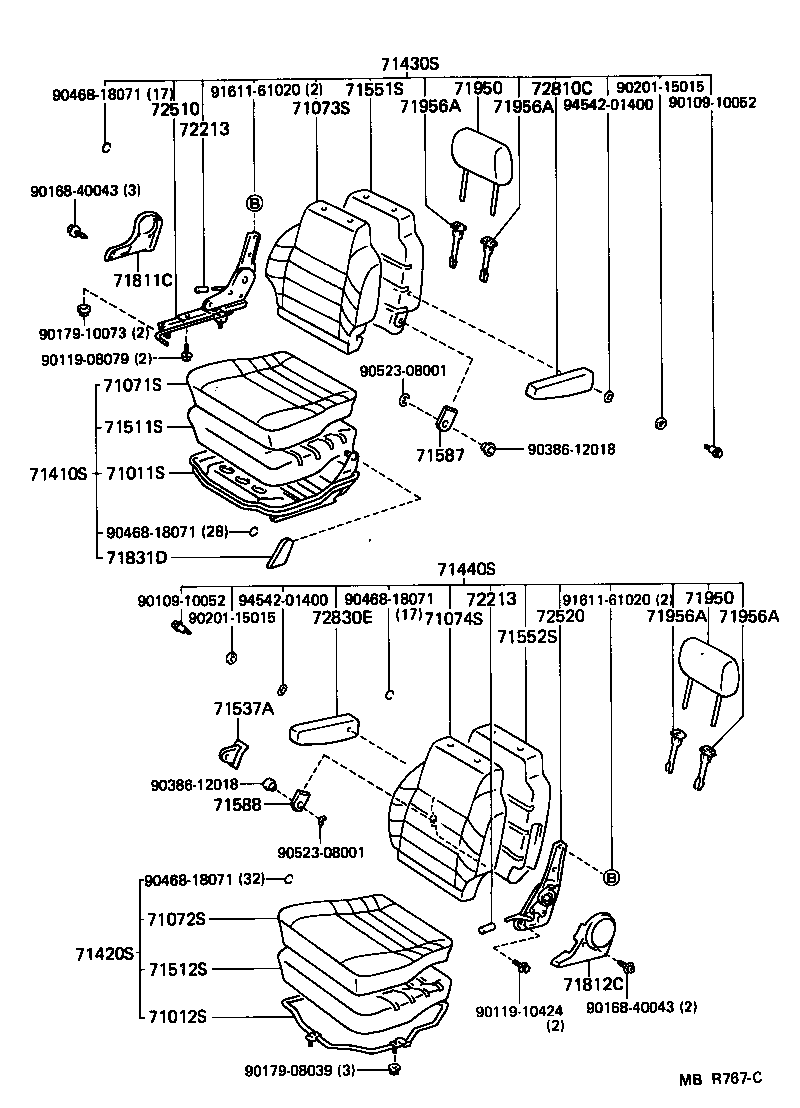

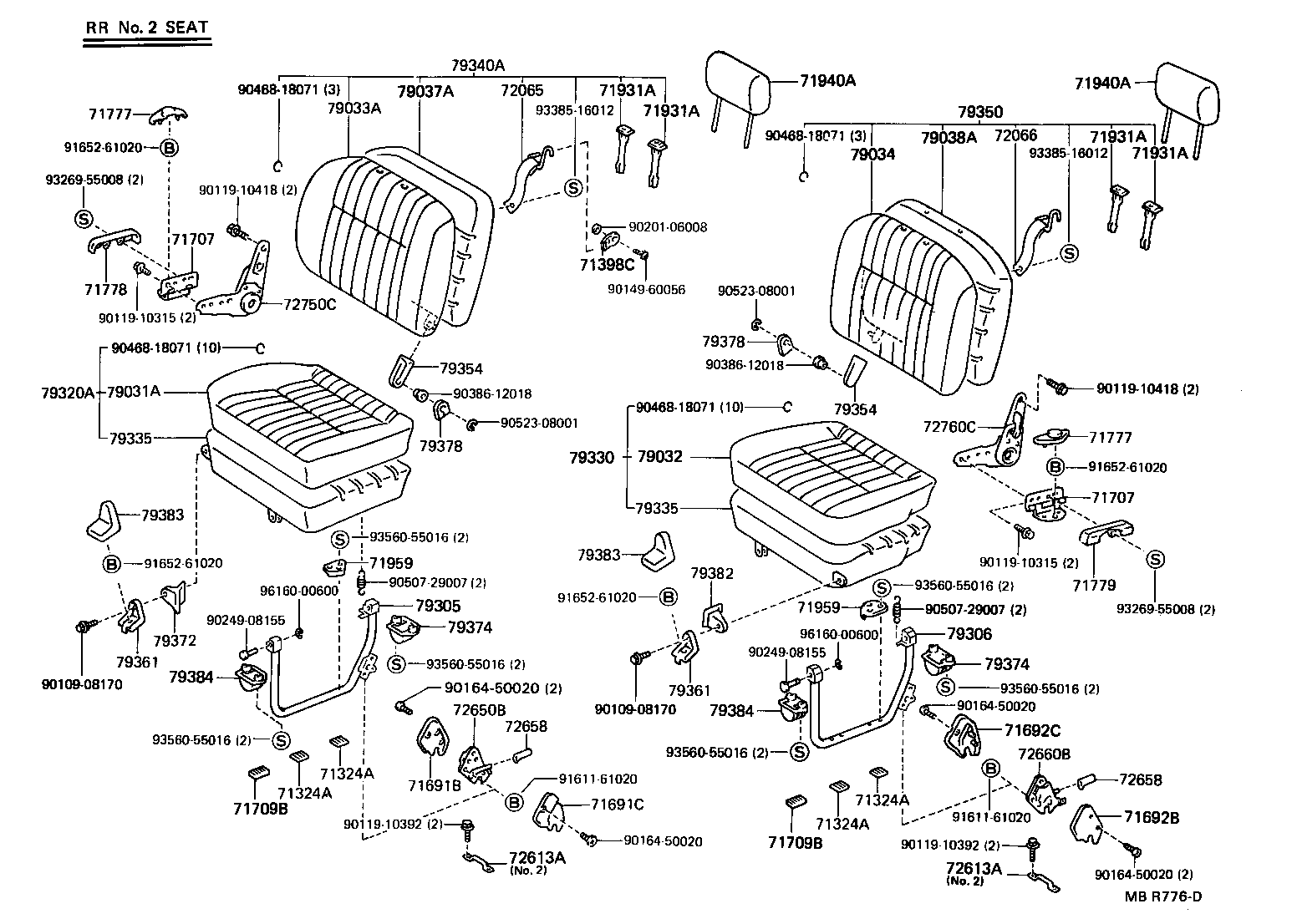

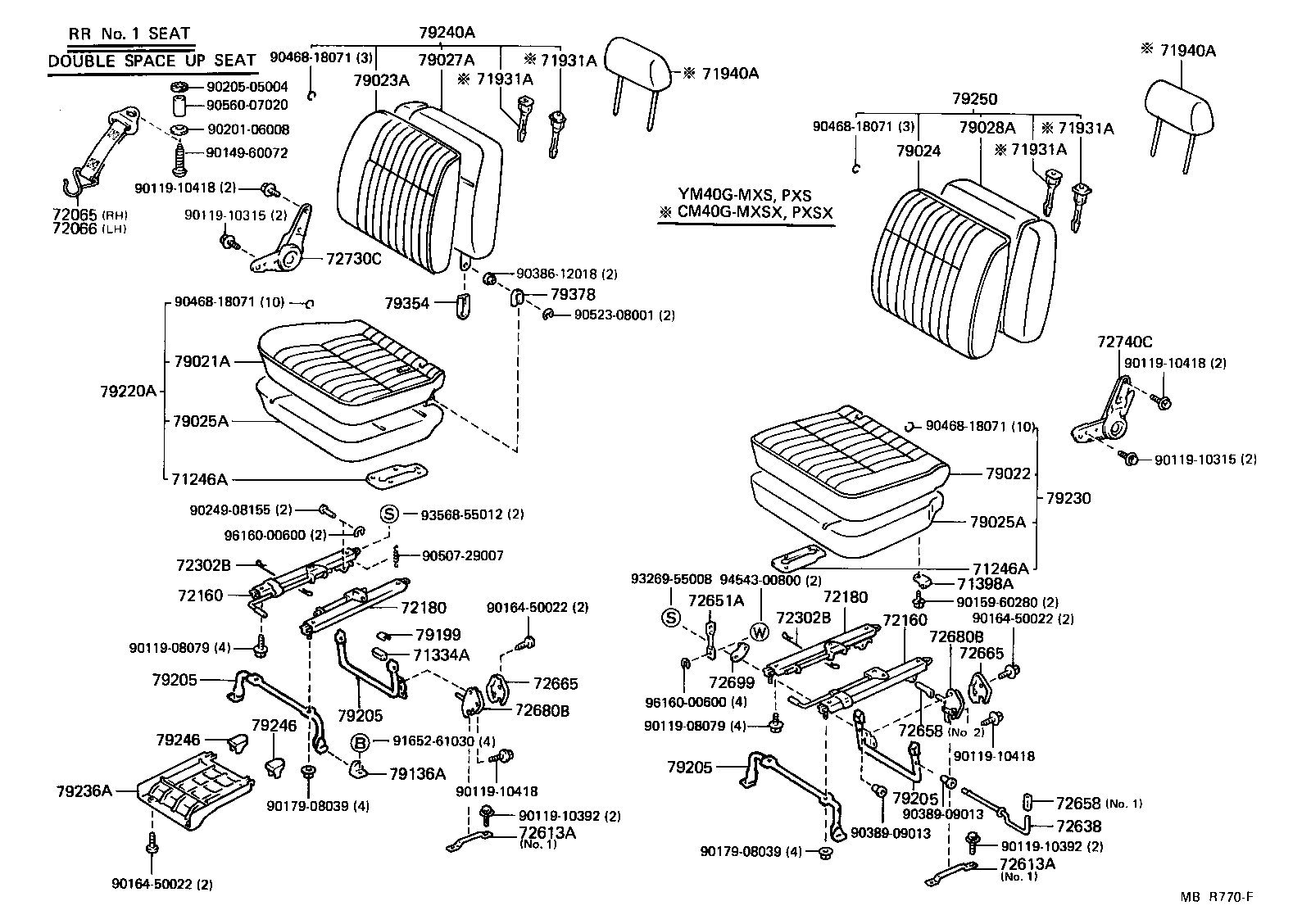

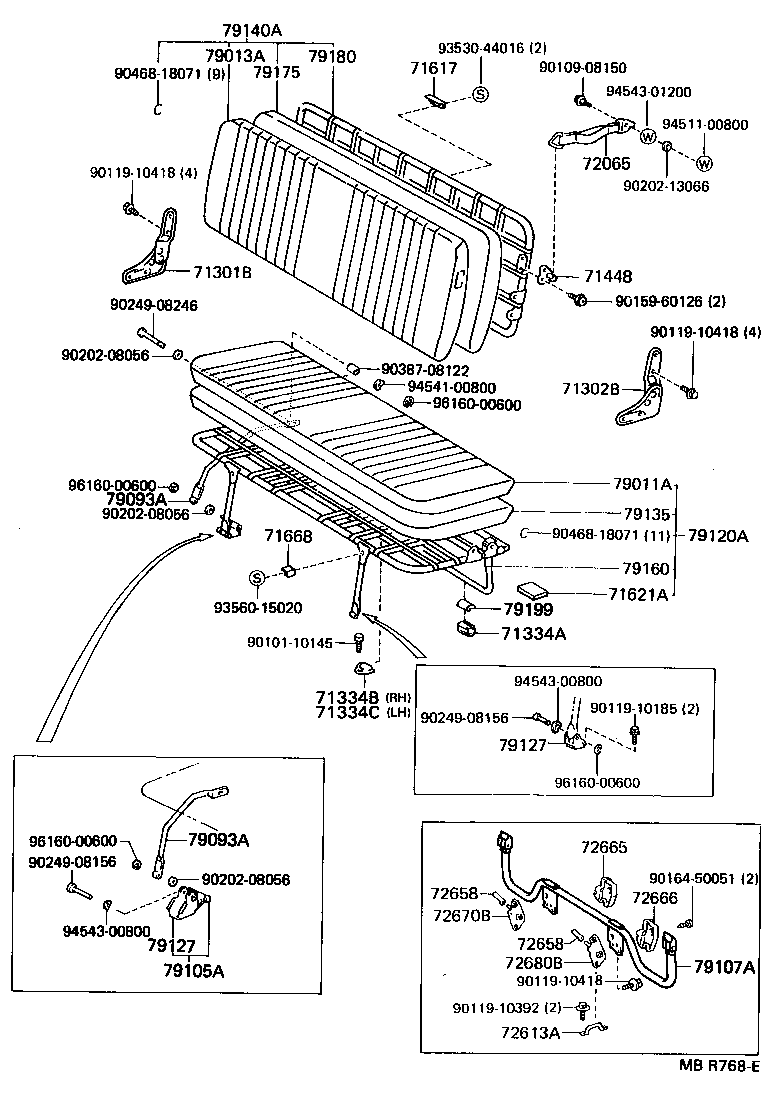

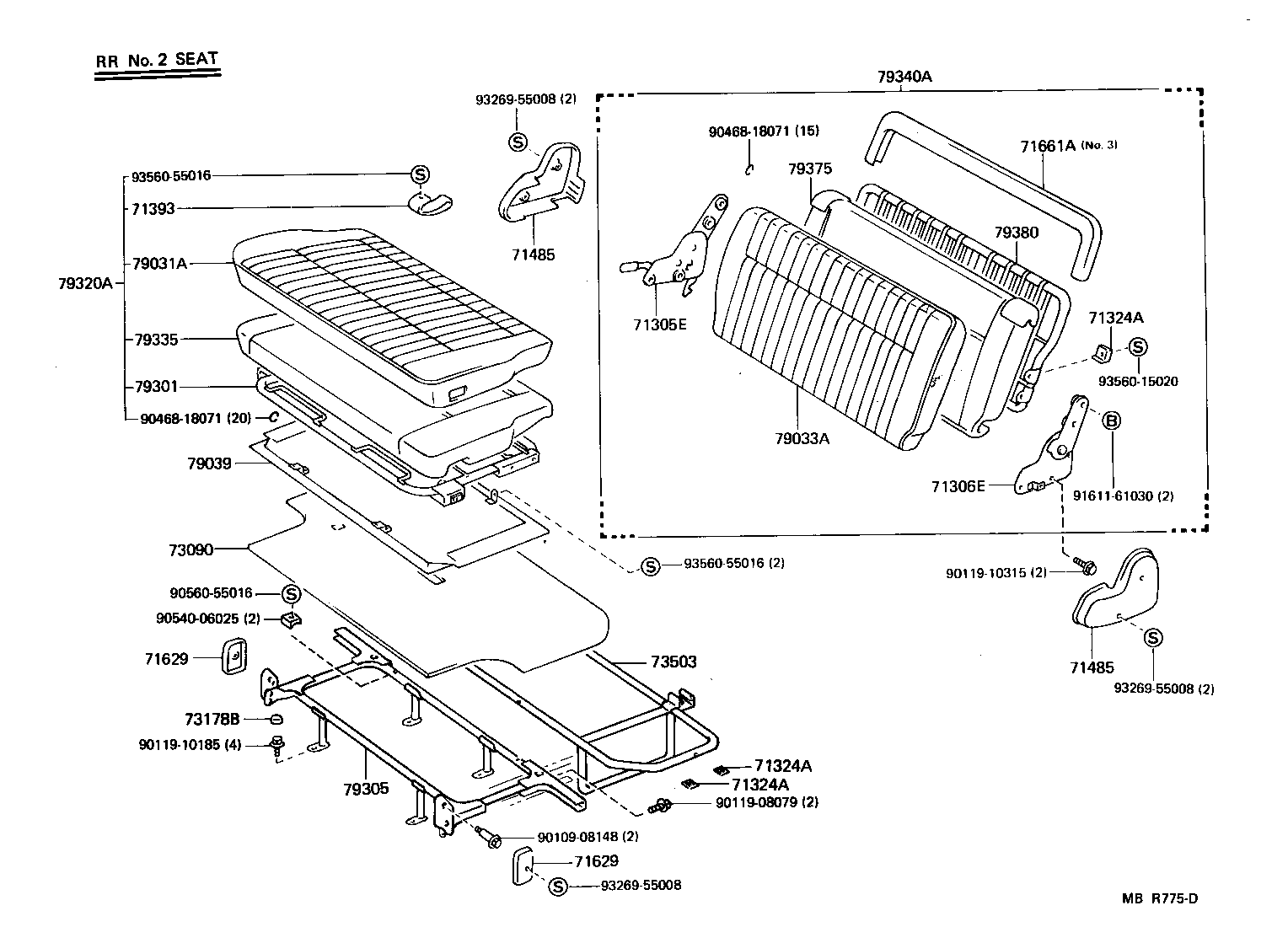

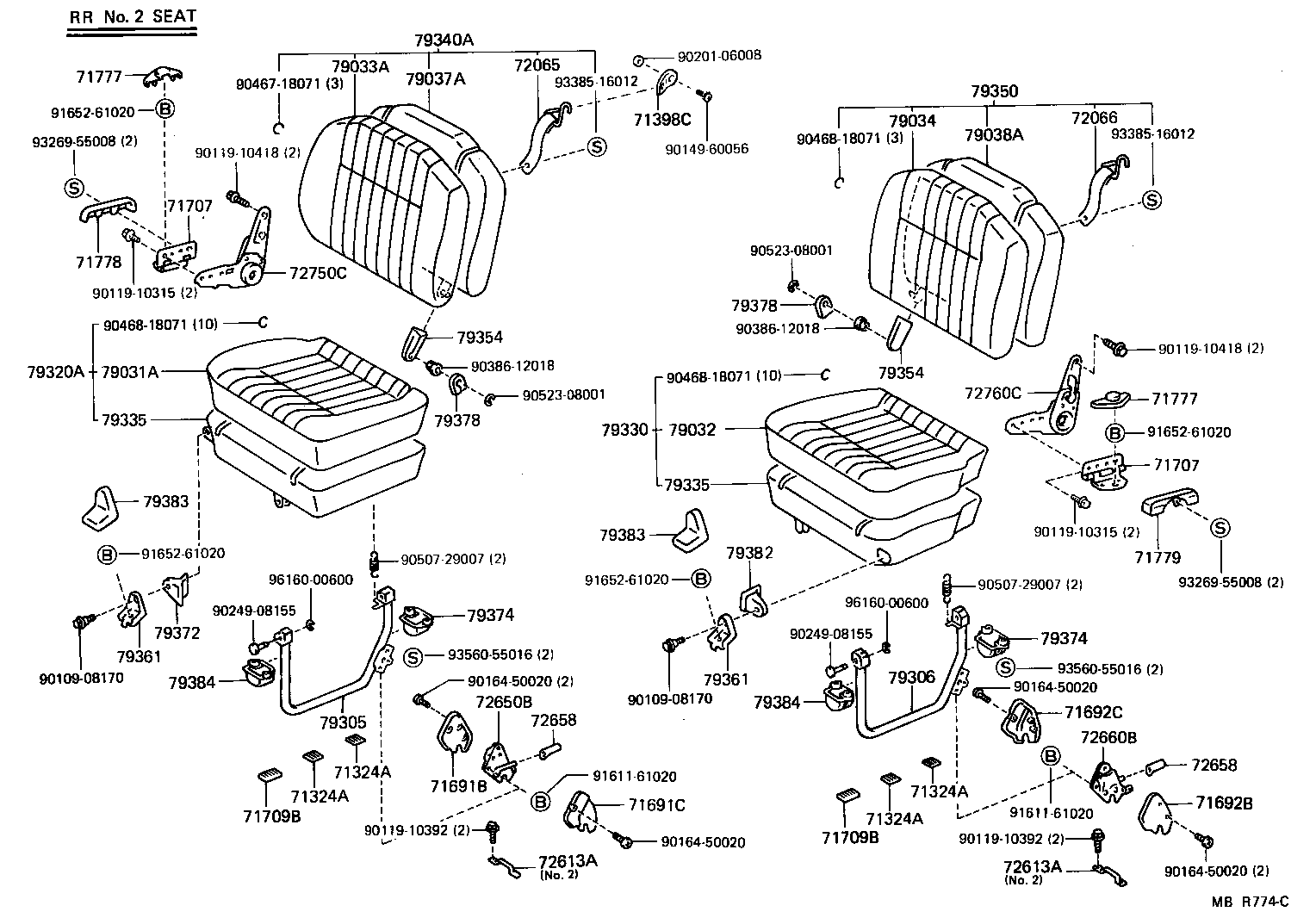

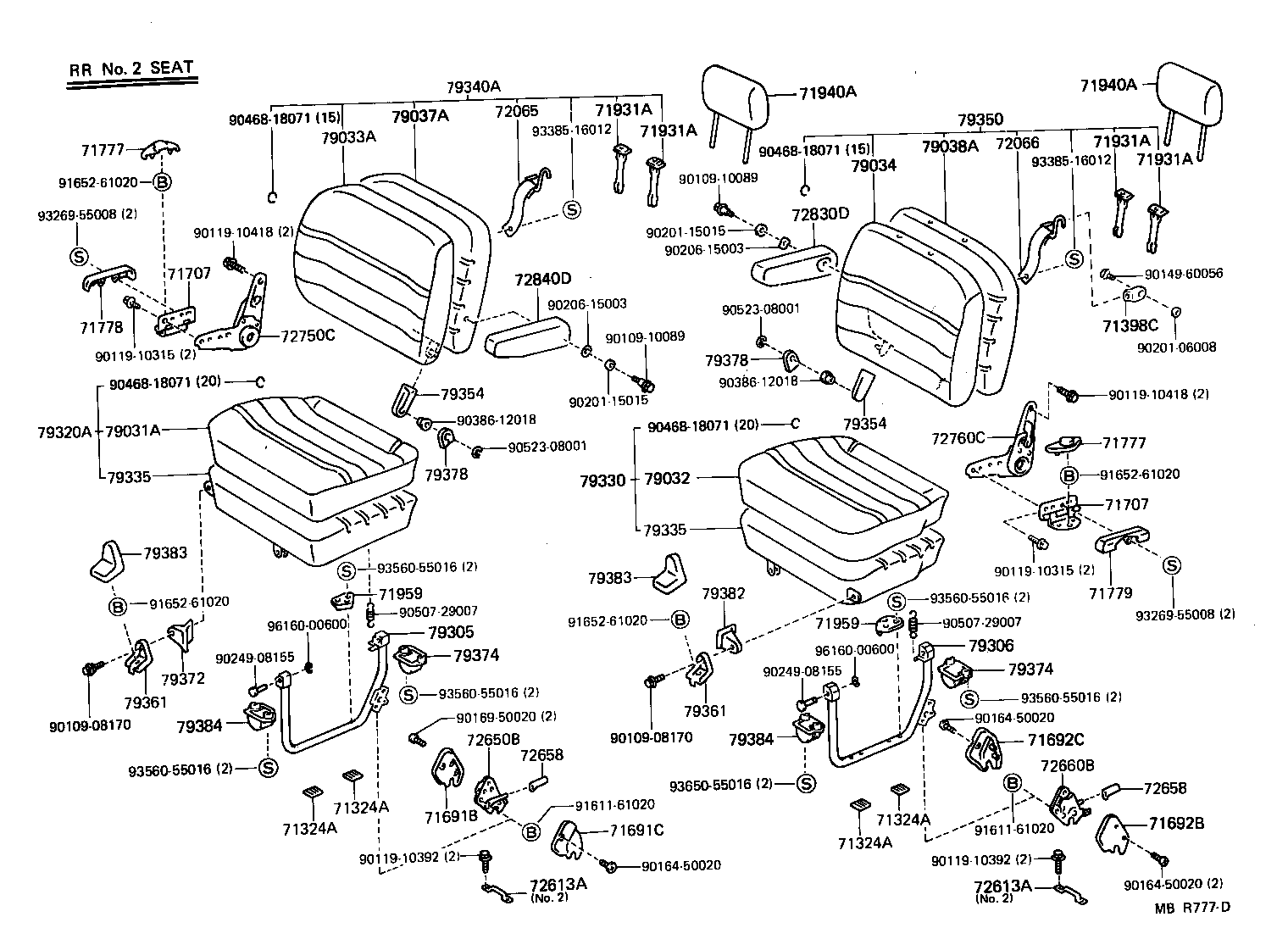

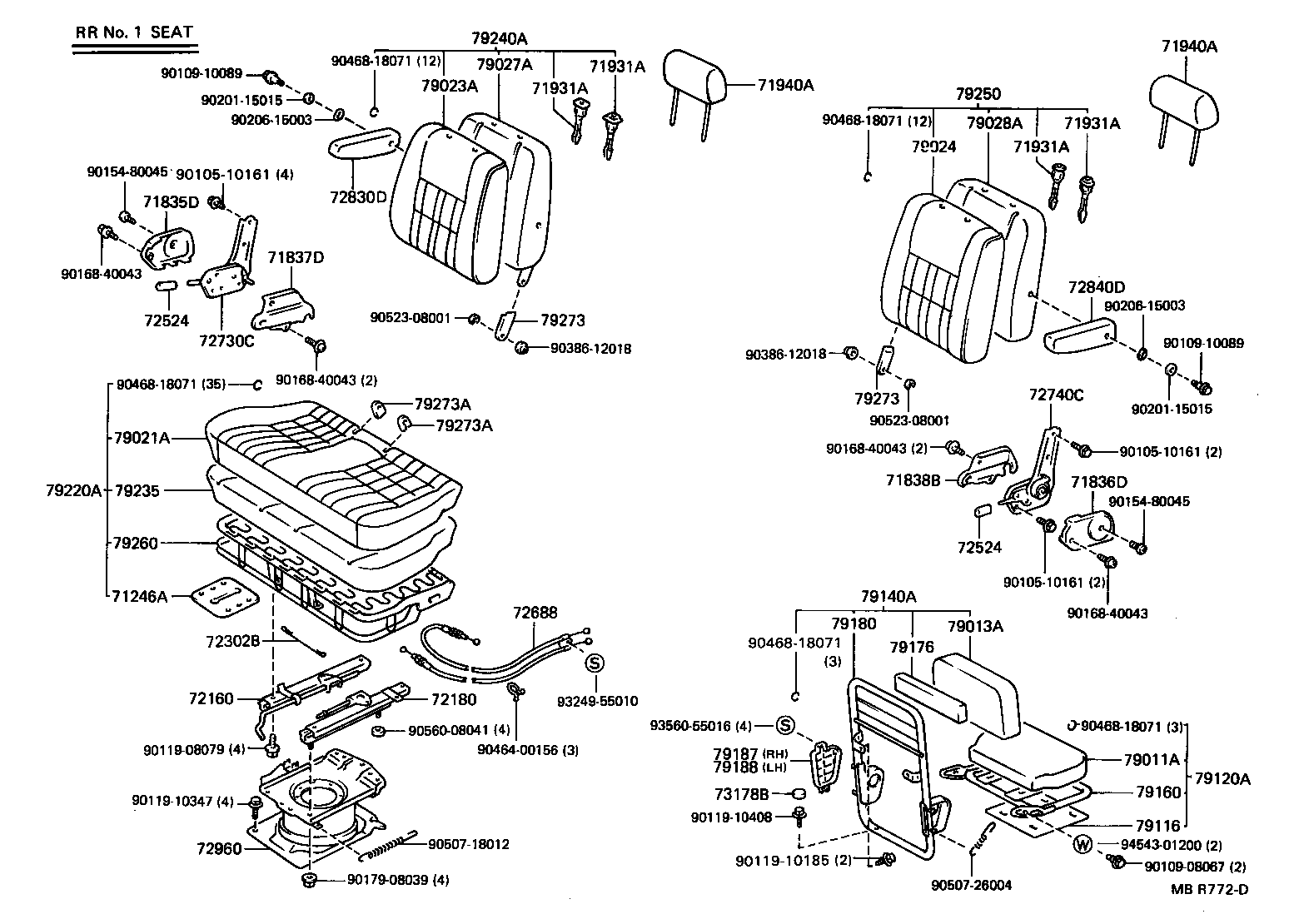

Figure MBR763C MBR763C 1988-08 → — Figure MBR765A MBR765A 1988-08 → — Figure MBR764B MBR764B 1988-08 → — Figure MBR764B MBR764B 1989-10 → — Figure MBR766C MBR766C 1988-08 → — Figure MBR767C MBR767C 1988-08 → — Figure MBR768E MBR768E 1988-08 → — Figure MBR769B MBR769B 1988-08 → — Figure MBR770F MBR770F 1988-08 → — Figure MBR771C MBR771C 1988-08 → — Figure MBR772D MBR772D 1988-08 → — Figure MBR773D MBR773D 1988-08 → — Figure MBR774C MBR774C 1988-08 → — Figure MBR775D MBR775D 1988-08 → — Figure MBR776D MBR776D 1988-08 → — Figure MBR777D MBR777D 1988-08 → —

Part groups

PNCDescription
58936A Band, Engine Service Hole Cover Support
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71035S Cover, Front Seatback, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71246A Plate, Rear Seat Cushion Set
71280A Hinge Assy, Front Seatback, LH
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71303B Hinge Sub-assy, Rear NO.2 Seat, RH
71304B Hinge Sub-assy, Rear NO.2 Seat, LH
71305E Hinge Sub-assy, Rear NO.3 Seat, RH
71306E Hinge Sub-assy, Rear NO.3 Seat, LH
71324A Cushion, Rear Seat
71324B Cushion, Rear Seat
71334A Stopper, Rear Seat Leg
71334B Stopper, Rear Seat Leg, RH
71334C Stopper, Rear Seat Leg, LH
71350S Back Assy, Front Seat, Center
71358 Pad, Center Seatback
71380 Hinge Assy, Center Seat, RH
71390A Hinge Assy, Center Seat, LH
71393 Band, Rear Seat Cushion
71395B Cover, Center Seat Hinge, RH
71396B Cover, Center Seat Hinge, LH
71398A Holder, Rear Seatback
71398C Holder, Rear Seatback
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71448 Stopper, Rear Seatback
71485 Cover, Rear Seat Hinge
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71588 Protector, Front Seatback Edge, NO.2
71617 Protector, Rear Seatback
71621A Pad, Rear Seat Cushion Silencer, A
71629 Cover, Rear Seat Cushion Hinge
71661A Pad, Rear Seatback, Upper A
71668 Cushion, Rear NO.3 Seat
71691B Cover, Rear Seat Lock, Outer RH
71691C Cover, Rear Seat Lock, Inner RH
71692B Cover, Rear Seat Lock, Outer LH
71692C Cover, Rear Seat Lock, Inner LH
71707 Hinge Sub-assy, Rear Seat Side
71709B Cushion Sub-assy, Seat Support
71777 Cover, Rear Seat Side Hinge Female
71778 Cover, Rear Seat Side Hinge Male, RH
71779 Cover, Rear Seat Side Hinge Male, LH
71811C Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71831D Cover, Front Seat Hinge, RH
71835D Cover, Rear Seat Reclining, Lower RH
71836D Cover, Rear Seat Reclining, Lower LH
71837D Cover, Rear Seat Reclining, Inner RH
71838B Cover, Rear Seat Reclining, Inner LH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
71959 Holder, Rear Seat Headrest
72050 Belt Assy, Rear Seat Hook
72065 Belt Sub-assy, Rear Seat Hook, RH
72066 Belt Sub-assy, Rear Seat Hook, LH
72137A Clip (FOR SEAT TRACK COVER)
72160 Track Assy, Rear Seat, Outer RH
72180 Track Assy, Rear Seat, Inner RH
72213 Knob, Seat Track Adjusting Handle
72302B Wire Sub-assy, Rear Seat Track Equalizing
72329 Cover, Seat Adjuster Bolt
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72524 Handle, Reclining Adjuster Release
72613A Striker, Front Seat Lock
72638 Handle, Rear Seat Lock, LH
72650B Lock Assy, Rear NO.3 Seat, RH
72651A Cover, Rear Seat Lock
72658 Knob, Rear Seat Handle
72660B Lock Assy, Rear NO.3 Seat, LH
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72670B Lock Assy, Rear Seat Cushion, RH
72680B Lock Assy, Rear Seat Cushion, LH
72688 Cable, Rear Seat Track & Turn Control
72699 Plate, Rear Seat Lock Release
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72750C Adjuster Assy, NO.3 Seat Reclining, RH
72760C Adjuster Assy, NO.3 Seat Reclining, LH
72810C Armrest Assy, Front Seat, Center
72830D Armrest Assy, Rear Seat, RH
72830E Armrest Assy, Front Seat
72840D Armrest Assy, Rear Seat, LH
72960 Table Assy, Rear Seat Turn
72986 Slipper, Rear Seatback
73090 Board Assy, Rear Seat Sub Floor
73139A Cover, Seat Belt Anchor
73178B Cap, Seat Belt Anchor Cover
73503 Leg Sub-assy, RR Seat Sub Floor
73505 Board Sub-assy, Rear Seat Sub Floor
73506 Board Sub-assy, Rear Seat Sub Floor, NO.2
78769 Tray, Sub Seatback
79011A Cover Sub-assy, NO.1 Seat Cushion
79013A Cover Sub-assy, NO.1 Seatback
79019 Board Sub-assy, NO.1 Seat Cushion
79021A Cover Sub-assy, NO.2 Seat Cushion
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023A Cover Sub-assy, NO.2 Seatback
79024 Cover Sub-assy, NO.2 Seatback, LH
79025A Pad Sub-assy, NO.2 Seat Cushion, RH
79027A Pad Sub-assy, NO.2 Seatback, RH
79028A Pad Sub-assy, NO.2 Seatback, LH
79029 Board Sub-assy, NO.2 Seat Cushion
79031A Cover Sub-assy, NO.3 Seat Cushion
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033A Cover Sub-assy, NO.3 Seatback
79034 Cover Sub-assy, NO.3 Seatback, LH
79037A Pad Sub-assy, NO.3 Seatback, RH
79038A Pad Sub-assy, NO.3 Seatback, LH
79039 Board Sub-assy, NO.3 Seat Cushion
79093A Stay Sub-assy, Seat Leg, NO.1
79101 Frame Sub-assy, NO.1 Seat Cushion
79105A Leg Sub-assy, NO.1 Seat
79107A Leg Sub-assy, NO.1 Seat, Rear
79116 Board, NO.1 Seat Cushion
79120A Cushion Assy, NO.1 Seat
79127 Bracket, NO.1 Seat Leg, Lower
79135 Pad, NO.1 Seat Cushion
79136A Cover, NO.1 Seat Leg, A
79139 Cover, Rear Seat Leg
79140A Back Assy, NO.1 Seat
79160 Spring Assy, NO.1 Seat Cushion
79169 Rod, Rear Seat Hinge Connector
79175 Pad, NO.1 Seatback
79176 Pad, NO.1 Seatback, NO.2
79180 Spring Assy, NO.1 Seatback
79184 Plate, NO.1 Seat Leg
79187 Cover, NO.1 Seat Inner Bracket
79188 Cover, NO.1 Seat Outer Bracket
79199 Holder, NO.1 Seat Leg Stopper
79201 Frame Sub-assy, NO.2 Seat Cushion
79205 Leg Sub-assy, NO.2 Seat
79220A Cushion Assy, NO.2 Seat
79230 Cushion Assy, NO.2 Seat, LH
79232 Leg, Rear NO.2 Seat, RH
79235 Pad, NO.2 Seat Cushion
79236A Cover, NO.2 Seat Leg
79240A Back Assy, NO.2 Seat
79242 Leg, Rear NO.2 Seat, LH
79246 Cover, NO.2 Seat Leg, NO.1
79250 Back Assy, NO.2 Seat, LH
79260 Spring Assy, NO.2 Seat Cushion
79273 Cover, NO.2 Seat Hinge
79273A Cover, NO.2 Seat Hinge, NO.2
79275 Pad, NO.2 Seatback
79280 Spring Assy, NO.2 Seatback
79301 Frame Sub-assy, NO.3 Seat Cushion
79305 Leg Sub-assy, NO.3 Seat
79306 Leg Sub Assy, NO.3 Seat, LH
79320A Cushion Assy, NO.3 Seat
79330 Cushion Assy, NO.3 Seat, LH
79335 Pad, NO.3 Seat Cushion
79340A Back Assy, NO.3 Seat
79350 Back Assy, NO.3 Seat, LH
79354 Cover, NO.3 Seatback Hinge
79361 Bracket, NO.3 Seat Support
79372 Cover, NO.3 Seat Front Bracket, RH
79374 Cover, NO.3 Seat Leg, Rear RH
79375 Pad, NO.3 Seatback
79378 Cover, NO.3 Seat Cushion Hinge
79380 Spring Assy, NO.3 Seatback
79382 Cover, NO.3 Seat Front Bracket, LH
79383 Cover, NO.3 Seat Bracket Support
79384 Cover, NO.3 Seat Leg, Rear LH
79621 Stopper, NO.2 Seat Cushion
79670 Hinge Assy, NO.1 Seat, RH
79680 Hinge Assy, NO.1 Seat, LH
79945 Stay, Seat Leg, NO.1
79956 Cover, Rear Seat Leg Bracket
79956A Clip (FOR REAR SEAT LEG BRACKET COVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
