Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,YM3#,40,CM3#,4# · catalogue 631140 · Japan

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

43 part groups · 11 illustrations

Illustrations

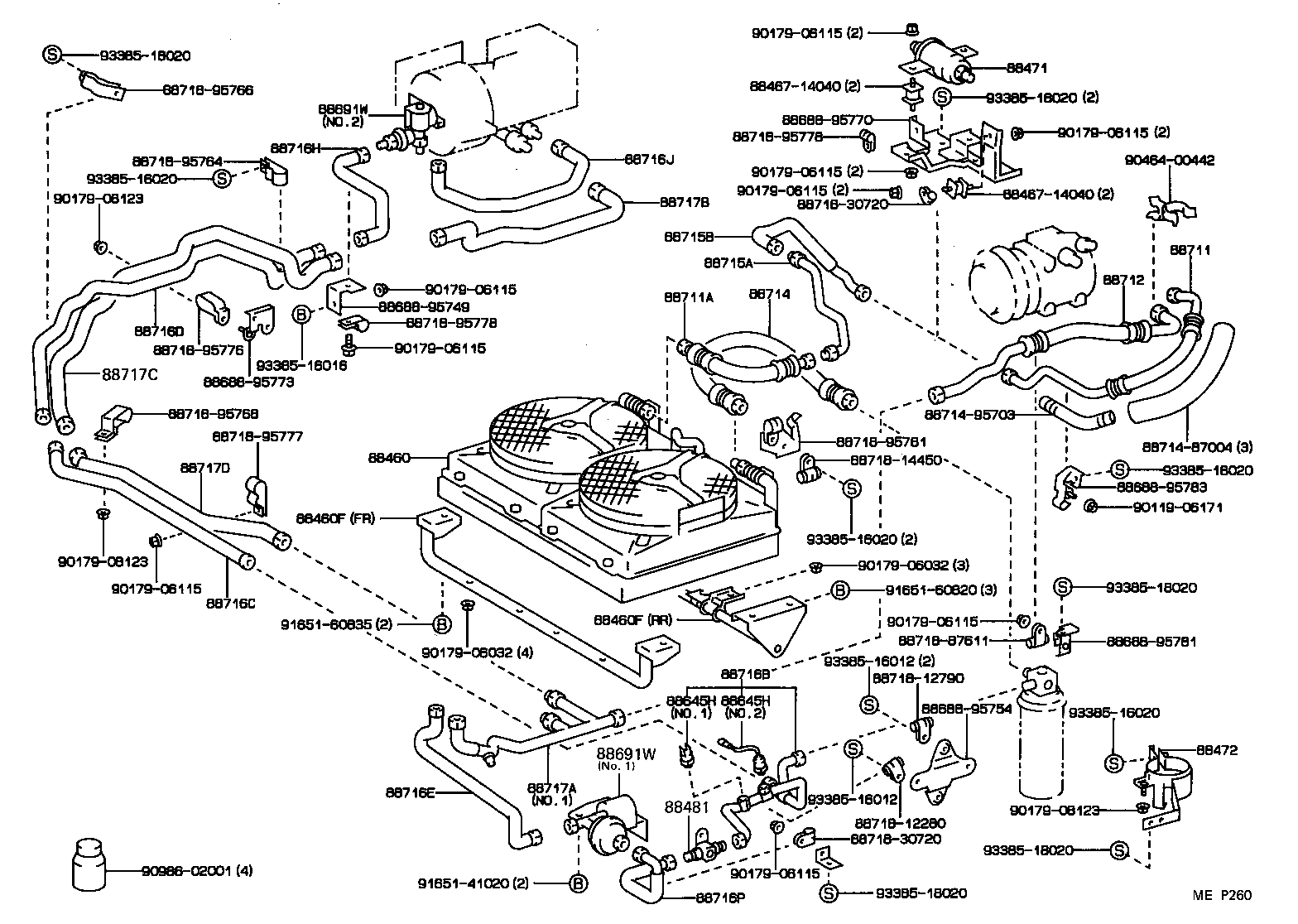

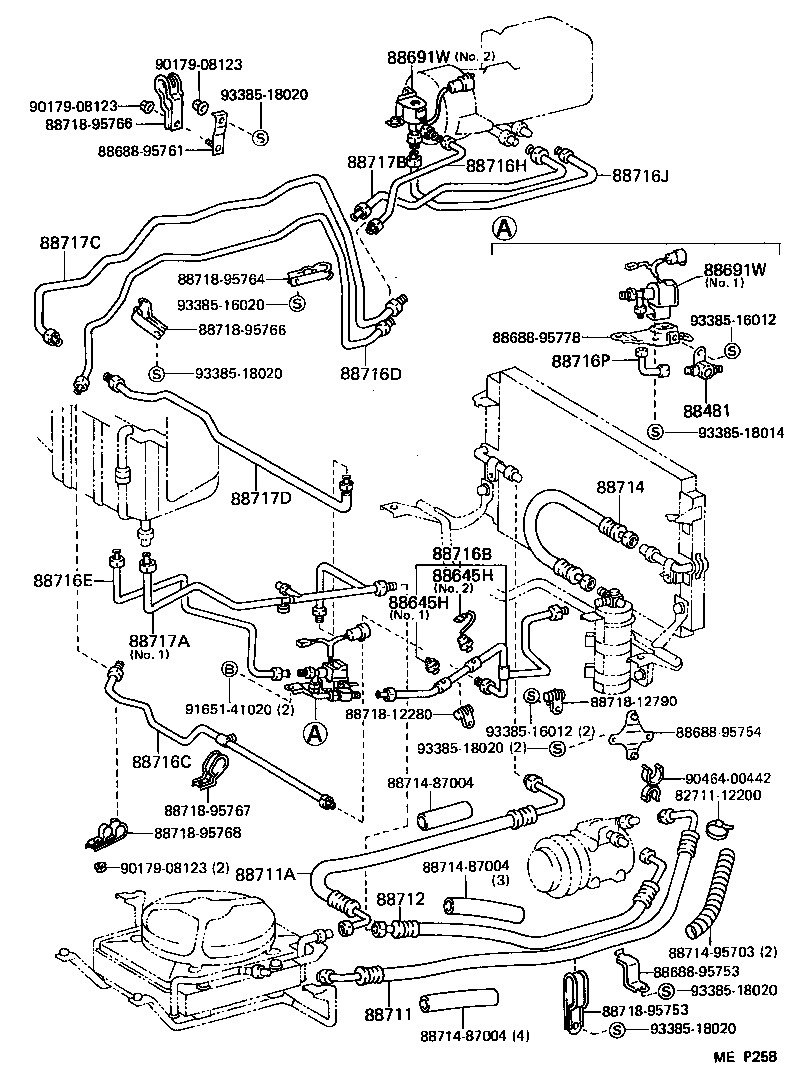

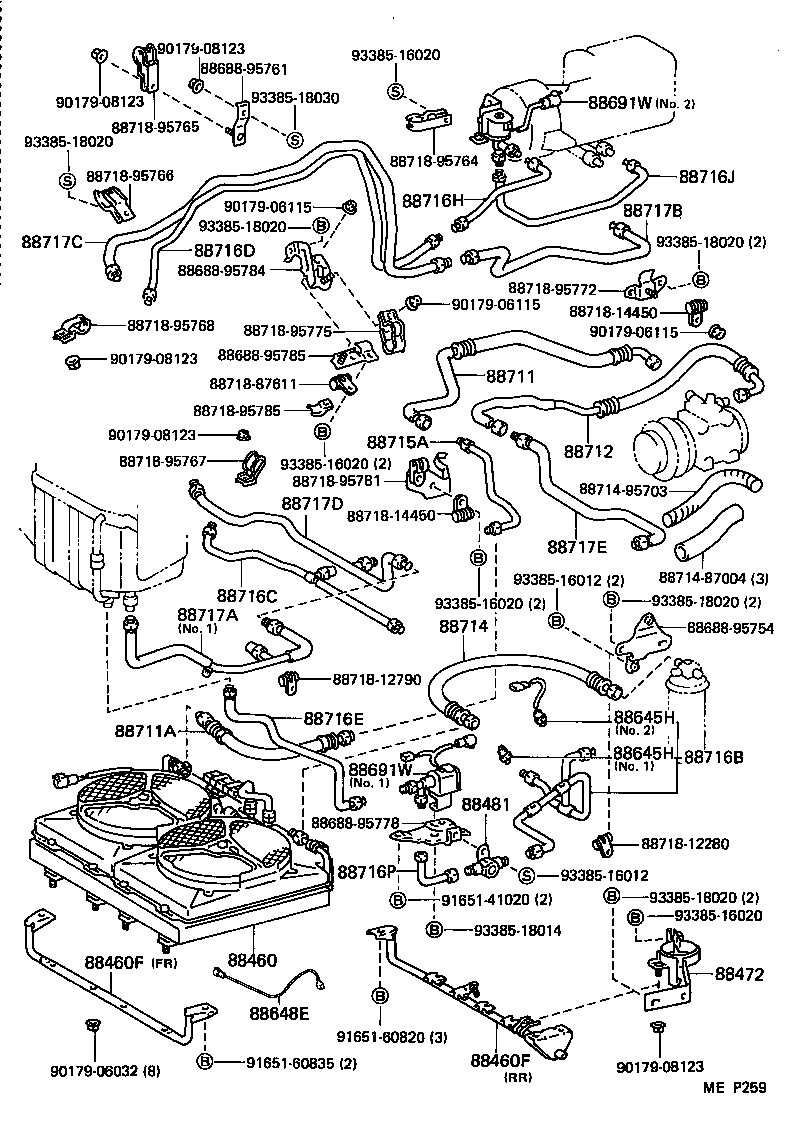

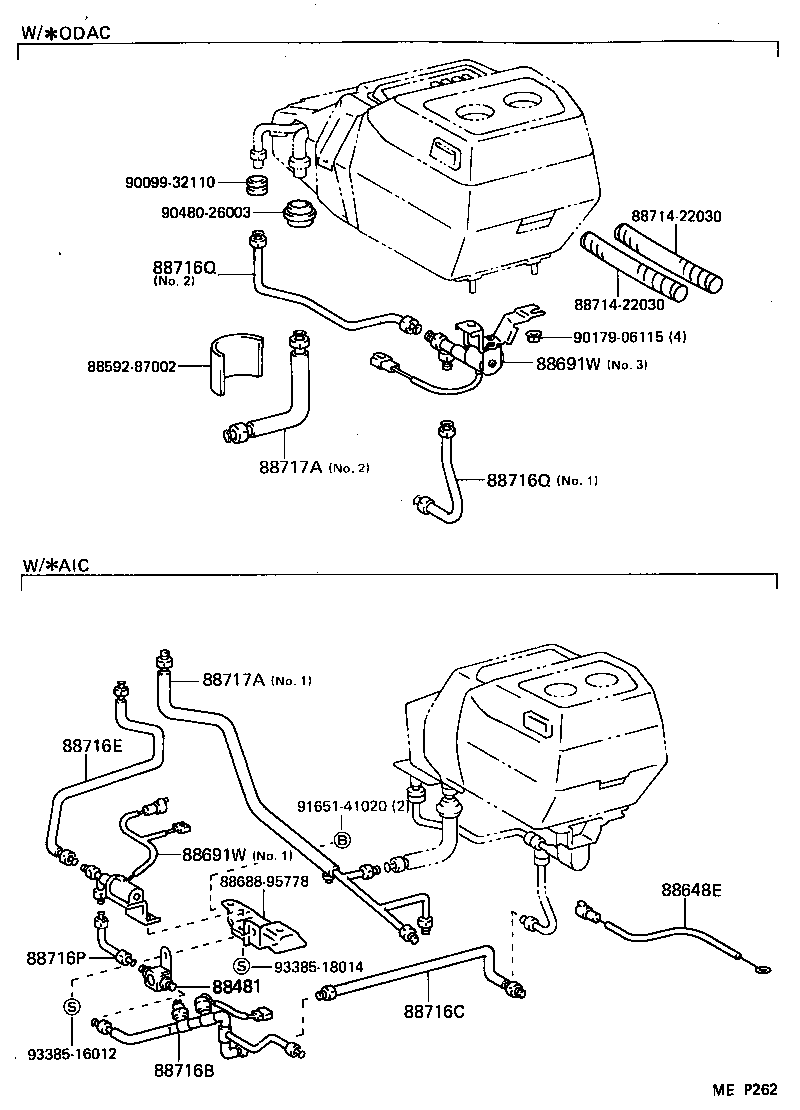

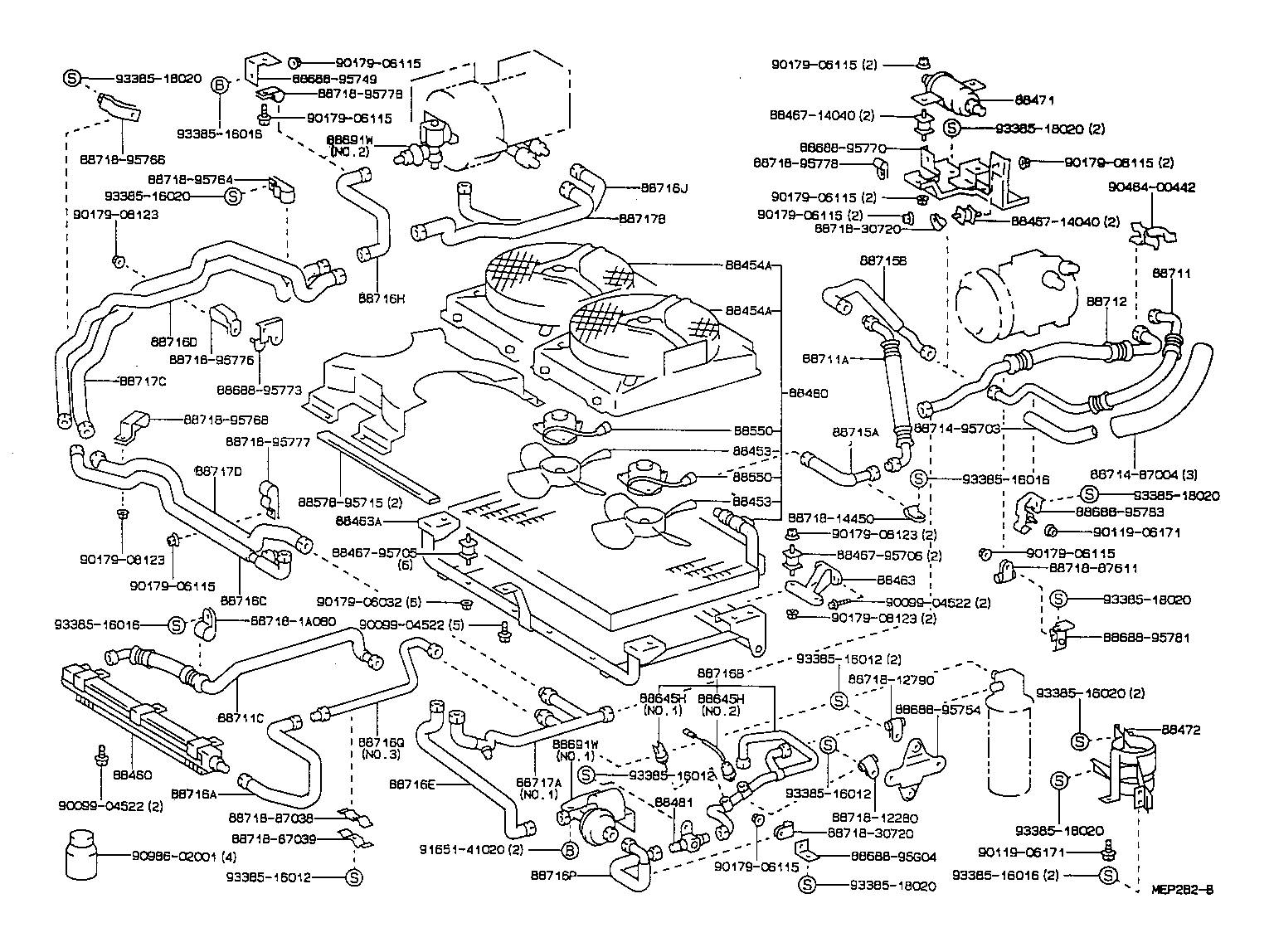

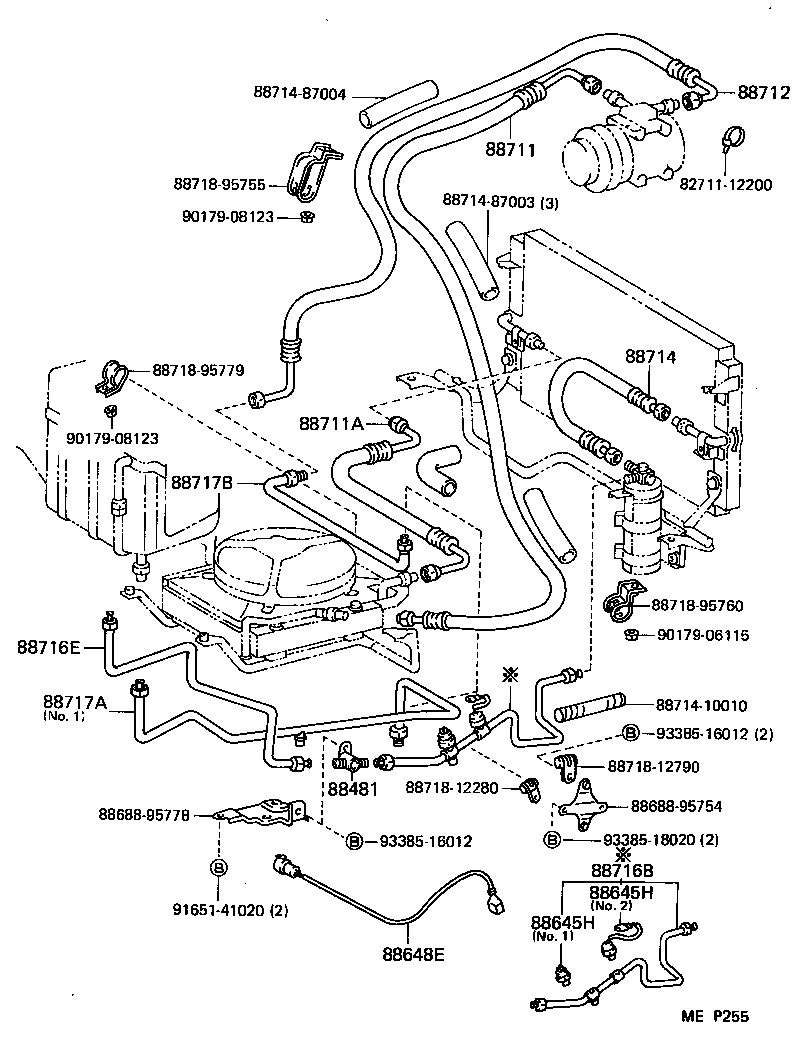

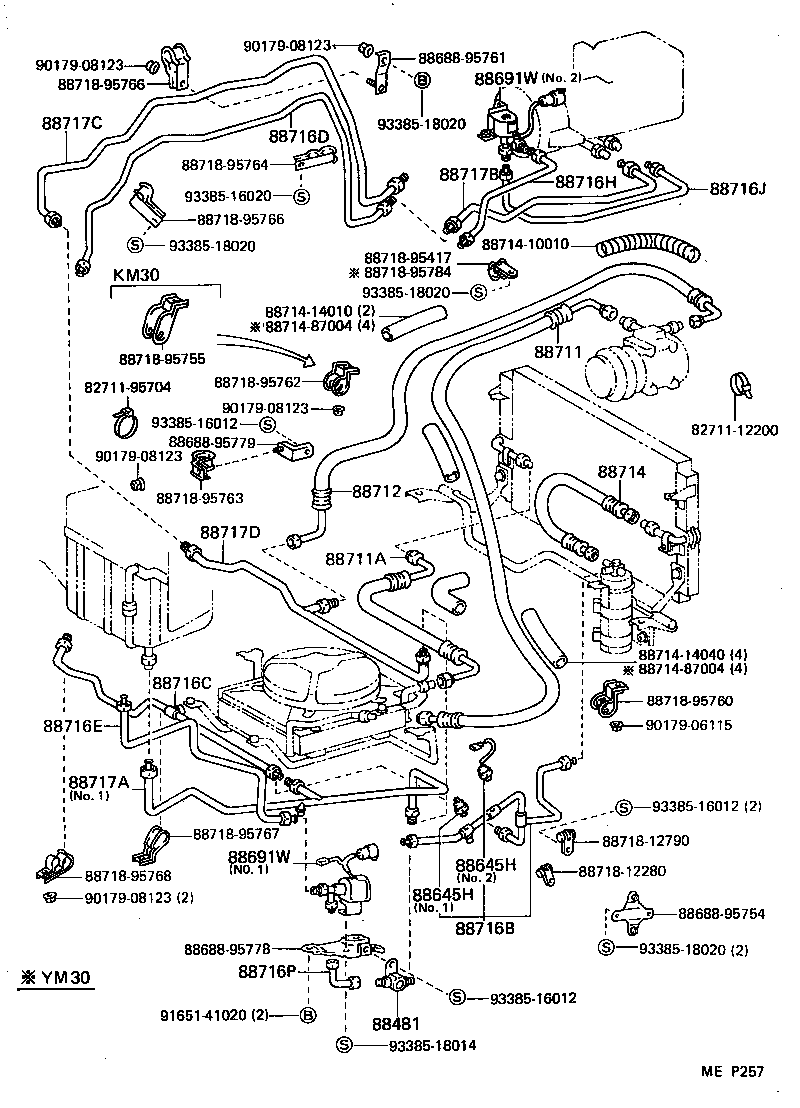

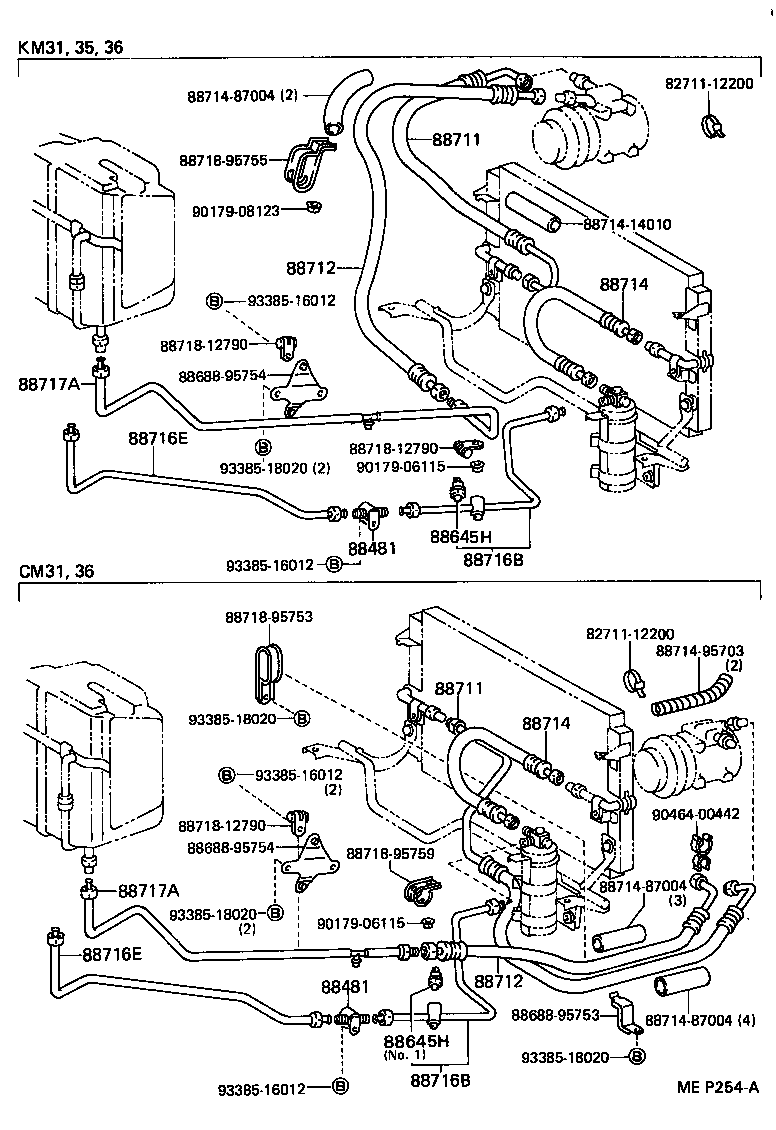

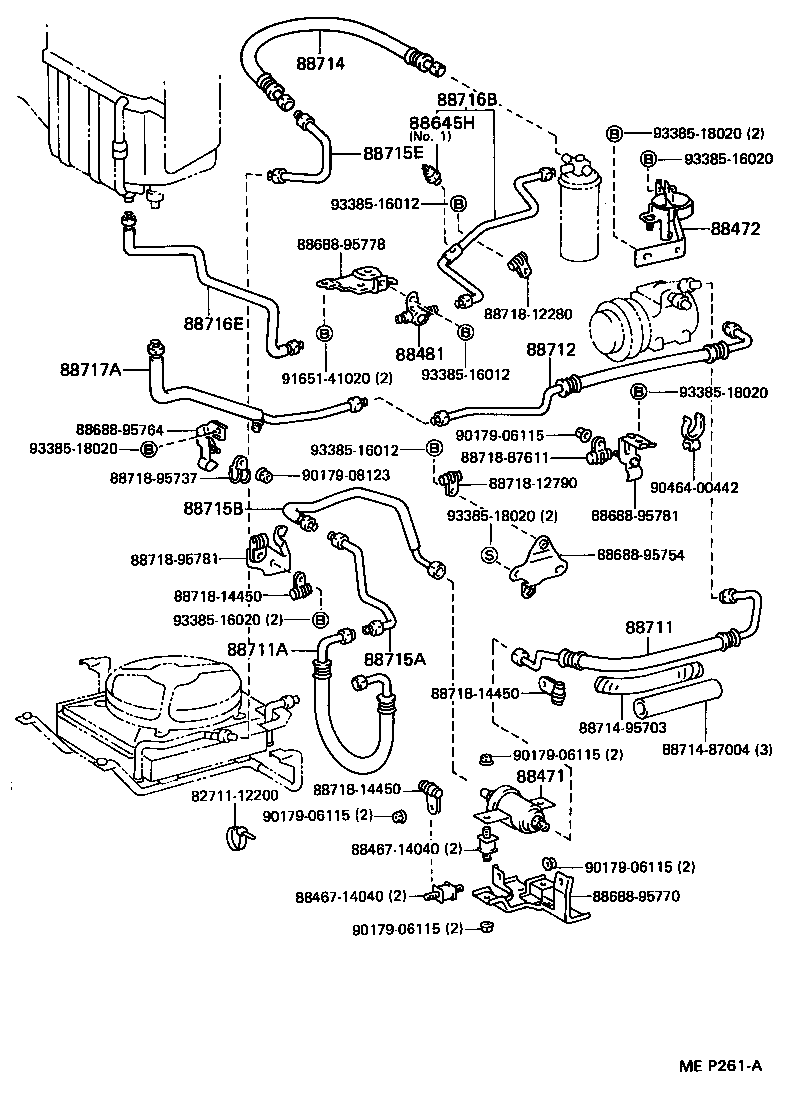

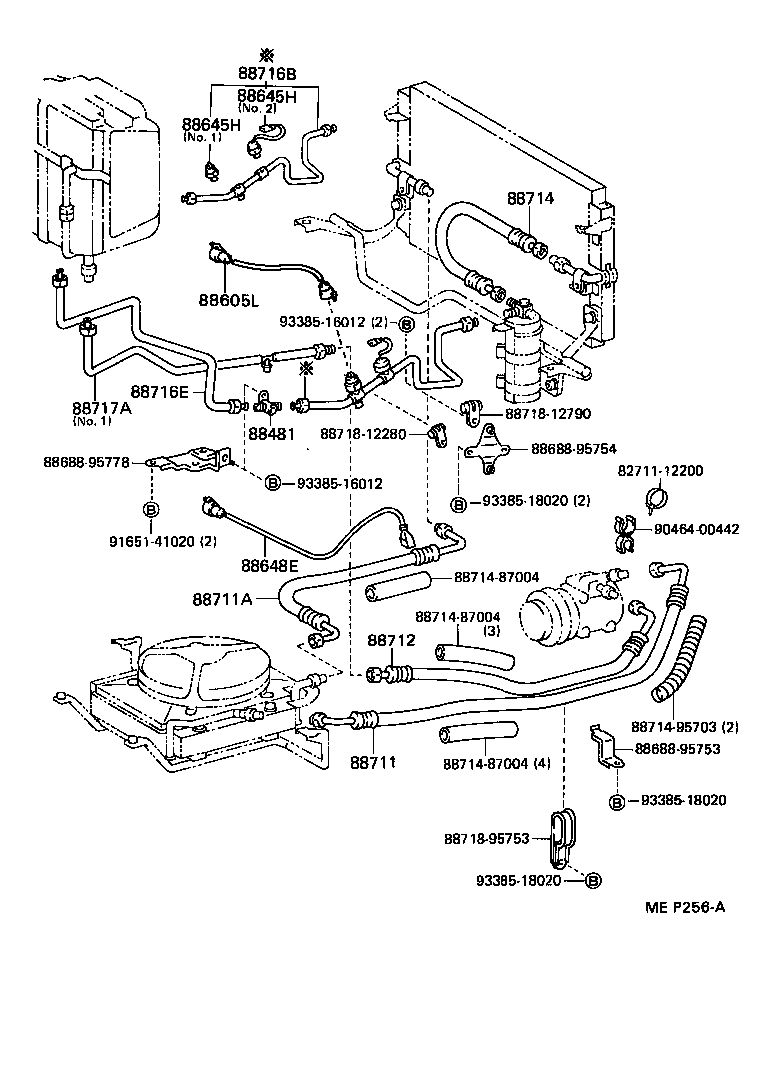

Figure MEL971C MEL971C 1988-08 → — Figure MEP254A MEP254A 1988-08 → — Figure MEP255 MEP255 1988-08 → — Figure MEP256A MEP256A 1988-08 → — Figure MEP257 MEP257 1988-08 → — Figure MEP258 MEP258 1988-08 → — Figure MEP259 MEP259 1988-08 → — Figure MEP260 MEP260 1988-08 → — Figure MEP282B MEP282B 1988-08 → — Figure MEP261A MEP261A 1988-08 → — Figure MEP262 MEP262 1988-08 → —

Part groups

PNCDescription
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88470 Receiver & Dryer Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88481 Glass, Sight
88550 Motor Assy, Blower (FOR CONDENSER)
88605L Harness Sub-assy, Wiring Air Conditioner
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88691W Valve, Magnet
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88711C Hose, Cooler Refrigerant Discharge, NO.3
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716P Pipe, Cooler Refrigerant Liquid, P
88716Q Pipe, Cooler Refrigerant Liquid, Q
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717E Pipe, Cooler Refrigerant Suction, E
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
