Toyota Lite/Townace Truck
1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan
Discontinued model
Data version 1999-12
Steering Column & Shaft
55 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 33621 | Plate, Control Lever Caution |
| 33878A | Label, Shift Lock Information, NO.2 |

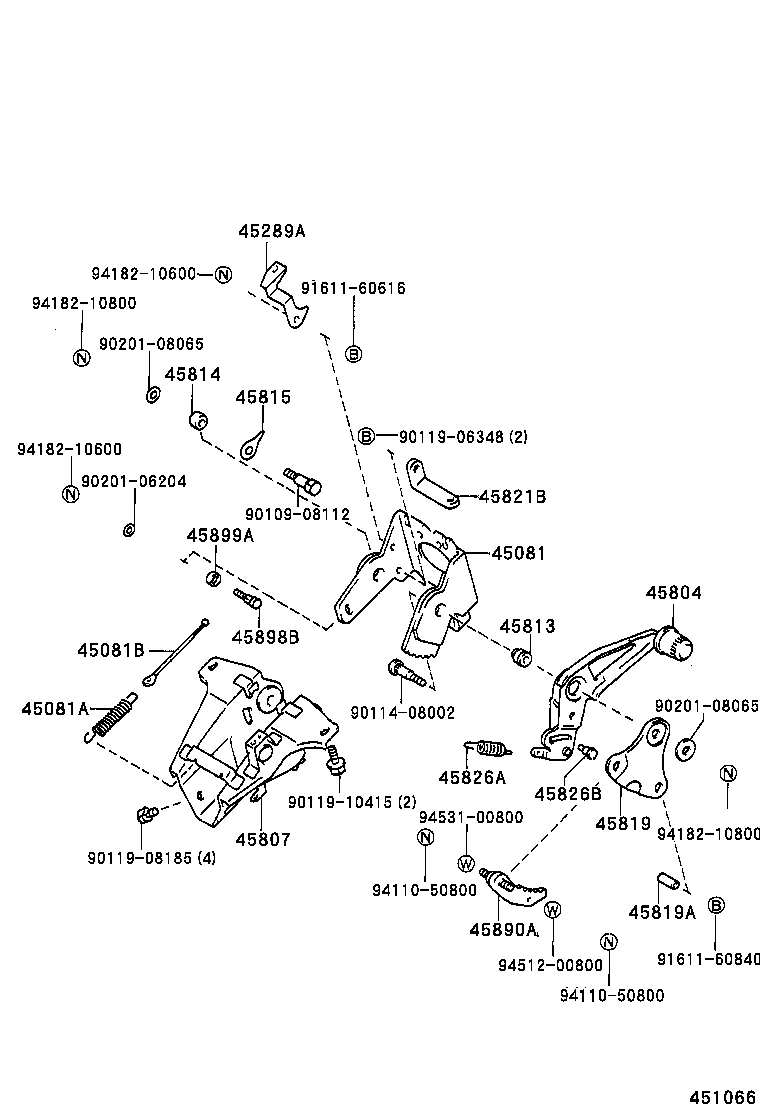

| 45081 | Support Sub-assy, Tilt Steering |
| 45081A | Spring, Tension(FOR TILT STEERING) |
| 45081B | Cord(FOR TILT STEERING) |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201G | Spring, Compression(FOR STEERING MAIN SHAFT) |

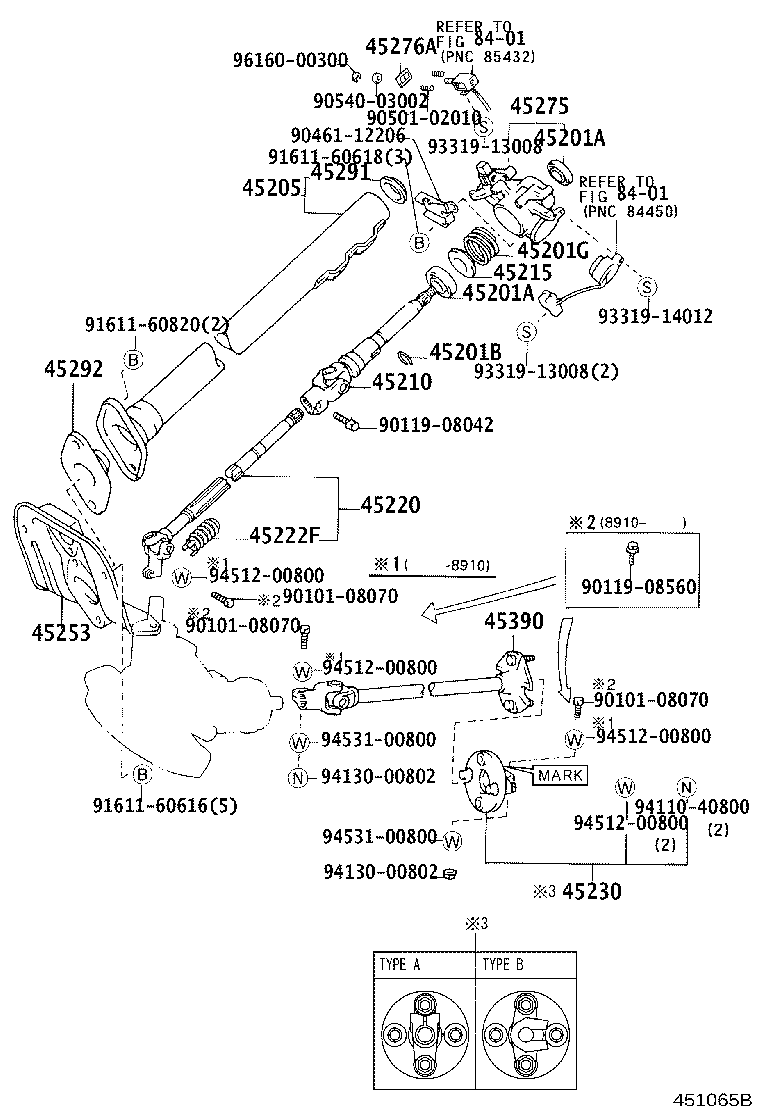

| 45205 | Tube Sub-assy, Steering Column |
| 45210 | Shaft Assy, Steering Main |
| 45215 | Collar, Main Shaft Bearing Thrust |
| 45220 | Shaft Assy, Steering Intermediate |
| 45222E | Cover, Dust(FOR STEERING BEVEL GEAR) |
| 45222F | Cover, Dust |
| 45230 | Coupling Assy, Flexible |
| 45253 | Cover, Steering Column Hole |
| 45255 | Plate, Steering Column Hole Cover |
| 45266 | Cover, Steering Intermediate Shaft Dust |
| 45275 | Bracket, Steering Column, Upper |
| 45276A | Stopper, Key Interlock Release Button |

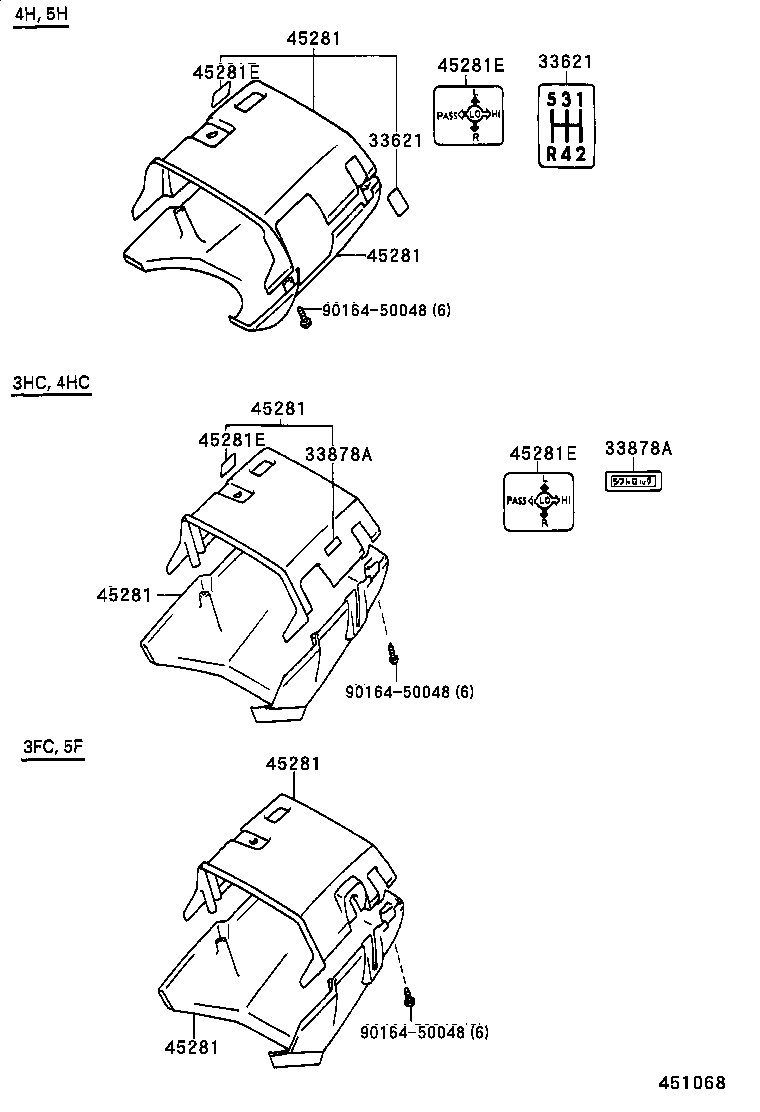

| 45281 | Housing, Steering Column |
| 45281E | Plate, Safety Caution |
| 45289A | Support, Steering Column Cover |
| 45291 | Seal, Main Shaft Upper Dust |
| 45292 | Seal, Main Shaft Lower Dust |
| 45308D | Seal, Oil(FOR STEERING BEVEL GEAR HOUSING) |
| 45312A | Bracket, Steering Bevel Gear Housing |

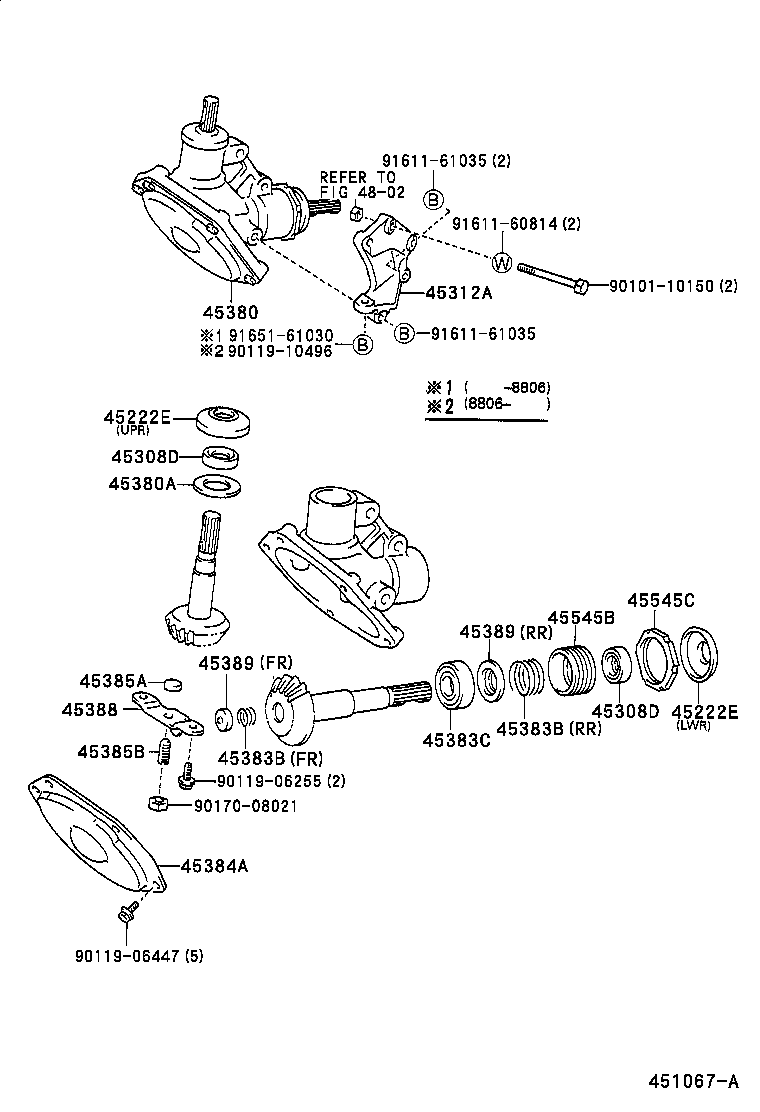

| 45380 | Gear Assy, Steering Bevel |
| 45380A | Washer(FOR STEERING BEVEL GEAR) |
| 45383B | Spring, Compression(FOR STEERING BEVEL GEAR) |
| 45383C | Bearing, Radial Ball(FOR STEERING BEVEL GEAR) |
| 45384A | Cover, Steering Bevel Gear |
| 45385A | Seat, Lock Bolt(FOR STEERING BEVEL GEAR) |
| 45385B | Bolt, Set(FOR LOCK BOLT SEAT) |
| 45388 | Plate, Steering Bevel Gear |
| 45389 | Holder, Steering Bevel Gear Spring |
| 45390 | Shaft Assy, Steering Torque |
| 45545B | Screw, Pinion Bearing Adjusting(FOR STEERING BEVEL GEAR) |
| 45545C | Nut(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW) |
| 45635 | Support, Intermediate Link Joint Protector |
| 45636 | Protector, Intermediate Link Joint, Upper |
| 45637 | Protector, Inter Link Joint, Lwr NO.1 |
| 45804 | Lever Sub-assy, Steering Tilt |
| 45807 | Bracket Sub-assy, Steering Column Upper Support |
| 45813 | Collar, Tilt Steering Support, NO.1 |
| 45814 | Collar, Tilt Steering Support, NO.2 |
| 45815 | Shim, Tilt Steering Support |
| 45819 | Retainer, Tilt Lever |
| 45819A | Collar(FOR TILT LEVER RETAINER) |
| 45821B | Reinforce, Tilt Steering Support, NO.1 |
| 45826A | Spring, Tension(FOR STEERING TILT LEVER) |
| 45826B | Pin(FOR STEERING TILT LEVER) |
| 45890A | Pawl Assy, Tilt Steering |
| 45898B | Bolt, Tilt Steering Support Stopper |
| 45899A | Cover, Tilt Steering Support Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
