Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12

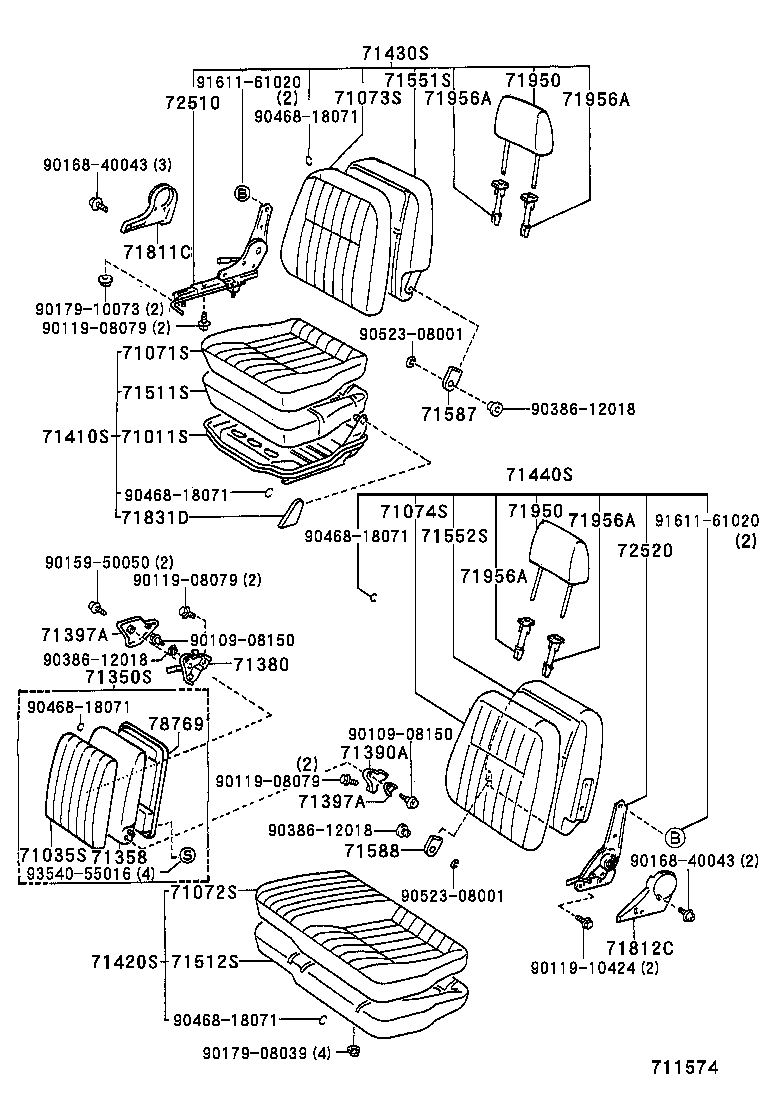

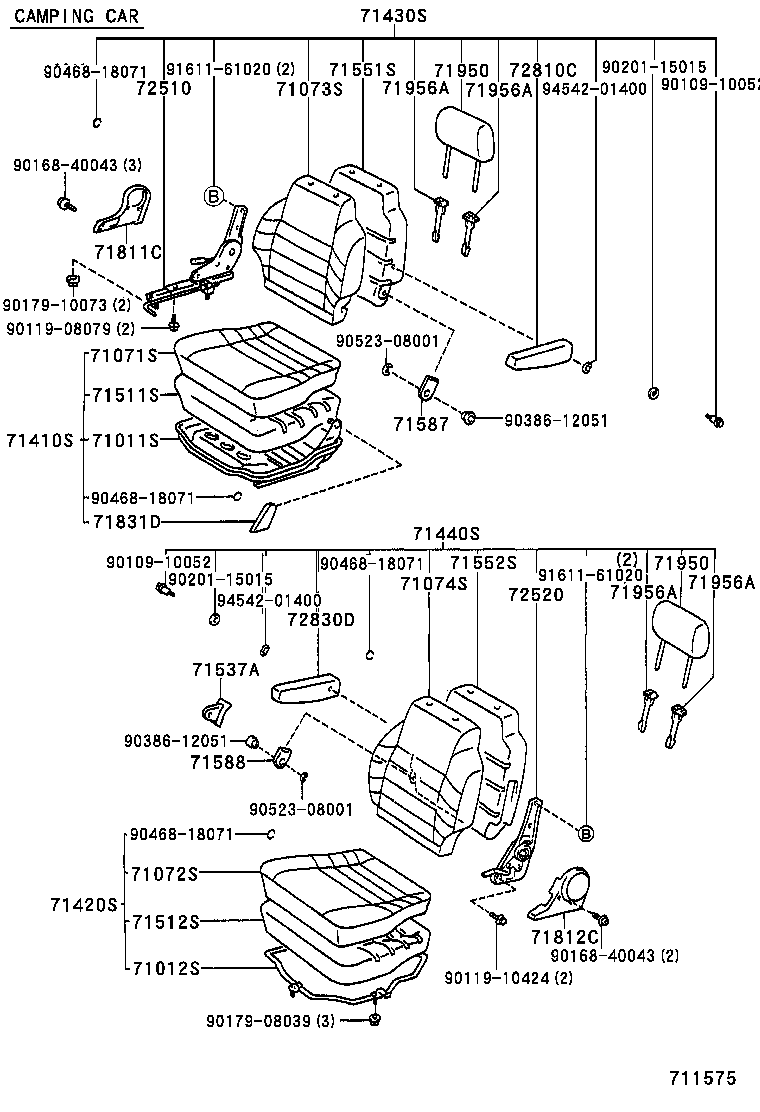

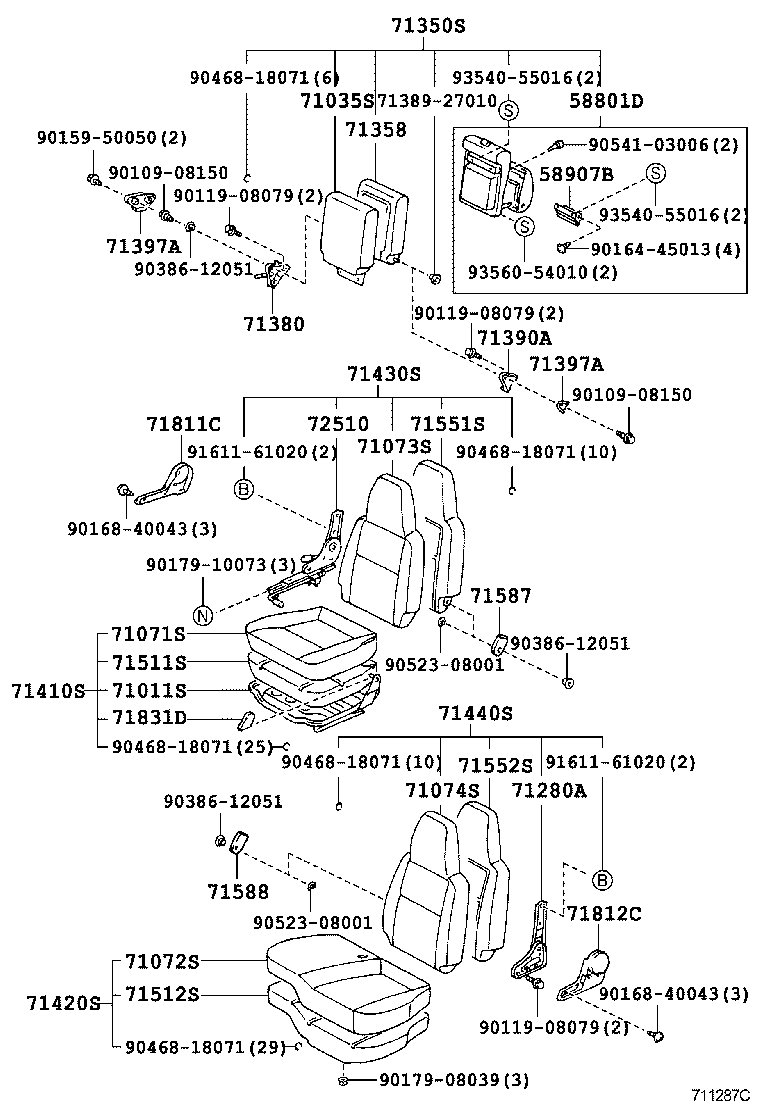

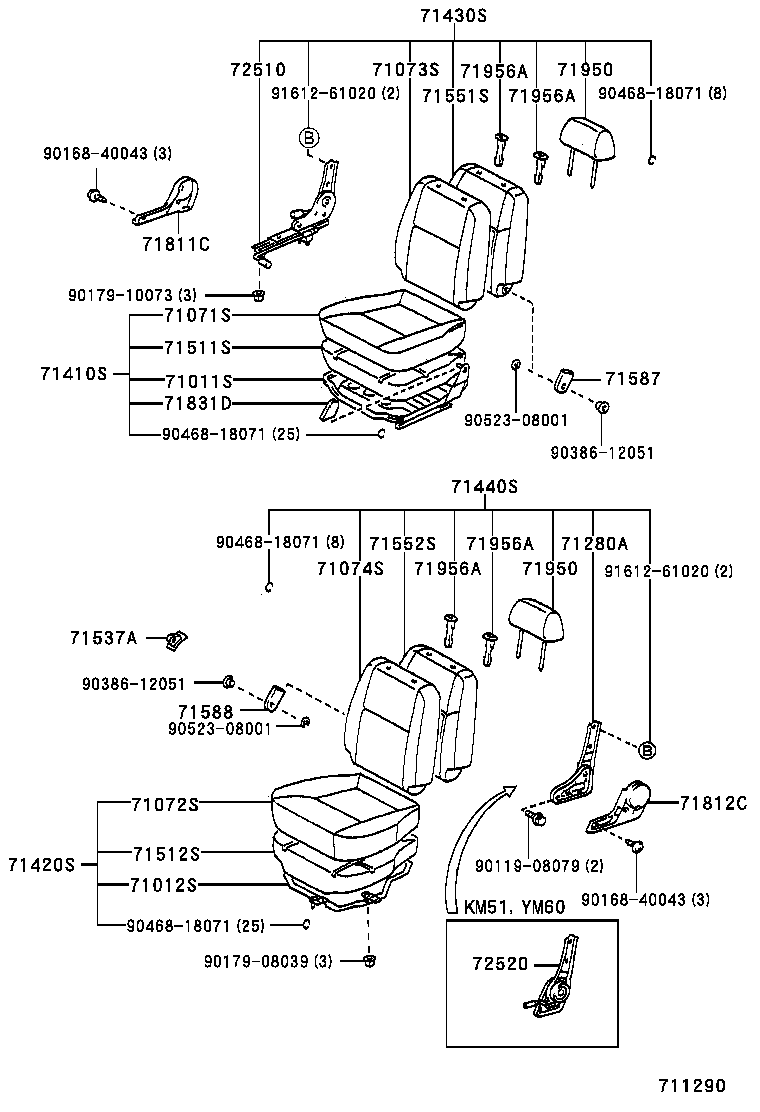

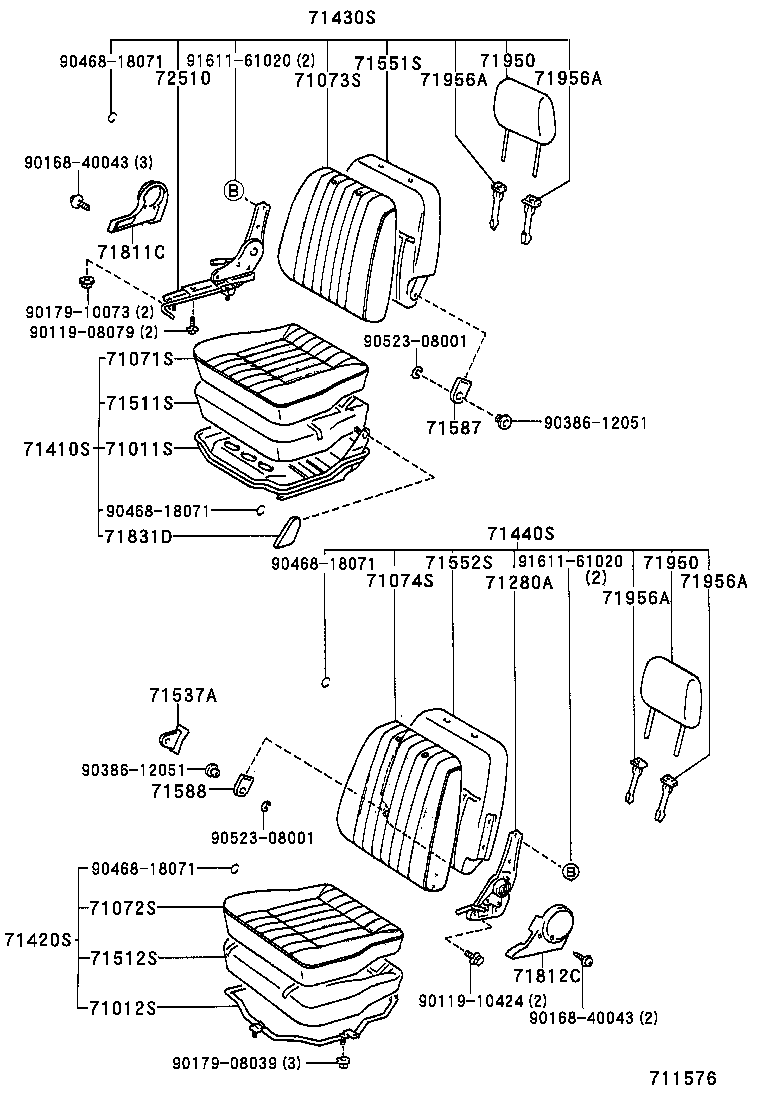

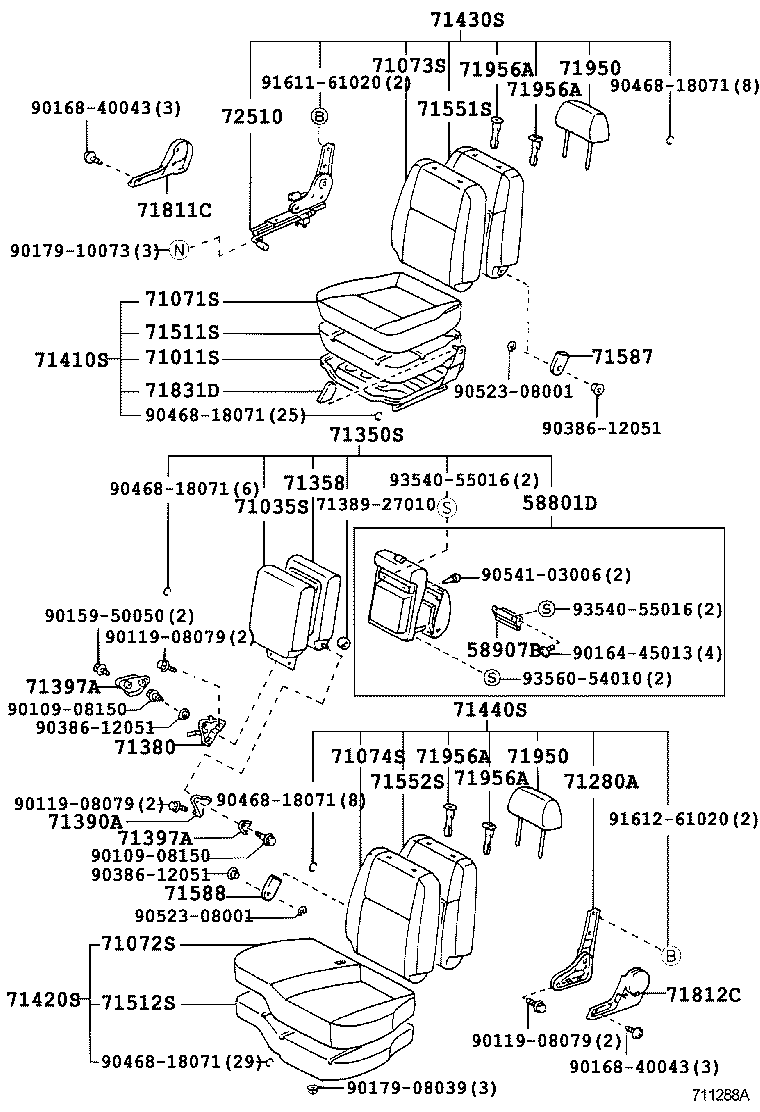

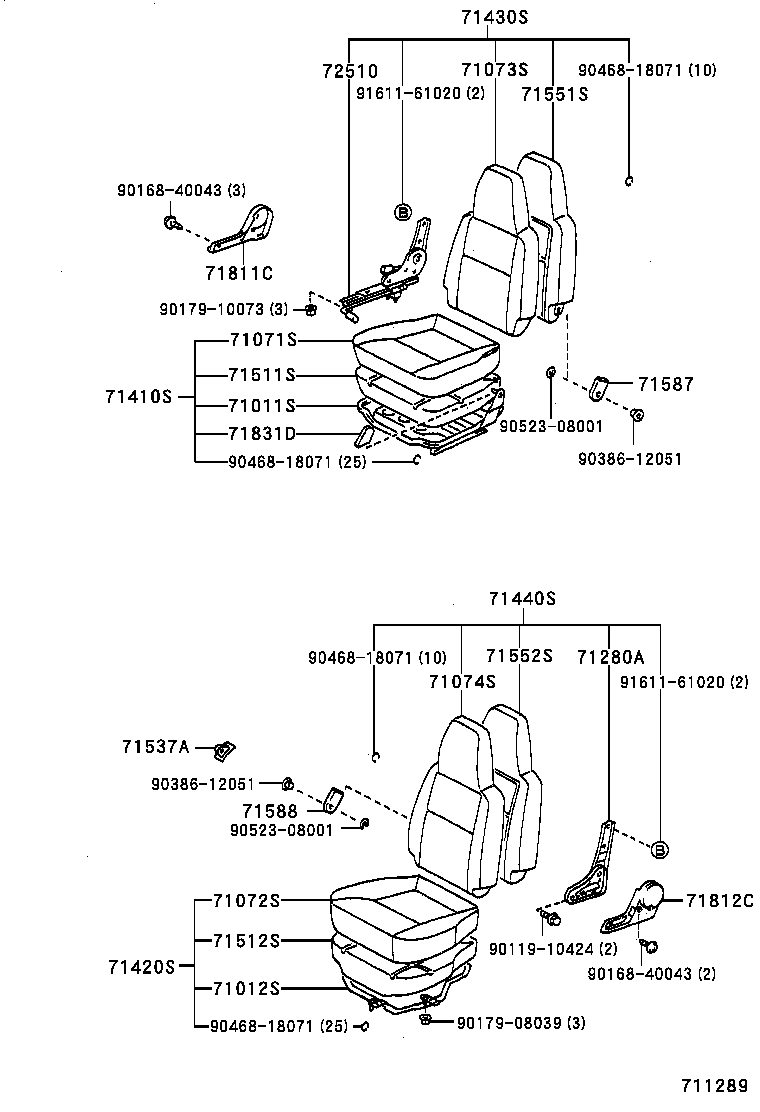

Seat & Seat Track

36 part groups · 9 illustrations

PNC	Description
58801D	Box Assy, Console
58907B	Hinge, Console Compartment Door
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71035S	Cover, Front Seatback, Center
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71280A	Hinge Assy, Front Seatback, LH
71350S	Back Assy, Front Seat, Center
71358	Pad, Center Seatback
71380	Hinge Assy, Center Seat, RH
71390A	Hinge Assy, Center Seat, LH
71397A	Cover, Center Seat Hinge
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71588	Protector, Front Seatback Edge, NO.2
71811C	Cover, Reclining Adjuster, RH
71812C	Cover, Reclining Adjuster, LH
71831D	Cover, Front Seat Hinge, RH
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72810C	Armrest Assy, Front Seat, Center
72830D	Armrest Assy, Rear Seat, RH
78769	Tray, Sub Seatback

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
