Toyota Lite/Townace Truck

1986-10 → 1999-06 · chassis CM5#,6#,KM5#,YM55,6# · catalogue 641110 · Japan

Discontinued model Data version 1999-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

8 part groups · 6 illustrations

Illustrations

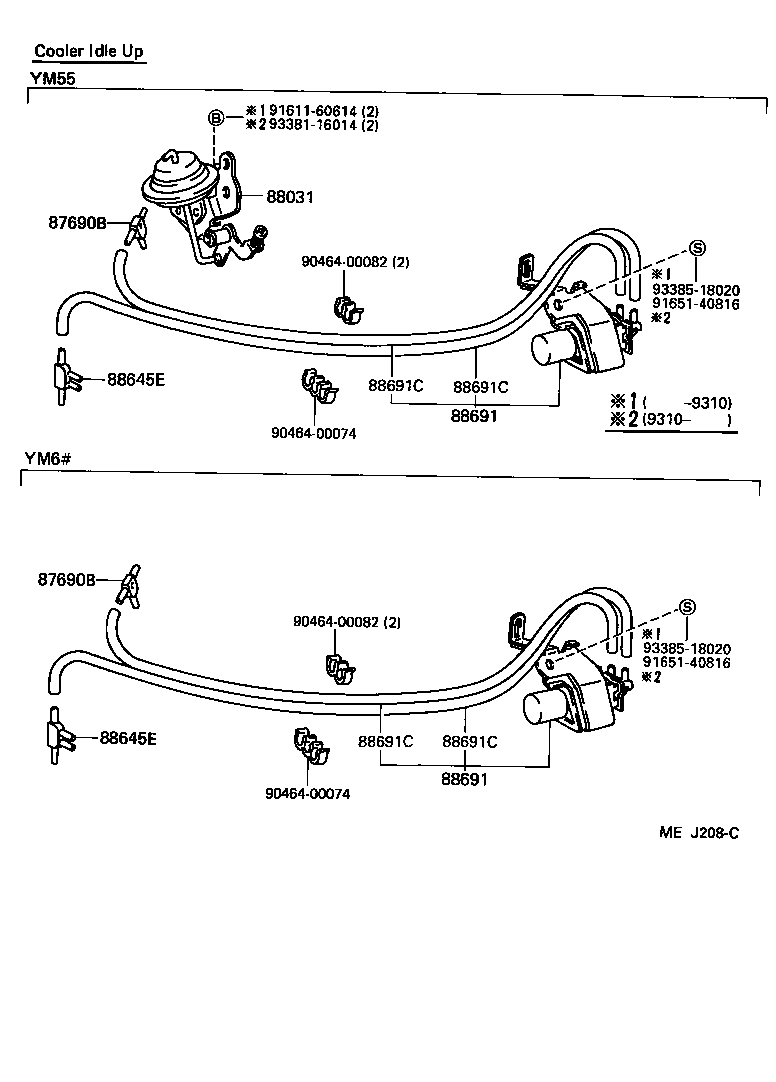

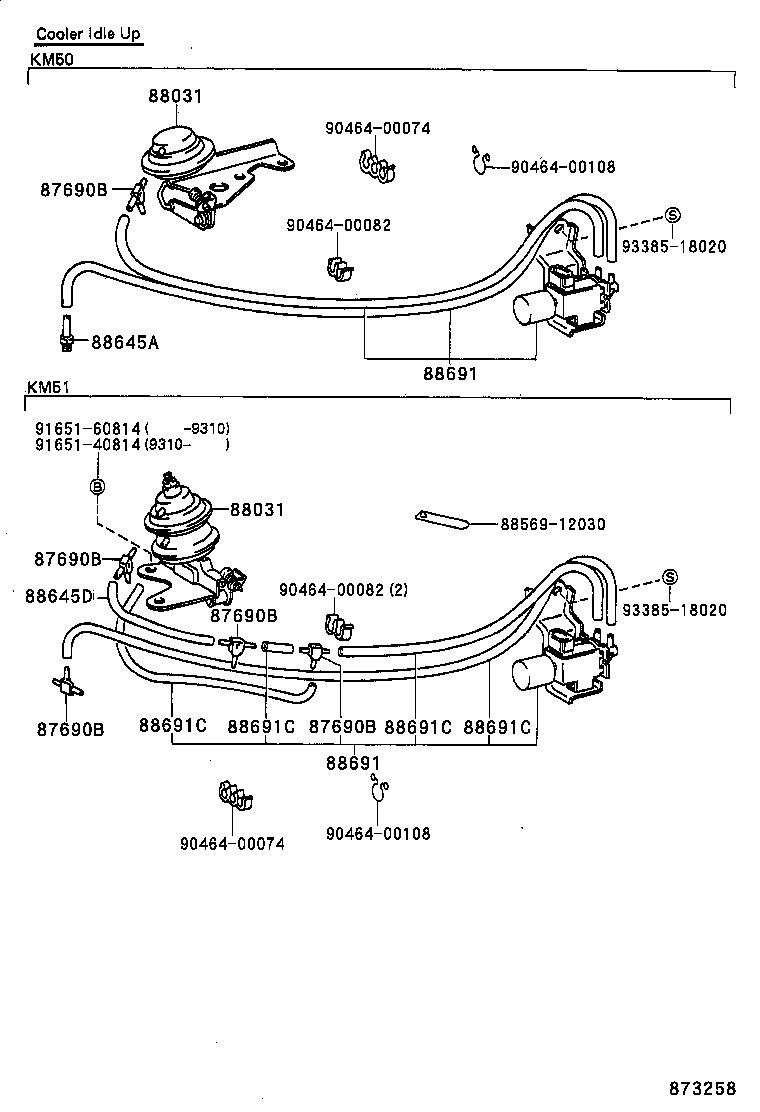

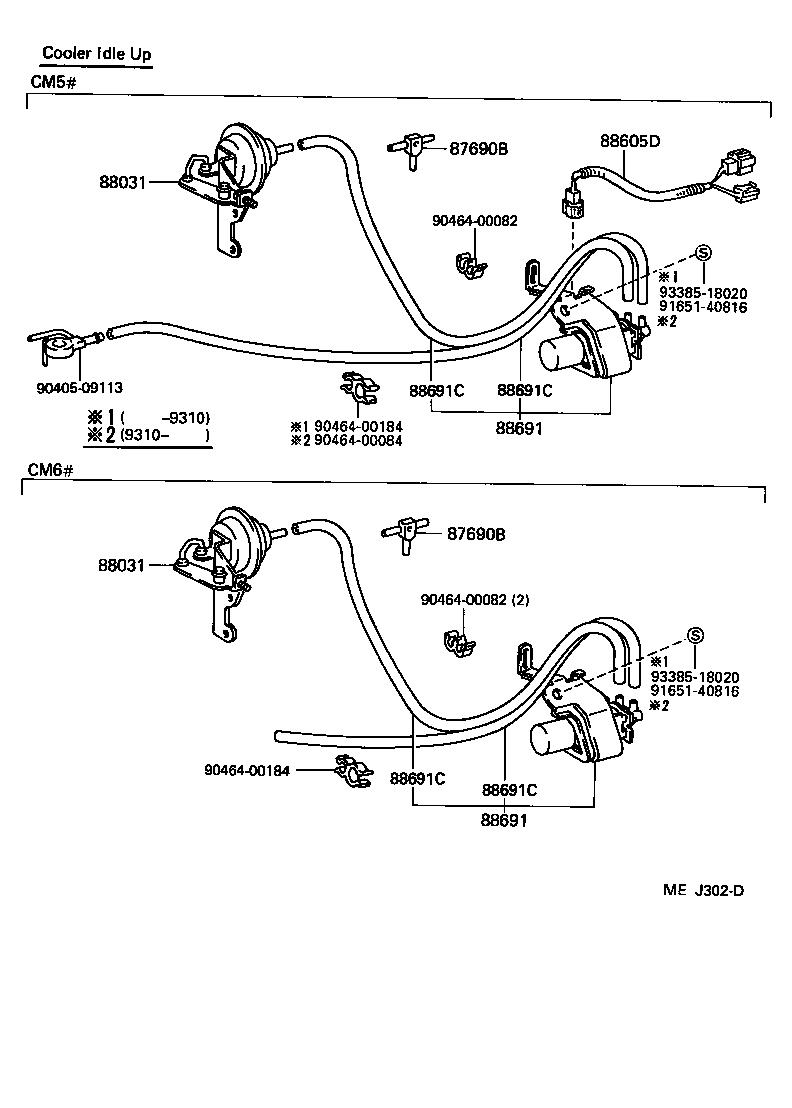

Figure MEH974E MEH974E 1986-10 → — Figure 873258 873258 1986-10 → — Figure MEH978D MEH978D 1986-10 → — Figure MEJ208C MEJ208C 1986-10 → — Figure MEH979E MEH979E 1986-10 → — Figure MEJ302D MEJ302D 1986-10 → —

Part groups

PNCDescription
87690B Way, 3
88031 Actuator Set, Idle-up
88605D Wire, Air Conditioner
88645A Union (FOR IDLE UP DEVICE)
88645D Hose (FOR IDLE UP DEVICE)
88645E Joint, NO.2 (FOR IDLE UP DEVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
