Toyota Lite/Townace

1999-06 → 2007-08 · chassis CM7#,8#,KM7#,8# · catalogue 641120 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 12 illustrations

Illustrations

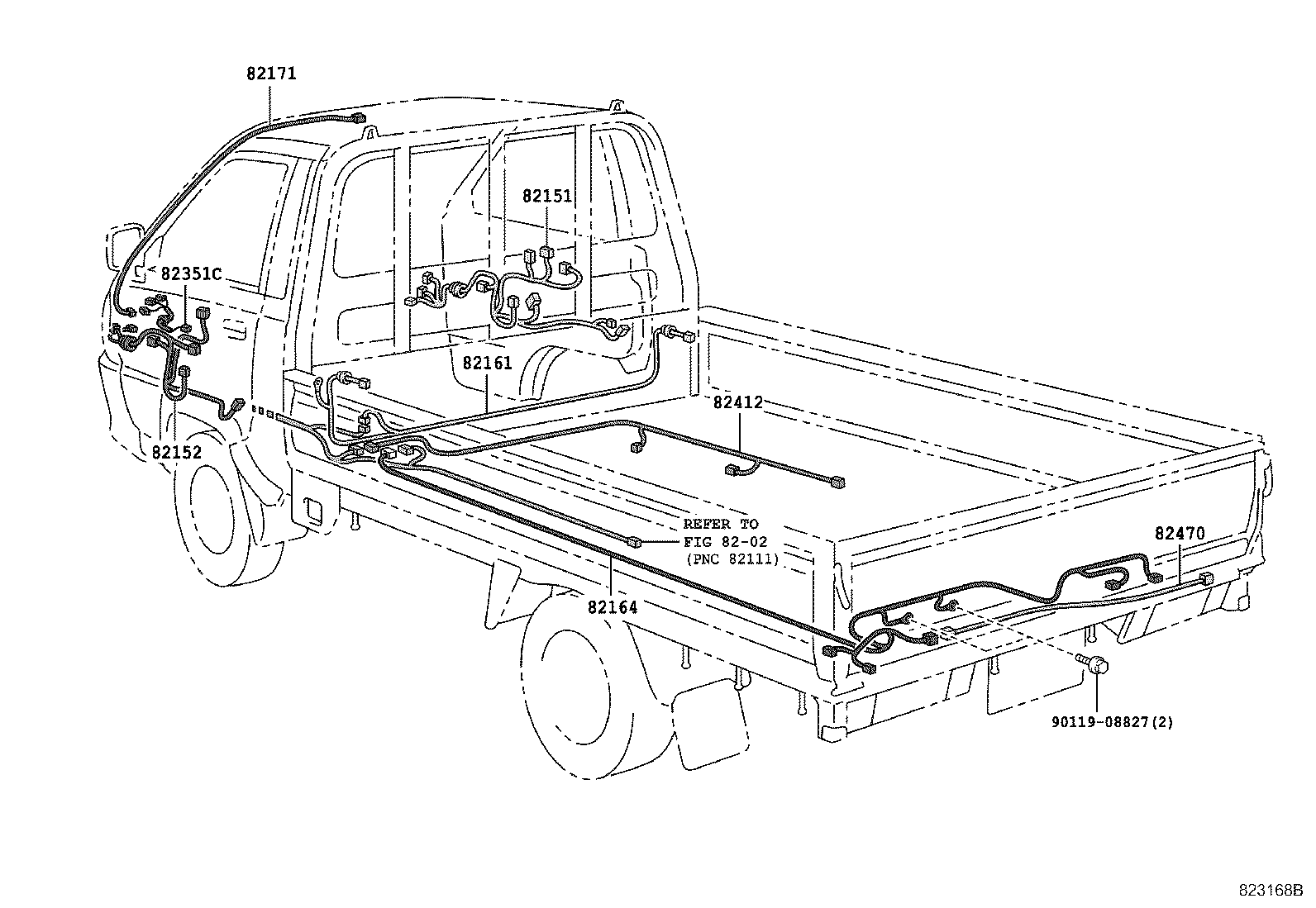

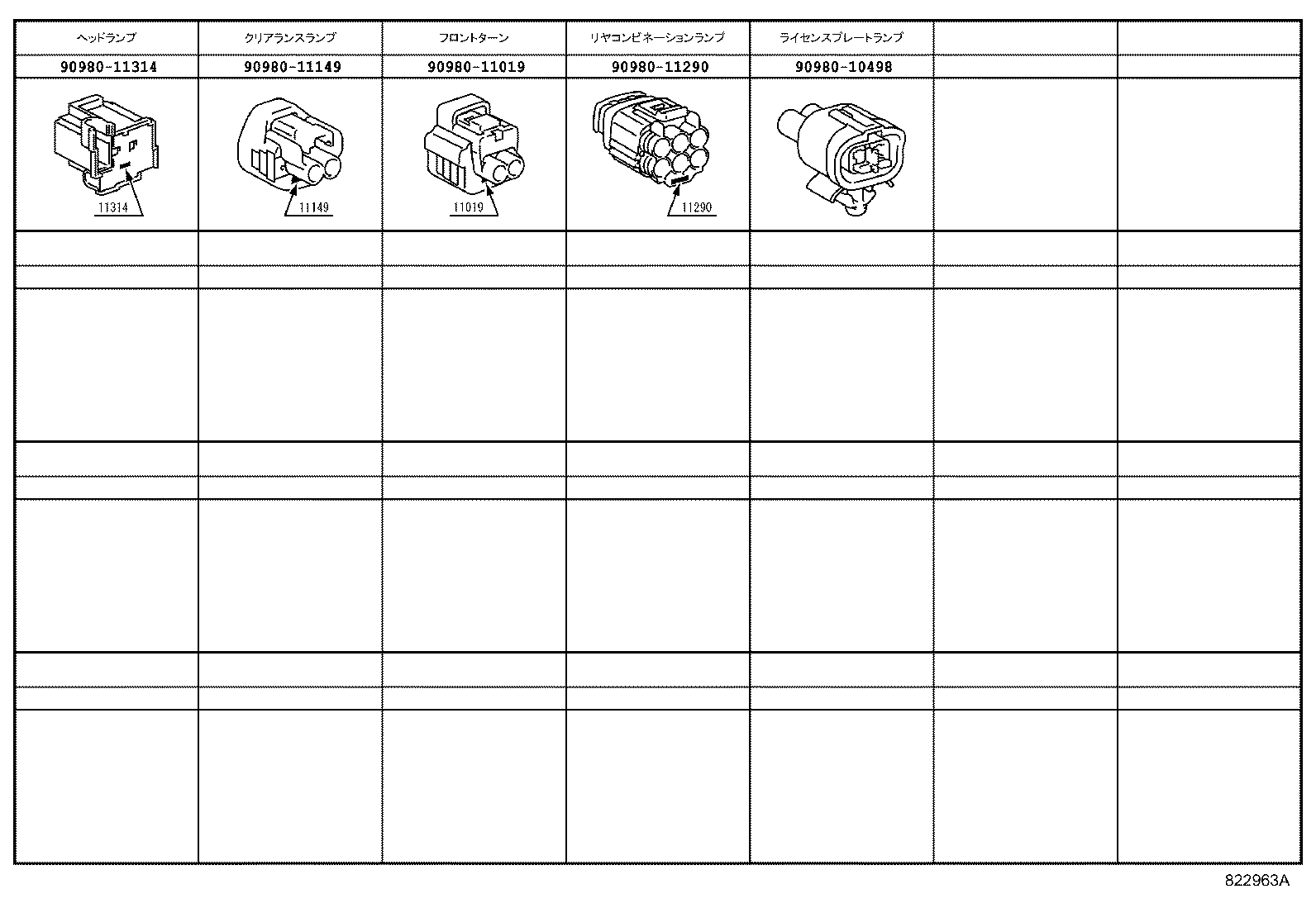

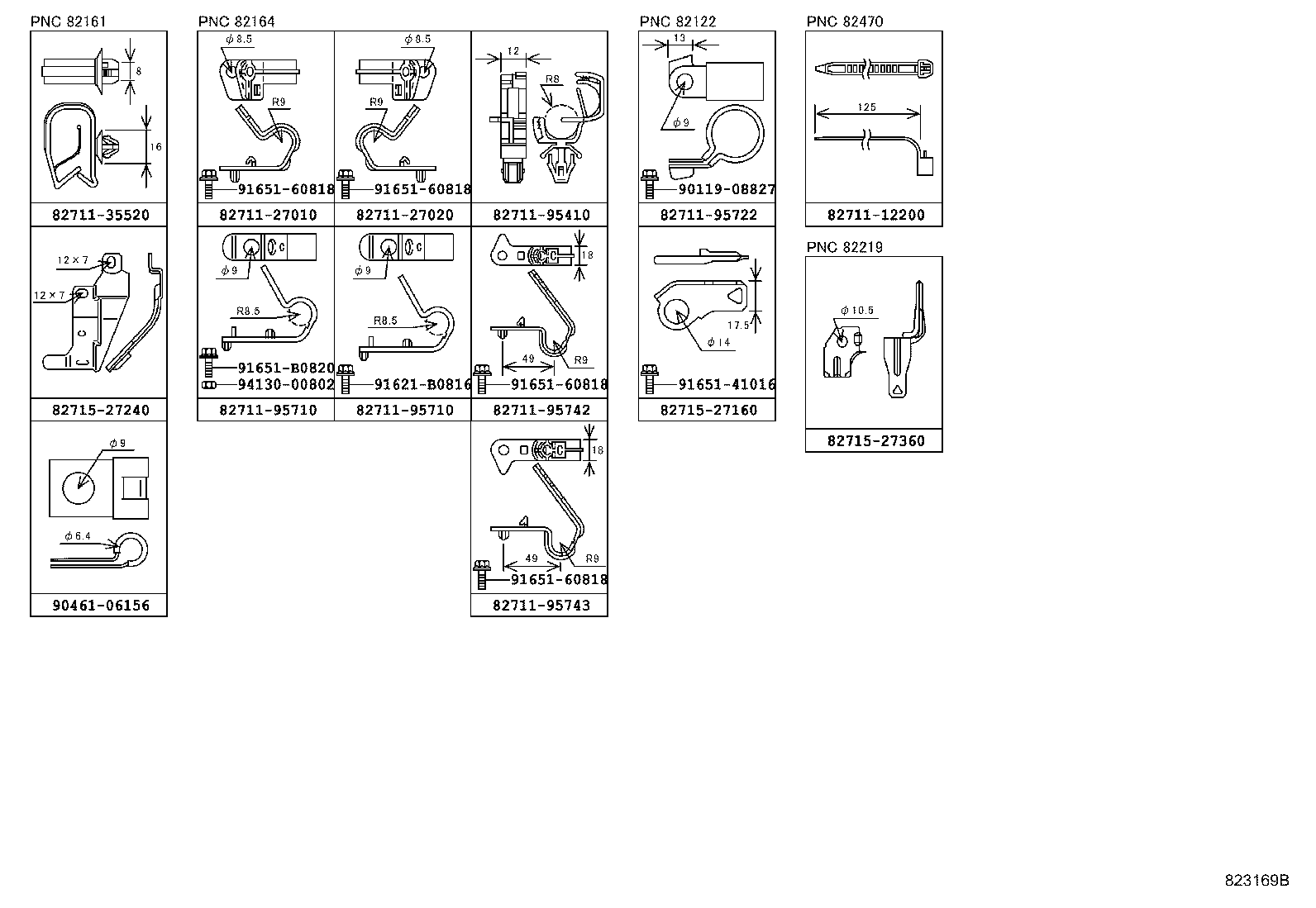

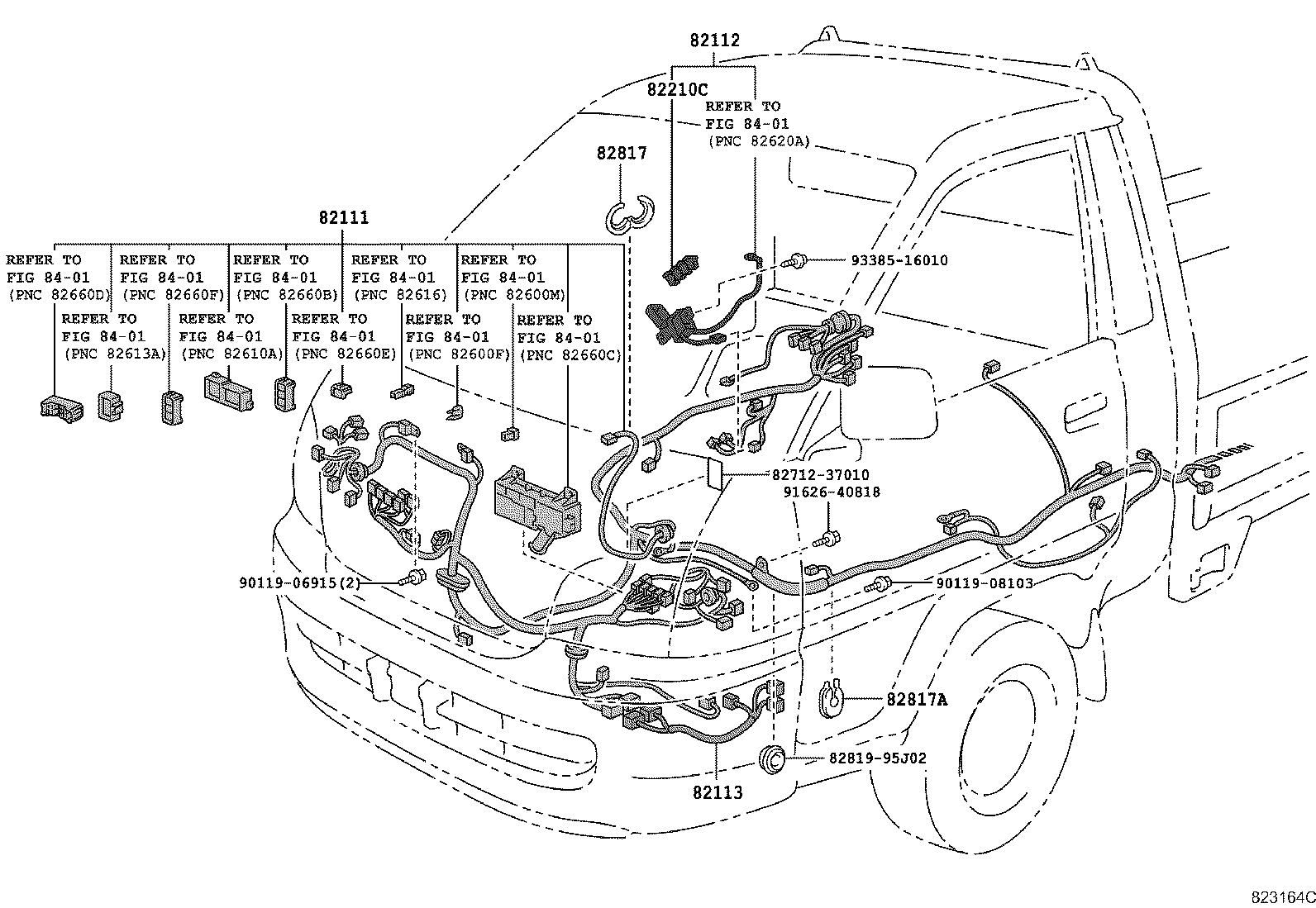

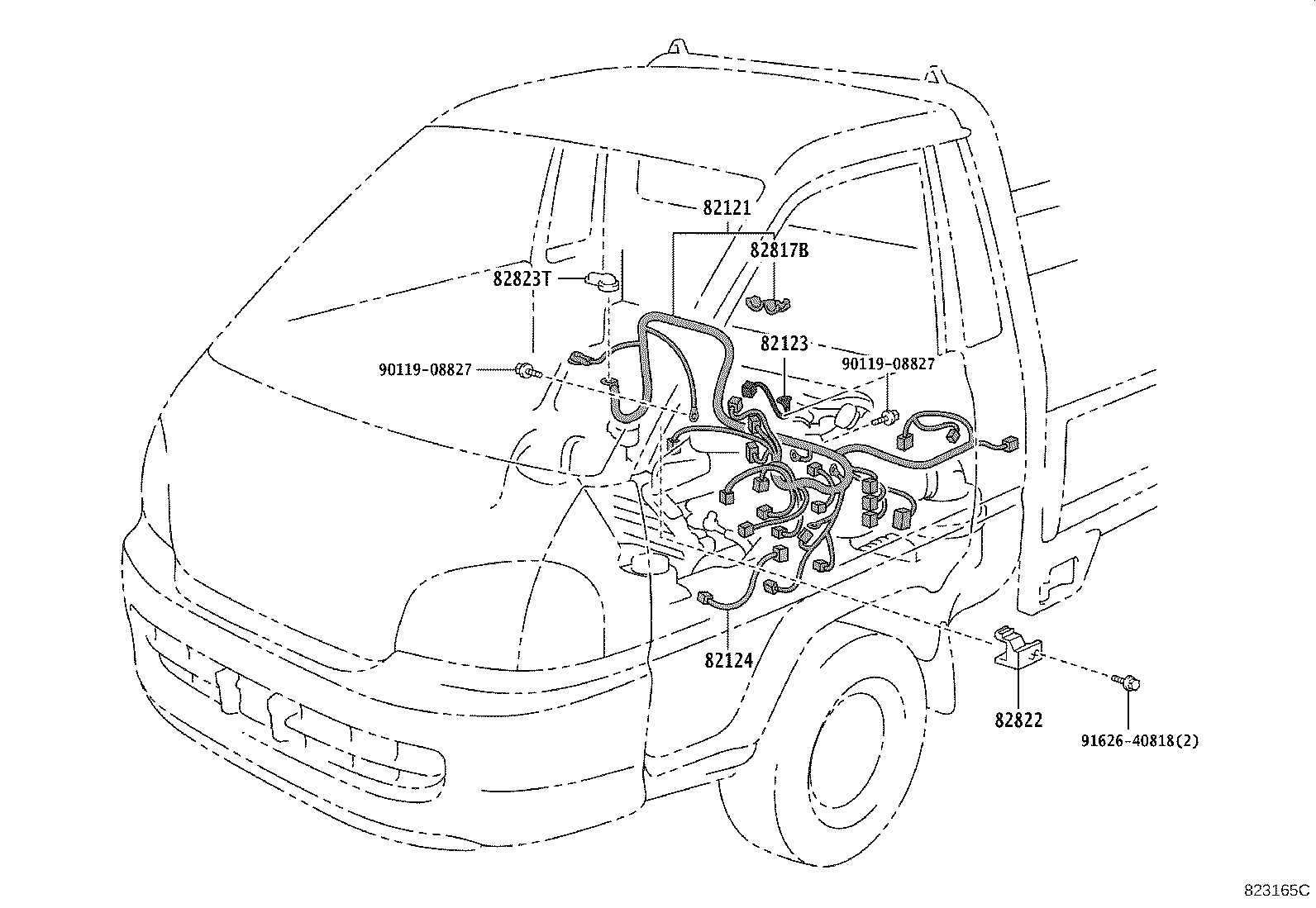

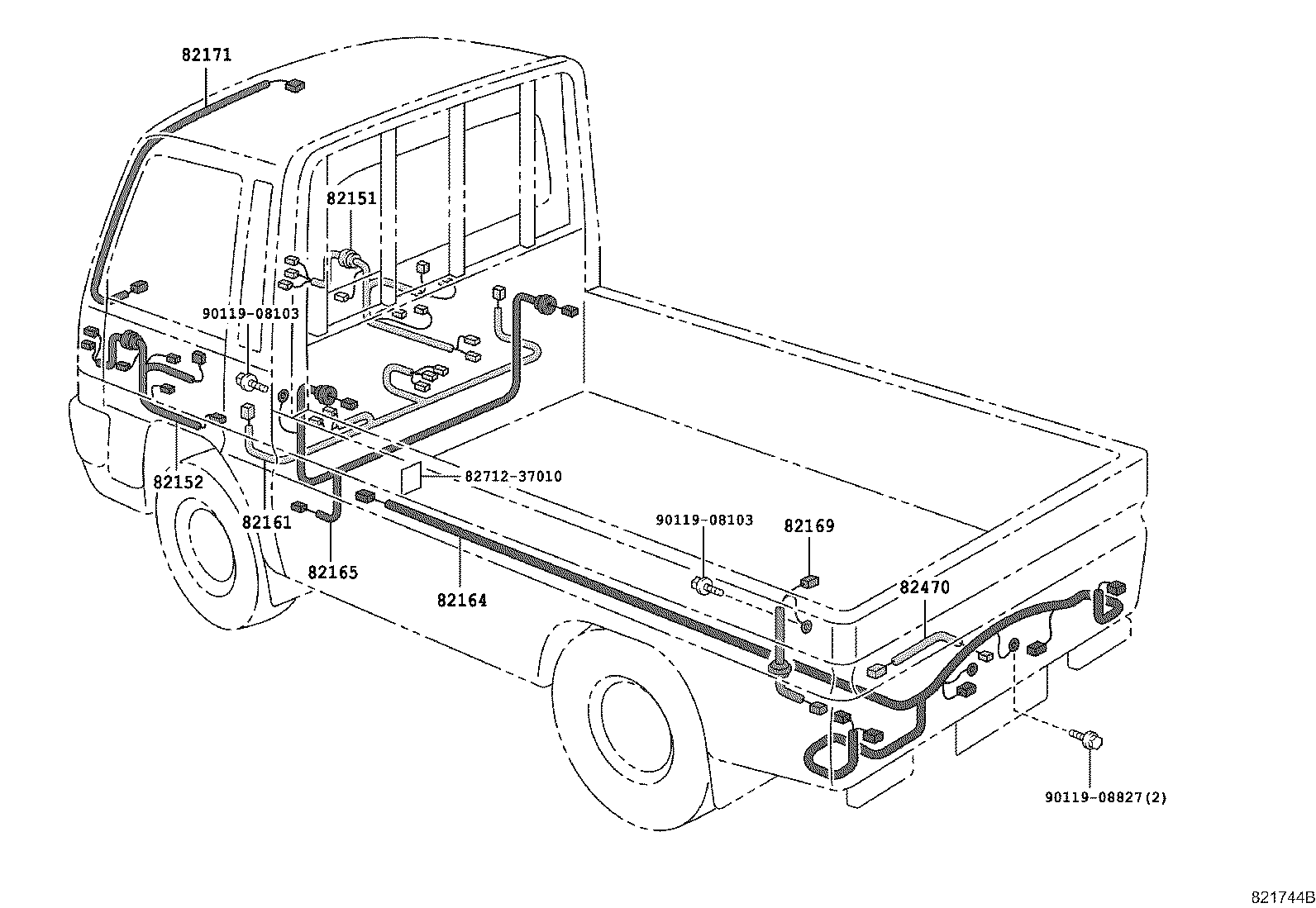

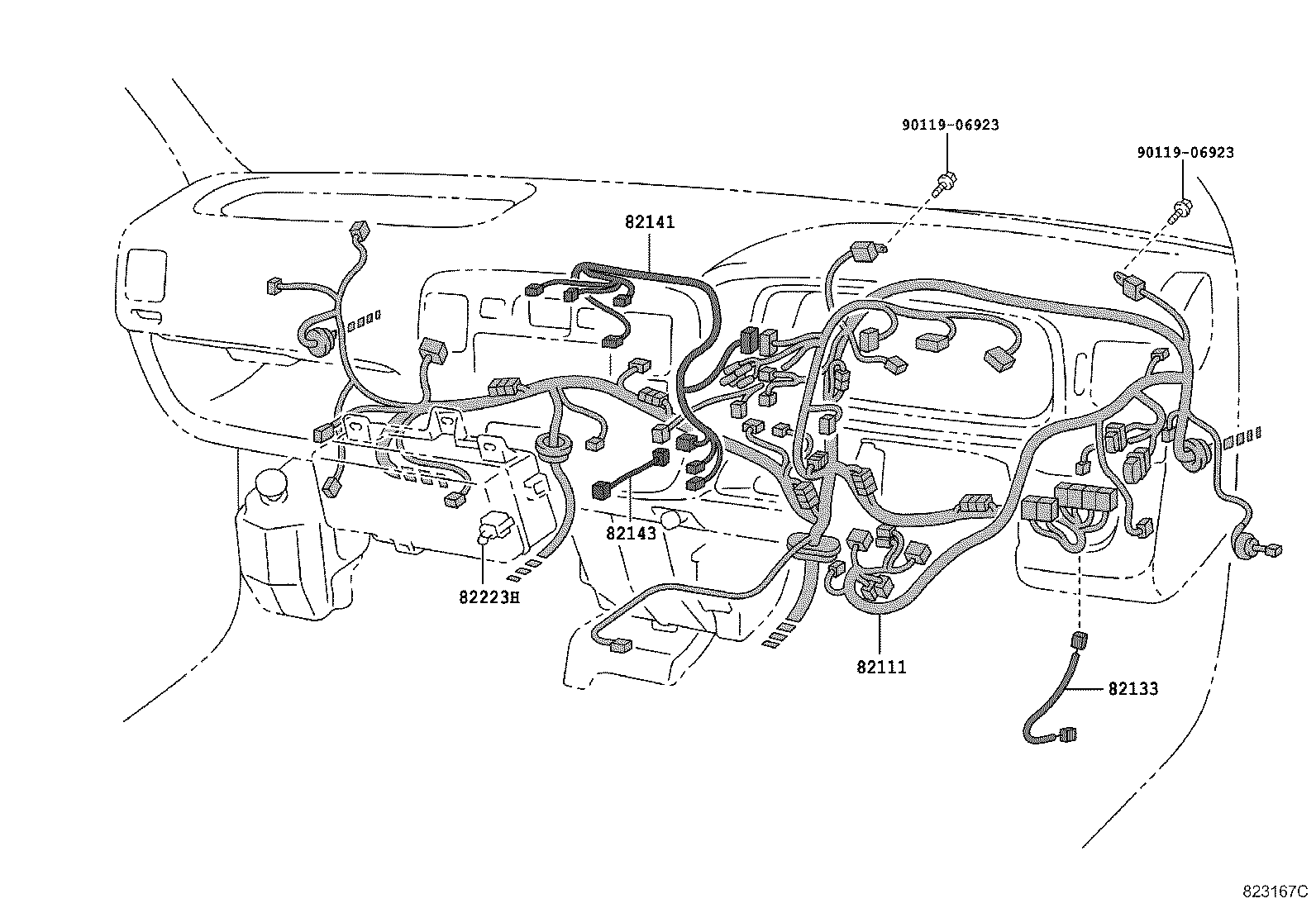

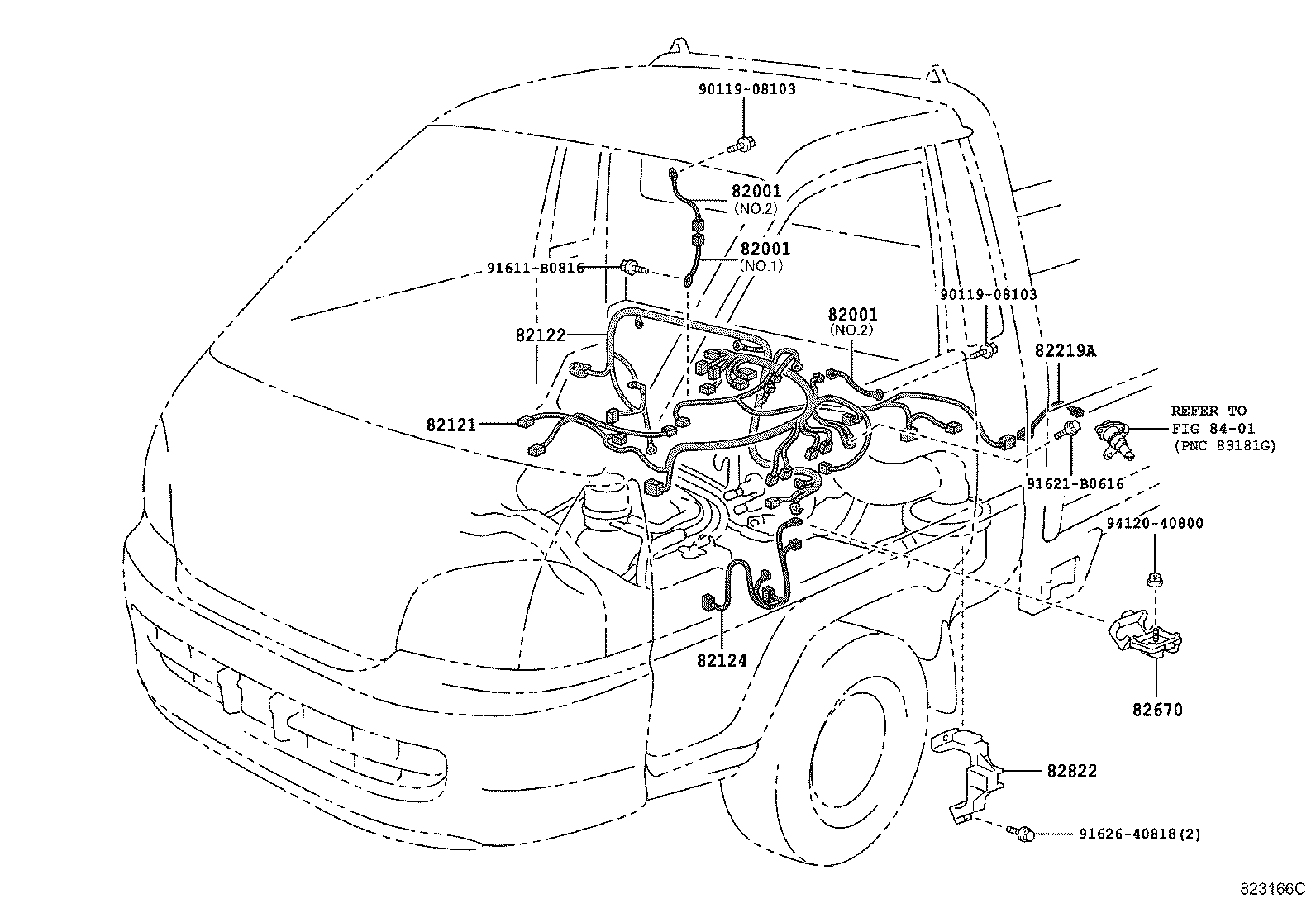

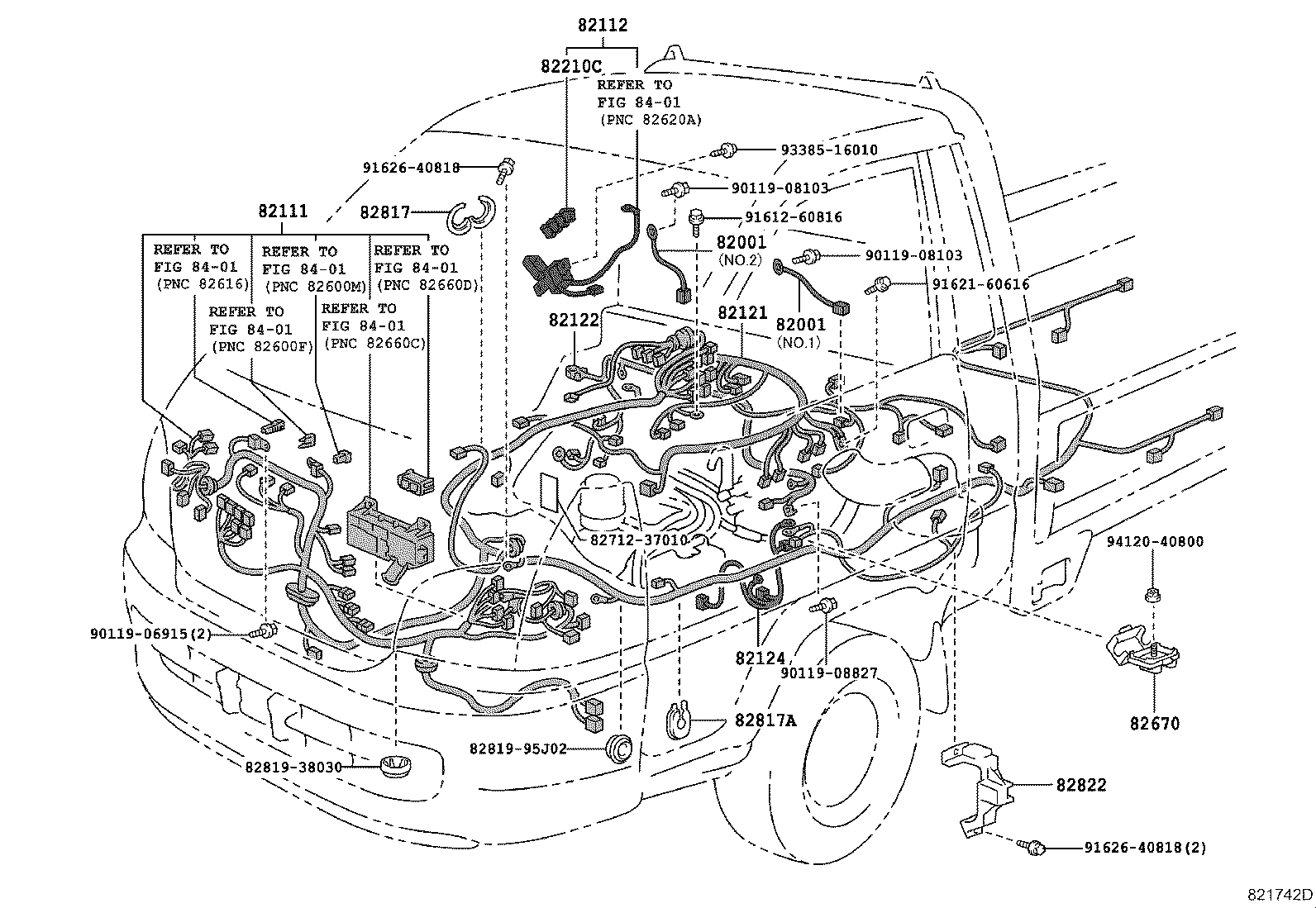

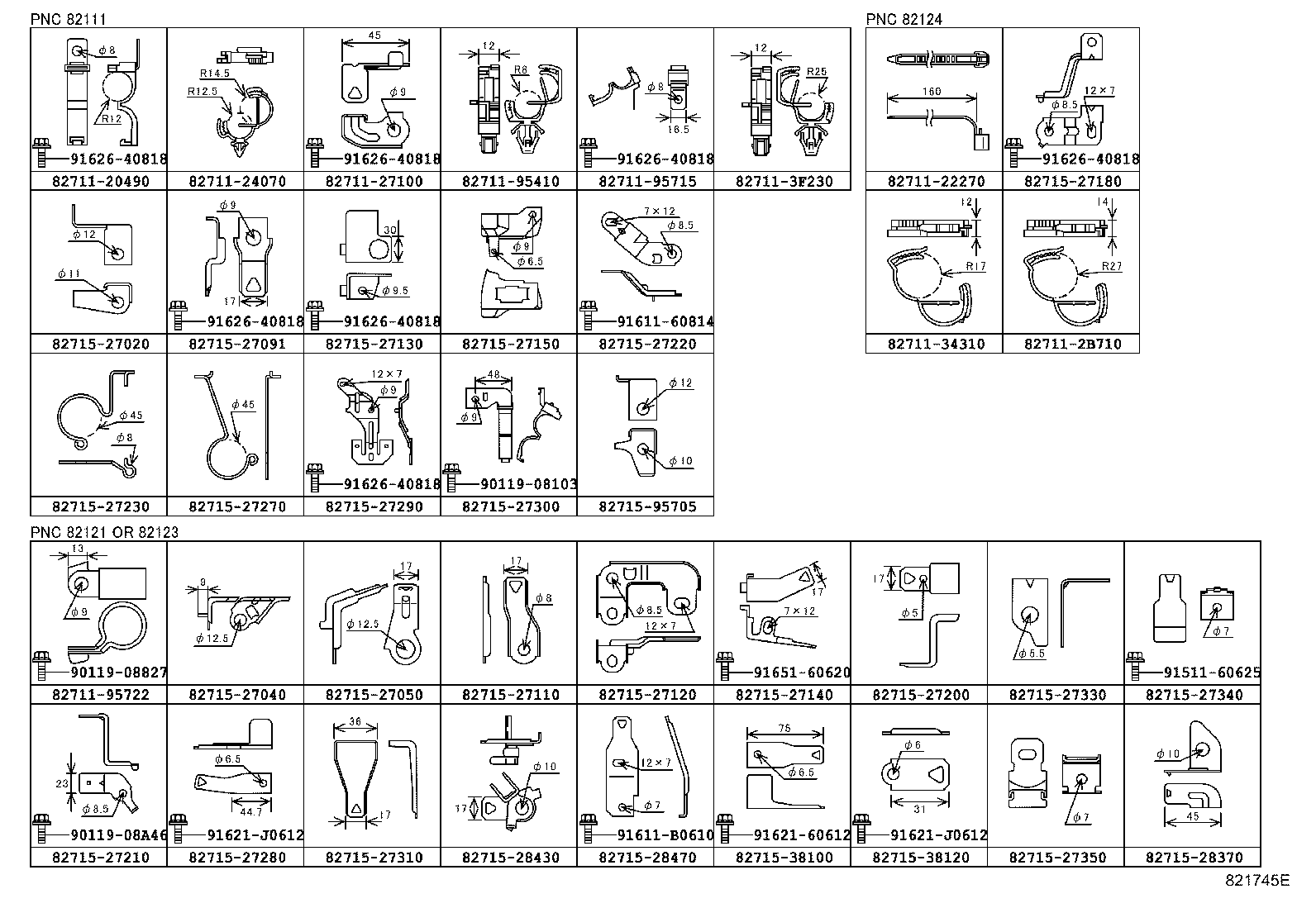

Figure 821741E 821741E 1999-06 → 2002-08 Figure 821742D 821742D 1999-06 → 2002-08 Figure 823164C 823164C 2002-08 → — Figure 823165C 823165C 2002-08 → — Figure 823166C 823166C 2002-08 → — Figure 821743A 821743A 1999-06 → 2002-08 Figure 823167C 823167C 2002-08 → — Figure 821744B 821744B 1999-06 → 2002-08 Figure 823168B 823168B 2002-08 → — Figure 821745E 821745E 1999-06 → — Figure 823169B 823169B 1999-06 → — Figure 822963A 822963A 1999-06 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82210C Fusible Link
82219A Wire, Sensor
82223H Wire, Fuse Block
82351C Wire, Courtesy Lamp Switch (FOR FRONT RH DOOR)
82412 Wire, Fuel Gage
82470 Wire Assy, License Lamp Feed
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82822 Bracket,Connector Block
82823T Cap, Alternator Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
