Toyota Lite/Townace Noah,V
1996-10 → 2007-08 · chassis CR4#,5#,KR4#,52,SR40,50 · catalogue 651150 · Japan
Discontinued model
Data version 2008-04
Mirror

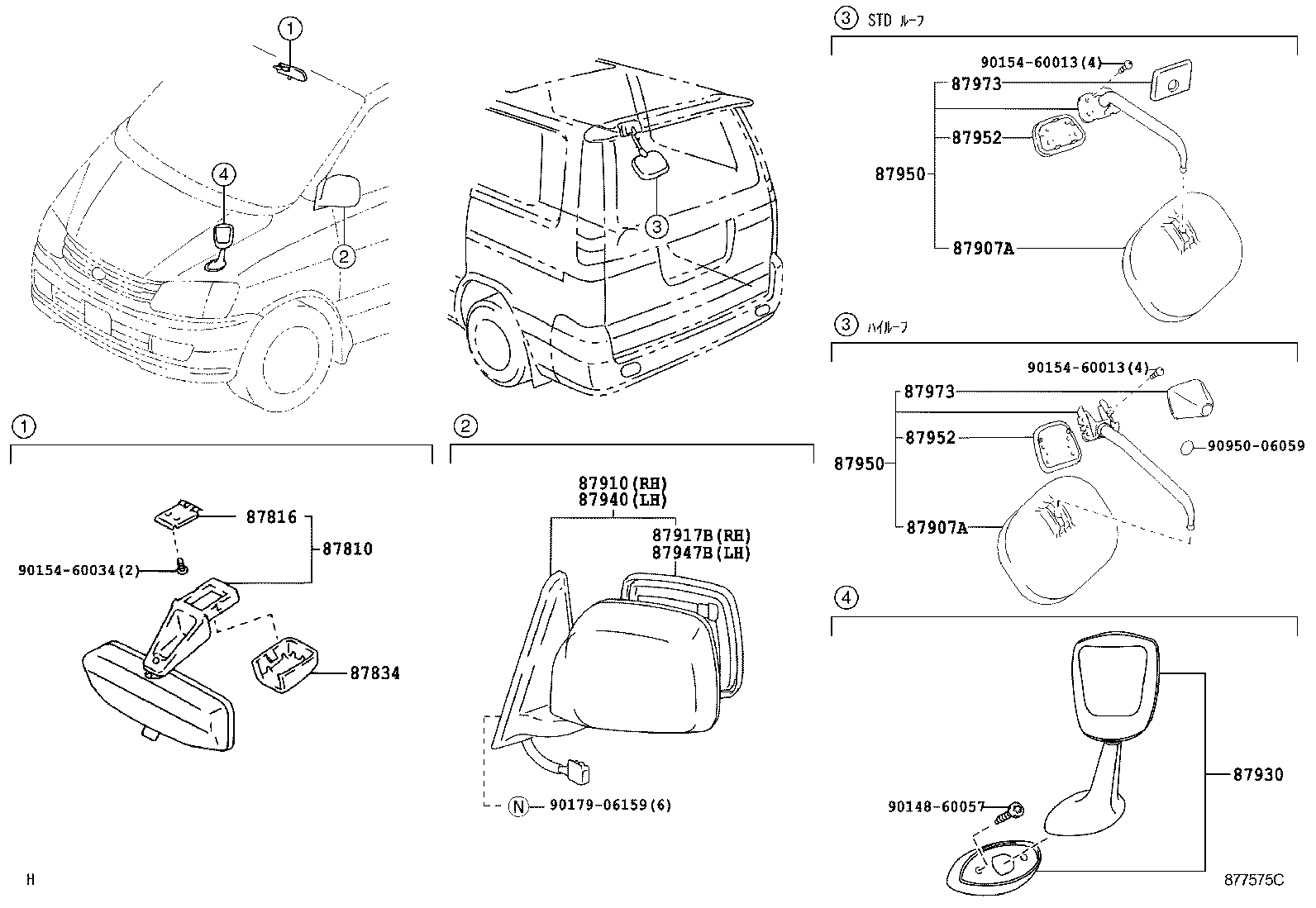

12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87816 | Spring, Inner Rear View Mirror |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87907A | Mirror Sub-assy, Outer Under Rear View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87917B | Mirror, Outer Rear View, RH |
| 87930 | Device Assy, Front Fender Side View, LH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87947B | Mirror, Outer Rear View, LH |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87952 | Gasket, Outer Under View Mirror Base |
| 87973 | Cover, Outer Under RR View Mirror |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
